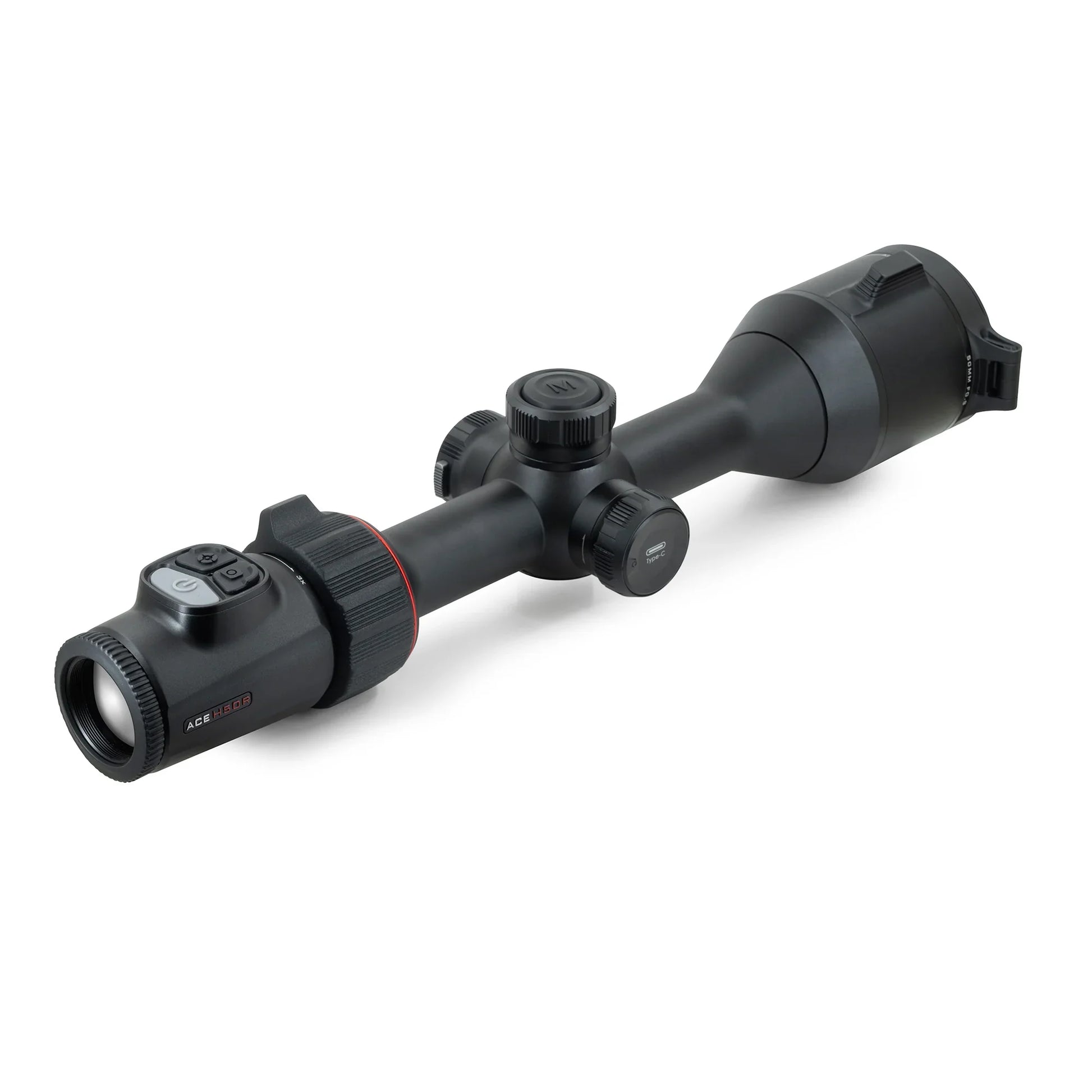

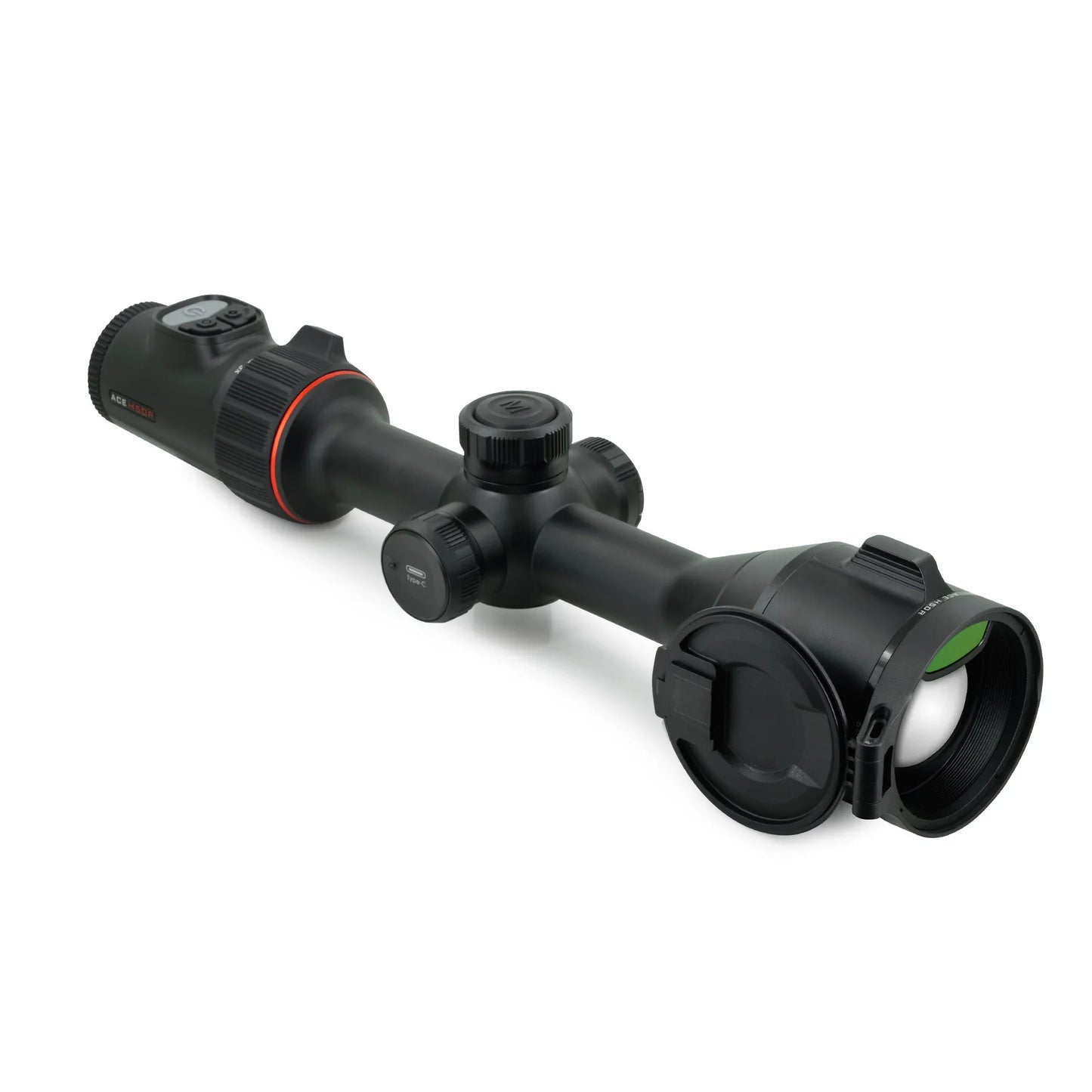

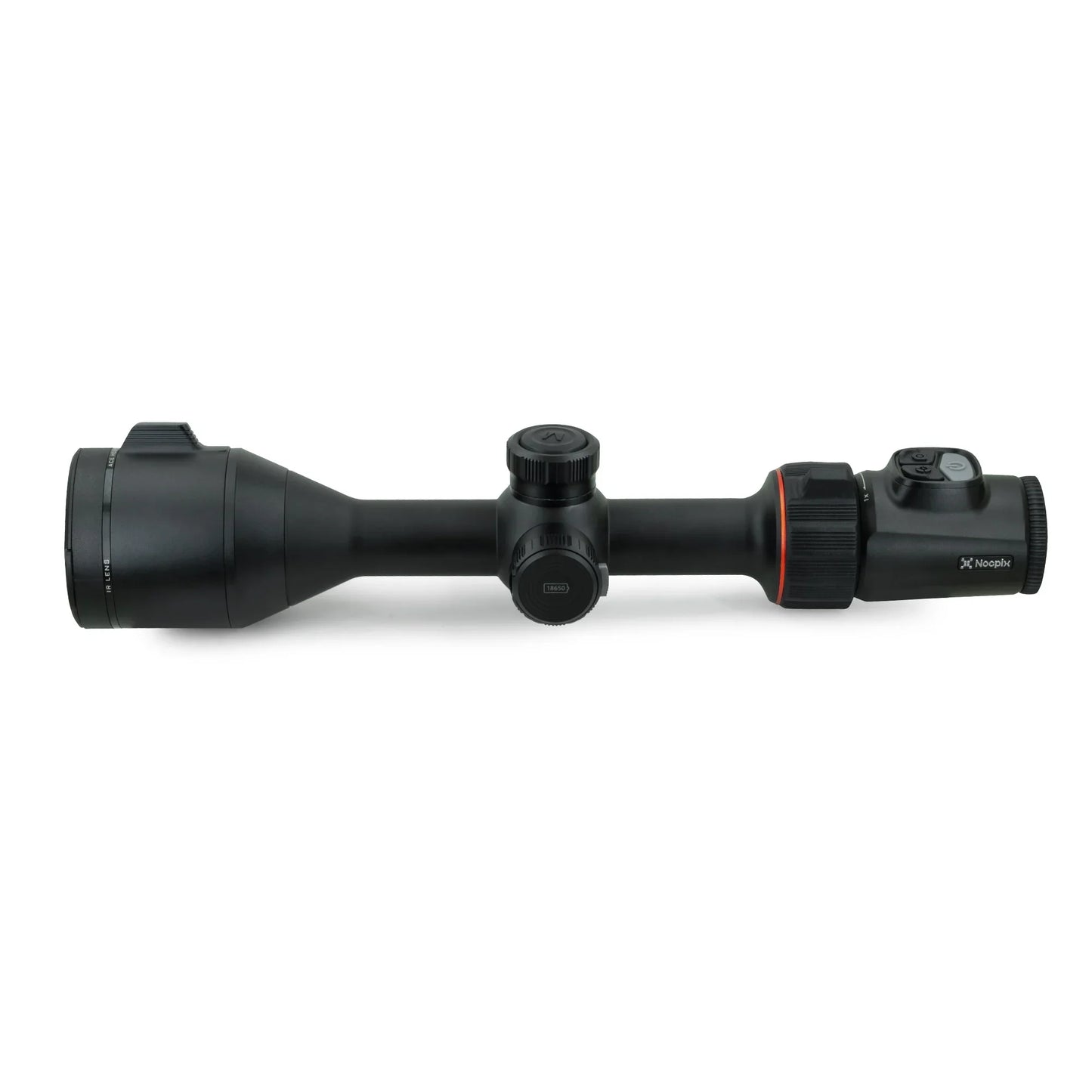

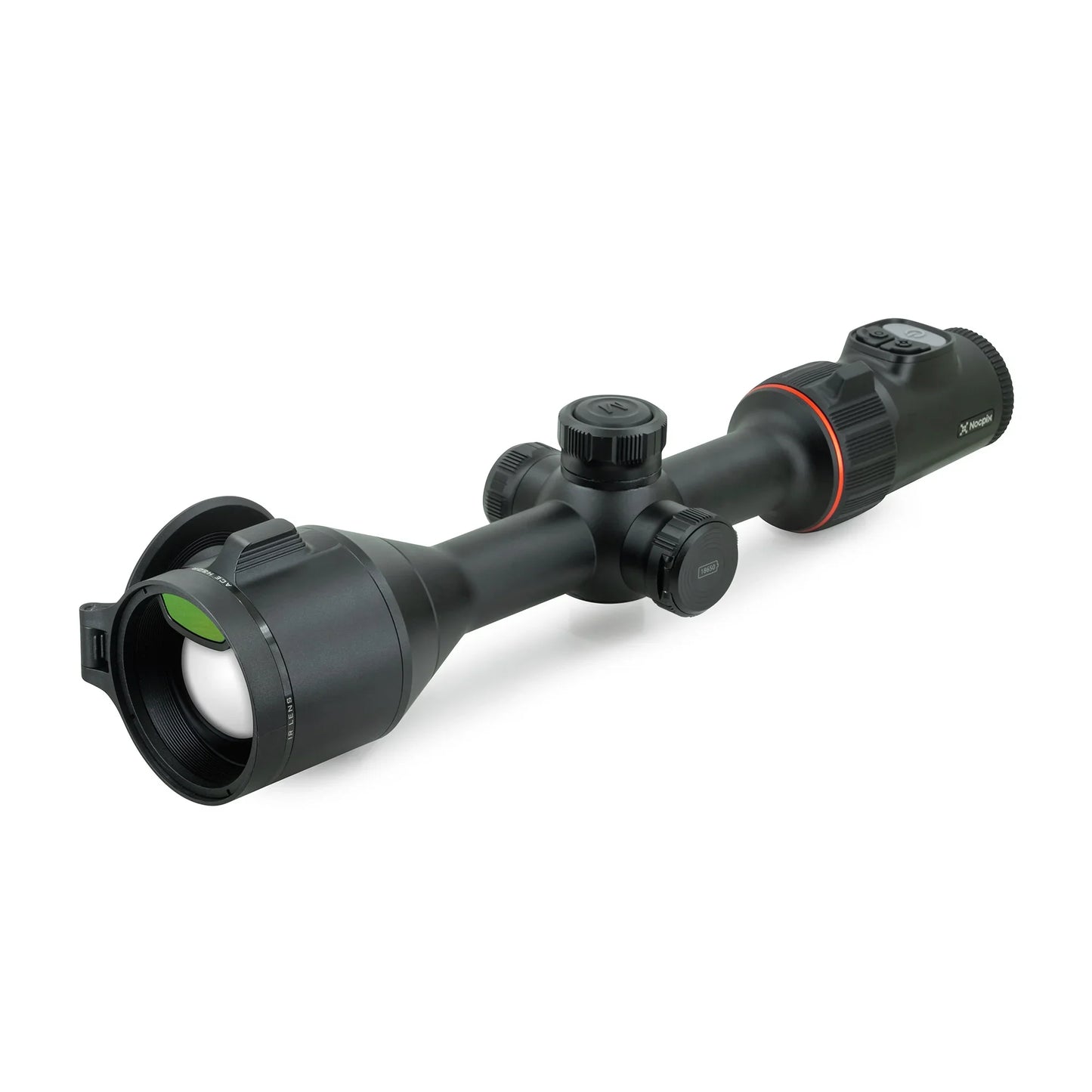

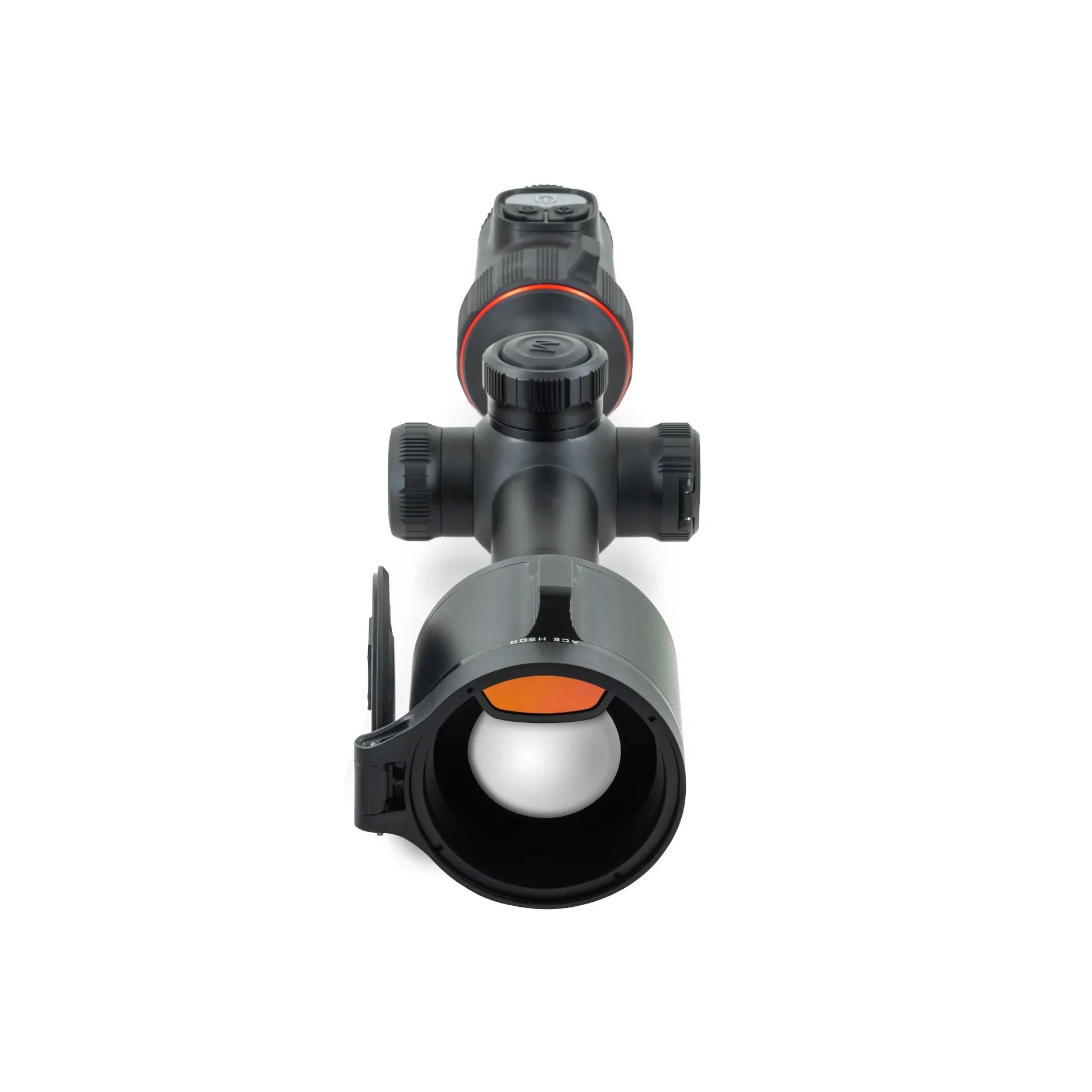

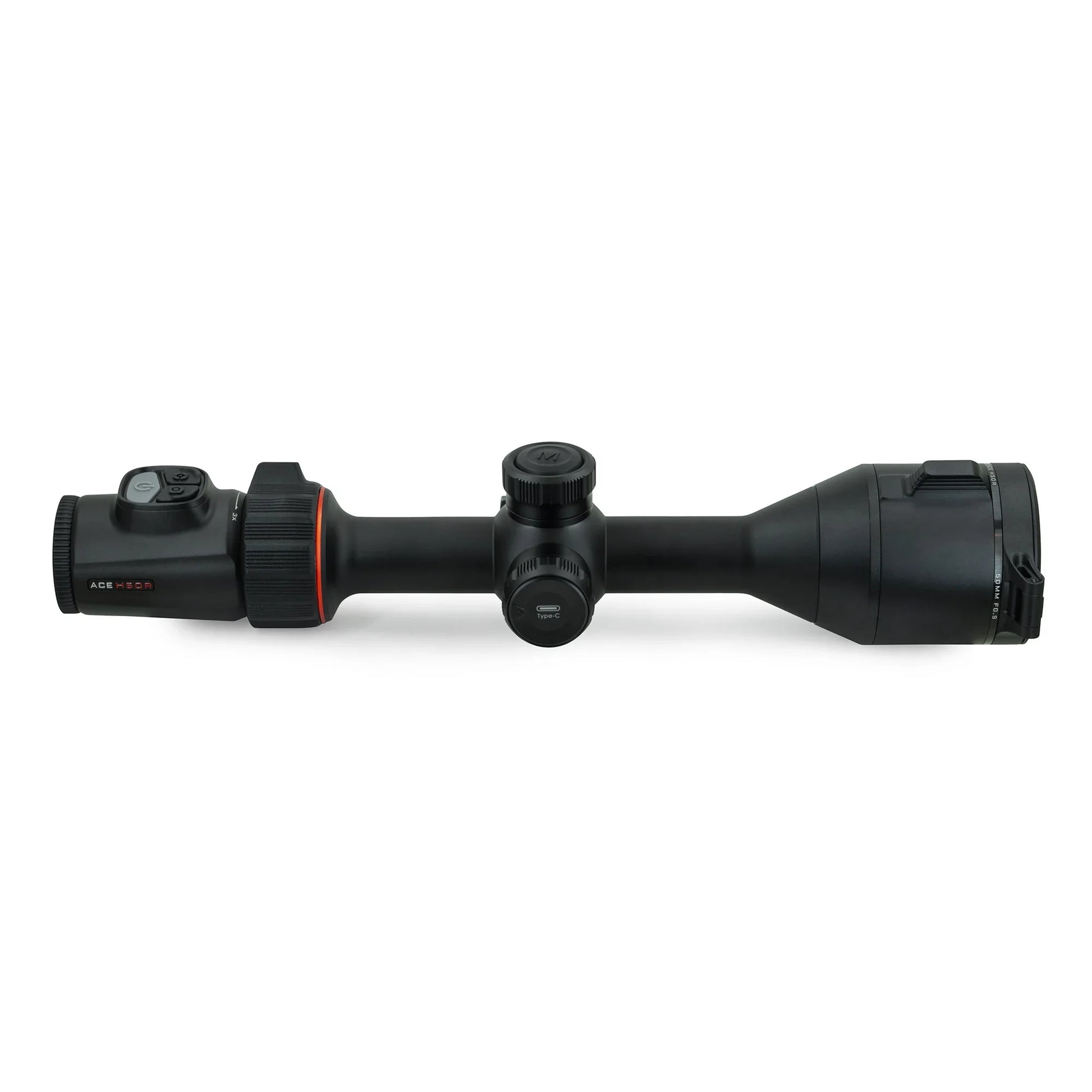

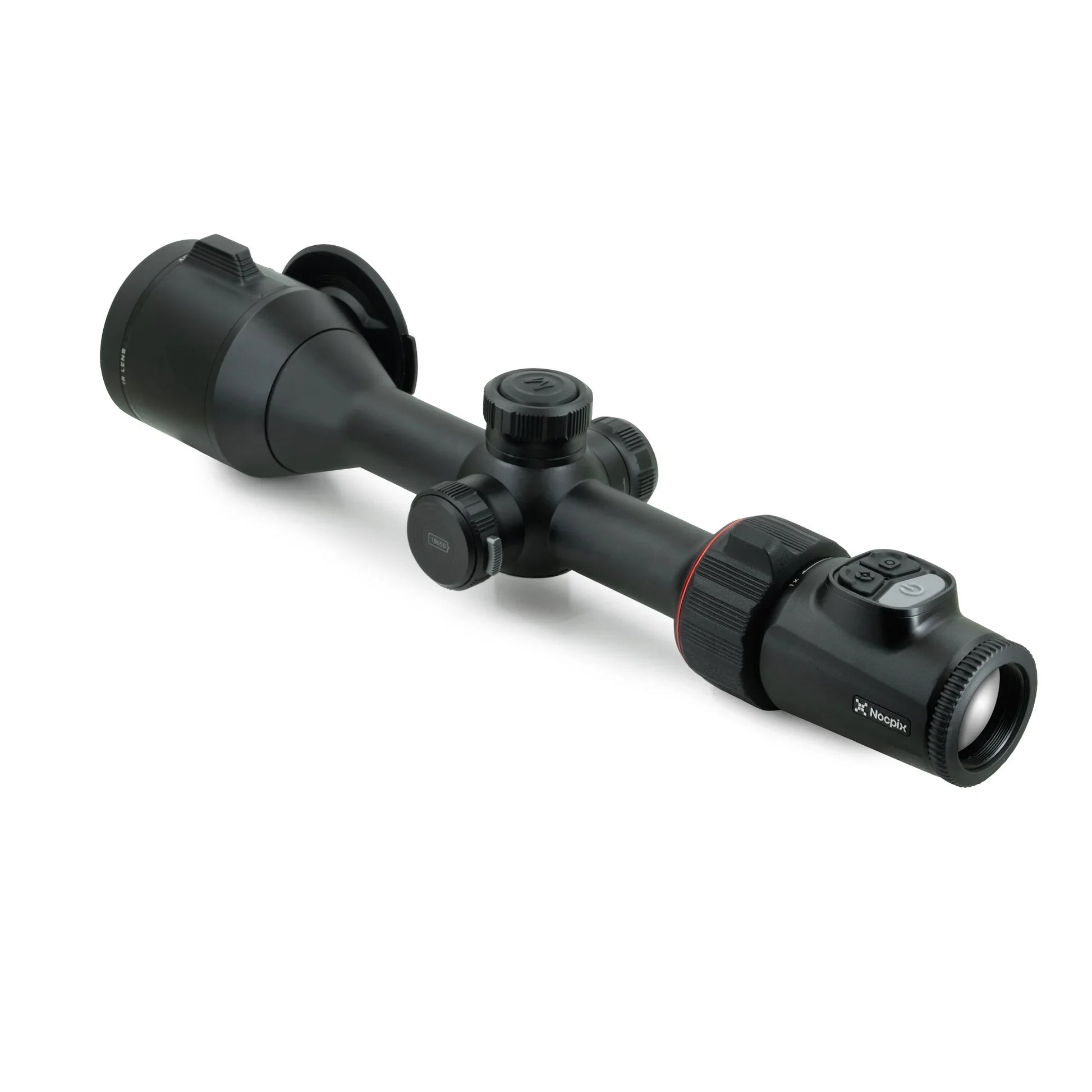

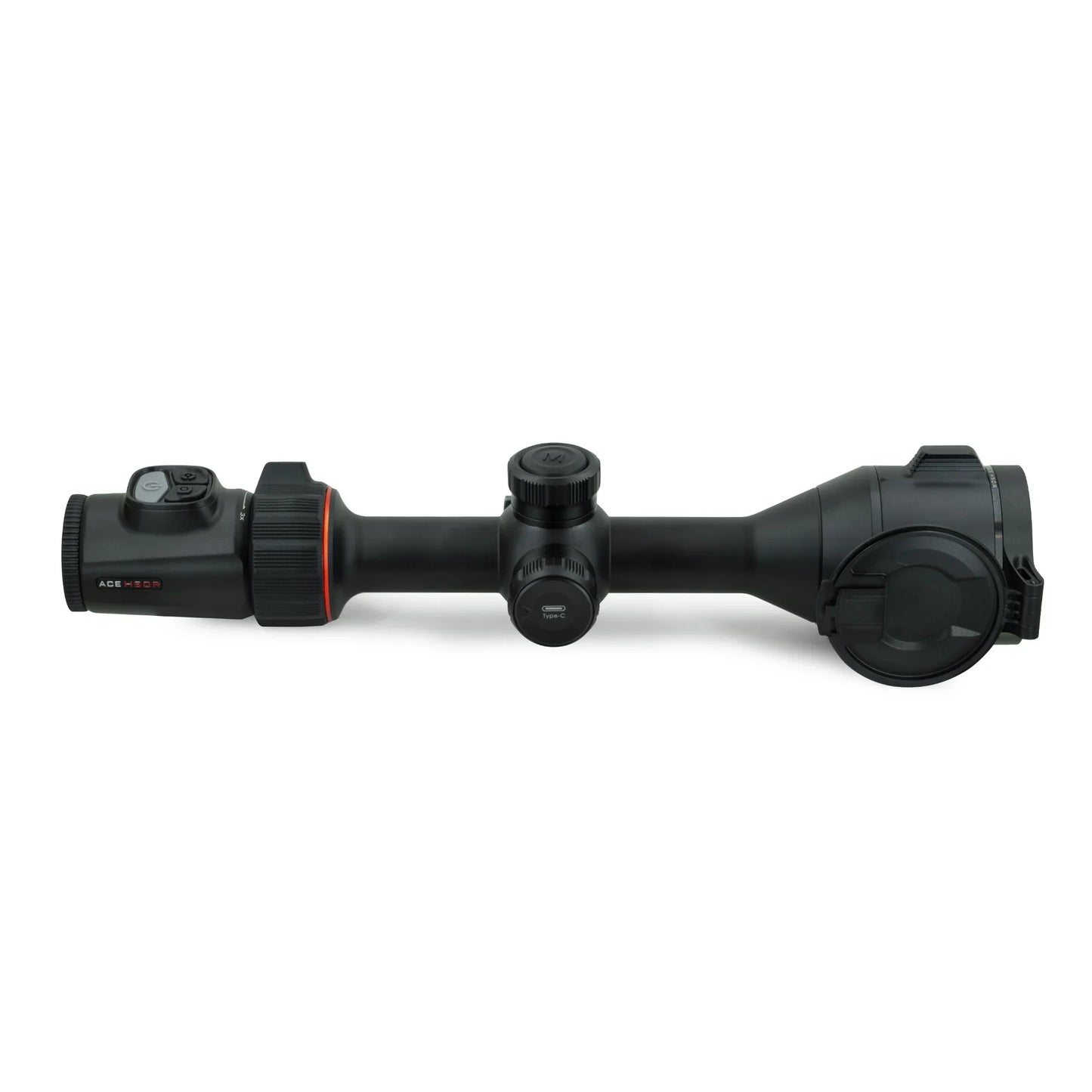

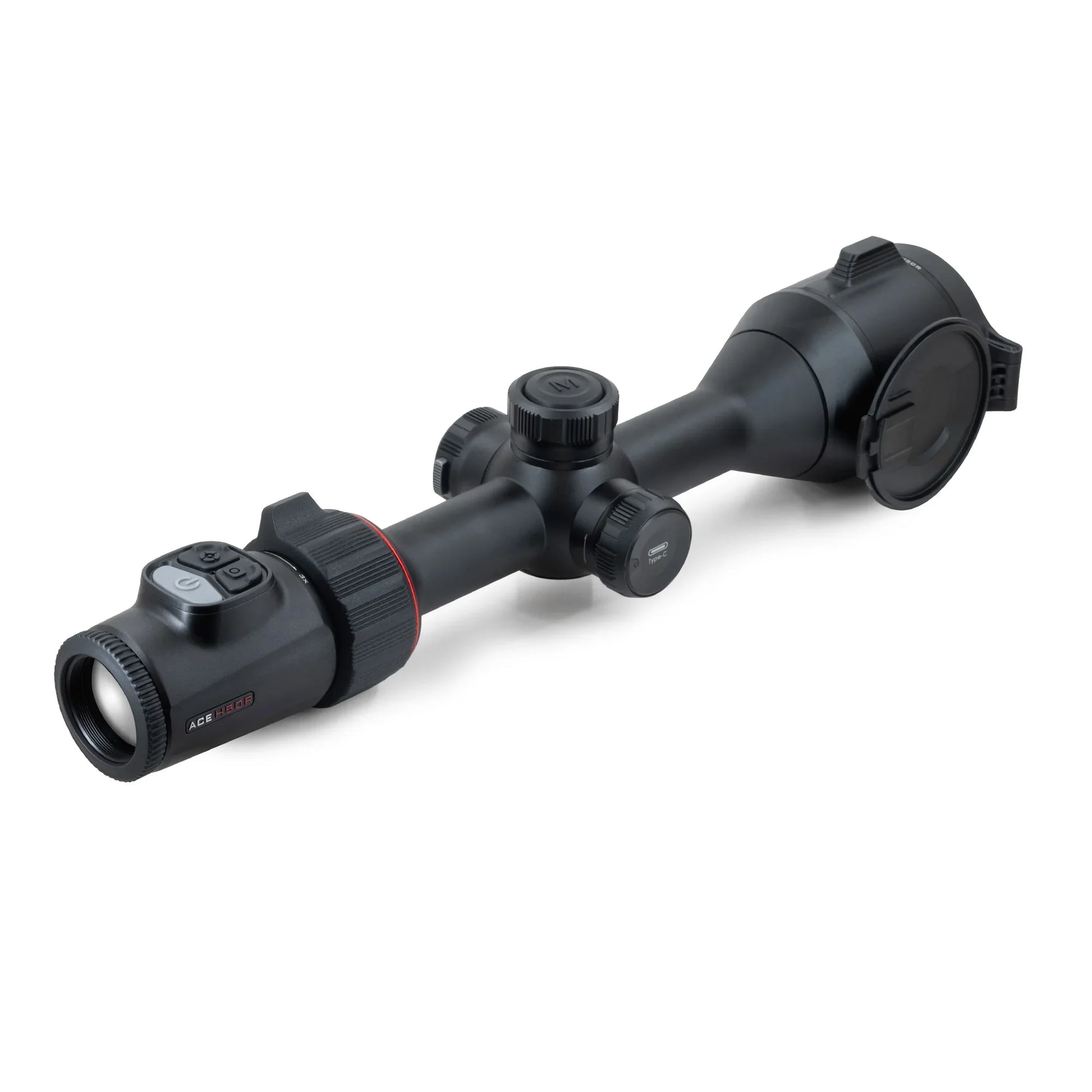

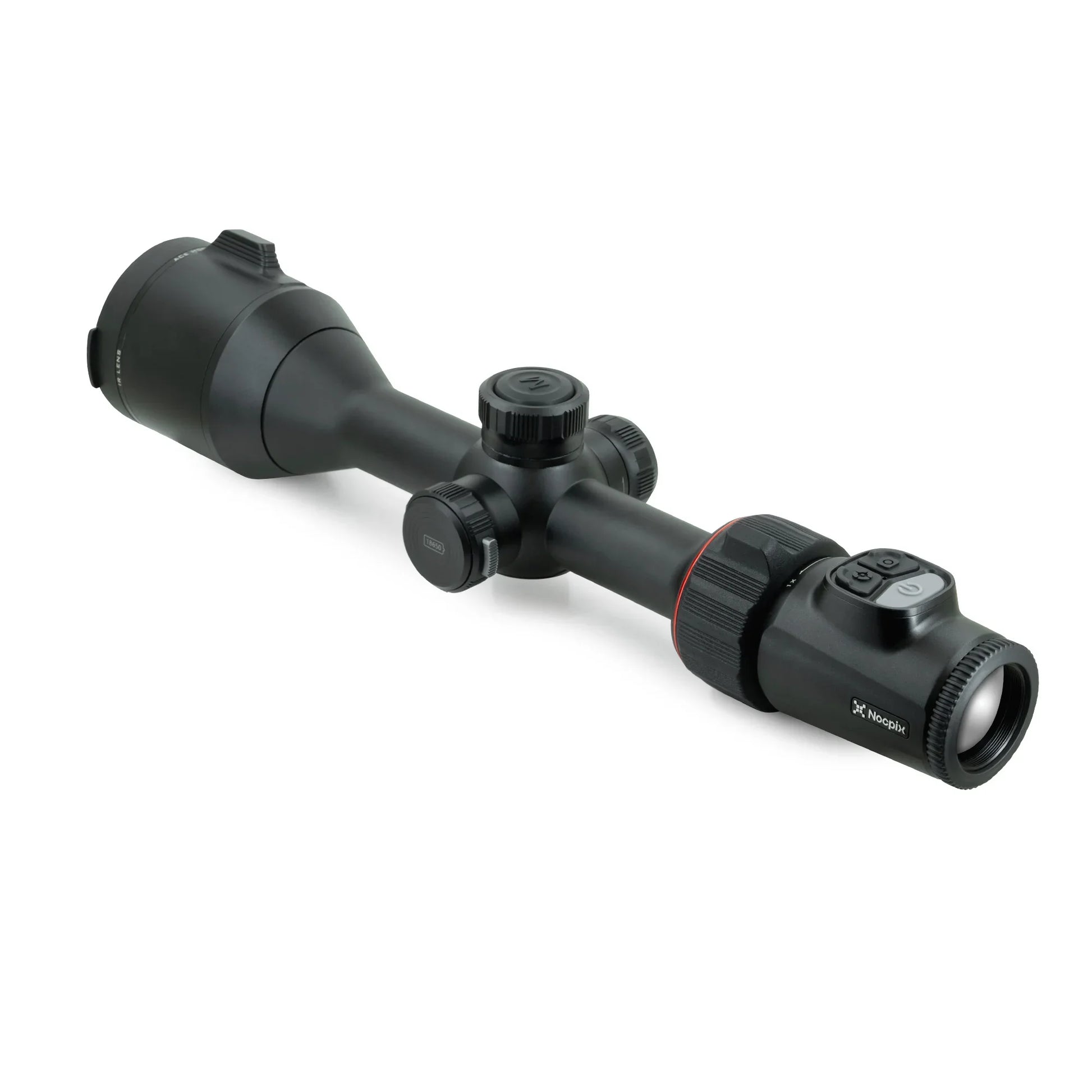

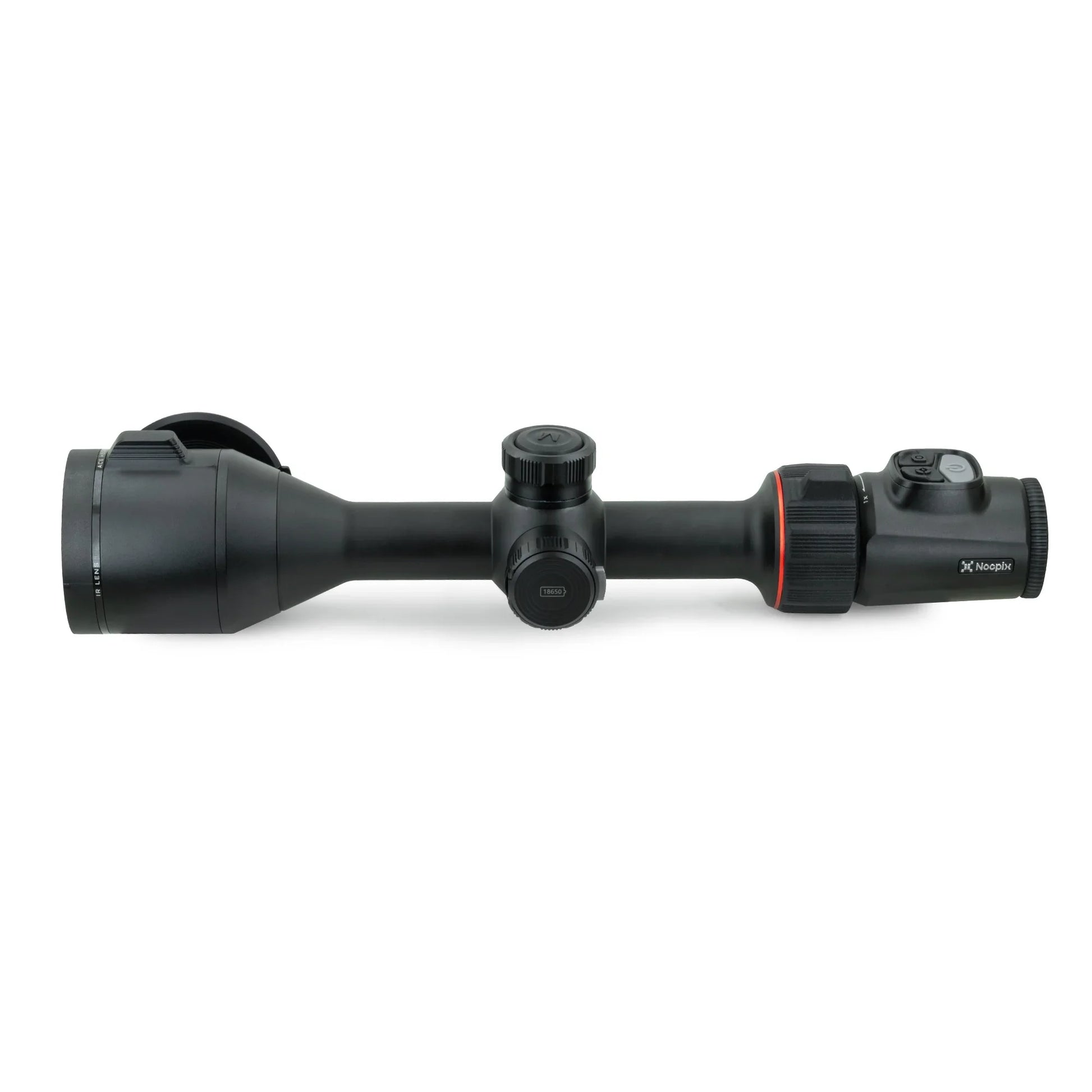

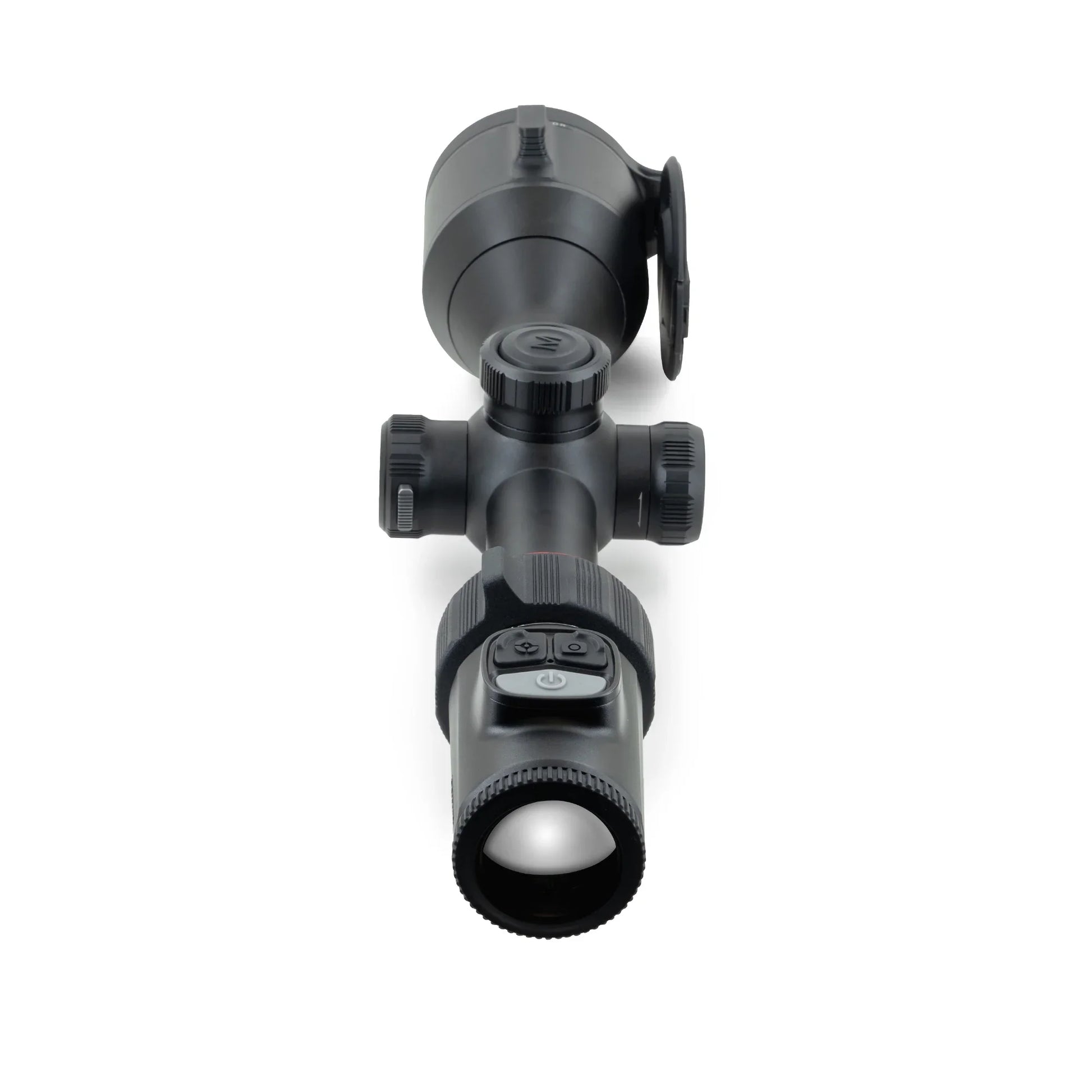

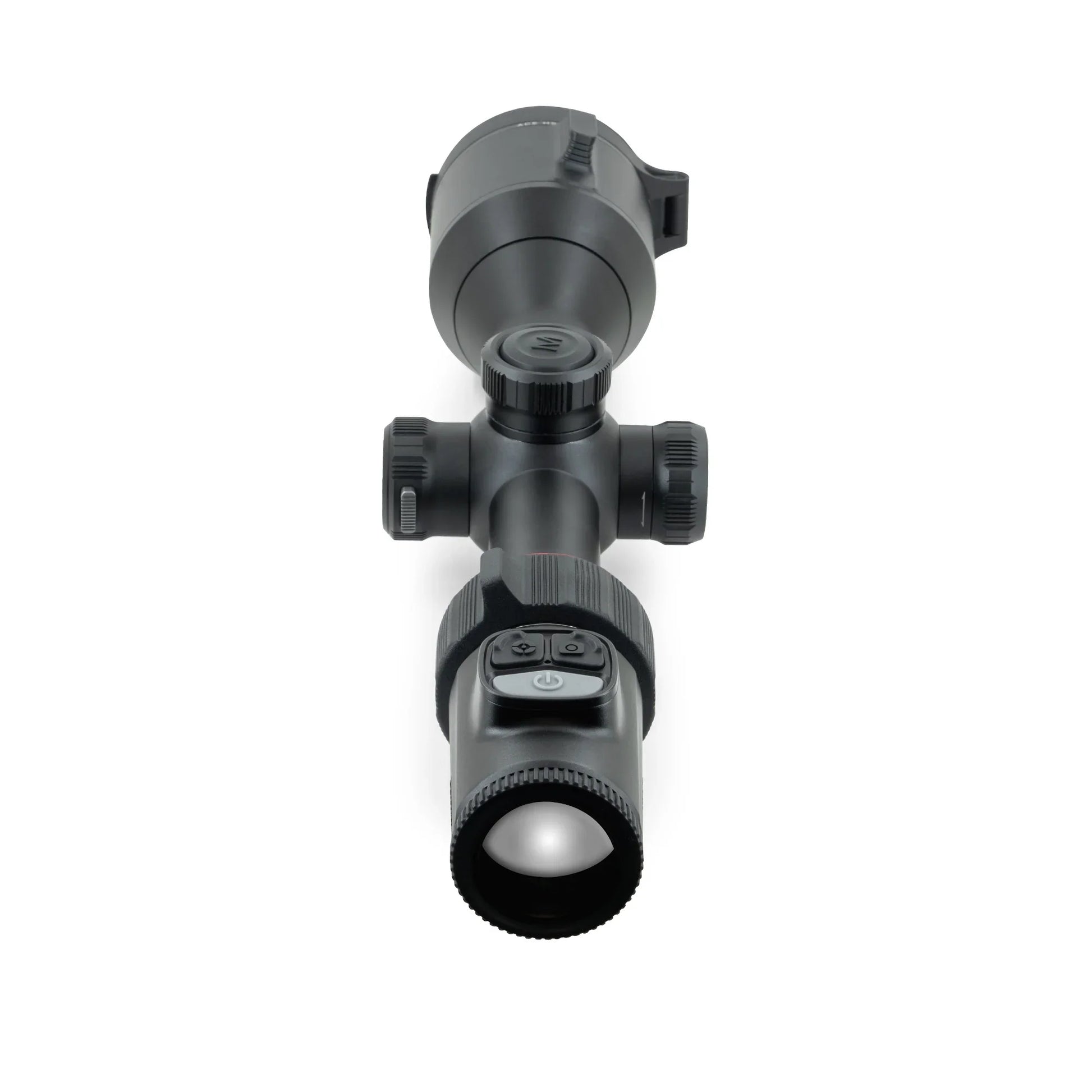

Nocpix ACE Optical Zoom Optimized Thermal Scope 640x512 50mm 3X ACE-H50R

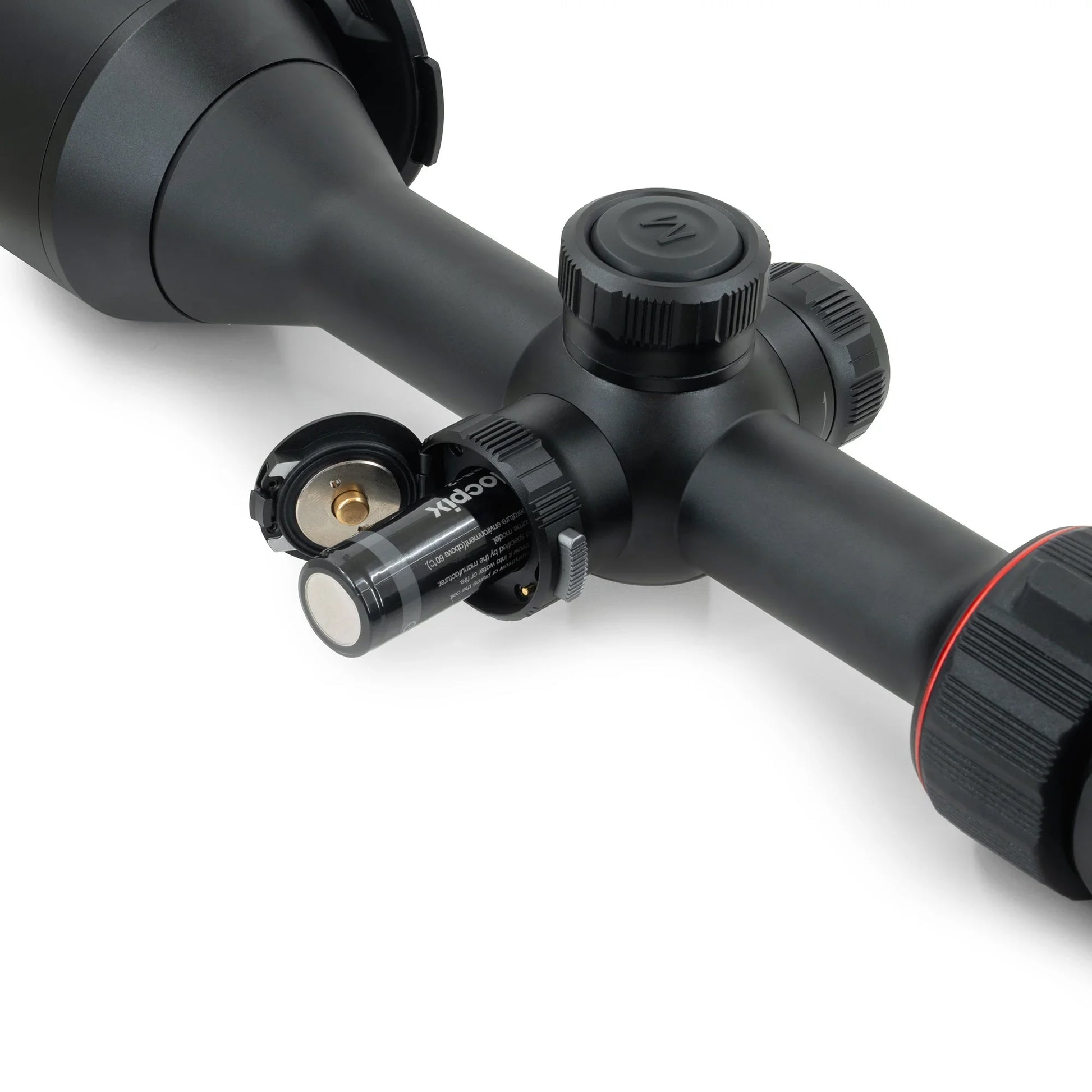

The ACE is built around the idea of combining leading user-requested features in a streamlined optic that balances advanced capability with ease-of-use in the field. Designed to feel like a traditional day optic, the ACE is compatible with bolt action or semi-automatic rifles using standard 30 mm mounts and rings. The combination of an internal USB-C charging battery and a removable 18650 style rechargeable battery allows users to hot-swap batteries in the field to run indefinitely. A 1-3x ocular magnifier provides optical magnification of the 2560×2560 round AMOLED display inside the eyepiece. The Vision+ system pairs this high resolution display with a 15 mK NETD sensor for an incredibly detailed and precise image.

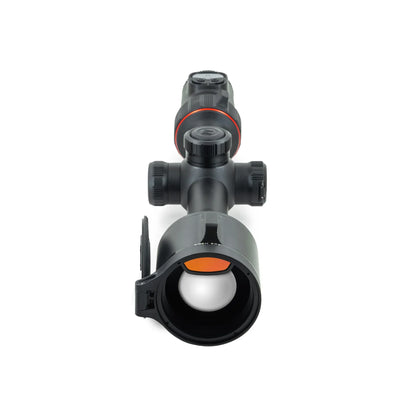

The 1,300 yard capable laser rangefinder on the ACE is integrated directly into the 50 mm germanium objective lens. In addition to streamlining the body design and reducing bulk, this allows for improved horizontal alignment of the infrared laser with the viewing system.
An ergonomic optical zoom system on the eyepiece (ocular lens) allows additonal magnificationtion and smooth manual zoom up to 3x. This system is independent of digital magnification and works at all digital magnification levels without shifting or scaling the reticle, relative to the target.

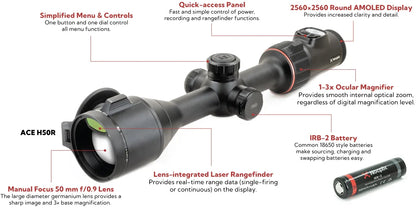

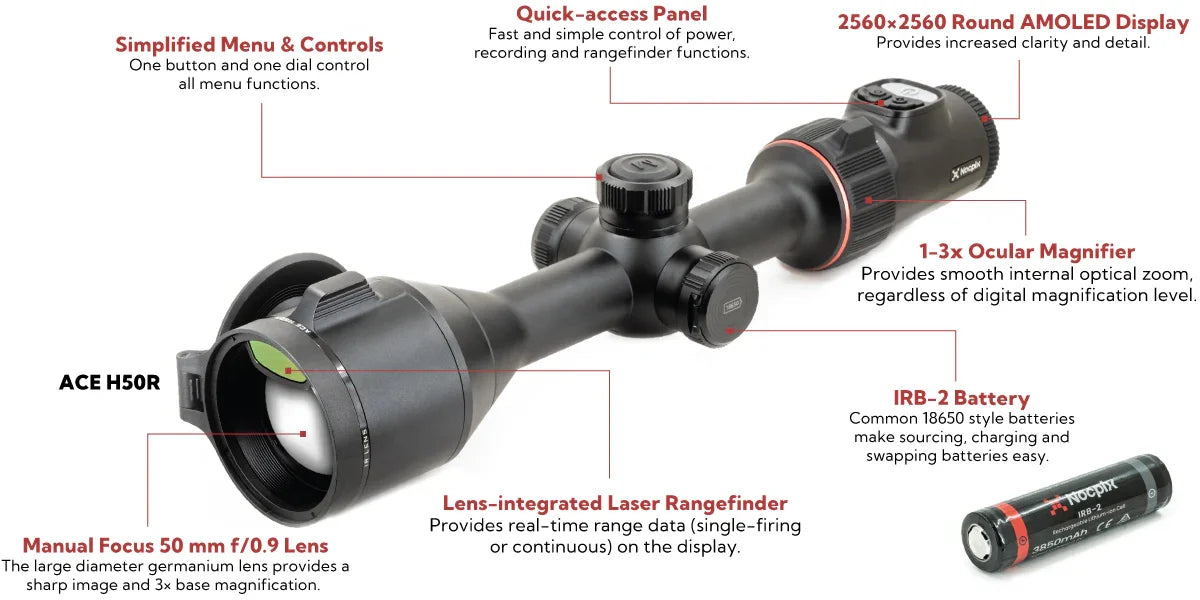

Nocpix ACE H50R Features:
12 μm high-performance thermal detector
≤15 mK sensitivity
1300-yard laser rangefinder integrated into the objective lens
Stepped digital zoom from 3×–24×
Ocular magnification from 1-3×
T-6063 Aluminum housing
Dual power supply solution for extended operation
Maximum detection range: 2850 yards
2560×2560 AMOLED display
High frame frequency: 60Hz
Recoil activated video
Five ballistics profiles and a user-defined, multi-variable ballistics calculator
Multiple zero profiles and ranges
Traditional 30 mm diameter housing design
Built-in 64 GB storage to support image capture and video recording
Built-in WiFi module
Mobile device App compatible
Gallery function for photo/video playback
Picture in Picture (PIP)
User-friendly interface
Ultra clear mode for advanced image detail
Warm and cool image-hue options
Pixel calibration function
Nocpix ACE H50R Specifications:
Sensor
Resolution 640×512
Pixel Size 12 μm
Frame Rate 60hz
Sensor Sensitivity ≤15 mK
Image Processing Reality+
Core Nocpix 640
Optics
Objective Lens 50 mm f/0.9
Magnification 3×
Digital Zoom 8×
Field of View 8.8° × 7.0°
Detection Range 2850 Yards
Display Type 1.03-inch Large-format AMOLED
Display Resolution 2560×2560
Color Palettes White Hot, Black Hot, Red Hot, Color, Crimson, Viridian, Violet
P.I.P. Yes
Rangefinder Integrated 1,300 yd LRF
Eye Relief 50 mm
Diopter Range -5 to +5
Electronics
Onboard Recording Video, Recoil-Activated Video, and Image
Onboard Storage 64 GB
Wireless Connectivity Image and Video via App.
Data/Power Connector USB-C
Power Supply USB-C External, Built-In Battery Pack (3.5+ Hours), 18650 Batteries ×2 (3.5+ Hours Each)
Start Up Time <10 Seconds, Instant from Standby
Physical
Size 14.37” × 3.54” × 2.68”
Weight 39.5 Oz
Environmental/Warranty
Warranty 5 Years
Housing Material T-6063 Aluminum
Ingress Protection IP67
Operation Temperature -4°F~122°

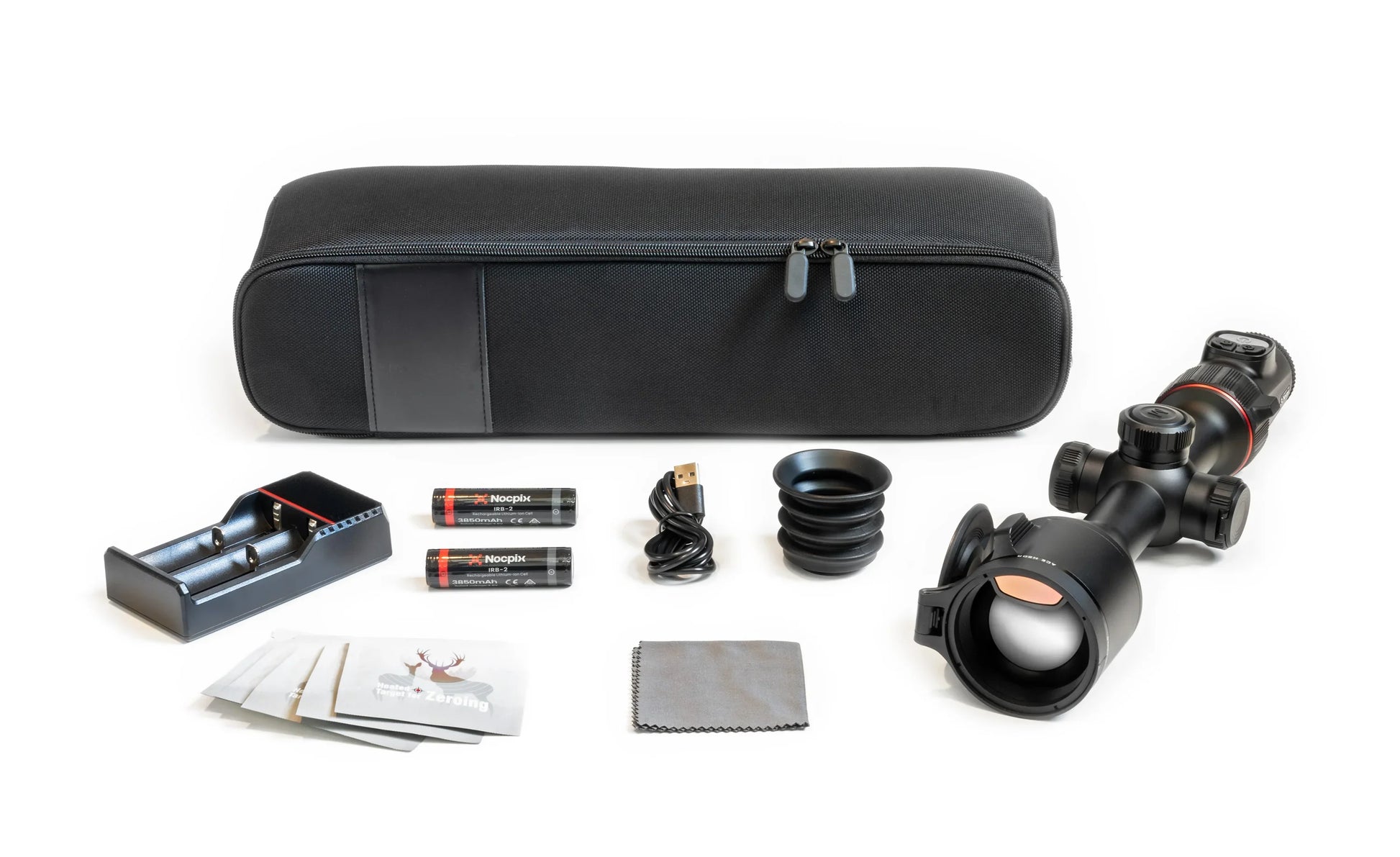

The Nocpix ACE ships with everything you need to get out and hunt.
50mm Objective Lens Cap
Standard Rubber Eyeguard
18650 Battery ×2
Battery Charger
USB-C Cable for Data/Video
Soft Case and Straps
Lens Cloth
User Manual
