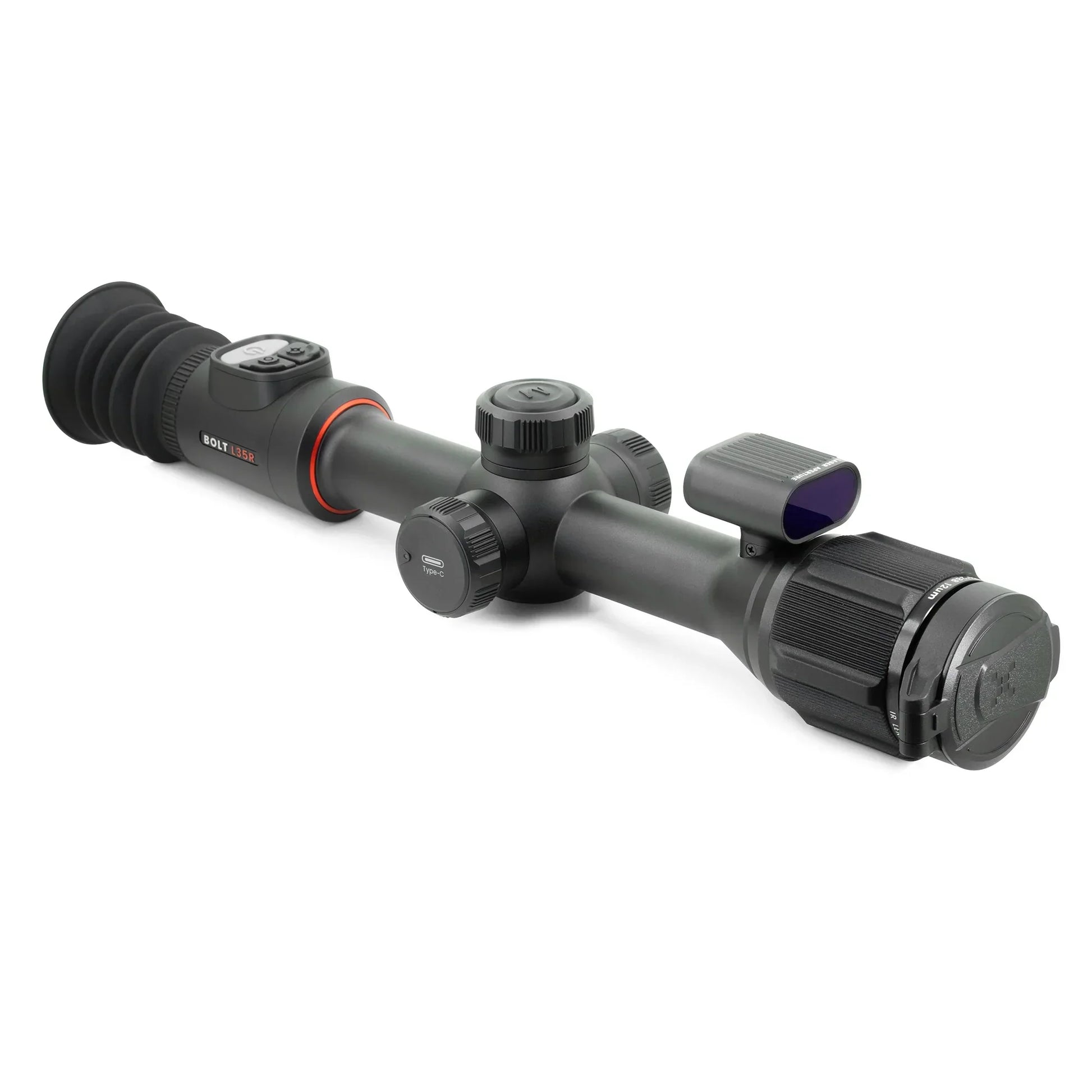

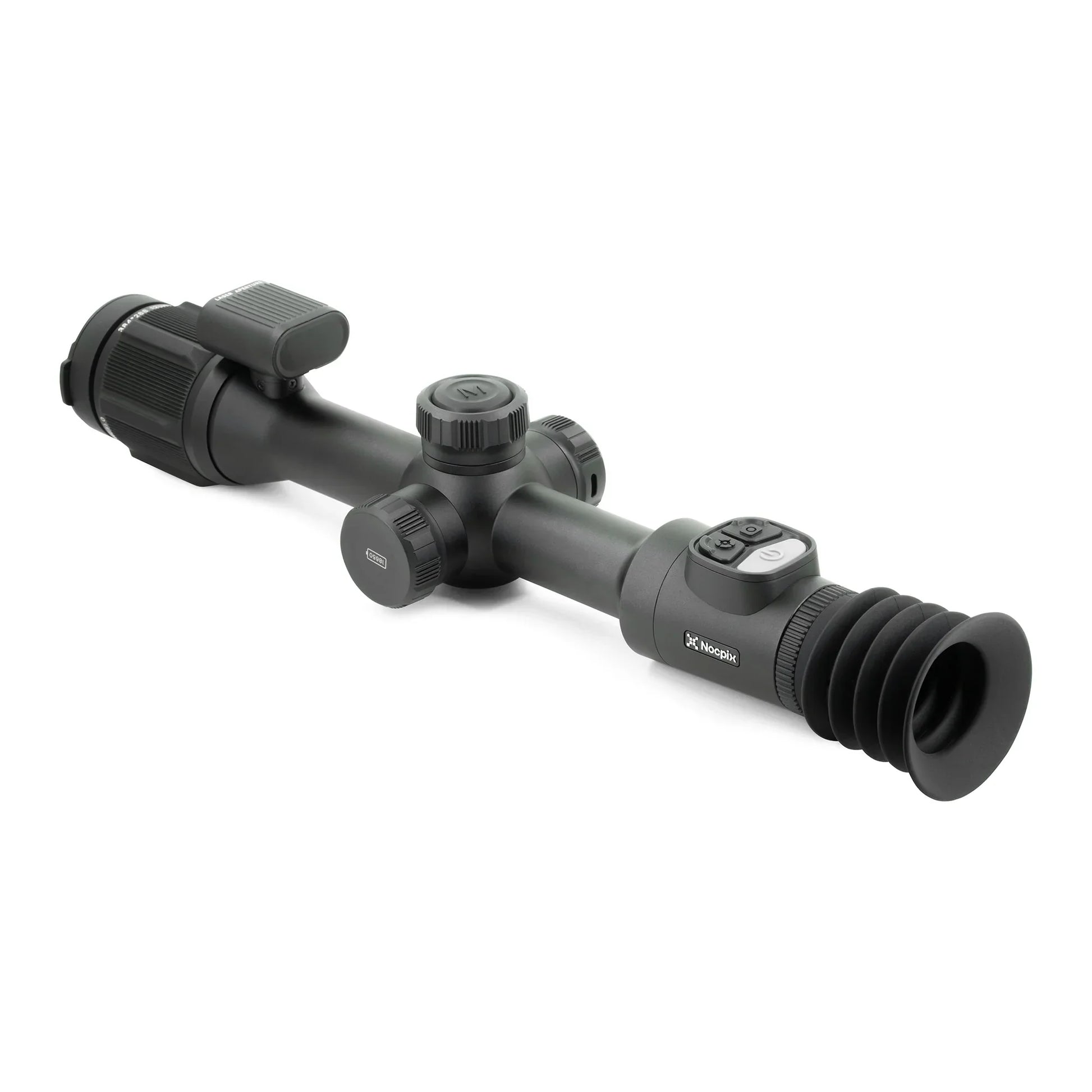

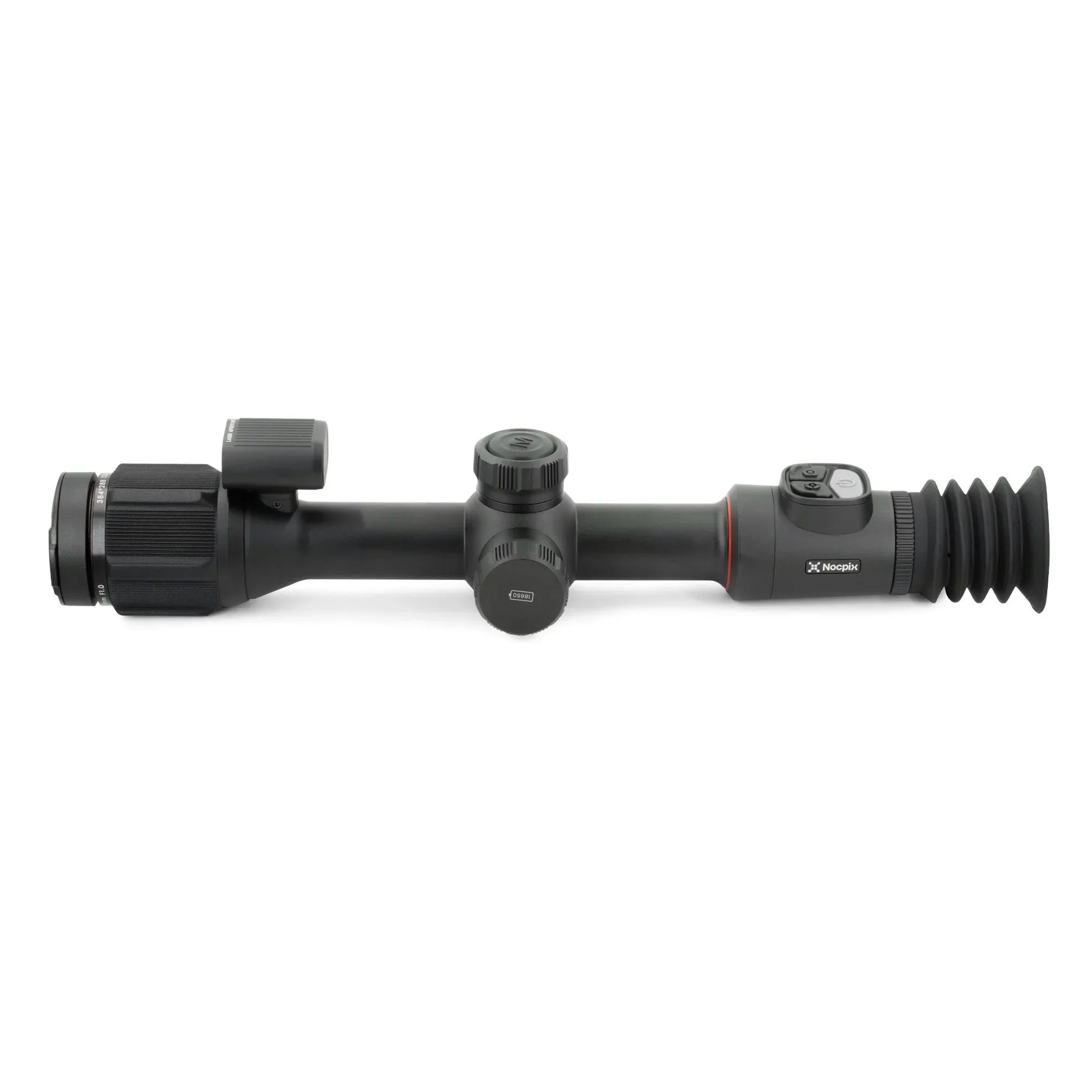

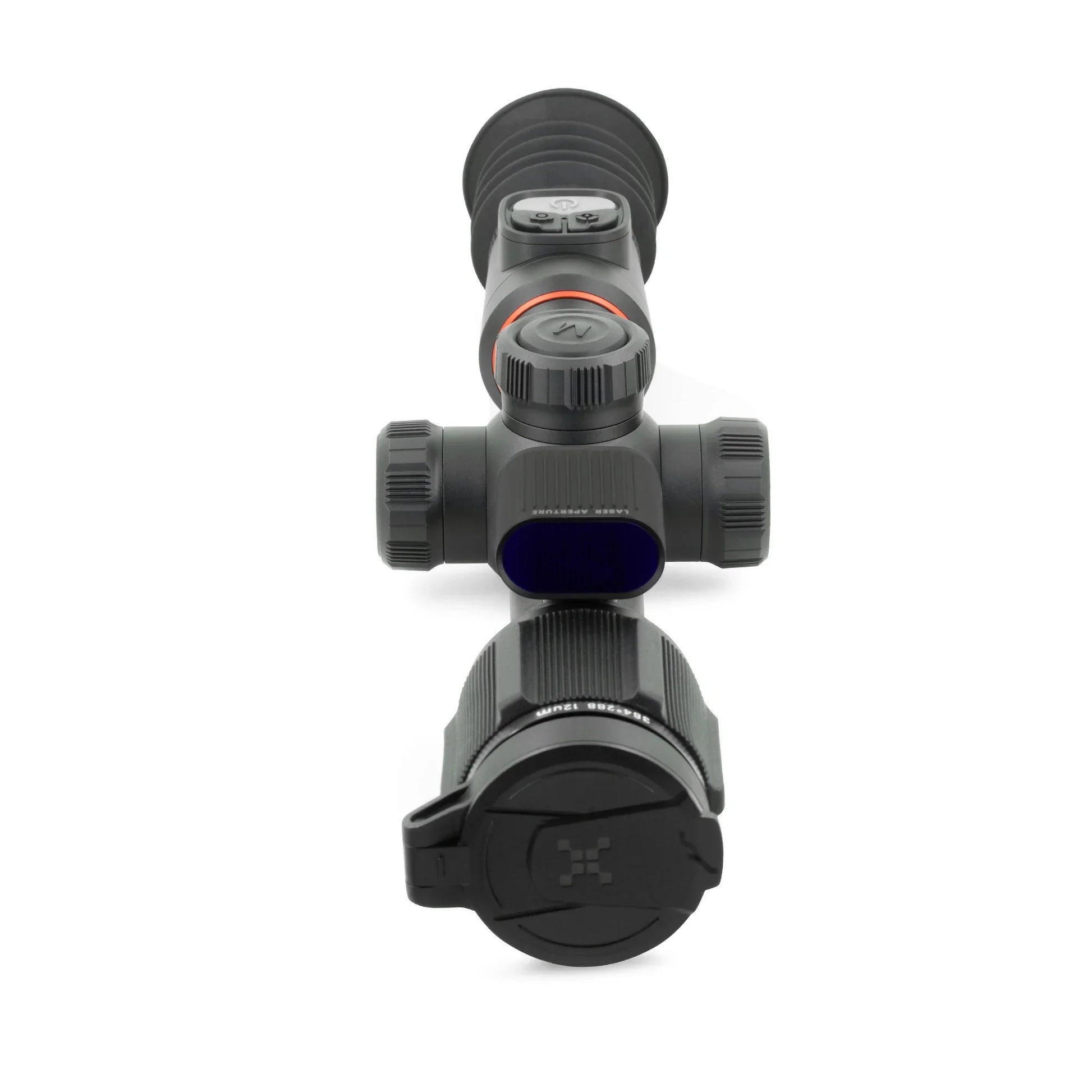

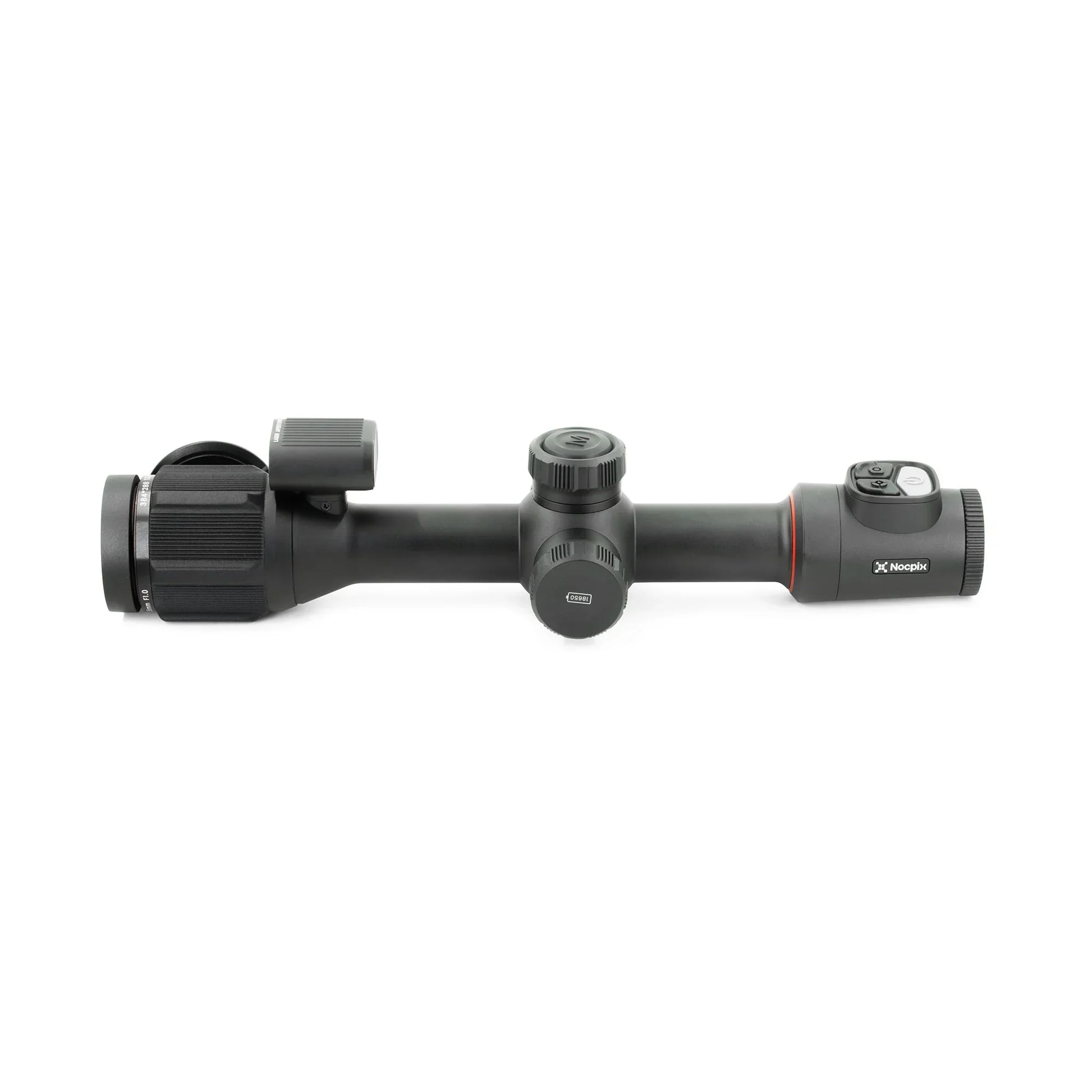

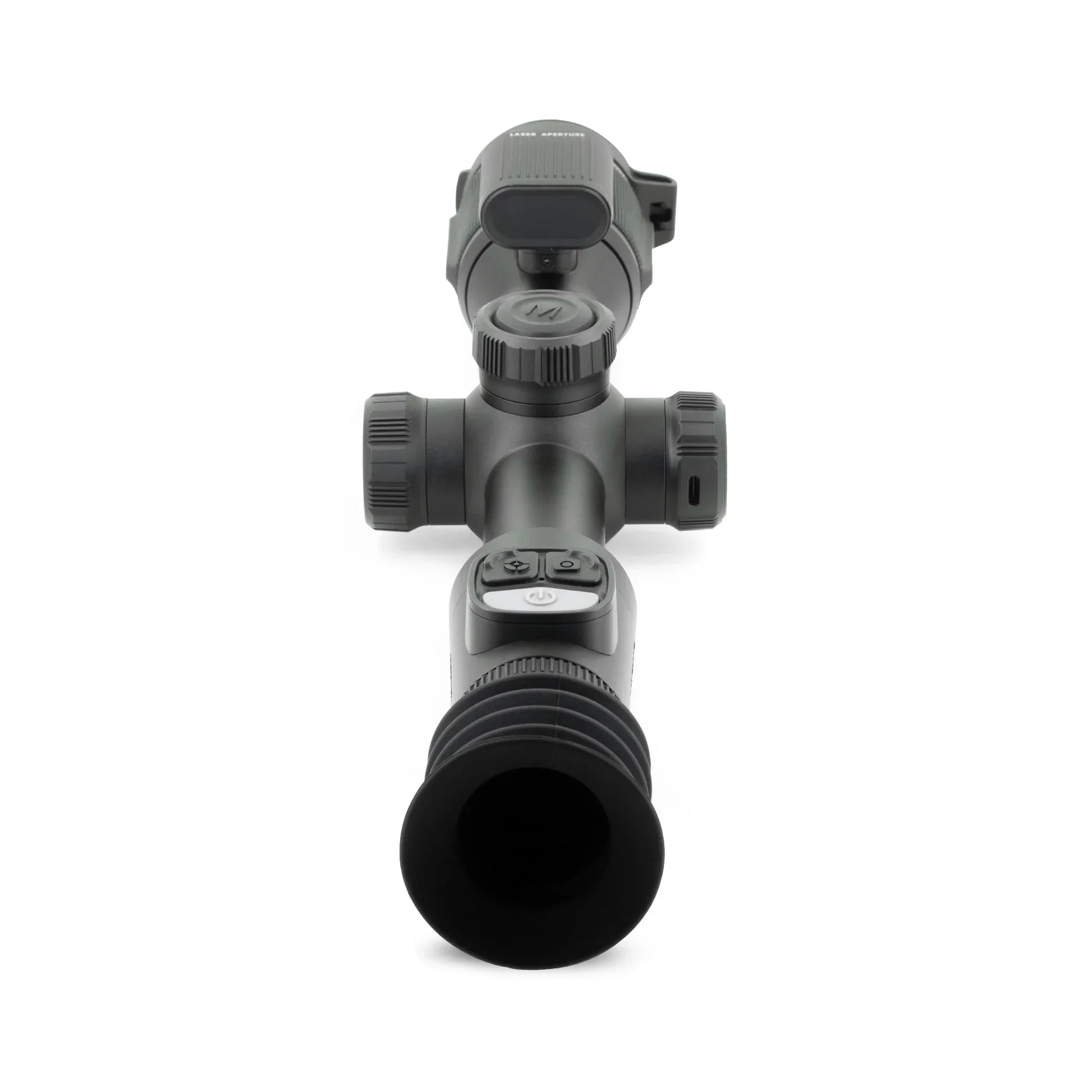

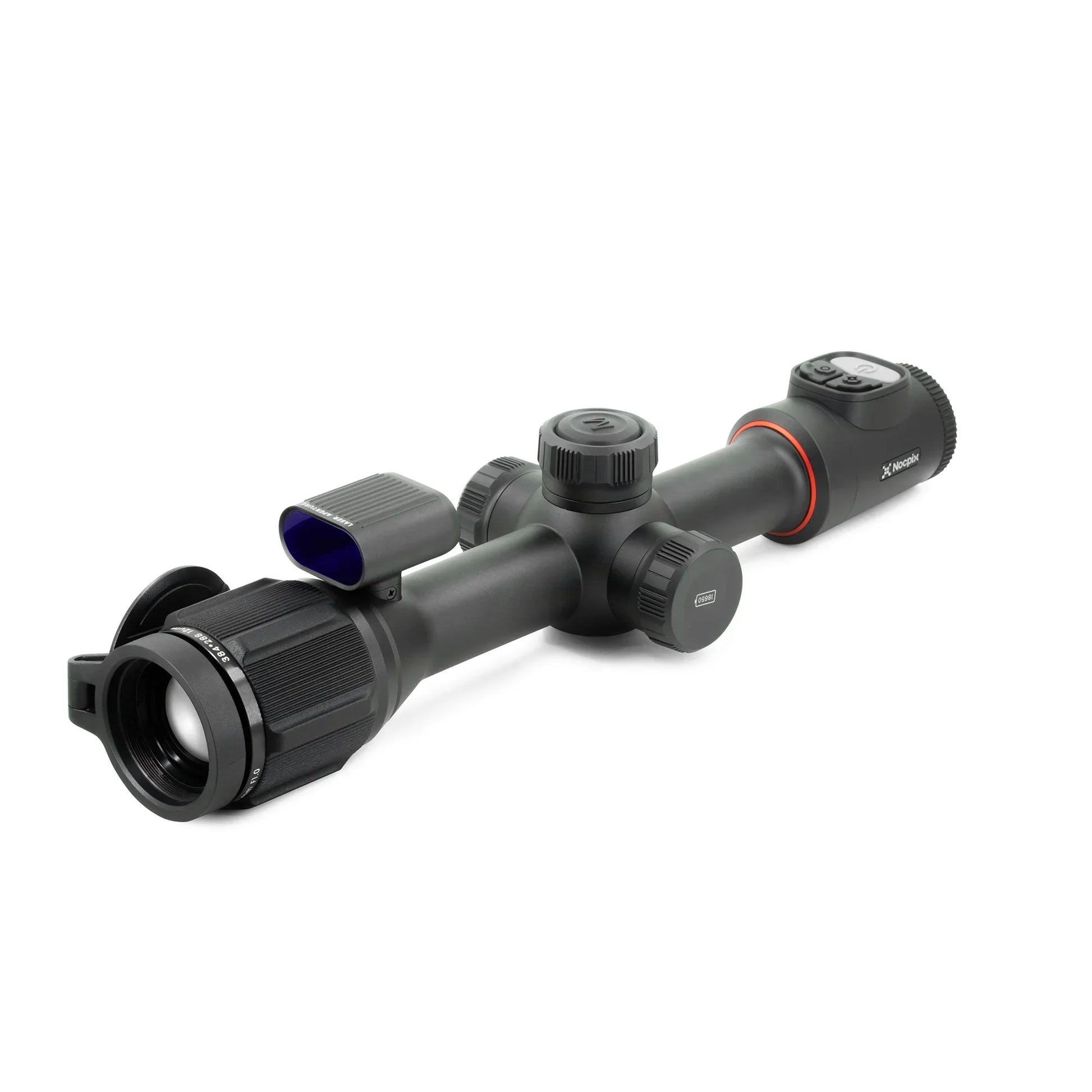

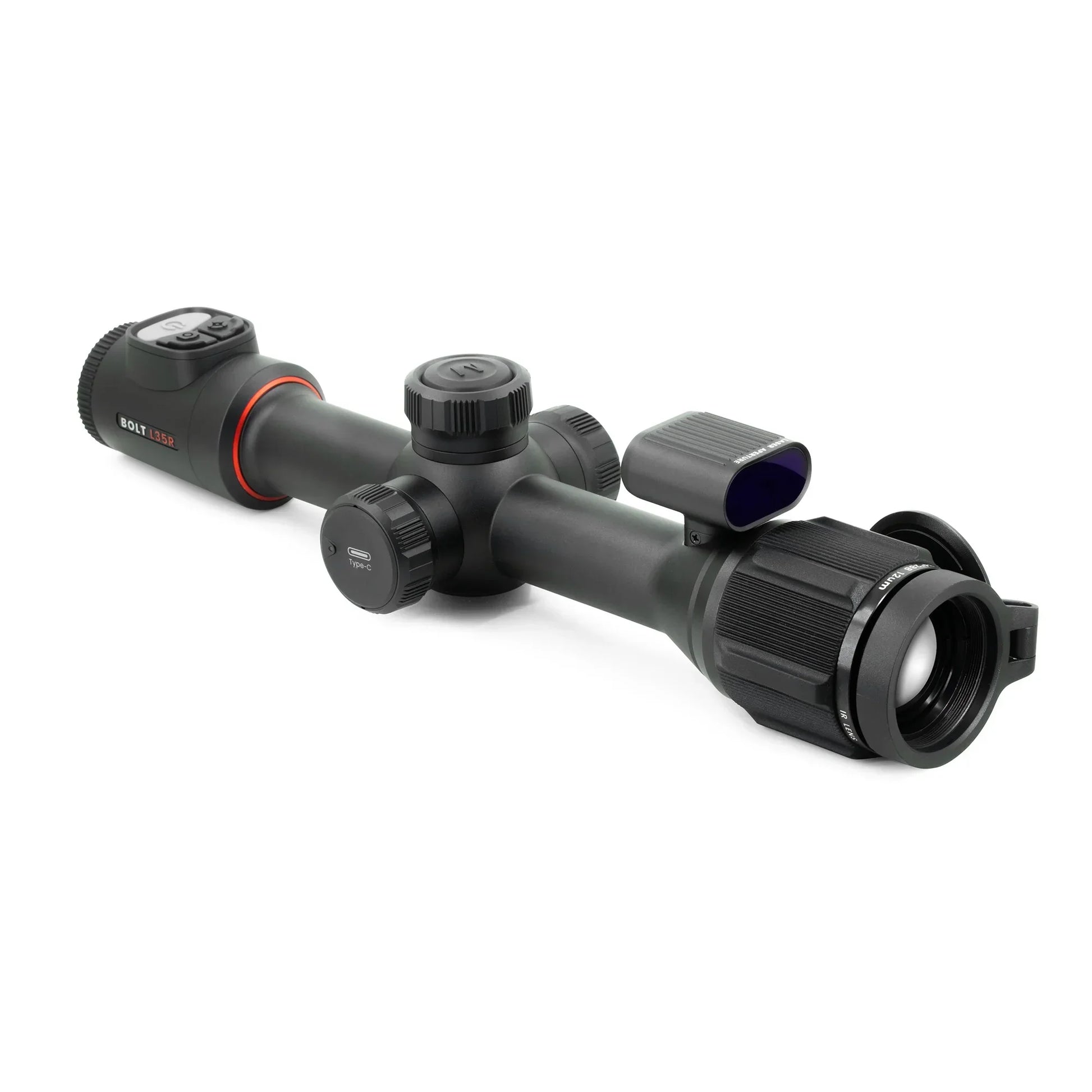

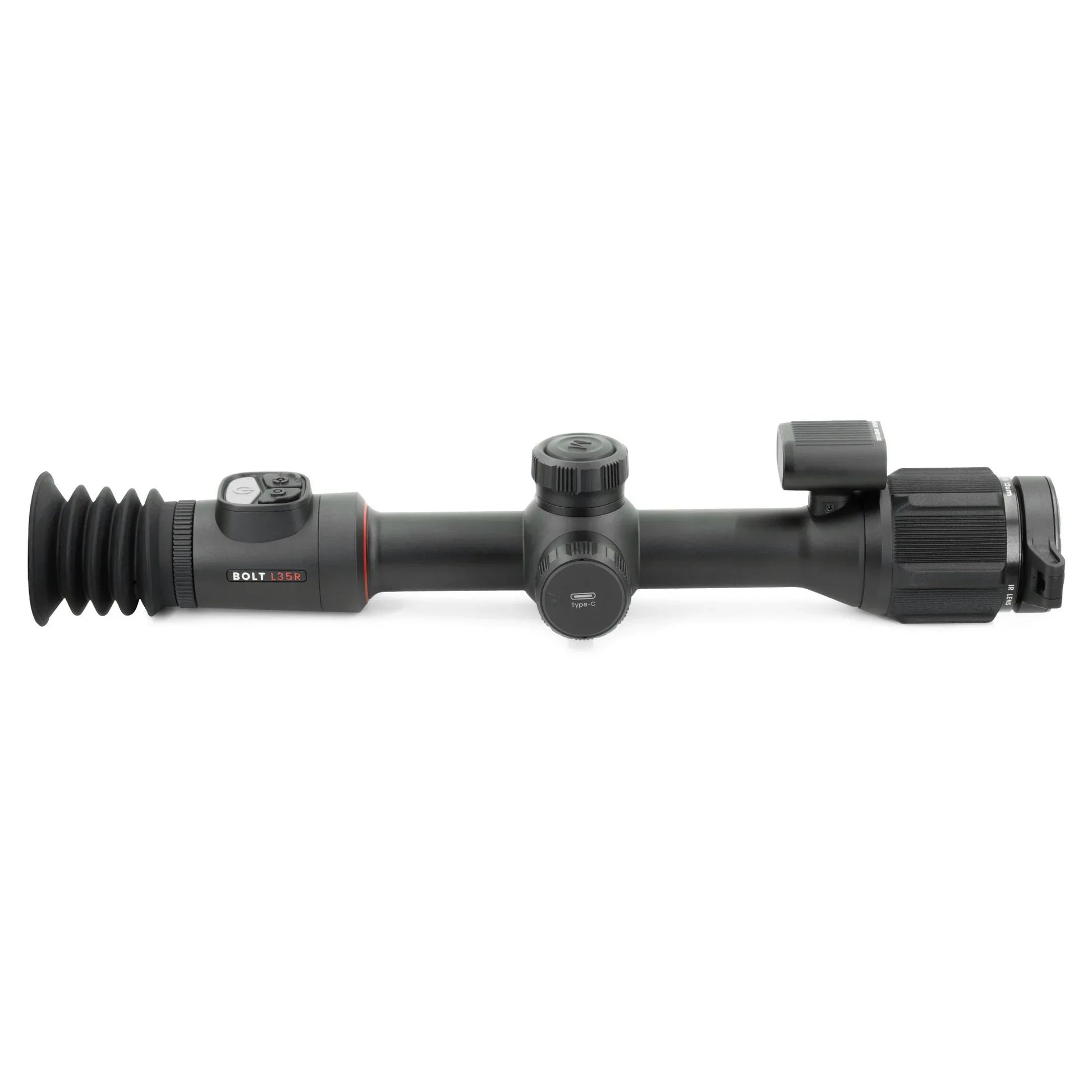

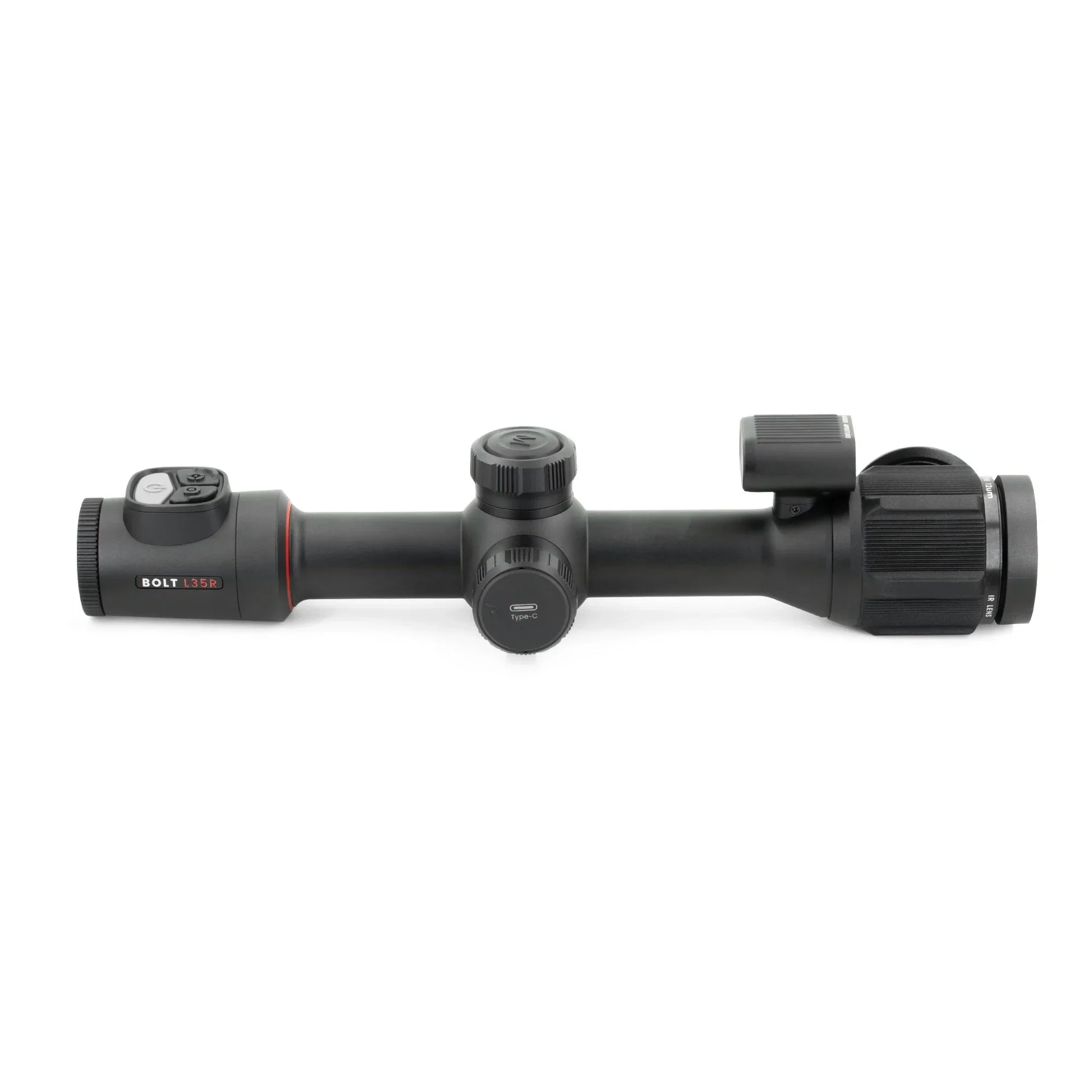

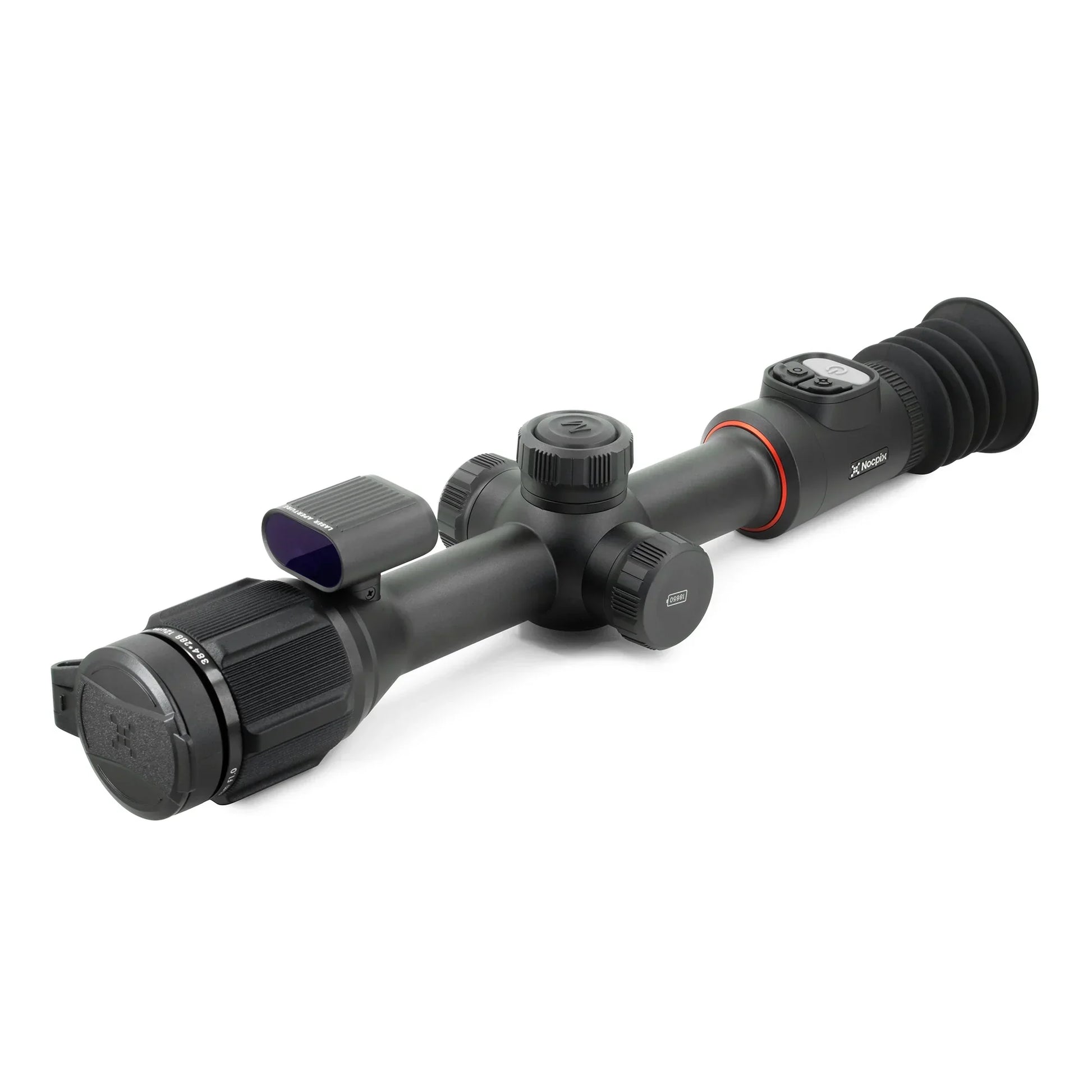

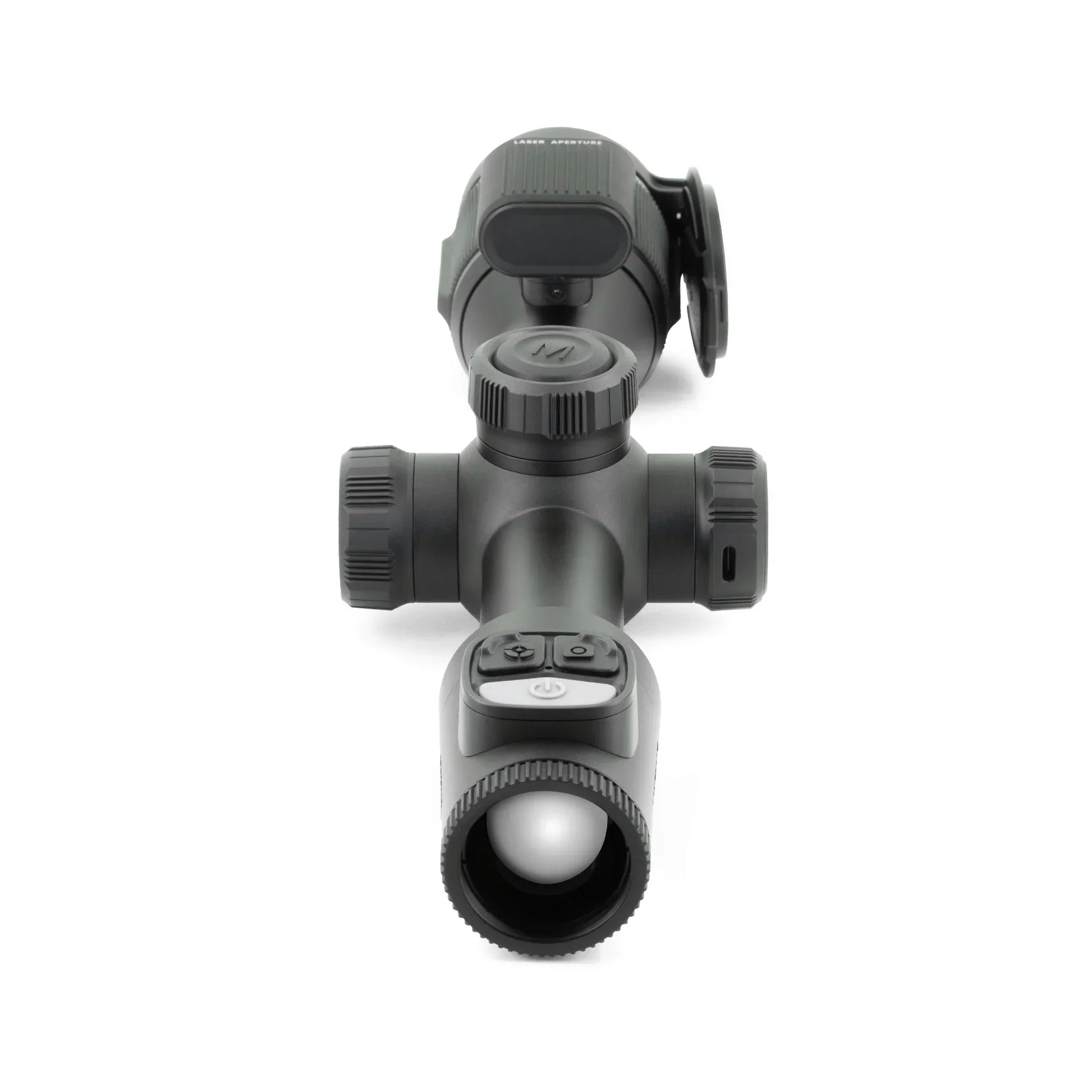

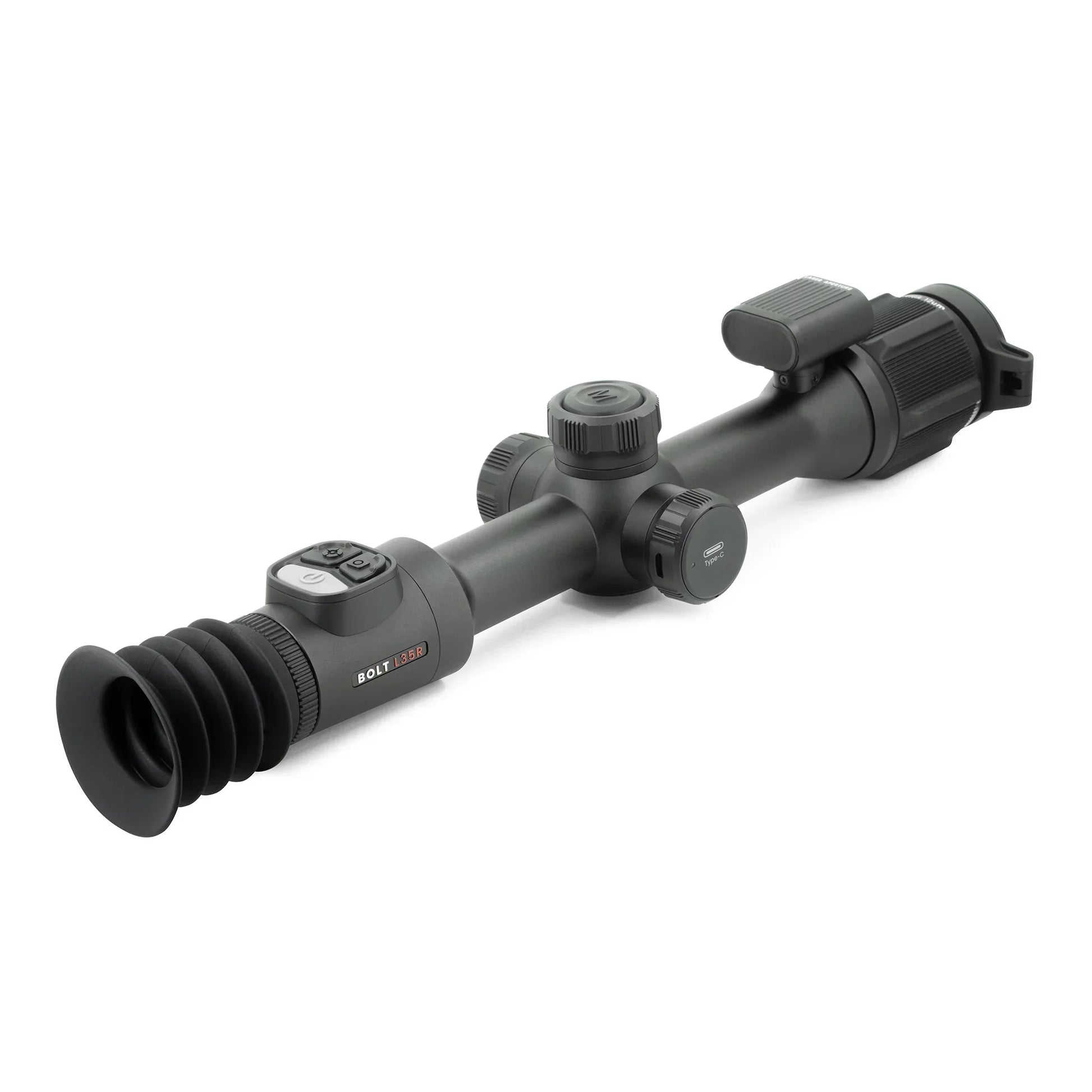

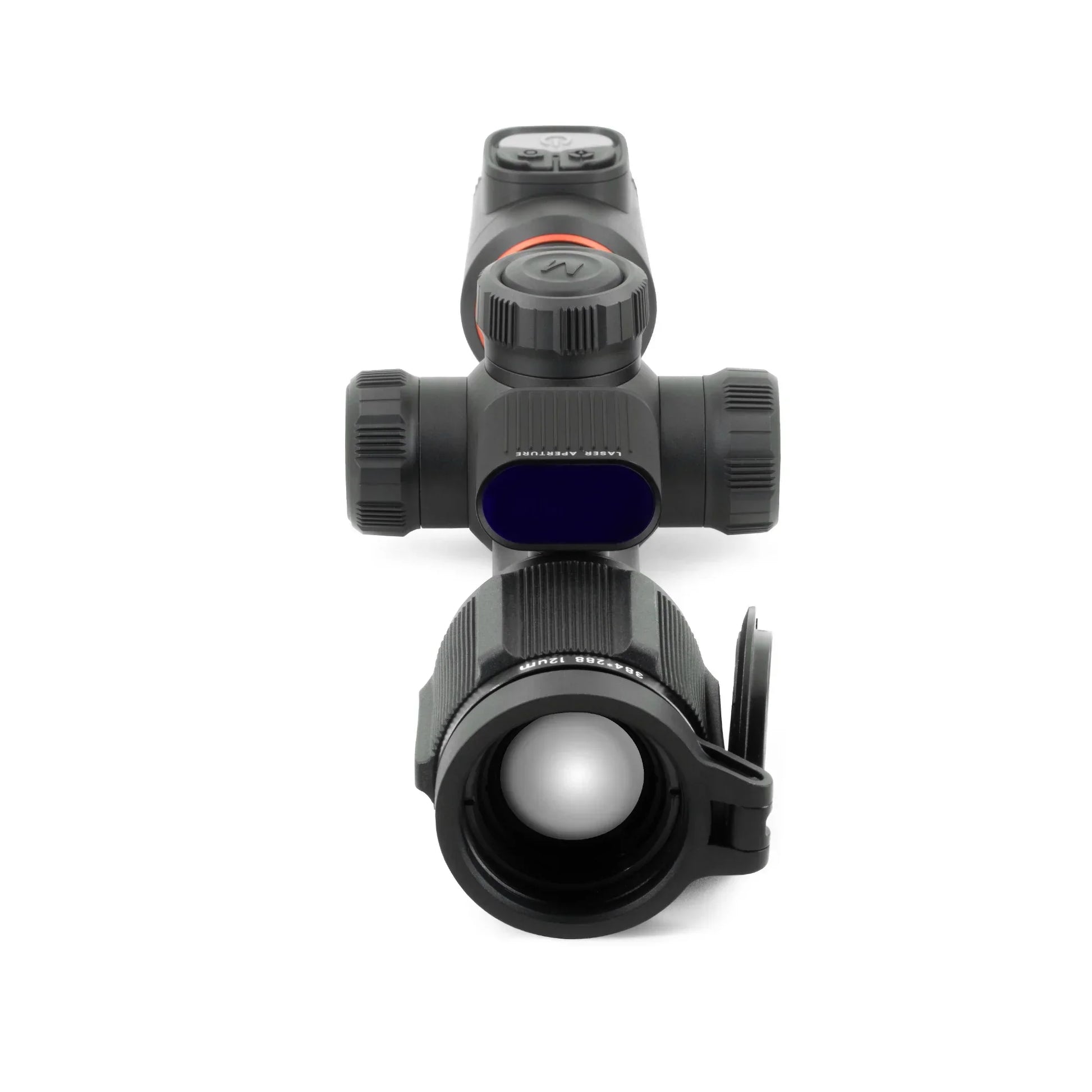

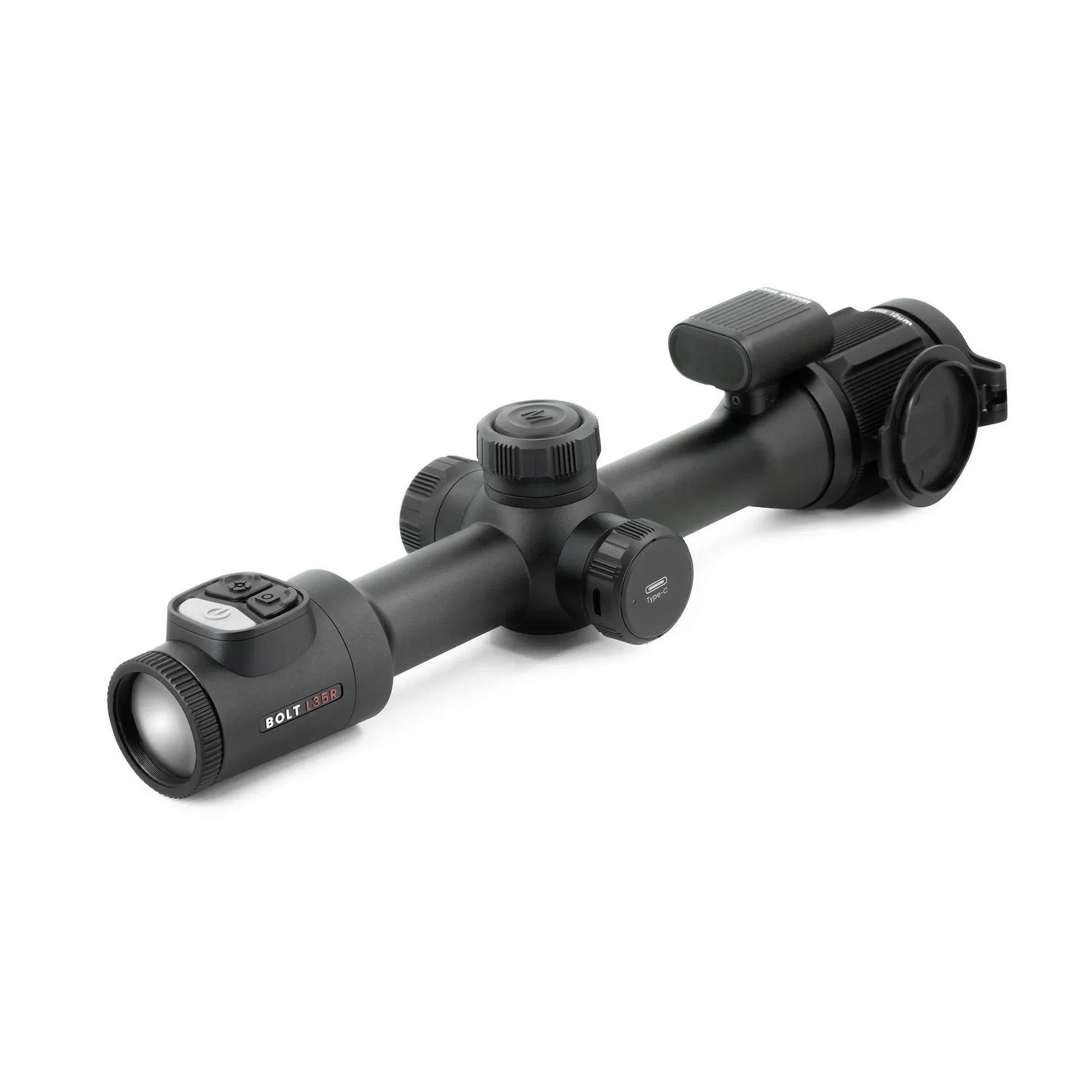

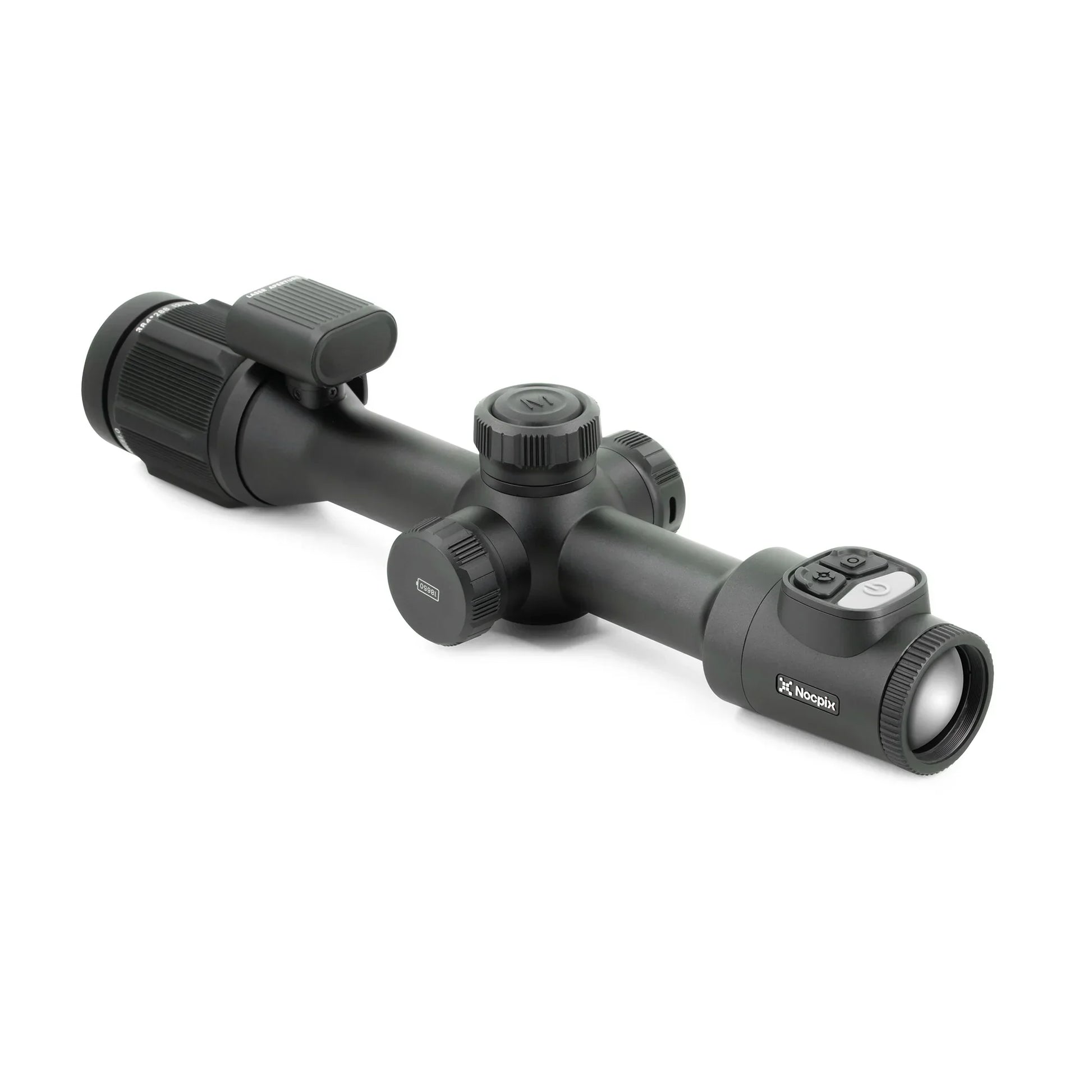

Nocpix Bolt L35R LRF Thermal Scope 35mm 384

Nocpix Bolt L35R LRF Thermal Scope 35mm 384

SKU:BOLT-L35R

Regular price $ 1,999.00
Regular price Sale price $ 1,999.00
Sale Sold out
Shipping calculated at checkout.
Quantity

Nocpix Bolt L35R LRF Thermal Scope 384x288 35mm 3.5X BOLT-L35R

😊Feel free to text me at 412-573-9059 for the best service.😊

The BOLT L35R is a no-nonsense thermal weapon sight built for hunters who demand reliability and real-world performance. At its core is a 384×288 12 μm sensor paired with a crisp 35 mm F1.0 lens, offering excellent image clarity and a detection range of up to 1,800 yards. The 1024×768 AMOLED display provides sharp, smooth visuals, even in the worst conditions.

Our customers asked for an affordable thermal scope with a built-in laser rangefinder—we delivered. The onboard LRF gives fast, accurate distance-to-target data, helping you make more confident, ethical shots when it counts.

With built-in photo and video recording (with audio), WiFi connectivity, multiple zeroing profiles, and standard 18650 battery compatibility for up to 6.5 hours of total runtime, the L35R is packed with features designed for serious hunters. It mounts easily using standard 30mm rings and is housed in a rugged, IP67-rated aluminum body.

Whether you’re scanning tree lines for coyotes or clearing fields of hogs, the BOLT L35R gives you the clarity, range, and confidence you need—at a price that makes sense.

Nocpix Bolt L35R Specifications:

  • Features & Performance

    Startup Time

    <10 Seconds, Instant from Standby

    Rangefinder

    Integrated 1,300 Yard LRF

    Color Palettes

    White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian

    Picture-in-Picture

    Yes

    Storage Capacity

    32 GB

    Connector Output

    Power/Data

    User-Updatable Firmware

    Yes

    Mobile App

    Yes

    One-Shot Zero

    Yes

    Stand-by Mode

    Yes

    Warranty

    5 Years

    Run Time

    6+

    Power Source

    USB-C External, 18650 Battery, Built-In Battery Pack

    Reticle

    8 (7 Static, 1 DIY)

    Connector Type

    USB-C

    External Power Source

    USB-C

    Country of Manufacture

    China

    Wifi

    Yes

    Onboard Recording

    Yes

    Image Capture

    Yes

    Video Output

    Yes

  • Optics

    Objective Focal Length

    35 mm

    Detection Range

    1970 Yards

    Optical Magnification

    3.5X

    Digital Magnification

    4X

    Objective Lens Material

    Germanium

    Horizontal Angular Field of View

    7.5°

    Vertical Angular Field of View

    5.7°

    Objective Diameter

    35 mm

    Objective F#

    1.0

    Focusing Mechanism

    Manual Focus

    Eye Relief

    50mm

    Display Type

    AMOLED

    Diopter Range

    -5 to +5

    Diopter Range

    -5 to +5

    Display Resolution

    1024×768

  • Environmental Specifications

    Operating Temperature Range

    -4°F~122°F

    Recoil Rating

    1000 g/s² (300 Win./7mm Mag)

    Ingress Protection

    IP67

  • Sensor Specifications

    Device Technology

    Thermal Imaging

    Sensor Type

    Nocpix 384

    Sensor Resolution

    384x288

    Sensor Pixel Size

    12 µm

    Sensor Frame Rate

    50 Hz

    Thermal Sensitivity

    ≤20 mk

    Non-Uniformity Correction (NUC)

    Manual, Automatic, Semi-Automatic

  • Physical

    Length

    14.8

    Width

    3.6

    Height

    3.0

    Weight

    31.0 oz

    Housing Material

    T-6063 Aluminum

The Nocpix Bolt L35R ships with everything you need to get out and hunt.

• Objective Lens Cap

• Standard Rubber Eyeguard

• 18650 Battery ×2

• Battery Charger

• USB-C Cable for Data/Video

• Soft Case and Straps

• Lens Cloth

• User Manual
