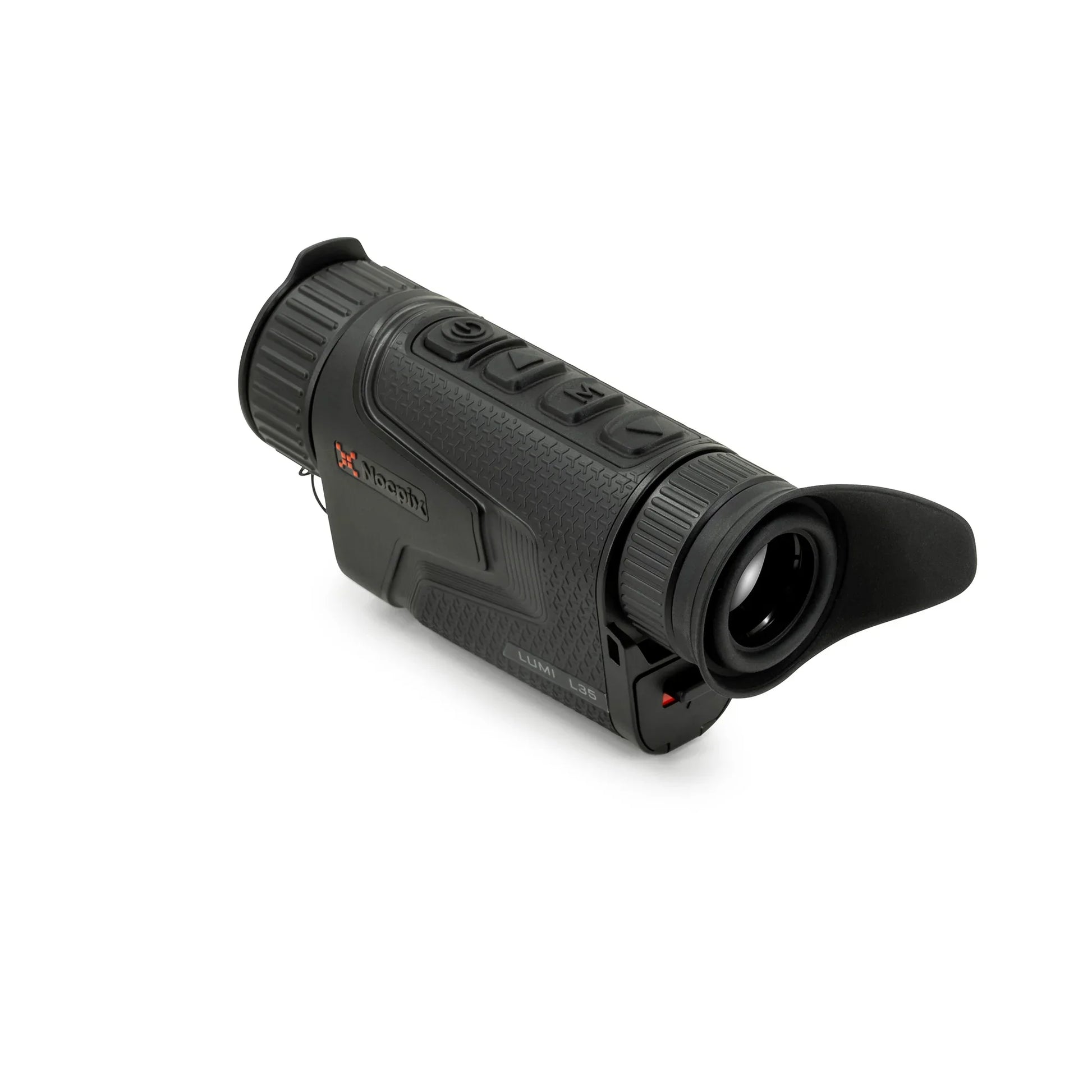

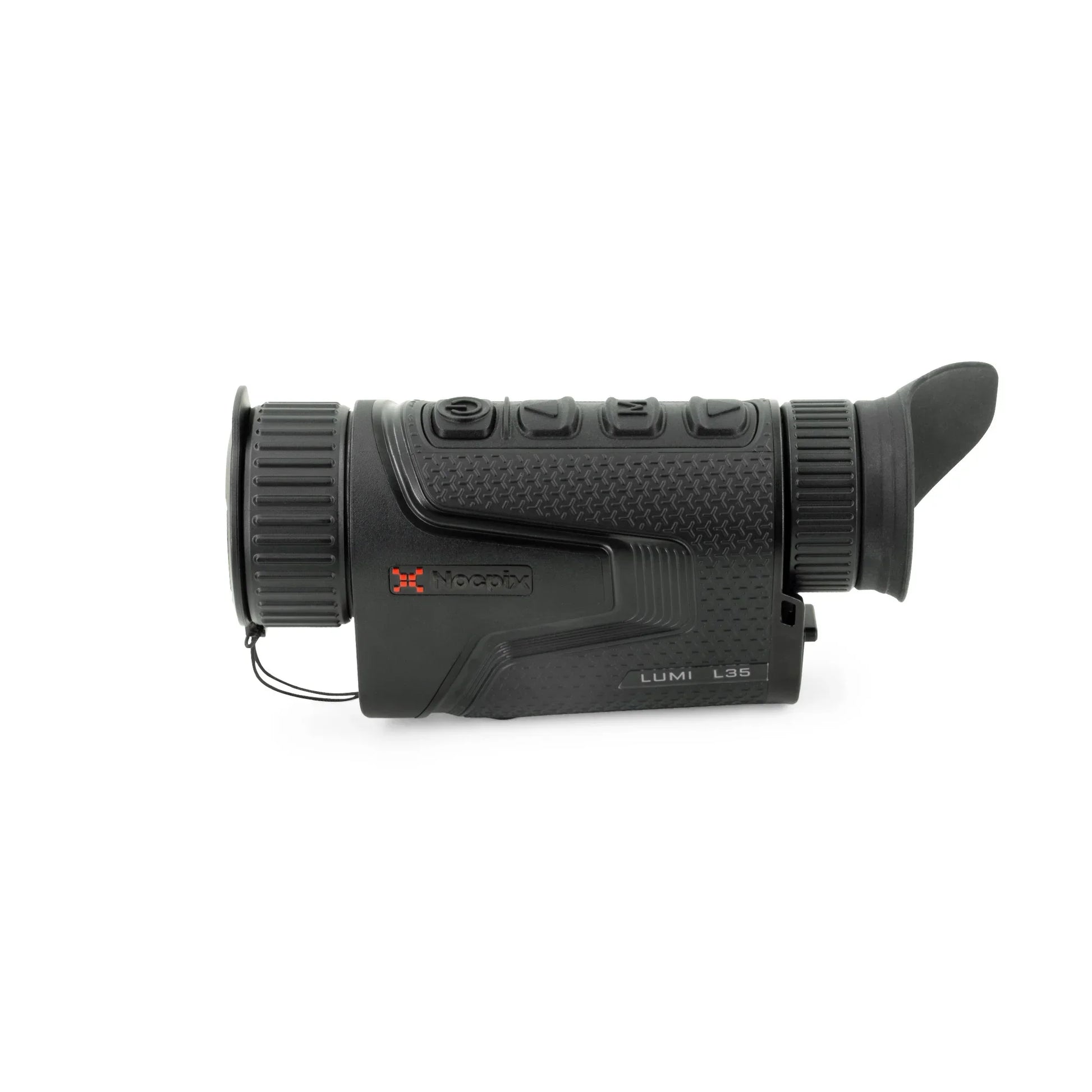

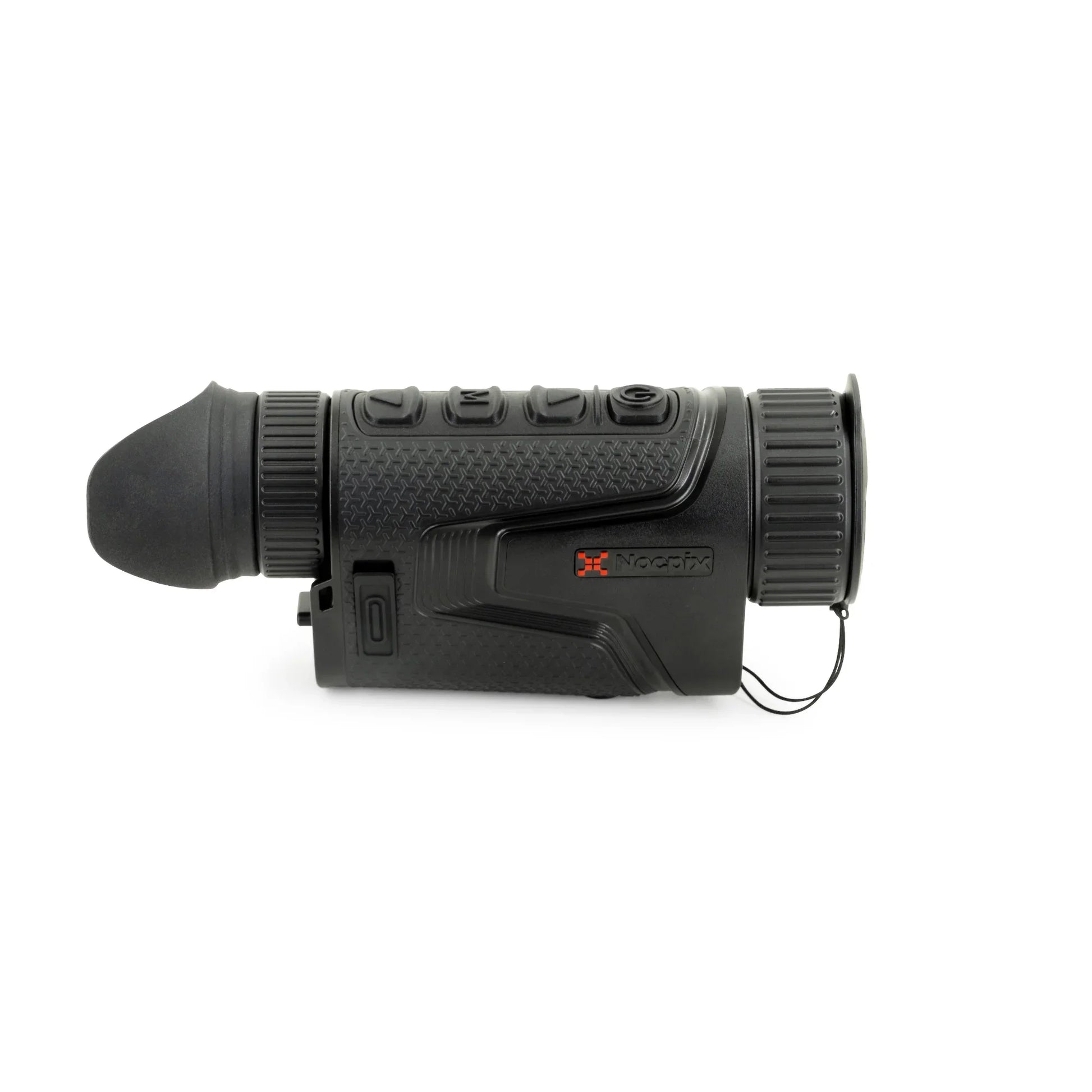

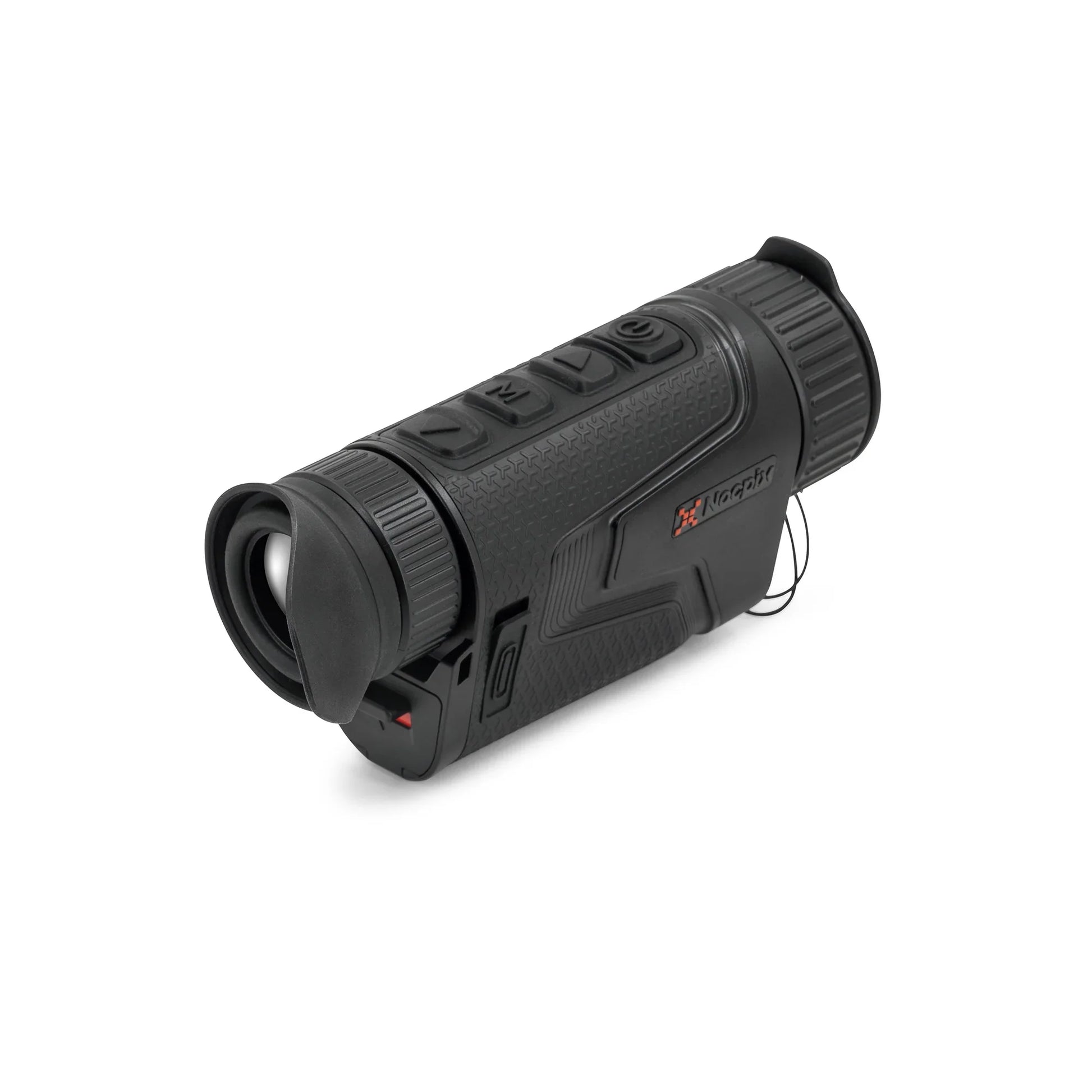

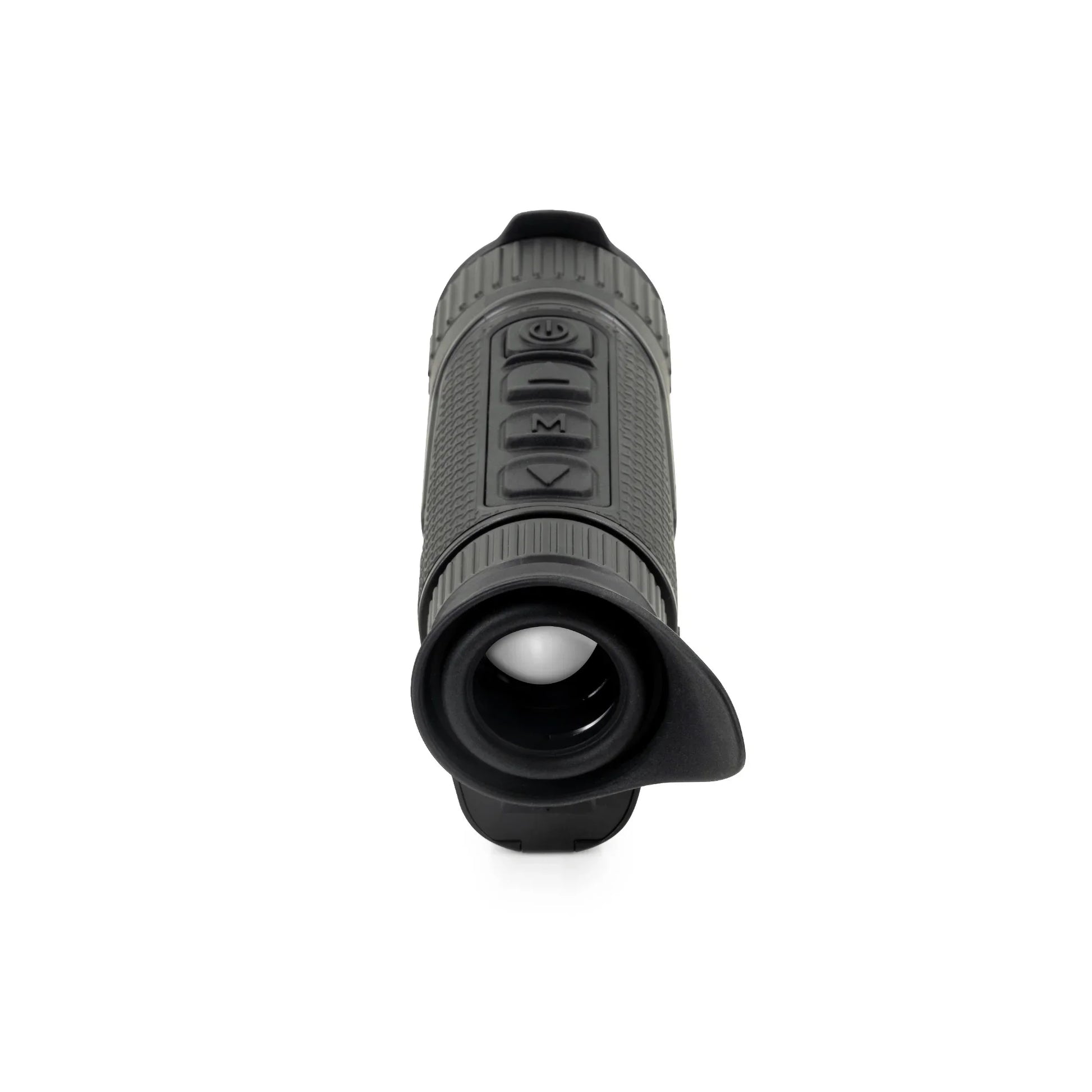

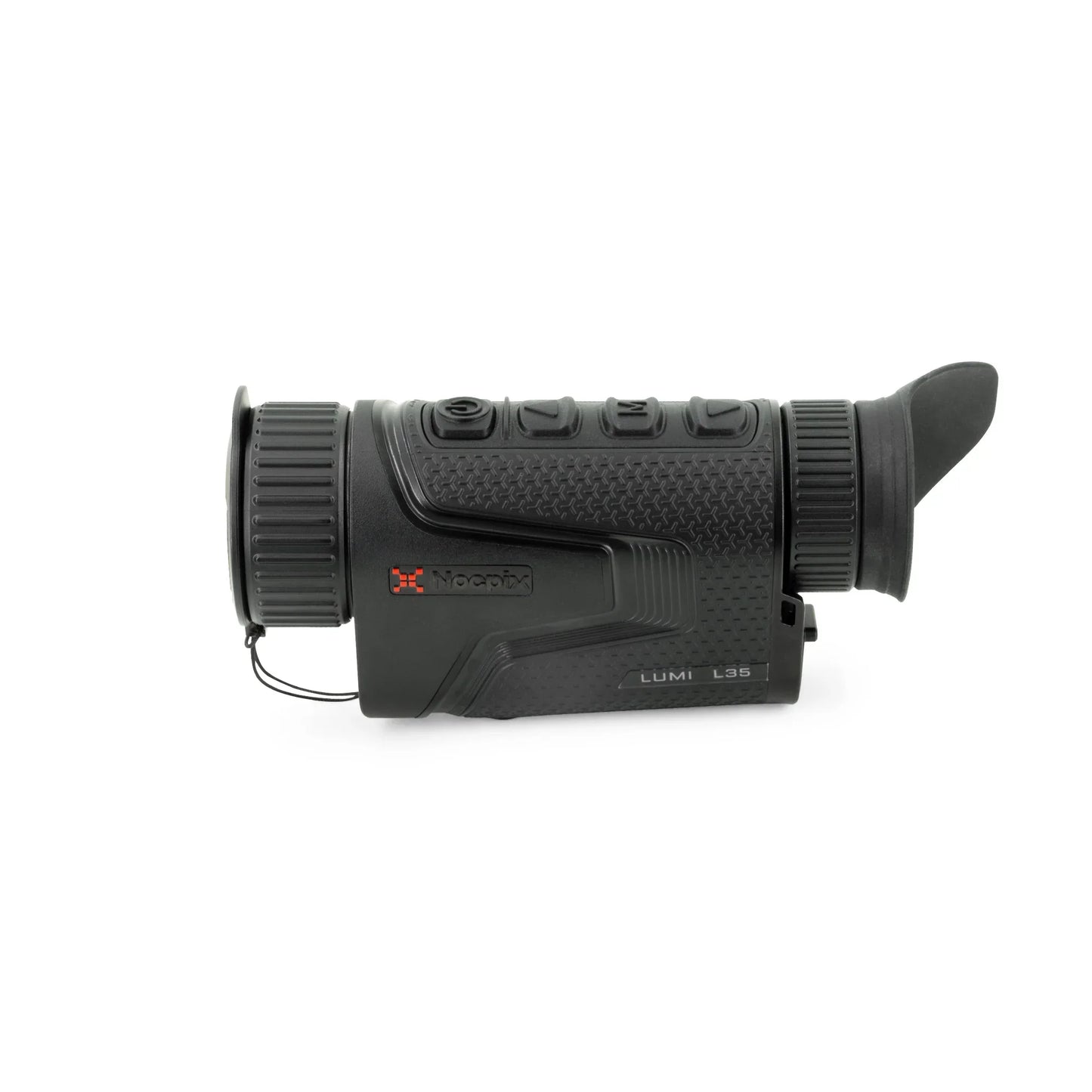

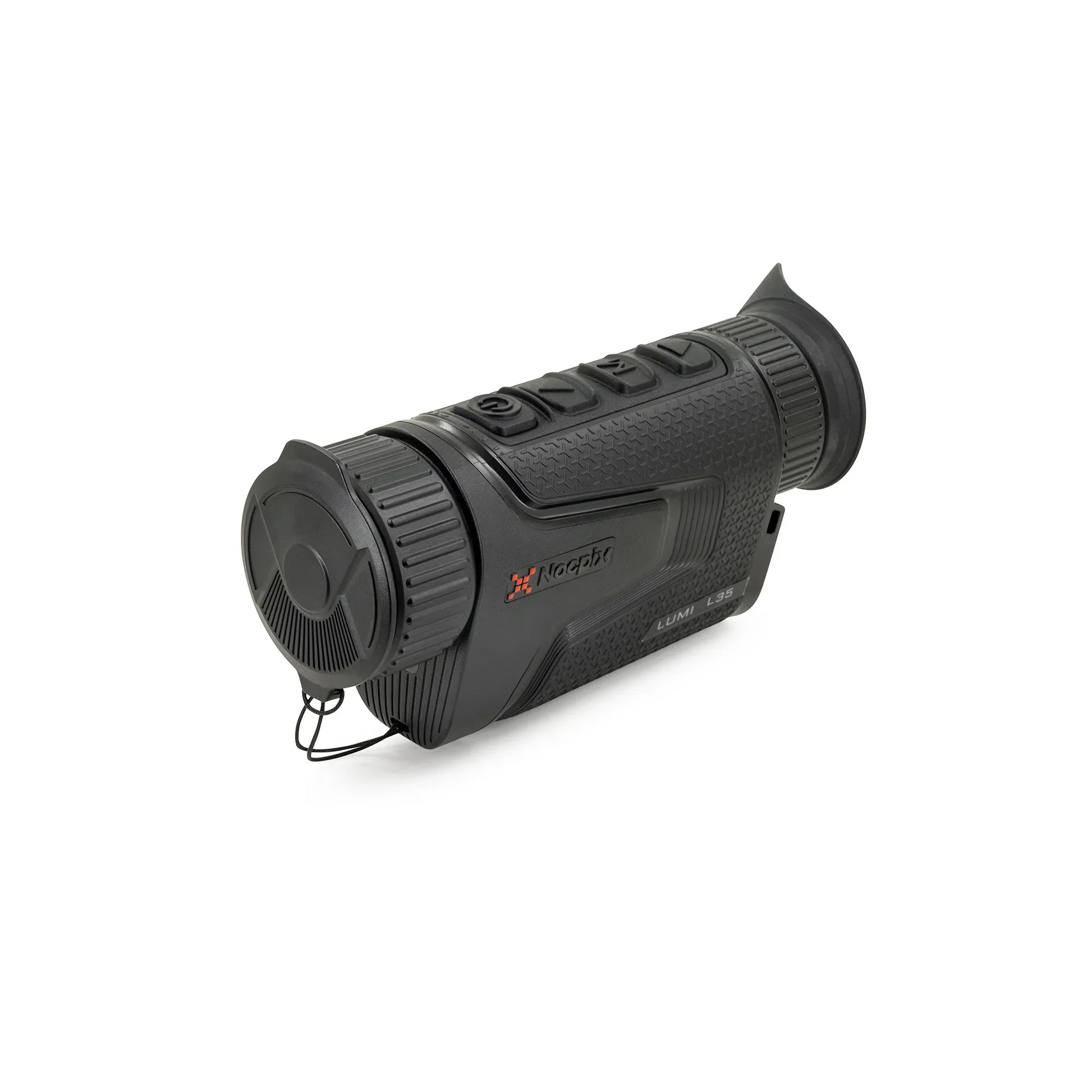

Nocpix LUMI Compact Thermal Monocular 384x288 35mm 3X LUMI-L35
LUMI brings the power of thermal observation devices to a compact and user-friendly form-factor for hunters on-the-go. The all new LUMI series of handheld thermal monoculars features a high quality thermal sensor, available in 384x288 (L35) or 640x512 (H35) paired with a 1024x768 AMOLED display. Available models offer either a 2.5x base magnification (H35) for a wider field of view, or a 4x base magnification (L35) for identifying targets at greater distances. Our advanced Reality+ image processing algorithm and a ≤18 mK NETD (thermal sensitivity) rating provide sharp, high-contrast images. Powering the LUMI is simple and affordable using common interchangeable 18650 style batteries. As a powerful tool for scouting and scanning, LUMI was designed to be as compact and ergonomic as possible while still offering impressive image detail and clarity; LUMI weighs 12 ounces and easily fits in the palm of the hand, a pocket, or the included MOLLE-compatible case.
For maximum compatibility and ease-of-use, LUMI models utilize common 18650 style rechargeable batteries (flat-top). The monocular ships with a tray-style USB-C charger and two 18650 batteries, each providing over three hours of run time in the field.
Nocpix LUMI L35 Features:
Reality+ technology
12 μm high-performance thermal detector
≤18 mK sensitivity
Digital zoom from 1.0×–4.0×
Polymer housing with rubber overmold
Includes two rechargeable 18650 batteries
Maximum detection range 1750 yards
1024×768 AMOLED display
High frame frequency: 50Hz
Built-in 32 GB storage to support image capture and video recording
Built-in Wi-Fi module
Mobile device App compatible
Picture in Picture (PIP)
Ultra-Clear mode
Multiple color palettes
Compact and lightweight
Warm and cool image-hue options
User-friendly interface
Nocpix LUMI L35 Specifications:
Sensor
Resolution 384×288
Pixel Size 12 μm
Frame Rate 50hz
Sensor Sensitivity ≤18 mK
Image Processing Reality+
Core Nocpix 384
Optics
Objective Lens 35 mm f/0.9
Magnification 4×
Digital Zoom 4×
Field of View 7.5° × 5.7°
Detection Range 1750 Yards
Display Type AMOLED
Display Resolution 1024×768
Color Palettes White Hot, Black Hot, Red Hot, Color, Crimson, Viridian, Violet
P.I.P. Yes
Rangefinder None
Eye Relief 25 mm
Diopter Range -5 to +5
Electronics
Onboard Recording Video and Image
Onboard Storage 32 GB
Wireless Connectivity Image and Video via App.
Data/Power Connector USB-C
Power Supply USB-C External, Built-In Battery Pack (3.5+ Hours), 18650 Batteries ×2 (4+ Hours Each)
Start Up Time <10 Seconds, Instant from Standby
Physical
Size 5.63” × 1.85” × 2.91”
Weight 11.82 Oz
Environmental/Warranty
Warranty 5 Years
Housing Material Polymer with Rubber Overmold
Ingress Protection IP67
Operation Temperature -4°F~122°
The Nocpix LUMI L35 ships with everything you need to get out and hunt.

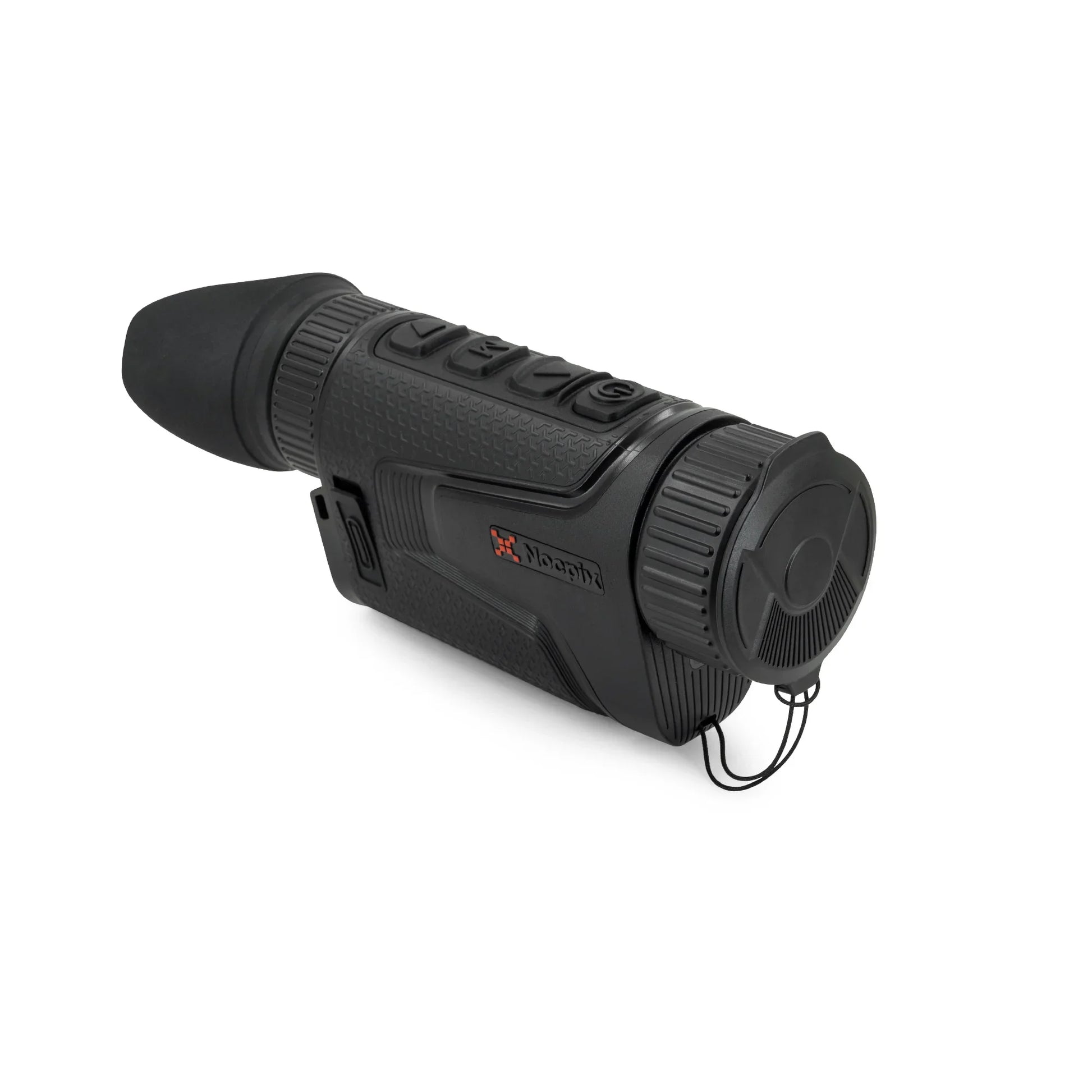

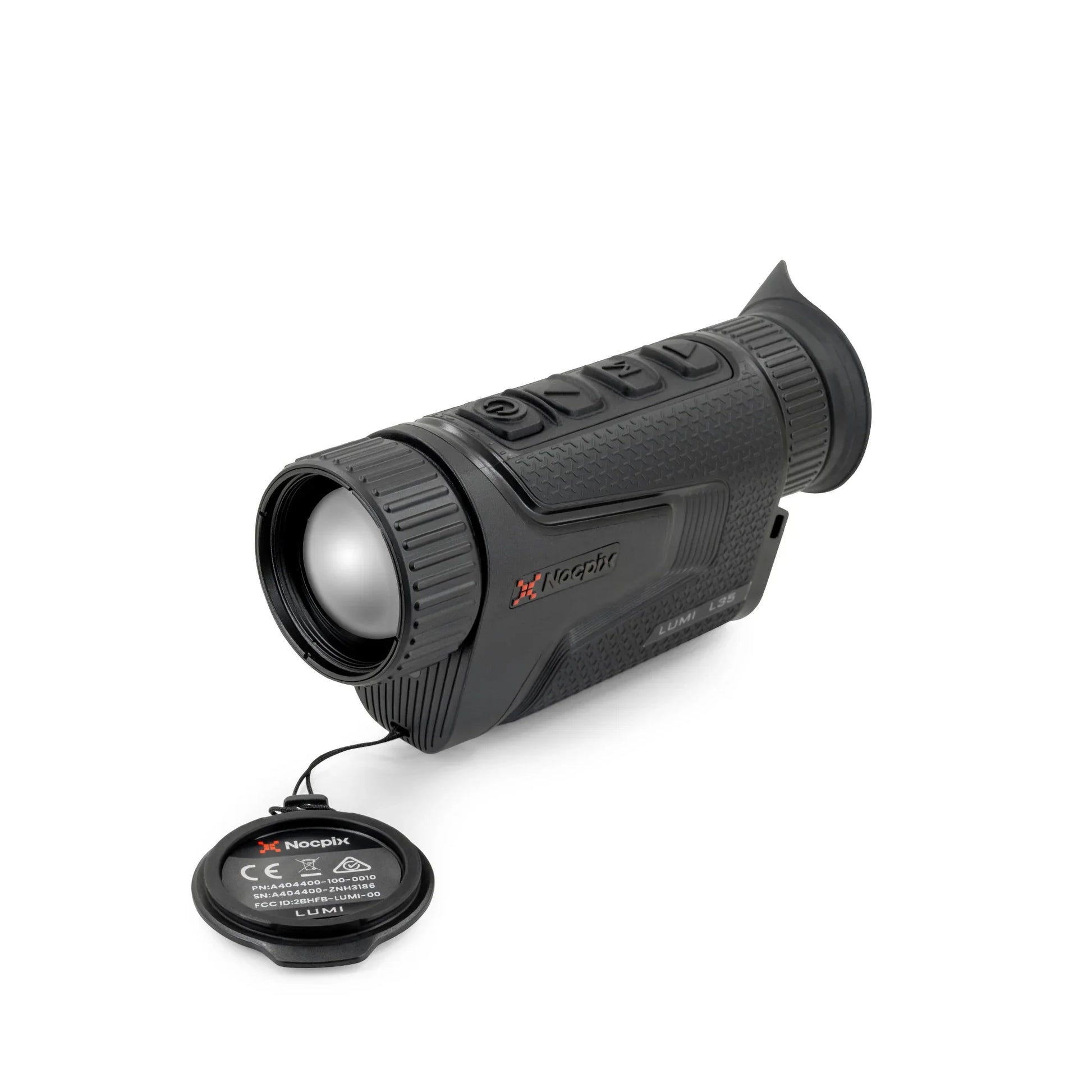

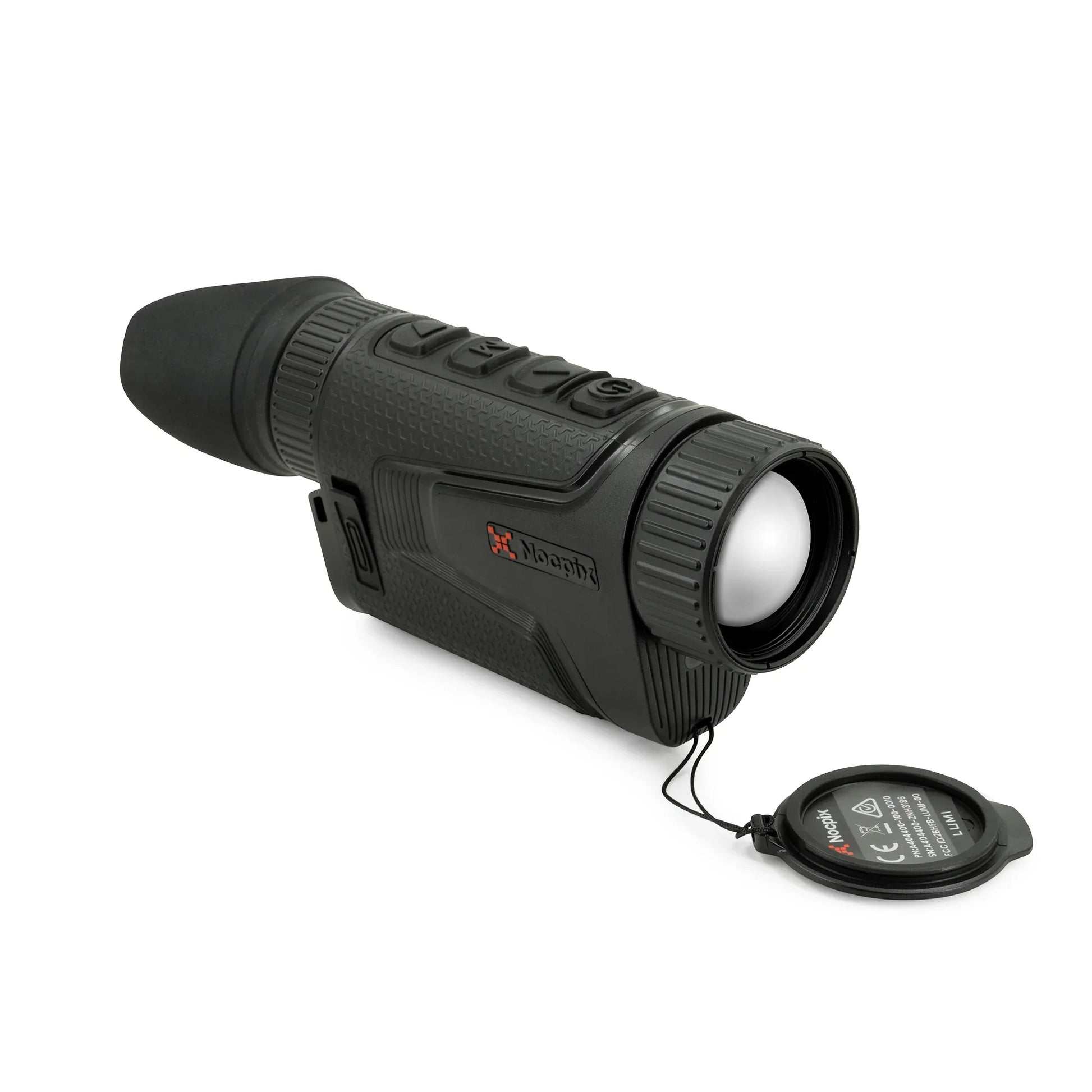

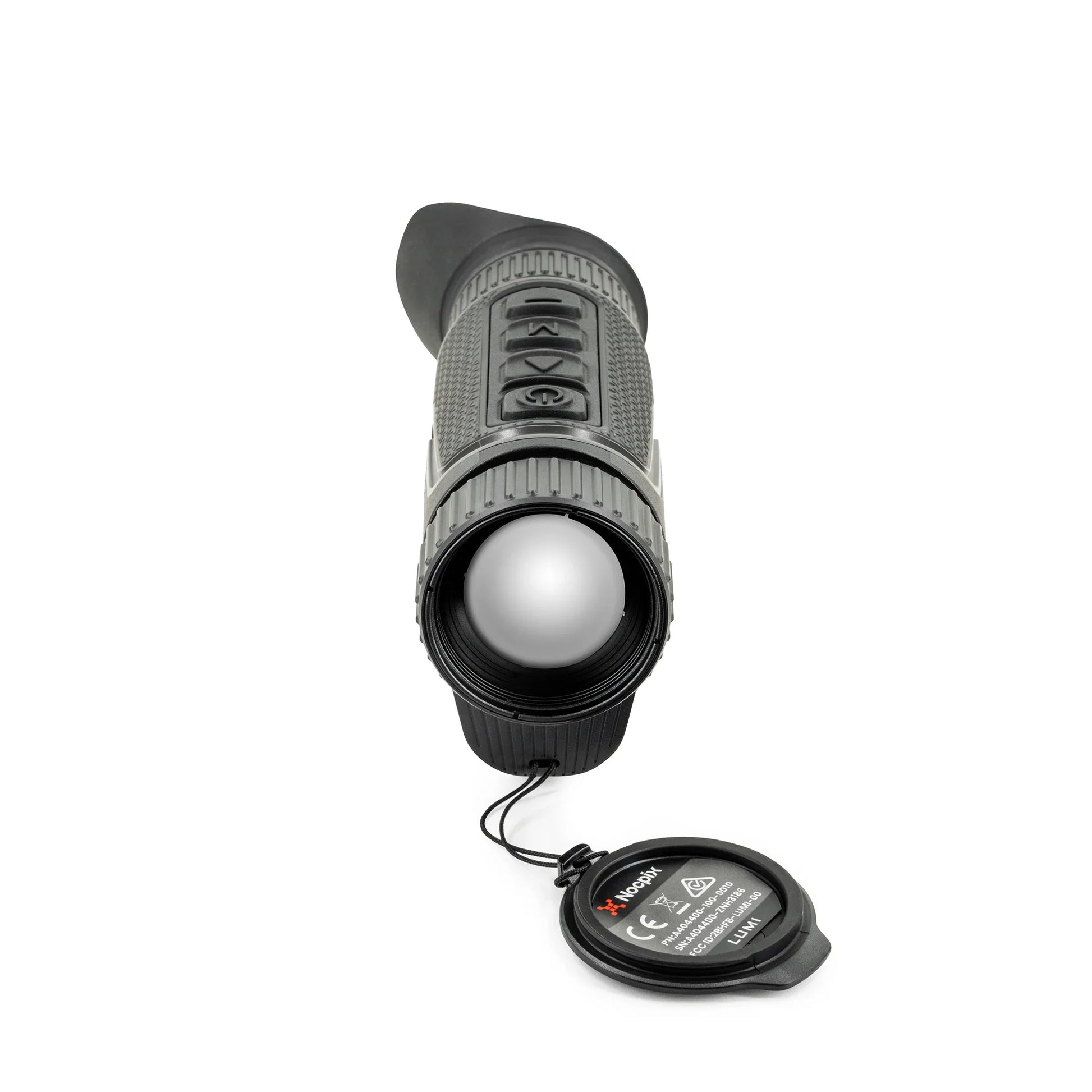

19mm or 35mm Objective Lens Cap
18650 Batteries ×2
18650 Battery Charger
USB-C Cable
Carrying Bag and Straps
Lens Cloth
User Manual
