Can I use the Nocpix Mini 2 H25 as both a handheld device and a helmet mount?

Yes, the Nocpix Mini 2 H25 Thermal/Night Vision Fusion Helmet Mountable Monocular 640 is designed for versatility. It is compact and lightweight, allowing you to use it as a handheld monocular or integrate it with a helmet-mounting system for hands-free operation.

What is the difference between the thermal imaging and the fusion mode?

The device features a dual-sensor system. While it provides high-resolution thermal imaging via a 640x512 core, it also incorporates digital night vision. The fusion imaging allows you to use a thermal overlay on top of the night vision, which significantly enhances target recognition and situational awareness.

How long does the battery last and how do I charge it?

The Nocpix Mini 2 H25 comes with an external battery pack that provides up to 7 hours of use. For convenience, it includes a magnetic charging cable as well as a USB-C cable for power.

Can I record video and photos directly on the device?

Yes, the unit has onboard audio and video recording capabilities. It comes with 32 GB of internal storage, so you can capture and review critical moments directly on the device or transfer them via the built-in Wi-Fi module and compatible mobile app.

Is the Nocpix Mini 2 H25 durable enough for rugged outdoor use?

Absolutely. The device is built with an aluminum housing and carries an IP67 ingress protection rating. It is designed to operate in temperatures ranging from -4°F to 122°F and is backed by a 5-year manufacturer warranty for long-term confidence.

1 8

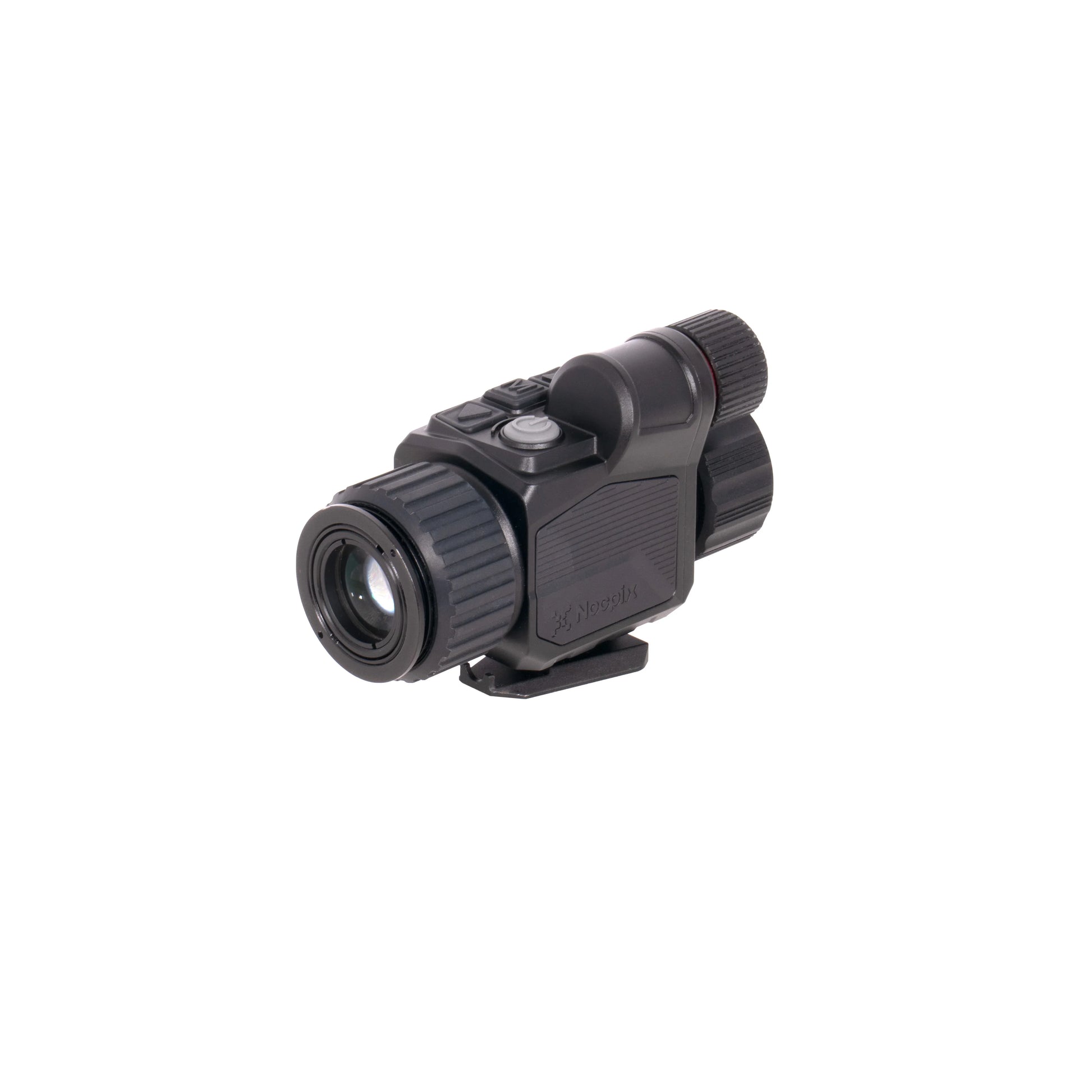

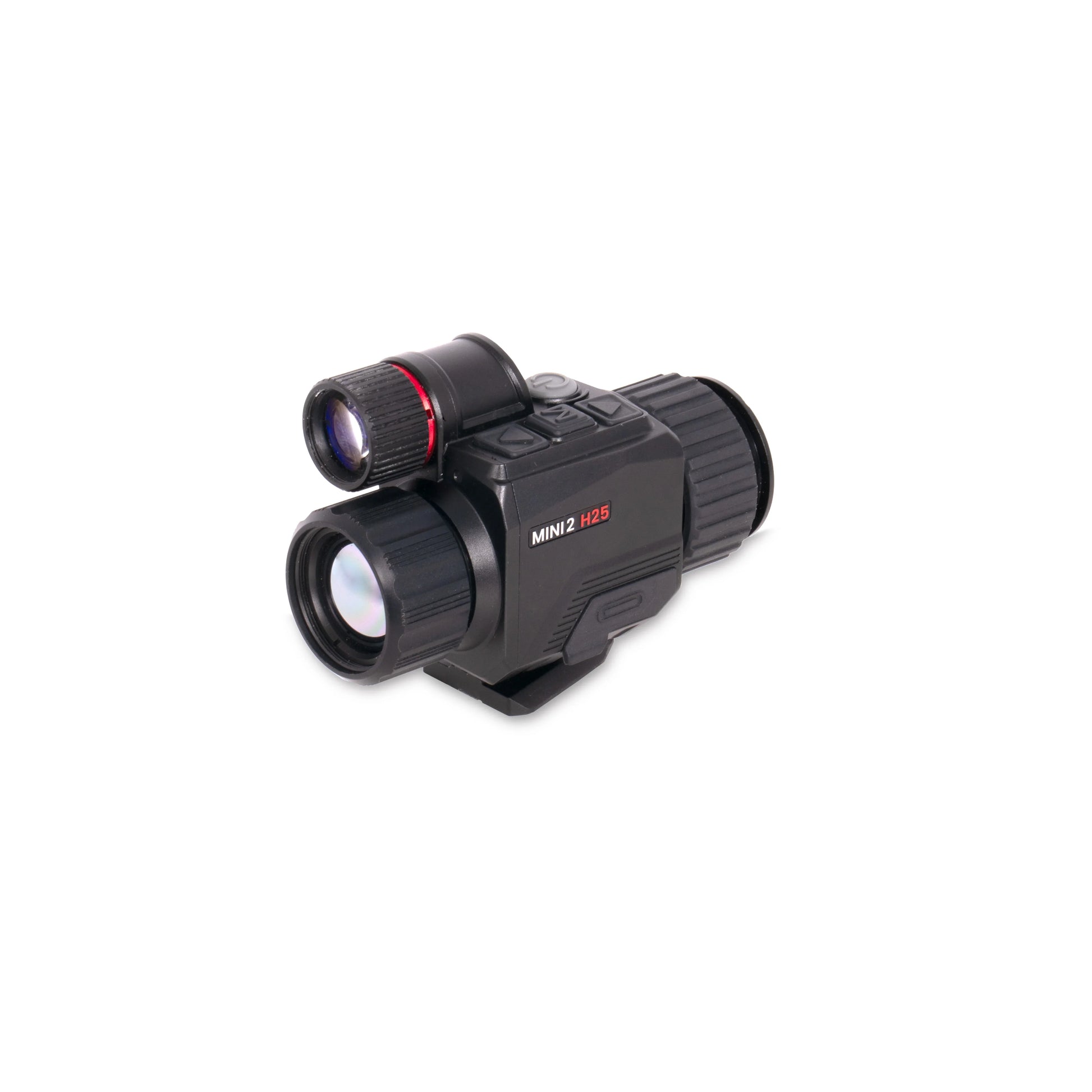

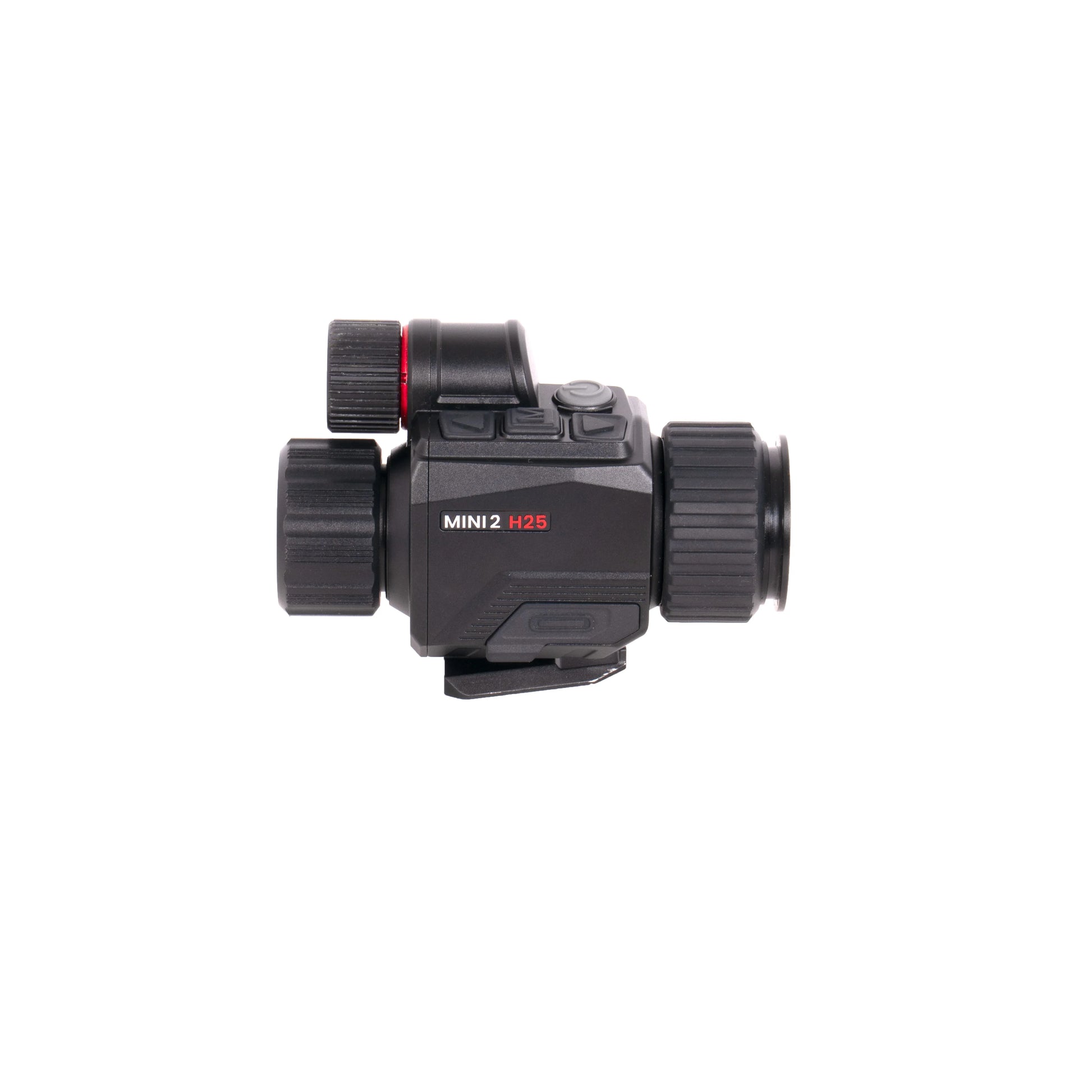

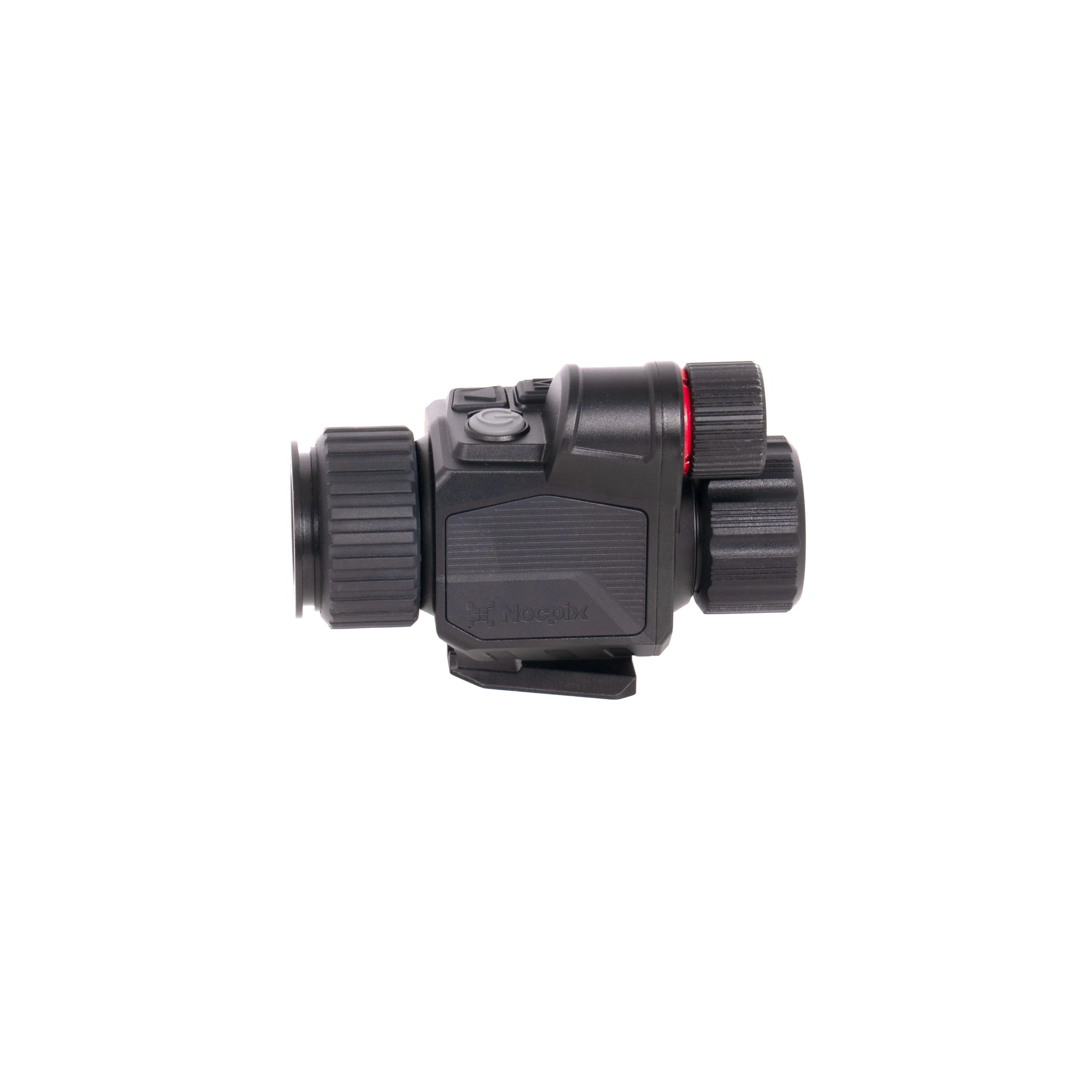

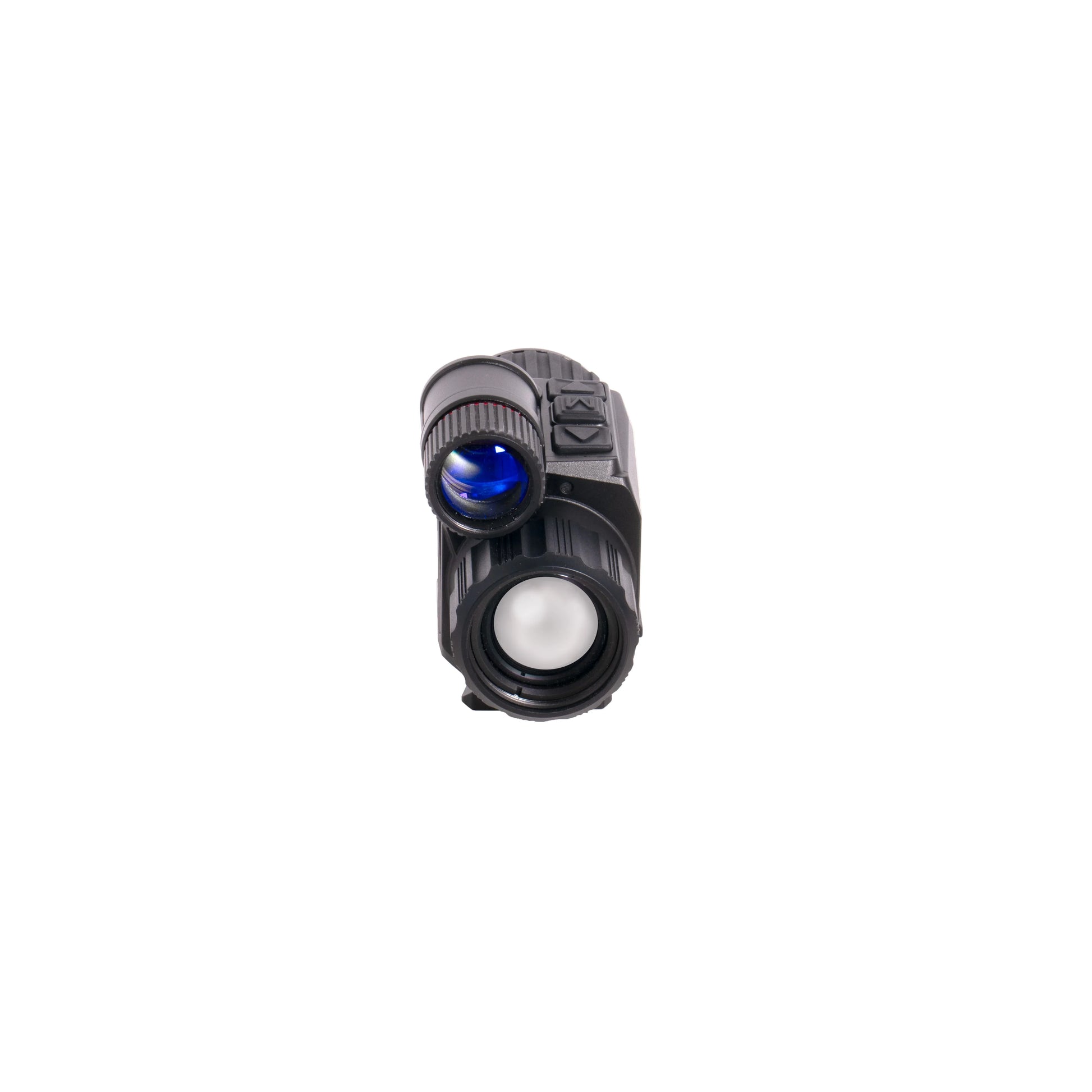

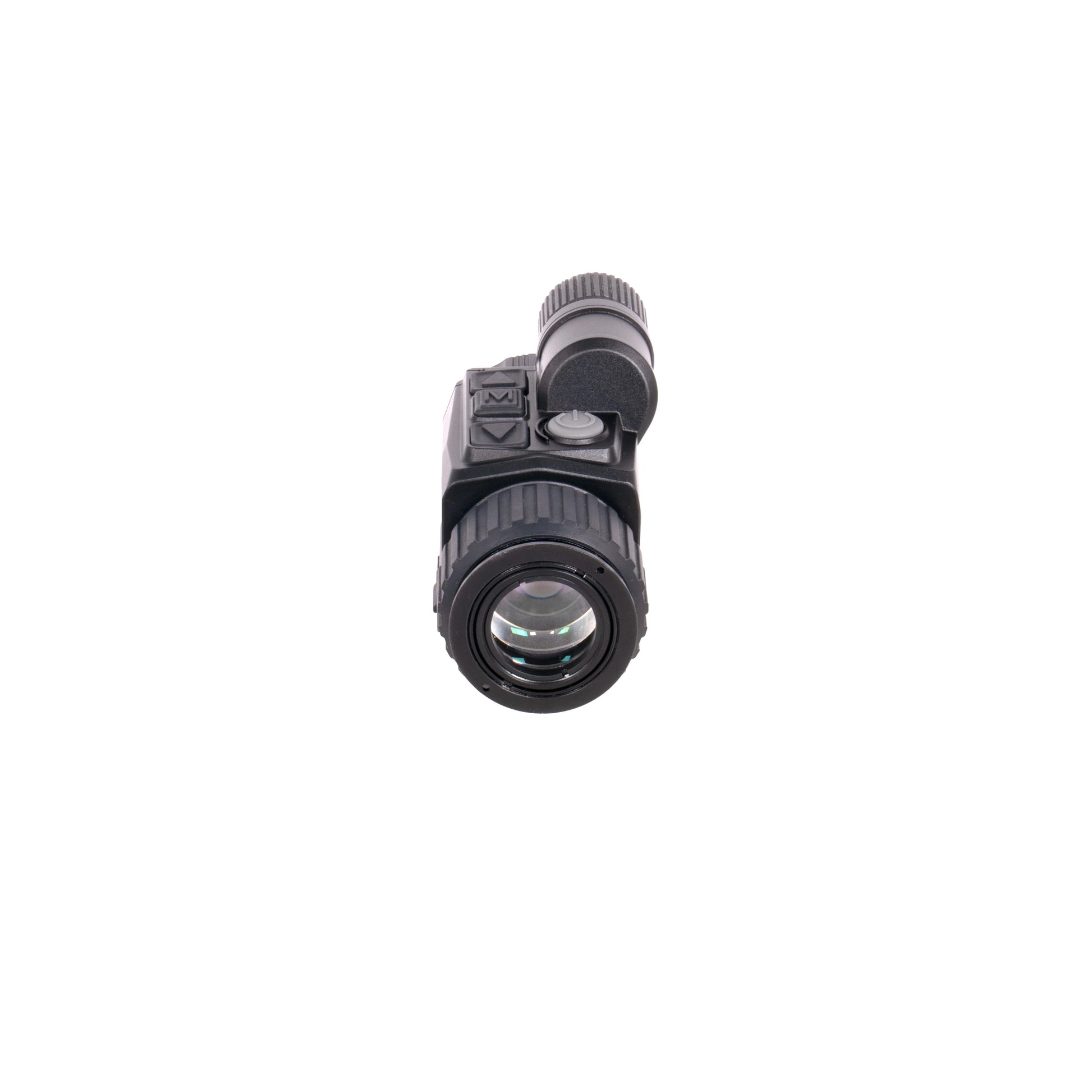

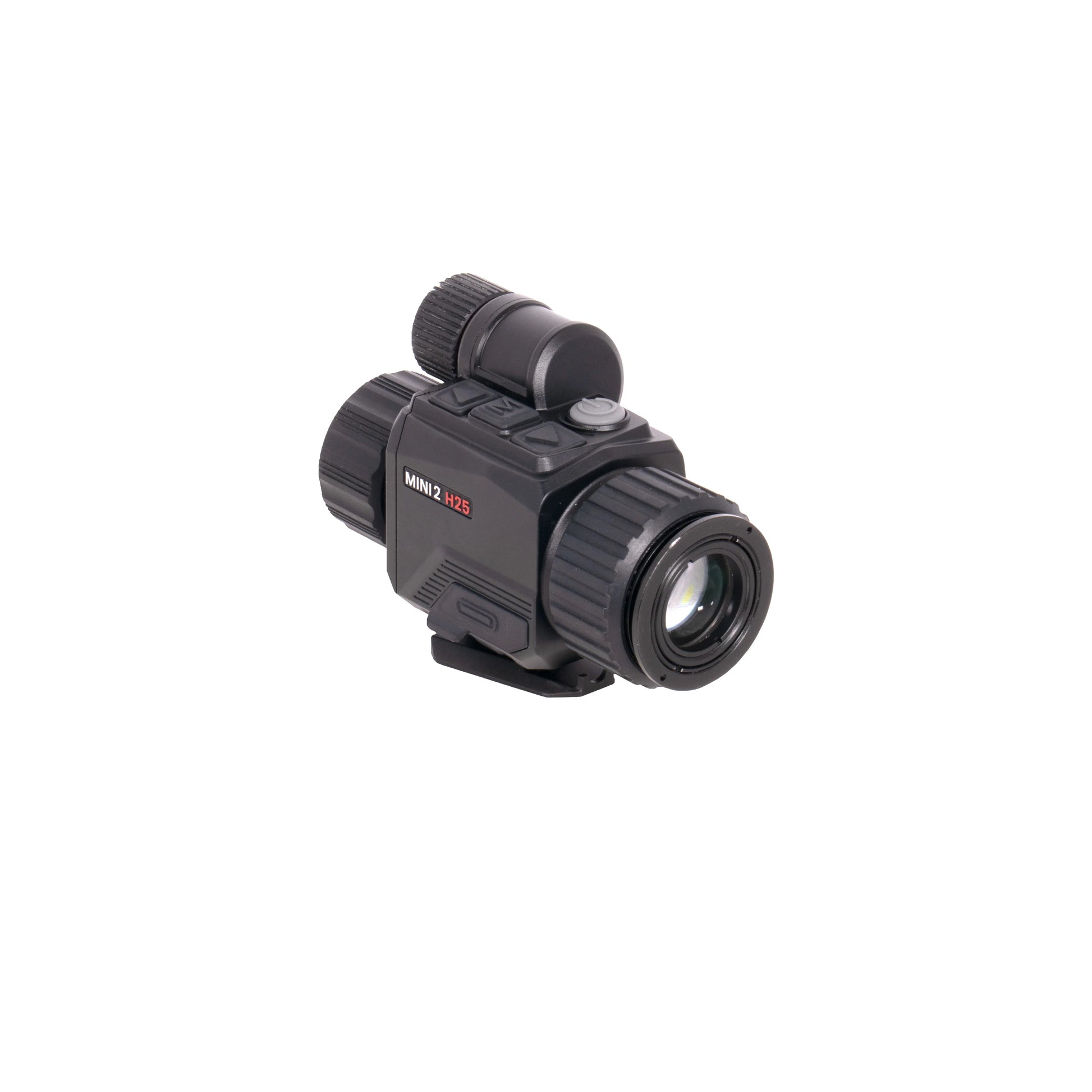

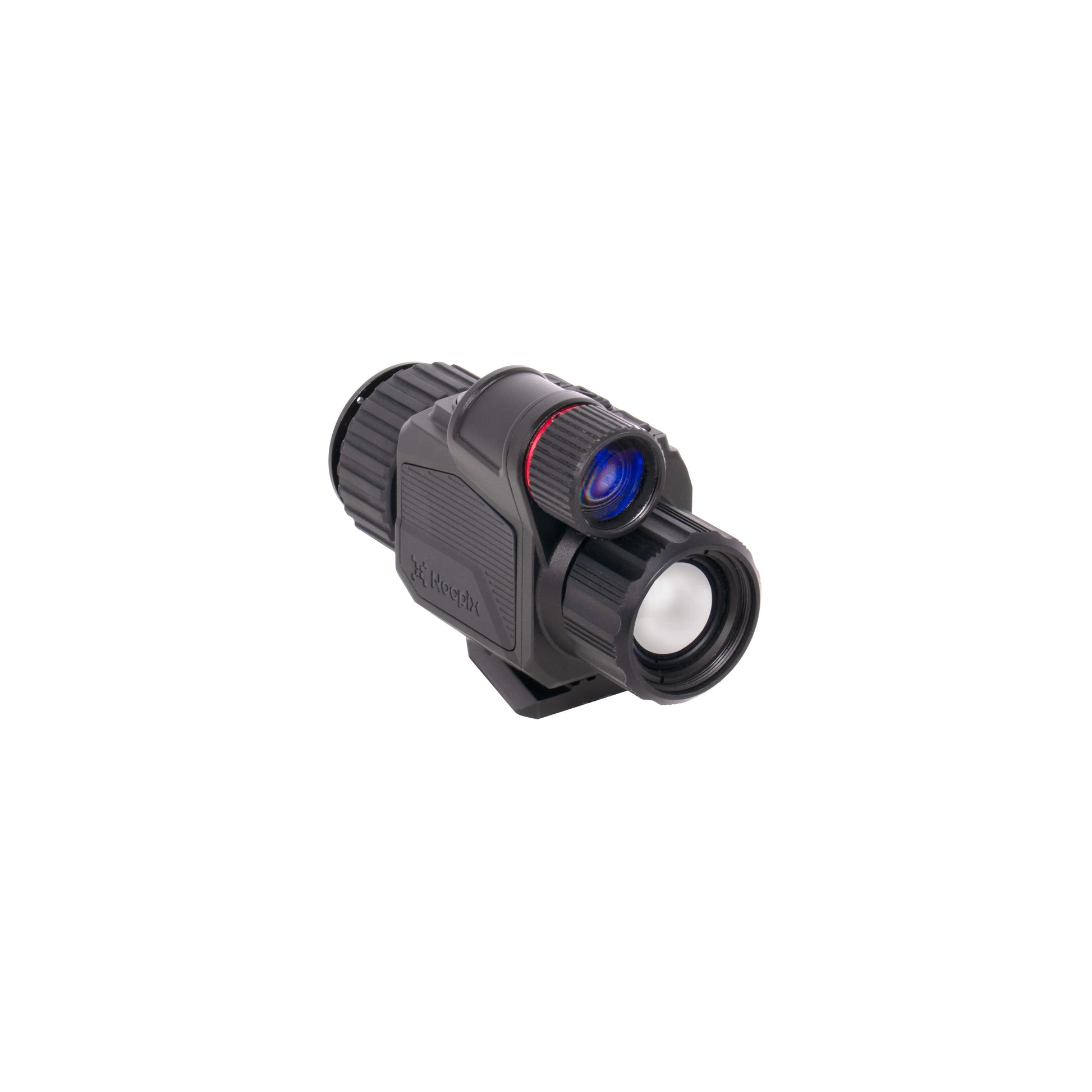

Nocpix Mini 2 H25 Thermal/Night Vision Fusion Helmet Mountable Monocular 640

Name: Nocpix Mini 2 H25 Thermal/Night Vision Fusion Helmet Mountable Monocular 640
SKU: MINI2-H25
Price: 2999.0 USD
Availability: InStock

SKU:MINI2-H25

$ 2,999.00

Sale Sold out

Shipping calculated at checkout.

Nocpix Mini 2 H25 Thermal/Night Vision Fusion Helmet Mountable Monocular 640

😊Feel free to text me at 412-573-9059 for the best service.😊

The Nocpix MINI 2 H25 is a compact, lightweight thermal imaging device engineered for both handheld and helmet-mounted operation. Its versatile design enables seamless transition between use as a handheld monocular and integration with a helmet-mounting system for hands-free applications. Equipped with a high-performance 60 Hz, 12 μm thermal sensor and advanced Reality+ image processing, the MINI 2 delivers exceptional image clarity and detail across a wide range of conditions. The system features a 640×512 resolution thermal core paired with a 1280×1024 AMOLED display, providing a sharp, high-contrast viewing experience within a highly portable form factor. In addition to thermal imaging, the MINI 2 incorporates digital night vision functionality with optional thermal overlay, allowing users to utilize fusion imaging for enhanced target recognition and situational awareness. The device also includes onboard audio and video recording capabilities, supported by 32 GB of internal storage, enabling users to capture, store, and review critical moments directly from the unit.

Nocpix MINI 2 H25 Features:

• Reality+ technology

• 12 μm high-performance thermal detector

• ≤15 mK sensitivity

• Dual-sensor imaging system

• 1–4× digital zoom

• Aluminum housing

• Maximum detection range: 1420 yards

• 1280×1024 AMOLED display

• High frame frequency: 60Hz

• NOCPIX External Battery Pack with Magnetic Charging Cable

• Built-in 32 GB storage to support image capture and video recording

• Built-in Wi‑Fi module

• Mobile device App compatible

• Picture in Picture (PIP)

• Ultra‑clear mode

• Multiple color palettes

• Compact and lightweight

• User-friendly interface

• 5 Year Manufacturer Warranty

Nocpix MINI 2 H25 Specifications:

Thermal Sensor

Resolution 640×512

Pixel Size 12 μm

Frame Rate 60hz

Sensor Sensitivity ≤15 mK

Image Processing Reality+

Core Nocpix 640

Optics

Objective Lens 25 mm f/1.0

Magnification / Digital Zoom 1× / 4×

Field of View 17.6° × 14.1°

Detection Range 1420 Yards

Display Type / Display Resolution 0.6-inch AMOLED / 1280×1024

Color Palettes White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian

Mounting System Dovetail shoe

Eye Relief 25 mm

Diopter Range -5 to +5

Digital Imaging Sensor

Image Sensor 1/1.8” CMOS

Resolution 960×540

Pixel Size 8 μm

Objective Lens F 14.3/0.85

FOV 30.8° × 17.3°

Electronics

Onboard Recording Video and Image

Onboard Storage 32 GB

Wireless Connectivity Image and Video via App.

Power Supply USB-C External, Built-In Battery, External Battery Pack (7 Hours)

Physical

Size 4.00” × 1.72” × 2.54”

Weight 8.47 Oz

Environmental/Warranty

Warranty 5 Years

Housing Material Aluminum Ingress

Protection IP67

Operation Temperature -4°F~122°F

The Nocpix MINI 2 H25 ships with everything you need to get out and hunt.

• Objective Lens Cap

• Standard Eyeguard

• External Battery Pack

• Magnetic Charging Cable

• USB-C Cable

• Hex Key

• Carrying Bag

• Lens Cloth

• User Manual

EXPORT RESTRICTION

Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
