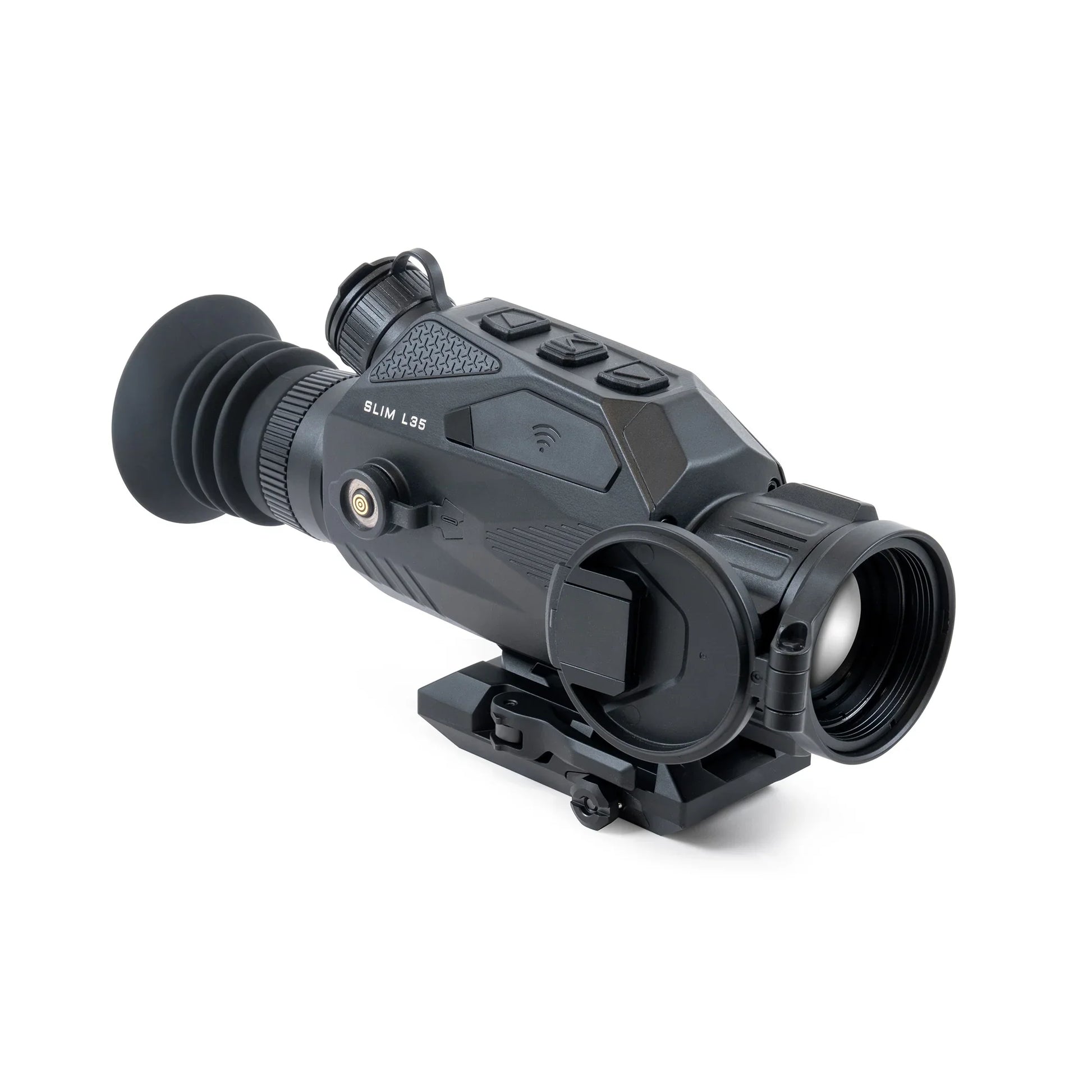

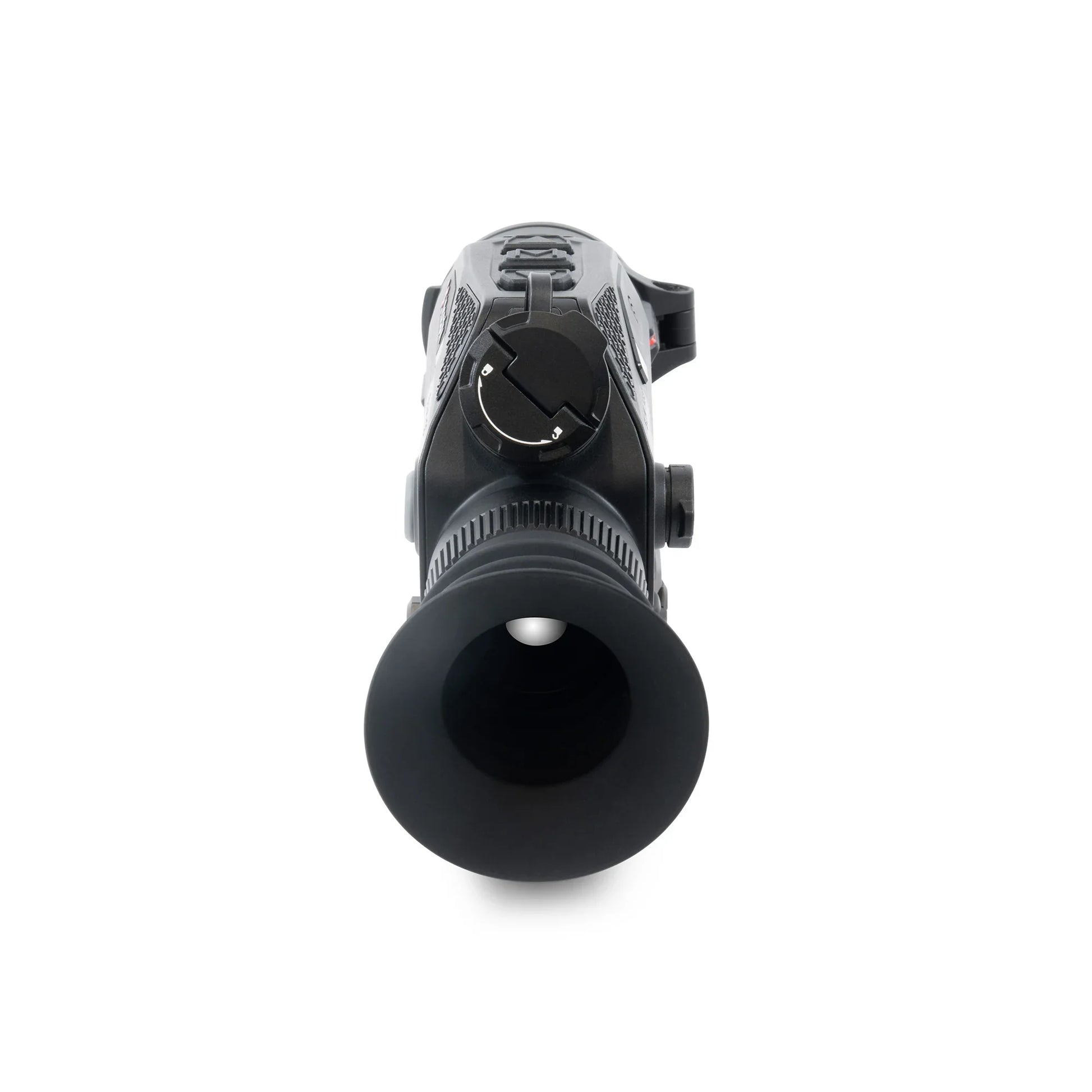

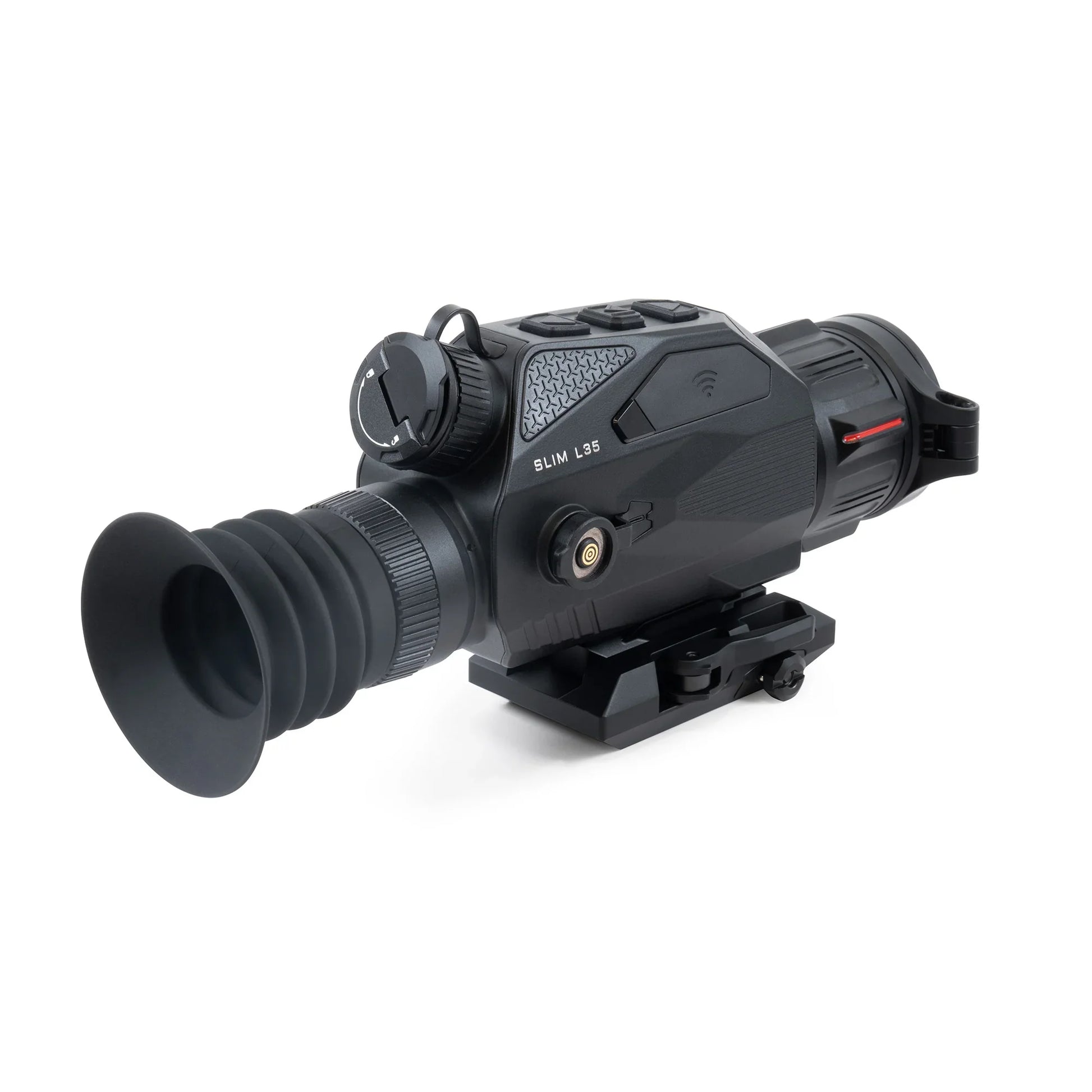

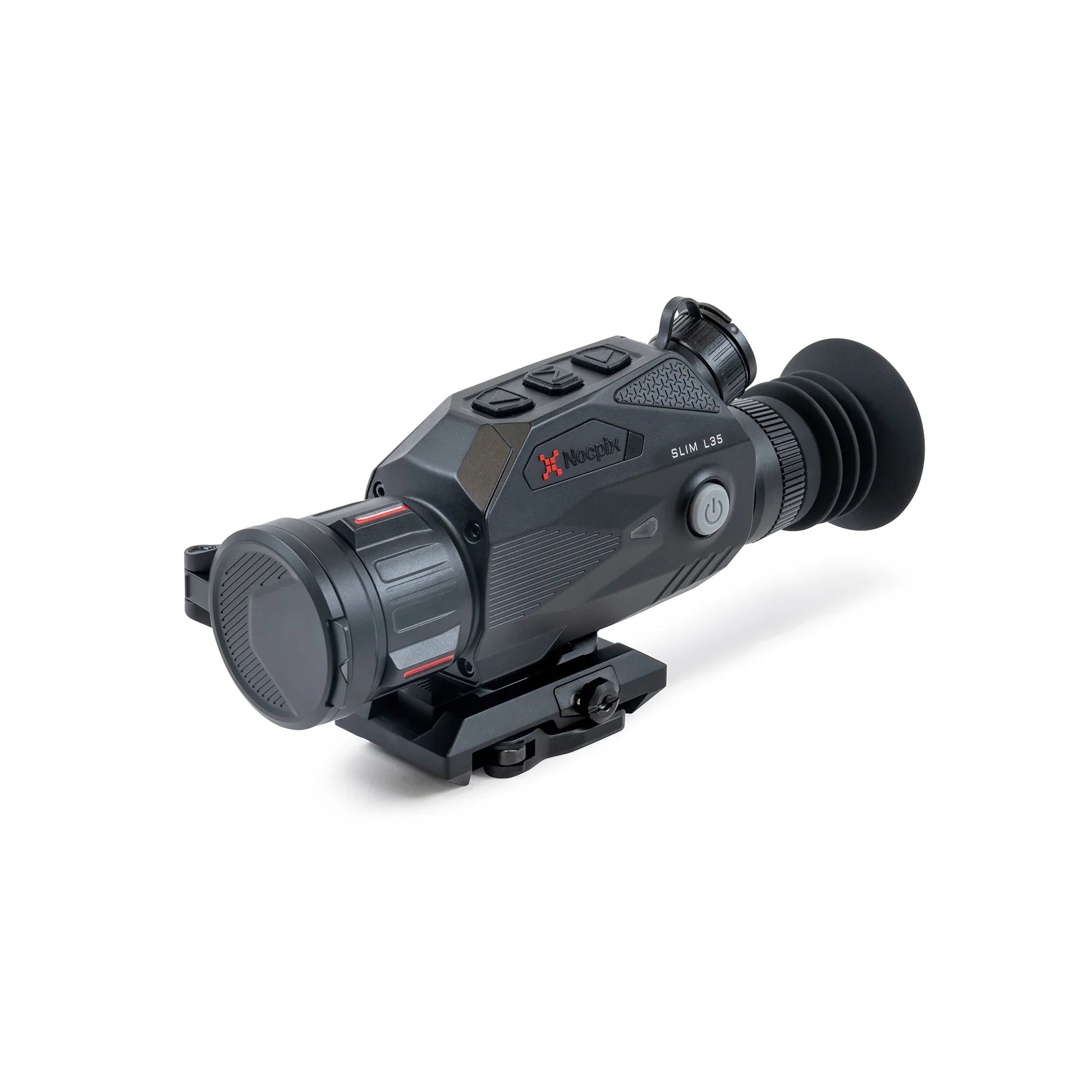

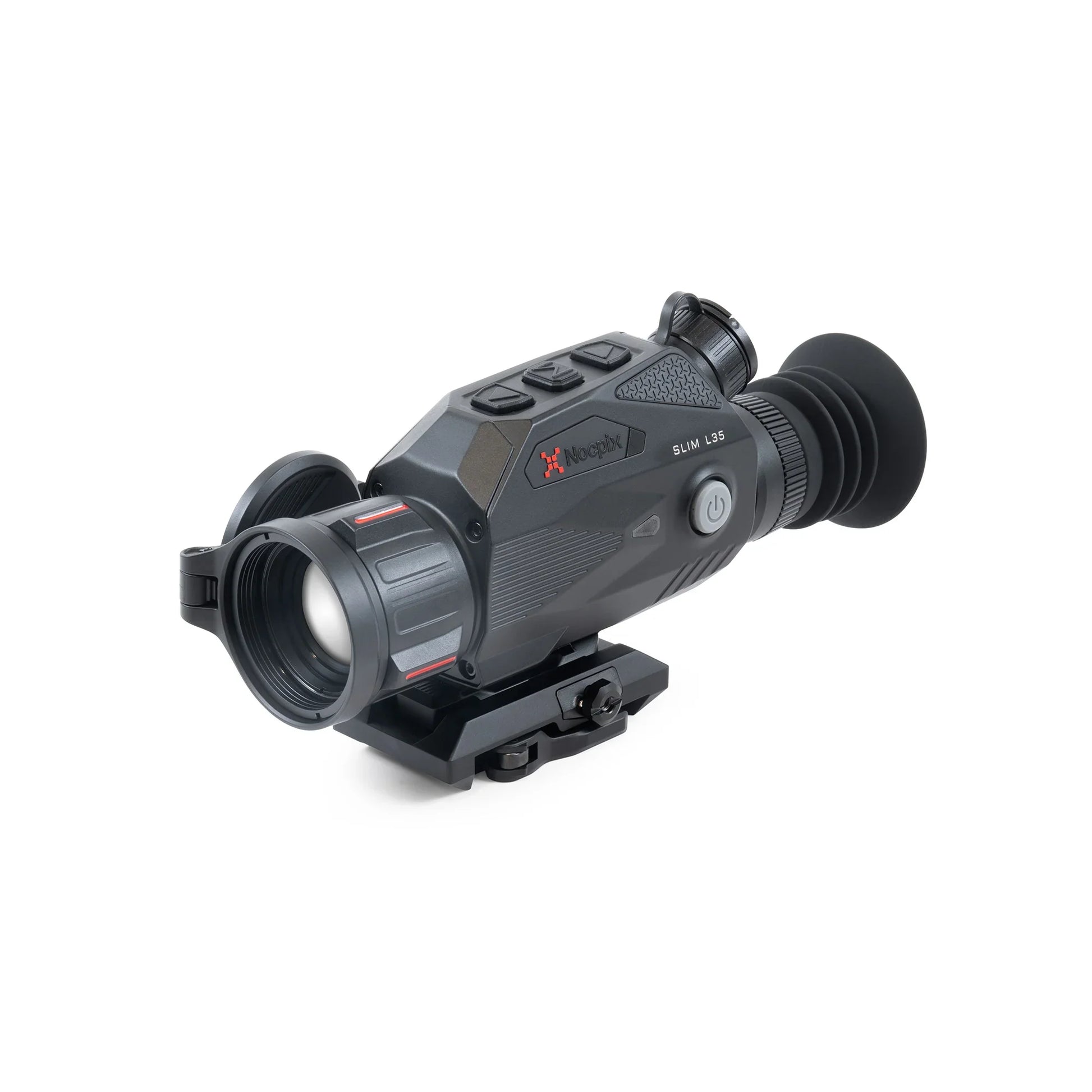

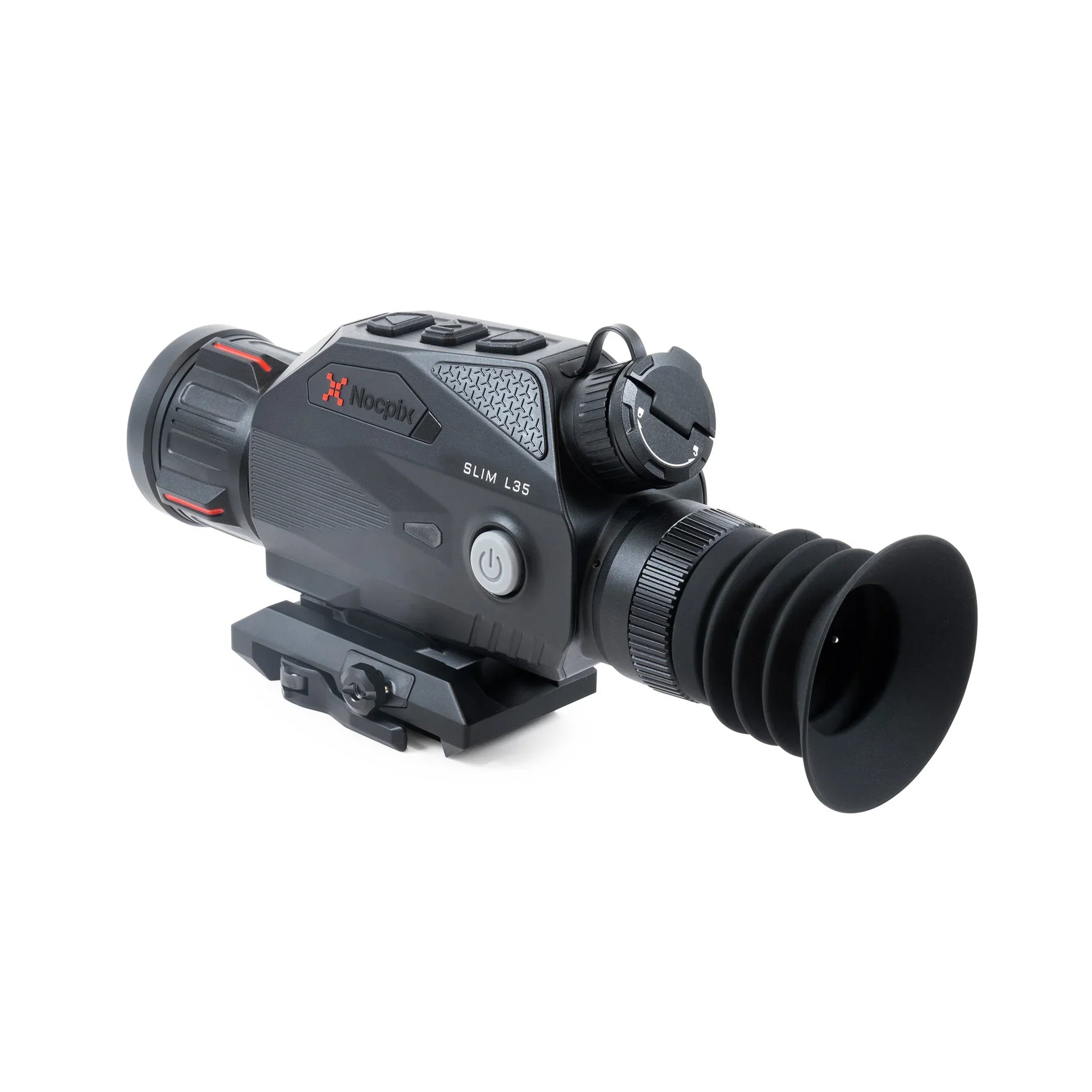

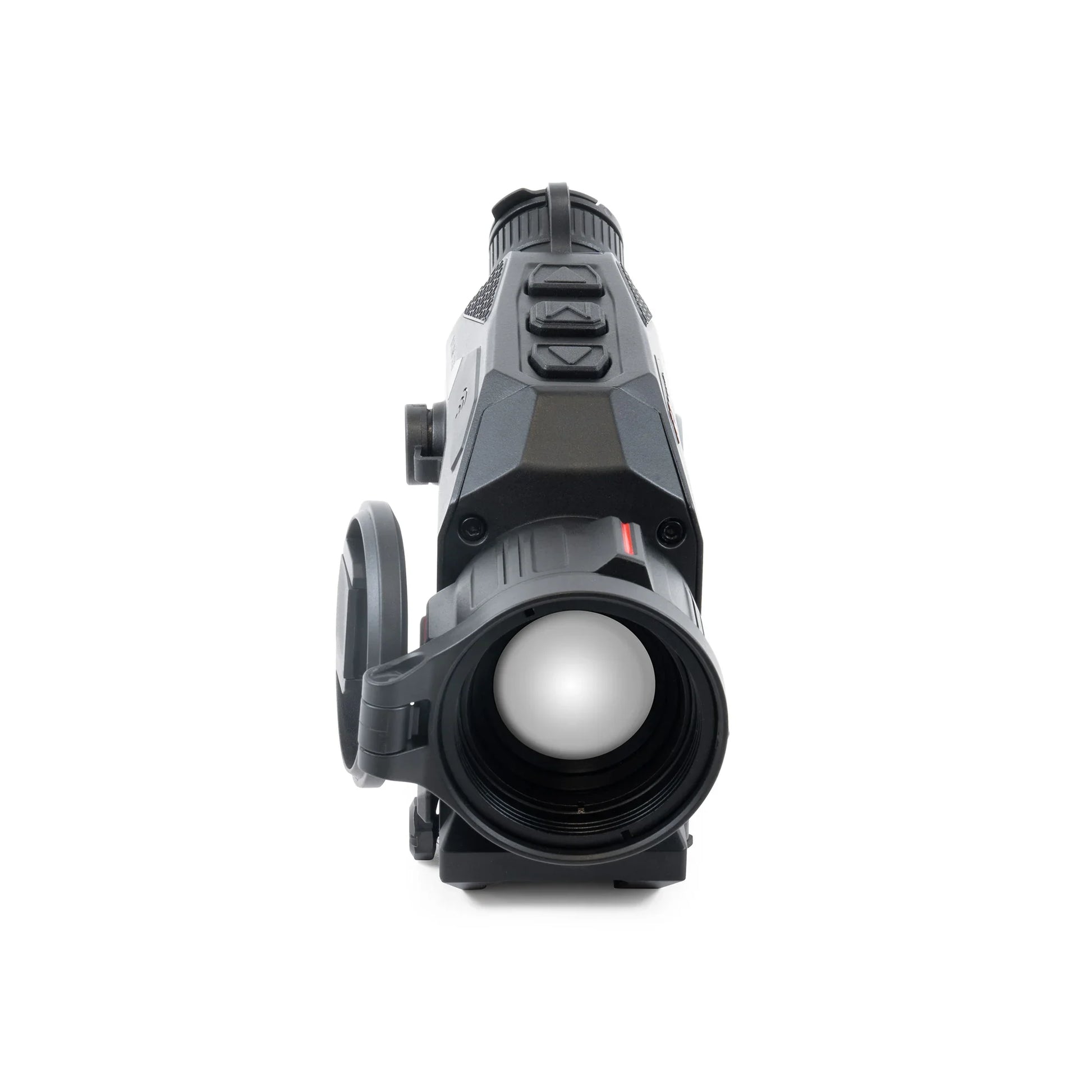

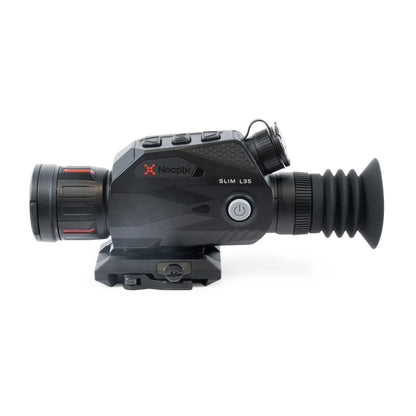

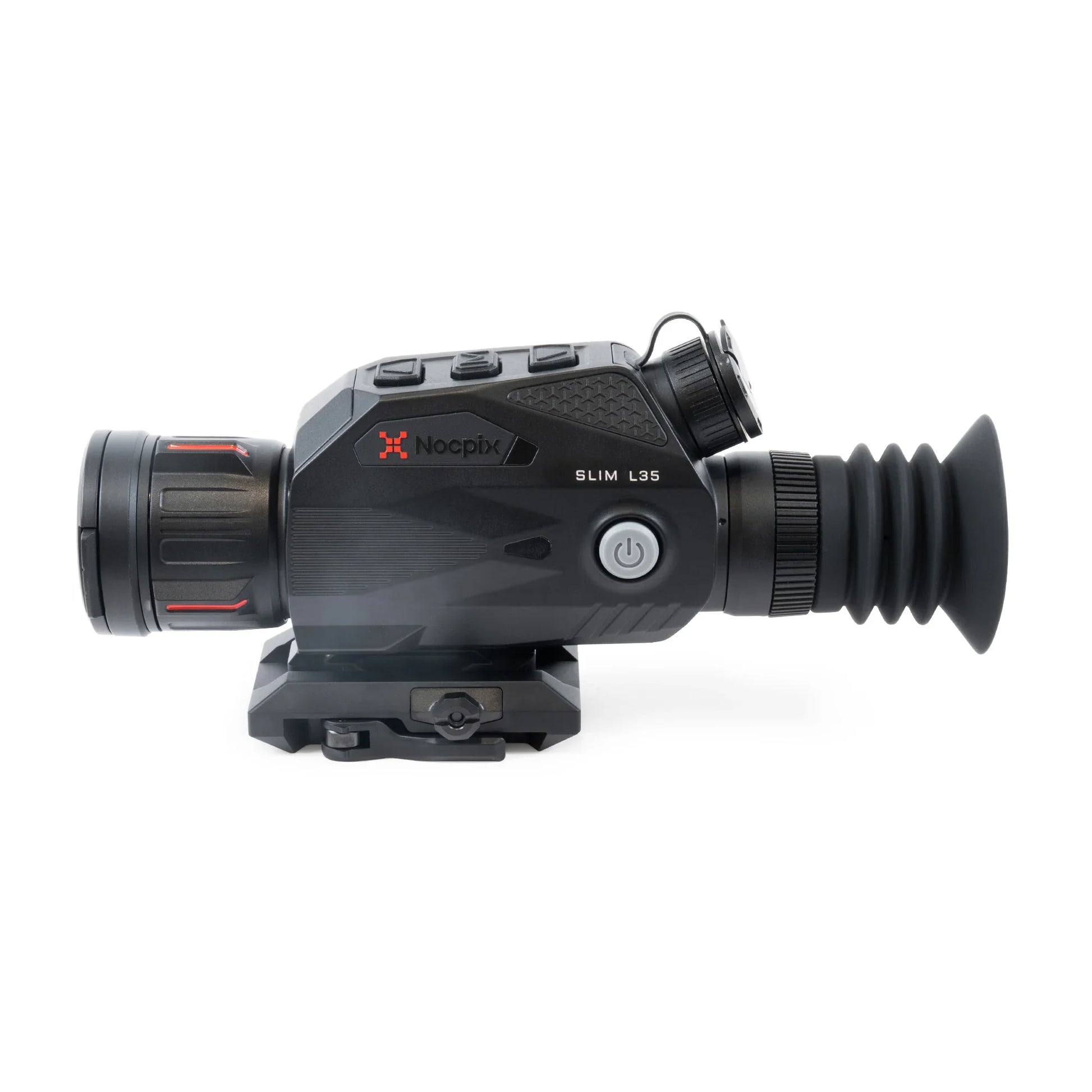

Nocpix SLIM Multi-Function Thermal Optic 384x288 35mm 3.5X SLIM-L35
The all-new SLIM series from Nocpix provides the best value and features in a compact optic. These units can be used as both a handheld monocular and a weapon sight. With the included proprietary quick-detach mounting system a hunter can quickly scan and then re-attach the optic to the rifle while maintaining zero. A magnesium alloy body and quiet, soft-touch buttons provide excellent ergonomics in both handheld and weapon-mounted configurations. The included 18650 batteries ensure a longer time in the field, and the ability to charge through the optic using a magnetic cable keeps the process streamlined. Generous eye relief and a 1024×768 AMOLED display provide a comfortable and highly detailed viewing experience
Nocpix LUMI H35 Features:
12 μm high-performance thermal detector
≤18 mK sensitivity
Quickly change optic from a handheld scanner to a weapon sight
Digital zoom from 1.0×–4.0×
Magnesium alloy housing
Includes two rechargeable 18650 batteries
Maximum detection range 1750 yards
1024×768 AMOLED display
High frame frequency: 50Hz
Multiple reticle types and color options
Supports multiple charging options, including a durable magnetic charging cable
Recoil activated video
Multiple zero profiles and ranges
Built-in 32 GB storage to support image capture and video recording
Built-in Wi-Fi module
Mobile device App compatible
Picture in Picture (PIP)
User-friendly interface
Pixel calibration functions
Nocpix LUMI H35 Specifications:
Sensor
Resolution 384×288
Pixel Size 12 μm
Frame Rate 50hz
Sensor Sensitivity ≤18 mK
Image Processing Reality+
Core Nocpix 384
Optics
Objective Lens 35 mm f/0.9
Magnification 3.5×
Digital Zoom 4×
Field of View 7.5° × 5.7°
Detection Range 1750 Yards
Display Type AMOLED
Display Resolution 1024×768
Color Palettes White Hot, Black Hot, Red Hot, Rainbow, Violet, Crimson, Viridian
Reticle Types 8 (1 Dynamic, 6 Static, 1 DIY
P.I.P. Yes
Mounting System Picatinny MIL-STD 1913 Rail
Rangefinder None
Eye Relief 48 mm
Diopter Range -5 to +5
Electronics
Onboard Recording Video, Recoil-Activated Video, and Imag
Onboard Storage 32 GB
Wireless Connectivity Image and Video via App.
Data/Power Connector USB-C
Power Supply USB-C External, Built-In Battery Pack (3.5+ Hours), 18650 Batteries ×2 (4+ Hours Each)
Start Up Time <10 Seconds, Instant from Standby
Physical
Size 8.50” × 2.99” × 1.81”
Weight 18.70 Oz
Environmental/Warranty
Warranty 5 Years
Housing Material Housing Material Magnesium Alloy
Ingress Protection IP67
Operation Temperature -4°F~122°
The Nocpix LUMI H35 ships with everything you need to get out and hunt.
35mm Objective Lens Cap
Standard Rubber Eyeguard
IRAY-AC79 Dual-QD Mount Base for SLIM
IRAY-AC78 Optic-side Mounting Rail for SLIM
M5 Screws
3mm Hex Key and Spanner Tool
18650 Batteries ×2
18650 Battery Charger
Magnetic Charging Cable
USB-C Cable
Soft Case
Lens Cloth
User Manual
