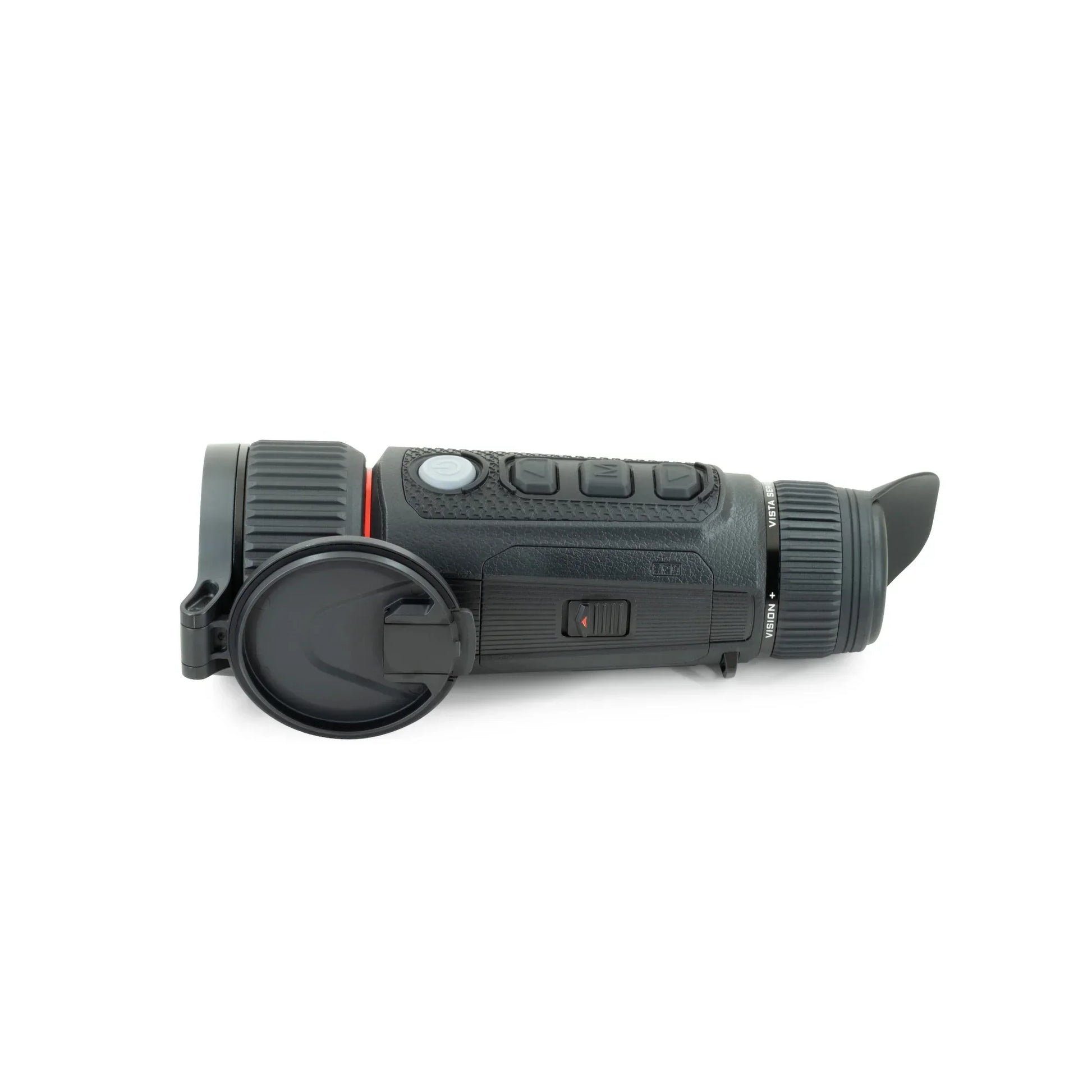

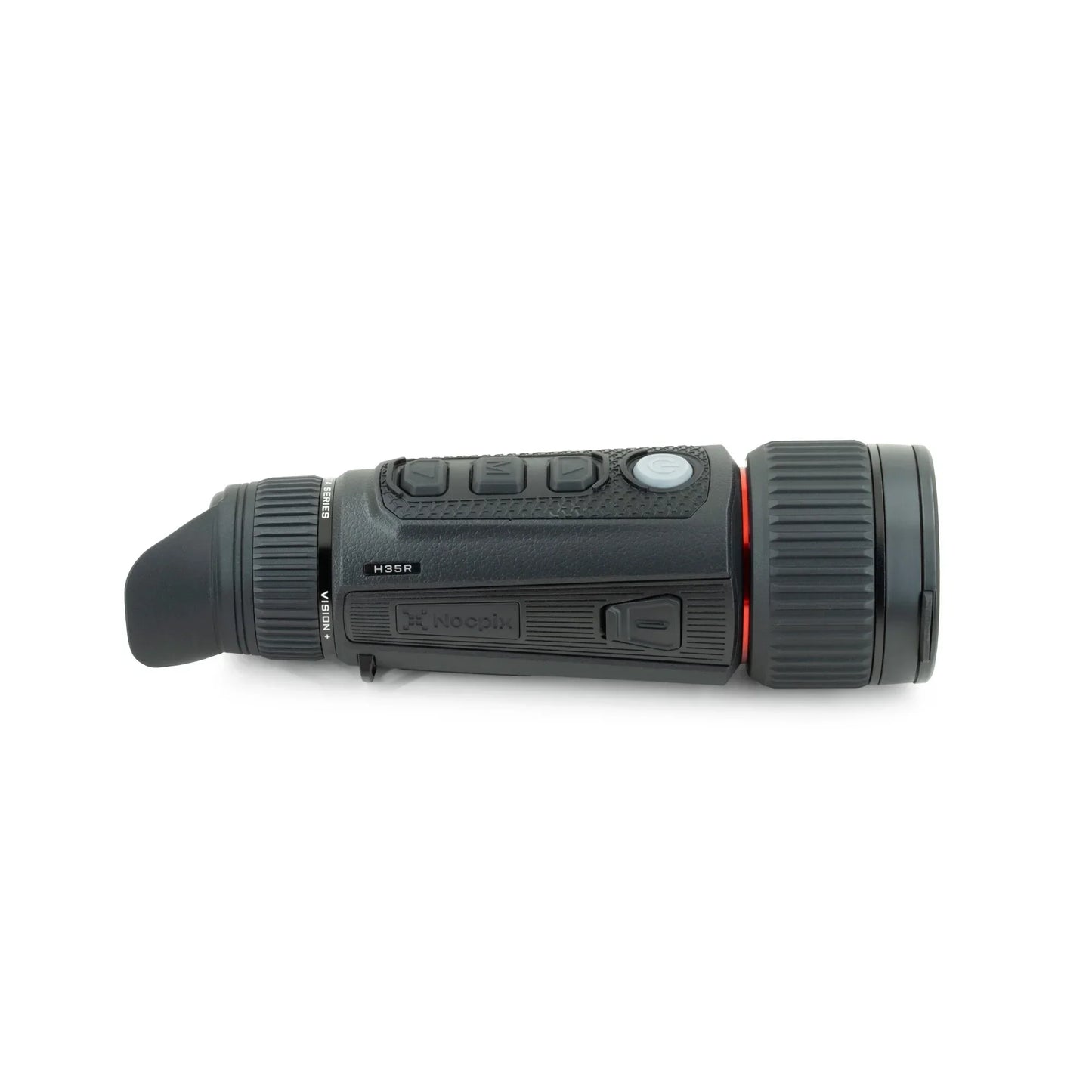

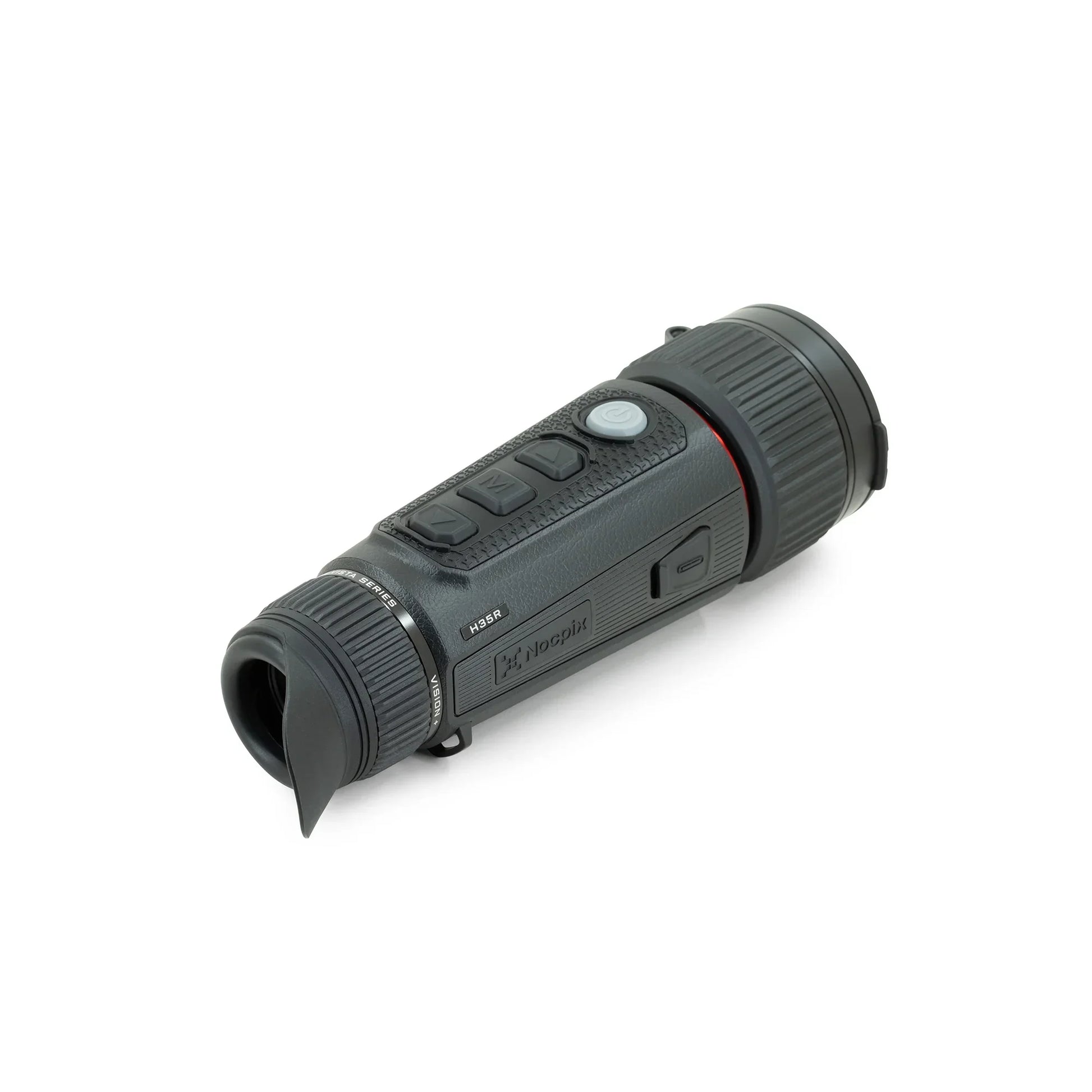

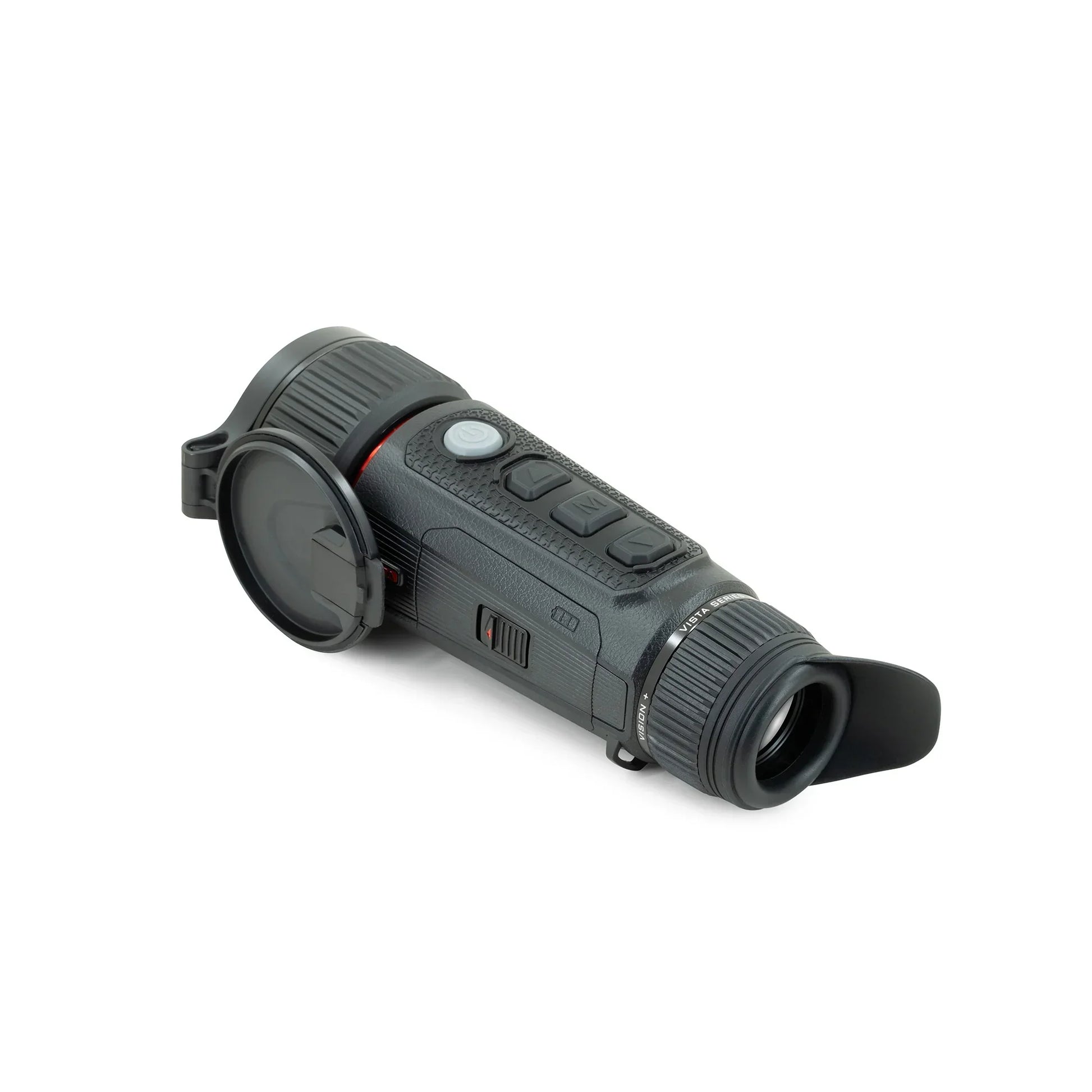

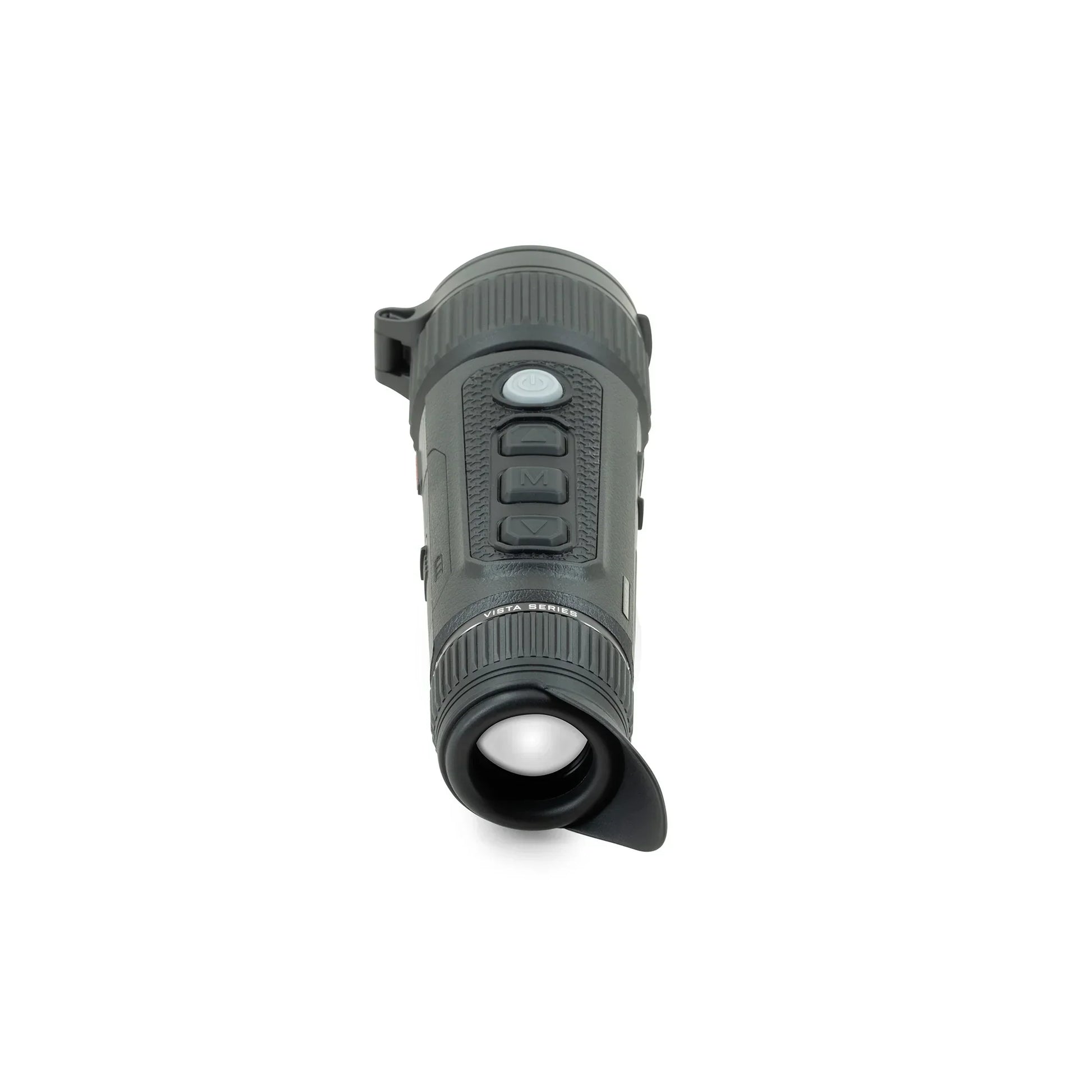

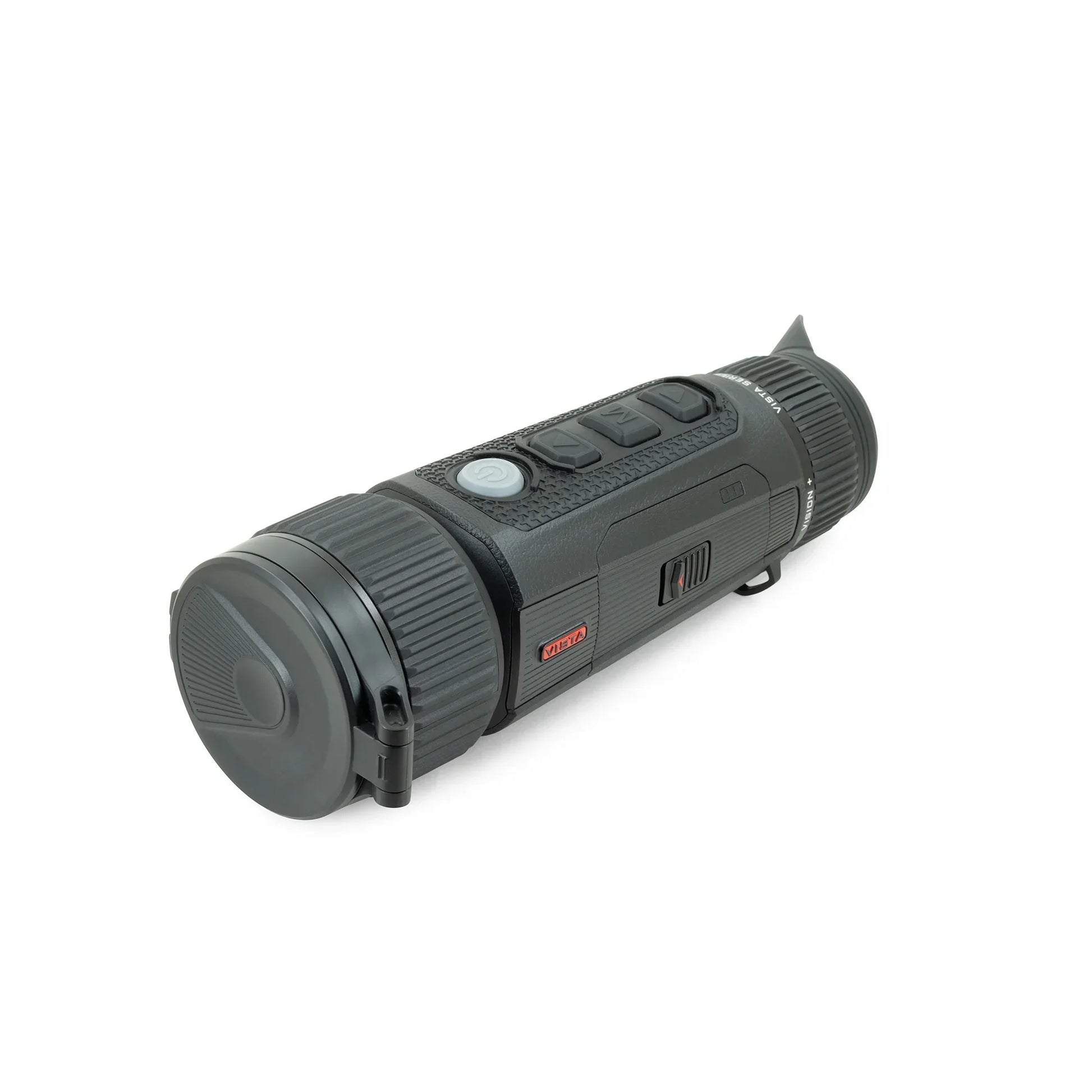

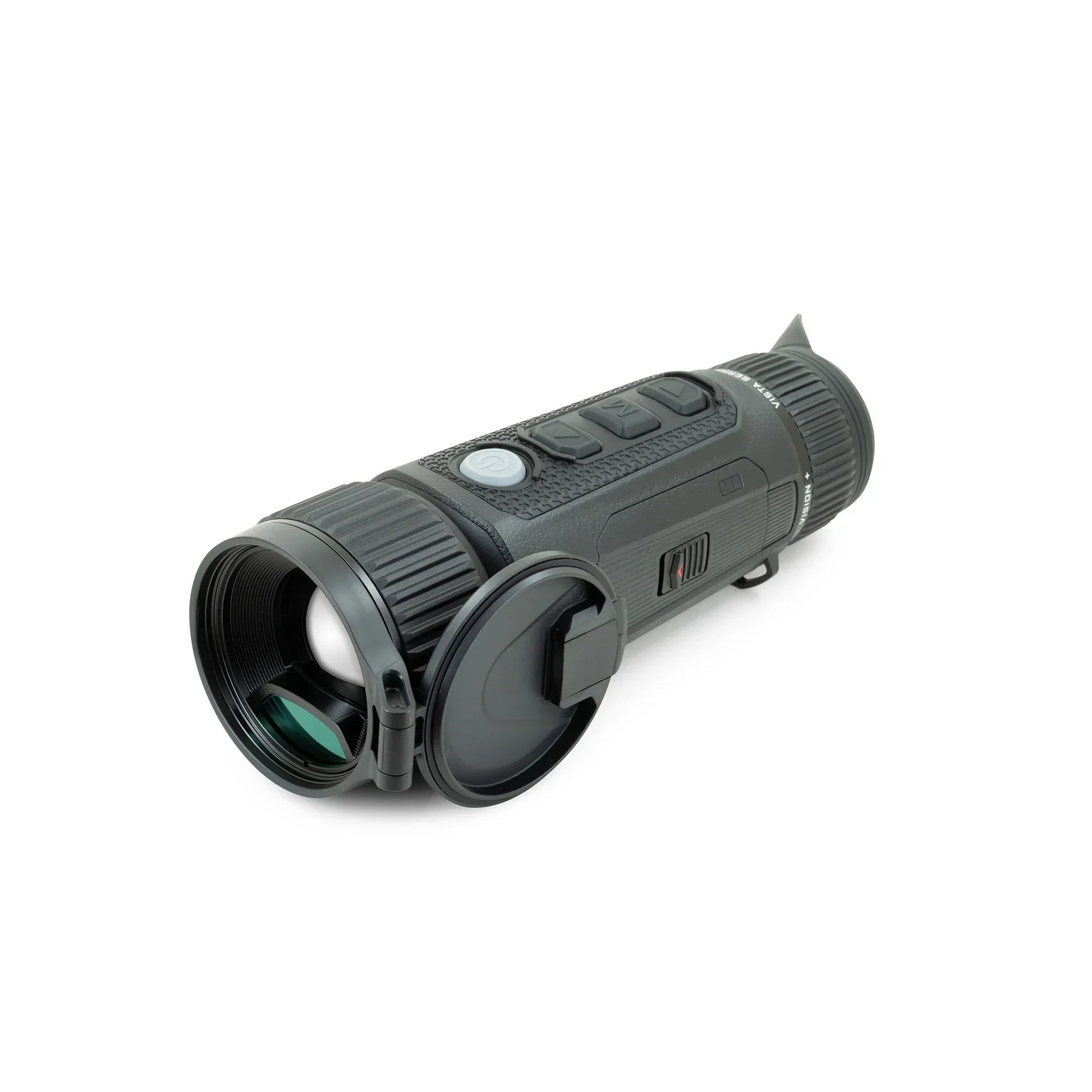

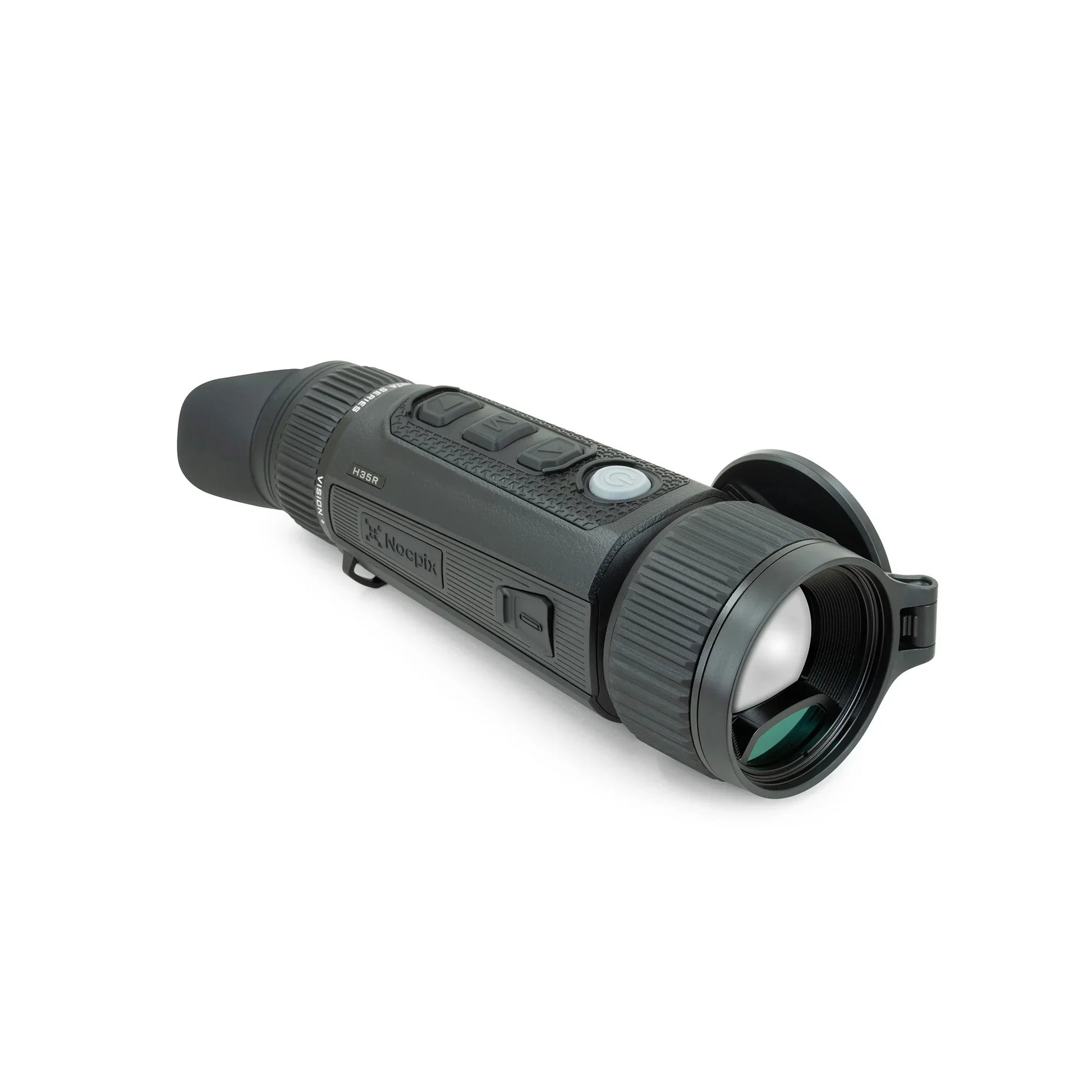

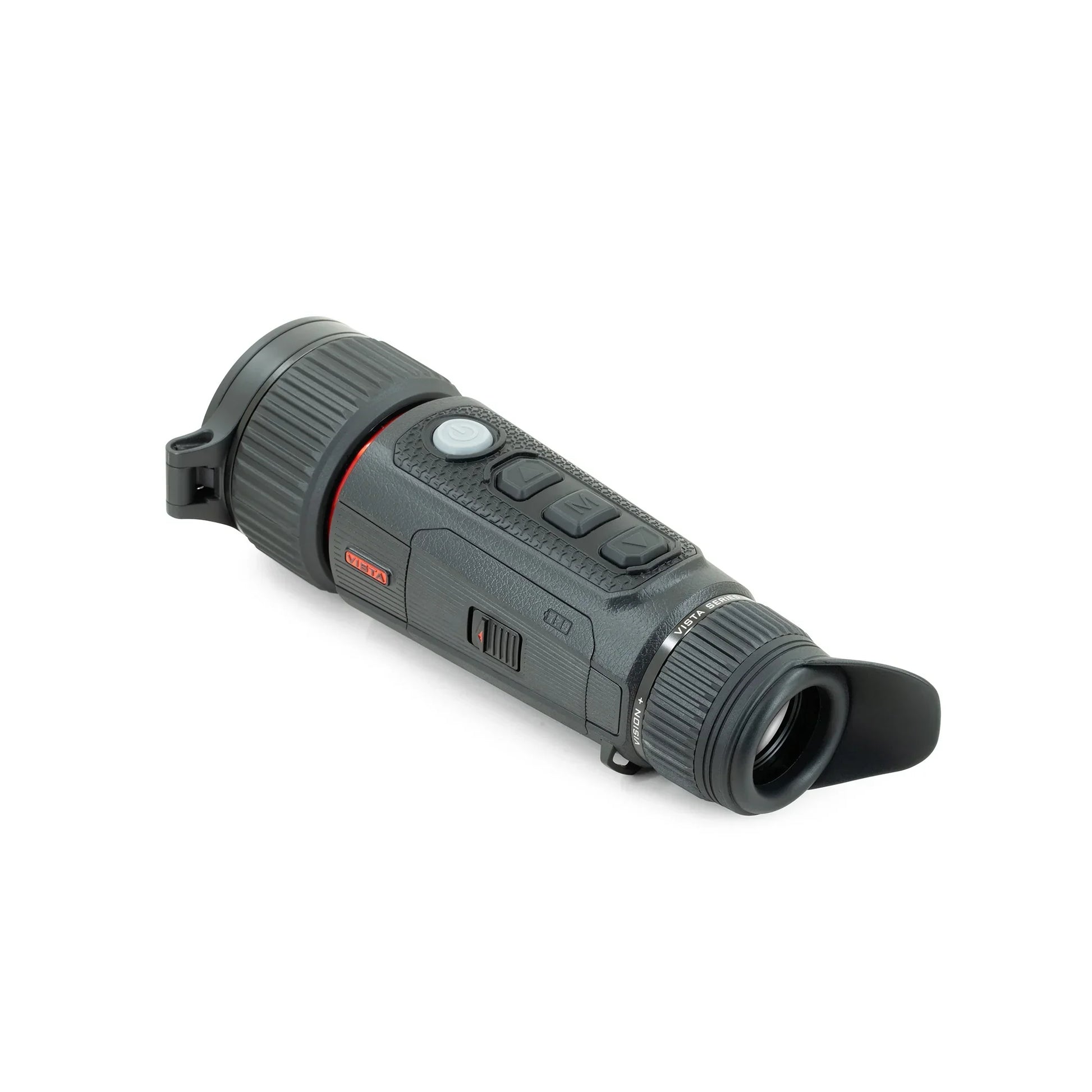

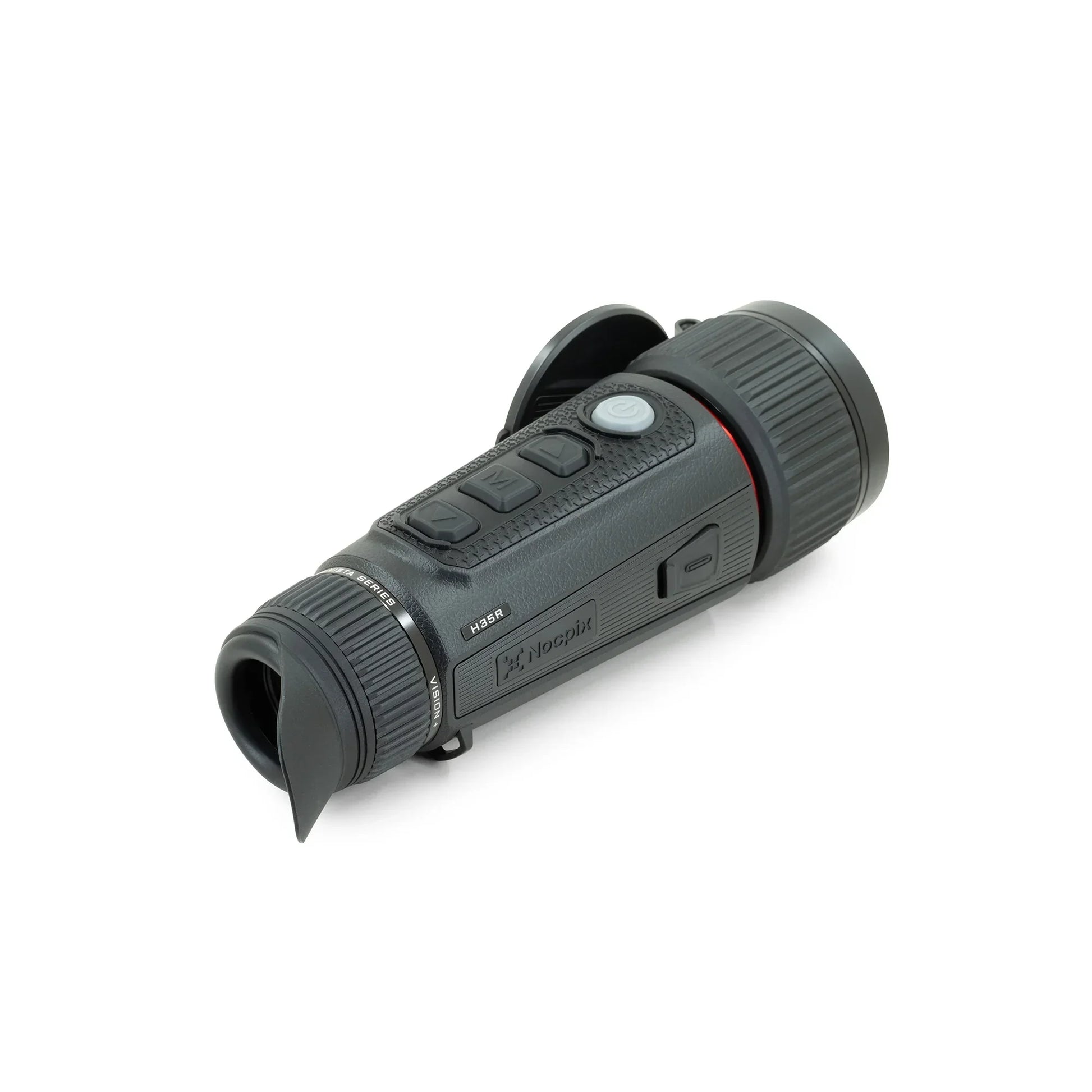

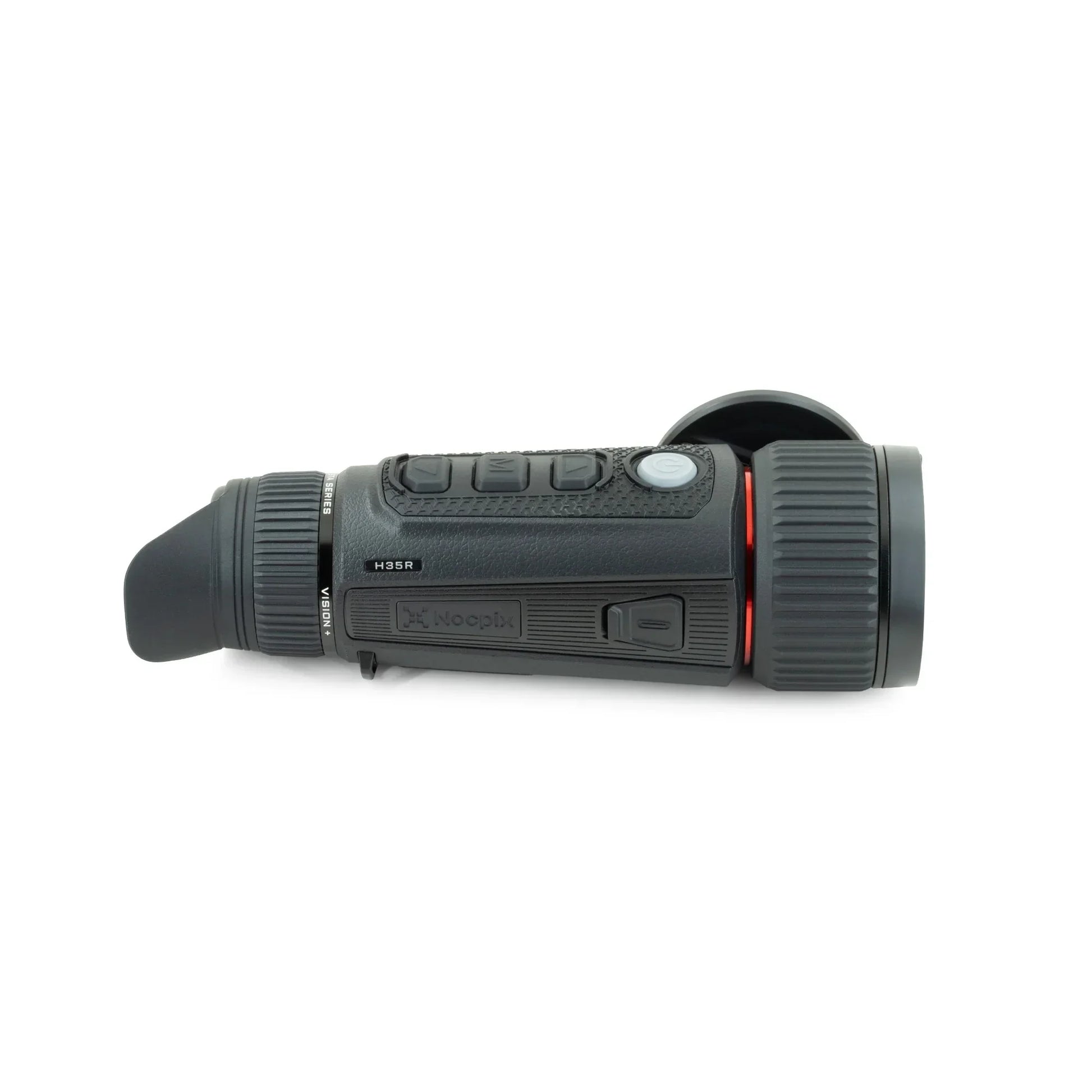

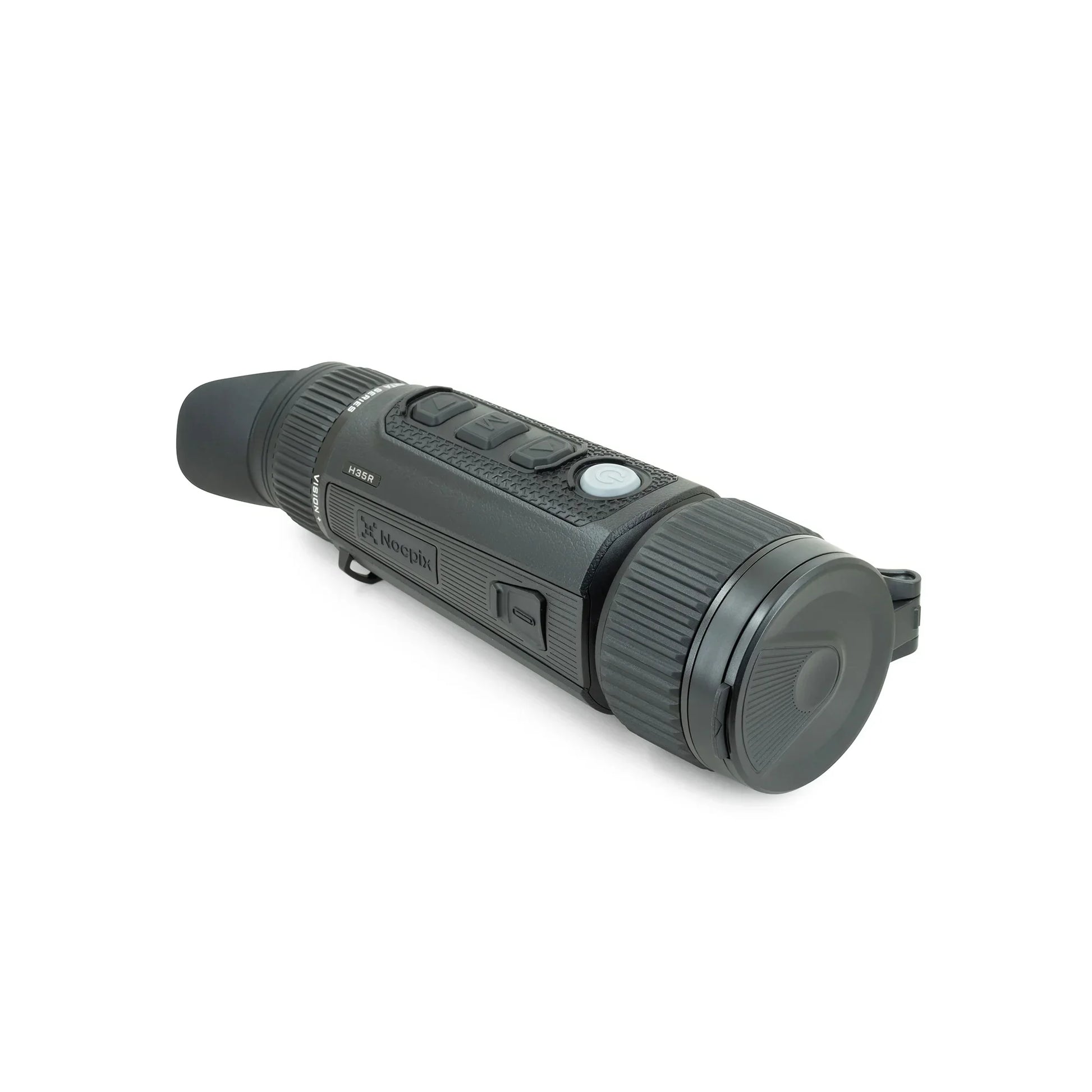

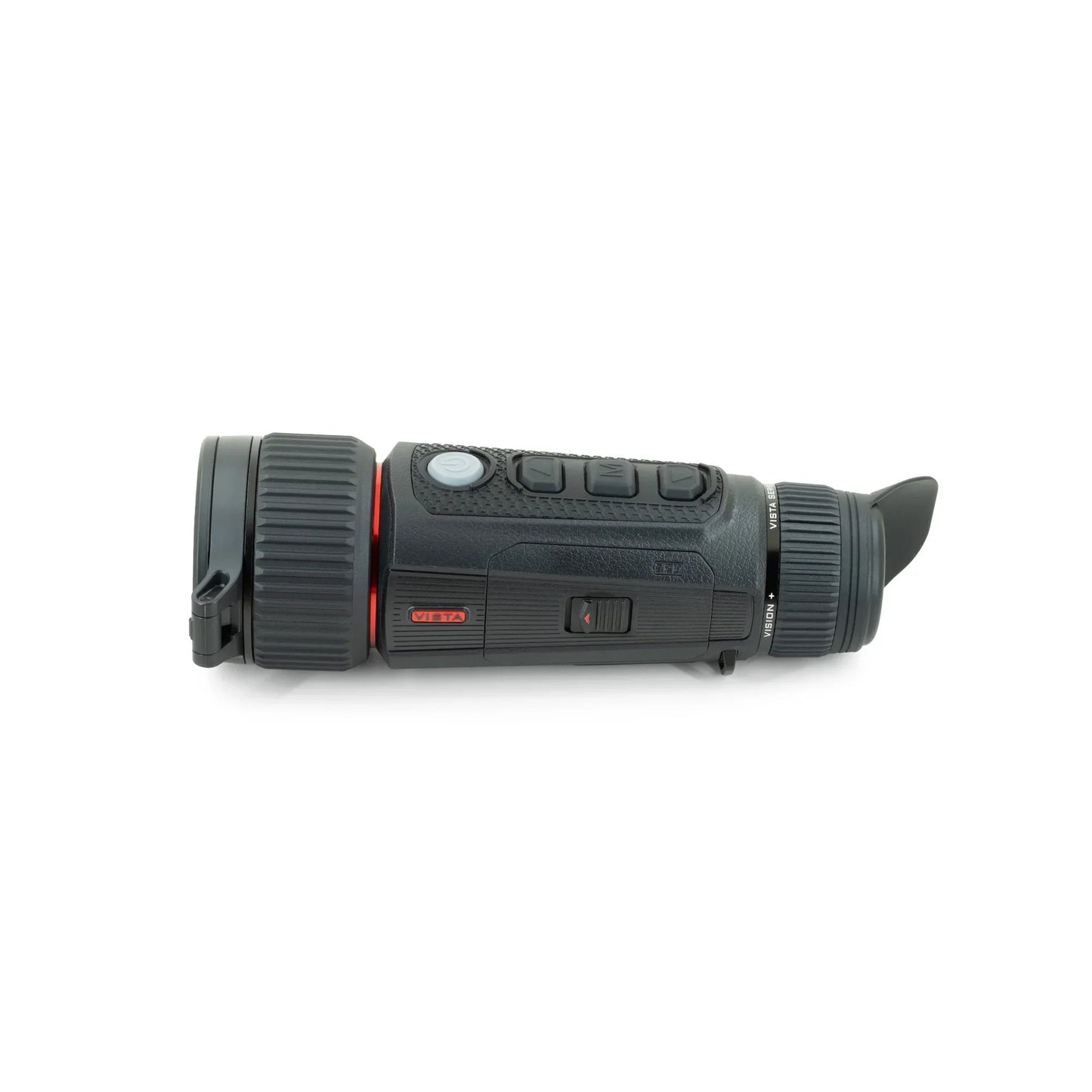

Nocpix VISTA LRF Thermal Monocular H35R 640

Nocpix VISTA LRF Thermal Monocular H35R 640

SKU:VISTA-H35R

Regular price $ 2,699.00
Regular price Sale price $ 2,699.00
Sale Sold out
Shipping calculated at checkout.

Nocpix VISTA LRF Thermal Monocular 640x512 35mm 3X VISTA-H35R



The VISTA handheld thermal monocular features an advanced f/0.9 germanium objective lens, offering exceptional clarity and detail. The original 50 mm model (ideal for long-distance observation) is now joined by a new 35 mm variant with a 3× native magnification, ideal for close and medium range hunting distances. Equipped with a high-resolution 640×512 thermal sensor and an impressive ≤15 mK NETD sensitivity rating, this ergonomic monocular delivers crystal-clear images with remarkable detail and contrast. The lens-integrated laser rangefinder enhances its functionality, boasting a maximum detection range of 1,200 yards with a remarkable sensitivity of ±1 yard. Its ergonomic design ensures comfortable handling, while the intuitive interface allows for seamless operation. VISTA models include electronic image stabilization for a smooth, sharp picture on the 2560×2560 round AMOLED display. Whether you're scanning for coyotes or conducting night-time surveillance, this is your go-to tool for unparalleled thermal imaging performance.

Nocpix VISTA H35R Features:

  • Lens-integrated laser rangefinder can fire on command or continuously when scanning.
  • One-of-a-kind circular ultra-high resolution
  • 1.03-inch 2560×2560 AMOLED display.
  • Onboard photo, video, and audio recording.
  • Large, ergonomic objective focus dial for precise control.

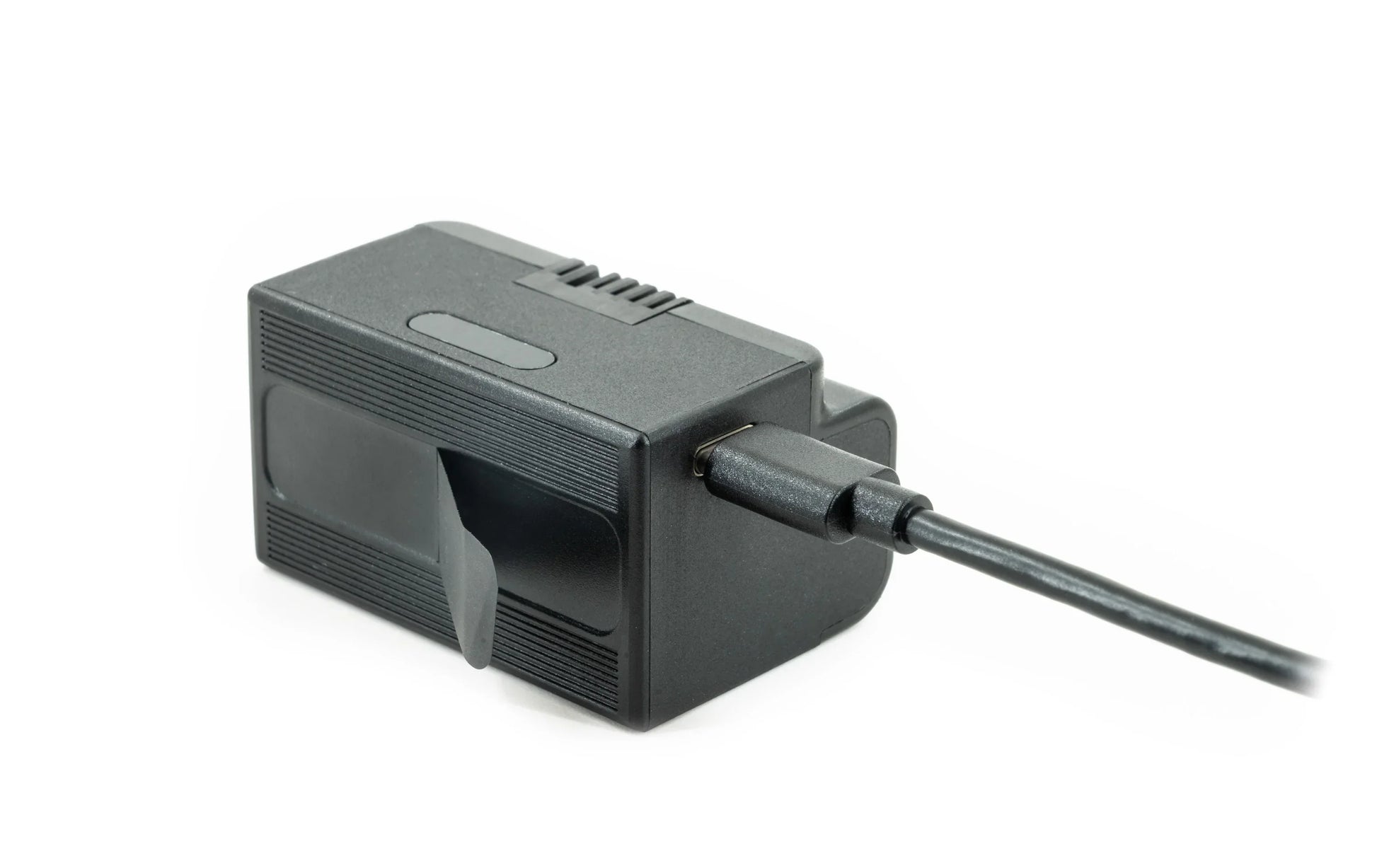

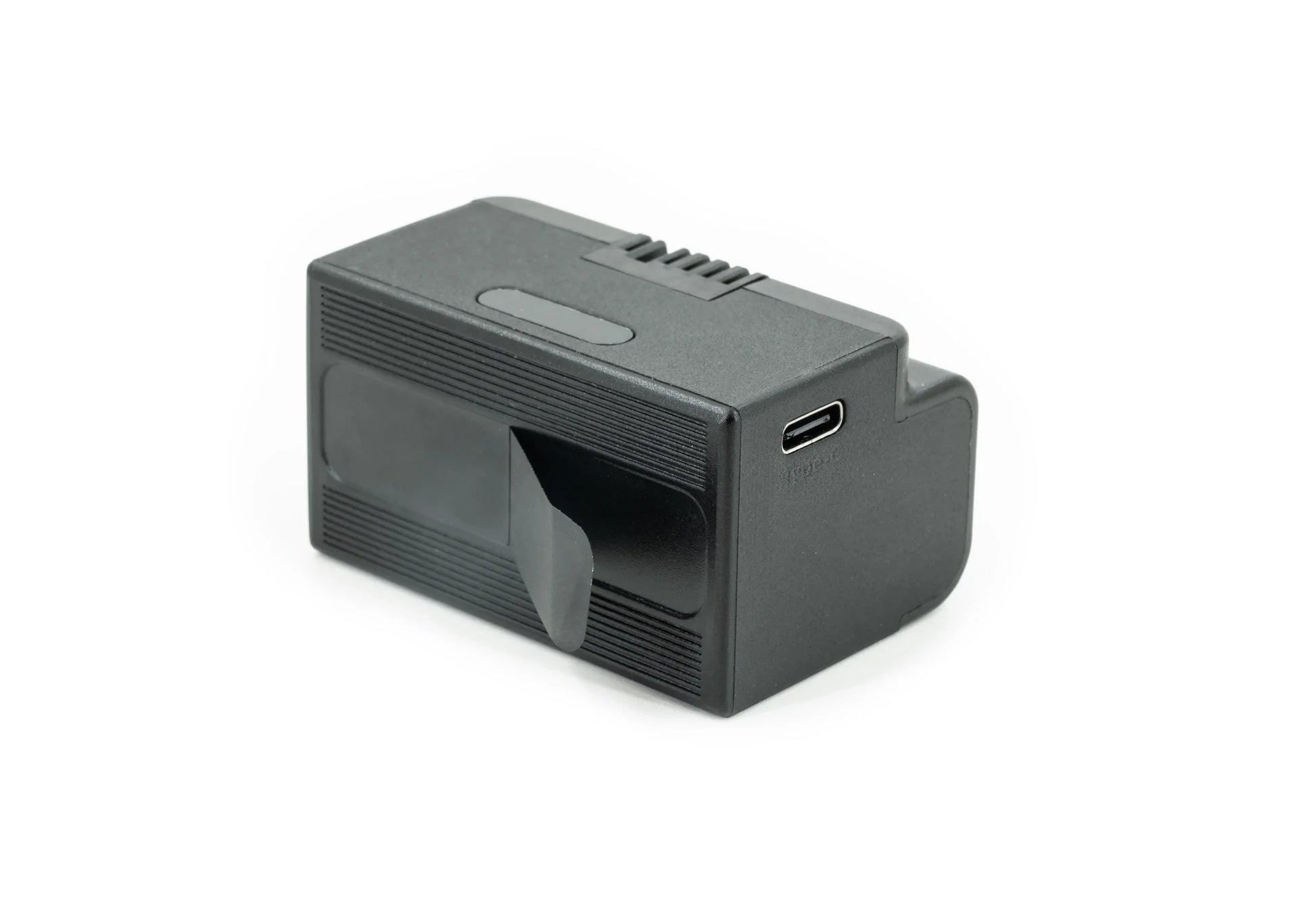

  • New Nocpix IBP-7 removable battery pack with direct USB-C charging.
  • 1/4-20 thread socket for quick-plate or tripod mounting.
  • Included soft case with cross-body strap for comfortable carry.
  • 5 Year Warranty

Nocpix VISTA H35R Specifications:

SENSOR

Resolution 640×512

Pixel Size 12 μm

Frame Rate 60 Hz

Sensor Sensitivity ≤15 mK

Image Processing Reality+

Core Nocpix 640

OPTICS

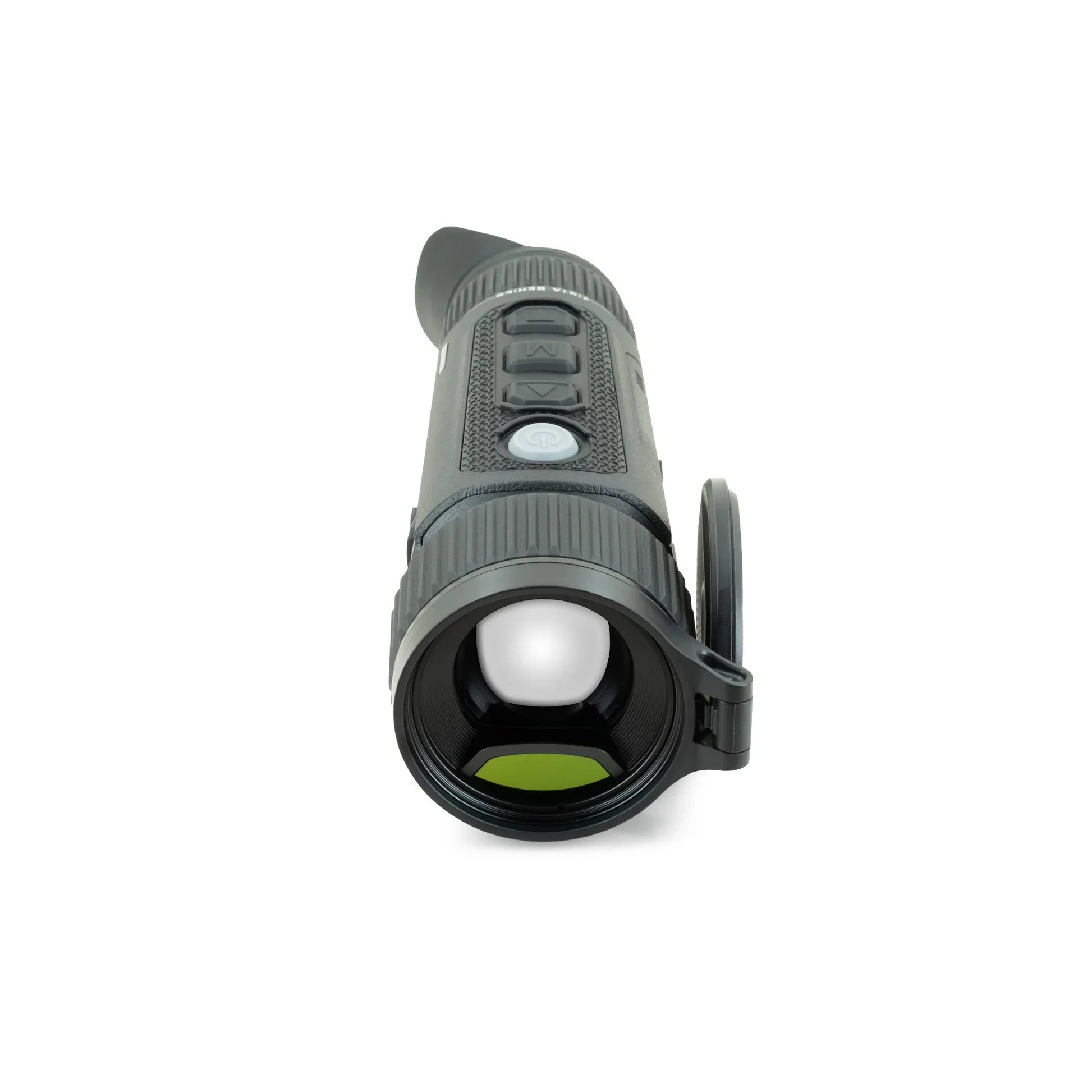

Objective Lens 35 mm f/0.9

Native Magnification 3×

Digital Zoom 8×

Field of View 12.5° × 9.4°

Detection Range 1750 Yards

Display Type 1.03-inch Large-format AMOLED

Display Resolution 2560×2560

Color Palettes White Hot, Black Hot, Red Hot, Color, Crimson, Viridian, Violet

Picture-in-Picture Yes

Rangefinder Integrated 1,200 yd LRF

Eye Relief 25 mm

Diopter Range -4 to +6

ELECTRONICS

Onboard Recording Video and Image

Onboard Storage 64 GB

Wireless Connectivity Image and Video via App.

Data/Power Connector USB-C Power Supply USB-C External, IBP-7 Li-ion Batteries ×2 (4+ Hours Each)

Start Up Time <10 Seconds, Instant from Standby

PHYSICAL

Size 7.48” × 2.64” × 3.11”

Weight 22.58 oz.

ENVIRONMENTAL & WARRANTY

Warranty 5 Years

Housing Material Polymer with Rubber Overmold

Ingress Protection IP67

Operation Temperature -4°F~122°F

The Nocpix VISTA H35R ships with everything you need to get out and hunt.

35mm or 50mm Objective Lens Cap

IBP-7 Battery Packs 4400 mAh

USB-C Cable

Soft Case and Straps

Lens Cloth

User Manual
