NVD BNVD-SG Gen 3 Night Vision Binocular Kit Elbit Green Phosphor Thin Filmed, Min FOM 1600, 10 Year Warranty
NOTE: These are special order units, please check with me for lead time before ordering. A small deposit can also be done to get one on order.

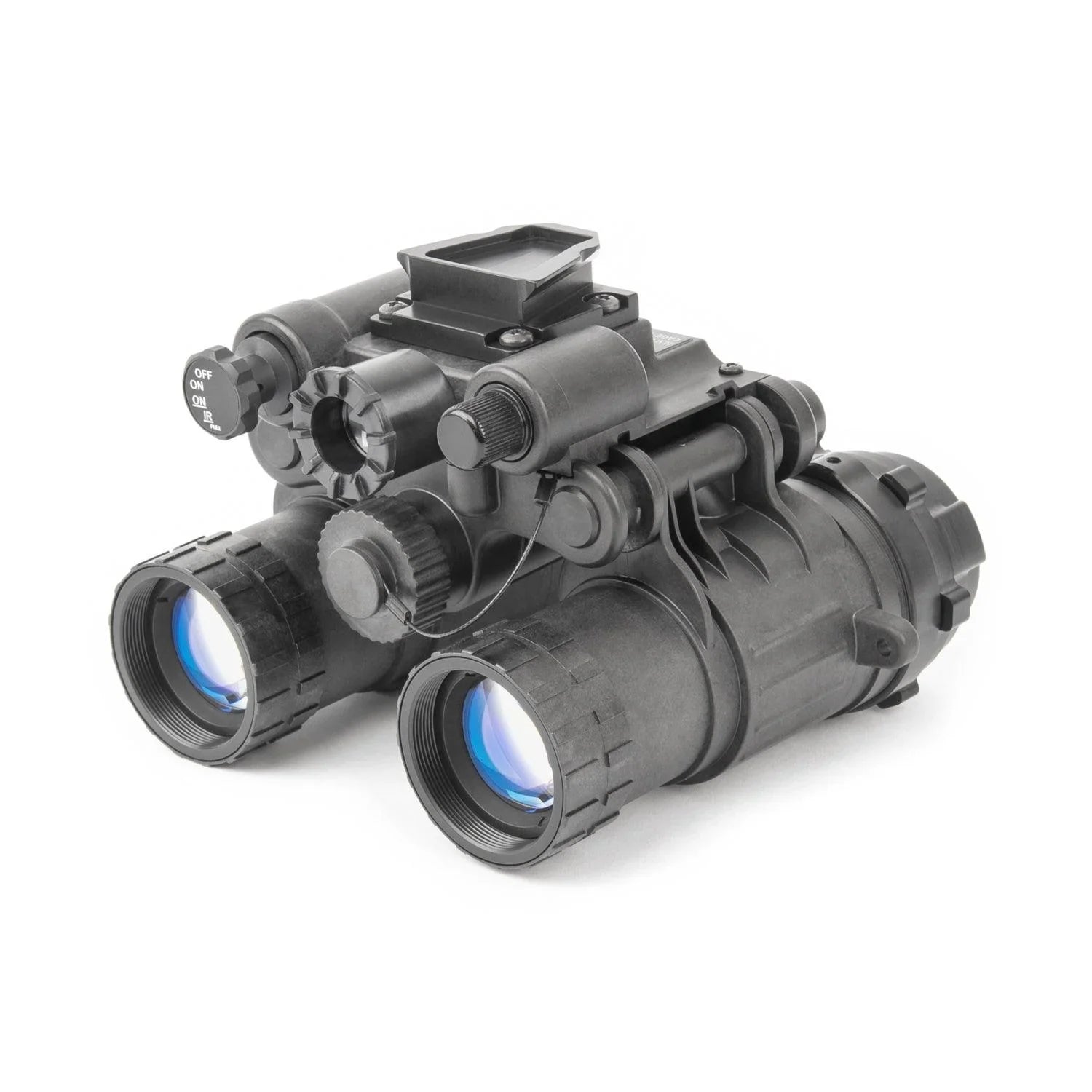

The NVD-BNVD-SG Binocular is a dual-tube night vision goggle with advanced gain control capabilities, designed for superior performance and flexibility. It features a single gain control knob that adjusts both eyepieces simultaneously, allowing users to modulate tube brightness based on ambient light conditions. Users can lower the gain in bright environments or increase it in extremely dark conditions for optimal vision.
The BNVD-SG offers the versatility to be used as a monocular, enabling the operator to rotate one monocular arm out of the way while keeping the other in place. This configuration allows the device to function as either a dual-eye or single-eye system, which is particularly useful when combining night vision with weapon-mounted sighting equipment, all while preserving nighttime situational awareness. Despite its dual-tube system and additional features, the BNVD-SG is significantly lighter than the AN/PVS-7 single-tube goggle.

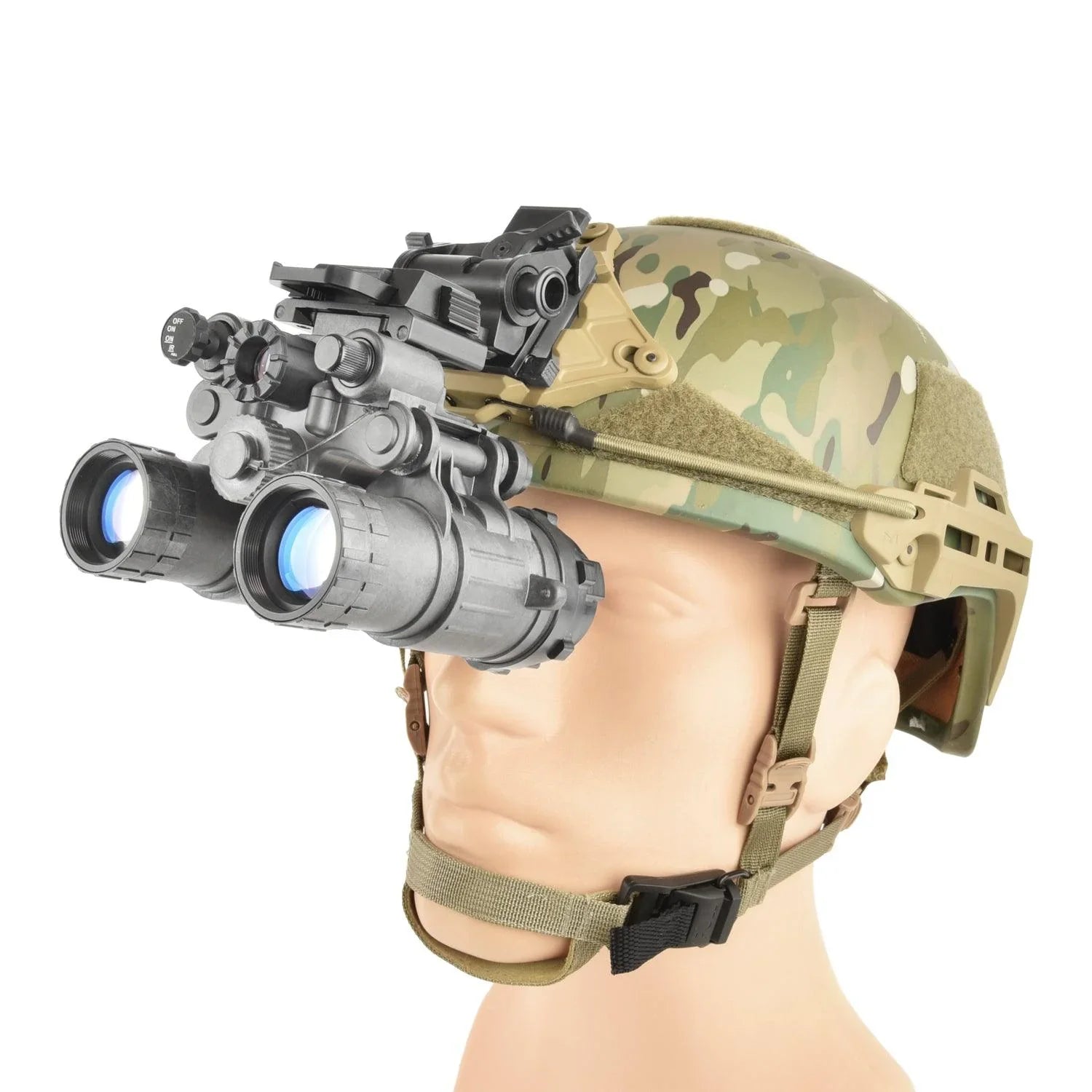

A key feature is the Tactical Monocular Cutoff, which automatically powers down each monocular channel when rotated out of the user's line of sight, preventing stray light that could reveal the user's position. Additionally, the BNVD-SG has an automatic power cutoff when flipped up into the stow position on a helmet mount and powers back on when flipped down. This feature can be disabled using a four-position ON/OFF switch.
Other notable features:
-
Submersible to 66 feet (20 meters) for up to 2 hours.
- Optional battery pack holds 3 "AA" batteries, extending the runtime by 85+ hours.
- Compatible with 3X Afocal Magnifiers, which can be attached by sliding or screwing them onto the objective lenses, turning the BNVD-SG into a fixed 3X magnification binocular.
- The optional external battery pack requires an external power port to extend the system's runtime. The power port must be added during assembly, as it cannot be modified later.
- The BNVD-SG is rigorously tested for US Military and DoD EMI compliance, conforming to MIL-STD-461G, RE102, RS101, and RS103, ensuring minimal electronic emissions and high resistance to electromagnetic interference (EMI).
With its robust features and tested reliability, the BNVD-SG is an ideal tool for military, law enforcement, and tactical professionals who require high-performance night vision in challenging environments.
NVD BNVD-SG Features:
- Generation 3 Tube
- One AA Battery Usage
- Submersible 66 feet for 3 hours
- Single Gain Control
- Infrared LED Indicator
- Low Battery LED Indicator
- High Light Cut Off
- Easy to Use
- TEN Year Warranty
NVD BNVD-SG Specifications:
Warranty
10 Years
Gain Control
Manual
IR Illuminator
Yes
Adjustable IR Spot/Flood
Yes
LED IR Indicator
Yes
LED Low Battery Indicator
Yes
Tactical Monocular Cutoff
Yes
Flip Up, Turn Off Setting
Yes
Field of View
40°
Magnification
One Power (1X)
Diopter Adjustment
-6 to +2 Diopters
Interpupillary Adjustment
51mm to 76mm
Eye Relief
25mm
Submersible
66 feet for 3 hours
Focus Range
9.8" to Infinity
Power Source
1 AA-Size Battery
Operation Time
20+ hours (Alkaline), 40+ hours (Lithium)
Weight (w/o batteries)
560 g (19.8 oz)
Size
4.3"L x 4.2"W x 3.3"H
Maximum Spots Allowed in Each Zone Zone
Spot Size (in) 1 2 3
> .009-.012 0 0 1
>.006-.009 0 1 2
.003-.006* 0 2 3

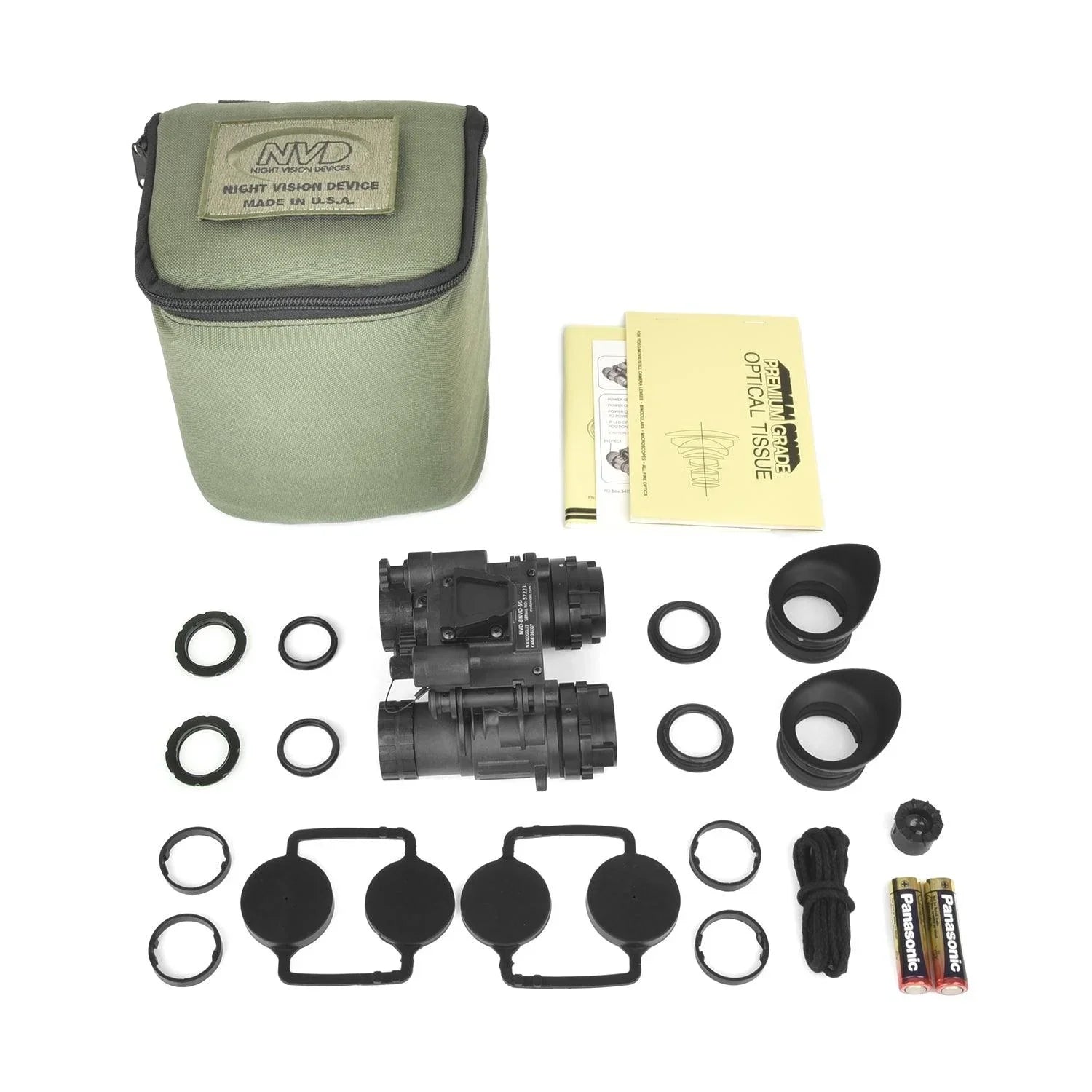

Standard Accessories: Soft Carry Case, AA Batteries (2), Operator’s Manual, Neckcord, Retaining Lens Covers, Eyecups, Lens Tissue, Demist Shields, Sacrificial Windows, IR Flood/Spot Lens Assembly, Operator’s Card, and Dovetail Mounting Adapter.
Optional Accessories: Hard Case, 3X Afocal Magnifier Lens, Helmet Mount, Shuttered Eyeguards, Camera Adapter Kit, Light Interference Filters (For DOD Only), and Battery pack for 50-60 hours of continual use for extended missions.
