NVD BNVD-SGC Gen 3 Night Vision Binocular White Phosphor Elbit Thin Filmed, Min FOM 1536

NVD BNVD-SGC Gen 3 Night Vision Binocular Kit Elbit White Phosphor Thin Filmed, Min FOM 1536, 10 Year Warranty

NOTE: These are special order units, please check with me for lead time before ordering. A small deposit can also be done to get one on order.

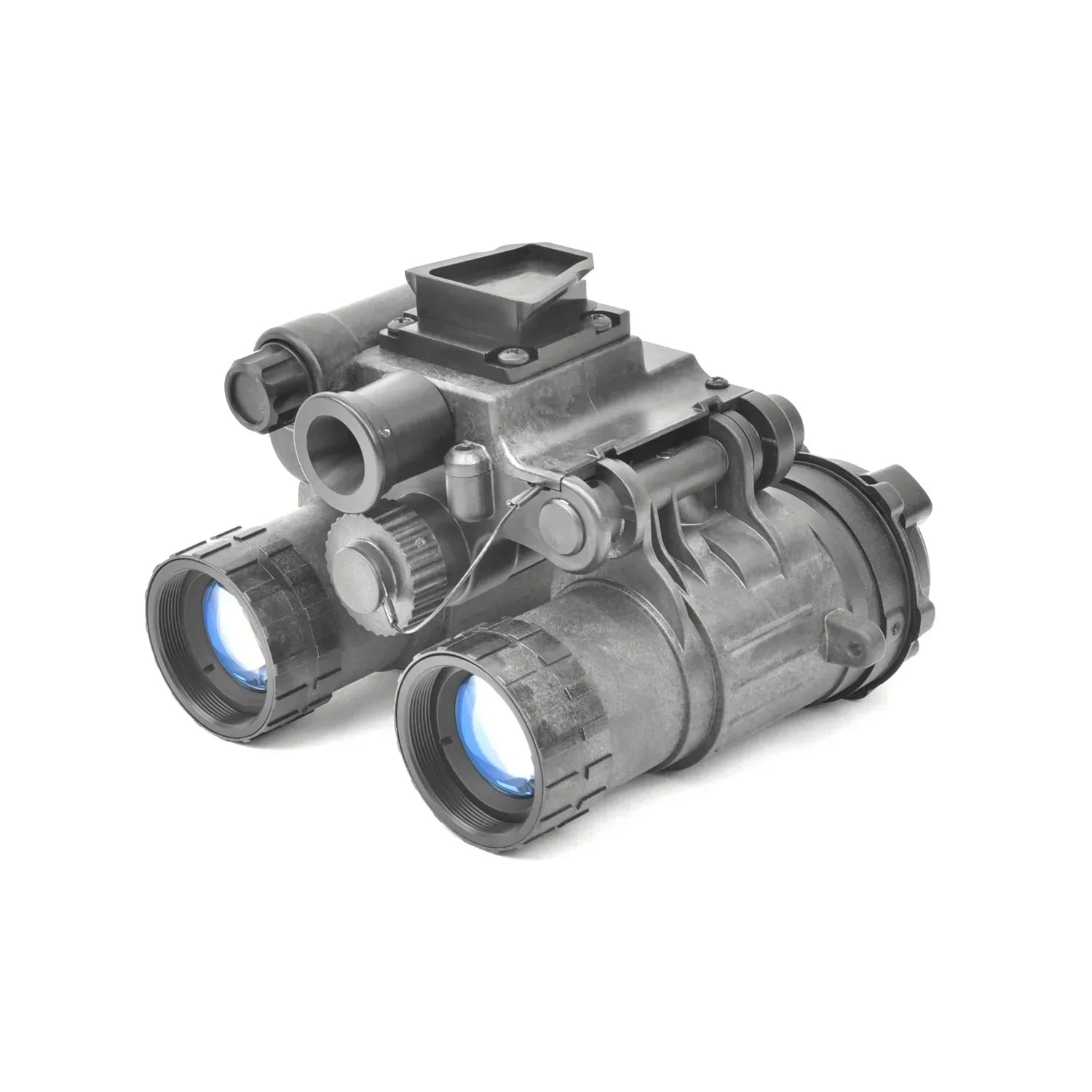

The next generation Binocular Night Vision Device – Single Gain Control, is the culmination of improvements to the rugged and proven BNVD-SG system. Utilizing feedback from thousands of end-users, the BNVD-SGC introduces a new rotary control switch. The single switch controls system power, gain, and auxiliary functions, providing intuitive control with a substantially lower weight. The BNVD-SGC also includes an improved Diopter Adjustment Assembly with reduced backlash, tighter feel, and improved strength. The IR Spot Flood Assembly has been upgraded to provide a wider Flood setting, filling the entire field of view, as well as a more concentrated Spot setting to illuminate hallways and caves void of light. Like its predecessor, the BNVD-SGC features diopter focus from +2 to -6 diopters, a close focus of 9.8 inches (25 cm), and fully meets the latest release of MIL-STD-810H including 66-foot immersion.

The BNVD-SGC features a “Tactical Monocular Cutoff”, which turns off power to each channel of the binocular whenever a channel is rotated up out of the users’ line of sight. This eliminates stray light emitting from the monocular eyepiece, which would reveal the user to anyone else on the battlefield.

The BNVD-SGC can be used with optional 3X Afocal Magnifiers. Each 3X Magnifier can be either slide onto each objective lens or screw into the threads on the objective lenses. For extended use, it is recommended to screw them on to prevent the lenses from falling off. These magnifiers transform the BNVD-SGC into a fixed 3X Magnification Binocular.

The optional external battery pack will only work with our Night Vision Devices manufactured binoculars with an external power port in order to extend the operating life of the system. If you would like to use this battery pack with this system, you must add the power port now when first assembled. The body cannot be modified afterwards. You may however, add the battery port now and purchase the battery pack at a later time.

The BNVD-SGC has been rigorously tested for US Military and DoD EMI compliance by an independent, Gov’t support facility, and qualified for conformance to MIL-STD-461G, RE102, RS101 and RS103. This means that BNVD-SGC has an extremely low electronic emission signature, making it nearly impossible to detect its use, even in close quarters. The BNVD-SGC was also shown to not be damaged nor suffer performance degradation when exposed to very high electrical field strengths, over a broad frequency range, as measures of electromagnetic susceptibility. These proven factors make the BNVD-SGC robust under the harshest of EMI conditions.

NVD BNVD-SGC Features:

- Generation 3 Tube

- One AA Battery Usage

- Submersible 66 feet for 2 hours

- Single Gain Control

- Infrared LED Indicator

- Low Battery LED Indicator

- High Light Cut Off

- Easy to Use

- TEN Year Warranty

NVD BNVD-SGC Specifications:

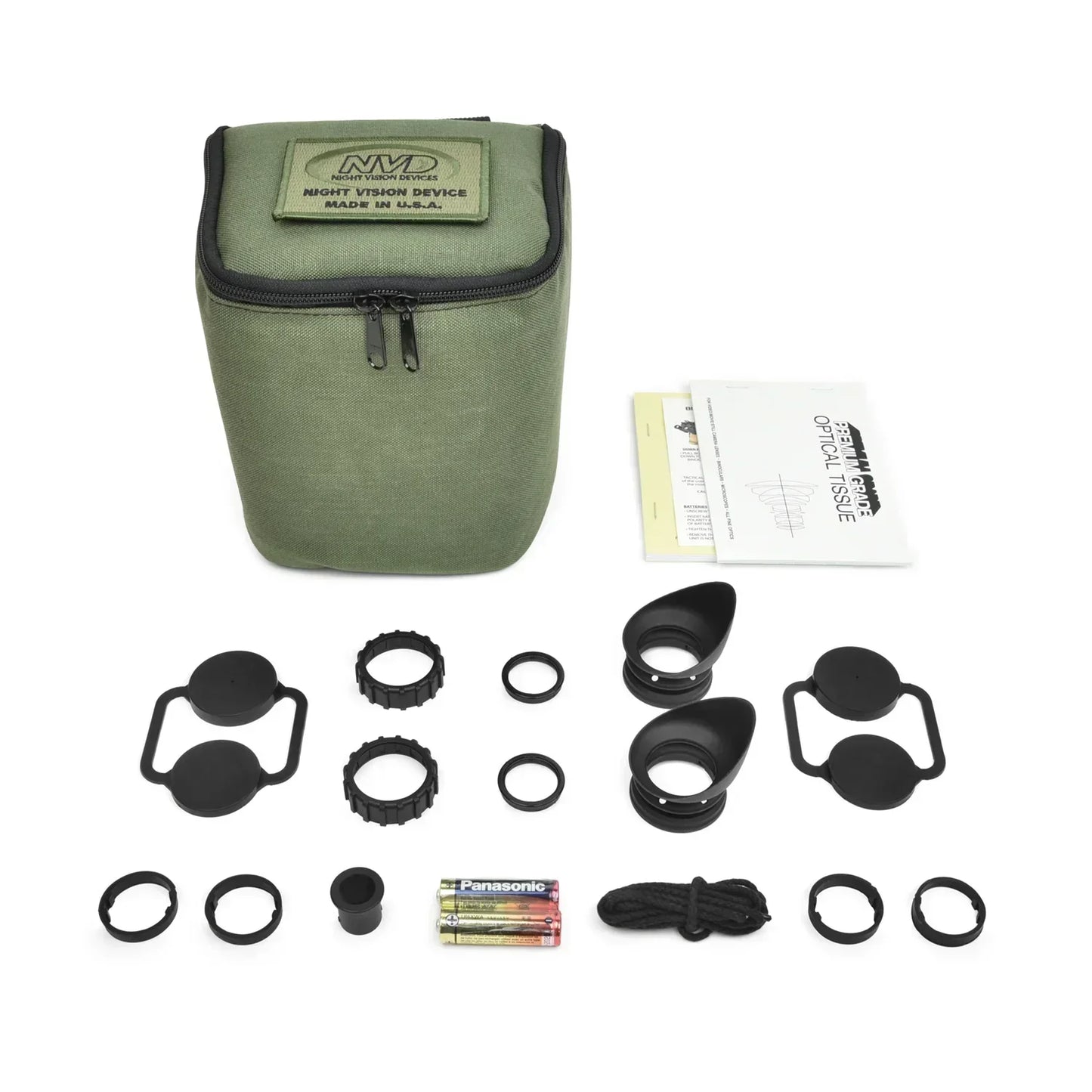

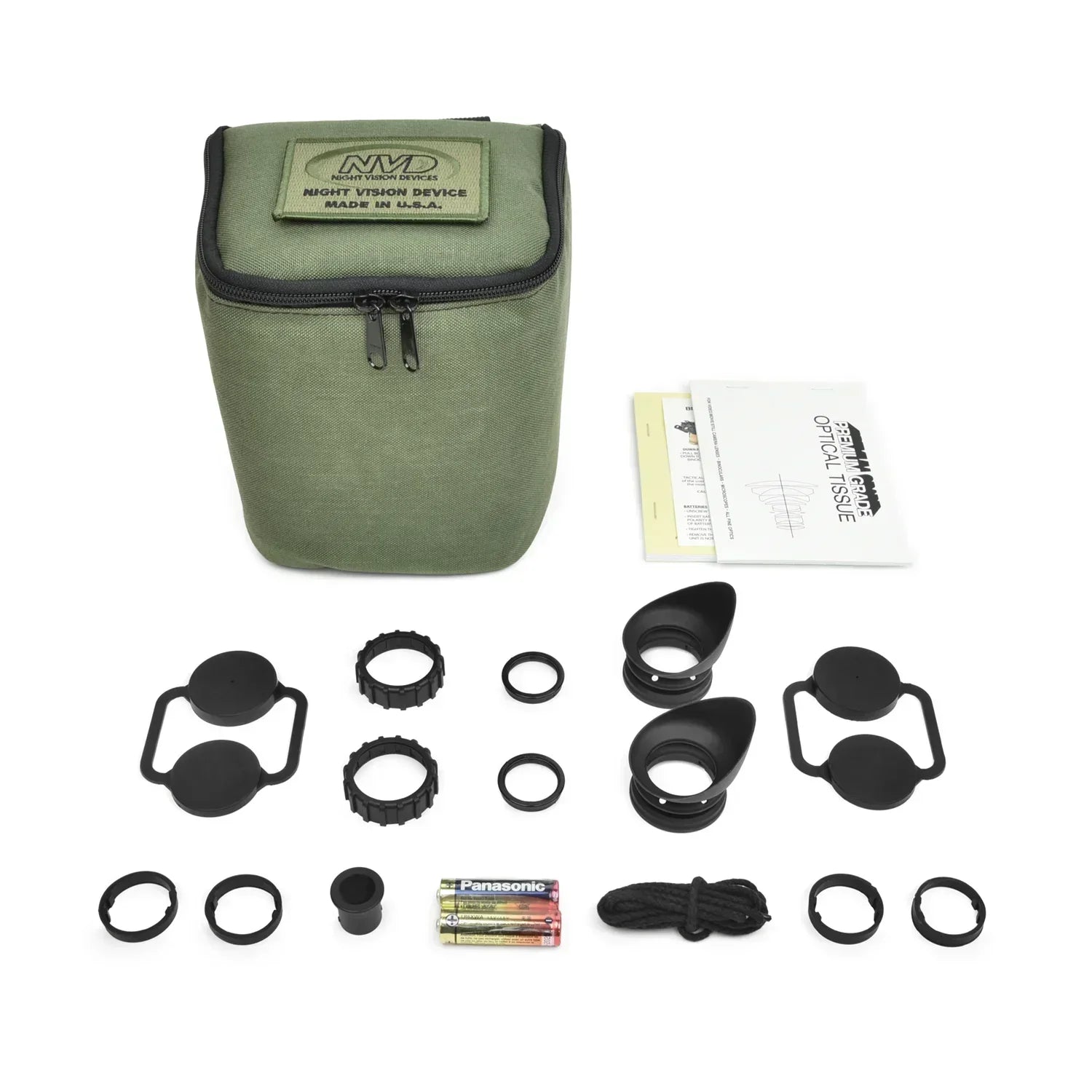

Standard Accessories: Soft Carry Case, AA Batteries (2), Operator's Manual, Neckcord, Retaining Lens Covers, Eyecups, Lens Tissue, Demist Shields, Sacrificial Windows, IR Flood/Spot Lens Assembly, Operator's Card, and Dovetail Mounting Adapter

Optional Accessories: Hard Case, Light Weight Sacrificial Windows, 3X Afocal Magnifier Lens, Helmet Mount, Shuttered Eyeguards, Camera Adapter Kit, Light Interference Filters (For DOD Only), and Battery Pack for an additional 85+ hours of continual use for extended missions.

EXPORT RESTRICTION

Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
