Pulsar Axion XQ19 Compact 384 Thermal Monocular

SKU:PL77517

Regular price $ 999.97
Sale Sold out
Free ground shipping available. Expedited shipping options are available at checkout.
Quantity

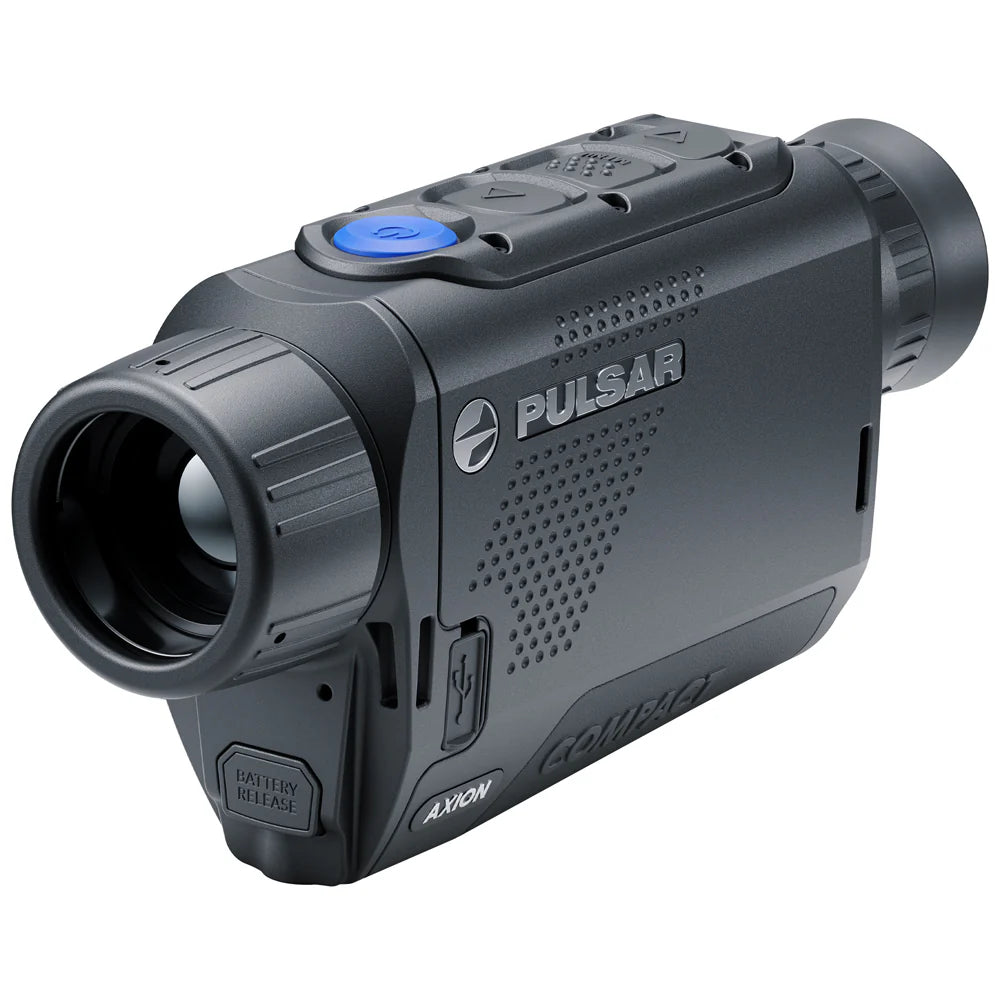

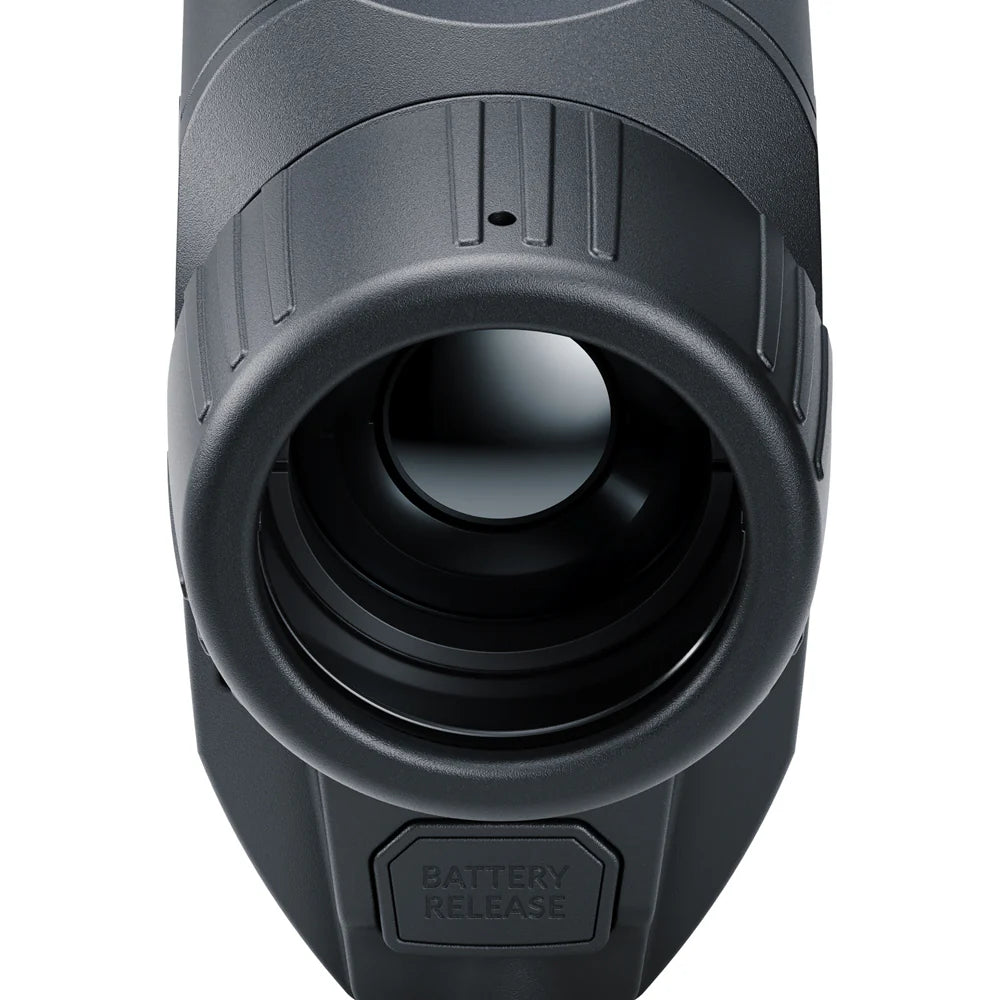

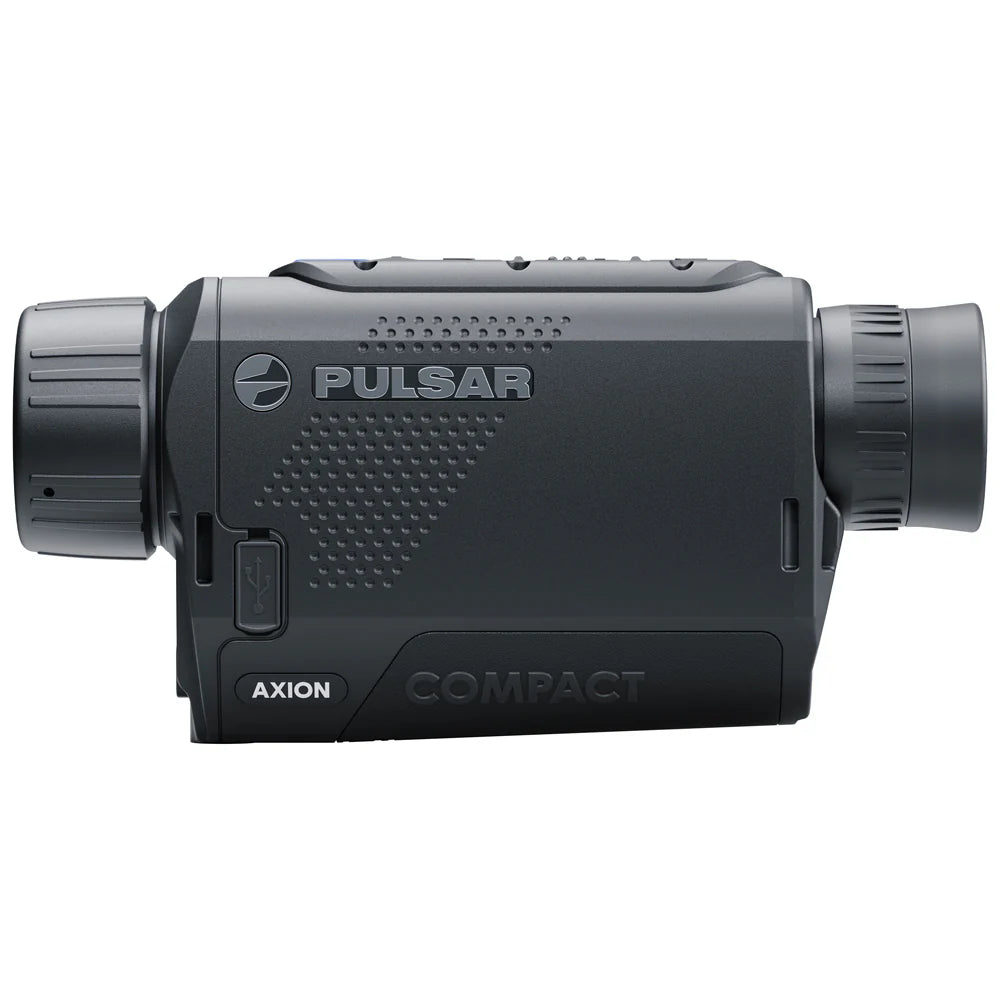

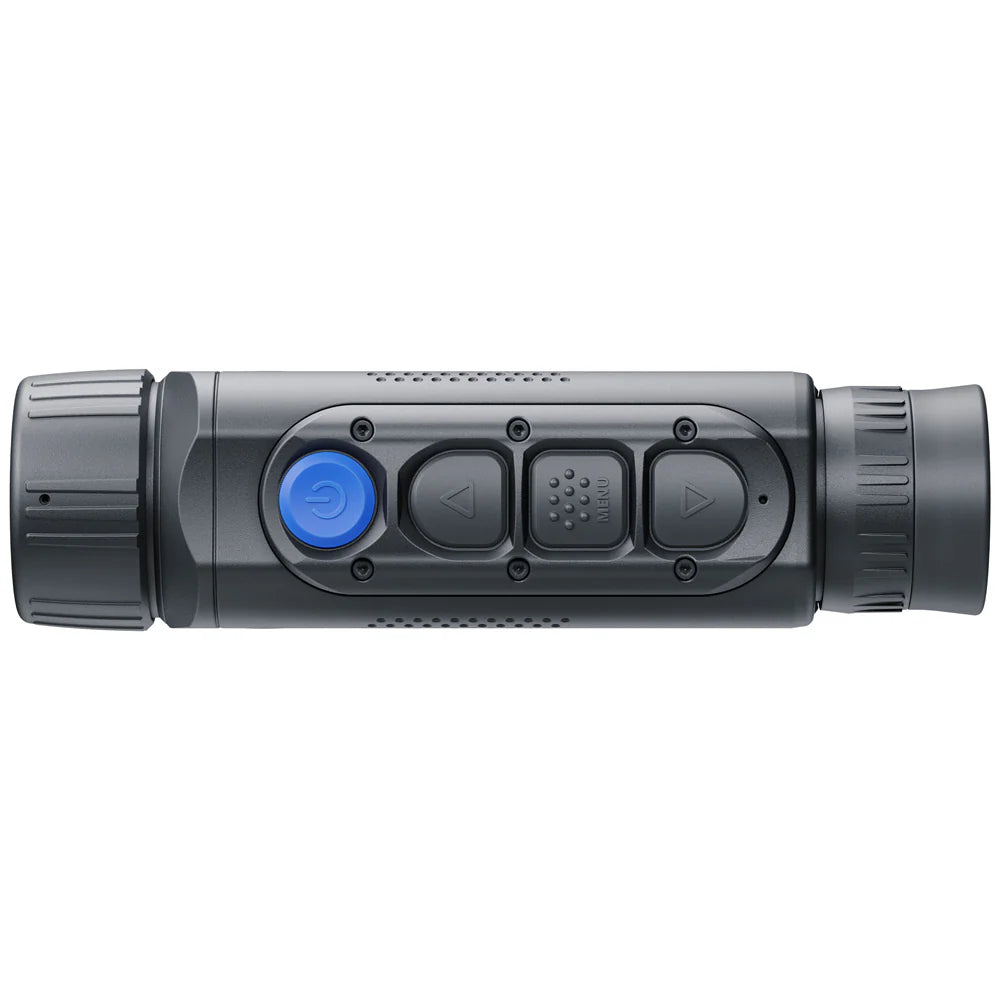

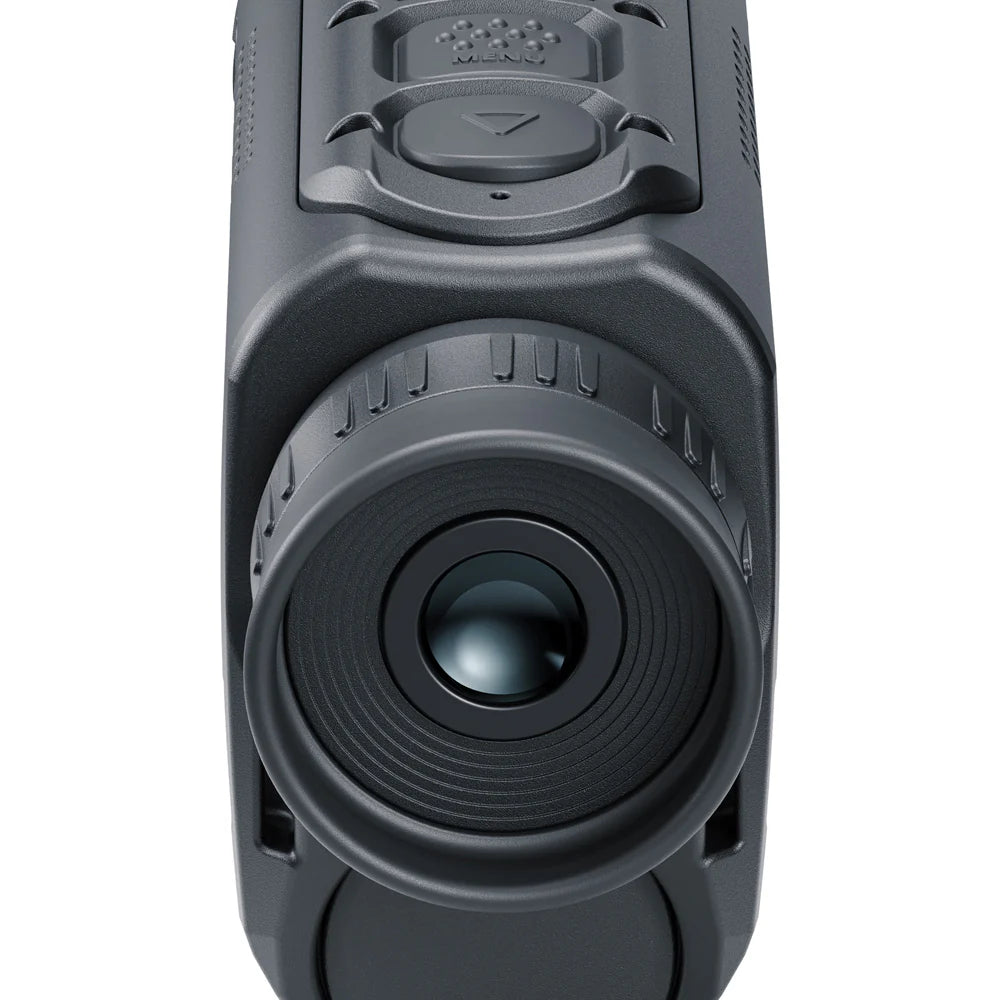

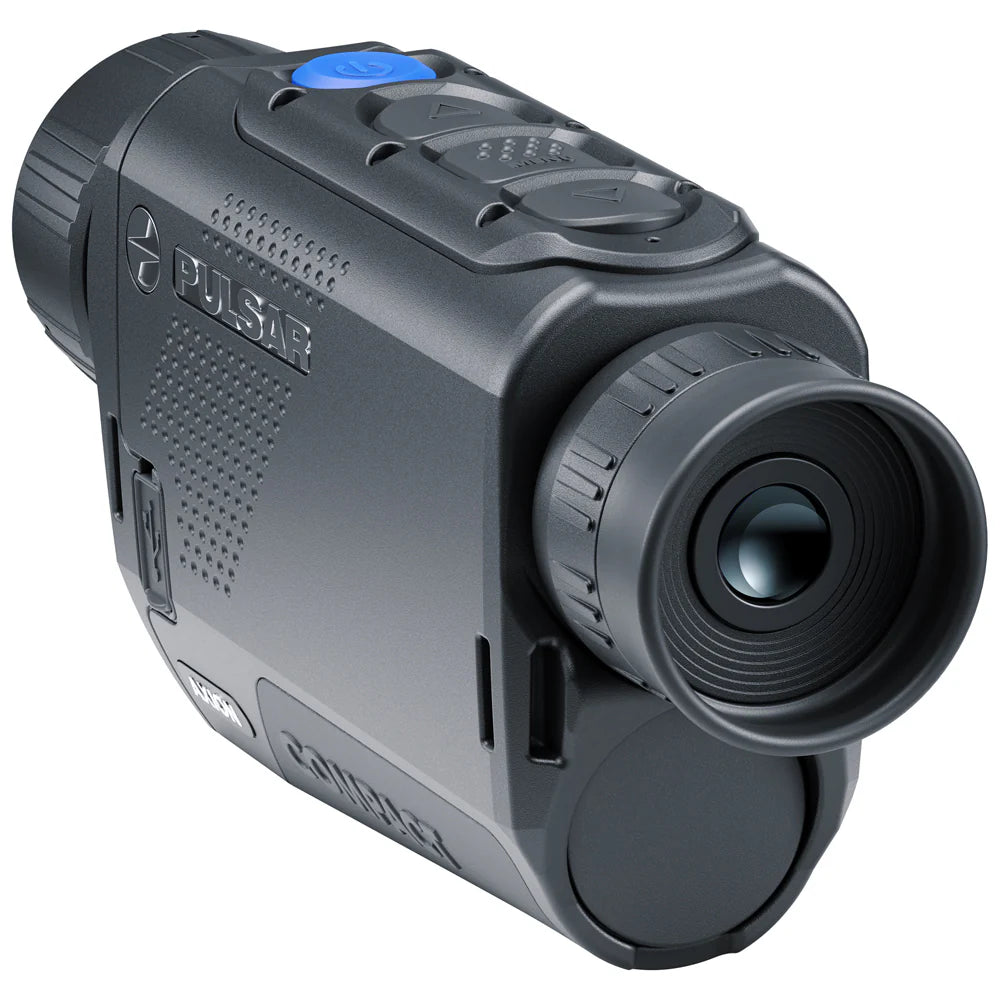

Pulsar Axion XQ19 Compact Thermal Monocular Scanner 384x288 Onboard Recording, WiFi (PL77517)

Enter the world of thermal vision with the Pulsar Axion Compact thermal imaging monoculars. Our most compact and affordable devices are perfect for those hunters who wish to explore the possibilities of thermal vision without breaking the bank.

Fitting in one hand and light to carry, they still offer high thermal sensitivity and other premium features, including Wi-Fi connectivity and our latest image processing algorithms.

Axion XQ19 Compact – the most compact and cost-effective option that does not compromise on core thermal detection capabilities.

The Pulsar Axion XQ19 Compact is an entry-level thermal monocular offering reliable thermal performance and advanced features at an unbeatable price point. Designed for compactness and portability, it provides superior value for hunters.

Pulsar Axion XQ19 Compact Features:


Microbolometer pixel size is 17 microns

640.400 AMOLED display resolution

Compact size and light weight

Functional and ergonomic design

Nine color modes

Three calibration modes: Manual, Semi-Automatic, Automatic

Three levels of sensitivity enhancement: Normal, High, Ultra

Stadiametric Rangefinder

Display Off function

Display dimming function

Auto shutdown function

Defective pixel repair function

Updatable firmware

Wide operating temperature range (-25°С to +40°С / -13°F to +104°F)

Fully waterproof (IPX7 rated)

Factory 3-Year Warranty with 2-Year Extension upon registration for USA Market

Pulsar Axion XQ19 Compact Specifications:

MAIN SPECIFICATIONS

Sensor
@ 17 µm 384x288

Objective lens
F19 / 1.0

Magnification, x
1.5 - 6 (x4 digital zoom)

FOV (HxV), degrees
19.5 x 12.3

FOV (HxV), m@100m
34.7 x 21.5

Diopter Adjustment, D
+4/-5

Detection range
750

SENSOR

Type
uncooled

Resolution, pixels
384x288

Pixel pitch, µm
17

Sensor NETD, mK

< 25

System NETD, mK

< 18

Frame rate, Hz
50

OPTICS

Objective lens
F19 / 1.0

Magnification, x
1.5 - 6 (x4 digital zoom)

FOV (HxV), degrees
19.5 x 12.3

FOV (HxV), m@100m
34.7 x 21.5

Diopter Adjustment, D
+4/-5

Eye relief, mm
14

DISPLAY

Type
AMOLED

Resolution, pixels
640x400

RANGE PERFORMANCE

Detection range, m
750

VIDEO RECORDER

Video / photo resultion, pixel
960х600

Video / photo format
.mp4 / .jpg

Build-in memory, GB
64

WI-FI
Wireless protocol

Wi-Fi
Wireless standard

IEEE 802.11 b/g/n/ac

ENVIRONMENTAL CHARACTERISTICS

Degree of protectionIP code (IEC60529)
IPX7 (waterproof)

Operating temperature range, °С
-25 – +40

CONNECTIONS AND COMPATIBILITIES

Mount type
1/4" socket

Supported application
Stream Vision 2

POWER SUPPLY

Output voltage, V
3.0 – 4.2

Battery type
APS 3 Li-ion Battery Pack

Capacity, mAh
3200

Operating time on battery pack, hat t=22°С
8

External power supply, V
5 (USB Type C)

WEIGHT & SIZE

Body material
Aluminum alloy

Dimensions, mm
134.5х38х71

Weight, kg
0.25 (without battery)

WARRANTY

Factory 3-Year Warranty with 2-Year Extension upon registration for USA Market
Included in Package

Axion XQ19 Compact

Thermal Imager

APS 3 rechargeable battery

USB Type-C cable with USB Type-A adapter

Carrying case

Hand strap

Quick User Manual

Lens-cleaning cloth

Warranty sheet

U.S. Export Restrictions (ITAR/EAR)

This product is available for U.S. sale only and may be subject to ITAR and/or EAR export-control regulations. Please review our ITAR/EAR Compliance Policy before purchasing.
