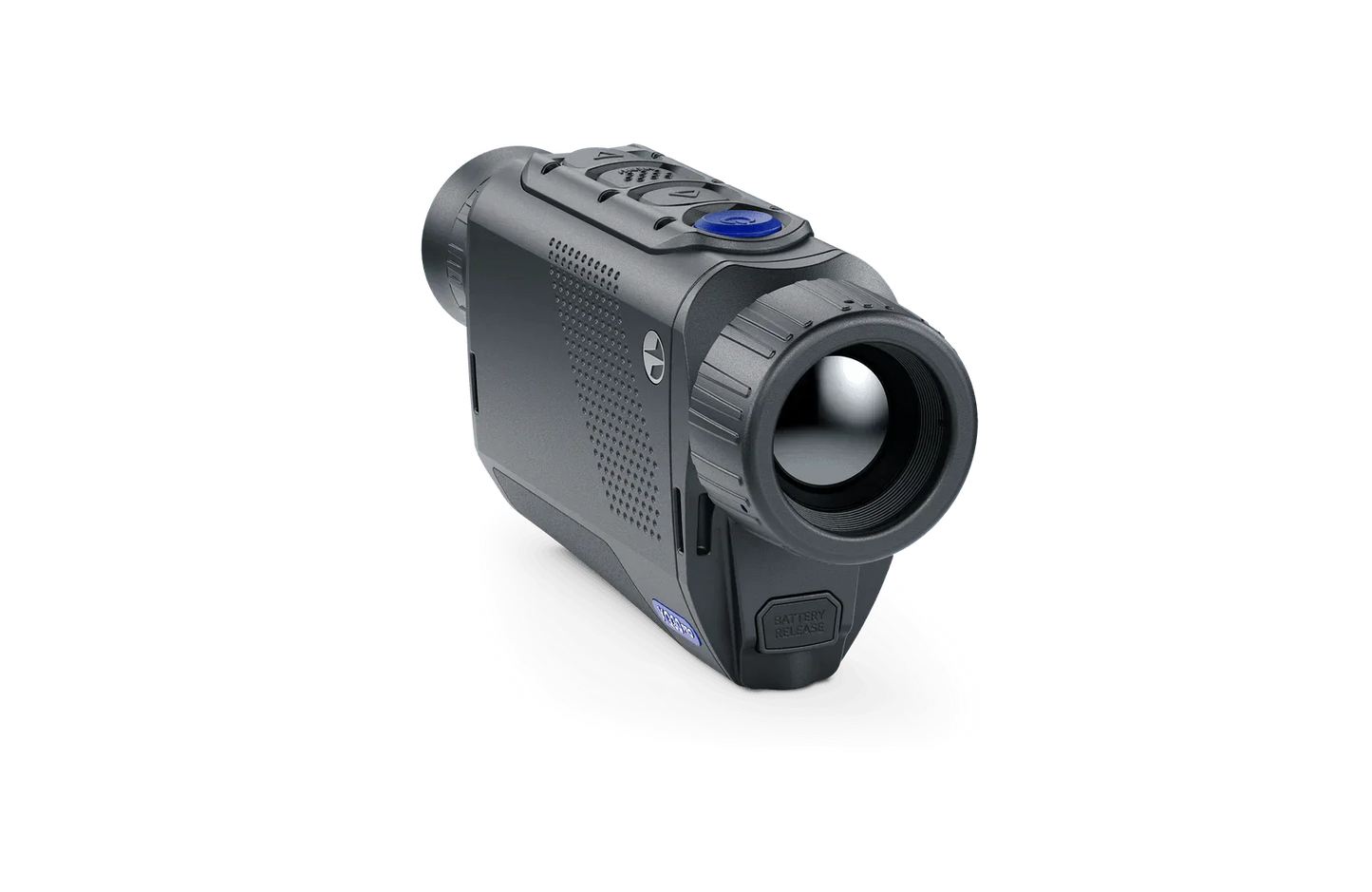

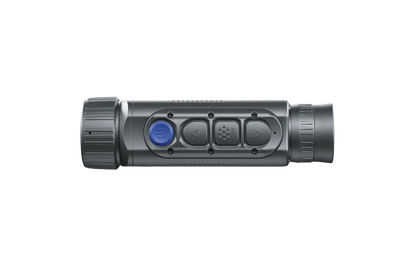

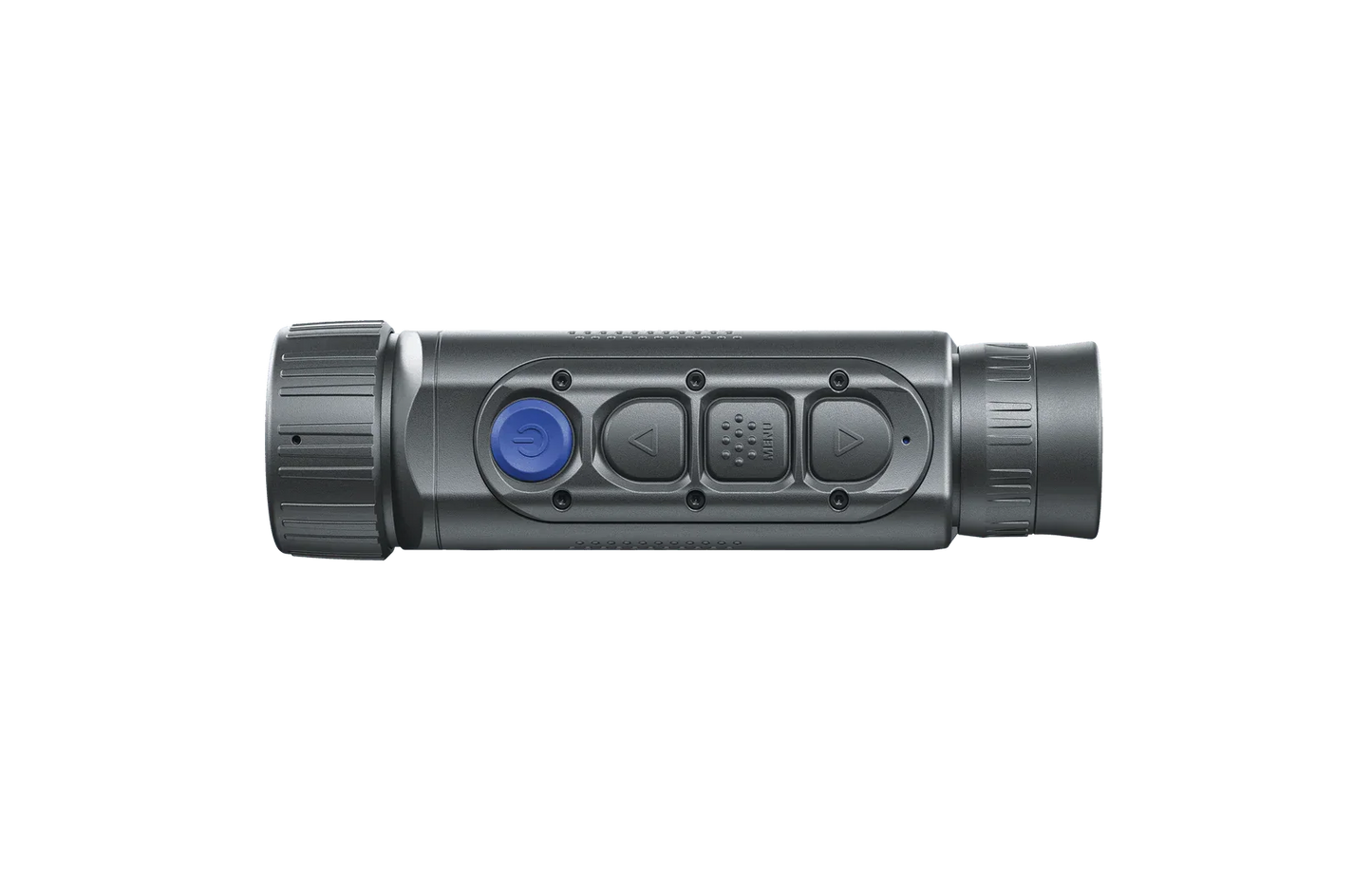

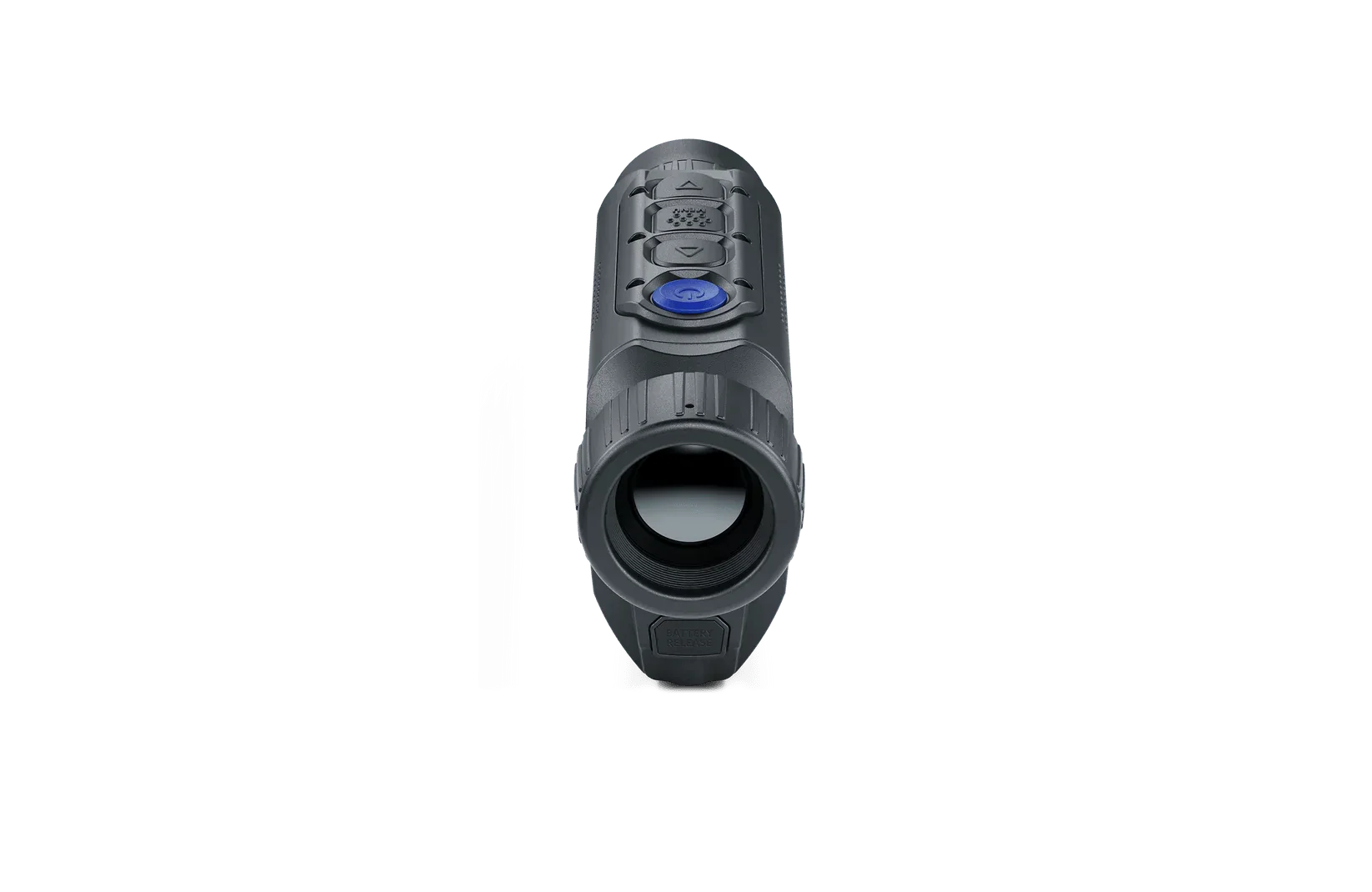

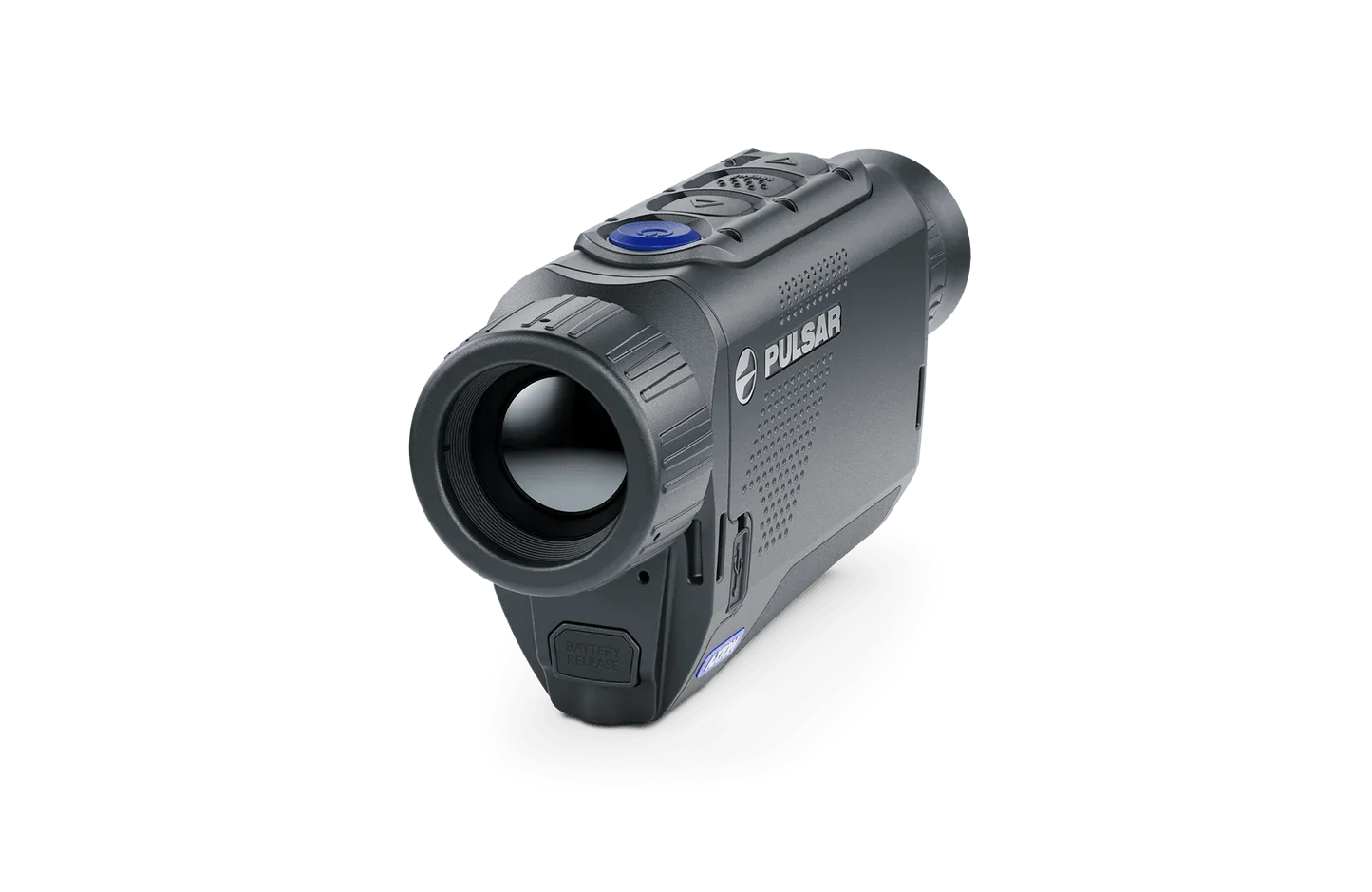

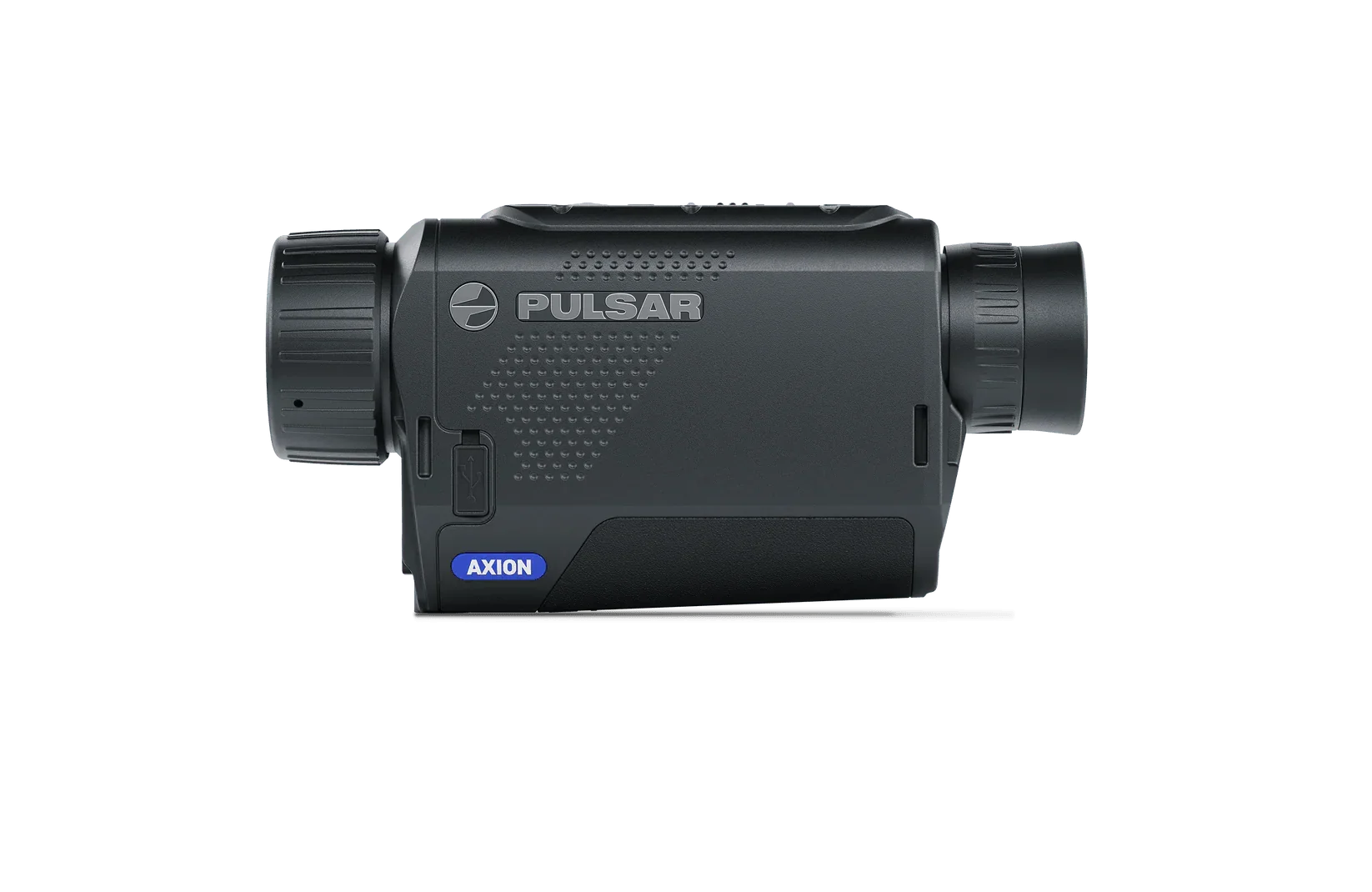

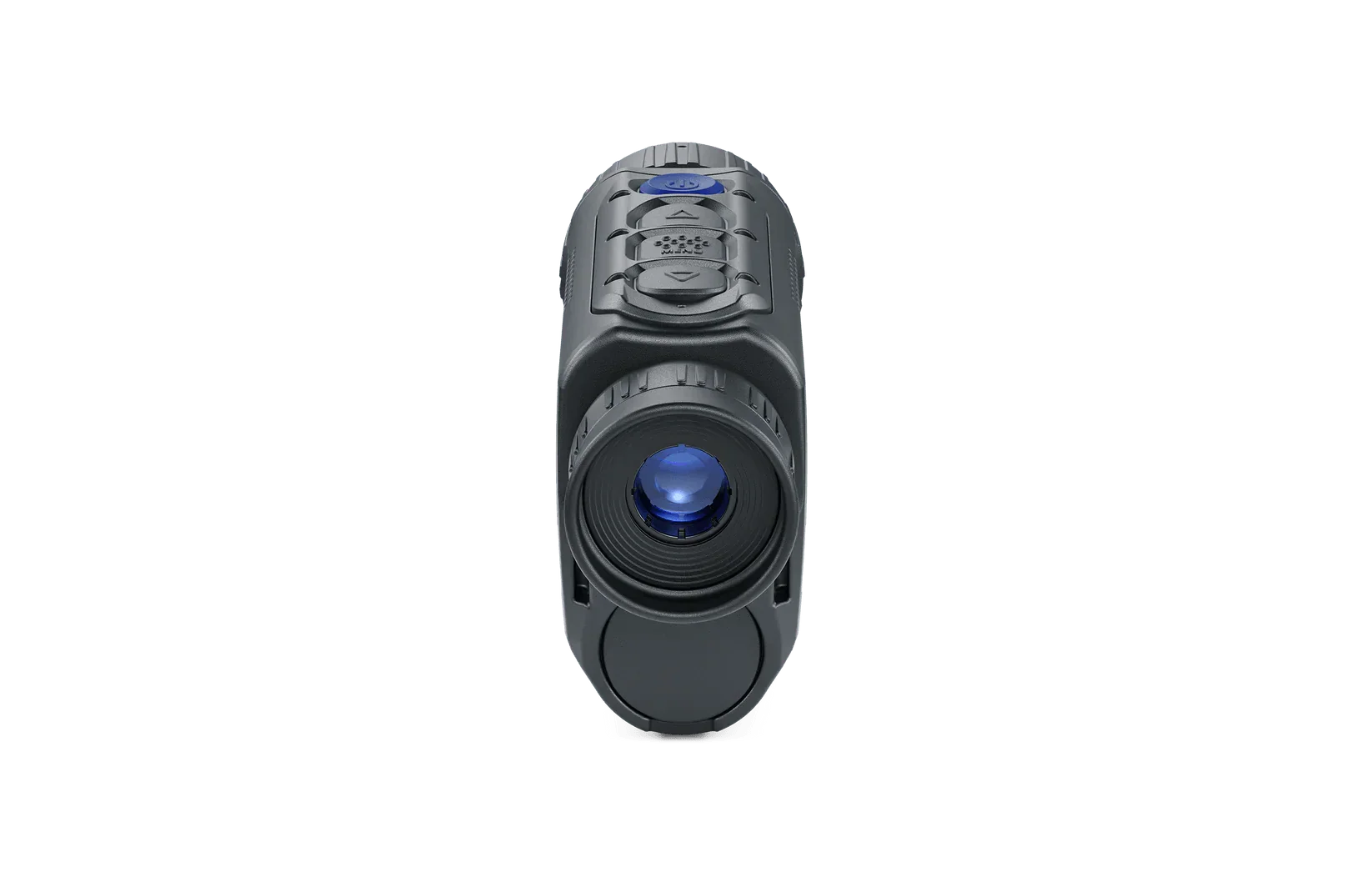

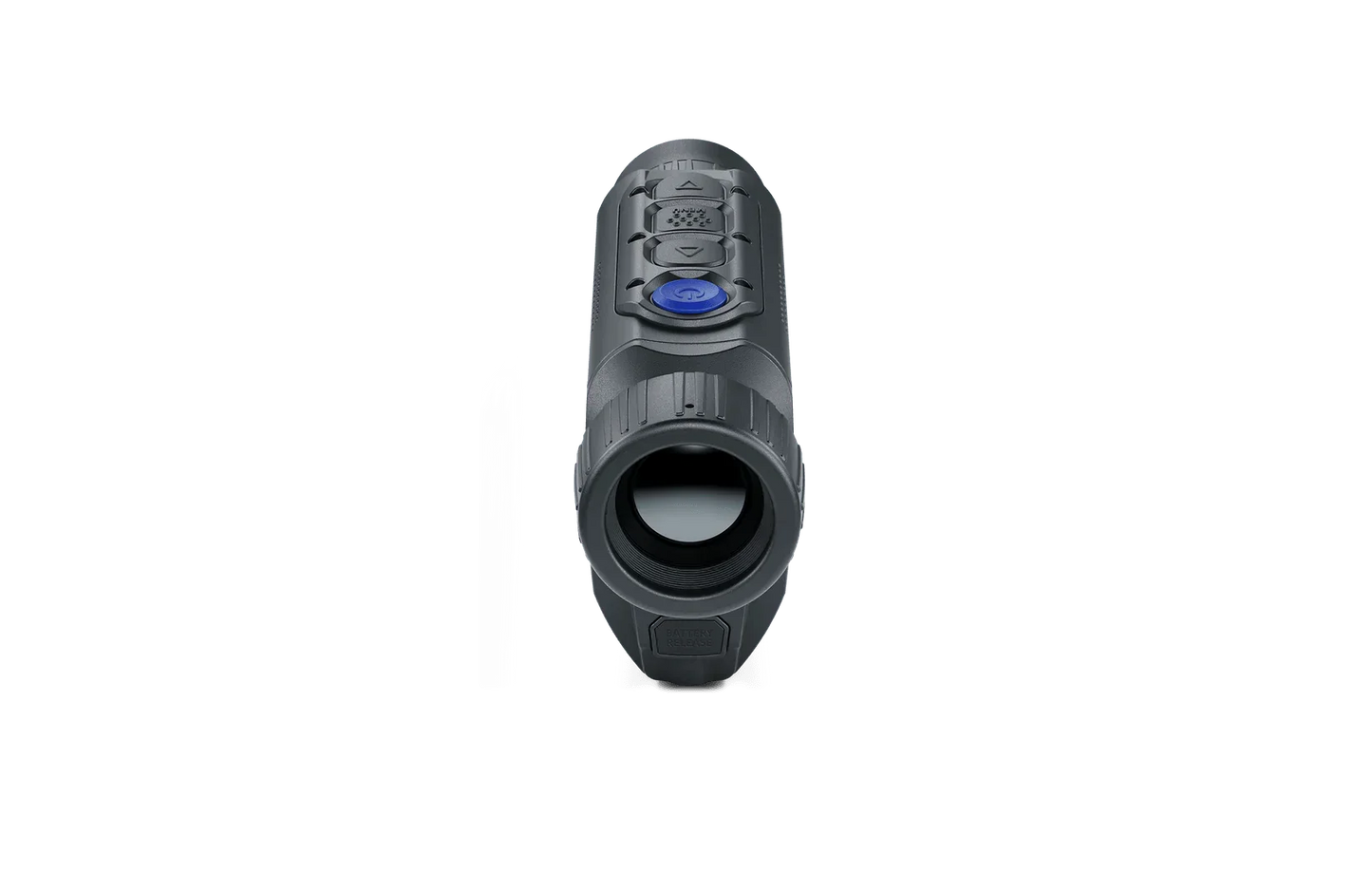

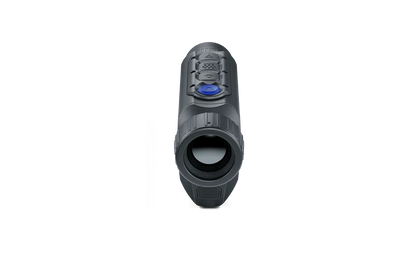

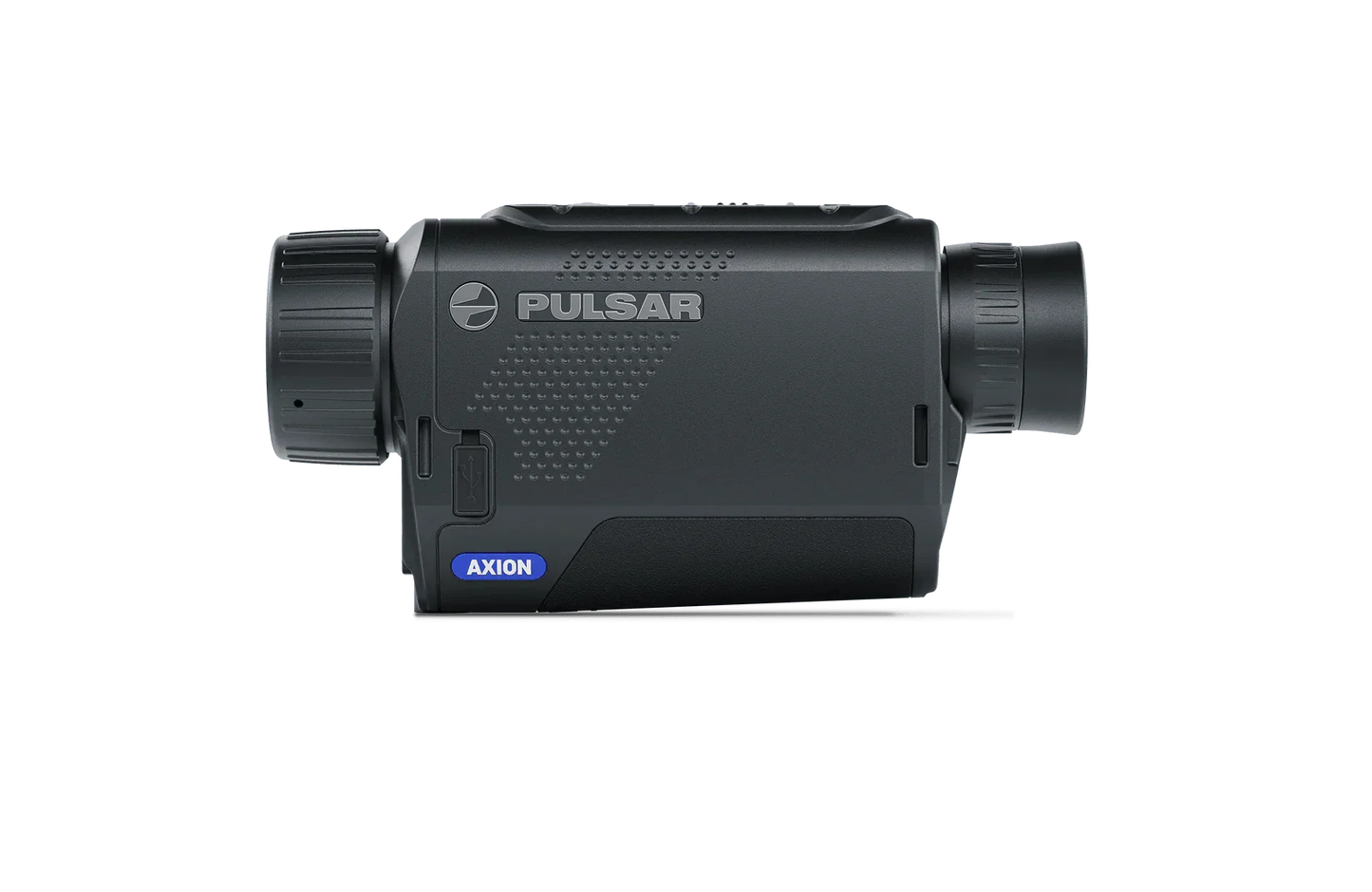

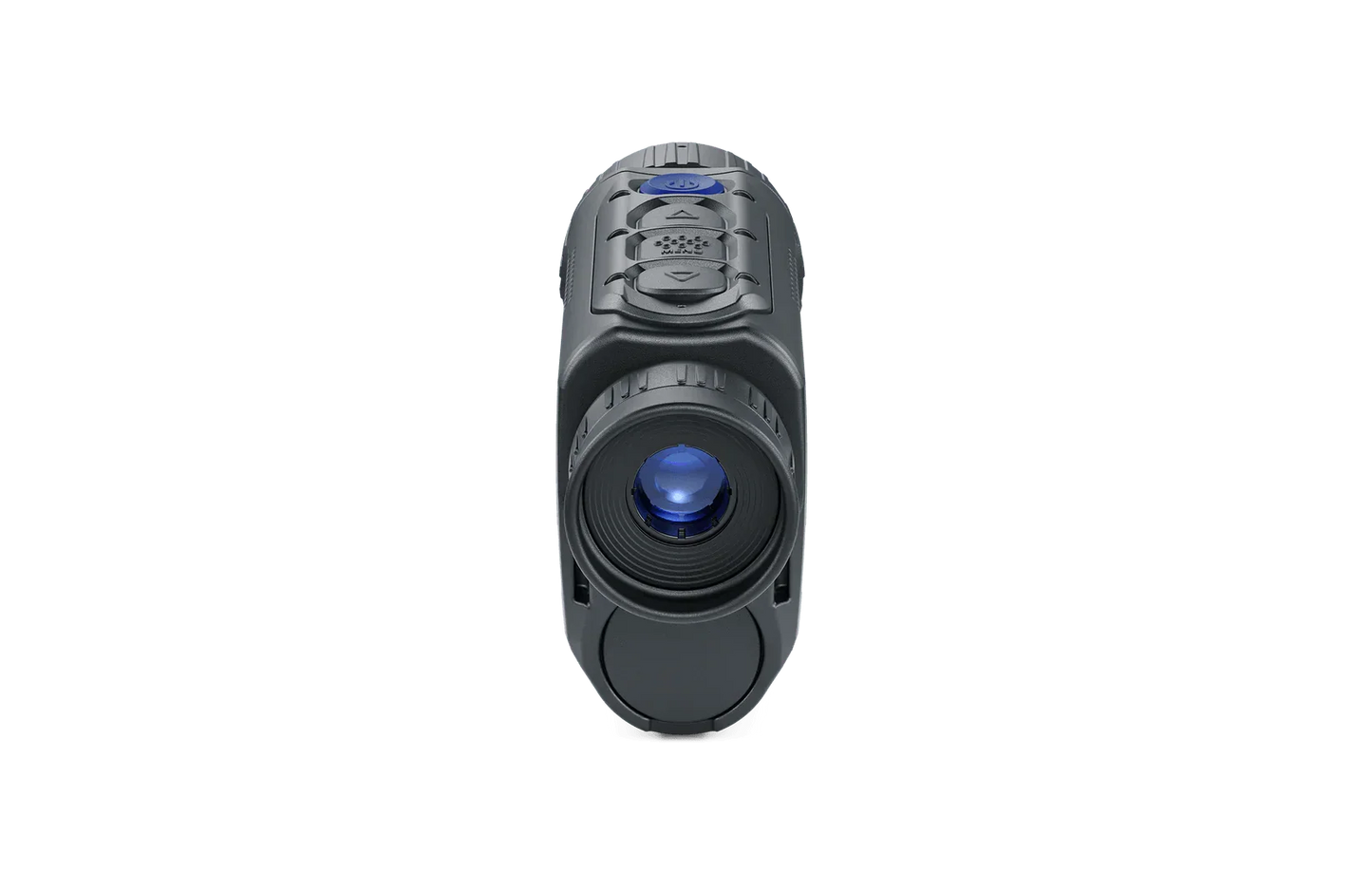

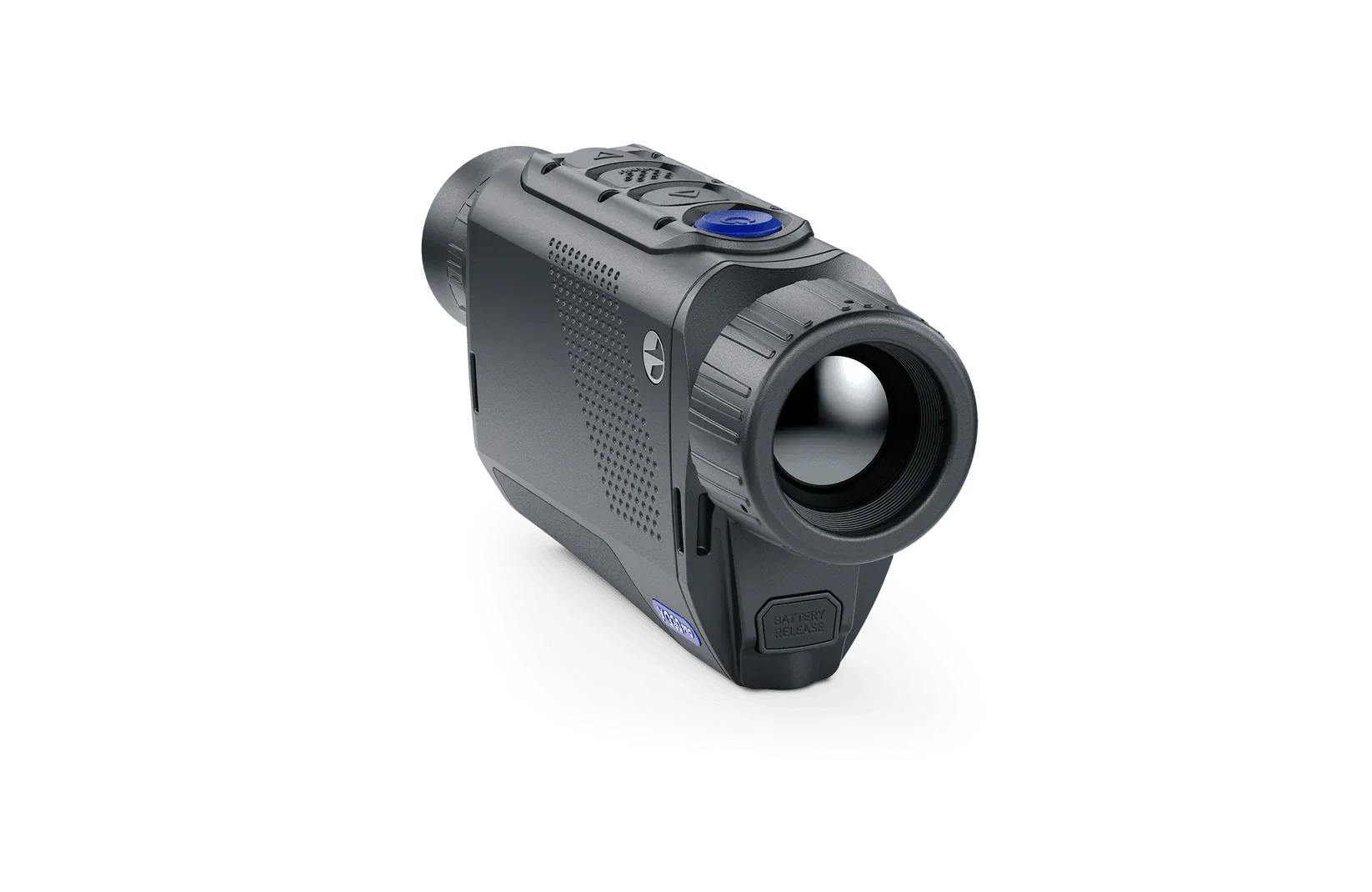

Pulsar Axion XQ30 Pro 384 Thermal Monocular

Pulsar Axion XQ30 Pro Thermal Monocular Scanner 384x288 Onboard Recording, WiFi (PL77506)

Step into the world of thermal vision with Pulsar Axion thermal imaging monoculars. These compact and affordabledevices are ideal for hunters looking to explore thermal imaging technology without a hefty price tag.

Designed to fit comfortably in one hand and lightweight for easy carrying, they still deliver high thermal sensitivity and come packed with premium features such as Wi-Fi connectivity and Pulsar’s latest image processing algorithms.

For details on price, availability, and whether the Pulsar Axion is right for your needs, reach out to your local distributor.

The updated Pulsar Axion XQ30 Pro offers enhanced thermal quality, featuring a professional-grade thermal imaging sensor for superior performance and clarity.

Pulsar Axion XQ30 Pro Features:

• <25mK NETD sensor
• 384x288 Microbolometer
• 850 meters detection range
• 640x400 AMOLED display
• Built-in photo and videorecording
• Wi-Fi connectivity and Stream Vision 2 App Supported
• 8 color palettes
• IPX7 Fully Waterproof
• Factory 3-Year Warranty with 2-Year Extension upon registration for USA Market

Pulsar Axion XQ30 Pro Specifications:

Main

• Sensor - 384x288 pix. @ 17 µm (NETD <25 mK)
• Objective lens - F30/1.2
• Magnification, x2 - 8 (x4 zoom)
• Field of view (HxV), degrees - 13.3x10 / 23.3х17.5
• Detection range, m850

Sensor

• Type, uncooled
• Resolution, pixels - 384x288
• Pixel pitch, µm17
• NETD, mK<25
• Frame rate, Hz50

Optics

• Objective lens, F30/1.2
• Magnification, x2-8x
• Field of view (HxV), degrees - 13.3
• Eye relief, mm - N/A

Display

• Type, AMOLED
• Resolution, pixels - 640x400

Range Performance

• Detection range, m850

Video Recorder

• Video / photo resolution, pixel - 528х400
• Video / photo format.mp4 / .jpg
• Built-in memory, GB - 16

Wi-Fi

• Wireless Protocol - Wi-Fi
• Wireless Standard IEEE 802.11 b/g/n/ac (WPA)
• Frequency, GHz - 2.4 / 5

Environmental Characteristics

• Degree of protection, IP code (IEC60529) IPХ7(waterproof)
• Operating temperature range, °С-25 – +40

Connections and Compatibilities

• Mount, type - 1/4"
• Supported Application - Stream Vision 2

Power Supply

• Output voltage, V3.0 – 4.2
• Battery type Dual Li-Ion power system: APS 3 changeable battery (3.2 A·h)
• Capacity, mAh - 3200
• Operating time on battery pack (at t=22°C), h *8
• External power supply, V5V - (USB)

Weight & Size

• Body material - Magnesium alloy
• Dimensions, mm - 144x41x69
• Weight, kg - 0.3 (with battery)

Included in Package

• Axion 2 thermal monocular

• APS 5 rechargeable battery

• 2 battery-locking covers

• Power adapter

• USB Type-C cable

• Carrying case

• Hand strap

• Quick reference user manual

• Lens cleaning cloth

• Warranty information

• Tripod adapter
