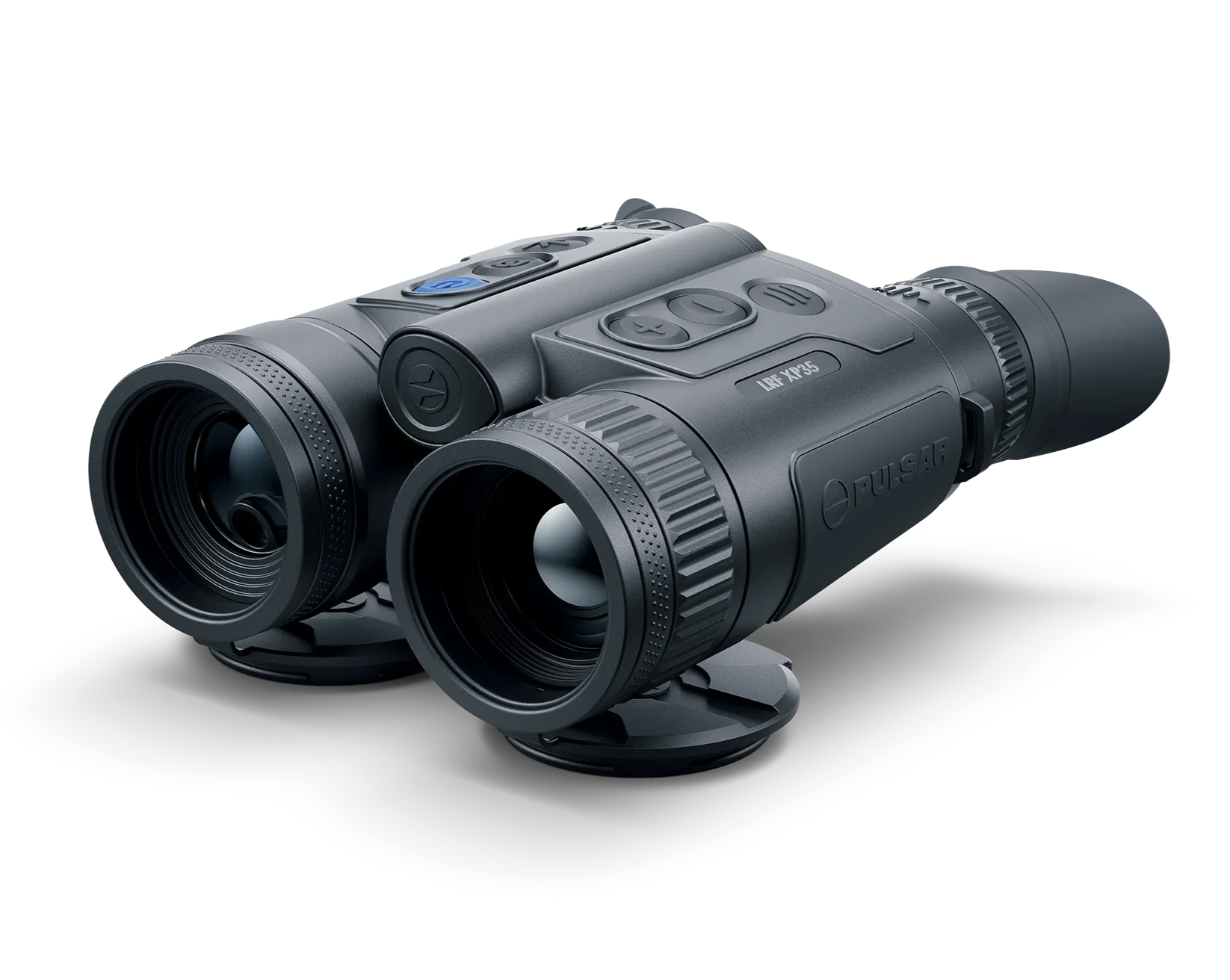

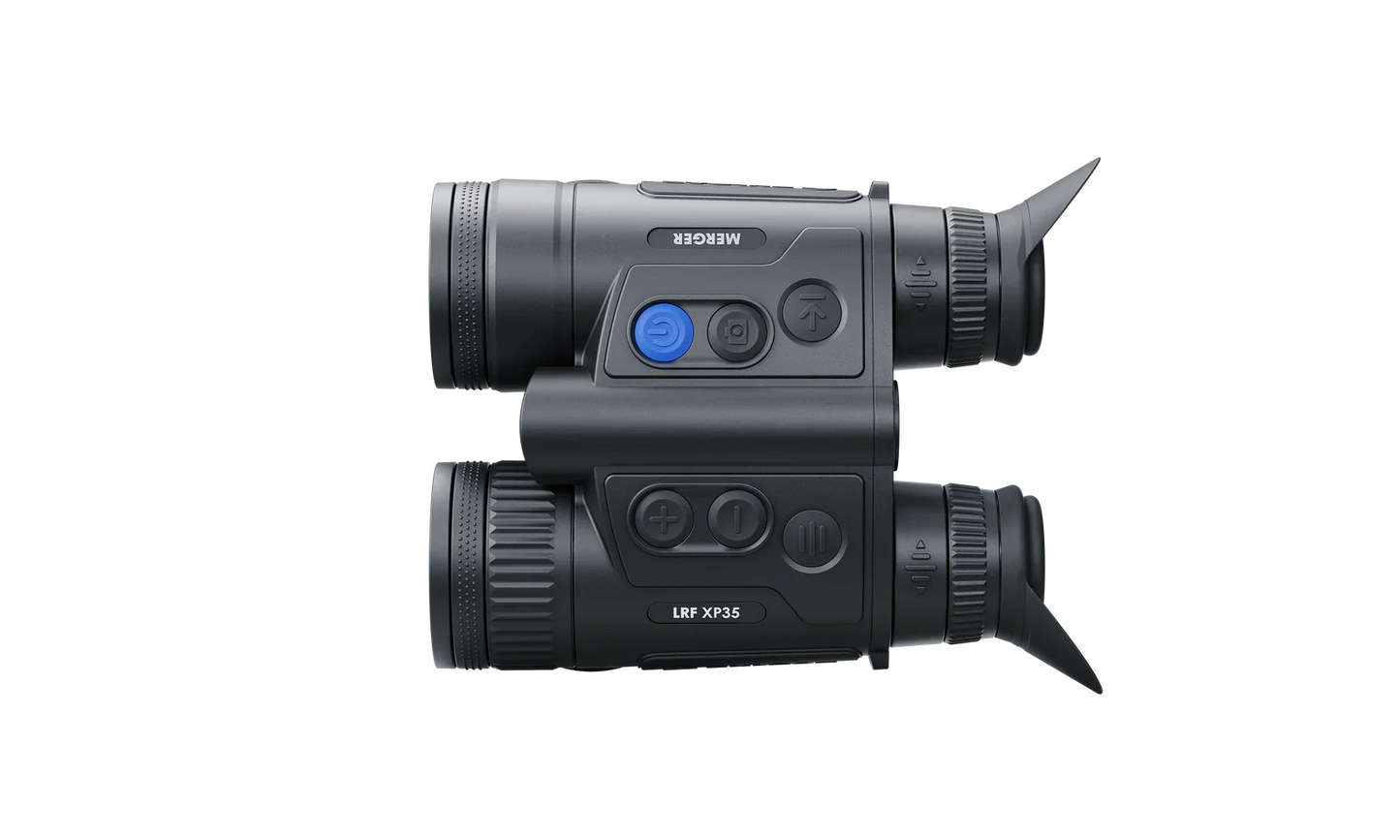

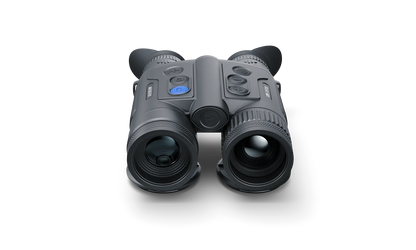

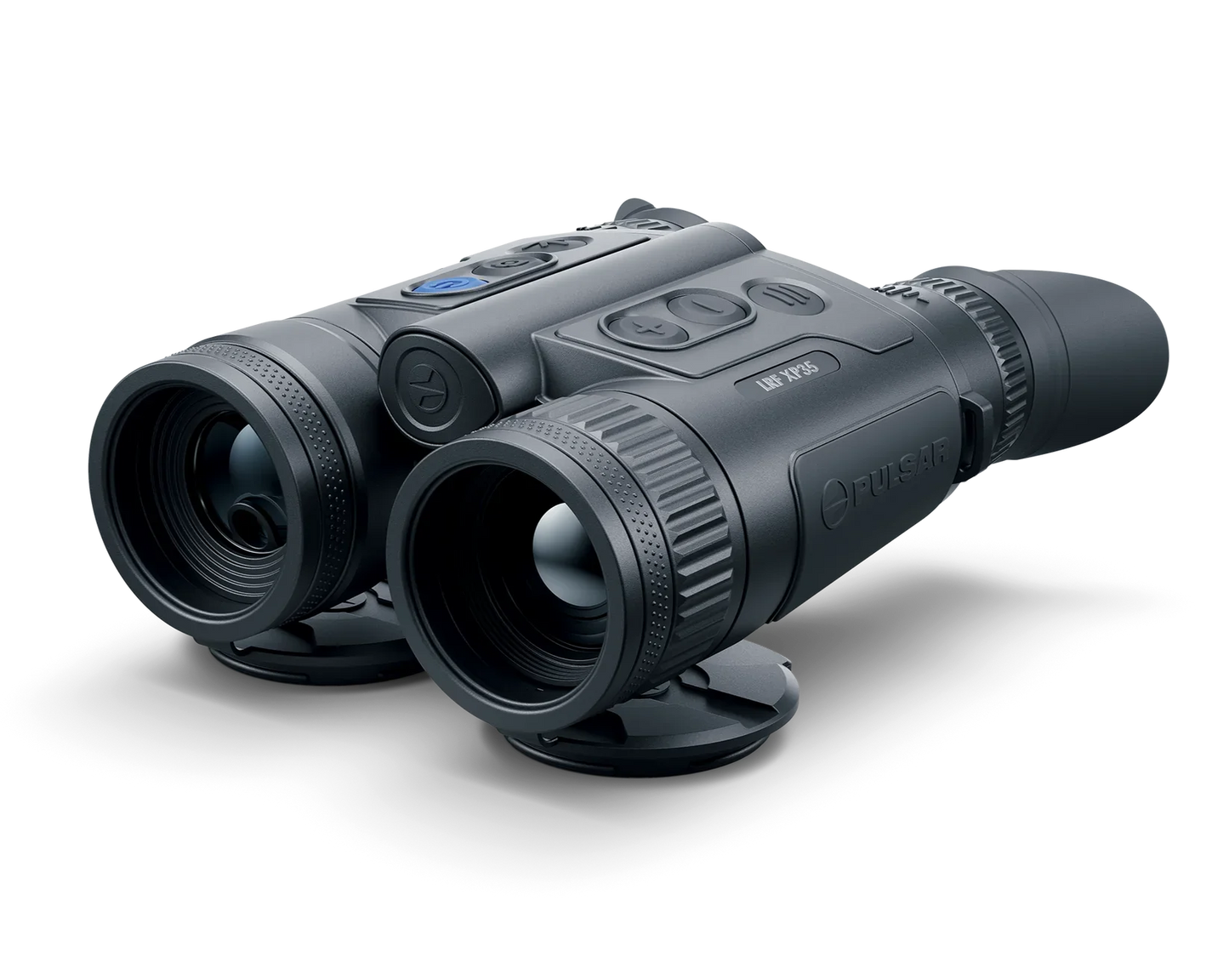

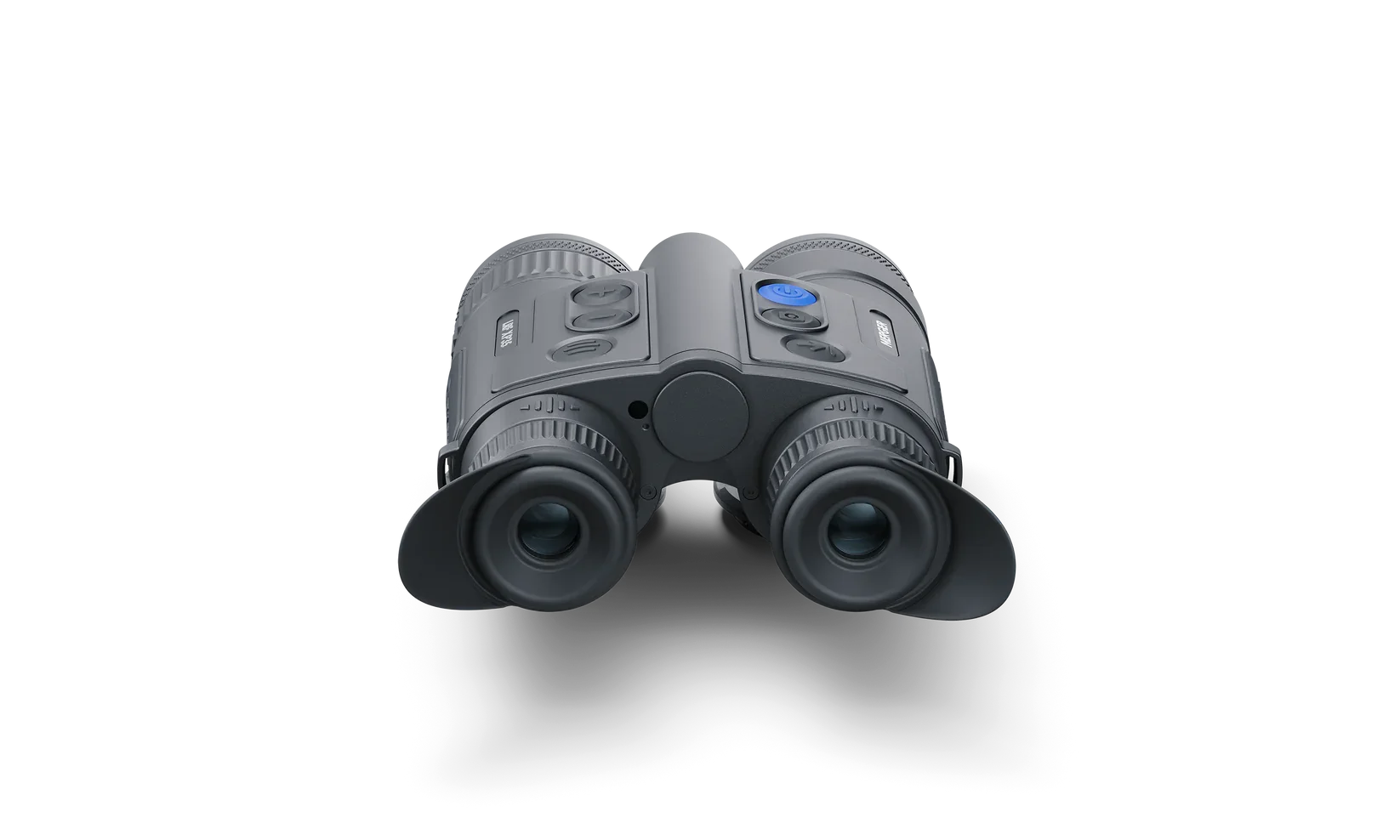

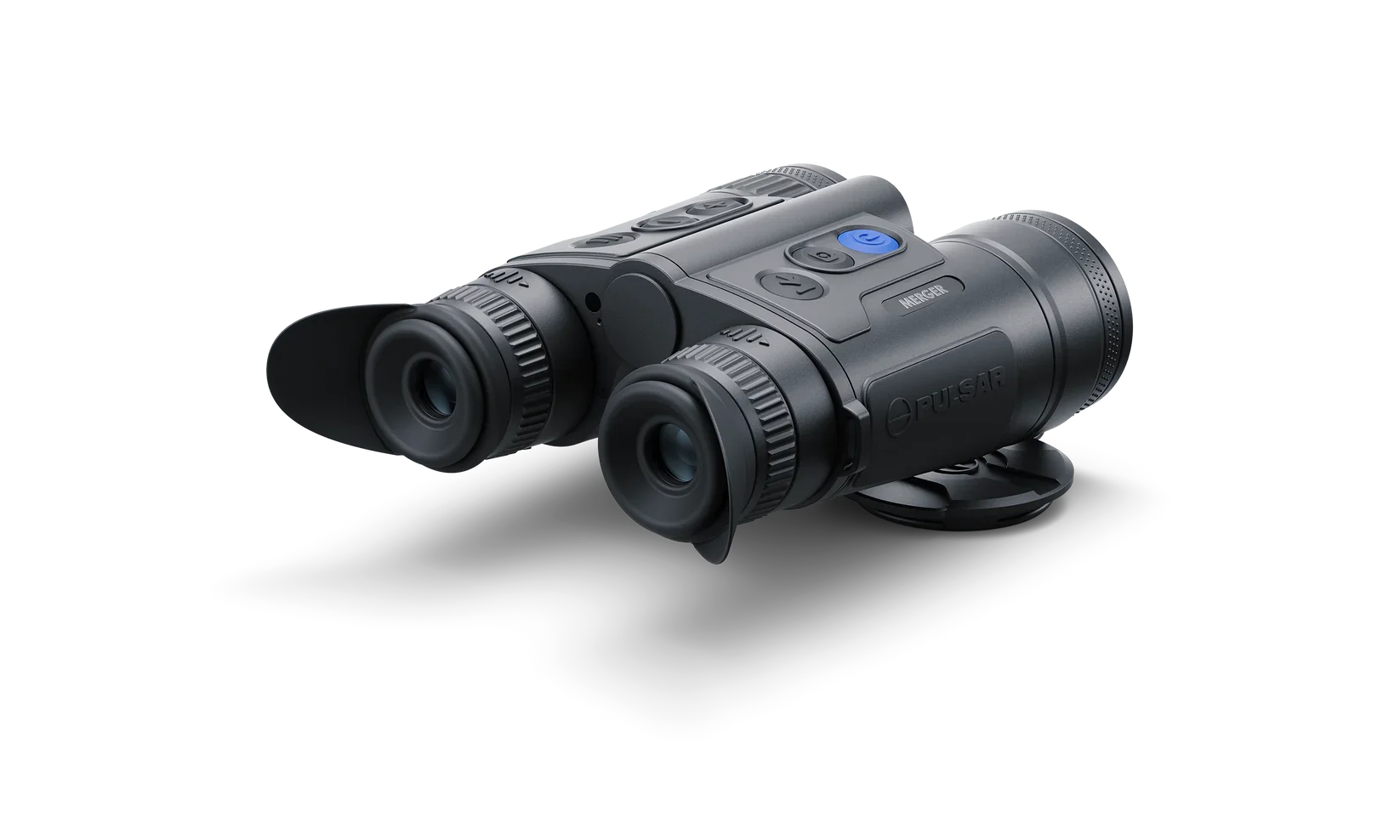

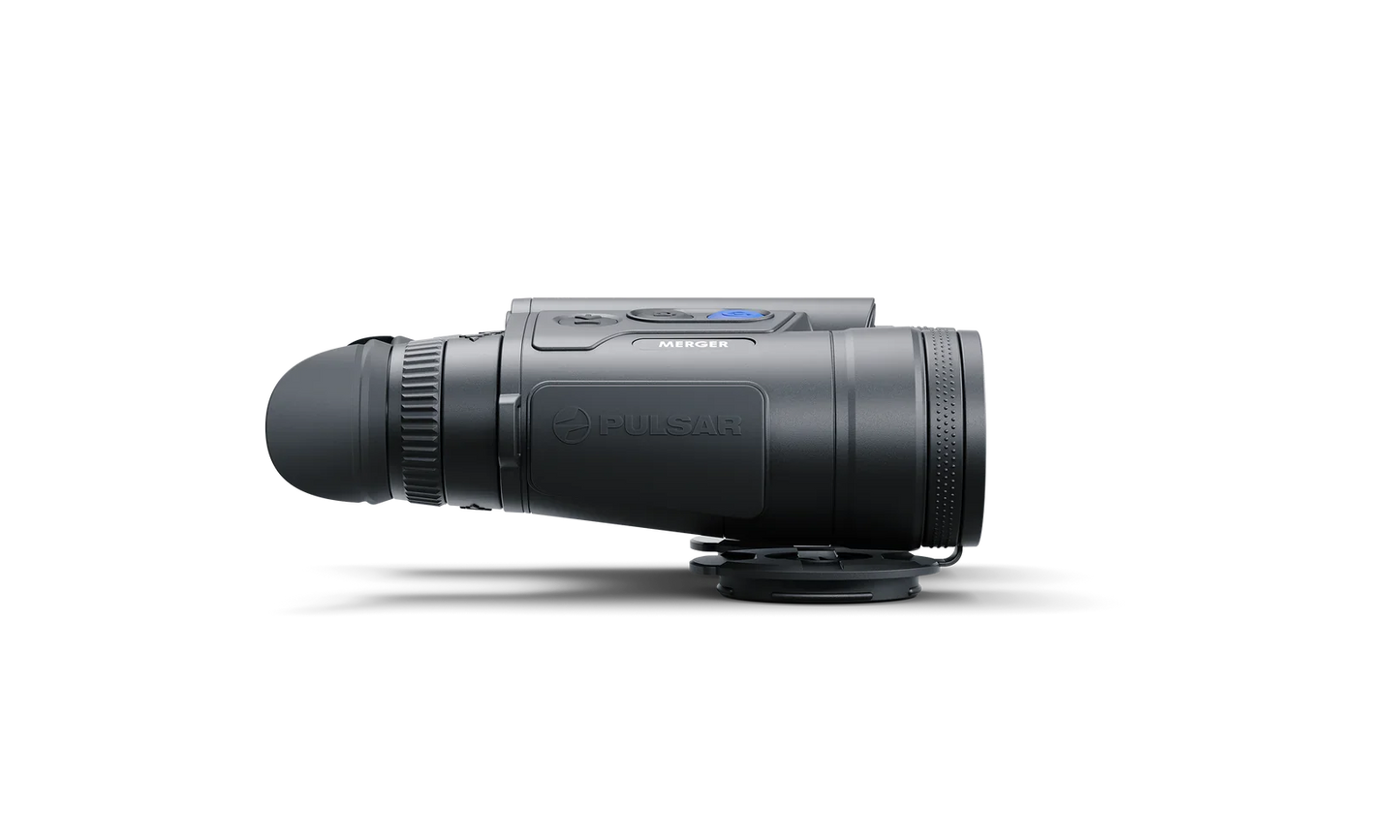

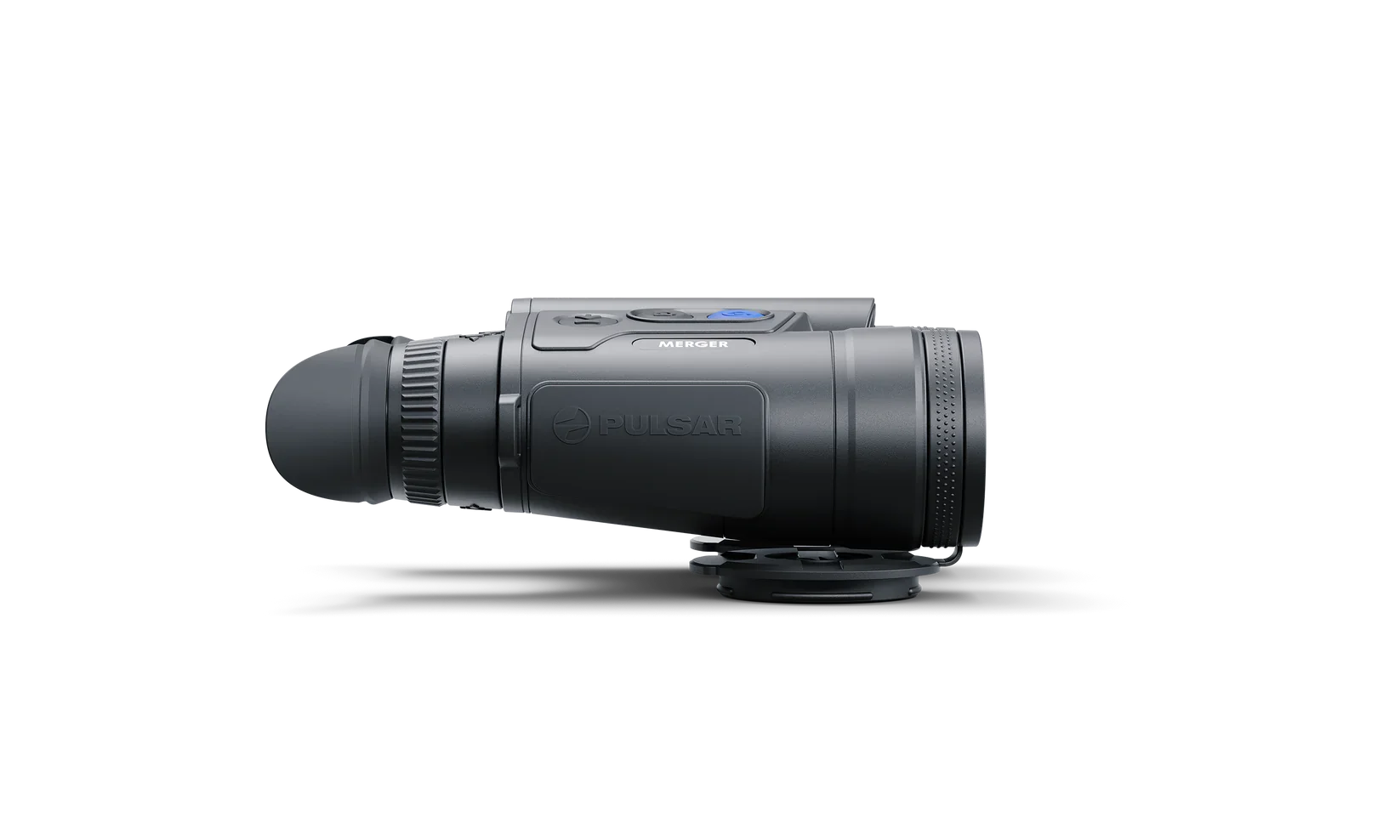

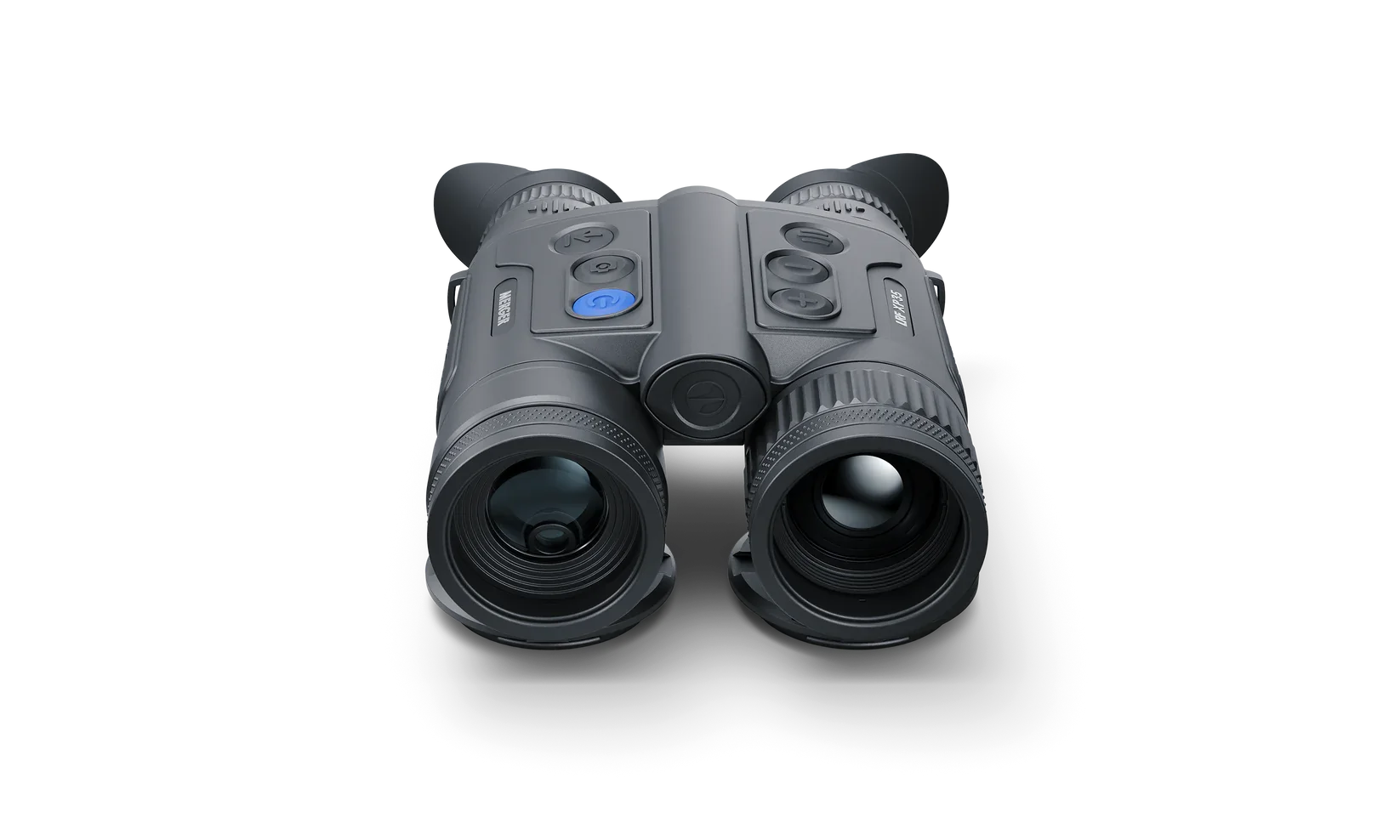

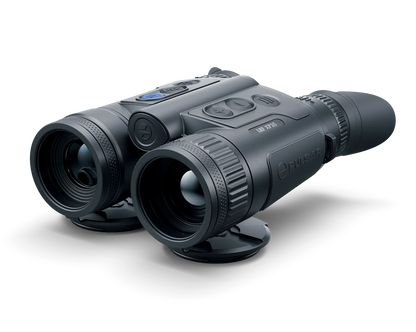

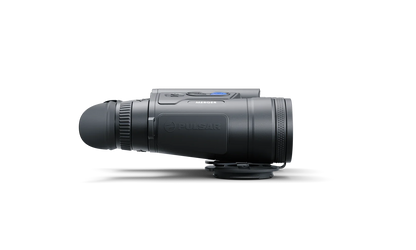

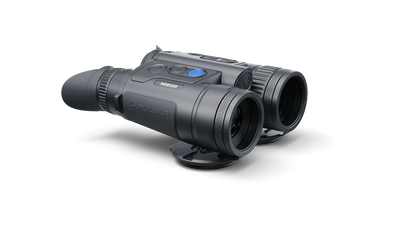

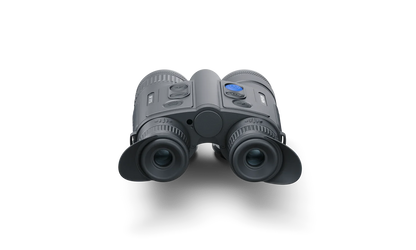

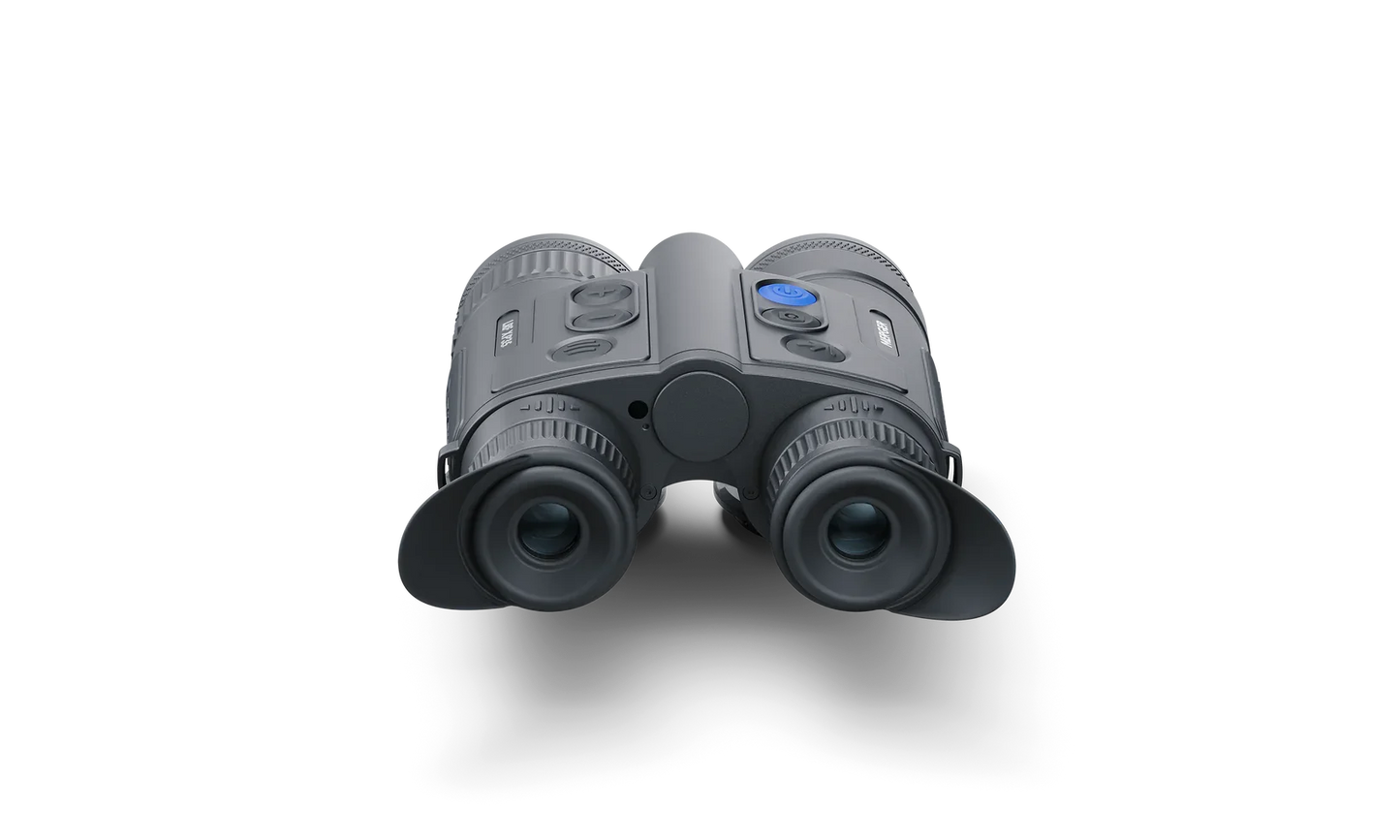

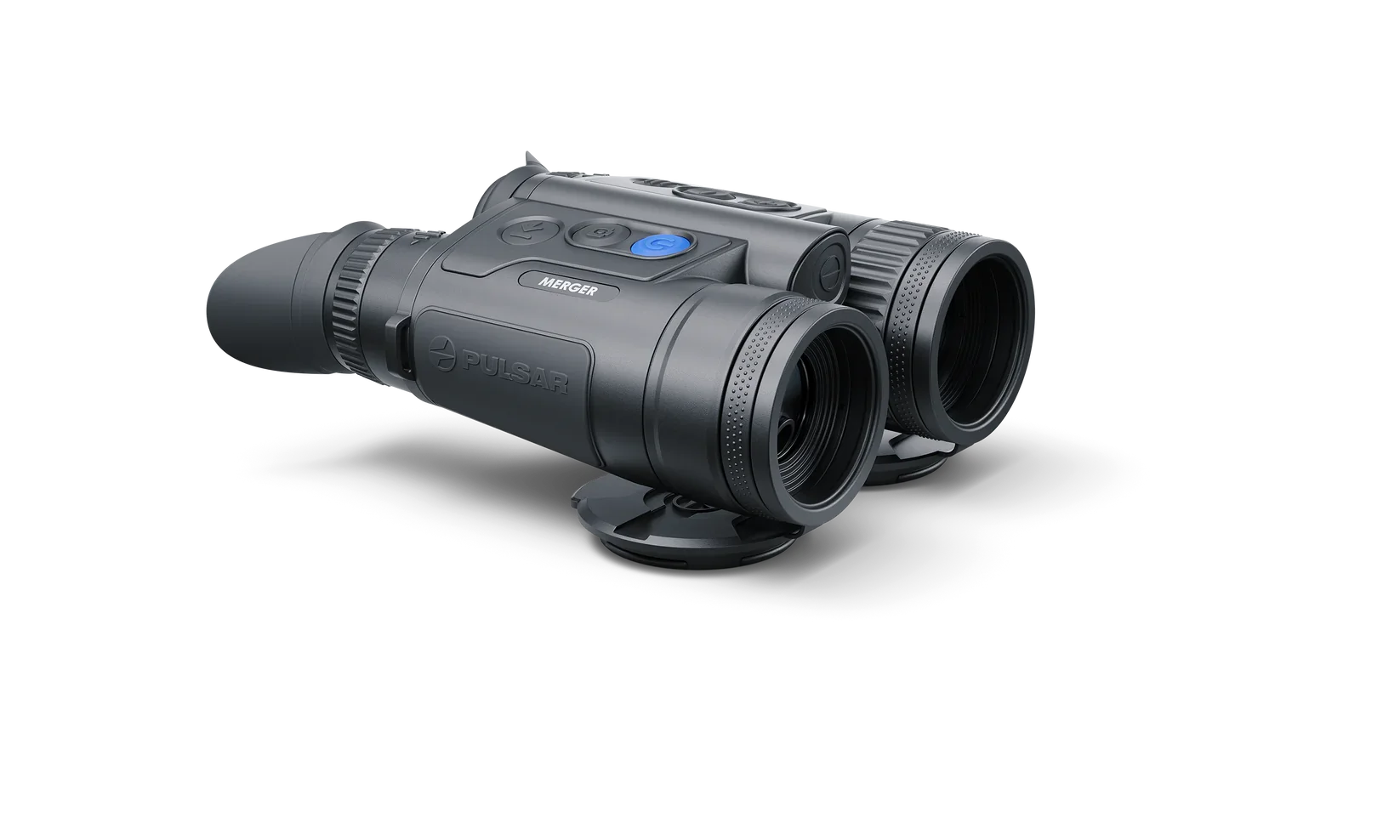

Pulsar Merger LRF XP35 Thermal Binoculars 640

Pulsar Merger LRF XP35 Thermal Binoculars 640

SKU:PL77484

Regular price $ 4,999.00
Regular price Sale price $ 4,999.00
Sale Sold out
Shipping calculated at checkout.
Pulsar Merger LRF XP35 Thermal Binoculars 640x480 50Hz 2x-16x (PL77484)

AUTHORIZED DEALER


Pulsar's Merger LRF XP35 offers a classic design for daytime binoculars, featuring a small size, attractive external aesthetics, and advanced ergonomics. Boasting a 2-16x variable magnification, the Merger LRF includes a powerful 640x480 17µm thermal imaging sensor, providing a NETD less than 25mK and offering detail recognition out to almost 1,500 yards, even in challenging environmental conditions. This binocular also comes with a built-in precision laser rangefinder, capable of measuring distances up to 1,000 yards, with single measurement and continuous scanning modes for reliable, accurate targeting.

The high-sensitivity 640x480 sensor with <25mK NETD captures minimal temperature differences when observing in conditions of low temperature contrast, as well as during rain or fog. An advanced fast aperture F35/1.0 germanium lens, along with the sophisticated sensor, 8 color palette options and AMOLED display, provide exceptional detection and identification capabilities.

The Merger's two self-contained batteries furnish up to 10 hours of usage without recharging, in addition to the provided video and photo capturing, plus 16 GB of free storage. Taking advantage of both 2.4 and 5 GHZ capabilities, the upgraded Wi-Fi connection to Stream Vision 2 (available on both Android and iOS platforms) further ensures a trouble-free user experience.

A reinforced magnesium alloy housing offers IPX7 waterproof protection and a temperature range of -13 to 122 Fahrenheit for reliable performance.

Features

  • Classic design & compact size
  • Comfortable viewing experience for prolonged observation
  • Precise laser rangefinder with 1000 m measuring distance
  • High-definition thermal imaging sensor with 640x480 pixel @ <25 mK NETD
  • Enhanced image processing algorithms with three image amplification levels
  • Fast aperture F35/1.0 germanium lens
  • Long detection range up to 1350 m
  • Two independent batteries – up to 10 hours of continuous operation on a single charge
  • 2x-16x variable magnification
  • High-quality reinforced magnesium alloy housing
  • Built-in photo and video recorder plus 16 GB of free cloud space
  • Distant operation and firmware update from iOS and Android devices via the Stream Vision 2 App
  • Improved Wi-Fi connectivity with 2.4 / 5 GHZ waveband support
  • Two high-contrast AMOLED displays
  • A selection of 8 colour palettes
  • IPX7 waterproof rated
  • Wide range of operating temperatures (-25 to +50C)
  • Factory 3-Year Warranty with 2-Year Extension upon registration for USA Market



Specifications:

Main
Sensor
640x480 17 µm (NETD <25 mK)


Objective lens
F35/1.0


Magnification, x
2-16


Field of view (HxV), degrees / m@100m
17.8x13.3 / 31.3х23.4


Detection range, m
1350


Sensor
Type
uncooled


Resolution, pixels
640x480


Pixel pitch, µm
17


NETD, mK
<25


Frame rate, Hz
50


Optics
Objective lens
F35/1.0


Magnification, x
2-16


Field of view (HxV), degrees / m @ 100 m
17.8


Interpupillary distance adjustment, mm
63-74


Eye relief, mm
15


Display
Type
AMOLED


Resolution, pixels
1024x768


Range Performance
Detection range, m
1350


Laser Rangefinder
Safety class for laser equipment according to IEC 60825-1:2014
1


Wavelength, nm
905


Max. measuring range, m
1000


Measurement accuracy, m
+/- 1


Video Recorder
Video / photo resolution, pixel
1024x768


Video / photo format
.mp4 / .jpg


Built-in memory, GB
16


Wi-Fi
Wireless Protocol
Wi-Fi


Wireless Standard
IEEE 802.11 b/g/n/ac (WPA)


Frequency, GHz
2.4 / 5


Environmental Characteristics
Degree of protection, IP code (IEC60529)
IPХ7 (waterproof)


Operating temperature range, °С
-25 – +50


Connections and Compatibilities
Mount, type
1/4" socket


Supported Application
Stream Vision 2


Power Supply
Output voltage, V
3.7


Battery type
Dual Li-Ion power system: APS 3 changeable battery (3.2 A·h) and built-in battery pack (4.0 A·h)


Capacity, mAh
3200 (external) + 4000 (internal)


Operating time on battery pack (at t=22°C), h *
9


External power supply, V
5V, 9V (USB Type-C Power Delivery)


Weight & Size
Body material
Magnesium alloy


Dimensions, mm
165x133x68


Weight, kg
0.83 (batteries included)



Included in Package:
  • Merger thermal binocular
  • АPS3 Battery Pack
  • APS battery charger
  • Power adapter
  • USB Type-C cable with USB Type-A adapter
  • USB Type-С - Micro USB Type-B cable
  • Carrying case
  • Neck strap
  • Quick-Start guide
  • Lens cloth
  • Warranty card
  • Tripod adapter
