How clearly can I really see with the 1280x1024 resolution on the Pulsar Merger LRF XT50, especially in fog or rain? Will it make small heat signatures pop out?

The Pulsar Merger LRF XT50 features a high-resolution 1280x1024 sensor, providing exceptional detail and clarity. This advanced resolution, combined with its <40mK NETD sensitivity, allows for the detection of subtle temperature differences, making small heat signatures stand out even in challenging conditions like fog or rain.

The rangefinder on the Pulsar Merger LRF XT50 states over 1640 yards. How accurate is that in real-world conditions? Can I rely on it for spotting targets or estimating distances accurately in the field?

The integrated laser rangefinder on the Pulsar Merger LRF XT50 is designed for accuracy up to 1640 yards and beyond. In real-world conditions, it provides reliable distance measurements, allowing you to confidently spot targets and estimate distances in the field, which is crucial for tactical and hunting applications.

I plan on using the Pulsar Merger LRF XT50 for extended periods. How long do the two batteries really last, and is it easy to swap them out or charge them without losing observation time?

The Pulsar Merger LRF XT50 is equipped with two long-lasting batteries designed for extended operational use. Swapping batteries is a quick and simple process, minimizing downtime and allowing you to maintain continuous observation without significant interruption.

What distinguishes the Pulsar Merger LRF XT50 model from other Pulsar thermal imagers? Specifically, what makes the 'premium' features like the 1280 sensor and the AMOLED display worth the investment for serious thermal imaging users?

The Pulsar Merger LRF XT50 stands out with its premium features, including a high-resolution 1280x1024 sensor and a crisp AMOLED display. These advancements offer superior image quality, enhanced detail recognition, and better performance in low-light or adverse weather conditions compared to other models. For users serious about thermal imaging, these features translate to a more effective and valuable observation experience.

How clearly can I see with the 1280x1024 resolution on the Pulsar Merger LRF XT50, especially in fog or rain?

The Pulsar Merger LRF XT50 features a high-resolution 1280x1024 sensor, providing exceptional detail and clarity. This advanced resolution, combined with its <40mK NETD sensitivity, allows the Pulsar Merger LRF XT50 to detect subtle temperature differences, making small heat signatures stand out even in challenging conditions like fog or rain.

How clear is the image on the Pulsar Merger LRF XT50 Thermal Binoculars 1280 in bad weather?

Thermal imaging detects temperature contrast without visible light. Rain, fog, humidity, smoke, distance and low temperature contrast can reduce image detail. Environmental sealing protects the device within its stated rating; it does not guarantee clear viewing or identification in poor weather.

What is the maximum distance I can accurately measure with the laser rangefinder?

The Pulsar Merger LRF XT50 features a precise laser rangefinder capable of measuring distances of over 1640 yards, allowing you to make quick and informed decisions based on accurate target distance assessments.

How long will the battery last during a trip?

The device utilizes two independent batteries (an internal 4000 mAh and an external 3200 mAh APS3 pack), providing up to 6 hours of continuous operation.

Can I record my observations and share them with others?

Yes, the binoculars include a built-in photo and video recorder with 64 GB of internal memory. You can also use the Stream Vision 2 App on iOS and Android devices via Wi-Fi for distant operation and updates.

Is the housing durable enough for rugged outdoor use?

Absolutely. The Pulsar Merger LRF XT50 is built with a high-quality reinforced magnesium alloy housing and is IPX7 waterproof rated, making it durable enough for a wide range of operating temperatures from -13 to +122°F.

1 9

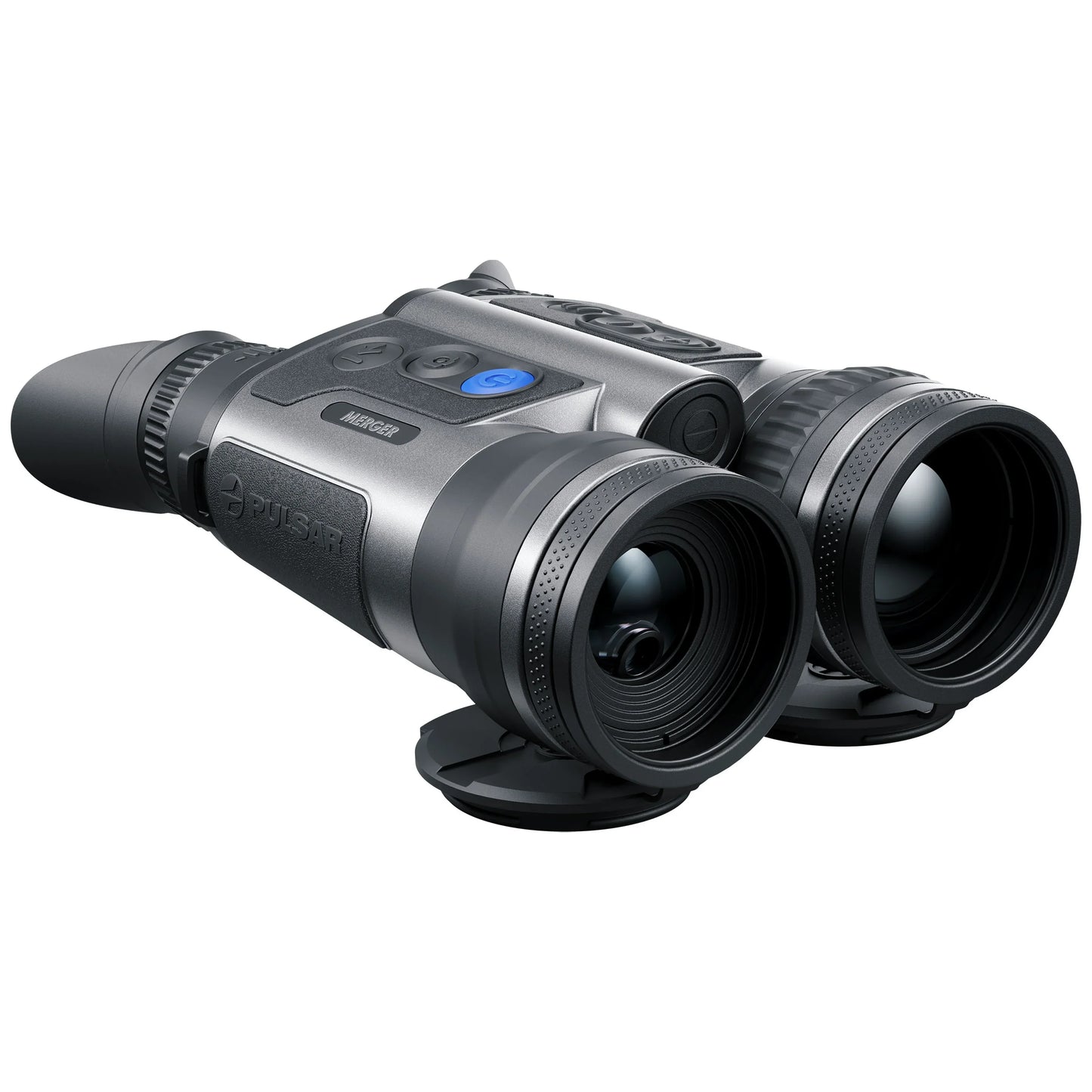

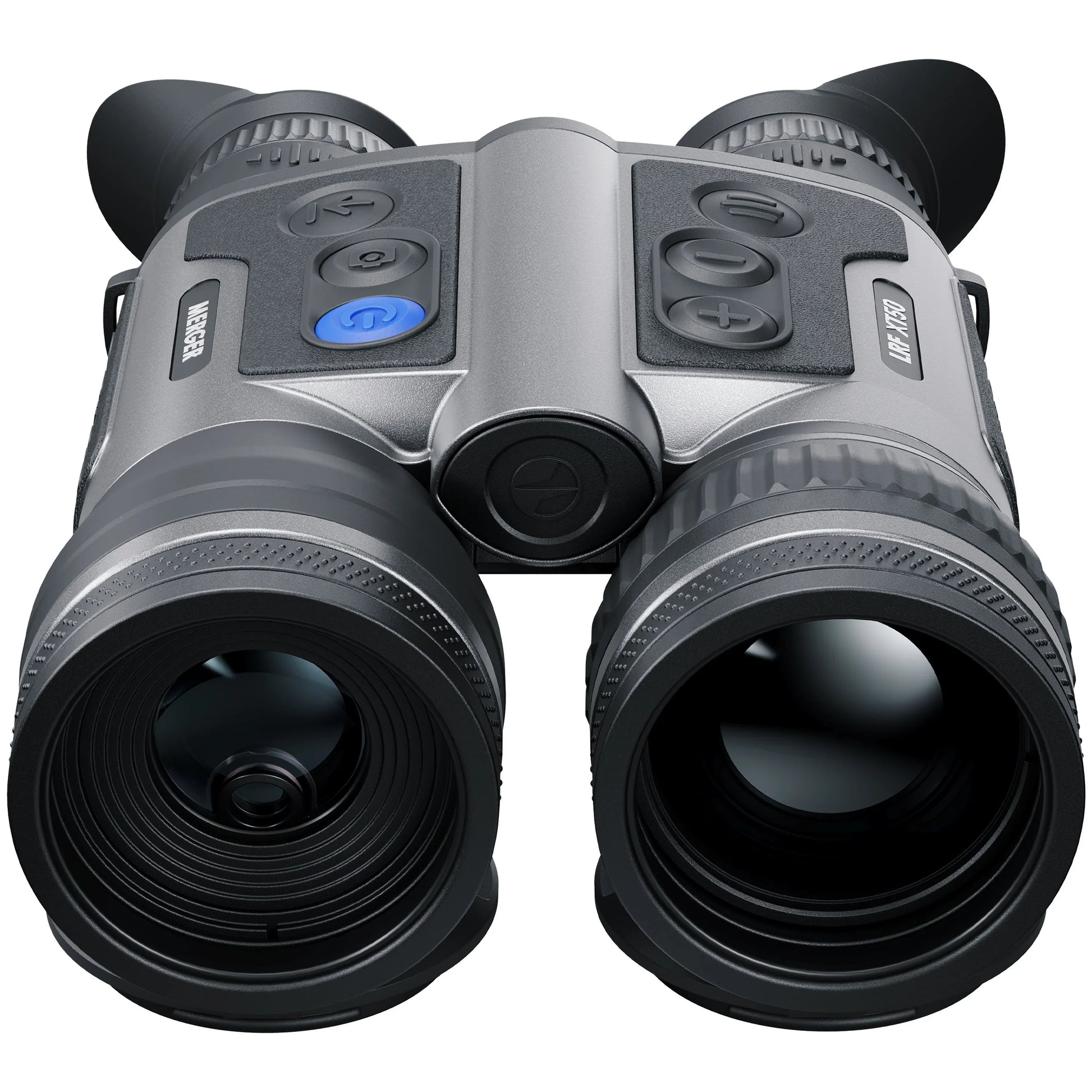

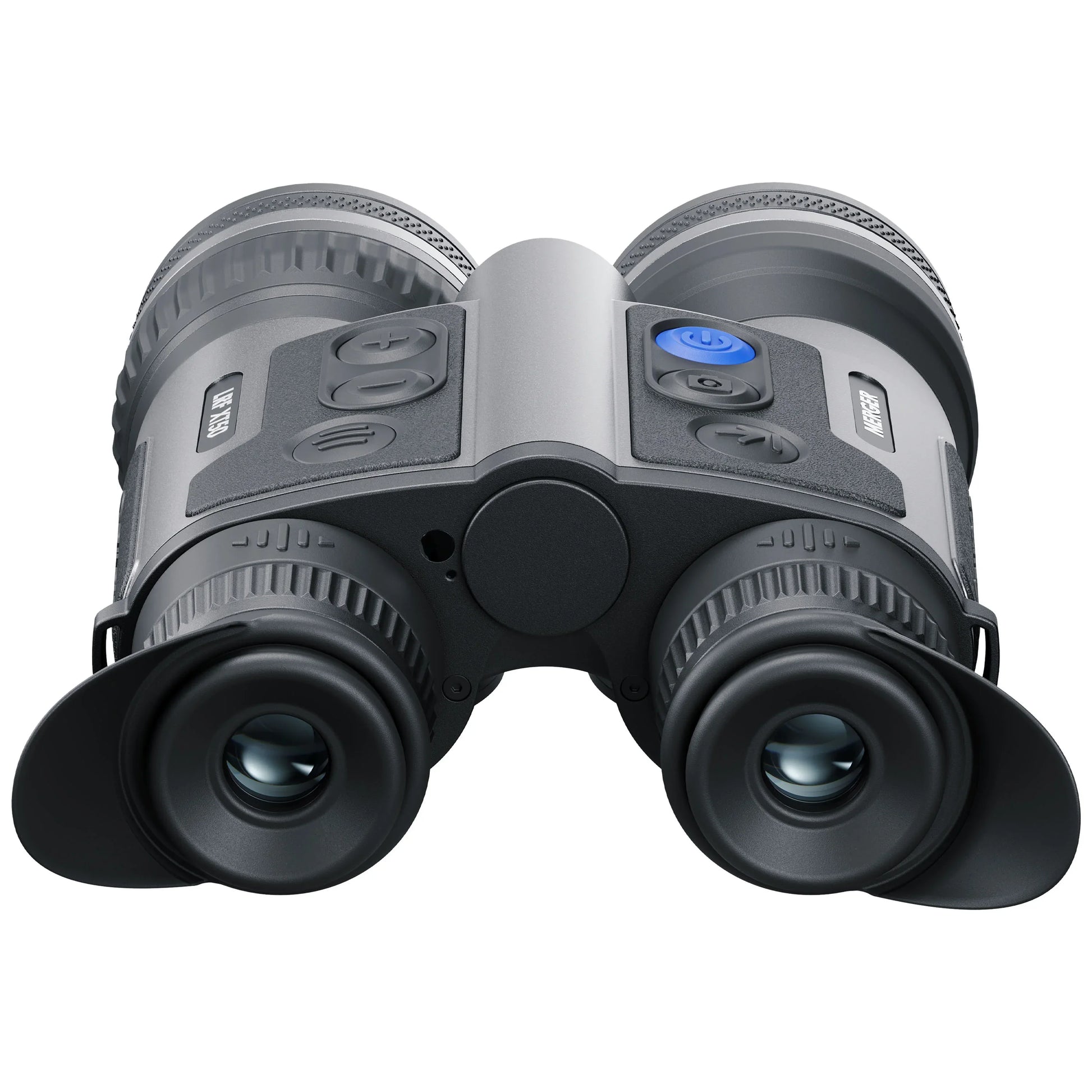

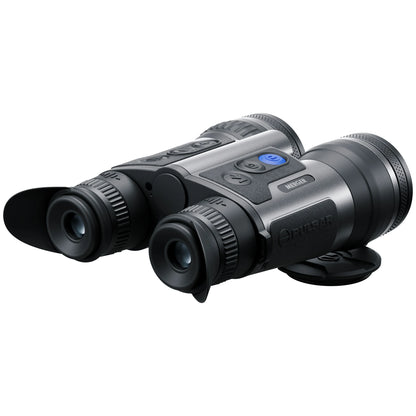

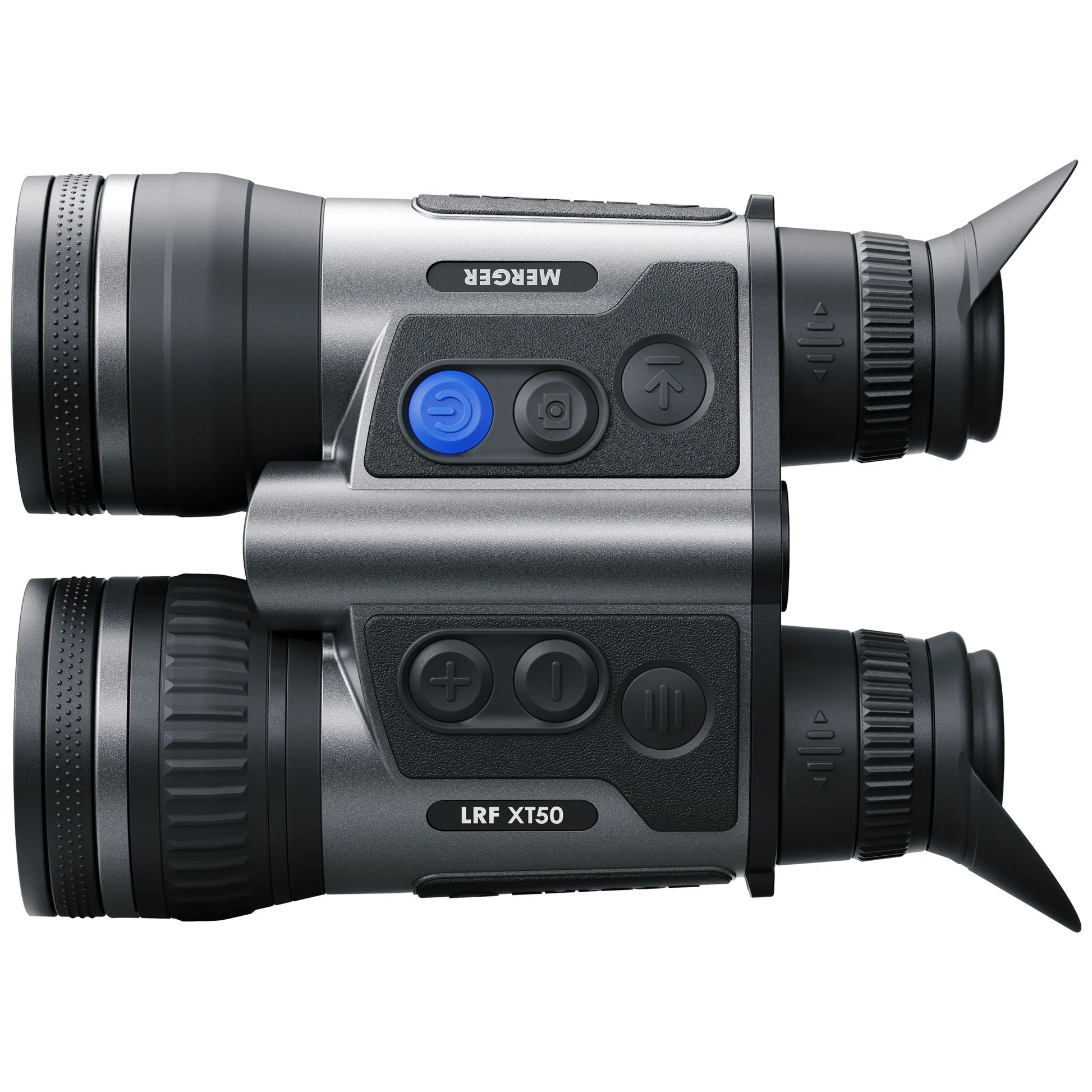

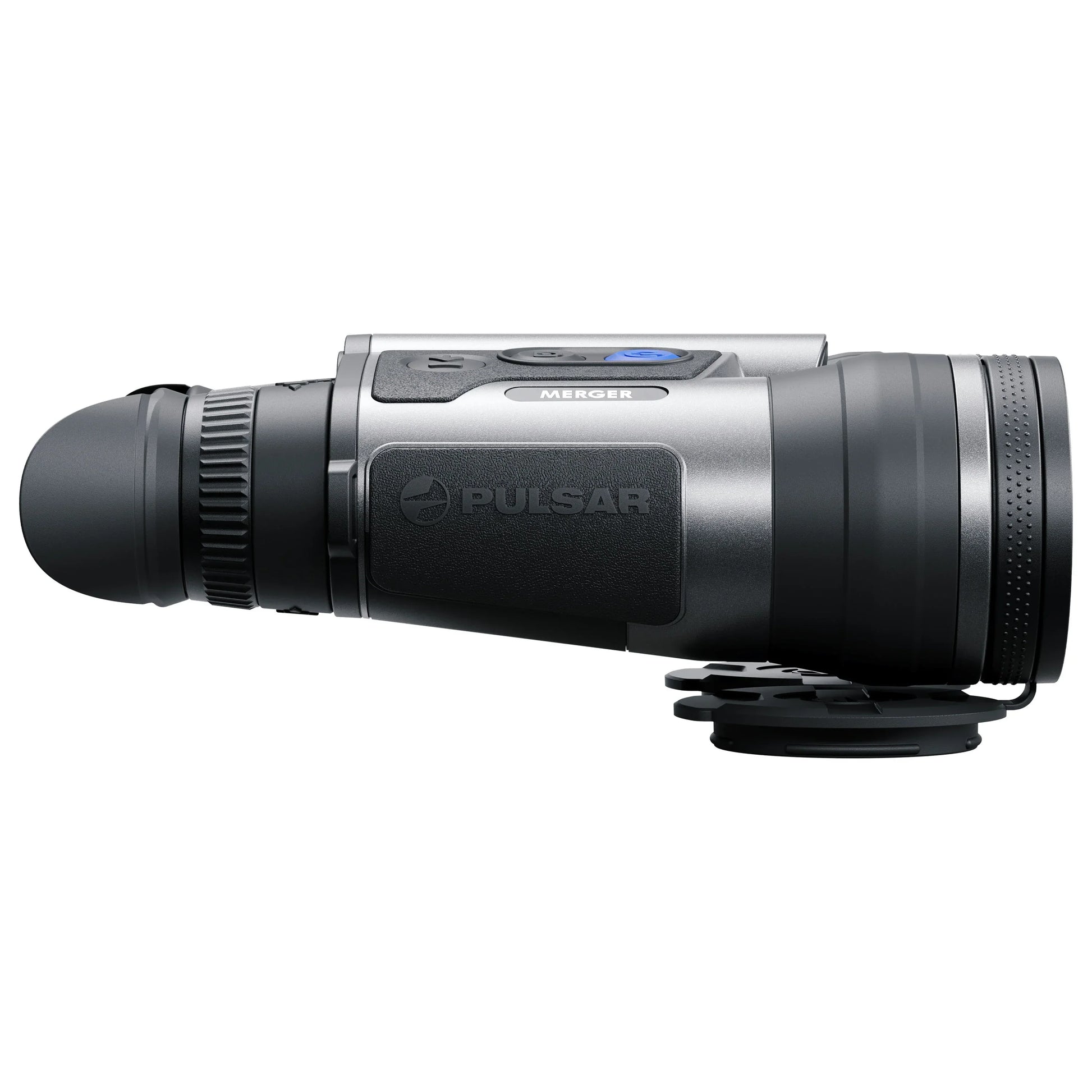

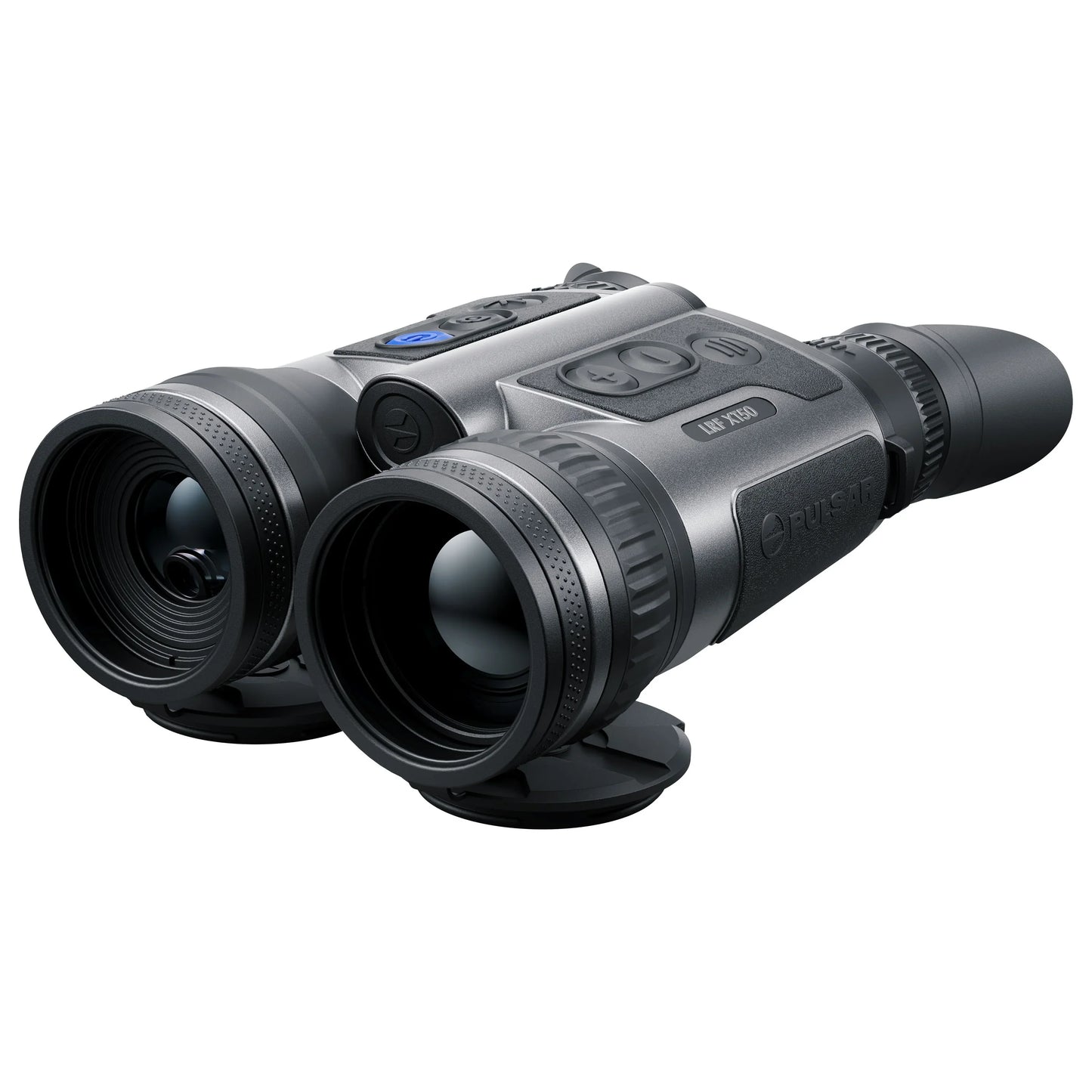

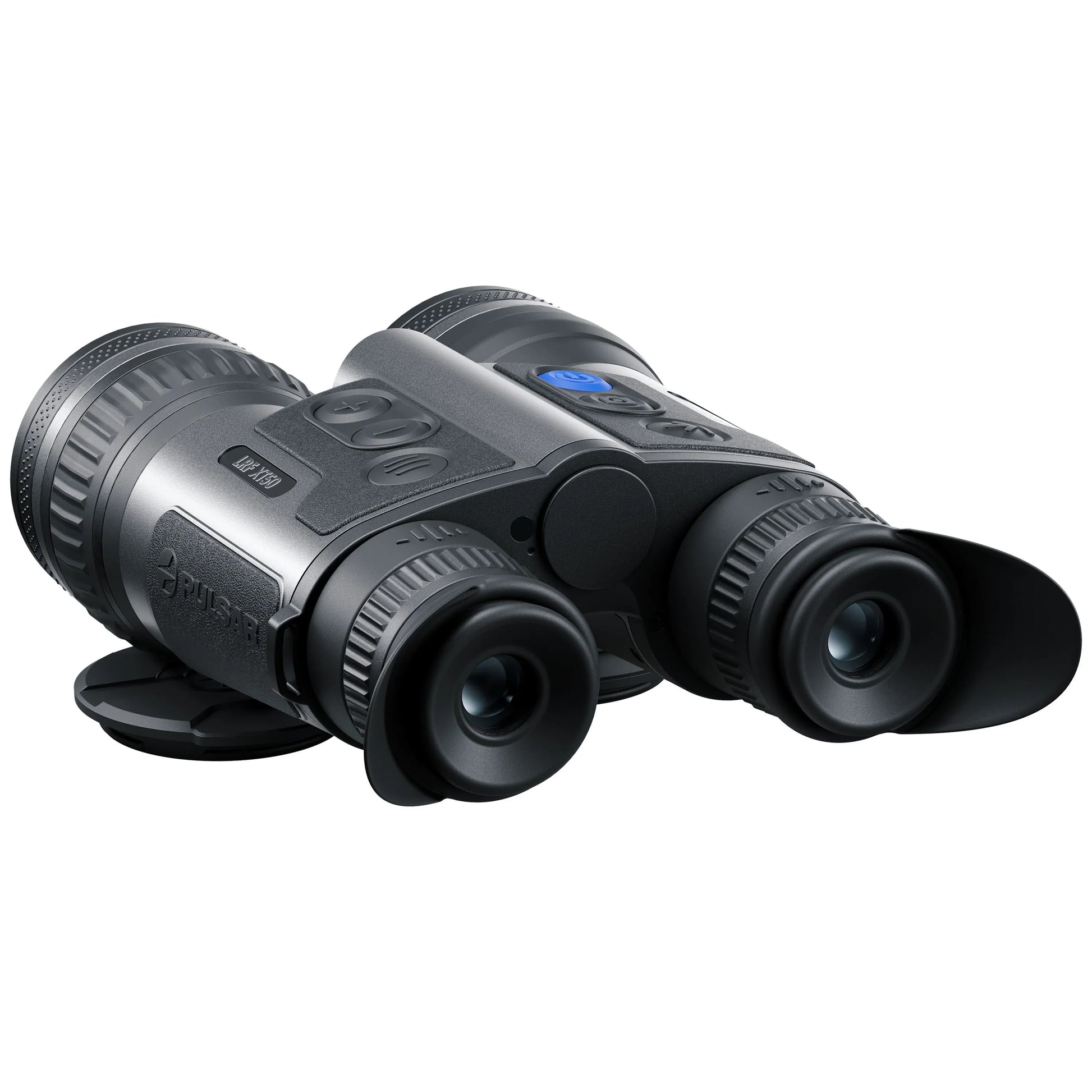

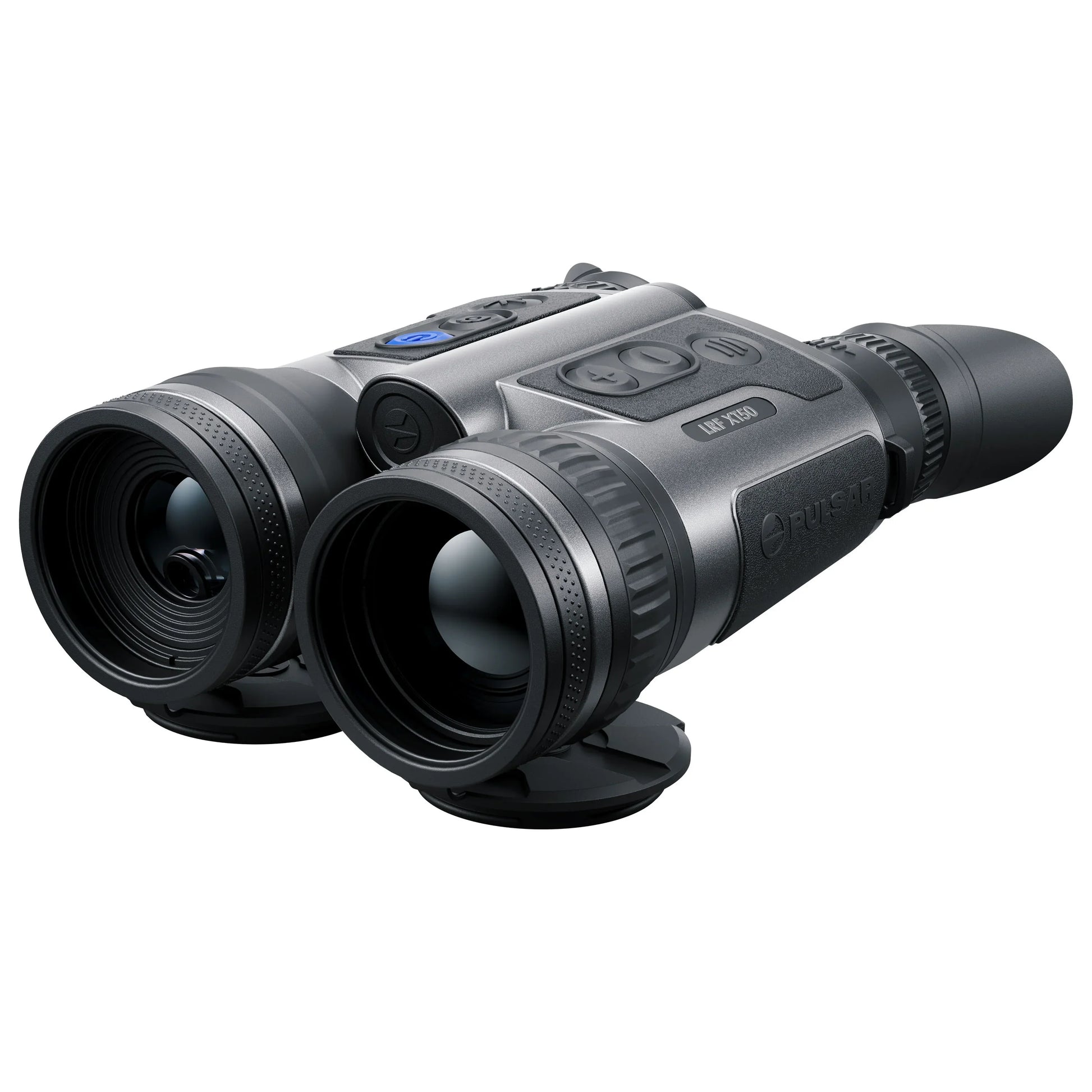

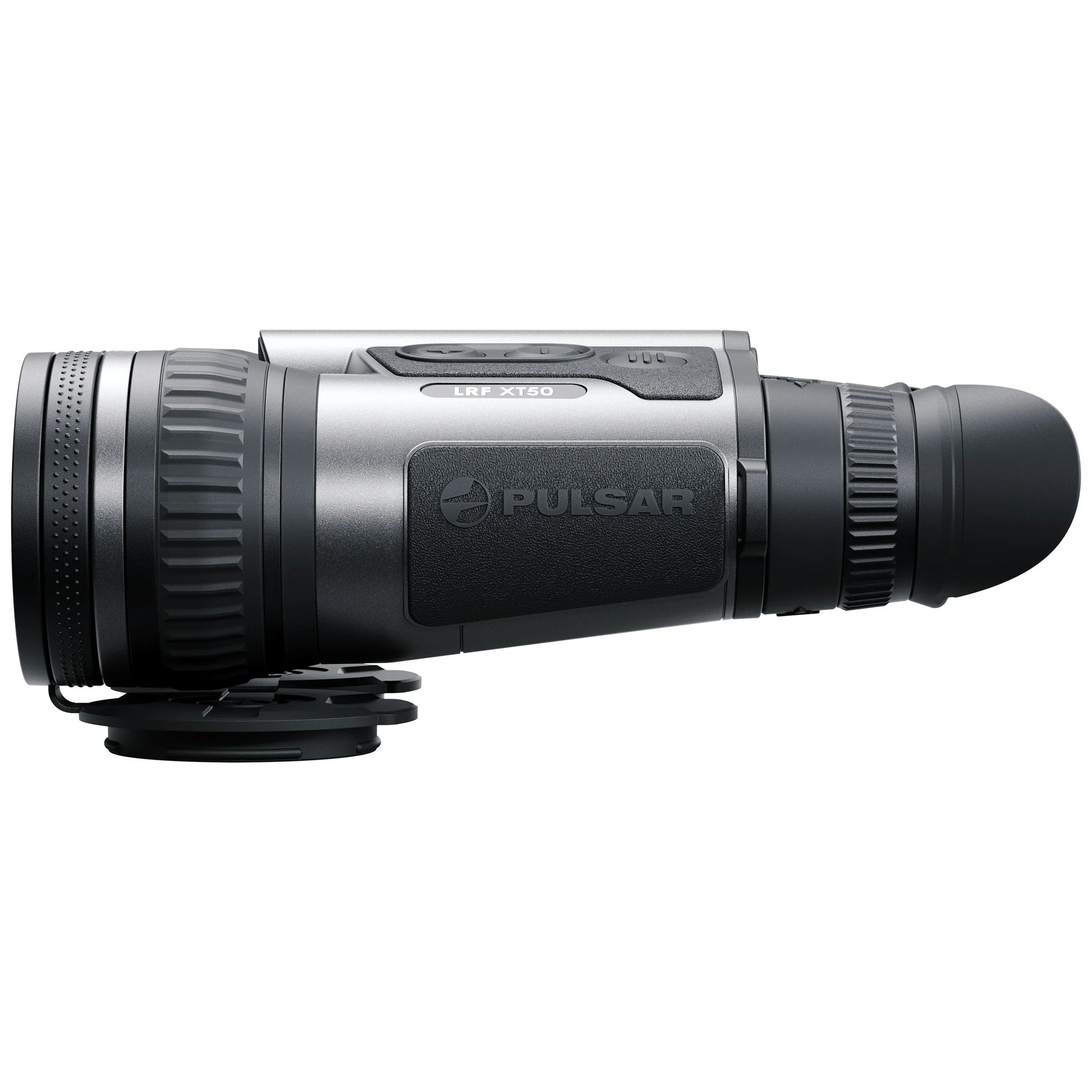

Pulsar Merger LRF XT50 1280 Thermal Binocular

Name: Pulsar Merger LRF XT50 1280 Thermal Binocular
SKU: PL77486
Price: 5499.97 USD
Availability: InStock

SKU:PL77486

$ 5,499.97

Sale Sold out

Free ground shipping available. Expedited shipping options are available at checkout.

Pulsar Merger LRF XT50 Thermal Binoculars 1280x1024/12um 50Hz 2x-16x (PL77486)

Premium model in range of Pulsar thermal imaging binoculars. Merger LRF XT50 offers extraordinary image detail thanks to its 1280x1024 pixel thermal sensor and new AMOLED 1280x960 microdisplay. Merger LRF XT50 provides wide field of view of 17.5 degrees and 2x-16x magnification.

Precise Laser Rangefinder With Over 1640 Yd Range

Additionally, the binocular incorporates a precise laser rangefinder capable of measuring distances of over 1640 yards, enabling users to make quick and informed decisions based on accurate target distance assessments.

High Definition Thermal Imaging With 1280x1024 Pixel @ < 40 MK NETD Sensor

One of the standout features of the Merger LRF XT50 binocular comes in the form of a highly sensitive European-made thermal sensor, boasting an impressive <40mK NETD of thermal sensitivity. This thermal sensor captures precise and high-quality images, even under challenging observation conditions with low thermal contrast. Whether you're observing your prey in the rain, fog, or high atmospheric humidity, the Merger LRF XT50 binocular ensures that even the smallest temperature differences become clearly visible. This cutting-edge technology allows hunters and outdoor enthusiasts to maintain an advantage in identifying targets.

Latest Image Processing Algorithms

Fast Aperture 50mm/F1.0 Germanium Lens

Detection Range Up To 2515 Yards

Two Independent Batteries. Up To 6 Hours Of Continuous Work

Pulsar Merger LRF XL50 Features:

Classic design & compact size
Comfortable viewing experience for prolonged observation
Precise laser rangefinder with 1000 m measuring distance
High-definition thermal imaging sensor with 640x480 pixel @ <40 mK NETD
Enhanced image processing algorithms with three image amplification levels
Fast aperture F50/1.0 germanium lens
Long detection range up to 2515 yards
Two independent batteries – up to 10 hours of continuous operation on a single charge
2x-16x variable magnification
High-quality reinforced magnesium alloy housing
Built-in photo and video recorder plus 16 GB of free cloud space
Distant operation and firmware update from iOS and Android devices via the Stream Vision 2 App
Improved Wi-Fi connectivity with 2.4 / 5 GHZ waveband support
Two high-contrast AMOLED displays
A selection of 8 colour palettes
IPX7 waterproof rated
Wide range of operating temperatures (-13 to +122F)
Factory 3-Year Warranty with 2-Year Extension upon registration for USA Market

Pulsar Merger LRF XL50 Specifications:

Main

Sensor 1280х1024 @ 12 µm (NETD <40 mK)
Objective lens 50mm/F1.0
Magnification, x2 - 16
Field of view (HxV), degrees / m@100m17.5/30.7
Detection range, yards 2515

Sensor

Type uncooled
Resolution, pixels 1280х1024
Pixel pitch, µm12
NETD, mK<40
Frame rate, Hz50

Optics

Objective lens 50mm/F1.0
Magnification, x2 - 16
Field of view (HxV), degrees / m @ 100 m17.5/30.7
Interpupillary distance adjustment, mm63 – 74
Eye relief, mm15
Type AMOLED

Display

Resolution, pixels 1280х960

Range Performance

Detection range, yards 2515

Laser Rangefinder

Safety class for laser equipment according to IEC 60825-1:20141
Wavelength, nm905
Max. measuring range, yards 1640
Measurement accuracy, m± 1

Video Recorder

Video / photo resolution, pixel 1280х960
Video / photo format.mp4 / .jpg
Built-in memory, GB64

Wi-Fi

Wireless Protocol Wi-Fi
Wireless Standard IEEE 802.11 b/g/n/ac (WPA)
Frequency, GHz2.4 / 5

Environmental Characteristics

Degree of protection, IP code (IEC60529)IPХ7 (waterproof)
Operating temperature range, °F-13 – 122

Connections and Compatibilities

Mount, type 1/4" socket
Supported ApplicationStream Vision 2

Power Supply

Output voltage, V3.7
Battery type Dual Li-Ion internal + Pulsar APS3 external
Capacity, mAh3200 (external) + 4000 (internal)
Operating time on battery pack (at t=71°F), h *6
External power supply, V5V, 9V (USB Type-C Power Delivery)

Weight & Size

Body material Magnesium alloy
Dimensions, mm197x140x72
Weight, lbs2 (batteries included)

Included in Package:

Merger thermal binocular
АPS3 Battery Pack
APS battery charger
Power adapter
USB Type-C cable with USB Type-A adapter
USB Type-С - Micro USB Type-B cable
Carrying case
Neck strap
Quick-Start guide
Lens cloth
Warranty card
Tripod adapter

U.S. Export Restrictions (ITAR/EAR)

This product is available for U.S. sale only and may be subject to ITAR and/or EAR export-control regulations. Please review our ITAR/EAR Compliance Policy before purchasing.
