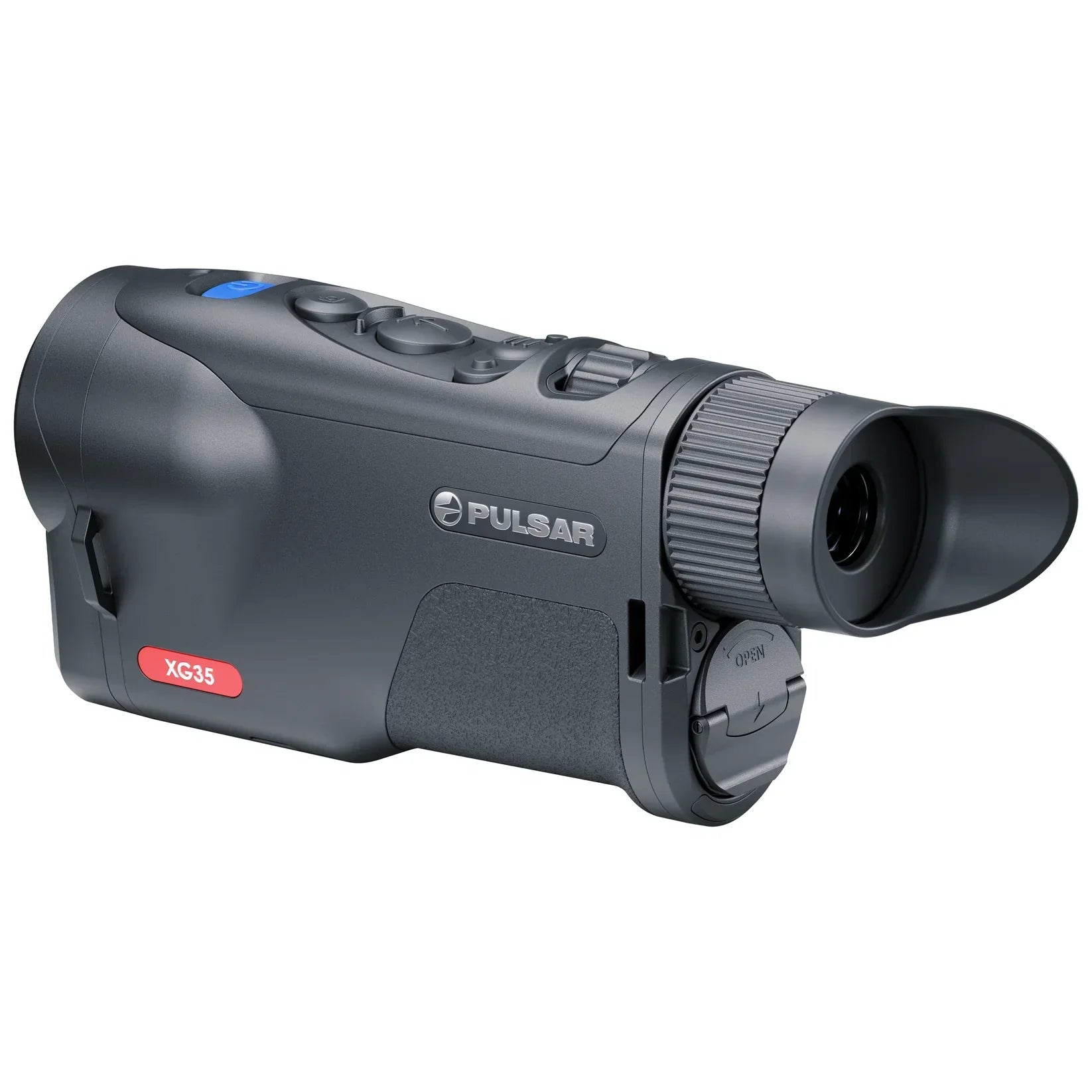

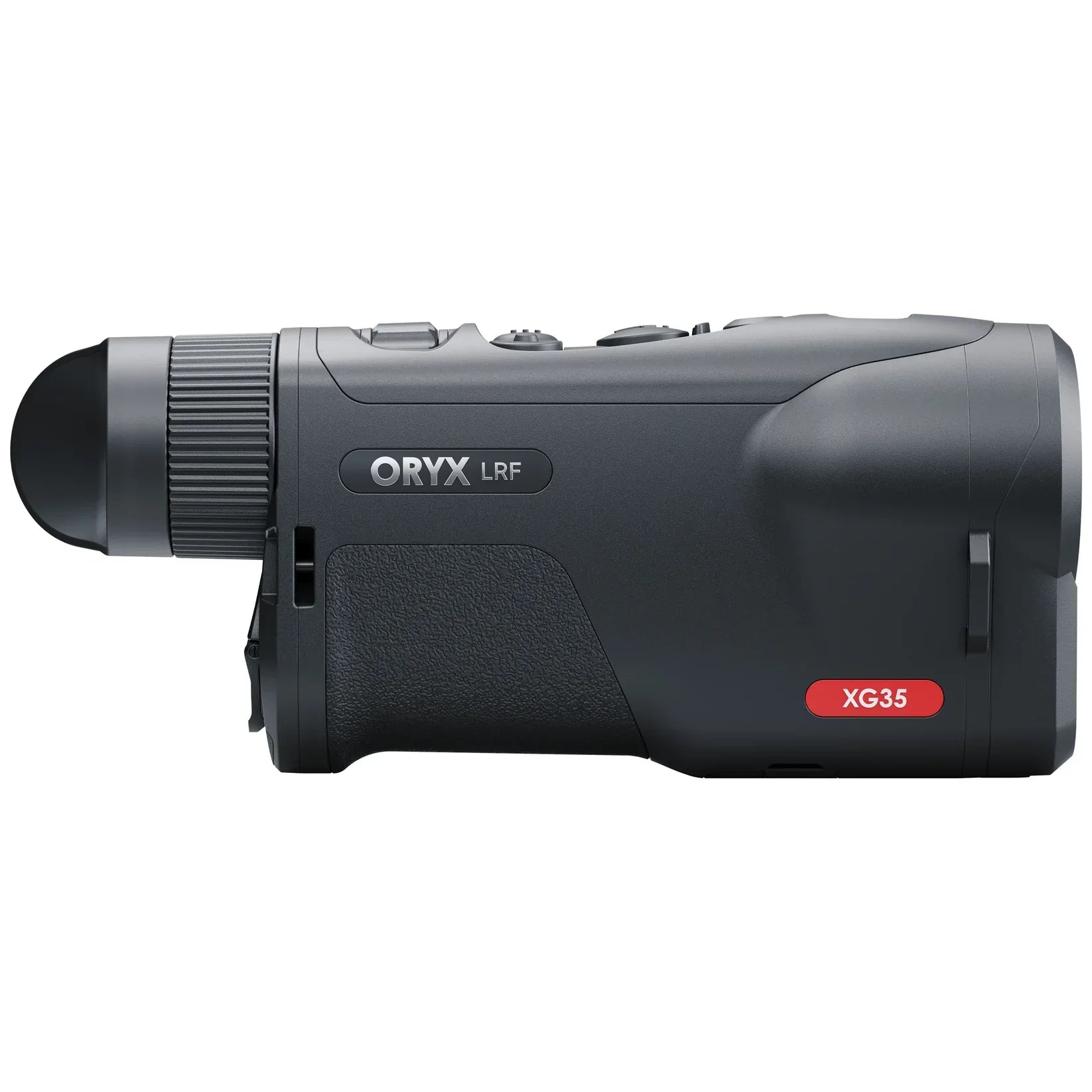

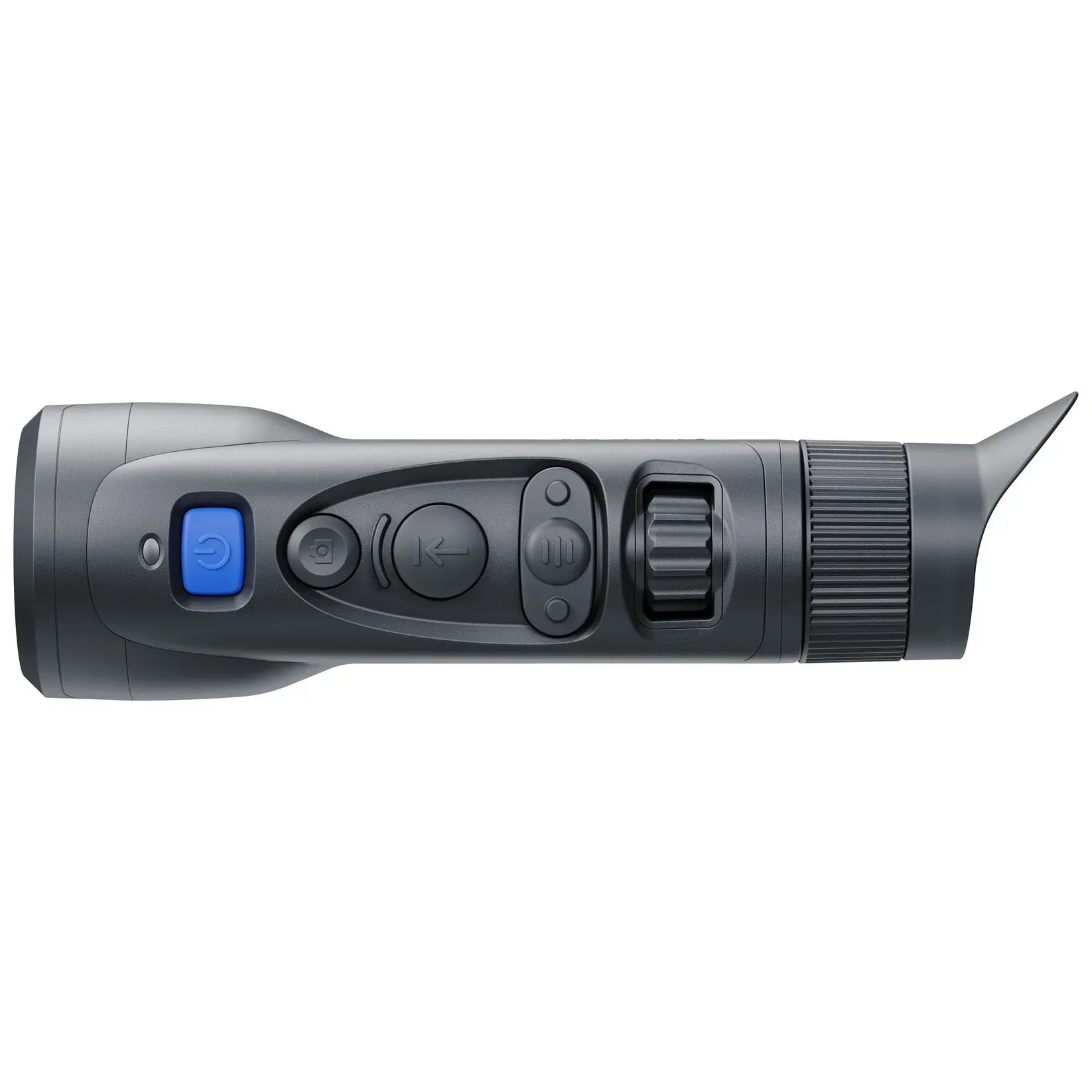

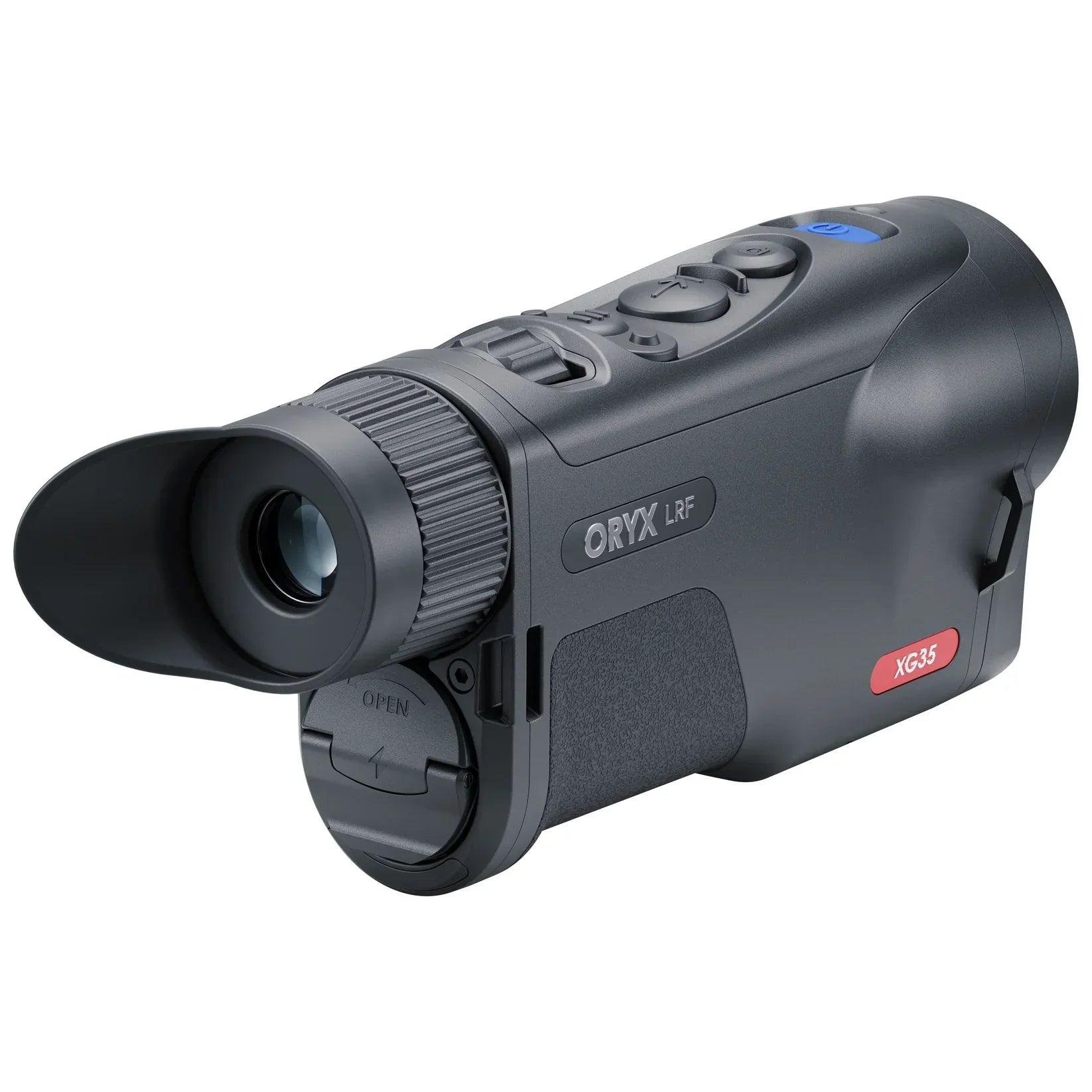

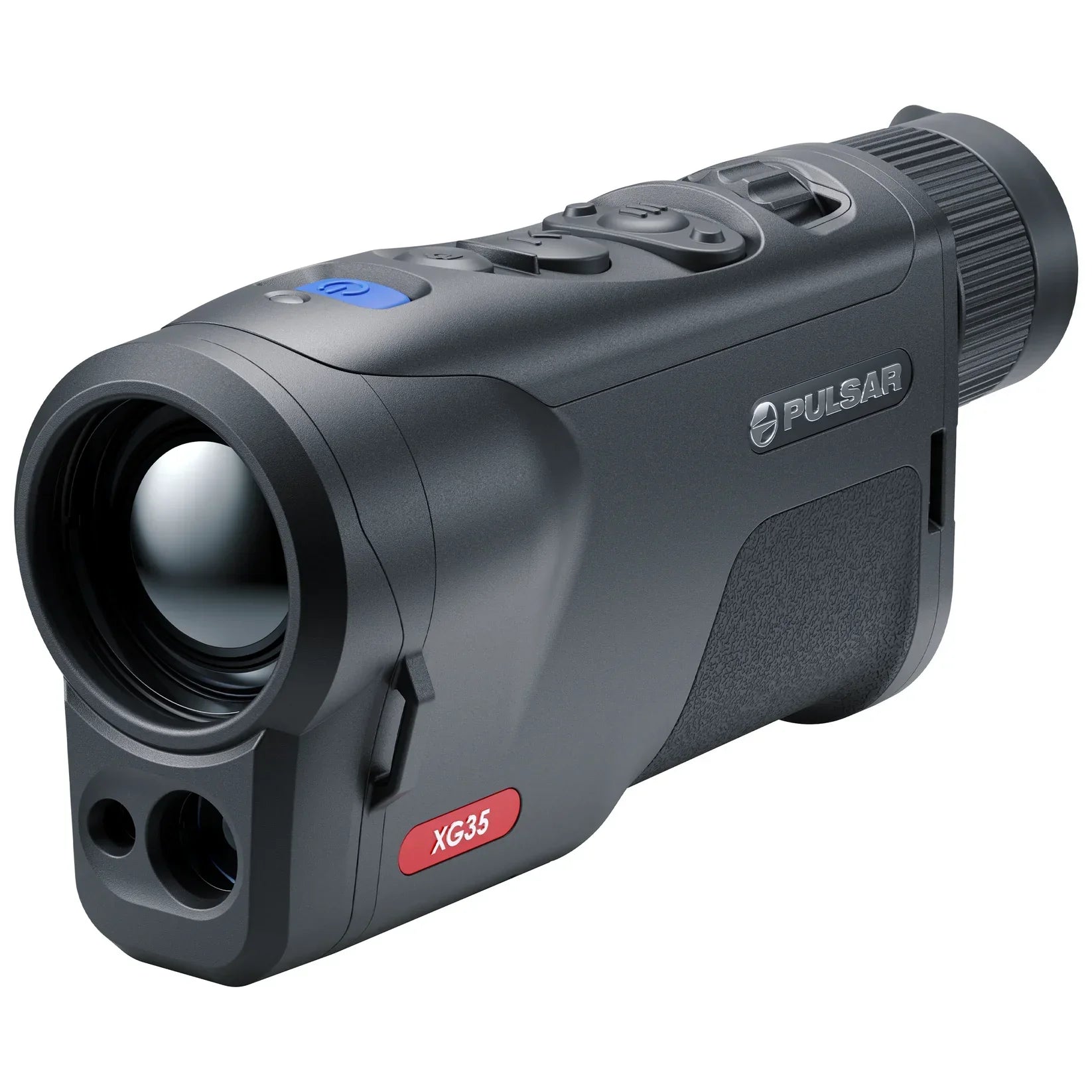

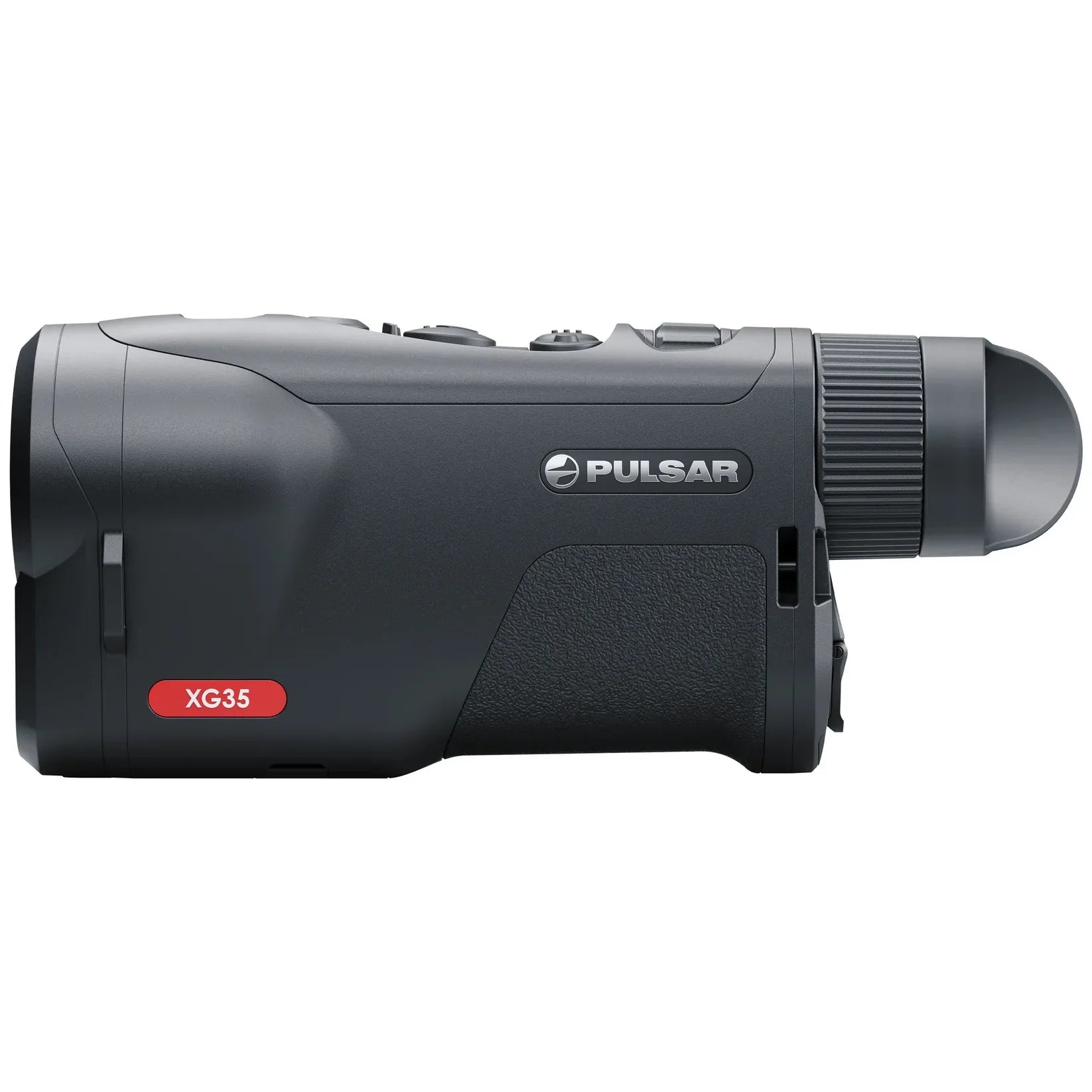

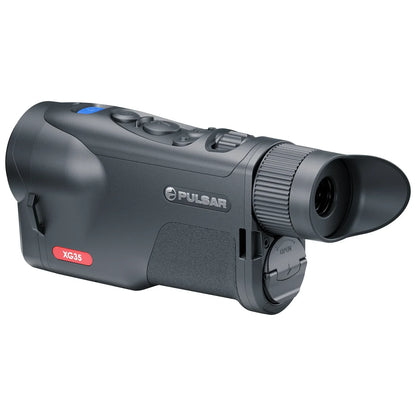

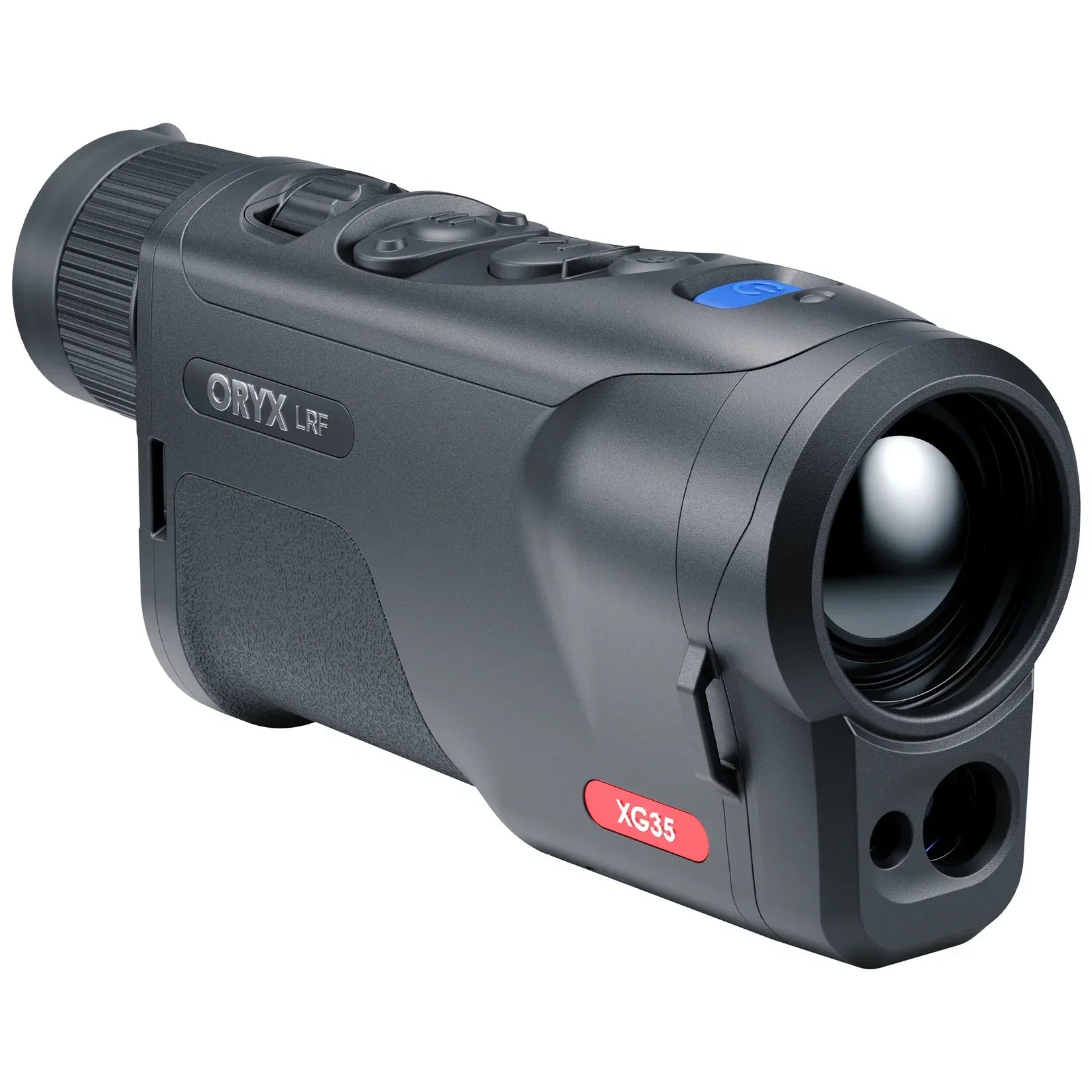

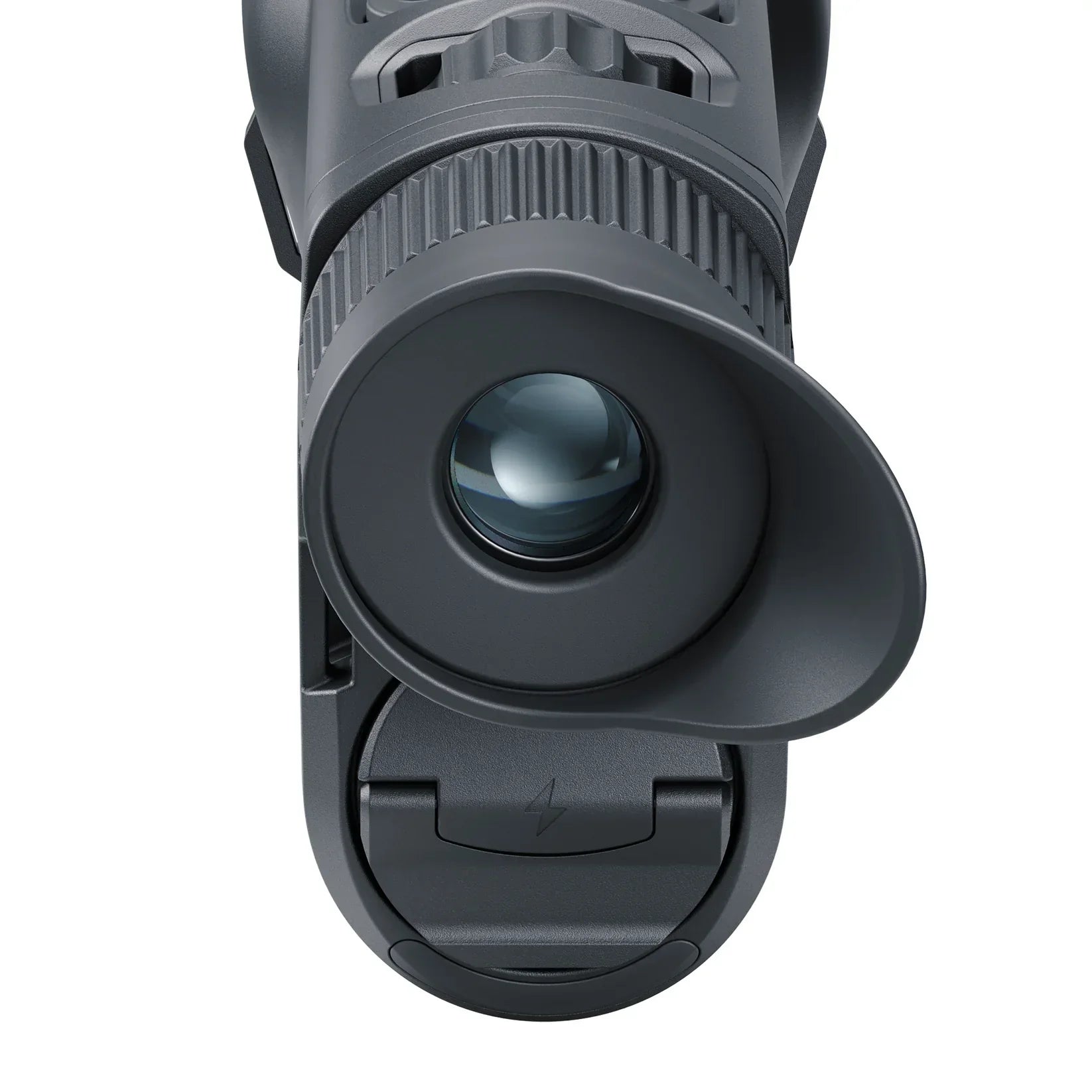

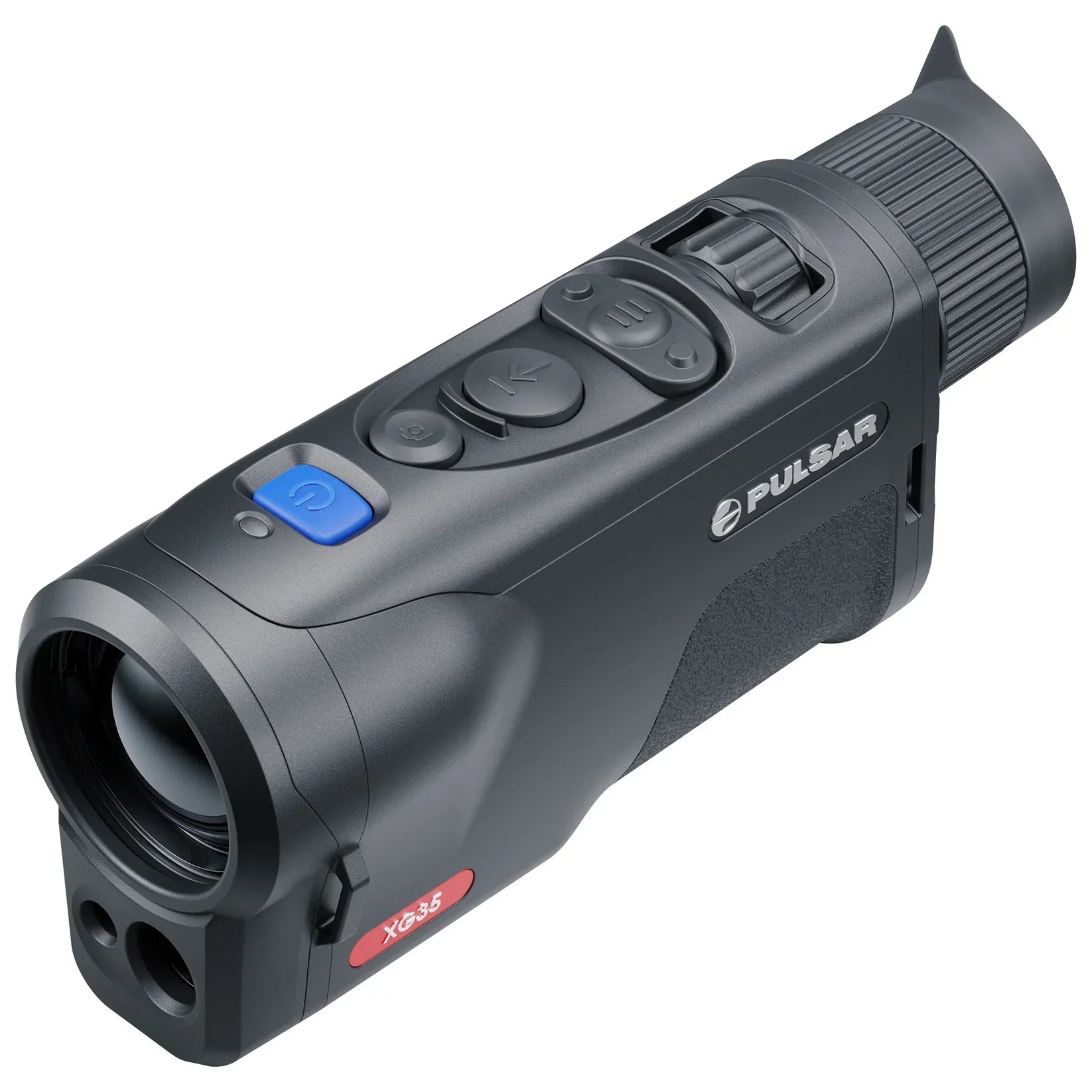

Pulsar Oryx LRF XG35 640 Thermal Monocular

Pulsar Oryx LRF XG35 640 Thermal Monocular Scanner 640x480 Onboard Recording, WiFi (PL77504)

Built for long and tough hunts, the Pulsar Oryx LRF XG35 is compact, delivers an extra-high detail thermal image, and comes with a next-gen rangefinder.

Pulsar Oryx LRF XG35 640 Features:

TRAIL-PROVEN TECH

Factory 3-Year Warranty with 2-Year Extension upon registration for USA Market

Pulsar Oryx LRF XG35 640 Specifications:

Main

• Sensor 640x480 pix. @ 12 µm (sNETD <20 mK)
• Objective lens F35/1.0
• Magnification, x2.5 - 20
• Field of view (HxV), degrees 12.5
• Detection range, m 1800

Sensor

• Type uncooled
• Resolution, pixels 640x480
• Pixel pitch, µm12
• NETD, mK<40
• Frame rate, Hz50
• sNETD, mK<20

Optics

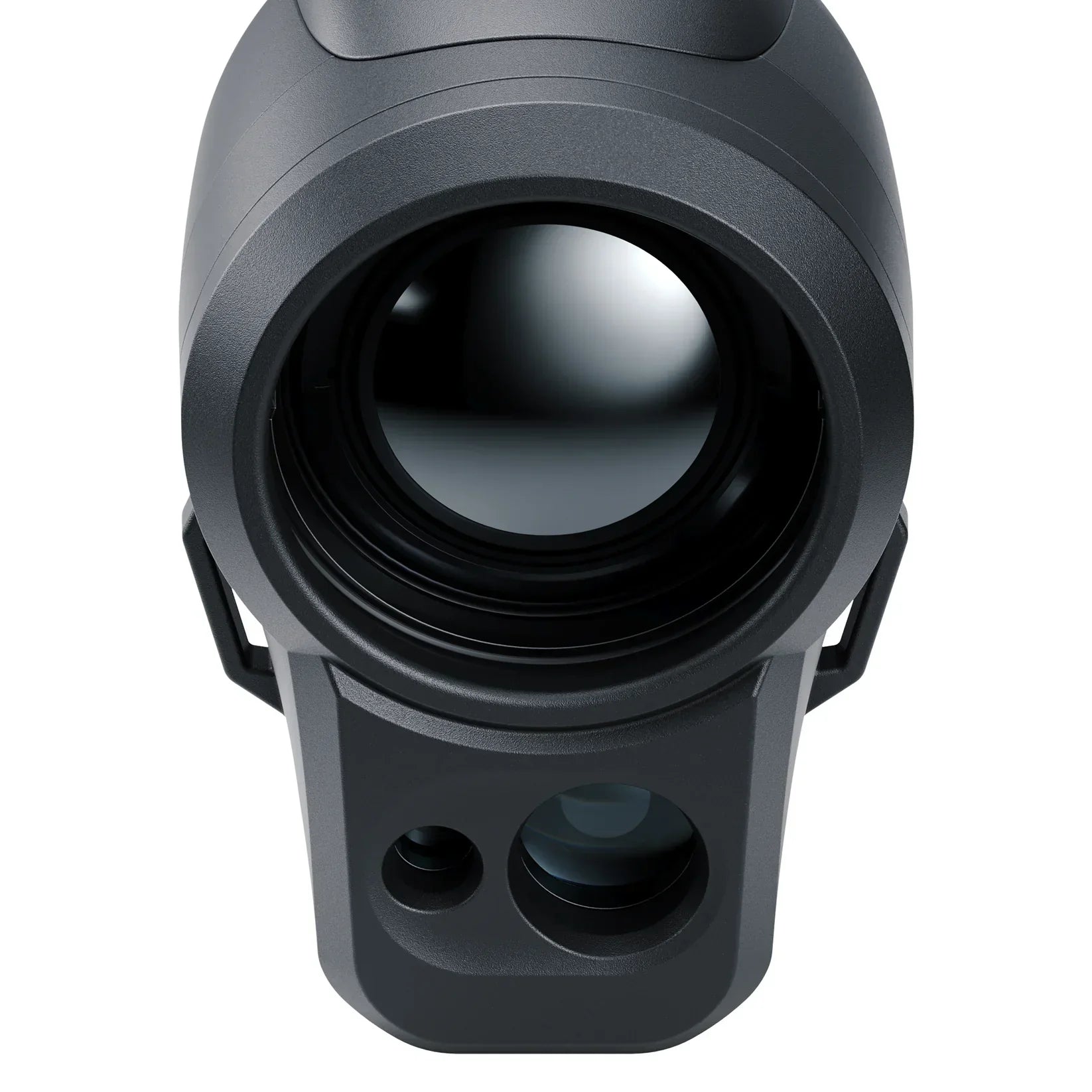

• Objective lens F35/1.0
• Magnification, x2.5-20x
• Field of view (HxV), degrees12.5
• Eye relief, mm 14

Display

• Type AMOLED HD
• Resolution, pixels 1024x768

Range Performance

• Detection range, m1800

Laser Rangefinder

• Max. measuring range, m1500
• Measurement accuracy, m± 1
• Safety class for laser equipment1 (IEC 60825-1:2014)
• Wavelength, nm905

Video Recorder

• Video / photo resolution, pixels 1024x768
• Video / photo format .mp4 / .jpg
• Built-in memory, GB64

Wi-Fi

• Wireless Protocol Wi-Fi
• Wireless Standard IEEE 802.11 b/g/n/ac (WPA)
• Frequency, GHz 2.4 / 5

Environmental Characteristics

• Degree of protection, IP code (IEC60529)IP67
• Operating temperature range, °C-25 – +40

Connections and Compatibilities

• Supported Application Stream Vision 2

Power Supply

• Output voltage, V3.0 – 4.2
• Battery type APS 5 Li-ion Battery Pack
• Capacity, mAh 4900
• Operating time on battery pack, h12
• External power supply, V5V; 9V (USB Type-C Power Delivery)

Weight & Size

• Body material Magnesium alloy
• Dimensions, mm 179x52x77
• Weight, kg 0.5

Included in Package

• Oryx LRF thermal imager
• АPS 5 rechargeable battery
• 2 battery-locking covers
• Power adapter
• USB Type-C cable with USB Type-A adapter
• Case
• Hand strap
• Quick start guide
• Lens cloth
• Warranty card
• Clip
• Hexagonal spanner
