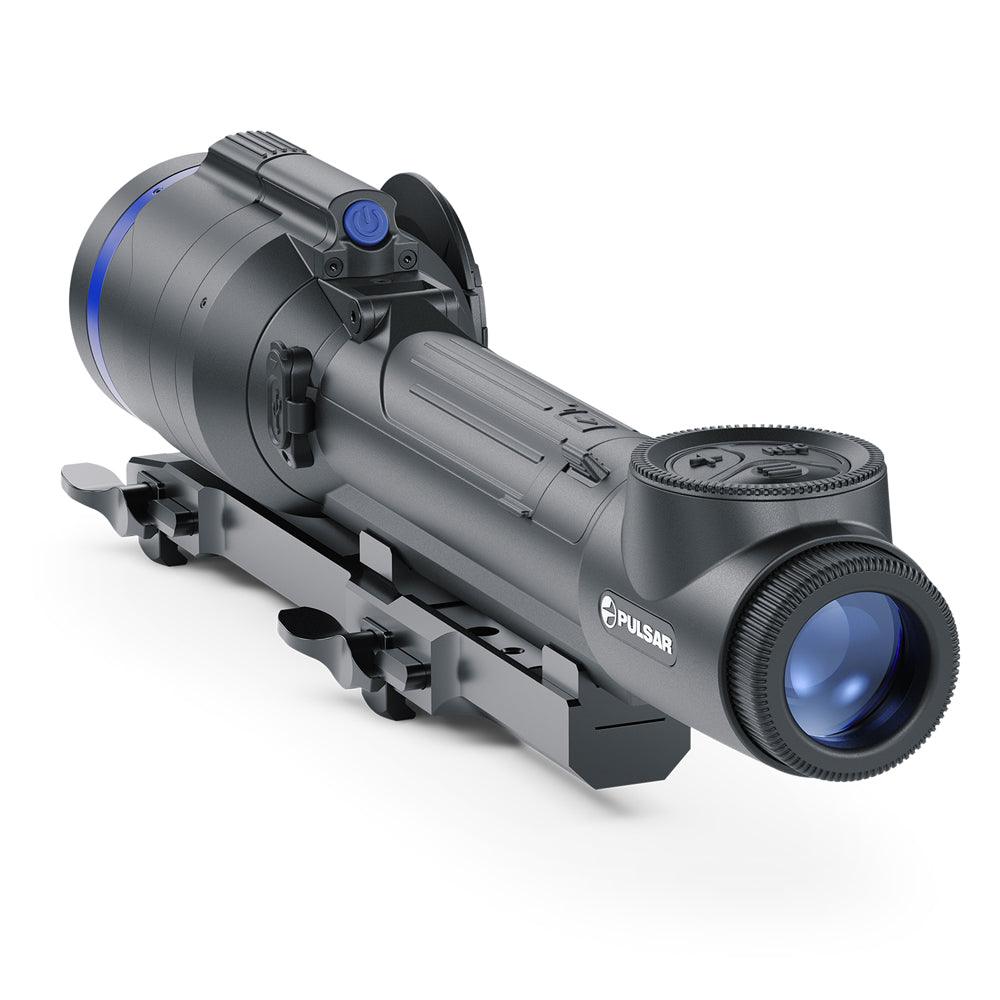

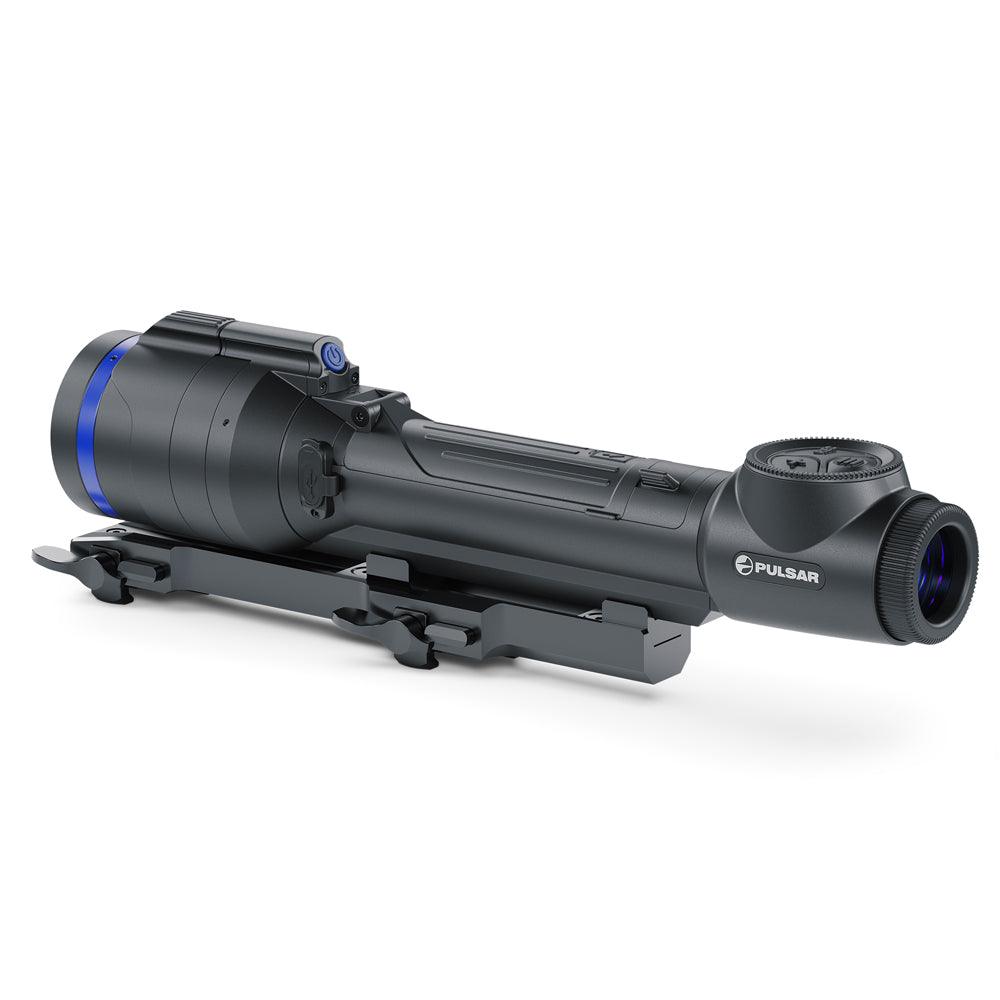

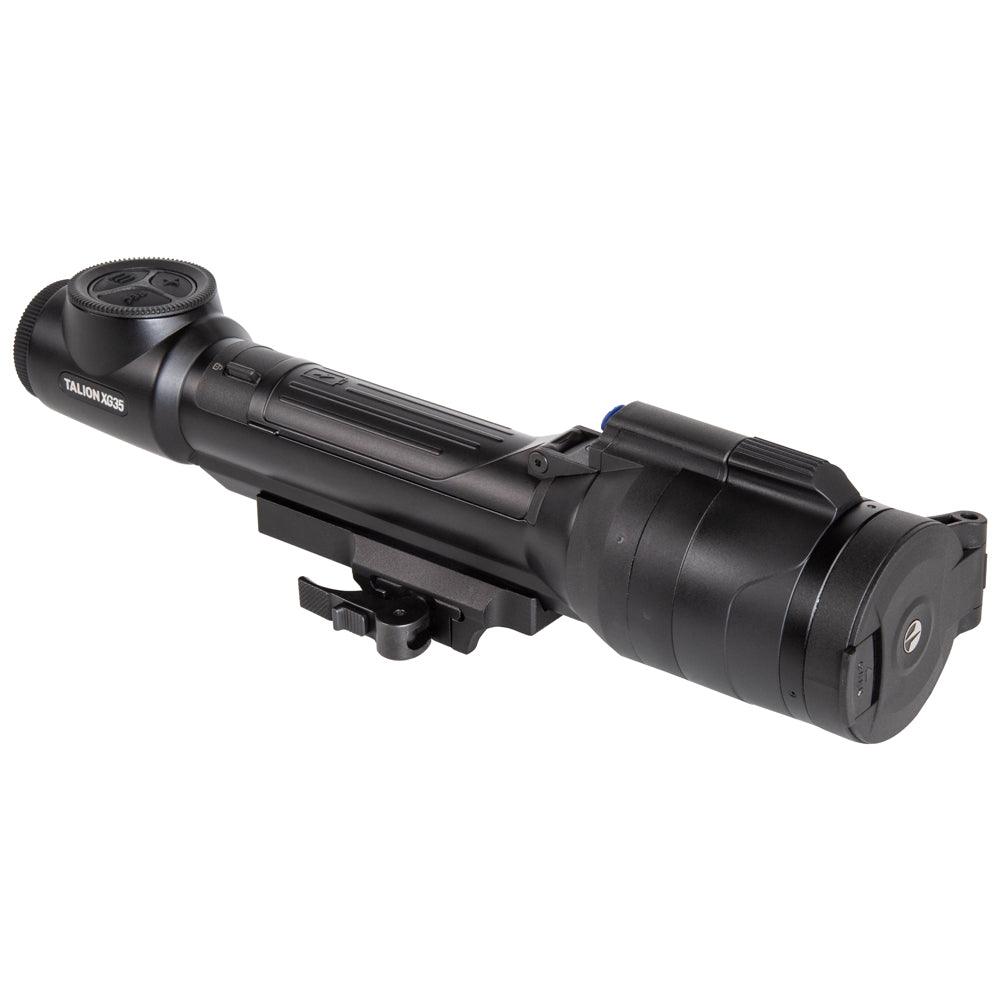

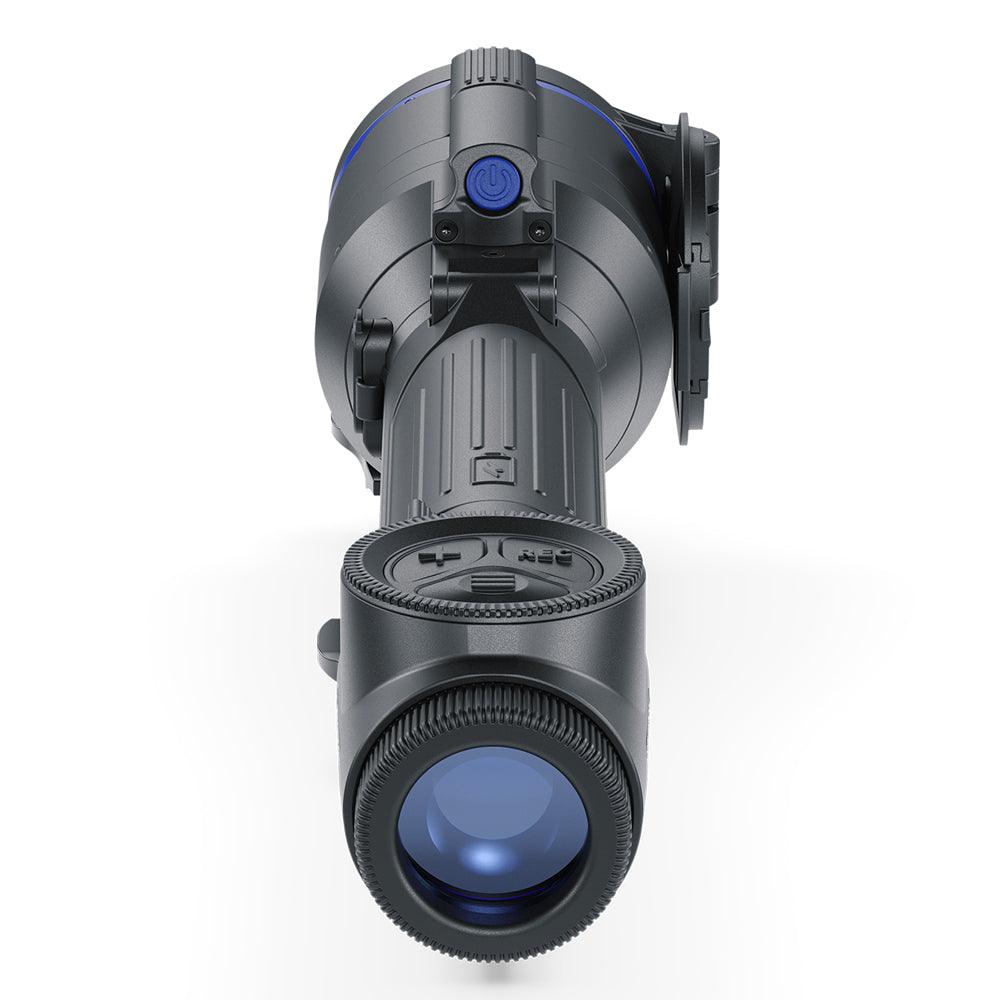

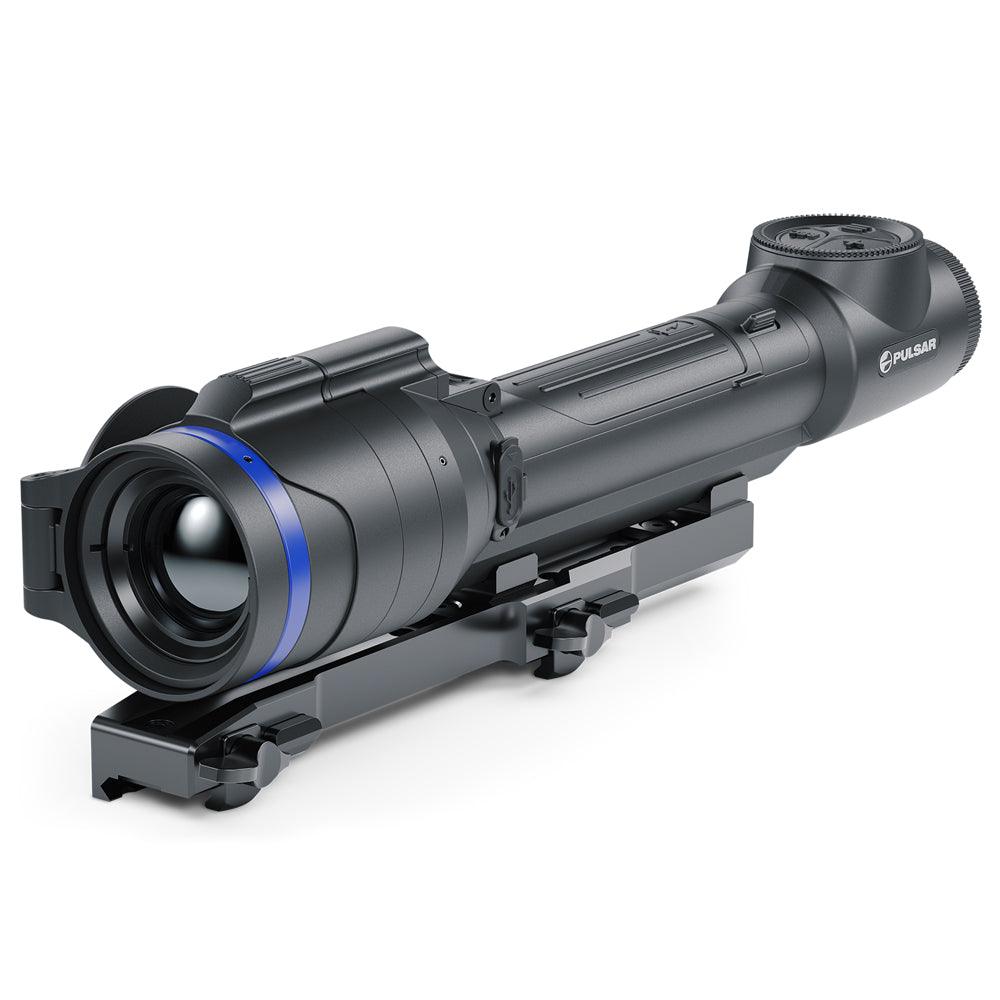

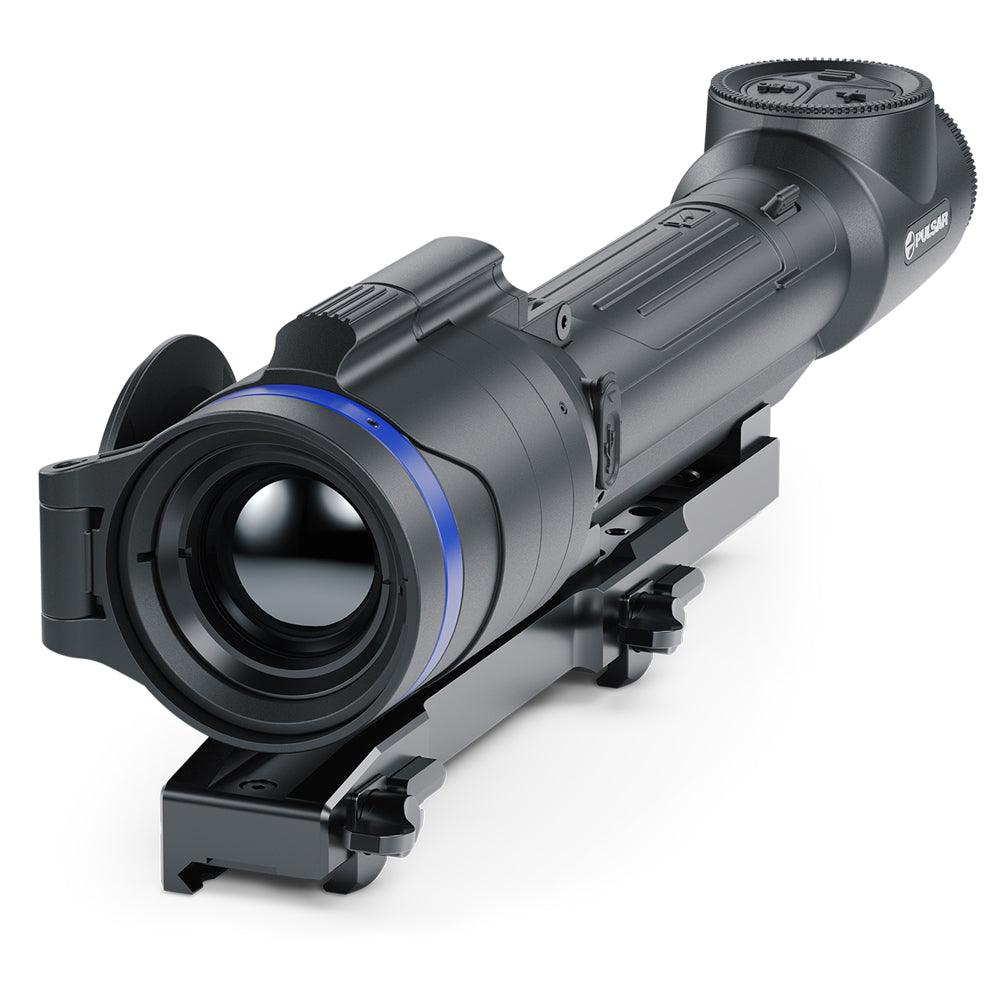

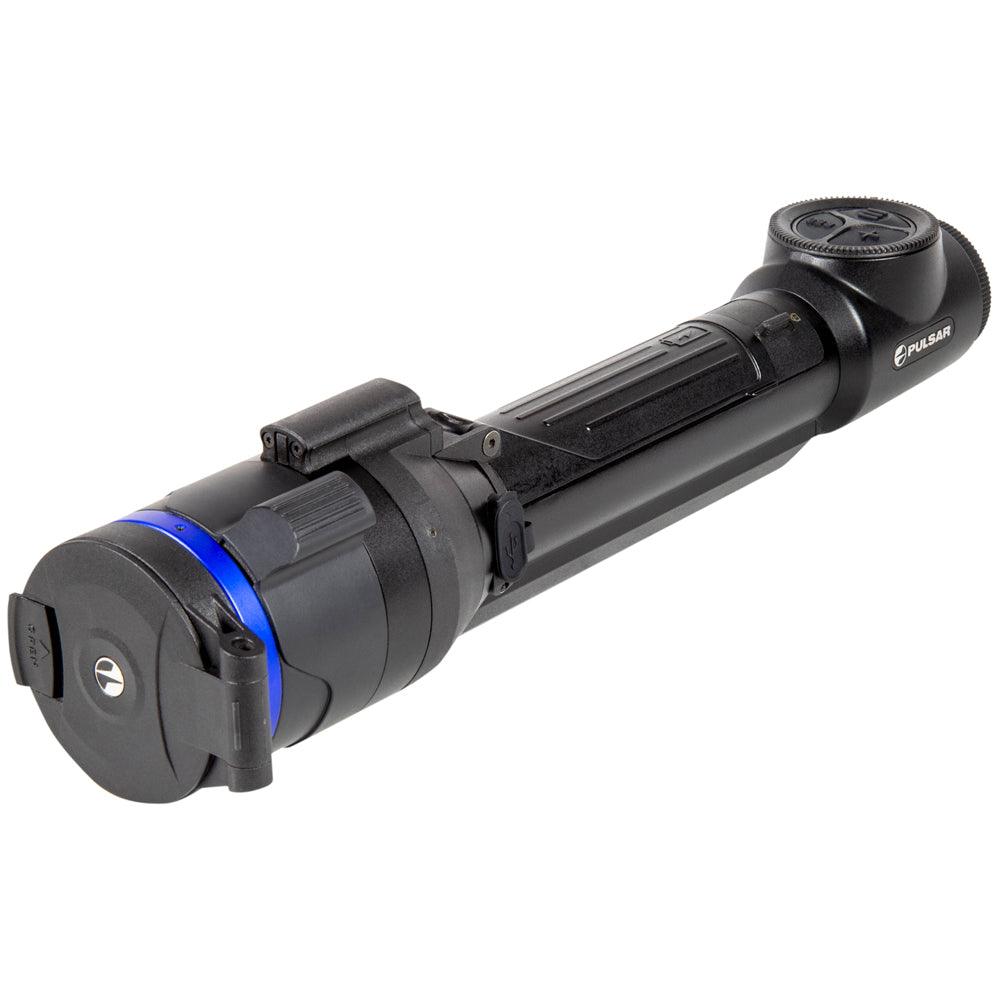

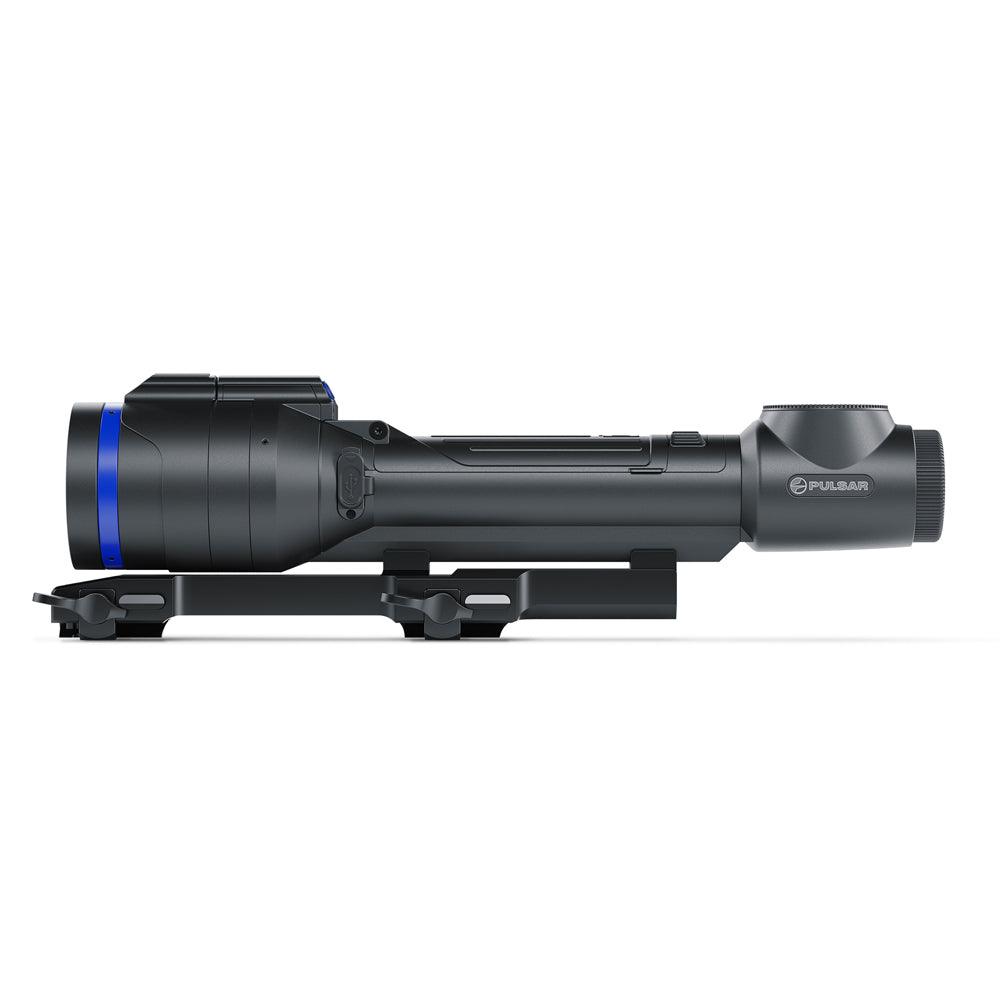

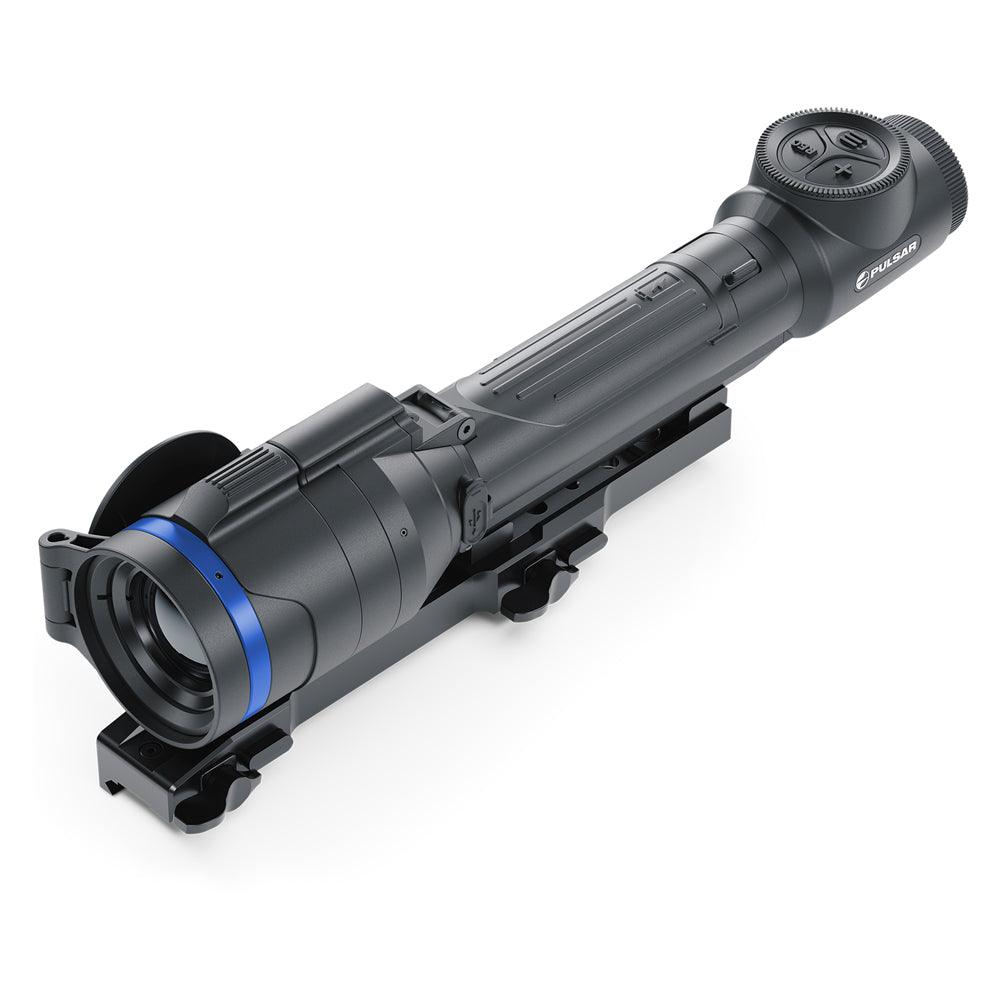

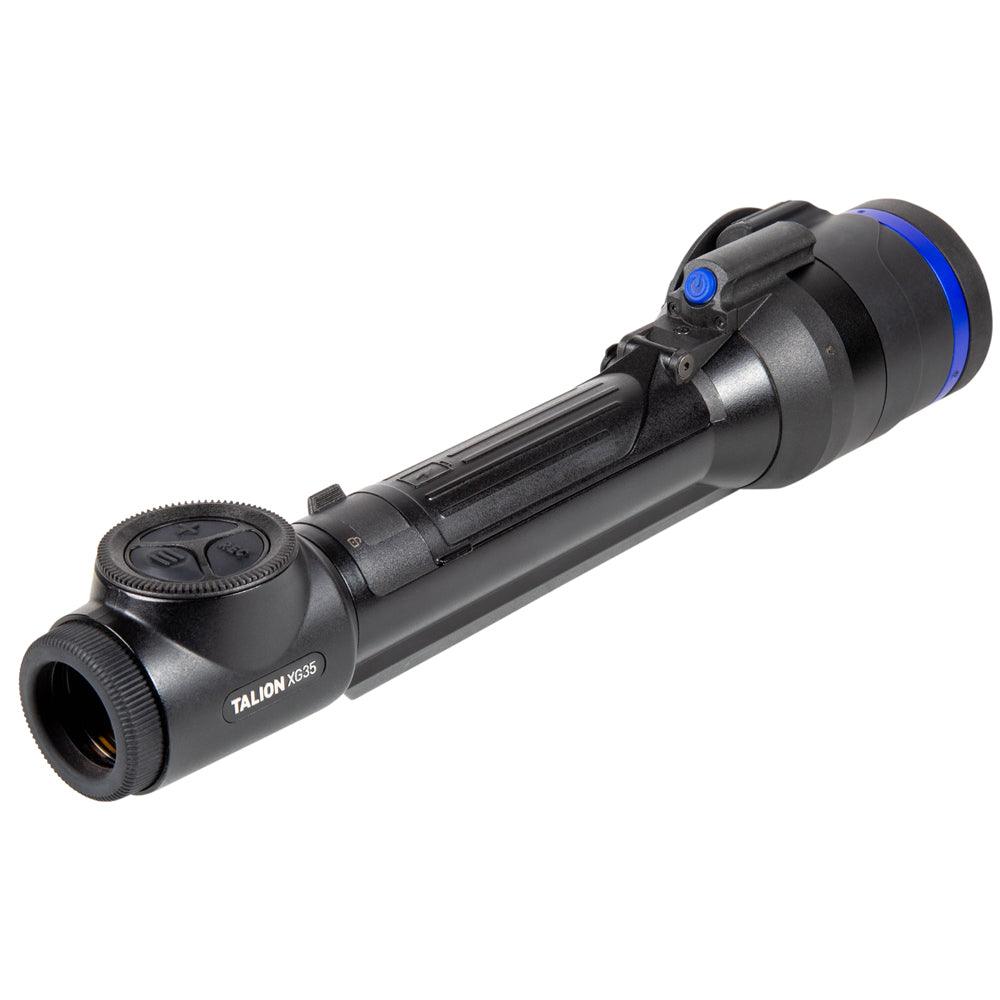

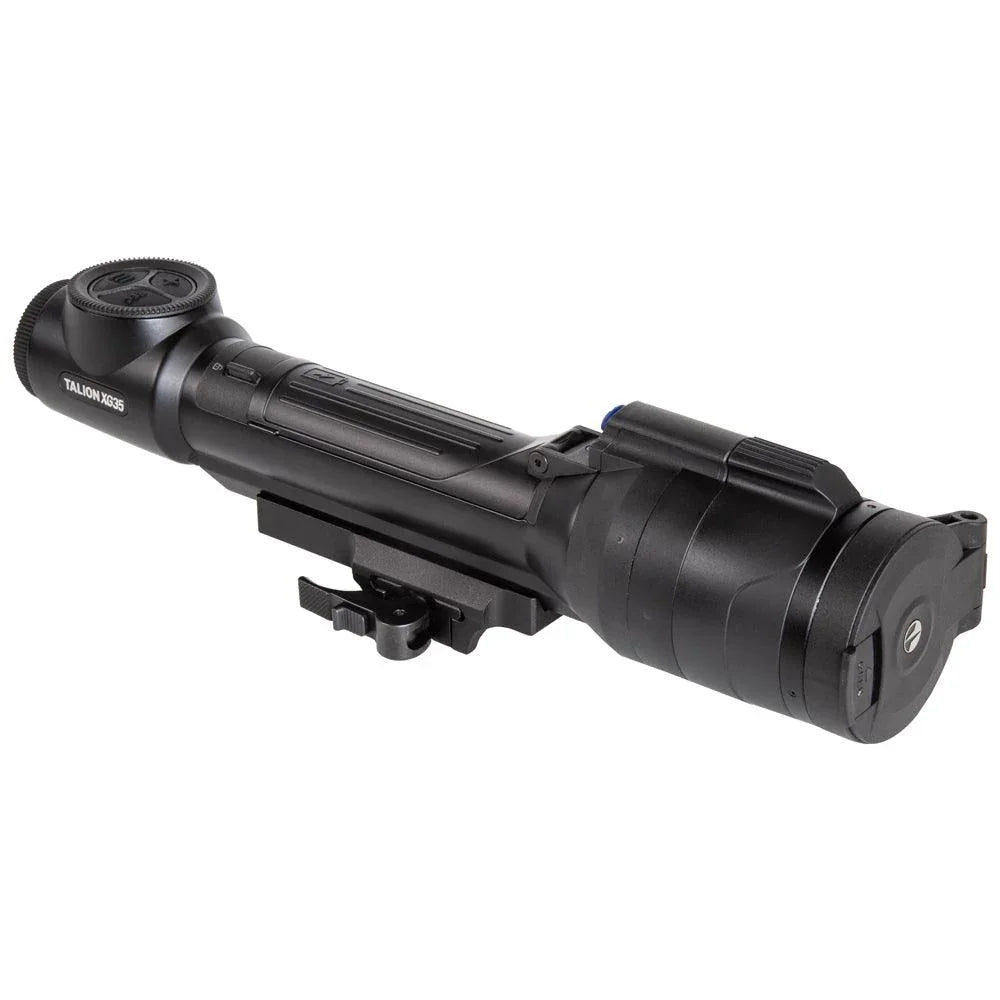

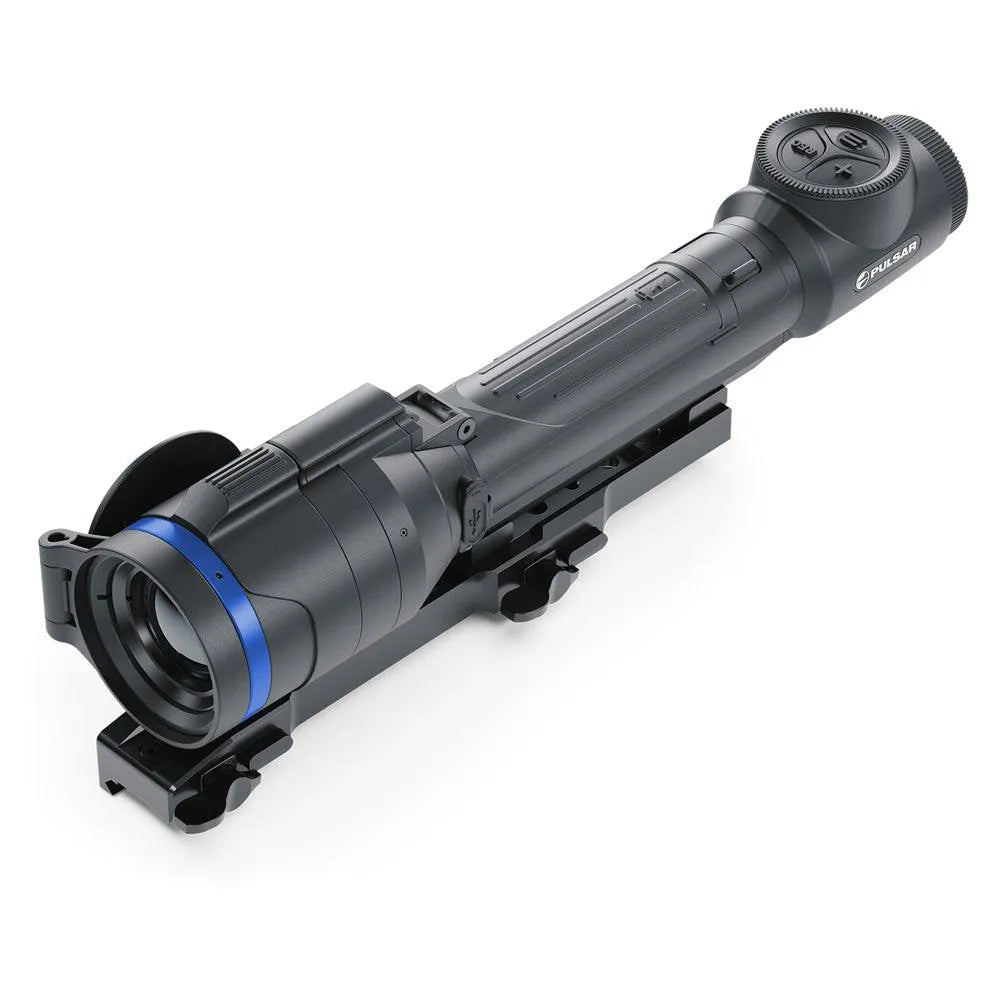

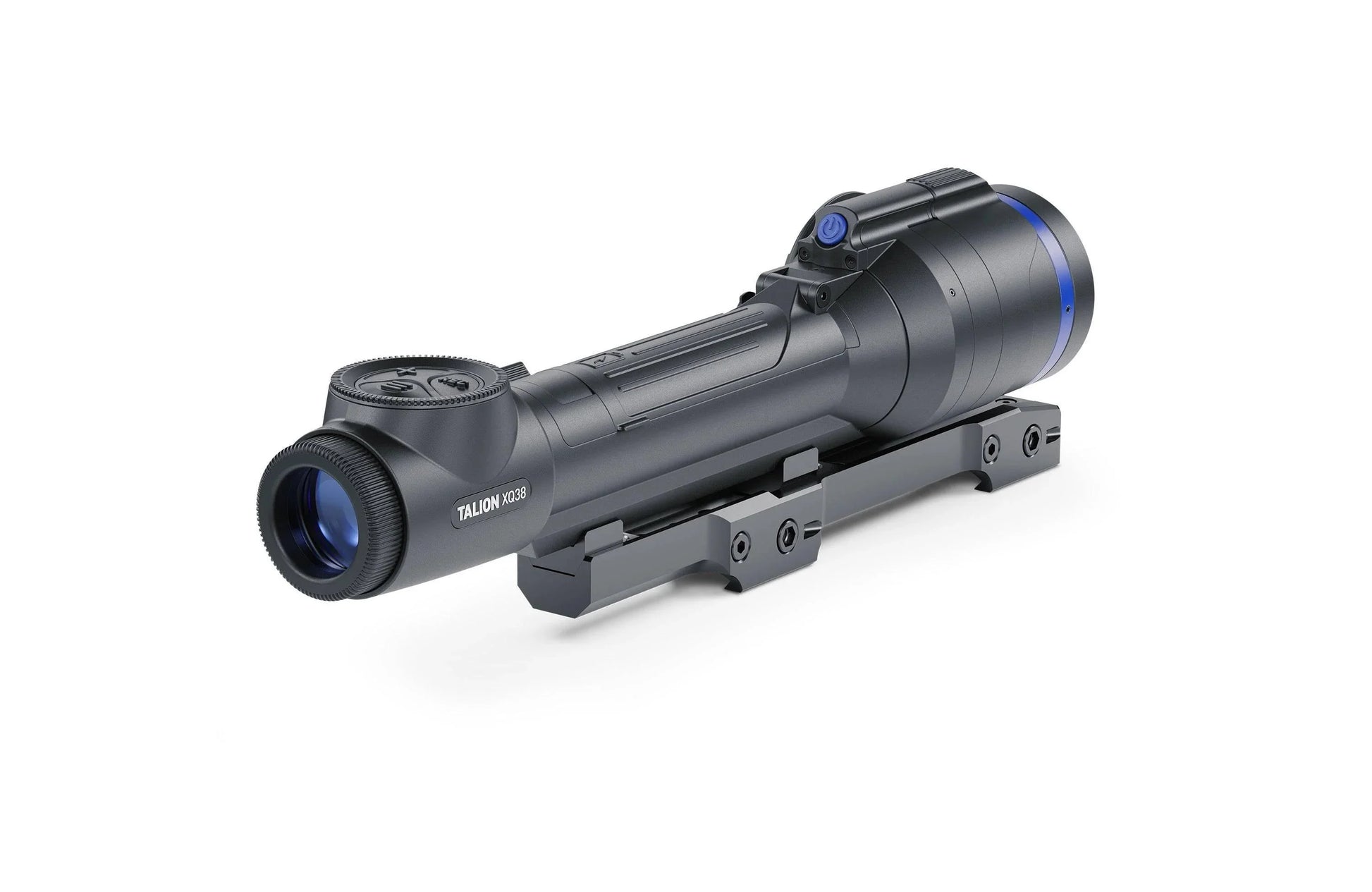

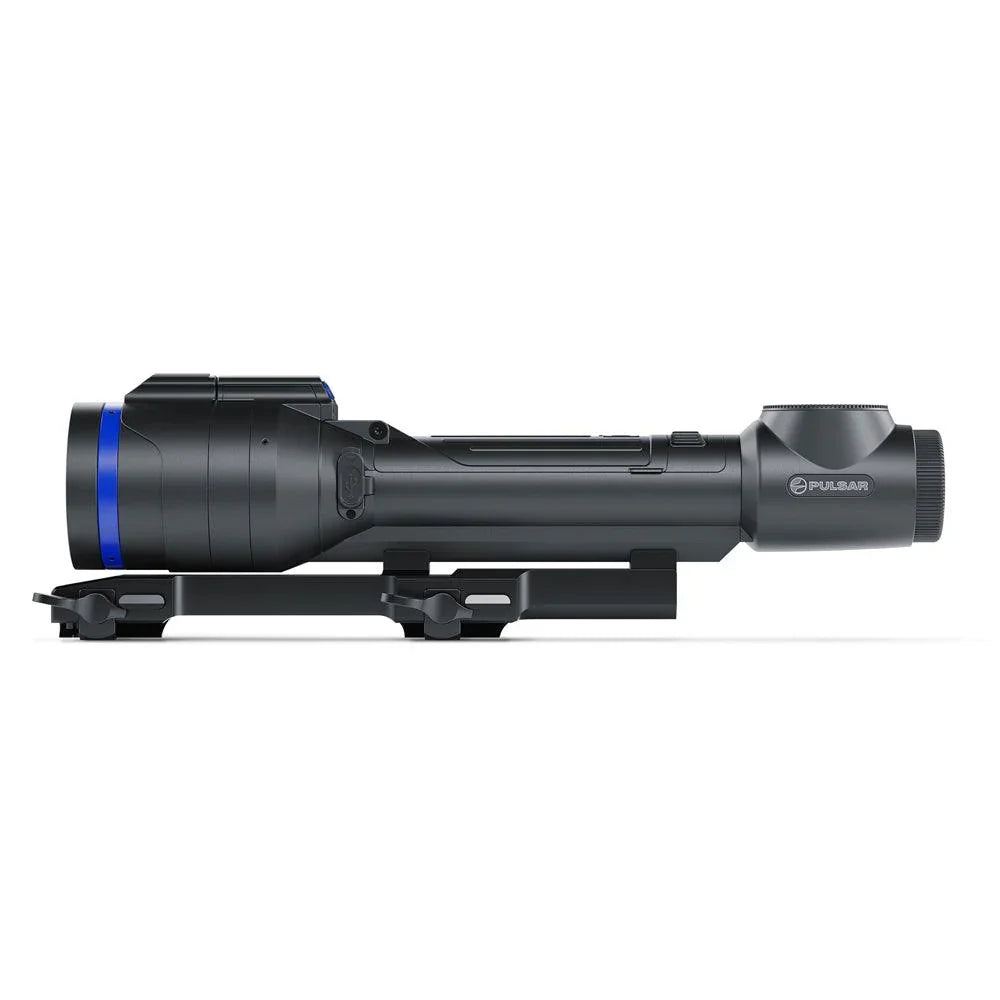

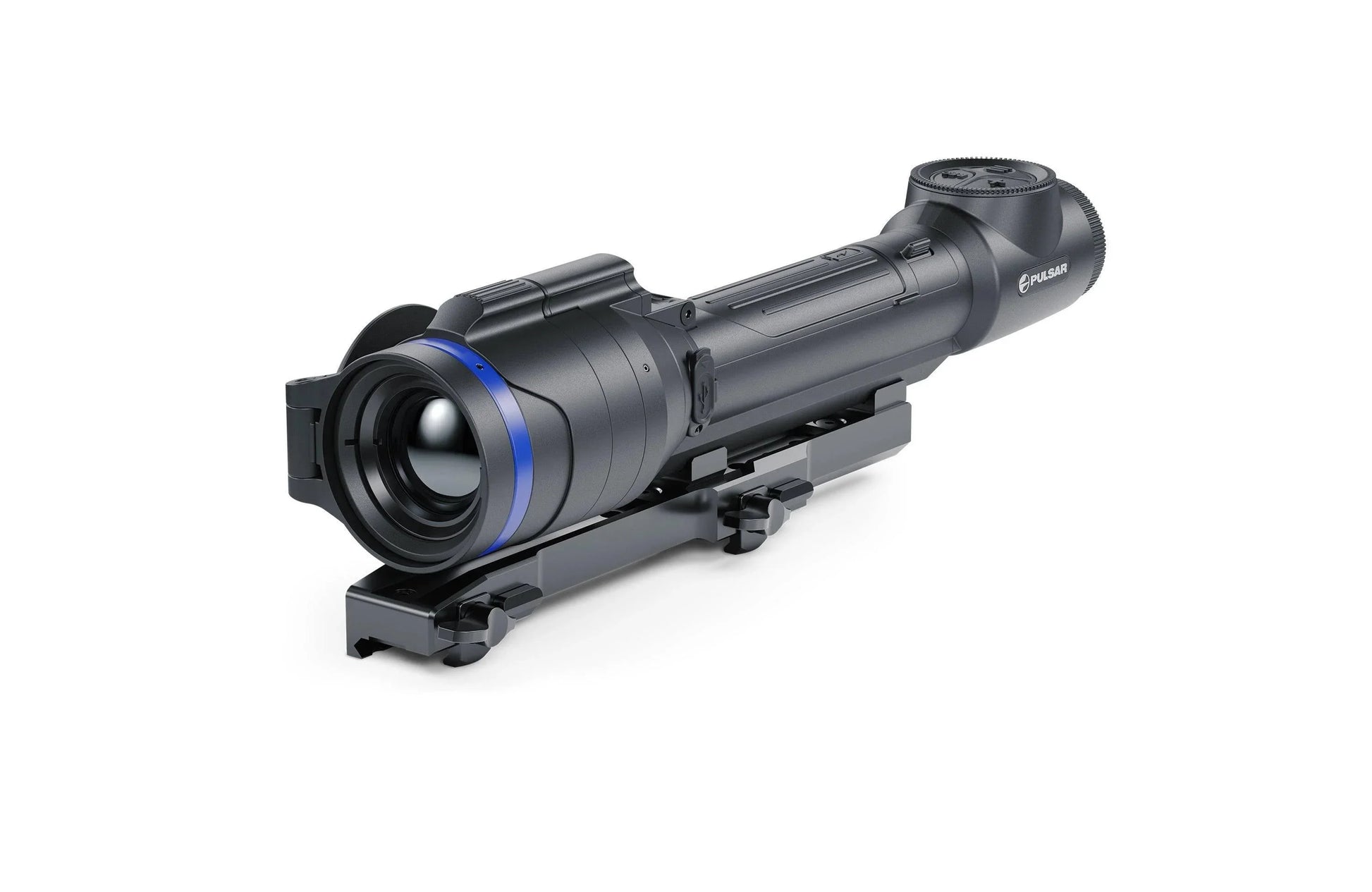

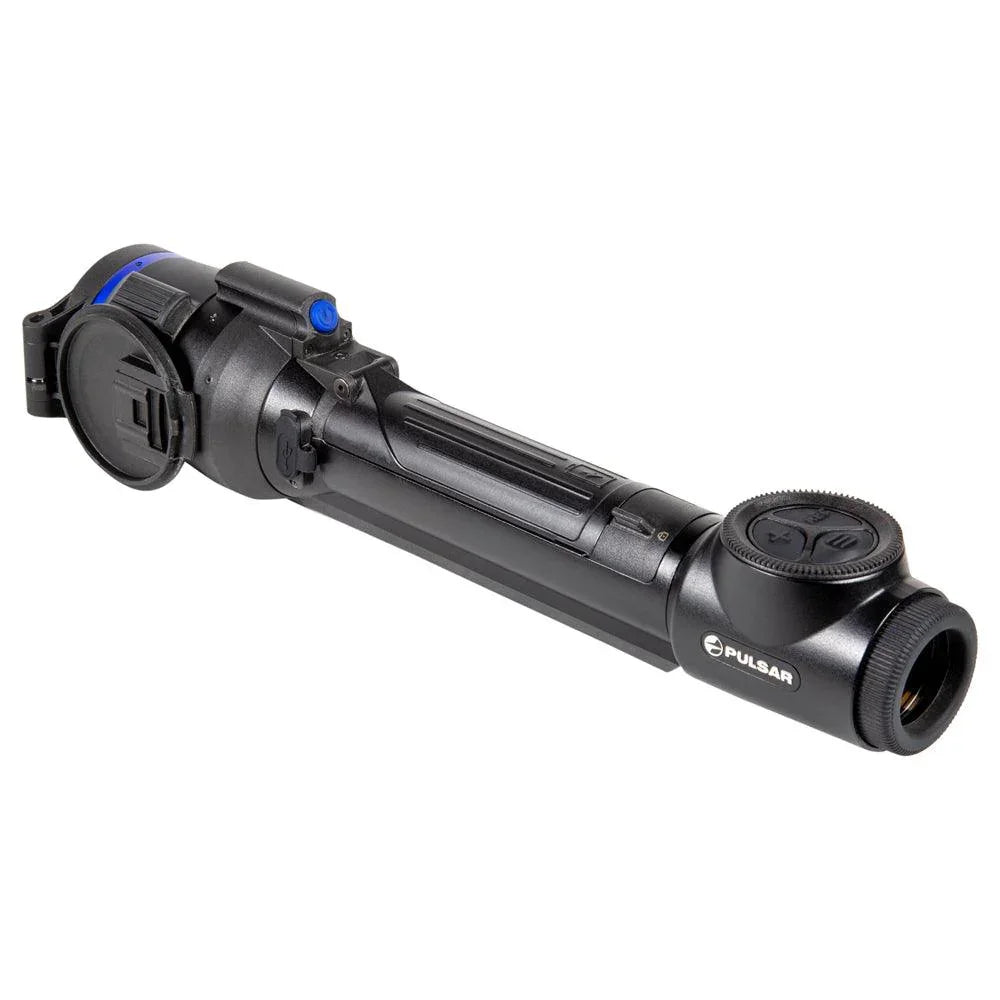

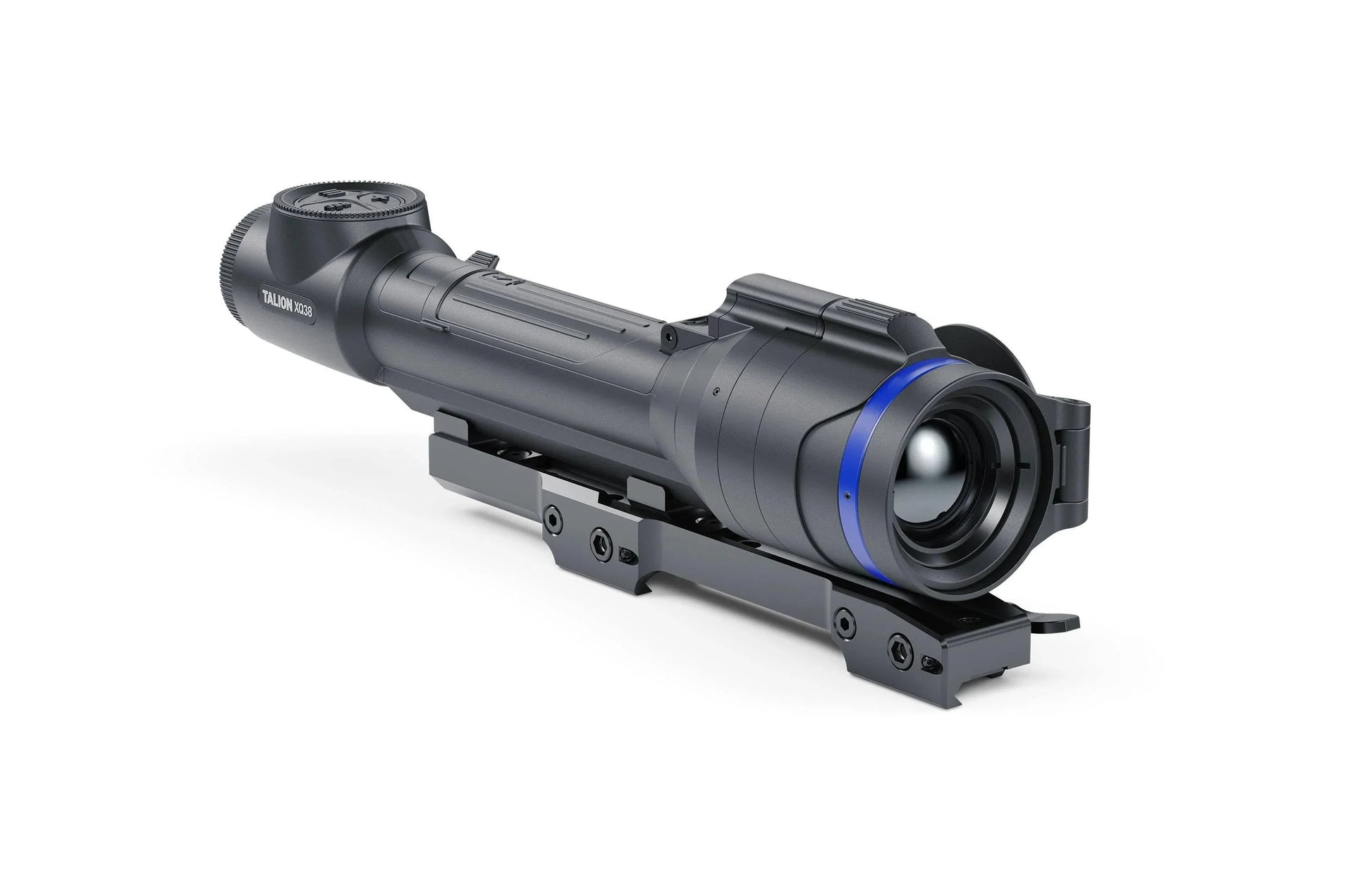

Pulsar Talion XQ35 Pro 384 Thermal Scope

Pulsar Talion XQ35 Thermal Rifle Scope Weapon Sight 384x288 50Hz WiFi (PL76566U)





AUTHORIZED DEALER

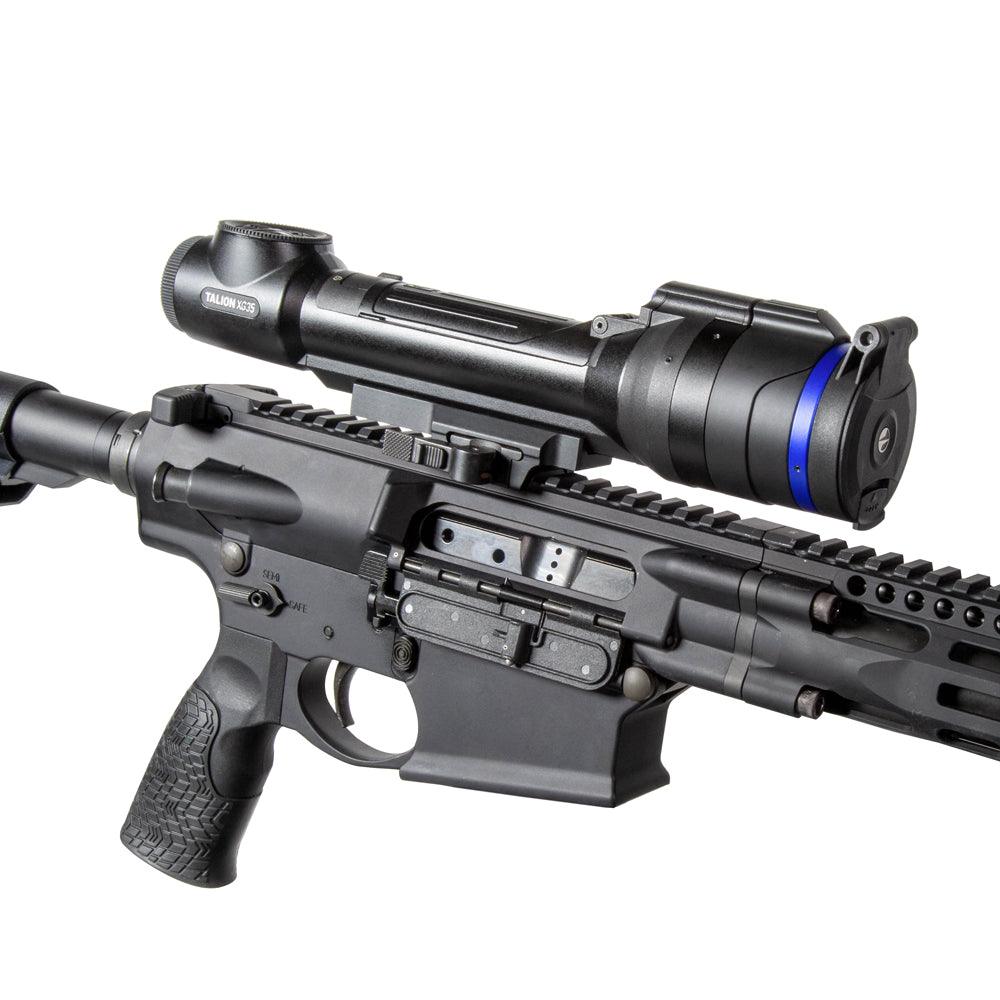

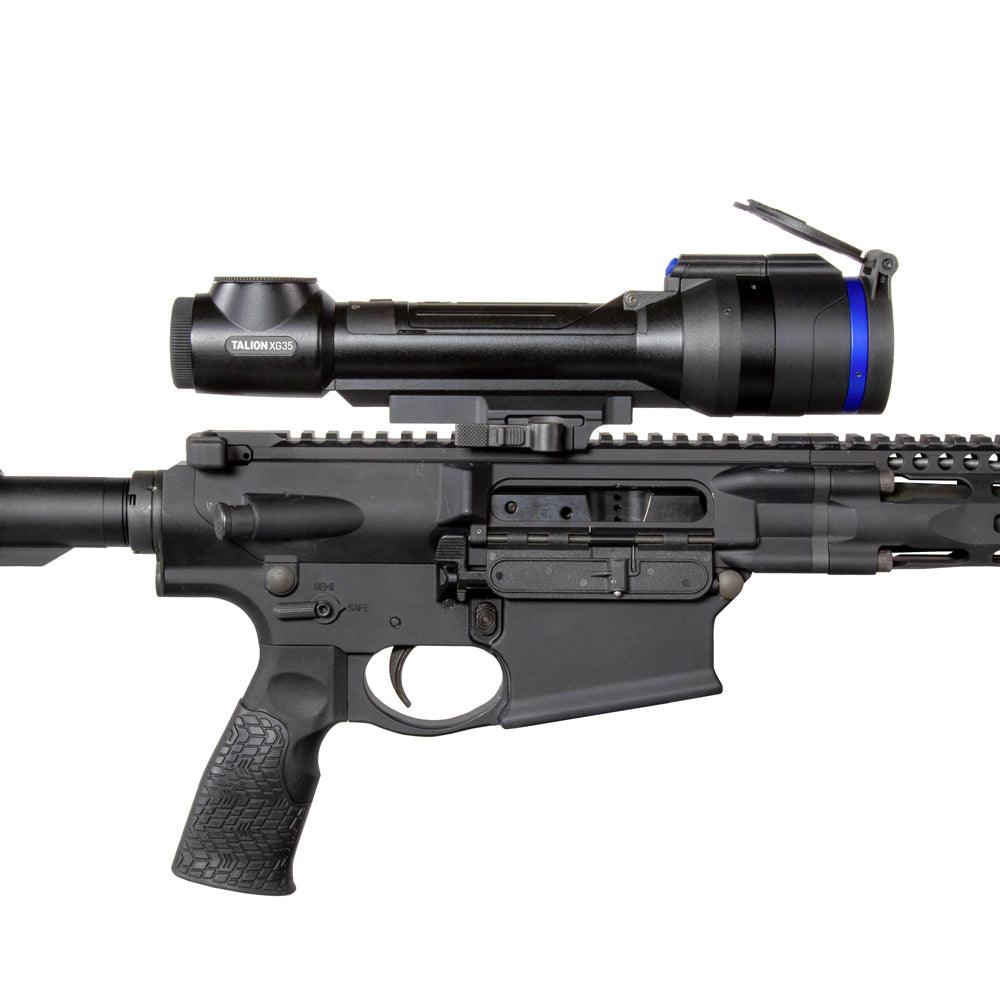

Pulsar's Talion XQ35 Pro is an advanced addition to their line of thermal scopes. It features a 384x288 microbolometer resolution for detecting precise thermal signatures at up to 1475 yards. The improved <25mK NETD sensor detects heat sources even in complete darkness, and it offers a variable magnification of 2.5-10x. It also includes convenient in-app photography and videorecording capabilities along with a multi-point prism mount for ensured accuracy on the rifle.

The Talion is outfitted with Wi-Fi capabilities and the Stream Vision 2 application, allowing users to securely store their shooting experiences. Showcasing a solid and lightweight magnesium alloy housing, it attains an IPX7 waterproof rating and is suitable for calibers up to 12 gauge, 9.3x64 and .375 H&H.

The Pulsar Talion XQ35 Pro 384 Thermal Scope is designed to maintain superior image quality even in challenging weather conditions, and is capable of lasting up to 9 hours on a single charge. With 10 reticle shapes and nine color modes, this riflescope enables precision aiming with Picture-in-Picture mode and a range of color palettes for optimal performance.

Pulsar Talion XQ35 Pro 384 Features:

• 384x288 pix. @ 17 µm (NETD <25 mK)
• 2.5x-10x magnification
• 1475 yard detection range
• Photo and video recording
• Wi-Fi connectivity and Stream Vision 2 app supported
• Waterproof, IPX7 rated housing
• 9 hours of battery life on a single charge
• Ten reticles in nine colors
• Picture-in-Picture mode
• Multiple color palettes
• Factory 3-Year Warranty with 2-Year Extension upon registration for USA Market



Pulsar Talion XQ35 Pro 384 Specifications:

Main

Sensor

384x288 pix. @ 17 µm (NETD <25 mK)





Objective lens

F35 / 1.0





Magnification, x

2.5 – 10 (x4 zoom)





Field of view (HxV), degrees / m@100m

10.7х8 / 18.2x13.7





Detection range, m

1350





Sensor

Type

uncooled





Resolution, pixels

384x288





Pixel pitch, µm

17





NETD, mK

<25





Frame rate, Hz

50





Optics

Objective lens

F35 / 1.0





Magnification, x

2.5 – 10





Field of view (HxV), degrees / m @ 100 m

10.7х8 / 18.2x13.7





Eye relief, mm

50





Display

Type

AMOLED





Resolution, pixels

1024x768





Range Performance

Detection range, m

1350





Laser Rangefinder

Safety class for laser equipment according to IEC 60825-1:2014

-





Wavelength, nm

-





Max. measuring range, m

-





Measurement accuracy, m

-





Reticle

Click value, H/V, mm at 100 m

18 / 18 (on minimum magnification)





Click range, H/V, mm at 100 m

3600 / 3600





Number of preloaded reticles

10





Video Recorder

Video / photo resolution, pixel

1024x768





Video / photo format

.mp4 / .jpg





Built-in memory, GB

16





Wi-Fi

Wireless Protocol

Wi-Fi





Wireless Standard

IEEE 802.11 b/g/n/ac (WPA)





Frequency, GHz

2.4 / 5





Environmental Characteristics

Degree of protection, IP code (IEC60529)

IPX7





Operating temperature range, °С

-25 – +50





Connections and Compatibilities

Max. recoil power on rifled weapon (Eo), Joules

6000





Shock resistance on the smooth-bore rifles, caliber

12





Compatible mounts

Weaver U Mount, Weaver USQD Mount, Weaver LQD Mount





Supported Application

Stream Vision 2





Power Supply

Output voltage, V

3.0 – 4.2





Battery type

APS 5T





Capacity, mAh

4900





Operating time on battery pack (at t=22°C), h *

9





External power supply, V

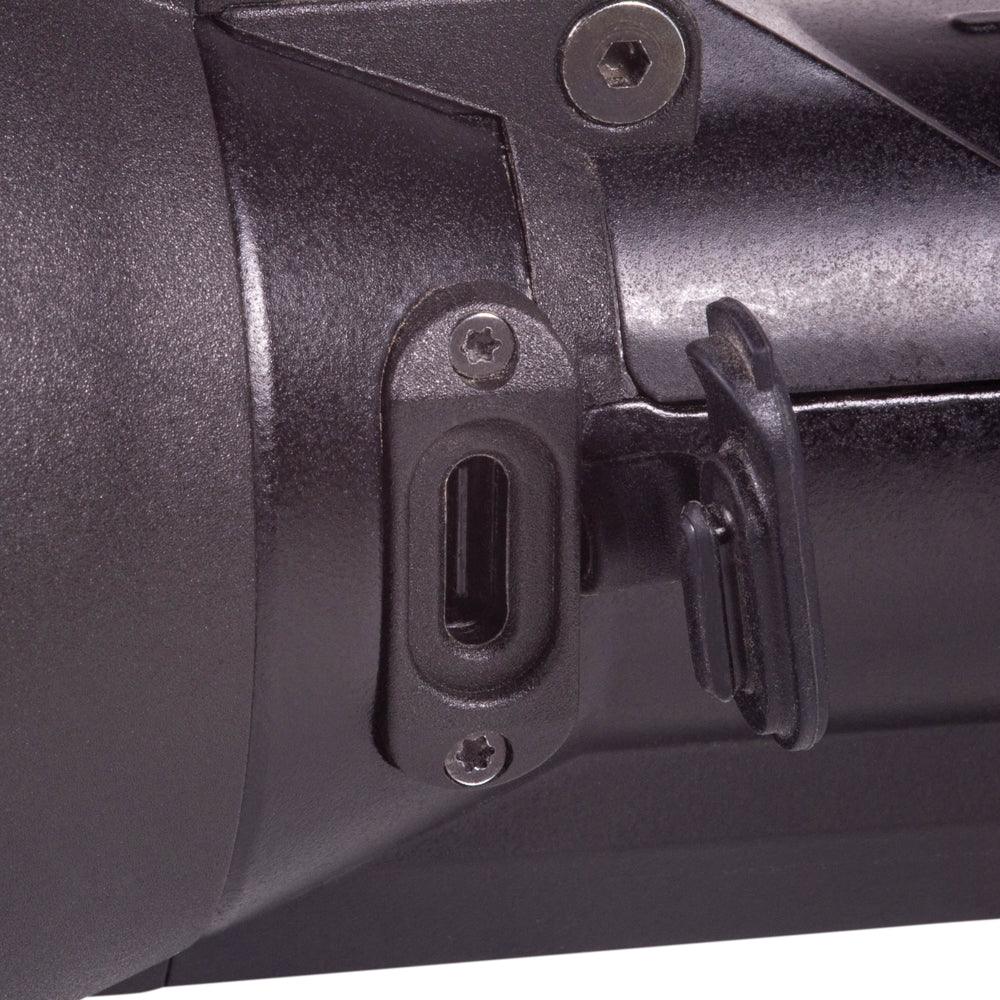

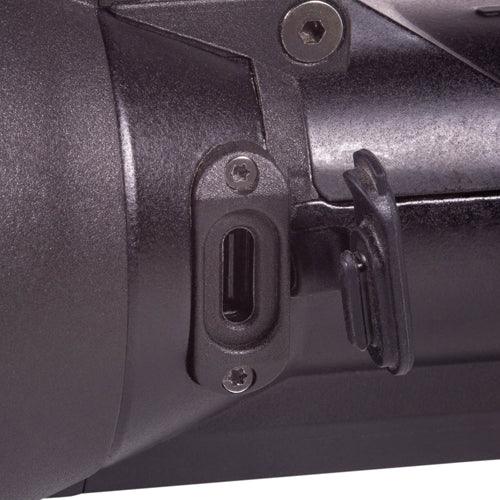

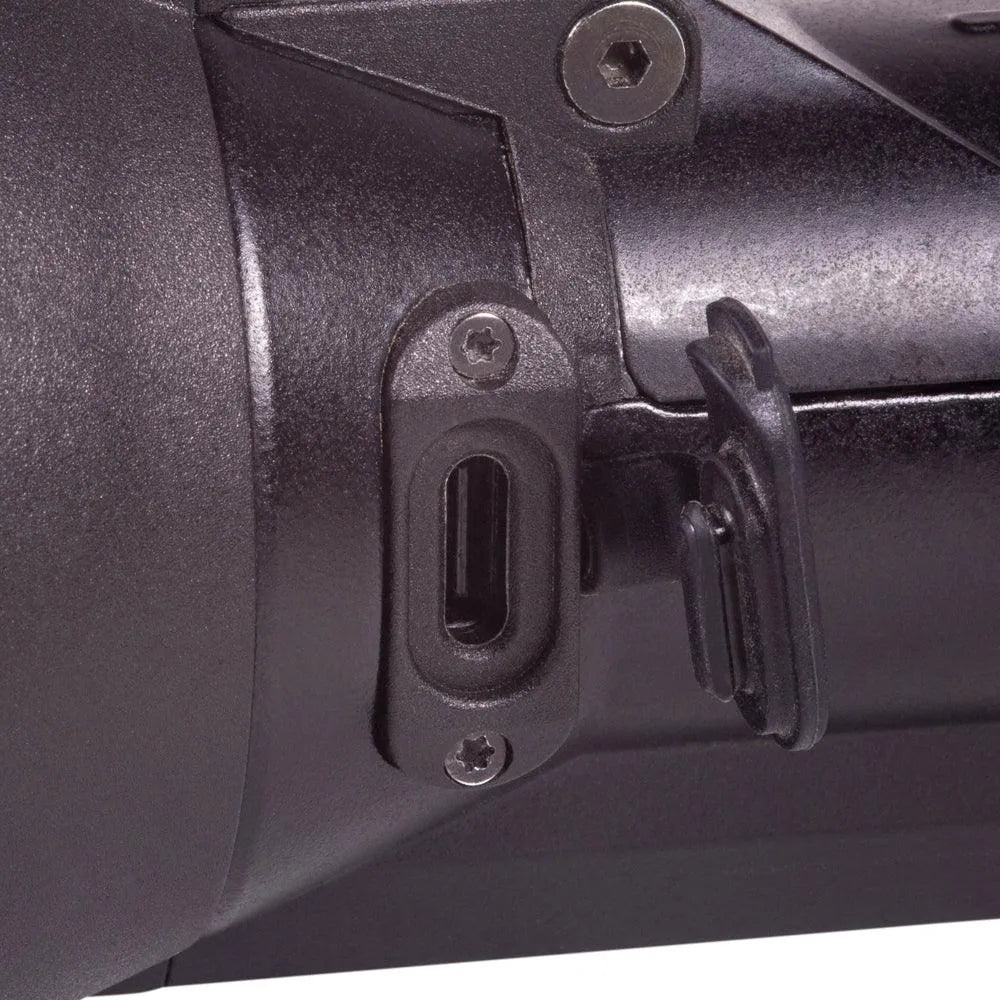

5V, 9V (USB Type-C Power Delivery)





Weight & Size

Body material

Magnesium alloy





Dimensions, mm

330x57x67





Weight, kg

0.7 (without APS 5T battery)

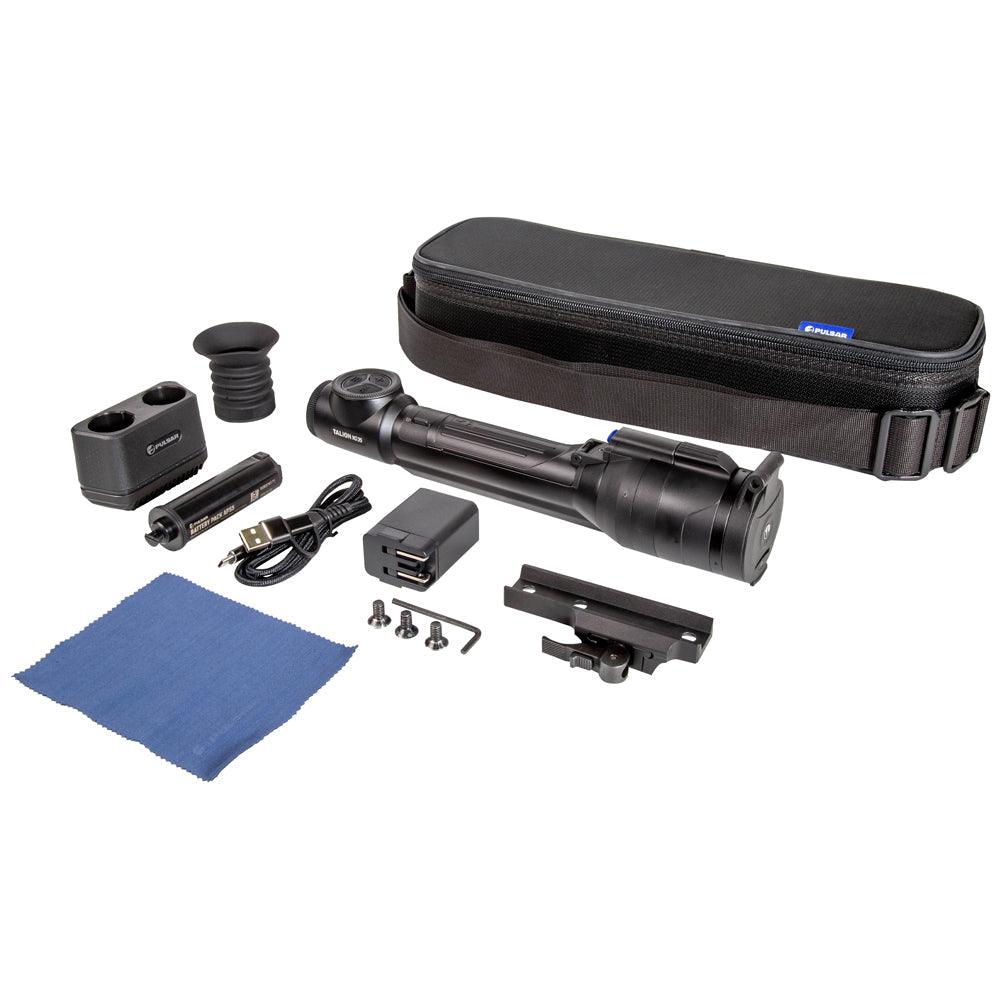

Delivery Package

• Talion Thermal imaging riflescope

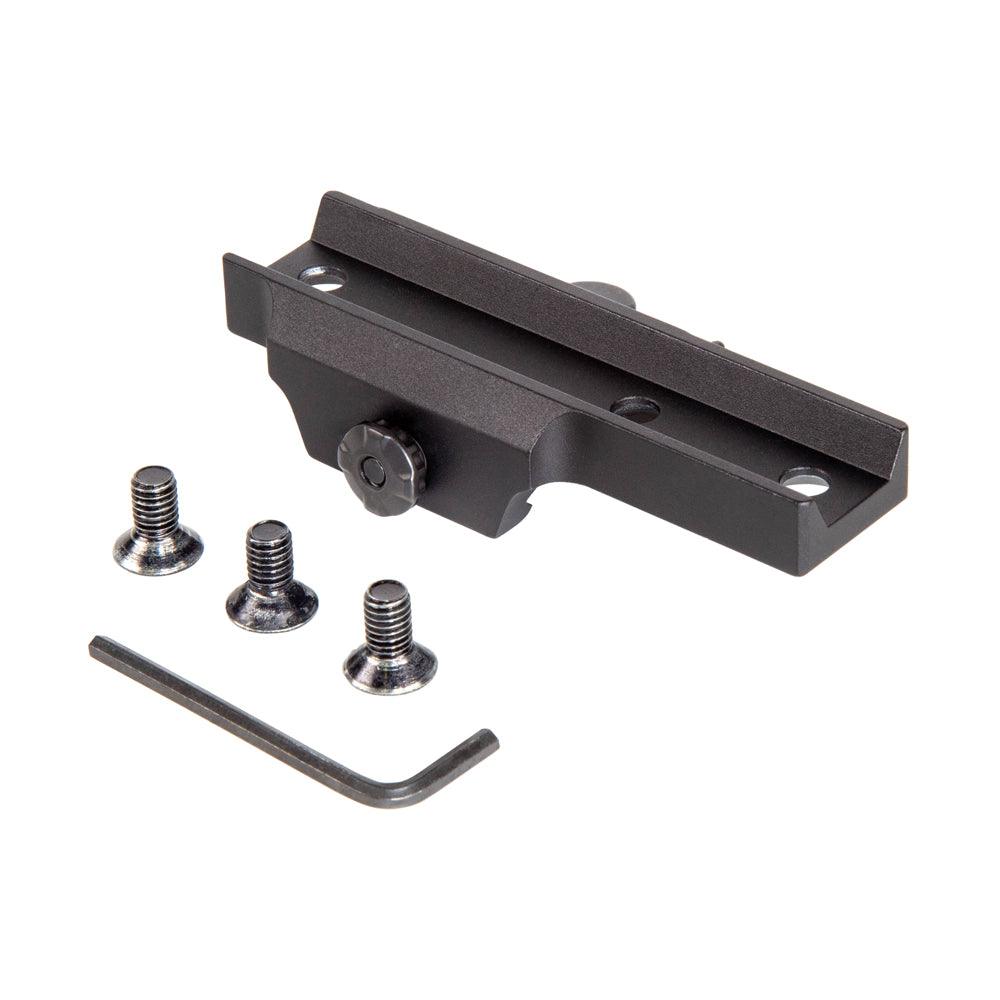

• Standard Mount

• АPS 5T Battery Pack (2)

• APS battery charger

• Mains charger

• USB cable

• Case

• Cloth for cleaning optics

• Quick start guide

• Warranty card

• APS3 battery cover
