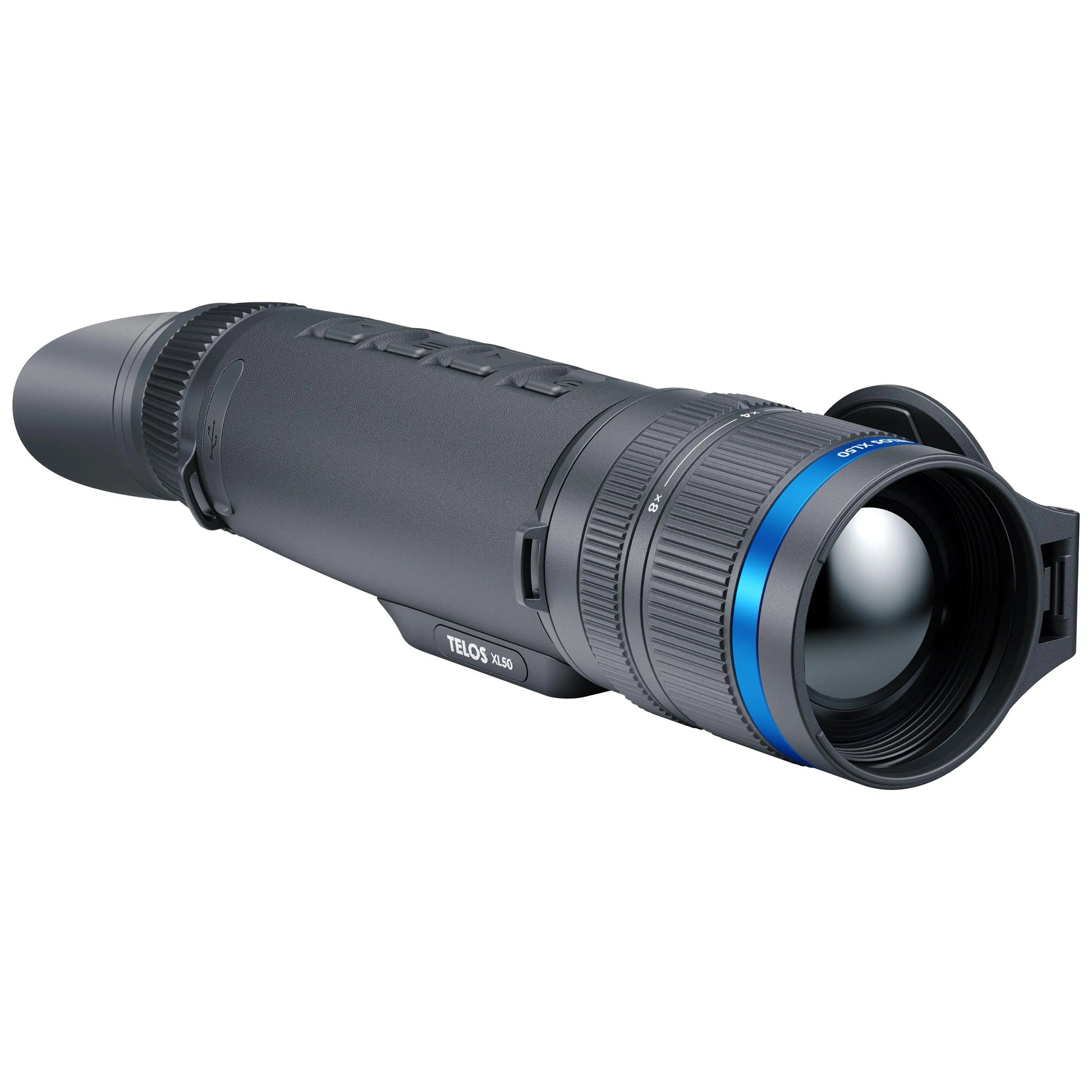

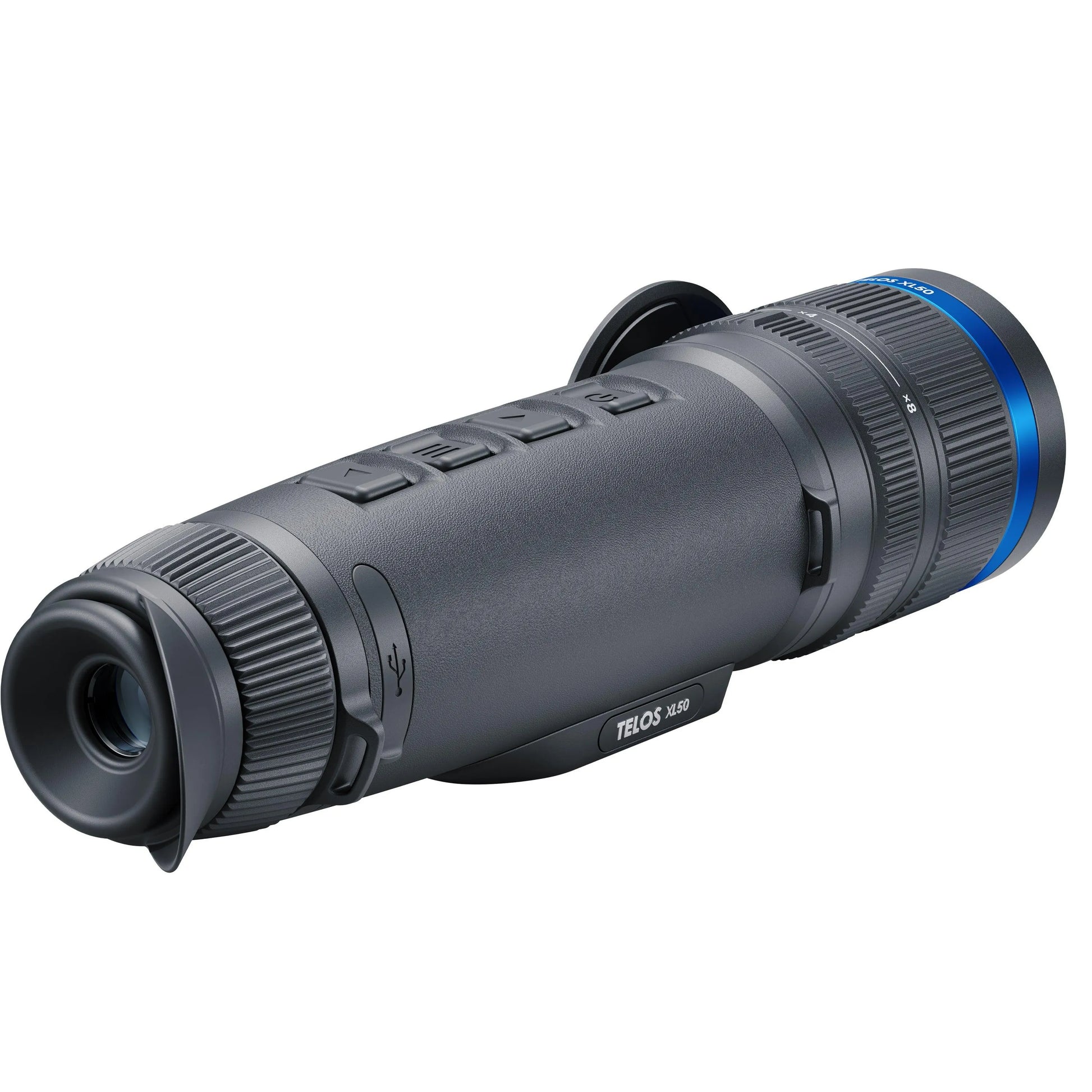

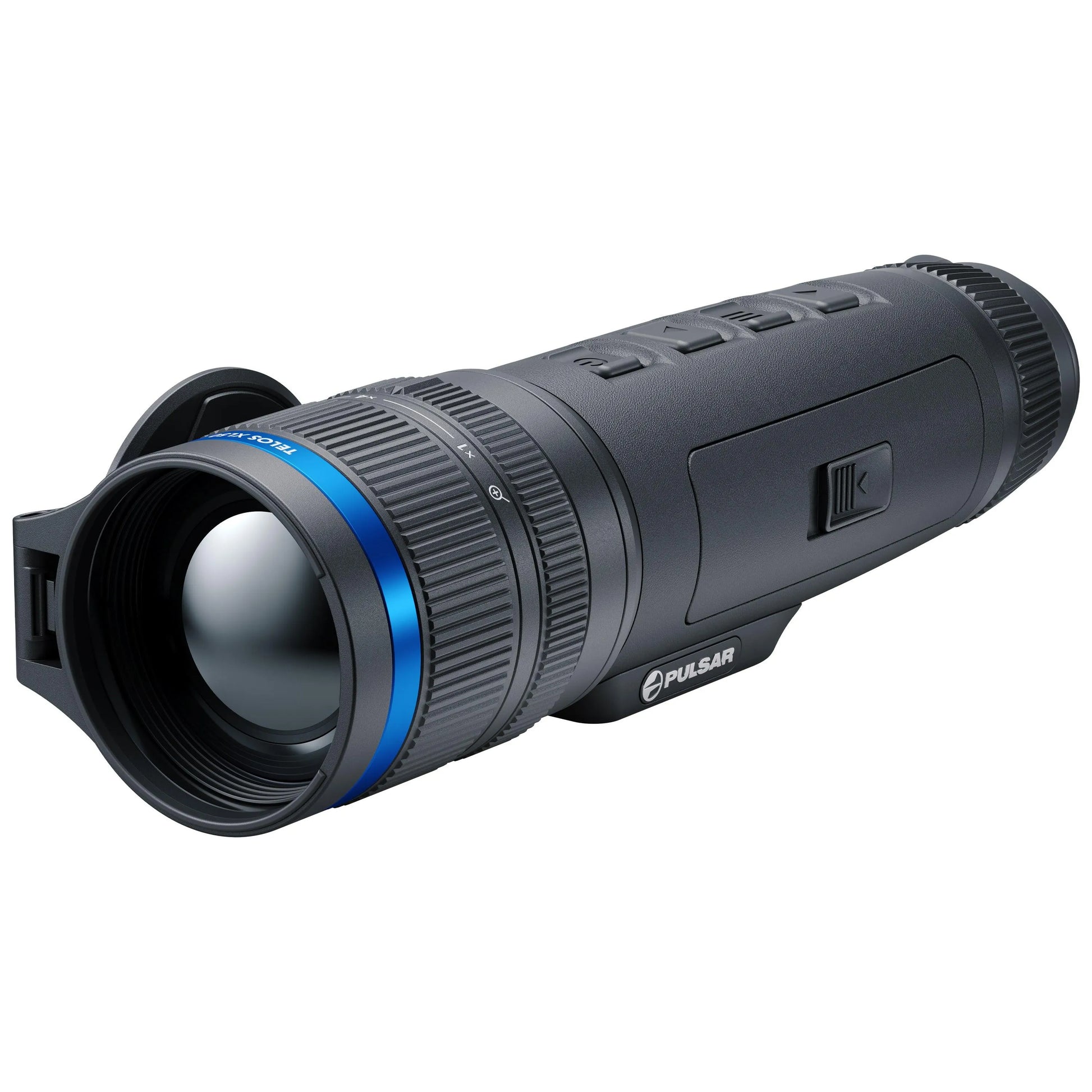

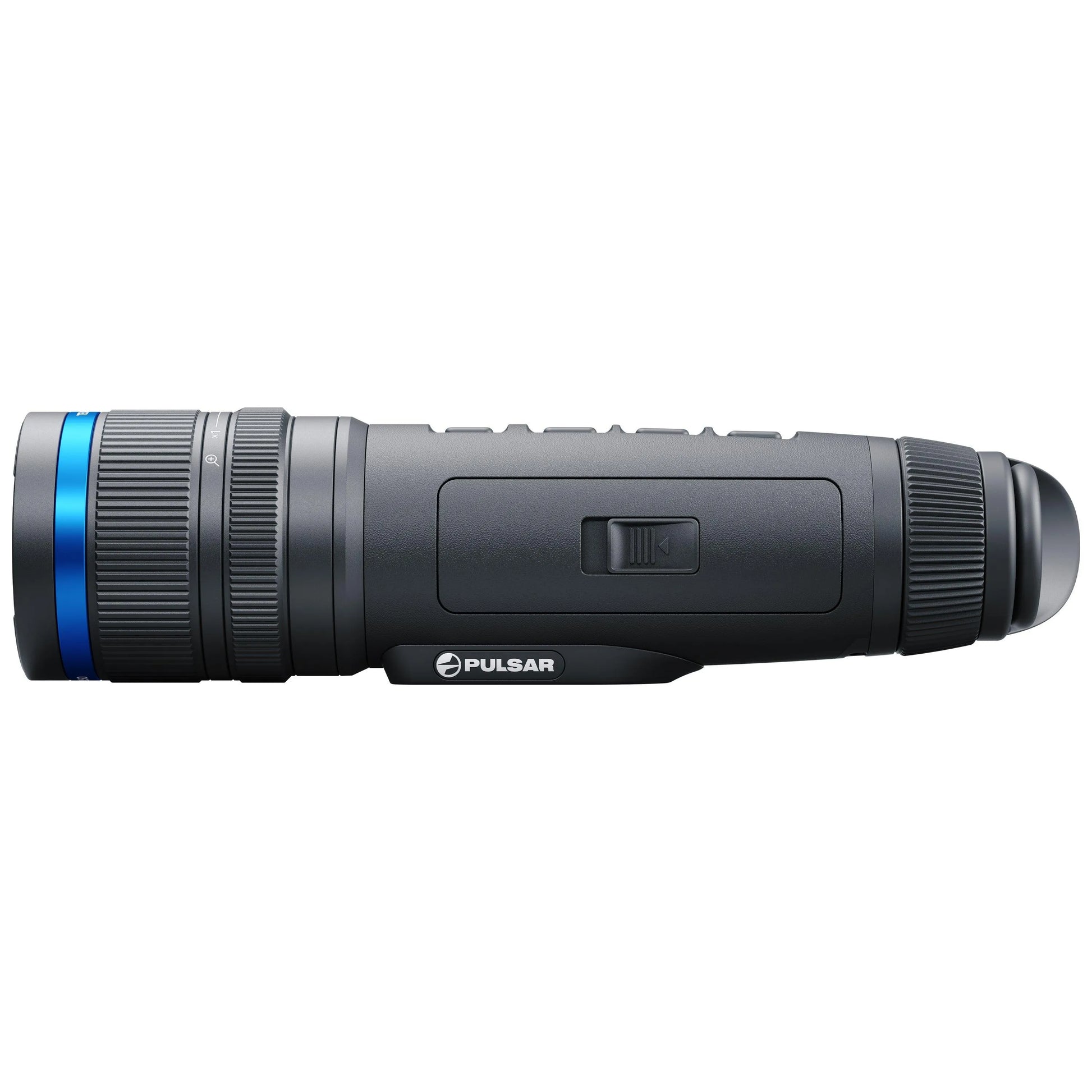

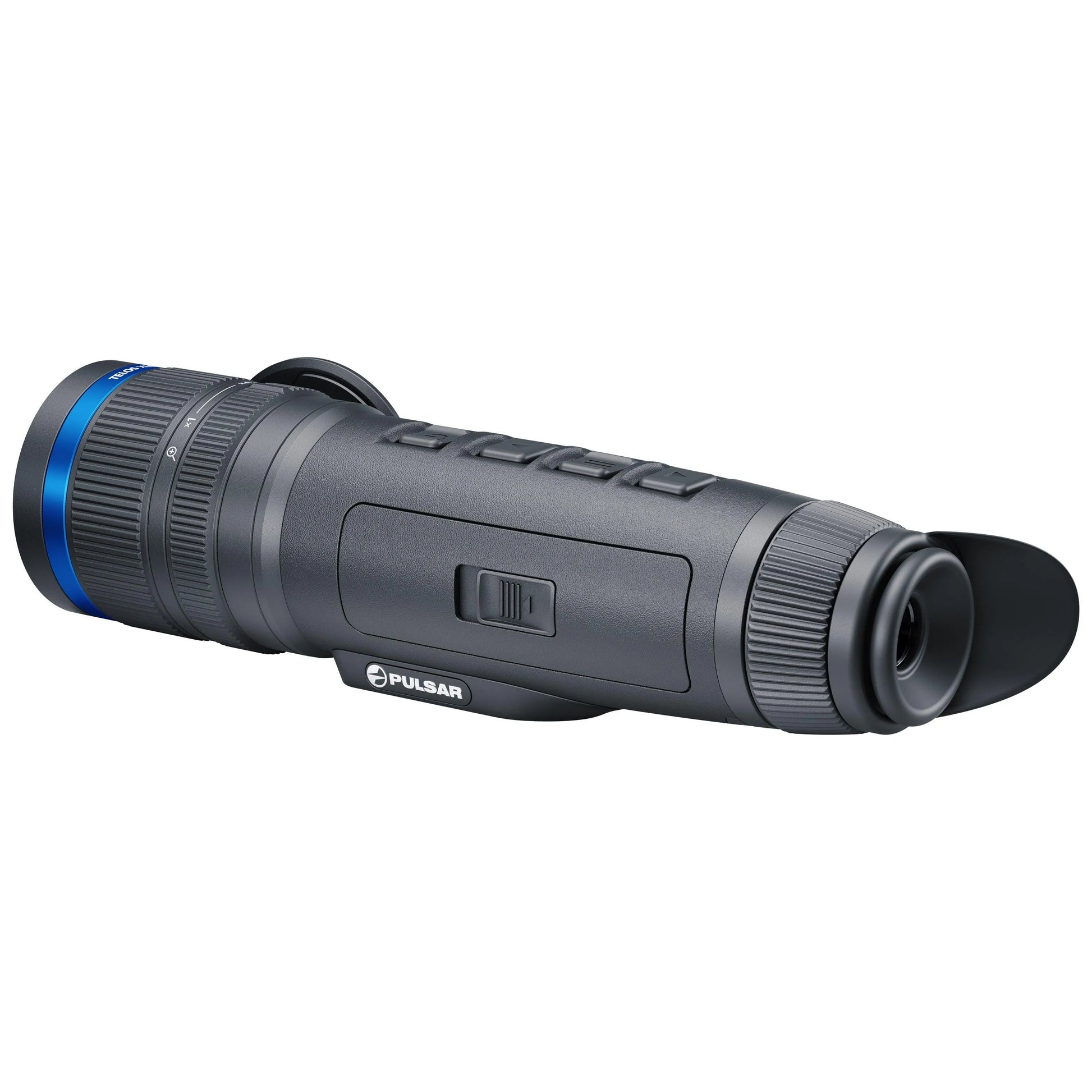

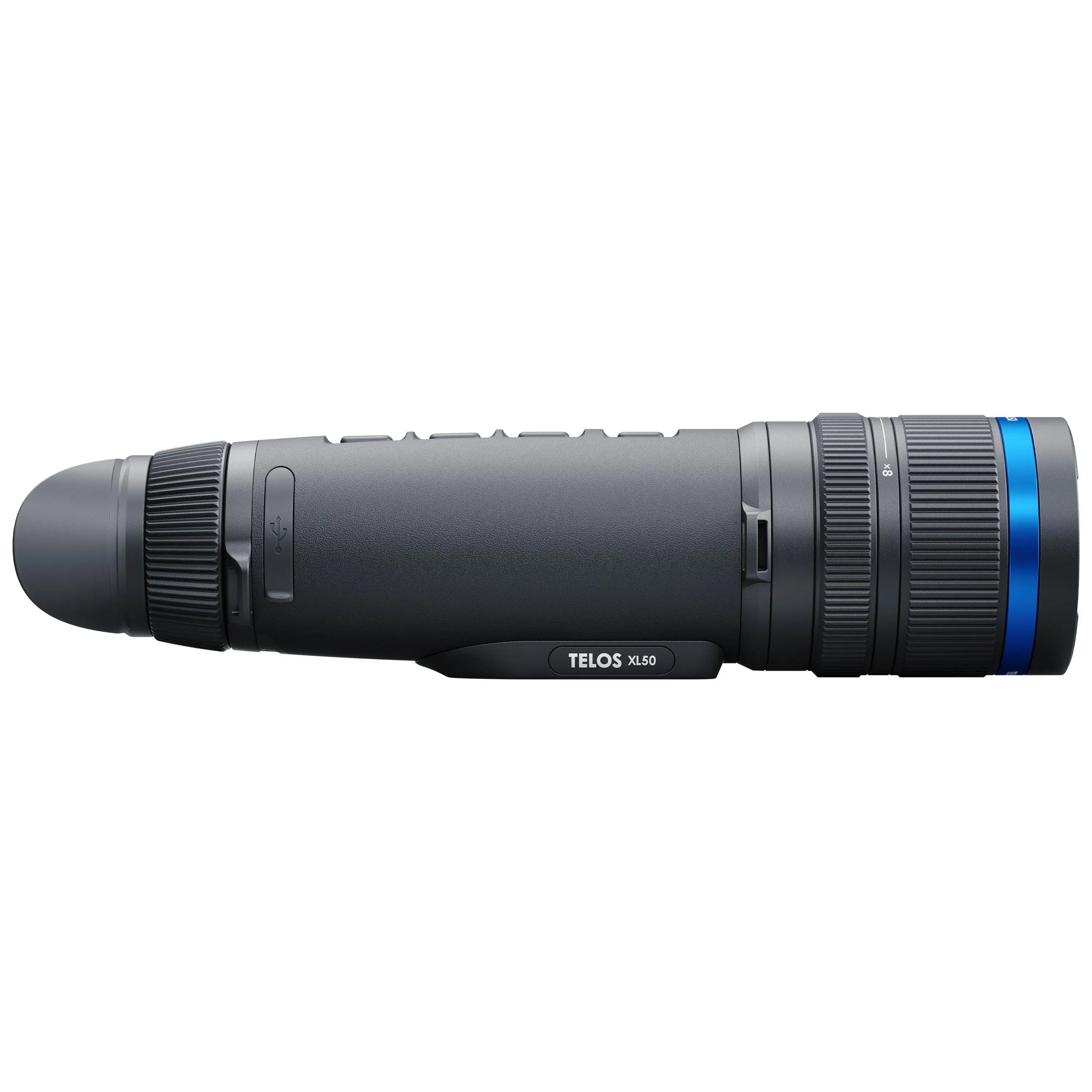

Pulsar TELOS XL50 Thermal Imaging Monocular 1024x768 12um 50Hz WiFi (PL77516)
AUTHORIZED DEALER
Telos stands out as a premium-class thermal imaging monocular and is the first upgradeable device by Pulsar.
With a variety of models available, Telos caters to diverse hunting needs. You can choose from different resolution sensors (XQ, XG, XP, XL), various objective lenses and models with or without the laser rangefinder.

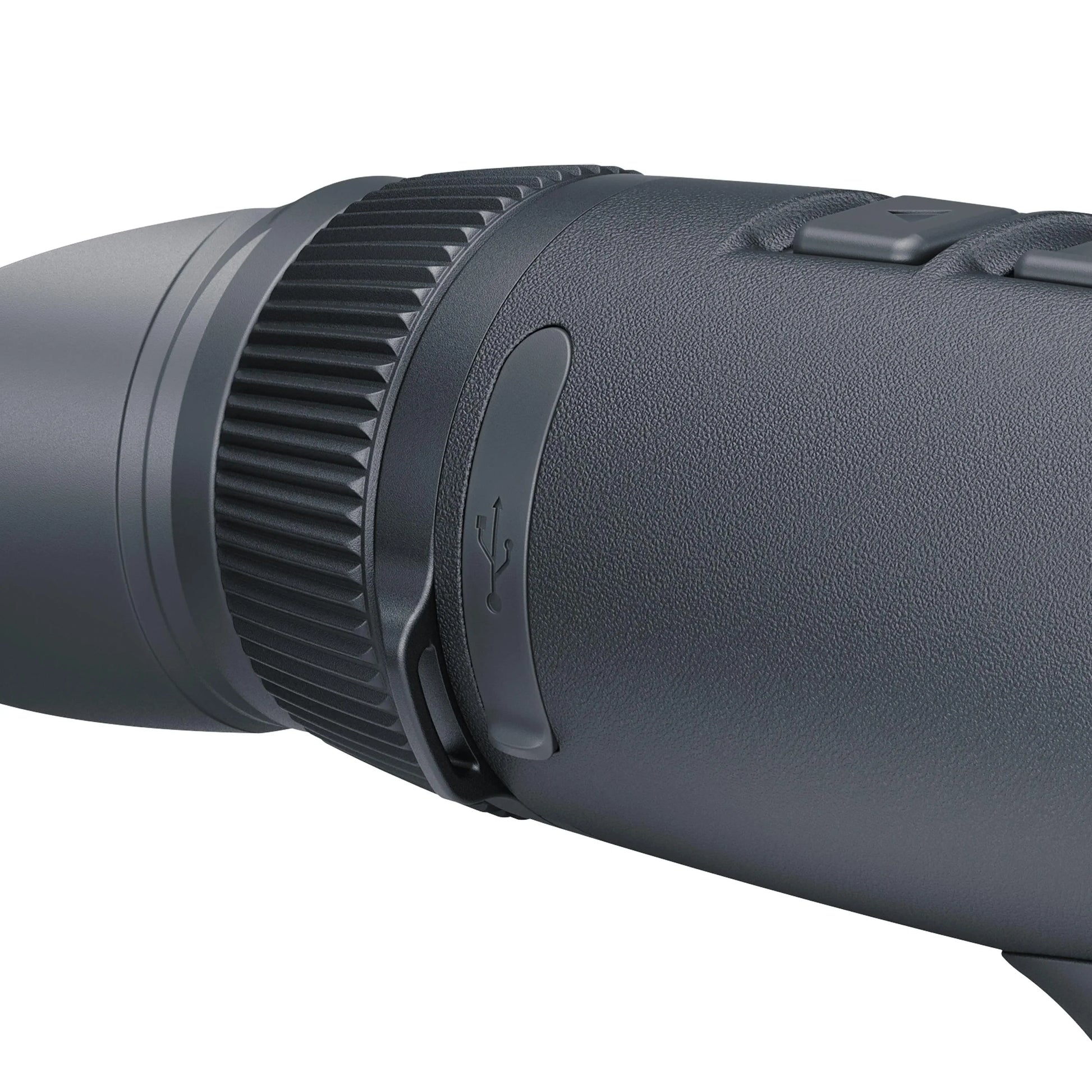

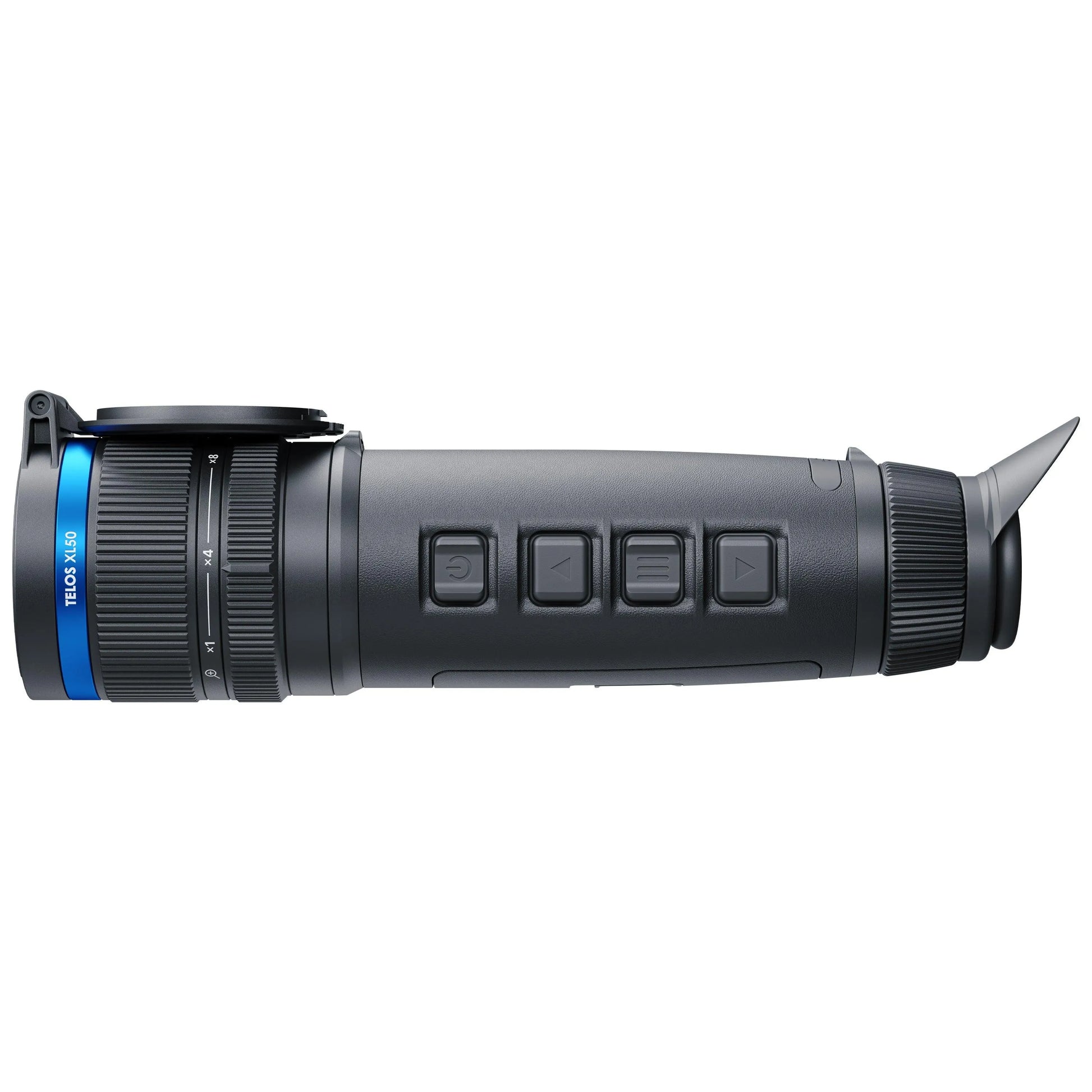

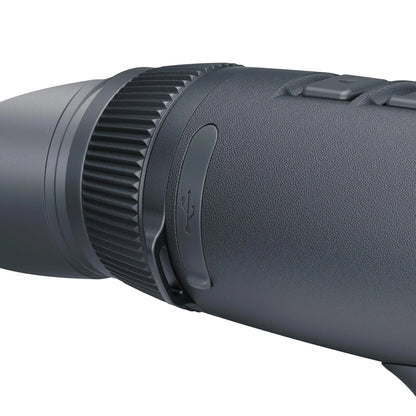

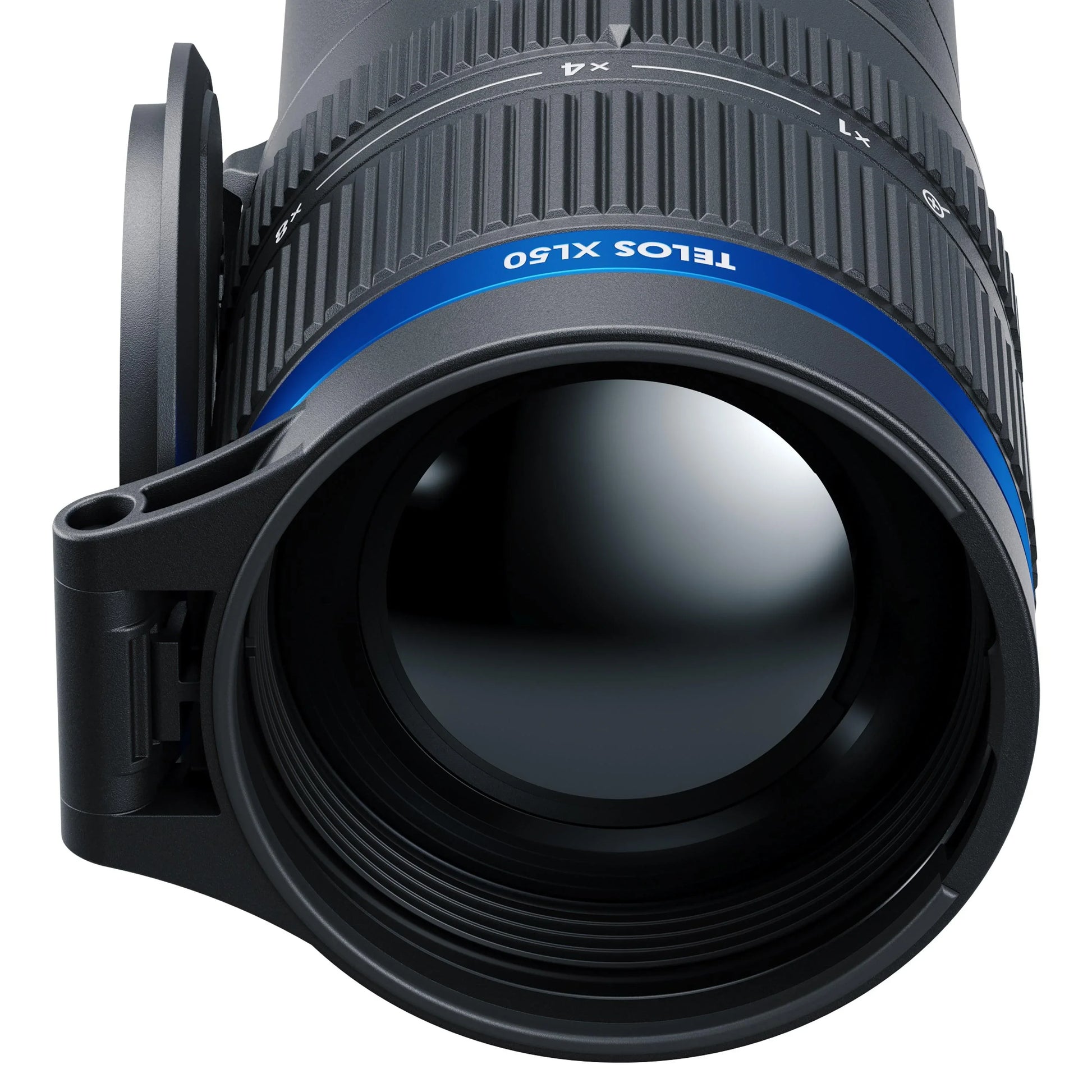

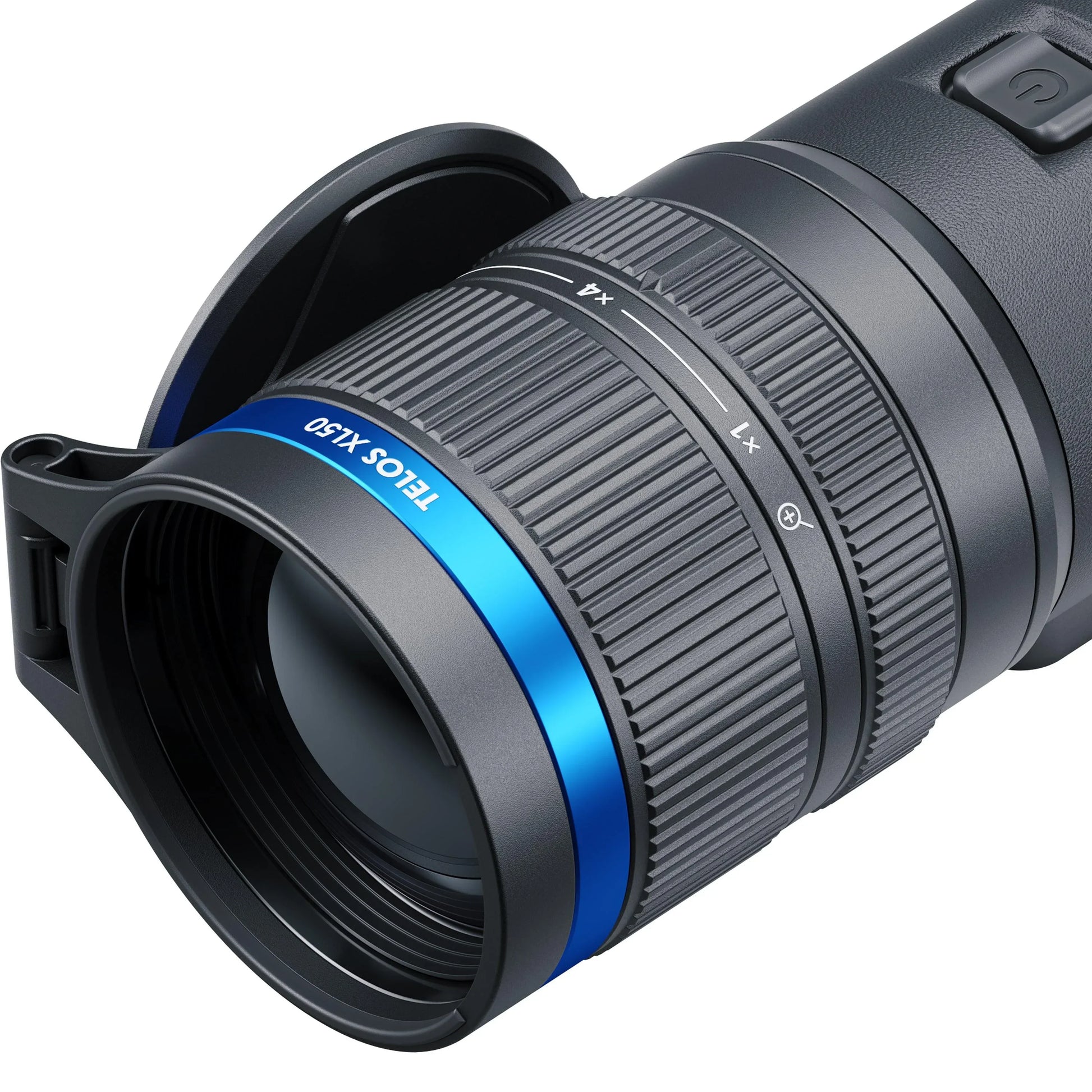

Designed for ambidextrous and prolonged use, the Telos features a unique rubberized housing. The front-located focusing and digital zoom rings ensure tactile and effortless operation. The new haptic feedback function enhances intuitiveness by providing short vibrations when control buttons are pressed. A newly designed replaceable battery allows for up to 8 hours of continuous operation.
Additionally, the Telos Upgradeability service ensures you stay up to date with the latest technologies. Pulsar engineers can replace your monocular components with newer ones featuring better characteristics. For more information on the Upgradeability service, contact your local dealer or distributor, or visit the dedicated section on the Pulsar website.
Pulsar TELOS XL50 Features:
- Microbolometer resolution: 1024x768
- Frame Rate: 50Hz
- Pixel pitch: 12μm
- NETD: <40mK
- Display resolution: 1024x768
- Display type: AMOLED
- Objective lens: F50/1.0
- Magnification: 2.5-20x (x8 digital zoom)
- Detector type: Uncooled ASi
- Detection range: 2300 m
- Battery type: LPS 7i Li-Ion 6400 mAh, external power supply: 5V, 9V (USB-C)
- Battery life: 8.5 hours
- Dimensions (mm): 238x72x90
- Body material: Rubber armored reinforced plastic
- Weight (kg): 0.58 (w/o battery) / 0.72 (with the LPS7i battery)
- Factory 3-Year Warranty with 2-Year Extension upon registration for USA Market
Pulsar TELOS XL50 Specifications:
Main
Sensor
1024x768 @ 12 µm (NETD <40 mK)
Objective lens
F50 / 1.0
Magnification, x
2.5 – 20 (x8 zoom)
Magnification in monocular mode / attachment mode, x
-
Field of view (HxV), degrees / m@100m
14x10.5 / 24.6х18.5
Detection range, m
2300
Sensor
Type
uncooled
Resolution, pixels
1024x768
Pixel pitch, µm
12
NETD, mK
<40
Frame rate, Hz
50
Optics
Objective lens
F50 / 1.0
Magnification, x
2.5 – 20 (x8 digital zoom)
Magnification in monocular mode / attachment mode, x
-
Field of view (HxV), degrees / m @ 100 m
14x10.5 / 24.6х18.5
Eye relief, mm
14
Recommended magnification of the day scope, x
-
Display
Type
AMOLED
Resolution, pixels
1024x768
Range Performance
Detection range, m
2300
Laser Rangefinder
Safety class for laser equipment according to IEC 60825-1:2014
-
Wavelength, nm
-
Max. measuring range, m
-
Measurement accuracy, m
-
Video Recorder
Video / photo resolution, pixel
1024x768
Video / photo format
.mp4 / .jpg
Built-in memory, GB
64
Wi-Fi
Wireless Protocol
Wi-Fi
Wireless Standard
IEEE 802.11 b/g/n/ac (WPA)
Frequency, GHz
2.4 / 5
Bluetooth
Wireless Protocol
-
Wireless Standard
-
Frequency, GHz
-
Environmental Characteristics
Degree of protection, IP code (IEC60529)
IPХ7 (Waterproof)
Operating temperature range, °С
-25 – +40
Connections and Compatibilities
Compatible mounts
1/4"
Mount, type
-
Remote control
-
Supported Application
Stream Vision 2
Power Supply
Output voltage, V
3.0 – 4.2
Battery type
LPS 7i Li-Ion Battery Pack
Capacity, mAh
6400
Operating time on battery pack (at t=22°C), h *
7
External power supply, V
5V, 9V (USB Type-C Power Delivery)
Weight & Size
Body material
rubber armored reinforced plastic
Dimensions, mm
243x72x62
Weight, kg
0.68
Warranty
3 Years with an additional 2 years if registered with Pulsar via Pulsar website.
Package Contents:
Telos LRF thermal imager
LPS7i battery pack with protective cover
Spare battery compartment cover
Power adapter
USB Type-C cable with USB Type-A adapter
Case
Hand strap
Quick start guide
Lens cloth
Warranty card
