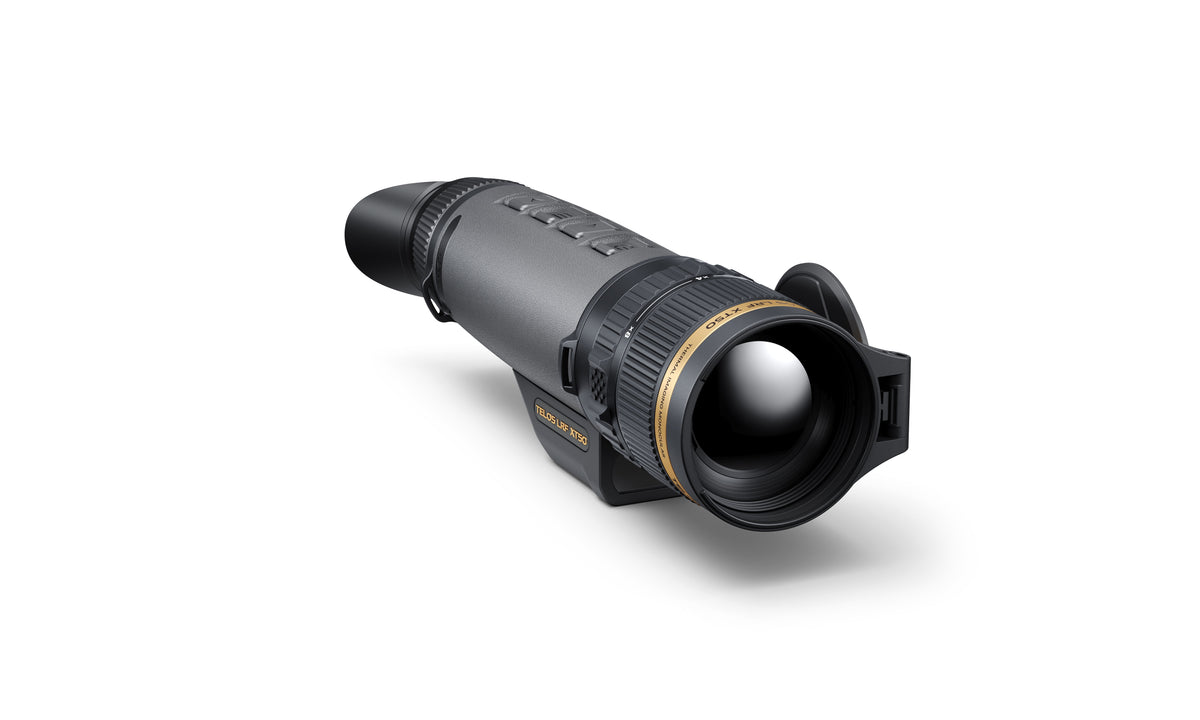

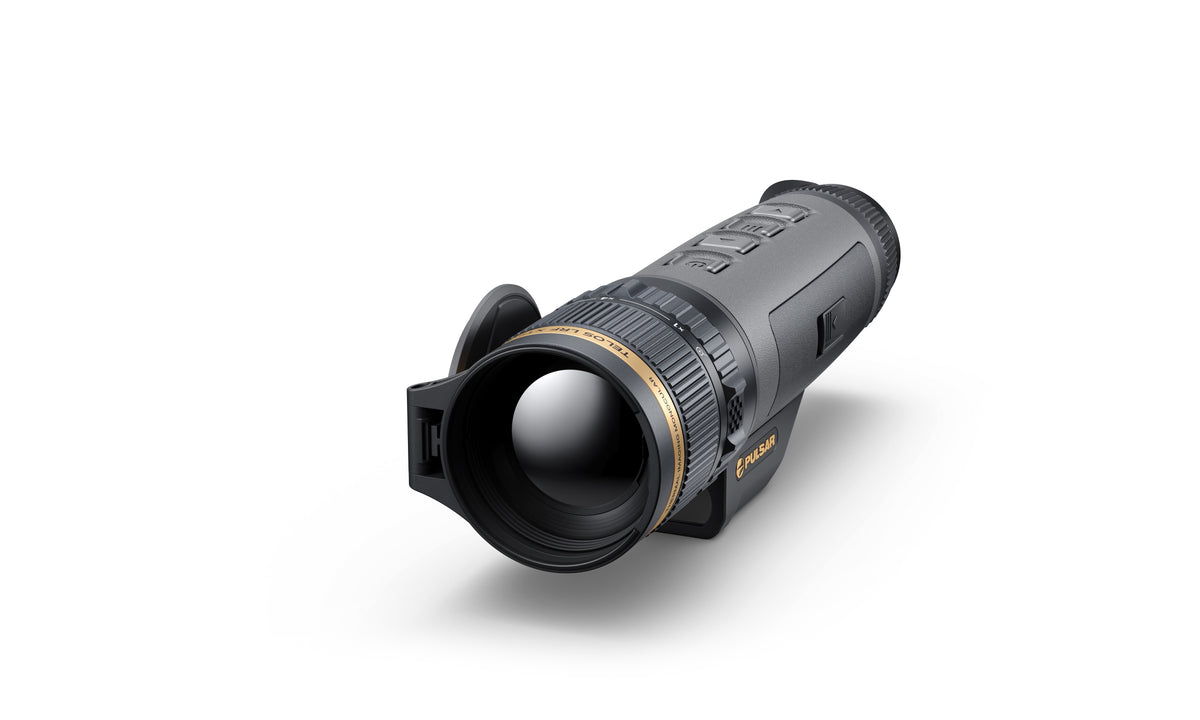

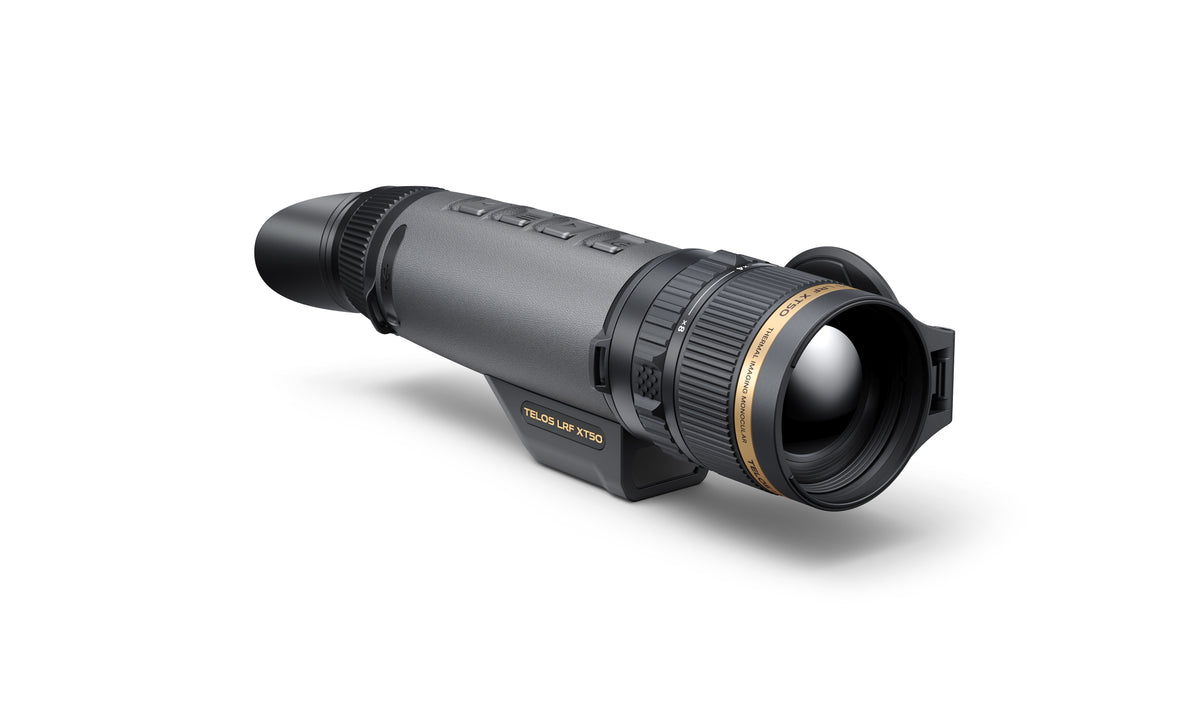

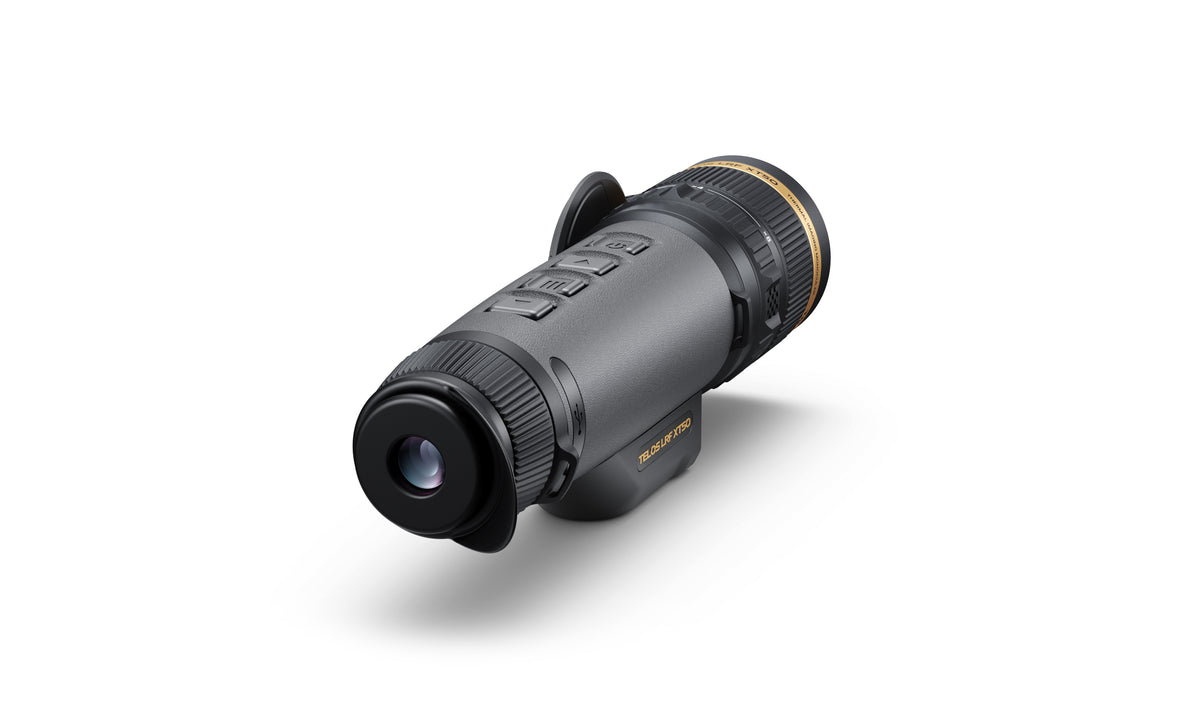

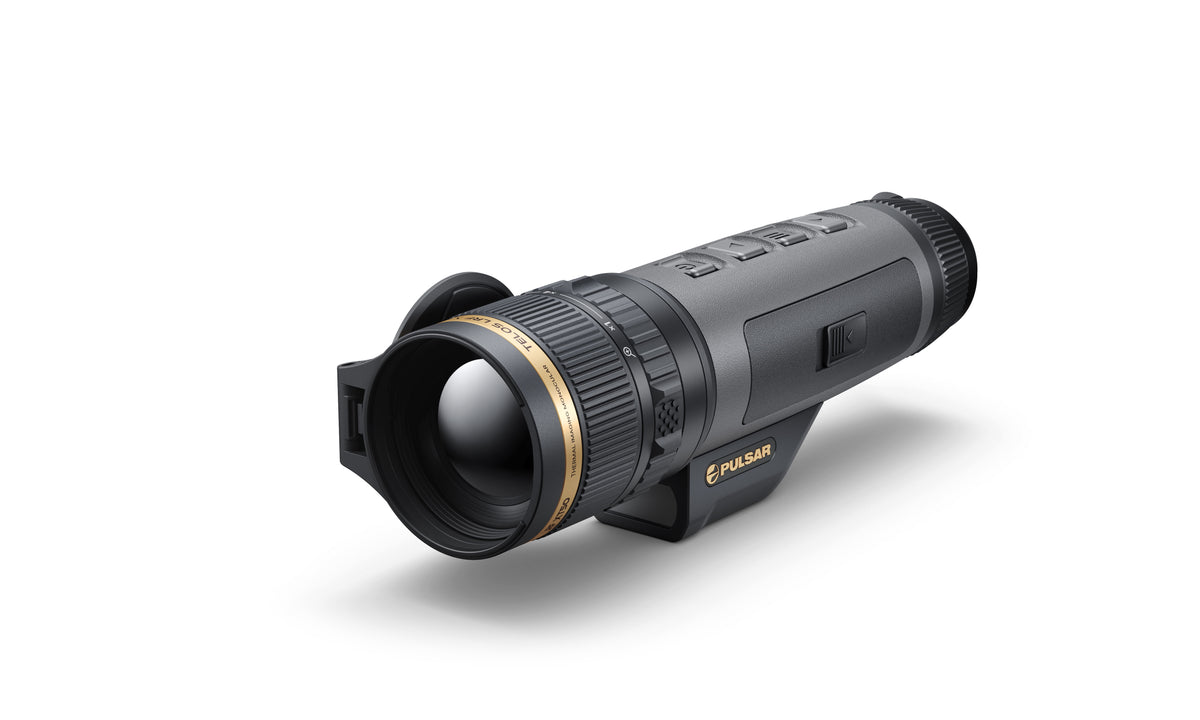

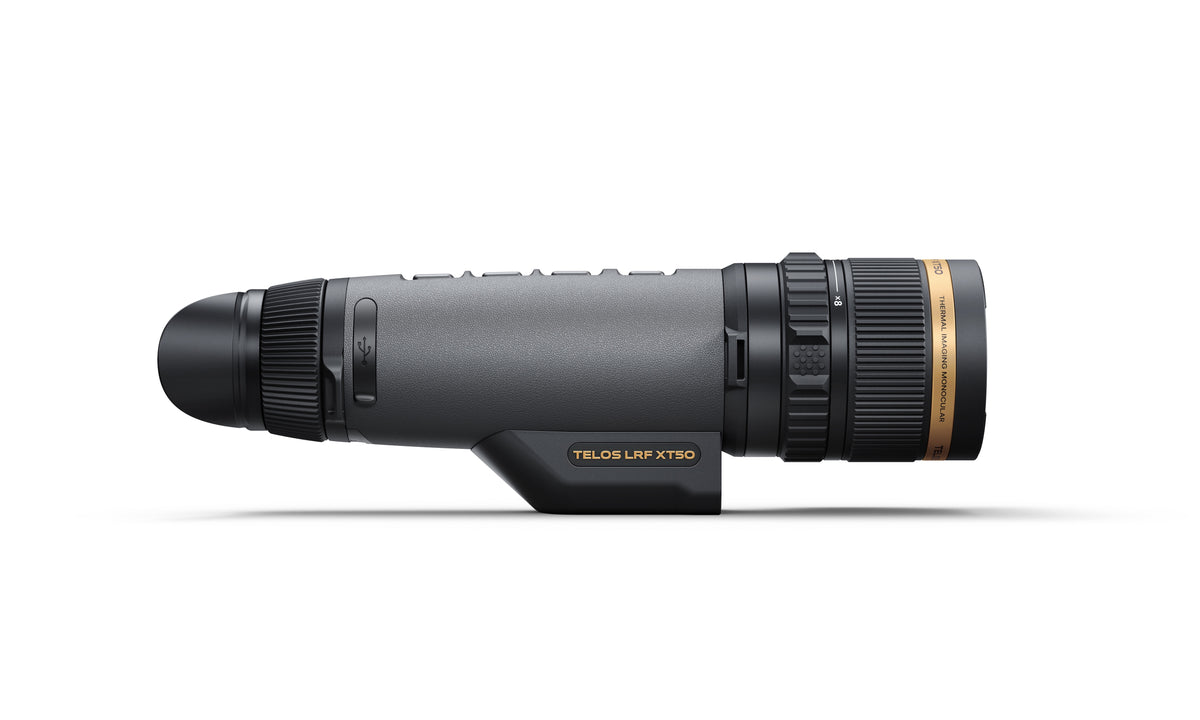

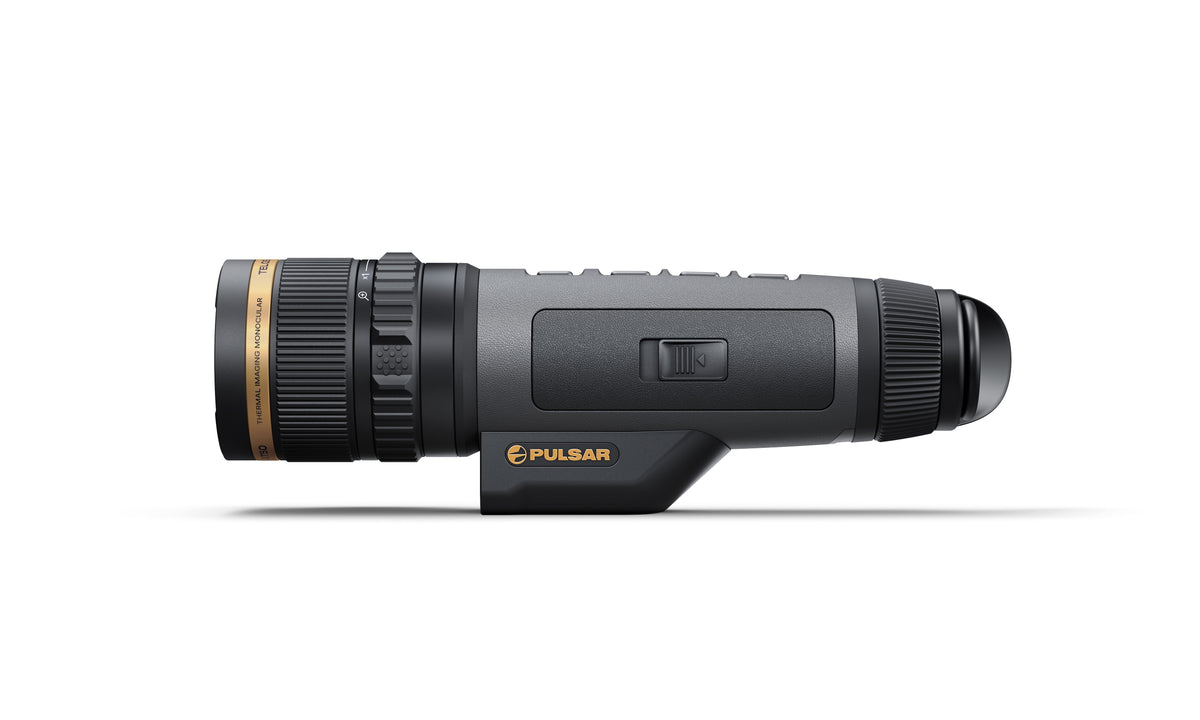

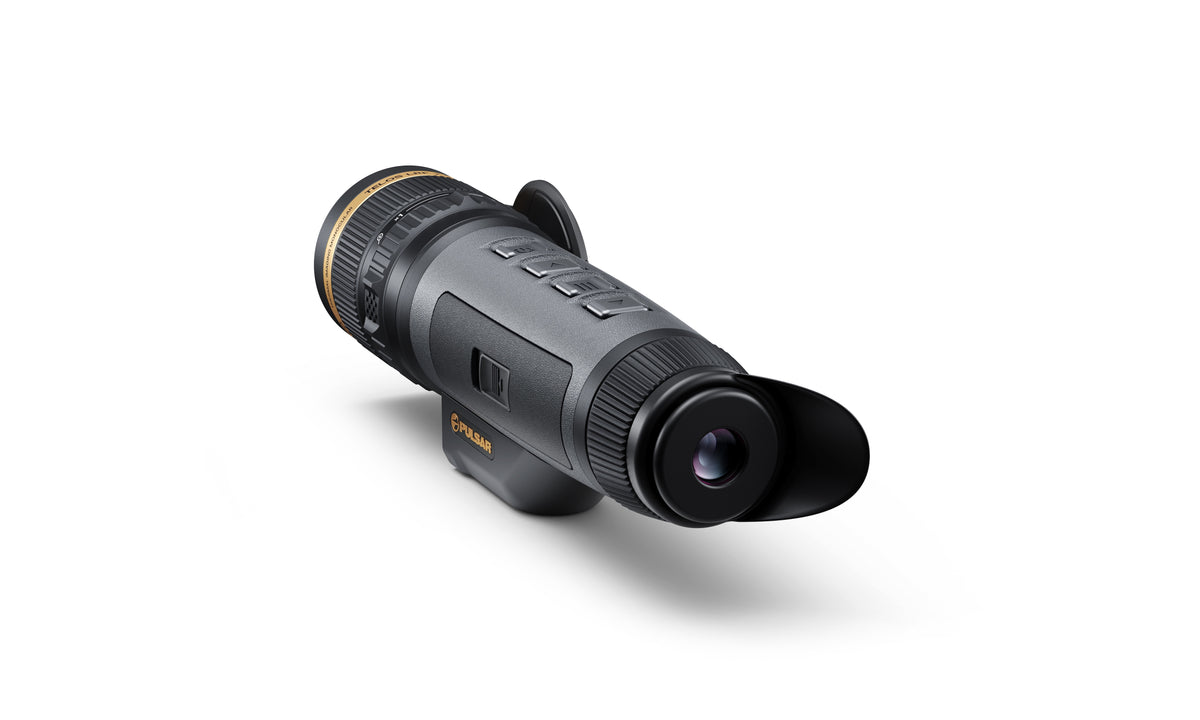

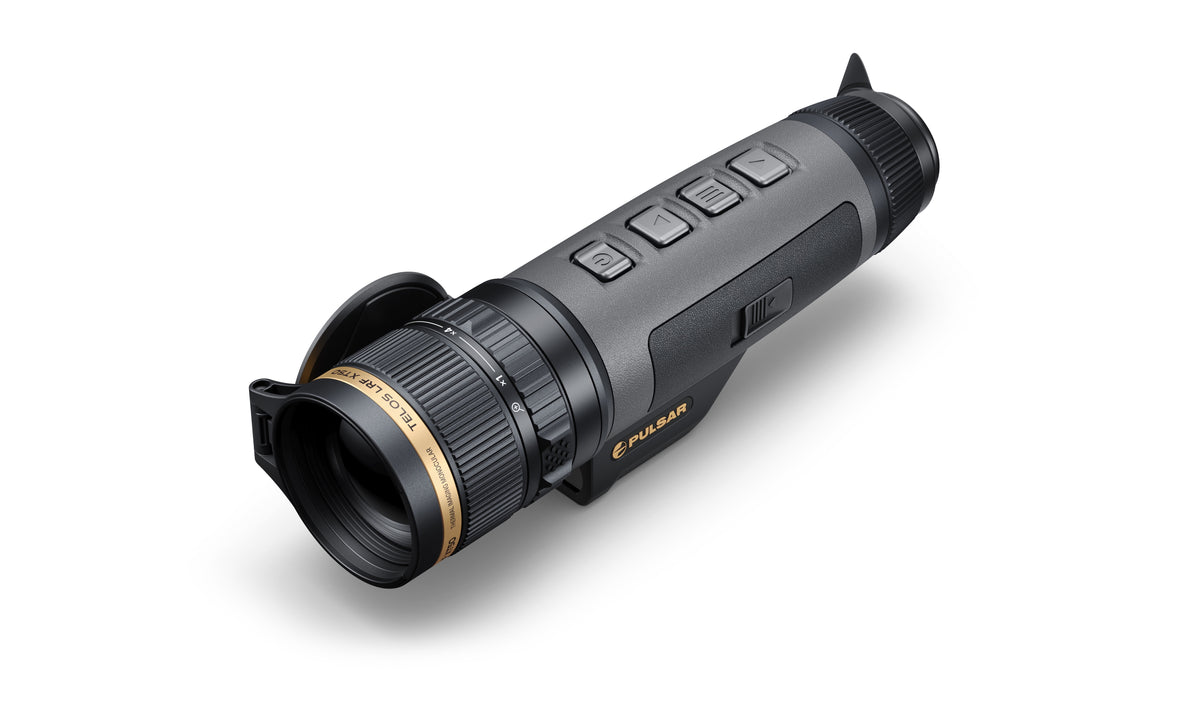

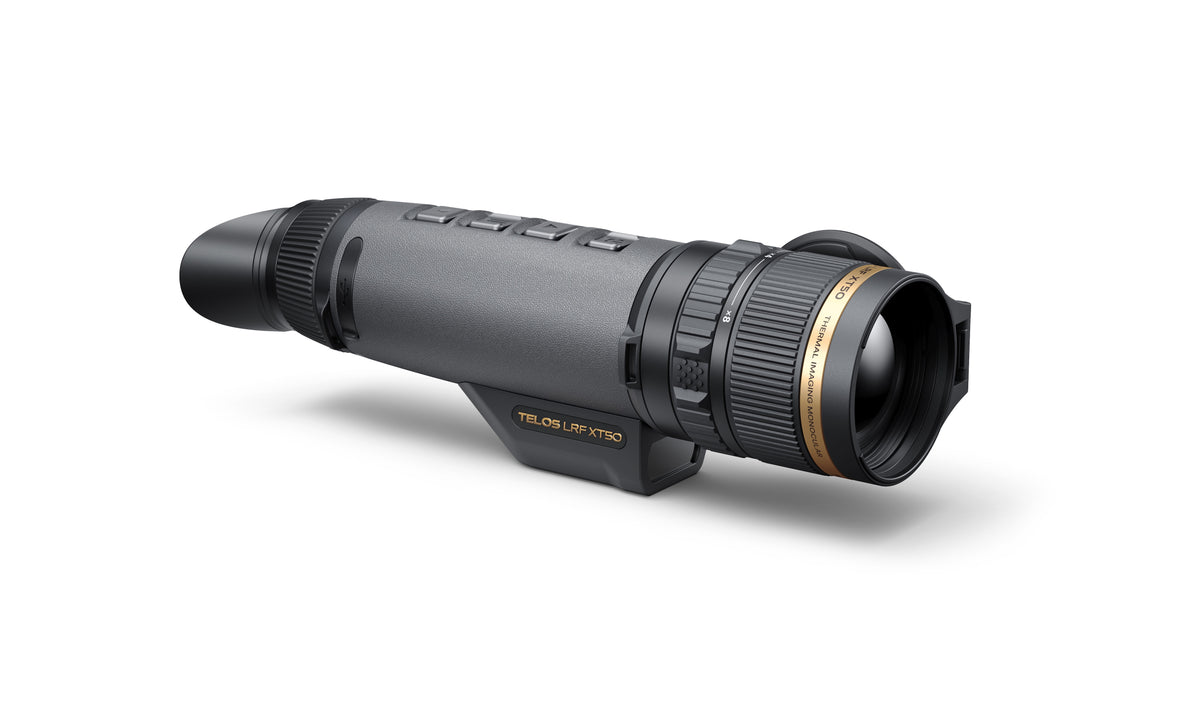

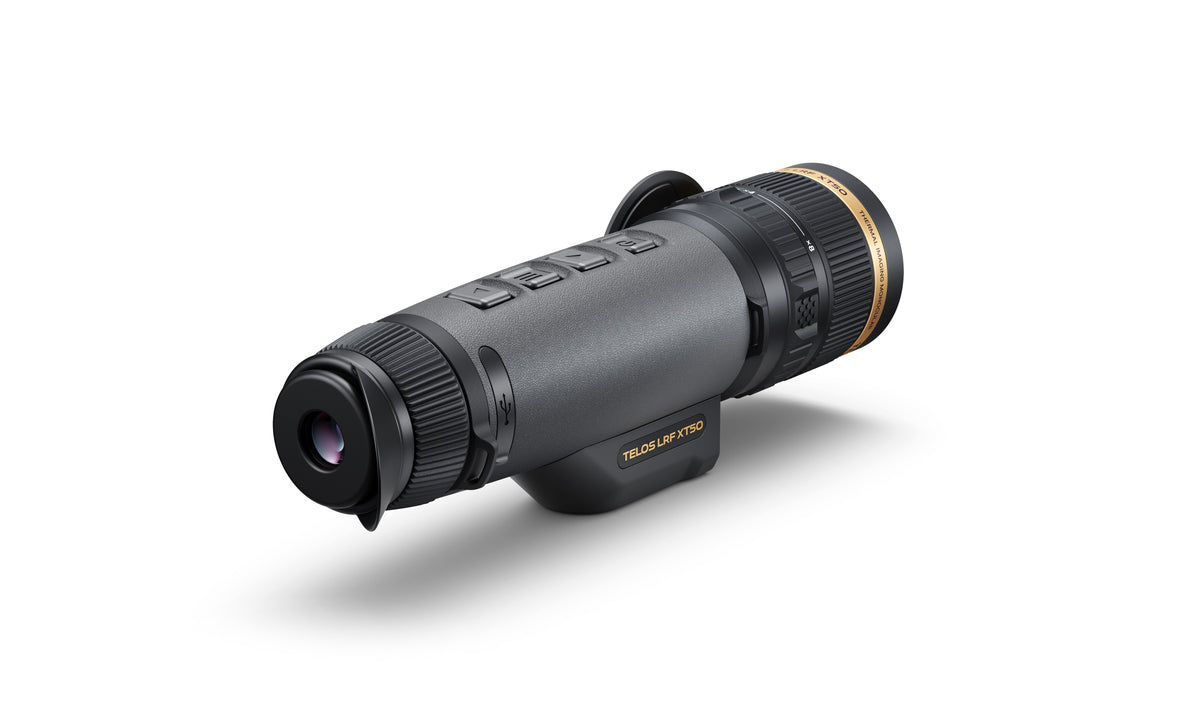

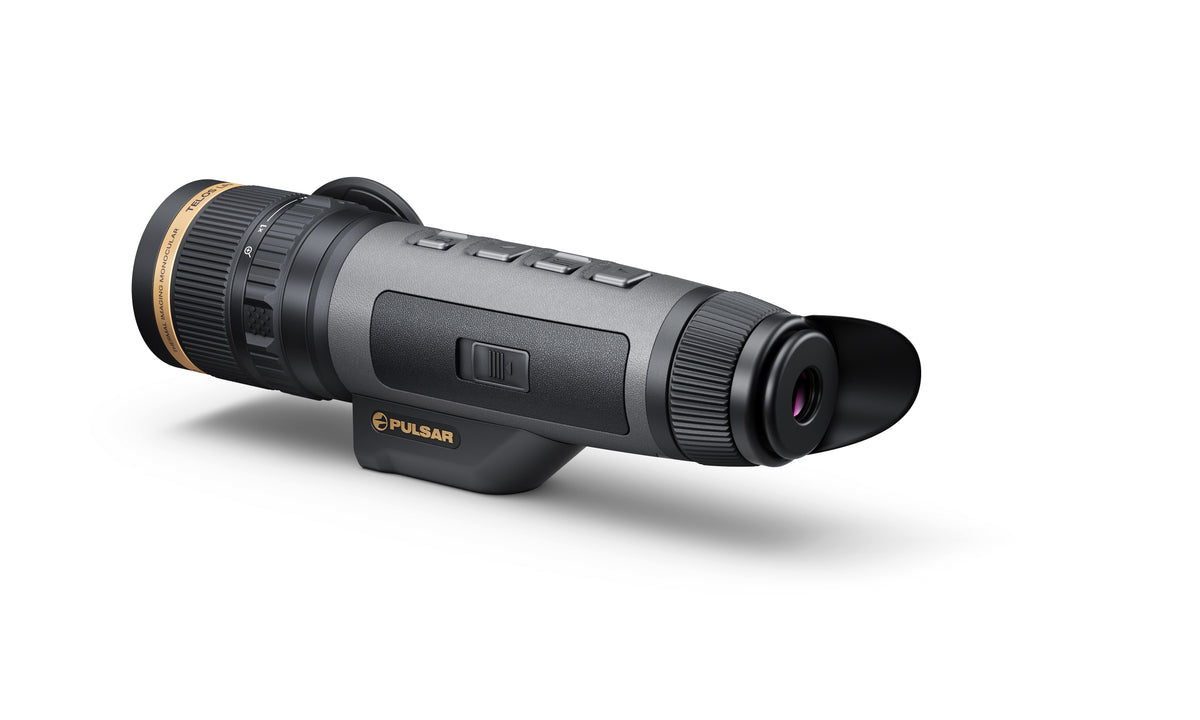

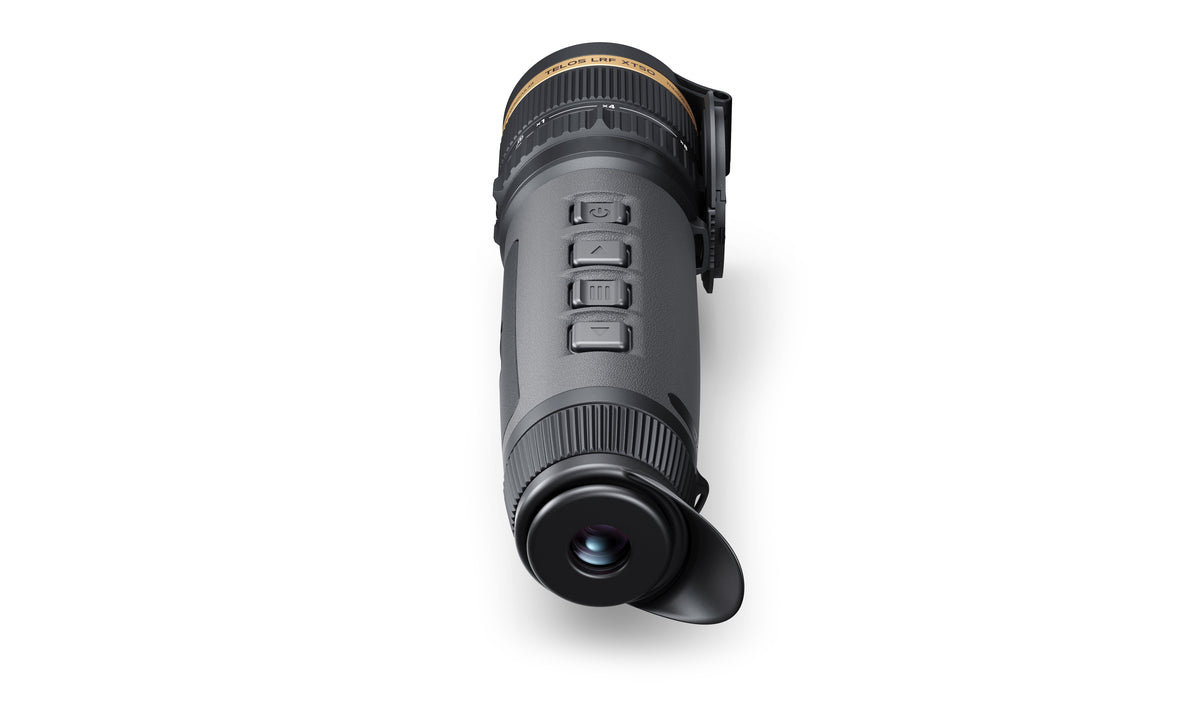

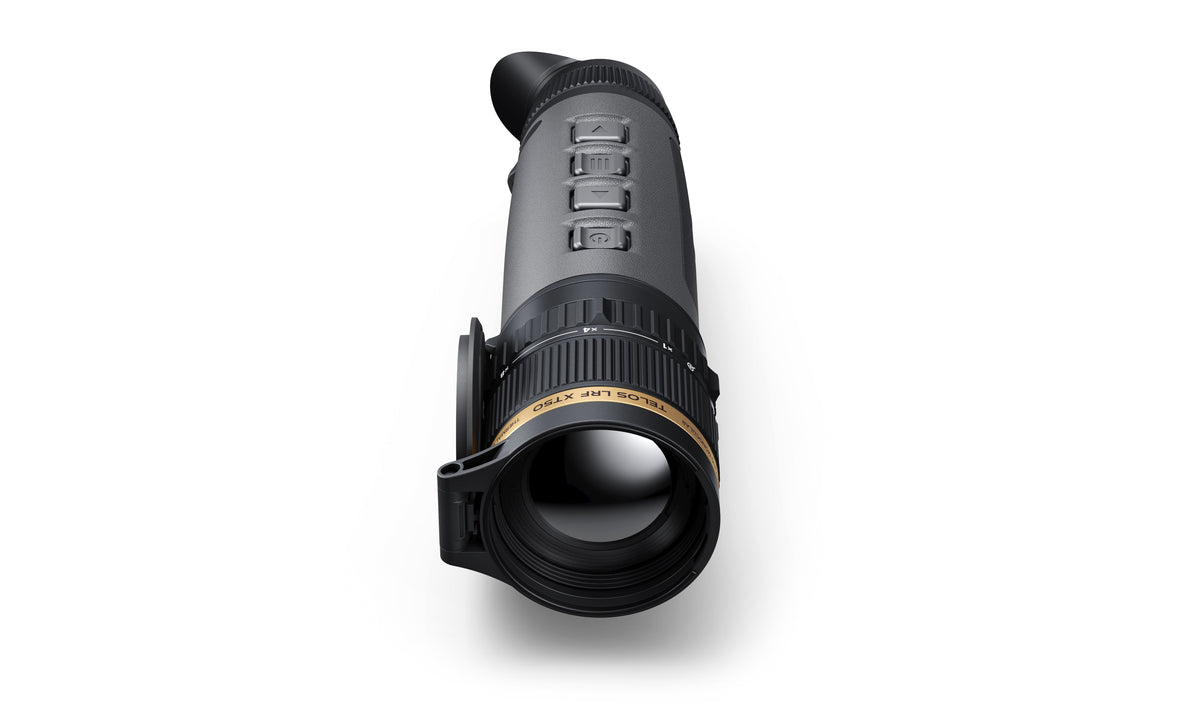

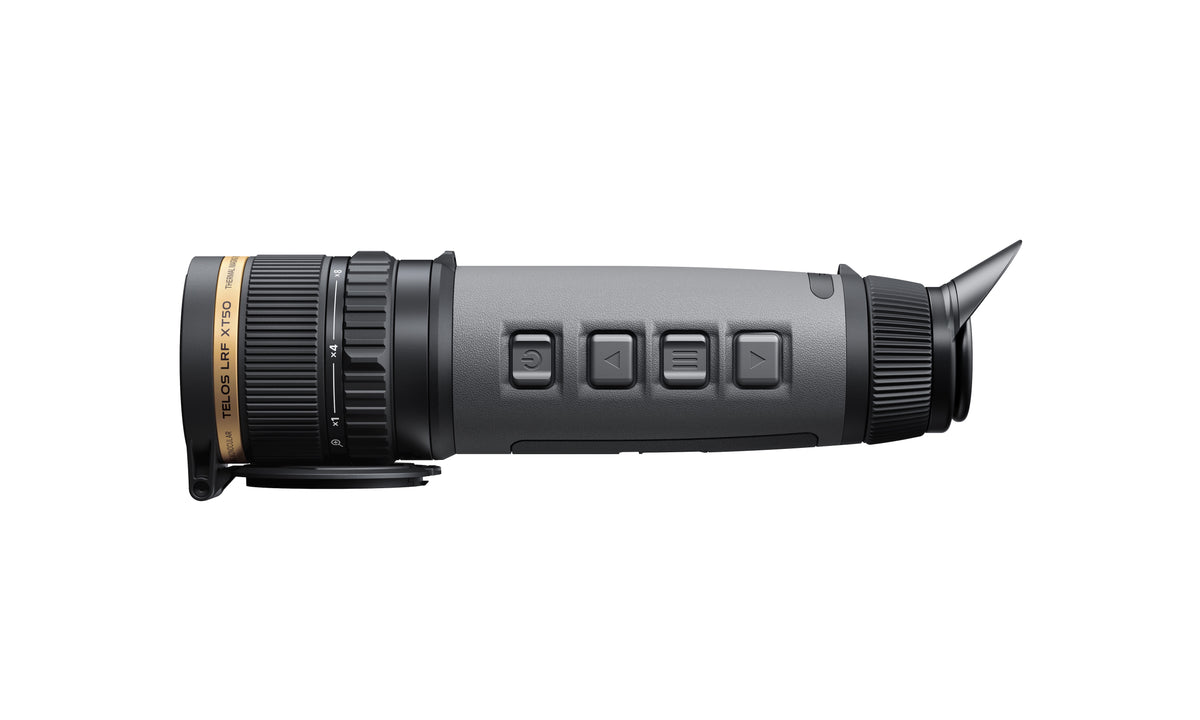

Pulsar TELOS XT50 LRF 1280 Thermal Monocular

SKU:PL77524

Regular price $ 4,499.97
Sale Sold out
Free ground shipping available. Expedited shipping options are available at checkout.
Quantity

Pulsar TELOS XT50 LRF Thermal Imaging Monocular 1280x1024 12um 50Hz WiFi (PL77524)

Pulsar TELOS XT50 LRF 1280 Thermal Monocular

The Pulsar TELOS XT50 LRF is a premium high-resolution thermal imaging monocular featuring a 1280×1024, 12µm HD thermal sensor, fast 50mm F1.0 objective lens, wide 17.5° field of view, electronic image stabilization, and an integrated precision laser rangefinder.

Its high-resolution thermal sensor and less-than-20 mK system NETD deliver excellent thermal detail across a wide range of environmental conditions. The 2x–16x magnification range, with Zoom Boost up to 24x, provides flexibility for wide-area scanning and detailed long-distance observation.

The built-in laser rangefinder measures distances up to 1,200 meters (1,312 yards), while the thermal imaging system provides a detection range up to 2,300 meters (2,516 yards). A 1920×1080 Full HD AMOLED display provides a detailed internal viewing image.

The Pulsar TELOS XT50 LRF combines HD thermal imaging, long-range detection, precision ranging, image stabilization, recording, wireless connectivity, and a rugged weather-resistant design in a premium handheld thermal monocular.

Key Features:

• 1280×1024 HD thermal sensor
• 12µm pixel pitch
• 50 Hz frame rate
• Sensor NETD <40 mK
• System NETD <20 mK
• 50mm F1.0 objective lens
• 2x–16x magnification
• Zoom Boost up to 24x
• Wide 17.5° field of view
• Electronic image stabilization
• 1920×1080 Full HD AMOLED display
• Built-in laser rangefinder
• Up to 1,312-yard rangefinder measurement
• Up to 2,516-yard thermal detection range
• 128GB internal photo and video storage
• Three sensitivity amplification levels
• Nine thermal color palettes
• Wi-Fi, Bluetooth and NFC connectivity
• Stream Vision 2 compatibility
• Stream Vision Ballistics compatibility
• Replaceable LPS7i rechargeable battery
• Up to 8 hours battery operation
• USB Type-C Power Delivery
• IPX7 waterproof protection
• Nonslip rubber-coated housing
• Upgradeable Telos platform

Pulsar TELOS XT50 LRF Specifications:

MAIN

  • 1280x1024 @ 12 µm (sNETD <20 mK)
  • F50 / 1.0
  • 2 – 16 (Zoom Boost – 24)
  • 17.5 / 30.7
  • 2300

SENSOR

  • uncooled microbolometer
  • 1280x1024
  • 12
  • < 40
  • < 20
  • 50

OPTICS

  • F50 / 1.0
  • 2 – 16 (Zoom Boost – 24)
  • 17.5 / 30.7
  • 13
  • +4 / -5

DISPLAY

  • AMOLED
  • 1920x1080

RANGE PERFORMANCE

  • 2300
  • 1200

VIDEO RECORDER

  • 128

WI-FI

  • Wi-Fi
  • 2.4 / 5

ENVIRONMENTAL CHARACTERISTICS

  • IPX7 (waterproof)
  • -25 – +50

CONNECTIONS AND COMPATIBILITIES

  • Stream Vision 2 / Stream Vision Ballistics
  • Yes
  • Yes

POWER SUPPLY

  • LPS7i
  • 8
  • 5V, 9V (USB Type-C Power Delivery)

WEIGHT & SIZE

  • 242x72x77
  • 0.73

Package Contents:

Telos LRF thermal imager

LPS7i battery pack with protective cover

Spare battery compartment cover

Power adapter

USB Type-C cable with USB Type-A adapter

Case

Hand strap

Quick start guide

Lens cloth

Warranty card

U.S. Export Restrictions (ITAR/EAR)

This product is available for U.S. sale only and may be subject to ITAR and/or EAR export-control regulations. Please review our ITAR/EAR Compliance Policy before purchasing.
