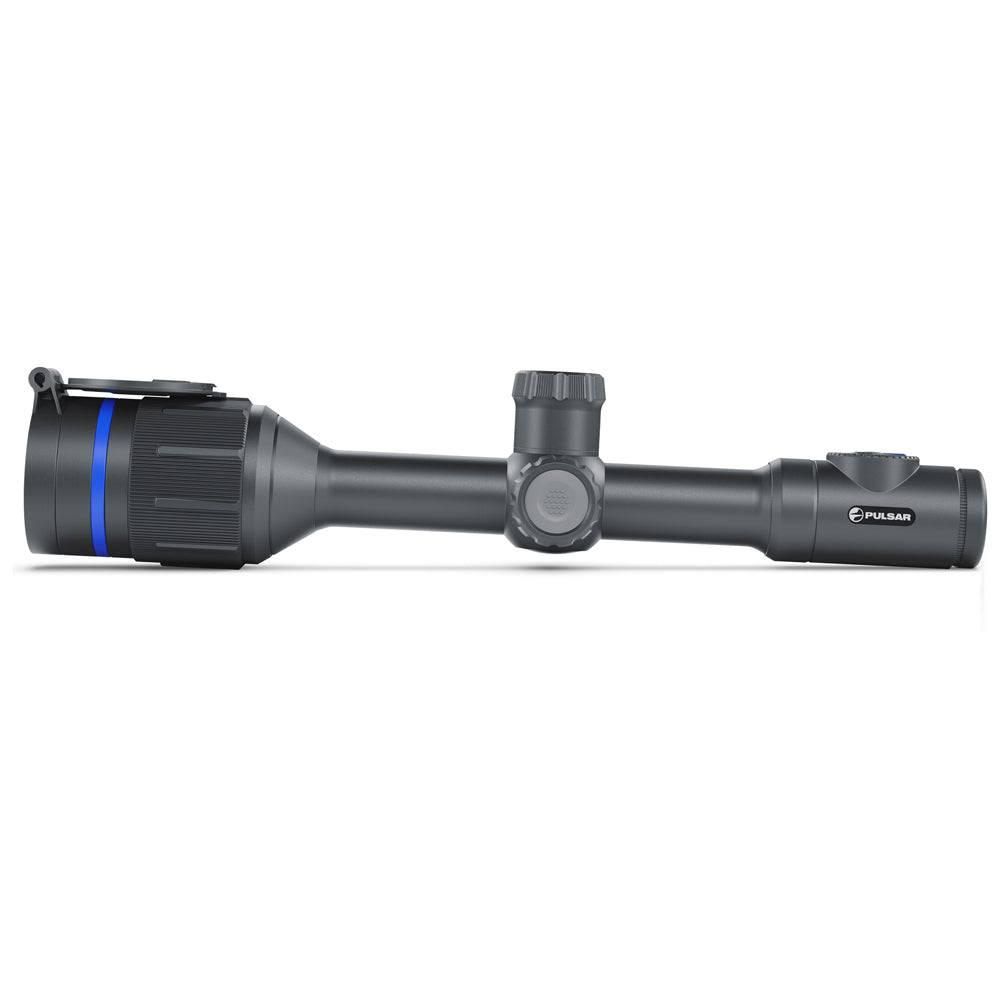

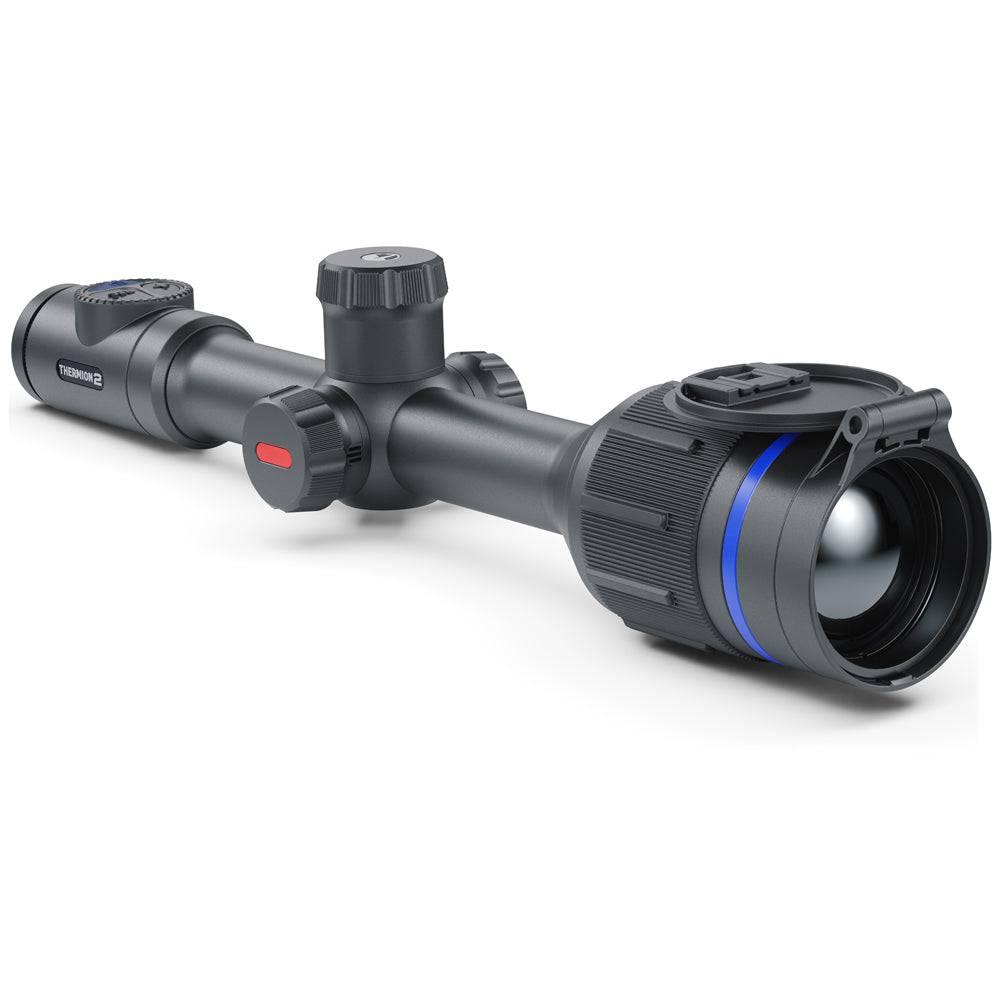

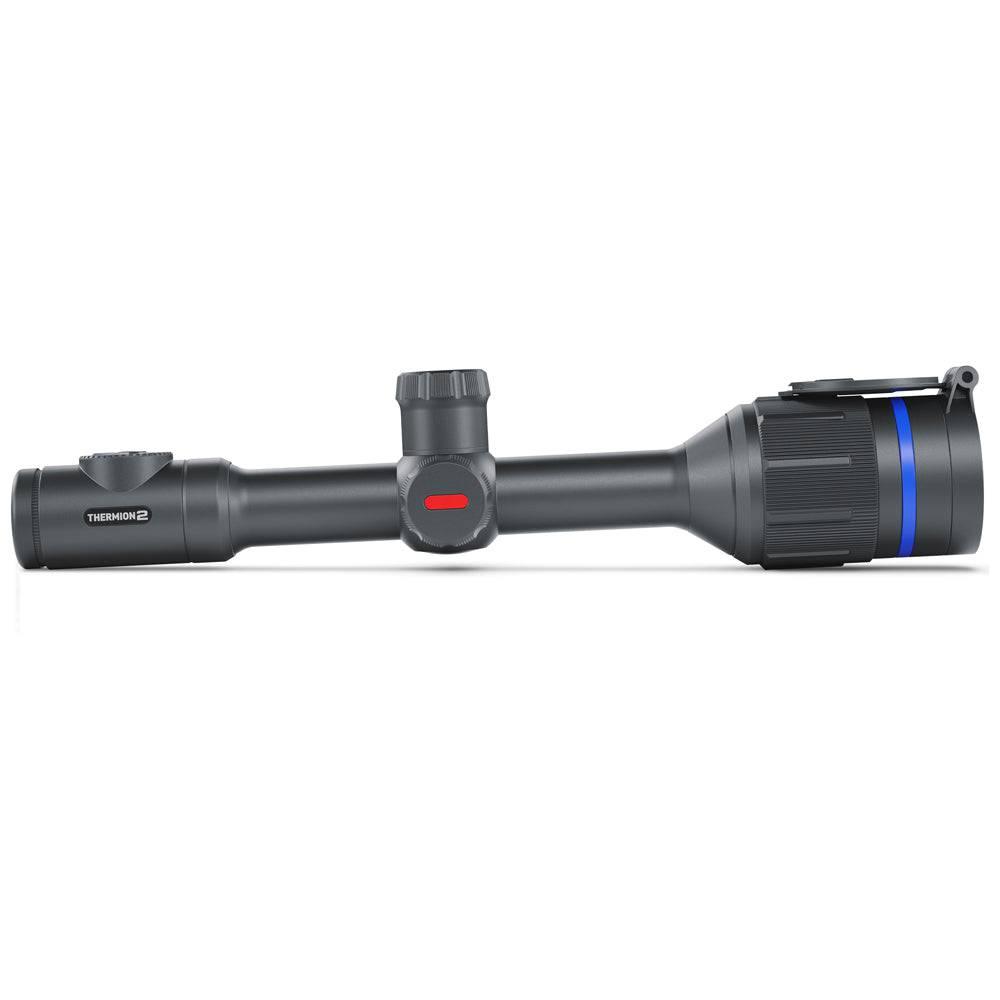

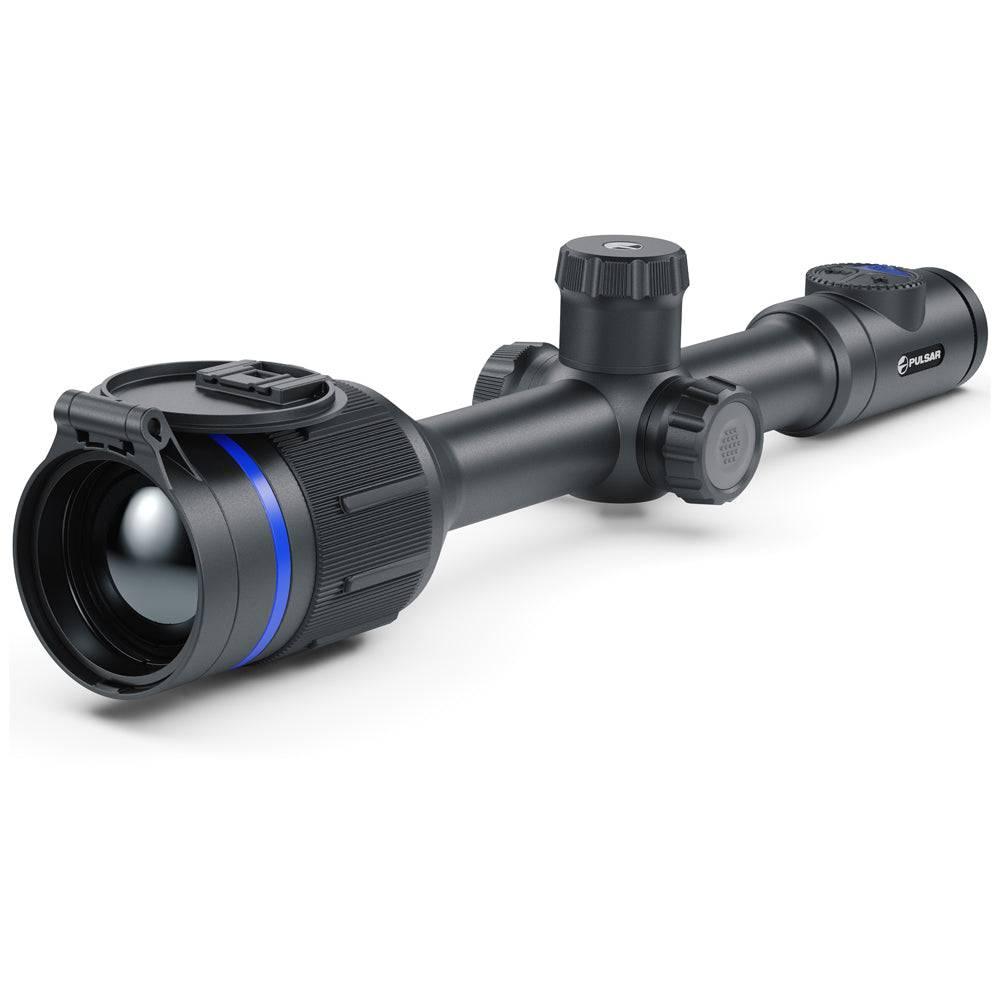

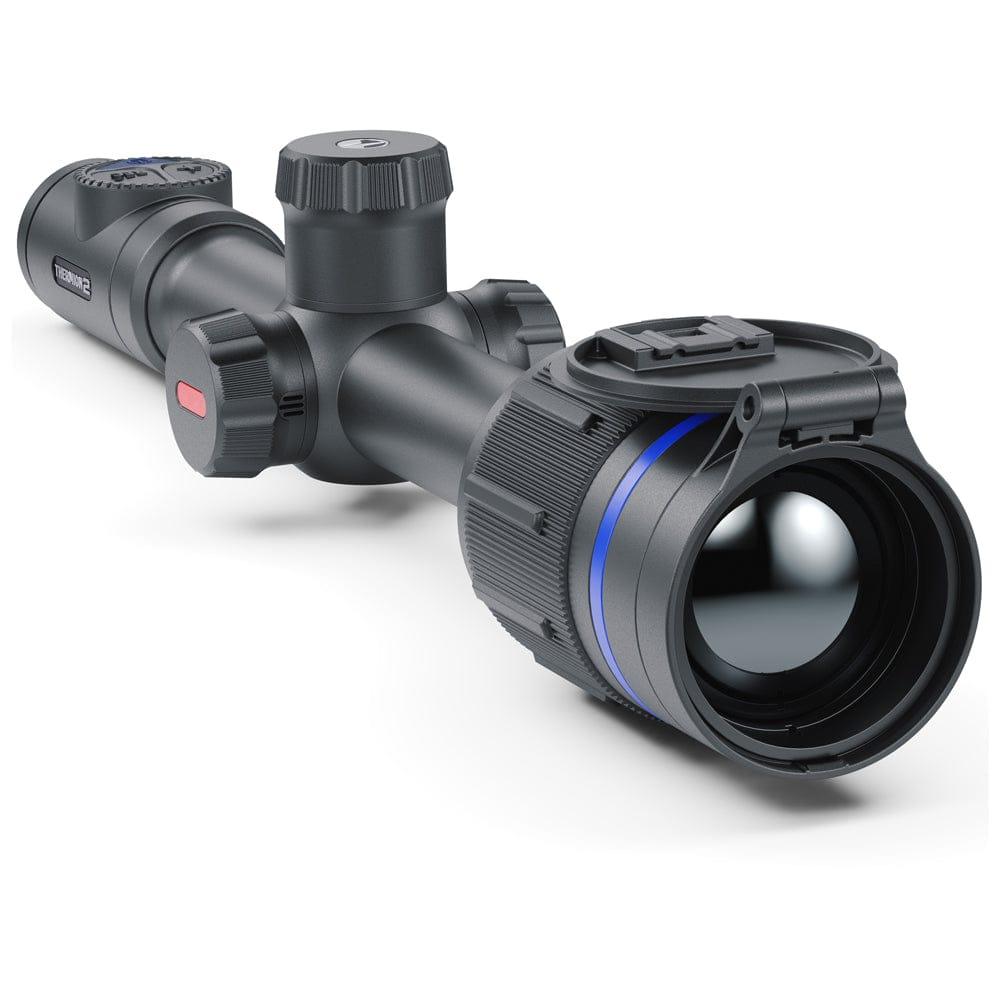

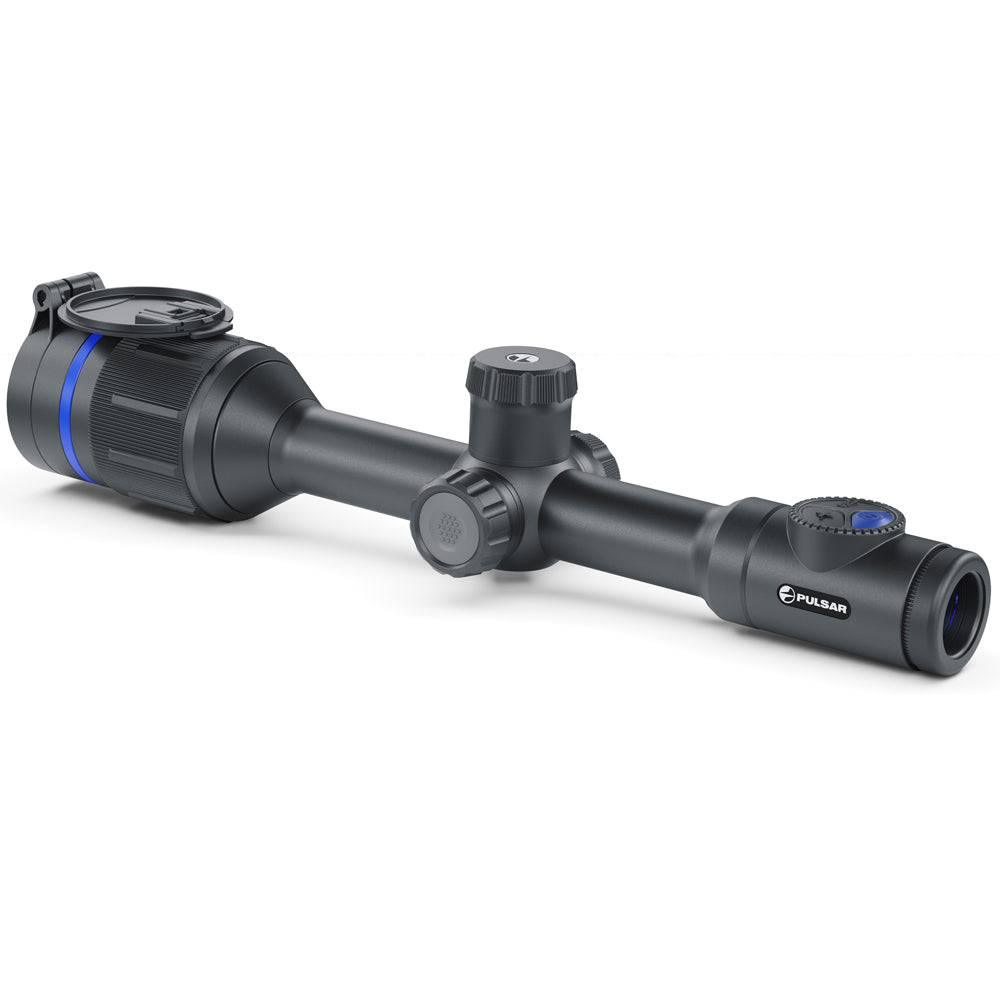

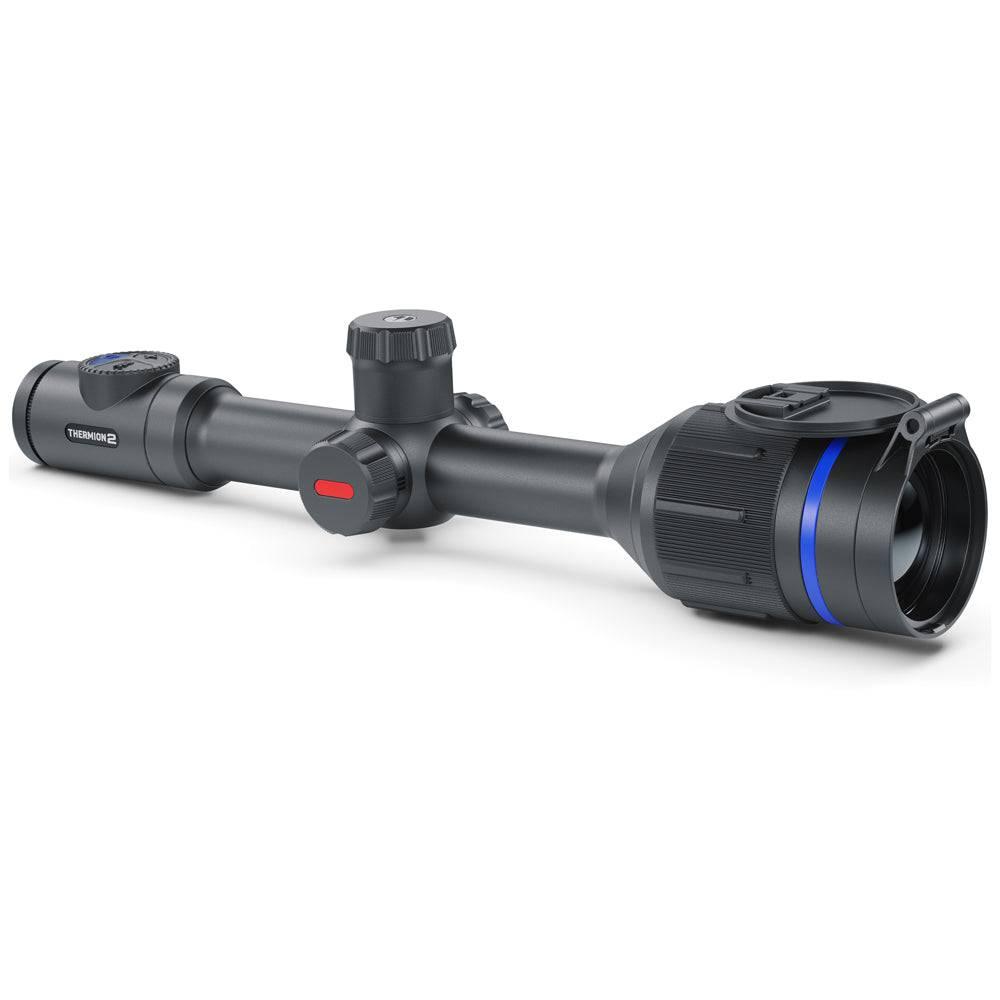

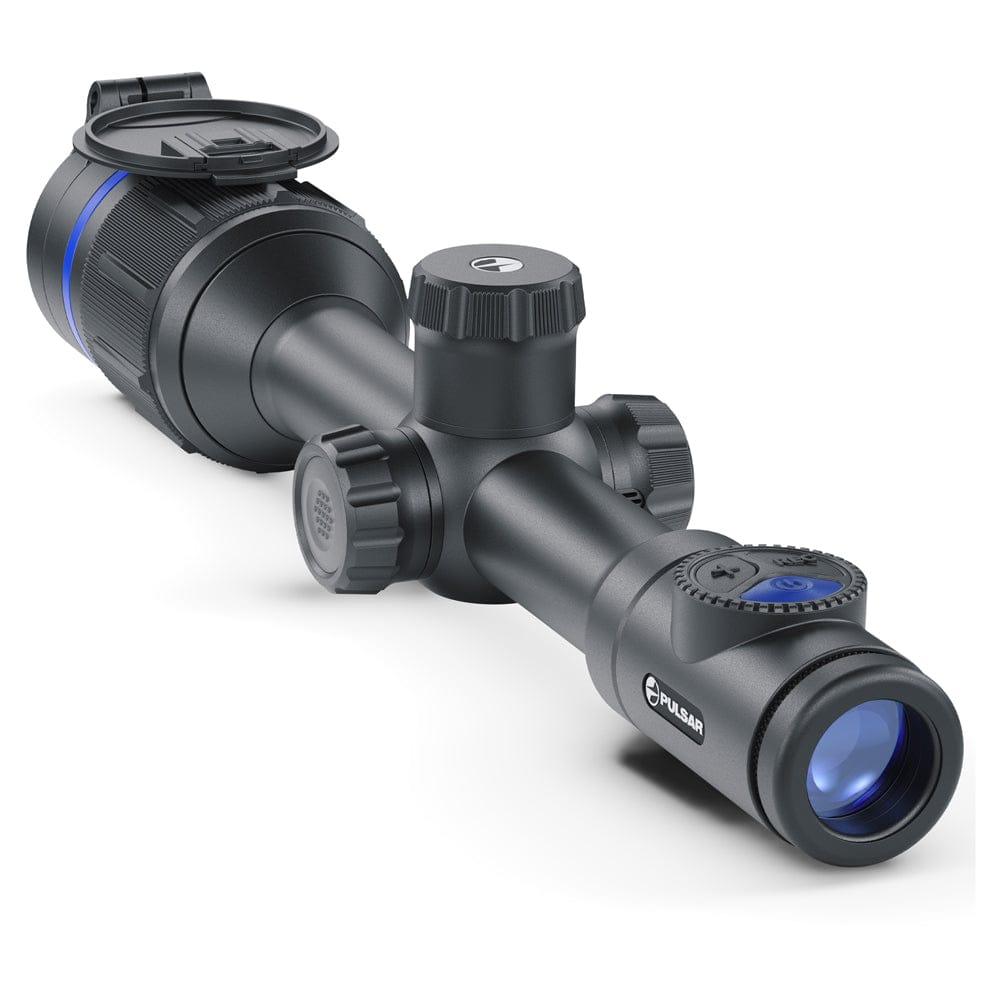

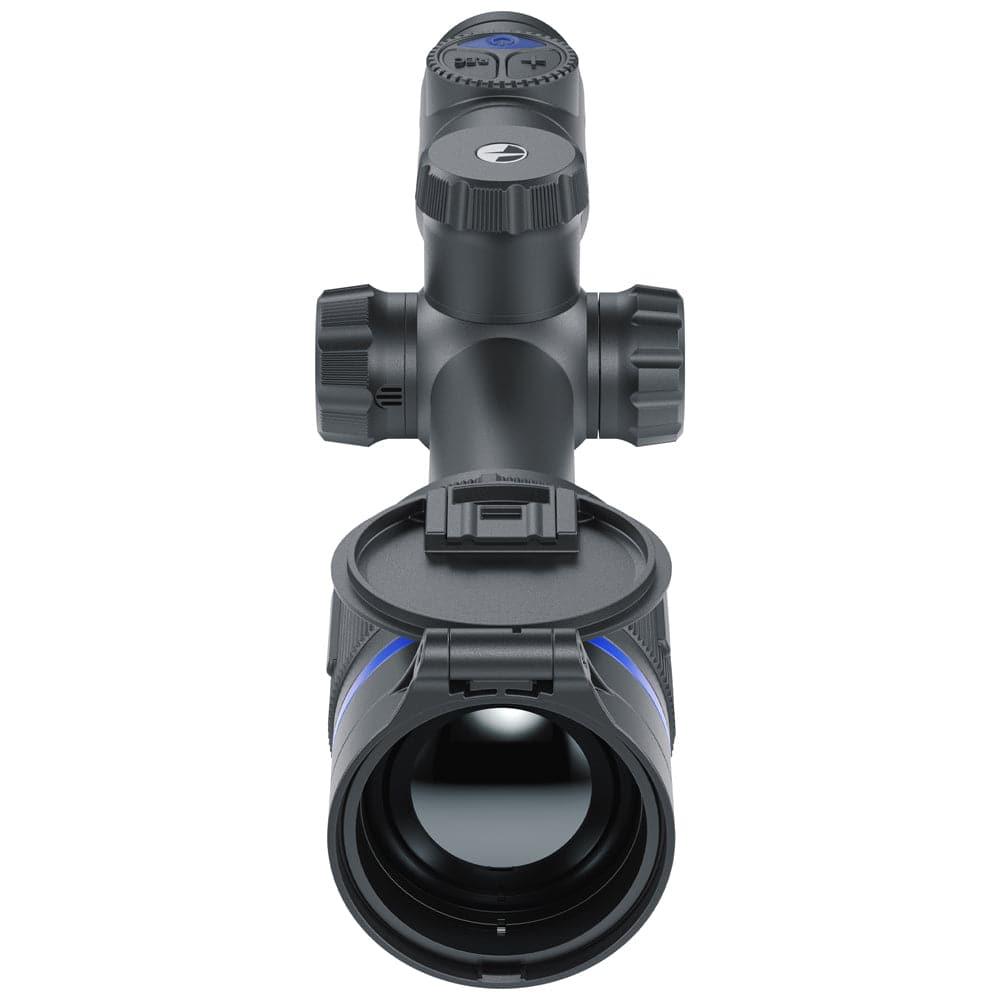

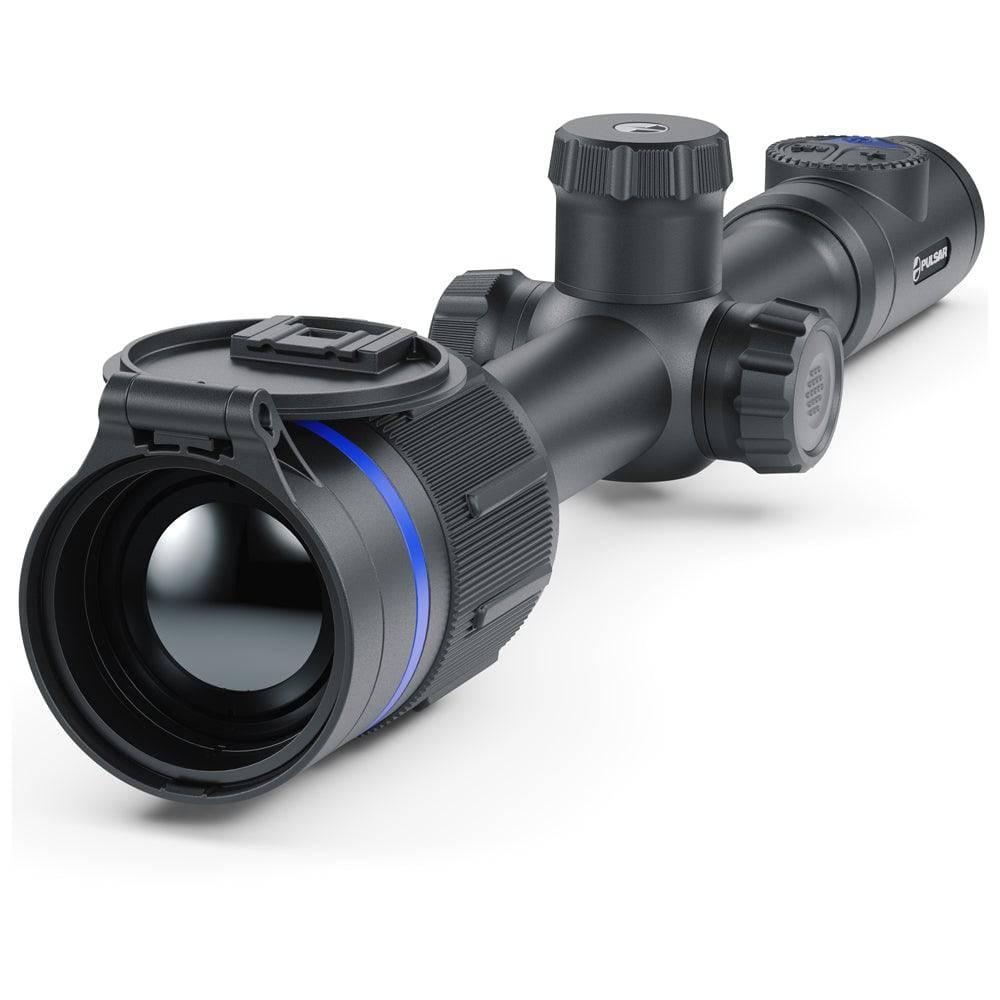

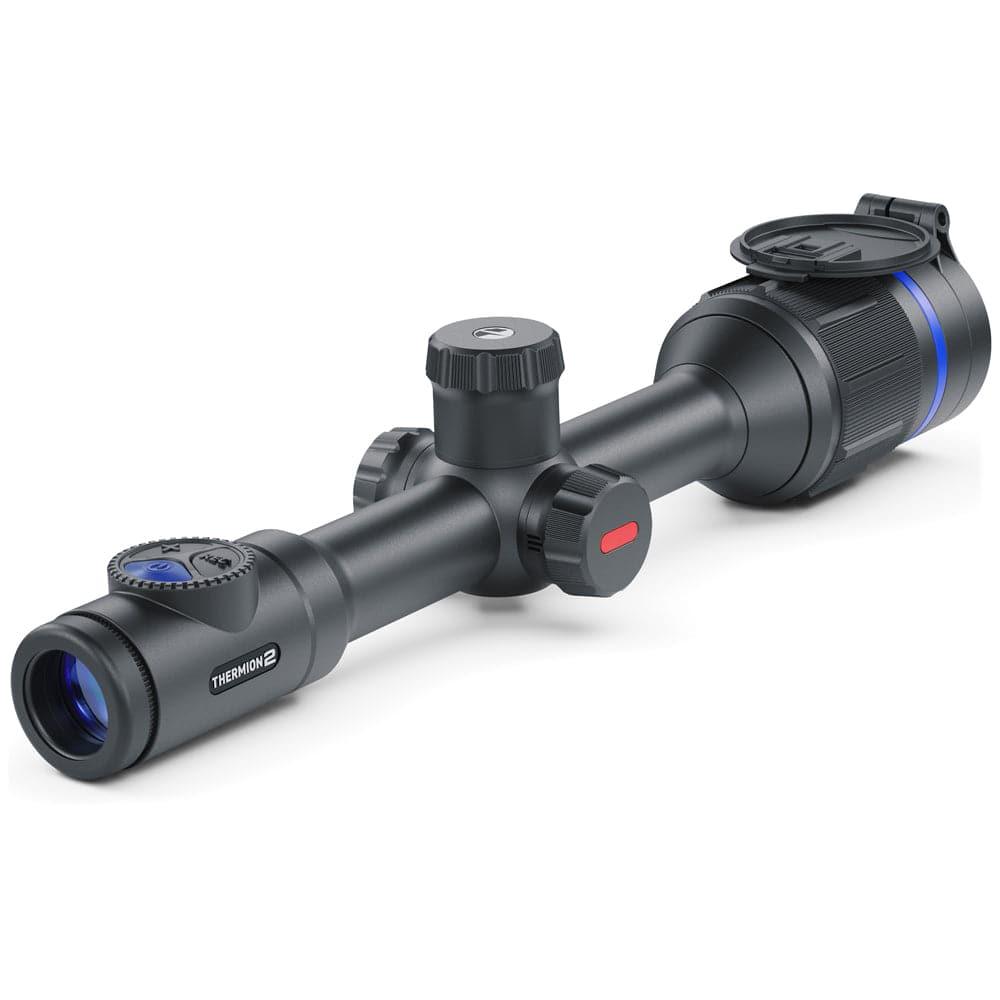

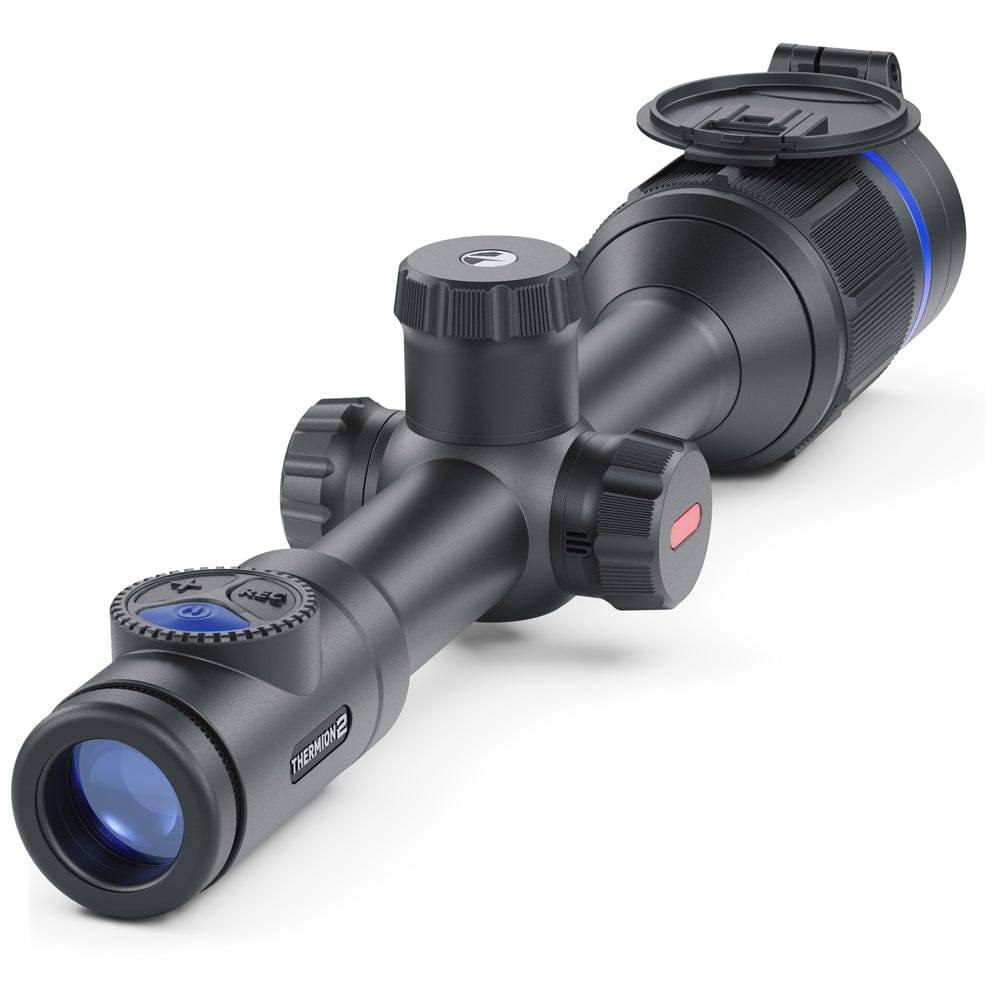

Pulsar Thermion 2 XQ50 Pro Thermal Rifle Scope Weapon Sight 384x288 50Hz WiFi (PL76548)
The Pulsar Thermion 2 XQ50 Pro is a powerful thermal scope designed for users seeking advanced thermal imaging in various applications, including hunting and law enforcement. It features a 384x288 microbolometer sensor with a detection range of up to 1968 yards, ensuring the ability to detect even the smallest heat variations. The 1024x768 AMOLED display and 50mm objective lens, combined with a NETD <25mK sensitivity rating, deliver sharp, detailed images across various environmental conditions.
Equipped with 3-12x digital magnification, 10 reticle options, 8 color palettes, and 4 distinct modes, the Thermion 2 XQ50 Pro provides customizable viewing options to meet a range of operational needs. The built-in recordingcapabilities with audio, along with Picture-in-Picture mode and 16GB of internal memory, make it easy to capture and store footage of every moment in the field.
This thermal scope is also designed for extended use, featuring a dual battery pack with hot swapping capability that offers up to 7 hours of continuous operation. The rugged design ensures durability with an IPX7 waterproof rating, allowing it to perform in harsh weather conditions, and it is capable of operating in temperatures from -13°F to 122°F.
For users requiring a thermal scope with exceptional performance and versatility, the Thermion 2 XQ50 Pro offers cutting-edge technology and reliable durability in one sleek package.
Pulsar Thermion 2 XQ50 Pro 384 Features:
Highly sensitive thermal imaging sensor
Thermal imaging sensor with NETD <25mK* ensures perfect detail recognition even in the harshest weather conditions with low thermal contrast. The smallest temperature differences will be clearly visible during rainfall, in fog or cold mornings in the most difficult conditions for thermal imaging.
Fast Aperture F/1.0 Germanium Optics
Quality fast-aperture germanium optics ensure optimal heat energy transmissivity minimizing noise and improving the details of the scene observed.

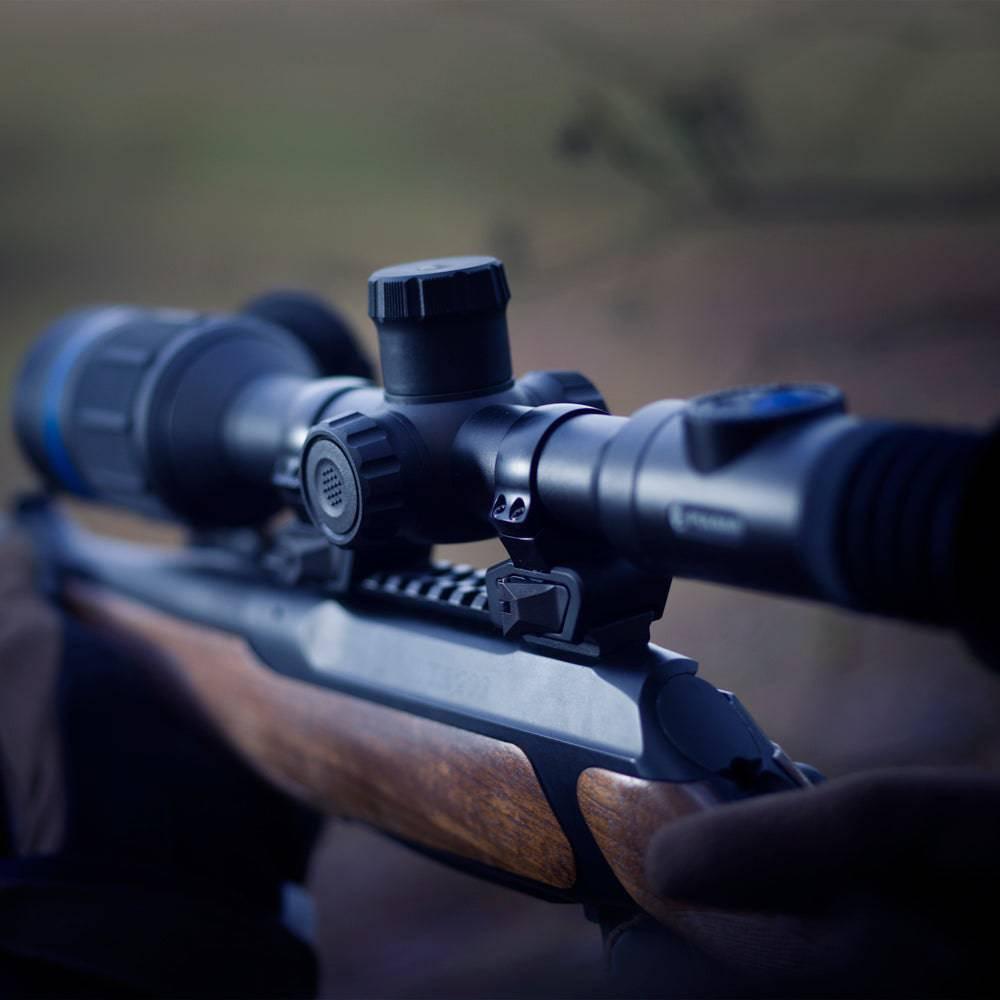

Mounts on Standard 30 mm Scope Rings
Designed from the ground up for ease of use, Thermion riflescopes are mounted on standard 30mm scope rings. No specialized tools or equipment are required.
Extreme Detection Range 1968 m (2,152 Yds)
High quality germanium optics coupled with an advanced thermal imaging sensor ensure an unprecedented detection range of up to 1968 meters – even in complete darkness.
Rugged and reliable
Recoil Rated up to .375 H&H, 12-Gauge and 9.3x64
Recoil rated up to 6,000 joules for flawless performance on larger calibers up to .375 H&H, 12-gauge and 9.3x64.
Rugged, Reliable All-Metal Housing
Designed for rugged reliability, Thermion riflescopes boast full, reinforced yet lightweight мetal construction. Precision-fabrication of housing elements ensures flawless field performance.
IPX7 Waterproof Rated
IPX7 waterproof rated for protection from heavy rainfall, snow or other precipitation. The Thermion is designed to run flawlessly, even after submersion in up to 3 feet of water for up to 30 minutes.
Clear on target!
Variable Digital Zoom
Digital zoom, up to 8x, provides improved focus and overall target recognition at significant distances.
Zeroing Profiles Management
Store up to 5 zeroing profiles, with 10 distance coordinates each for varying scenarios, in internal memory for quick rifle change-outs and on-the-fly adjustments.
Customizable Reticle Options
Wide array of color-customizable reticles, including scalable ballistic styles. Color options: black, white, red and green.
Picture-in-Picture
Picture-in-picture displays a magnified image at the top-center 10% of the overall field of view for precise shot placement.
Image. Quality
Image Boost Technology
Image Boost technology is a proprietary combination of software algorithms which enhance image clarity and overall image detail. Applying Image Boost makes for a sharper and more detailed picture enabling better object identification capabilities.
Full-Color, HD AMOLED Display
While the Thermion’s HD AMOLED display delivers crisp, richly contrasted, vividly colored field of view, AMOLED technology ensures flawless, fluid, high-resolution imaging and power saving.
Color Palettes
Color palettes offer customized display options. While white hot and black hot are most popular, red hot, rainbow and ultramarine highlight a heat signature’s more intense hot spots. Violet, red monochrome and sepia are optimal palettes for reduced eye fatigue over long periods of observation.
Video and Still-Photo Recording
Integrated video (including recoil-activation) and still image recording in MPEG-4 and .jpg makes sharing the thermal action quick and easy. The onboard 16-GB internal memory handles recoil flawlessly and stores hours of video or thousands of photos.
Stream Vision App Supported
Using Wi-Fi and the Stream Vision App, connect the Thermion to a smartphone or tablet for use as a second display or remote control and to transfer recorded files, adjust settings, and upgrade firmware.
Upgradable Functionality
Functions and features of Thermion models as well as their performance can be upgraded and improved with the release of new software.
User Friendly Controls

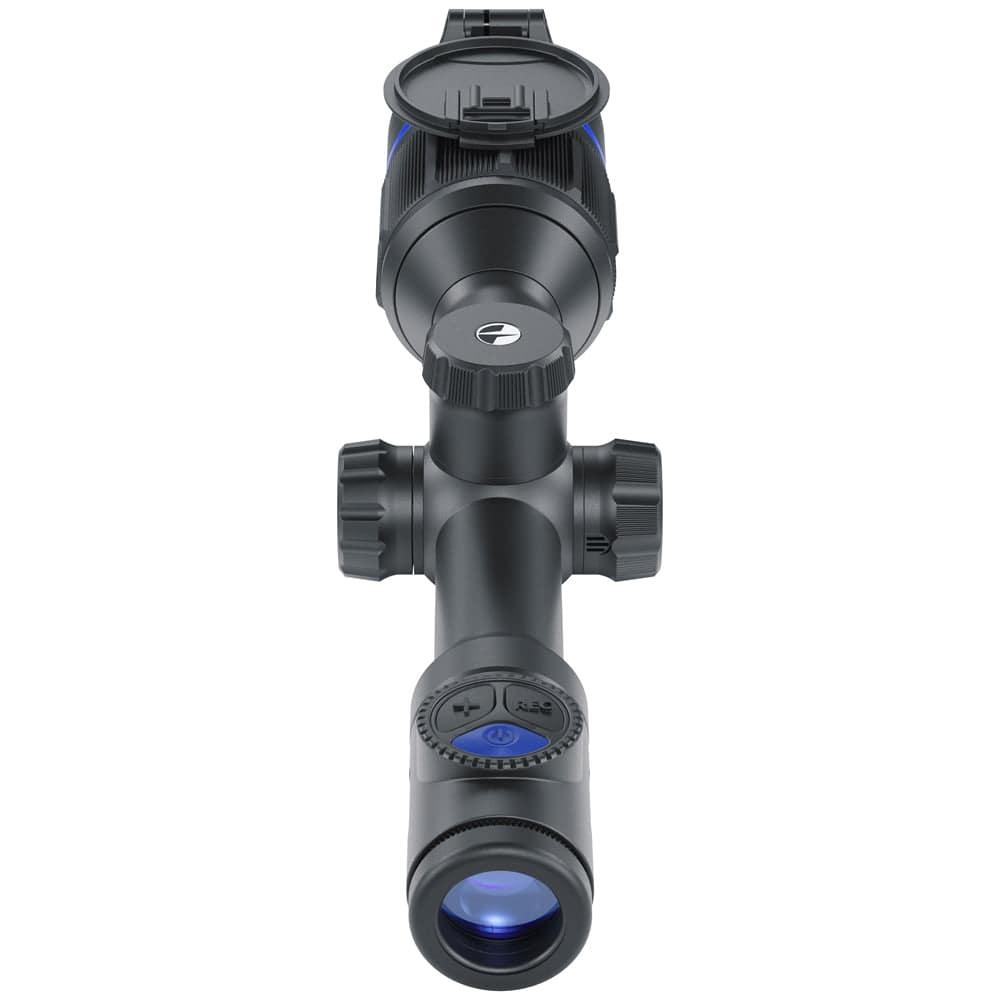

Thermion operation and adjustments are simple using the three function buttons on the top of the device and left side encoder. The three buttons and encoder provide access and management of all device menu options, settings, and system functions.
B-Pack Mini Combined Power System
Thermion riflescopes have a combined battery system which consists of two rechargeable batteries – internal and external. The external rechargeable battery ensures additional operation time and can be replaced in a matter of seconds.
Pulsar Thermion 2 XQ50 Pro 384 Specifications:
Main
Sensor
384x288 pix. @ 17 µm (NETD <25 mK)
Objective lens
F50 F/1.0
Magnification, x
3-12
Field of view (HxV), degrees
7.5
Detection range, m
1968
Sensor
Type
uncooled
Resolution, pixels
384x288
Pixel pitch, µm
17
NETD, mK
<25
Frame rate, Hz
50
Optics
Objective lens
F50 F/1.0
Magnification, x
3-12 (x4 zoom)
Field of view (HxV), degrees
7.5
Eye relief, mm
50
Display
Type
AMOLED
Resolution, pixels
1024х768
Range Performance
Detection range, m
1968
Reticle
Click value, H/V, mm at 100 m
21 – 2х, 10.5 – 4х, 5.25 – 8х, 2.6 – 16х
Click range, H/V, mm at 100 m
4200/4200
Number of preloaded reticles
10
Video Recorder
Video / photo resolution, pixel
1024х768
Video / photo format
.mp4 / .jpg
Built-in memory, GB
16
Wi-Fi
Wireless Protocol
Wi-Fi
Wireless Standard
802.11 b/g/n/ac
Frequency, GHz
2.4 / 5 GHz
Environmental Characteristics
Degree of protection, IP code (IEC60529)
IPX7
Operating temperature range, °С
-25 – +50
Connections and Compatibilities
Max. recoil power on rifled weapon (Eo), Joules
6000
Shock resistance on the smooth-bore rifles, caliber
12
Mounting brackets on weapon
30
Remote control
-
Supported Application
Stream Vision 2
Power Supply
Output voltage, V
3.0 – 4.2
Battery type
Li-Ion Battery Pack АPS2 (external), Li-Ion Battery Pack APS3 (external)*, Li-Ion Battery Pack APS5 (internal)
Capacity, mAh
2000 (external) + 3200 (external)* + 4900 (internal)
Operating time on battery pack (at t=22°C), h *
10
External power supply, V
5 V, 9 V (USB Type-C Power Delivery)
Weight & Size
Body material
Metal
Dimensions, mm
412x78x83
Weight, kg
0.9
Factory 3-Year Warranty with 2-Year Extension upon registration for USA Market
Delivery Package
• THERMION Thermal imaging riflescope
• APS2 rechargeable battery
• APS battery charger
• Mains charger
• USB cable
• Case
• Cloth for cleaning optics
• Quick start guide
• Warranty card
• APS3 battery cover
