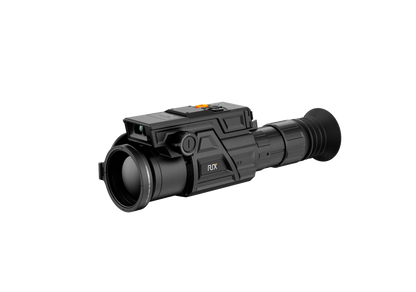

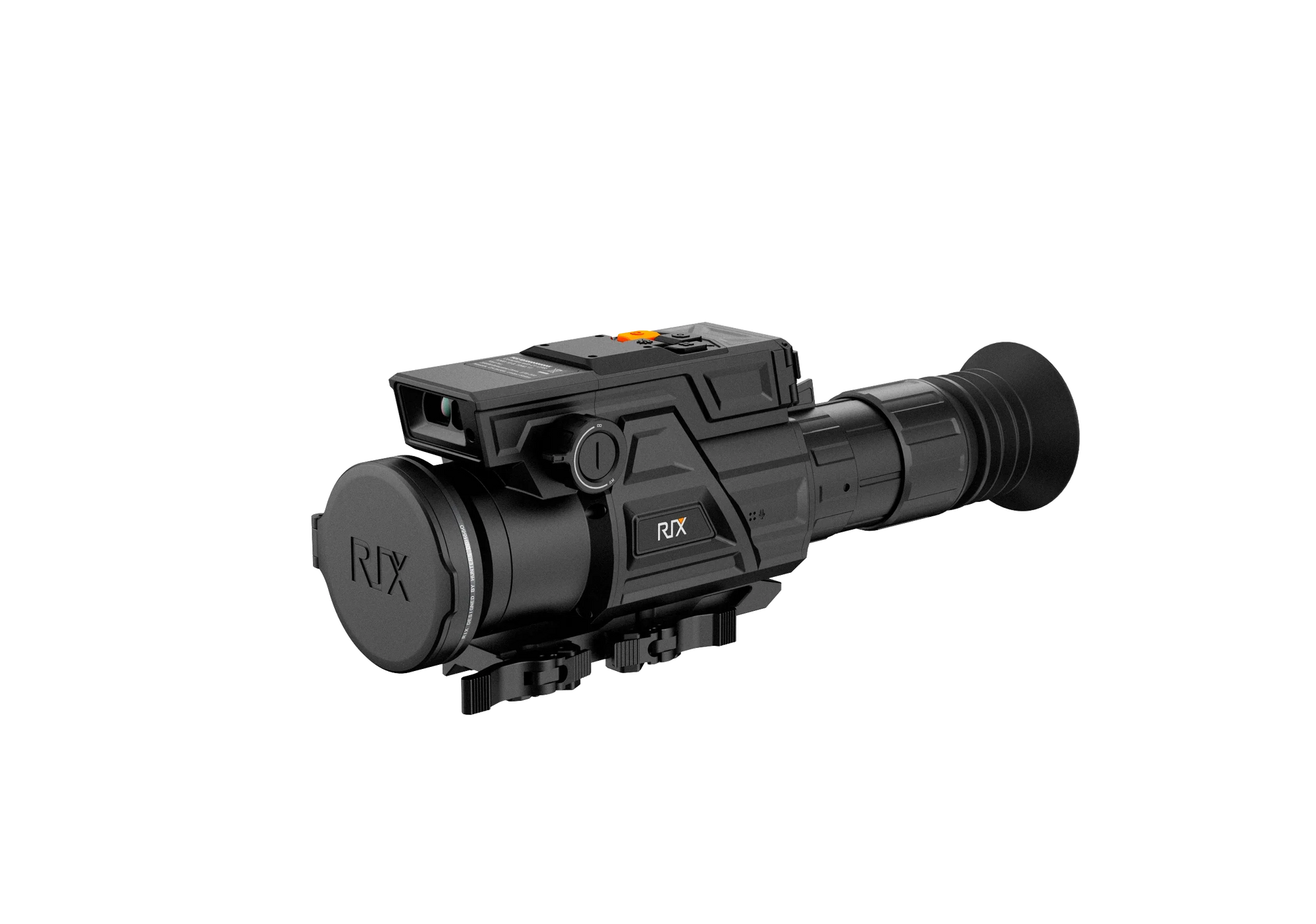

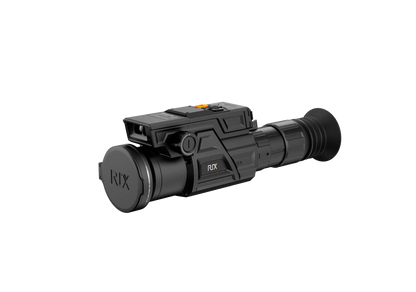

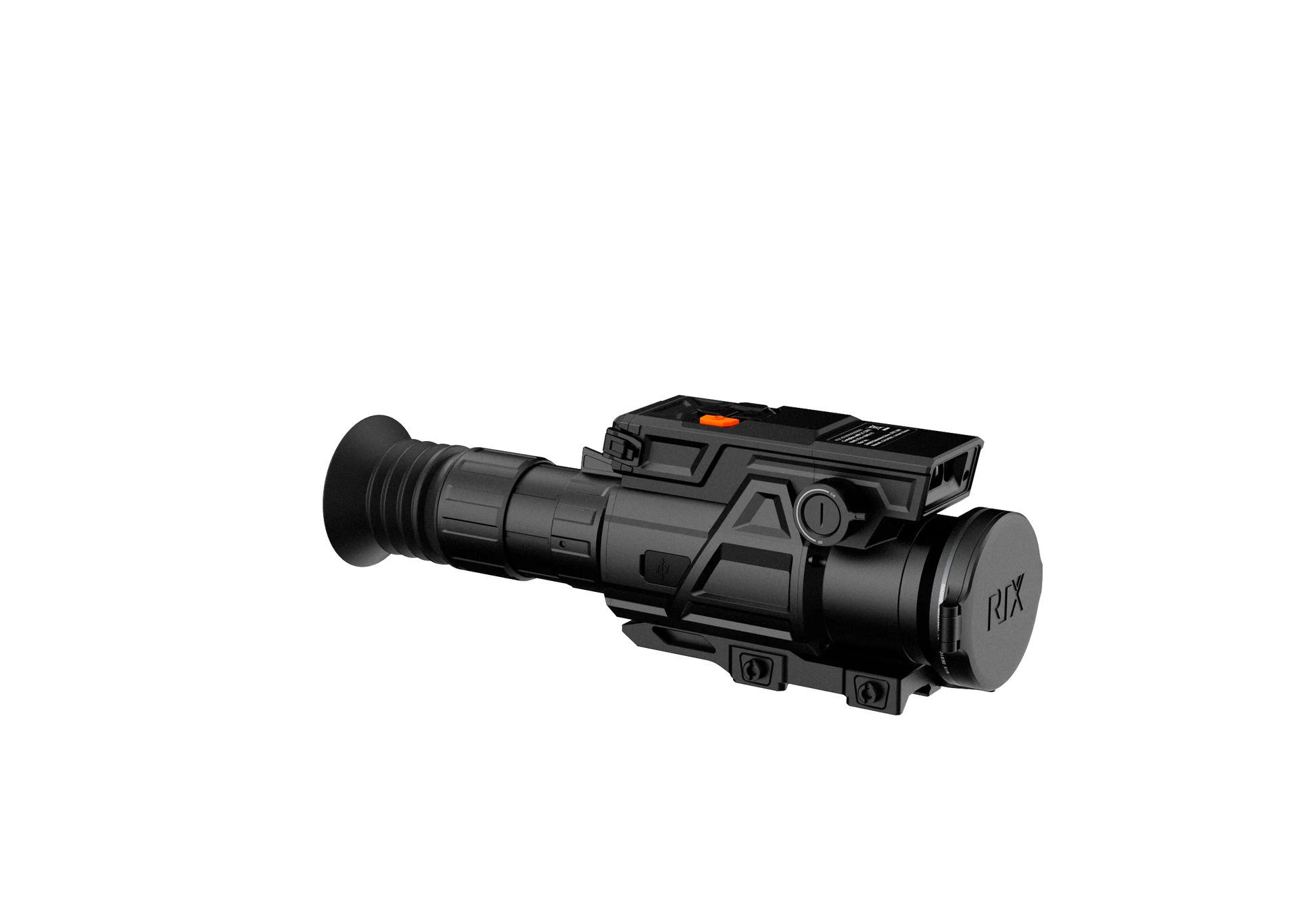

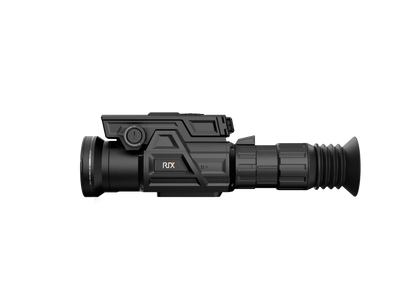

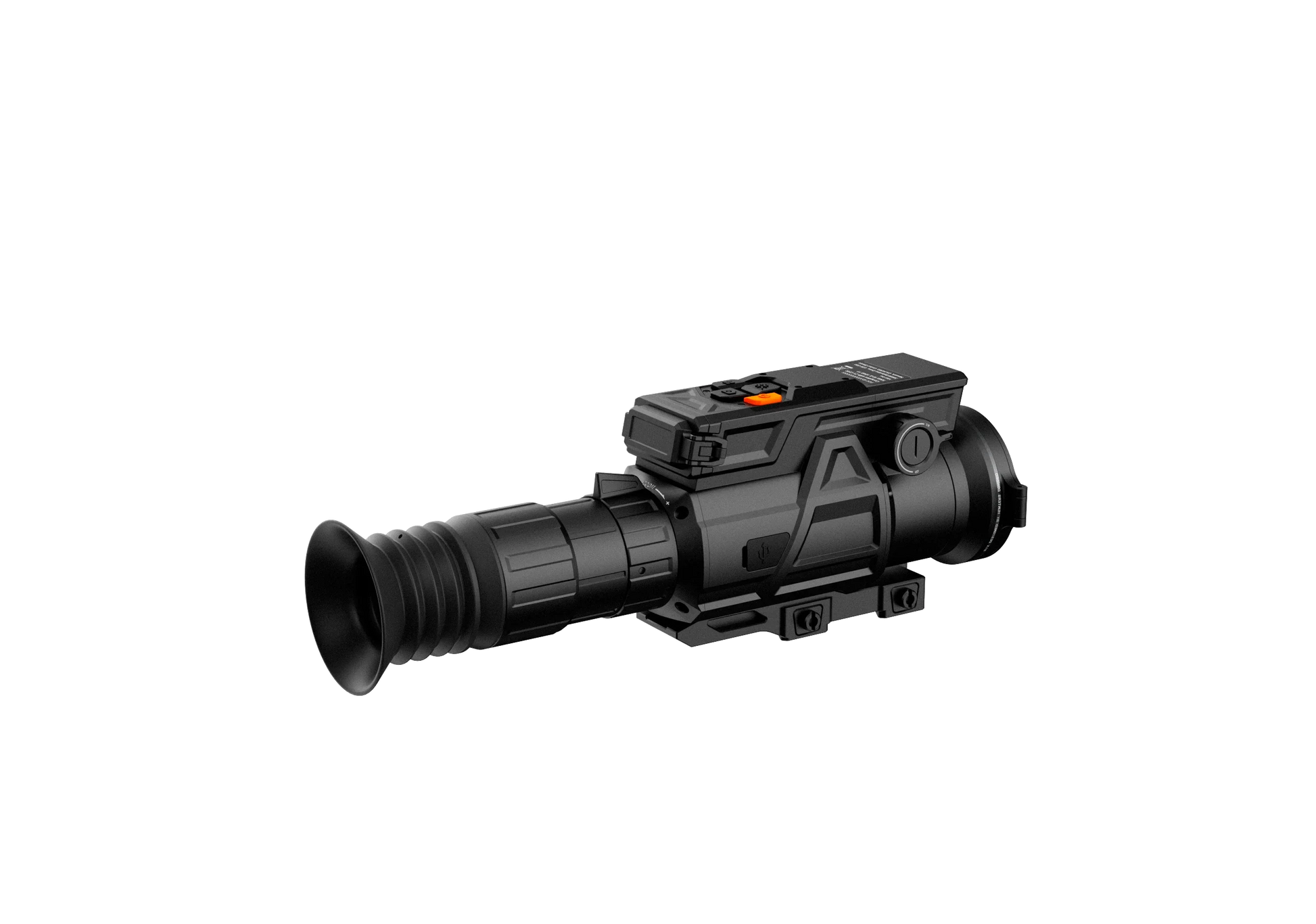

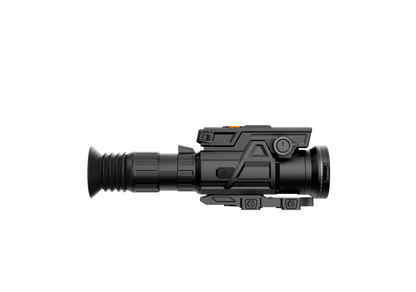

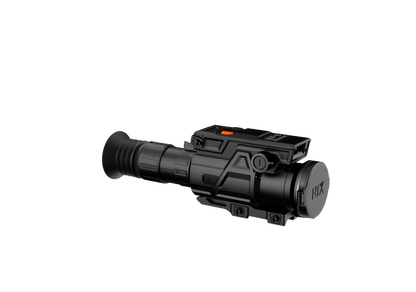

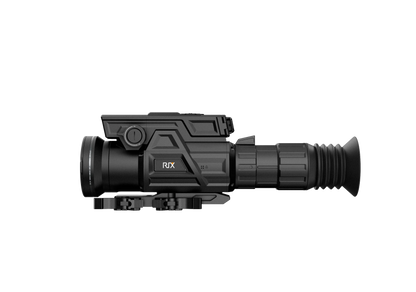

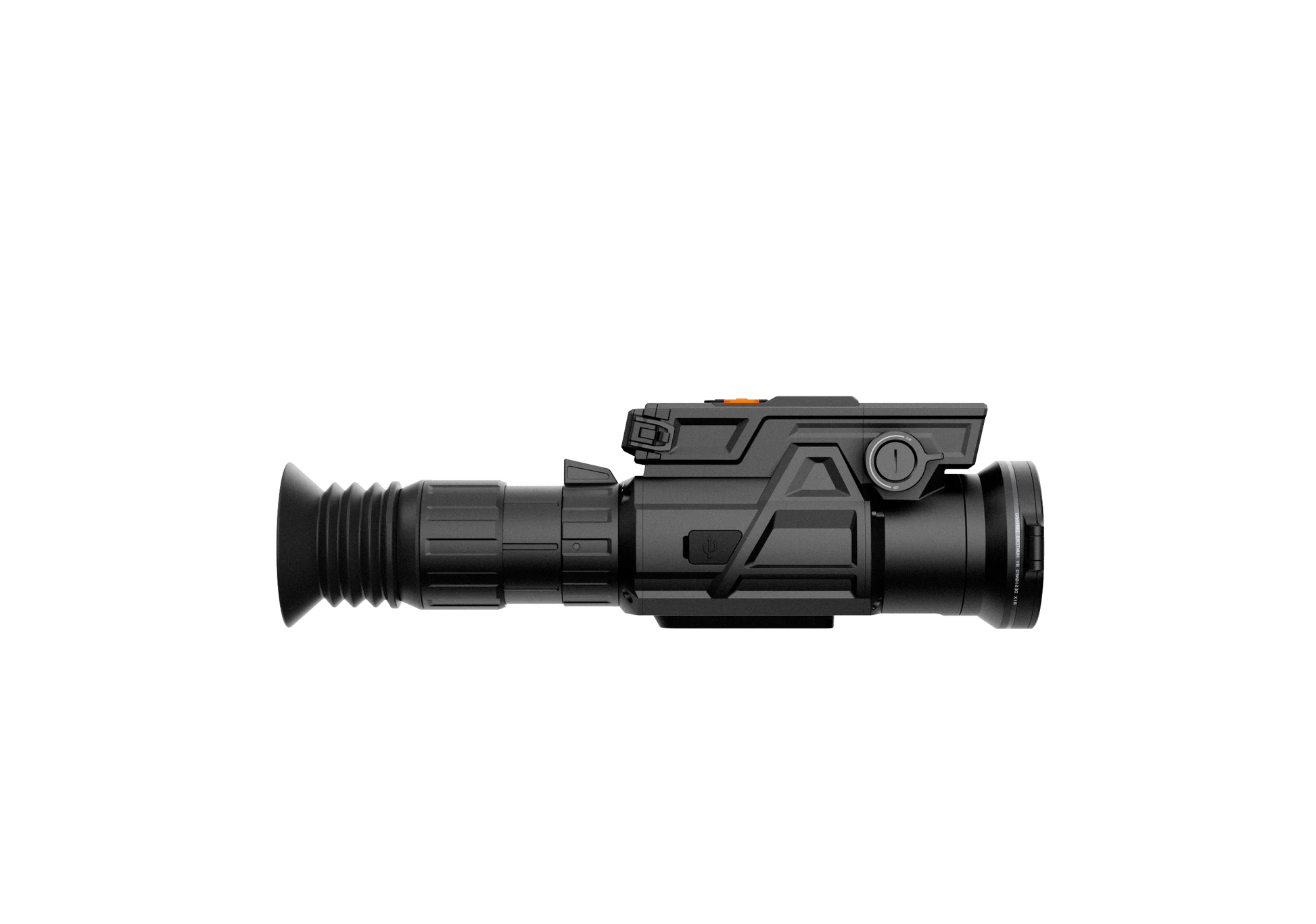

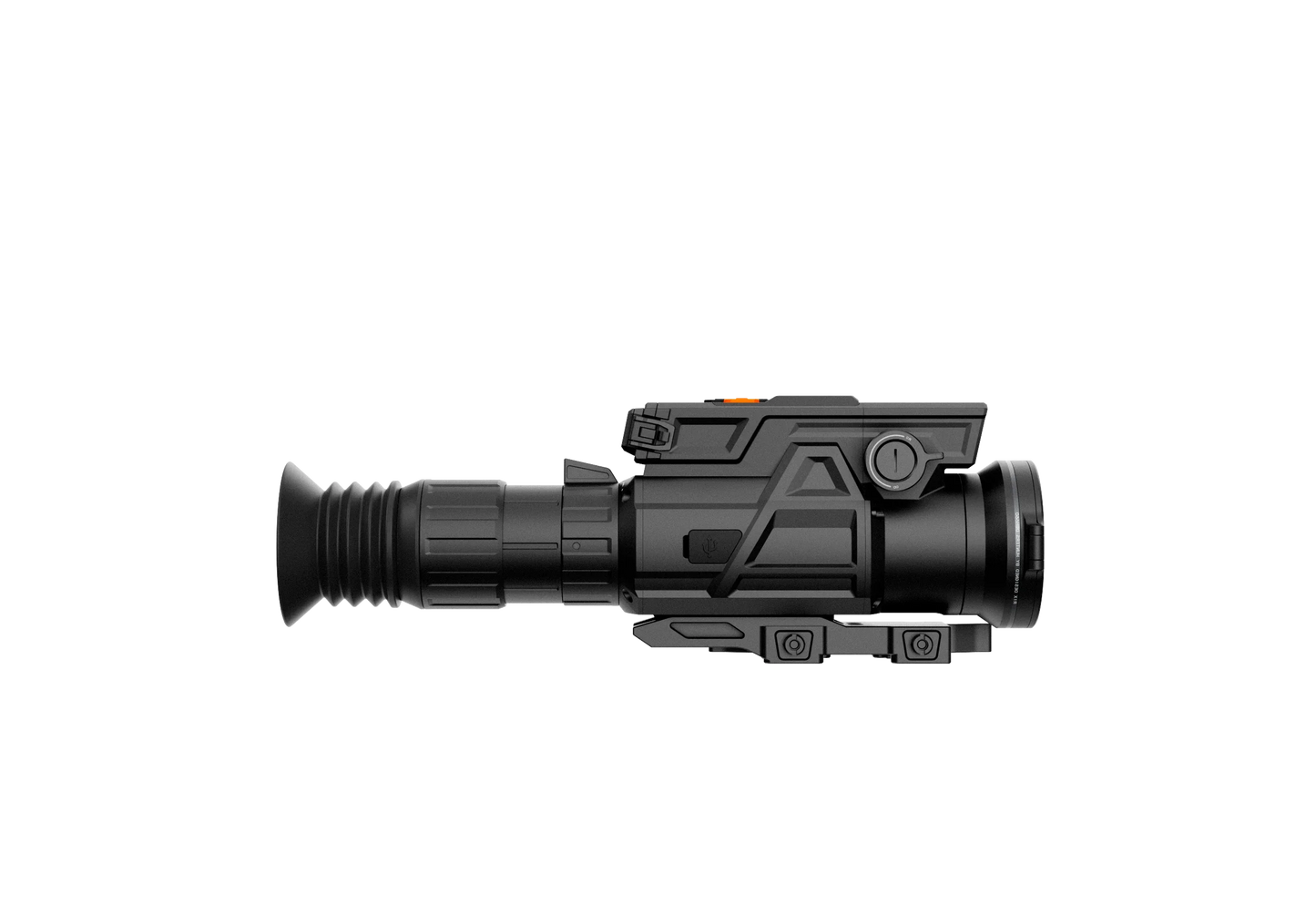

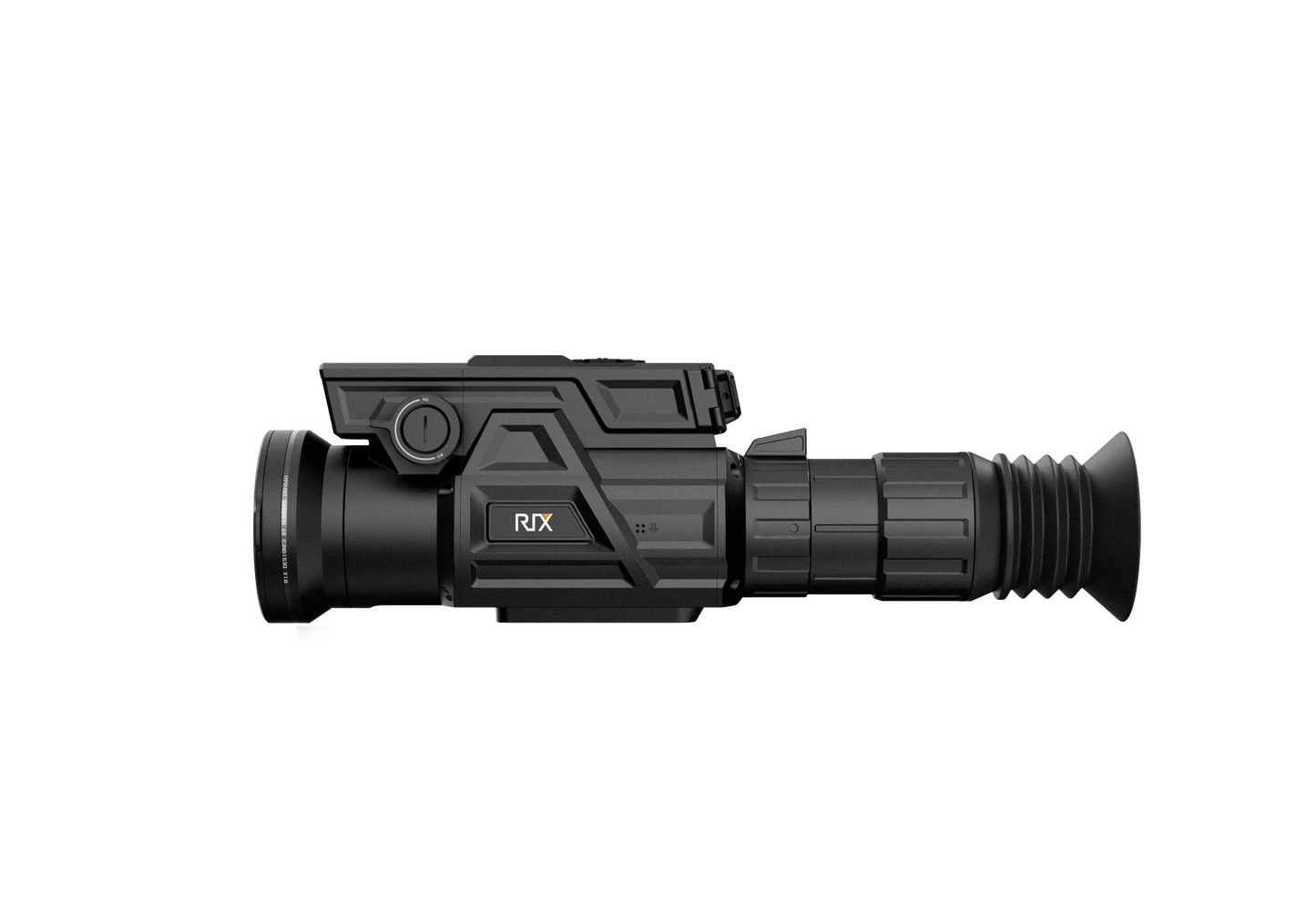

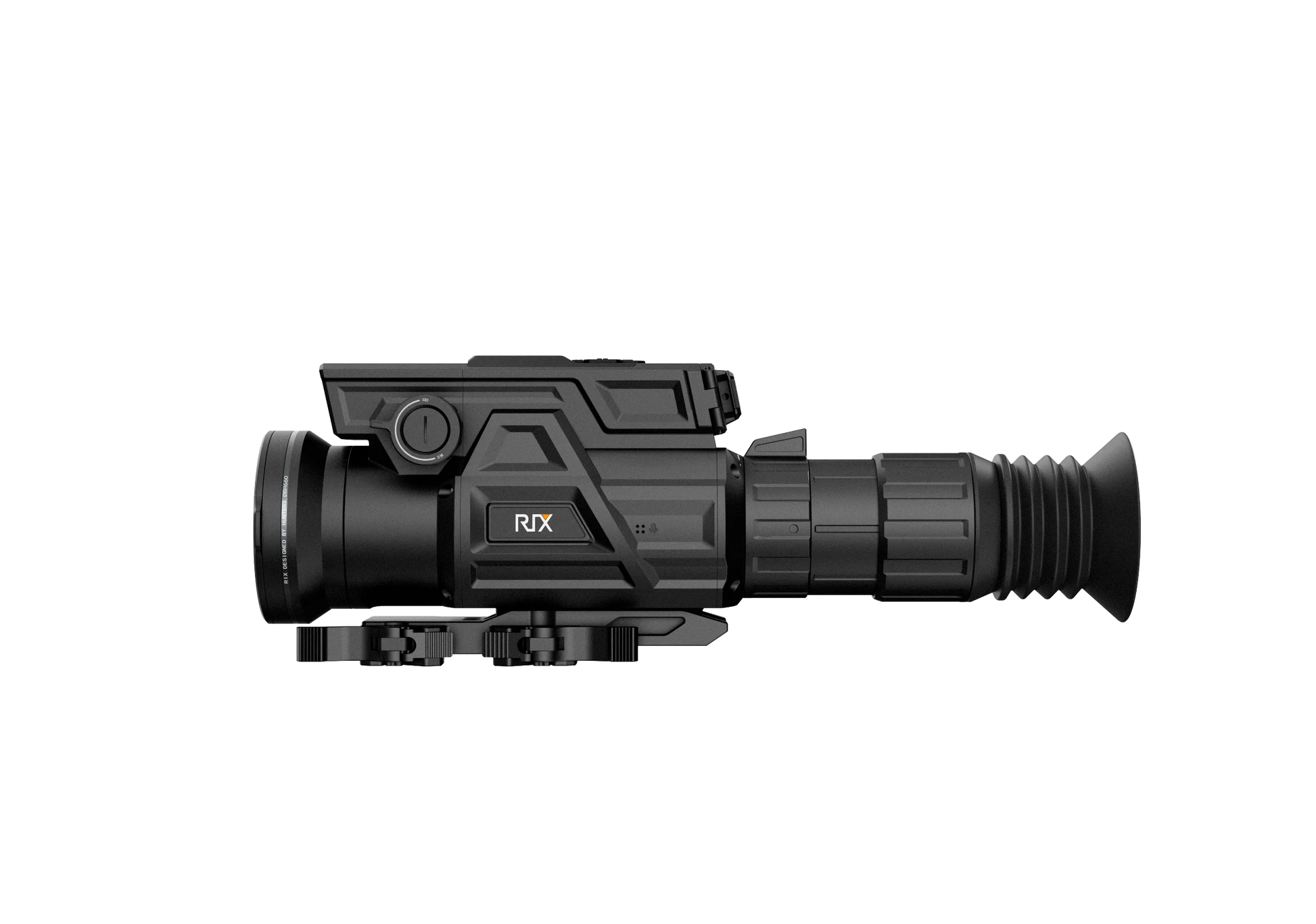

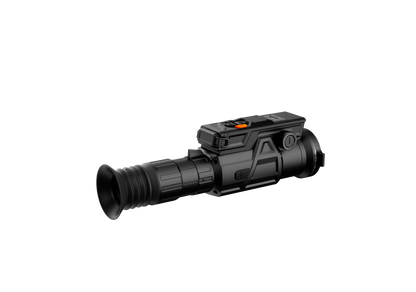

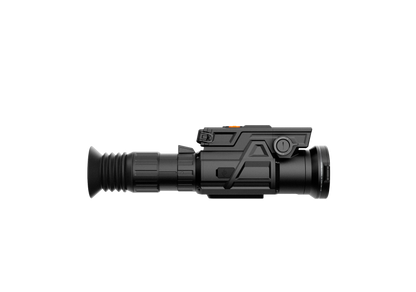

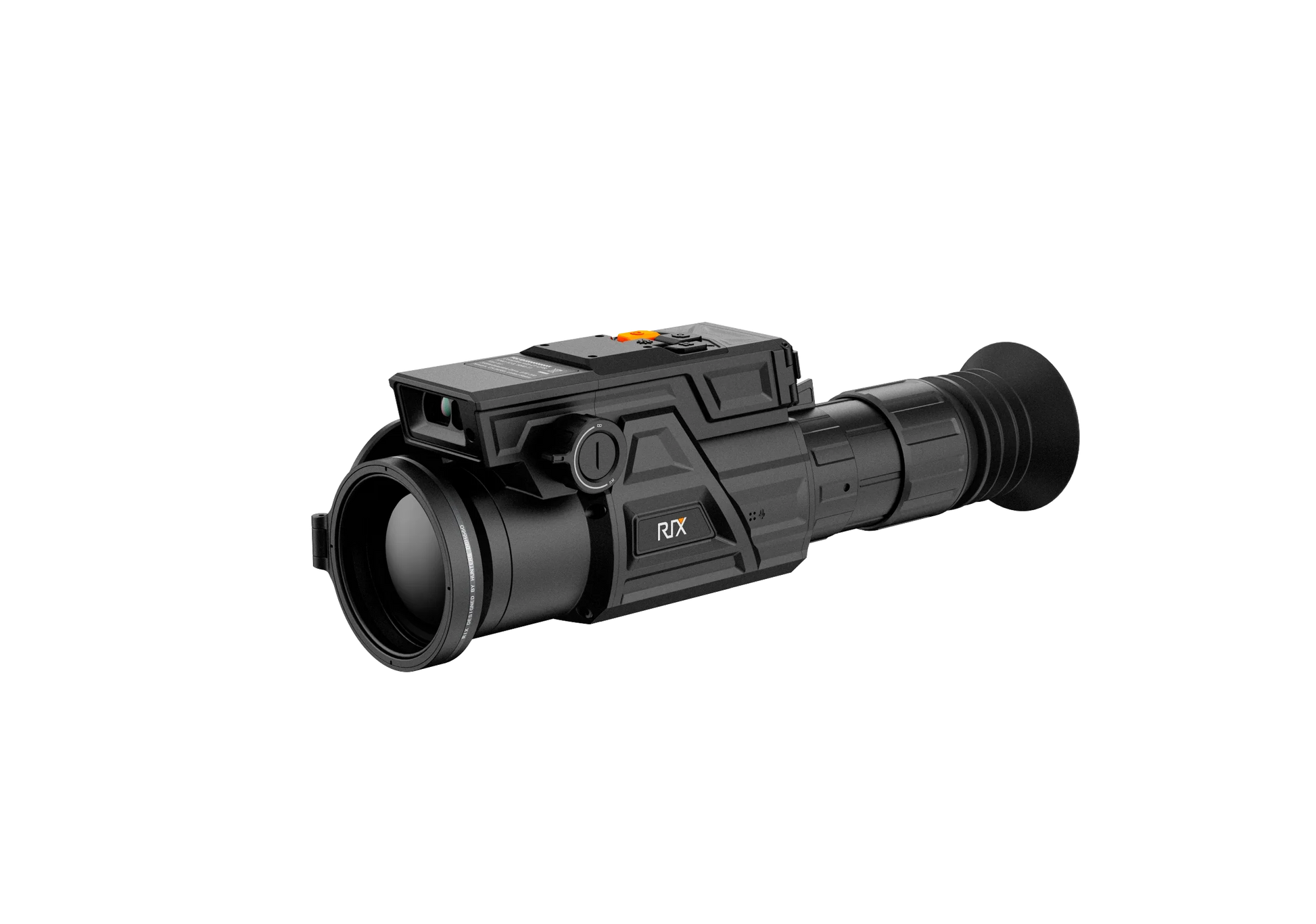

RIX DBH D6 LRF 640x512 12um 60hz 3x Thermal Scope

RIX DBH D6 LRF 640x512 12um 60hz 3x Thermal Scope

RIX-DBH-D6

$ 5,699.00
$ 5,699.00
Sale Sold out
Shipping calculated at checkout.

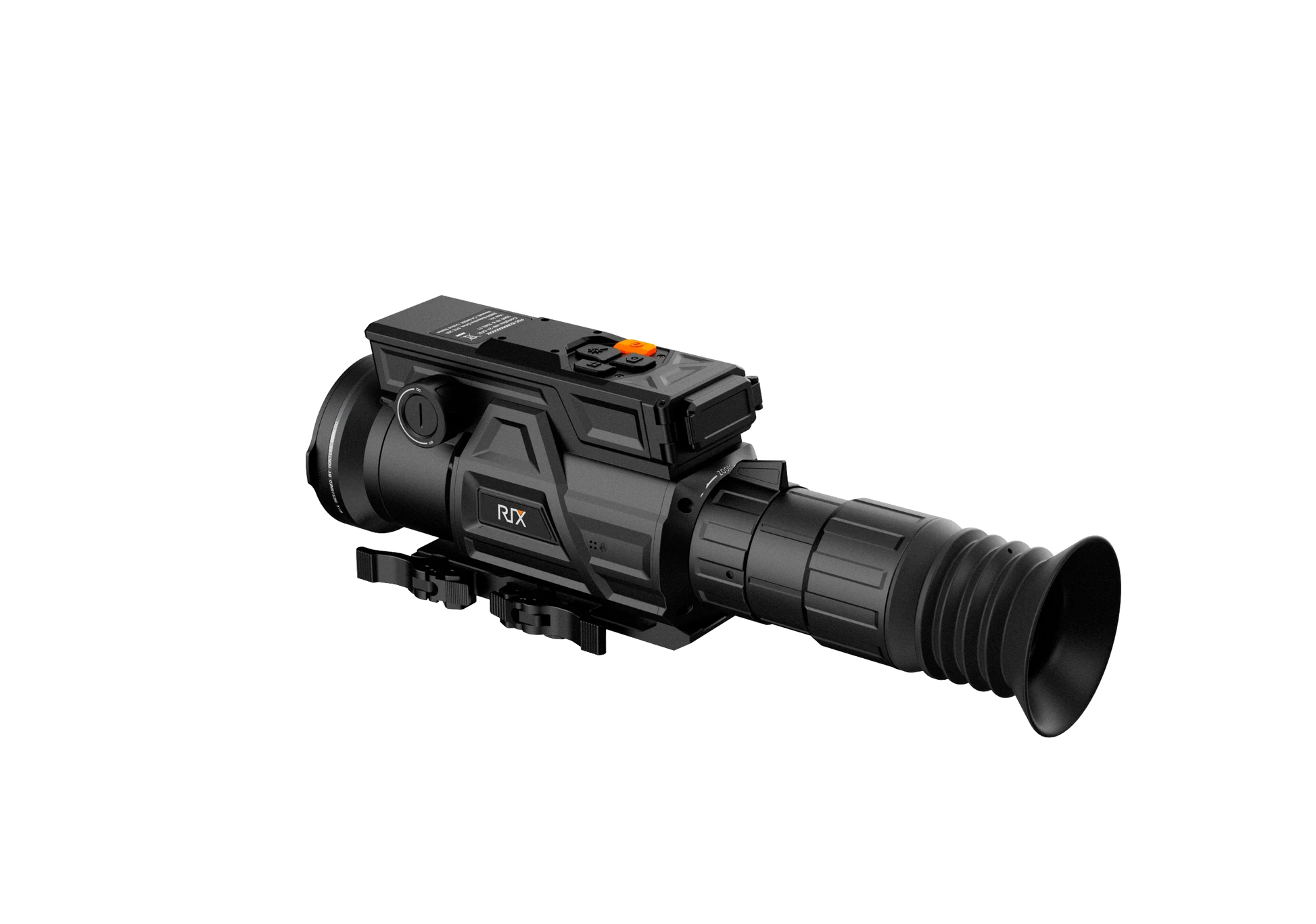

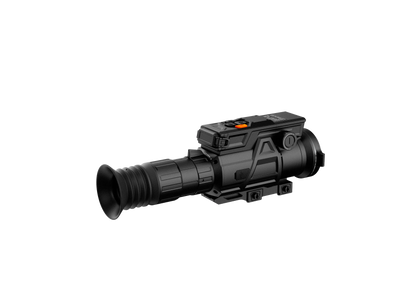

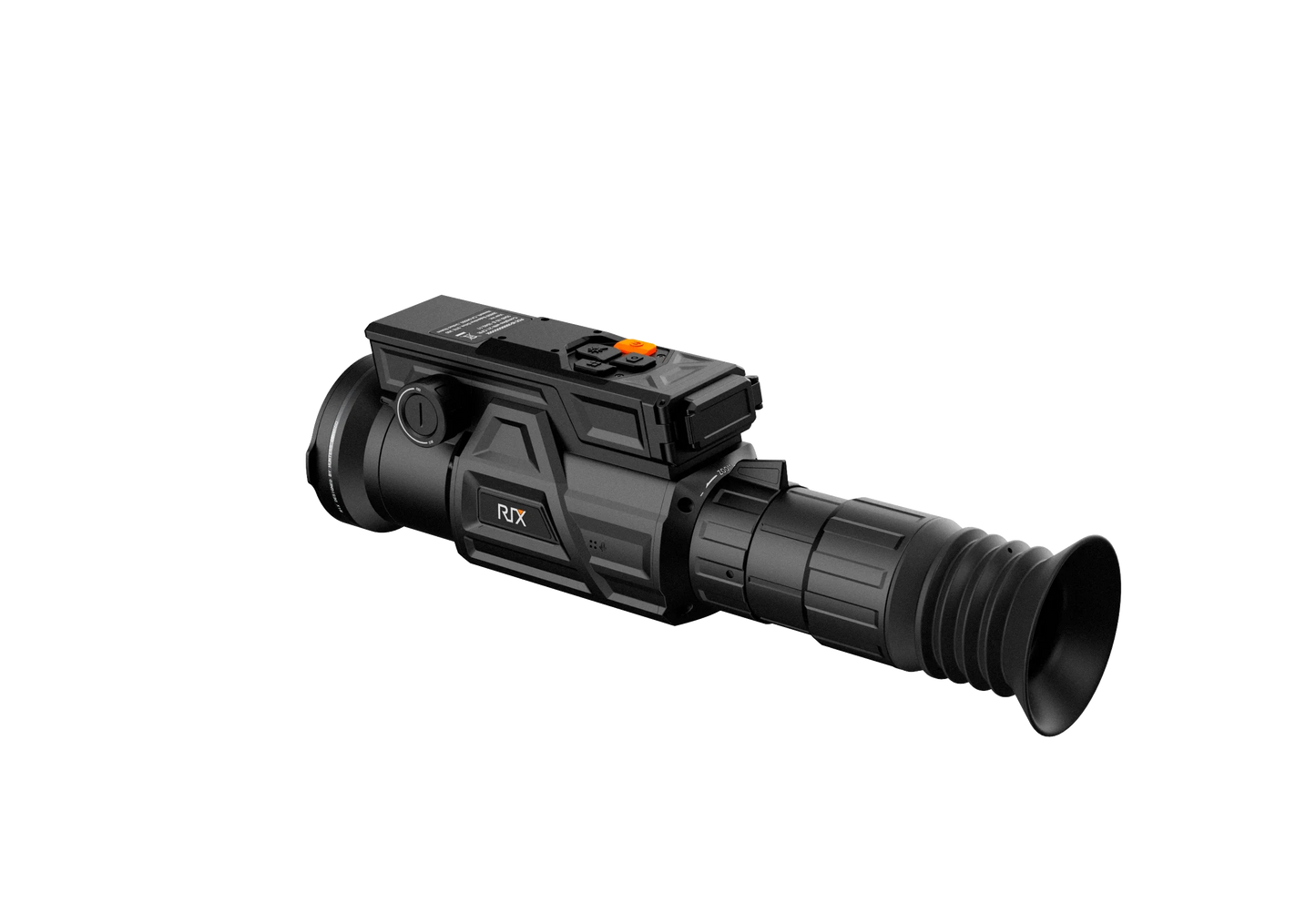

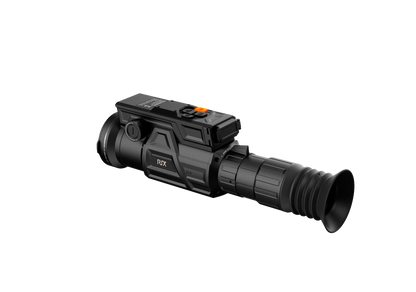

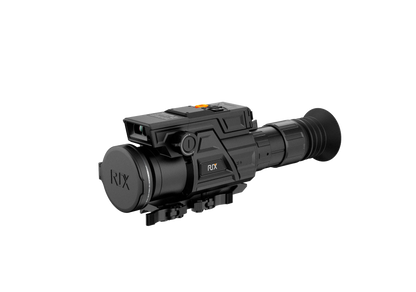

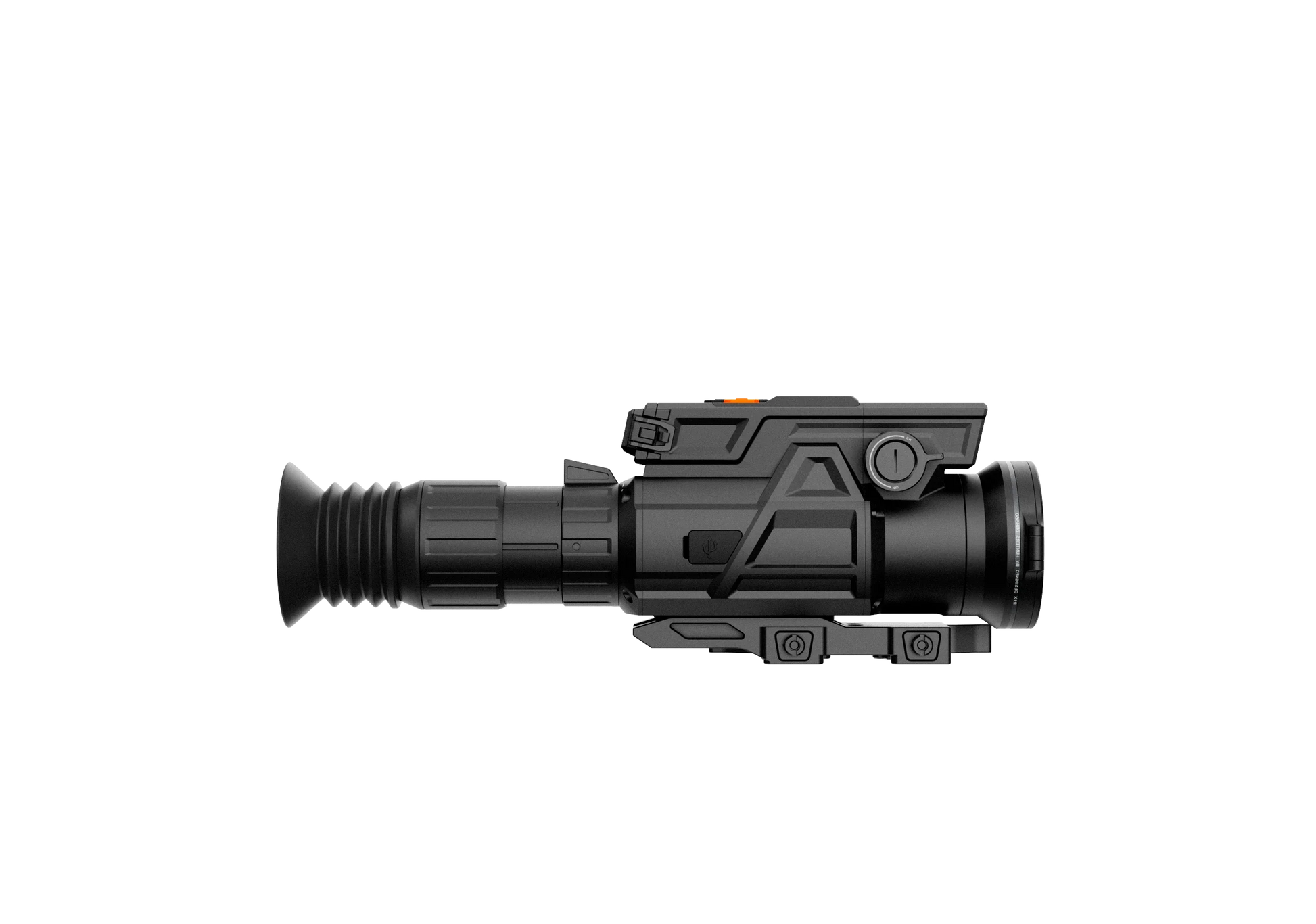

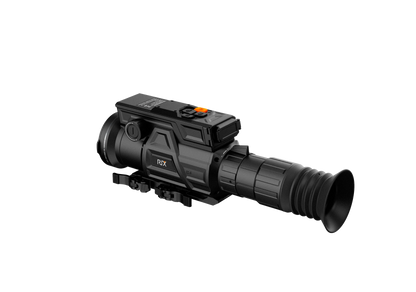

RIX DBH D6 LRF 640x512 12um 60hz 3x Thermal Rifle Scope



Designed by Hunters, for Hunters.

Introducing the DBH D6, the ultimate tool for hunting, observing, tracking and seeing at night. Equipped with cutting-edge thermal imaging technology and high-sensitivity infrared detectors, the DBH D6 ensures exceptional performance, even in challenging weather conditions like rain, snow, fog, and haze.

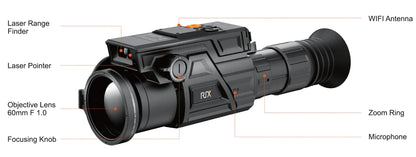

Built to excel in observation and geographic positioning, the DBH D6 boasts a versatile suite of features, including photography, video recording, laser range finding (LRF), a laser pointer, digital zoom, picture-in-picture (PIP), and recoil-activated video capture. Whether you're scouting, tracking, or documenting, the DBH D6 is designed to meet your every need in the field.

RIX DBH D6 LRF 640x512 Key Features:

Sensor Resolution: 640×512
Objective Lens: 60mm
Optical Zoom: 3
Display Resolution: 2560 x 2560
Operating Time: 8h
Warranty: 5 Years


COMFORTABLE OPTICAL IMAGING

The DBH D6 feautres a 60mm objective lens with 3x base magnification. The 3-18x magnification range helps users clearly observe targets at longer distances. Digital zoom control that steps in precise 0.1x increments.


2560×2560 HIGH-RESOLUTION CIRCULAR OLED DISPLAY

The circular high-resolution 1.03in OLED screen allows for precise zeroing, maintaining each adjustment at only 3/8" @ 100 yards while providing a highly detailed image.


BALLISTIC CALCULATION IN BOTH DEVICE AND APP

Automatically calculate the aiming position and display it on the device screen based on air temperature, wind speed, ammunition, distance and other information. Using WIFI and RIX+ APP, ballistic parameters can be uploaded or downloaded, so that shots are more precise.


8 HOURS OPERATING TIME

Powered by two 18650 batteries that can be inserted in any orientation, makes battery changes in the dark a lot easier.

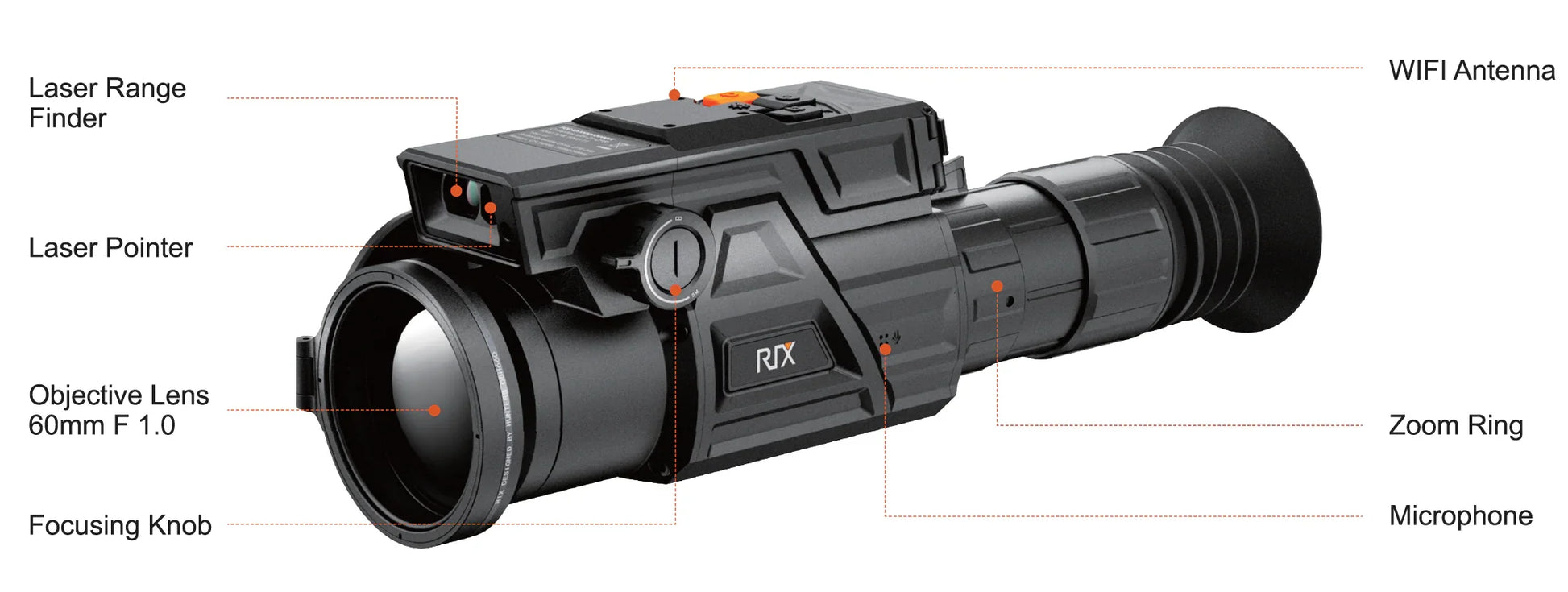

INTUITIVE DESIGN

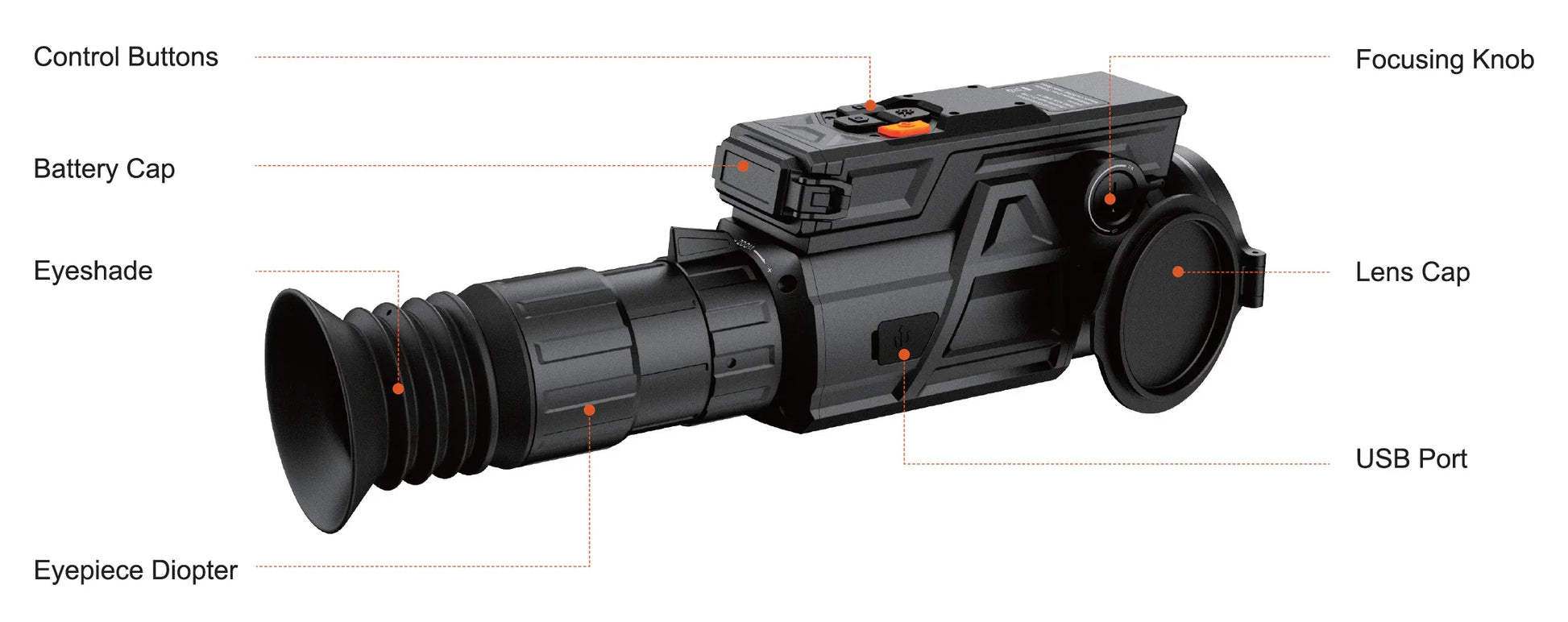

The dual side focusing structure with 250° rotation cycle and the quick throw zoom lever make zooming in and out quick and convenient, helping you acquire targets faster. The dual lever return to zero QD mount makes mounting and unmounting quick and easy.


FEATURES FOR HUNTERS

The DBH D6 provides multiple functions that can effectively improve the hunting experience. Boasting an integrated green laser that is easily activated for marking downed game(an industry first). A Built-in 1200-yard Laser Rangefinder and video & photo playback features in the scope.


RECOIL ACTIVATED VIDEO

The DBH D6 provides a recoil detection algorithm, it detects recoil in real-time and records every moment of your action packed hunt.


MORE FEATURES


IP67 waterproof


Engineered with an impressive IP67 waterproof housing, the DBH D6 is fortified against water intrusion, ensuring robust protection. This exceptional waterproofing capability safeguards the internal components, significantly extending its lifespan.


Built-in MIC


Experience uncompromising audio quality with our carefully selected built-in microphone.


Photo, Video Recording and Display


The DBH D6 features built-in photo & video recording capabilities with 64GB of internal storage. Effortlessly capture remarkable moments, day or night.


1000g Impact Resistance


The DBH D6’s durable design enables it to withstand impacts of up to 1000g, making it an ideal choice for rifles with large calibers such as .375 H&H, 12-gauge, and 9.3×64. It is built to ensure longevity and to remain undamaged even under challenging conditions.


Wi-Fi integration with the RIX+ APP


With the built-in Wi-Fi module, you can establish a seamless connection between the device and your Android or iOS smartphone via the RIX+ app. This powerful combination offers a multitude of advantages, such as wireless software updates and live image streaming directly to your mobile device screen. ​


Picture-in-Picture Function (PIP)


The DBH D6 is also equipped with a PIP (picture-in-picture) function. When enabled, the DBH D6 will display a zeroing frame on the screen. It allows the user to observe the image in the aiming area while maintaining visual control of the entire field of view.

RIX DBH D6 LRF 640x512 Specifications:

Model DBH D6
Sensor Specifications Type VOx Uncooled
Resolution, pixels 640×512
Pixel pitch, μm 12
NETD, mK <20
Frame Rate, Hz 60

Optical Specifications Objective Lens，mm 60 F1.0
Optic Zoom, x 3
Field of View, degrees / yd @ 100 yd 7.3°×5.8°
Digital Zoom, x 1 to 6
Eye Relief, mm 60
Diopter Adjustment, D -5 to +2
Detection Range, m/yd 3280

Display Specifications Type OLED
Resolution, pixels 2560 x 2560

Wi-Fi Wireless Protocol Wi-Fi
Frequency, GHz 2.4GHz

Video Recorder Video / Photo Resolution, pixel 1280×1280
Video / Photo Format .mp4 / .jpg
Built-in Memory, GB 64

Physical Specifications Degree of Protection, IP code IP67
Operating Temperature Range, °F -13 to+122
Weight, lb 2.9
Dimensions, inch 10.3×3.3×3.8

Connections and Compatibilities Battery Type 18650
Capacity, mAh 3200
Operating Time on Battery Pack (at t=72°F), h 8
External Power Supply, V 5V (Type C USB)
Max Recoil Power on Rifled Weapon (Eo), g/Joules 1000g/6000Joules
Ballistic calculation Yes



Delivery Package

The DBH series thermal imaging device

Picatinny Mount

Package bag

Eyepiece hood

Battery compartment

cover (with screw)

Thermal target × 10

Battery charger

USB type c cable

Battery x4

Lens cloth

Hex key

Screwdriver

Screw × 6
