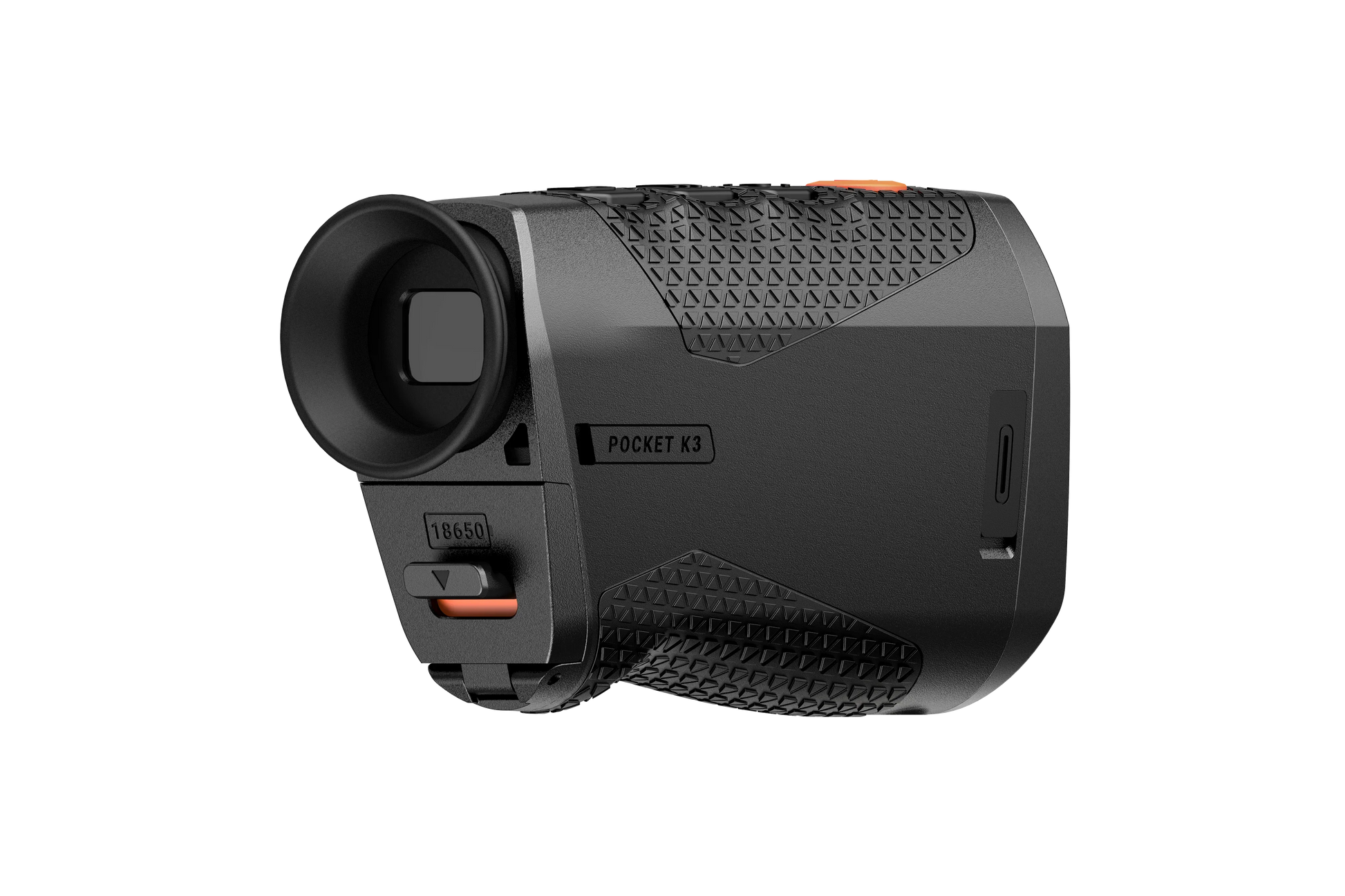

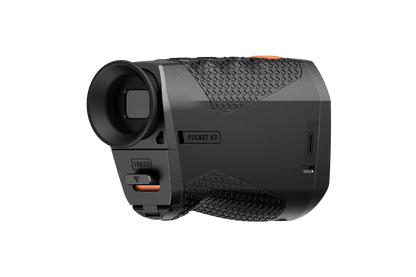

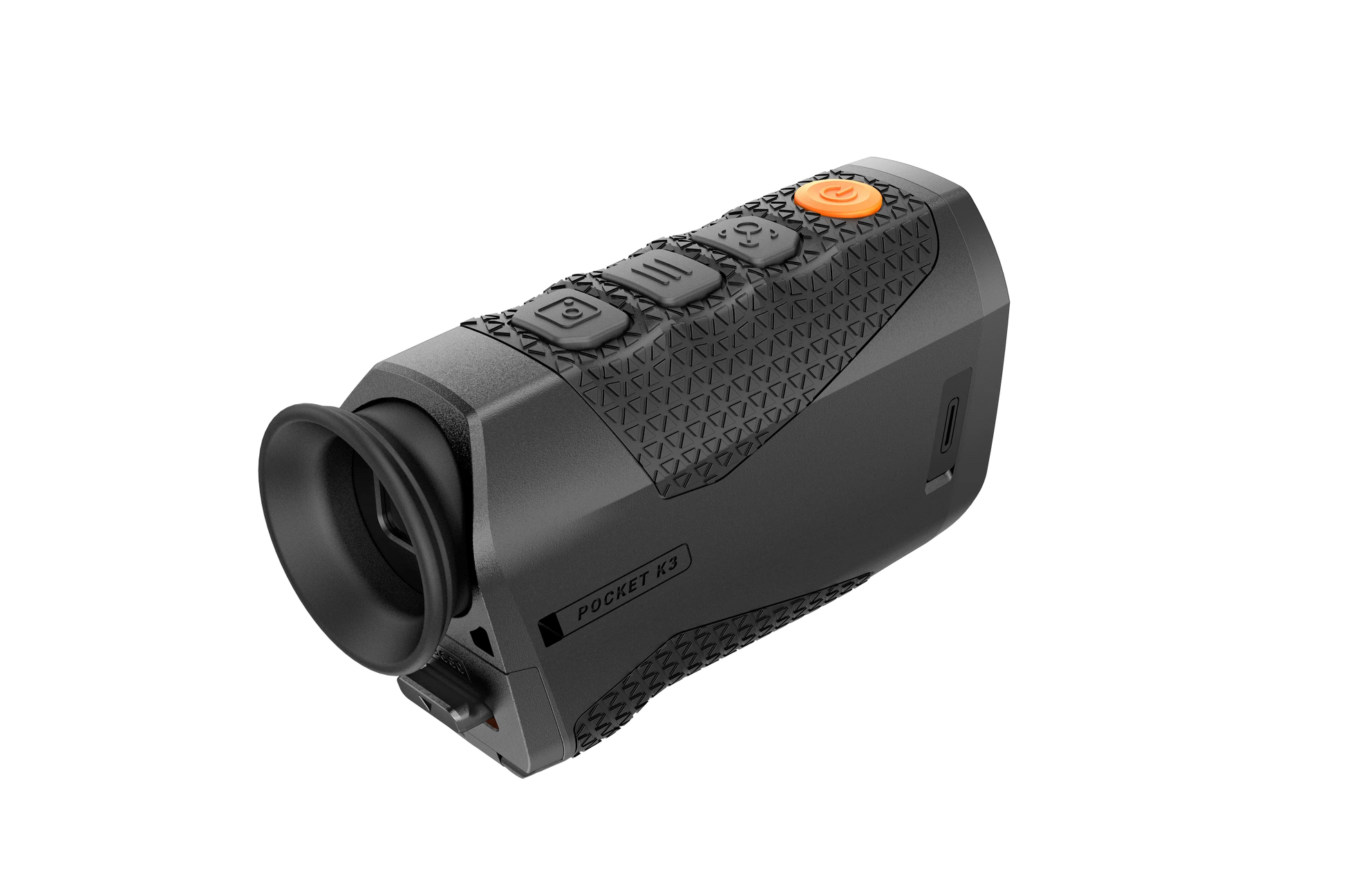

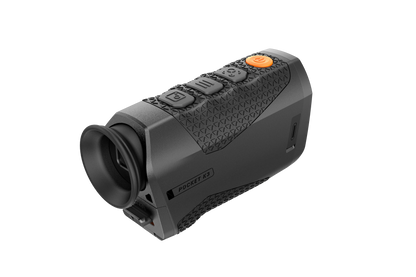

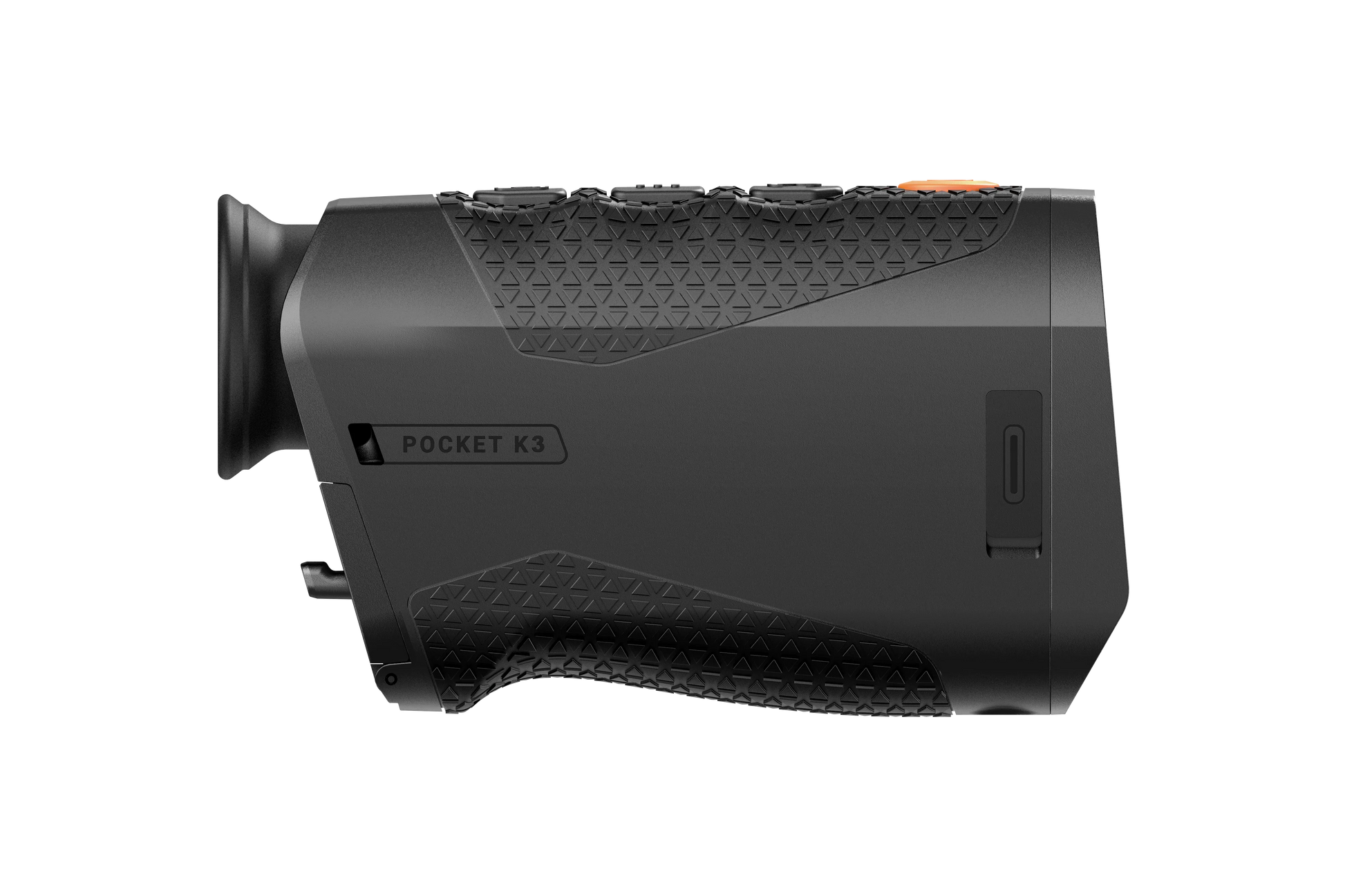

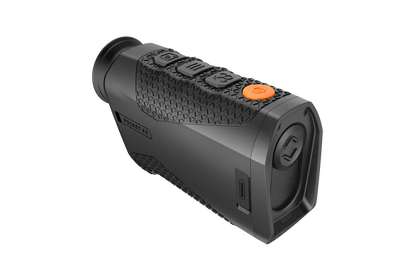

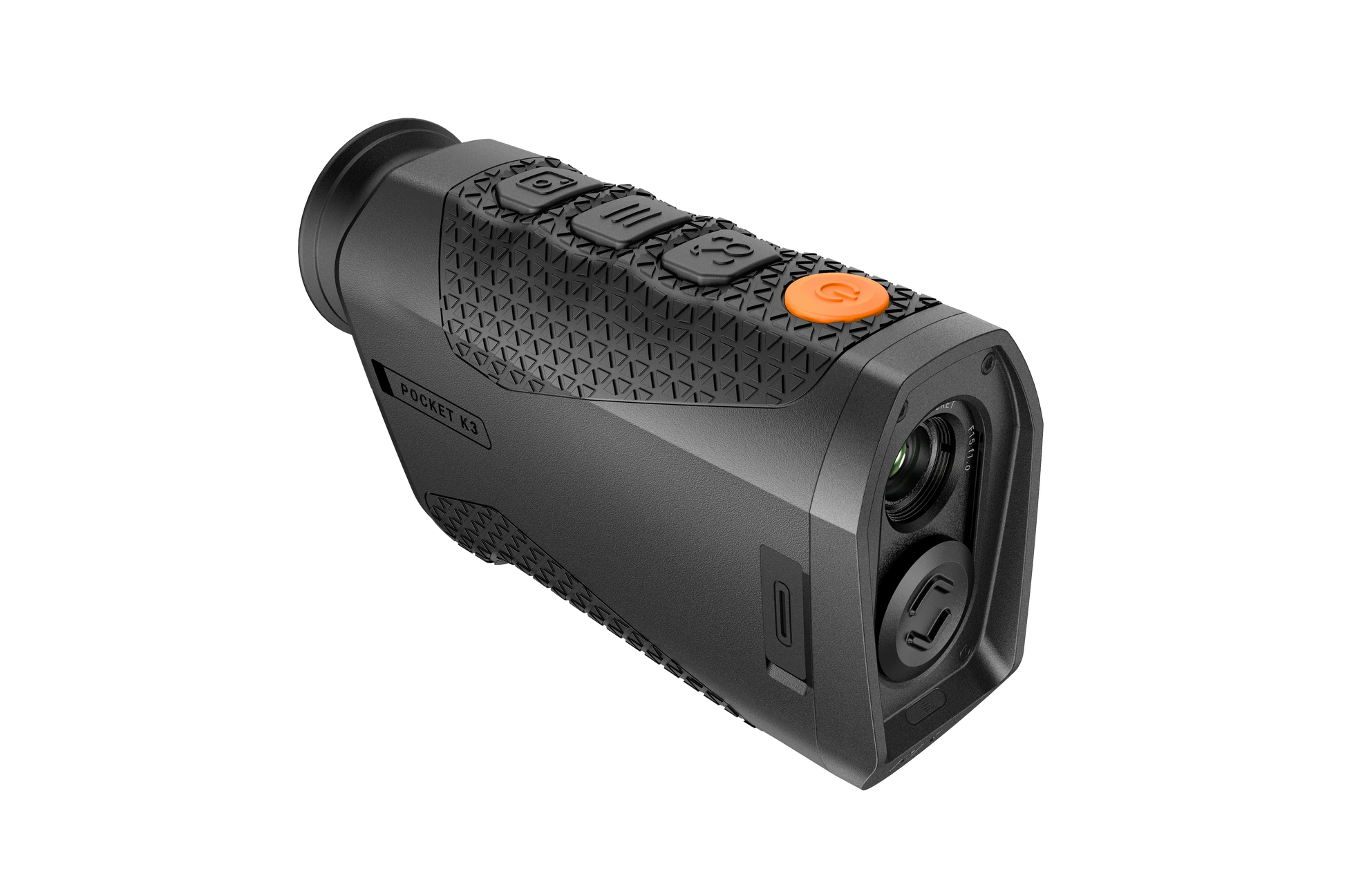

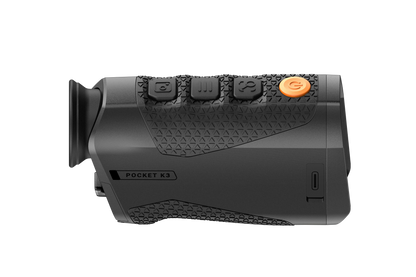

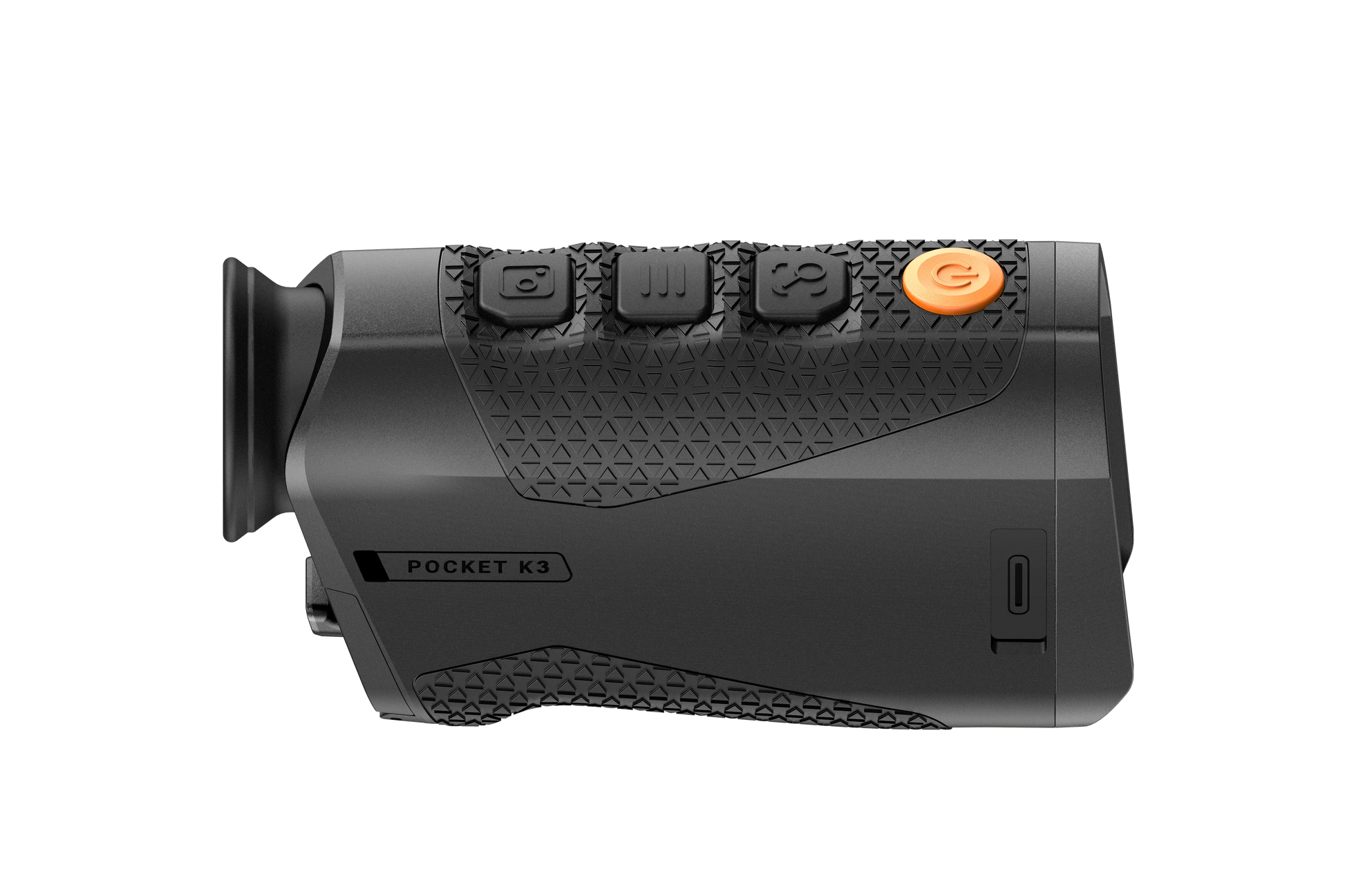

RIX Pocket K3 384 Thermal Monocular 15mm

RIX Pocket K3 384 Thermal Monocular 384x288/12um 15mm 50Hz WiFi



The POCKET series thermal imaging device is designed for lightweight portability and superior performance, making it an ideal companion for outdoor adventures like hiking, hunting, or exploration.

Key Features:

• Incredibly Lightweight & Pocketable Design: Weighing less than a smartphone, the POCKET is designed to be ultra-portable, fitting easily into your pocket, so you can carry it anywhere with ease.

• High-Resolution OLED Display: Featuring a 0.32-inch OLED screen with an 800x600 resolution, the device offers enhanced contrast and rich detail, ensuring a superior visual experience during observations.

• High-Performance Sensor: Equipped with a 12 μm sensor and NETD <25mK, the POCKET delivers sharp imagery with a 256x192 resolution in the K2 model and a 50Hz refresh rate for smoother visuals in various weather conditions.

• Resolution Enhanced Technology (RET): Utilizing RET by RIX, the POCKET's image clarity is boosted by doubling pixel count and applying advanced AI algorithms, making its performance comparable to higher-resolution sensors.

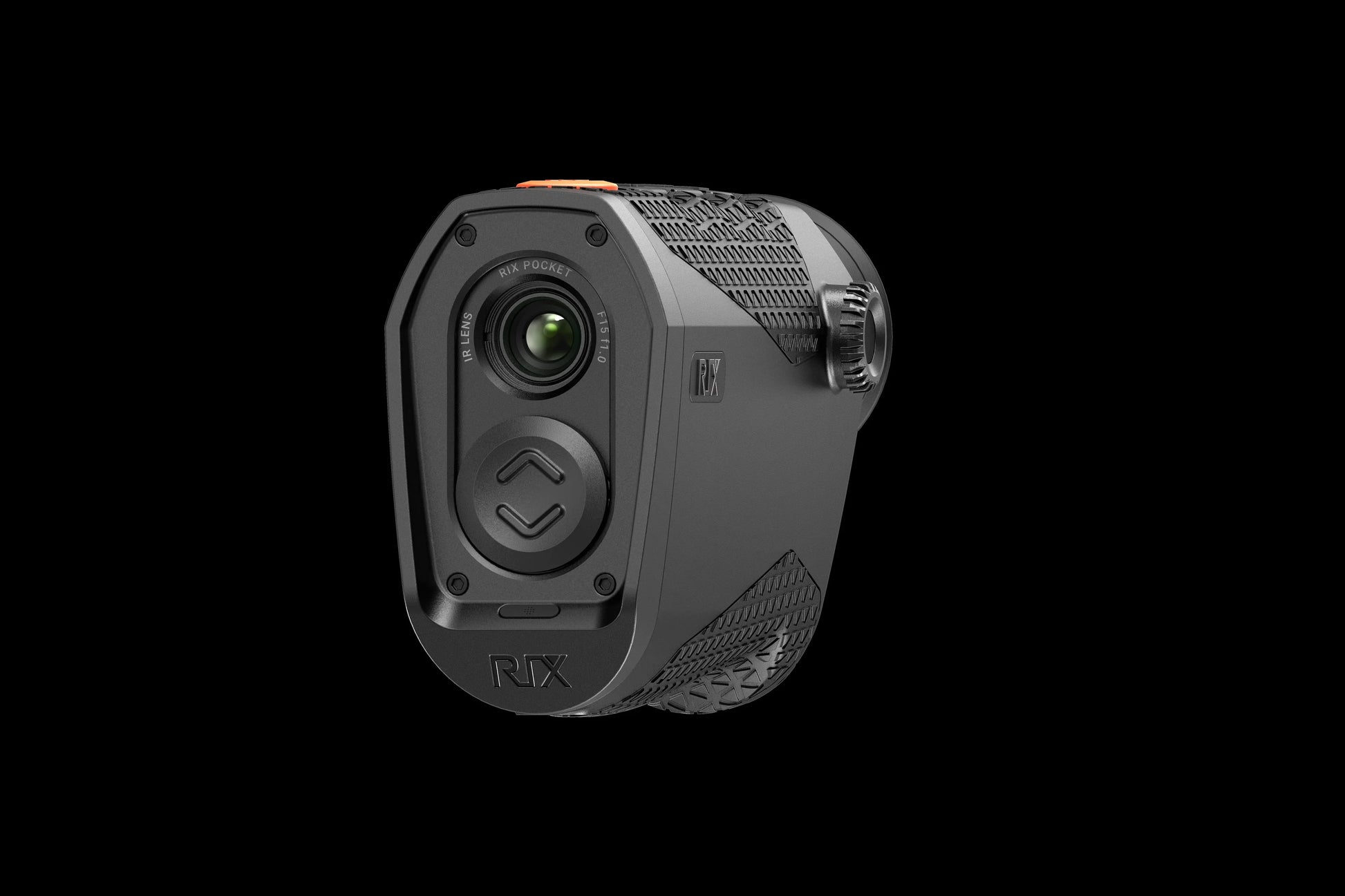

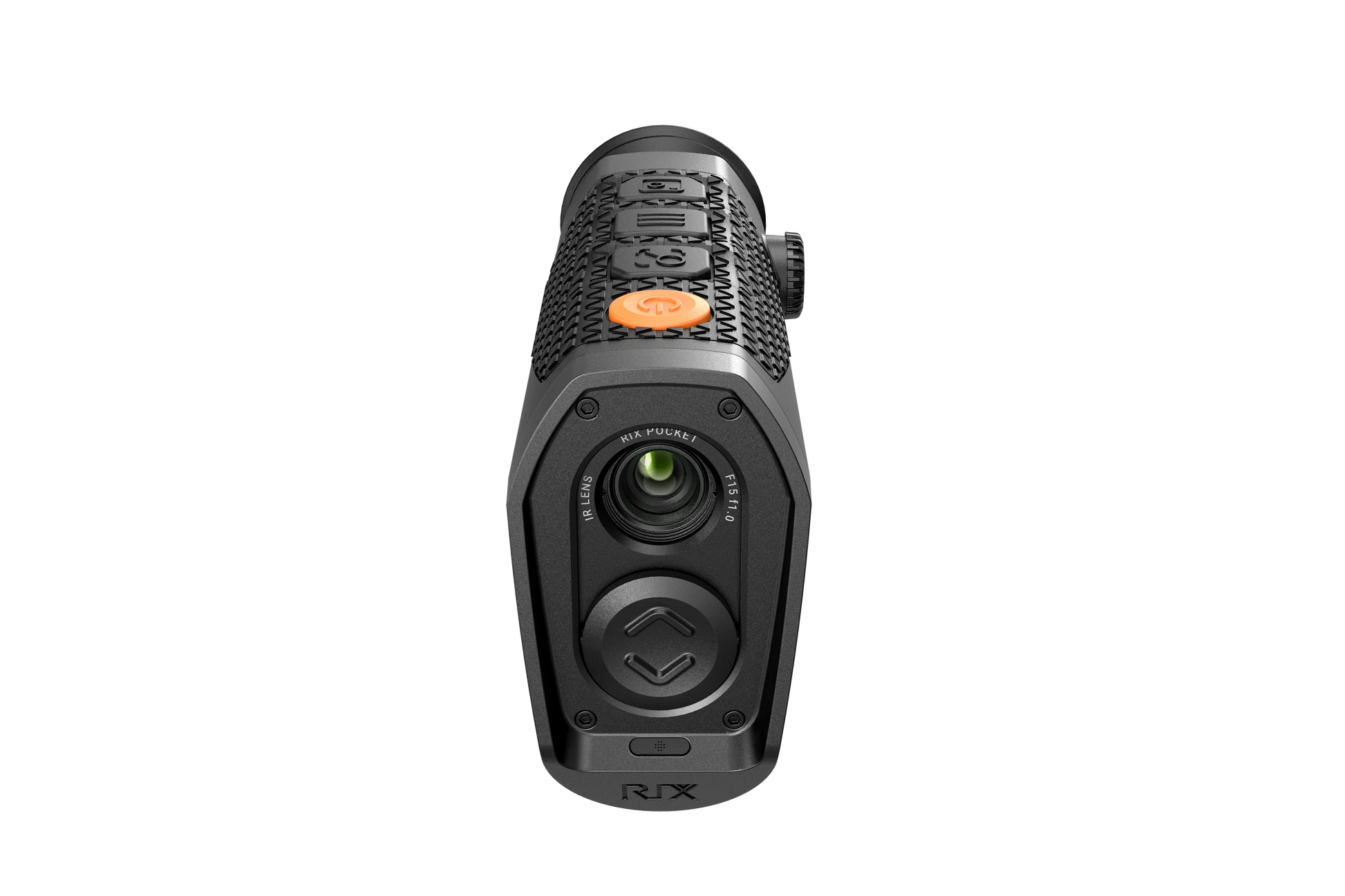

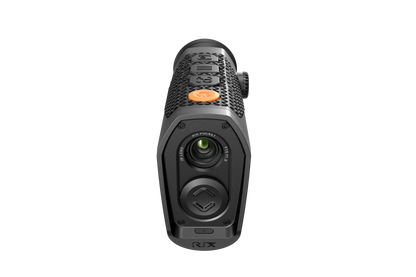

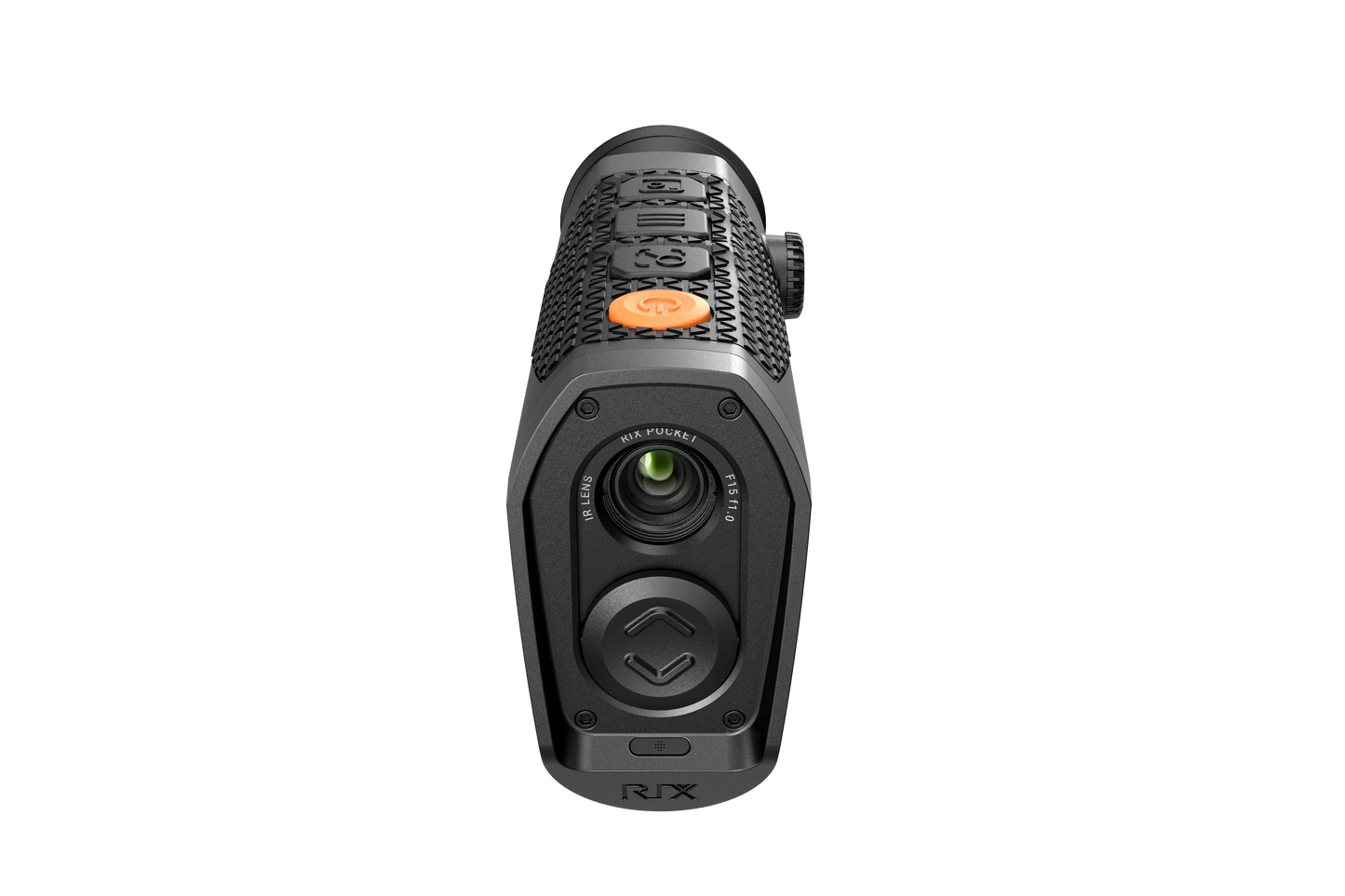

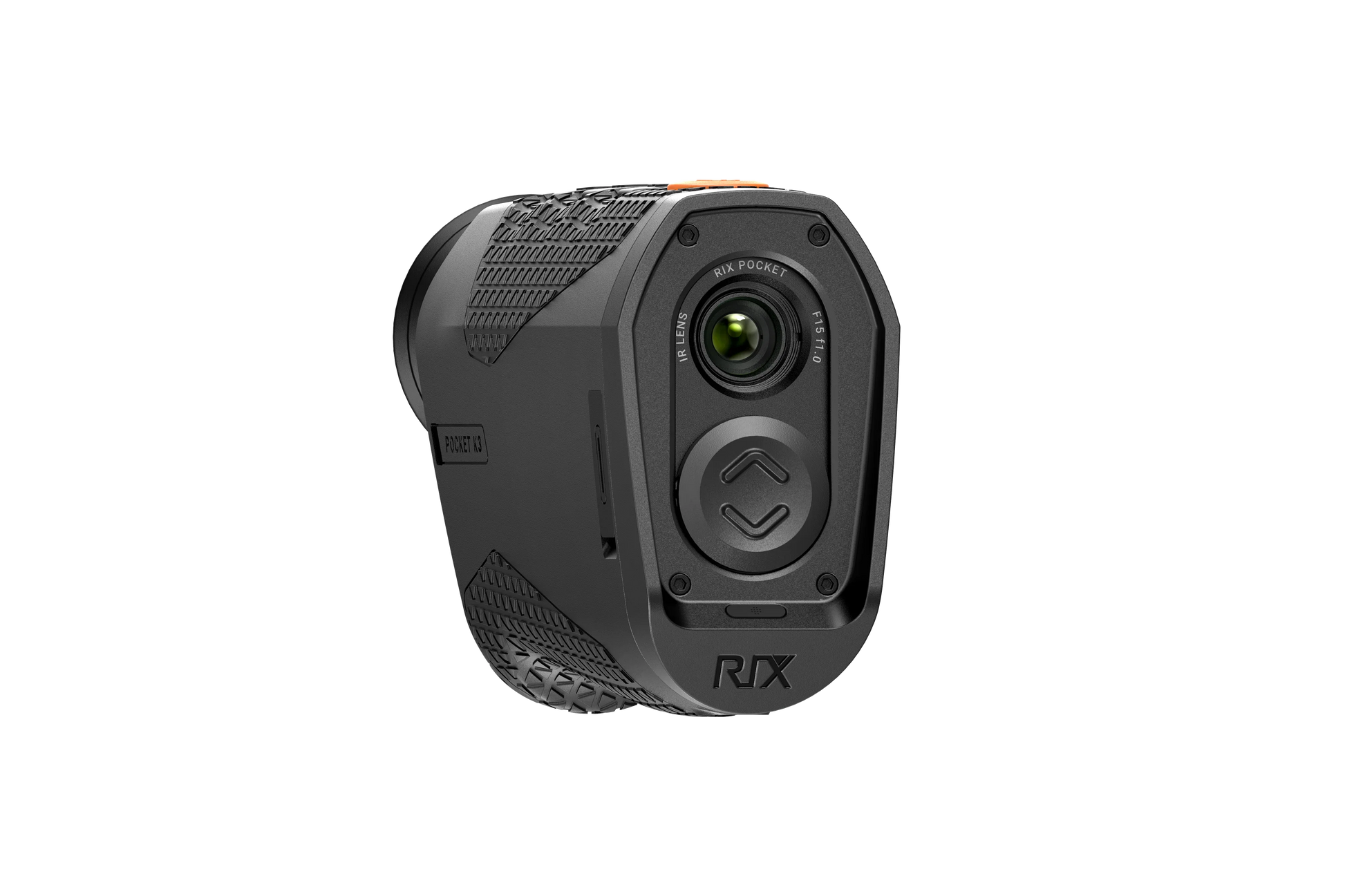

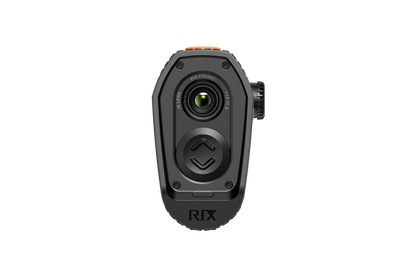

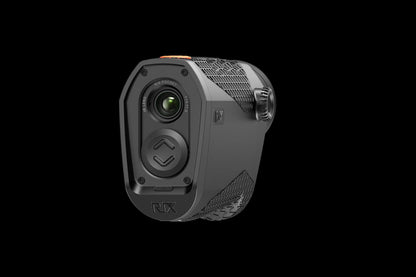

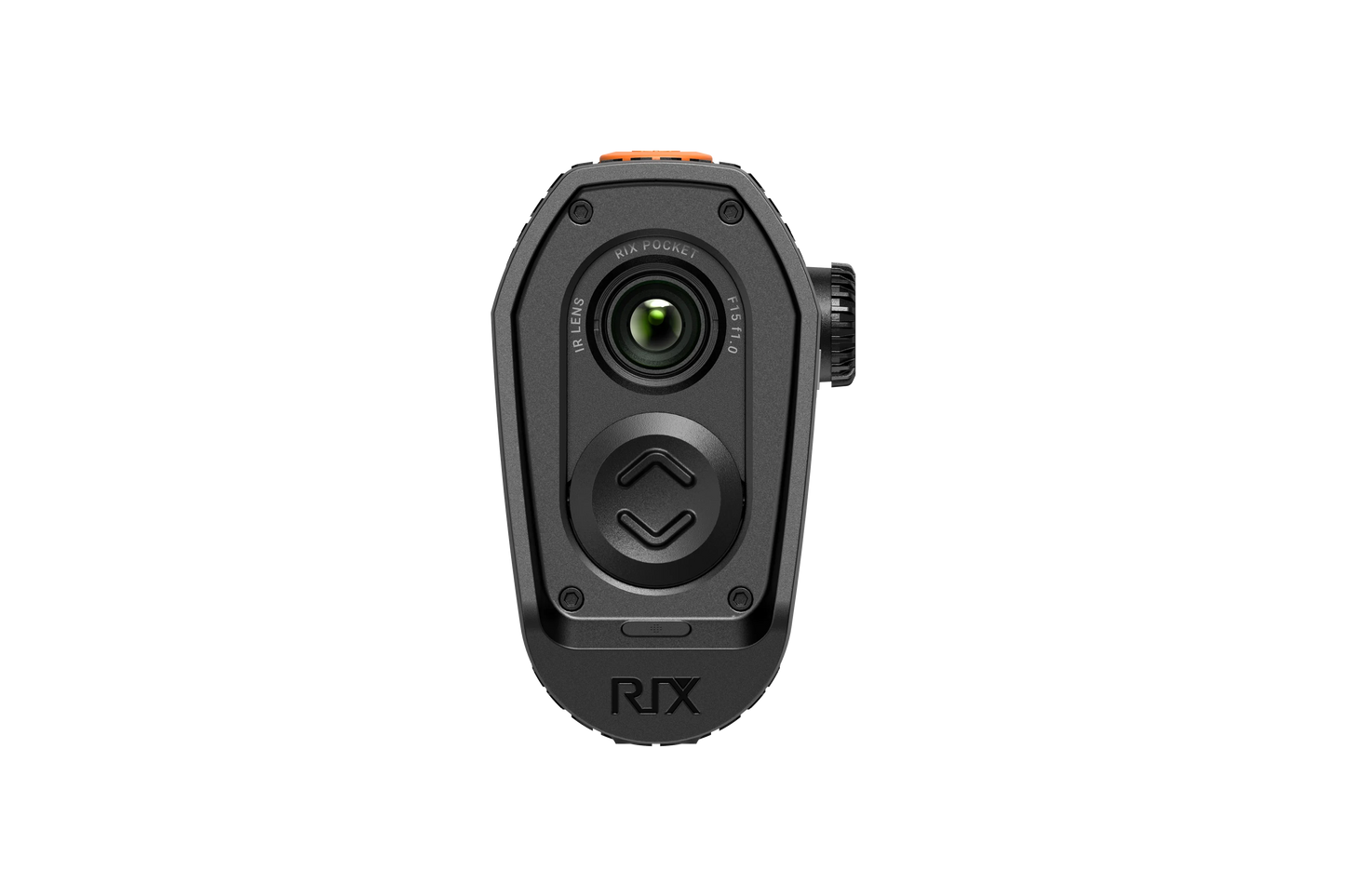

• Integrated Lens Cover Design: The integrated lens cover design allows for easy opening and closing with a simple slide, ensuring smooth operation and preventing the cover from getting lost.

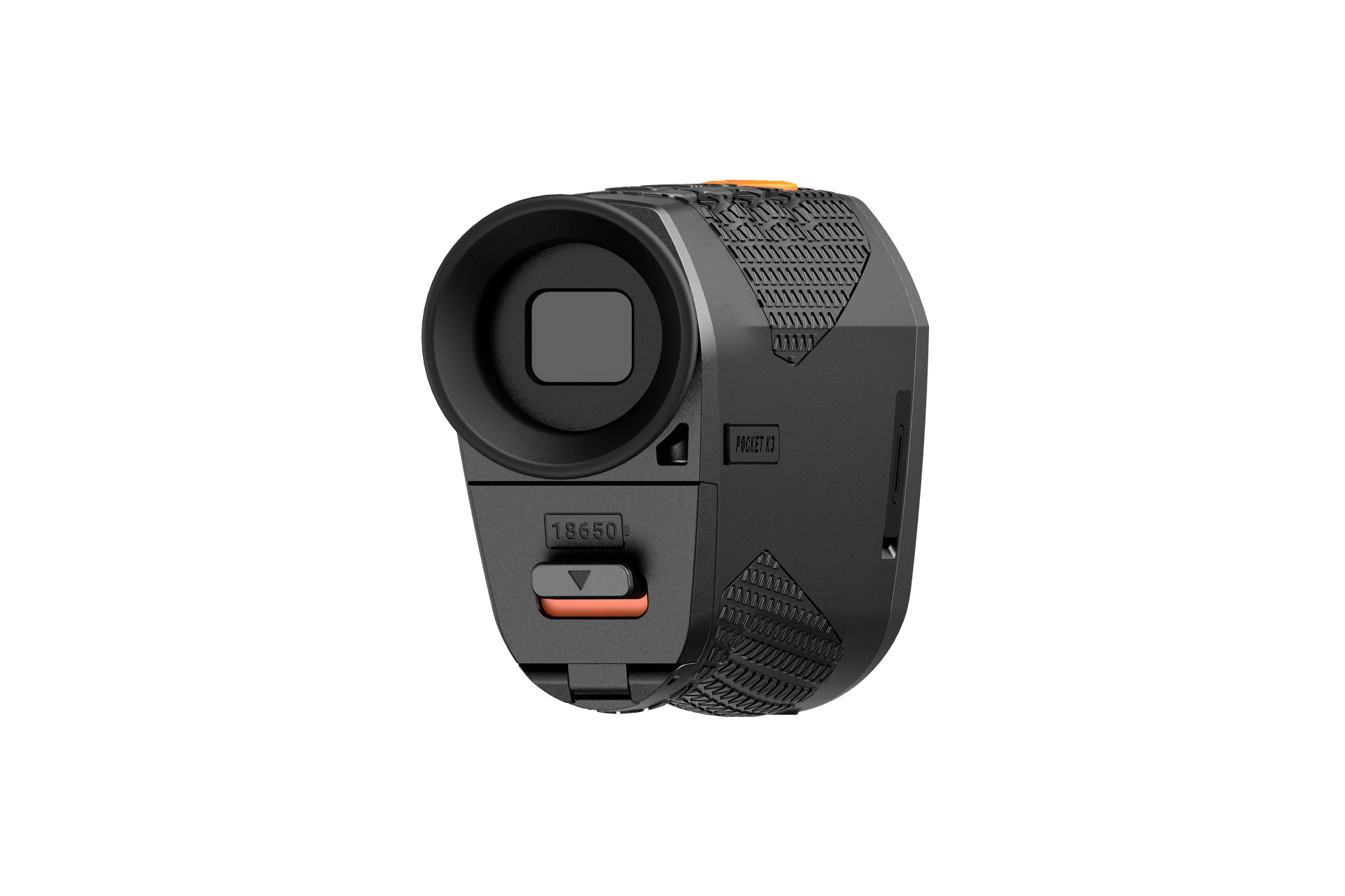

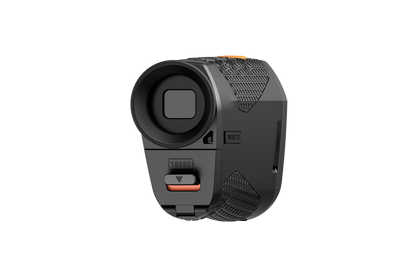

• Replaceable 18650 Battery: The POCKET is powered by a replaceable 18650 battery, offering up to 7 hours of continuous use, with the option to easily swap batteries for extended use.

• Weather Mode: This intelligent mode adjusts parameters to ensure crisp and detailed viewing in challenging weather conditions like rain or fog, enhancing visibility when nature doesn’t cooperate.

POCKET is a perfect balance of convenience and cutting-edge thermal imaging technology, designed to perform in any environment.

RIX Optics Pocket K3 384 SPECIFICATIONS:

Sensor Specifications

Type

VO×Uncooled



Resolution, pixels

384×288



Pixel Pitch, μm

12



NETD, mk

<25



Frame Rate, Hz

50



Optical Specifications

Objective Lens, mm

15mm; F1.0



Optic Zoom, x

2



Field of View (H), degrees / yd @ 100 yd

17.5° / 33.6yd



Field of View

/



Digital Zoom, x

1 to 4



Eye Relief, mm

13.5



Diopter Adjustment, D

-7 to +2



Detection Range,m/yd

780 / 853



Display Specifications

Type

OLED



Resolution, pixels

800×600



Wi-Fi

Wireless Protocol

Wi-Fi



Frequency, GHz

2.4



Video Recorder

Video / Photo Resolution, pixels

800×600



Video / Photo Format

.mp4 / .jpg



Memory Capacity, GB

8



Physical Specifications

Degree of Protection, IP code

IP67



Operating Temperature Range, °F

-4 to +122



Dimension, inch

4.9×1.8×2.9



Weight, lb

about 0.47 (without battery)



Connections and Compatibilities

Battery Type

18650



Capacity, mAh

3200



Operating Time on Battery Pack (at t=72°F), h

Up to 7



External Power Supply, V

5V (Type-C USB)



Warranty

5 Years



Included: The Pocket Series Thermal Monocular (1) 18650 Battery (In the device) Battery Charger Carrying Case USB Type-C Cable Lens Cloth Lanyard



EXPORT RESTRICTION

Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
