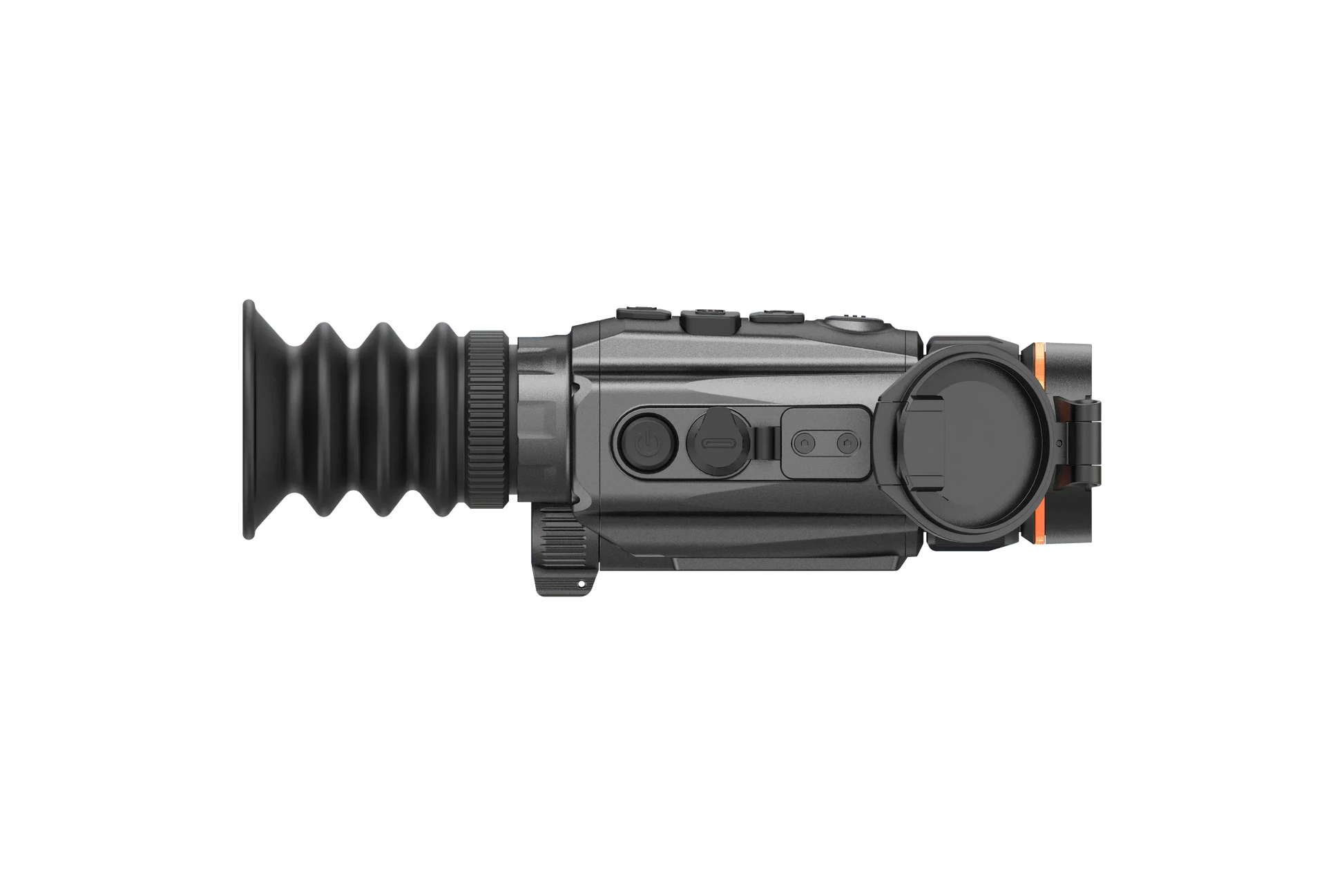

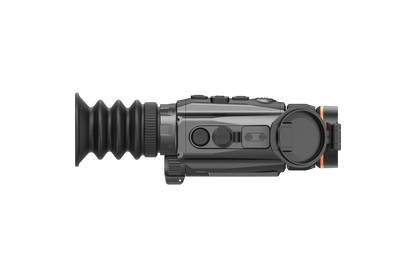

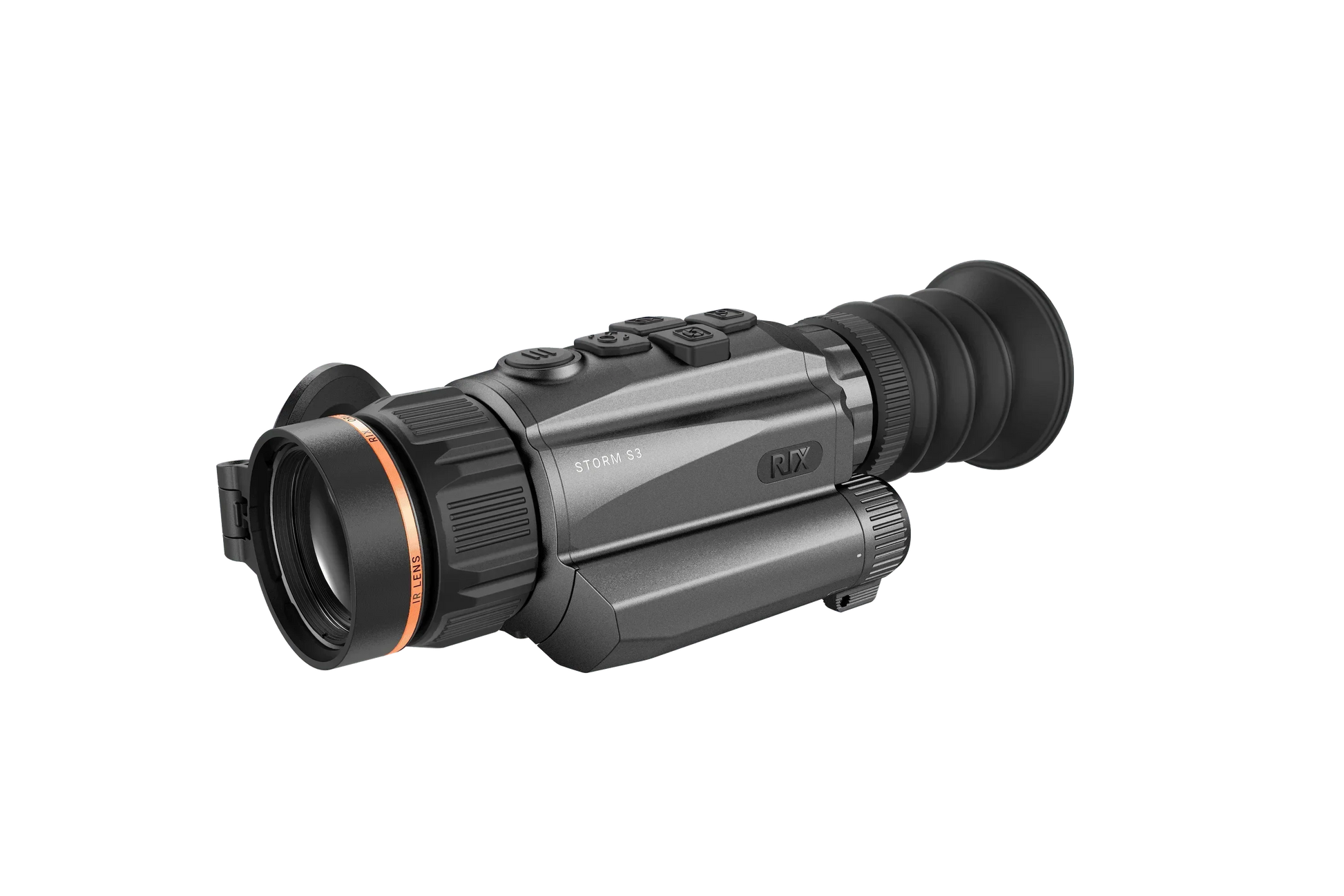

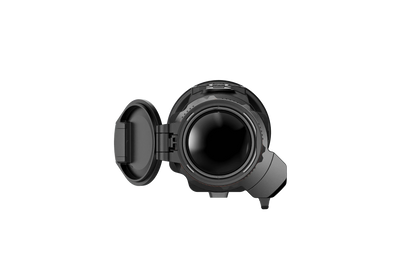

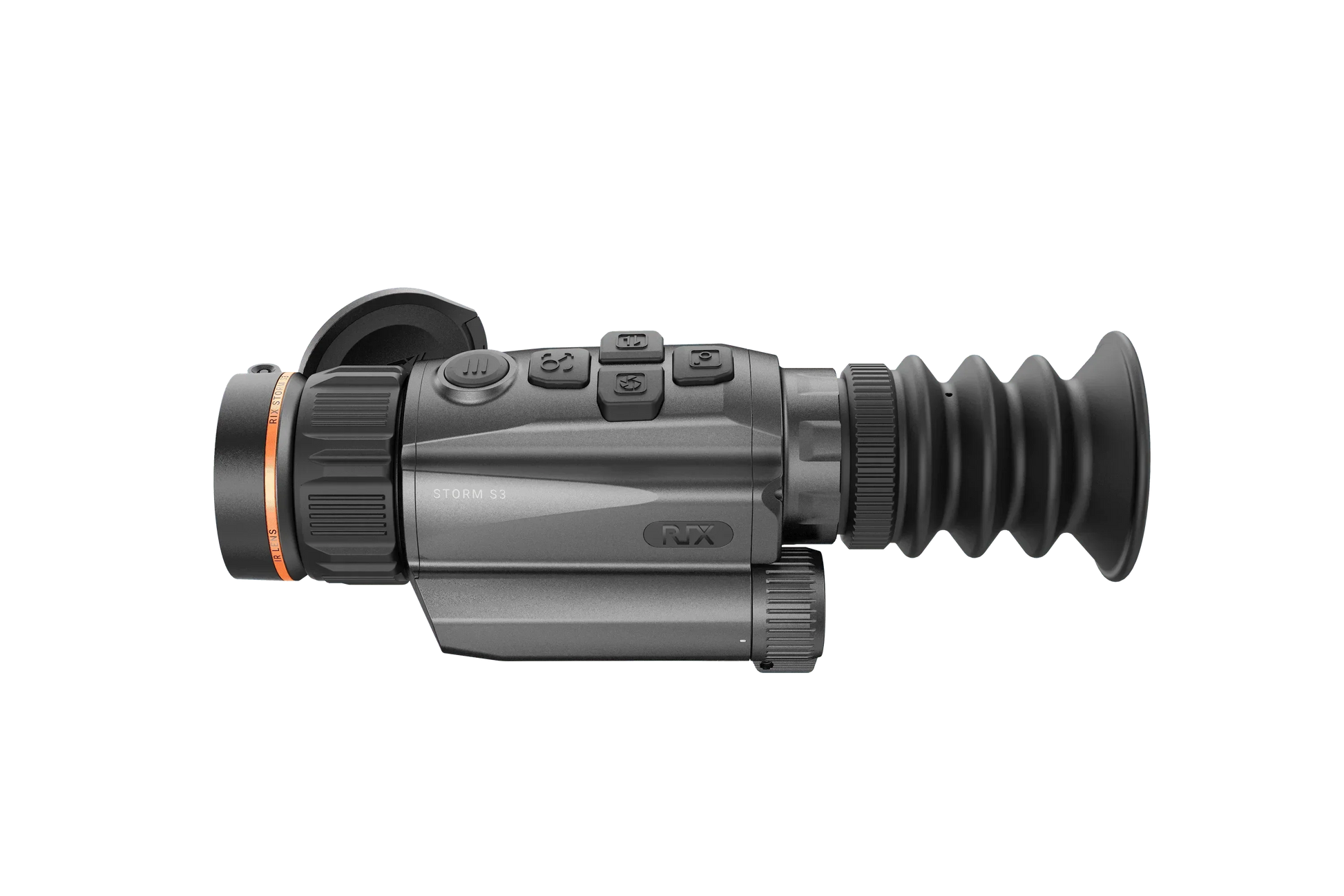

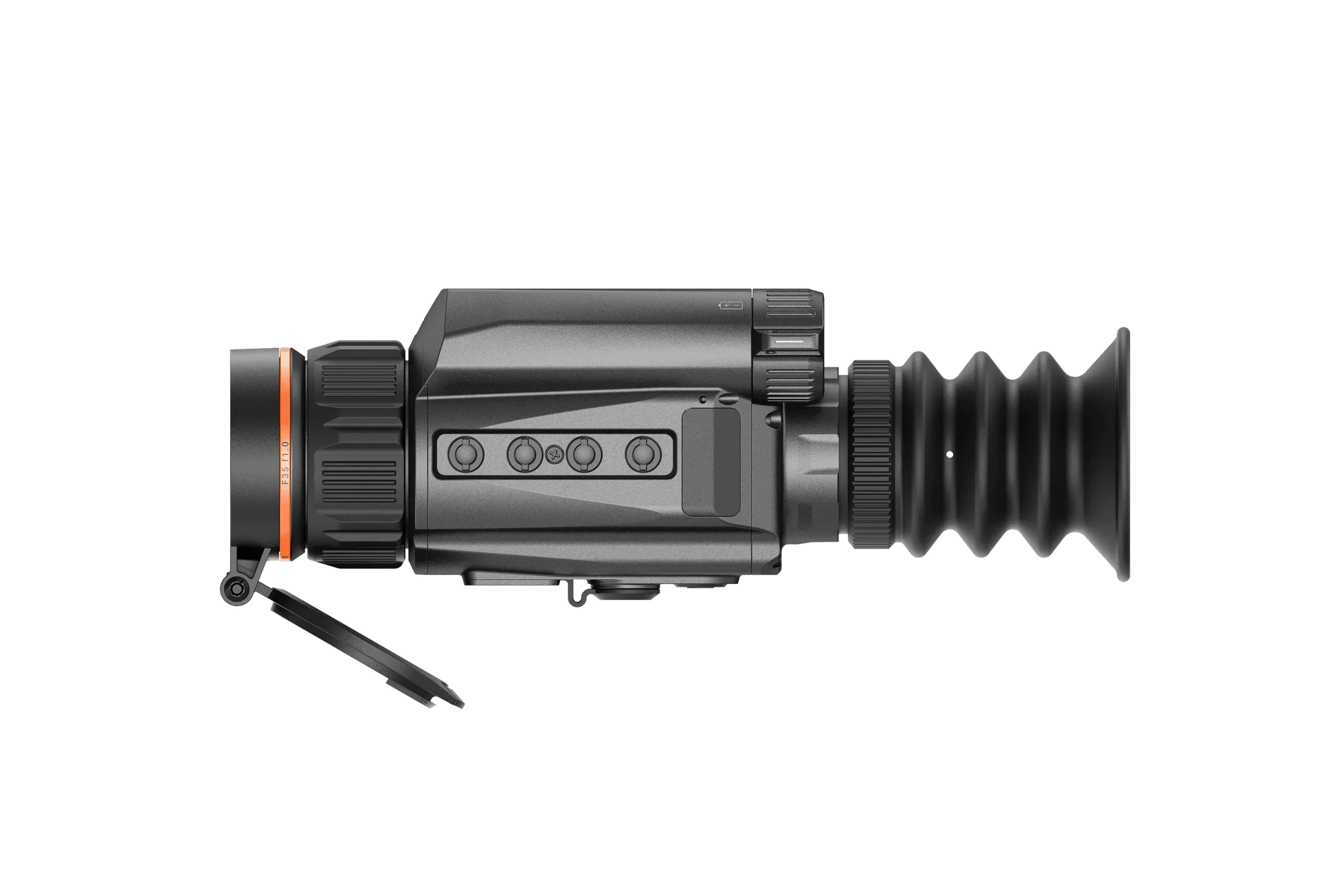

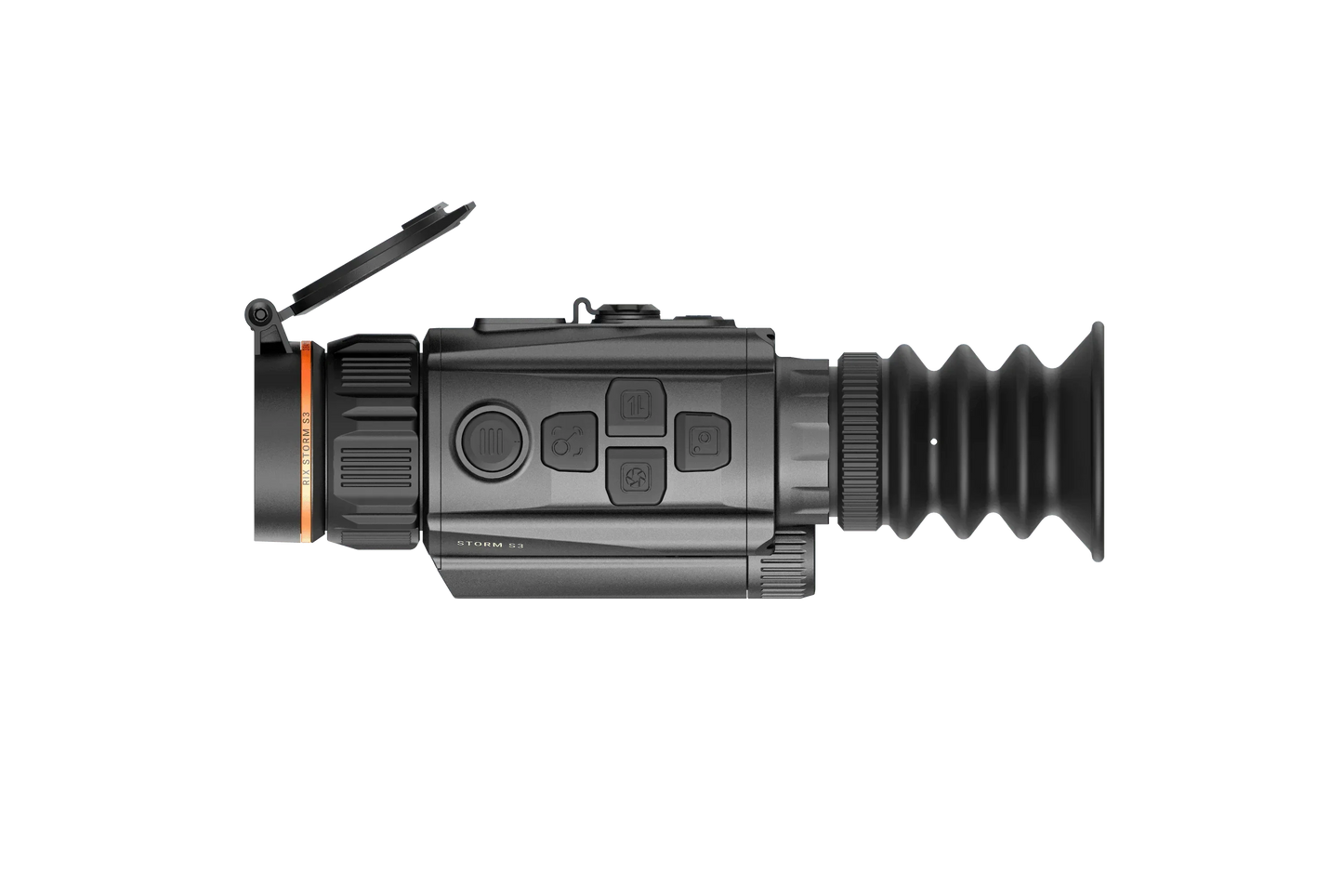

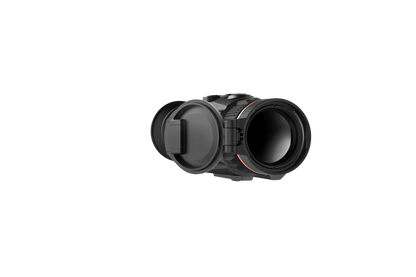

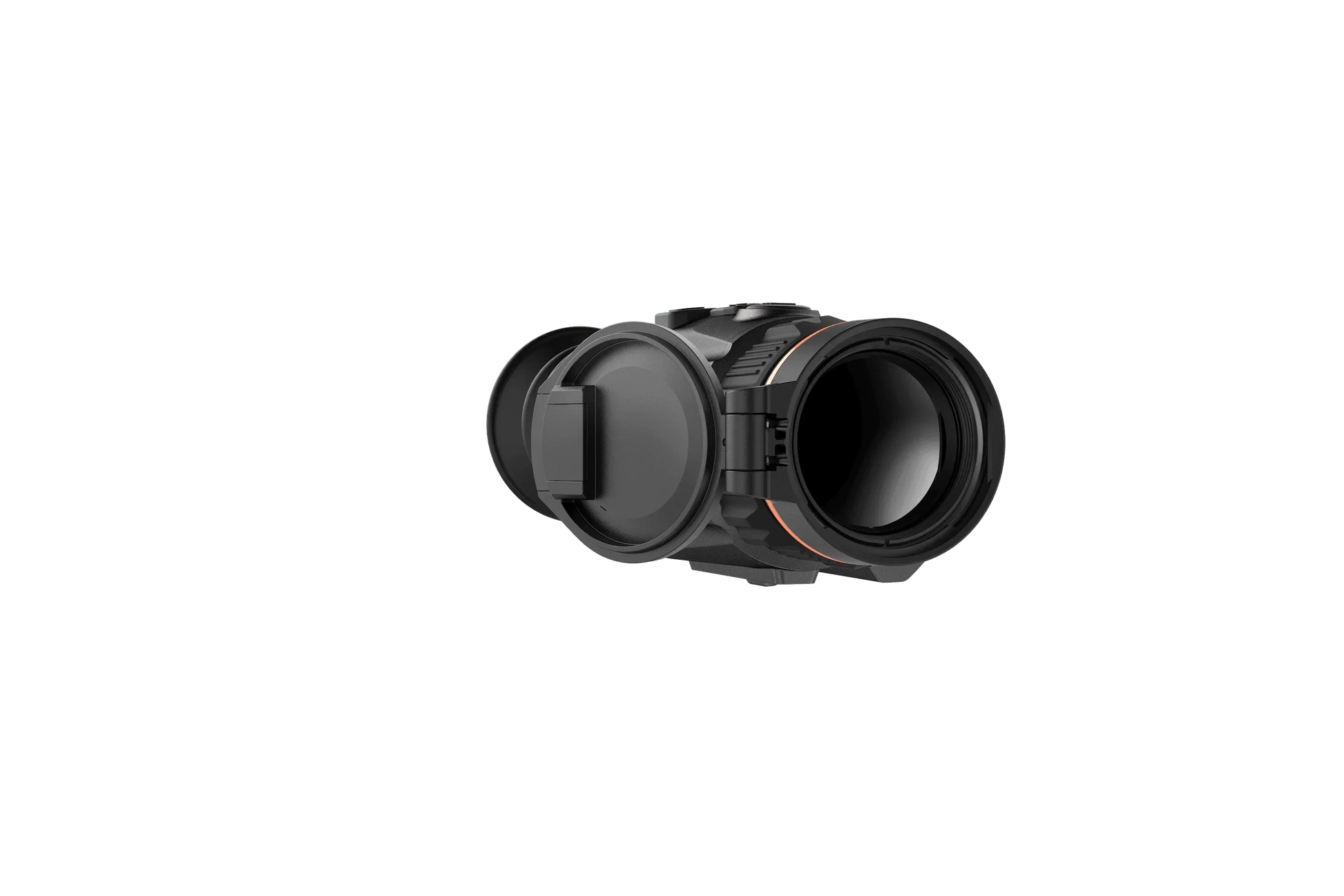

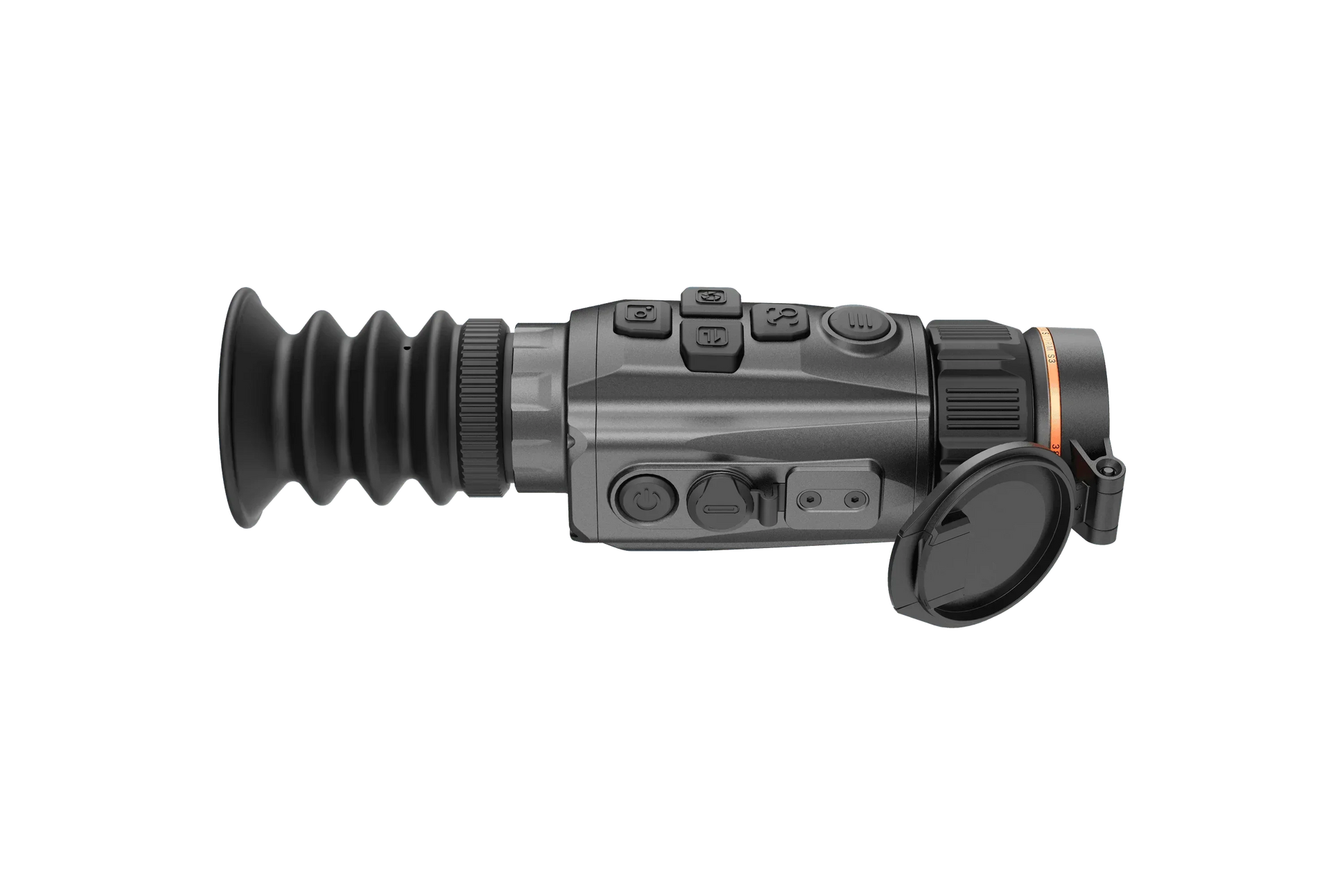

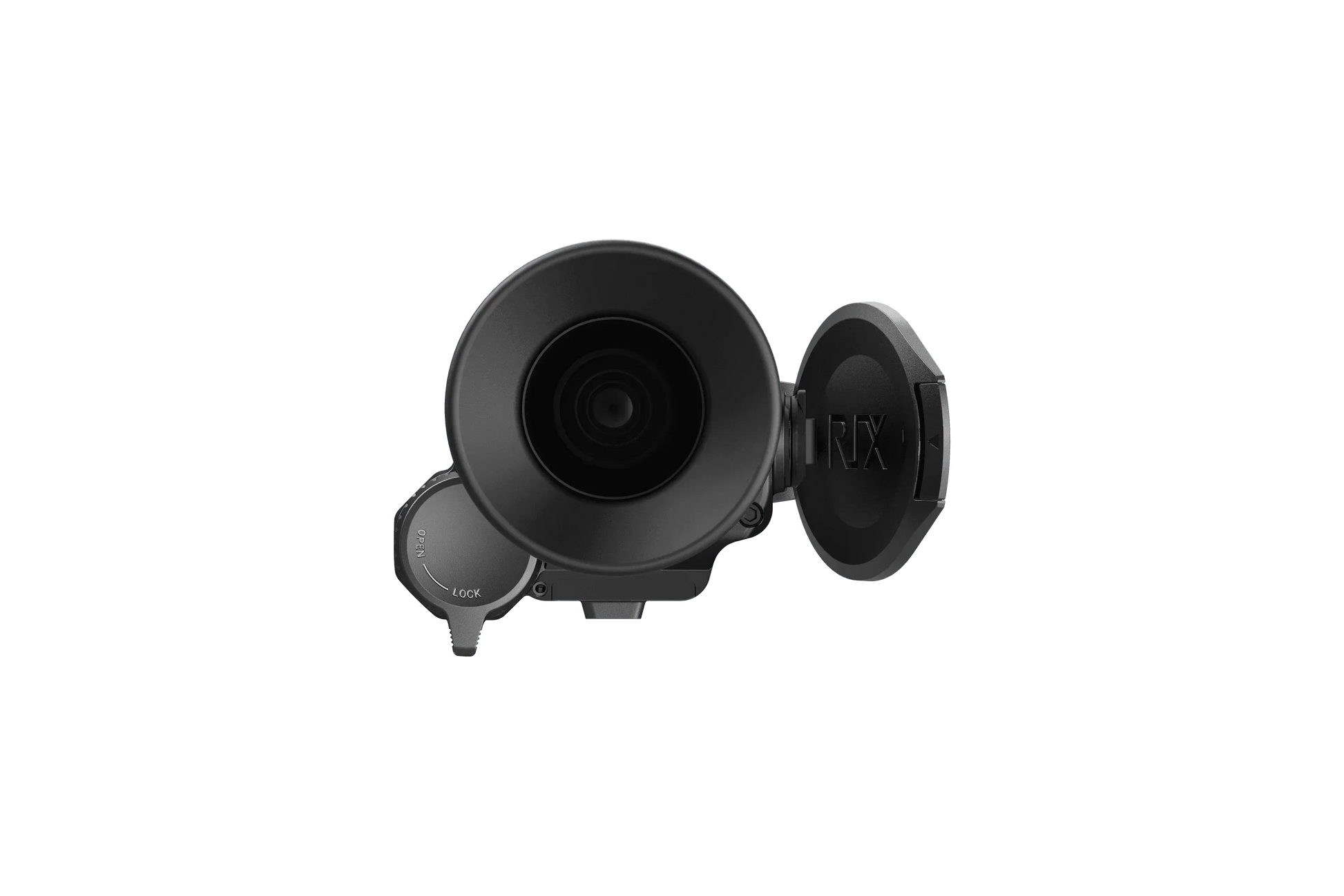

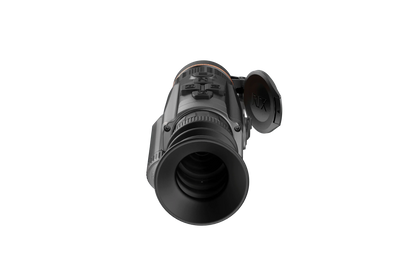

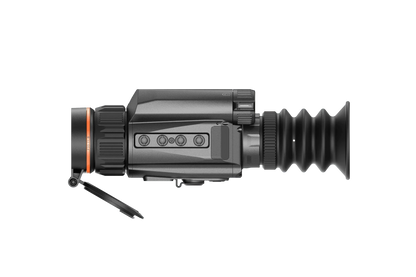

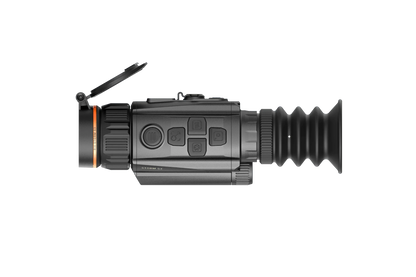

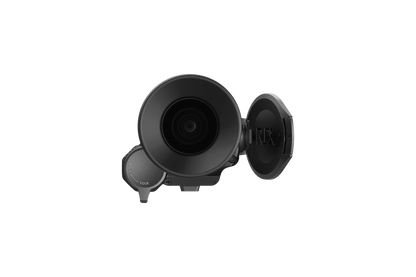

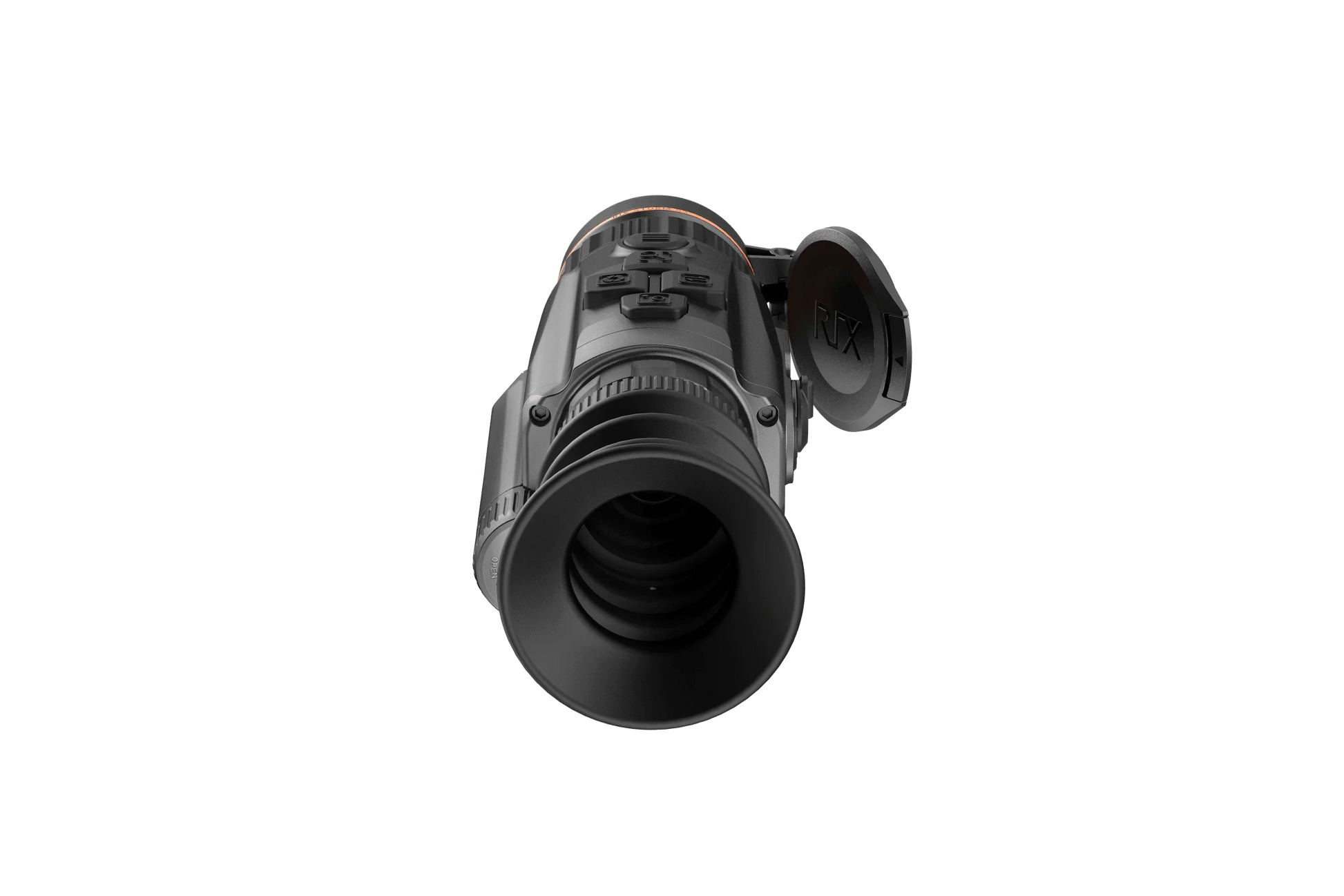

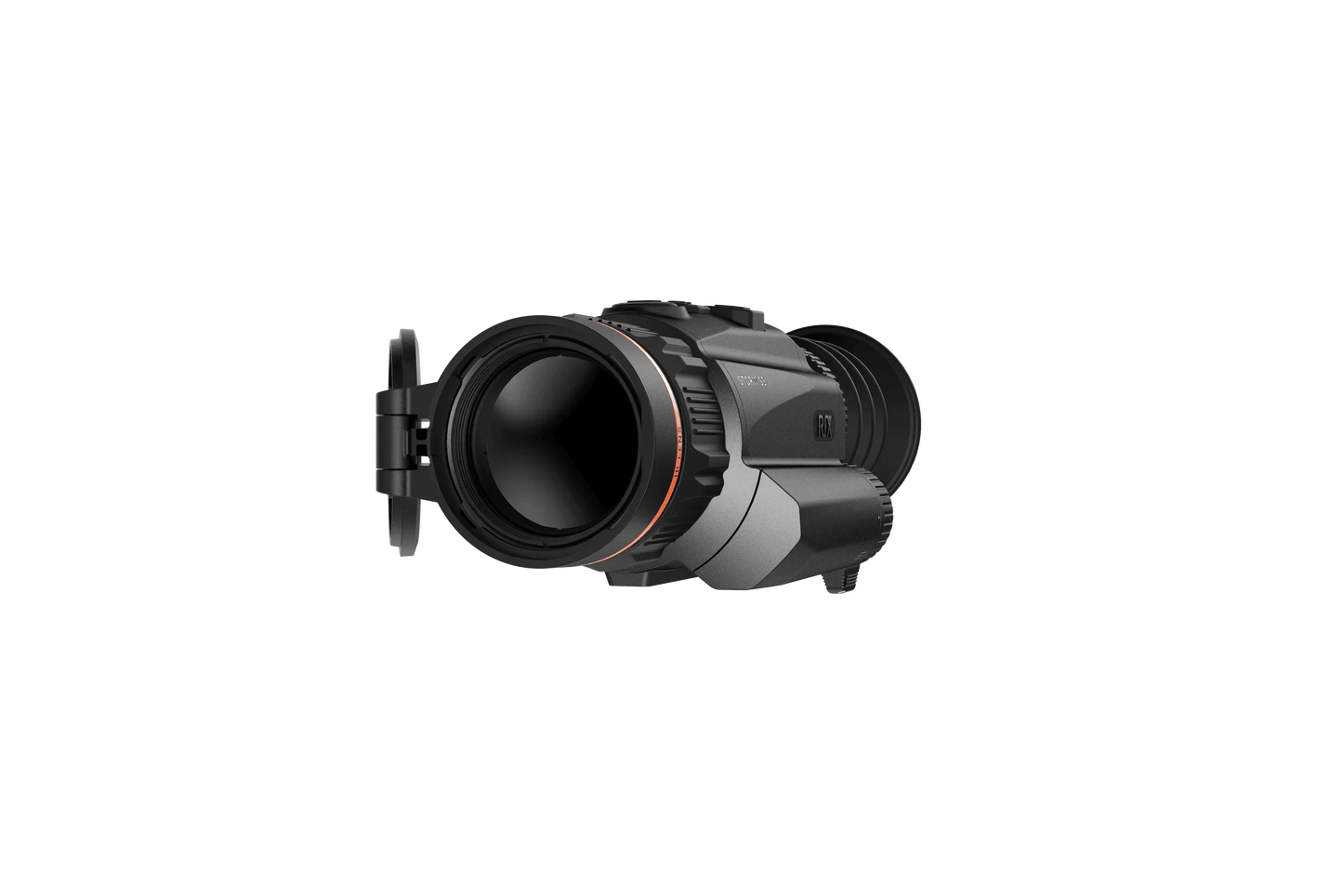

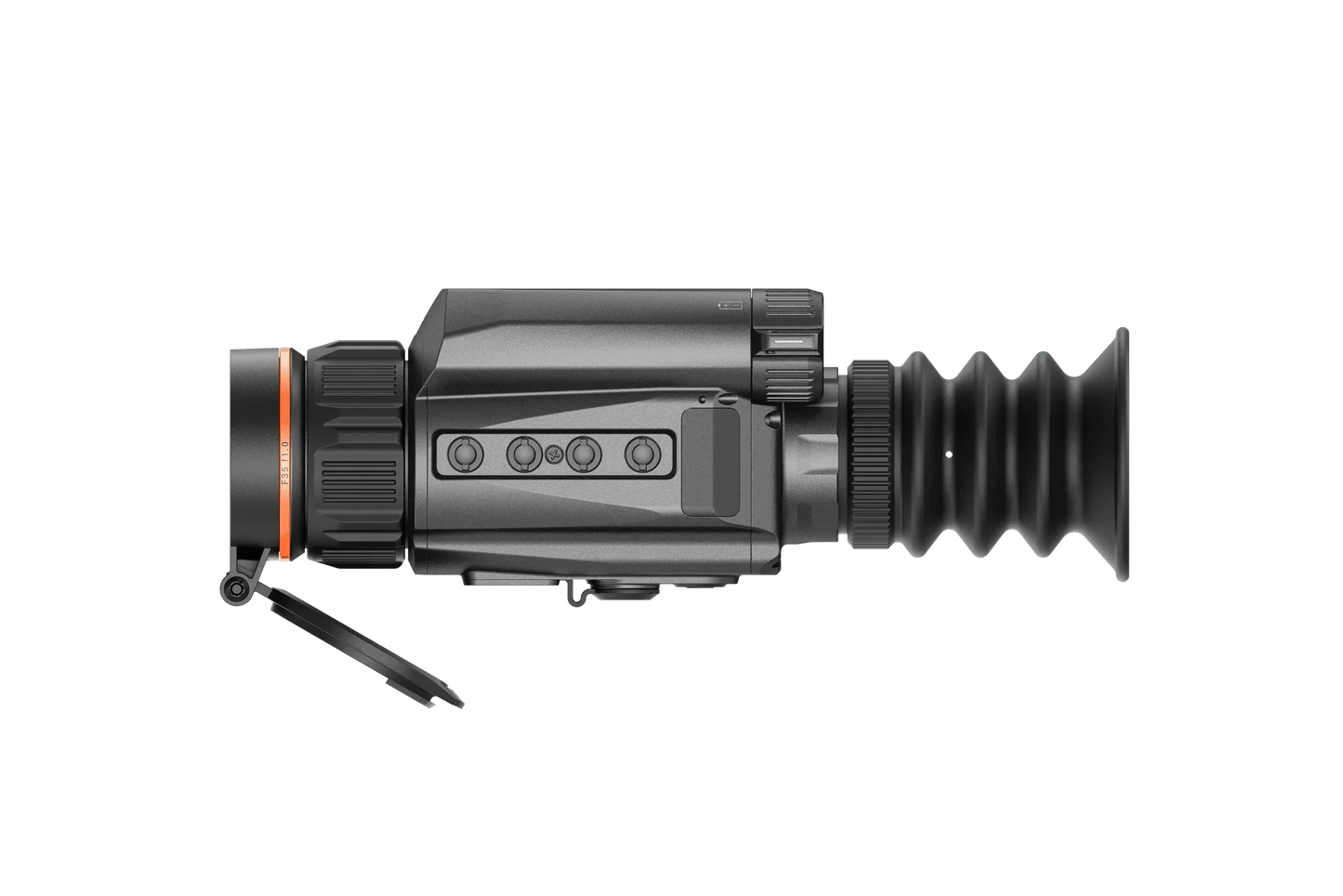

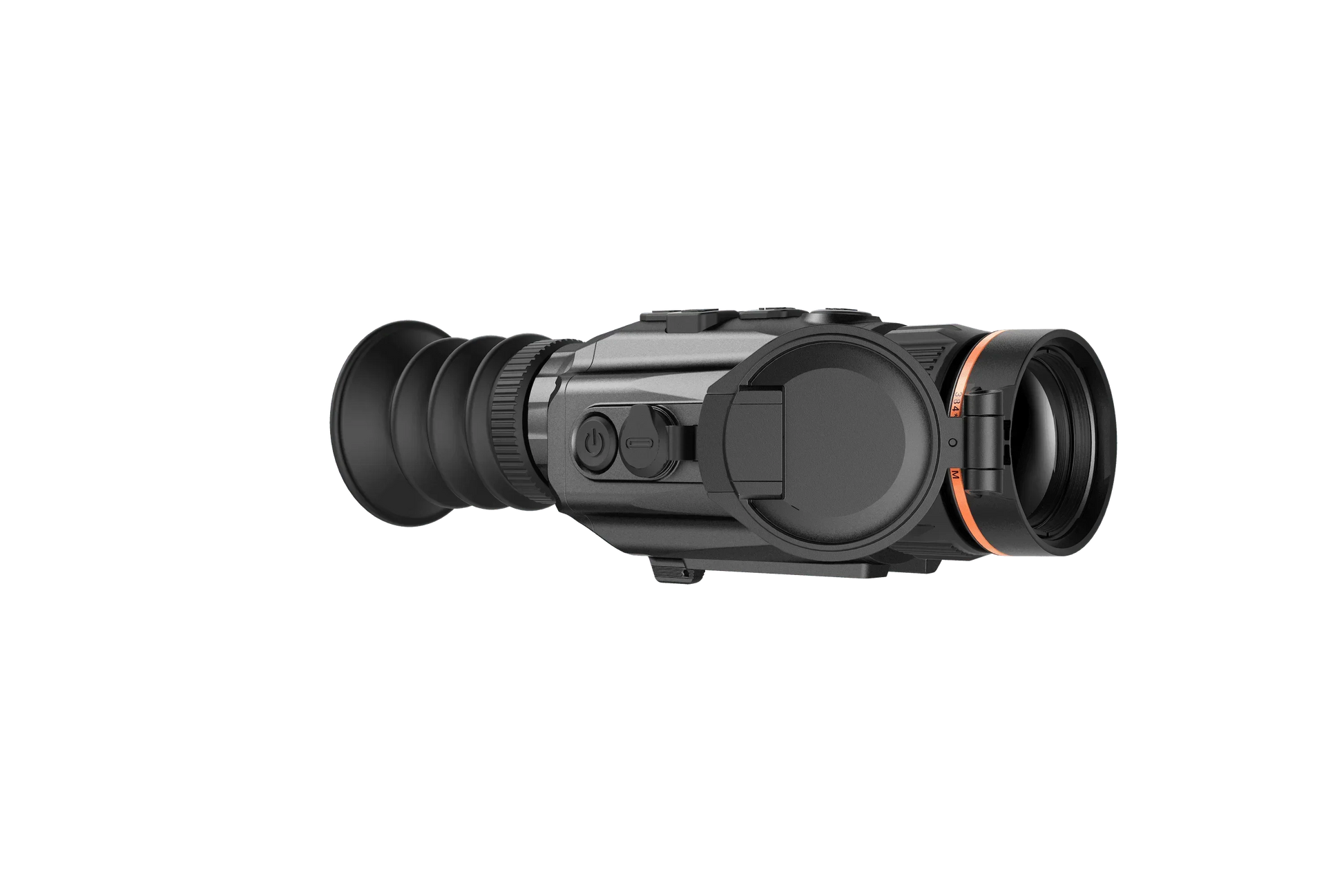

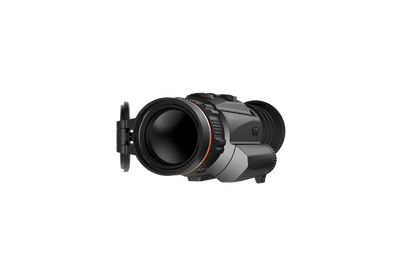

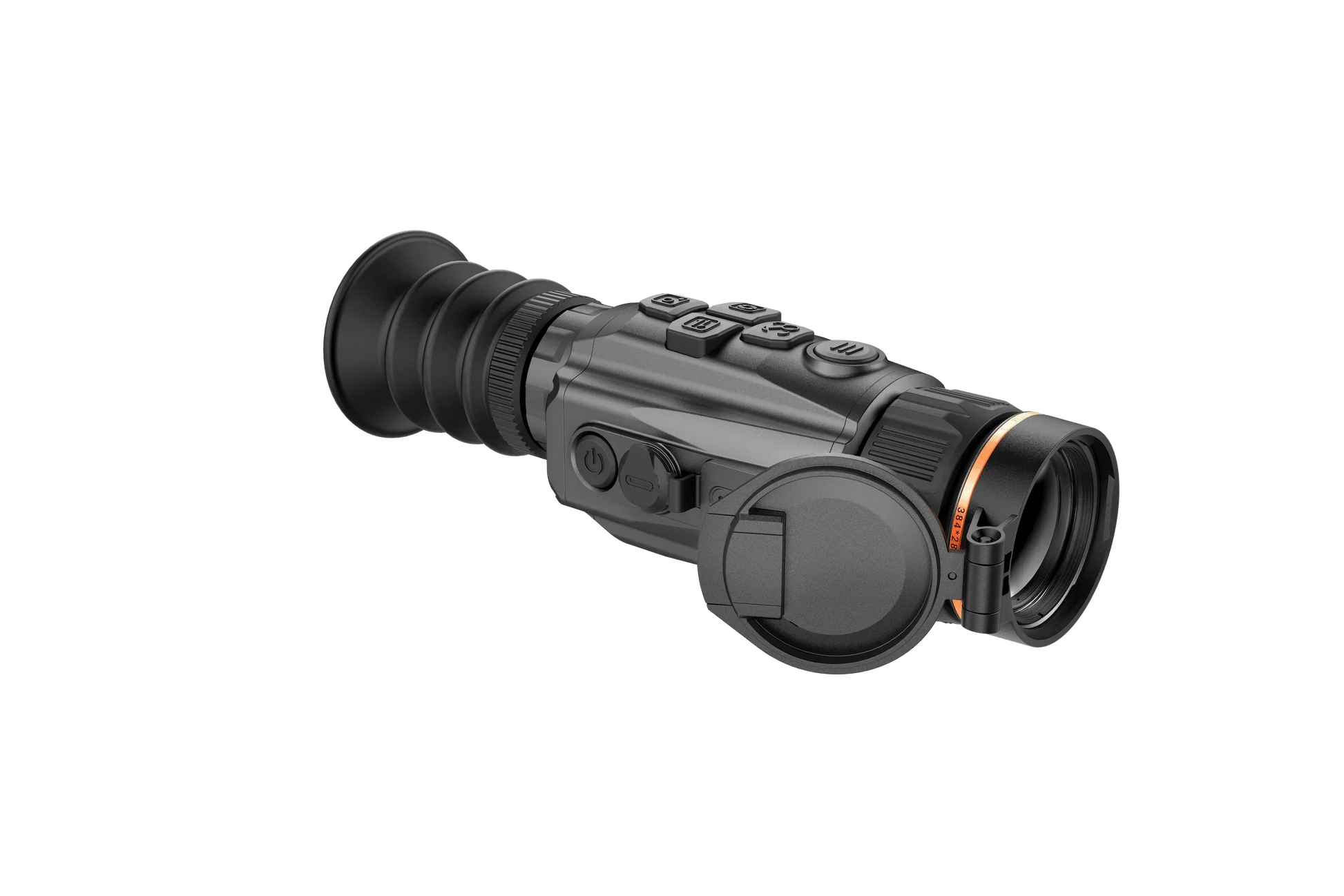

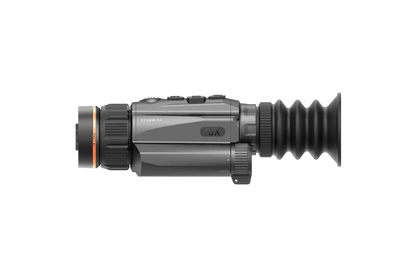

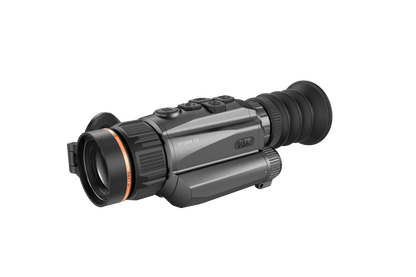

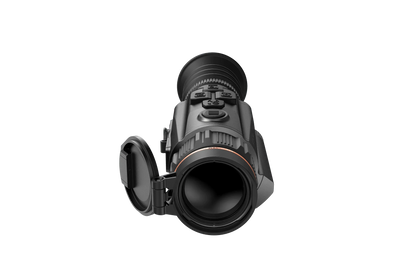

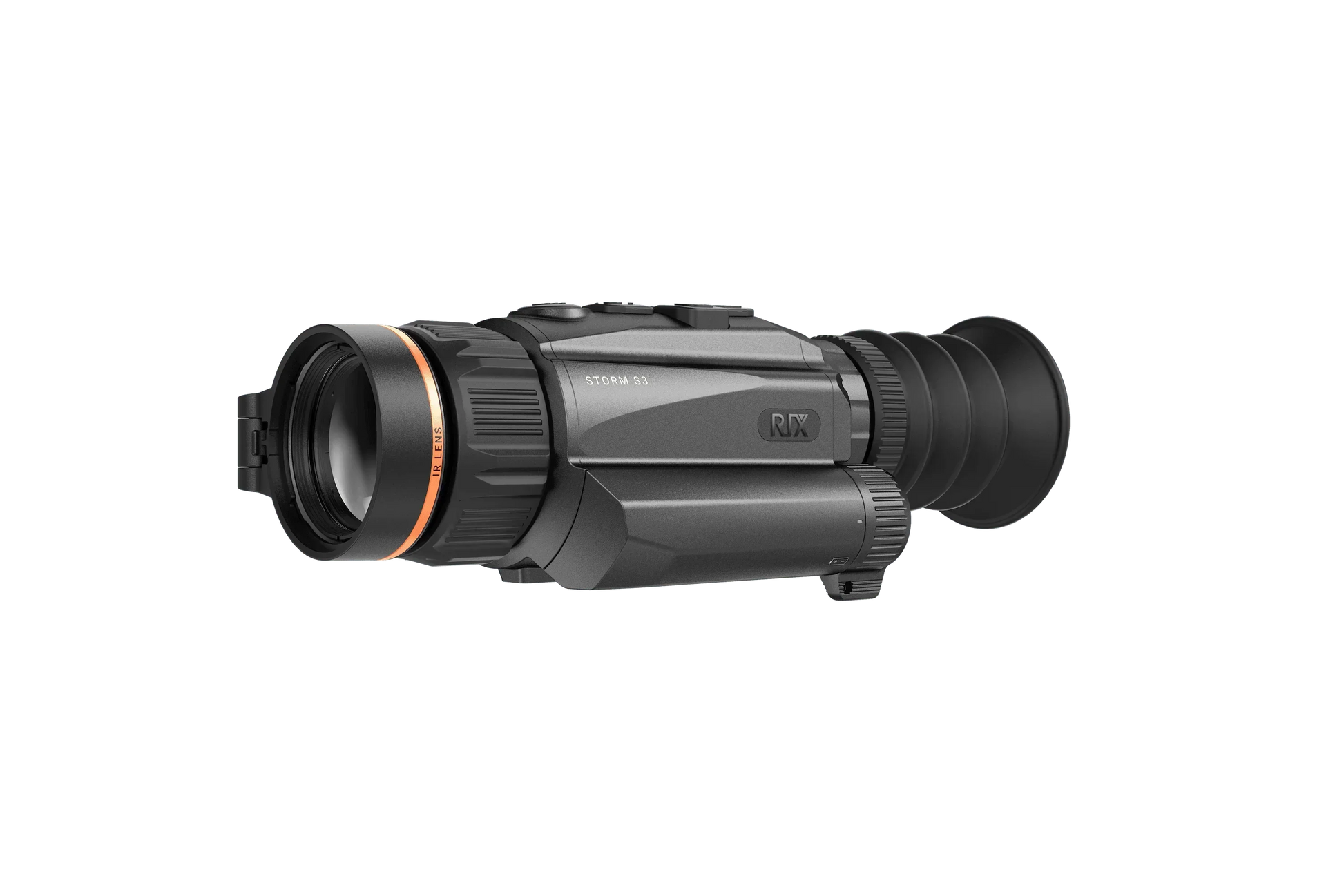

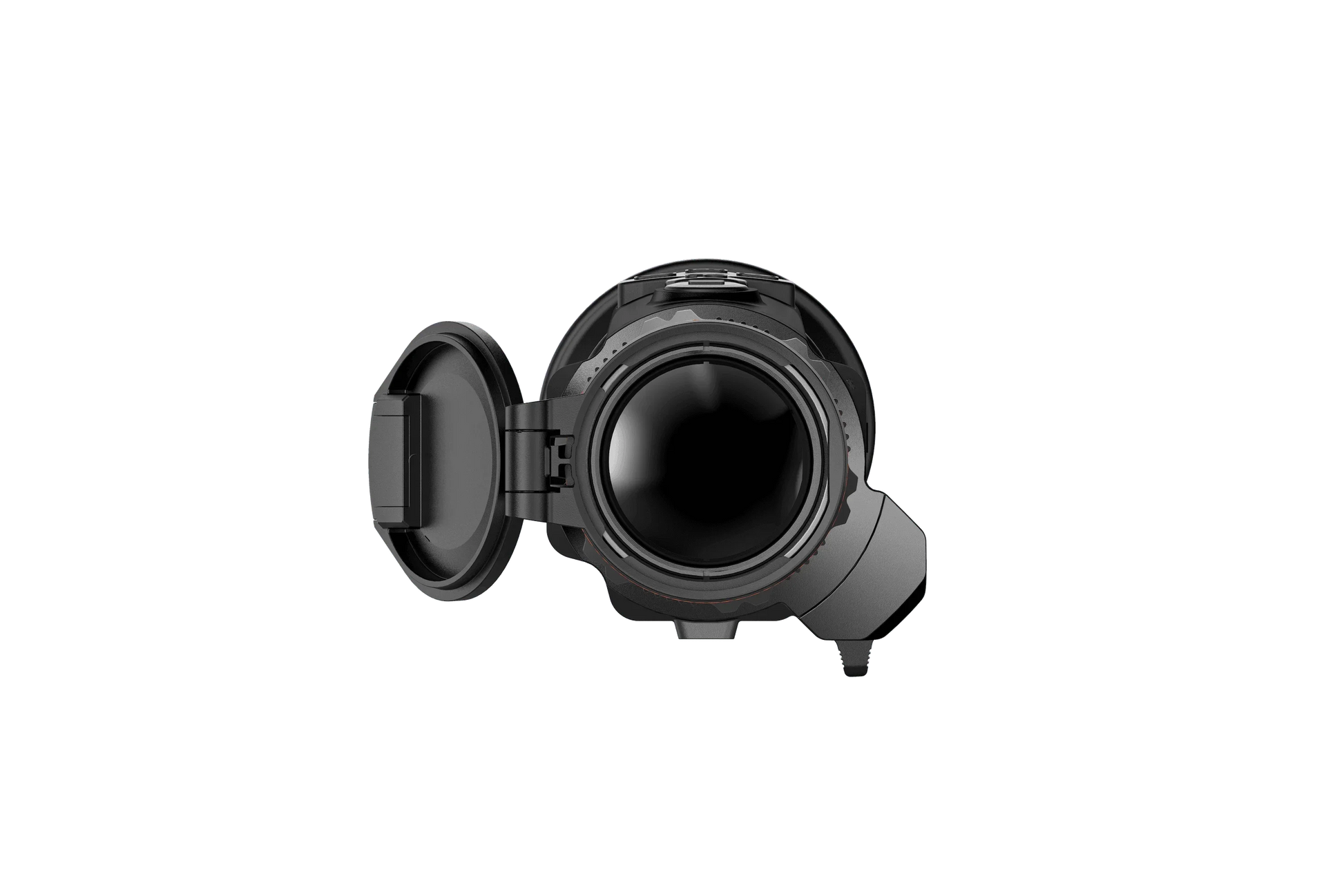

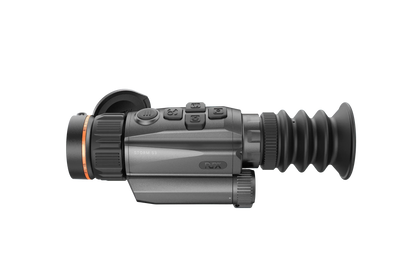

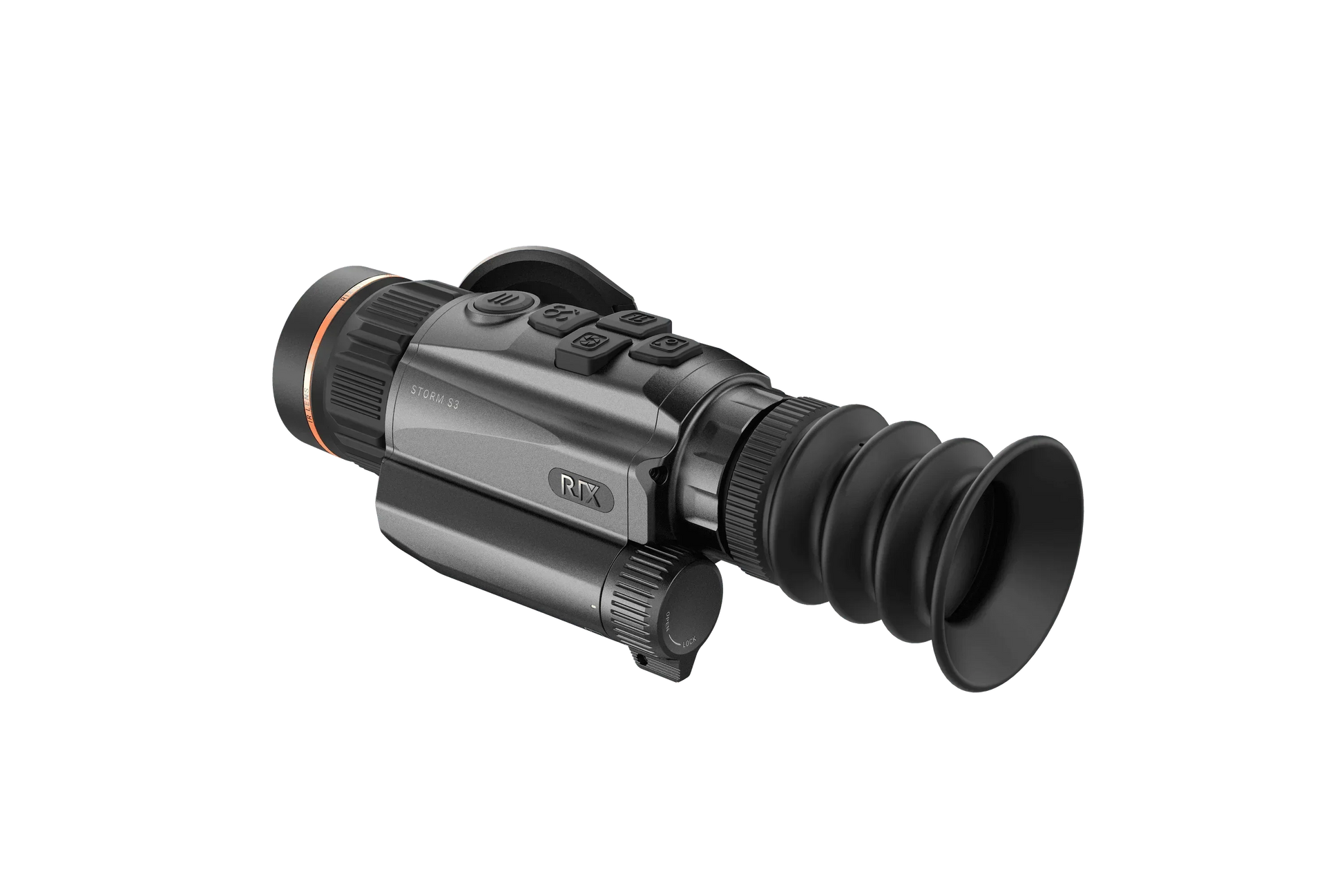

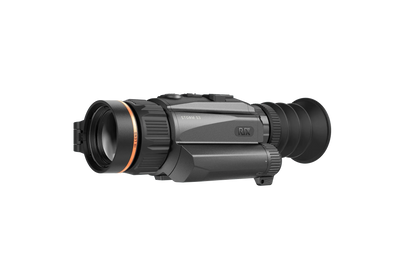

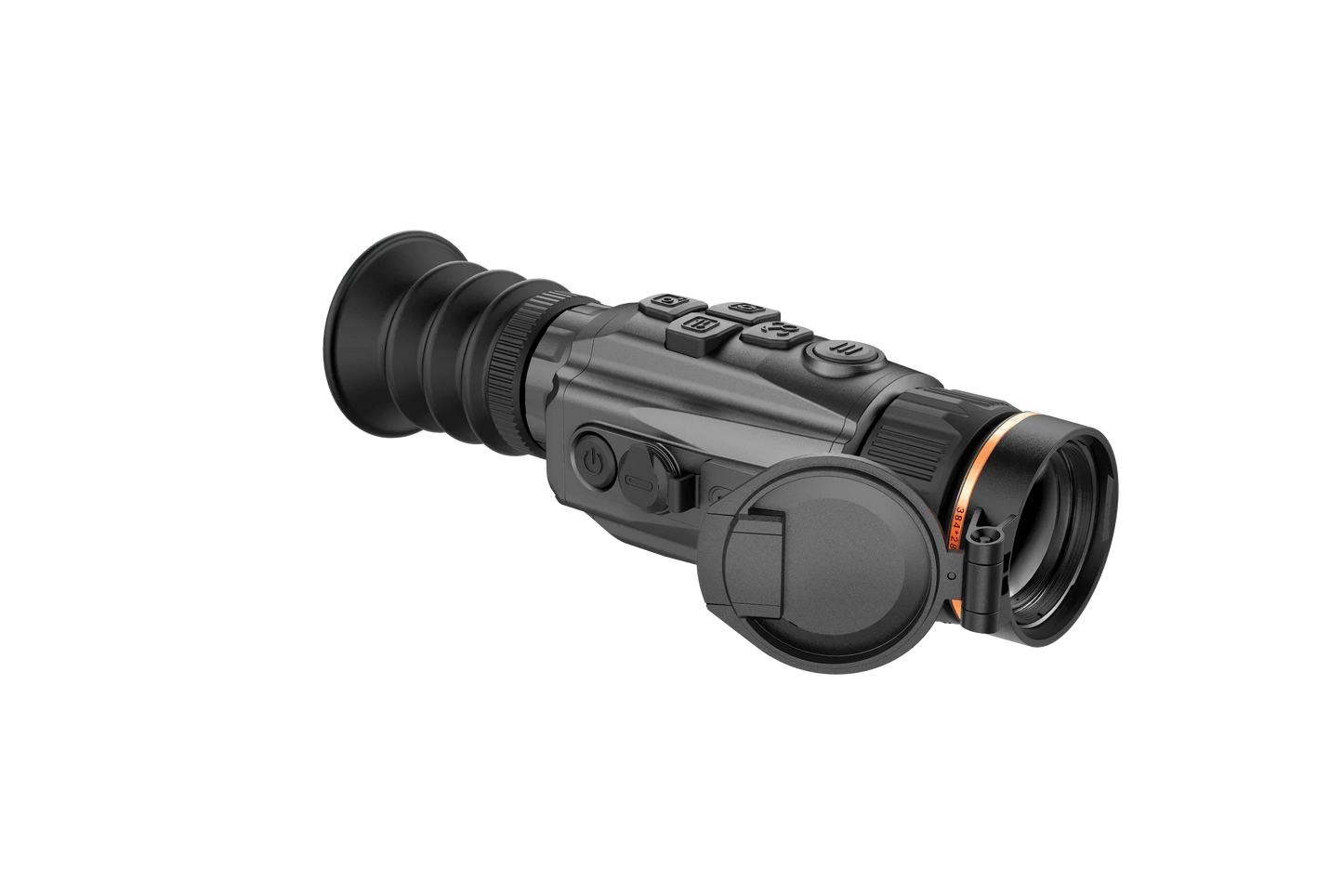

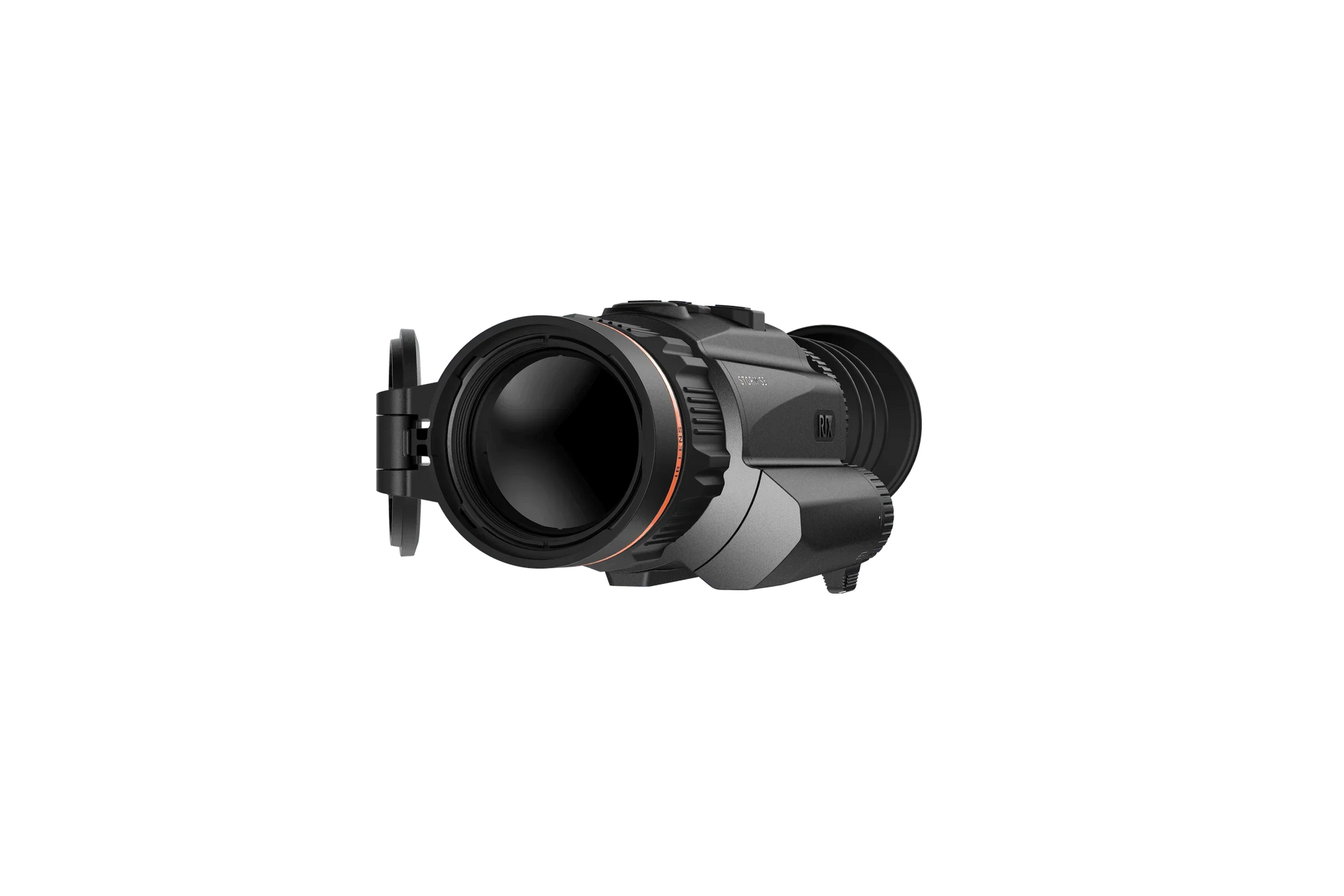

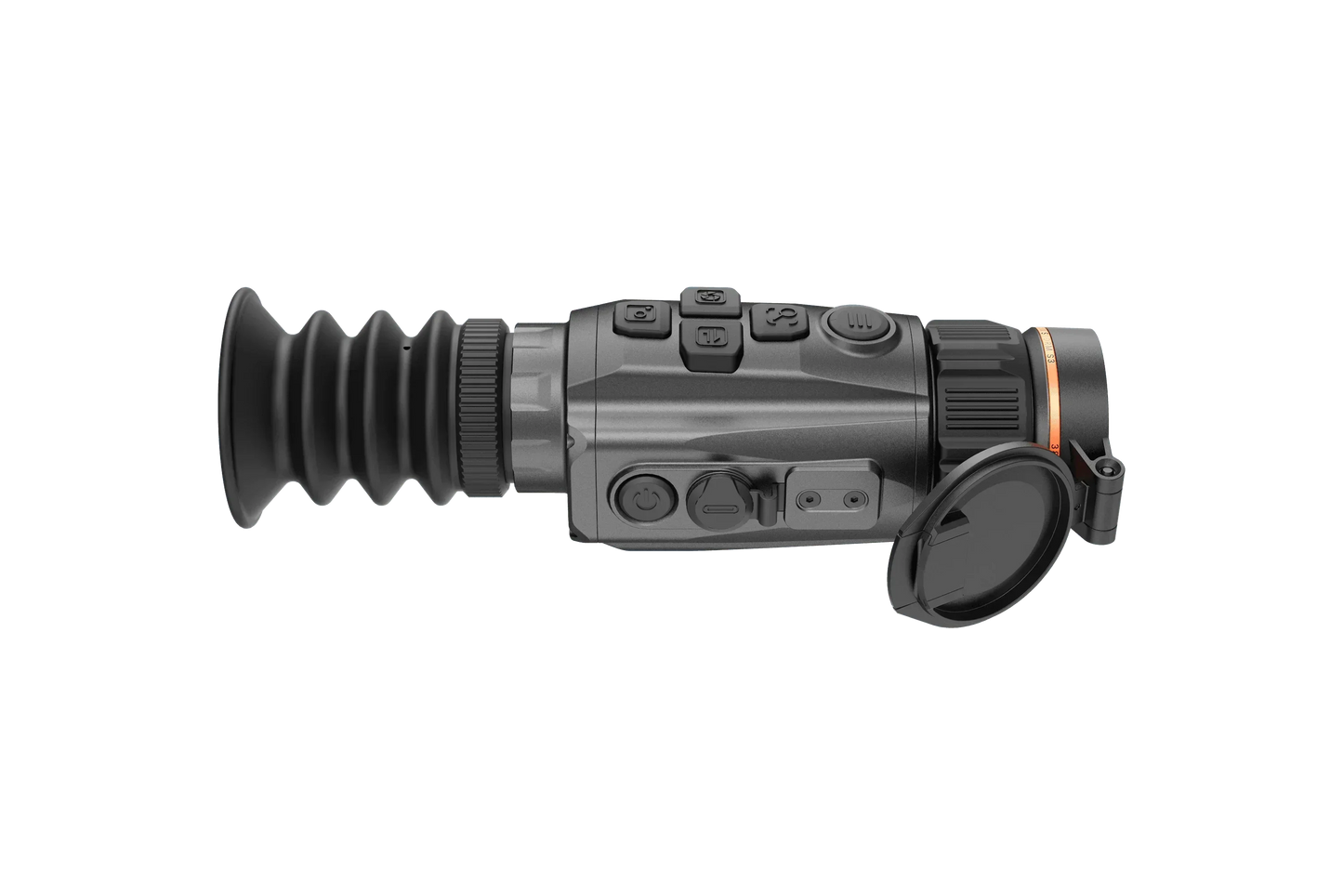

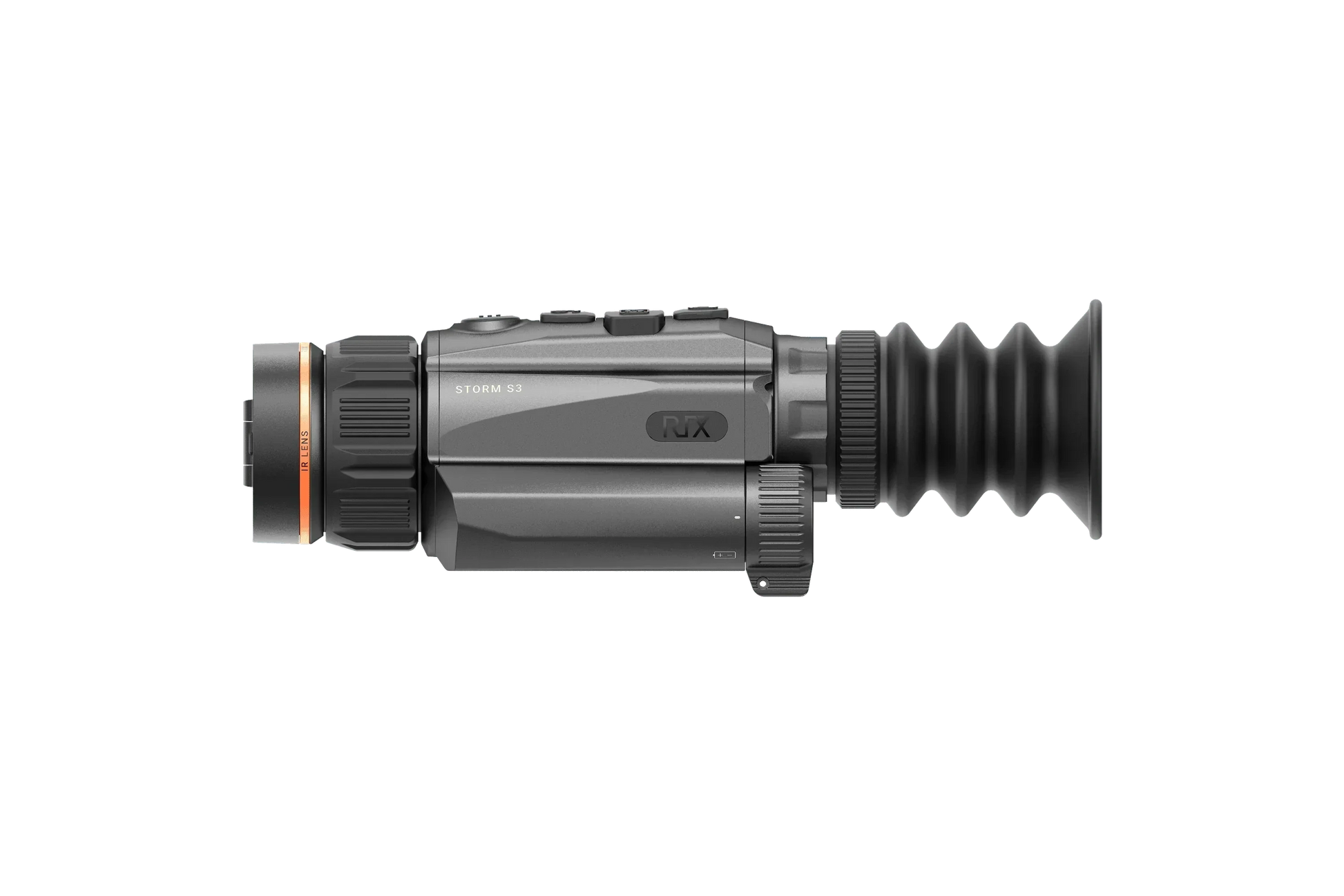

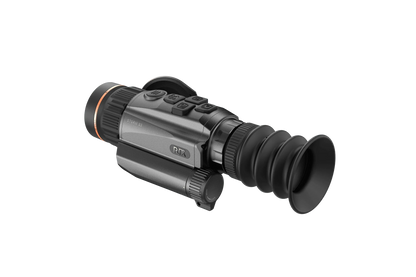

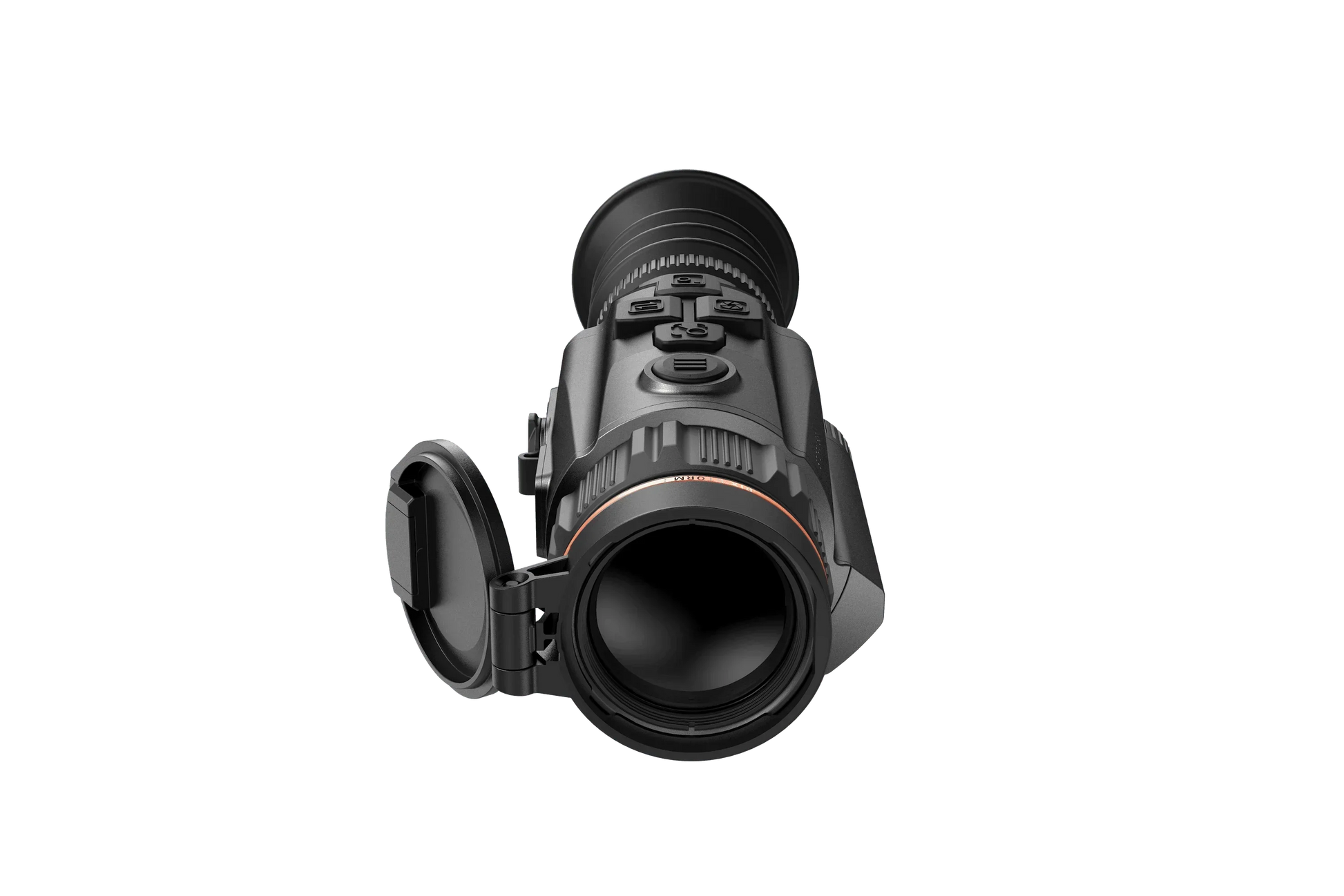

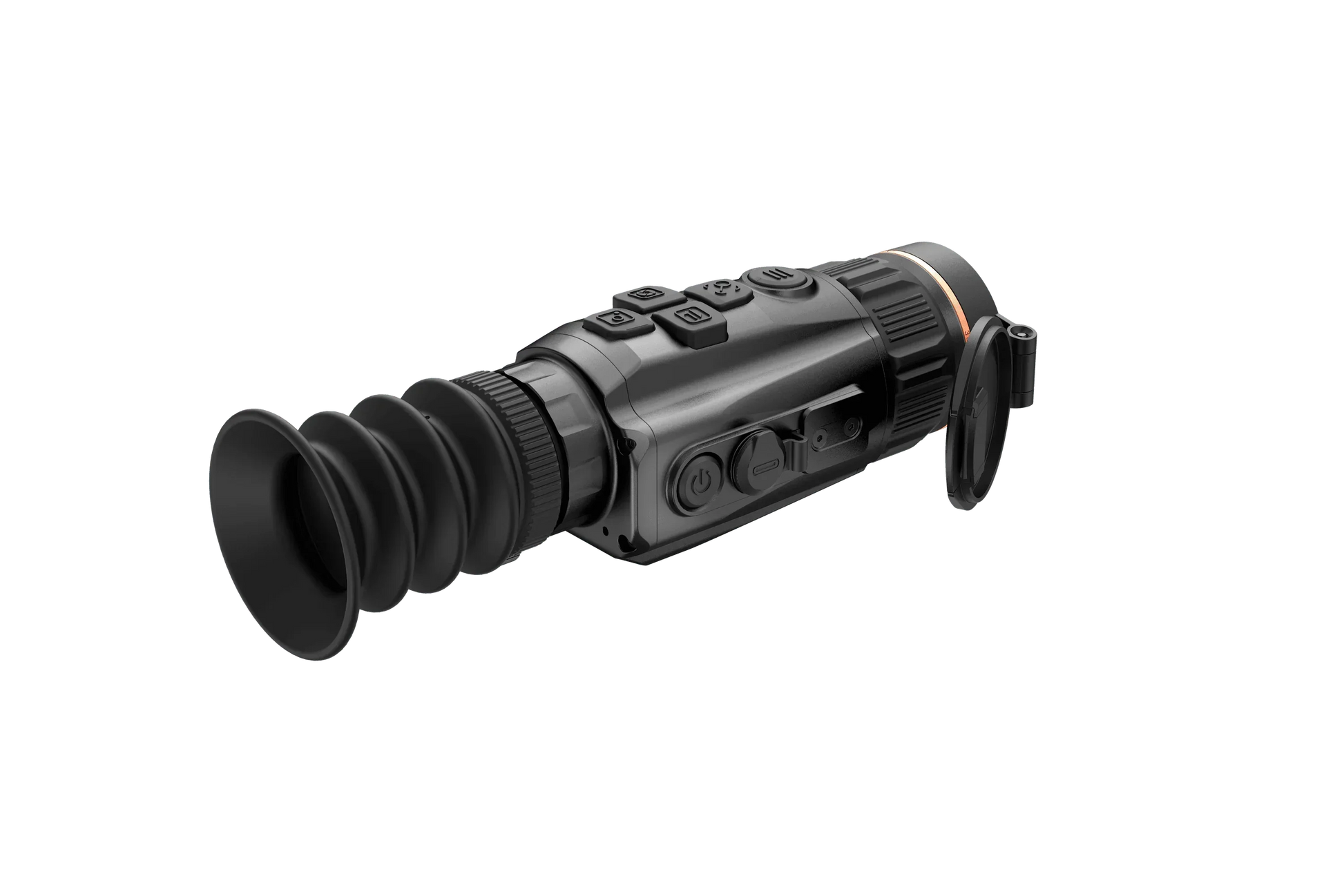

RIX Storm S3 Thermal Scope 384x288/12um 35mm 50Hz WiFi
Introducing the STORM series, a line of advanced thermal imaging devices designed for hunting, observation, and geographic positioning, even in the most challenging weather conditions like rain, snow, fog, and haze. Equipped with high-sensitivity infrared detectors, these devices offer top-tier performance for night vision applications, with features like digital zoom, Picture-in-Picture (PiP), multiple reticle options, and video recording.
The STORM series is packed with advanced features and cutting-edge technology designed for optimal thermal imaging performance in hunting and outdoor applications.
HIGH-PERFORMANCE SENSOR
The STORM series is powered by a 12µm sensor with a NETD <25mK and a 50Hz refresh rate, ensuring crisp, clear images, even in challenging environments. The series offers four models to cater to different needs:
-
S1: 192x144 pixels
-
S2: 256x192 pixels
-
S3: 384x288 pixels
-
S4: 640x512 pixels
RESOLUTION ENHANCED TECHNOLOGY (RET)
Utilizing advanced AI algorithms, Resolution Enhanced Technology (RET) doubles the pixel count, producing sharper, more detailed images, significantly enhancing your outdoor observation and hunting experiences.
1024×768 FULL COLOR OLED DISPLAY
The OLED screen offers superior contrast, vivid colors, and rich details, delivering an immersive and clear viewing experience in various lighting conditions.
REPLACEABLE BATTERY & QUICK-DETACH DESIGN
The STORM features a replaceable 18650 battery, offering over 6 hours of continuous operation. The 90-degree quick-detach battery cap allows for seamless battery swaps, minimizing downtime during use.
INTUITIVE OPERATING SYSTEM

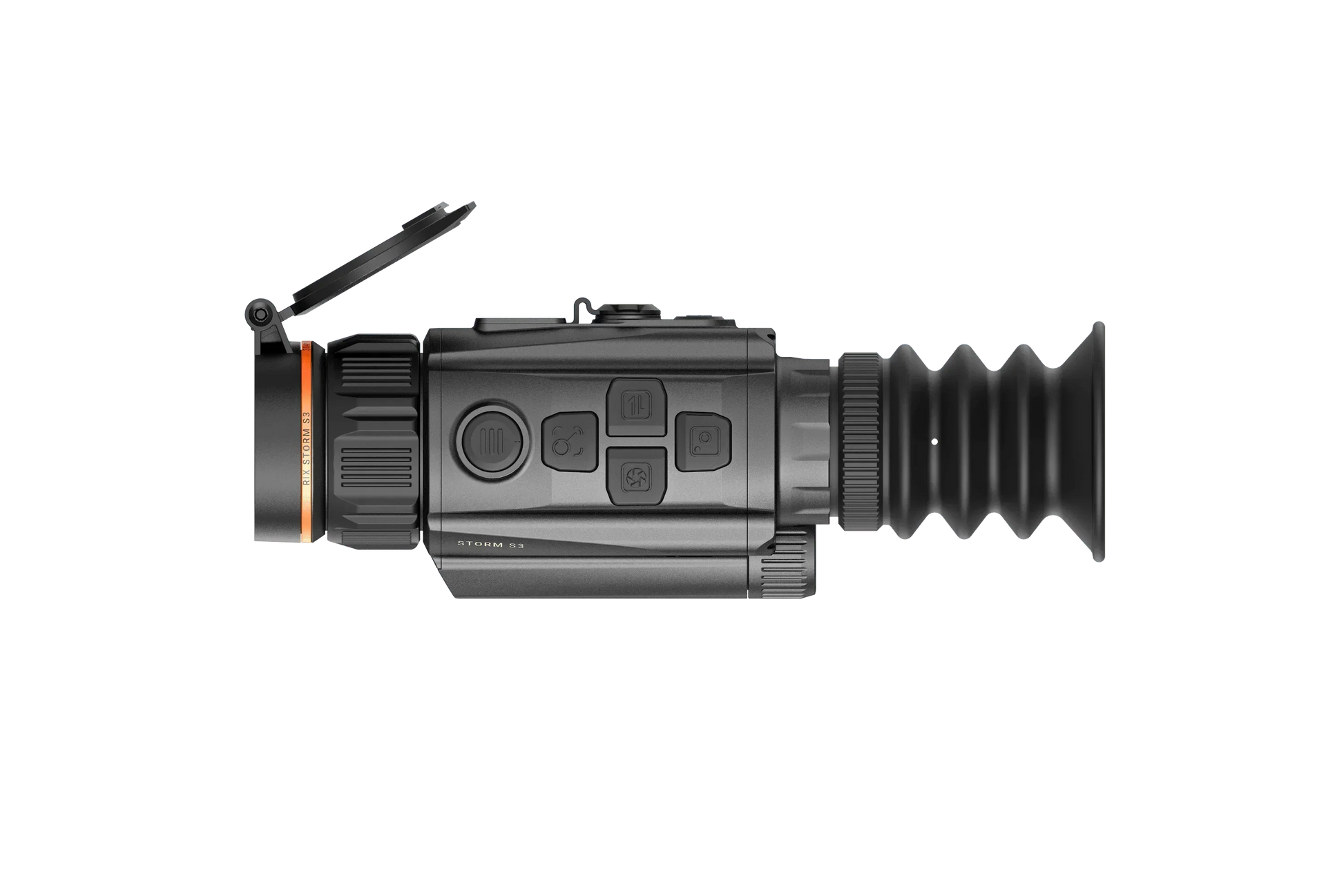

Designed for ease of use, the STORM’s operating system ensures each function is directly mapped to its corresponding button. This allows users to activate features instantly, while the buttons double as directional keys for quick zeroing adjustments.
RETURN TO CENTER FUNCTION (RTC)
After zeroing, the RTC function realigns the reticle closer to the center of the display, improving your field of view and focus on the target.
ADJUSTABLE PICTURE-IN-PICTURE (PIP)
Unlike traditional PiP modes, the STORM allows users to adjust the magnification level of the PiP image independently, ensuring greater situational awareness and improved shooting accuracy.
LIGHTWEIGHT AND COMPACT DESIGN
Weighing only 440g (just under 1lb), the STORM is both lightweight and compact, making it ideal for handheld use. Its aluminum alloy construction ensures durability, and the quick-detach Picatinny rail provides easy firearm attachment.
With its cutting-edge features, the STORM series is the ideal thermal scope for hunters and outdoor enthusiasts looking for a high-performance, reliable, and user-friendly tool for their adventures.
RIX Optics Storm S3 384 Features:
Light weight, less than 1lb
Optical Zoom: 3.5x - 14x
High resolution 1024x768 display
PIP function
Replaceable 18650 battery, long battery life
Built-in Wi-Fi module, supporting app connection
High image quality
Weather mode
Built-in 32GB storage, photo and video recording
RIX Optics Storm S3 384 SPECIFICATIONS:
Sensor Specifications
Type
VOx Uncooled
Resolution, pixels
384×288
Pixel Pitch, µm
12
NETD, mk
<25
Frame Rate, Hz
50
Optical Specifications
Objective Lens，mm
35mm; F1.0
Optic Zoom, x
3.5
Field of View, degrees / yd @ 100 yd
7.5°/13.2yd
Digital Zoom, x
1 to 4
Eye Relief, mm
48
Diopter Adjustment, D
-5 to +5
Detection Range, m/yd
1800/1968
Display Specifications
Type
OLED
Resolution, pixels
1024×768
Wi-Fi
Wireless Protocol
Wi-Fi
Frequency, GHz
2.4GHz
Video Recorder
Video / Photo Resolution, pixel
1024×768
Video / Photo Format
.mp4 / .jpg
Built-in Memory, GB
32
Physical Specifications
Degree of Protection, IP code
IP67
Operating Temperature Range, °F
-4 to +122
Weight, lb
0.97
Dimensions, inch
5.3×2.5×2.2
Connections and Compatibilities
Battery Type
18650
Capacity, mAh
3200
Operating Time on Battery Pack (at t=72°F), h
6
External Power Supply, V
5V (Type C USB)
Max Recoil Power on Rifled Weapon (Eo), g/Joules
1000g/6000Joules
Compatible Mounts
Picatinny mount
Warranty
5 Years
Included:
The STORM Series Thermal Imaging Scope
Dust Cover
Battery x2
Battery Charger
USB Type C Cable
Thermal Target x10
Lens Cloth
