Sightmark Wraith 4K Multipurpose Digital Night Vision Monocular

Sightmark Wraith 4K Multipurpose Digital Night Vision Monocular


Regular price $ 699.00
Regular price $ 0.00 Sale price $ 699.00
Sale Sold out
Shipping calculated at checkout.

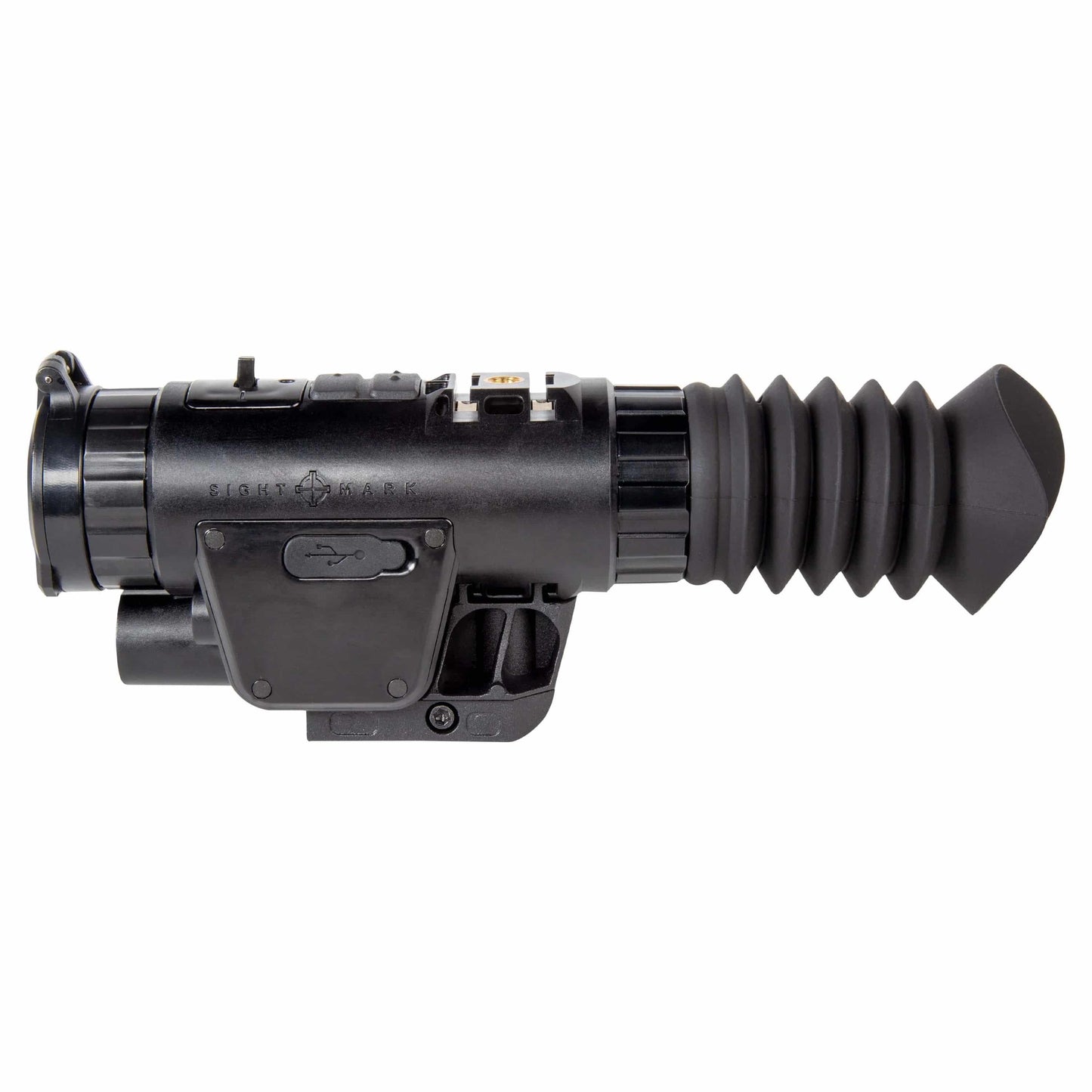

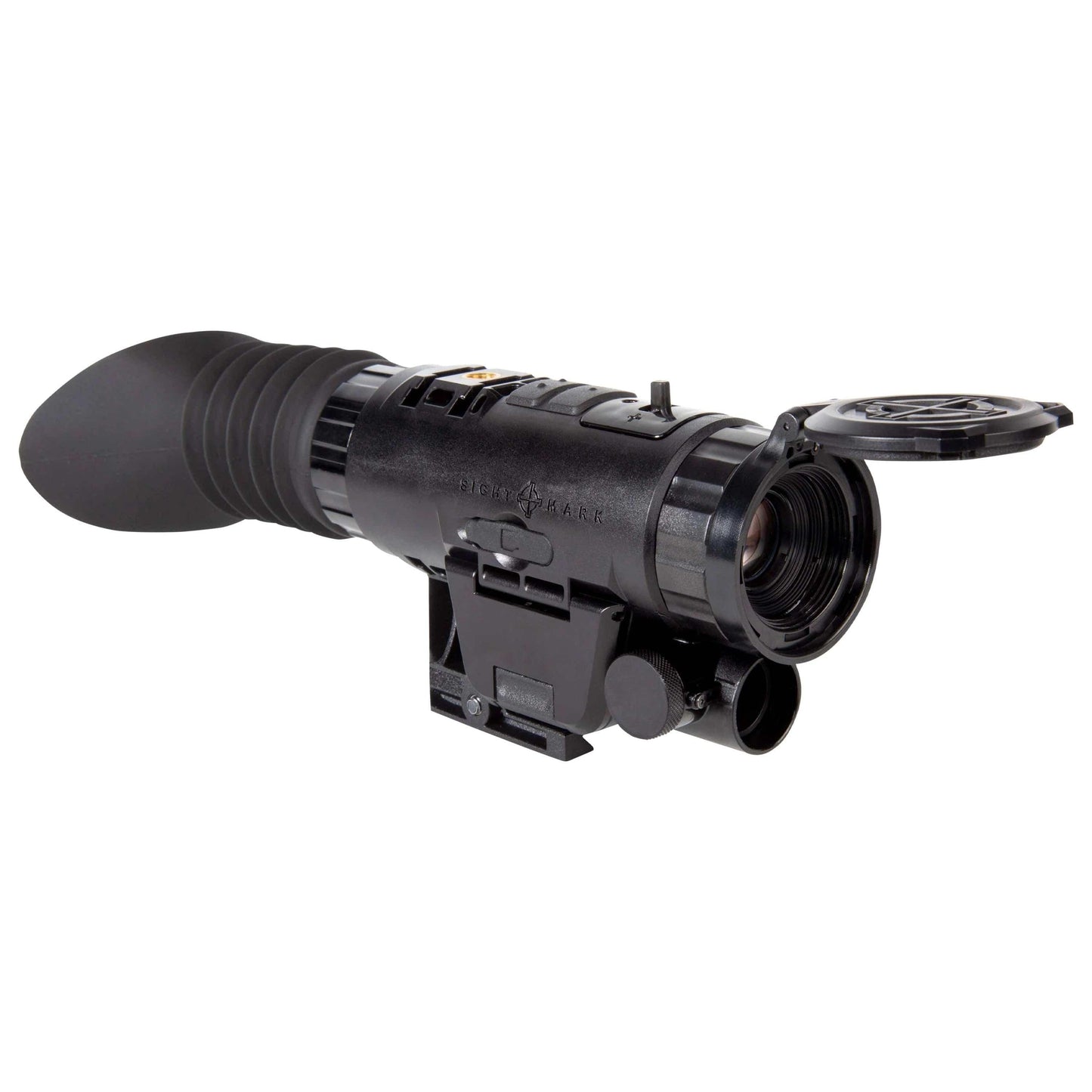

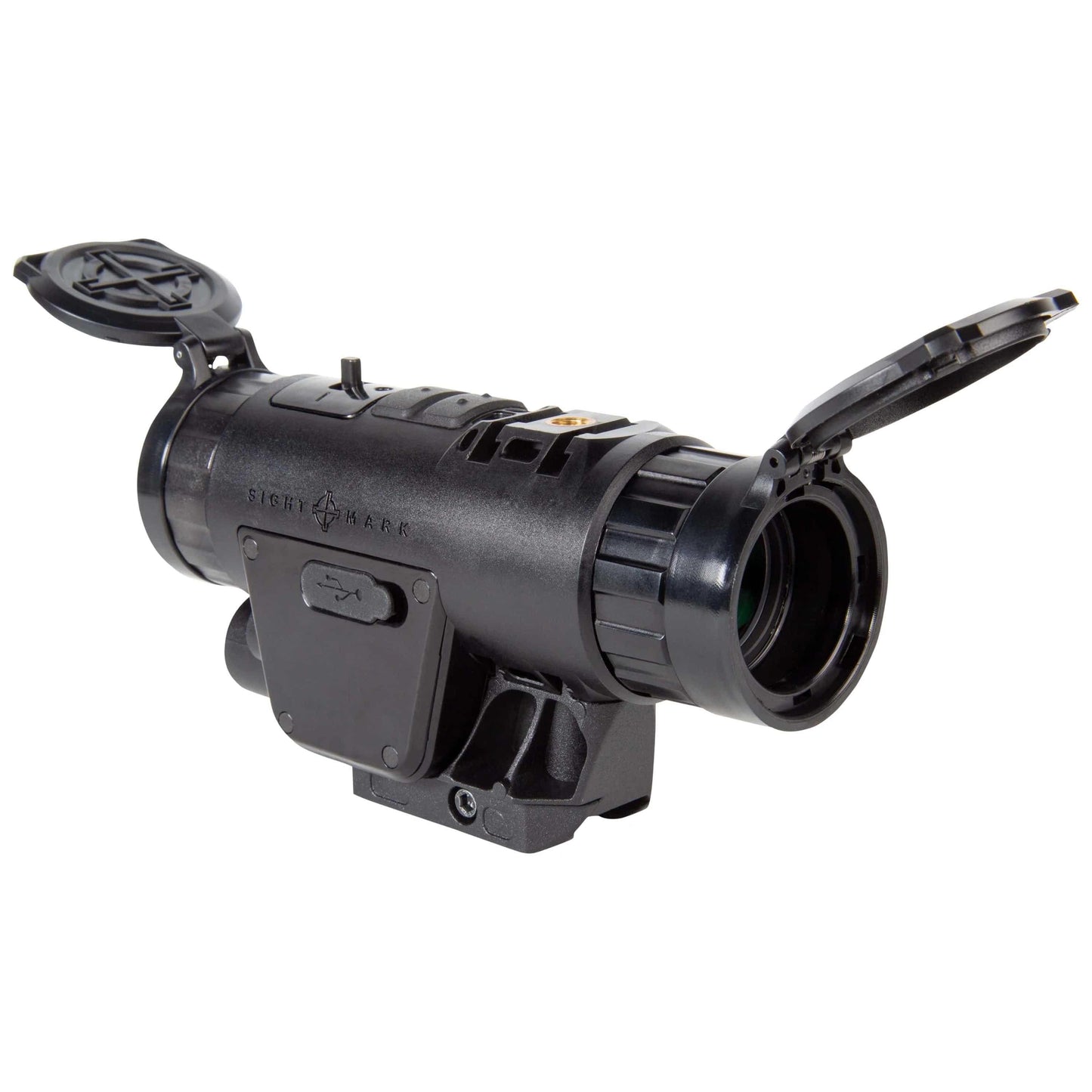

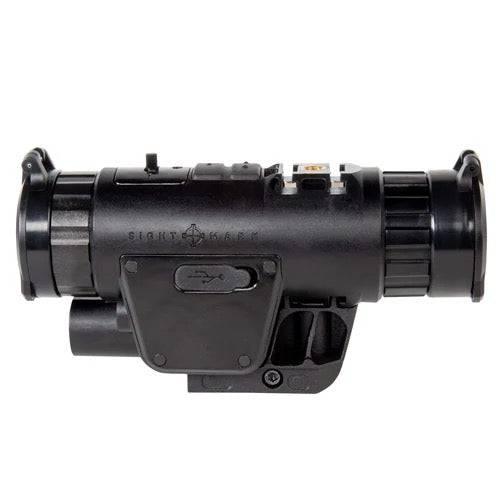

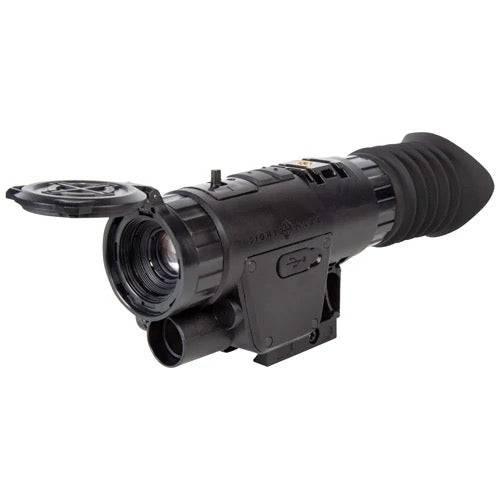

Sightmark Wraith 4K Multipurpose Digital Night Vision Monocular, Helmet, Handheld, Rifle Mountable (SM18050)


Sightmark's Wraith 4K Monocular is a multi-purpose optic with impressive versatility. Building on the success of the Wraith 4K Mini, this optic can be helmet-mounted, handheld, or attached to a rifle, granting users access to advanced digital night vision features. The digital zoom allows for up to 8x magnification, video-recording, and a polymer housing for extra durability. Its auto-adjusting, integrated IR light is suitable for any environment, and its conveniently easy mounting and dismounting make it a must-have for Sightmark customers.


  • Built-in USB
  • 4k/1080p imaging
  • 1-8x digital zoom
  • Built-in photo and video recording
  • 4k (3840x2160) sensor
  • Polymer housing
  • 2 CR123A batteries
  • Integrated LED IR at 850nm
  • Auto-adjust IR


    Product Specifications
    Type of sensor CMOS sensor
    Sensor resolution, pixels  4K (3840x2160)
    Display type FLCOS
    Display Resolution, pix. 1280x720
    Built-In Video Recorder Availability Yes
    Maximum memory card supported, Gb 256
    Format of video clip AVI
    Resolution of video clip 720/1080/4K
    Format of photo files JPEG
    Resolution of photo files 4k
    Memory capacity Approximately 1.75 hours video with 64gb SD card  on 4k@30  quality level.
    Magnification  1-8
    Lens focus, mm 25
    Lens diameter, mm  17
    Digital zoom  1-8x
    Field of View,°, horizontal 17
    Field of View, m@100m 17
    Field of View, ft@100yd 51
    Minimum focusing distance, ft/m 5/1.524
    Eye Relief, in/mm  3 / 76
    Diopter adjustment, dptr. -6 to +3
    Emitter LED
    IR Wavelenght, nm 850nm
    Equivalent IR Power, mW 2000
    Battery life with IR on 2 Hours
    Night Vision detection range, yd/m 300/274
    Power Supply, v 6
    Battery type 2x CR123A
    Battery life 3.6Hrs Video Mode w/ IR off/ 4.4Hrs Preview Mode  w/ IR off
    External Power Supply 5V via USB type C
    Body Material Aluminum
    Accessory rail mount  Picatinny
    Operating Temp,°F / C° 32 to 140 / 0 to 60
    Waterproof rating IPX6 - water resistant
    Nitrogen Purged, yes/no no
    Shockproof, yes/no yes, 3ft
    Maximum recoil, caliber .308
    Tube diameter n/a
    Length, in/mm 6.299/160
    Width, in/mm 3.031/77
    Height, in/mm 2.913/74
    Weight (with batteries), oz 21.6

    Included in Package

    • CR123a battery
    • Flip Caps
    • Eye Cups
    • Bridge Mount
    • User Manual
    • USB cable

    Batteries Used

    • Type: CR123a
    • Quantity: 2
