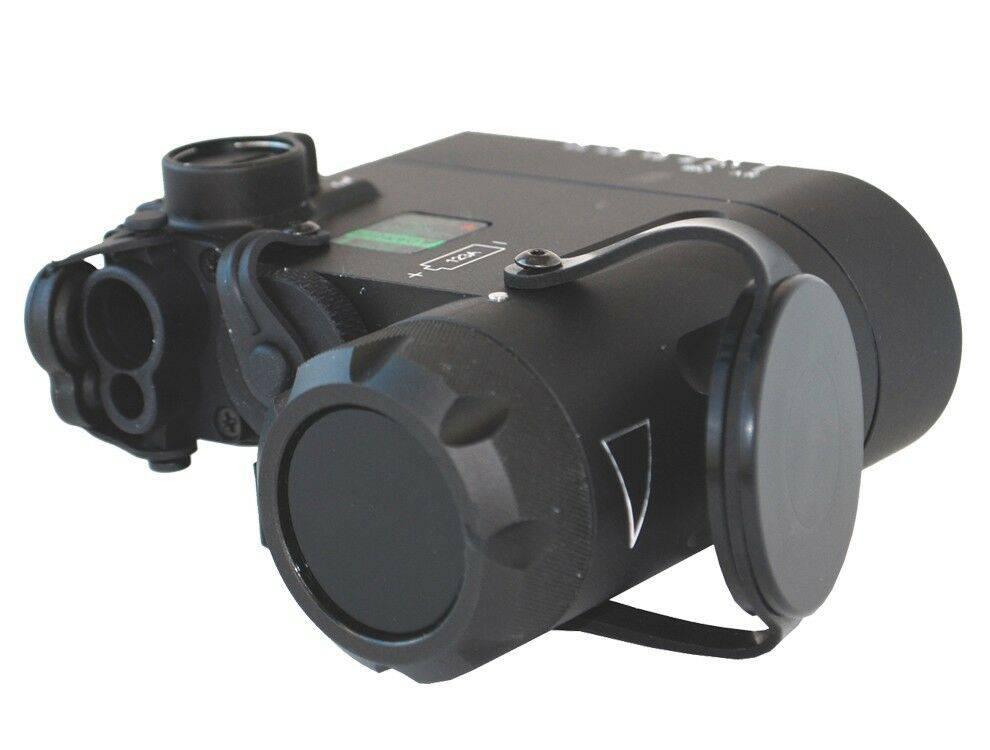

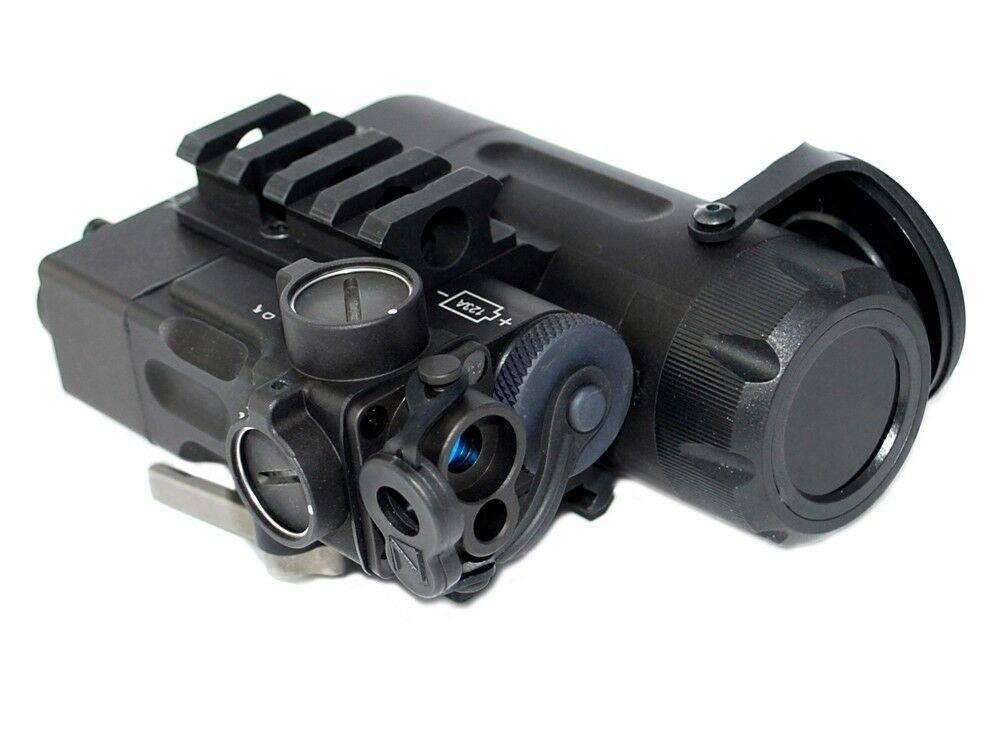

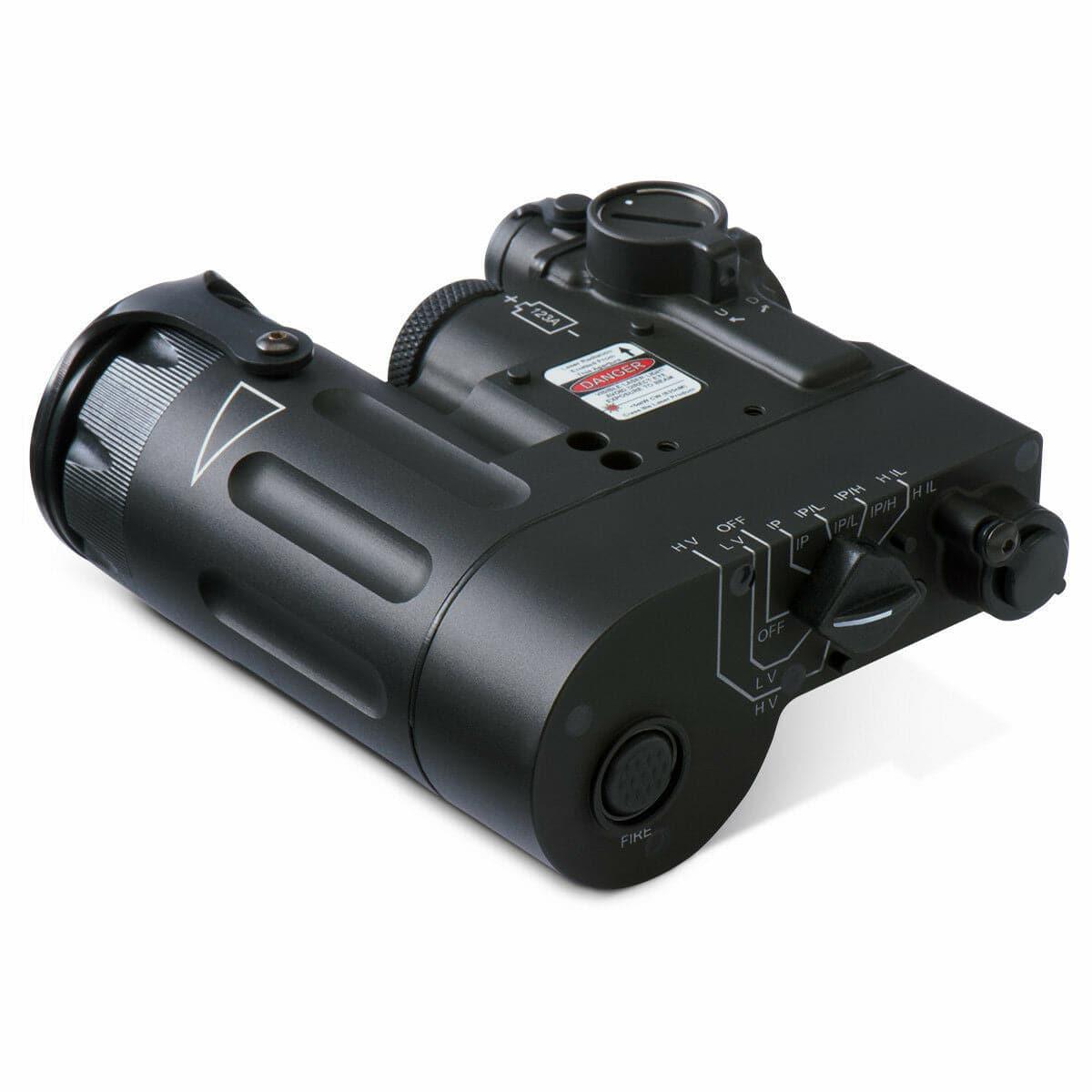

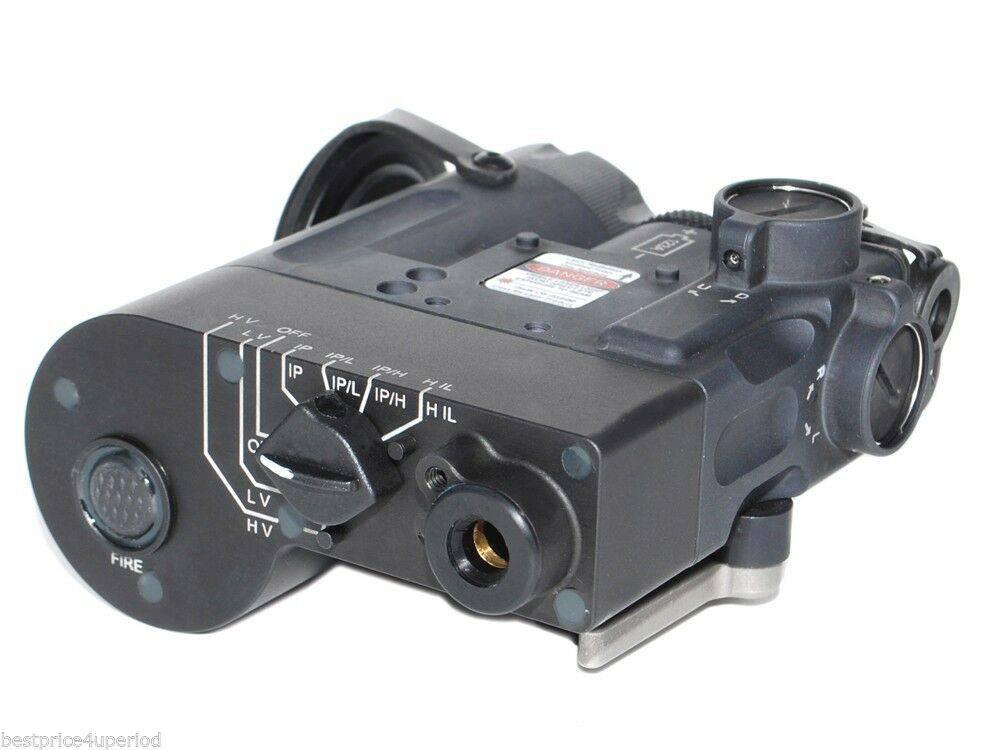

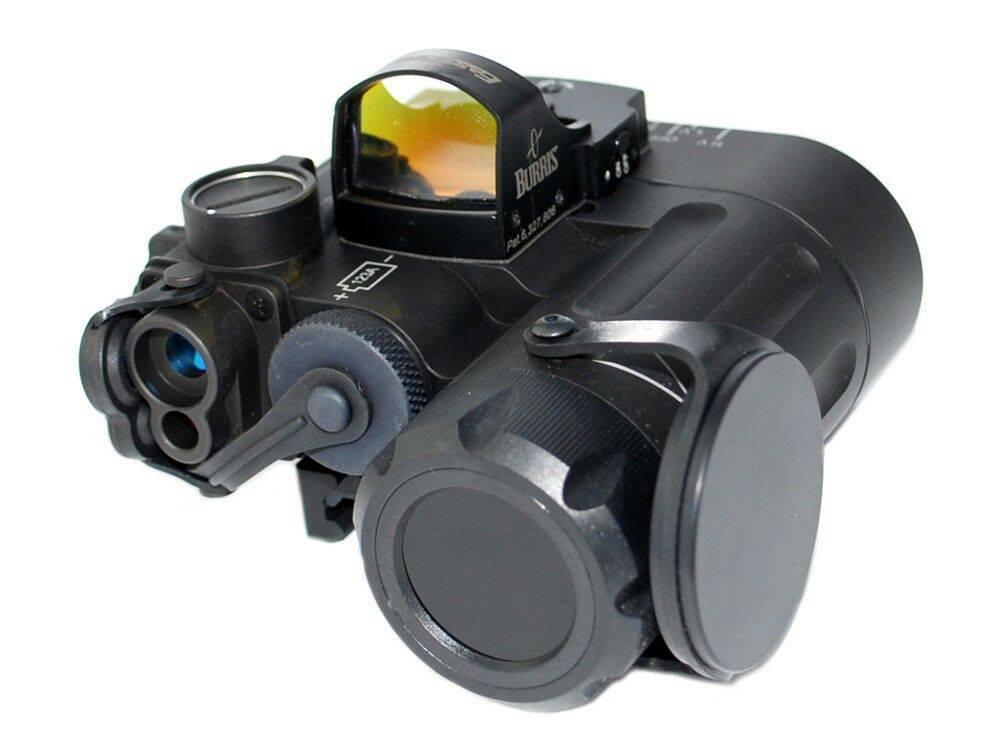

Steiner DBAL-D2 Green Aiming Laser

Steiner DBAL-D2 Dual Beam Aiming Laser Green w/IR LED Illuminator Class 1 (9001) Black



The Steiner DBAL-D2 is a highly versatile, multi-function Class 1 Infrared Laser designed for civilian and professional use, ensuring eye-safety and compliance with FDA regulations. With a 0.7mW rating, the DBAL-D2 can provide accurate targeting at distances of up to 450 yards, making it an exceptional tool for night shooting and trainingscenarios, especially when paired with head-mounted night vision goggles. Its Class IIIa visible laser (available in red or green) and Class 1 Infrared laser pointer allow for easy identification and target acquisition, even in low-light environments.

Key Features:

• Class 1 Eye-Safe Infrared Laser: The DBAL-D2 is equipped with a Class 1 IR laser, safe for civilian use, with a 450-yard range for accurate targeting, ideal for nighttime operations.

• LED IR Illuminator with Adjustable Focus: The 600mW infrared LED illuminator offers two settings, high and low, for various lighting conditions. At full power, the illuminator reaches up to 800 yards, providing substantial visibility, while the adjustable focus beam can range from 30° short-throw to 2° long-throw, enhancing both close and distant observations.

• Simplified Zeroing Process: Both the infrared and visible lasers are synchronized, streamlining the zeroing process and ensuring alignment for reliable accuracy in a variety of conditions.

• Durable Aircraft-Grade Aluminum Housing: Built with military-grade materials, the DBAL-D2 is designed to withstand the rigors of harsh environments. The robust construction ensures resilience comparable to military lasers, with added durability due to its quick-release HT Self-Adjusting Throw-Lever mount that fits most MIL-STD-1913/Picatinny rails.

• Civilian-Legal AN/PEQ-15A: The DBAL-D2 is considered a civilian-legal counterpart to military-grade lasers like the AN/PEQ-15A, making it more accessible without sacrificing performance. The Class IIIa visible laserworks in tandem with the Class 1 IR laser, offering similar benefits to the military version with an added LED IR illuminator for enhanced performance.

Advanced Performance:

• Long-Distance IR Illumination: The LED illuminator enables up to 800 yards of usable range in high power mode, providing clear sightlines in the dark. Its eye-safe design ensures that the LED illuminator does not overpower the 0.7mW laser, maintaining accurate and safe illumination. The illuminator's low setting is ideal for avoiding washout when used near reflective surfaces, and its focusable beam allows for tailored lighting based on operational needs.

• Compact and Practical Design: Despite its powerful features, the DBAL-D2 retains a compact form factor, similar in size to the AN/PEQ-16B, allowing for easy mounting without overwhelming the user’s equipment. It is highly adaptable for various weapon platforms and mission requirements.

• Infrared Illuminator: Unlike many comparable devices, the DBAL-D2 includes a powerful infrared illuminator, providing shooters the advantage of consolidated gear for nighttime missions, offering both targeting and illumination capabilities in one device. The illuminator's visible red light can be detected within a 2° field of view from distances over 100 yards, which can be a consideration for certain operational contexts.

• Versatile Mounting: Whether mounted on a MIL-STD-1913/Picatinny rail or used as a handheld device, the DBAL-D2 delivers exceptional versatility. The self-adjusting quick-release HT mount ensures secure attachment and fast deployment in critical situations.

Ideal For:

• Civilians seeking an eye-safe infrared laser for night shooting and training.
• Hunters and tactical professionals requiring a high-performance infrared laser and illuminator combination.
• Users needing multi-function capabilities with both infrared and visible laser pointers for flexible operation day or night.

The Steiner DBAL-D2 is a perfect fit for anyone looking to elevate their night vision setup with a civilian-legal, robust, and efficient infrared laser system. Its advanced features, such as the adjustable illuminator and synchronized laser zeroing, make it a top-tier solution in the civilian night vision market.

DBAL-D2

• IR Pointer (<0.7mW)
• IR LED Illuminator (<600mW nominal)
• Choice of Red or Green Visible Pointer (<5mW)

Steiner DBAL-D2 Green Aiming Laser SPECIFICATIONS

Type

Visible Laser Pointer: Class IIIa

IR Laser Pointer: Class I

IR LED Illuminator: Eye-Safe

Power Output (Hi / Lo)

Visible Laser Pointer: <5mW / <1mW

IR Laser Pointer: <0.7mW / <0.7mW

IR LED Illuminator: <600mW / <300mW

Wavelength

Visible Red Laser Pointer: 635nm

Visible Green Laser Pointer: 532nm

IR Laser Pointer: 8350nm

IR LED Illuminator: 850nm

Full Angle Beam Divergence

Visible Red Laser Pointer: 0.3 mrad

Visible Green Laser Pointer: 0.5 mrad

IR Laser Pointer: 0.3 mrad

IR LED Illuminator: 2° to 30°

Range/Visibility (Night/Day)

Visible Red Laser Pointer: 500m / 10m

Green Visible Laser Pointer: 1500m

IR Laser Pointer: up to 225m

IR LED Illuminator: up to 1000+m

TEMPERATURE

Visible Red Laser Pointer: -40C to +51C

Visible Green Laser Pointer: -20C to +45C

IR Laser Pointer: -40C to +51C

IR LED Illuminator: -25C to +55C

Battery

One 3-volt 123A Lithium

Battery Life

High Power: 1 hour



MECHANICAL SPECIFICATIONS

Limited Warranty

3 years

Material

Anodized aircraft aluminum 6061T-6

Weight (with battery)

12.5 oz / 356.2 grams

Size

L 3.85 in x W 3.37 in X H 1.59 in

L 9.78 cm x W 8.56 cm x H 4.04 cm

Environment

Waterproof to 20 meters



FEATURES

• Rugged aerospace aluminum housing
• Hi- and Lo-power modes of operation
• Single adjustment mechanism for both visible and IR pointers
• 2° to 30° focusable IR Illuminator
• Superior beam quality significantly enhances night vision performance (Gen I actis like Gen II)--No night vision wash out
• Push button and remote cable pressure pad switch and integrated momentary activation switch
  • Single tap enables momentary activation
  • Double tap instantly activates the laser in a continuous ON mode for 5 minutes or until pressed again
• Supplied with
  • Quick Release HT Mount
  • On CR123A battery
  • 7 in. remote cable pressure pad switch (specify length if different)
• Waterproof to 20 Meters
• Manufactured in the U.S.A.

EXPORT RESTRICTION

Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
