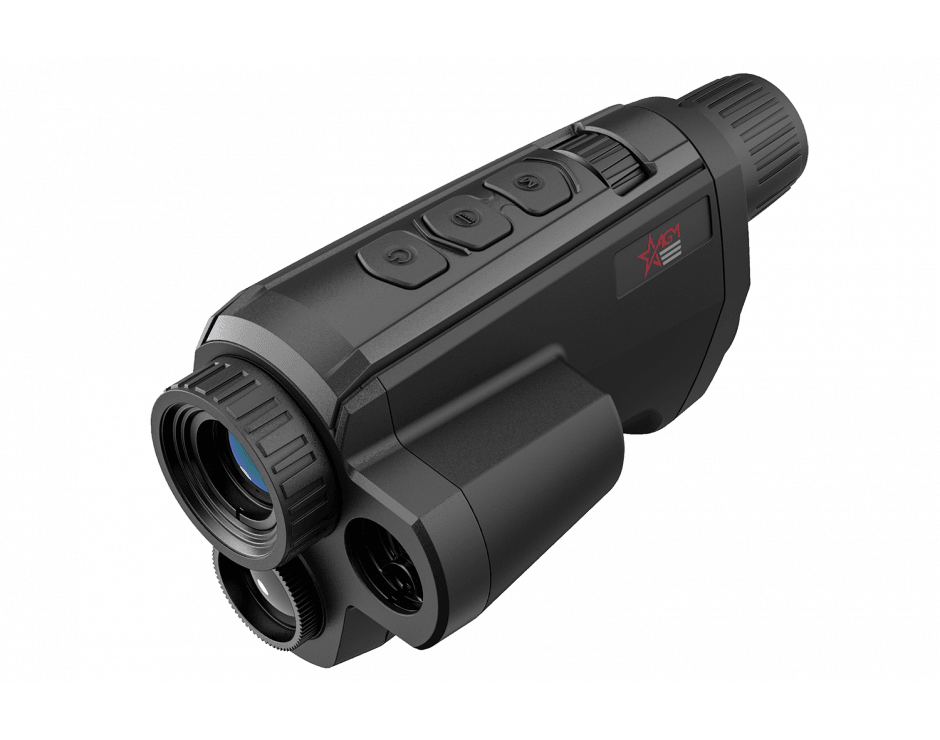

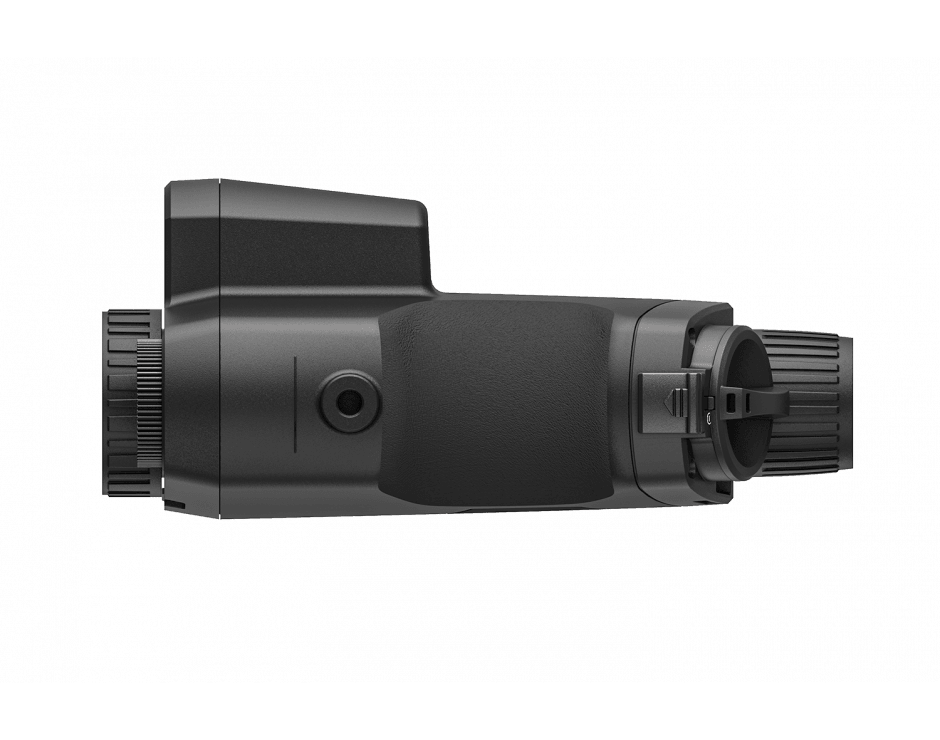

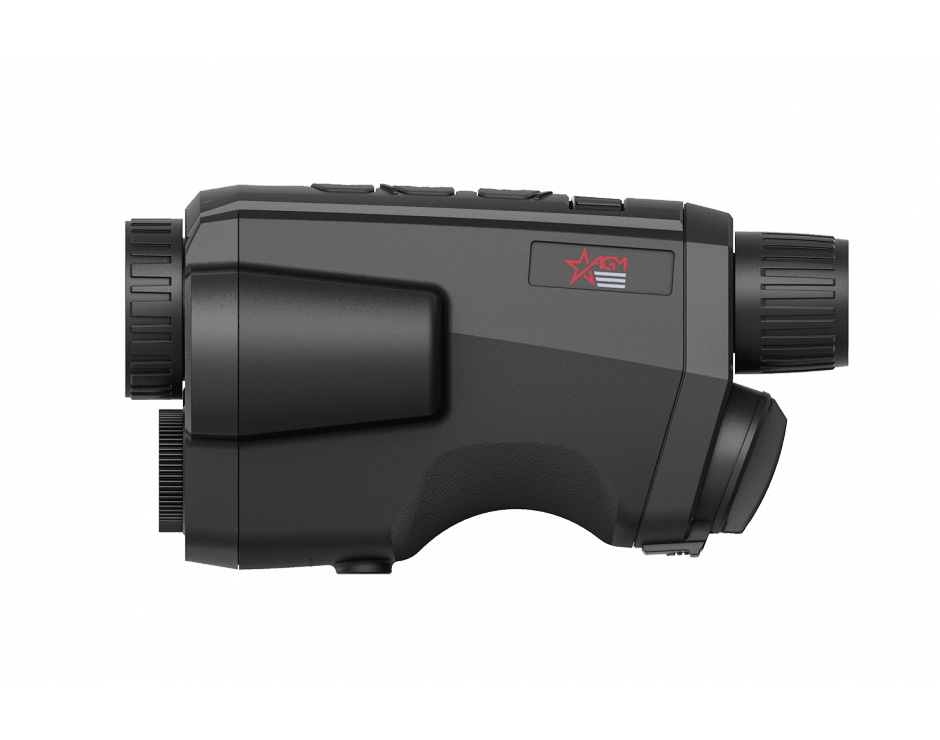

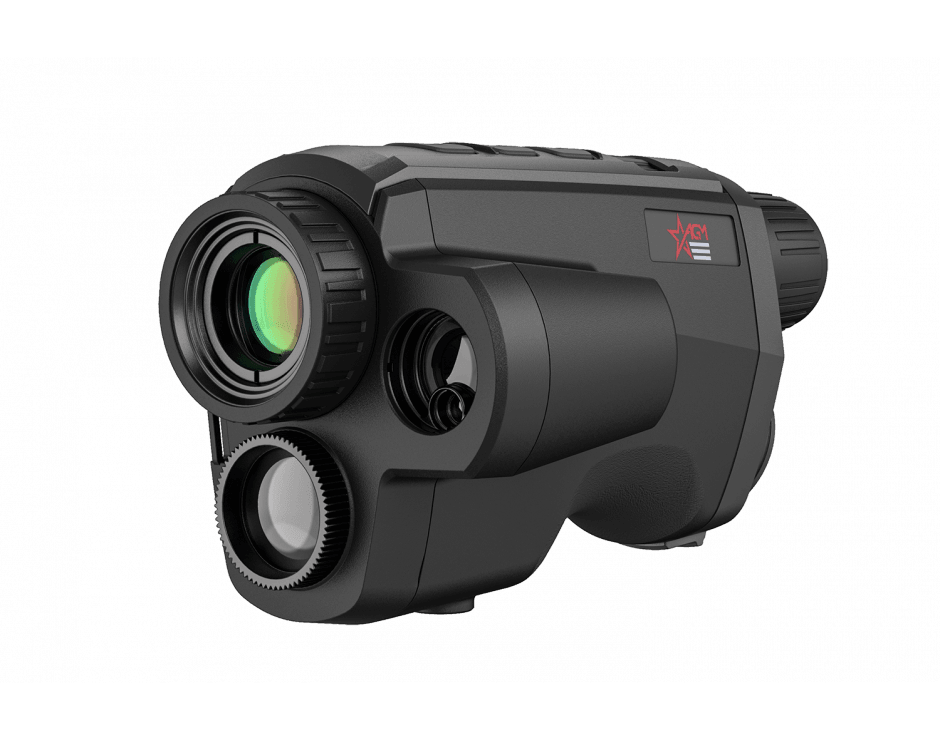

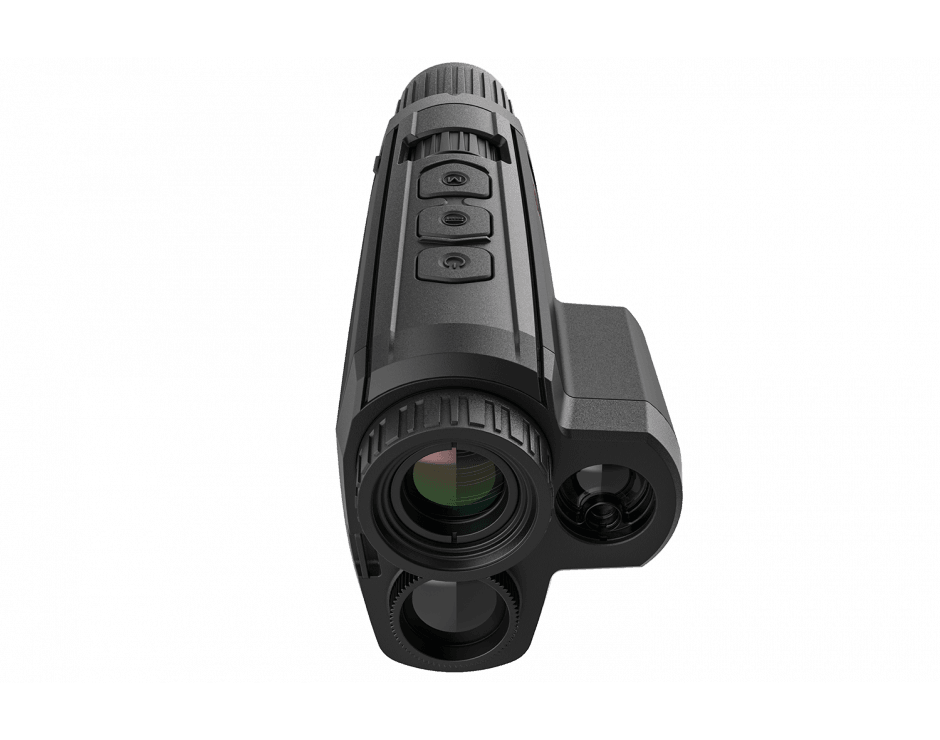

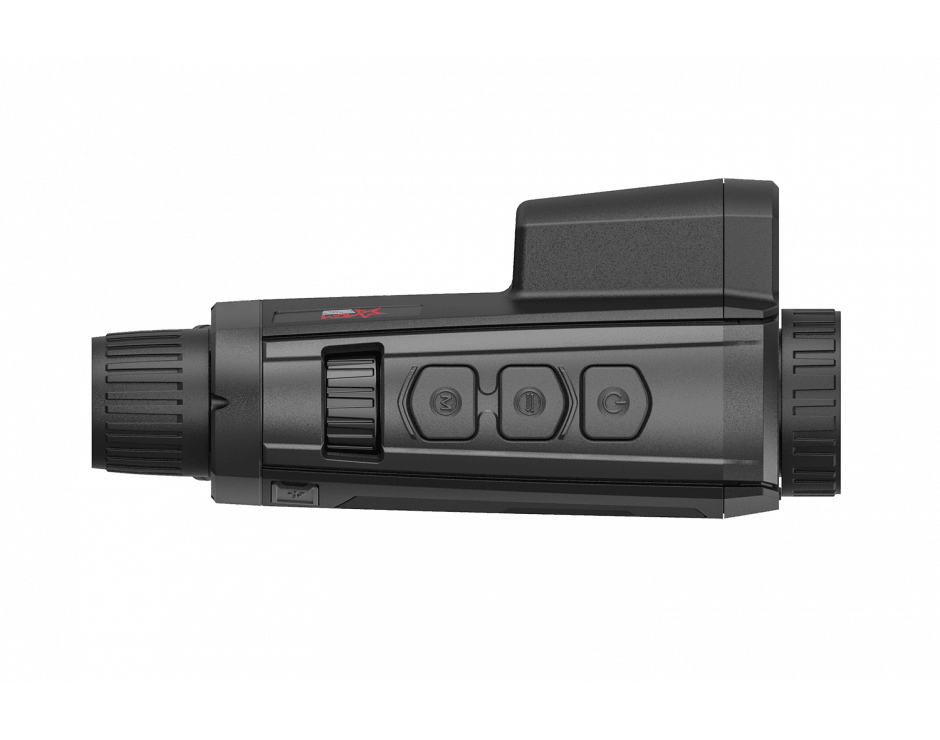

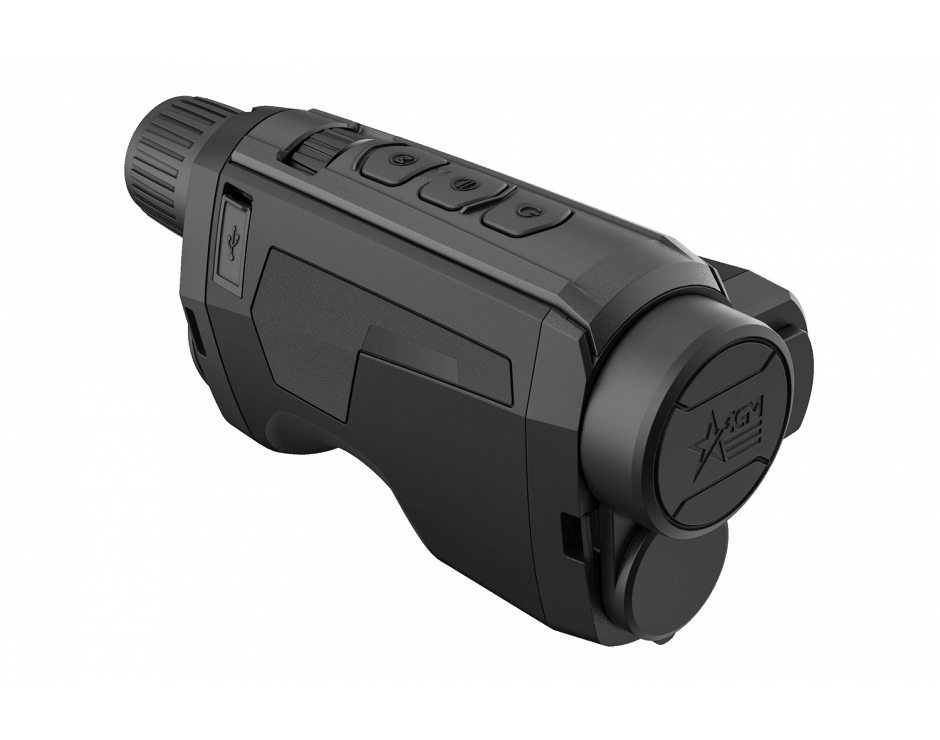

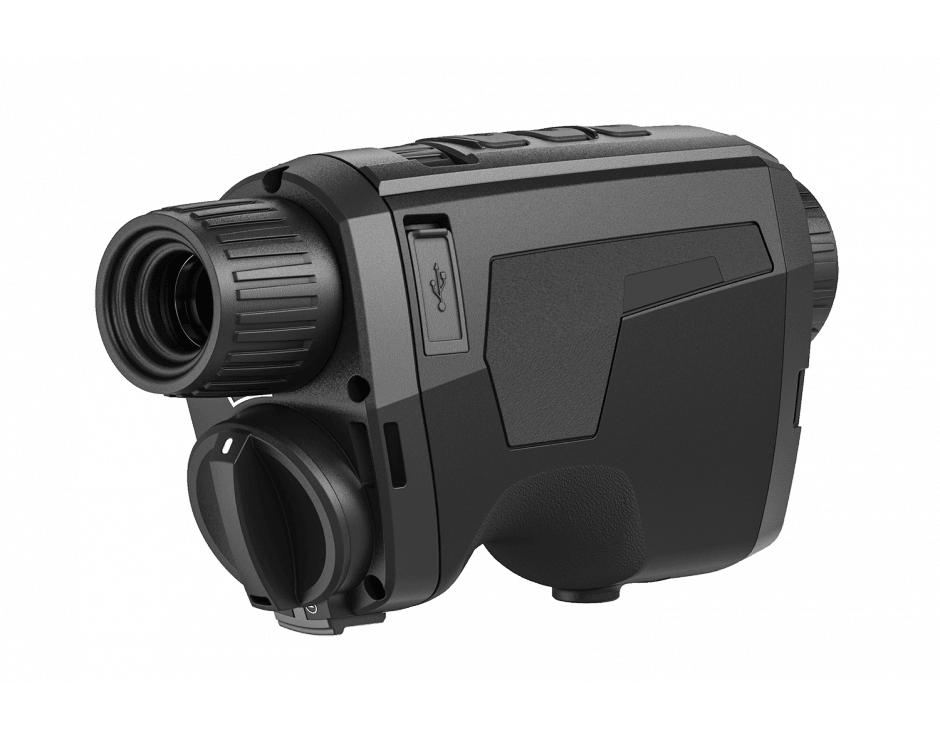

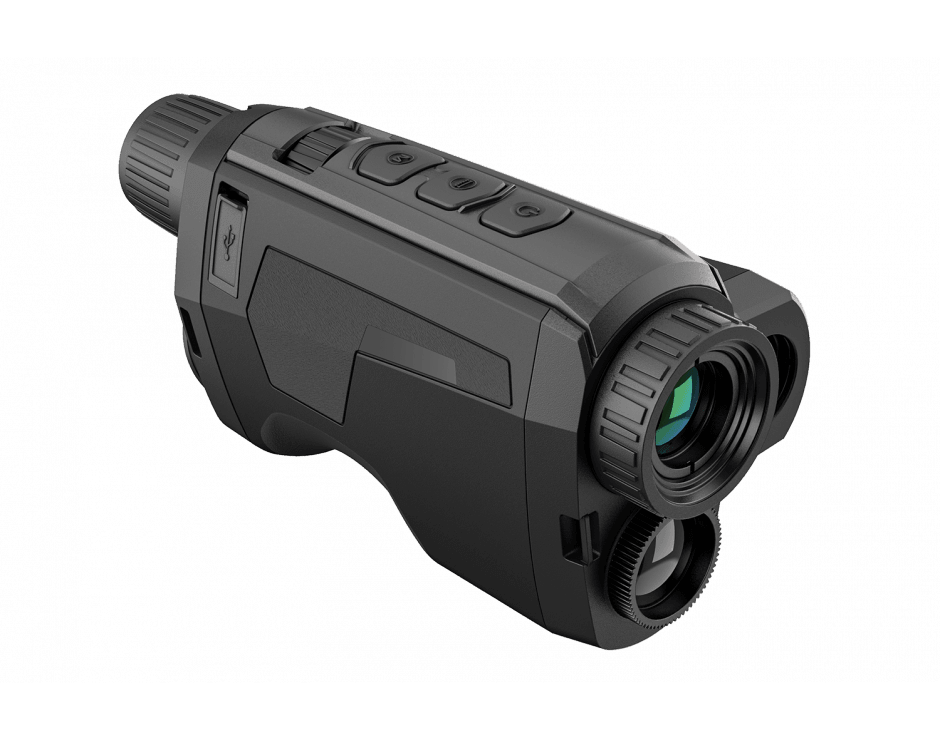

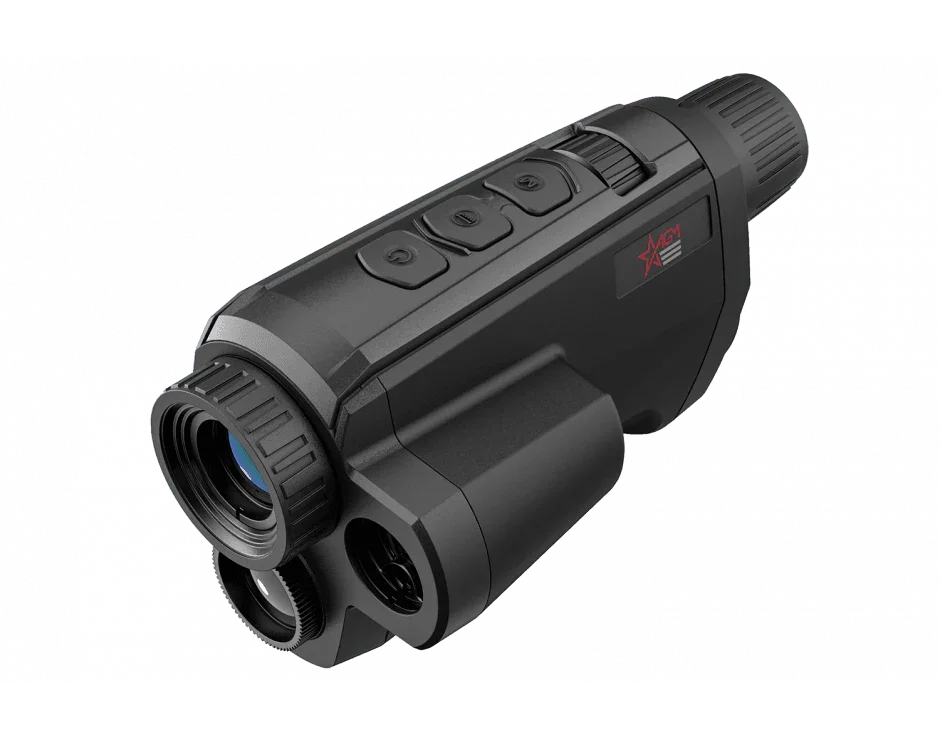

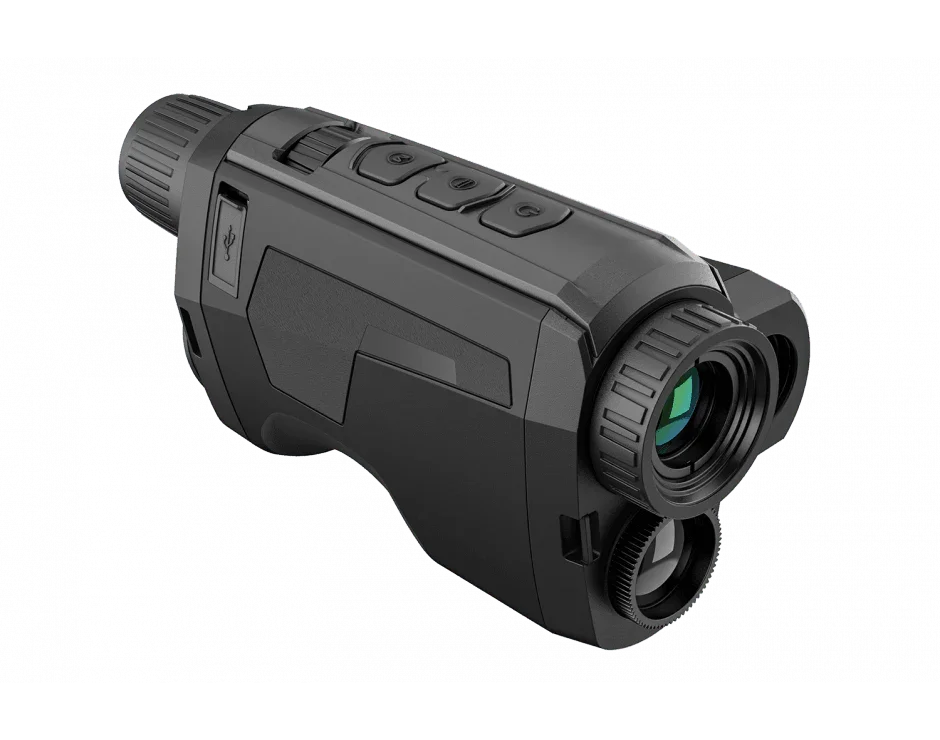

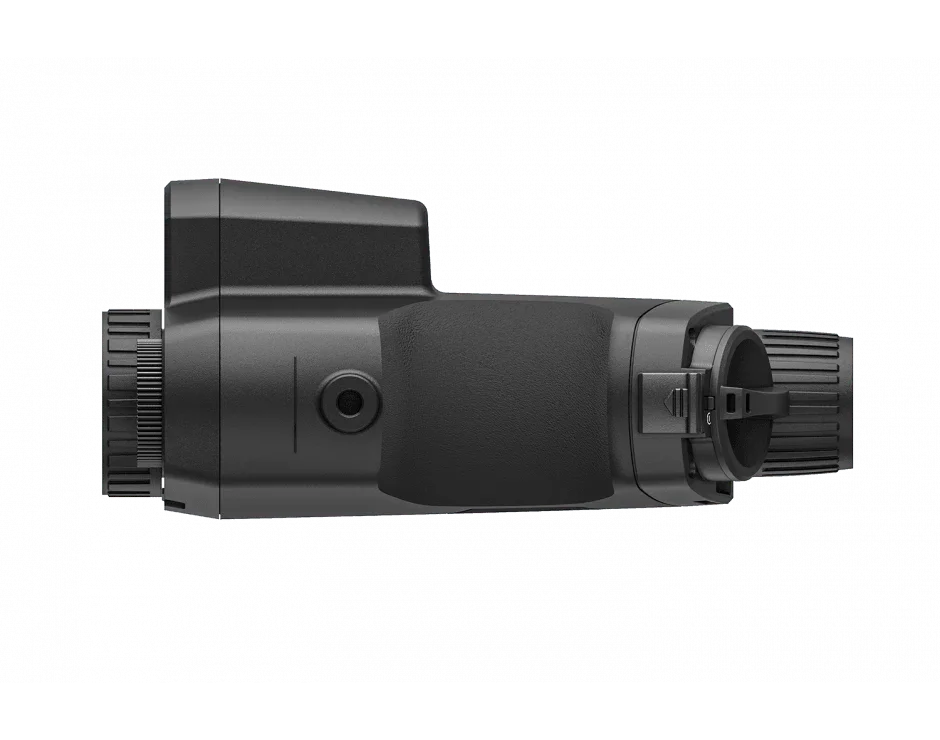

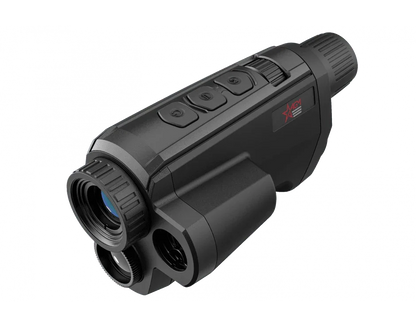

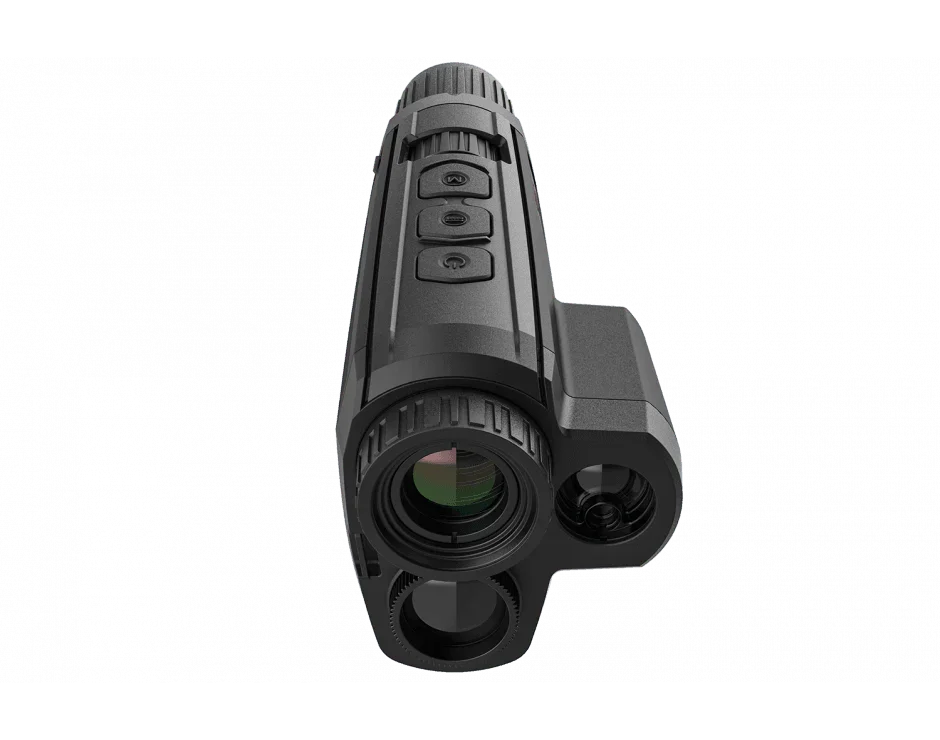

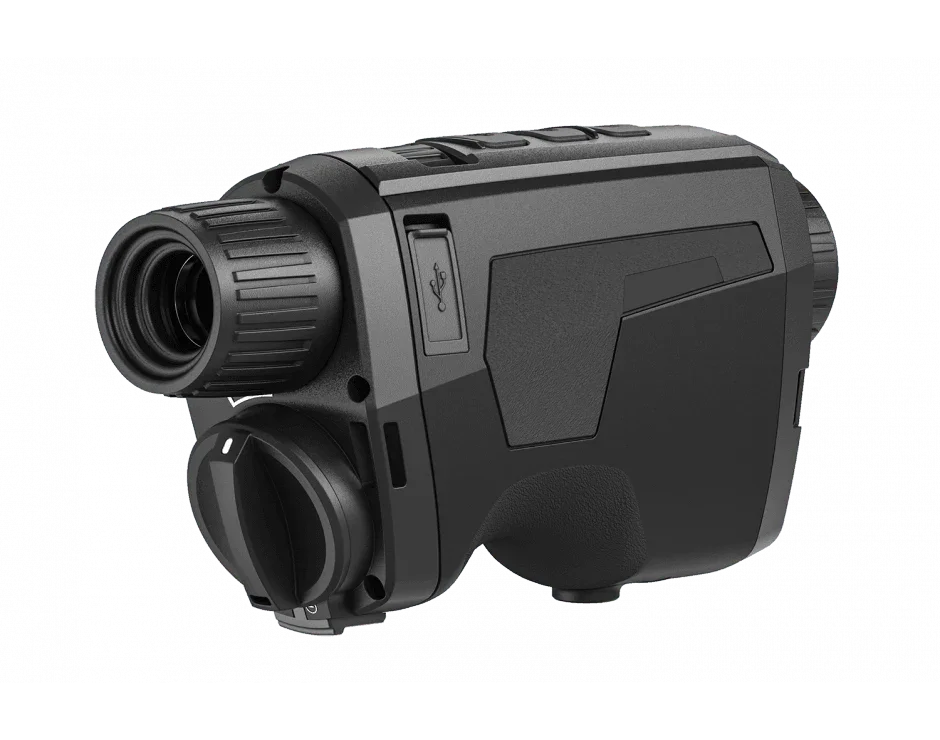

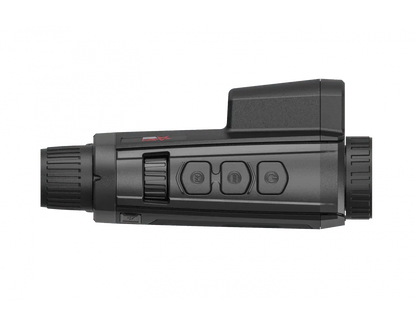

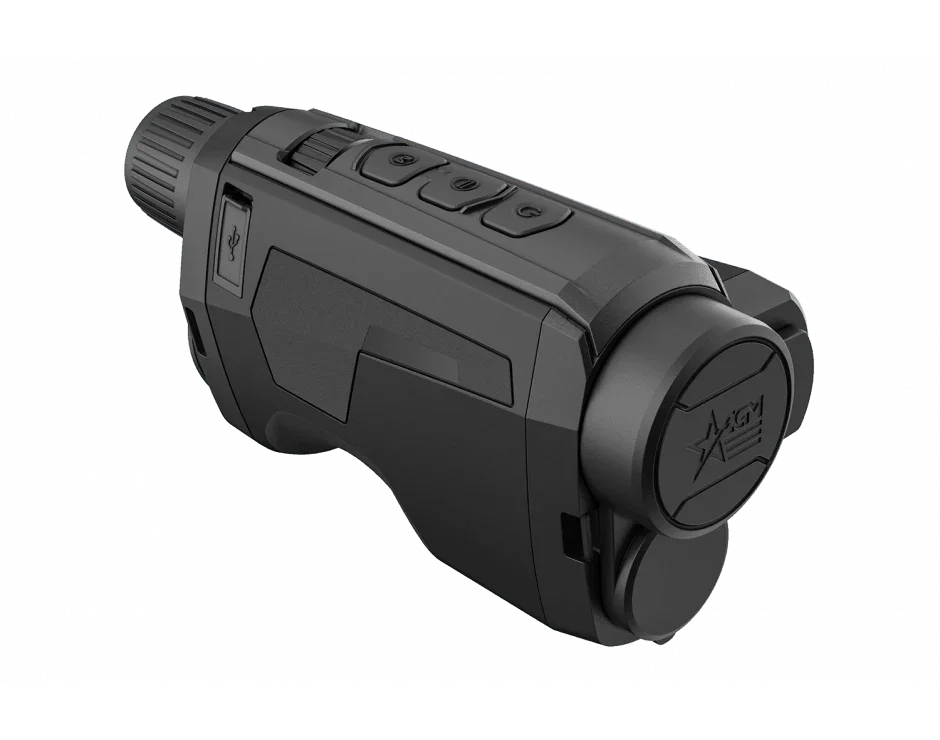

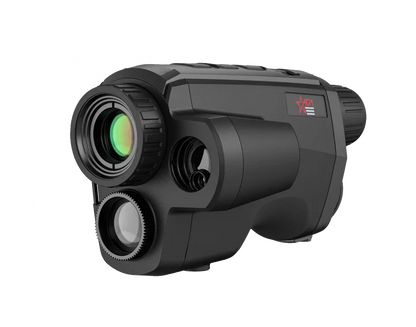

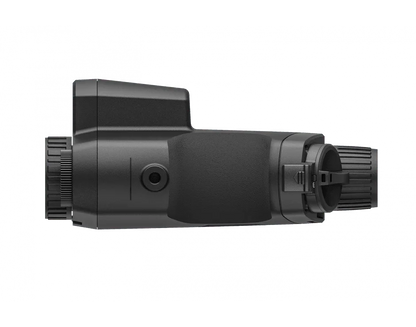

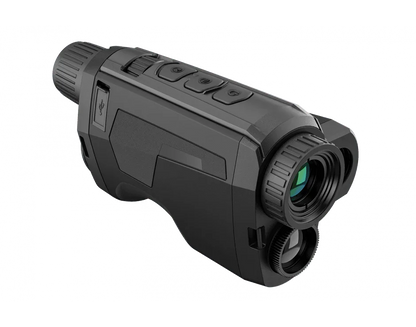

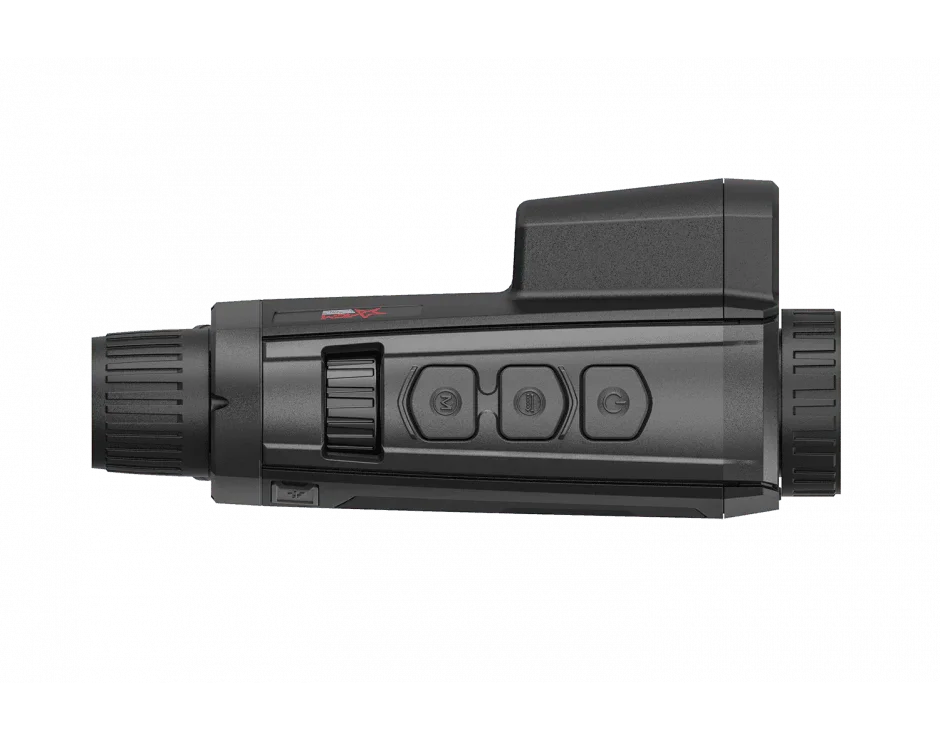

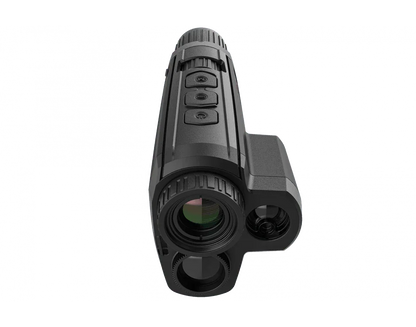

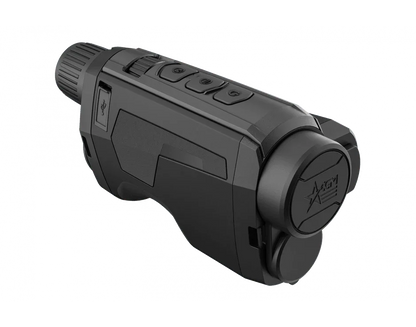

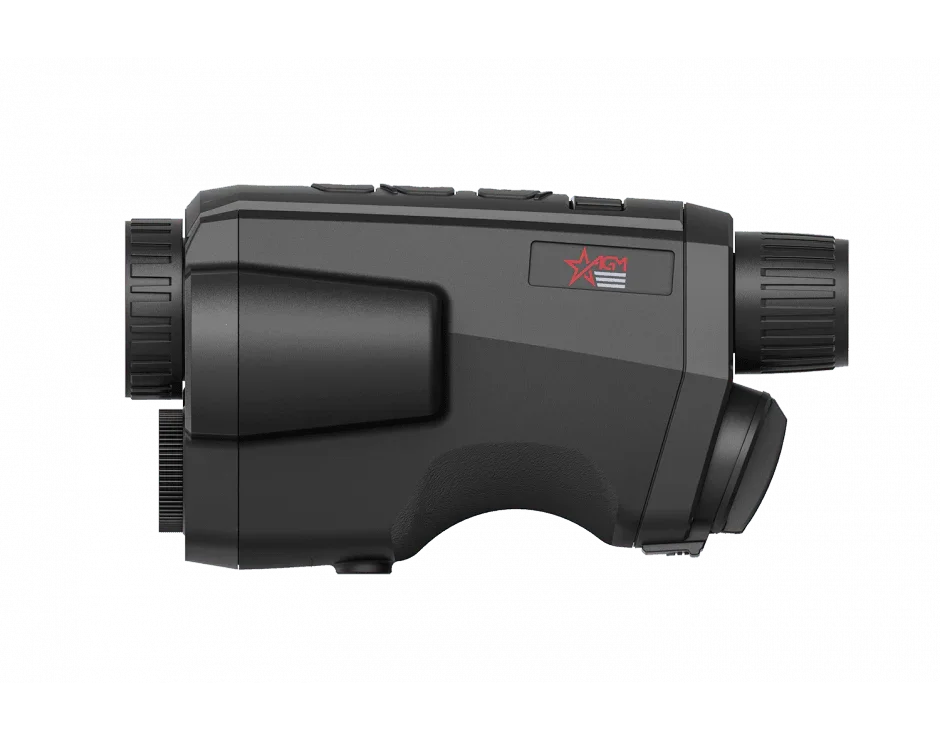

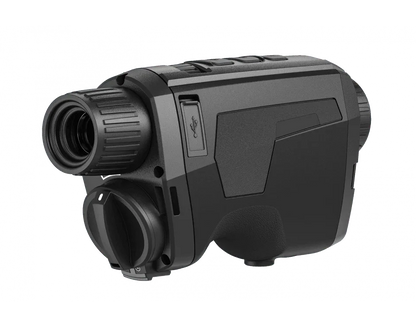

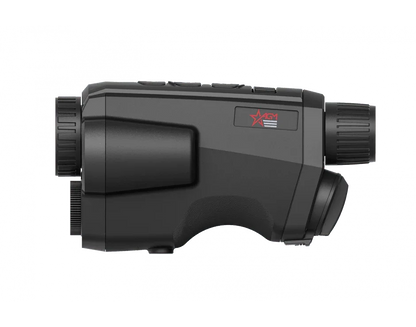

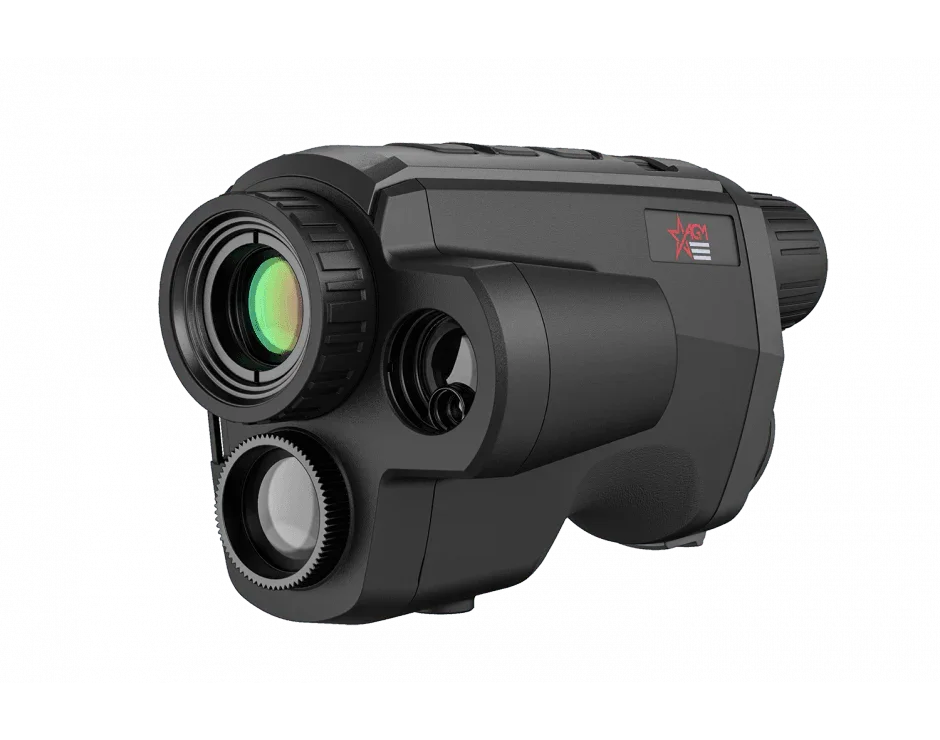

AGM Fuzion LRF TM25-384 Fusion Thermal Monocular 384x288 12um (50Hz) 25mm (3142451304FM21)
The AGM Fuzion LRF TM25-384 Thermal & Digital Day/Night Vision monocular is one of the most advanced and feature-rich optics available today. Its key strength lies in the thermal viewing channel, powered by a high-sensitivity 12-micron 384x288 thermal detector, capable of detecting human-sized heat signatures up to 0.8 miles (1250m) away. In addition to the thermal channel, the Fuzion LRF also boasts a digital night vision channel, enhancing target recognition when paired with thermal detection. What sets this monocular apart is its built-in 600m laser rangefinder, taking accuracy and performance to the next level. With 16GB of internal storage and Wi-Fi compatibility, it offers a complete and versatile viewing experience.
The Fuzion LRF is also equipped with a variety of software upgrades and features found in other AGM thermal products. These include a high-sensitivity thermal detector, a 25mm Germanium lens with a 1.0 aperture, a 1920x1080 ultra-low light CMOS sensor, multiple viewing modes such as fusion imaging, various color palettes, a 2.5X base magnification with 8X digital zoom, and picture-in-picture mode. Additional features include the built-in laser rangefinder, 5 hours of battery life on a single rechargeable 18650 battery, a USB Type-C port for external power options, and an IP67 waterproof rating. The package also comes with a long-range IR illuminator, wrist strap, charger, and AGM’s 5-year transferable warranty.
AGM Fuzion LRF TM25-384 Features:
- Bi-spectrum image fusion and object highlight
- Detail enhancement and target recognition
- Selection of thermal view channel, visible light channel, or both them combined
- 12 μm, 35 mK NETD high sensitivity thermal detector
- Fast 50Hz imaging
- 1x, 2x, 4x, 8x digital zoom
- Digital image processing technology
- Ultra-low illumination optical channel
- 1920×1080 Optical resolution
- Eye-safe laser rangefinder
- 1024×768 resolution, 0.39-inch OLED display
- Video recording and snapshot, built-in EMMC (16 GB)
- Wi-Fi hotspot
- Standby mode
- Up to 5 hours continuous running
- Waterproof
- 5-year warranty
AGM Fuzion LRF TM25-384 Specifications:
Palettes
Black Hot, White Hot, Red Hot, Fusion, Visible, Image Fusion
Working Temperature
-20°C to 55°C (-4°F to 131°F)
Dimension (LxWxH)
158 × 61 × 57 mm (3.2 × 2.4 × 2.2 in)
Distance Measurement
Yes (Laser Rangefinder: up to 600 m, ±1 m accuracy)
Scene Mode
Jungle, Recognition
Hotspot
Yes
Observation Distance
1,181 m
Detector type
12 μm VOx Uncooled Focal Plane Arrays
Response Waveband
8 μm to 14 μm
Optical Image Sensor
1/2 Wavelength 400-1000 nm
FFC (Flat Field Correction)
Auto, Manual, External Correction
Highest Temperature Spot Tracking
Yes
Standby Mode
Yes
Refresh rate
50 Hz
Aperture
F1.0
Resolution
384 × 288
Laser Wavelength
905 nm
Optical magnification
2.5x – 20x
Lens (focal length)
Thermal Lens Focal Length - 25mm Optical Module Lens Focal Length - 22mm
Power
5 VDC/2 A, USB Type-C interface Supports external power supply
Field of view (H × X)
10.5° × 7.9°
Digital zoom
1x, 2x, 4x, 8x
Monitor
1024x768, 0.39 inch, OLED, 50Hz
Storage
Built-in 16 GB EMMC
Record Video
On-board video recording
Capture Snapshot
Yes
Battery Type
One 18650 rechargeable battery (removable)
CVBS Output
Yes (via USB)
Battery Operating Time
Up to 5 hours continuous running (@25°C, WiFi and CVBS off) Up to 3 hours continuous running (@25°C, WiFi and CVBS on)
Battery Capacity Display
Yes
Weight
510 g (1.12 Ib)
Protection Level
IP67 (Waterproof)
Included:
Monocular
18650 Rechargeable Battery (2)
USB Cable
Battery Charger
Power Adapter
Lens Cloth
User Manual
