InfiRay Outdoor M6T Mobile Thermal PTZ 25mm LRF 640x480 12 Micron 25mm IRAY-M6t25
The M6 thermal PTZ camera system is engineered to enhance vehicle-mounted scanning capabilities, built tough to endure years of use and harsh environmental exposure. Designed specifically for night hunters, our mission is to deliver the highest quality thermal PTZ systems on the market. The M6 is loaded with features, including video recording, gyro stabilization, and mobile app connectivity with wireless streaming. Additionally, the system integrates a laser pointerand laser rangefinder, boosting situational awareness.

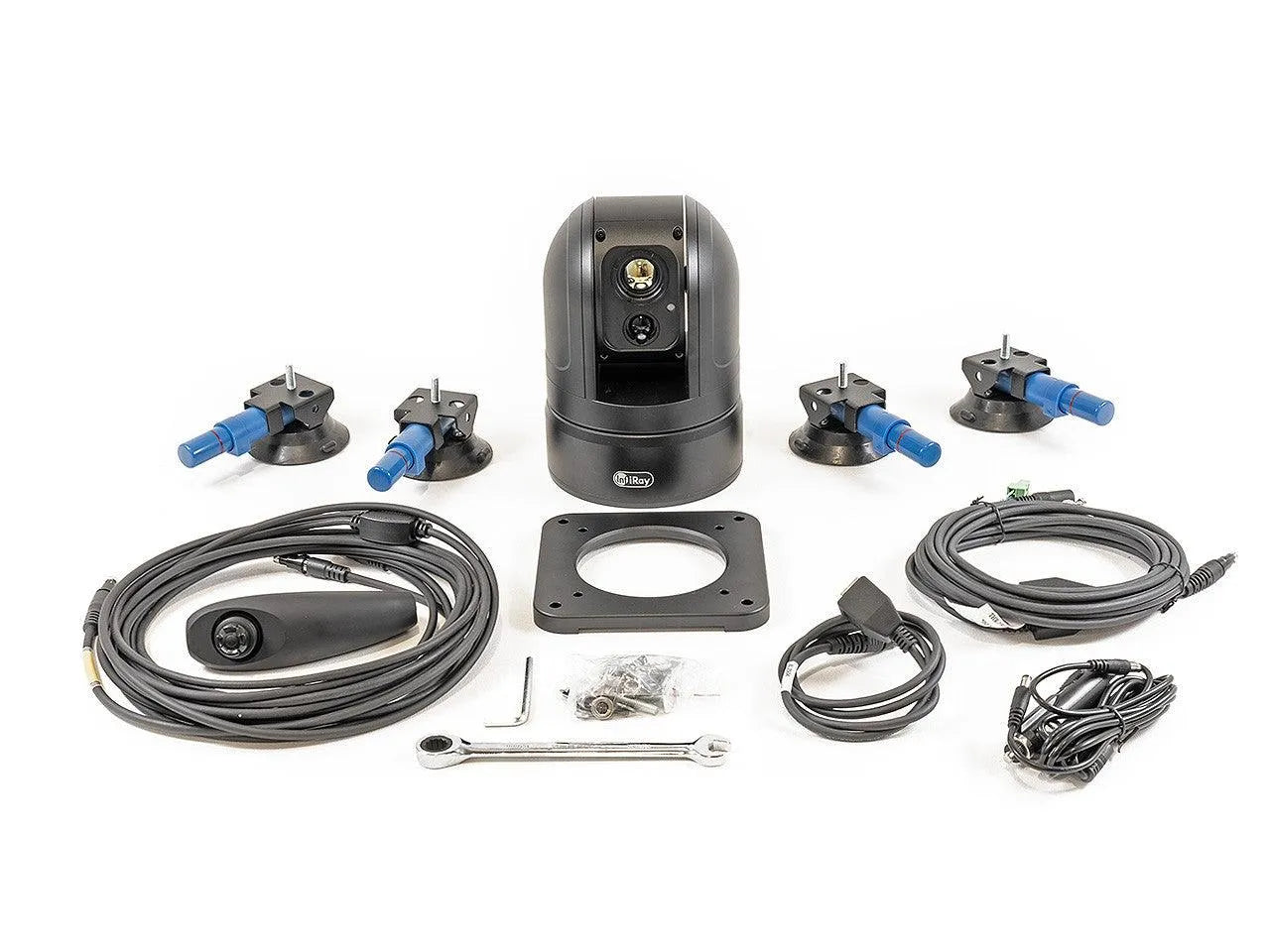

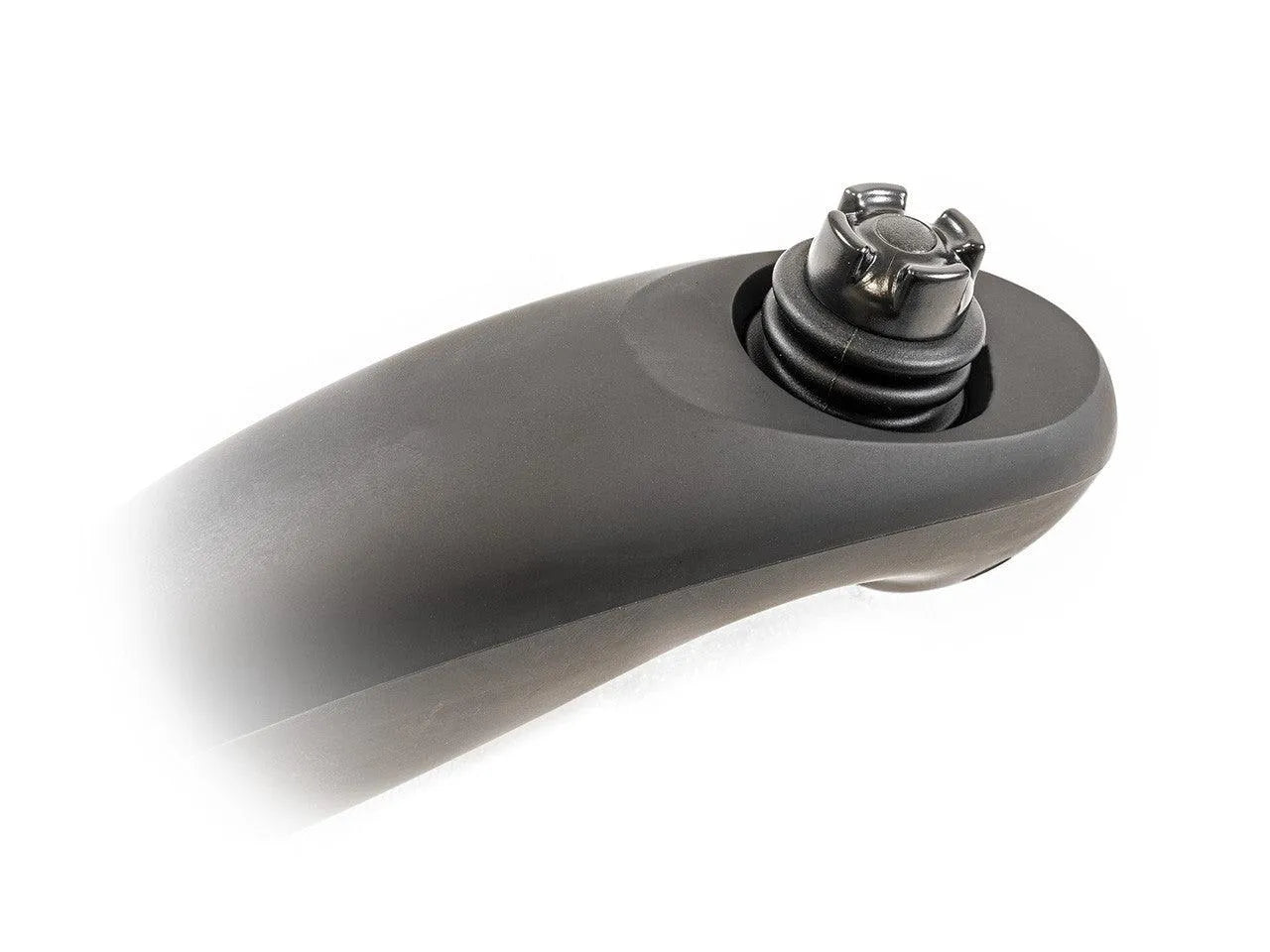

The M6 kit includes everything needed to add thermal imaging to any vehicle, from power and signal wiring harnesses to a user-friendly wired thumbstick controller for smooth, precise control of pan and tilt functions. In just minutes, any vehicle can be upgraded with this powerful thermal technology. The wired remote features a joystick for seamless positioning control, which can also be managed through the mobile app for added convenience.
InfiRay Outdoor M6T Features:
|
Objective Focal Length:
|
25mm
|
|
Device Technology:
|
Thermal Imaging
|
|
Sensor Resolution:
|
640×512
|
|
Sensor Pixel Size:
|
12μm
|
|
Sensor Frame Rate:
|
50hz
|
|
Digital Magnification:
|
4X
|
|
Optical Magnification:
|
1X
|
|
Objective Diameter:
|
25mm
|
|
Detection Range:
|
1375 Yards
|
|
Onboard Recording:
|
Yes
|
|
Objective F#:
|
1.0
|
InfiRay Outdoor M6T Specifications:
Optics:
Objective Focal Length
25mm
Digital Magnification
4X
Optical Magnification
1X
Objective Diameter
25mm
Detection Range
1375 Yards
Objective F#
1.0
Objective Lens Material
Germanium
Features and Performance:
Warranty
5 Years
Startup Time
Under 10 Seconds
Color Palettes
White Hot, Black Hot, Red Hot, Color, Highlight
Picture-in-Picture
Yes
Storage Capacity
8GB
Connector Output
Power/Data
User-Updatable Firmware
Yes
Mobile App
Yes
Run Time
9+
Power Source
USB-C External, Built-In Battery Pack
Stand-by Mode
Yes
Connector Type
USB-C
External Power Source
USB-C
Country of Manufacture
China
Wifi
Yes
Onboard Recording
Yes
Image Capture
Yes
Features and Performance:
Wifi
Yes
Onboard Recording
Yes
Mobile App
Yes
User-Updatable Firmware
Yes
External Power Source
DC 12V
Warranty
5 Years
Country of Manufacture
China
Physical:
Weight
70.5 Oz.
Housing Material
Aluminum
Sensor Specifications:
Sensor Type
InfiRay MICRO II
Device Technology
Thermal Imaging
Sensor Resolution
640×512
Sensor Pixel Size
12μm
Sensor Frame Rate
50hz
Thermal Sensitivity
<50mk
Included Accessories:
AFFO Series Thermal Imaging Monocular
Micro HDMI video output data cable
Type-C data cable
Power adapter
Neck strap
Drawstring bag
Lens cleaning cloth
Quick Start Guide
EXPORT RESTRICTION
Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
