AGM PVS-14 3AL2 Night Vision Monocular Gen 3
AGM PVS-14 3AL2 Night Vision Monocular Gen 3
SKU:11P14123483121
Couldn't load pickup availability
AGM PVS-14 3AL2 Multi-Purpose Night Vision Monocular Gen 3 "Level 2" Auto Gated 11P14123483121
Authorized Dealer

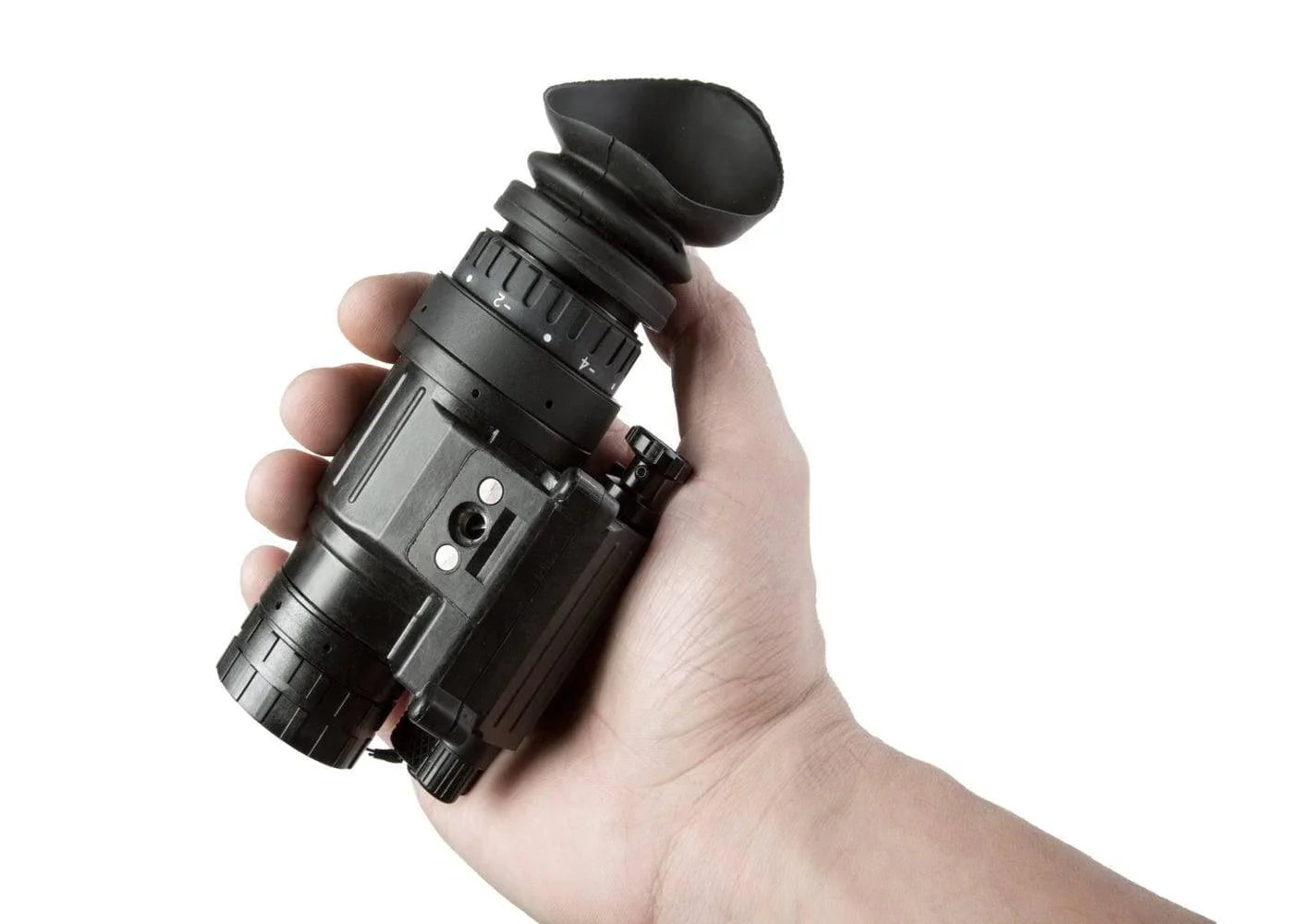

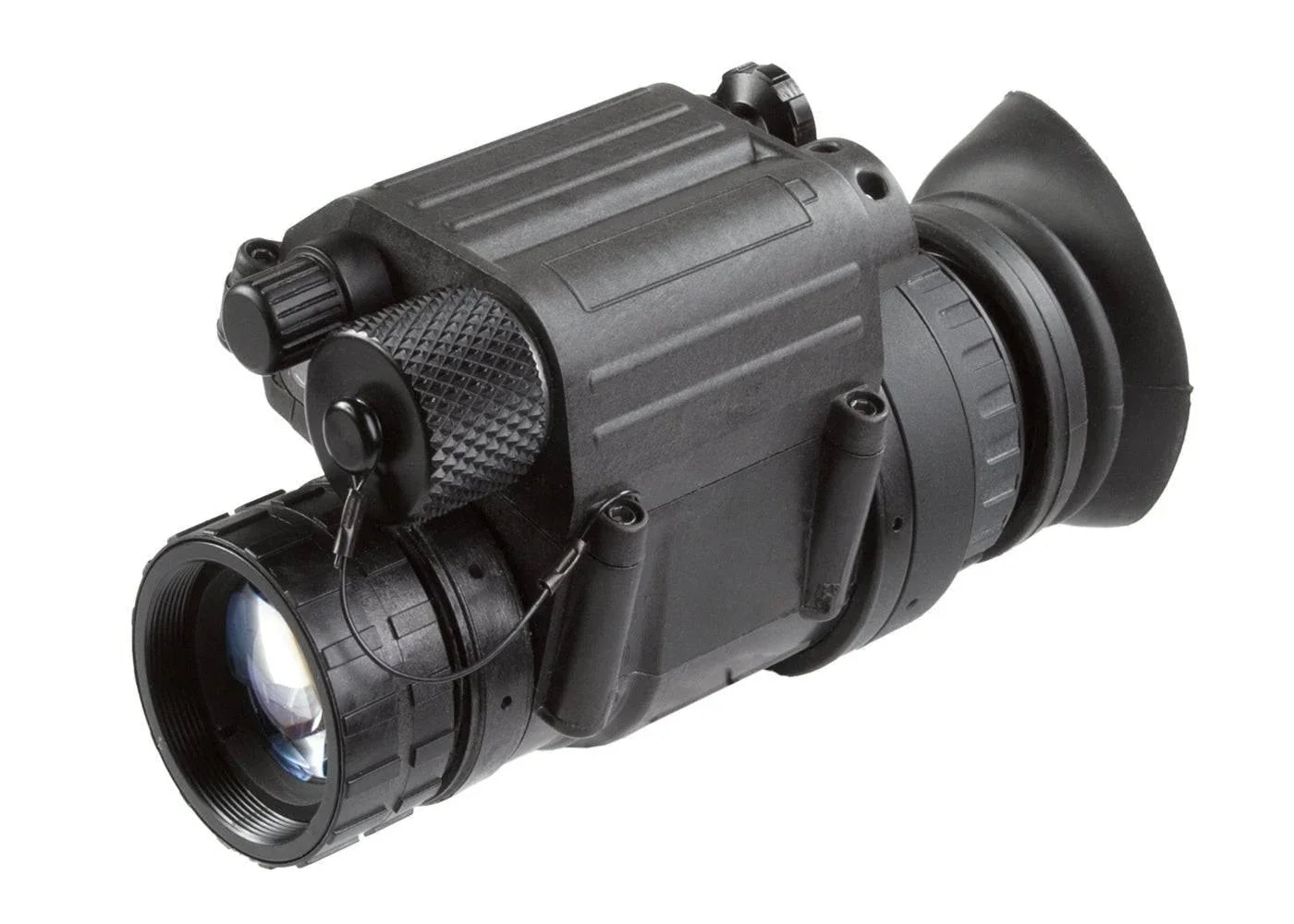

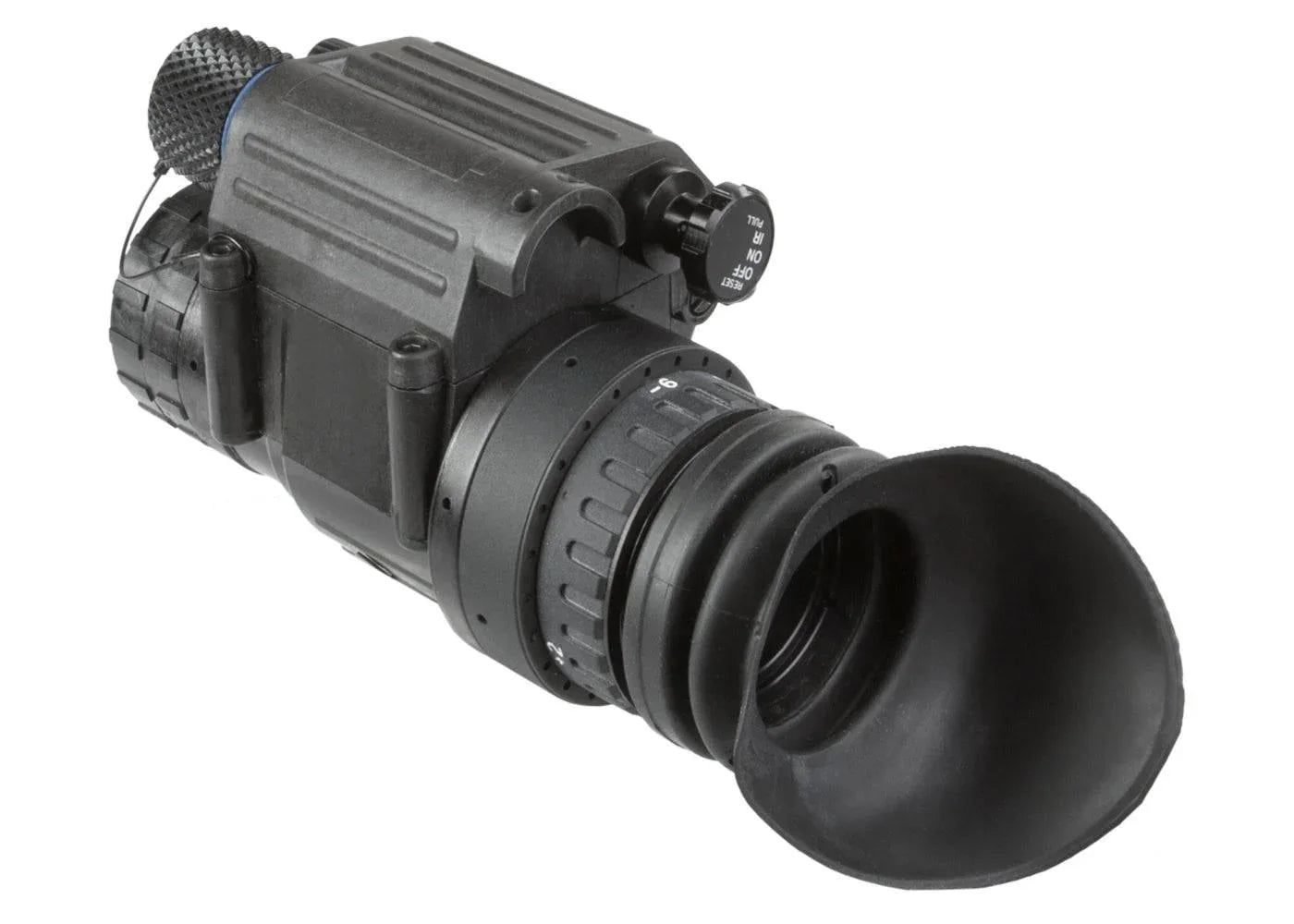

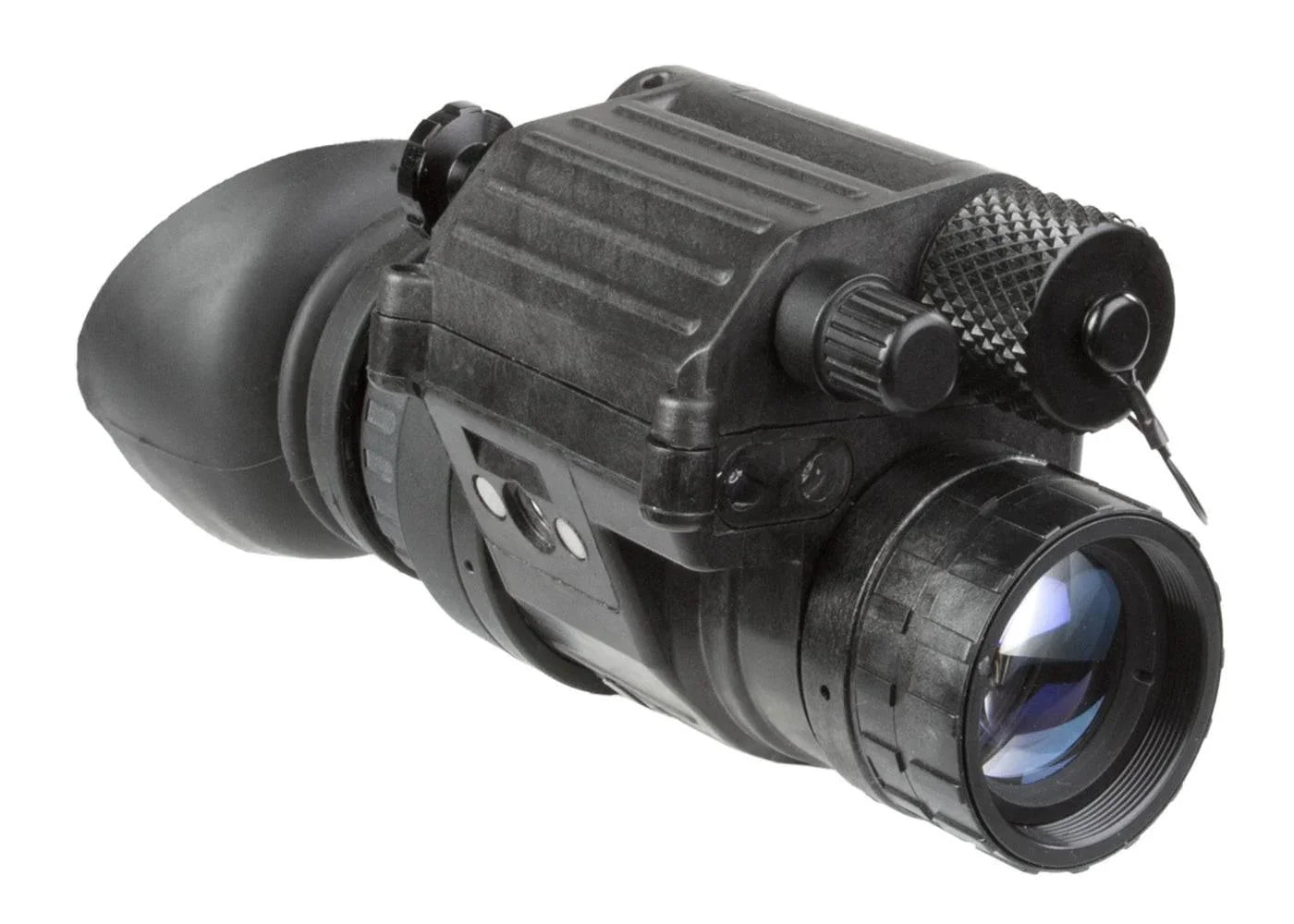

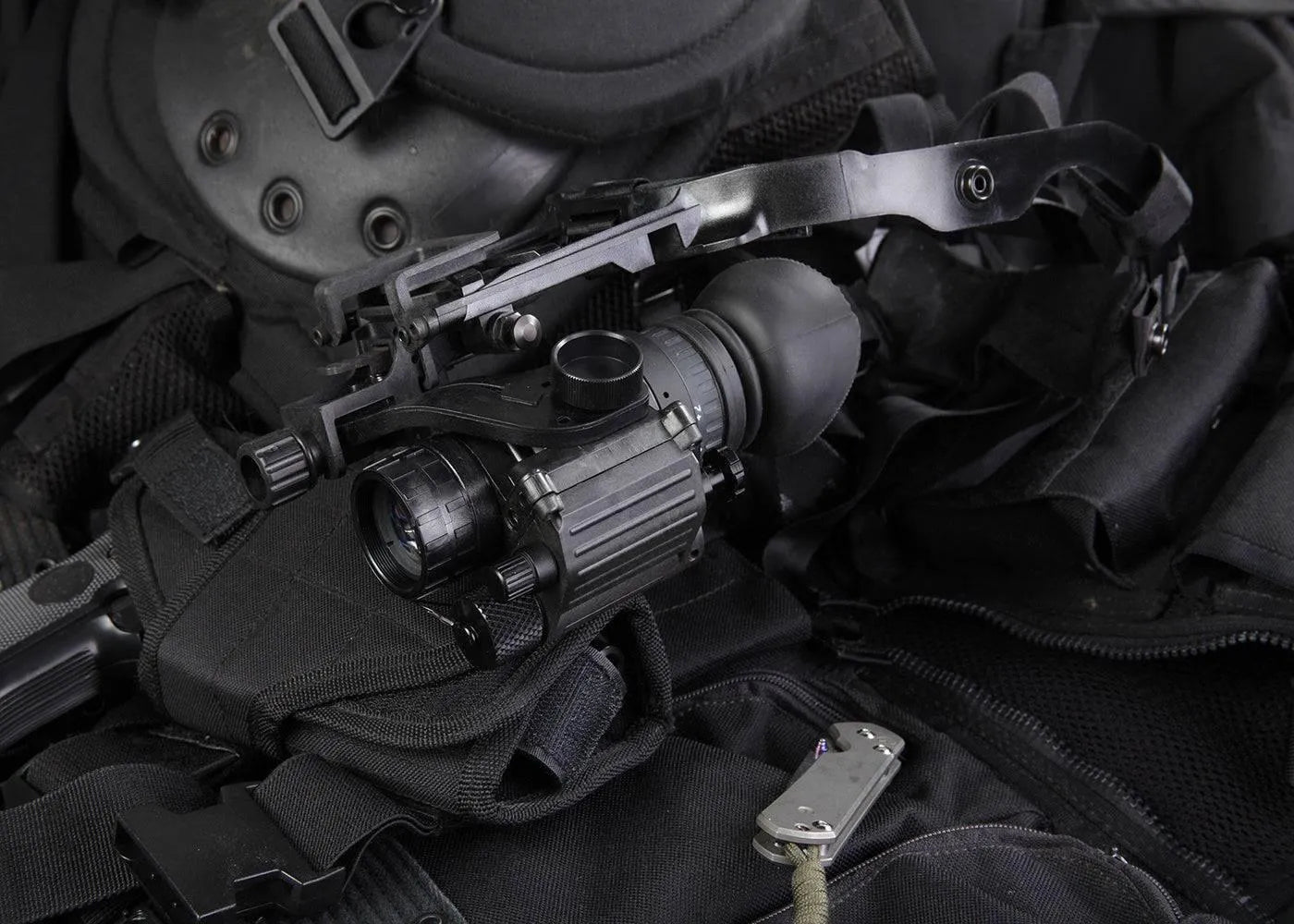

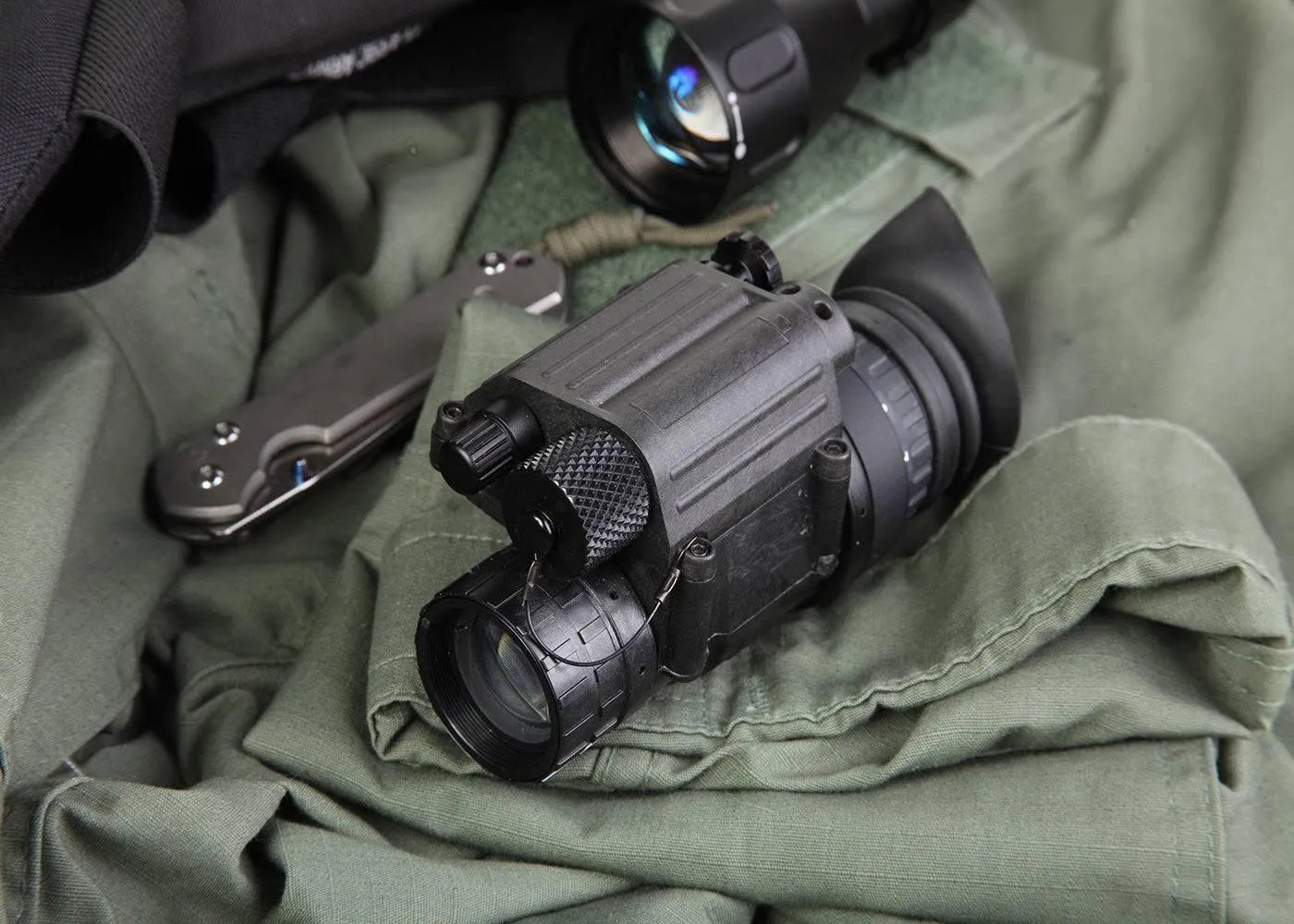

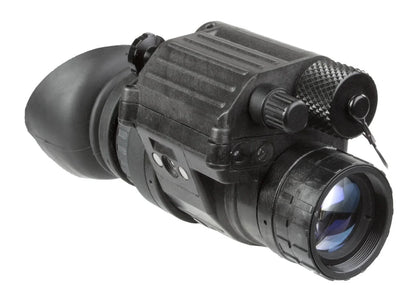

The AGM Global Vision PVS-14 3AL12Night Vision Monocular Gen 3 is a battle-tested device, designed to equip the US Military with night-operational capabilities. This lightweight and multi-purpose monocular is used by professionals in demanding environments worldwide. It can be handheld, mounted on the included head harness, or paired with compatible accessories for helmet or weapons mounting. What's more, the PVS-14 meets 810G Military Standards, boasting both dependability and exceptional performance.
The AGM PVS-14 3AL2 Night Vision Monocular Gen 3 provides superior performance in a lightweight package. It includes manual gain control, an auto bright light shut-off, and built-in Infrared illuminator. Its auto brightness control ensures a consistent image with real-time adjustments in low light, while its optional accessories accommodate any operation. Get stellar performance without the weight!
AGM PVS-14 3AL2 Features:
- Compact, rugged design
- Waterproof
- Weapon mountable

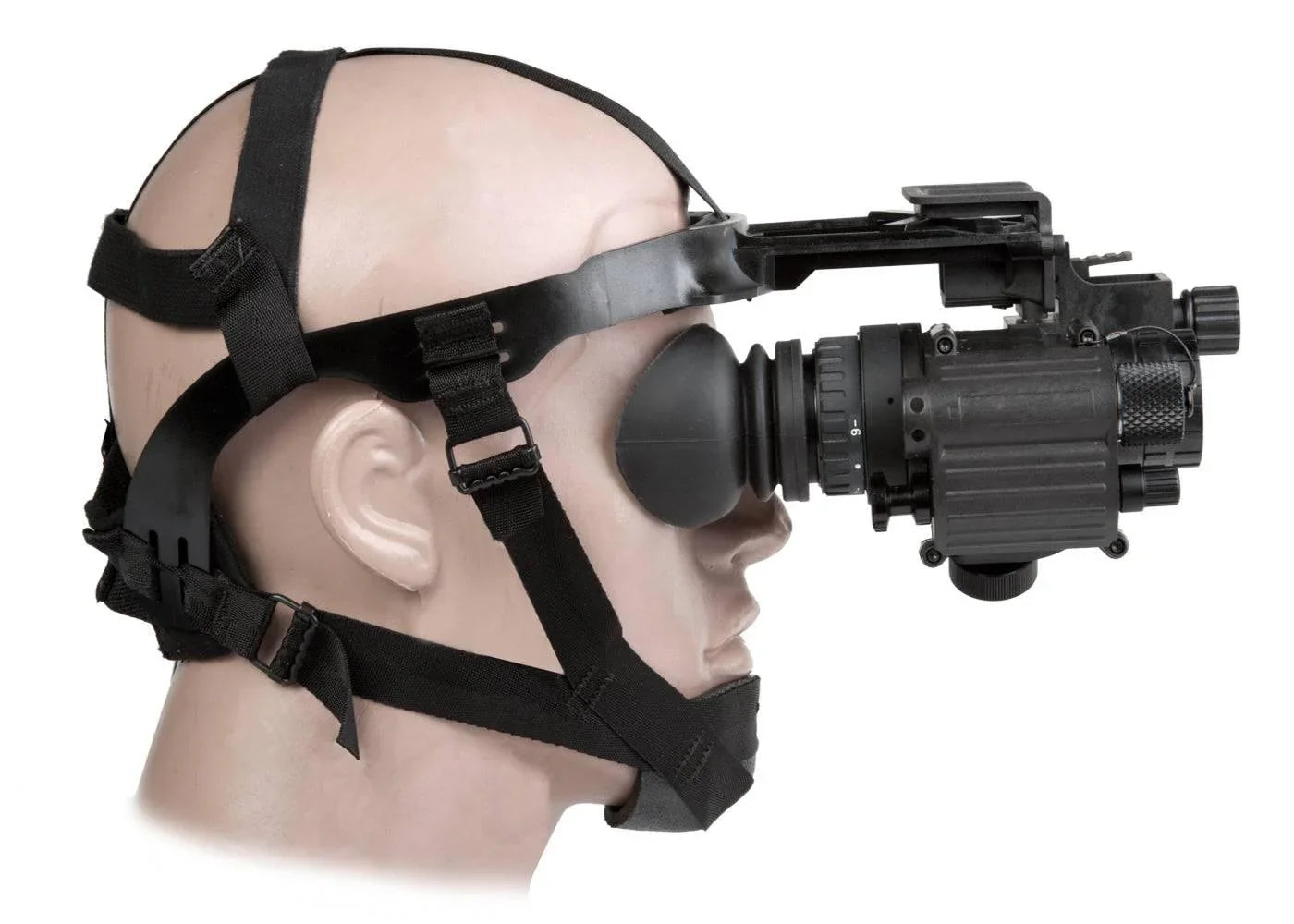

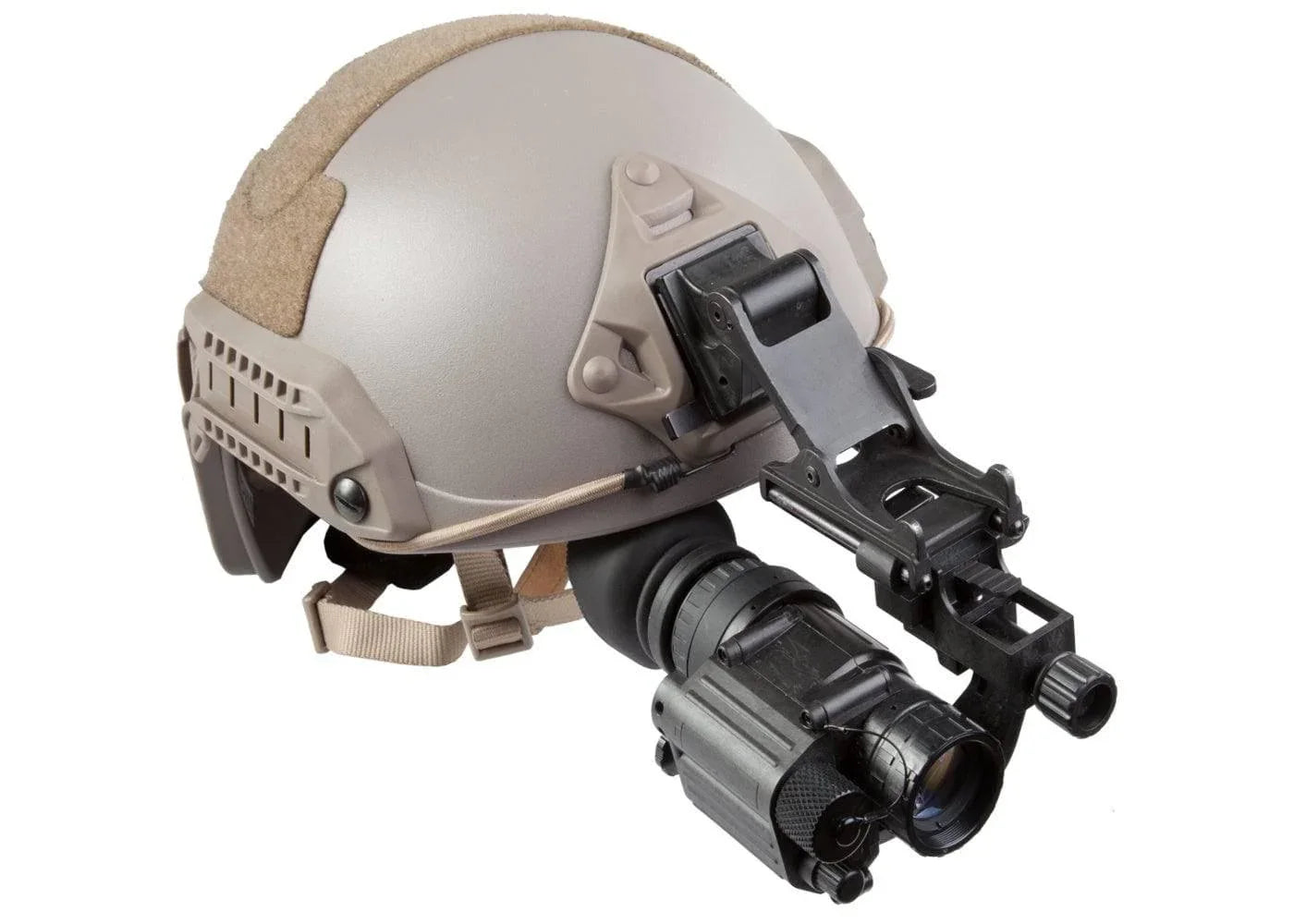

- Head or helmet-mountable for hands-free usage
- Manual gain control
- Ergonomic, simple, easy-to-operate controls
- Built-in Infrared illuminator and flood lens
- Limited three-year warranty
Tube Level Info:
|
Gen2+ Lvls |
NL1/NW1 - Gen2+ Lvl1 |
NL2/NW2 - Gen2+ Lvl2 |
NL3 - Gen2+ Lvl3 |
||||||
|
Zone |
1 |
2 |
3 |
1 |
2 |
3 |
1 |
2 |
3 |
|
>.015 or larger |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
1 |
|
>.012 - .015 |
0 |
0 |
0 |
0 |
0 |
1 |
0 |
1 |
1 |
|
>.009 - .012 |
0 |
1 |
1 |
0 |
2 |
2 |
1 |
2 |
2 |
|
>.006 - .009 |
0 |
1 |
2 |
1 |
2 |
2 |
1 |
2 |
2 |
|
.003 - .006 |
1 |
2 |
3 |
2 |
3 |
3 |
2 |
3 |
3 |
|
*Qty indicates Max Spots Allowed in Each Zone |
|
|
|
|
|
|
|||
|
**Spot Size (in.) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Gen3 Lvls |
3NL1/3AW1 - Gen3 Lvl1 |
3NL2/3AW2 - Gen3 Lvl2 |
3NL3/3AW3 - Gen3 Lvl3 |
||||||
|
Zone |
1 |
2 |
3 |
1 |
2 |
3 |
1 |
2 |
3 |
|
>.015 or larger |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
1 |
|
>.012 - .015 |
0 |
0 |
0 |
0 |
0 |
1 |
0 |
1 |
1 |
|
>.009 - .012 |
0 |
1 |
1 |
0 |
2 |
2 |
1 |
2 |
2 |
|
>.006 - .009 |
0 |
1 |
2 |
1 |
2 |
2 |
1 |
2 |
2 |
|
.003 - .006 |
1 |
2 |
3 |
2 |
3 |
3 |
2 |
3 |
3 |
|
*Qty indicates Max Spots Allowed in Each Zone |
|
|
|
|
|
|
|||
|
**Spot Size (in.) |
|||||||||
AGM PVS-14 3AL2 Specifications:
Image Intensifier Tube
Gen 3 Auto-Gated "Level 2"
Resolution
64-72 lp/mm
Field of view cleanness by zone
Gen 3 IIT 3AL2 is the second best quality offered by AGM with very limited number of spots in Zone 1.
Magnification

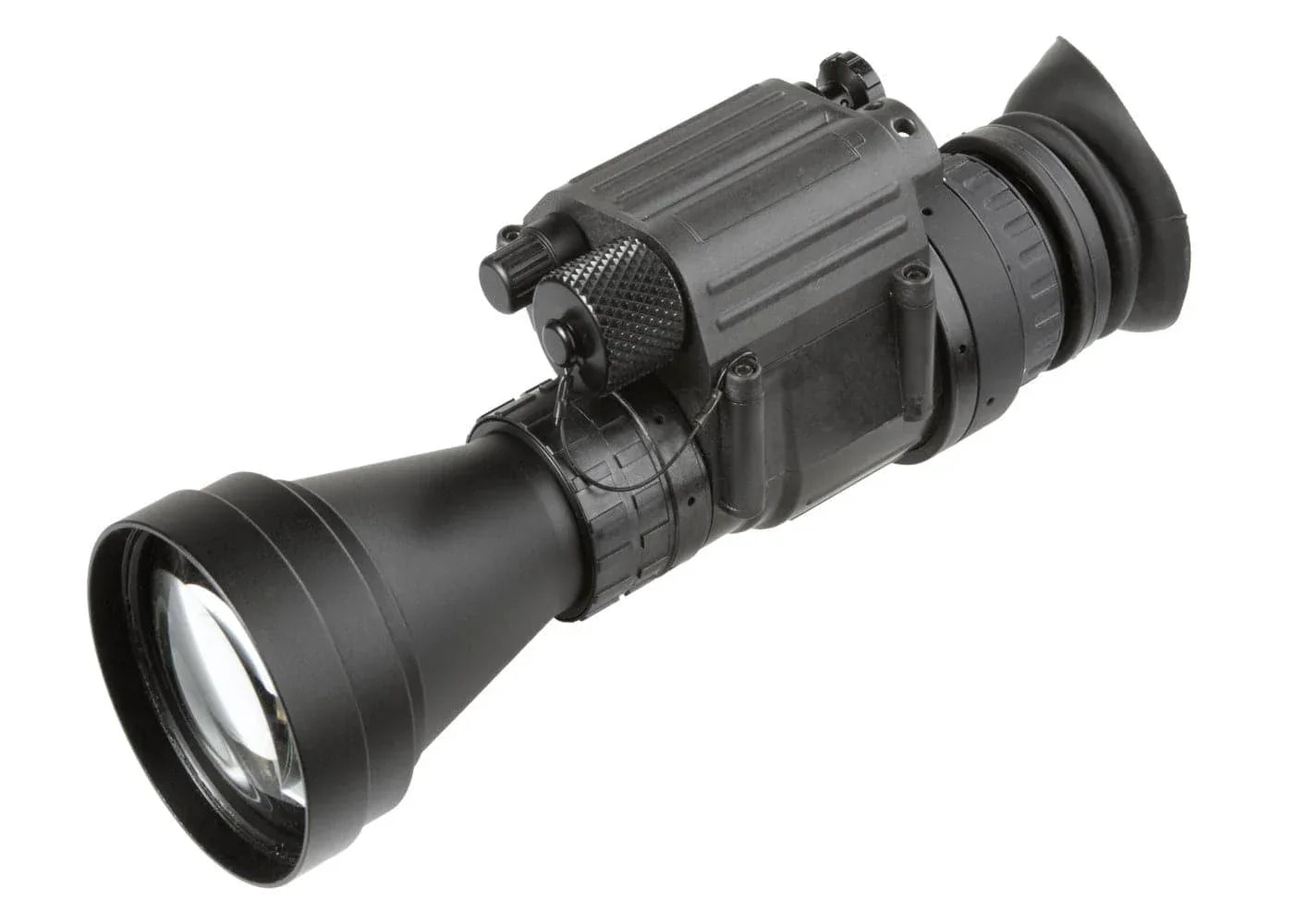

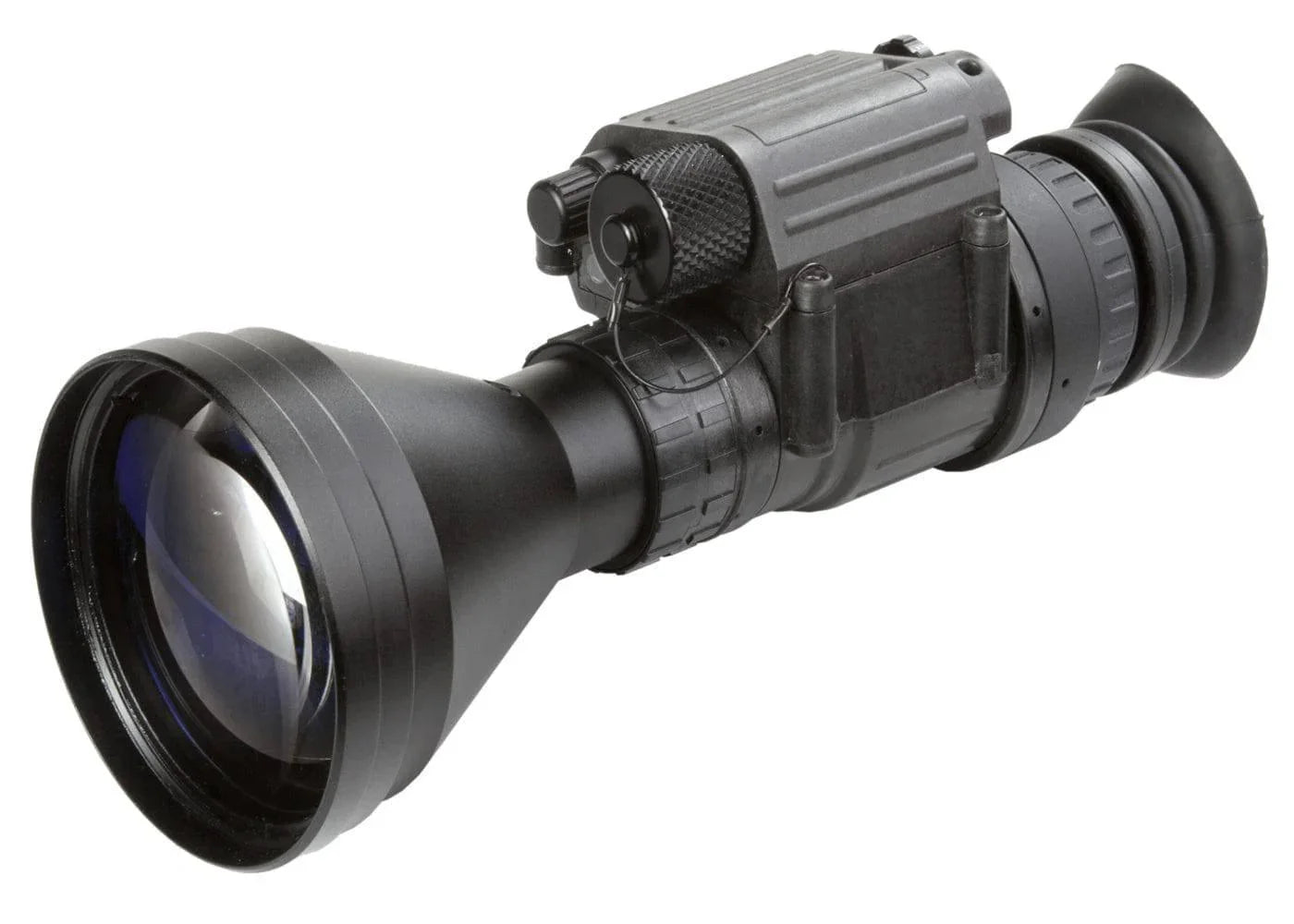

1x (3x and 5x optional)
Lens System
26 mm; F/1.2
FOV
40°
Focus Range
0.25 m to infinity
Diopter Adjustment
-6 to +4 dpt
Led Indicators
Low battery; IR On; Excessive light conditions
Infrared Illuminator
Yes
Manual Gain Control
Yes
Bright Light Cut-Off
Yes
Automatic Shut-Off System
Yes
Battery Type
One AA Alkaline
Battery Life (Operating)
Up to 50 hours at 20°C
Operating Temperature Range
-51° C to +49° C (-60° F to 120° F)
Storage Temperature Range
-51° C to +85° C (-60° F to 185° F)
Weight
0.32 kg (12.4 oz)
Overall Dimensions
114 x 63x 69 mm (4,5 x 2,5 x 2,7 in)
Package Includes

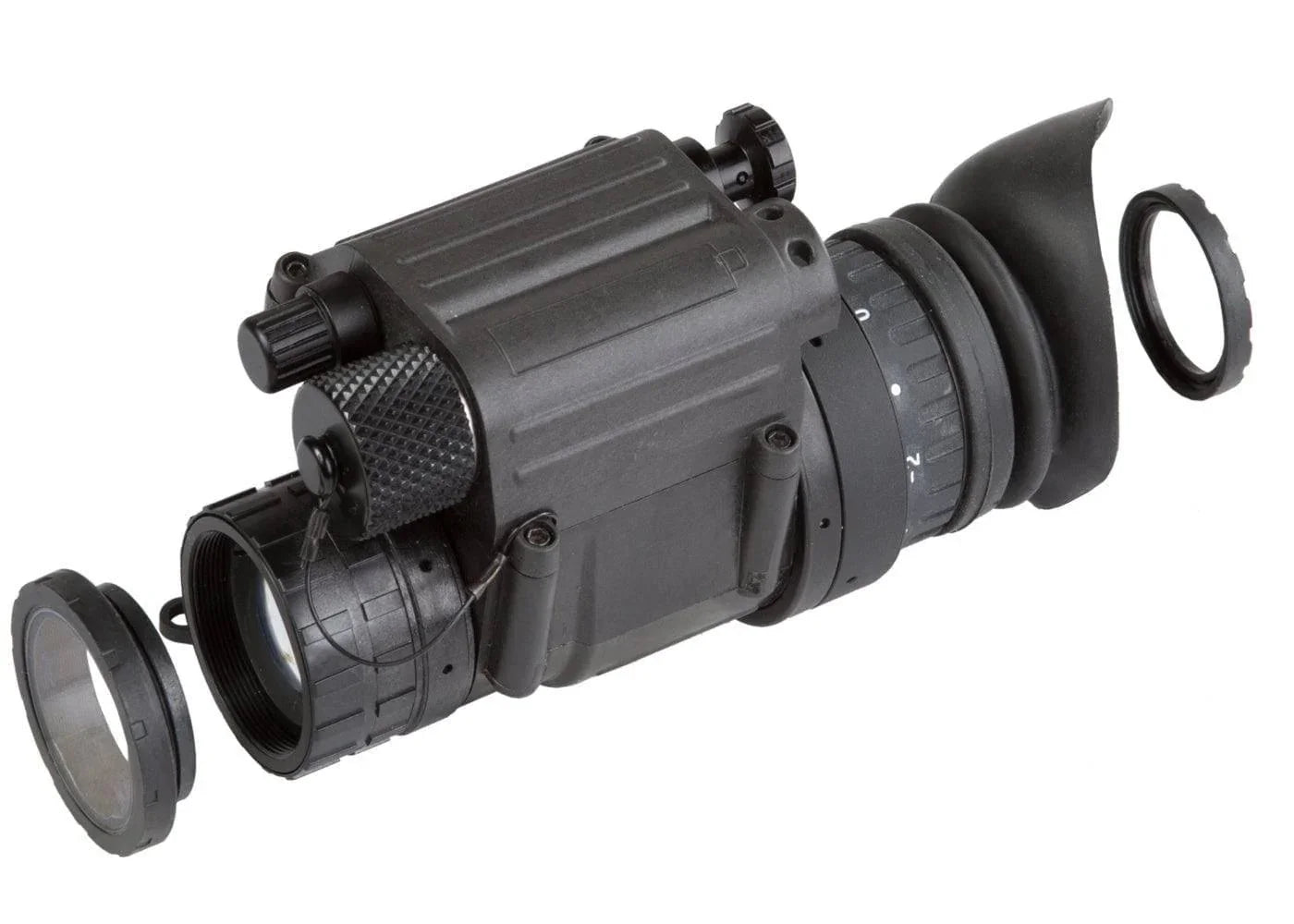

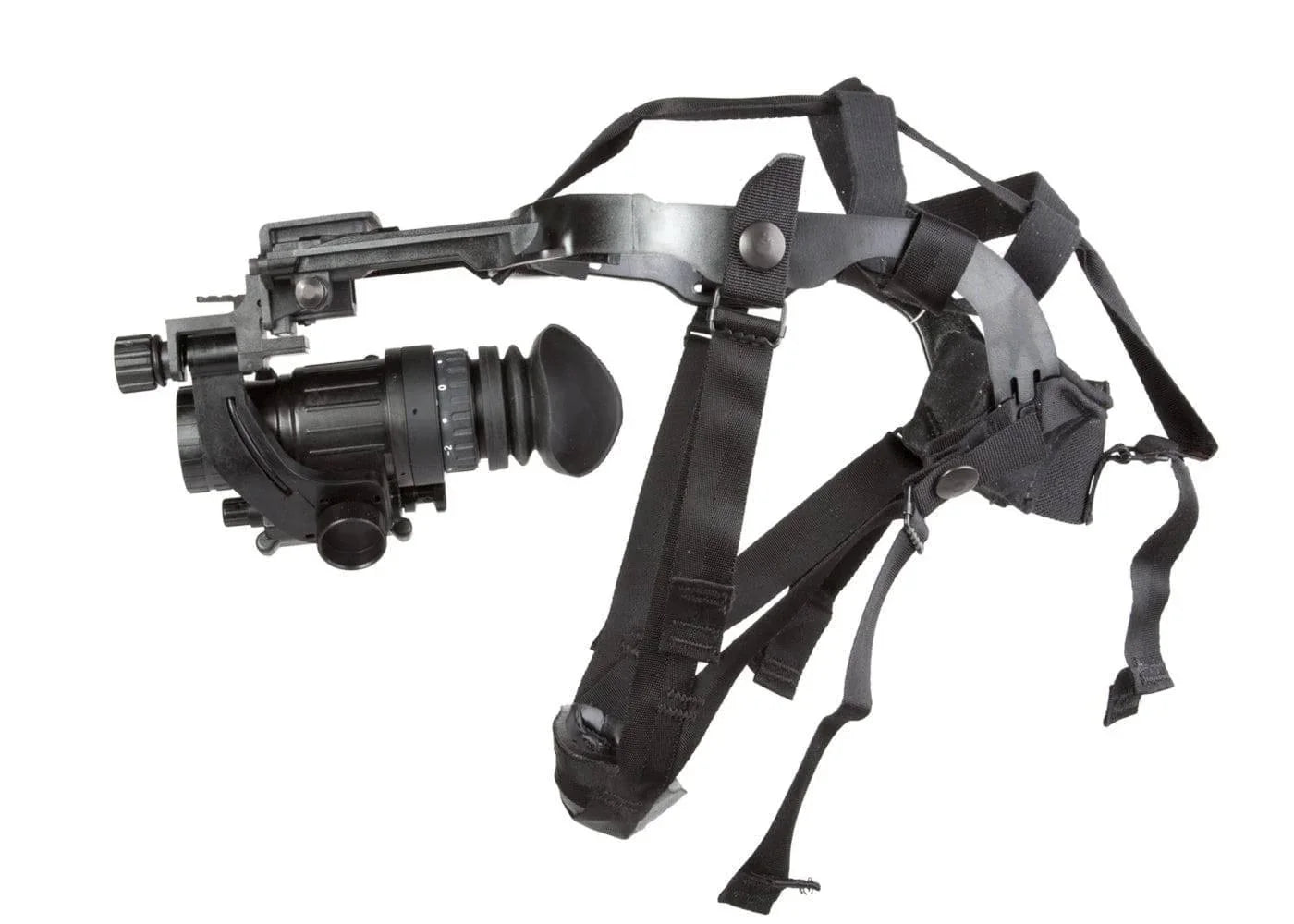

Head Mount Assembly, Brow Pad, Eye Cup, Helmet/ Head Mount Adapter, System Soft Carrying Case, Daylight Filter, Shoulder Strap, Lens Paper, Diopter Lens Cap, Sacrificial Window, Demist Shields, Operator’s Manual, Battery
|
Warranty |
3 Years |
EXPORT RESTRICTION
Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
