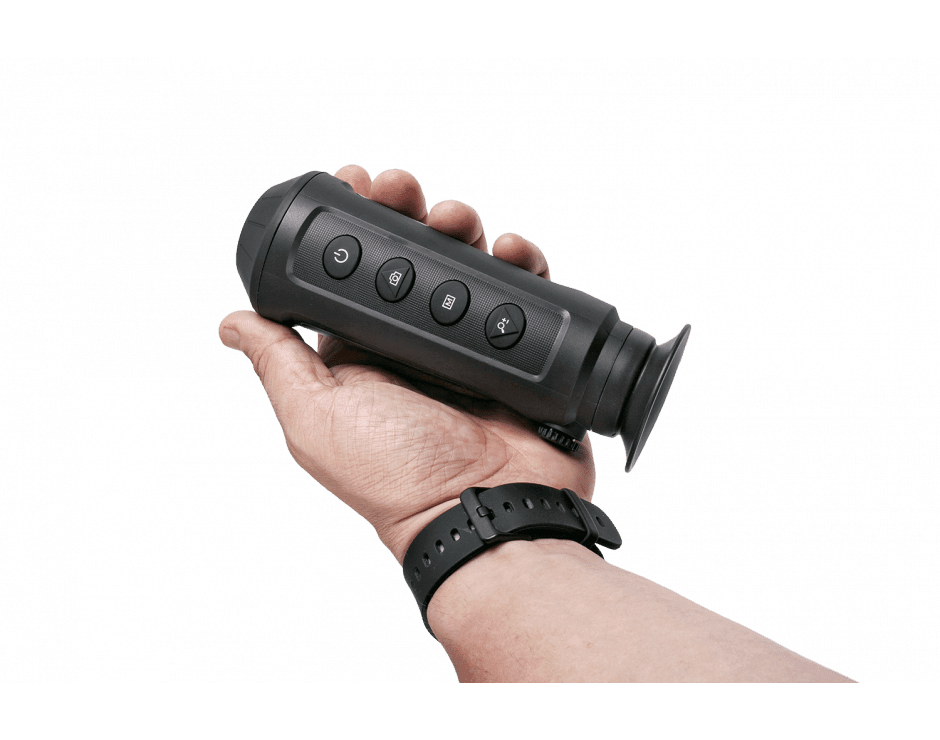

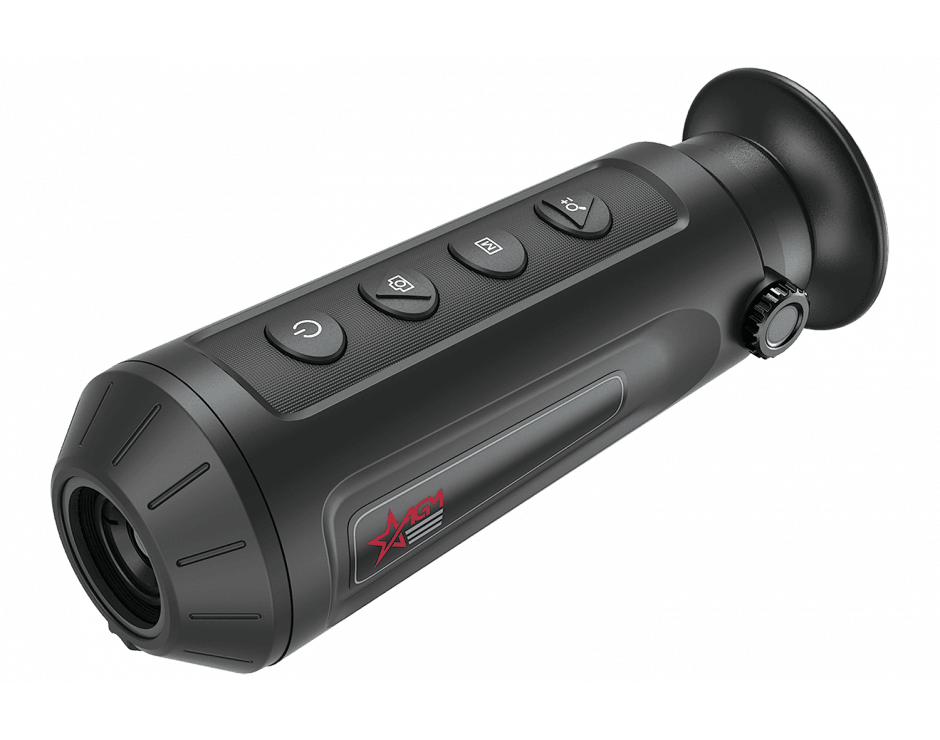

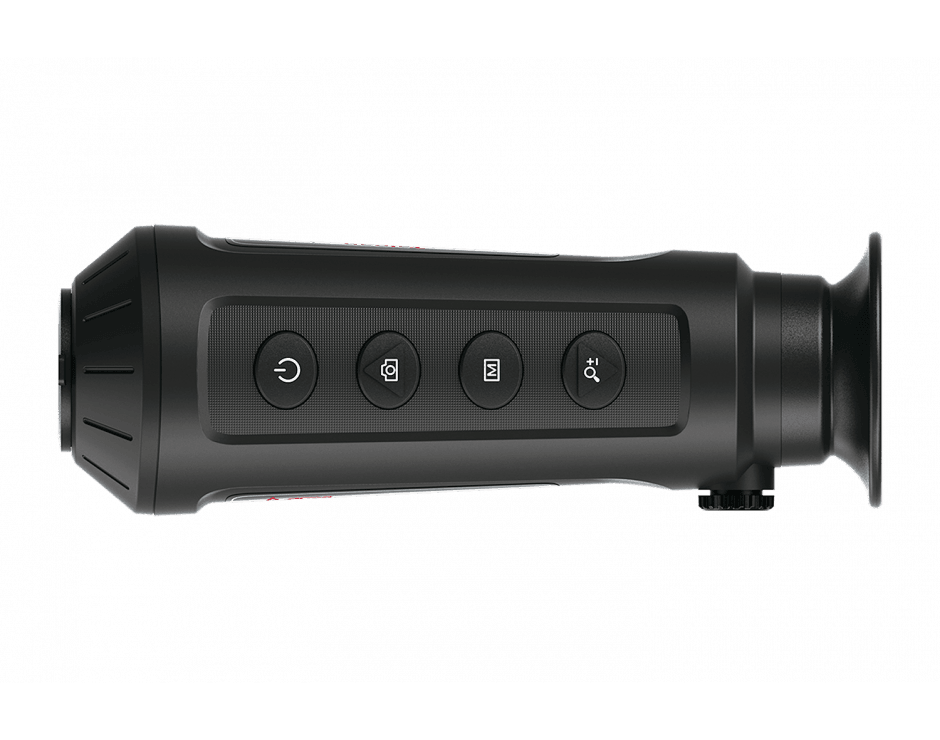

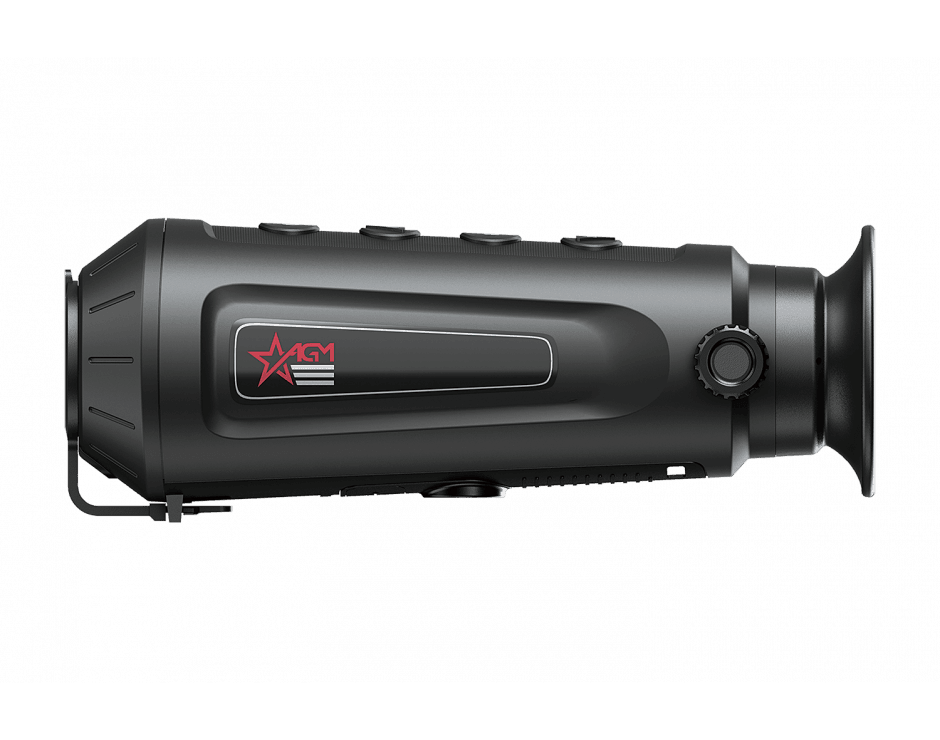

The AGM Taipan TM15-256 thermal monocular has a 256x192 IR detector and a 720x540 LCOS display for clear vision even in total darkness. It is effective at observation, high-temperature target tracking, and distance measurement. Law enforcement, patrolling, search & rescue, drug enforcement, anti-smuggling & seizing, and outdoor activities such as hunting, hiking, and travel are all suitable applications for the device's high-sensitivity thermal detector.
Detector type: Vanadium Oxide Uncooled Focal Plane Arrays
Refresh rate: Sensor 25 Hz / OLED 50 Hz
Resolution: 256x192
FOV: 11.69° × 8.78°
1.42x base mag
FUNCTIONS:
Distance Measurement:
The device realizes distance measurement function after marking the top and bottom of target, and input the target height.

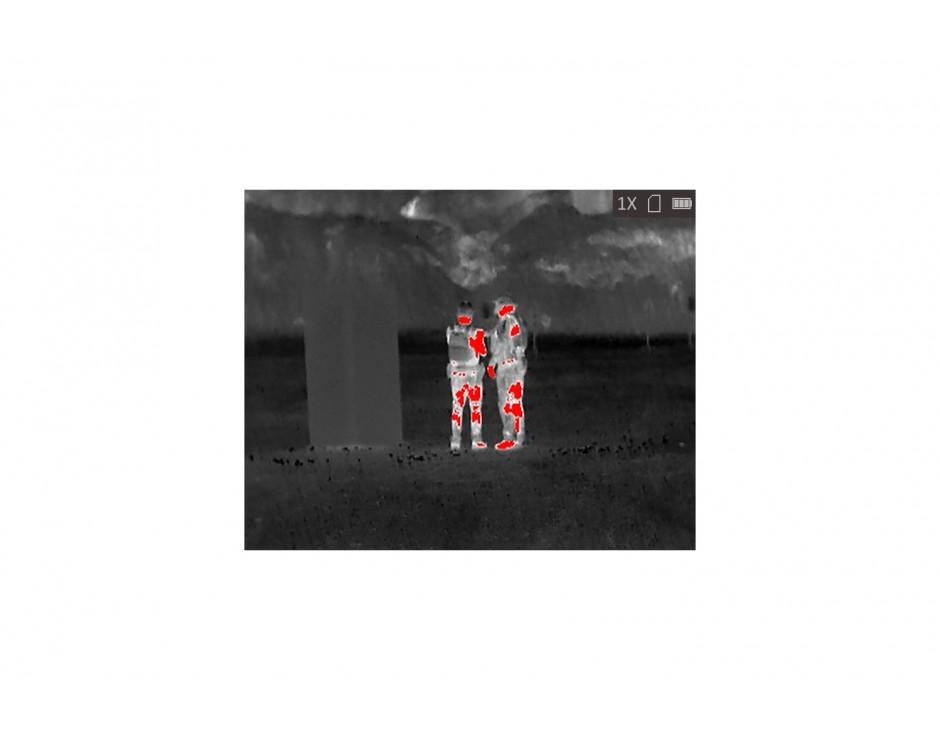

Hot Spot Mark:
The device detects and marks the hot spot of highest temperature.
Mode Switch:
Device supports pallet switch and distance measurement.
Storage:
Built-in memory module supports video recording/snapshot capturing.
Digital Zoom:
Device supports 1×, 2×, 4×, and 8× digital zoom.
Wi-Fi Hotspot:
Device can capture snapshots, record videos, and set parameters via APP after being connected to your phone.
Features:
- 256×192 resolution, 12 μm, high sensitivity detector
- Adaptive AGC, DDE, 3D DNR
- 720 × 540 LCOS display
- Built-in rechargeable Lithium battery
- Up to 8 hours continuous running
(with Wi-Fi hotspot function off)
- “Auto Power Off” and “Sleep” modes
- Wi-Fi hotspot

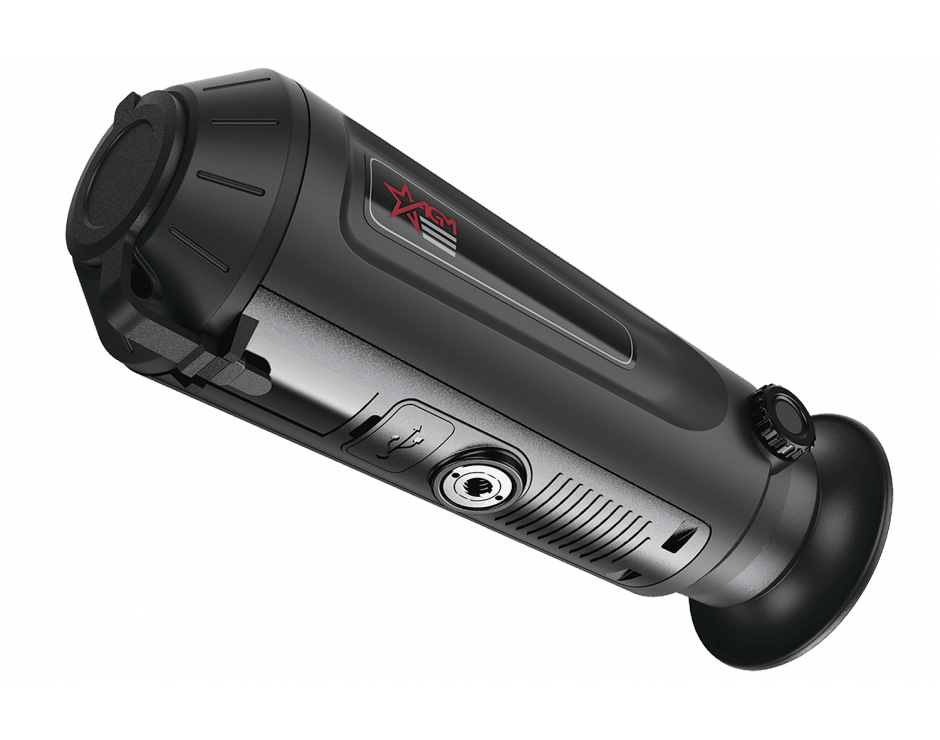

- Type-C interface
- Limited 3-year warranty
Specifications:

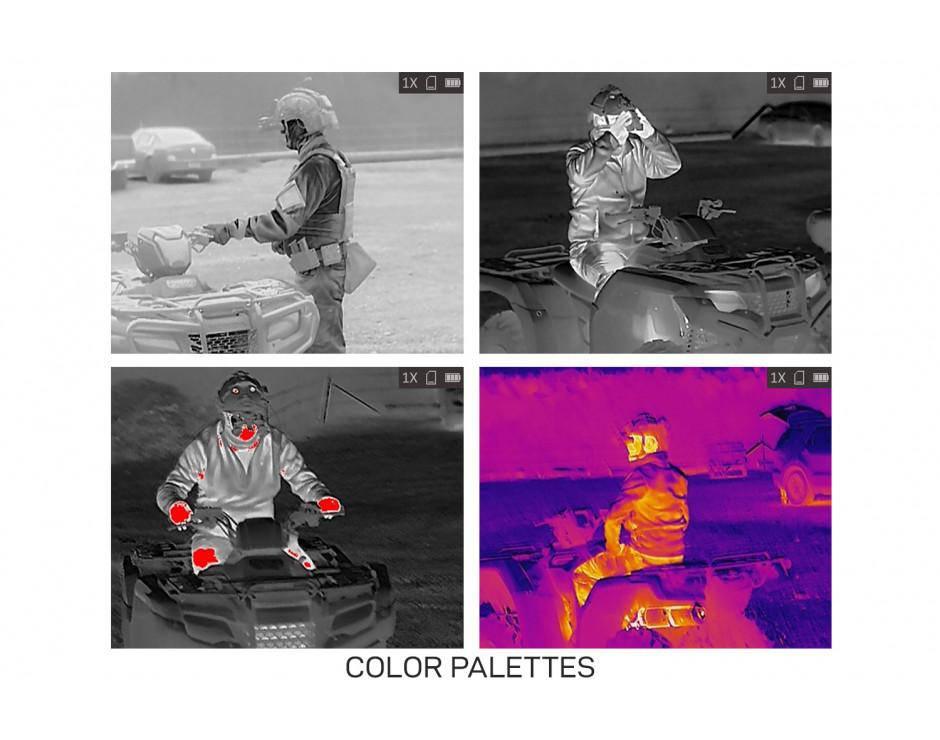

Black Hot, White Hot, Red Hot, Fusion
-20°C to 55°C (-4°F to 131°F)
Vanadium Oxide Uncooled Focal Plane Arrays
FFC (Flat Field Correction)
Auto, Manual, External Correction
Highest Temperature Spot Tracking
Sensor 25 Hz / OLED 50 Hz
Less than 35 mk (@25°C), F#=1.0
Built-in memory module (8 GB)
Built-in rechargeable Lithium battery
Up to 8 hours continuous running (with Wi-Fi hotspot function off)
158 × 61 × 57 mm (6.23 × 2.4 × 2.2 in)
