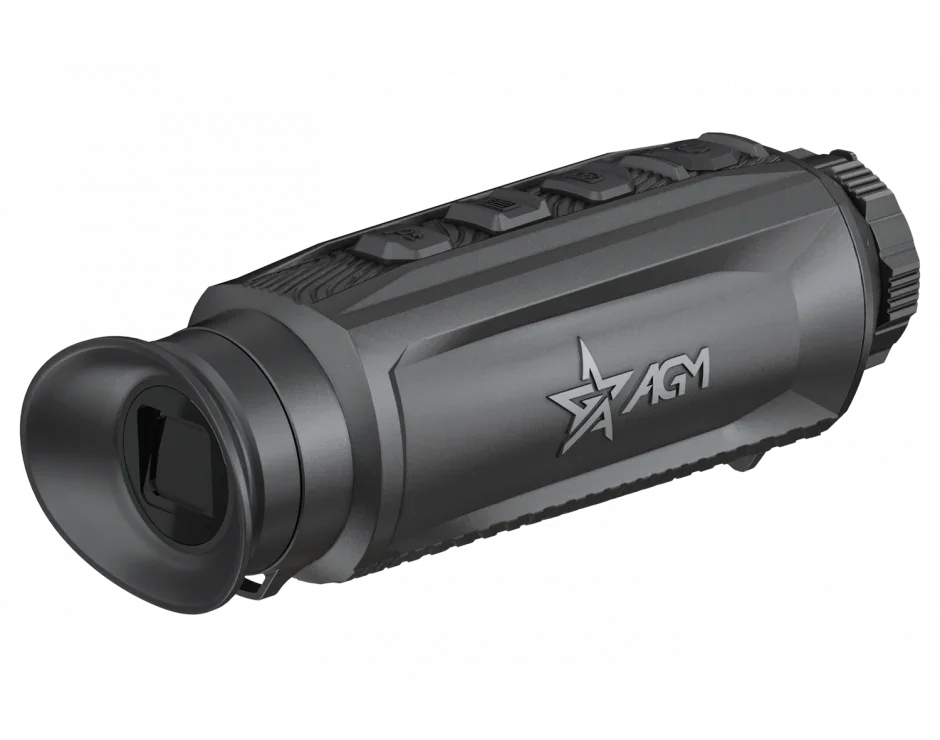

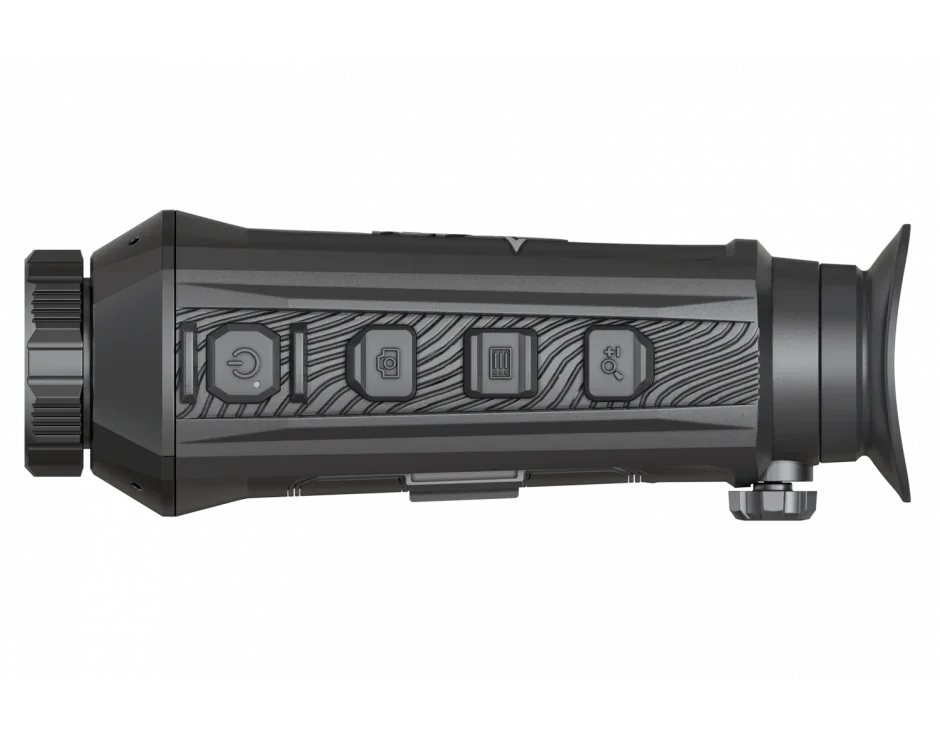

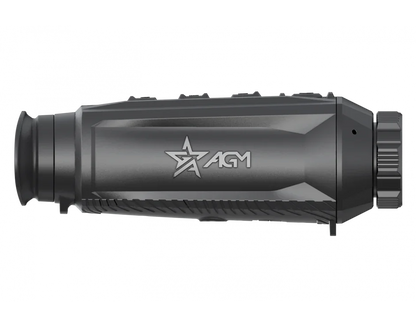

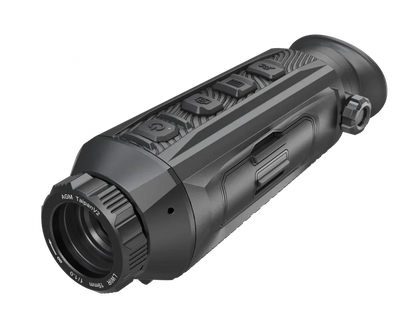

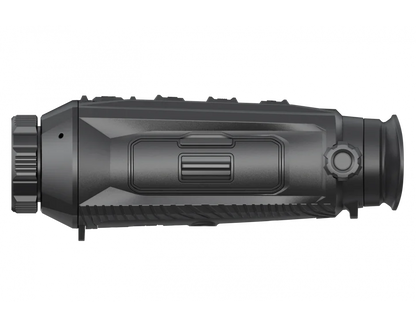

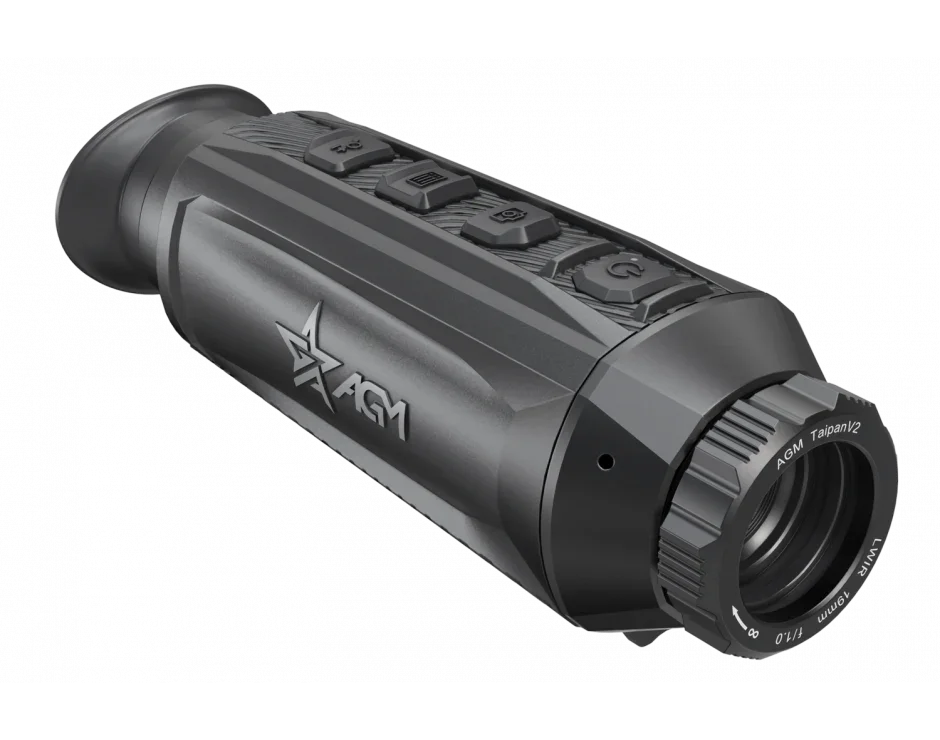

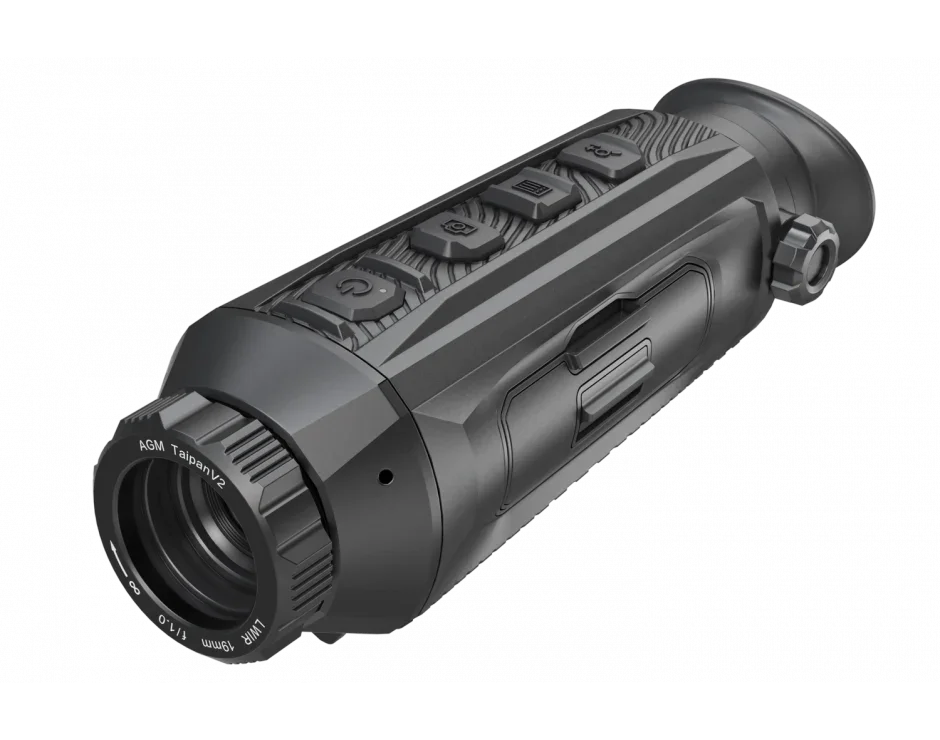

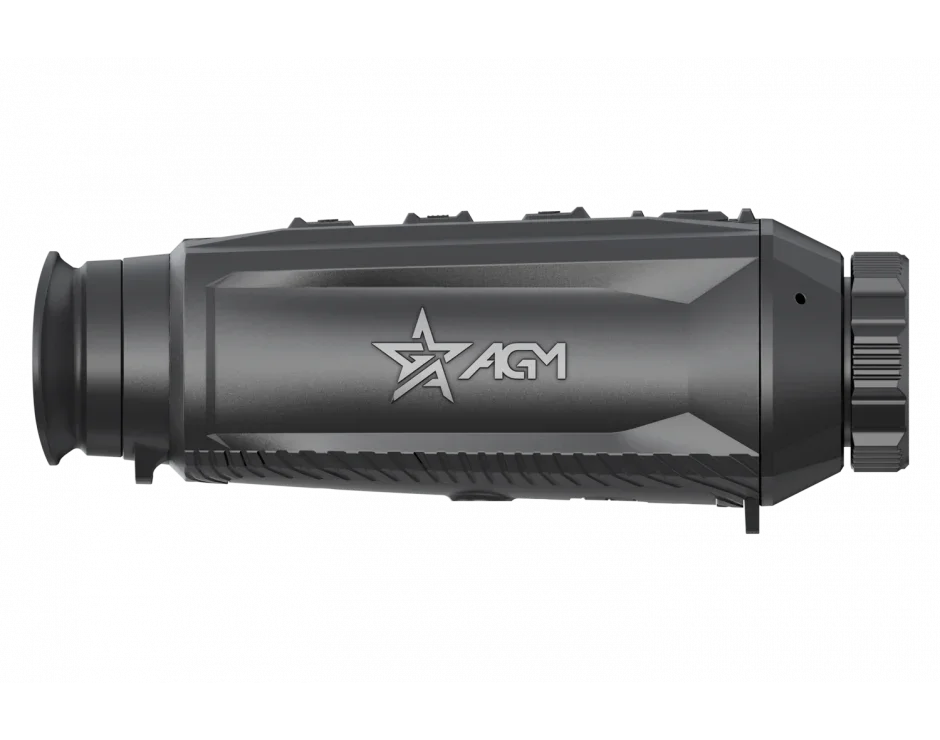

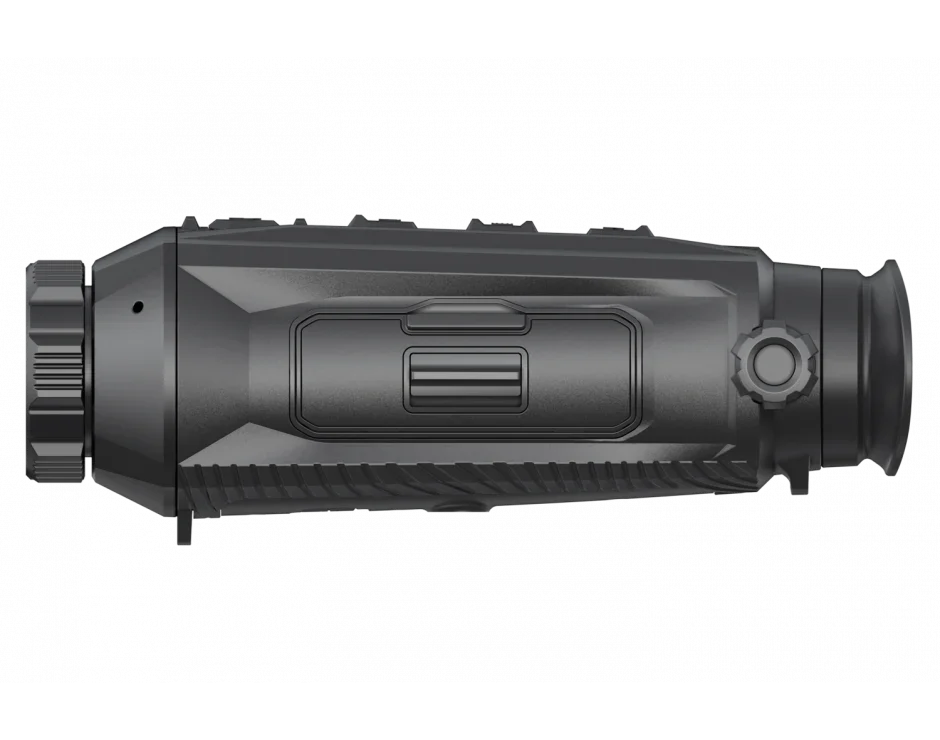

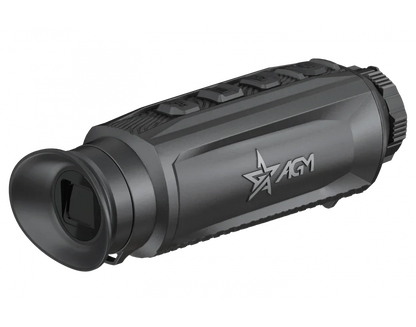

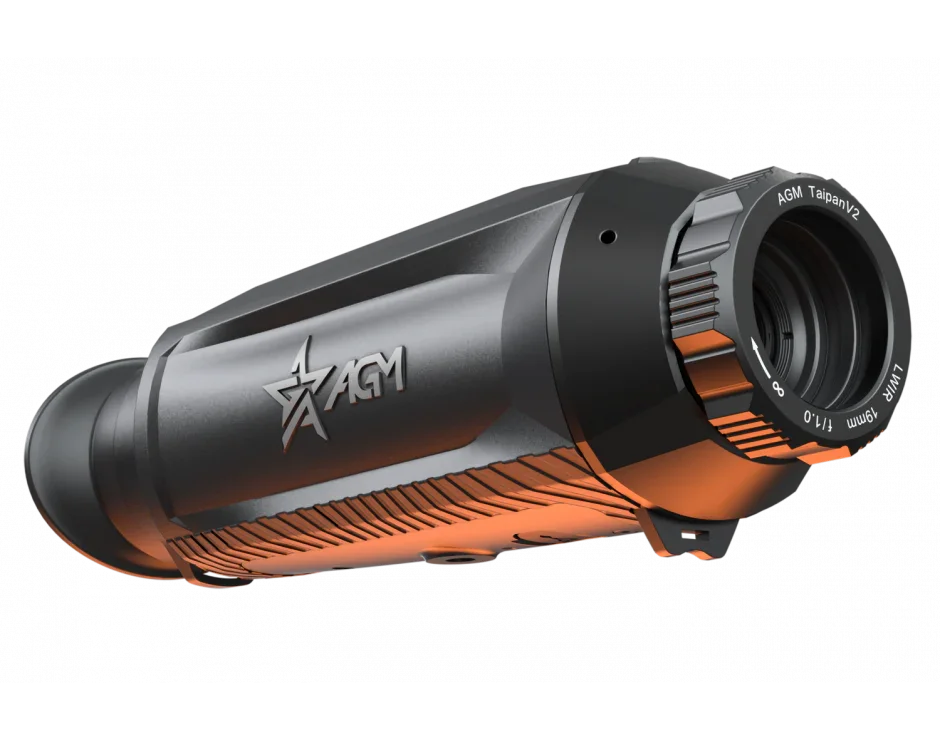

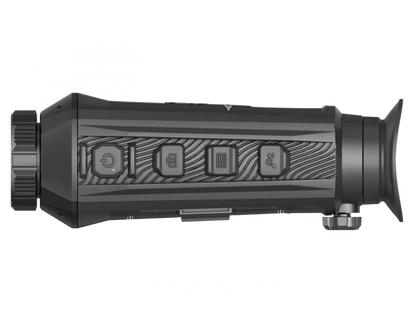

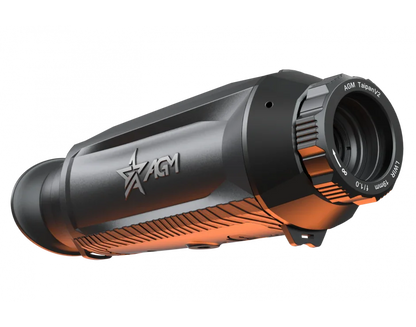

AGM Taipan V2 19-320 Thermal Monocular 320x256 / 12um (50Hz) 19mm w/Recording (TAIP19-320-2)
The AGM Taipan V2 Thermal Monocular series is the latest addition to AGM’s extensive lineup of thermal products, offering significant advancements over the original Taipan monoculars. The Taipan V2 series features multiple Germanium lens sizes paired with an industry-leading 384 resolution, 12-micron, sub-20mK thermal detector, delivering exceptional performance. Key improvements include replacing the non-removable internal battery with a single removable rechargeable 18650 battery, integrating a new sub-20mK thermal sensor, and adding a 90-degree tilt sensor that powers off the display to conserve battery life.
The Taipan V2 series also boasts various software enhancements and retains many popular features from the AGM thermal product range, such as F1.0 aperture optics, a 50Hz refresh rate, 16GB of built-in memory, and Wi-Fi compatibility for use with the AGM Connect App. It also includes an IP67 waterproof rating, a USB Type-C port for external power, and four color palettes. The wider rubber eyepiece ensures comfort when viewing the 1024 OLED display for extended periods.
The Taipan V2 thermal monoculars are designed for versatile use, making them ideal for hunting, farming and herd protection, law enforcement, search and rescue, boating, camping, and other outdoor activities. All models come with AGM’s 5-year transferable warranty, ensuring durability and reliability.
AGM Taipan V2 19-320 CHARACTERISTICS:
- Upgraded sub-35mK 12 micron thermal detector
- 320×256 resolution
- 50 Hz image frame rate
- Advanced image processing
- 1280×960 resolution LCOS display
- Built-in recording with sound
- 16 GB memory module
- Wi-Fi hotspot
- Magnification - 3× - 22.5x
- Auto screen off with tilt sensor
- Replaceable and rechargeable Li-Ion battery
- Up to 6 hours of battery life
- External power supply capability
- Rugged housing with rubber overmolding
- Waterproof
- Compatible with AGM Connect App
- 5-year warranty
AGM Taipan V2 19-320 Specifications:
Palettes
Black Hot, White Hot, Red Hot, Fusion
Dimensions
173 × 60 × 64 mm (6.8 × 2.4 × 2.5 in)
Exit Pupil Diameter
6 mm
Distance Measurement
Yes
Scene Mode
General, Compressed
Picture In Picture Mode (PIP)
Yes
Hotspot
Yes
Video Recording
Yes
Audio Recording
Yes
Magnification
3×, 6x, 11x, 22.5x
Detector type
12μm VOx Uncooled Focal Plane Array
Response Waveband
8μm to 14μm
FFC (Flat Field Correction)
Auto, Semi-Auto, Manual
Standby Mode
Yes
Refresh rate
50 Hz
Resolution
320x256
Detection Range (6' object)
950 m
Snapshot
Yes
Lens system
19 mm; F1.0
NETD
Less than 35 mK (25°C, F#=1.0)
Field of view (H × X)
9.2° × 6.9°/16.2 m x 12.1 m
Diopter adjustment range
-4 D to +4 D
Monitor
1280x960, 0.4 inch, LCOS
Focusing range
1.9 m minimal
Hot Track
Yes
Eye relief
20 mm
Storage
Built-in EMMC (16 GB)
Battery Type
One 18650 Replaceable rechargeable Lithium battery
Battery Life (Operating)
Up to 6 hours continuous running (@25°C, WiFi off)
Power supply
5 VDC/2 A, USB Type-C interface. Supports external power supply
Operating Temperature Range
-30°C to +55°C (-22°F to 131°F)
Weight
0.3 kg (0.66 lb)
Protection Level
IP67 (Waterproof)
Data Sheet
Included:
- Battery Charger
- USB Cable
- Power Adapter (US and EU plugs included)
- 18650 Rechargeable Battery
- Lens Cloth
- Wrist Strap
- User Manual
- Protective Bag
