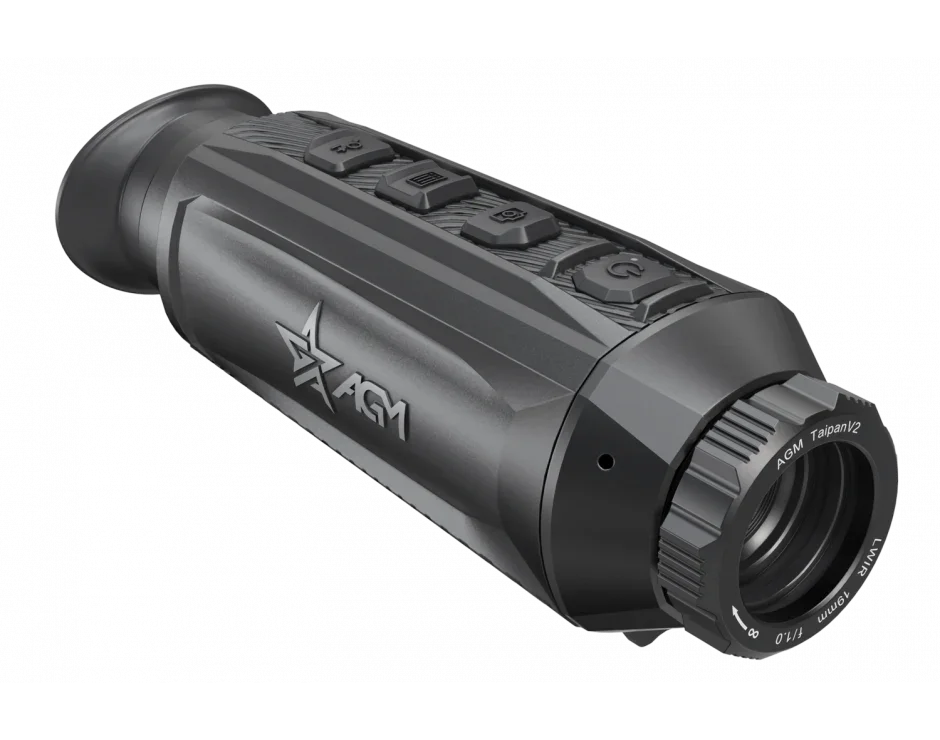

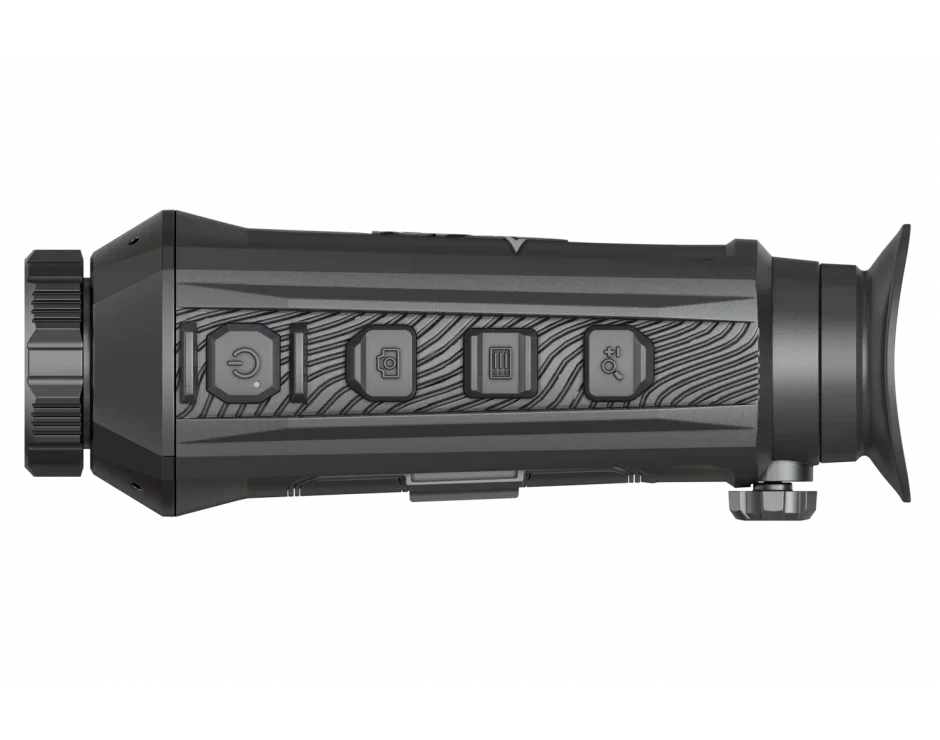

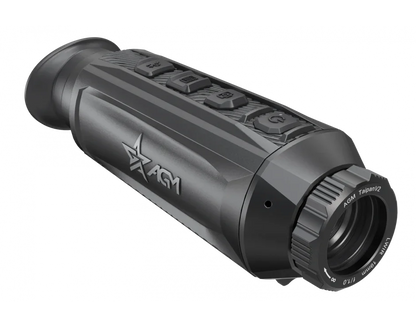

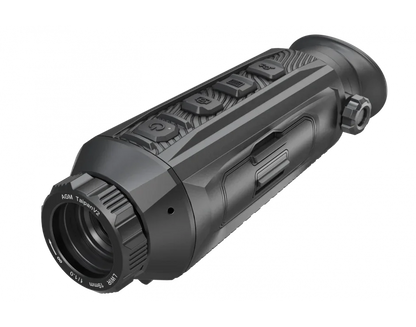

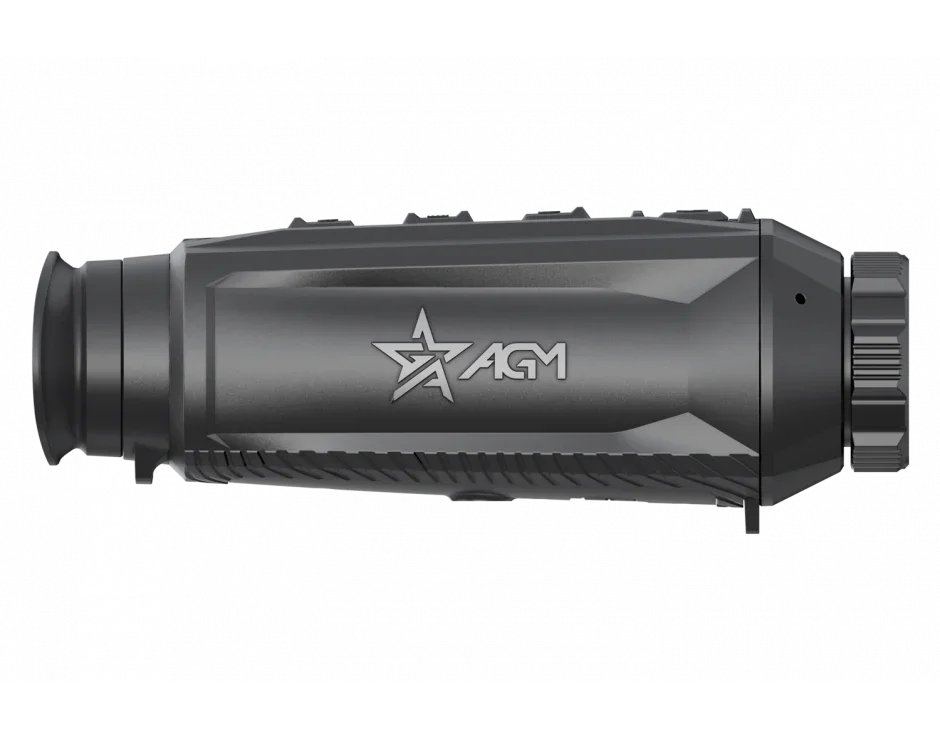

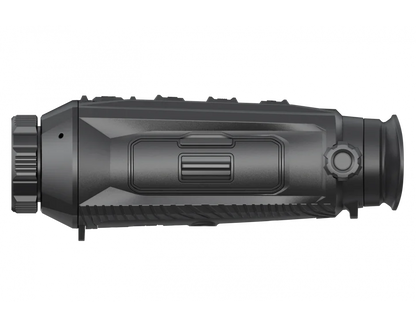

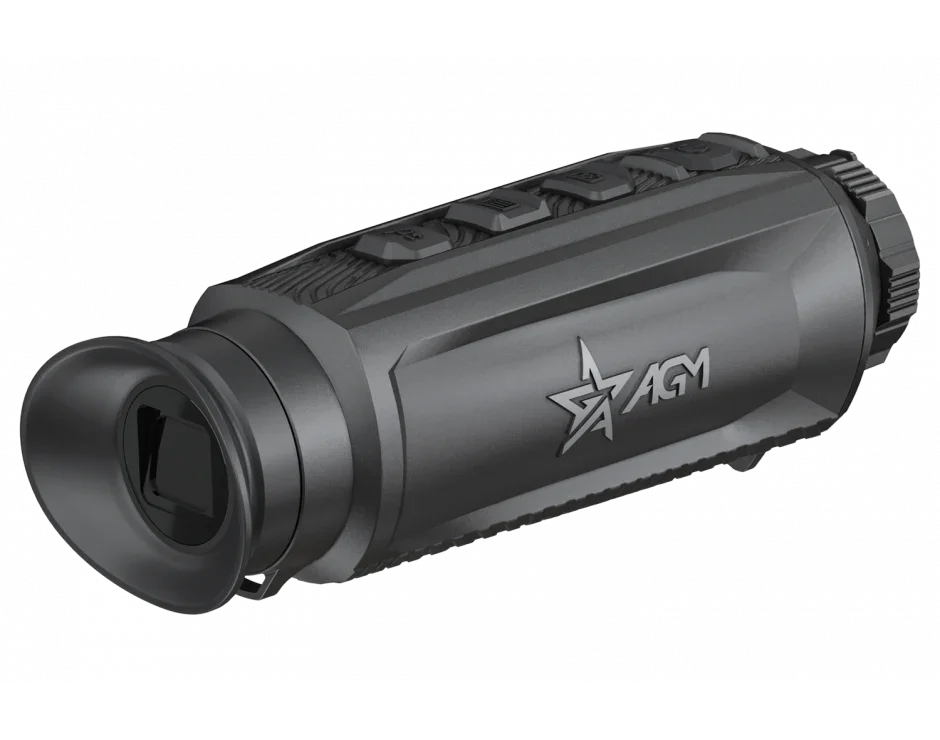

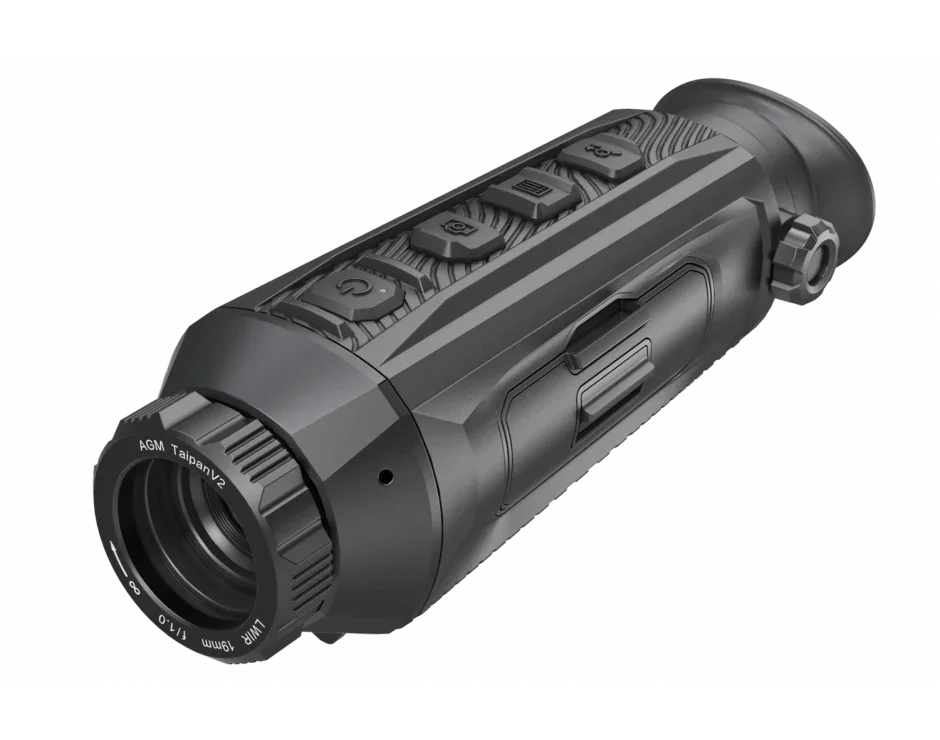

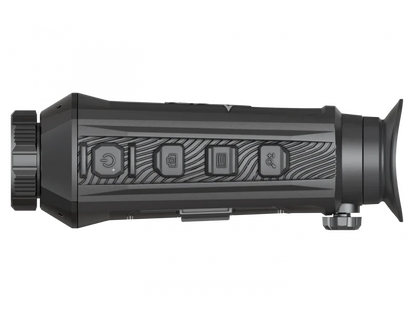

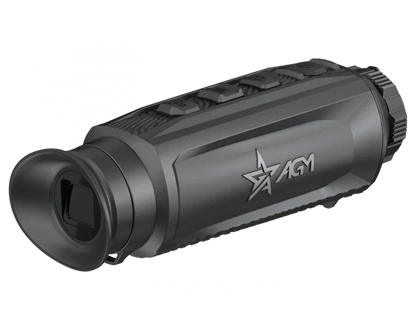

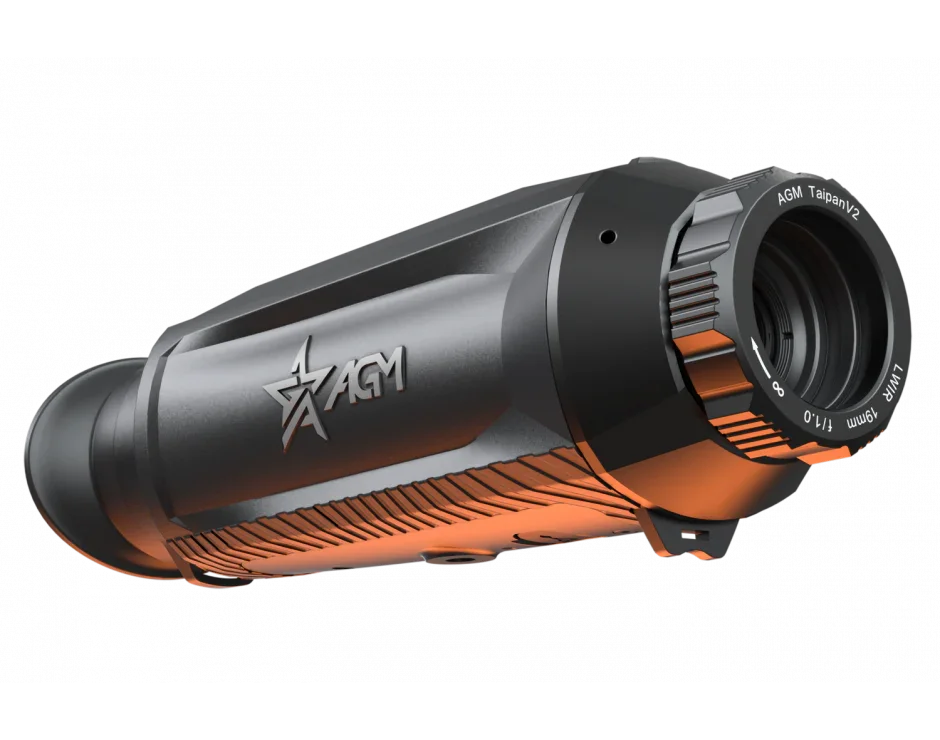

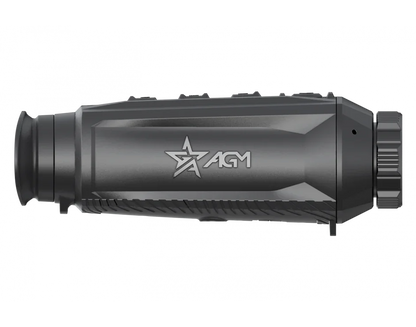

AGM Taipan V2 19-384 Thermal Monocular 384x288 / 12um (50Hz) 19mm w/Recording (SEEK19-384)
The AGM Taipan V2 Thermal Monocular series is the latest addition to AGM’s extensive lineup of thermal products, offering significant advancements over the original Taipan monoculars. The Taipan V2 series features multiple Germanium lens sizes paired with an industry-leading 384 resolution, 12-micron, sub-20mK thermal detector, delivering exceptional performance. Key improvements include replacing the non-removable internal battery with a single removable rechargeable 18650 battery, integrating a new sub-20mK thermal sensor, and adding a 90-degree tilt sensor that powers off the display to conserve battery life.
The Taipan V2 series also boasts various software enhancements and retains many popular features from the AGM thermal product range, such as F1.0 aperture optics, a 50Hz refresh rate, 16GB of built-in memory, and Wi-Fi compatibility for use with the AGM Connect App. It also includes an IP67 waterproof rating, a USB Type-C port for external power, and four color palettes. The wider rubber eyepiece ensures comfort when viewing the 1024 OLED display for extended periods.
The Taipan V2 thermal monoculars are designed for versatile use, making them ideal for hunting, farming and herd protection, law enforcement, search and rescue, boating, camping, and other outdoor activities. All models come with AGM’s 5-year transferable warranty, ensuring durability and reliability.
AGM Taipan V2 19-384 CHARACTERISTICS:
- Upgraded sub-20mK 12 micron thermal detector
- 384×288 resolution
- 50 Hz image frame rate
- Advanced image processing
- 1024×768 resolution OLED display
- Built-in recording with sound
- 16 GB memory module
- Wi-Fi hotspot
- 1×, 2×, 4× and 8× digital zoom
- Auto screen off with tilt sensor
- Replaceable and rechargeable Li-Ion battery
- Over 6.5 hours of battery life
- External power supply capability
- Rugged housing with rubber overmolding
- Waterproof
- Compatible with AGM Connect App
- 5-year warranty
AGM Taipan V2 19-384 Specifications:
Dimensions
171 × 61 × 57 mm (6.73 × 2.4 × 2.2 in)
Palettes
Black Hot, White Hot, Red Hot, Fusion
Working Temperature
-30°C to 55°C (-22°F to 131°F)
Interface
USB Type-C
Distance Measurement
Yes (Stadiametric)
Picture In Picture Mode (PIP)
Yes
Video Recording
Yes
Audio Recording
Yes
Magnification
2× - 16×
Detector type
12μm Vanadium Oxide Uncooled Focal Plane Array
Response Waveband
8μm to 14μm
FFC (Flat Field Correction)
Auto, Manual, External Correction
Highest Temperature Spot Tracking
Yes
Standby Mode
Yes
Refresh rate
50 Hz
Resolution
384×288
Detection Range (6' object)
960 m
Snapshot
Yes
Lens system
15 mm; F1.0
NETD
≤ 20 mk (@25°C), F#=1.0
Field of view (H × X)
13.8° × 10.4°
Digital zoom
1×, 2×, 4×, 8×
Diopter adjustment range
-5 to +3 dpt
Monitor
1024×768, OLED
Storage
16 GB
Battery Type
One 18650 Replaceable rechargeable Lithium battery
Wi-Fi
Yes
Battery Life (Operating)
6.5 hours
Power supply
5 VDC/2 A, 1.75 W
Weight
0,3 kg (0.69 lb)
Protection Level
IP67
Data Sheet
Included:
- Battery Charger
- USB Cable
- Power Adapter (US and EU plugs included)
- 18650 Rechargeable Battery
- Lens Cloth
- Wrist Strap
- User Manual
- Protective Bag
