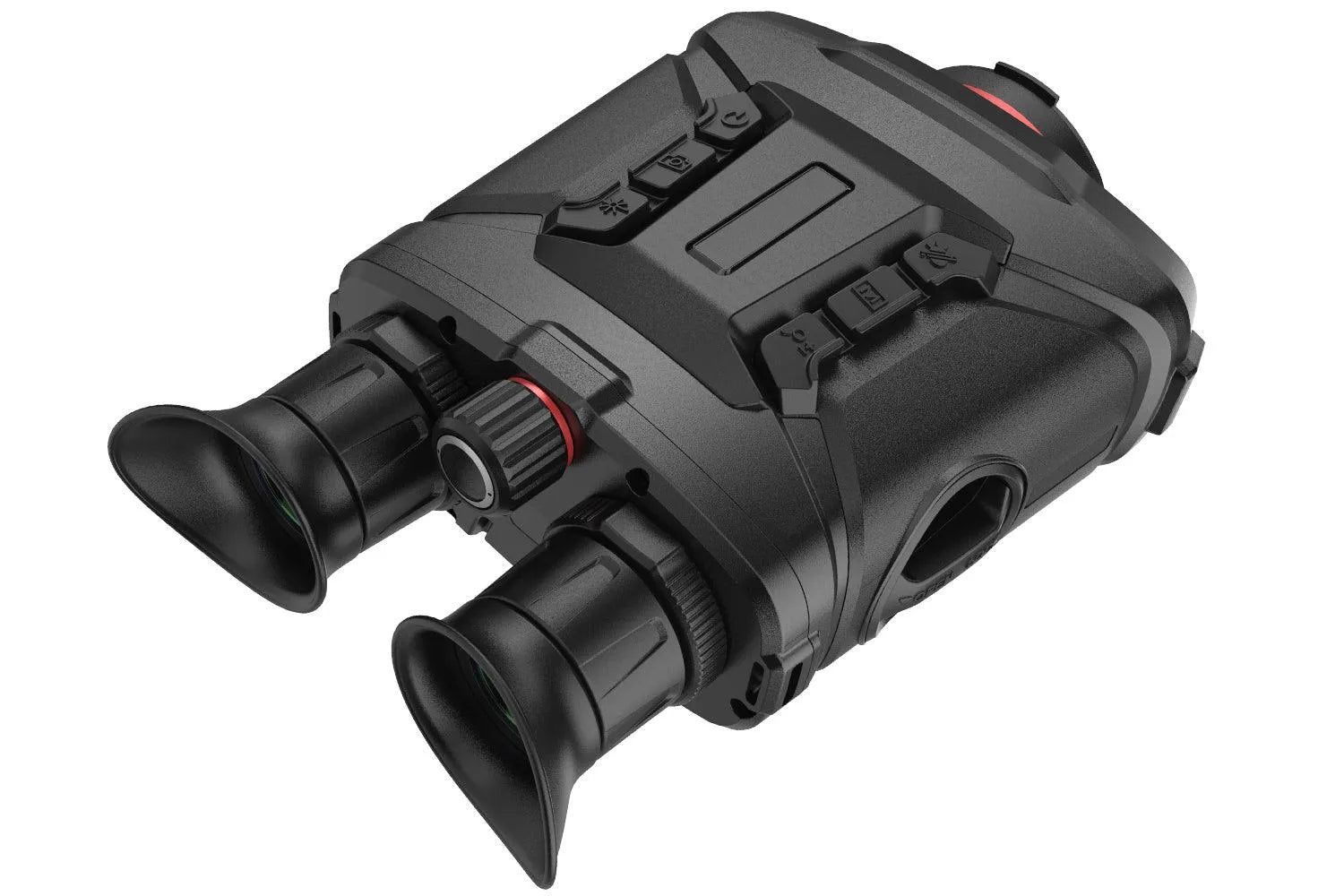

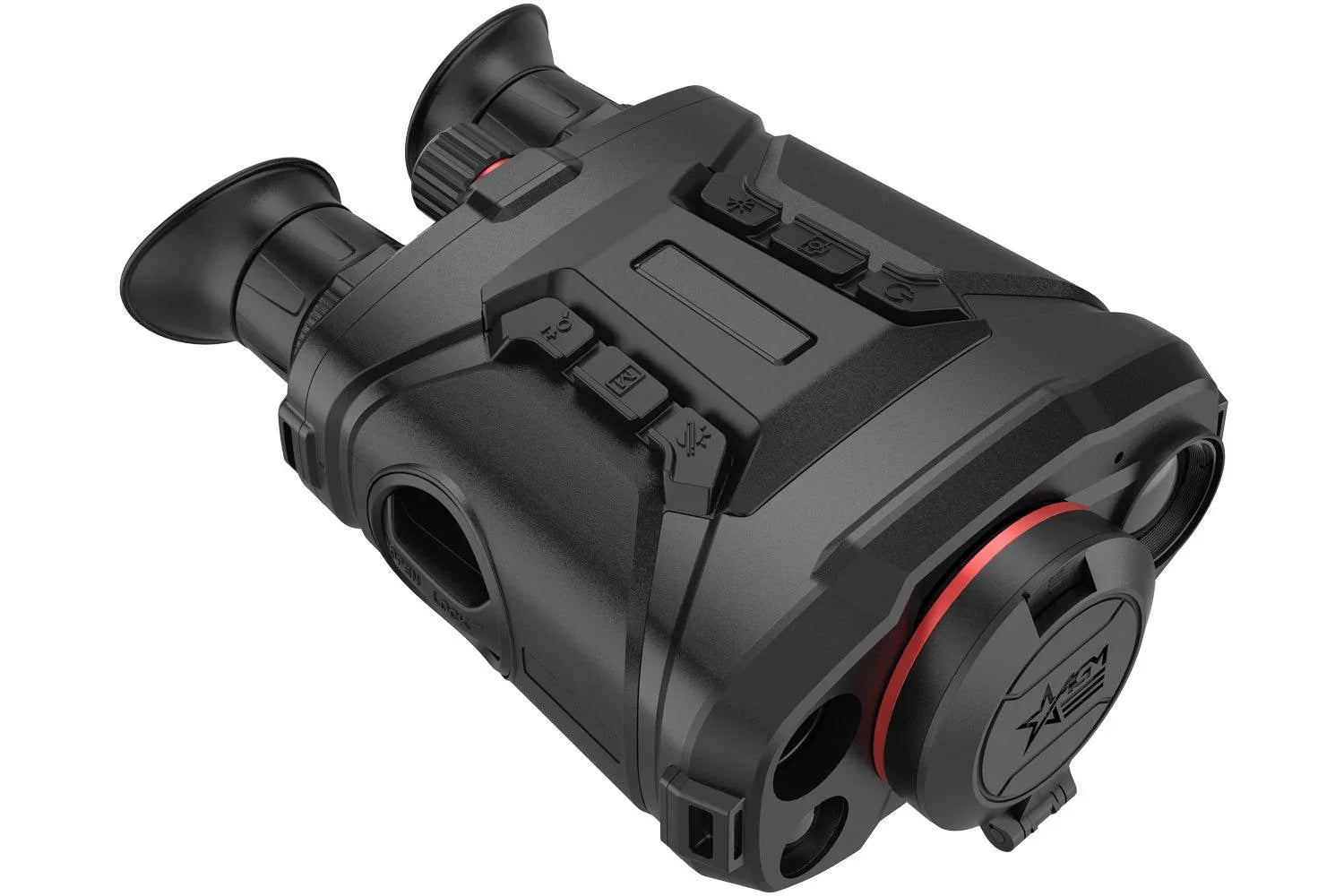

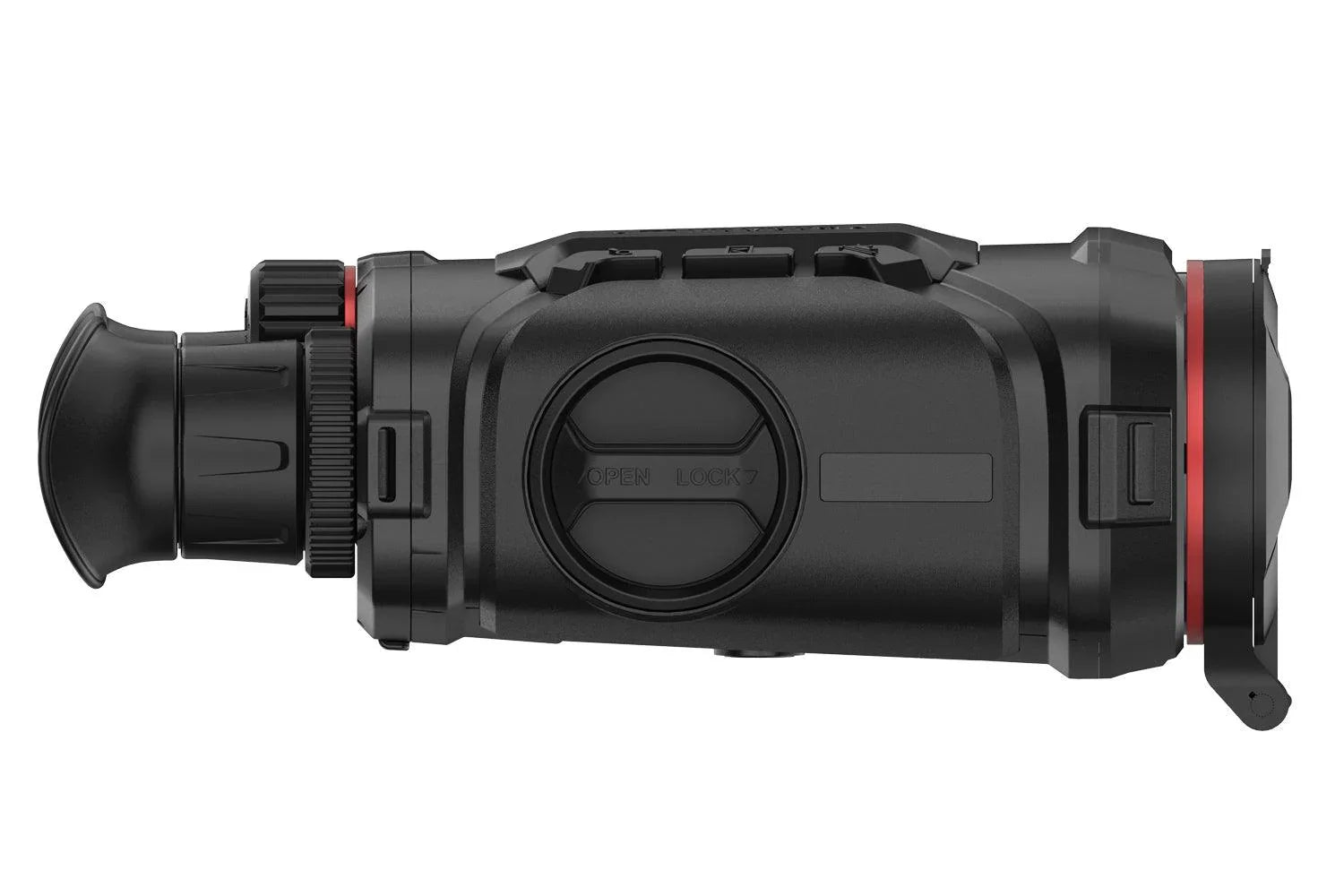

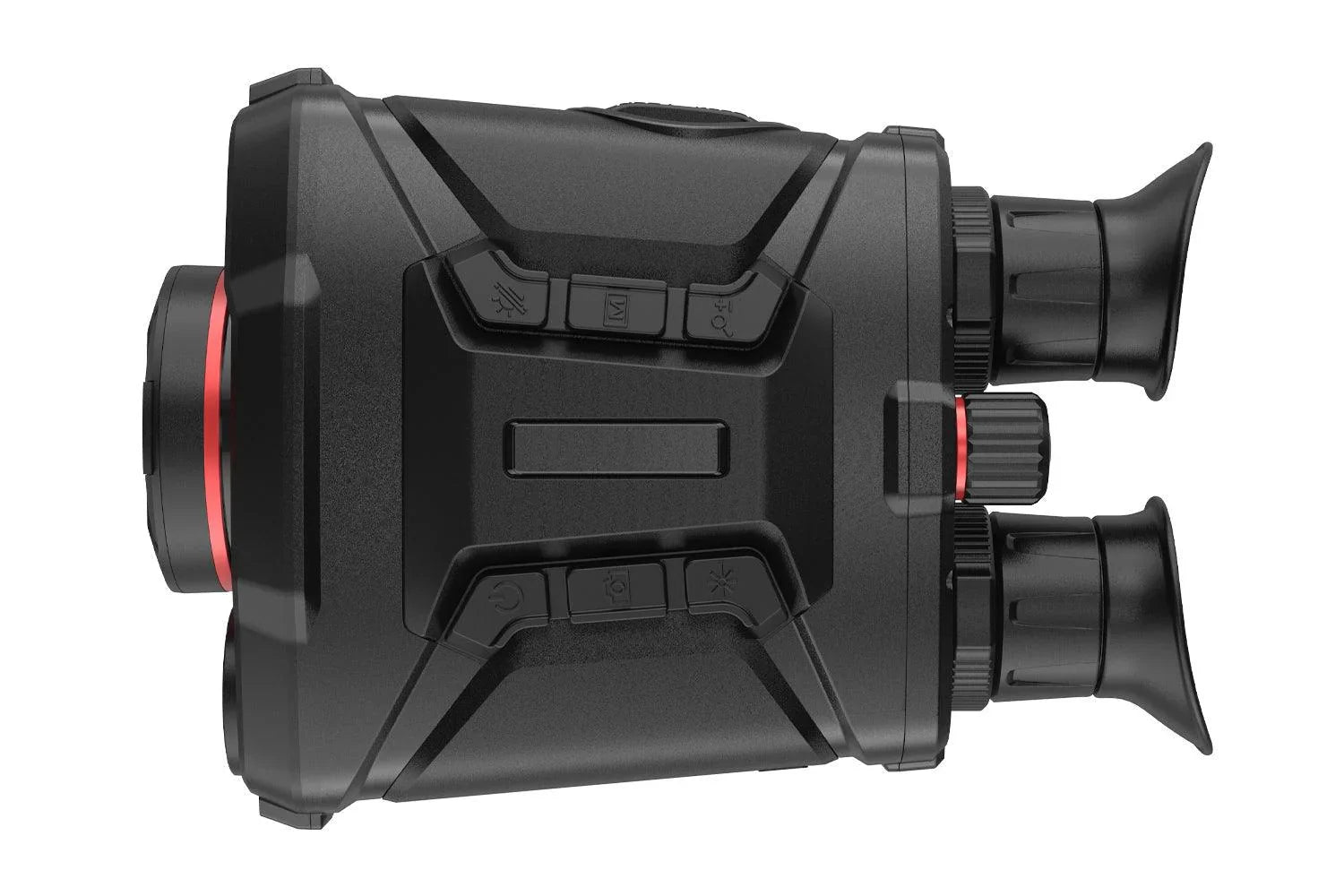

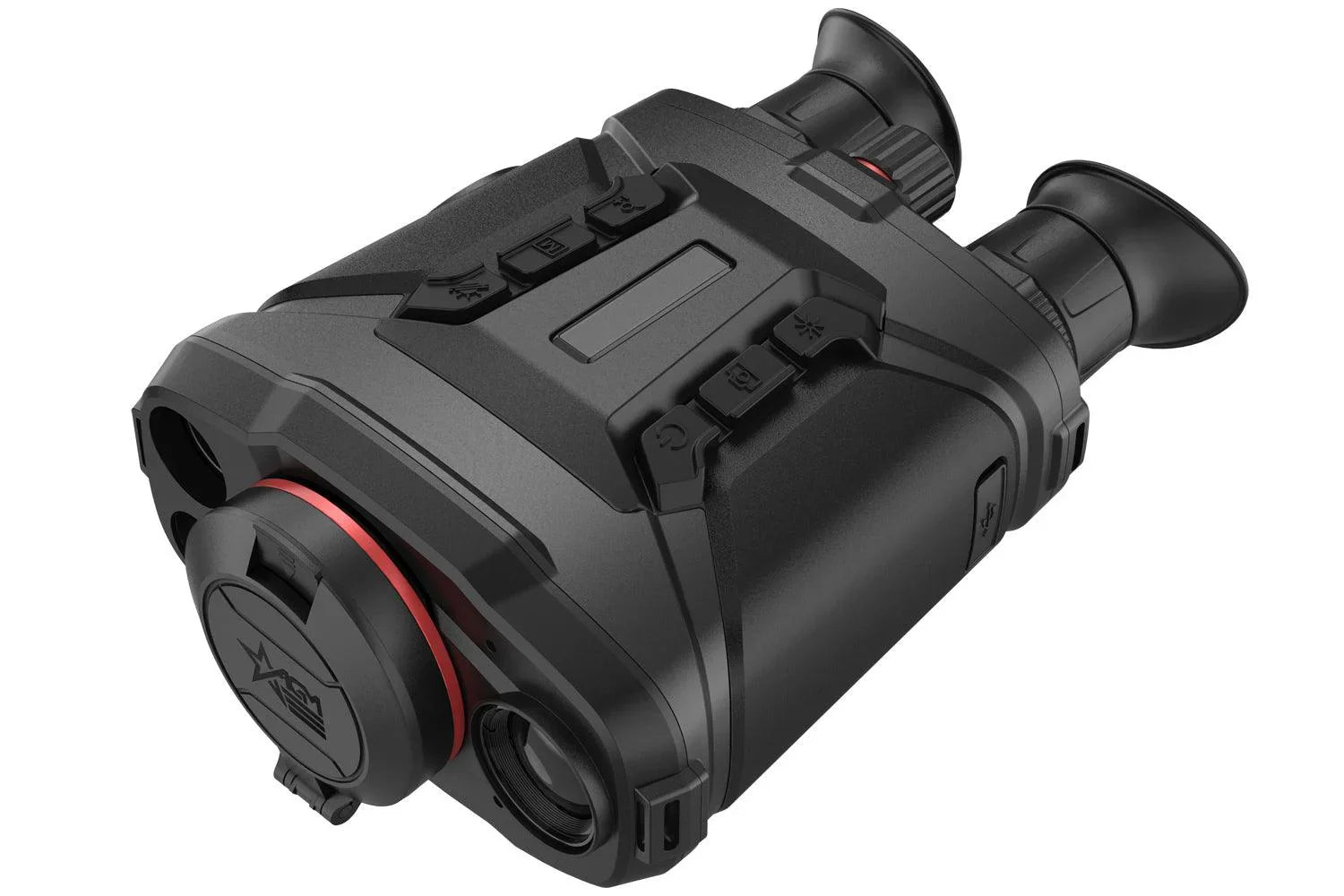

AGM Voyage LRF FB50-640 Fusion Thermal Imaging & CMOS Binocular 640x512/12um (50 Hz), 50mm 7142510005306V561
The AGM Voyage TB50-640 Fusion Thermal & Digital Day/Night Vision binocular is among the most technologically advanced and feature-rich optics on the market. At its core is an exceptional 12-micron 640x512 thermal detector, which boasts an industry-leading sub-20mK sensitivity rating. This advanced sensor allows for the detection of human-sized heat signatures at distances up to 1.6 miles (2600 meters) while delivering crisp, detailed imaging of foliage and background elements at closer ranges.
In addition to its powerful thermal capabilities, the Voyage TB50-640 is equipped with a digital night vision channel, enhancing target identification after detection. The built-in 1000-meter laser rangefinder further elevates its functionality, and with 64GB of internal memory and Wi-Fi compatibility, it offers seamless recording and sharing options.
The Voyage fusion binoculars are packed with features, including a high-sensitivity sub-20mK thermal detector, a 50mm Germanium lens with a 0.9 aperture, and a 2560x1440 ultra-low light CMOS sensor. It also offers various viewing modes, including fusion imaging and multiple color palettes, a 3.5X base magnification with 16X digital zoom, picture-in-picture mode, and a built-in laser rangefinder. Additional key features include a GPS module, inclination sensor, Digital Detail Enhancement (DDE), up to 8 hours of battery life using three removable, rechargeable 18650 batteries, a USB Type-C port for external power, and an IP67 waterproof rating. The package also includes a hard carrying case, neck strap, and is backed by AGM’s 5-year transferable warranty.
AGM Voyage LRF FB50-640 Features:
■ Dual-spectrum image fusion and object highlight
(detail enhancement and target recognition)
■ Selection of thermal view channel, visible light
channel, or both them combined
■ Thermal resolution: 640×512
■ Optical resolution: 2560×1440
■ NETD less than 20 mK (25°C, F#=1.0)
■ Digital Detail Enhancement (DDE)
■ Dynamic Noise Reduction (3D DNR)
■ Adaptive Automatic Gain Control (AGC)
■ Ultra-low illumination (optical channel),
B/W: 0.001 lux @ (F1.0 , AGC On)
■ Video recording, replay, picture snapshot and
search (capable to review the event on device)
■ Wi-Fi hotspot
■ Eye-safe laser rangefinder (up to 1,000 m distance
detection with measuring accuracy 1 m)
■ GPS module
■ Digital magnetic compass
■ Inclination sensor
■ Proximity sensor to save power
■ Up to 8 hours continuous operation
■ Waterproof, IP67
■ 5-Year Warranty
AGM Voyage LRF FB50-640 Specifications:
THERMAL MODULE
Image Sensor Vanadium Oxide Uncooled
Focal Plane Array
Resolution 640×512 (50 Hz)
Pixel Pitch 12 μm
Response Waveband 8 μm to 14 μm
NETD Less than 20 mK (25°C, F#=1.0)
Lens (Focal Length) 50 mm, Manual focus
Magnification 3.5× - 56×
Field of View 8.7° × 7.0°
Aperture F0.9
Digital Zoom 1×, 2×, 4×, 8×, 16×
Detection Range 2,600 m/yd (6’ object)*
Focus Mode Manual focus
Minimal Focus
Distance 5 m
OPTICAL MODULE
Max. Image Resolution 2560×1440
Image Sensor 1.88” Progressive Scan CMOS
Min. Illumination B/W : 0.001 lux @ (F1.0 , AGC On)
Lens (Focal Length) 31 mm
Aperture F1.2
IR Illuminator Built-in 850 nm Smart IR
Night Viewing Range 400 m/yd *
IMAGE DISPLAY
Monitor 0.39-inch, OLED, 1024×768
Diopter Adjustment -5 to +3 dpt
Interpupillary Distance 60 mm to 70 mm
Eye Relief 15 mm
Image Mode
Optical, White Hot Thermal, Black
Hot Thermal, Red Hot Thermal,
Image Fusion
Optical Mode Day, Night, Auto, Defog
Flat Field Correction Auto, Manual, External Correction
PIP Yes
LASER RANGEFINDER
Measuring Distance Max. 1,000 m
Accuracy ±1 m
Laser Wavelength 905 nm (Class 1)
SYSTEM
Storage Built-in memory module (64 GB)
Video Recording MP4, 1600x1200
Snapshot Capture JPEG, 1600x1200
Audio Recording Yes
Local Album Yes
Wi-Fi Hotspot Yes
GPS Yes
Digital Compass Yes
Hot Track Yes
Laser Rangefinder Yes
Proximity Sensor Yes
Standby Mode Yes
POWER SUPPLY
Battery Type Four 18650 batteries
Battery Operating Time Up to 8 hours
Battery Capacity
Display Yes
External Power Supply DC 5V/2A, Max.10W, Type-C port
GENERAL
Working Temperature -30°C to 55°C (-22°F to 131°F)
Storage Temperature
(w/o batteries) -40°C to 70°C (-40°F to 158°F)
Working Humidity < 90%
Protection Level IP67
Mounting 1/4”-20 UNC
Cable Output USB Type-C port
Dimensions (L×W×H) 217 × 155 × 88 mm
(8.5 × 6.1 × 3.5 in)
Weight 1.12 kg ( 2.5 lb)
Data Sheet
Accessories Included:
Battery Charger, Power Cable, Lens
Cloth, Two Wrist Straps, Neck Strap,
Six 18650 Batteries, Power Adapter,
User Manual, Carrying Case
EXPORT RESTRICTION
Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
