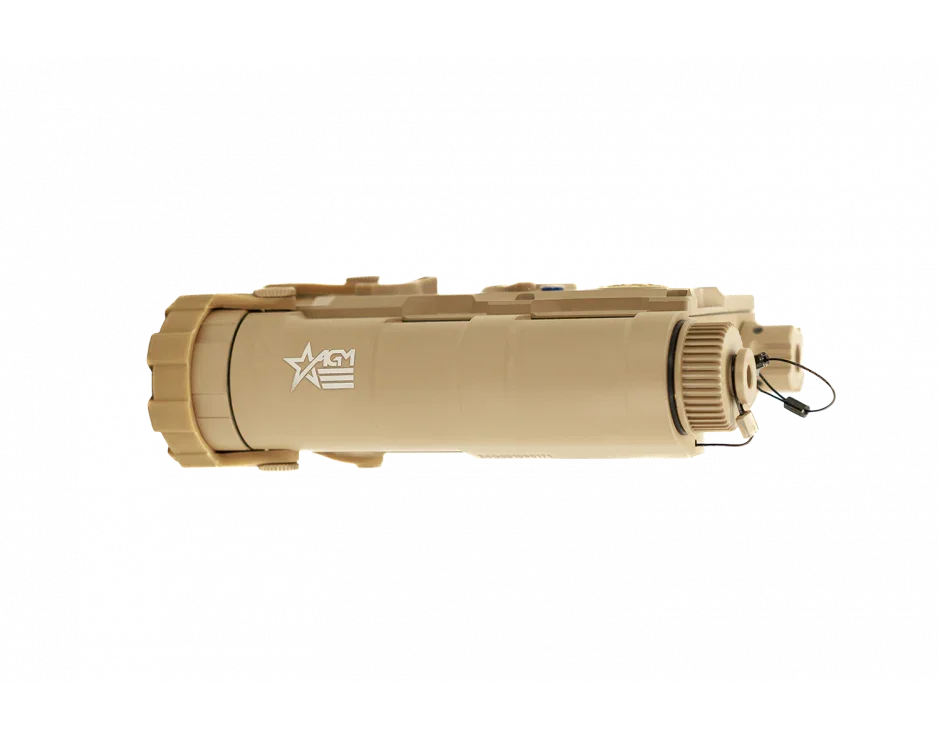

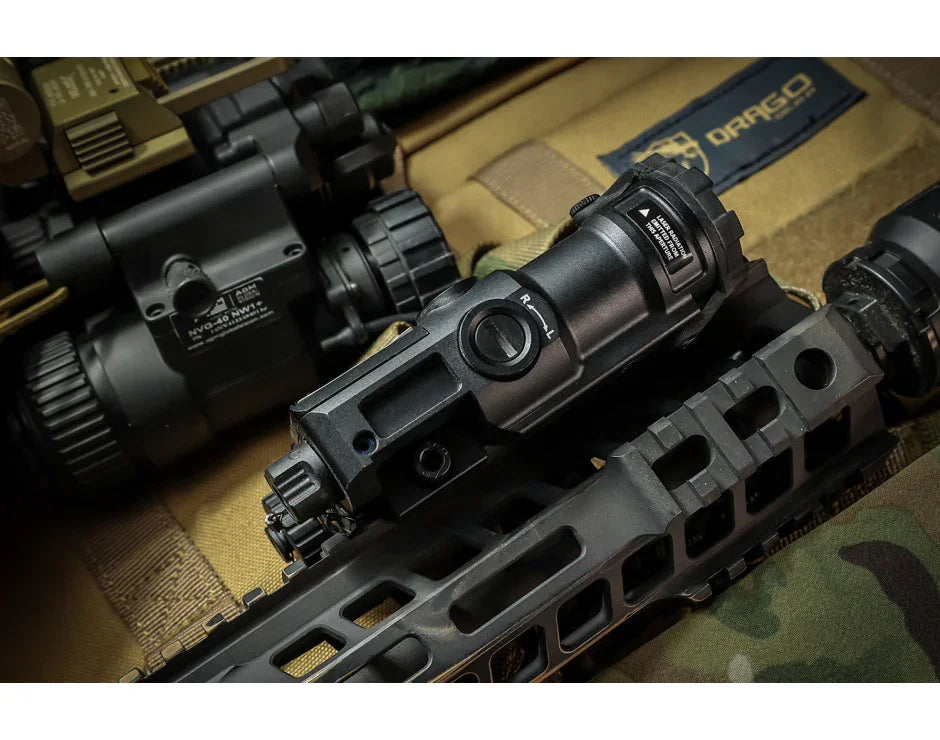

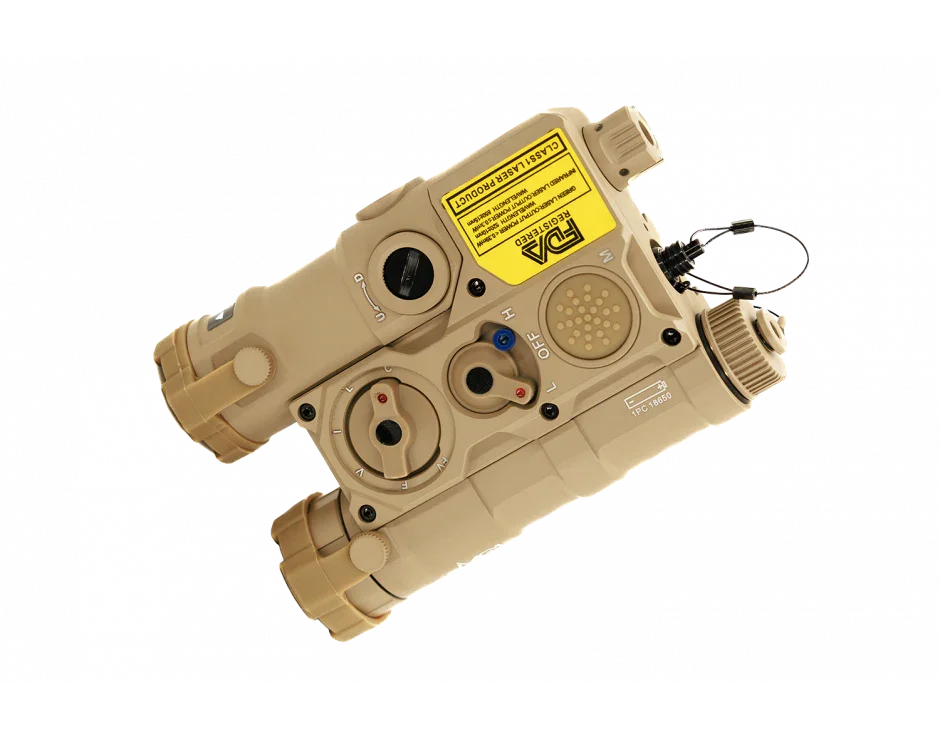

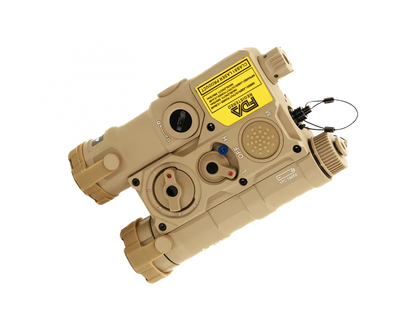

AGM WLAD Weapon Laser Aiming Device, Multi-Spectral System Class 1

AGM WLAD Weapon Laser Aiming Device, Multi-Spectral System Class 1

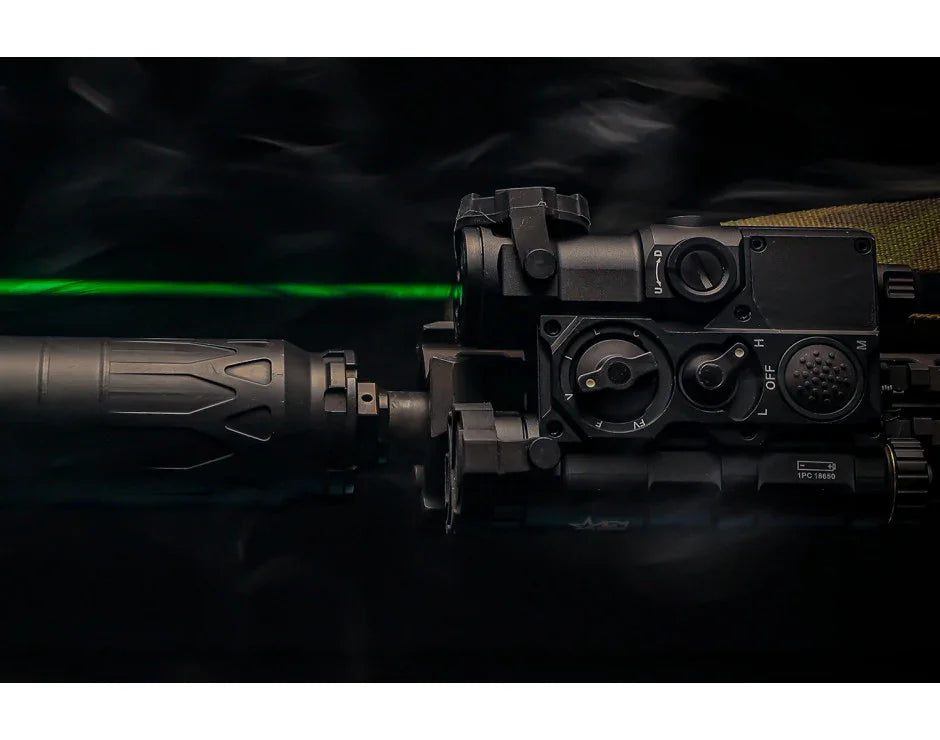

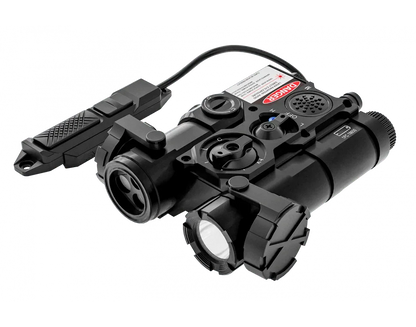

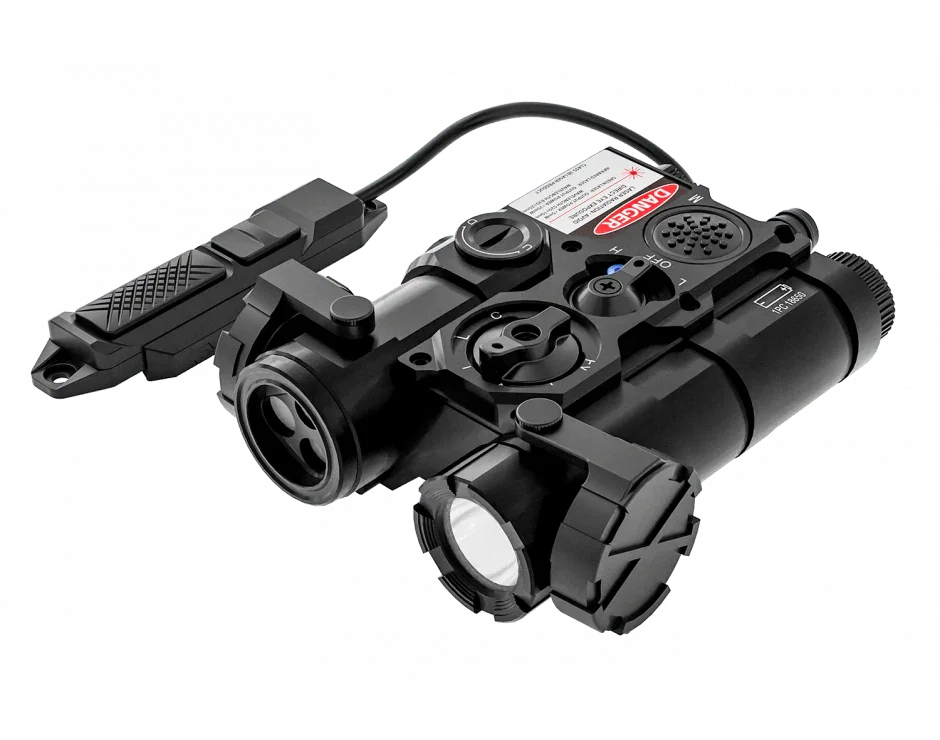

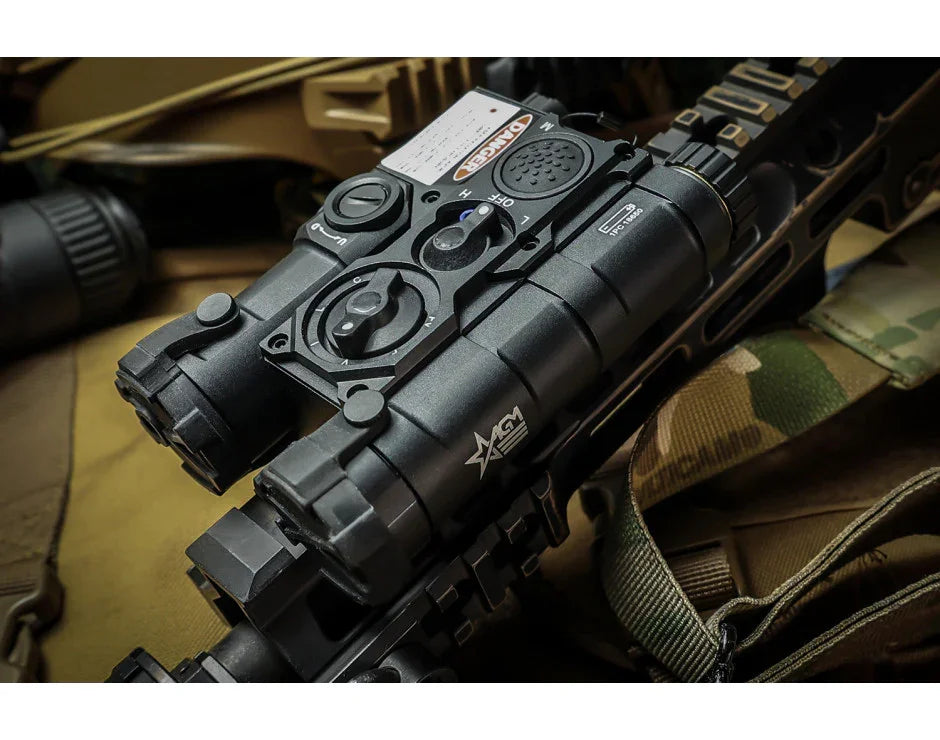

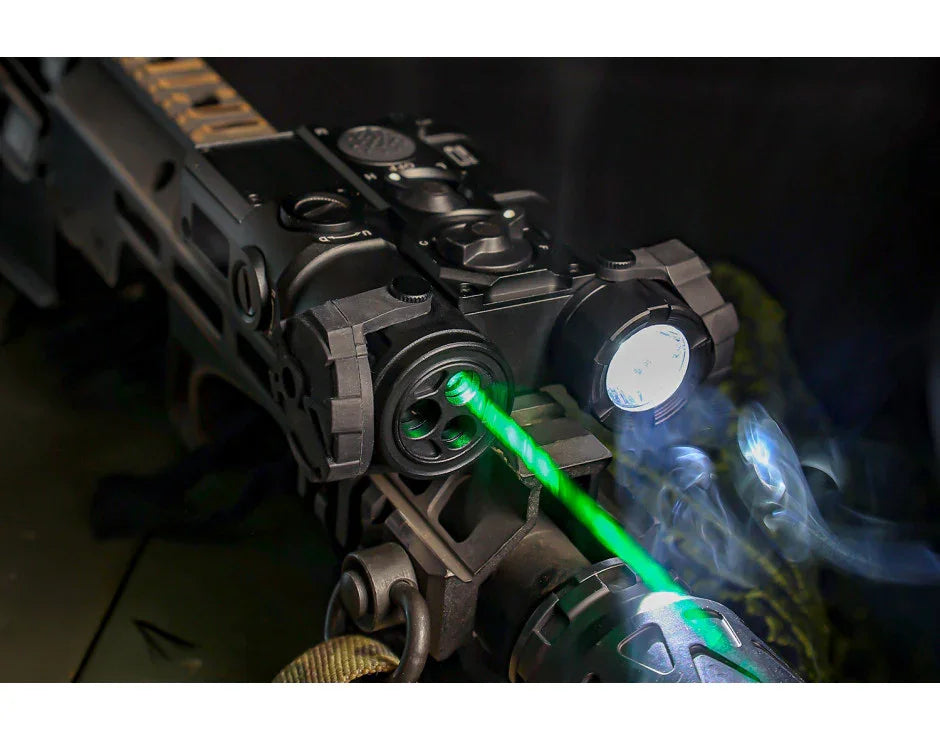

The WLAD Weapon Laser Aiming Device is a CLASS 1 laser consisting of a green visible aiming laser, a near-infrared (near-IR) aiming laser, IR illuminator and 500 lm LED illuminator. The function of the WLAD is to provide an operator with highly collimated aiming lasers for precision aiming and targeting visible in low light conditions and in conjunction with night vision devices for night time applications. The focusable near-IR Illuminator floods the area of interest with near-infrared light only visible when used with night vision devices.

AGM WLAD Weapon Laser Aiming Device Features:

• Rapid active target acquisition
• True night vision compatible mode
• Six function modes
• User selectable constant wave or pulsed modes of aiming lasers
• 500 Lumen LED flashlight

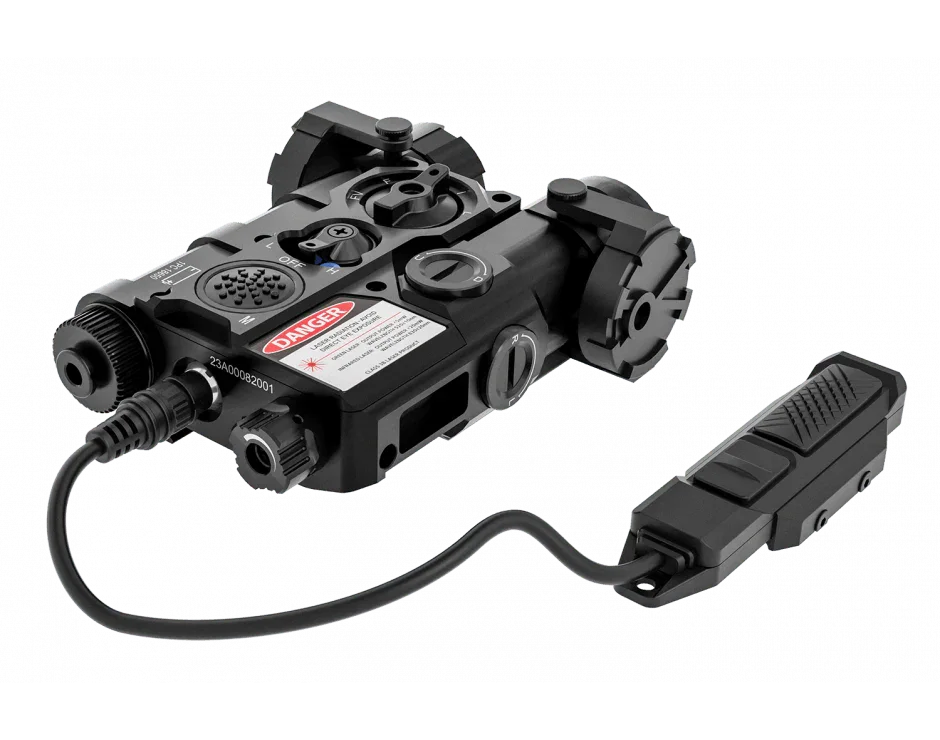

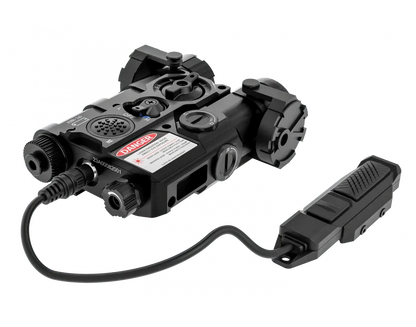

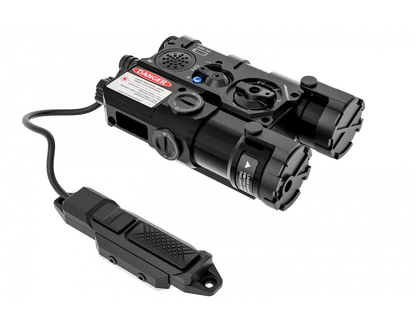

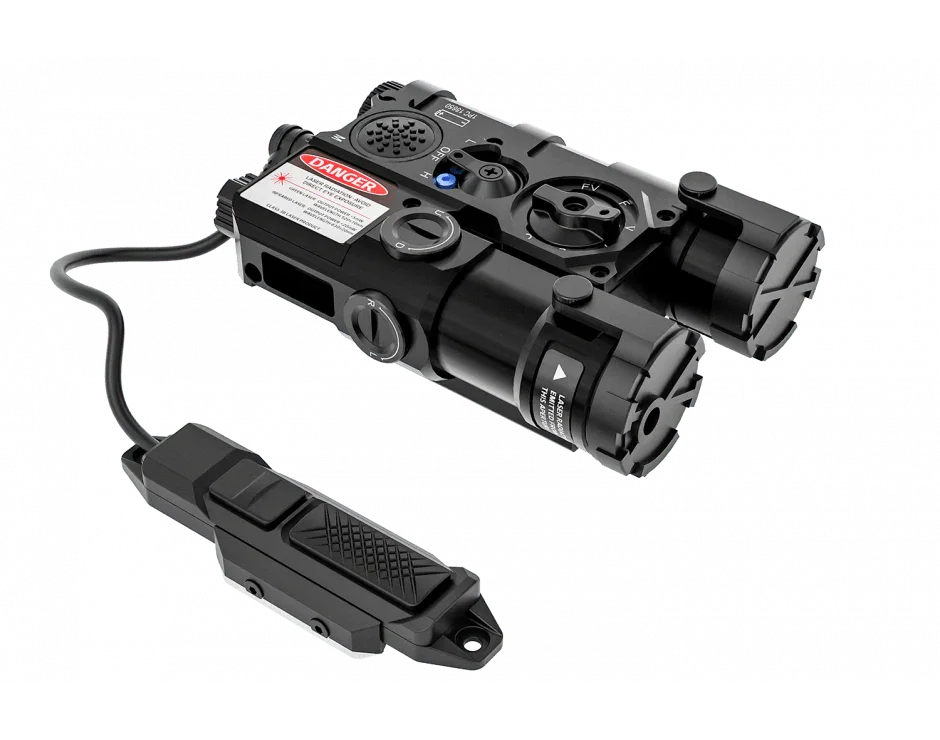

• Tactical remote switch
• Co-boresighted aiming lasers

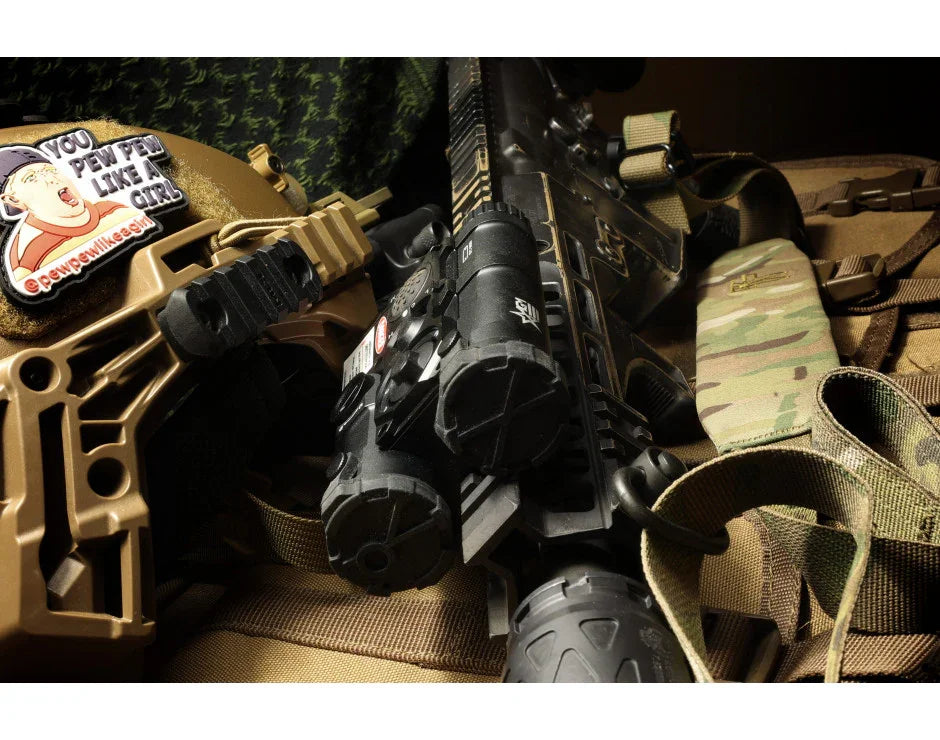

• Mounting: Weaver or Rail Picatinny Type MIL-STF-1913
• Low base design
• IPX8 waterproof

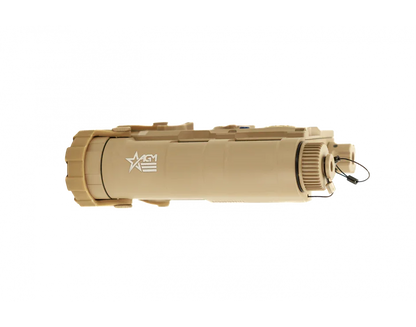

• Choice of color Black or Tan
• 2-Year Warranty

AGM WLAD Weapon Laser Aiming Device Specifications:

Divergence

IR LASER - 0.5+0.3 mrad, GREEN LASER - 0.5+0.3 mrad, IR ILLUMINATOR - 1-100 mrad

Class

IR LASER, GREEN LASER, IR ILLUMINATOR - Class 1

Output power

IR LASER - <0.2 mW, GREEN LASER - <1 mW, IR ILLUMINATOR - <1mW

Operating distance

IR LASER - > 400 m, GREEN LASER - > 25 m (in direct sunlight), IR ILLUMINATOR - > 100 m

Wavelength

IR LASER - 830±15 nm, GREEN LASER - 520±10 nm, GREEN LASER - 830±15 nm

Weight

298 g ( 10.5 oz)

Dimensions

113 × 77 × 42 mm (4.3 × 3.0 × 1.5 in)

Color (housing)

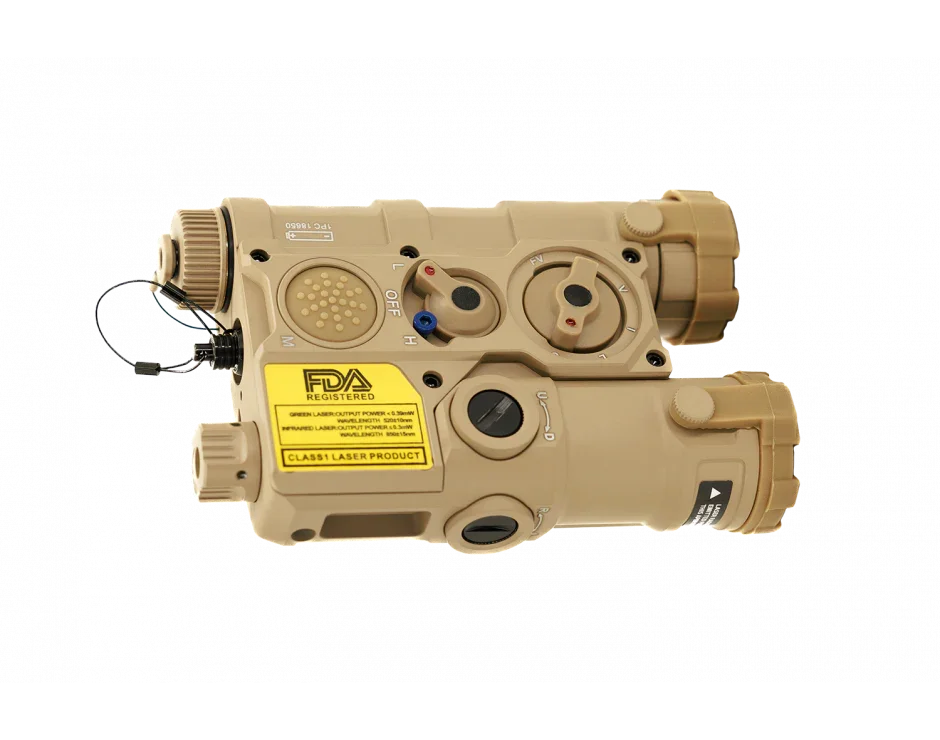

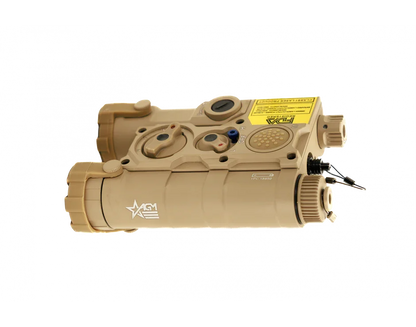

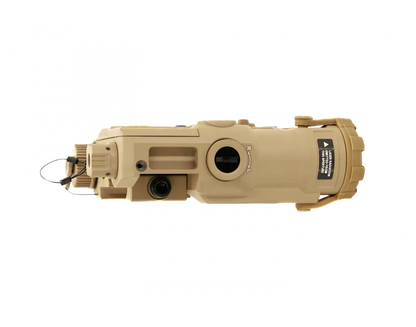

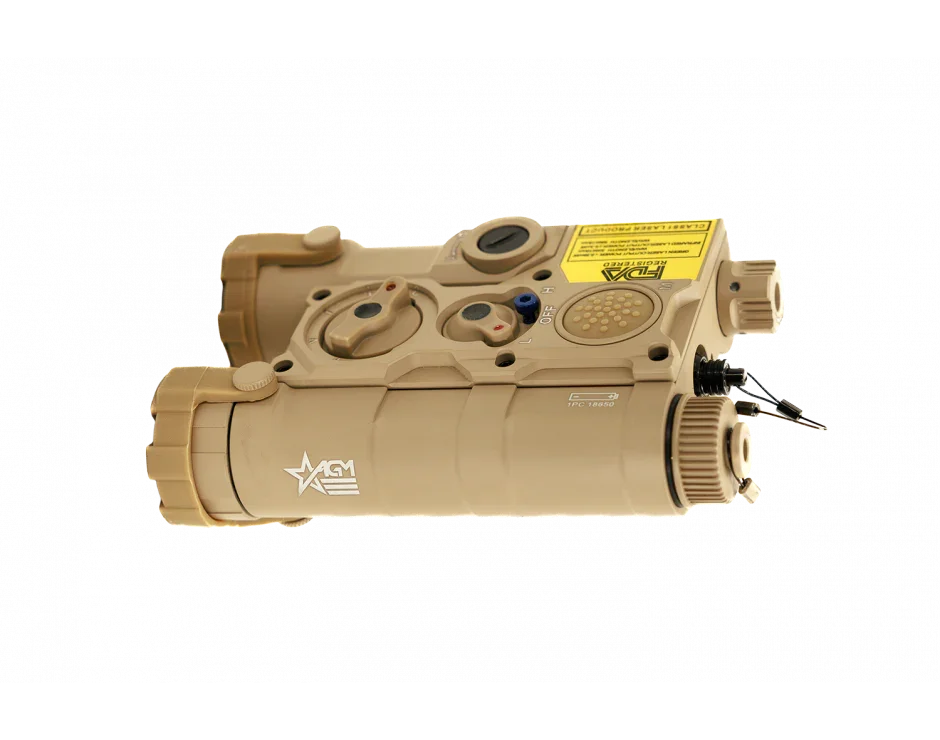

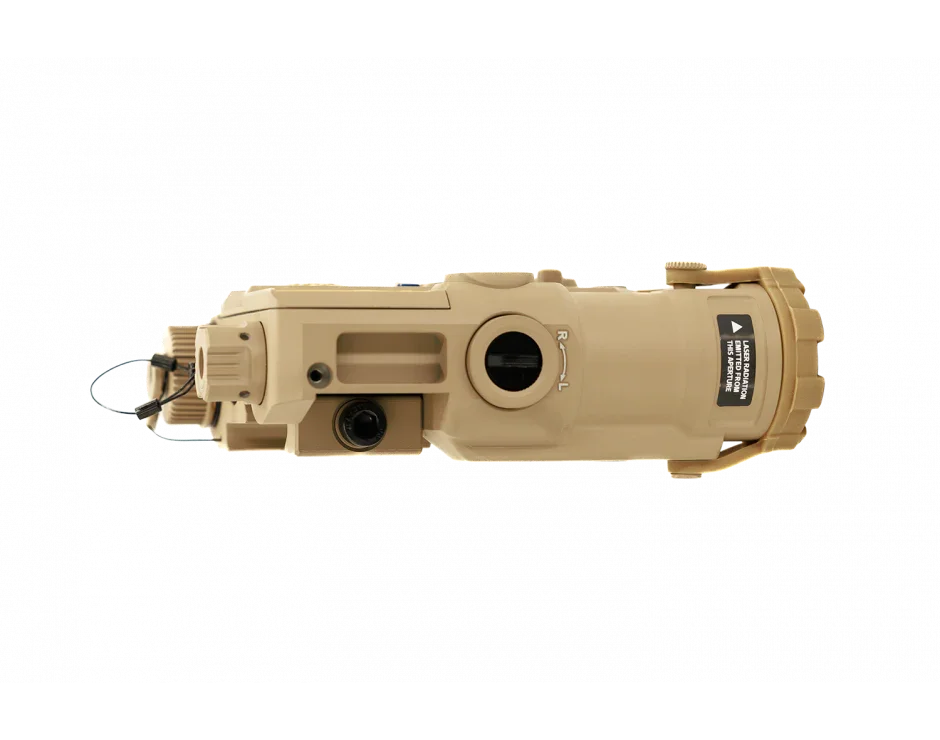

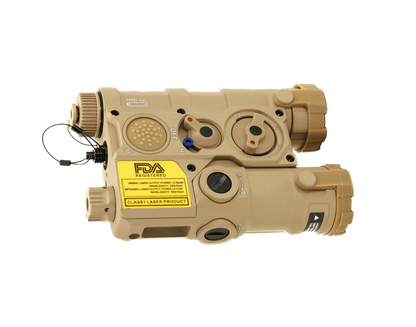

Black (WLAD-1B) / Tan (WLAD-1T)

Battery Type

One 18650 Li-Ion rechargeable battery (3.7V)

Protection Level

IP68

Shockproof

1,200 G

Items Included

• Aiming/Illumination Module
• Remote Switch
• Operation Manual
• Soft Carrying Case
• Clean Brush
• Clean Cloth

EXPORT RESTRICTION

Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
