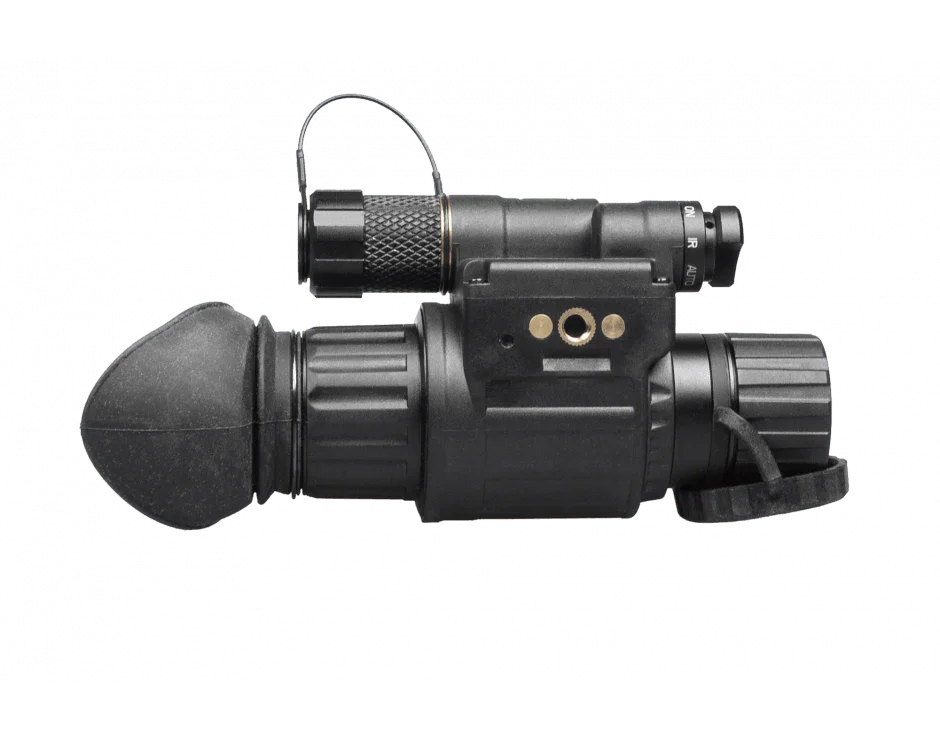

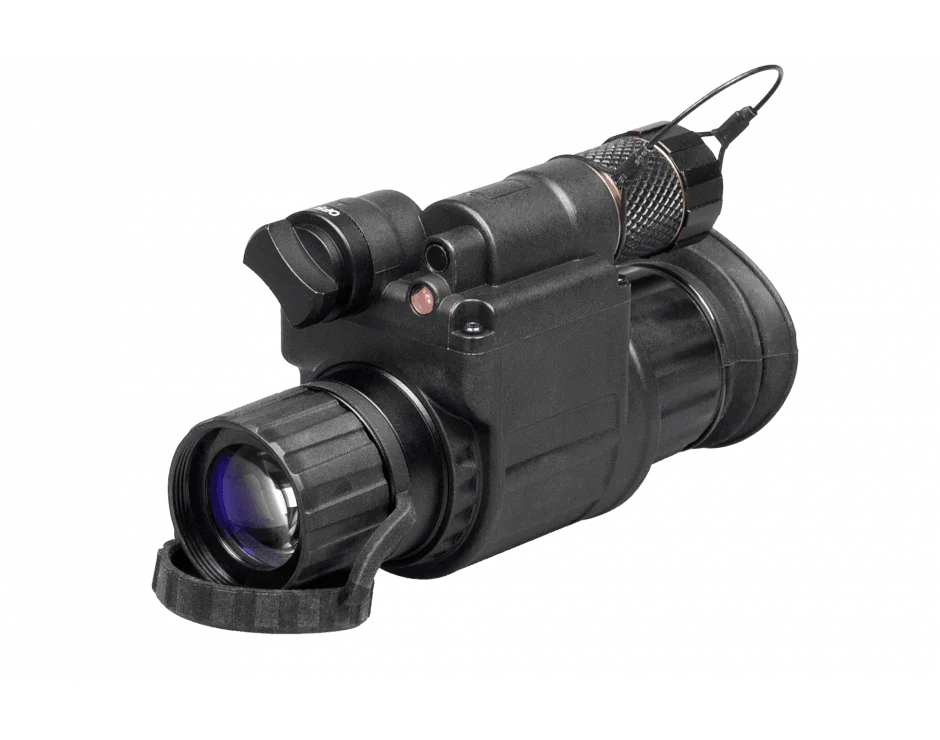

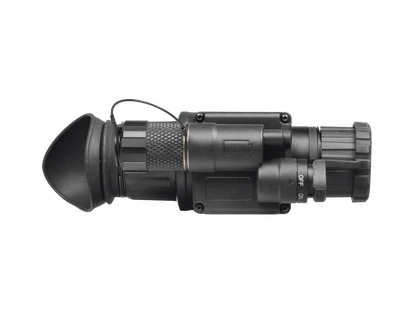

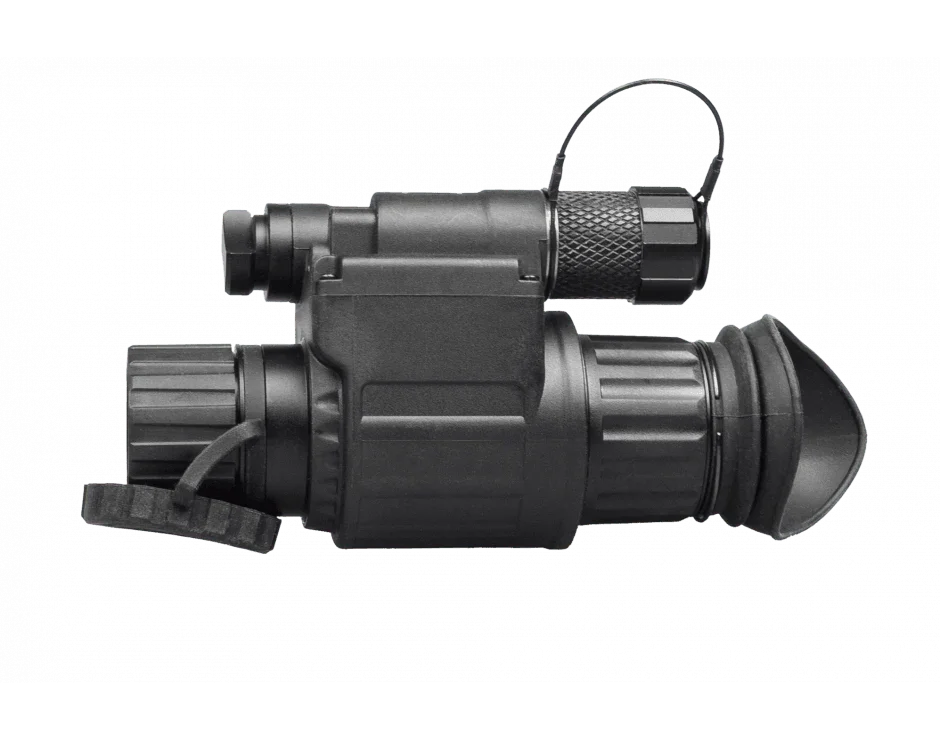

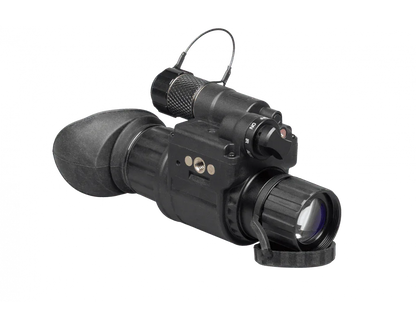

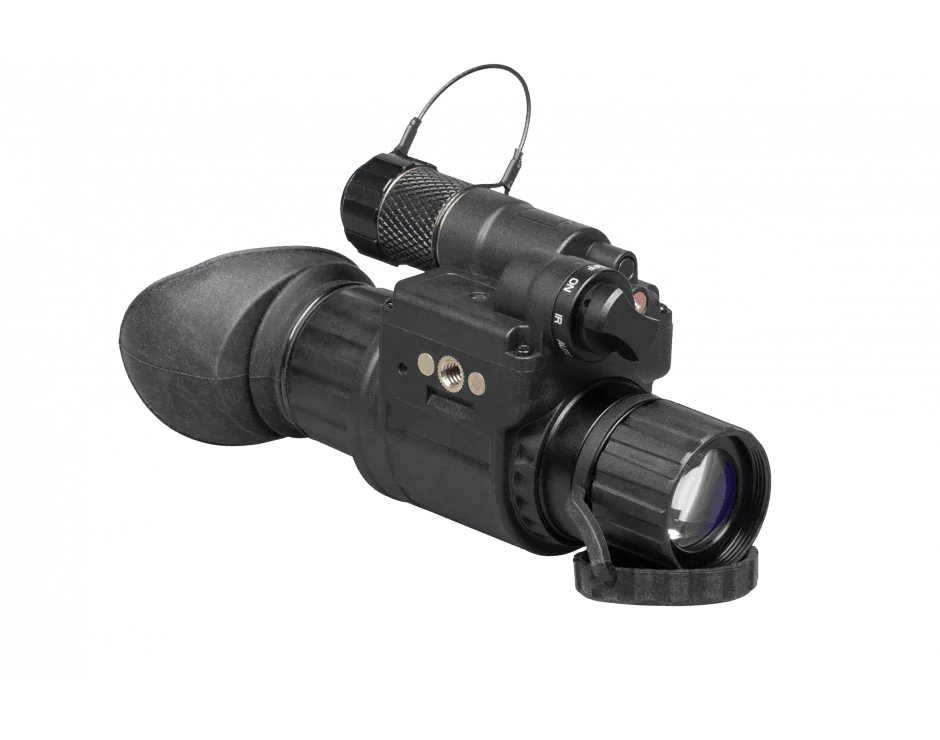

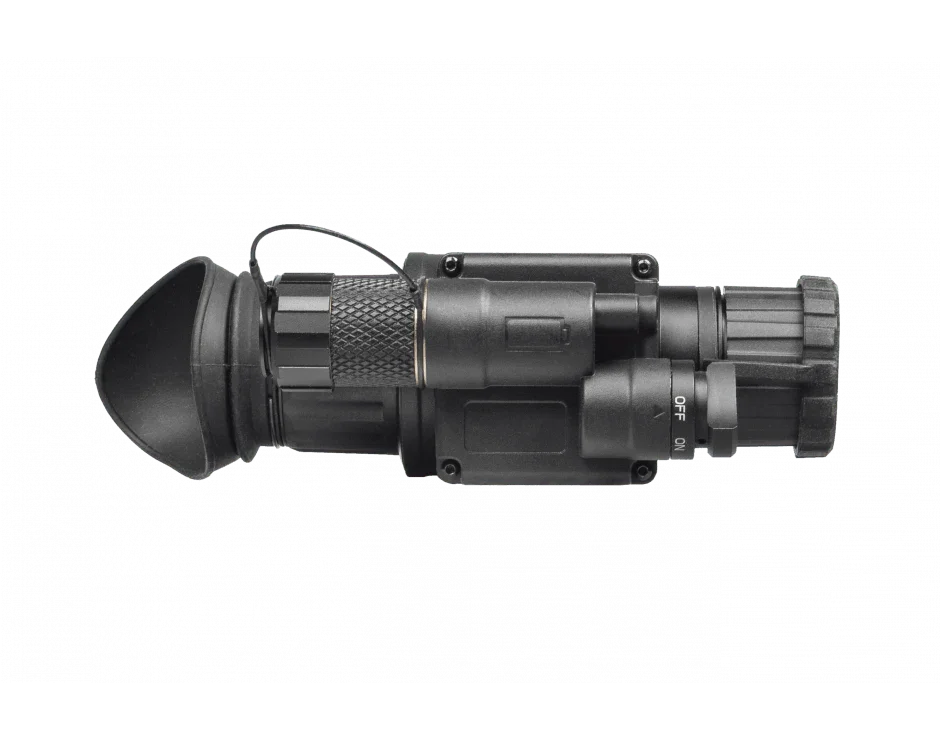

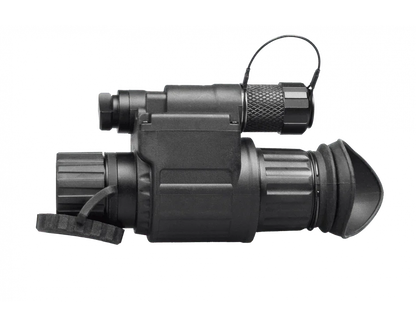

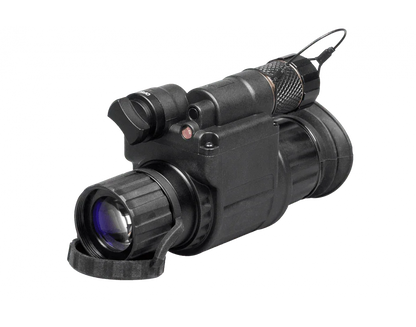

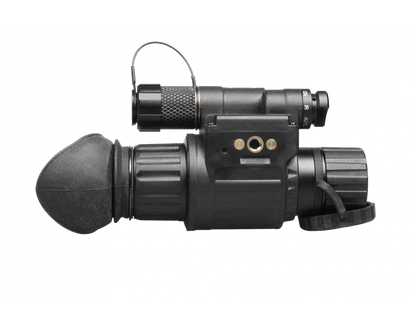

AGM Wolf-14 NL1 Night Vision Monocular Gen 2+ "Level 1" 11W14122153011
The Wolf-14 is a versatile, high-tech night vision monocular designed to deliver outstanding performance at a reasonable price. Ideal for both security professionals and recreational users, the Wolf-14 can be handheld or mounted on headgear, making it a flexible option for various situations. It can be used as a goggle system and stowed out of sight without needing to remove it entirely.
This monocular is simple to operate with a single knob, and when mounted on a head or helmet, it includes a convenient flip-up turn-off feature. The Wolf-14 supports a range of compatible lenses, allowing users to switch to long-range nighttime viewing in seconds. It also features bright light shut-off circuitry to protect the device and a built-in IR illuminator for enhanced visibility in total darkness. The Wolf-14 can be equipped with high-performance Gen 2 image intensifier tubes, available in both green and white phosphor options.
AGM Wolf-14 NL1 Features:
- Compact, rugged design
- Head mountable for hands-free usage
- Bright light cut-off
- Ergonomic, simple, easy to operate controls
- Utilizes single CR123A Lithium or AA battery
- Built-in Infrared illuminator
- 3-Year warranty
Tube Level Info:
|
Gen2+ Lvls
|
NL1/NW1 - Gen2+ Lvl1
|
NL2/NW2 - Gen2+ Lvl2
|
NL3 - Gen2+ Lvl3
|
|
Zone
|
1
|
2
|
3
|
1
|
2
|
3
|
1
|
2
|
3
|
|
>.015 or larger
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
1
|
|
>.012 - .015
|
0
|
0
|
0
|
0
|
0
|
1
|
0
|
1
|
1
|
|
>.009 - .012
|
0
|
1
|
1
|
0
|
2
|
2
|
1
|
2
|
2
|
|
>.006 - .009
|
0
|
1
|
2
|
1
|
2
|
2
|
1
|
2
|
2
|
|
.003 - .006
|
1
|
2
|
3
|
2
|
3
|
3
|
2
|
3
|
3
|
|
*Qty indicates Max Spots Allowed in Each Zone
|
|
|
|
|
|
|
|
**Spot Size (in.)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Gen3 Lvls
|
3NL1/3AW1 - Gen3 Lvl1
|
3NL2/3AW2 - Gen3 Lvl2
|
3NL3/3AW3 - Gen3 Lvl3
|
|
Zone
|
1
|
2
|
3
|
1
|
2
|
3
|
1
|
2
|
3
|
|
>.015 or larger
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
1
|
|
>.012 - .015
|
0
|
0
|
0
|
0
|
0
|
1
|
0
|
1
|
1
|
|
>.009 - .012
|
0
|
1
|
1
|
0
|
2
|
2
|
1
|
2
|
2
|
|
>.006 - .009
|
0
|
1
|
2
|
1
|
2
|
2
|
1
|
2
|
2
|
|
.003 - .006
|
1
|
2
|
3
|
2
|
3
|
3
|
2
|
3
|
3
|
|
*Qty indicates Max Spots Allowed in Each Zone
|
|
|
|
|
|
|
|
**Spot Size (in.)
|
AGM Wolf-14 NL1 Specifications:
Environment Rating
IP65
Image Intensifier Tube
Gen 2+ "Level 1"
Resolution
51-64 lp/mm
Field of view cleanness by zone
Gen 2 IIT NW1 is the highest resolution and the cleanest offered by AGM. There are practically no visible spots in Zone 1.
Magnification
1x
Lens System
25 mm; F/1.2
FOV
42°
Focus Range
0.25 m to Infinity
Diopter Adjustment
-5 to +5 diopters
Infrared Illuminator
Yes
Bright Light Cut-Off
Yes
Battery Type
One CR123A (3V) or one AA (1.5V)
Battery Life (Operating)
Up to 40 hours at 20°C (IR off)
Operating Temperature Range
-40°C to +50°C (-40°F to +122°F)
Storage Temperature Range
-50°C to +70°C (-58°F to +158°F)
Weight
290 g (0.64 lb)
Overall Dimensions
115 × 69 × 54 mm (4.5 × 2.7 × 2.1 in)
Package Includes:
Rhino mount, J-Arm, Soft bag, Lens paper, Safety/hard case, User Manual.
Lead time 3-4 weeks
