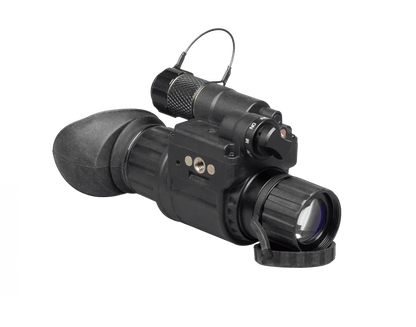

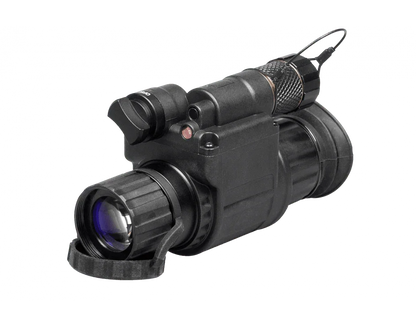

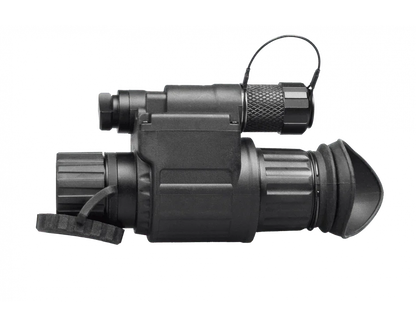

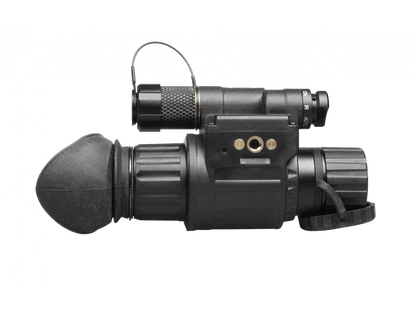

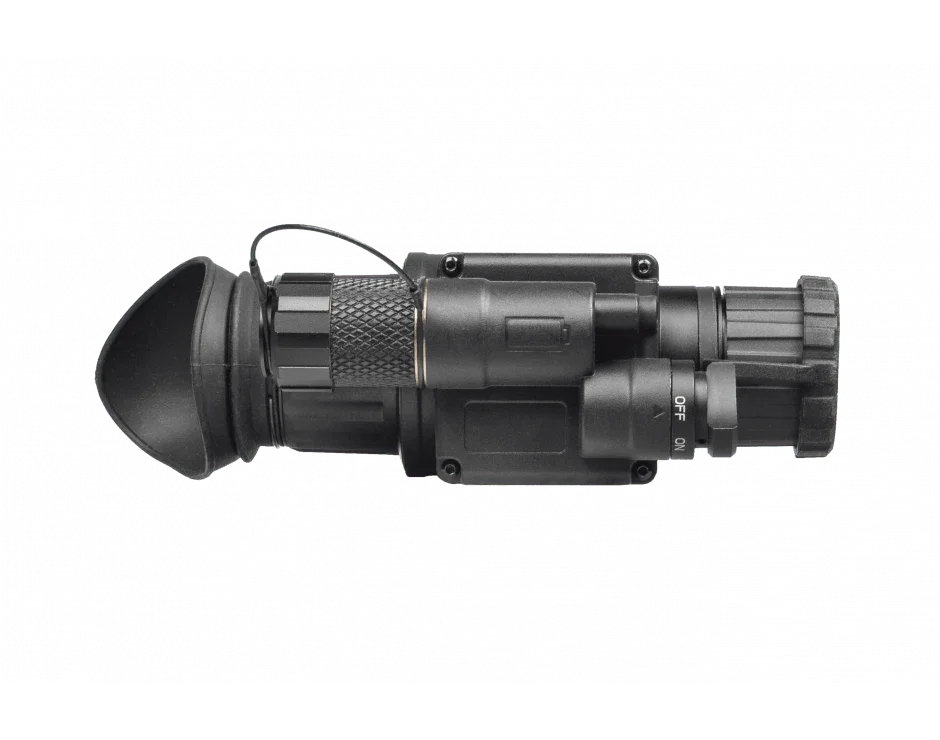

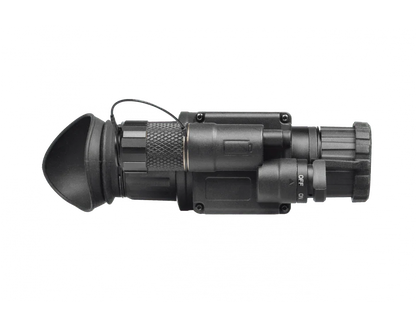

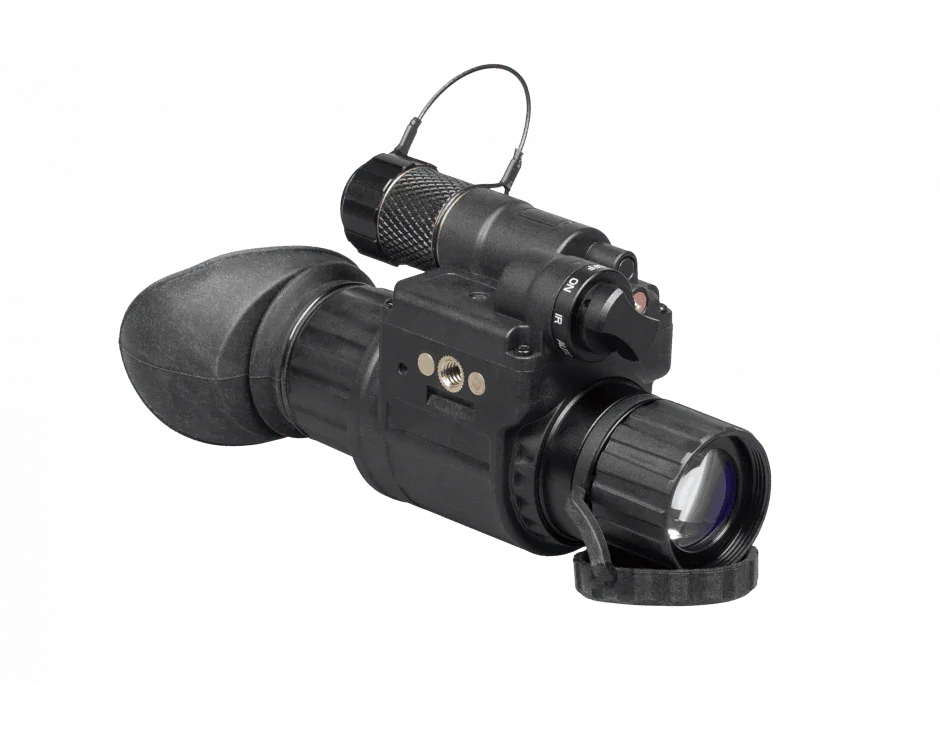

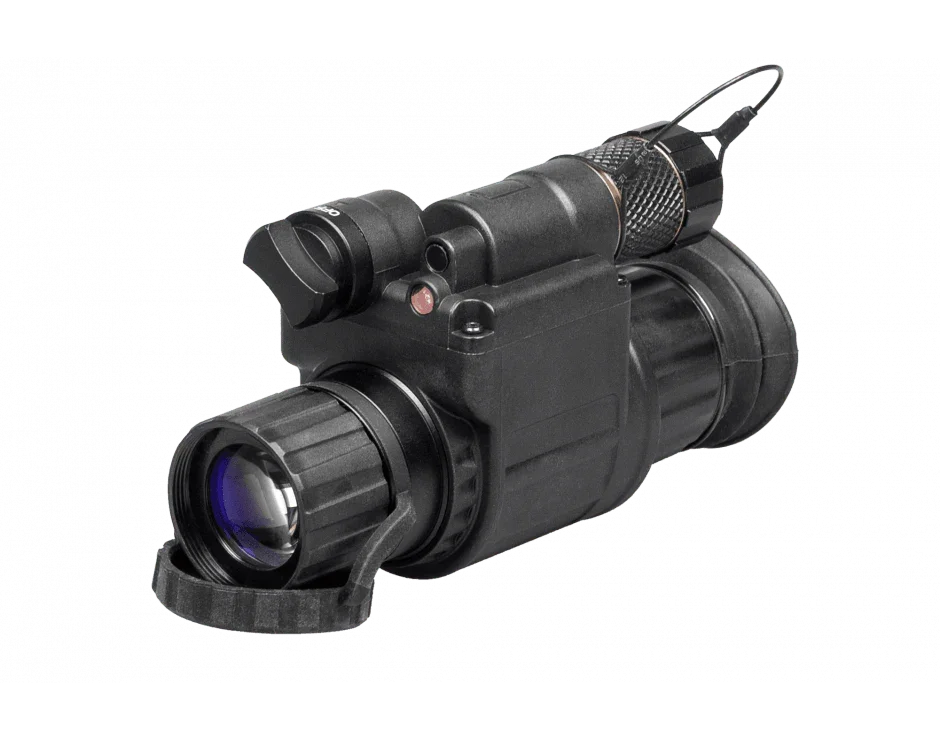

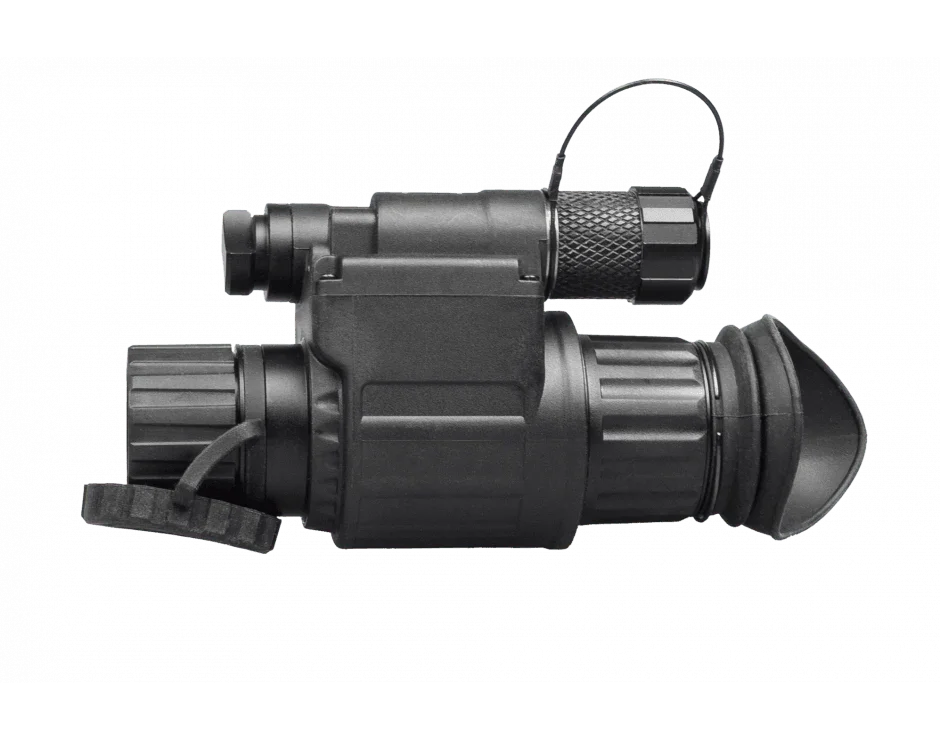

AGM Wolf-14 NW1 Night Vision Monocular Gen 2+
AGM Wolf-14 NW1 Night Vision Monocular Gen 2+
SKU: 11W14122154011
Couldn't load pickup availability
The Wolf-14 NW1 Night Vision Monocular Gen 2+ is a high-tech, durable, and versatile device, providing superior performance at an affordable cost. Loaded with numerous features, it is ideal for security personnel, hunting, and recreational activities. Easily handheld or mounted to headgear, it boasts a single operating knob with a range of compatible lenses for instant distant viewing. Includes flip-up turn off function and bright light shut-off circuitry, plus a built-in IR illuminator and Gen 2 image intensifier tubes in green or white phosphor.
- Compact, rugged design
- Head mountable for hands-free usage
- Bright light cut-off
- Ergonomic, simple, easy to operate controls
- Utilizes single CR123A Lithium or AA battery
- Built-in Infrared illuminator
- 3-Year warranty
Tube Level Info:
| Gen2+ Lvls | NL1/NW1 - Gen2+ Lvl1 | NL2/NW2 - Gen2+ Lvl2 | NL3 - Gen2+ Lvl3 | ||||||
| Zone | 1 | 2 | 3 | 1 | 2 | 3 | 1 | 2 | 3 |
| >.015 or larger | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 |
| >.012 - .015 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 1 | 1 |
| >.009 - .012 | 0 | 1 | 1 | 0 | 2 | 2 | 1 | 2 | 2 |
| >.006 - .009 | 0 | 1 | 2 | 1 | 2 | 2 | 1 | 2 | 2 |
| .003 - .006 | 1 | 2 | 3 | 2 | 3 | 3 | 2 | 3 | 3 |
| *Qty indicates Max Spots Allowed in Each Zone | |||||||||
| **Spot Size (in.) | |||||||||
| Gen3 Lvls | 3NL1/3AW1 - Gen3 Lvl1 | 3NL2/3AW2 - Gen3 Lvl2 | 3NL3/3AW3 - Gen3 Lvl3 | ||||||
| Zone | 1 | 2 | 3 | 1 | 2 | 3 | 1 | 2 | 3 |
| >.015 or larger | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 |
| >.012 - .015 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 1 | 1 |
| >.009 - .012 | 0 | 1 | 1 | 0 | 2 | 2 | 1 | 2 | 2 |
| >.006 - .009 | 0 | 1 | 2 | 1 | 2 | 2 | 1 | 2 | 2 |
| .003 - .006 | 1 | 2 | 3 | 2 | 3 | 3 | 2 | 3 | 3 |
| *Qty indicates Max Spots Allowed in Each Zone | |||||||||
| **Spot Size (in.) | |||||||||
Specifications:
Environment Rating
IP65
Image Intensifier Tube
Gen 2+ "White Phosphor Level 1"
Resolution
51-64 lp/mm
Field of view cleanness by zone
Gen 2 IIT NW1 is the highest resolution and the cleanest offered by AGM. There are practically no visible spots in Zone 1.
Magnification
1x
Lens System
25 mm; F/1.2
FOV
42°
Focus Range
0.25 m to Infinity
Diopter Adjustment
-5 to +5 diopters
Infrared Illuminator
Yes
Bright Light Cut-Off
Yes
Battery Type
One CR123A (3V) or one AA (1.5V)
Battery Life (Operating)
Up to 40 hours at 20°C (IR off)
Operating Temperature Range
-40°C to +50°C (-40°F to +122°F)
Storage Temperature Range
-50°C to +70°C (-58°F to +158°F)
Weight
290 g (0.64 lb)
Overall Dimensions
115 × 69 × 54 mm (4.5 × 2.7 × 2.1 in)
Package Includes
Night Vision Monocular, AA Battery Adapter, Head/Helmet Mount, Lens Cloth, Soft Carrying Case, Hard Case, User Manual
| Warranty | 3 Years |
