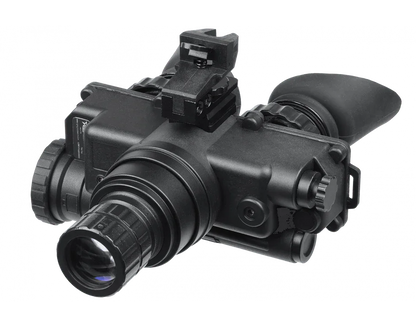

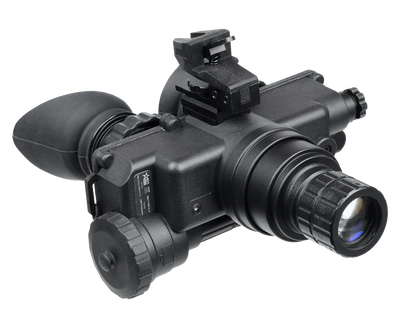

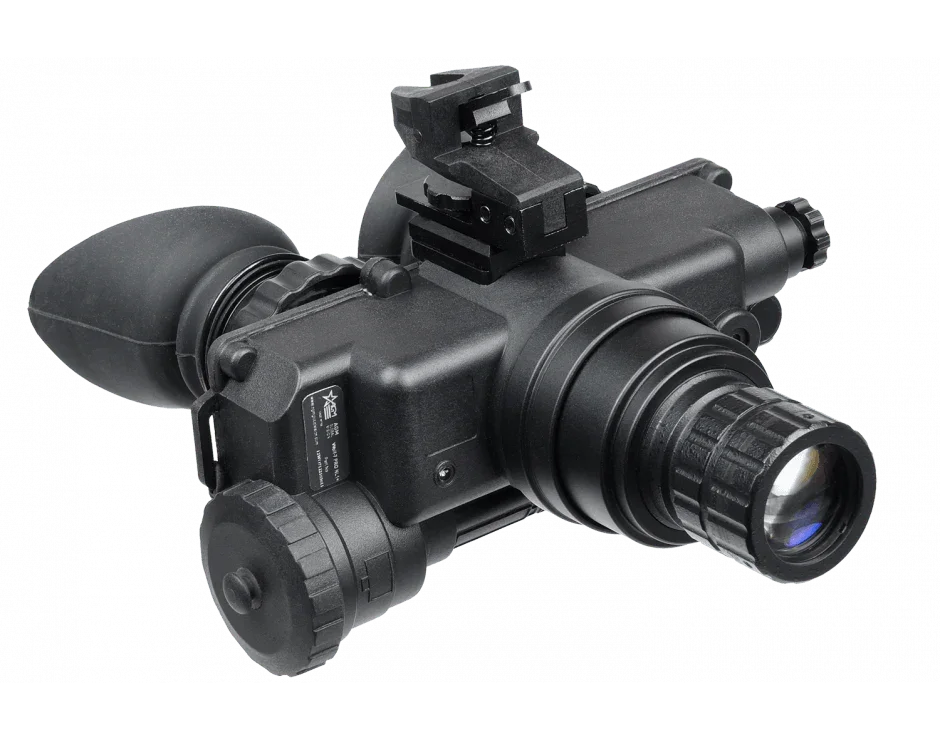

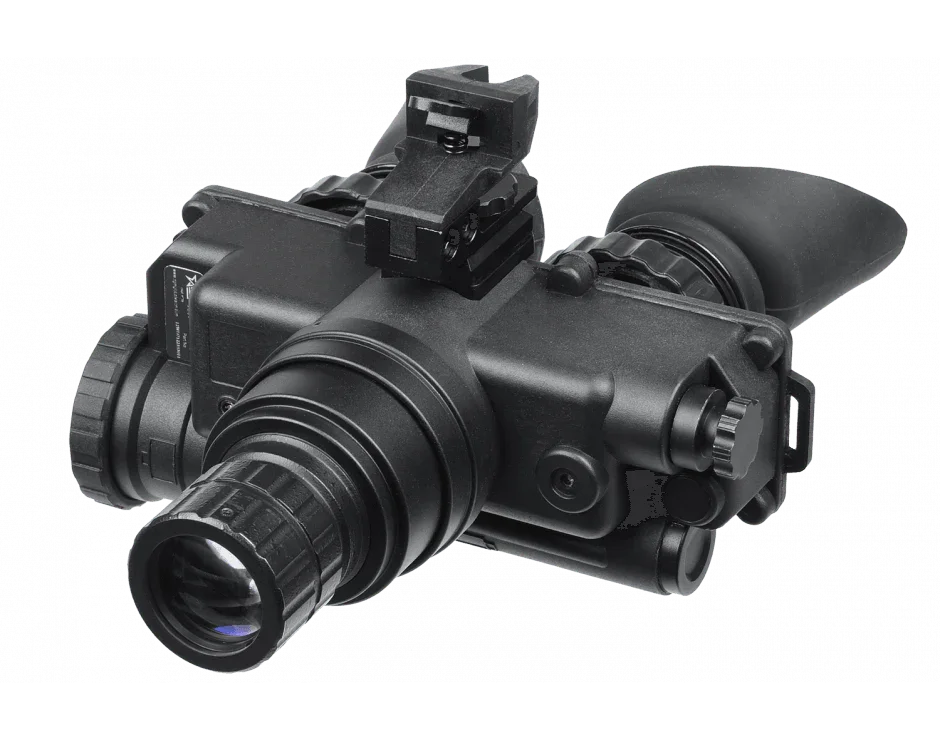

AGM Wolf-7 NW1 Pro Night Vision Goggle Gen 2+ White Phosphor "Level 1" 12W7P122154211

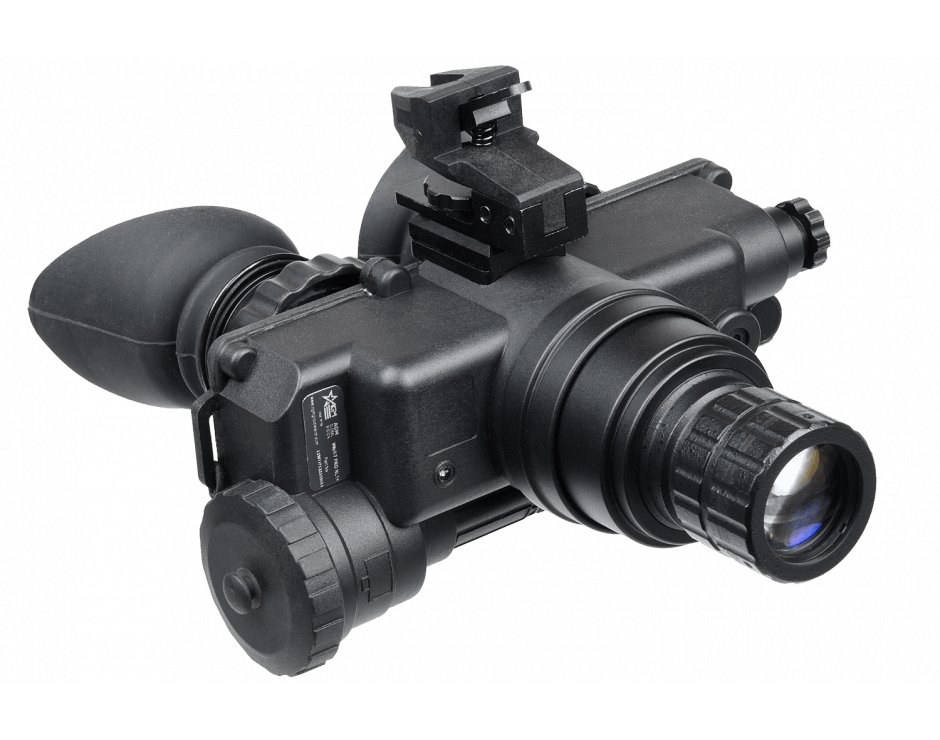

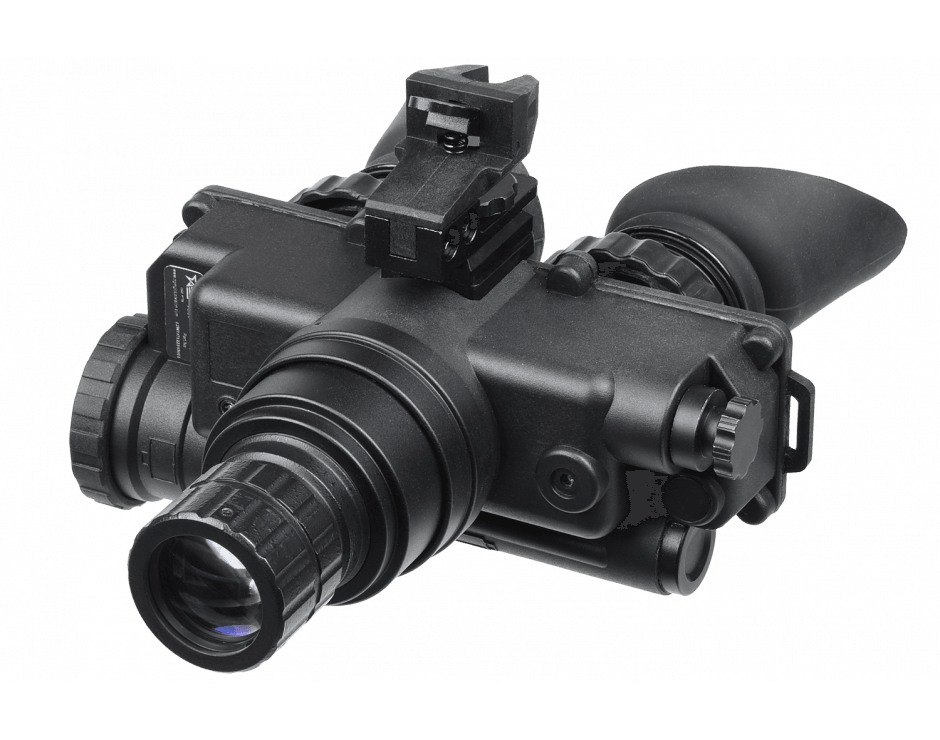

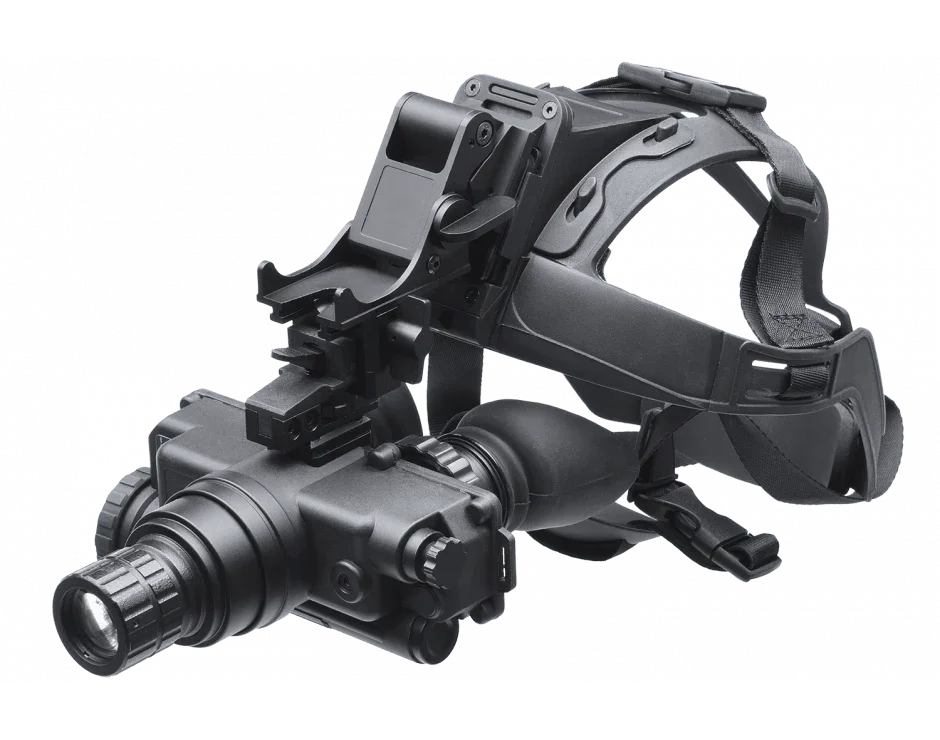

The AGM Wolf-7 PRO is a bi-ocular night vision goggle system designed for hands-free use and built around high-grade image intensifier tubes. Featuring premium optics and reliable electronics, the Wolf-7 PRO delivers bright, clear night vision images even in the most challenging conditions. It also comes equipped with a built-in IR light source, ideal for reading maps or providing basic, short-range illumination in complete darkness.
The Wolf-7 PRO offers a variety of accessory options, including 8X magnification lenses for long-range viewing, head or helmet mounts for hands-free operation, and additional high-powered IR illuminators for extended-range use. Waterproof, rugged, lightweight, and compact, the Wolf-7 PRO is a versatile and durable choice for demanding nighttime operations.
AGM Wolf-7 NW1 Pro Features:
- Compact, rugged design
- Waterproof

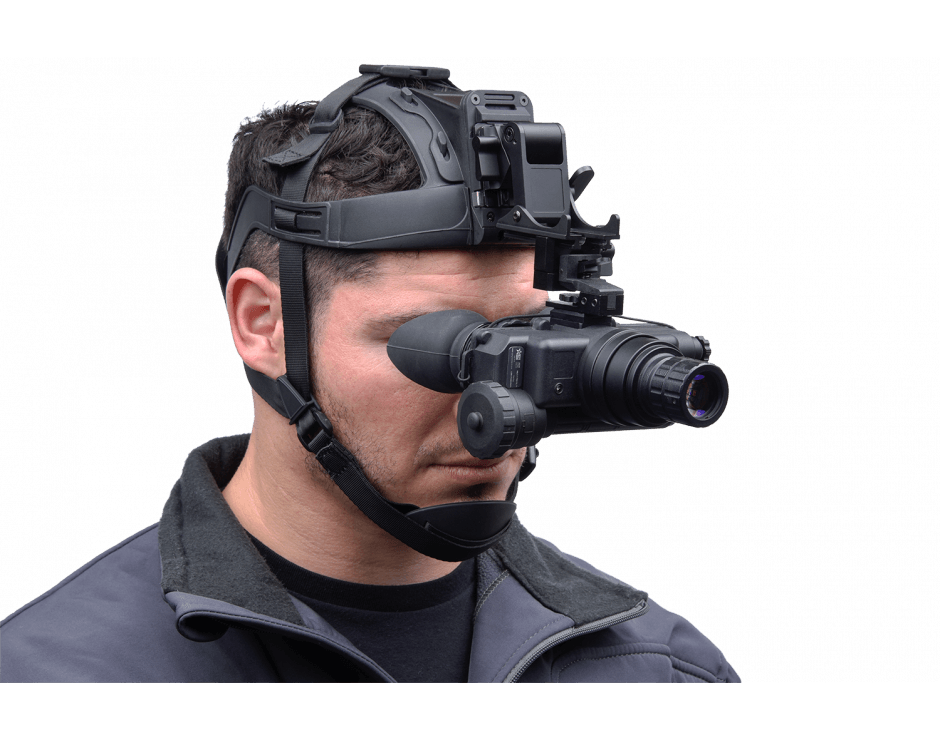

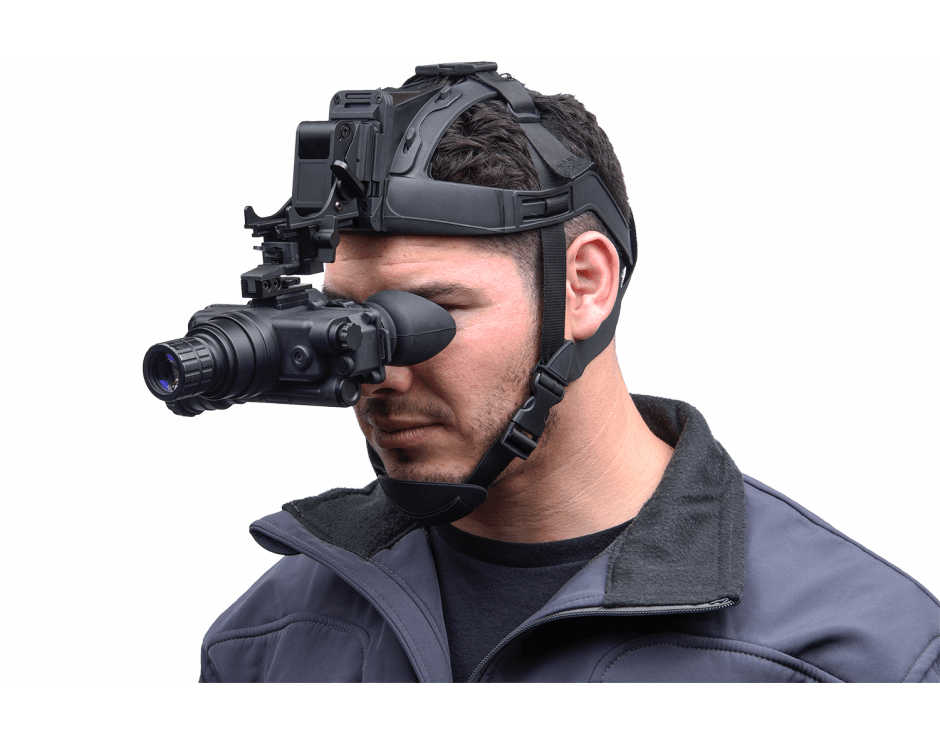

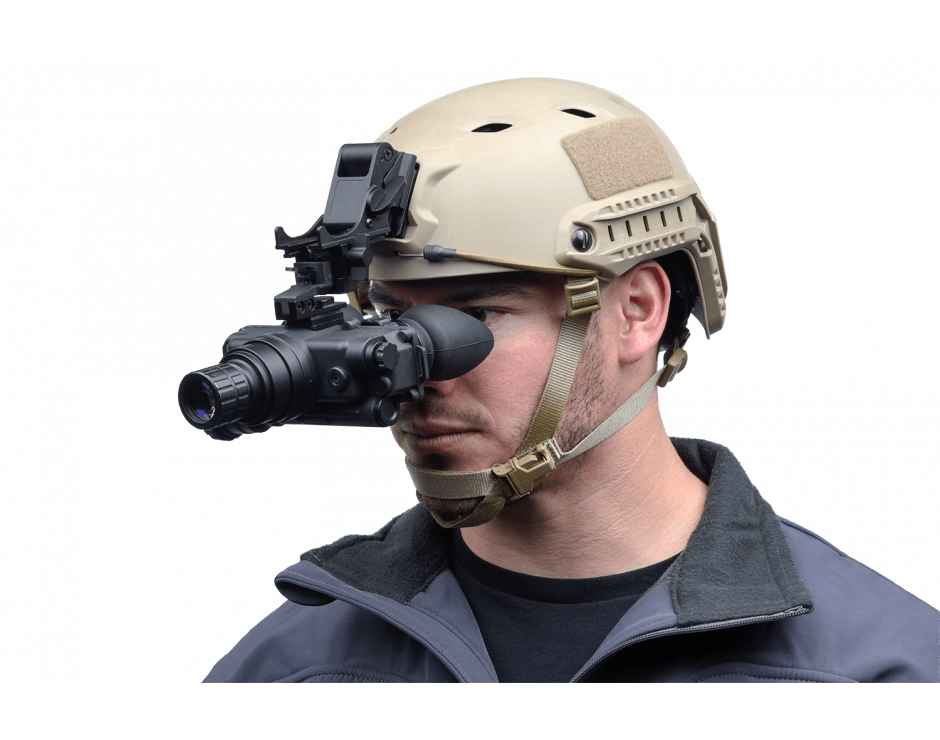

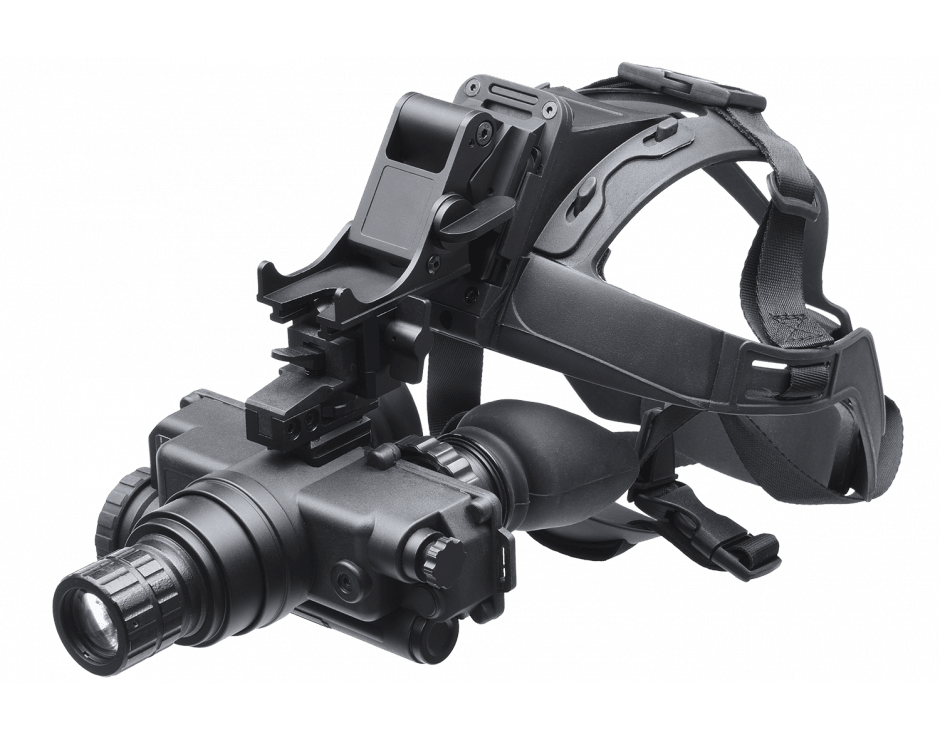

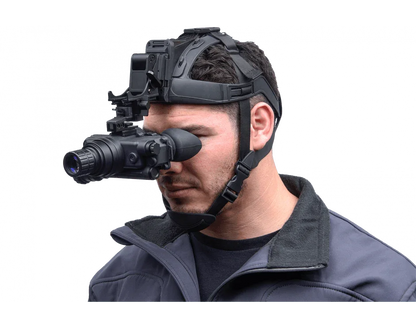

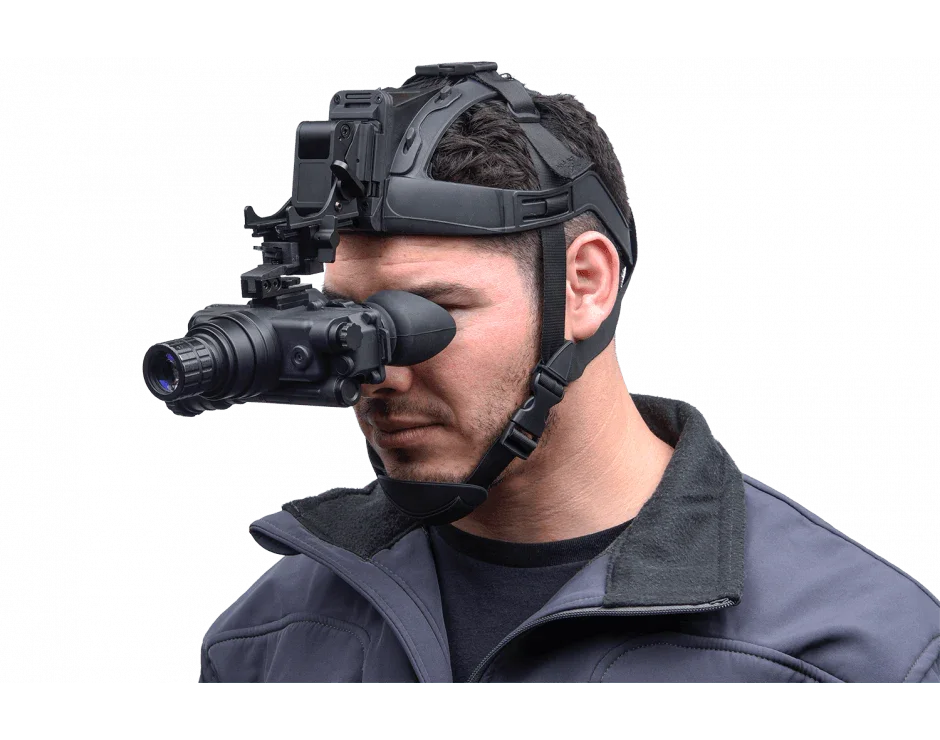

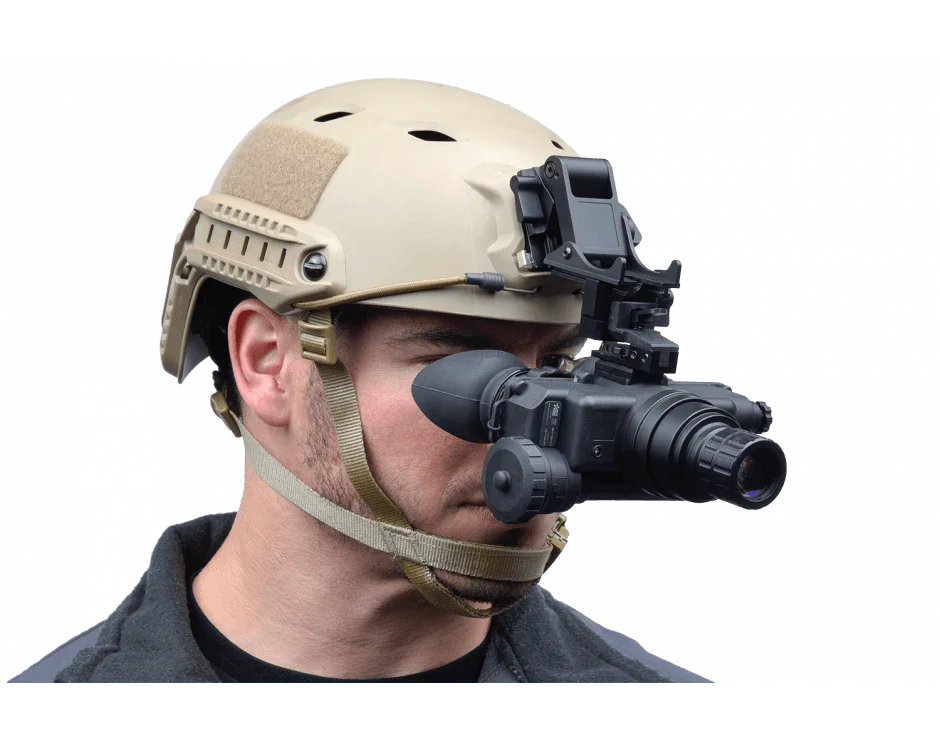

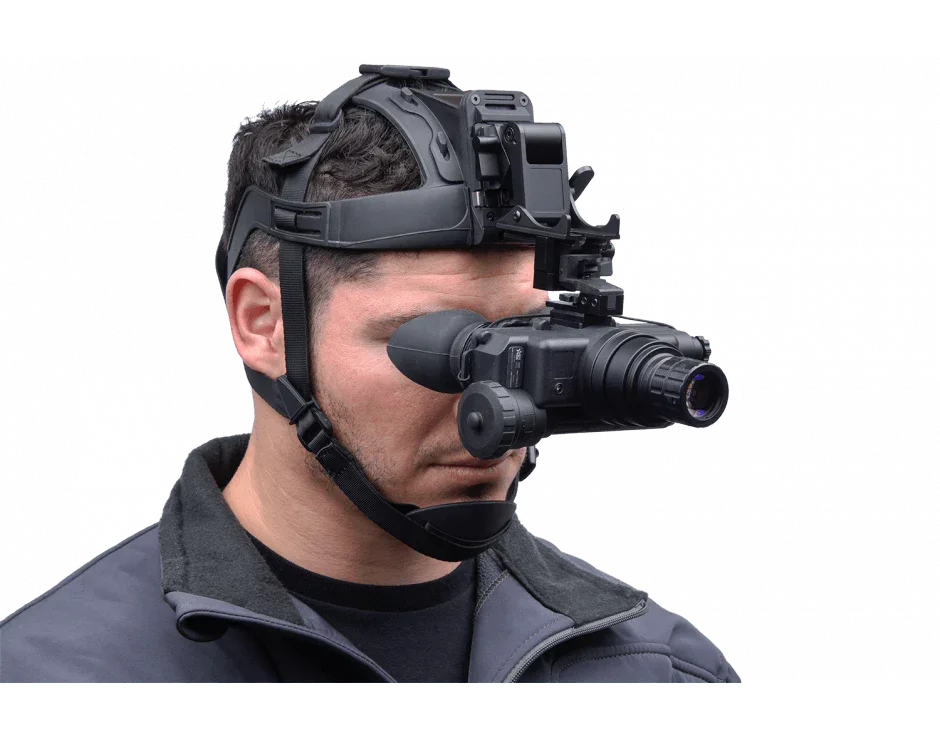

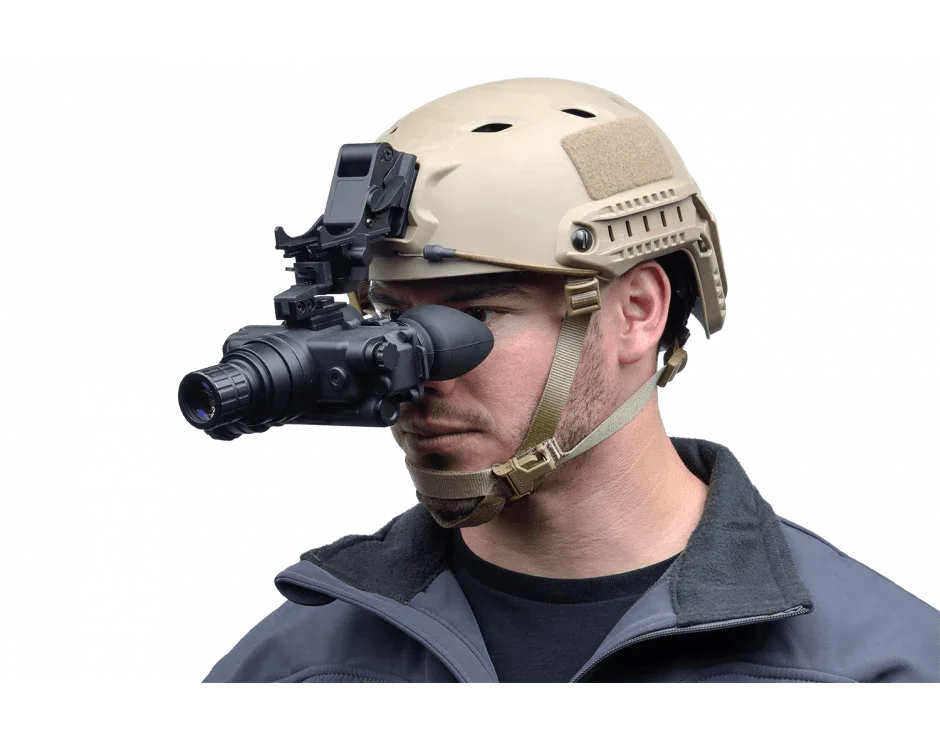

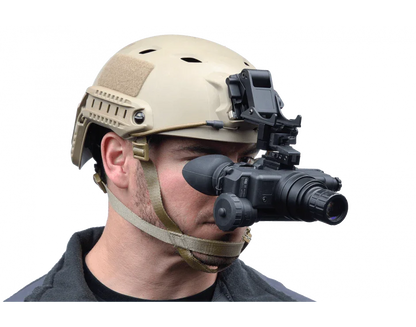

- Head or helmet-mountable for hands-free operation
- Ergonomic, simple, easy-to-operate controls
- Highlight overload protection
- Built-in Infrared illuminator
- External power supply capability
- Limited 3-year warranty
Tube Level Info:
|
Gen2+ Lvls
|
NL1/NW1 - Gen2+ Lvl1
|
NL2/NW2 - Gen2+ Lvl2
|
NL3 - Gen2+ Lvl3
|
|
Zone
|
1
|
2
|
3
|
1
|
2
|
3
|
1
|
2
|
3
|
|
>.015 or larger
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
1
|
|
>.012 - .015
|
0
|
0
|
0
|
0
|
0
|
1
|
0
|
1
|
1
|
|
>.009 - .012
|
0
|
1
|
1
|
0
|
2
|
2
|
1
|
2
|
2
|
|
>.006 - .009
|
0
|
1
|
2
|
1
|
2
|
2
|
1
|
2
|
2
|
|
.003 - .006
|
1
|
2
|
3
|
2
|
3
|
3
|
2
|
3
|
3
|
|
*Qty indicates Max Spots Allowed in Each Zone
|
|
|
|
|
|
|
|
**Spot Size (in.)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Gen3 Lvls
|
3NL1/3AW1 - Gen3 Lvl1
|
3NL2/3AW2 - Gen3 Lvl2
|
3NL3/3AW3 - Gen3 Lvl3
|
|
Zone
|
1
|
2
|
3
|
1
|
2
|
3
|
1
|
2
|
3
|
|
>.015 or larger
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
1
|
|
>.012 - .015
|
0
|
0
|
0
|
0
|
0
|
1
|
0
|
1
|
1
|
|
>.009 - .012
|
0
|
1
|
1
|
0
|
2
|
2
|
1
|
2
|
2
|
|
>.006 - .009
|
0
|
1
|
2
|
1
|
2
|
2
|
1
|
2
|
2
|
|
.003 - .006
|
1
|
2
|
3
|
2
|
3
|
3
|
2
|
3
|
3
|
|
*Qty indicates Max Spots Allowed in Each Zone
|
|
|
|
|
|
|
|
**Spot Size (in.)
|
AGM Wolf-7 NW1 Pro Specifications:
Interpupillary Distance
15 mm
External Power Supply
Yes (2.8-4.2V)
Image Intensifier Tube
Gen 2+
Resolution
51-64 lp/mm
Field of view cleanness by zone
Gen 2 IIT NW1 is the highest resolution and the cleanest offered by AGM. There are practically no visible spots in Zone 1.
Magnification
1x
Lens System
27 mm; F/ 1.2
FOV
40°
Focus Range
0.25 m to infinity
Eye Relief
15 mm
Diopter Adjustment
-4 to +5 diopters
Led Indicators
- Low Battery - IR On
Automatic Brightness Control
Yes
Infrared Illuminator
Yes
Battery Type
Two AA Alkaline
Battery Life (Operating)
- Up to 40hrs (IR off) - Up to 30hrs (IR on)
Waterproof
Yes (IP65)
Operating Temperature Range
-40°C to +50°C (-40°F to +122°F)
Storage Temperature Range
-50°C to +70°C (-58°F to +158°F)
Weight
510 g (1.1 lb)
Overall Dimensions
183 × 132 × 58 mm (7.2 × 5.2 × 2.3 in)
Package Includes
Night Vision Goggles, Neck Strap, Headgear, Bayonet/Horn Interface Shoe, Helmet Mount, Lens Cloth, Soft Carrying Case
