PRODUCT OVERVIEW

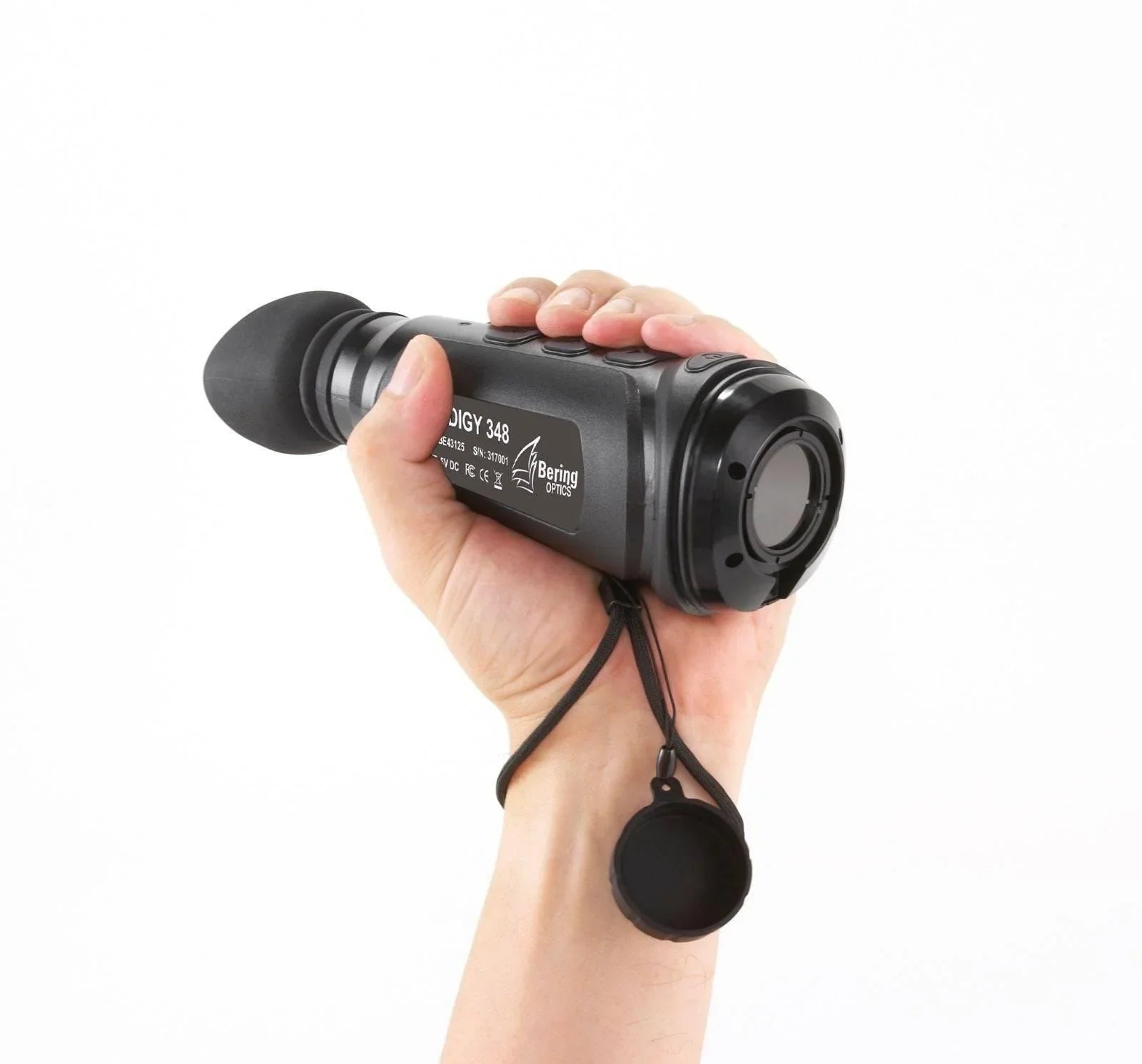

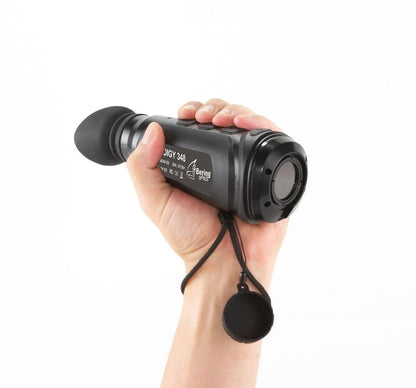

The Bering Optics PAR Thermal Monocular offers an ergonomic design and lightweight construction for user comfort. Its four control buttons allow for simple operation of the device's main functions - zoom, brightness, and image polarity mode. A VOx thermal core with LWIR (8-14µm) sensitivity delivers a detection range of up to 550 yards in any light or terrain. Plus, the hottest spot tracking indicator, and the Wi-Fi connection to the pre-installed app for recording videos and snapping photos make this monocular a powerful tool.
Features:
Rugged, compact and lightweight
Automatic shatter based thermal core

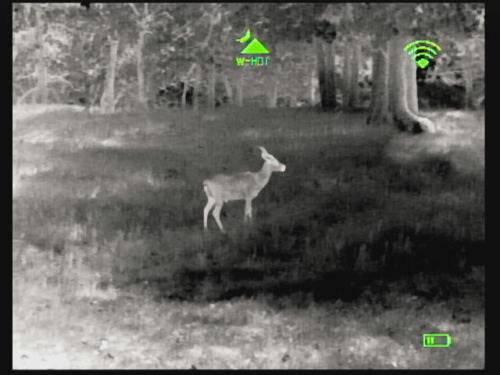

Black hot, white hot, red hot image polarity modes
Hottest spot tracking indicator function
Manual brightness adjustmentLow-battery indicator
Discrete digital magnificationInternal precise eye piece focusing mechanism
No focus required objective lens
Easy to use controls
Nitrogen-purged
Water-resistant, dustproof and drop impact ( 1 yard / meter) proof body
Built-in rechargeable battery with 5 hours run time
Automatic power save standby mode
Quick battery recharge via computer or mobile device USB port 5V DC
Built-in Wi-Fi capability to take photos or record videos (app required on a mobile device used)
Tripod mountable with built-in ¼” tripod socket
TV out connector to allow video recording
Specifications:
| General |
| Configuration |
Monocular |
| Sensor Size |
384 x 288 |
| Display |
640 x 480 Unspecified LCD |
| Refresh Rate |
50 Hz |
| Pixel Size |
25 µm |
| Spectral Range |
8 to 14 µm |
| Thermal Sensitivity |
|
| Performance |
| Magnification |
Optical: 1x
Digital: 2 to 4x
|
| Lens System |
25 mm, f/1.0 |
| Angle of View |
22 x 16° |
| Minimum Focus Distance |
9.8' / 3 m |
| Eye Relief |
14 mm |
| Diopter Adjustment |
-3 to +4 |
| Camera |
| Video System |
NTSC |
| Operating System Support |
Android |
| Connectivity |
| Wi-Fi |
Yes |
| Connections |
1 x USB Mini-B (5 VDC at 2 A) |
| Power & Environmental |
| Battery |
Rechargeable Lithium (Approx. 6 Hours) |
| Operating Temperature |
-4 to 122°F / -20 to 50°C |
| Operating Humidity |
0 to 93% |
| Physical |
| Water Resistance |
Water Resistant, IP66 |
| Dimensions |
6.7 x 2.7 x 2.7" / 17 x 6.8 x 6.8 cm |
| Weight |
14.1 oz / 400.0 g |

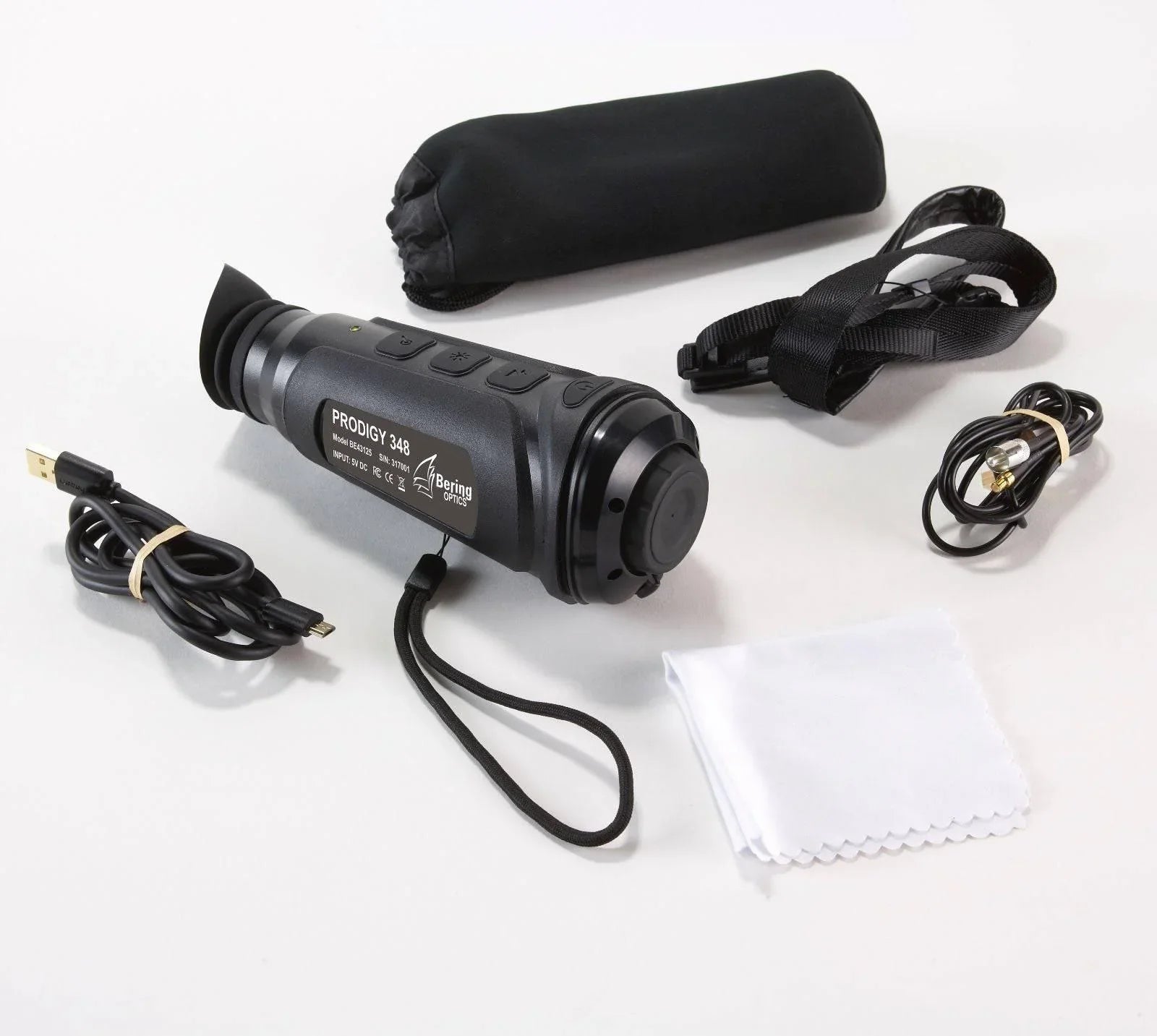

Includes:
PAR Thermal Monocular
Front lens protective cap
Soft carrying pouch
Wrist strap
Neck cord
Rubber eyecup
Video output cable
Battery recharge cable with USB port connector
Lens clearing cloth
Instruction manual
