Bering Optics PVS-14BE Gen 2+ B&W Night Vision Monocular BE72140MGW

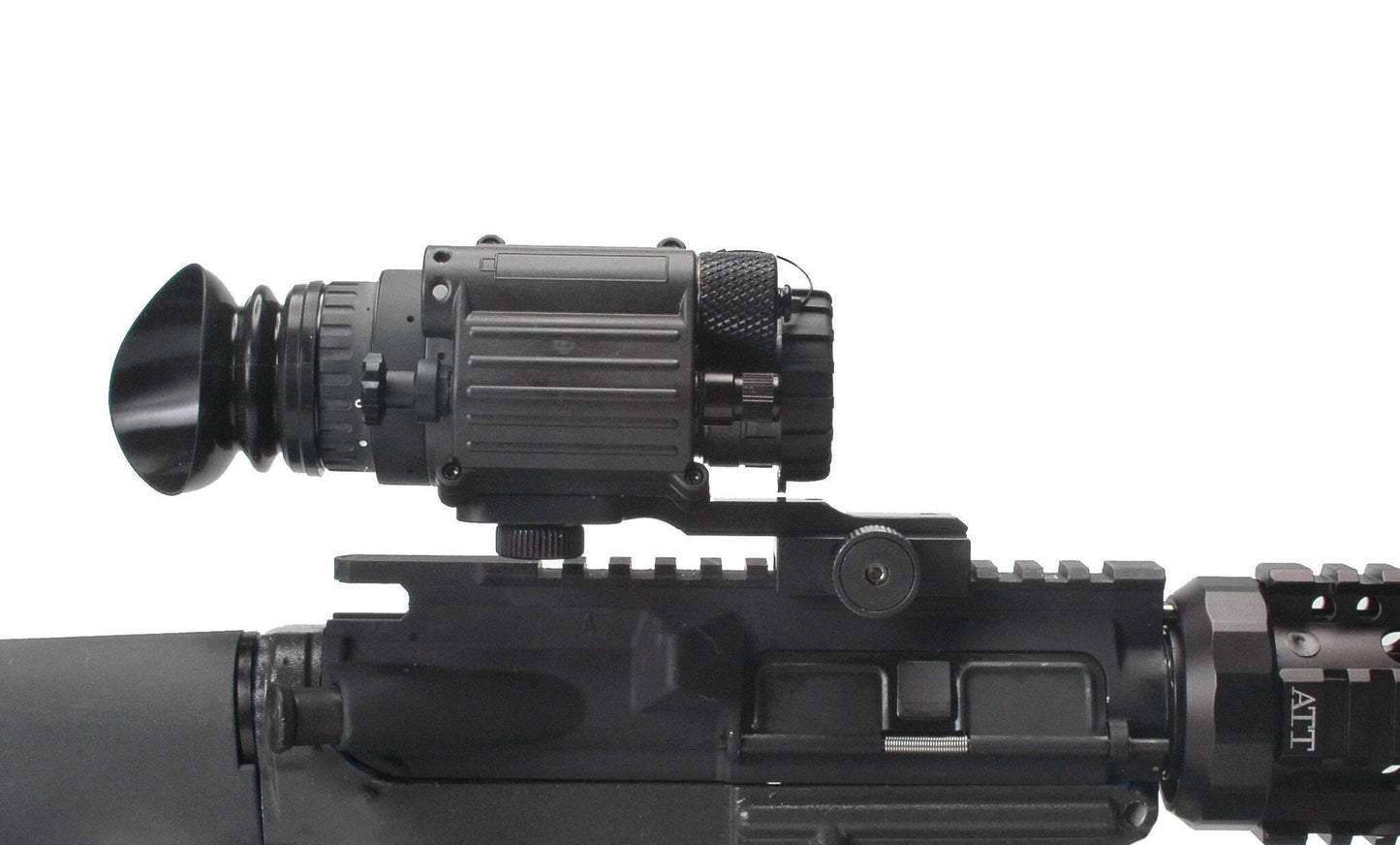

The PVS-14BE Night Vision Monocular offers exceptional versatility, making it ideal for a range of operations from combat to rescue and surveillance. It can be used as a handheld device or hands-free single-eye goggle, and it easily pairs with a red dot or holographic sight to create a night vision weapon system. Equipped with a Gen 2+ Auto-gated Image Intensifier, it delivers 64-72 lp/mm resolution and provides up to 40 hours of operation on a single AA battery. The automatic brightness control ensures optimal image quality in varying light conditions.
This monocular comes packed with user-friendly features, including low battery and IR-on indicators, a light overload sensor that automatically powers off the device when exposed to bright light, and a "flip-up" OFF magnetic switch. Its durable, lightweight housing is among the most compact in the night vision industry. For extreme low-light conditions, a built-in short-range IR illuminator is available. The PVS-14BE can also be enhanced with a 3.0x MIL SPEC Afocal lens, which attaches easily for improved viewing. It can be further upgraded to a powerful long-range NV viewer by attaching a 3.0x, 4.0x, 5.0x, 6.0x, or 10.0x objective lens.
Bering Optics PVS-14BE FEATURES:
Rugged, compact and lightweight
Superior for CQB tactical engagements
Extremely versatile: hand-held use, head-mountable, weapon-mountable, photo/video equipment adaptable
Excellent detection and recognition ranges
IR-On and Low Battery indicators
Flip-up automatic shut off
Automatic brightness control
Protected against excess light exposure
Integrated (5mW) IR illuminator for close-up illumination
Compatible with a wide variety of optional accessories
Comfortable for prolonged wear
Single AA battery operation
40 hours run time from one battery
Nitrogen-purged
Waterproof and dustproof Built-in ¼” tripod socket
Gen 2+
Bering Optics PVS-14BE SPECIFICATIONS:
Magnification, x1.0
Optical system - 26mm F/1.2
Image intensifier tube classification - Auto-gated Gen 2+ B&W 64-72lp/mm
Image intensifier tube s/n ratio - 1:20 or better
Field of view, degree - 40°
Focus range, in/ m - 10”/0.25 to infinity
Eye relief distance, mm – 25
Exit pupil, mm – 14
Diopter setting, D - +2, -6
Detection range, approx., yard/m-quarter moon-cloud cover - 275/250/220/200
Recognition range, approx., yard/m-quarter moon-cloud cover - 220/200/175/160
Overall dimensions, in/ mm - 4.33" x 2.24"x 1.97"/ 110x57x50
Weight w/out head gear and batteries, oz/g - 11/ 310
Weight with headgear, oz/g - 18.3/520
Power supply – AA battery (one)/1.5V
Estimated battery life w/out IR under 73°F, hour - up to 40
Operating temperature, °F/°С - -59 to +131/ -51 to +55
Water intrusion - Meets MIL-STD-810G environmental test
Humidity, % - up to 98%

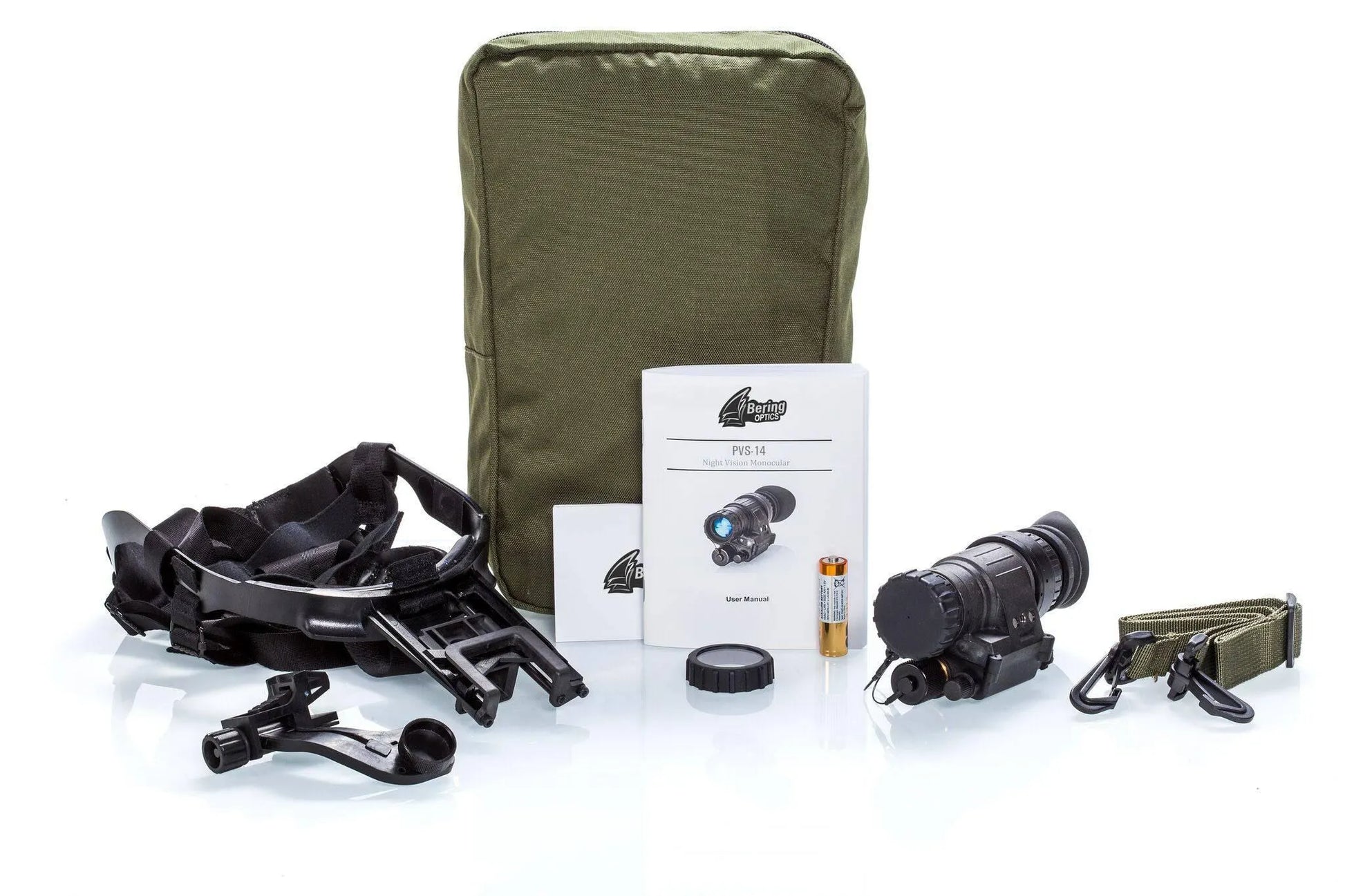

IN THE BOX:
One set of PVS-14BE NV monocular
Head Gear with M and S brow pads
Head gear adaptor
Sacrificial window
Demist Shield
Soft Carrying Case with a Shoulder strap
Neck cord
Rubber Eyeguard
Lens Cover
1AA Battery
Lens Cleaning Cloth
Operator’s manual
EXPORT RESTRICTION
Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
