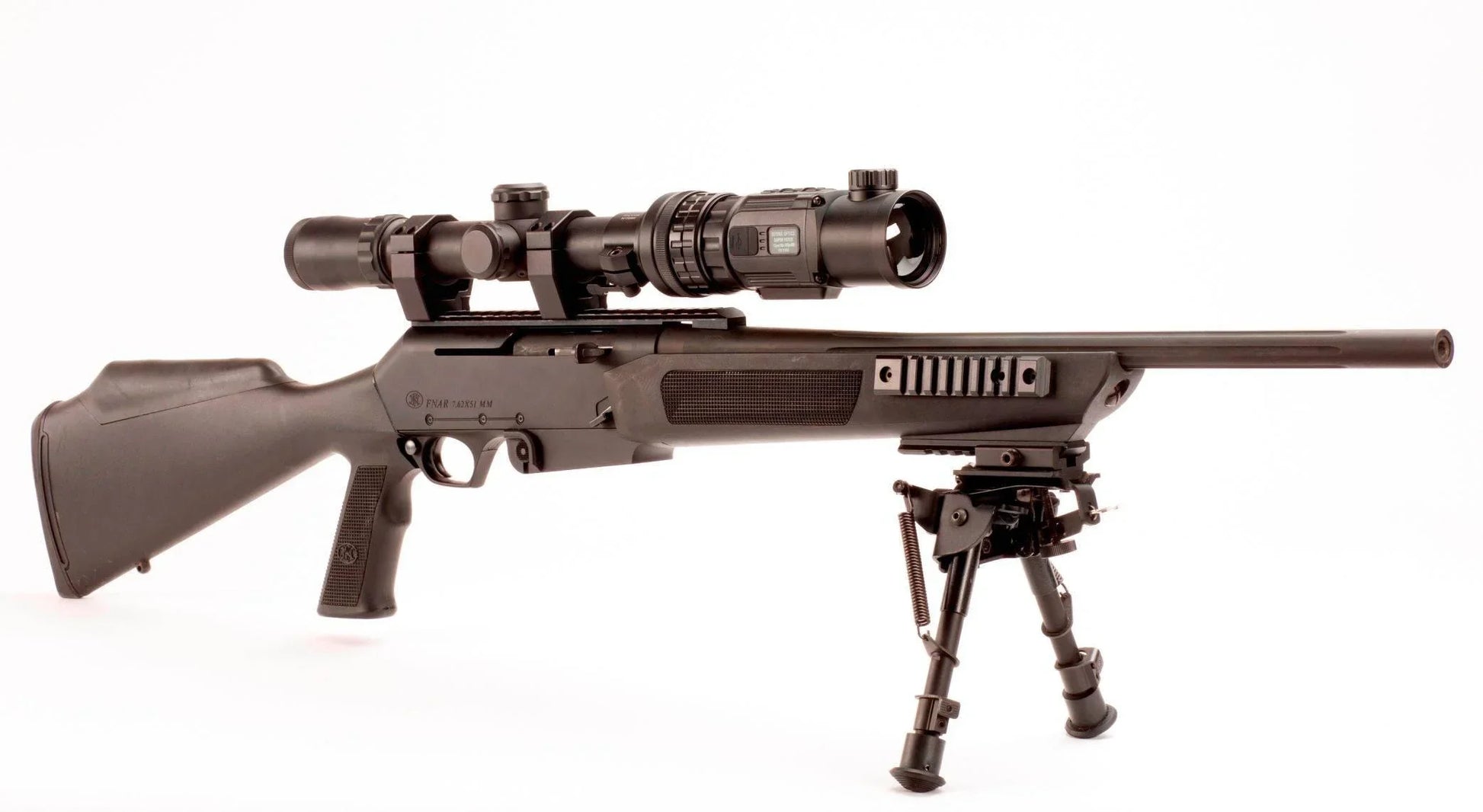

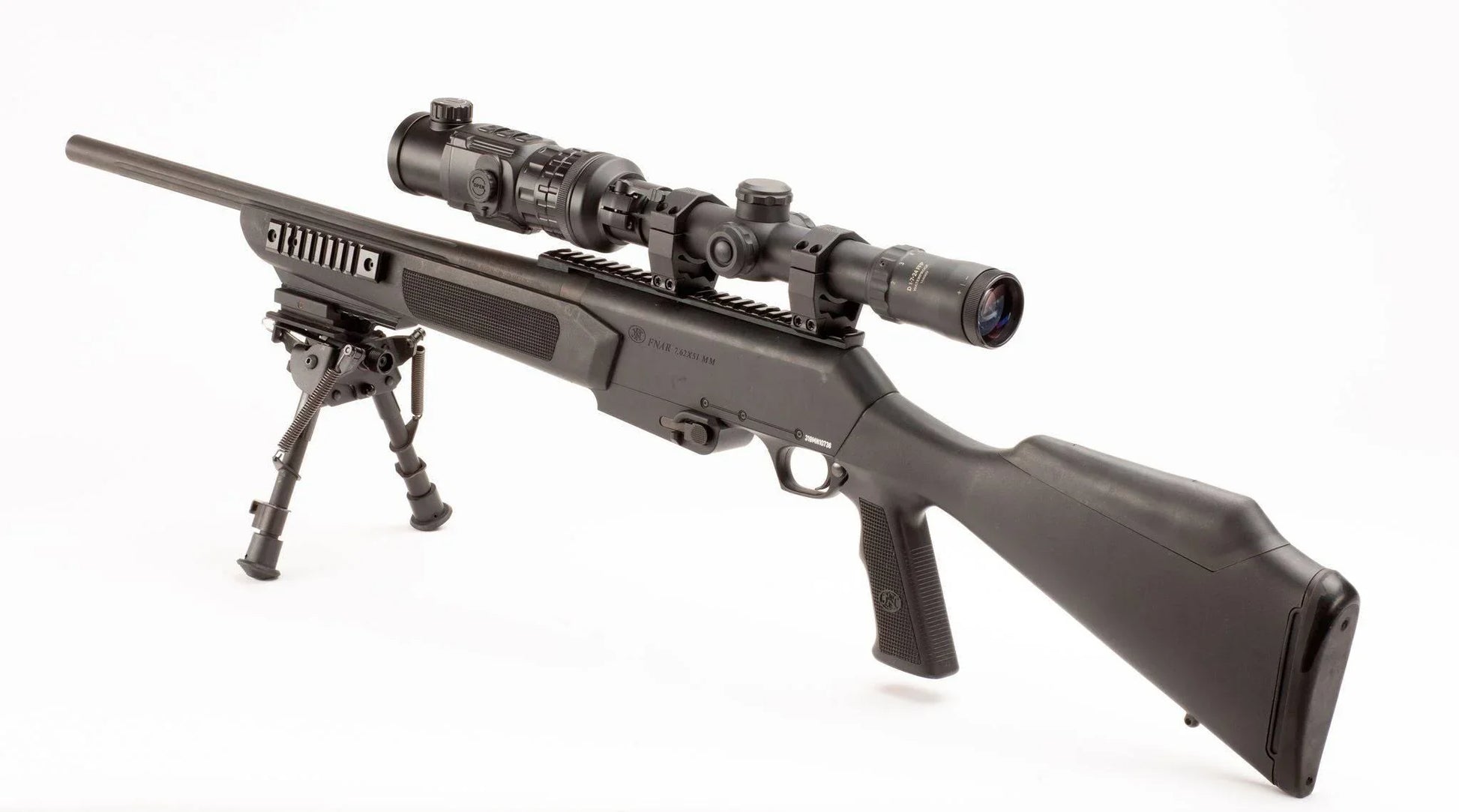

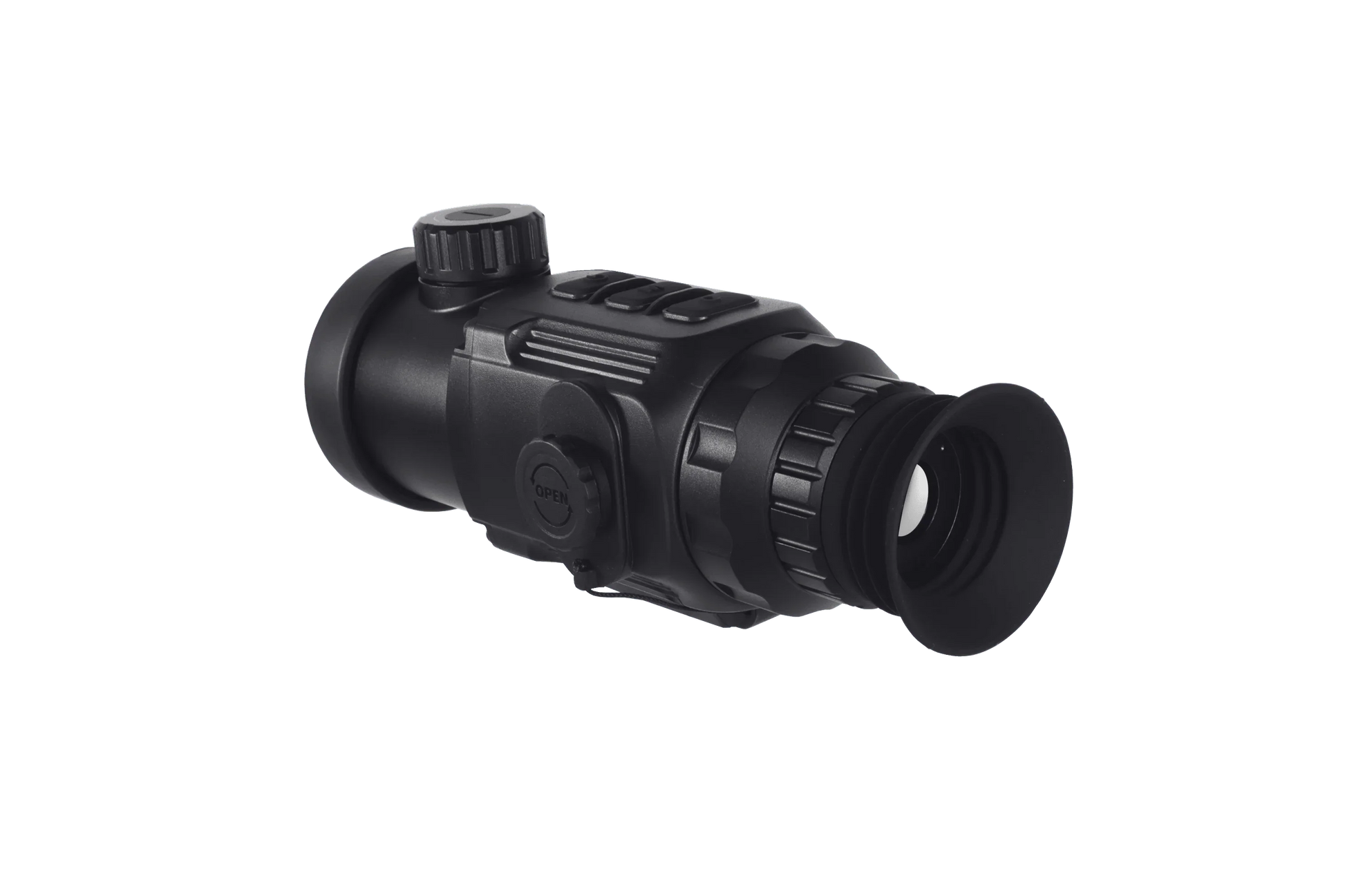

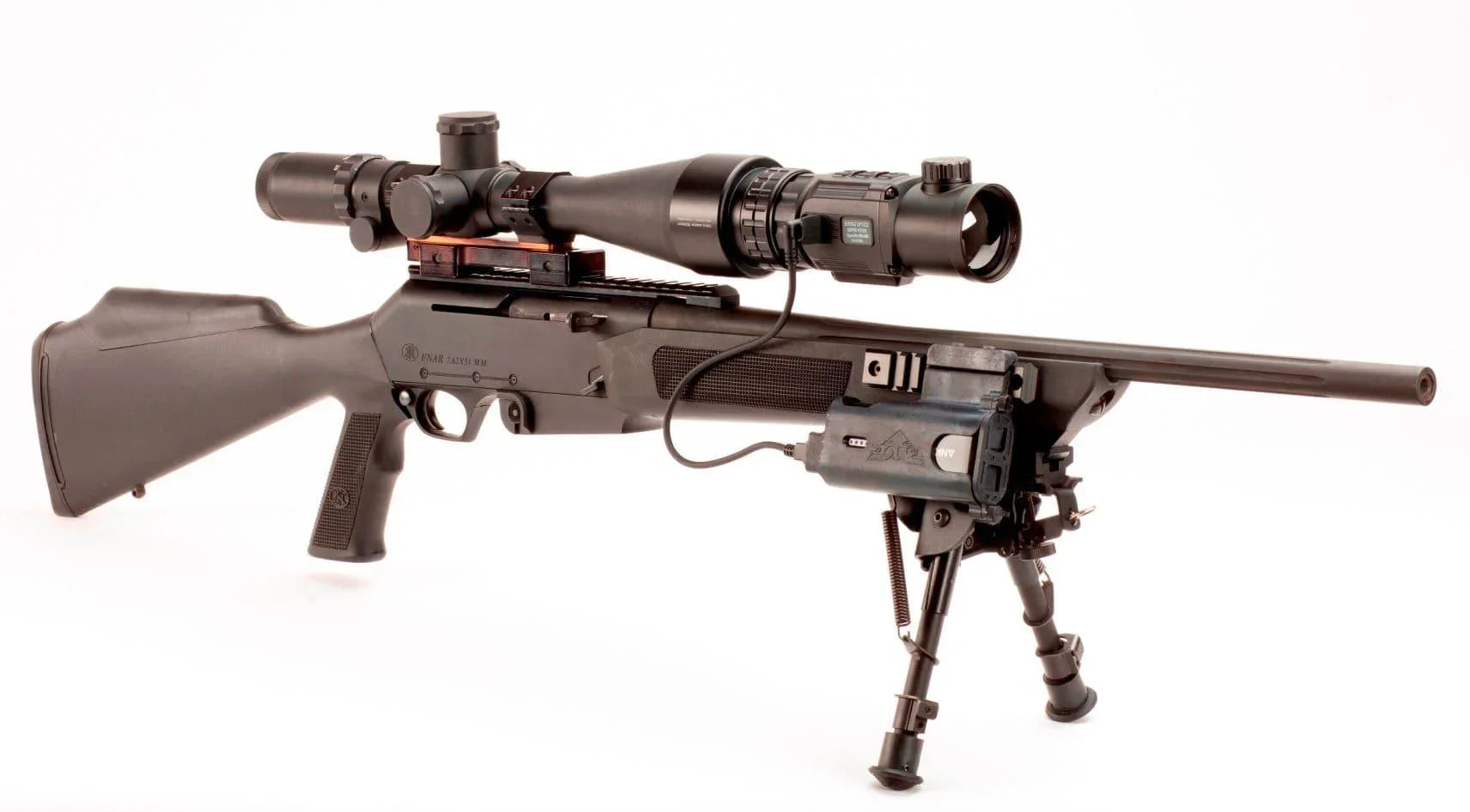

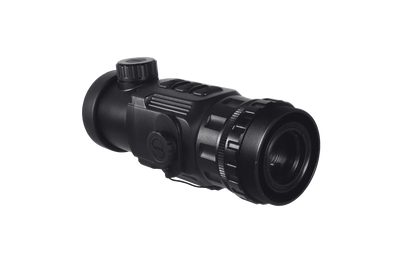

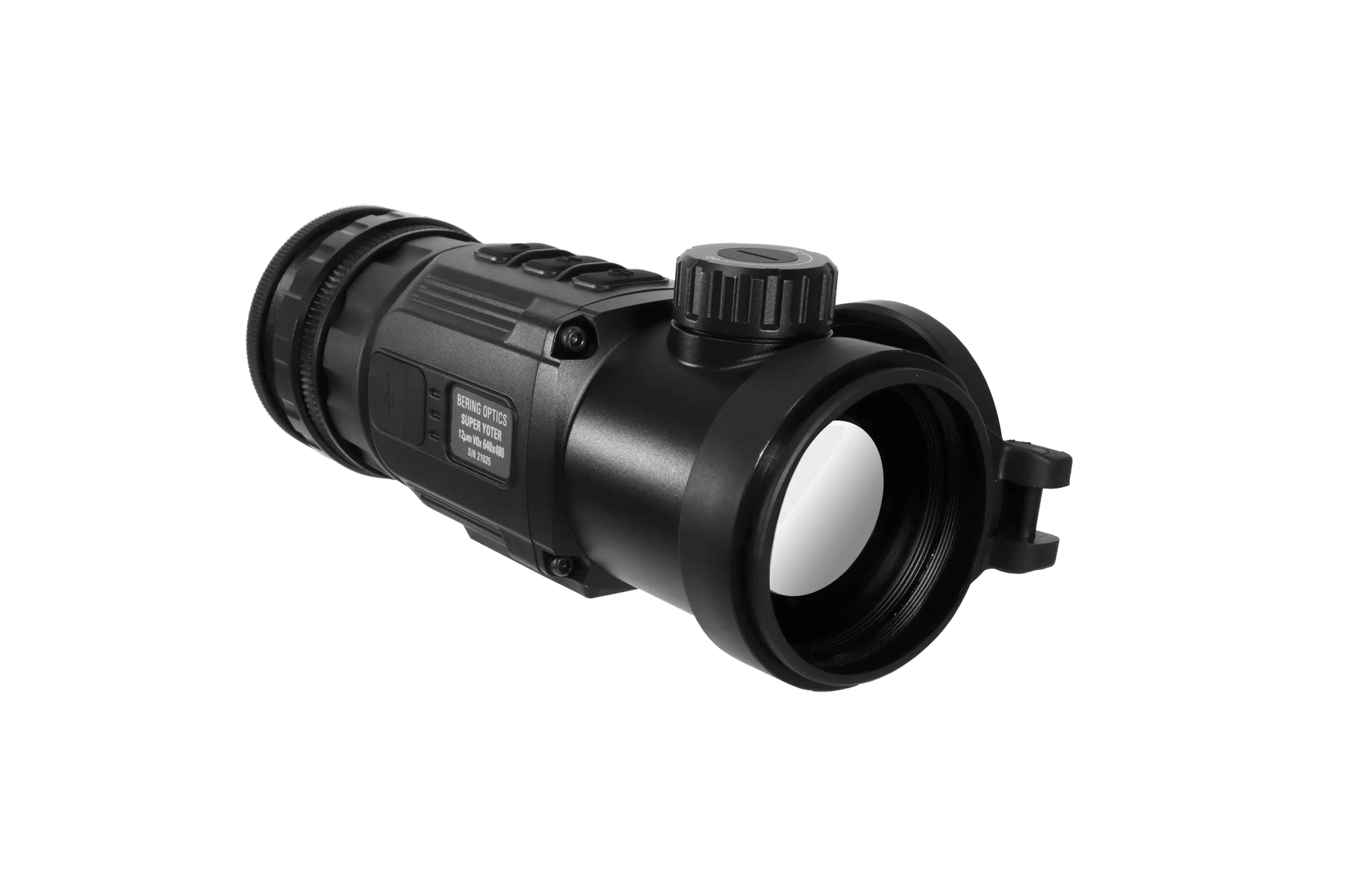

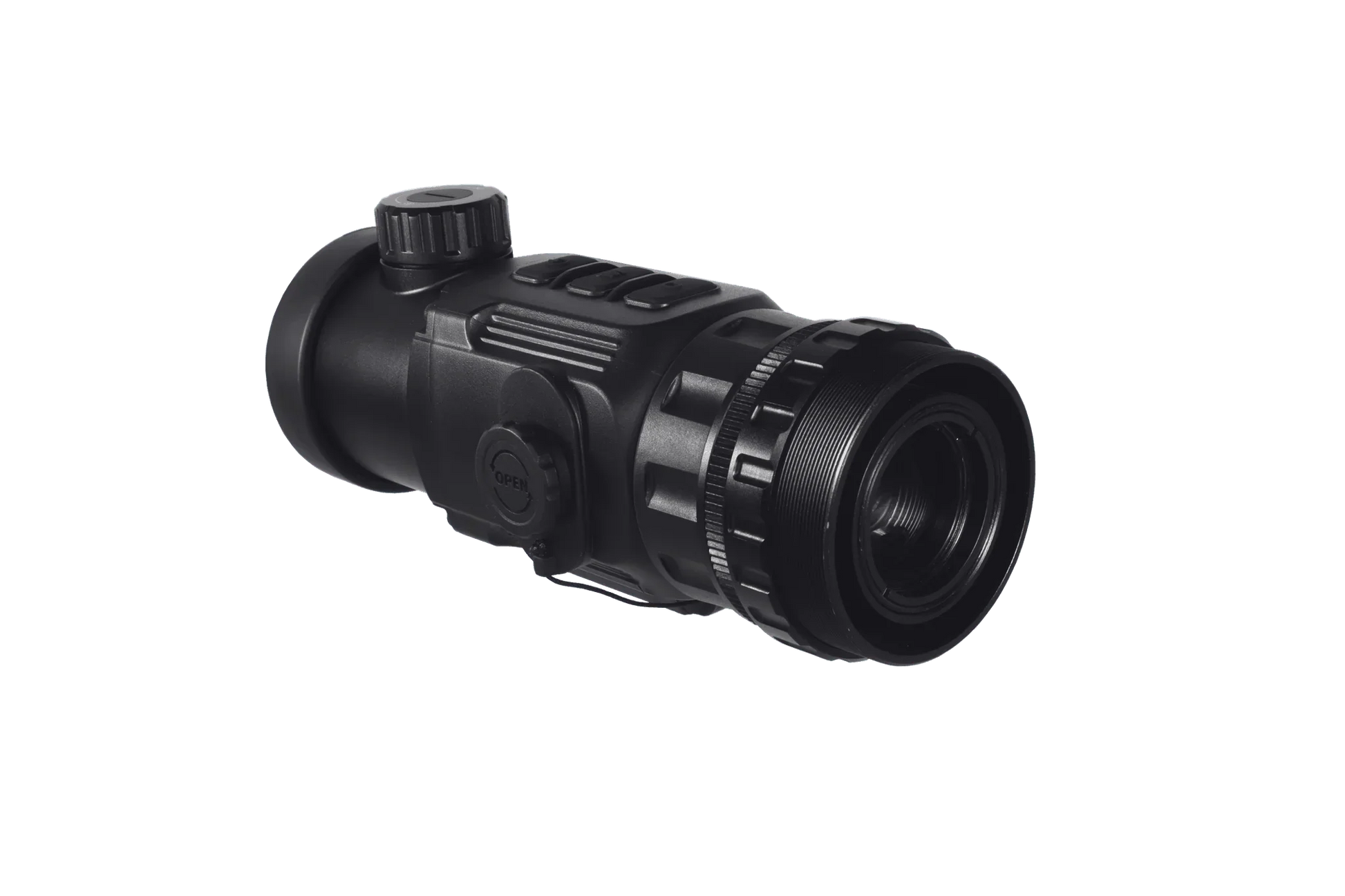

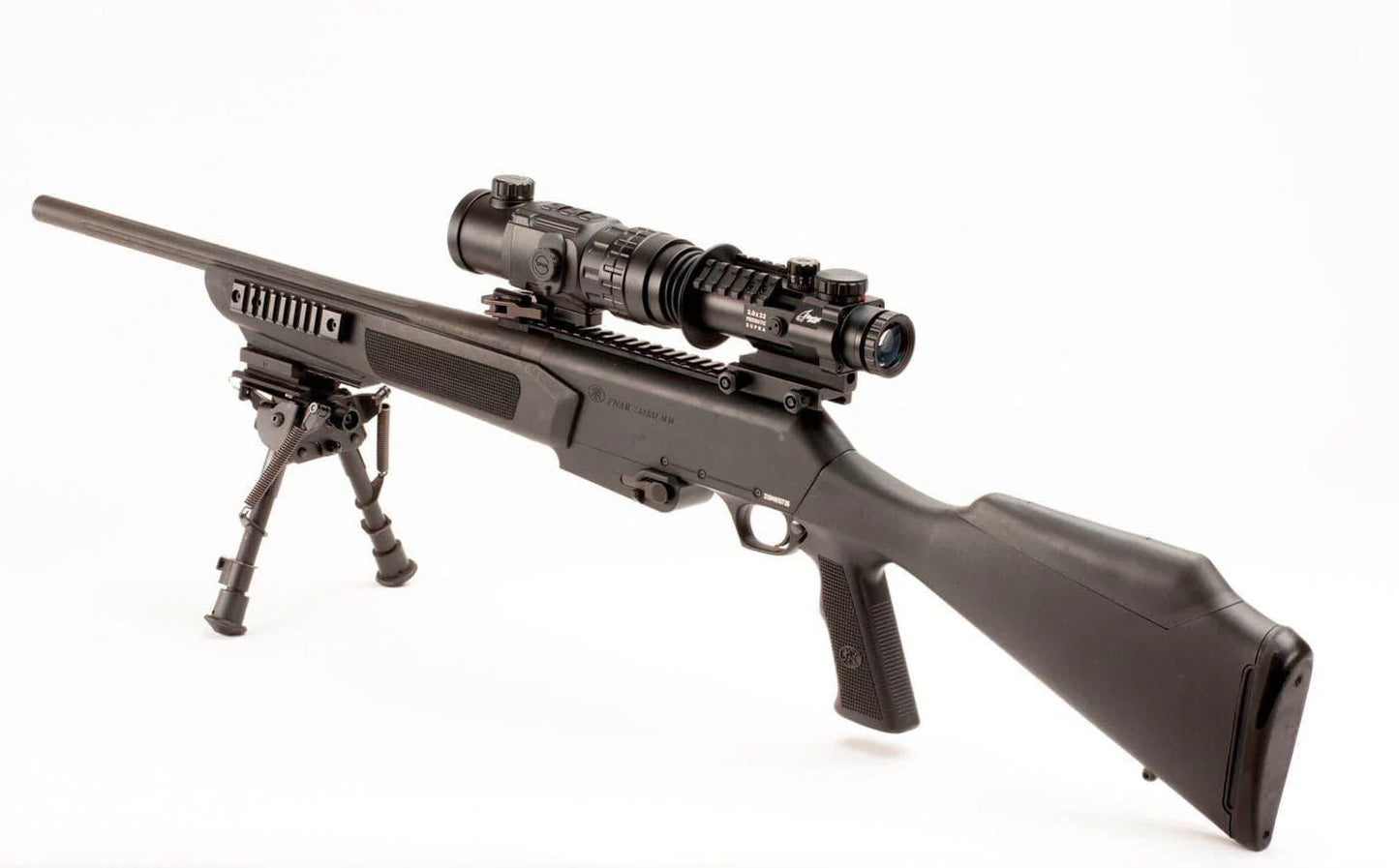

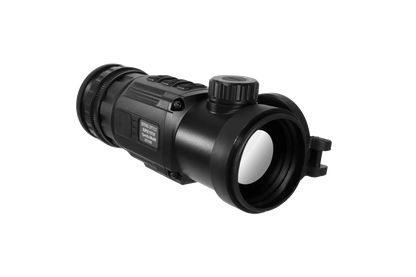

Bering Optics SUPER YOTER C™ Universal Thermal Clip on is build with an advanced 12μm Vanadium Oxide (VOx) 640x480 and proprietary electronics is unique with no rival. The superb 50mm Germanium Lens is a superior for predator control at medium through long range distances. Aimed at the growing coyote and predator hunting market, the product is exceptionally lightweight and compact. SUPER YOTER C™ is versatile. It can be mounted in the daytime sight lens hood using a snap on mounting adaptor of customized diameter, making the day optics conversion 3 seconds quick and easy. SUPER YOTER C additional detachable eyepiece helps to converted the clip on in to 4.0x native and up to 16.0x digital magnifications handheld thermal scanner for scouting and detection. The SUPER YOTER C™ clip on can be also equipped with Quick Release Weaver Mount (SKU# 80990) and set up in line with tactical sights such as Prismatic, etc.
Simple to use and zero, the SUPER YOTER C™ has an easy to understand and navigate menu including a wide range of options including switchable image polarity memory for 4 gun profiles. The control buttons are designed with tactile elements, allowing the user to operate even in pitch black situations. The clip on is nitrogen purged, and is water, dust and shock rated for .338 Win Mag., 30 06 Spring Mag., .300 H&H and other high recoil calibers. The SUPER YOTER C™ 640x480 Thermal Clip on is action ready in virtually any light conditions or environment, including conditions when the environmental obscurants such as dust, haze, fog, high humidity are present.
Features:
• Superior for hogs, coyote and predator control at medium- and long-range distances
• Rugged, compact and lightweight
• Excellent performer in high humidity conditions
• Mountable in front of scopes with lens diameters ranging from 24mm to 64mm
• Optimal with 2.0x to 18.0x day time scopes
• Can be used with heavy recoil weapons, including 30-06 Spring Mag., .300 H&H, .375 H&H

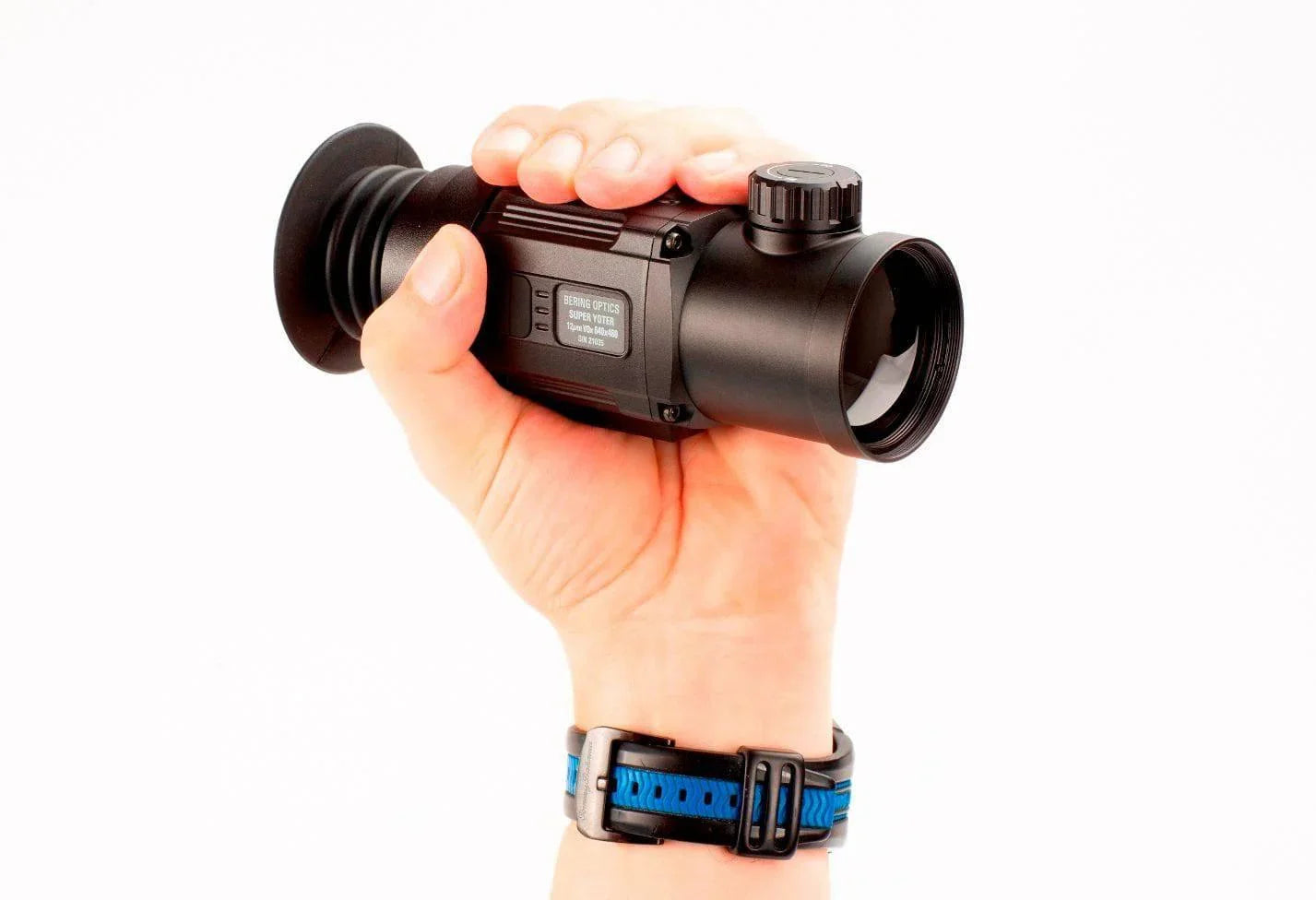

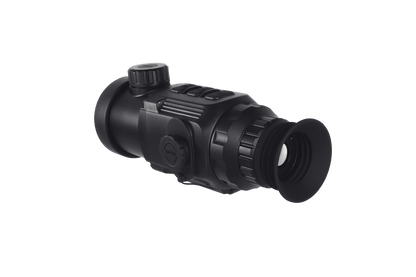

• Convertible to the 4.0x - 16.0x hand held Thermal scanner when coupled with a detachable eye piece
• 12µm Vanadium Oxide (VOx) 640x480 core with Manual calibration
• Switchable image polarity: White Hot / Black Hot / Red Hot / Colored Hot
• Manual control of the image sharpness and screen brightness
• Ability to center the screen with respect to the viewed reticle
• Ability to save zeroing data of 4 gun profiles
• Precise internal lens focusing mechanism
• High resolution 1024x768 OLED Display
• 5V DC external power supply option via a Type-C USB port
• Blind Pixel repair tool
• Standby mode
• Digital Compass
• Inclinometer
• Battery status indicator
• Nitrogen purged
• Video out
• 4 years warranty
SPECIFICATIONS
Product Modification |
SUPER YOTER 640x480 |
|
Product SKU# |
BE46150 |
|
Optical Magnification in the Clip-on mode, x |
1.0x |
|
Digital Multiplication, X |
1X, 2X, 4X |
|
Optical Magnification in the Thermal Viewer mode, x |
4.0x, 8.0x, 16.0x |
|
Objective Lens system |
50mmF/1.0 |
|
Angular FOV at 1.0x (horizontal x vertical), degree |
8.8° x 7.0° |
|
Eye relief, mm (hand held mode / clip-on mode) |
20 / 30 |
|
Exit Pupil, mm (hand held mode / clip-on mode) |
6 / 25 |
|
Focus range, approx., yds / m |
2 / 1.85 to infinity |
|
Diopter Adjustment, D (hand held mode only) |
-5: +5 |
|
Core resolution, pxl |
640x480 |
|
Pixel pitch, µm |
12 |
|
Image refresh rate, Hz |
50 |
|
Thermal Sensitivity (NETD), mK |
≤ 50 |
|
Display type and resolution, pxl |
OLED 1024x768 |
|
Start-up time, min., sec. |
5 |
|
Object type and size, approx., ft² / m² |
8 / 0.75 |
25.8 / 2.4 |
Detection, approx.*, yds / m |
2500 / 2290 |
3300 / 3000 |
Recognition, approx.*, yds / m |
450 / 400 |
800 / 730 |
Identification, approx.*, yds / m |
250 / 230 |
550 / 500 |
Dimensions w/out adaptor, in / mm (hand held mode / clip-on mode) |
6.61"x2.72"x2.95" / 168x69x75 7.10"x2.72"x2.95" / 180x69x75 |
|
Weight, approx., oz/g (hand held mode / clip-on mode) |
15.6 / 442 / 18.4 / 522 |
|
Power supply standard |
CR123 (two) |
|
Estimated battery life, hour |
up to 4 |
|
Operating temperature, °F/°С |
-4° to +122° / -20° to +50° |
|
Water intrusion |
IP66 |
|
Humidity, % |
Up to 98% |
KIT INCLUDES:
SUPER YOTER C™ 12μm VOx 640x480 Thermal Clip on
QR Weapon Mount with 2 screws BE80990
Front lens flip up protective cap
4.0x-12.0x Detachable eye piece with a rubber eye guard
Detachable Clip on mode connector piece
Soft Carrying Case
Lens Cleaning Cloth
Instruction manual
Video out Type C USB cable
Two CR123 Batteris
