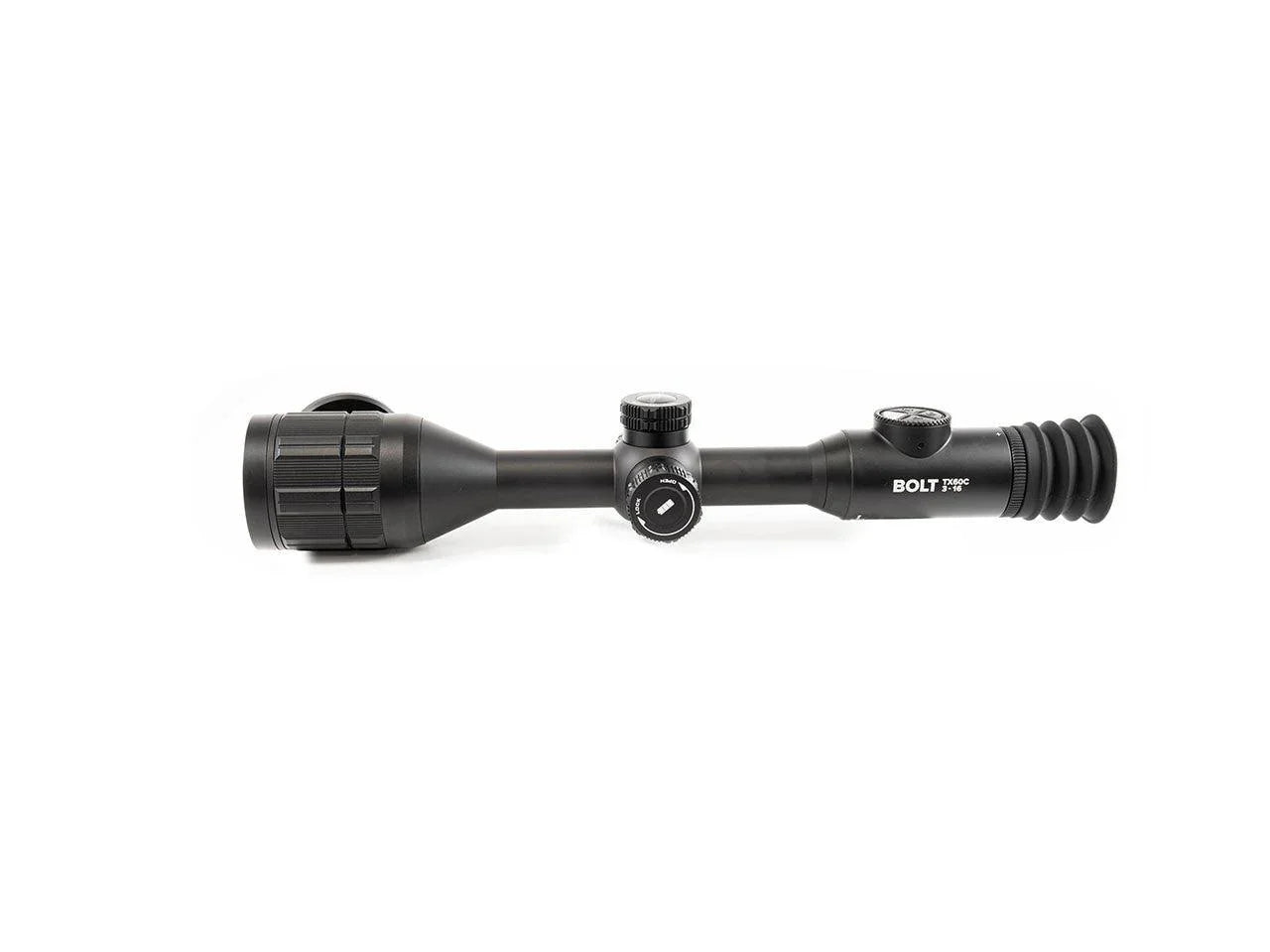

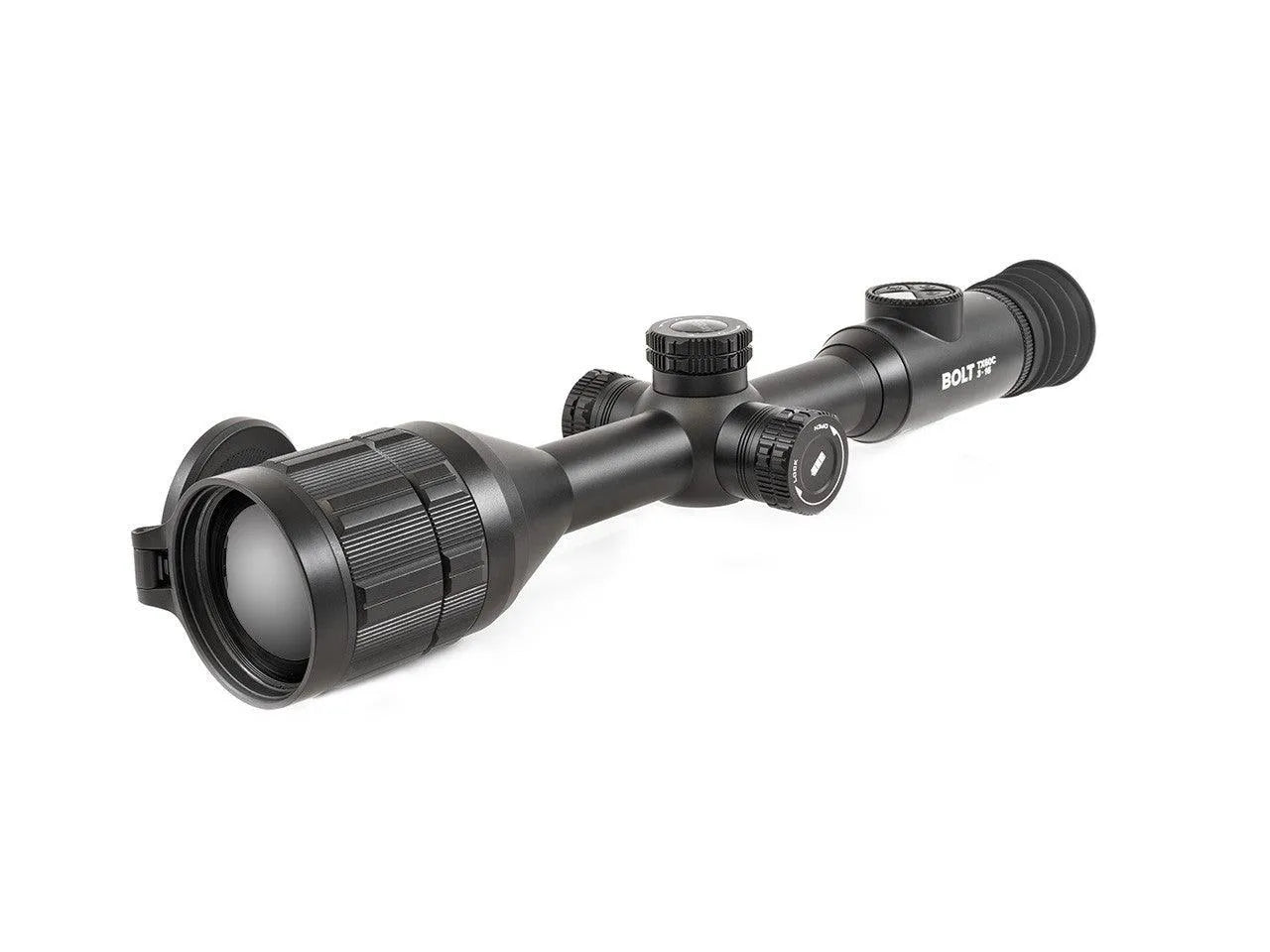

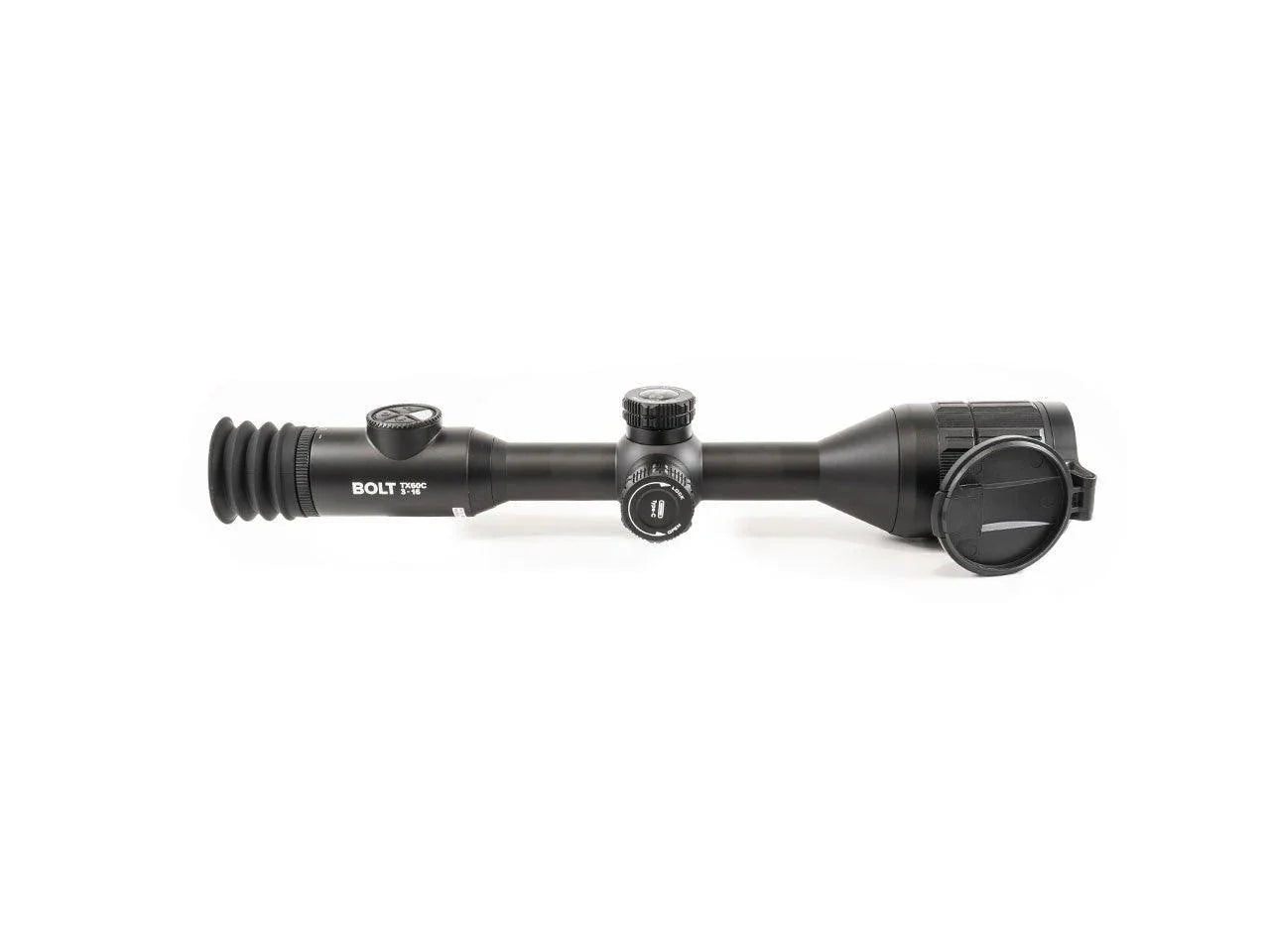

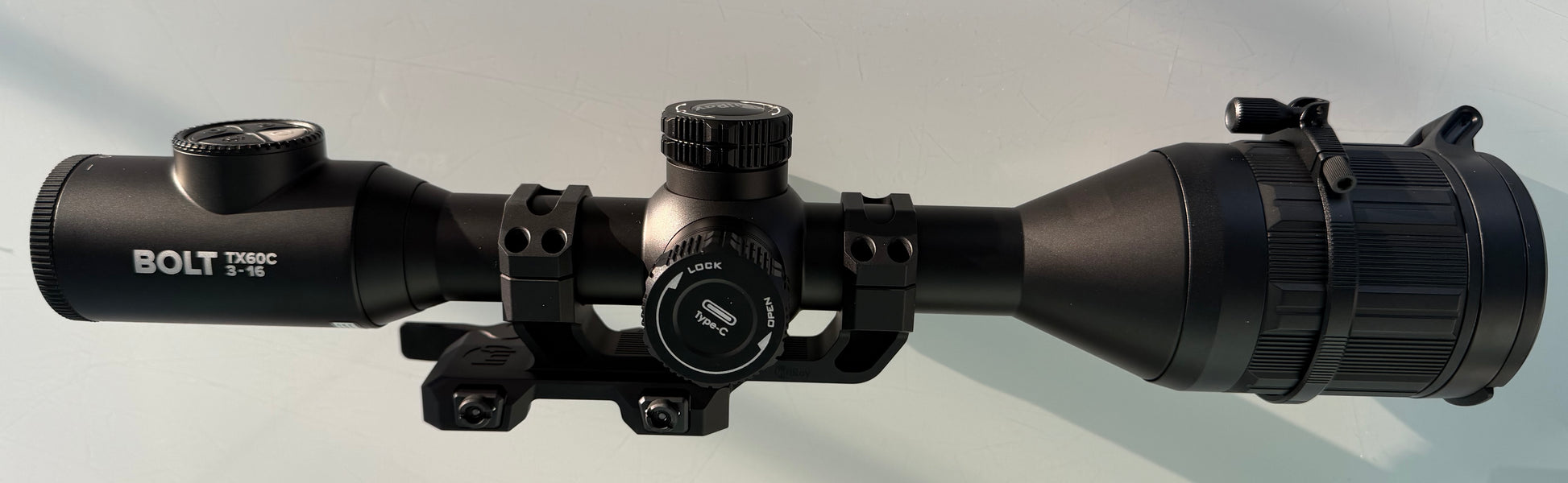

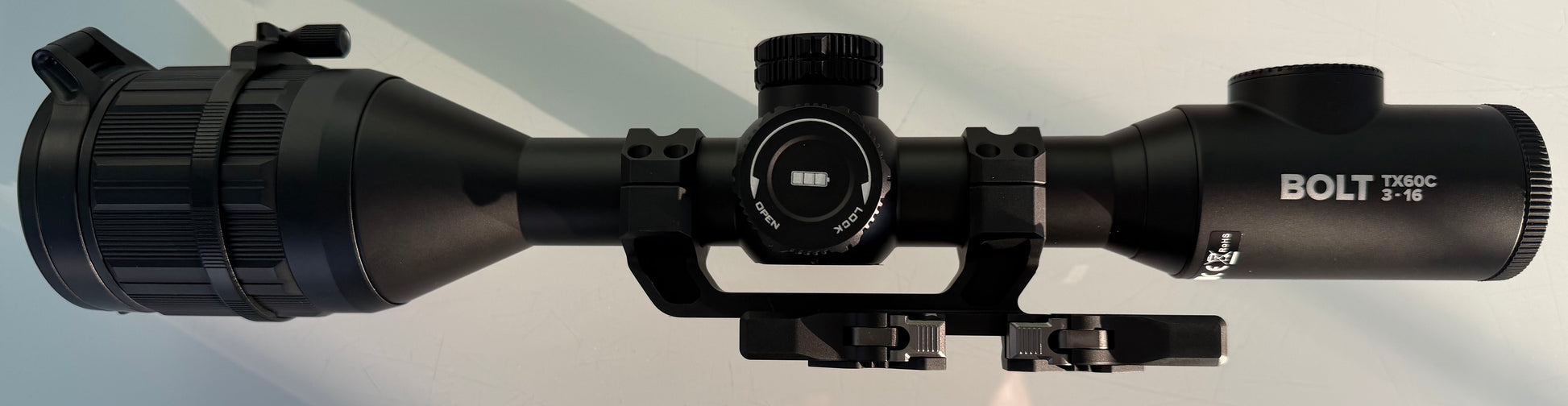

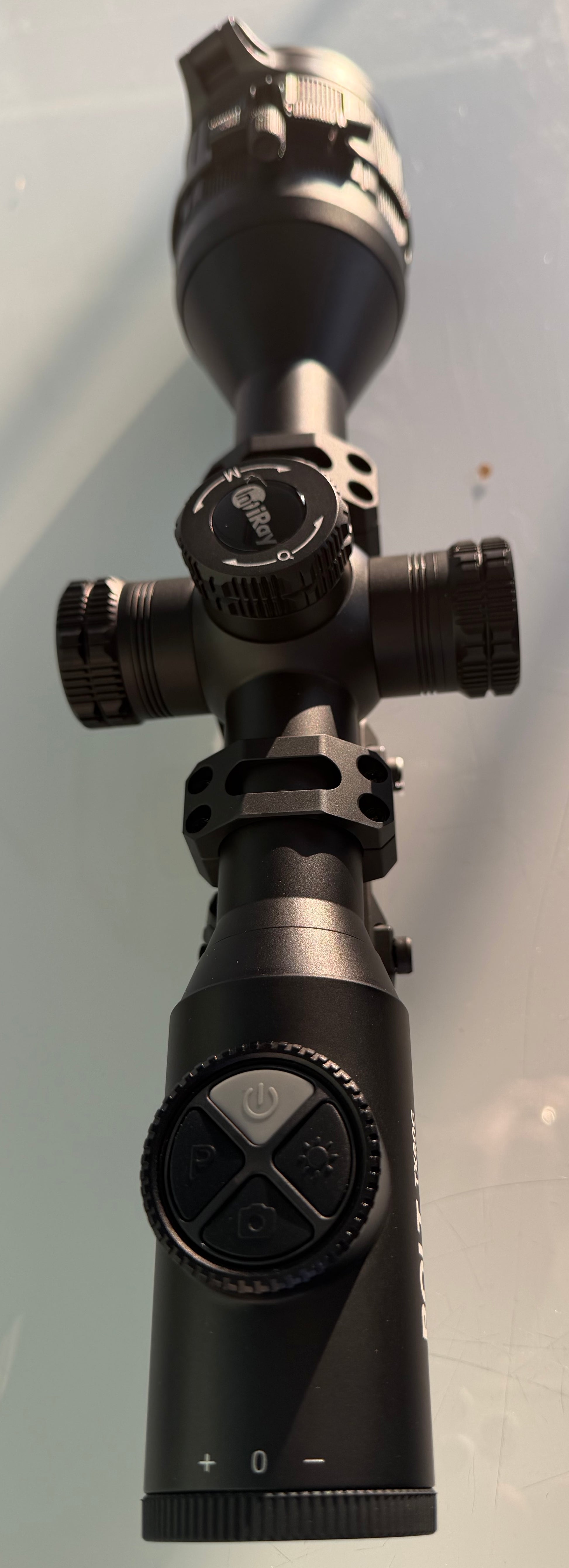

InfiRay Outdoor BOLT TX60C Thermal Weapon Sight 1024x1024/12um 50Hz 60mm 3x IRAY-TX60C

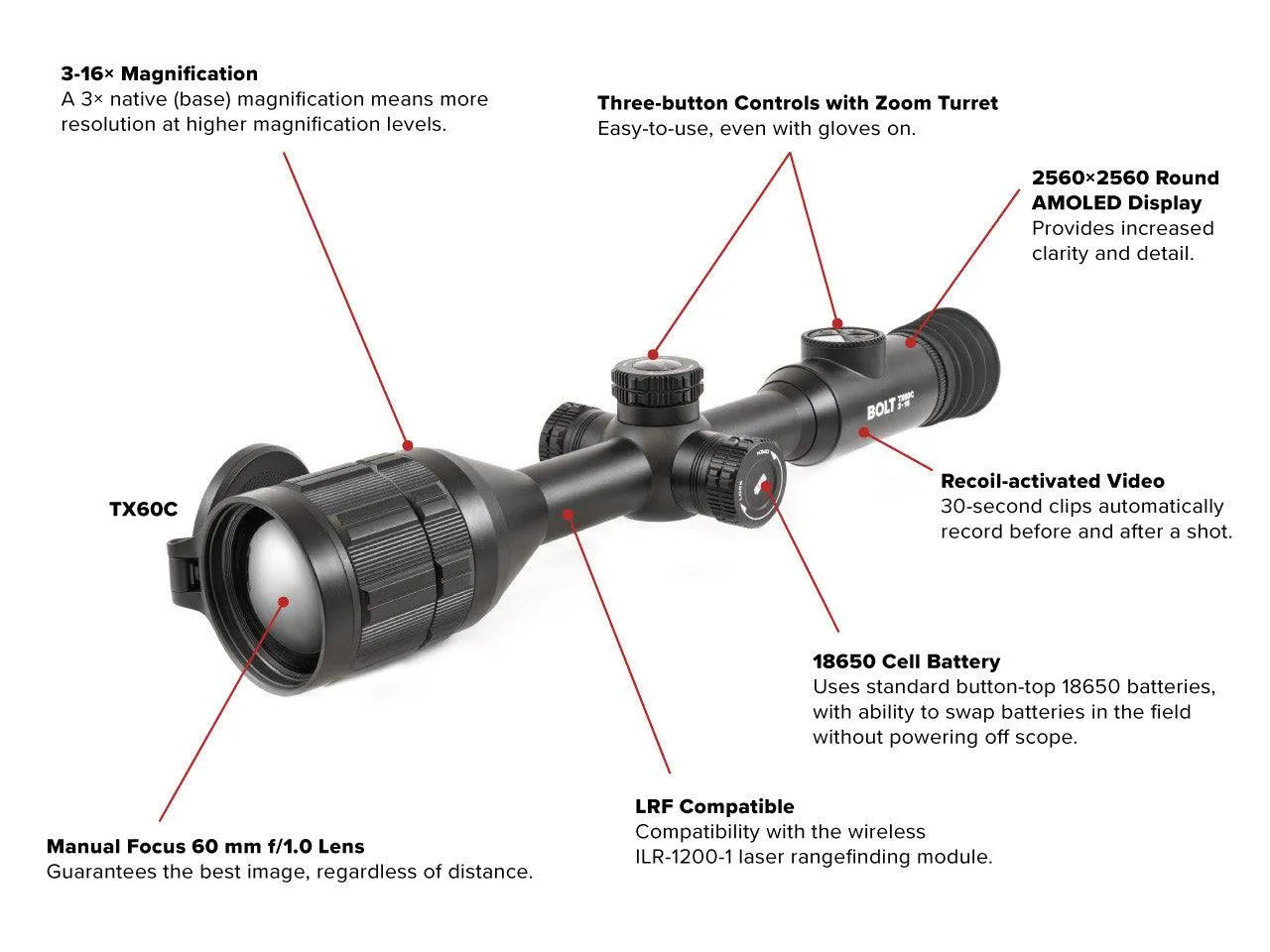

The BOLT TX60C offers hunters a high-resolution 1024×1024 InfiRay Micro II thermal sensor with a native 3x magnification and digital zoom up to 16x, making it ideal for predator hunting and long-range shots. The increased resolution, paired with a higher base magnification, ensures that less resolution is lost even at higher zoom levels. A fast f/1.0 germanium objective lens, ≤18mK sensitivity rating, and a round 2560×2560 AMOLED display provide exceptional detail and clarity for precise targeting.

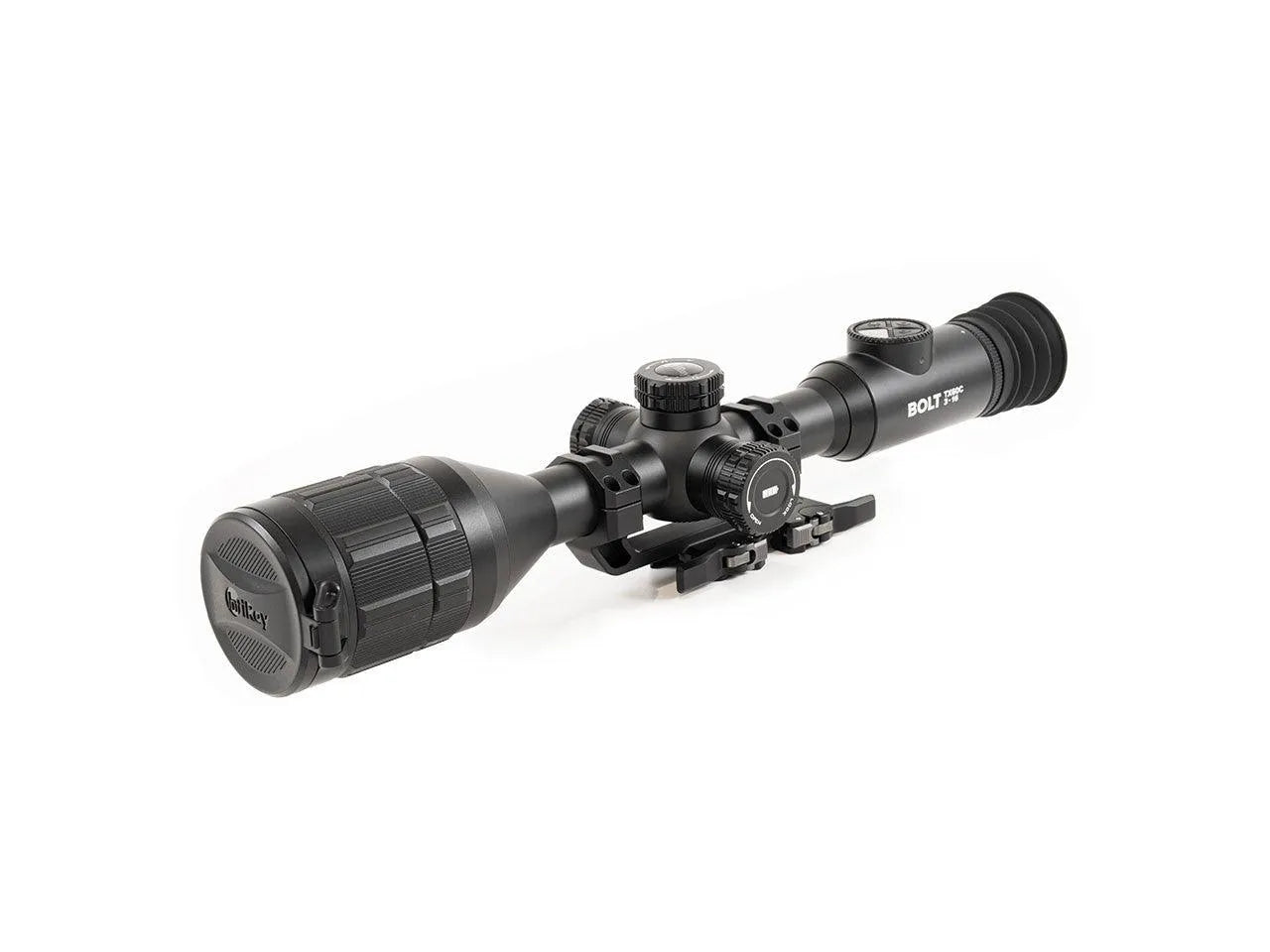

The round 30mm body design allows for easy mounting with the included one-piece cantilever mount or standard scope rings. When wirelessly paired with the ILR-1200-1 Laser Rangefinding module, the TX60C can display real-time range data on-screen and calculate firing solutions using customizable projectile data via the onboard ballistic calculator.

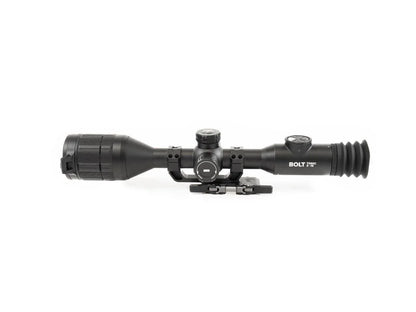

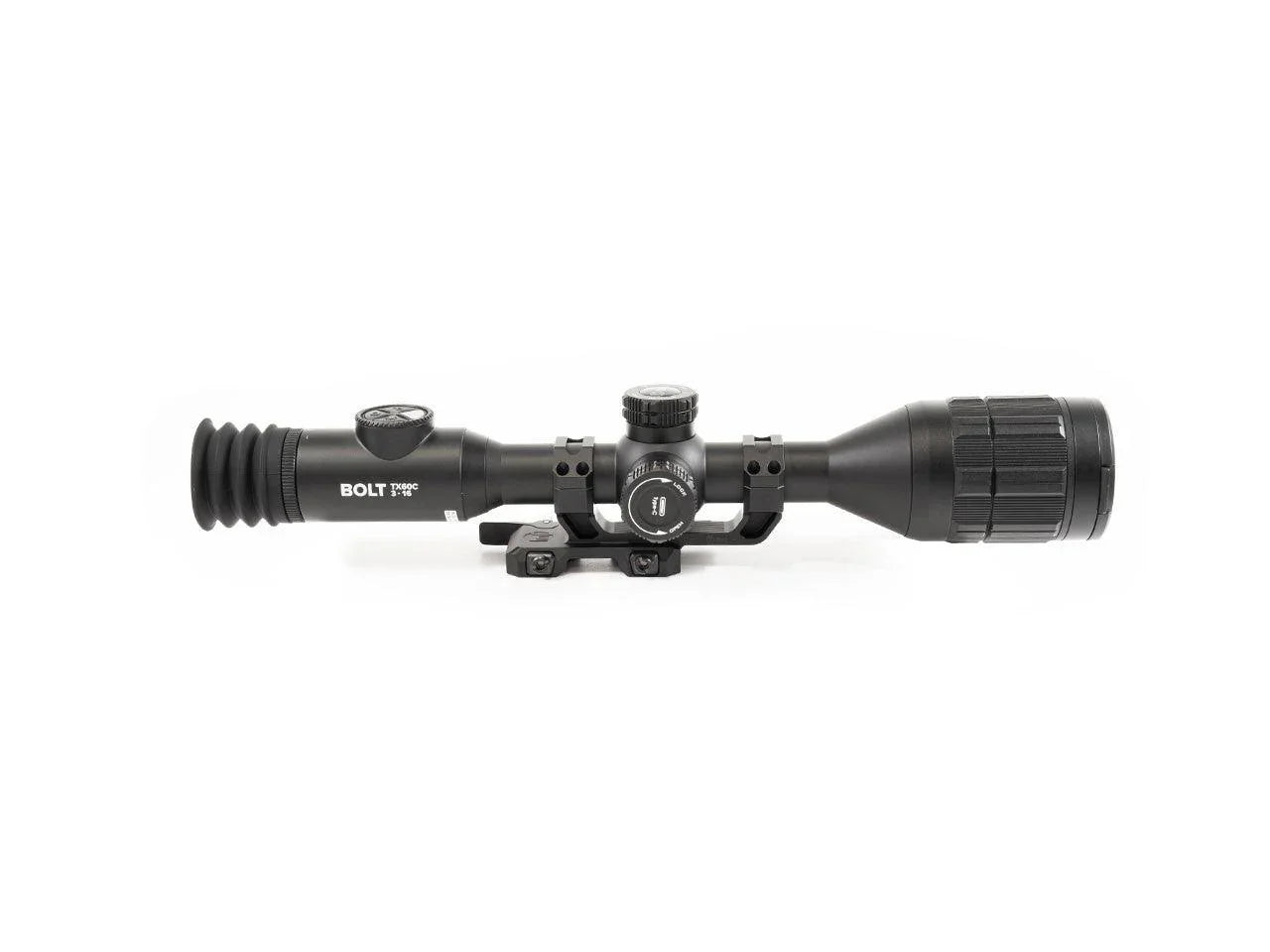

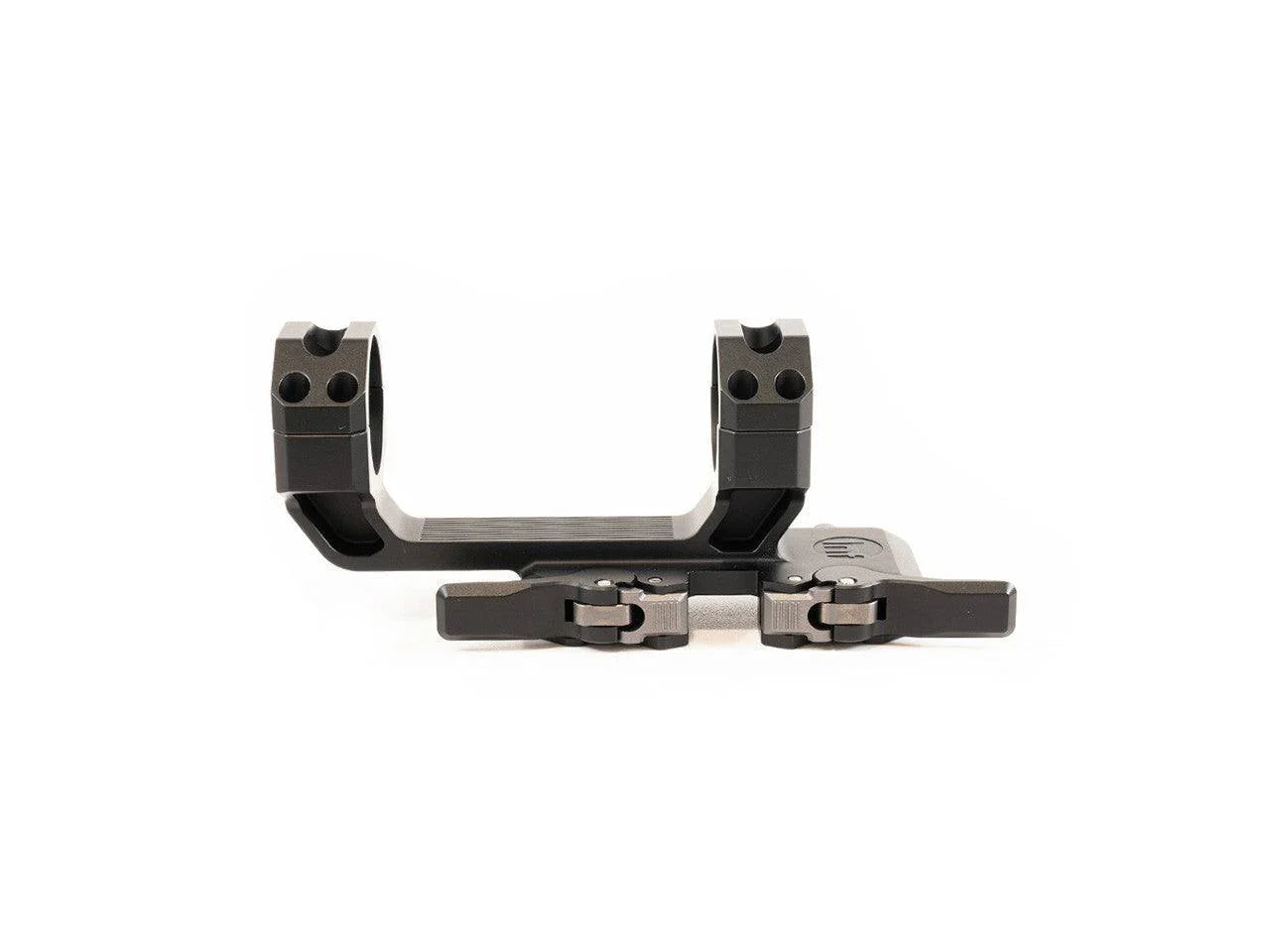

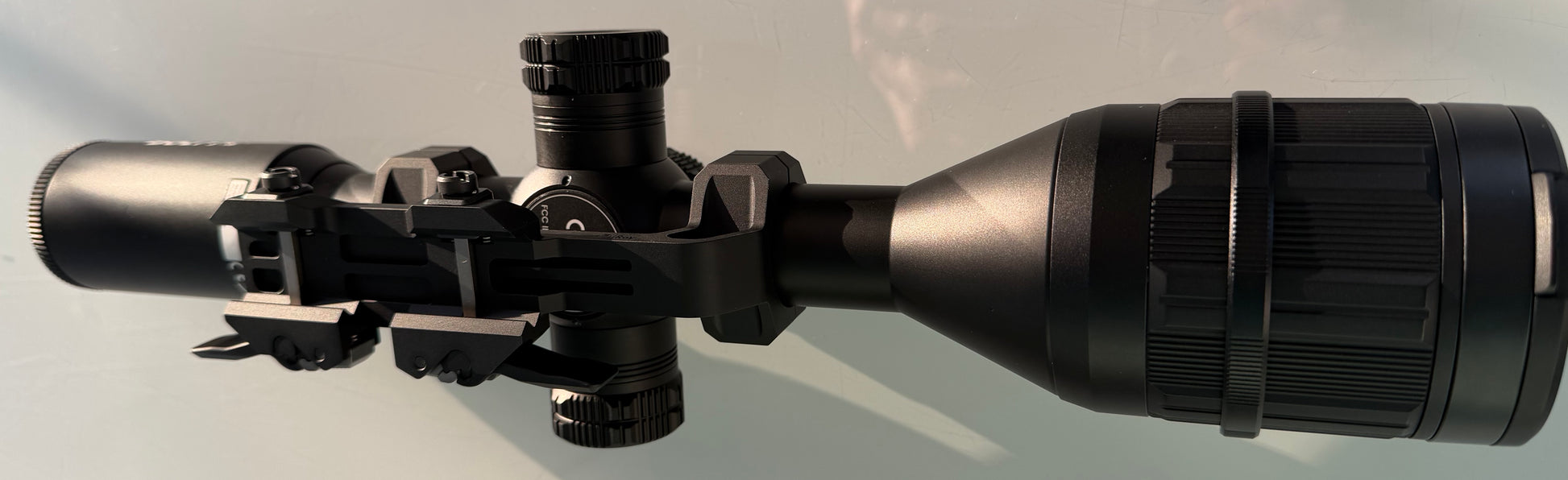

The TX60C comes with a 30mm one-piece quick-detach scope mount (AC112), featuring dual-locking levers to secure the scope on any rifle with a Picatinny rail. The QD design allows for quick swapping between thermal and day scopes or sharing the thermal optic across multiple rifles.

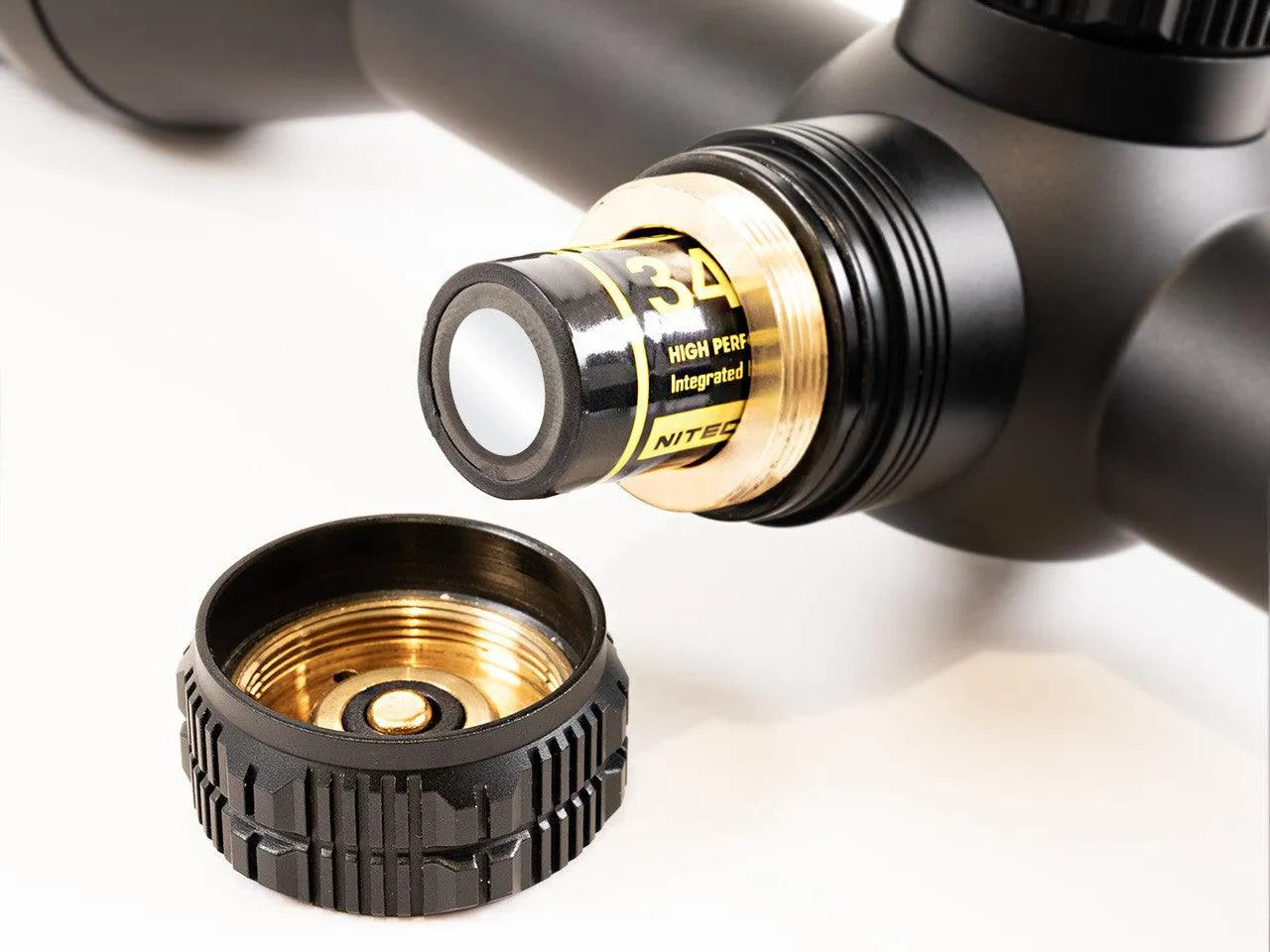

In a step forward from previous BOLT models, the TX60C now supports common 18650 cell batteries (button-top version) directly, without the need for an extension or adapter.
InfiRay Outdoor BOLT TX60C Features:
|
Device Technology:
|
Thermal Imaging
|
|
Objective Focal Length:
|
60mm
|
|
Sensor Resolution:
|
1024x1024
|
|
Detection Range:
|
2700 Yards
|
|
Sensor Pixel Size:
|
12μm
|
|
Sensor Frame Rate:
|
50hz
|
|
Optical Magnification:
|
3X
|
|
Digital Magnification:
|
4X, stepped
|
|
Objective Diameter:
|
60mm
|
|
Objective F#:
|
1.0
|
|
Onboard Recording:
|
Yes
|
Data Sheet
InfiRay Outdoor BOLT TX60C Specifications:
Optics:
Objective Focal Length
60mm
Detection Range
2700 Yards
Optical Magnification
3X
Digital Magnification
4X, stepped
Horizontal Angular Field of View
11.7°
Objective Lens Material
Germanium
Vertical Angular Field of View
11.7°
Objective Diameter
60mm
Objective F#
1.0
Focusing Mechanism
Manual Focus
Eye Relief
50mm
Diopter Range
-5 - +3.5
Display Type
AMOLED
Display Resolution
2560×2560
Features and Performance:
Reticle
7 (1 Dynamic, 5 Static, 1 DIY)
Color Palettes
White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian
Rangefinder
Bluetooth ILR-1200-1 LRF (Optional)
Stand-by Mode
Yes
Picture-in-Picture
Yes
Image Capture
Yes
Wifi
Yes
Mobile App
Yes
User-Updatable Firmware
Yes
Connector Type
USB-C
Connector Output
Power/Data
Storage Capacity
128GB
Onboard Recording
Yes
Power Source
USB-C External, 18650 Battery
Run Time
8+
External Power Source
USB-C
Warranty
5 Years
Startup Time
<10 Seconds, Instant from Standby
Country of Manufacture
China
Environmental Specifications:
Operating Temperature Range
-4°F~122°F
Ingress Protection
IP67
Recoil Rating
1000 g/s² (300 Win./7mm Mag)
Physical:
Length
15.12
Weight
35.27 Oz
Height
3.03
Width
4.09
Mounting Interface
Picatinny MIL-STD 1913 Rail
Housing Material
Aluminum
Sensor Specifications:
Device Technology
Thermal Imaging
Sensor Type
InfiRay MICRO II
Sensor Resolution
1024x1024
Sensor Pixel Size
12μm
Sensor Frame Rate
50hz
Thermal Sensitivity
<18mk
Non-Uniformity Correction (NUC)
Manual, Automatic, Semi-Automatic
The BOLT TX60C rifle scope ships with everything you need to get out and hunt.
• BOLT TX60C Thermal Imaging Rifle Scope

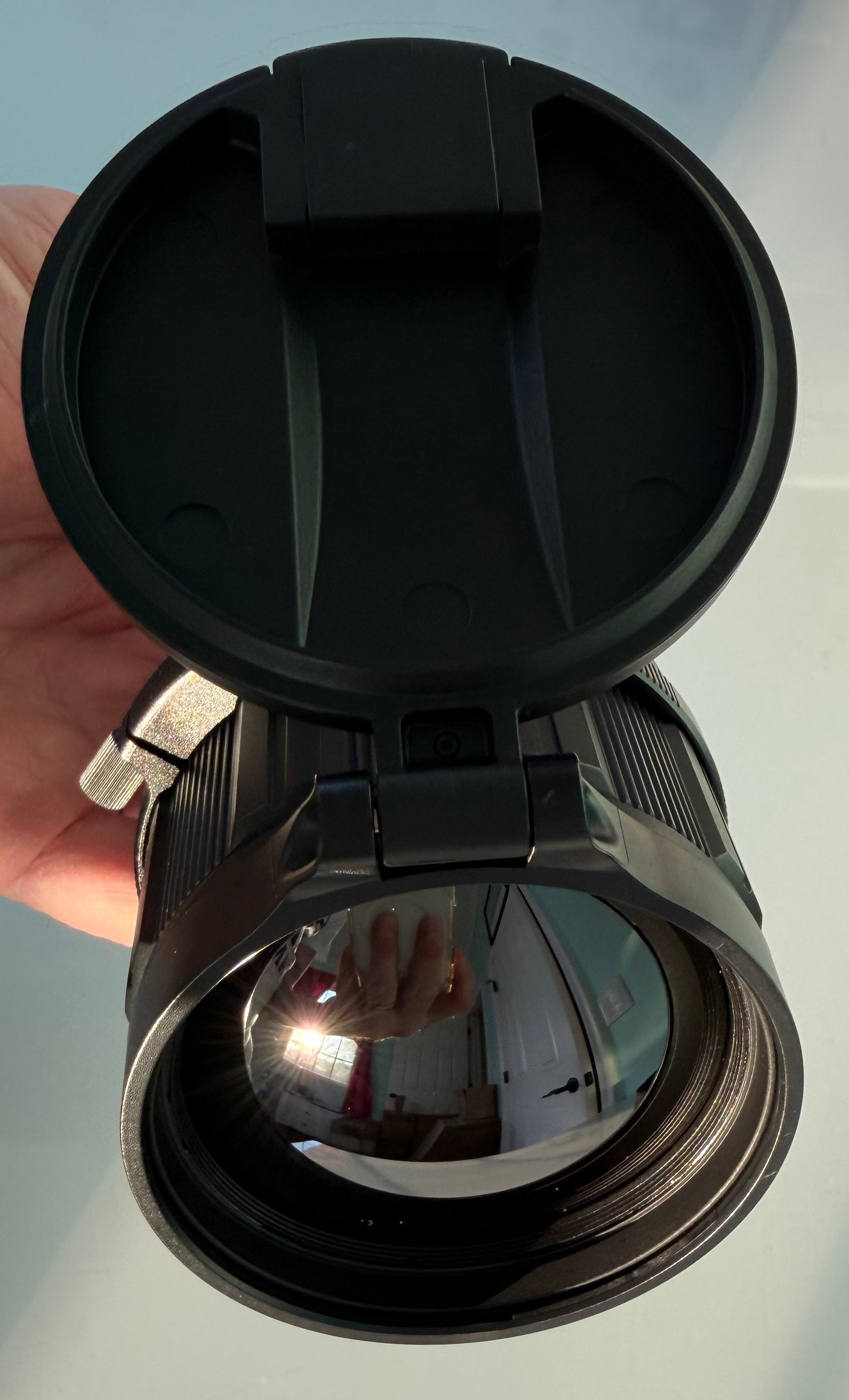

• Objective Lens Cap
• Eyeguard
• IRAY-AC112 30.mm One-Piece Scope Mount

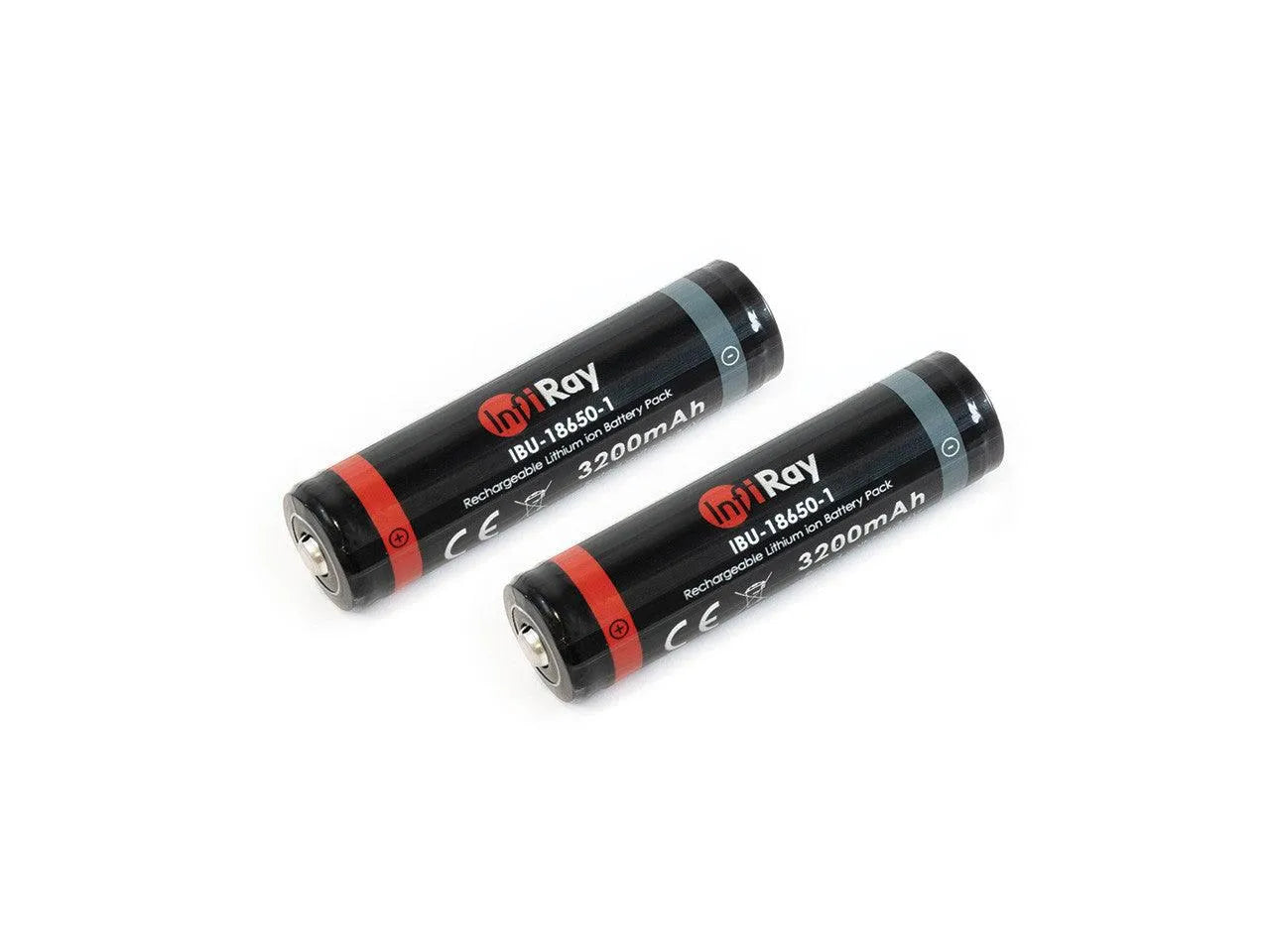

• 18650 Battery Å~2
• Battery Charger
• USB-C Cable for Data/Video
• USB Power Adapter
• Lens Cloth

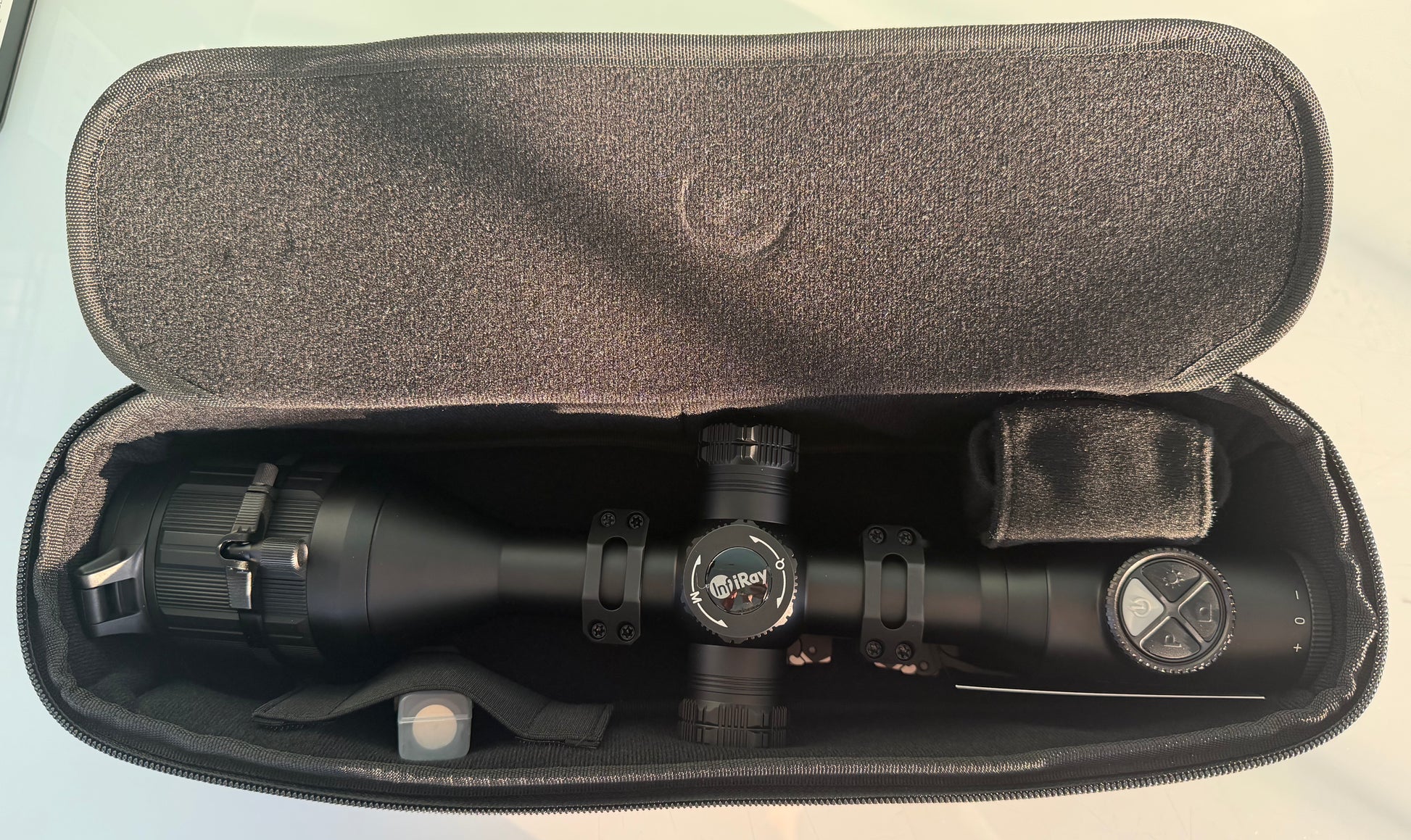

• Soft Case
• User Manual
EXPORT RESTRICTION
Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
