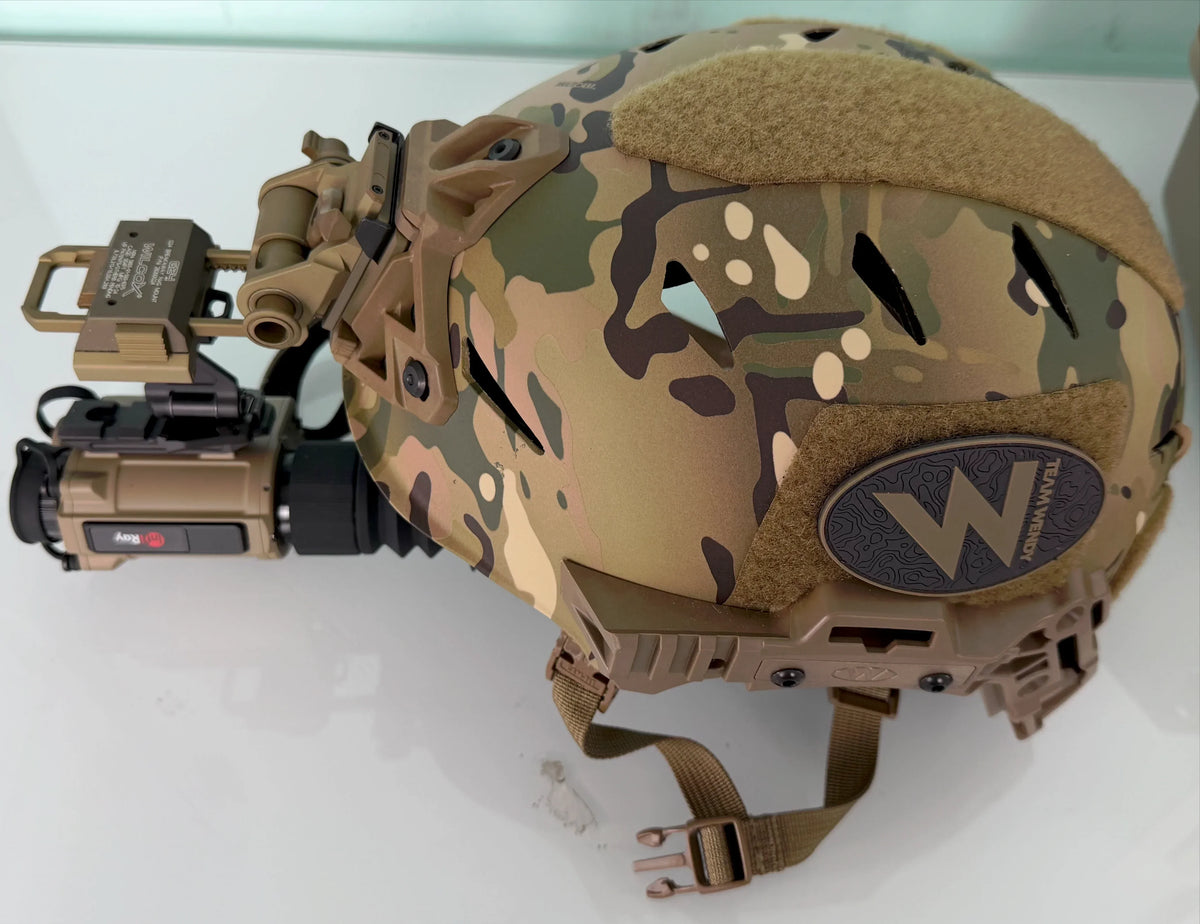

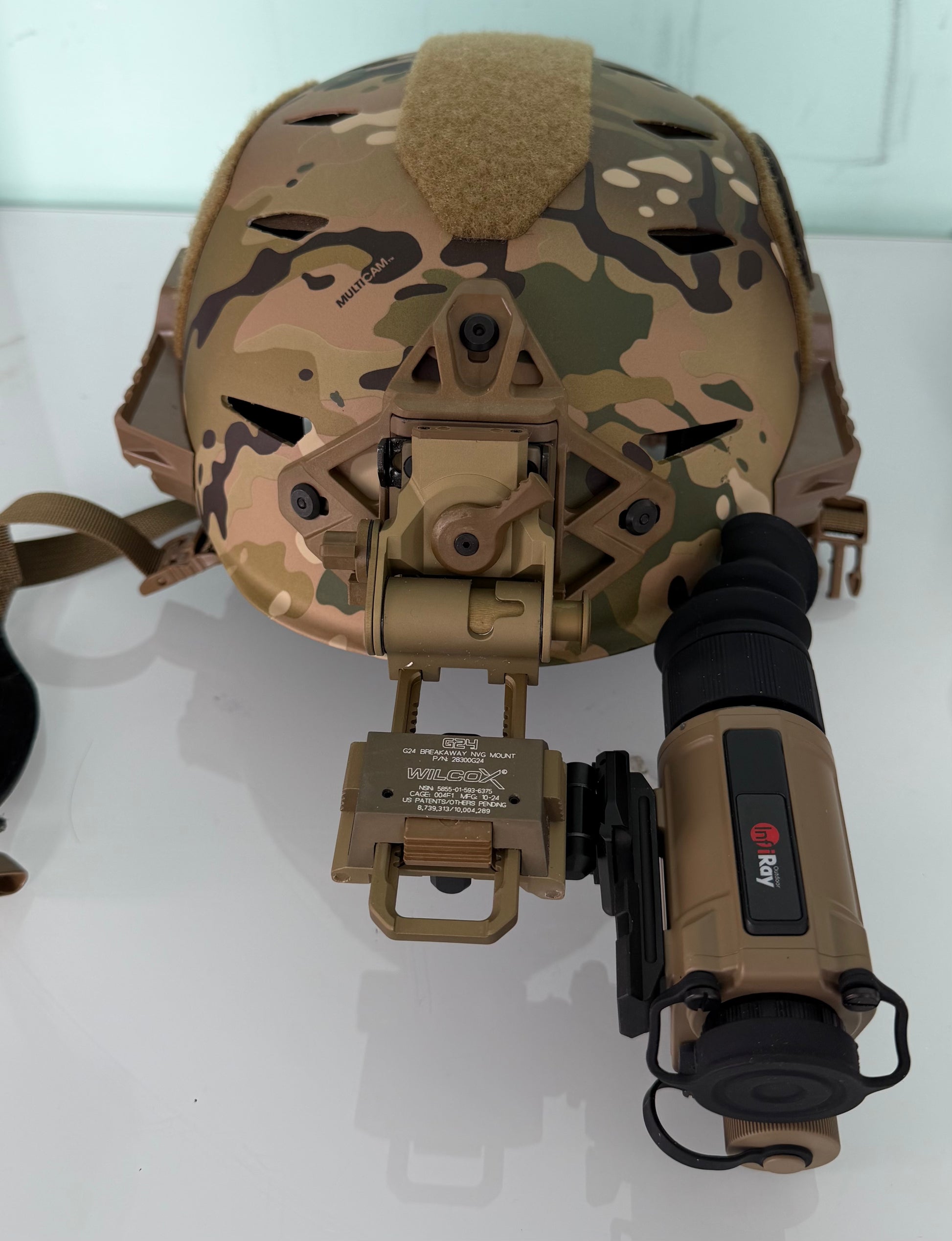

InfiRay Outdoor RICO MICRO V2 640x480 12 Micron 60hz 25mm Multi-Purpose Thermal Monocular IRAY-RH25V2 Full Helmet Setup!! - DEMO
😊Feel free to text me at 412-573-9059 for the best service.😊
🔥One left🔥

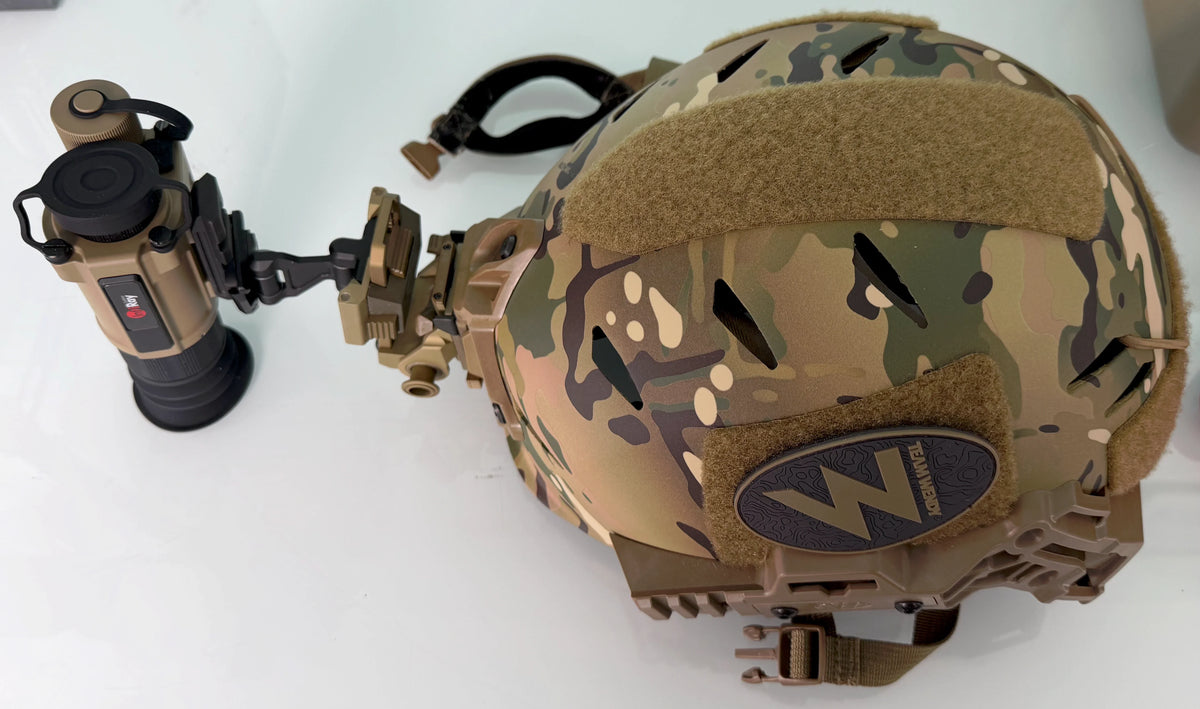

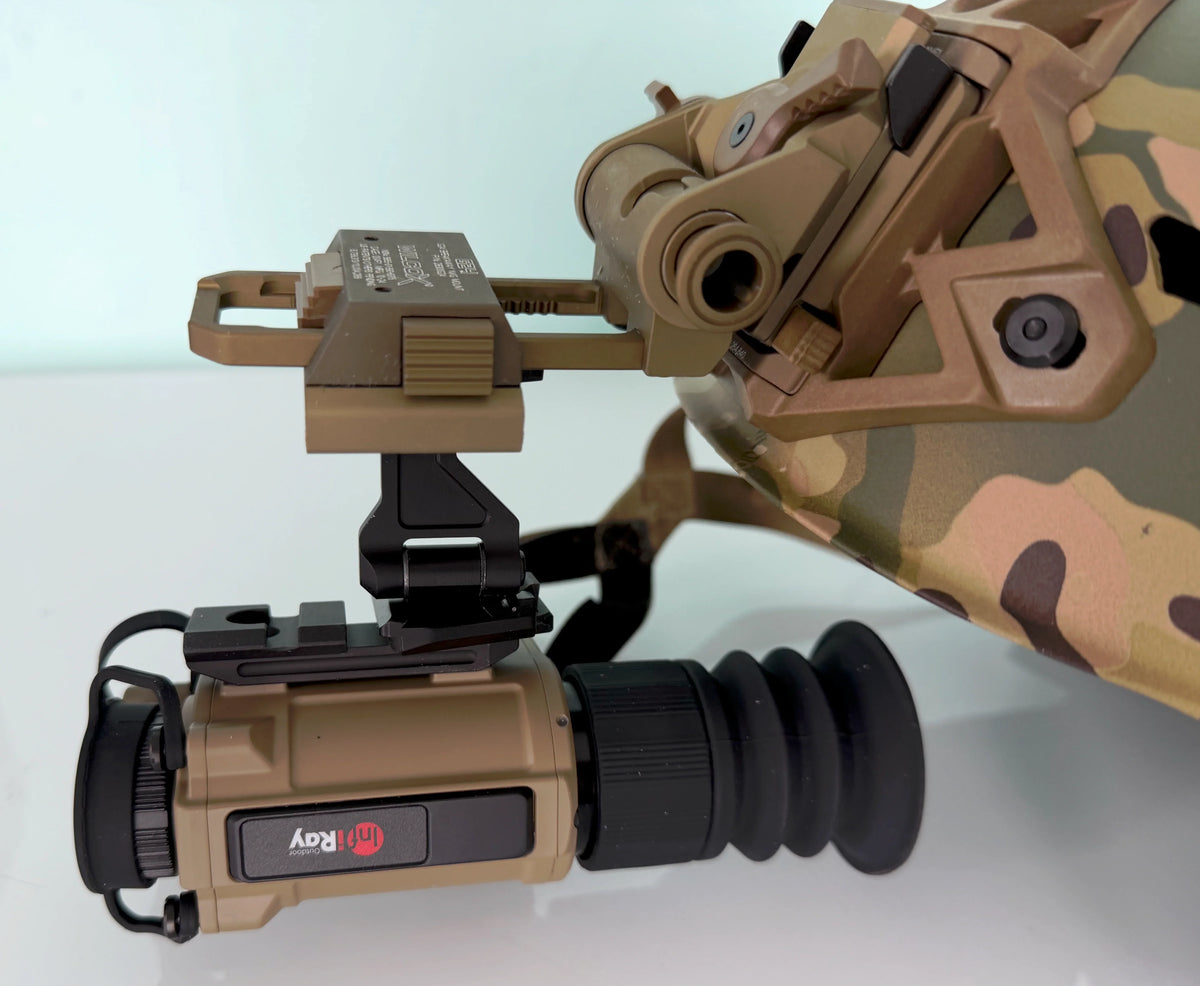

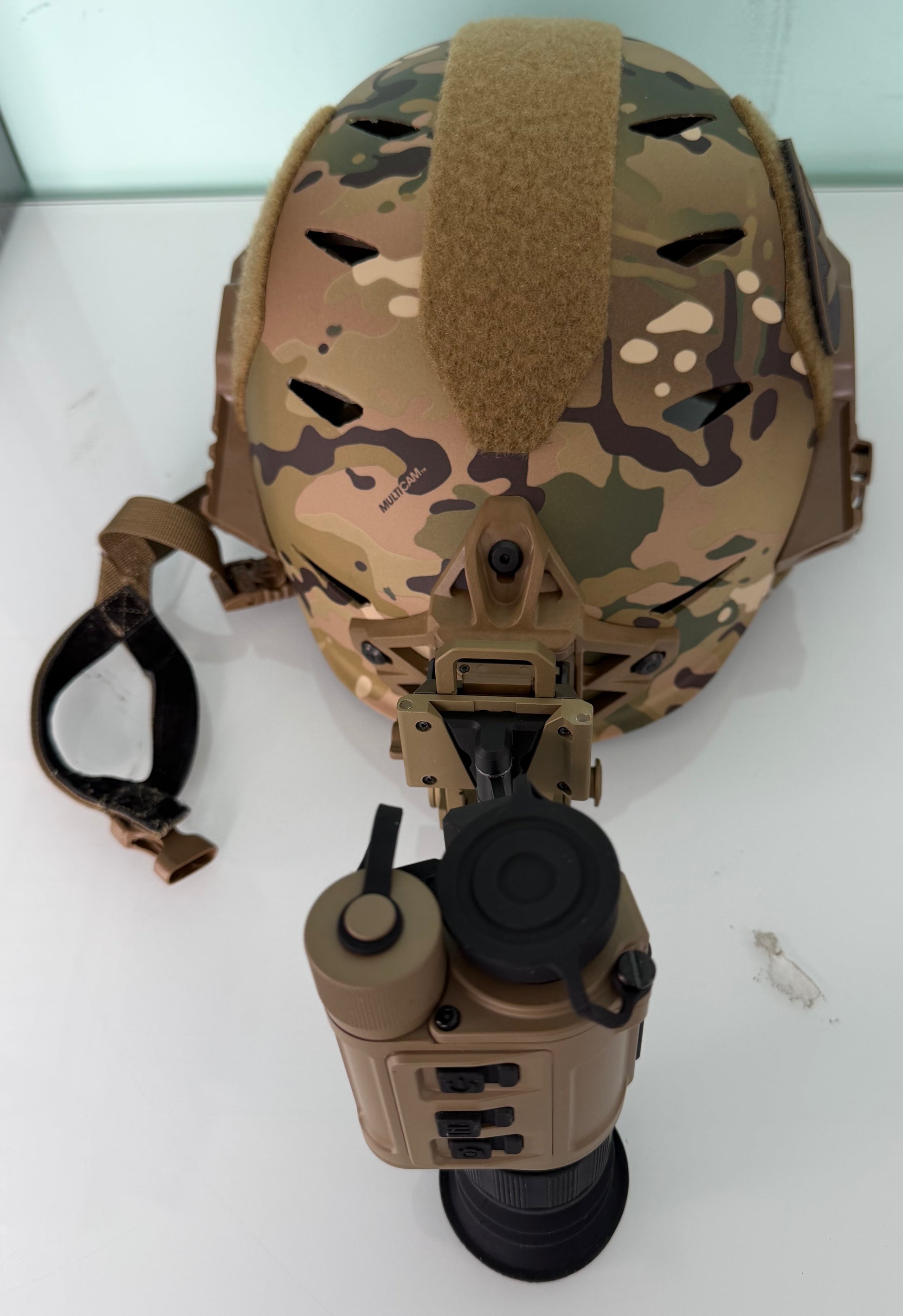

What you get:
InfiRay Outdoor RICO MICRO V2 Thermal Monocular

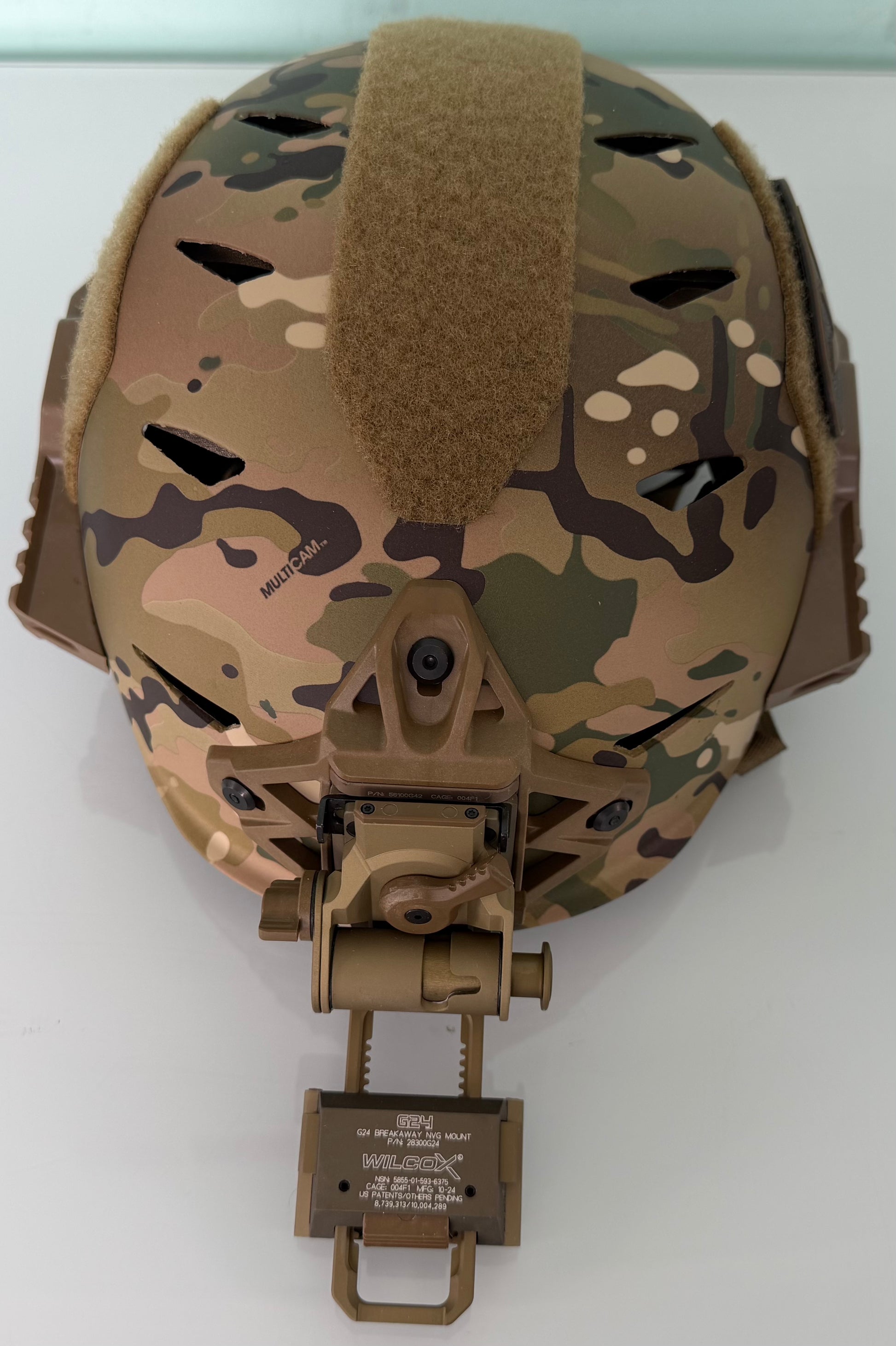

TEAM WENDY EXFIL CARBON: w/ New Upgraded RAIL 3.0. Size - M/L
Wilcox L4 G24 Helmet Mount
DMAX14 Thermal J-Arm (Dovetail Style)
iRayUSA RICO MICRO PICTAIL Helmet/Weapon Shoe
For more info on each item, please see below.

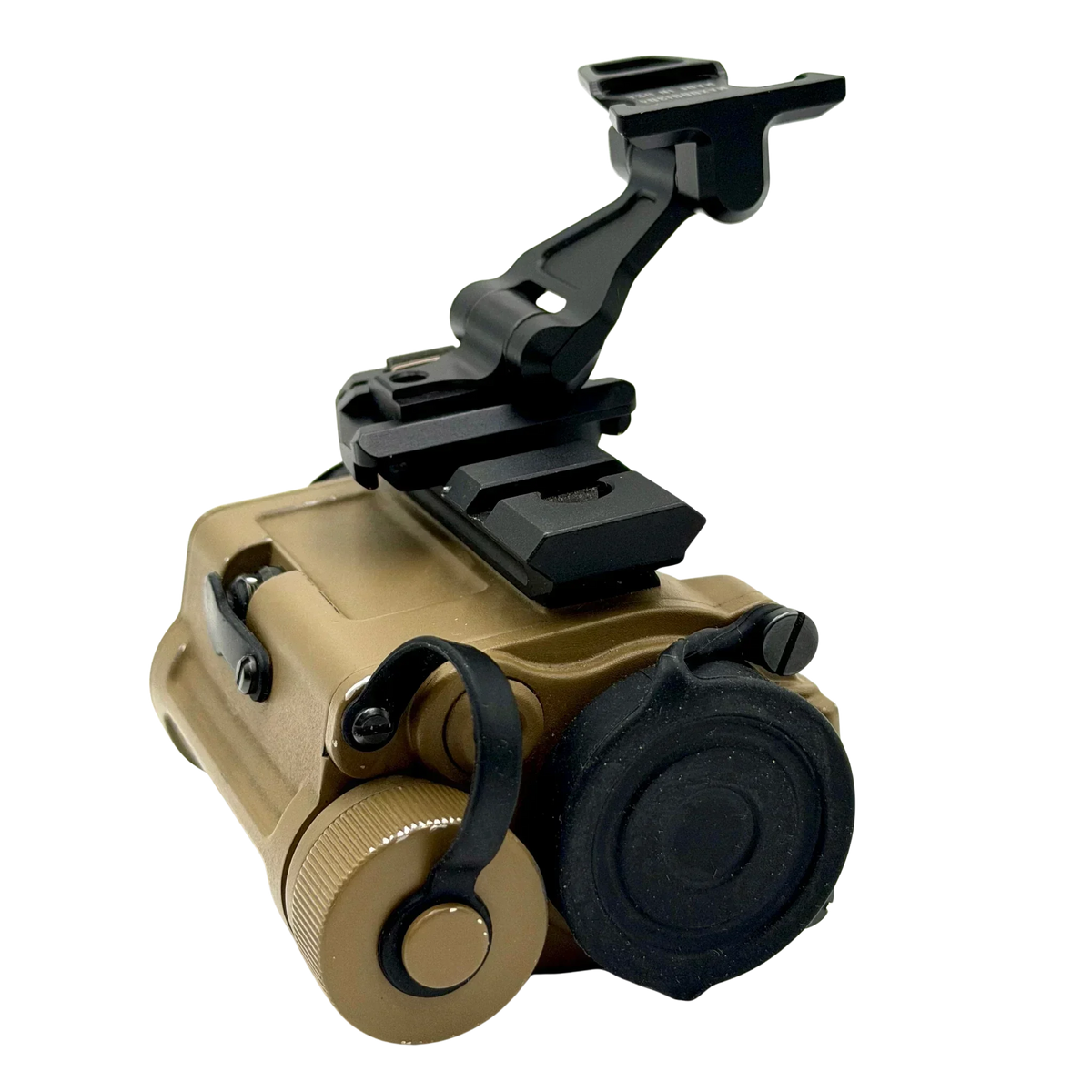

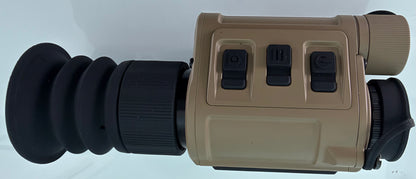

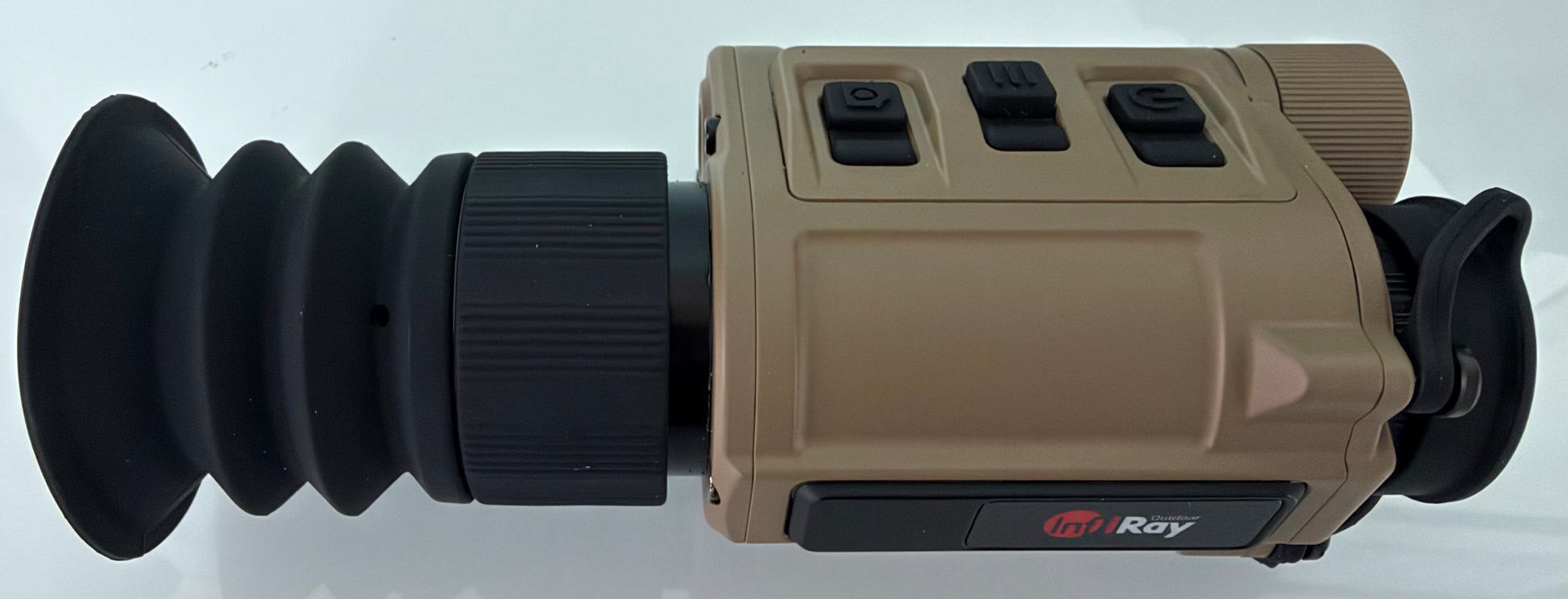

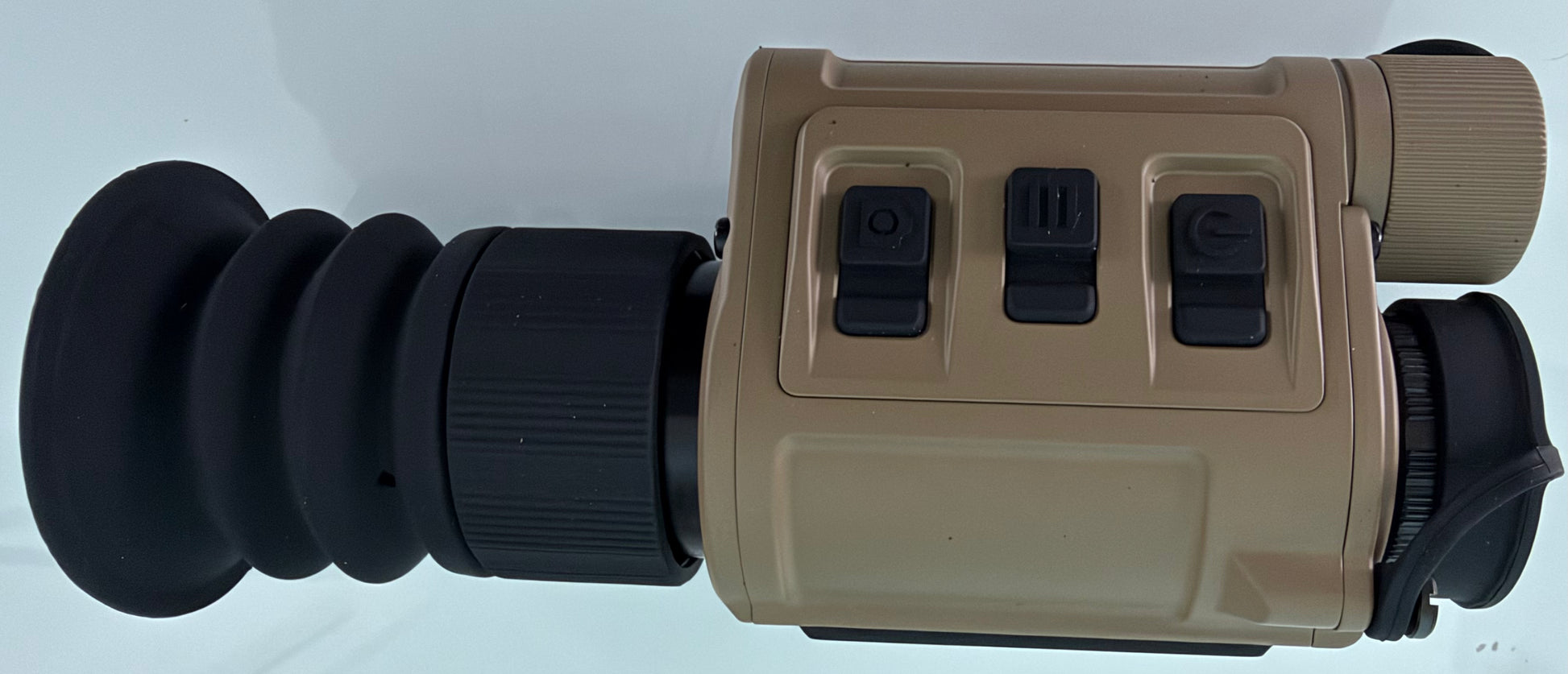

InfiRay RICO Micro RH25 V2:
The RICO MICRO has long been recognized as one of the most powerful and versatile thermal optics available, and the new RH25 V2 builds on that reputation with key upgrades and user-requested features. This latest evolution retains its compact form factor while adding system enhancements to improve image quality and ease of use. The RH25 V2 remains as versatile as ever, functioning as a handheld scanner, helmet-mounted monocular, weapon sight, or thermal clip-on.
New to the RH25 V2 is a machined magnesium alloy housing, reducing weight for easier handling. The addition of a USB-C port simplifies file transfer and allows external power via a battery pack. The internal video recorder now supports crisp audio and includes 64GB of internal storage for extended recording capability. The 1440×1080 AMOLED display has been upgraded, providing a viewing area that's 80% larger than the previous model and with 97% more total pixels, paired with a new eyepiece that ensures more comfortable viewing and supports clip-on compatibility with day optics up to 6x magnification.
The MICRO V2 is powered by InfiRay's latest 12 µm sensor, features an improved NETD rating of ≤18mK, and uses a manual-focus f/1.0 objective lens, creating unparalleled image clarity in its class.
InfiRay Outdoor RICO MICRO V2 RH25 Features:
• High-performance 12 .m InfiRay Micro II thermal sensor
• High-resolution AMOLED display
• Maximum .15 mK sensitivity
• 1x to 4x digital zoom magnification
• 1375 yard detection range
• 60hz image refresh rate
• Recoil activated video
• 64 GB internal storage
• Record up to 1600 images and 40 hours of video
• Built-in Wi-Fi module
• Mobile device App compatible
• Built-in microphone
• Digital compass
• Multiple zero profiles and ranges
• Multiple reticle types and color options
• Defective pixel correction
• Extended eye relief
• Cold and warm image temperature options
• Lightweight and compact design
InfiRay Outdoor RICO MICRO V2 RH25 Specifications:
SENSOR
Resolution 640x480
Pixel Size 12 .m
Frame Rate 60hz
Image Processing MATRIX III
Sensor Sensitivity .15 mK
Core InfiRay Micro II 640
OPTICS
Objective Lens 25 mm f/1.0
Magnification 1.36x
Digital Zoom 4x
Field of View 17.5° x 13.1°
Detection Range 1375 Yards
Display Type AMOLED
Display Resolution 1440x1080
Color Palettes White Hot, Black Hot, Red Hot, Color
Reticle Types 7
Reticle Colors Black, White, Red, Green
Mounting System MUM Rail, Picatinny MIL-STD-1913 Rail,
PICTAIL (Optional/Not Included)
Working Modes Standalone, Handheld, Helmet, Clip-on
P.I.P No
Rangefinder No
Eye Relief 45 mm
Diopter Range -5 to +2
ELECTRONICS
Onboard Recording Video, Recoil-Activated Video, and Image
Onboard Storage 64 GB
Wireless Connectivity Video and Image via App.
Data Connector USB-C
Power Supply 18650 Batteries x2 (6.5+ Hours Each)
Start Up Time .5 Seconds, Instant from Standby
PHYSICAL
Size 4.52” x 2.55” x 1.88”
Weight 11.3 Oz
Housing Color Cerakote FDE H-256
ENVIRONMENTAL/WARRANTY
Manufacturer Warranty good through September 2030
Housing Material Magnesium
Ingress Protection IP67
Operation Temperature -4°F~122°F
Max. Recoil 1000 g/s° (300 Win./7mm Mag)

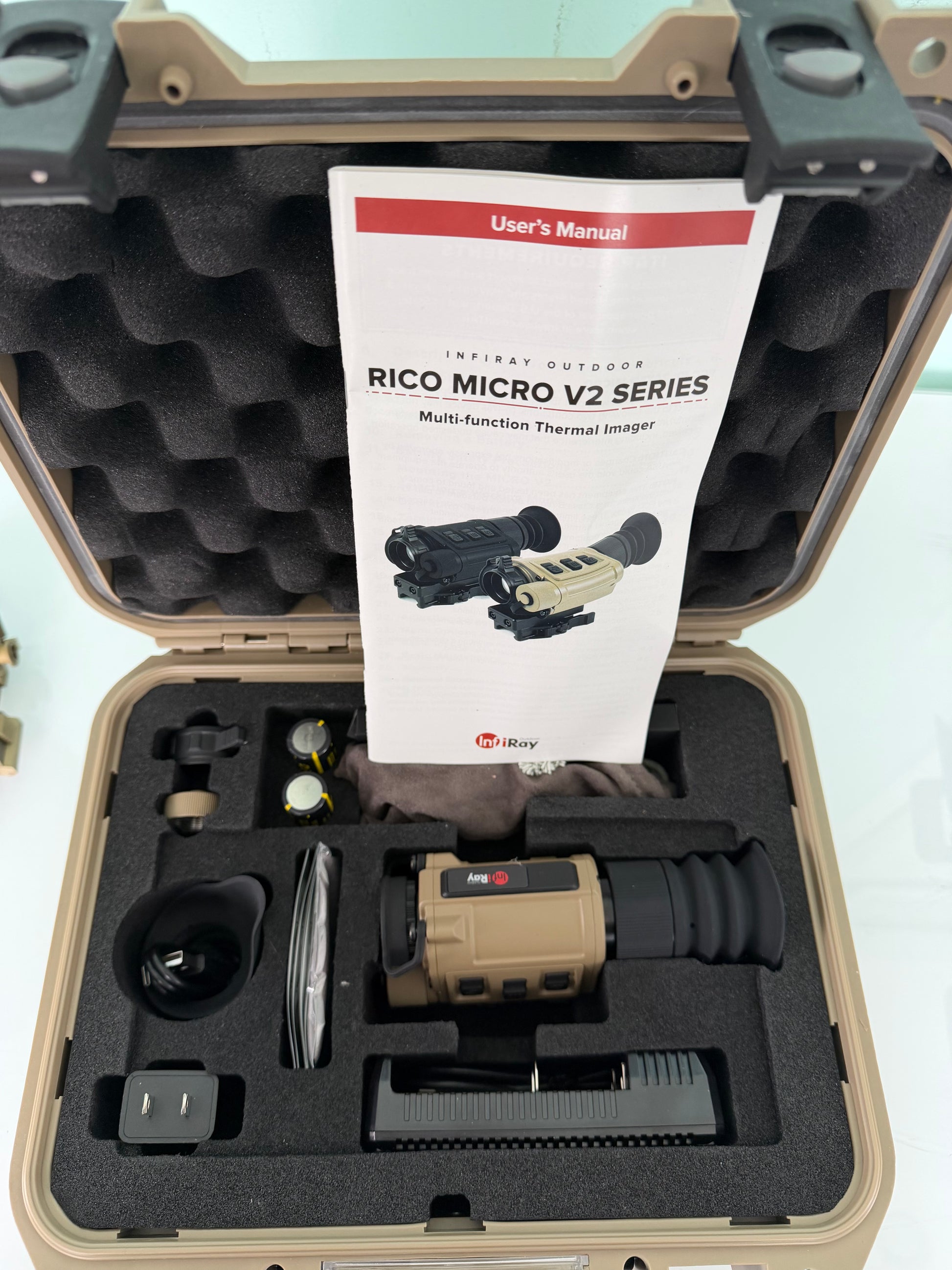

The RICO MICRO V2 Series ships with everything you need to get out and hunt. The included items are as follows:
• 25mm Objective Lens Cap
• Eyeguards x2
• OEM Rifle Mount (1.93 inch)
• M4x8mm Flat Head Screws (2)
• 2.5mm and 3mm Hex Keys
• Lens Lever
• Bluetooth Remote
• 18650 Batteries x2
• 18650 Battery Charger
• Battery Cap for Short 18650 Battery
• USB-C Cable
• USB Power Adapter

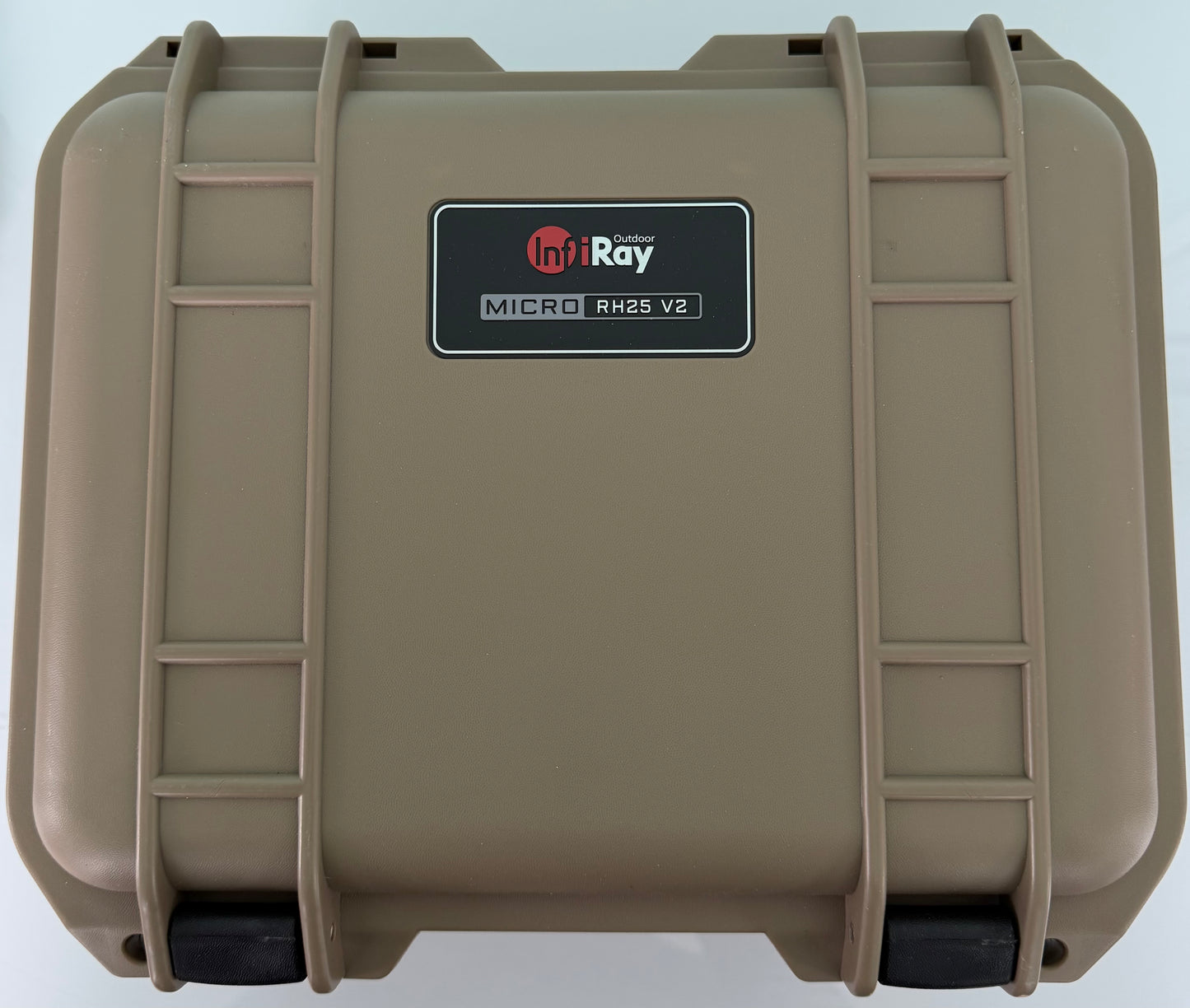

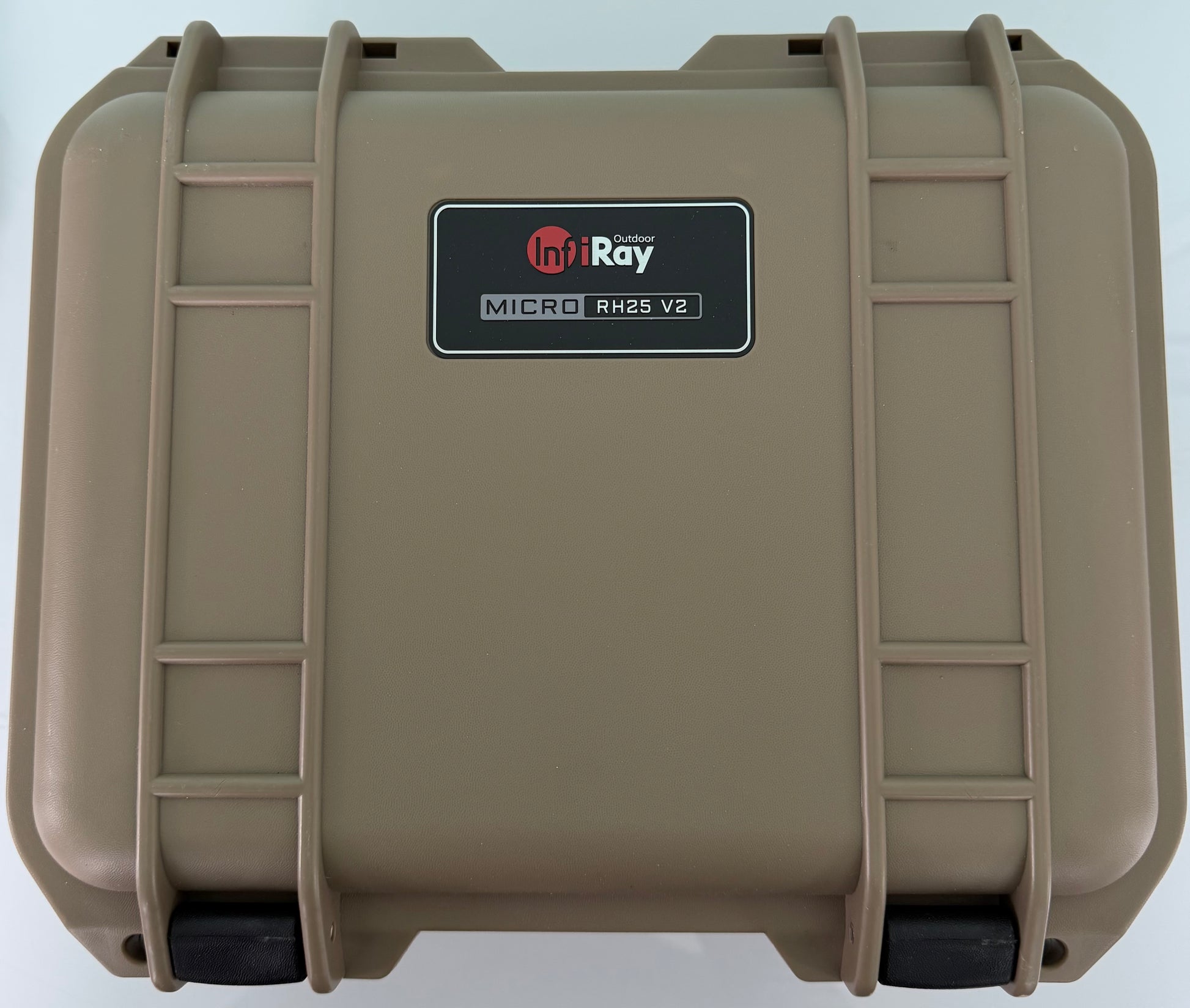

• Hard Case
• Lens Cloth
• User Manual

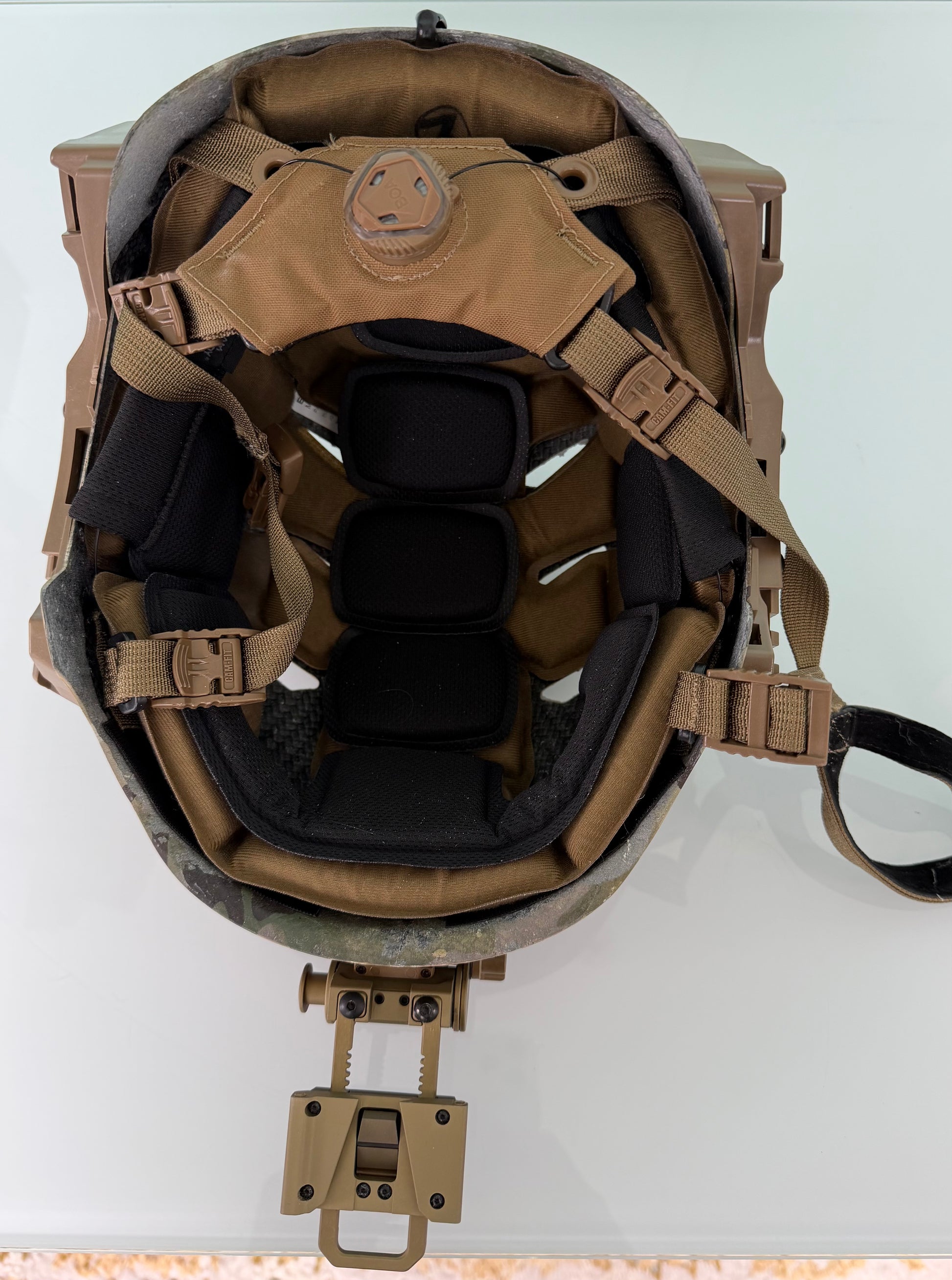

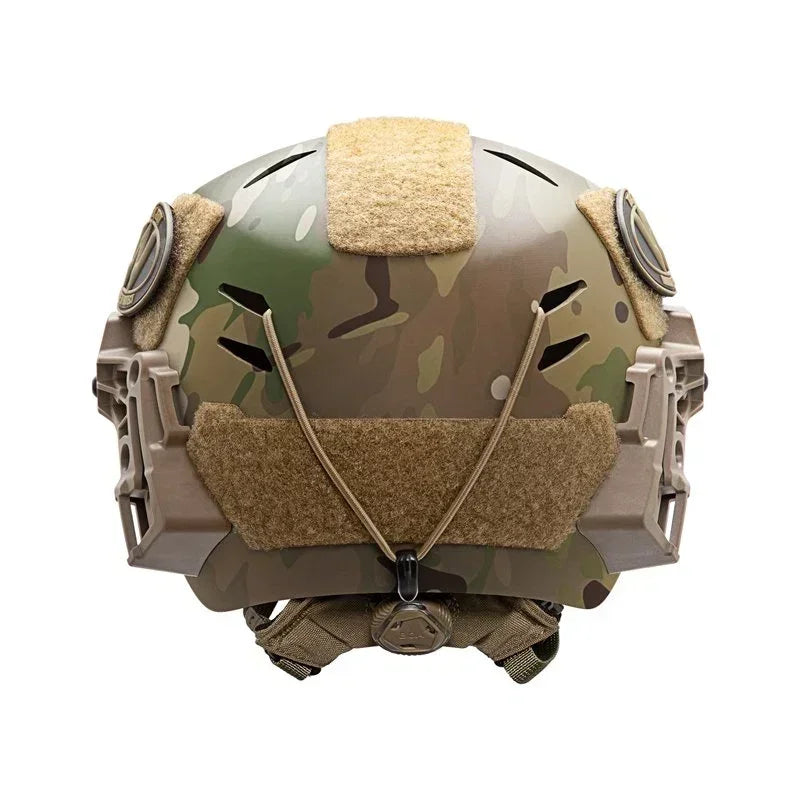

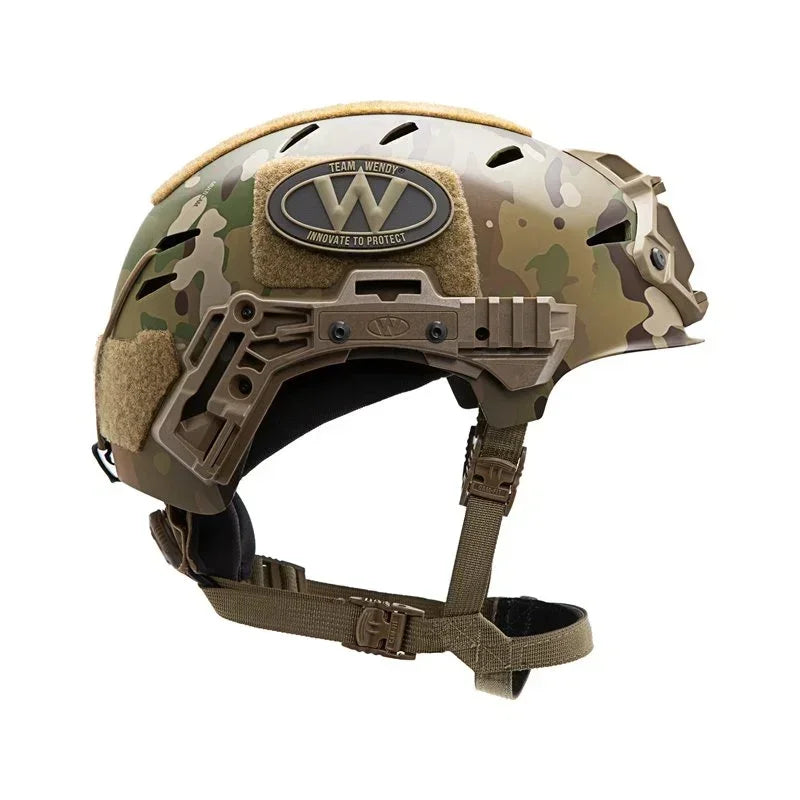

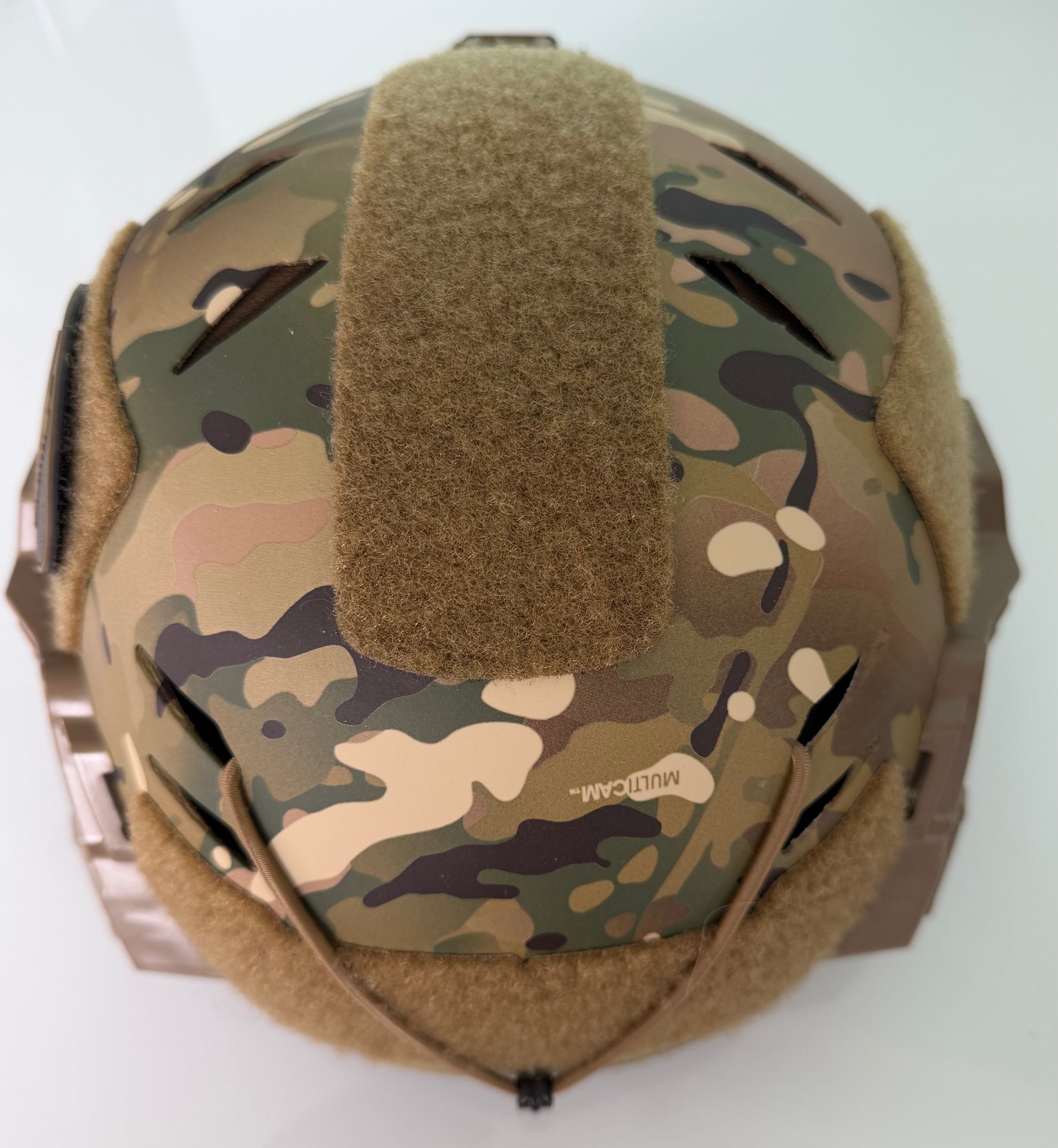

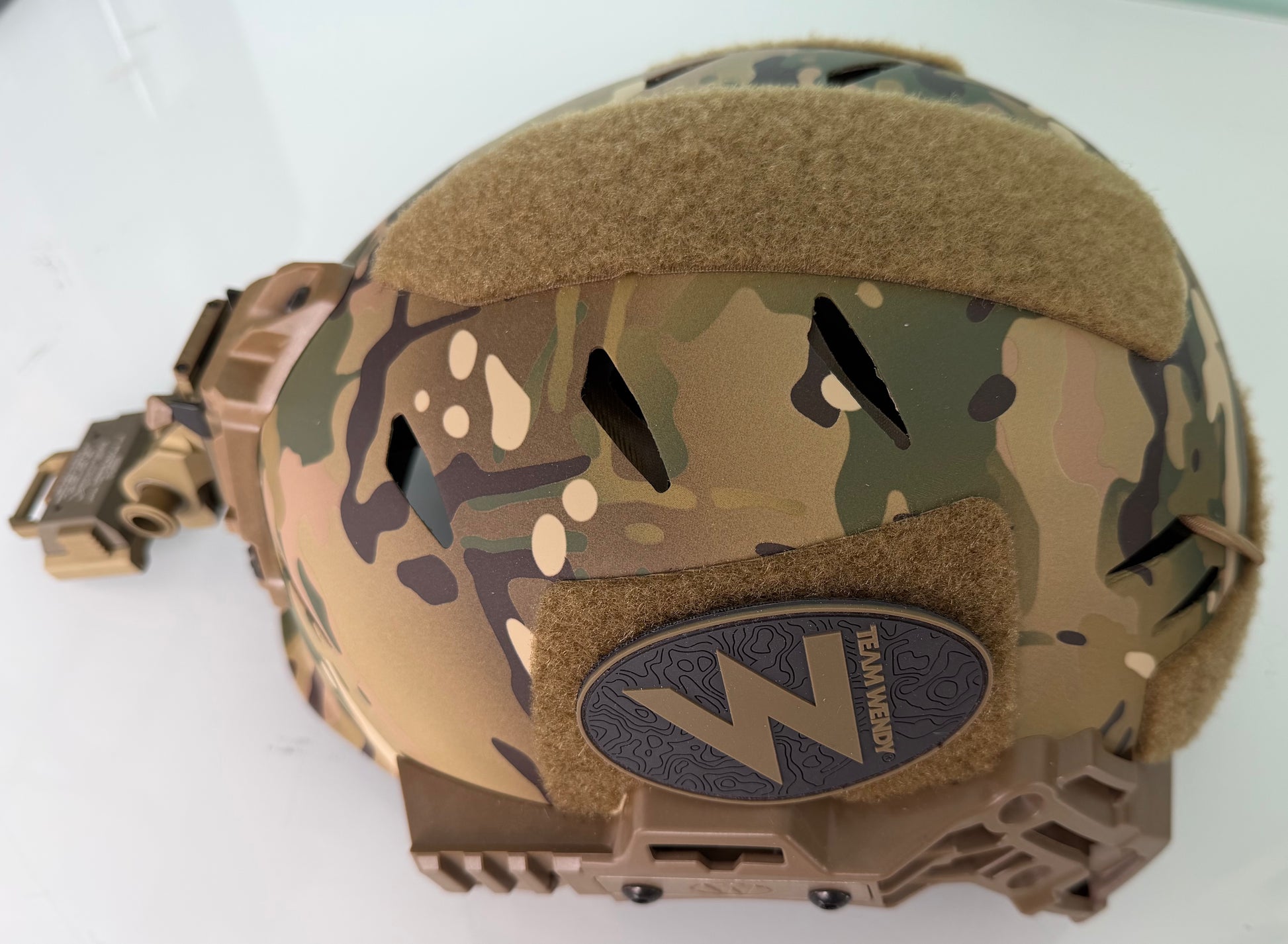

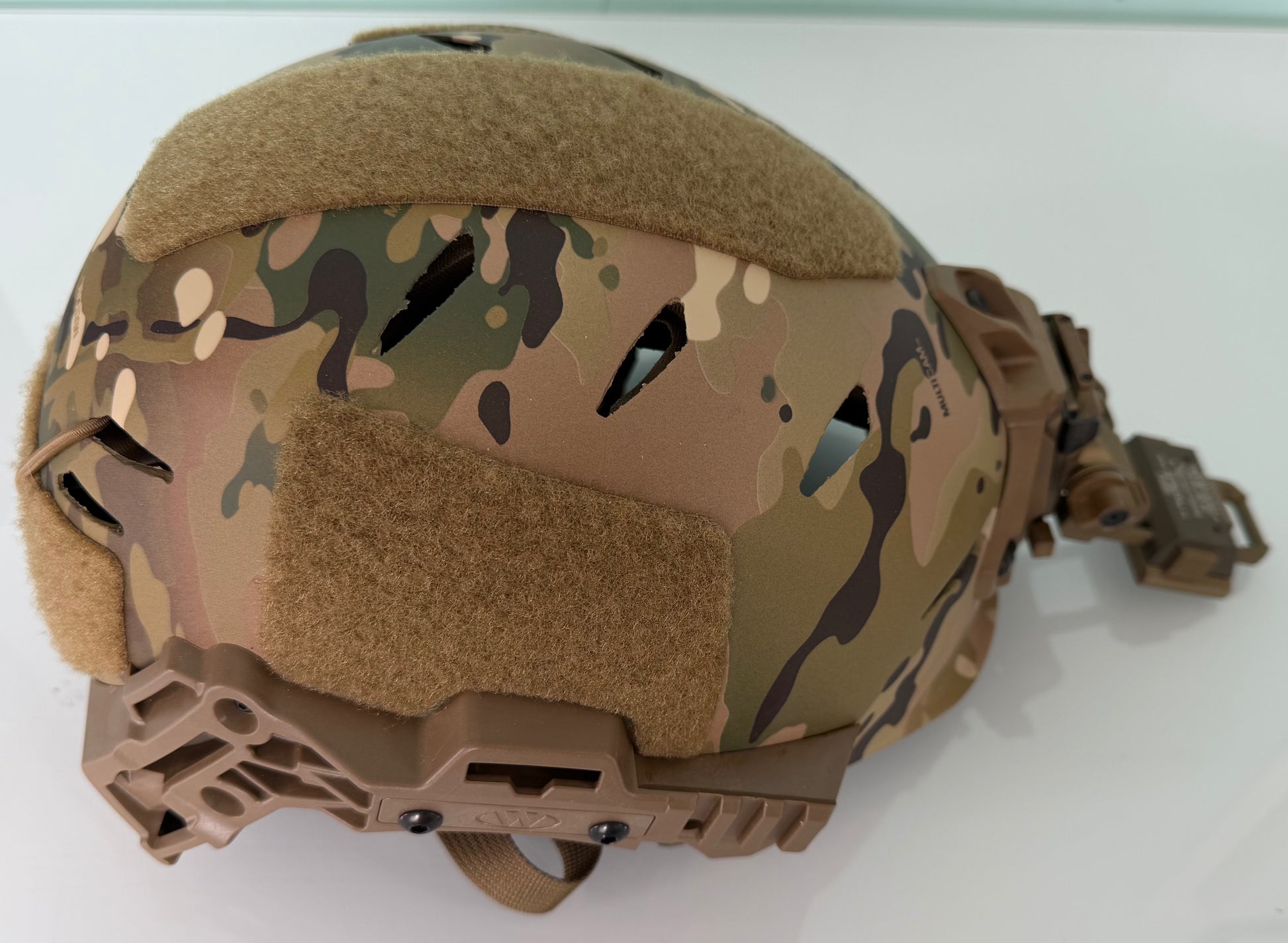

TEAM WENDY EXFIL CARBON: w/ New Upgraded RAIL 3.0 Size = M/L:
HEAD CIRCUMFERENCE (IN) -20.75 – 23.0
HEAD CIRCUMFERENCE (CM) - 53-58
HAT SIZE -6 3/4 – 7 1/4
The EXFIL® Carbon shell is made of high-strength, lightweight carbon fiber and features a Wilcox® W shroud* for mounting night vision devices. The Zorbium® foam liner provides the ultimate levels of comfort and impact protection and is compatible with tactical communication headsets. The CAM FIT™ Retention System with an integrated BOA® Fit System and Cam Lock sliders ensures a secure fit.
The EXFIL® Carbon is available with your choice of accessory rails: EXFIL® Rail 2.0 or EXFIL® Rail 3.0. The EXFIL® Rail 2.0 accessory mounting system is compatible with most EXFIL® accessories and features T-slots for custom mounting. The EXFIL® Rail 3.0 accessory mounting system is compatible with all EXFIL® accessories, including the EXFIL® Ballistic Visor and the EXFIL® Face Shield.

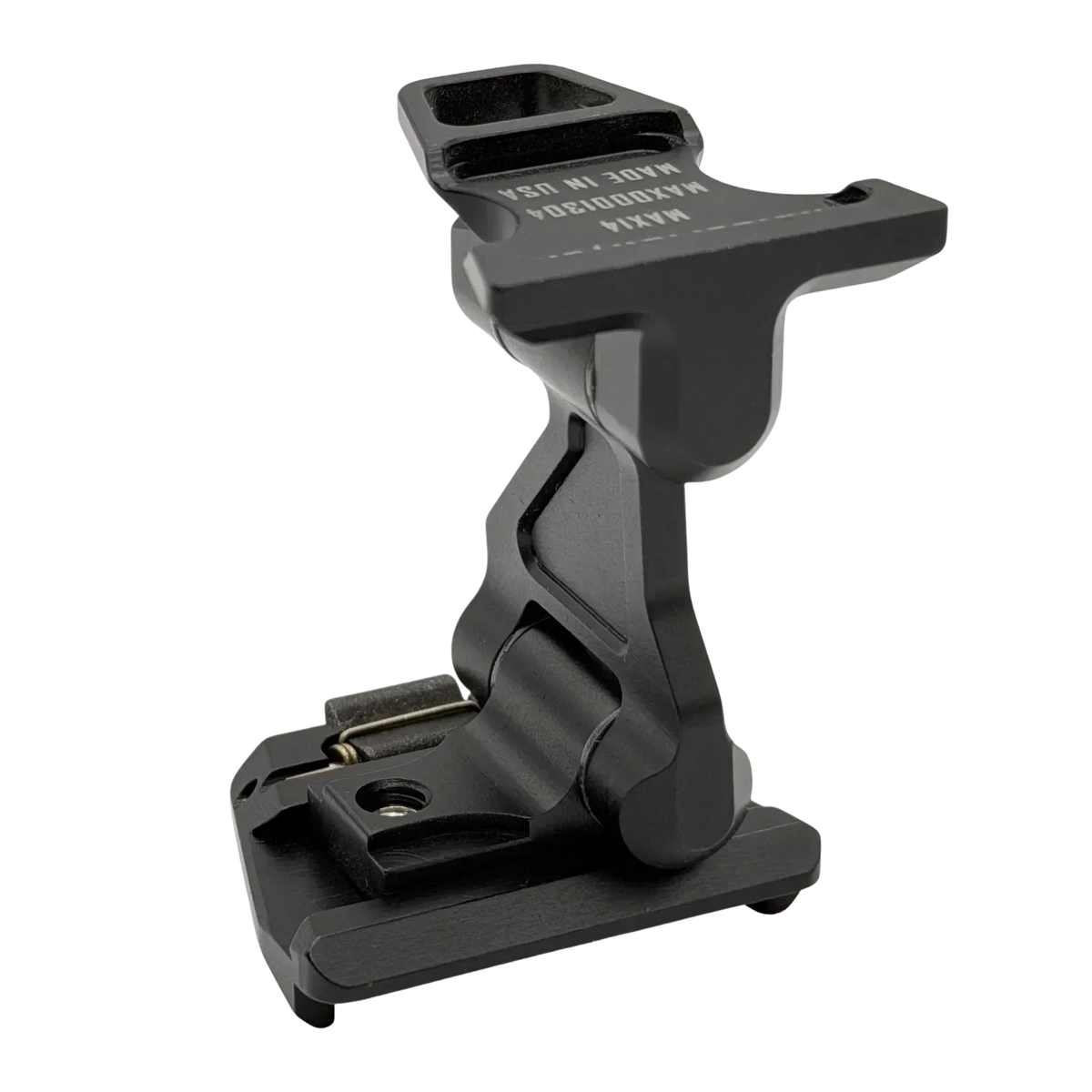

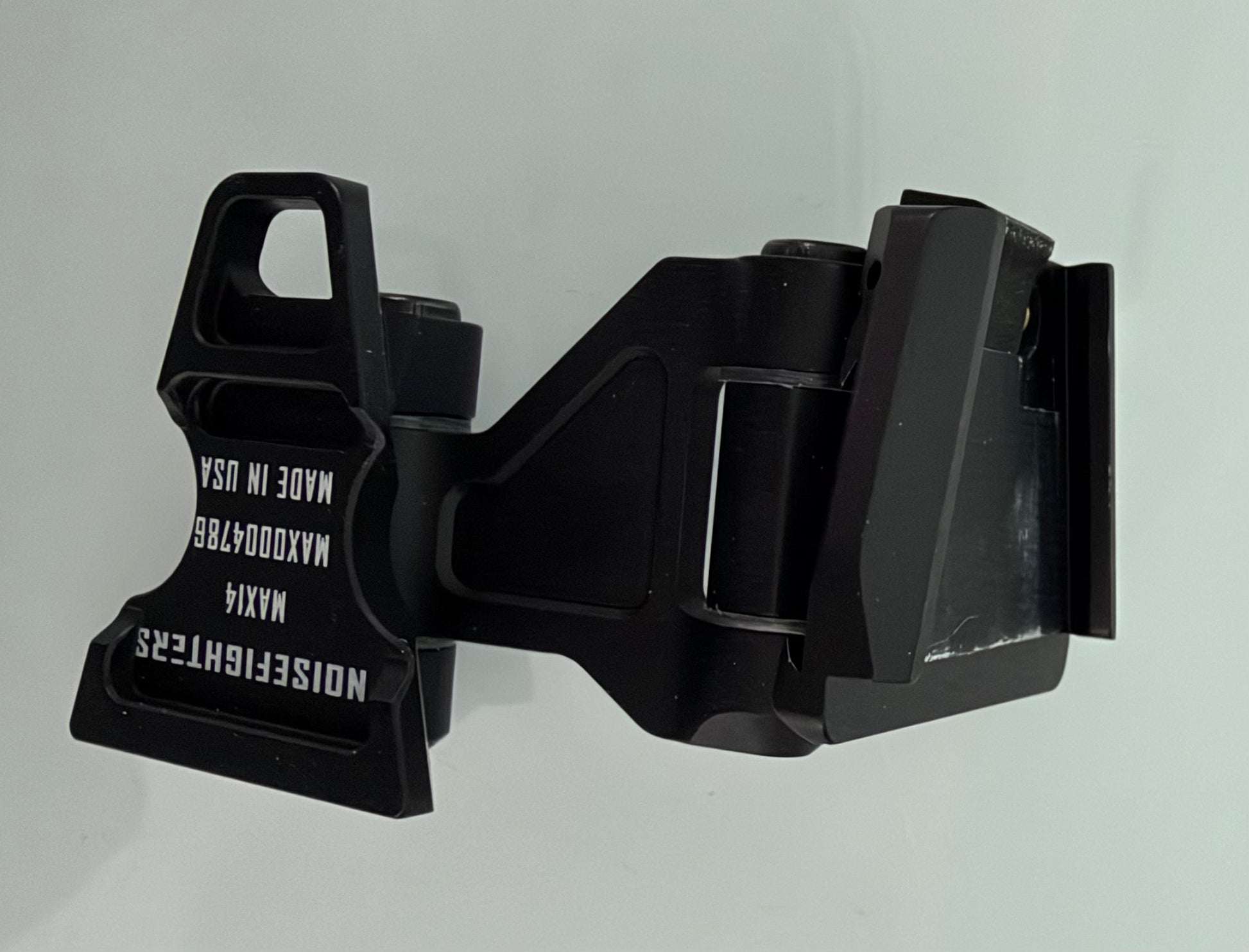

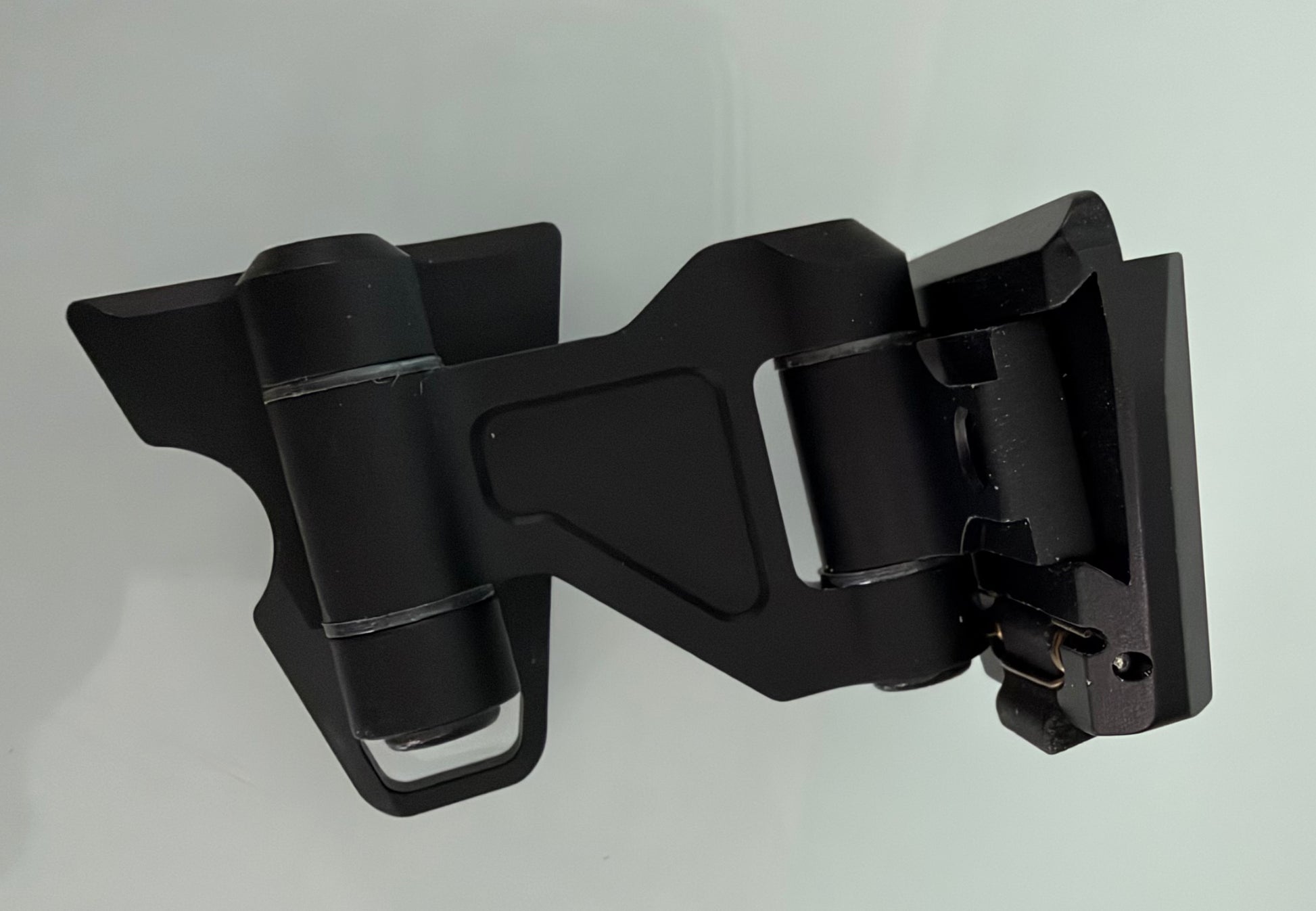

DMAX14 Thermal J-Arm (Dovetail Style):

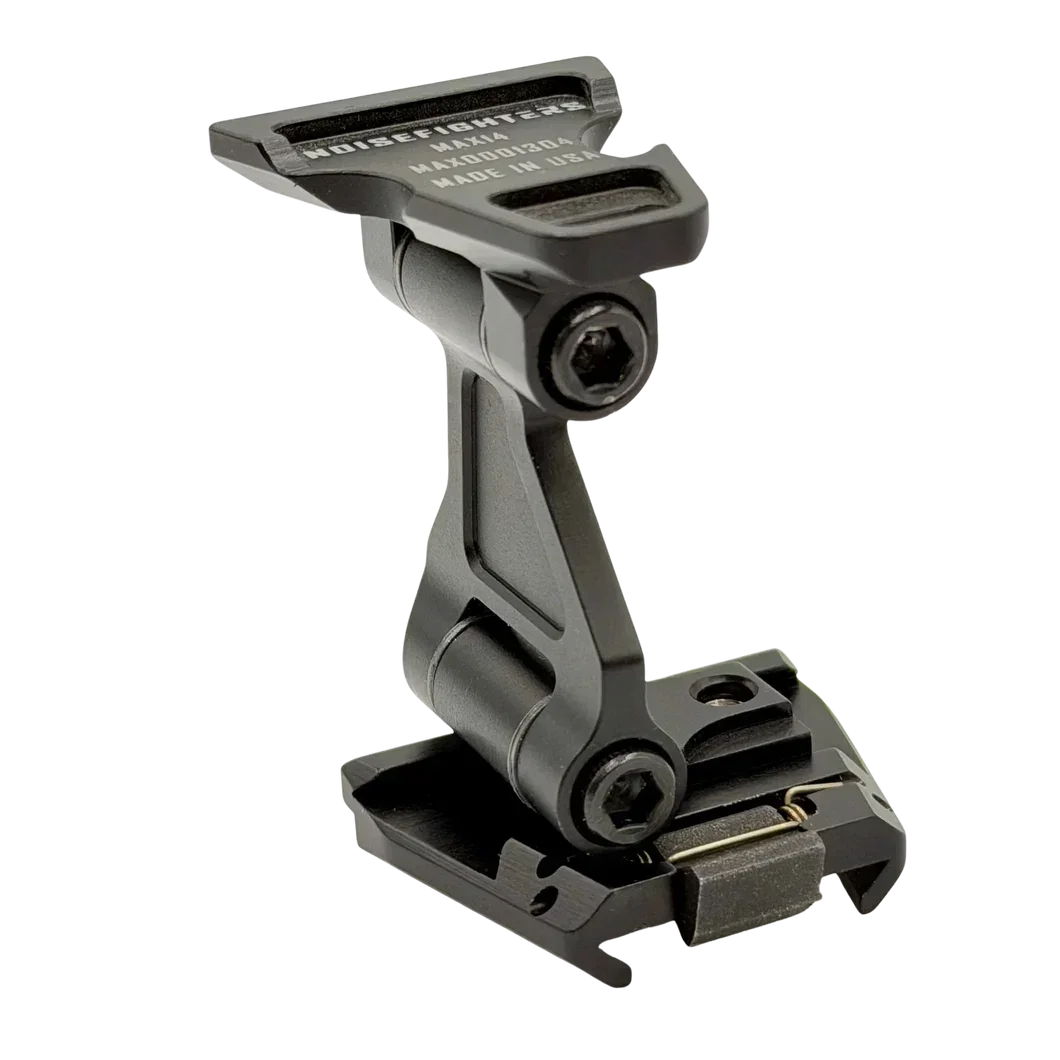

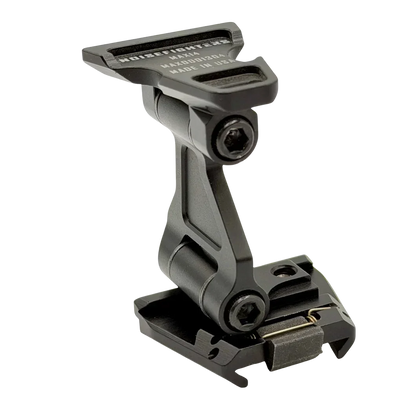

DMAX14™ is a rigid, incredibly lightweight, and all-metal night vision J-arm for dovetail-equipped thermal monoculars such as the Infiray RH25 and Trijicon SkeetIR. It includes a rotating knuckle which provides a tight stow against the helmet and also allows the monocular to be temporarily swung away from the eye. At 1.3 oz total, it weighs less than a polymer milspec J-Arm, yet its structure is composed entirely of the highest-performing 7075-T6 aluminum alloy for industry-leading durability.
An intuitive, friction-based mechanism allows users to swing their monocular in front of either the left or right eye and perfectly adjust for interpupillary distance, while a slight rearward sweep of the inner arm helps position the monocular eyepiece closer to one's eye and provides greater compatibility for those with larger helmets. A tether point is also featured on the rear to keep the entire system secure. Attach a monocular, snap the complete assembly into a dovetail-style helmet mount like the Wilcox® G24, and enjoy. Introducing the new industry standard in night vision monocular mounting.
US-made protective vinyl camouflage wraps, made by NOCORIUM, are available for purchase as an accessory. You can buy the wraps separately right here. Be aware that the wrap was designed for the MAX14 (designed for the PVS-14 monocular), and some of the included vinyl pieces cannot be installed on DMAX14.
A no-questions-asked, transferable lifetime warranty is included. The Noisefighters DMAX14 is proudly made and assembled in the U.S.A. and was designed by a Marine Corps combat veteran of Iraq and Afghanistan.
Latest product update 12/2025: Mod 1 version is a smaller, lighter, and more rigid design; latch design changed to prevent inadvertent actuation; latch material upgraded to stainless steel; custom torsion spring added to provide extra force on latch to prevent inadvertent actuation; aluminum shim added to underside of dovetail which can be removed to allow out-of-spec male dovetails to be installed; IPD slider shortened and lightened and 10-32 screw is now captivated so that it cannot be removed accidentally
-
Compatible with: All known thermal monoculars using the dovetail interface
-
Helmet mounting compatibility: Dovetail
-
Interpupillary distance (IPD) compatibility: 55–75 mm
-
Total assembled weight: 1.2 oz
-
Dimensions: 3.5 × 1 × 1.25 in
-
Warranty: Lifetime, transferable
-
What’s not included: Night vision / thermal devices shown in pictures are not included
-
Origin: Made and assembled in the U.S.A. by a disabled U.S.M.C. combat-veteran-owned company

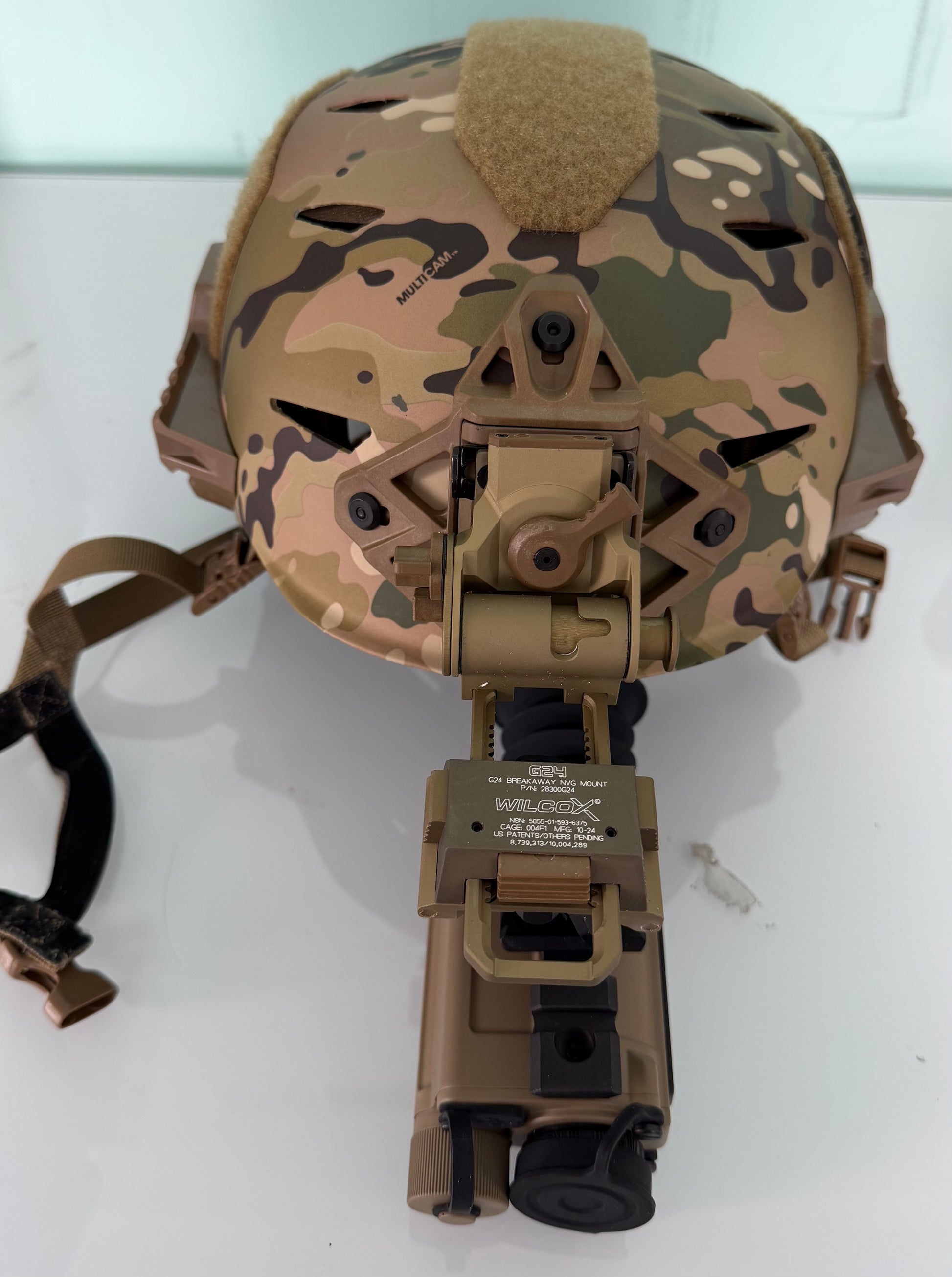

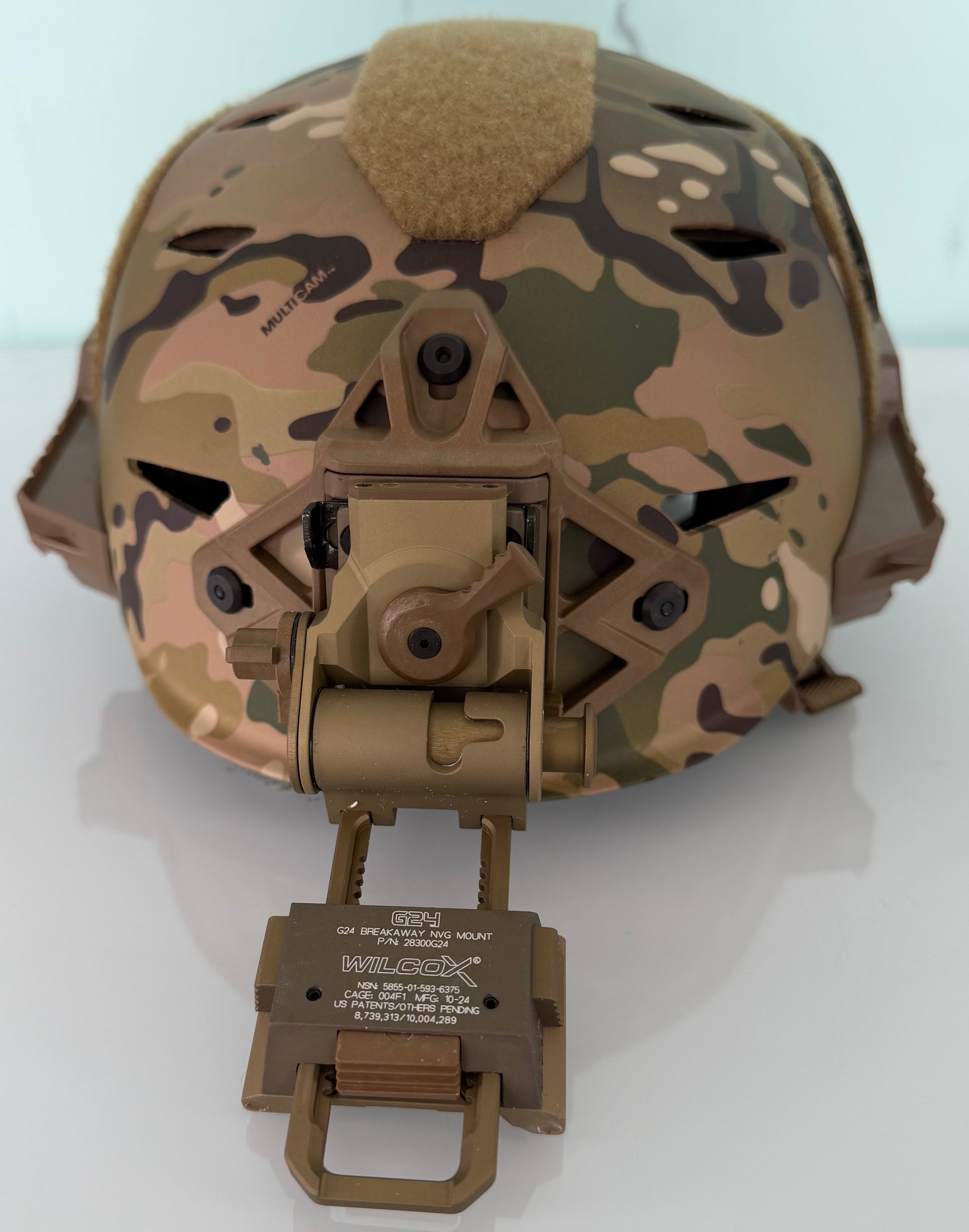

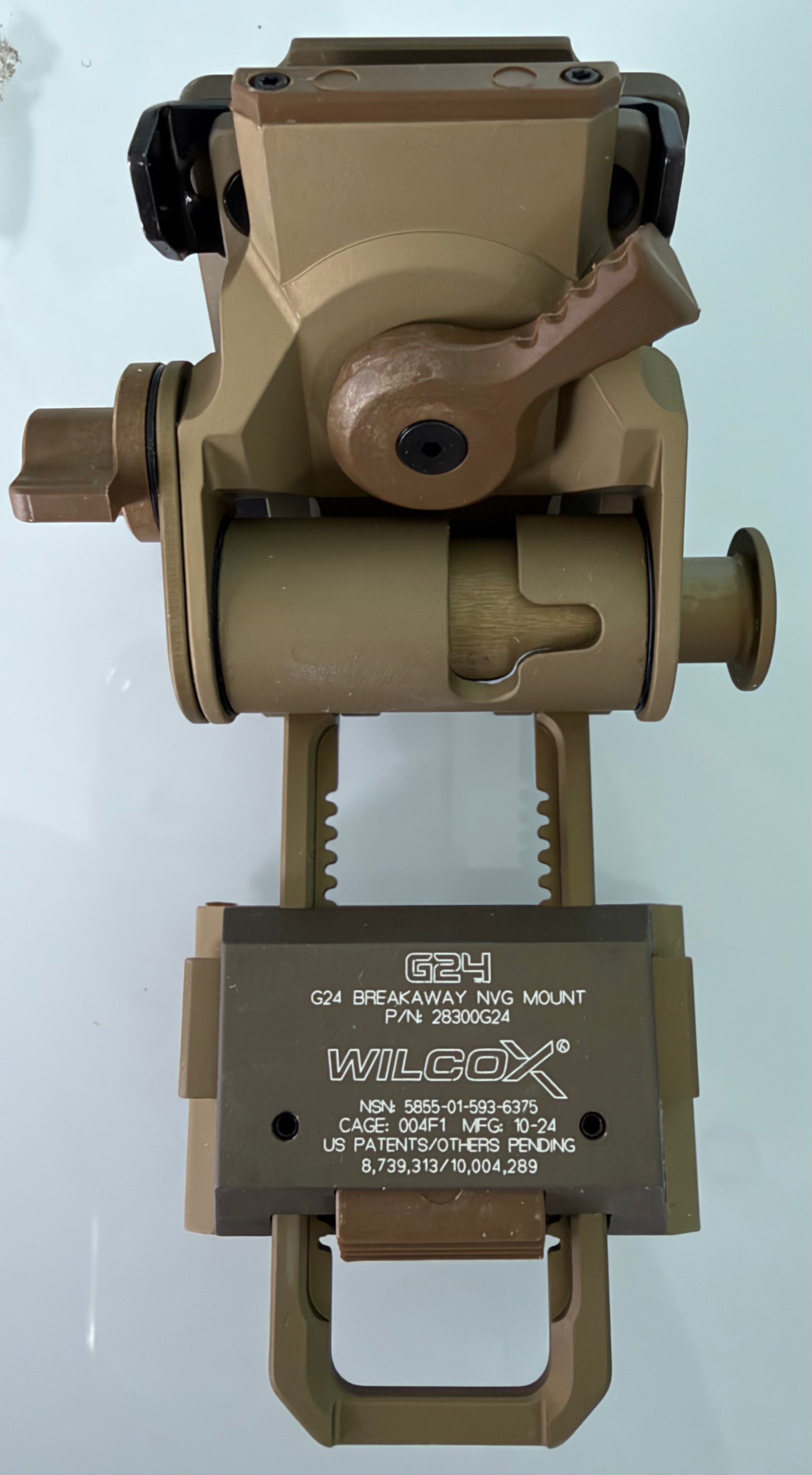

Wilcox L4 G24 Helmet Mount:
The Wilcox G24® Mount has been field tested by Operators and fine-tuned from their hands-on experience with our product. Pioneering the “breakaway” feature, this Mount disconnects from the base under stress if desired reducing the potential for neck injury of the Operator. The G24 Mount is your “go to” for NVGs. Mount/shroud kits are available.
Part #: 28300G24-T (Tan)
Features:
• Breakaway Feature allows Mount to Break Away under Stress, or to Securely Lock in Place by Means of a Breakaway Lever
• Wilcox NVG Lanyard Assembly (see TDS078) Provides a Secure Attachment to an Array of NVG Devices Preventing Loss of the NVG
• Mount Locks into Place in the Operational and Stowed Positions Provides Over-Travel in the Fully
• Extended Position to Minimize the Profile of the Mount
5 Year Manufacturer Warranty

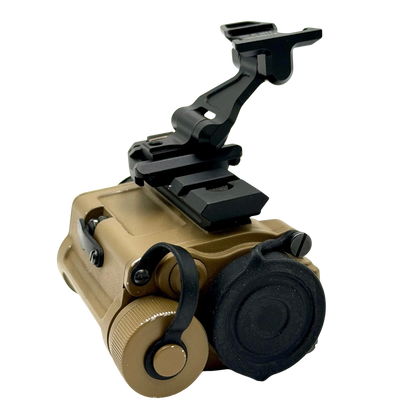

iRayUSA RICO MICRO PICTAIL Helmet/Weapon Shoe:
The PICTAIL mounting system is the combination of a standard dovetail shoe commonly used on helmet mountable night vision optics and the MIL-STD-1913 picatinny rail used on weapons platforms.
The synergy of these two mounting formats creates a system that is more accurate and versatile on a rifle while maintaining all dovetail capabilities on a helmet. The PICTAIL is compatible with standard dovetail receptacles used in helmet mounting interface hardware made by Wilcox, KVC, and others.
The counterpart to the dovetail side of the PICTAIL shoe is MIL-STD-1913 picatinny rail specially designed with one slot that interfaces with the ADM MQD mount. The PICTAIL and MQD mount work in tandem to achieve an adjustable footprint on any standard picatinny rail. In standalone optic mode they produce over 4.5 inches of rear offset, and when reversed for use in clip-on mode the MQD and PICTAIL shrink the rear offset to just 1.5 inches. In clip-on mode the required forward rail space is just 4 rail slots in front of a day optic making the PICTAIL and MQD the perfect combination for shorter platforms like SBRs and pistols.
iRayUSA partnered with American Defense Manufacturing to produce the PICTAIL and MQD delivering ADM’s gold standard picatinny mounting solution with an innovative lighter and faster dovetail design for faster helmet transitions.
