N-Vision Optics NOX-18 Multi-Purpose Thermal Monocular/Weapon Sight 640X480, 60hz, 12 um, 18mm Lens (NOX18)
The Nox-18 is a compact, 12-micron, 60Hz thermal weapon sight that can also function as a head-mounted monocular or handheld scanner. Proudly made in the USA, it utilizes top-tier BAE thermal imaging cores and premium optical components. Available with either an 18mm or 35mm lens, the Nox offers a versatile balance between magnificationand field of view depending on the user's environment.

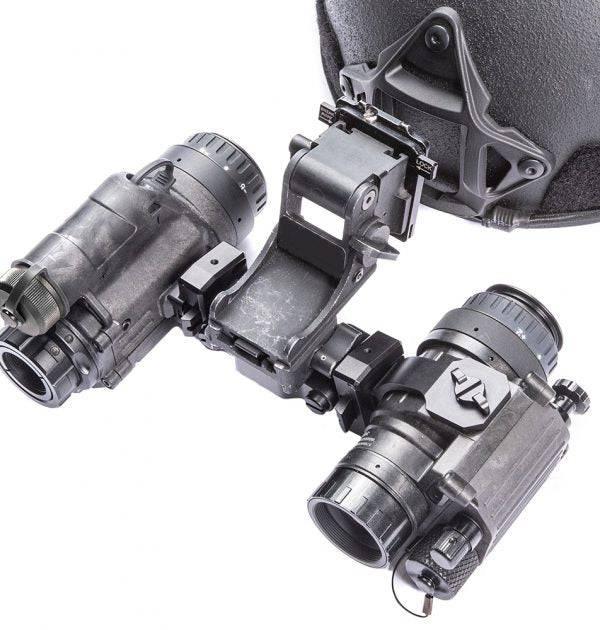

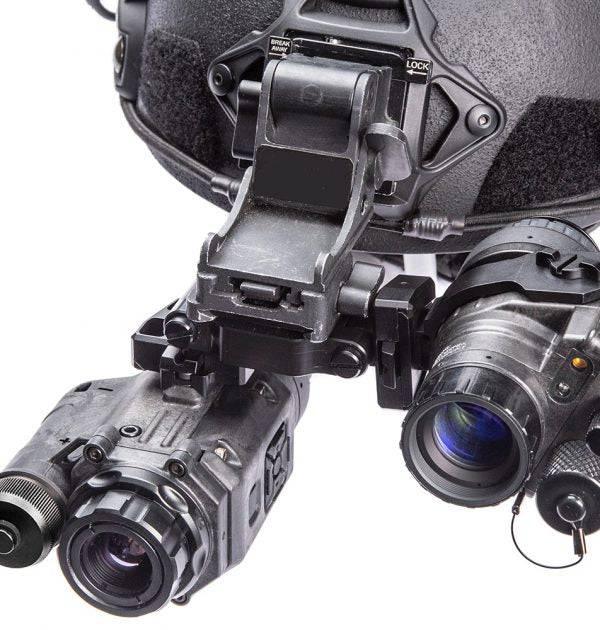

This adaptable device can be configured for right- or left-eye use and can even be dual-mounted with another Nox or a PVS-14 night vision monocular. To reduce size and weight, its weapon and dovetail mounts are removable, offering a more compact setup when needed.
Power Supply Options:
The Nox comes with both a CR123 battery and a rechargeable 18650 battery (with charger). Run times vary based on conditions, with up to 1.5 hours on a CR123 battery and 4 to 7+ hours on a rechargeable 18650 battery. For extended power, the Nox can also be powered by an external USB battery bank using the included USB-C cable.
User Interface:

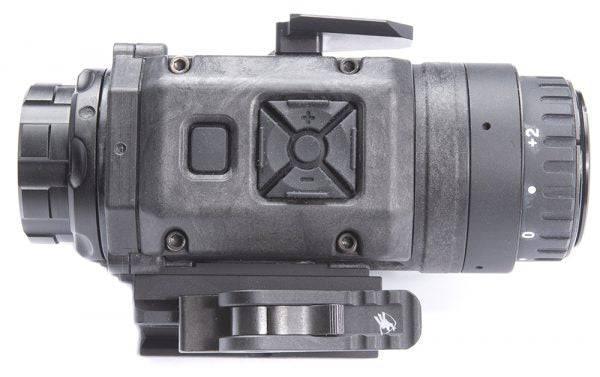

The Nox features five ergonomic control buttons that provide quick access to essential functions such as calibration, polarity, zoom, photo capture, and power. The user-friendly menu system allows for easy zeroing and customization. A standalone calibration button enables one-handed calibration in under one second for maximum convenience.
Power Supply Options
Experience extended power with the N-Vision Optics NOX-18 640 Multi-Purpose Thermal Monocular/Scope 18mm. This advanced device comes with both CR123 and rechargeable 18650 batteries, giving you up to 90 minutes of power with the CR123 and 4-7+ hours with the 18650, depending on the environment. Plus, you can connect an external USB battery bank via USB-C for even more power.
User Interface
The N-Vision NOX-18 640 is a multi-purpose thermal monocular/scope with five ergonomic buttons that give users quick access to frequently used functions. With a single-handed calibration button, calibration is completed in under a second. Its advanced menu system allows for easy customization of the device.
N-Vision Optics NOX-18 Features:
- BAE 12 micron 640x480, 60 Hz Core

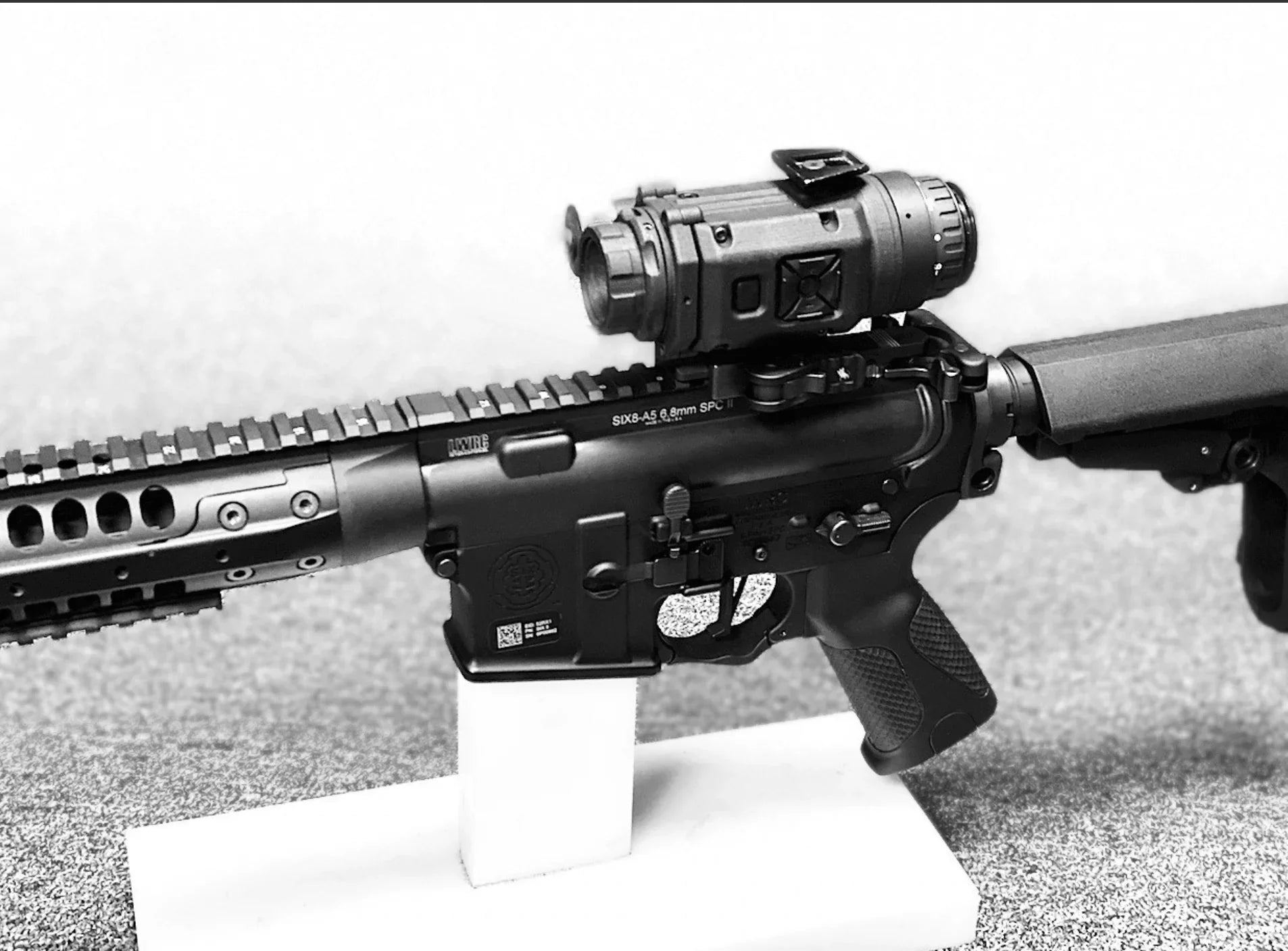

- Fully functional nox18 thermal weapon sight
- Up to 8 hours run time on included rechargeable 18650 battery
- Manual focus 18 mm F1.0 high-performance wide field of view objective lens

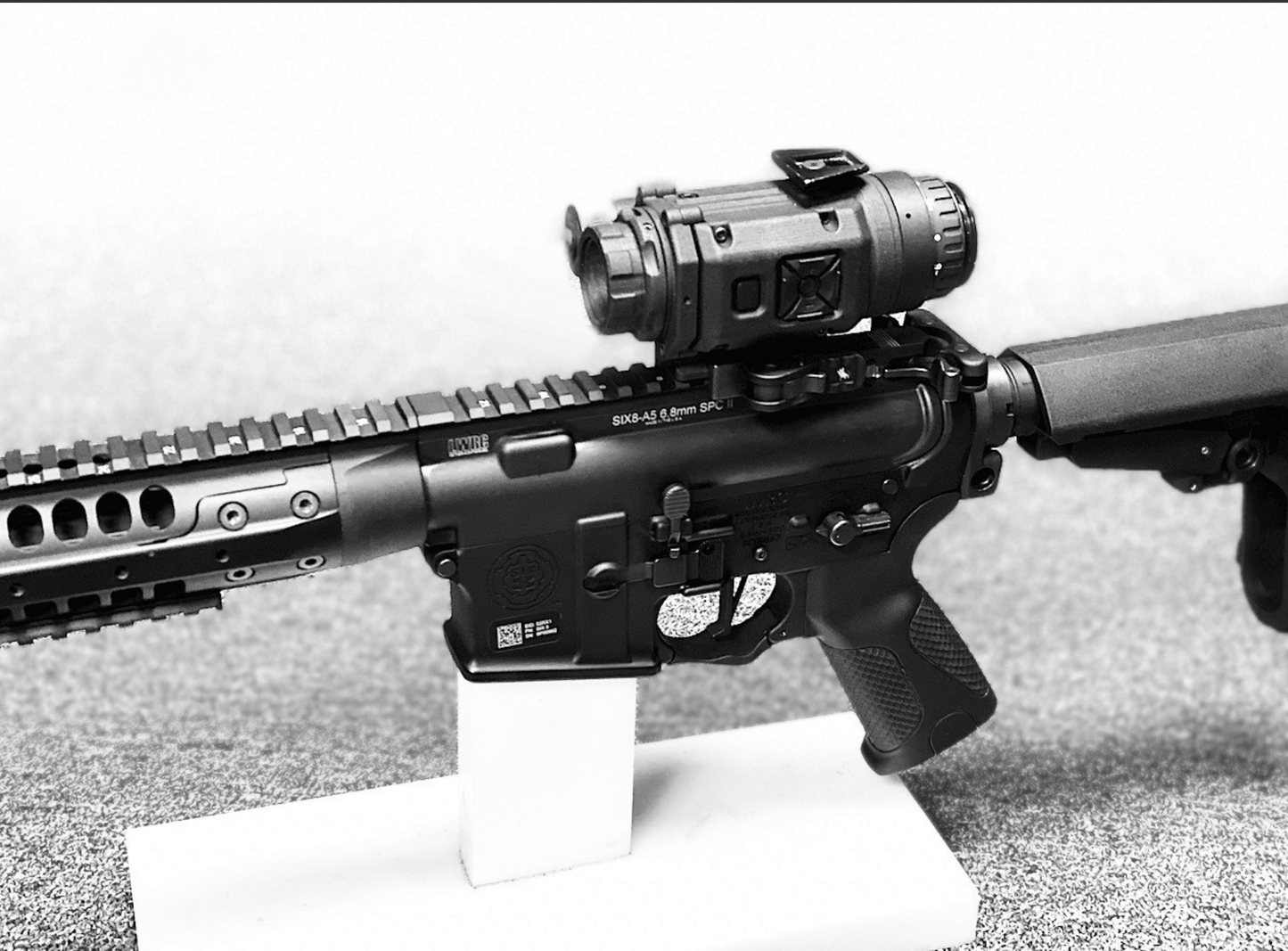

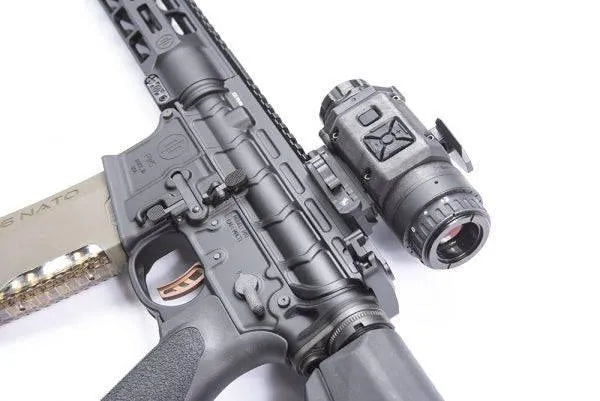

- Weapon and helmet mountable
- Ultra light and compact
- 1X base mag
- Made in the USA
- 5 Year Warranty
N-Vision Optics NOX-18 Specifications:
|
Sensor Pixel Pitch
12 um
|
|
Resolution
640 x 480
|
|
Refresh Rate
60 Hz
|
|
Lens
18mm F1.0
|
|
Focus
Manual, non-rotating
|
|
Field of View
18mm: 24.3(H) x 18.3(V); 30.4 (diagonal)
|
|
Digital Zoom
1x/2x/4x/8x
|
|
Display Type
OLED 640×480 B&W
|
|
Power
One CR123 or one 18650
|
|
Remote power
USB 5.0V
|
|
External connector
Waterproof USB-C
|
|
Calibration (NUC)
Manual
|
|
Weight, CR123 Battery:
13.5 oz (w/o weapon mount)
16 oz (w/ weapon mount)
|
|
Weight, 18650 Battery:
15.3 oz (w/o weapon mount)
17.6 oz (w/ weapon mount)
|
|
Size, CR123 Battery:
5.0×2.9×2.4 (w/o weapon mount)
5.0×2.9×3.0 (w/ weapon mount)
|
|
Size, 18650 Battery:
6.4×2.9×2.4 (w/o weapon mount)
6.4×2.9×3.0 (w/ weapon mount)
|
|
Detection range
753 yards
|
|
Recognition range
267 yards
|
|
Identification range
136 yards
|
Each unit will ship with:
18650 adapter
USB Cable
Video Cable
CR123 battery (1)
18650 battery (1)
18650 battery charger
Quick reference guide
Field pouch
