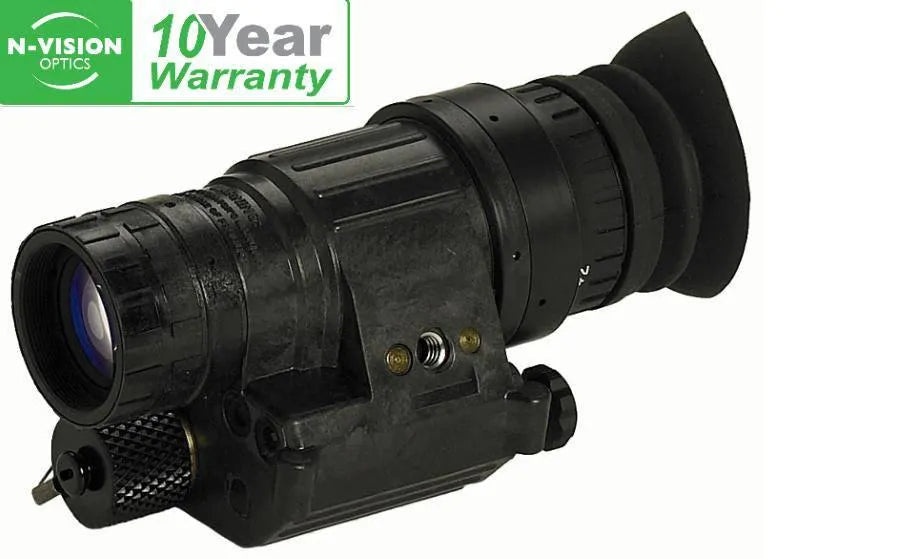

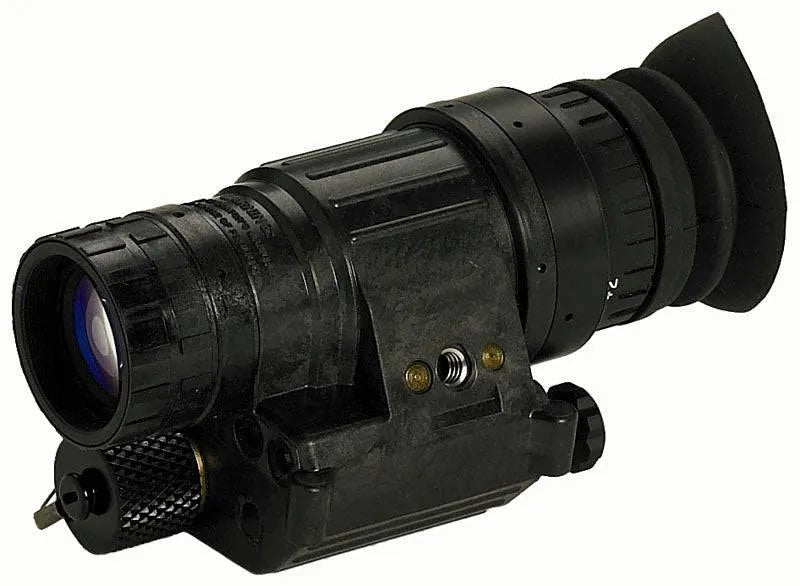

N-Vision Optics PVS-14 Night Vision Monocular, Generation 3 Auto-Gated White P-45 Phosphor Image Intensifier Unfilmed (PVS14WHU)
The PVS-14WHU is a versatile, multi-purpose night vision monocular used by militaries and government agencies worldwide. It is equipped with Generation 3 White Phosphor Auto-Gated Image Intensifier Tubes made in the U.S., offering variable gain control and automatic bright light shutoff for optimal performance in various lighting conditions. The PVS-14 can be used in multiple configurations, including handheld, head/helmet-mounted, or weapon-mounted.
With optional N-Vision Optics accessories such as dual mounts, weapon mounts, and magnifier lenses, the PVS-14 becomes even more adaptable for different missions and environments.
PVS14WHU Features:
- Variable gain control
- Single AA battery

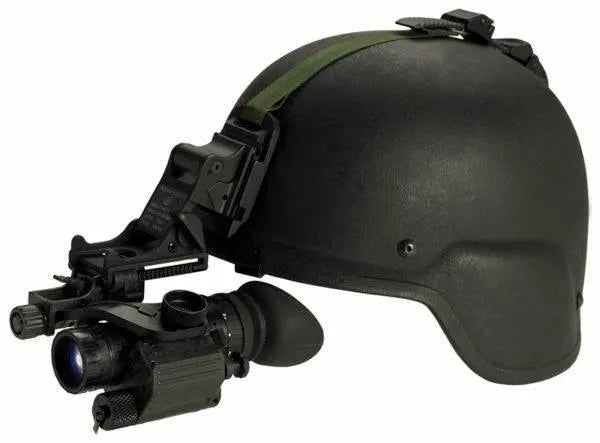

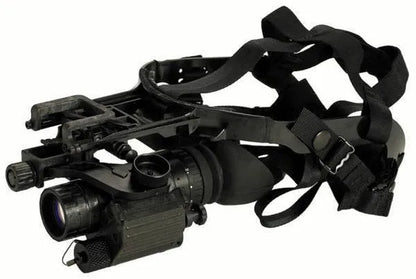

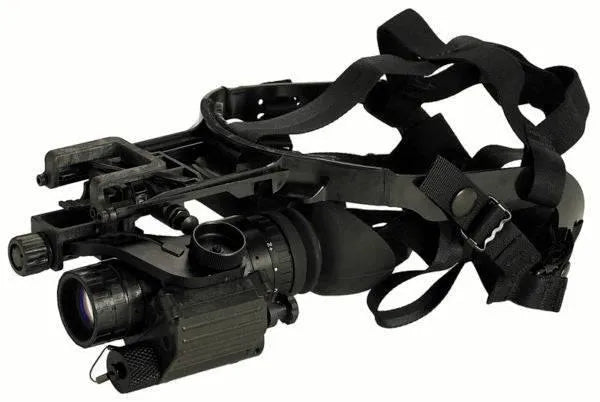

- Hand-held, helmet-mountable or weapon-mountable
- Automatic brightness control (ABC)
- Built-in IR Illuminator
PVS14WHU General Specifications:
|
Generation
3
|
|
Range Focus
25 cm to infinity
|
|
Diopter Focus
-6 to +2
|
|
Field of View
40˚
|
|
Operating Temperature
-51˚ C to +50˚C
|
|
Storage Temperature
-51˚ C to +85˚C
|
|
Weight (w/out battery)
320 g/ 11.3 oz
|
|
Size
4.5 L x 2 W x 2.25 H (inches)
|
|
Battery
1 AA
|
Generation 3 Auto-Gated White P-45 Phosphor Image Intensifier Unfilmed
|
Resolution, min
|
64 lp/mm
|
|
|
|
Signal to Noise, min
|
25
|
|
|
|
Halo,
|
<1.25
|
|
|
|
Dark Spots
|
|
|
|
|
Size
|
Zone 1
|
Zone 2
|
Zone 3
|
|
>.009-.012
|
0
|
0
|
0
|
|
>.006-.009
|
0
|
1
|
2
|
|
.003-.006
|
0
|
2
|
3
|

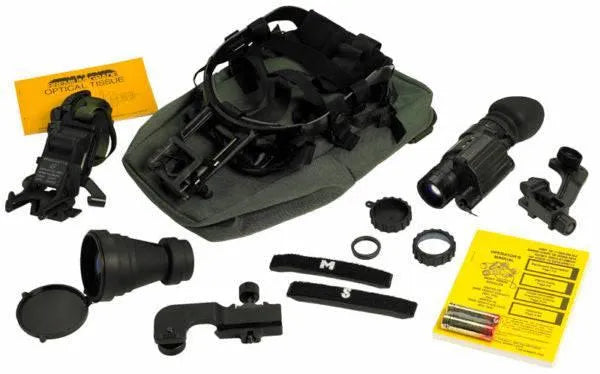

Each units ships with: adapter (j-arm), sacrificial window, demist shield, eyecup, lens cap, neckcord, soft carry case, lens cleaning paper, battery, user manual.
Optional N-Vision Optics accessories such as dual mounts, weapon mounts, and magnifier lenses make the PVS-14 extremely versatile.
EXPORT RESTRICTION
Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
