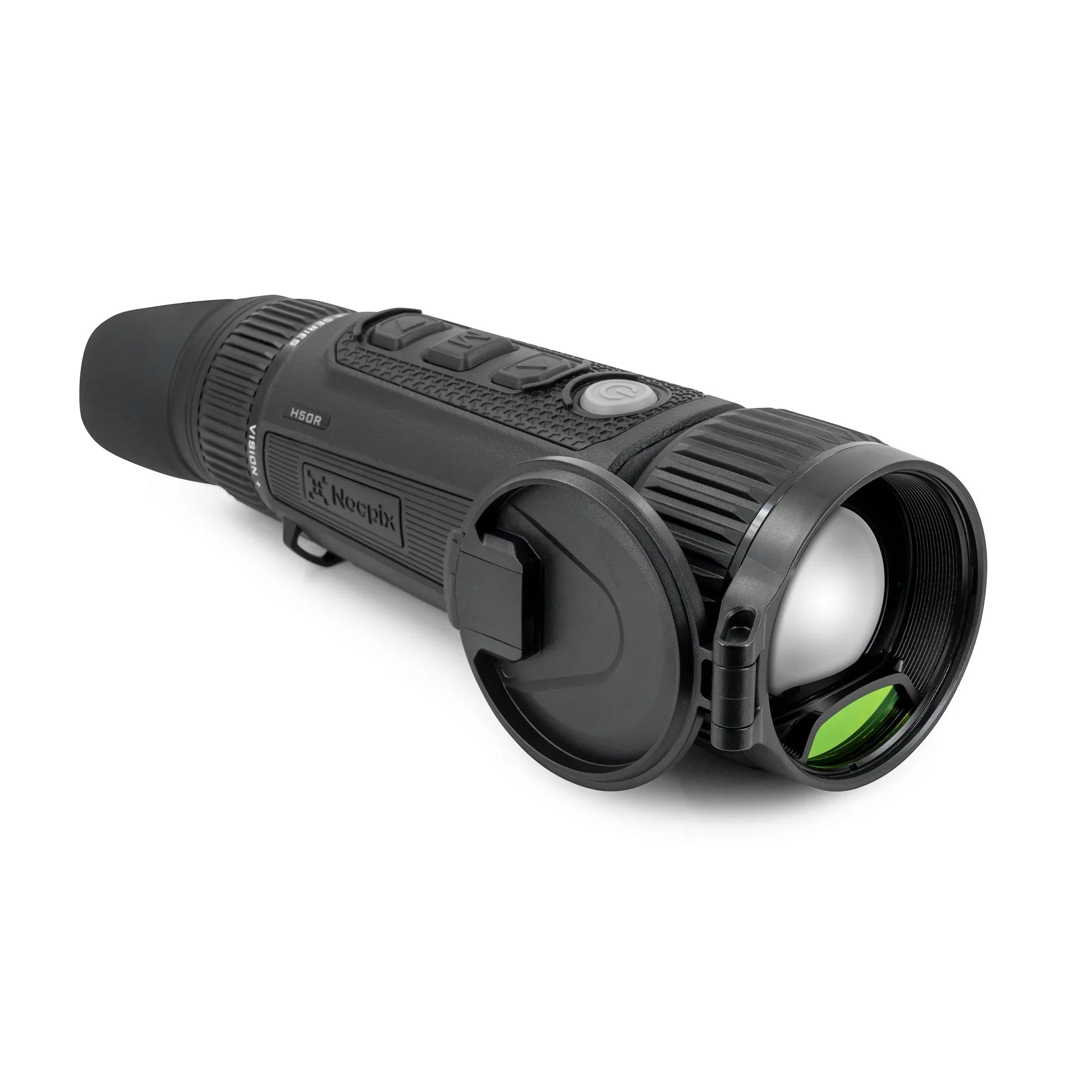

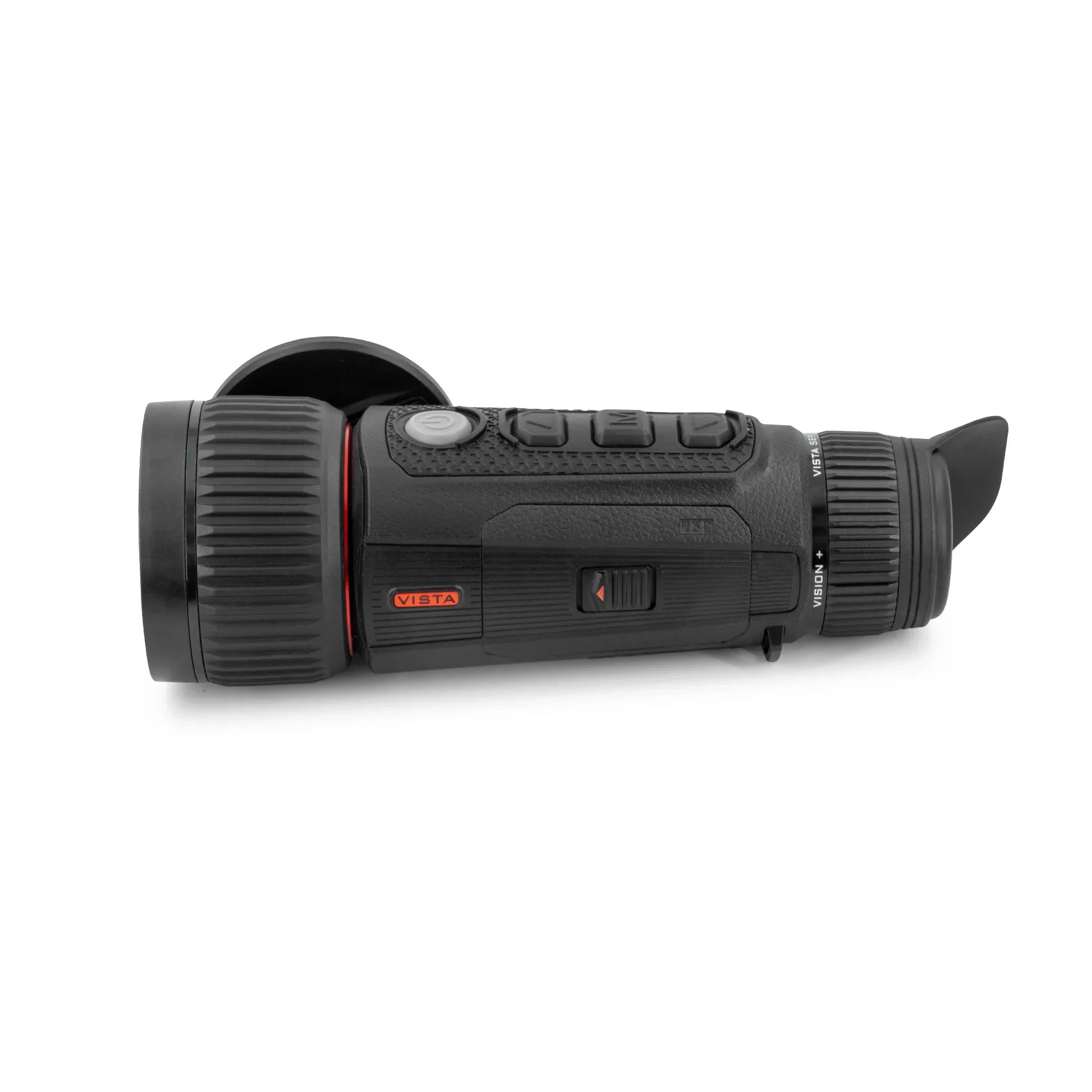

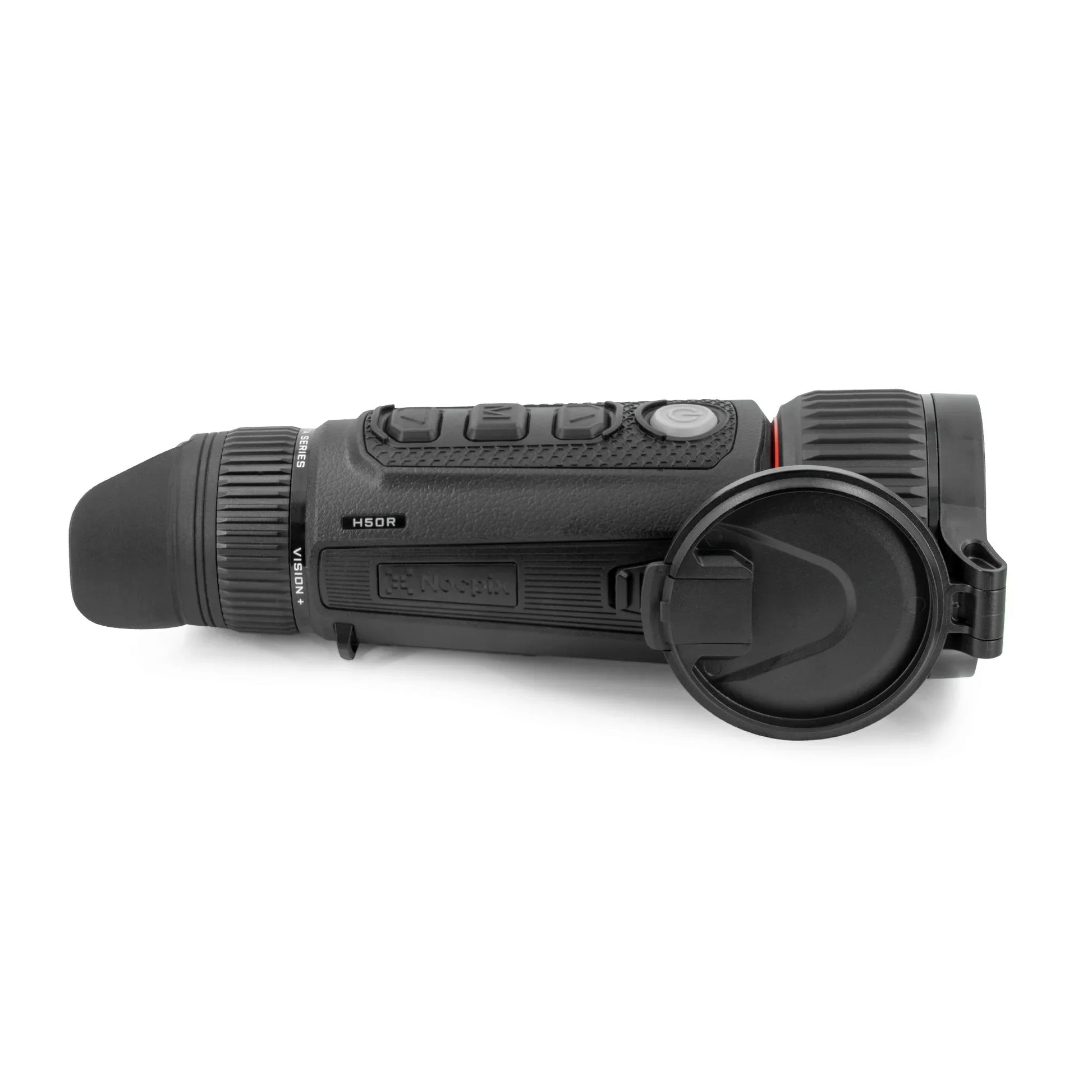

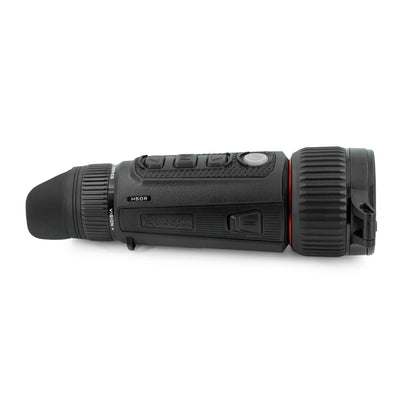

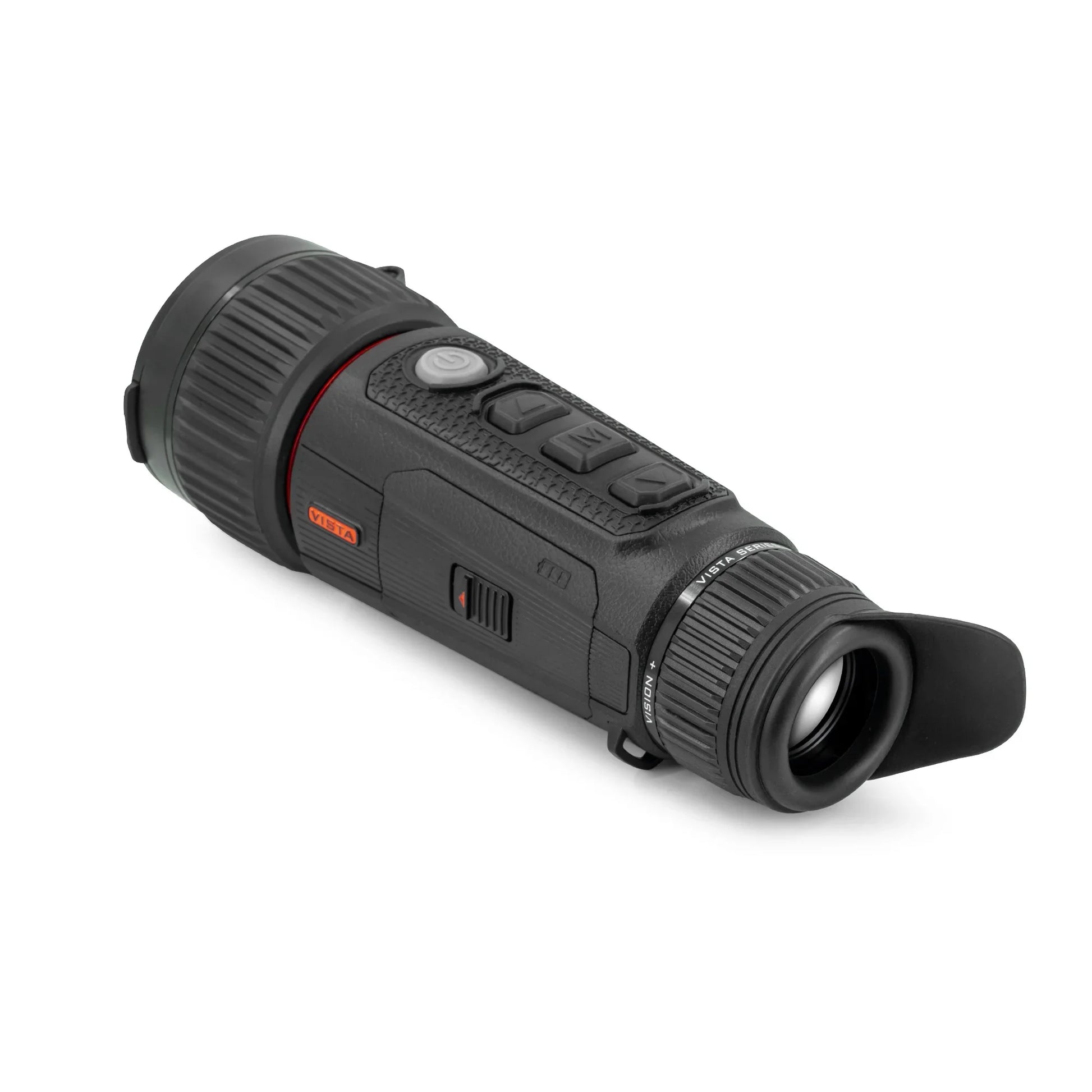

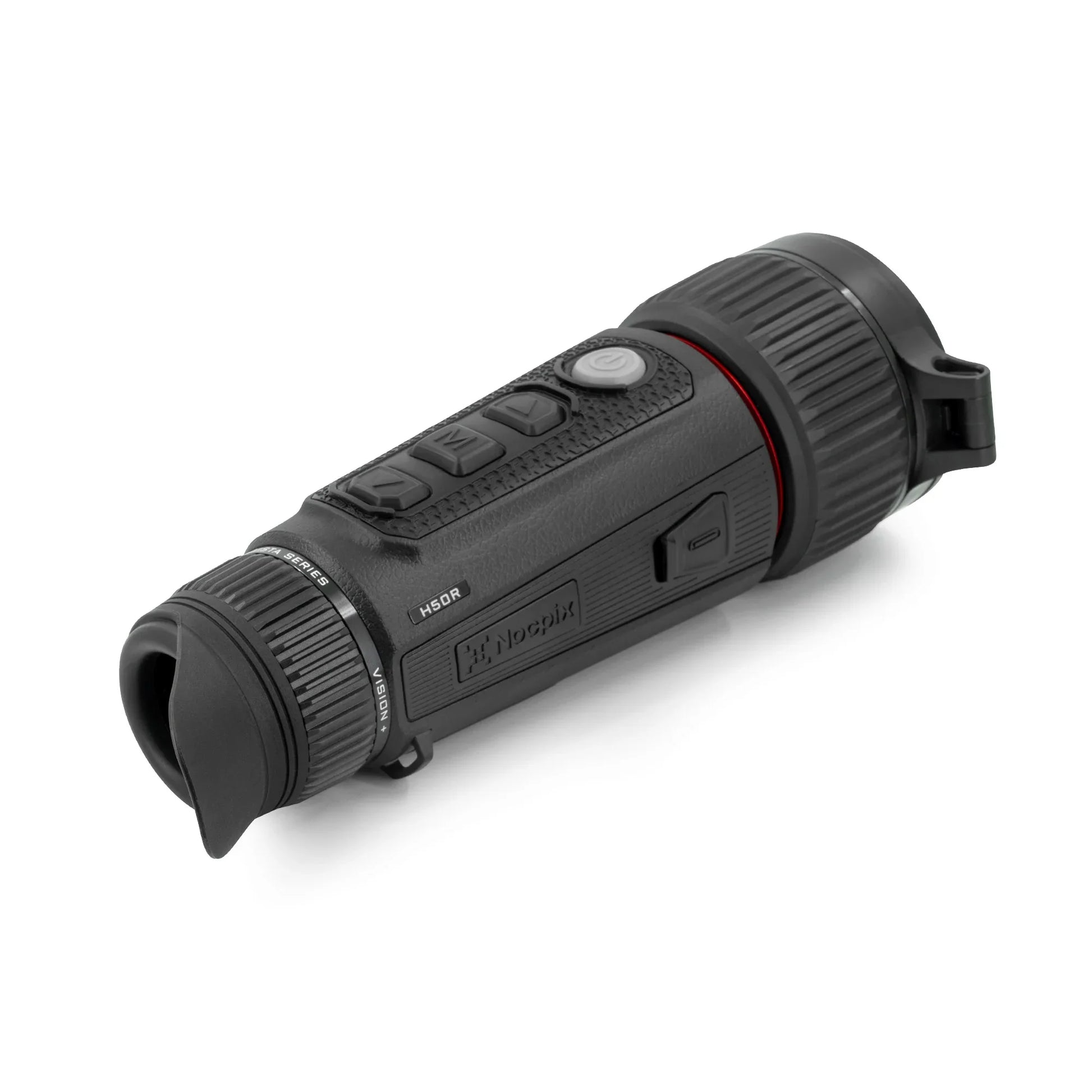

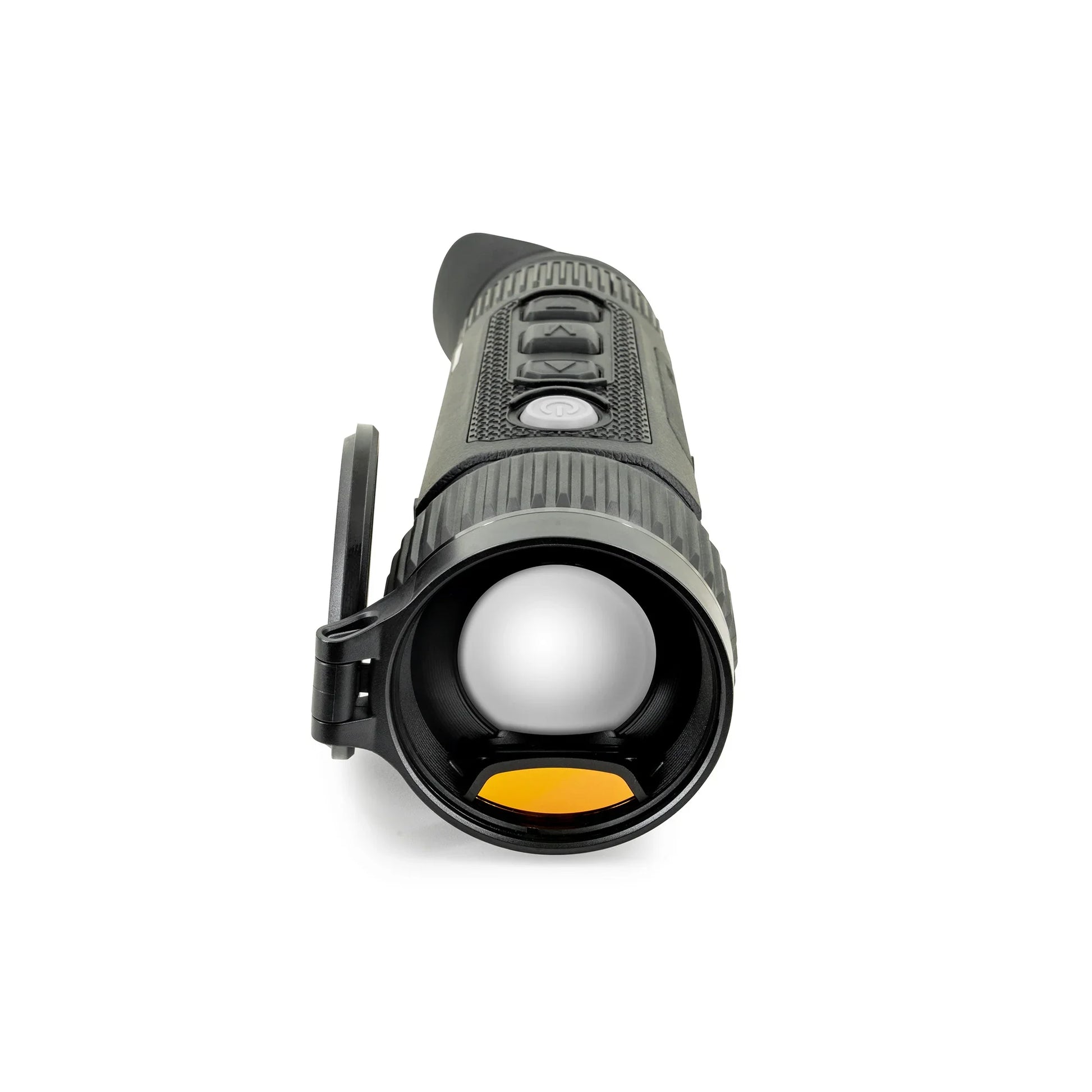

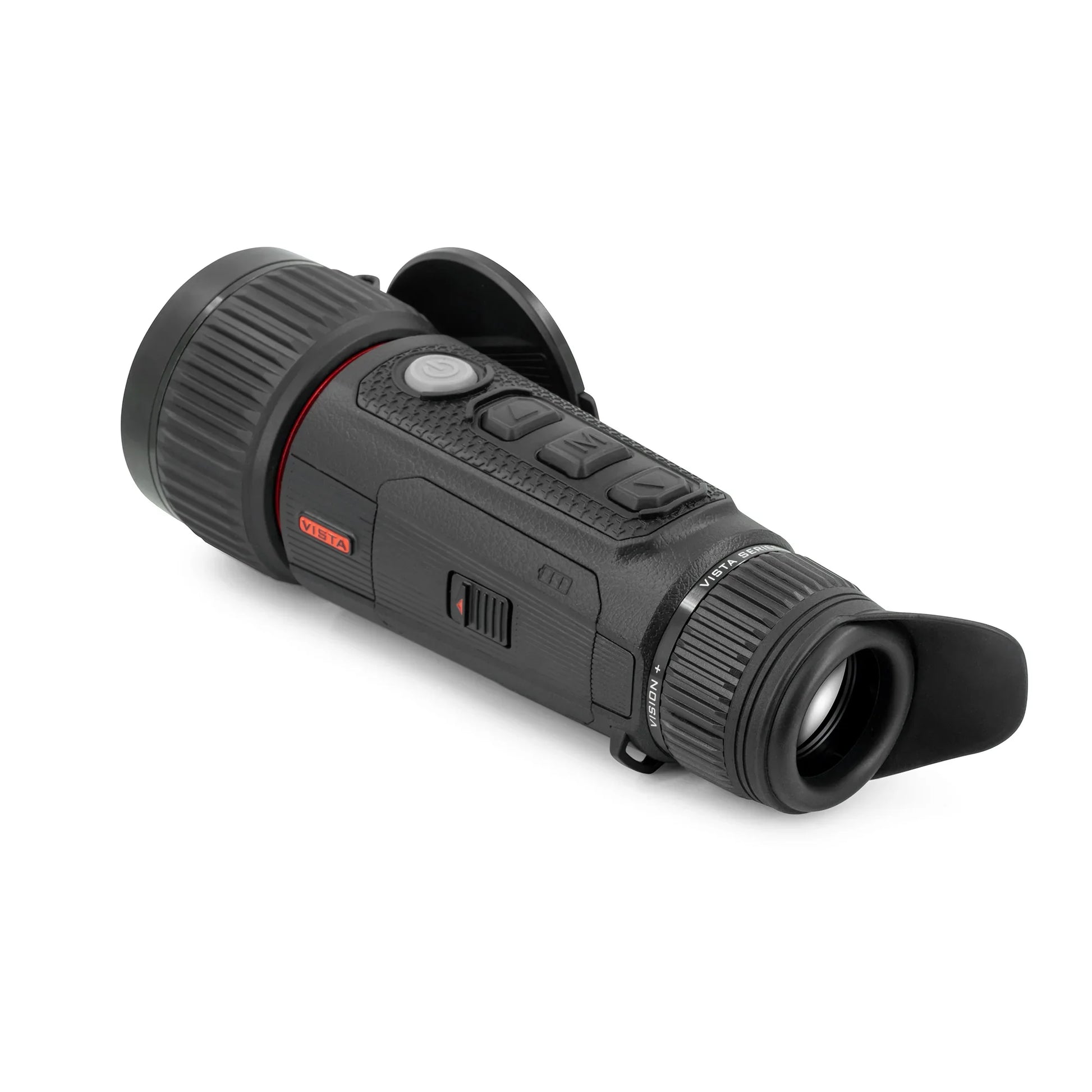

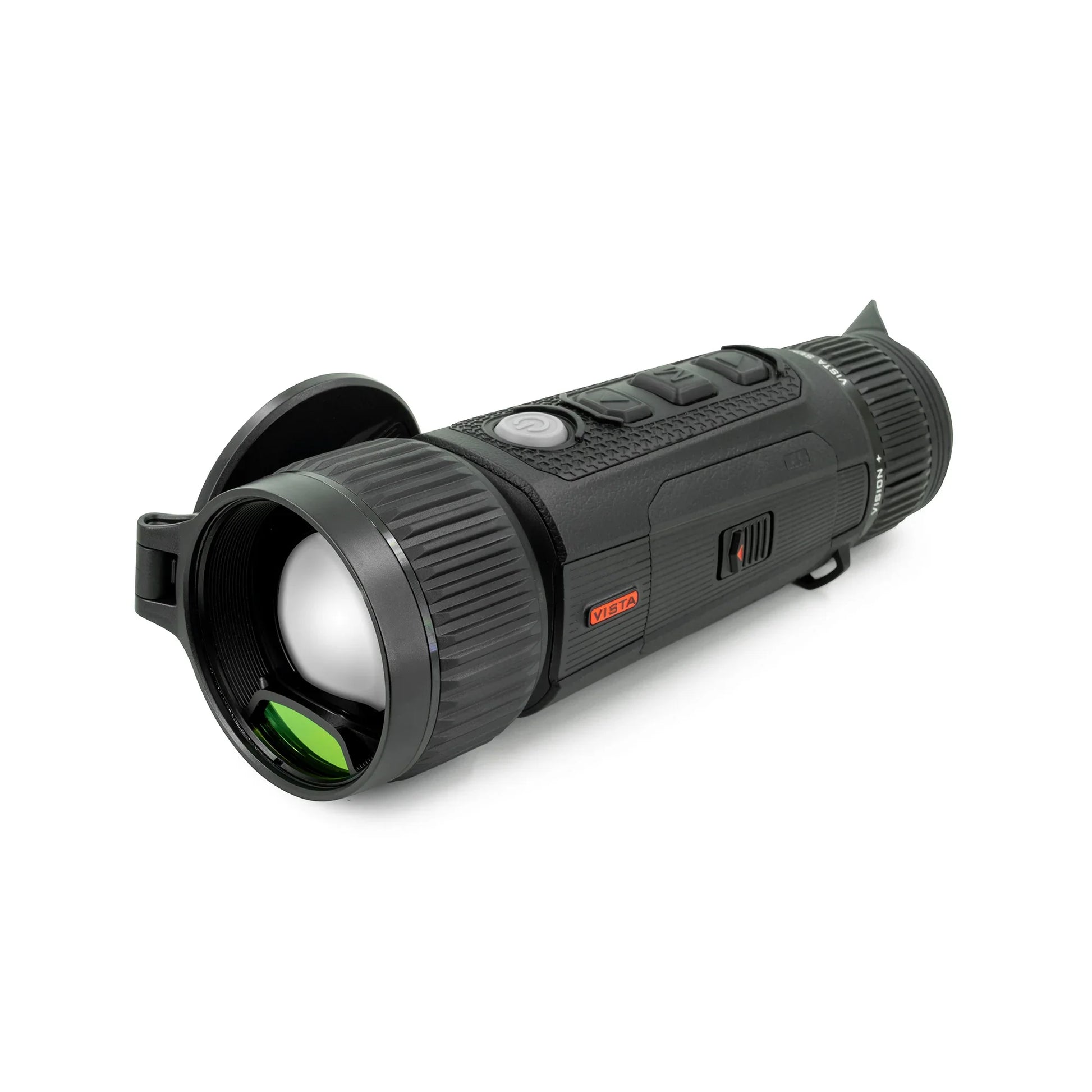

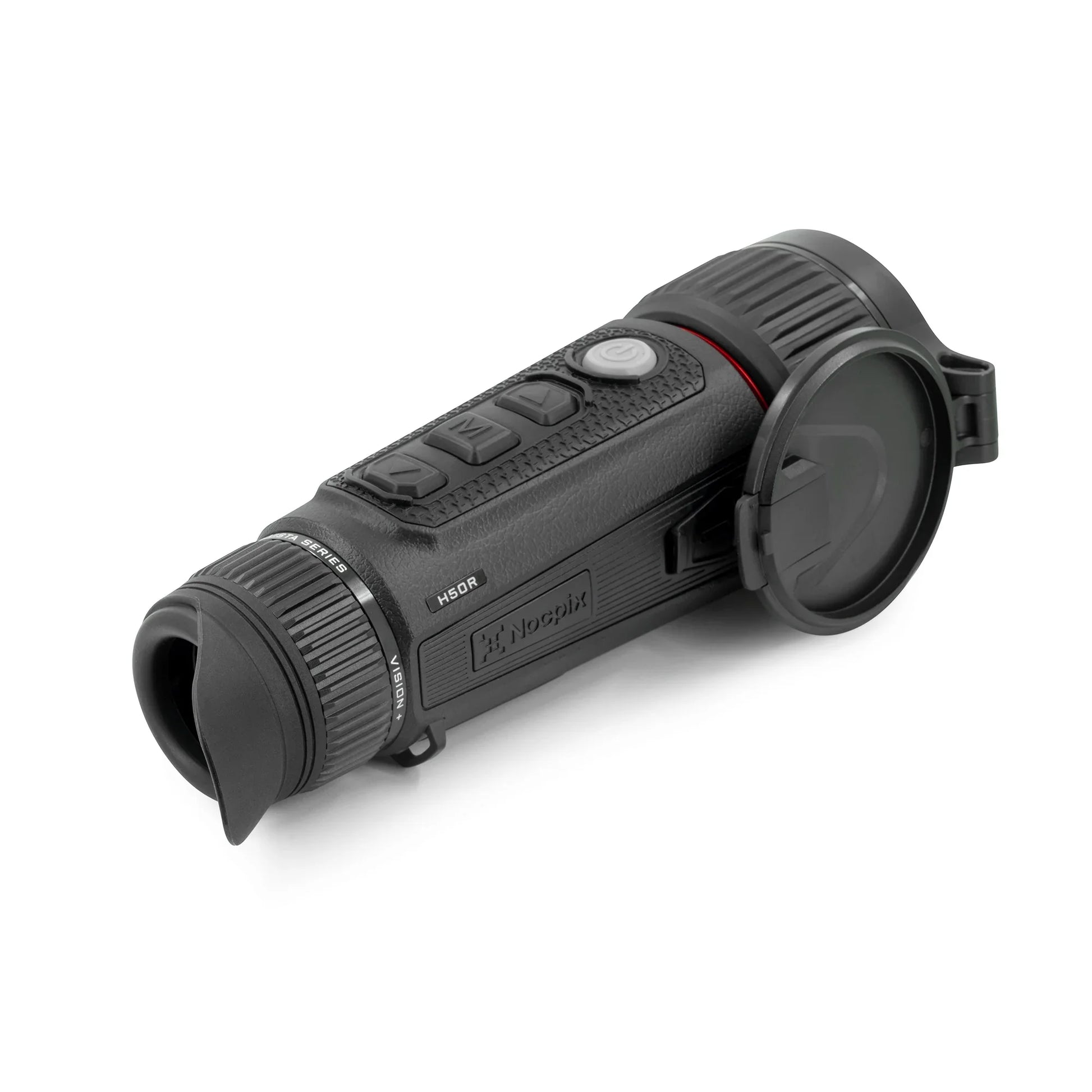

Nocpix VISTA LRF Thermal Monocular 640x512 35mm 2X VISTA-H50R
The all-new VISTA Series handheld thermal monocular features an advanced 35mm or 50 mm f/0.9 germanium lens, offering exceptional clarity and detail. Equipped with a high-resolution 640×512 thermal sensor and an impressive ≤15mK NETD sensitivity rating, the lightweight and ergonomic monocular delivers crystal- clear images with remarkable detail and contrast, making it perfect for wildlife observation and security applications. The integrated laser rangefinder enhances its functionality, boasting a maximum detection range of 1,200 yards with a remarkable sensitivity of ±1 yard. This ensures accurate distance measurements, crucial for effective scouting and scanning. Its ergonomic design ensures comfortable handling, while the intuitive interface allows for seamless operation. Perfect for long- range observation, the VISTA Series now features the new IBP-7 battery with direct USB-C charging. Whether you’re scanning for coyotes or conducting night-time surveillance, this is your go-to tool for unparalleled thermal imaging performance.

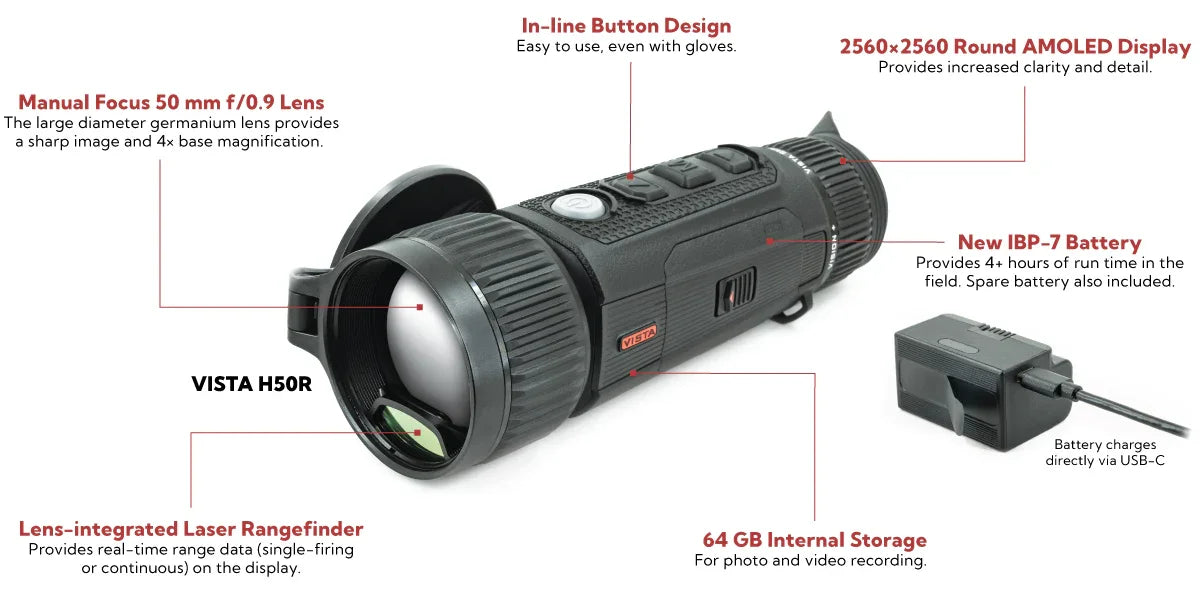

Nocpix VISTA H50R Features:
12 μm high-performance thermal detector
≤15 mK sensitivity
1200-yard laser rangefinder integrated into the objective lens
Digital zoom from 1.0×–8.0×
Polymer housing with rubber overmold
Two quick-change rechargeable IBP-7 battery packs
Maximum detection range 2400 yards
2560×2560 AMOLED display
High frame frequency: 60Hz
Built-in 64 GB storage to support image capture and video recording
Built-in Wi-Fi module
Mobile device App compatible
Picture in Picture (PIP)
User-friendly interface
Ultra-clear mode for advanced image detail
Warm and cool image-hue options
Pixel calibration function
Nocpix VISTA H50R Specifications:
Sensor
Resolution 640×512
Pixel Size 12 μm
Frame Rate 60hz
Sensor Sensitivity ≤15 mK
Image Processing Reality+
Core Nocpix 640
Optics
Objective Lens 50 mm f/0.9
Magnification 4×
Digital Zoom 8×
Field of View 8.8° × 6.6°
Detection Range 2400 Yards
Display Type 1.03-inch Large-format AMOLED
Display Resolution 2560×2560
Color Palettes White Hot, Black Hot, Red Hot, Color, Crimson, Viridian, Violet
P.I.P. Yes
Rangefinder Integrated 1,200 yd LRF
Eye Relief 25 mm
Diopter Range -4 to +6
Electronics
Onboard Recording Video and Image
Onboard Storage 64 GB
Wireless Connectivity Image and Video via App.
Data/Power Connector USB-C
Power Supply USB-C External, IBP-7 Li-ion Batteries ×2 (5+ Hours Each)
Start Up Time <10 Seconds, Instant from Standby
Physical
Size 7.83” × 2.72” × 3.23”
Weight 22.93 Oz
Environmental/Warranty
Warranty 5 Years
Housing Material Polymer with Rubber Overmold
Ingress Protection IP67
Operation Temperature -4°F~122°
The Nocpix VISTA H50R ships with everything you need to get out and hunt.
35mm or 50mm Objective Lens Cap

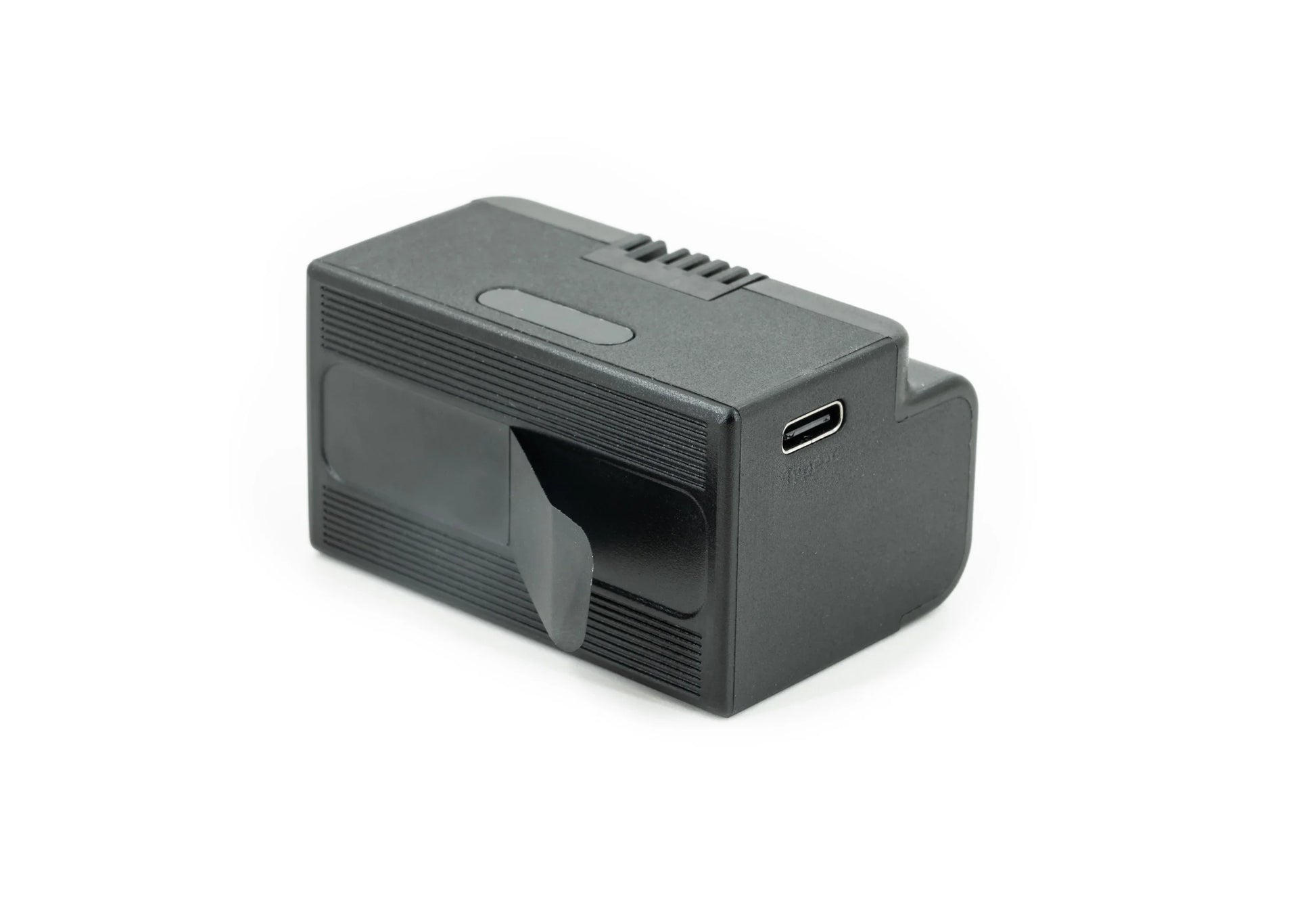

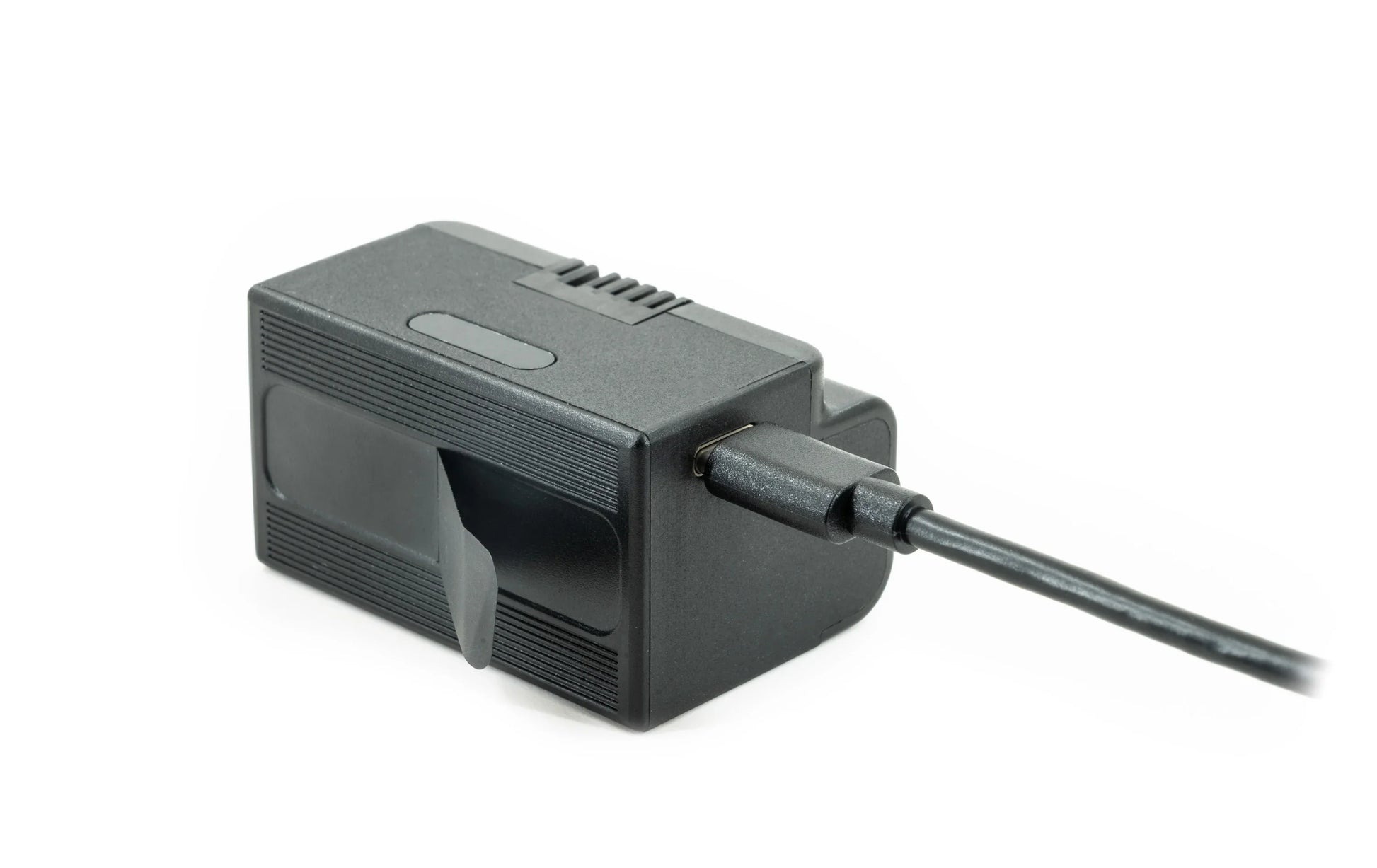

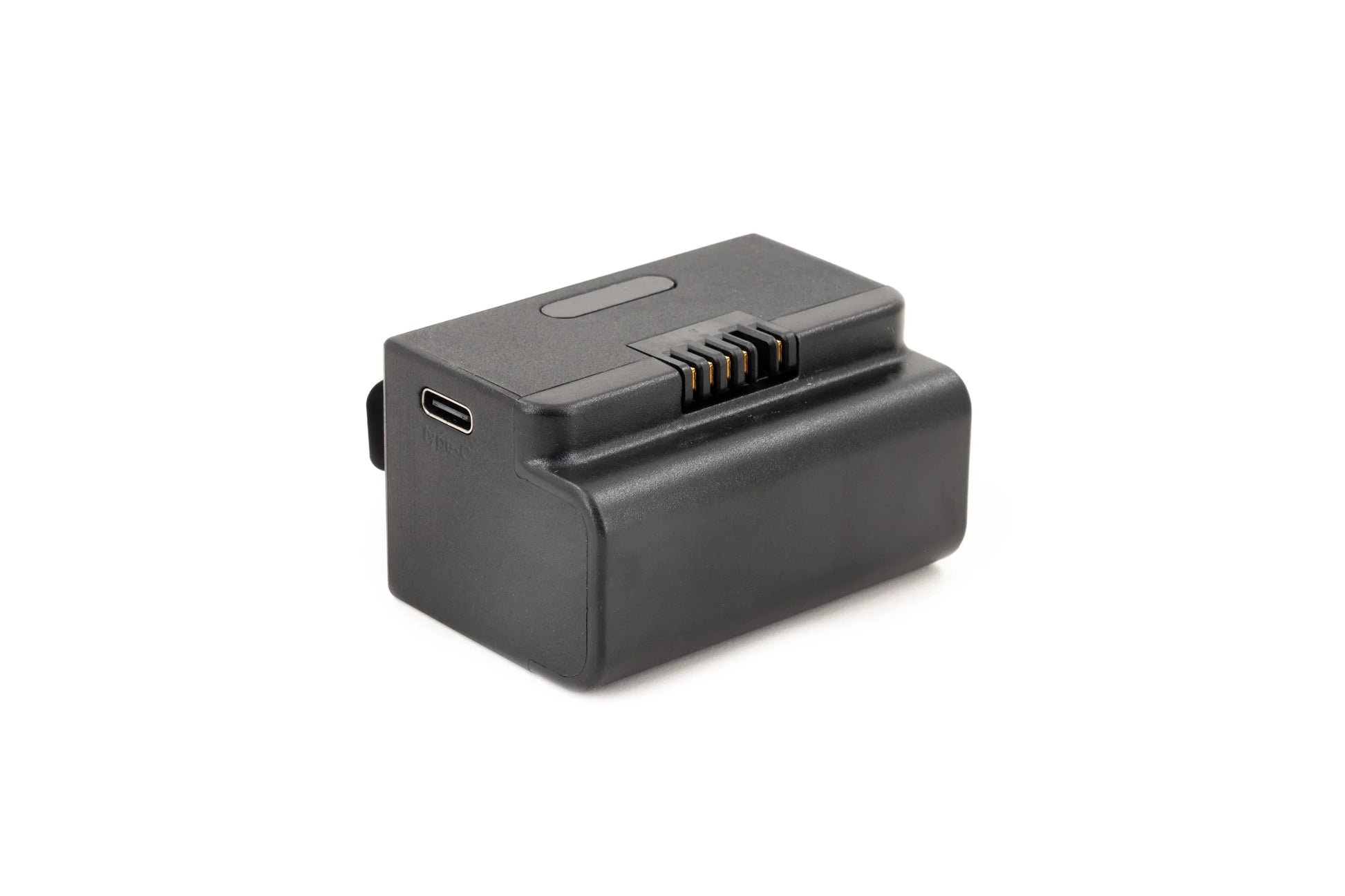

IBP-7 Battery Packs 4400 mAh
USB-C Cable

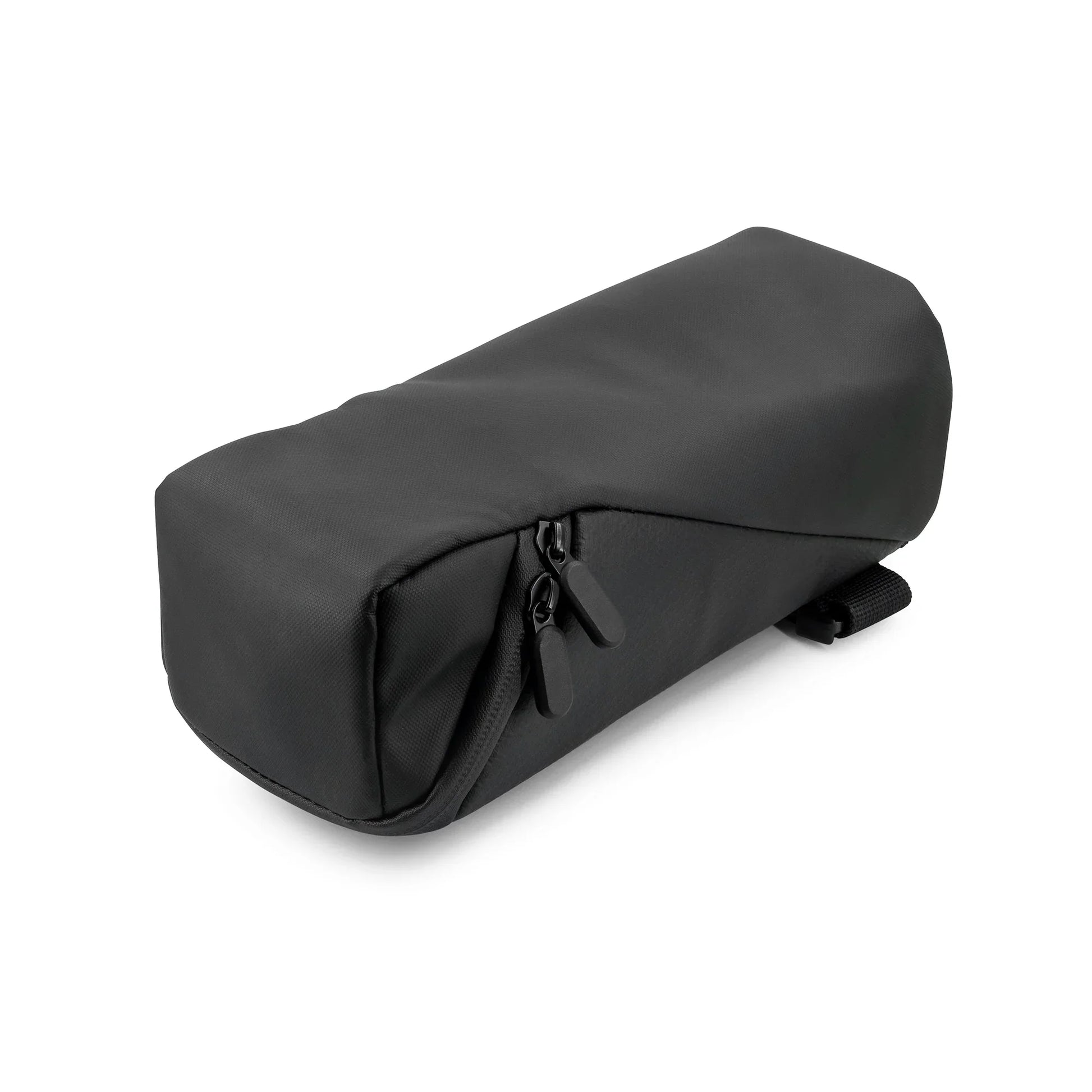

Soft Case and Straps
Lens Cloth
User Manual
