NVD BNVD-SG Gen 3 Night Vision Binocular White Phosphor Elbit Thin Filmed, Min FOM 1900

NVD BNVD-SG Gen 3 Night Vision Binocular White Phosphor Elbit Thin Filmed, Min FOM 1900


Regular price $ 7,295.00
Regular price $ 7,695.00 Sale price $ 7,295.00
Sale Sold out
Shipping calculated at checkout.

NVD BNVD-SG Gen 3 Night Vision Binocular Kit Elbit White Phosphor Thin Filmed, Min FOM 1900, 10 Year Warranty

Authorized Dealer

NOTE: These are special order units, please check with me for lead time before ordering. A small deposit can also be done to get one on order.

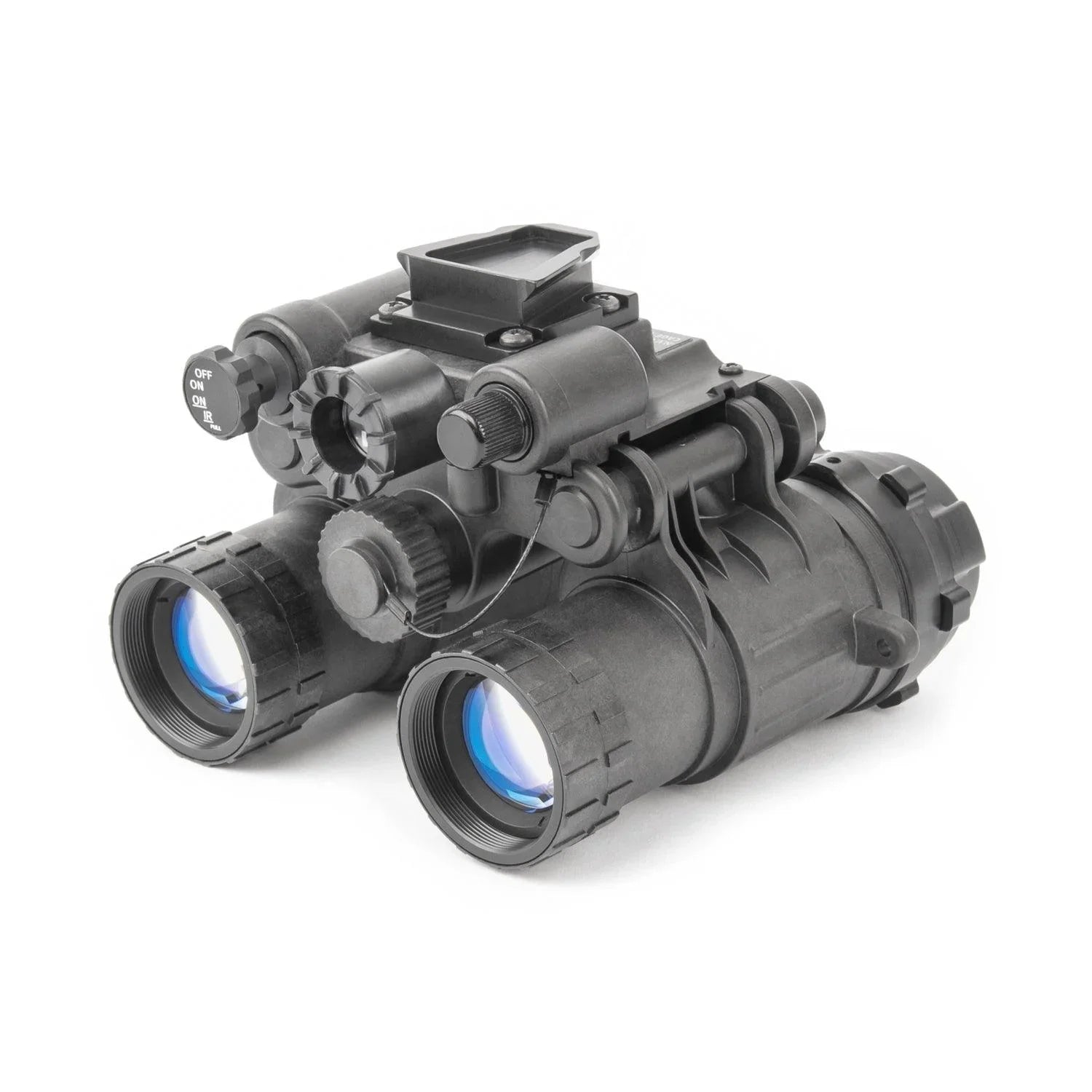

The NVD-BNVD-SG Min FOM 1900 Binocular features a single gain control knob that adjusts both eyepieces simultaneously, optimizing its performance for varying levels of ambient light. Additionally, the BNVD-SG Min FOM 1900 can be used as a monocular, as it allows the user to rotate either monocular channel away from their eye while still having access to the other channel.

Experience superior night-time situational awareness with the NVD BNVD-SG Gen 3 Min FOM 1900 Night Vision Binocular Green Phosphor Elbit Thin Filmed. It provides you the operational flexibility to use it as a dual-eye or single-eye device, and when used as a monocular, can be used with weapon-mounted sighting equipment. Its Min FOM rating of 1900 ensures a clear, high-quality image.

The NVD BNVD-SG Gen 3 Min FOM 1900 Night Vision Binocular offers advanced protection with a Tactical Monocular Cutoff, which automatically shuts off power when the binocular is flipped up. It is submersible to 66 feet (20 meters) for up to 3 hours with its optional battery pack, providing up to 50 hours of run time. Enjoy superior nighttime performance with a minimum FOM of 1900.

The BNVD-SG Min FOM 1900 can be used with optional 3X Afocal Magnifiers. Each 3X Magnifier can be either slide onto each objective lens or screw into the threads on the objective lenses. For extended use, it is recommended to screw them on to prevent the lenses from falling off. These magnifiers transform the BNVD-SG Min FOM 1900 into a fixed 3X Magnification Binocular.

Our BNVD-SG Gen 3 Min FOM 1900 Night Vision Binoculars can accept an external battery pack for extended run-time, but that option must be added when the system is first built. However, the body of the system cannot be modified afterwards, so adding the external power port now is the only option for this device to be compatible with the external battery pack. If you choose not to add the port in the initial assembly, you may purchase the battery pack at a later date.

This NVD product features custom-built Image Intensifiers from renowned suppliers Elbit Systems of America®, Photonis® or L3Harris®, with green and white phosphor or thin/un-filmed image tubes. Additionally, it meets the stringent requirements of MIL-STD 810G, MIL-PRF-A3256342A(CR) and MIL-PREF-49427(CR).


- Generation 3 Tube

- One AA Battery Usage

- Submersible 66 feet for 3 hours

- Single Gain Control

- Infrared LED Indicator

- Low Battery LED Indicator

- High Light Cut Off

- Easy to Use

- TEN Year Warranty


10 Years
Gain Control
IR Illuminator
Adjustable IR Spot/Flood
LED IR Indicator
LED Low Battery Indicator
Tactical Monocular Cutoff
Flip Up, Turn Off Setting
Field of View
One Power (1X)
Diopter Adjustment
-6 to +2 Diopters
Interpupillary Adjustment
51mm to 76mm
Eye Relief
66 feet for 3 hours
Focus Range
9.8" to Infinity
Power Source
1 AA-Size Battery
Operation Time
20+ hours (Alkaline), 40+ hours (Lithium)
Weight (w/o batteries)
560 g (19.8 oz)
4.3"L x 4.2"W x 3.3"H

Maximum Spots Allowed in Each Zone                  Zone

Spot Size (in)                                                                          1 2 3

> .009-.012                                                                  0 0 1

>.006-.009                                                                  0 1 2

.003-.006*                                                                   0 2 3

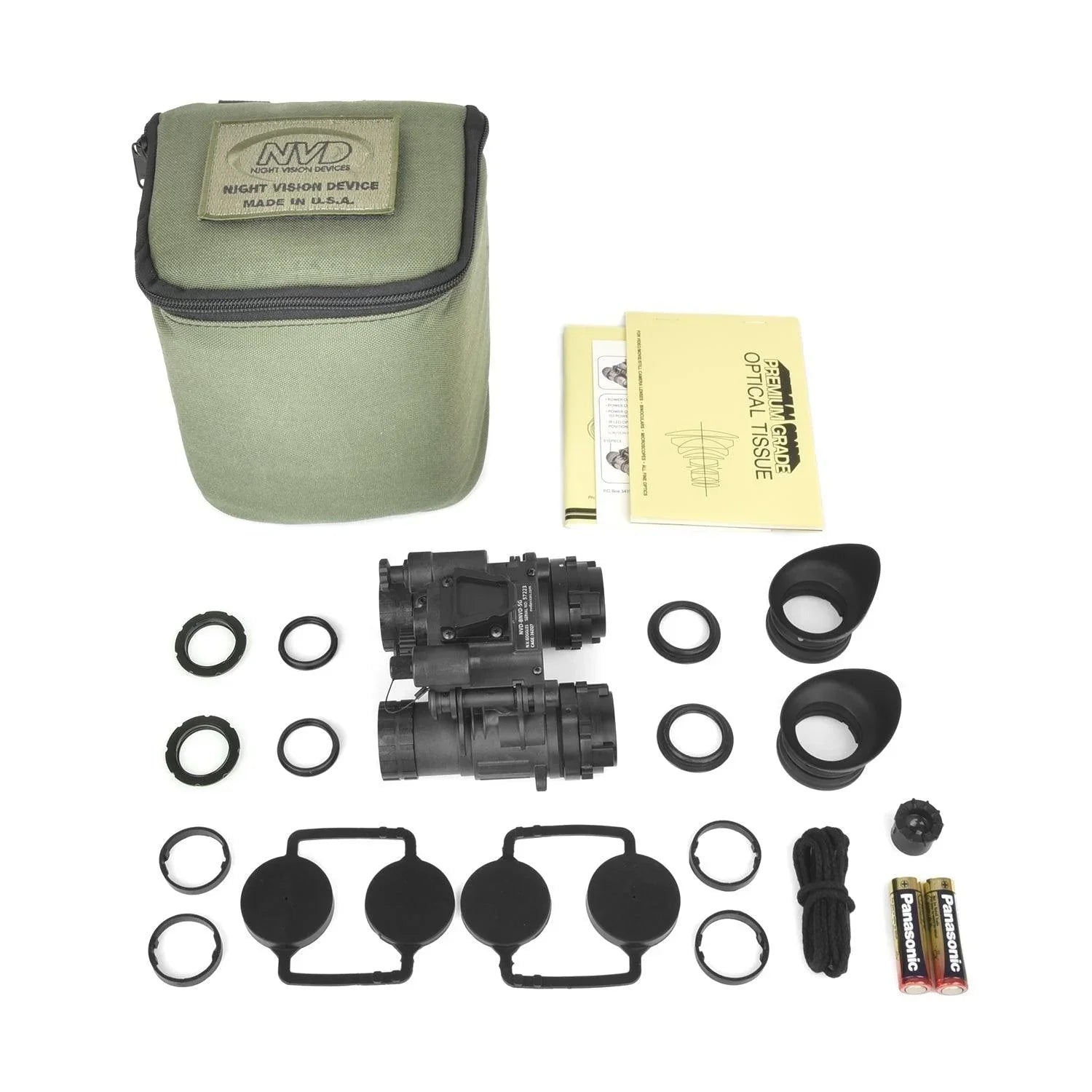

Standard Accessories: Soft Carry Case, AA Batteries (2), Operator’s Manual, Neckcord, Retaining Lens Covers, Eyecups, Lens Tissue, Demist Shields, Sacrificial Windows, IR Flood/Spot Lens Assembly, Operator’s Card, and Dovetail Mounting Adapter.

Optional Accessories: Hard Case, 3X Afocal Magnifier Lens, Helmet Mount, Shuttered Eyeguards, Camera Adapter Kit, Light Interference Filters (For DOD Only), and Battery pack for 50-60 hours of continual use for extended missions.



Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
