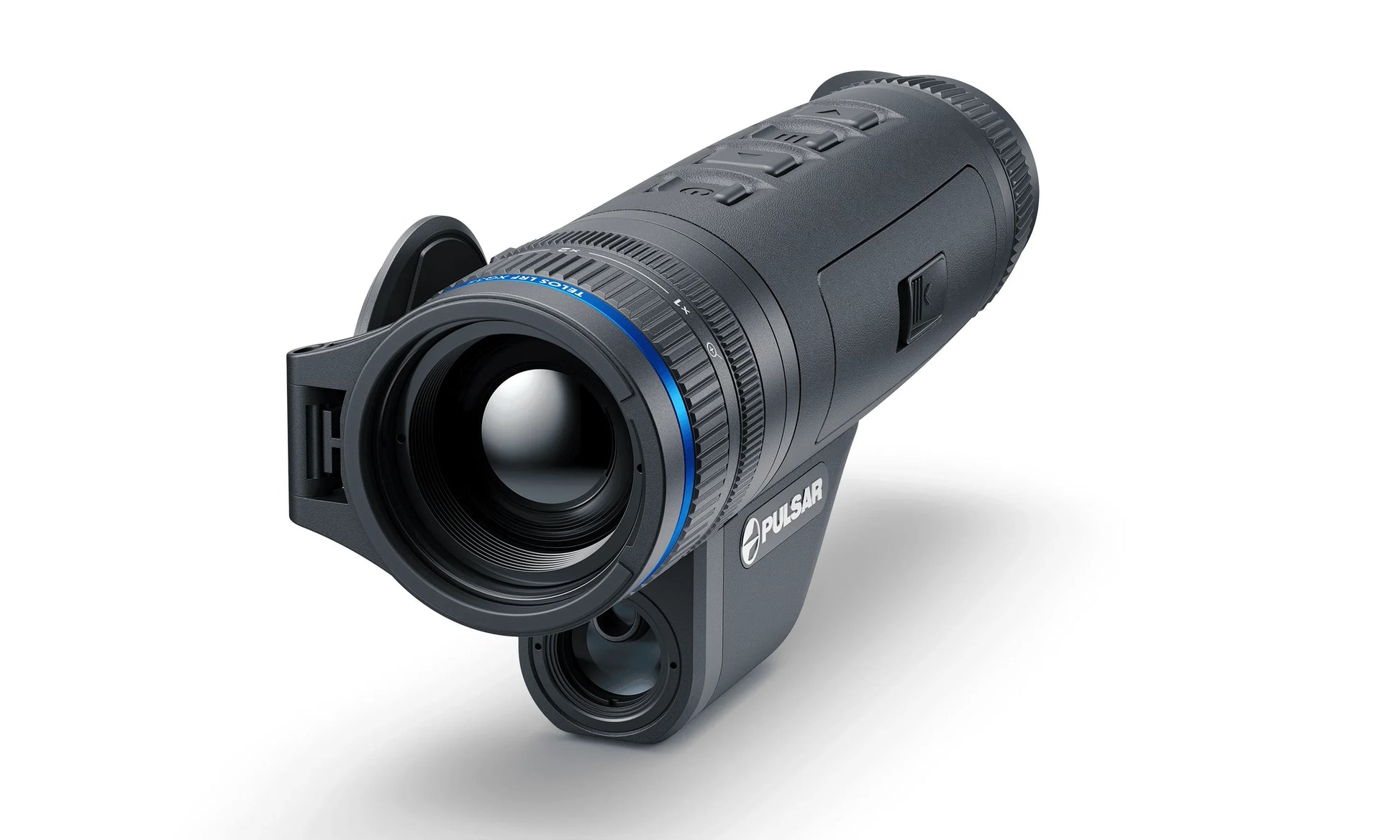

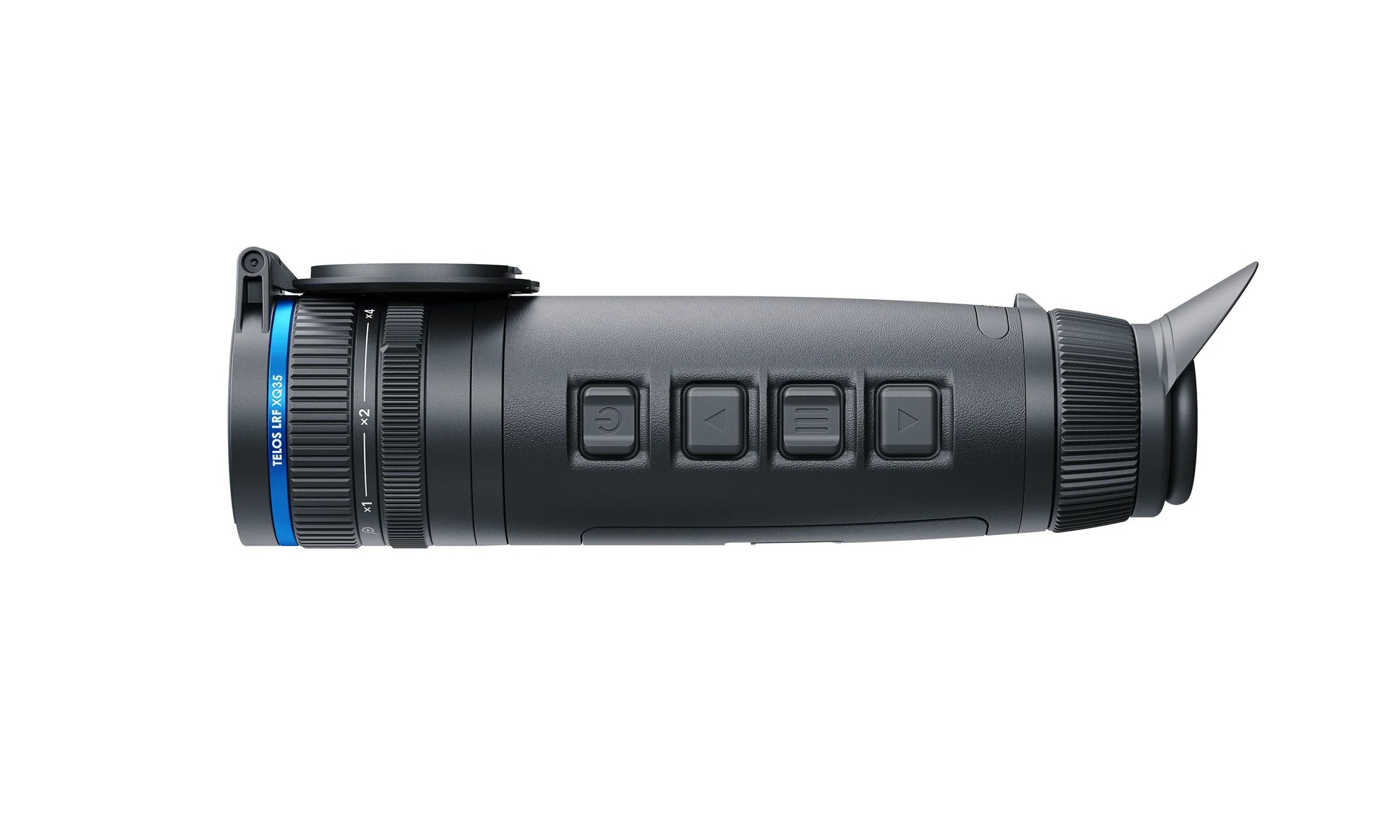

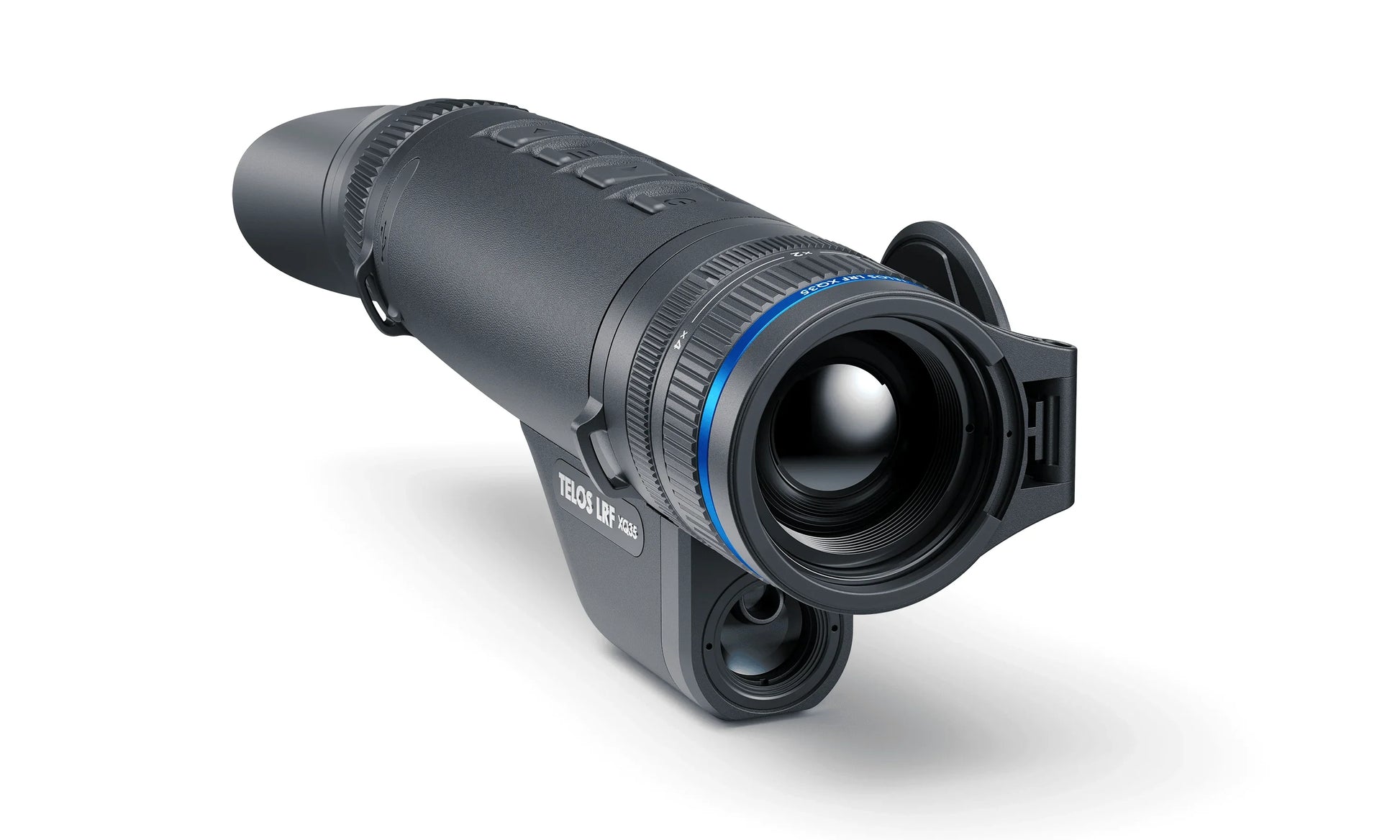

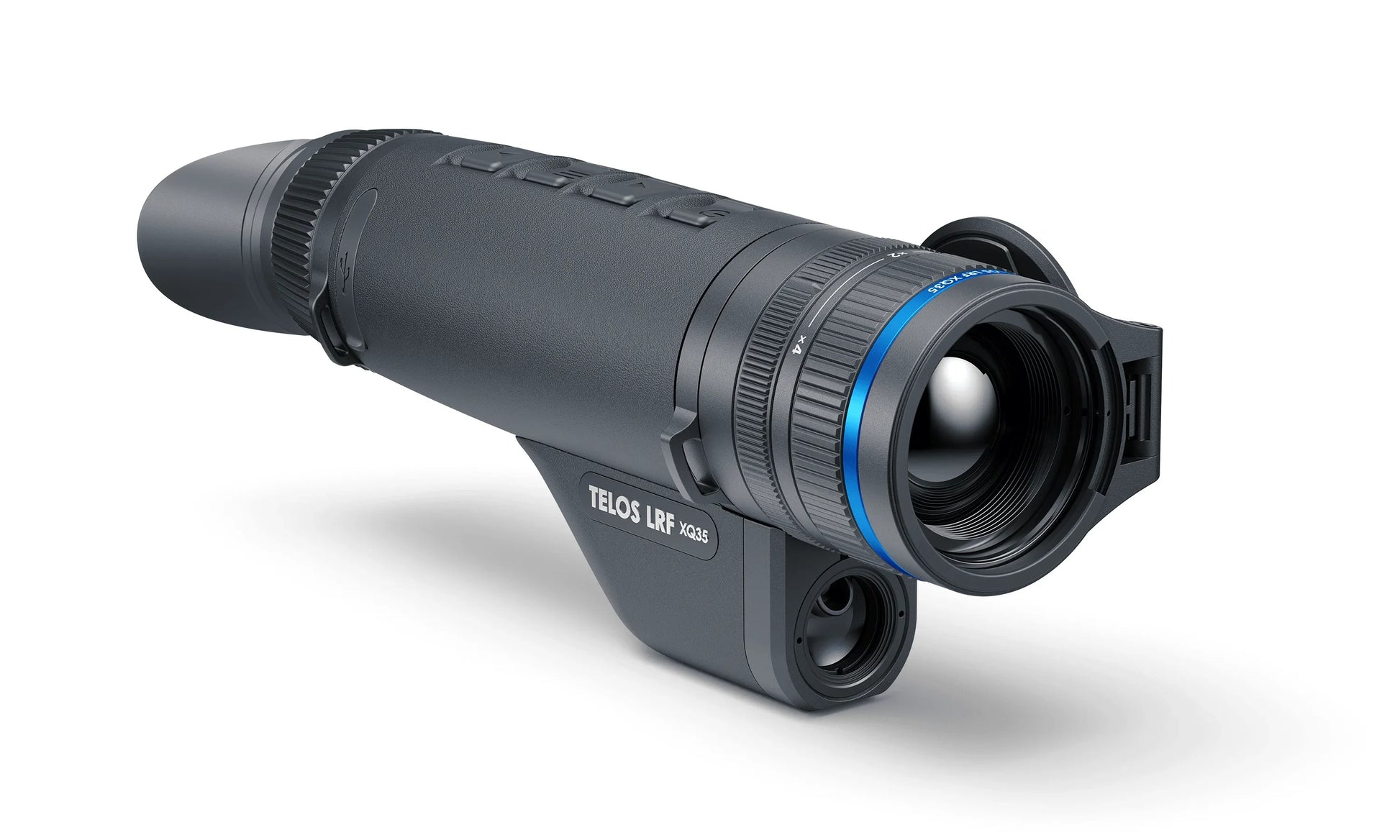

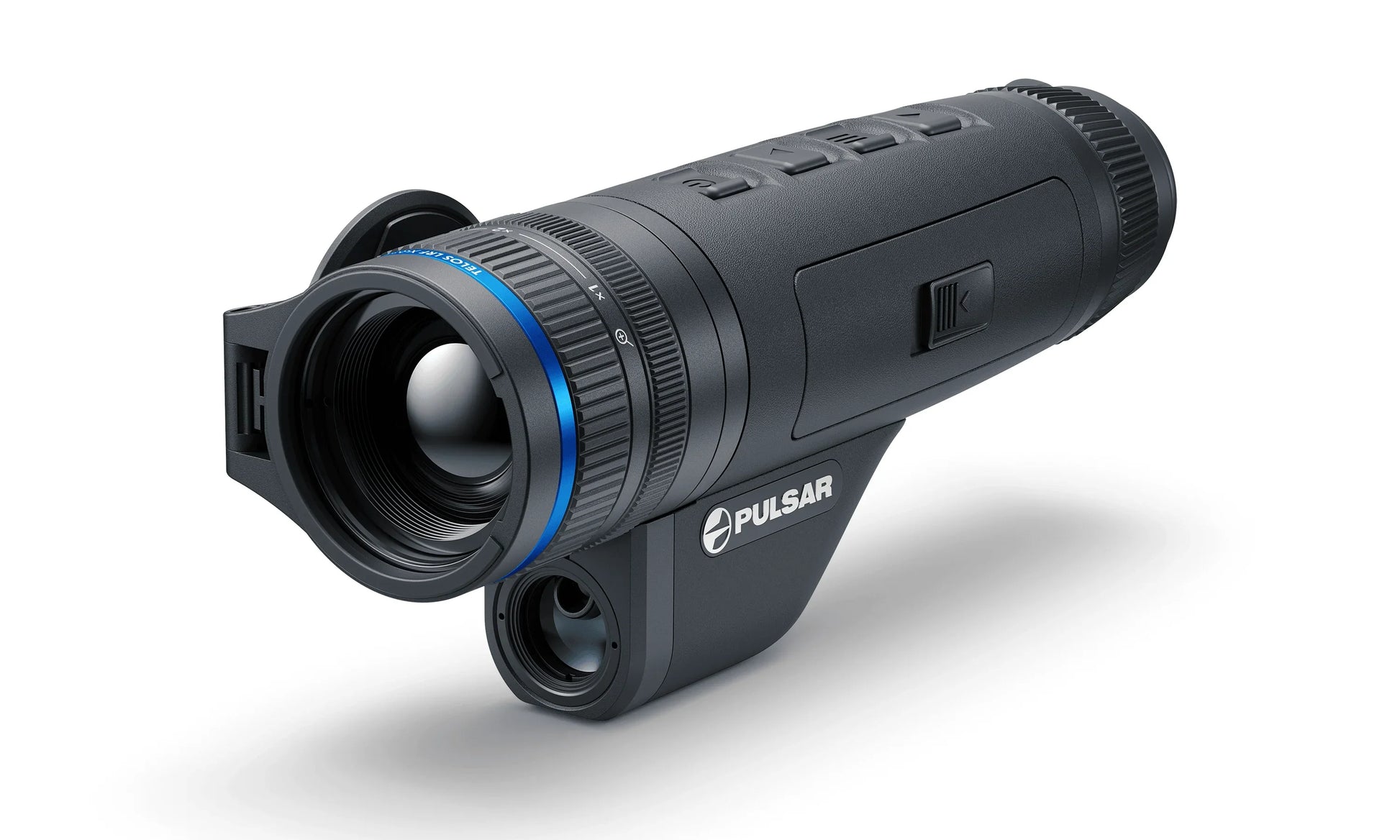

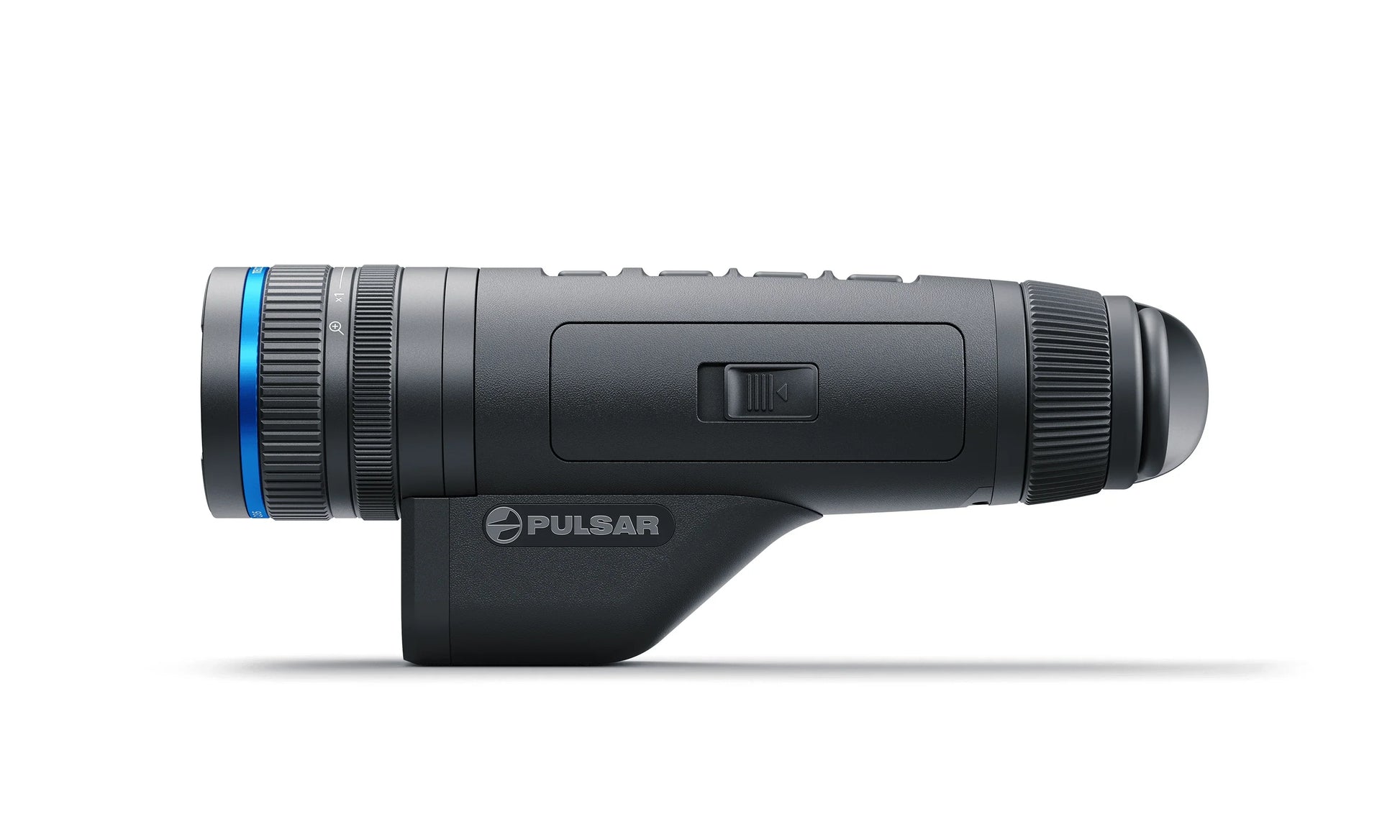

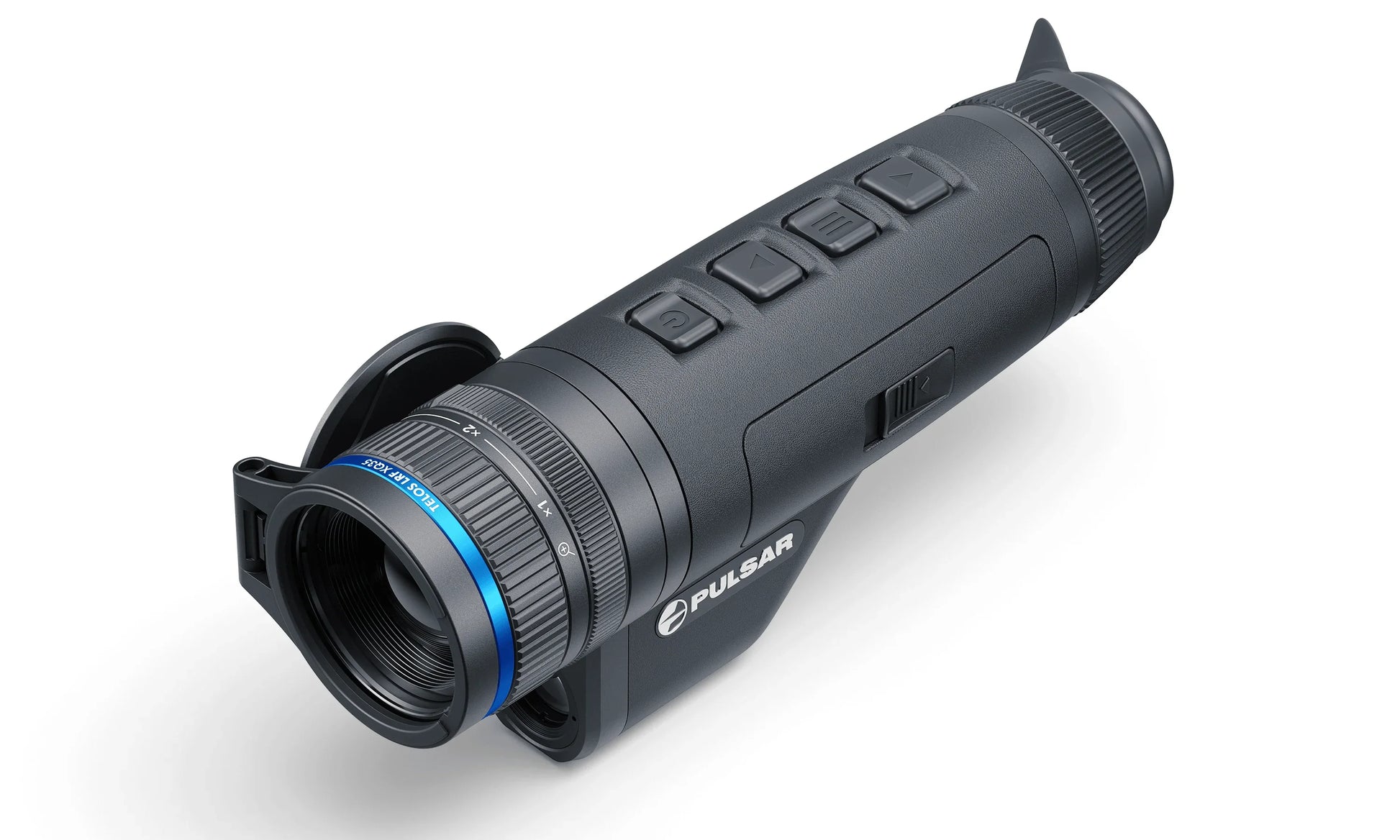

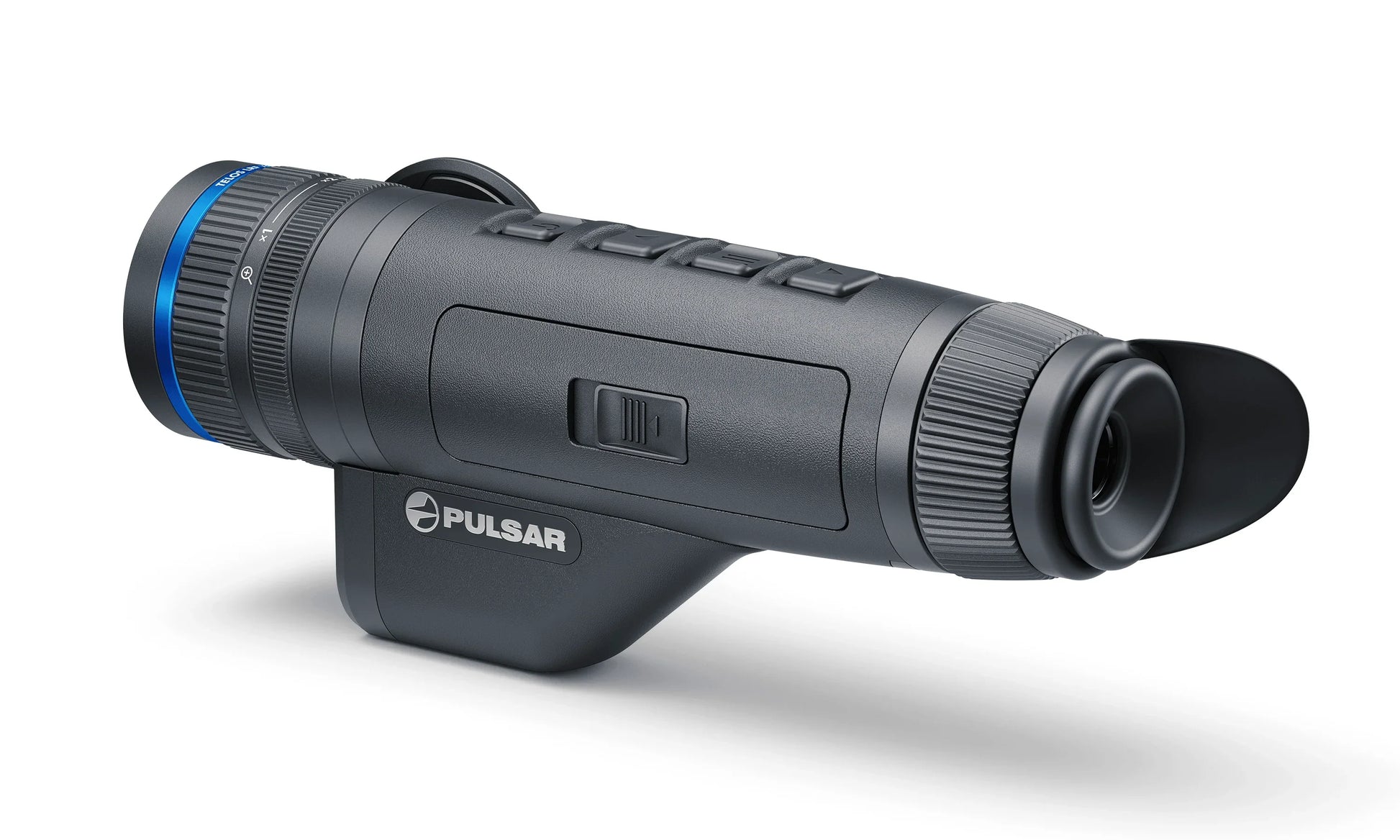

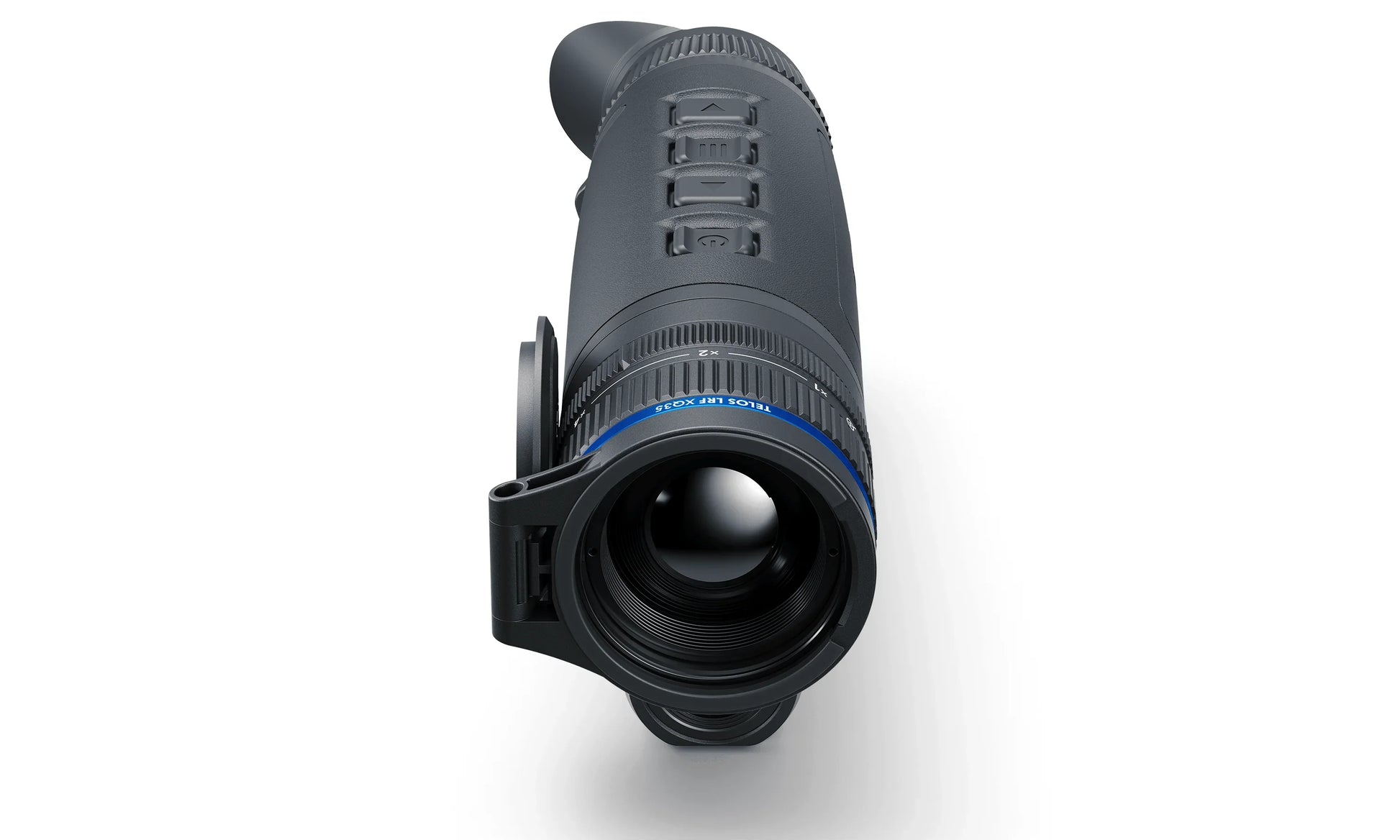

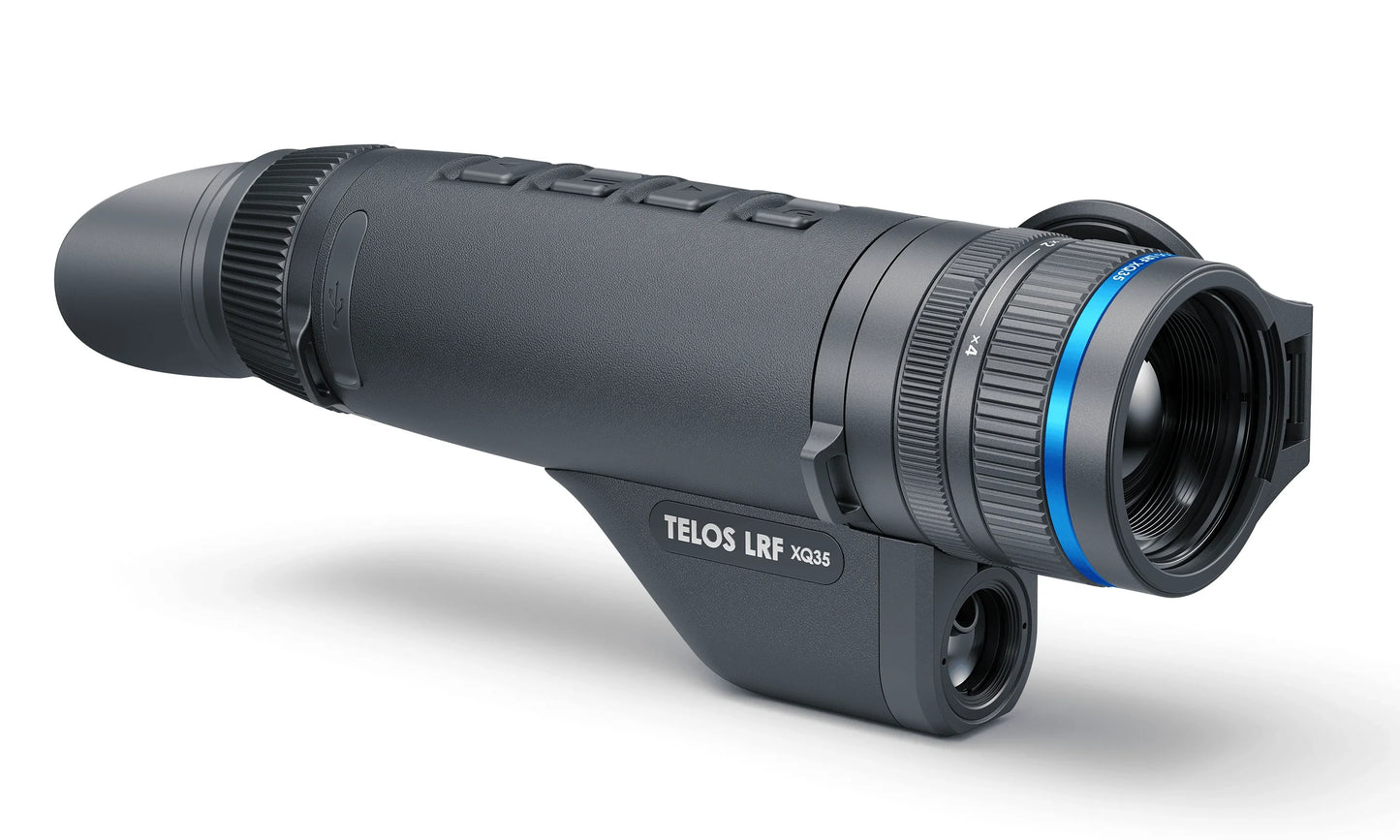

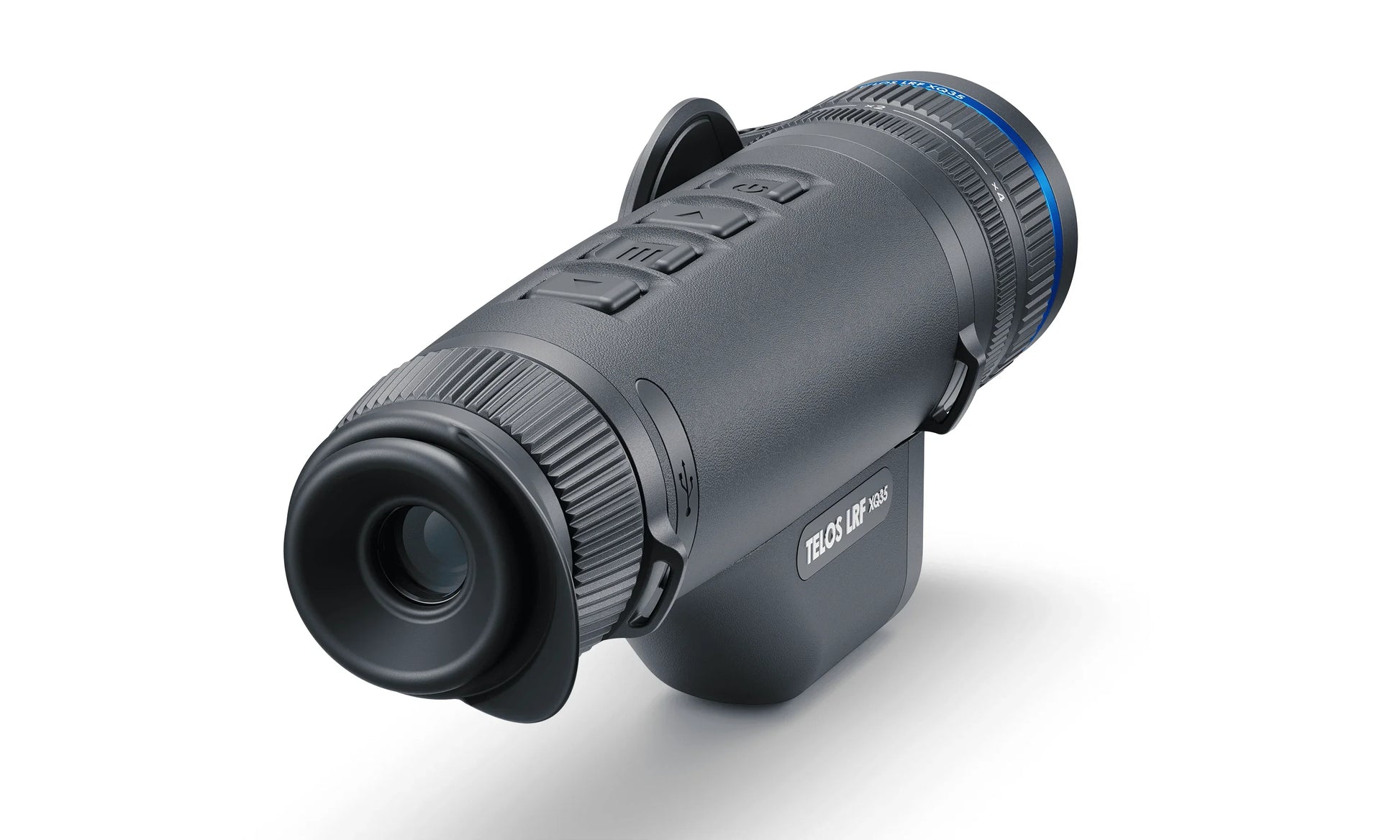

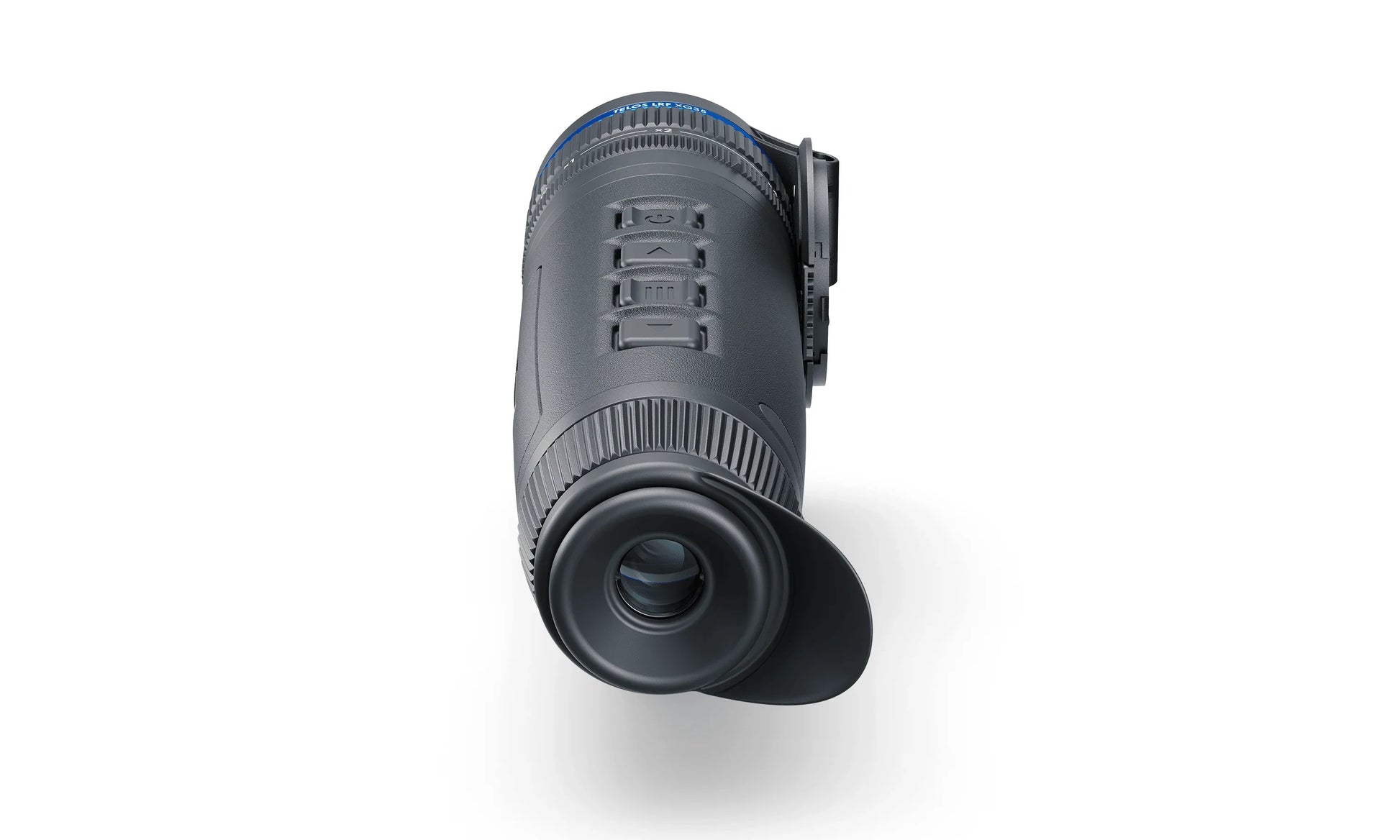

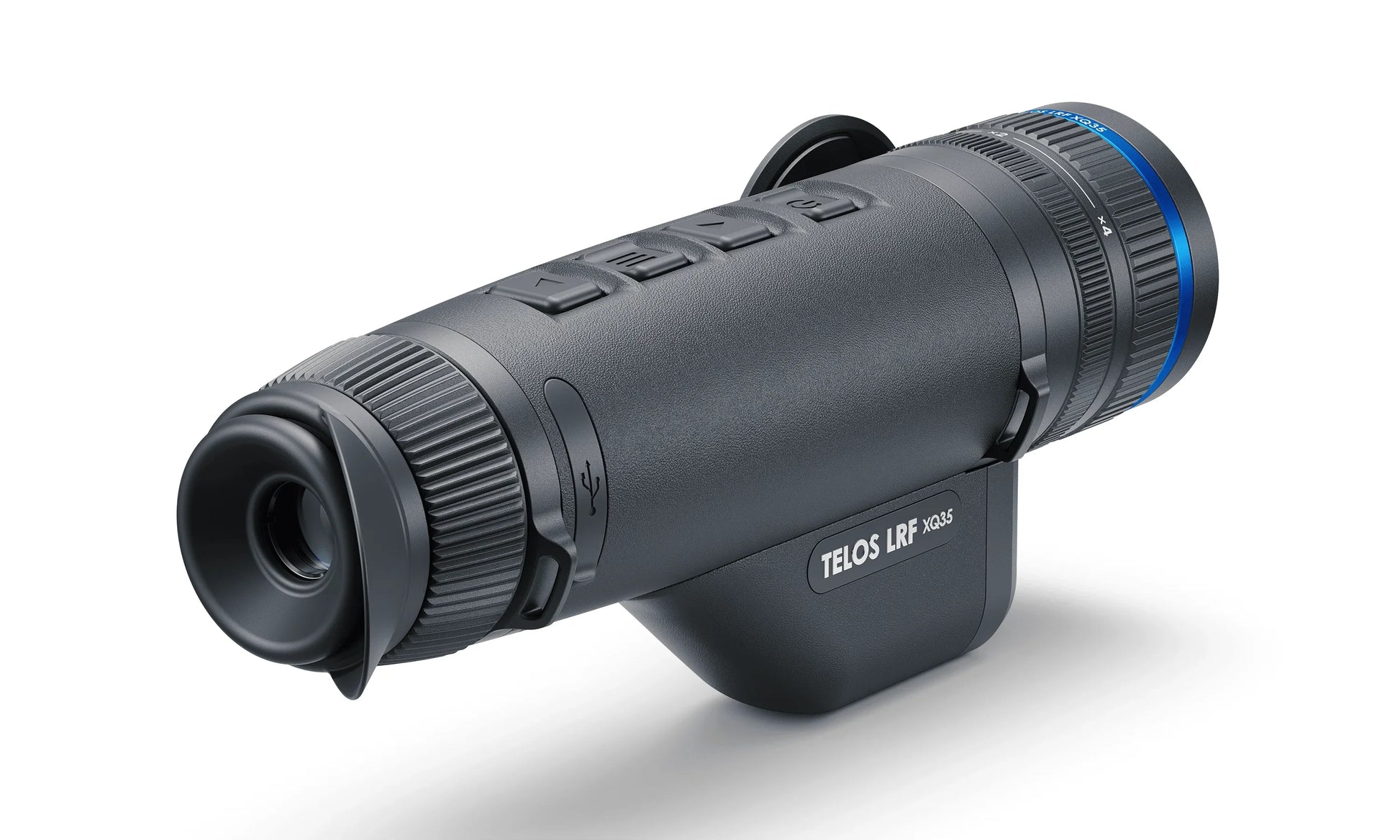

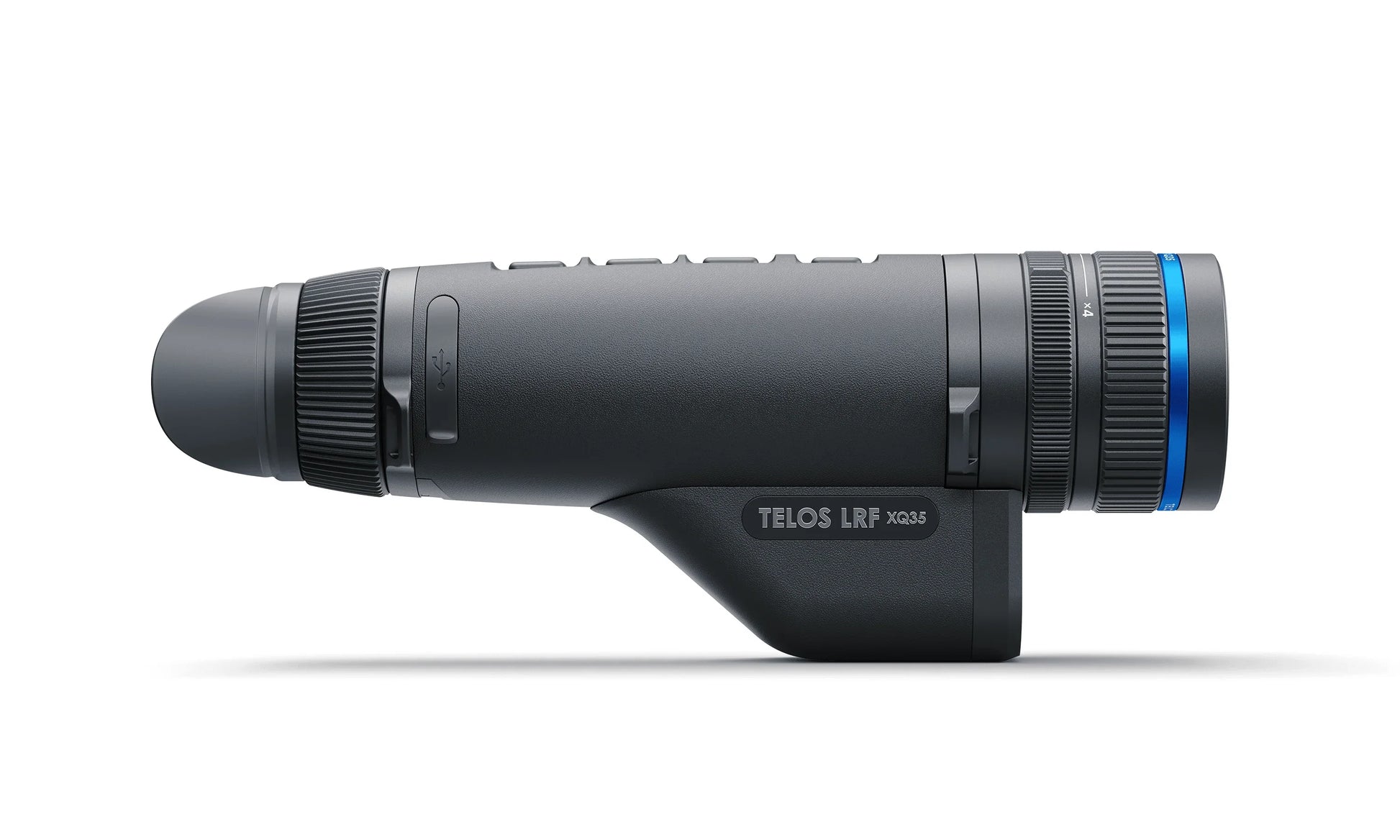

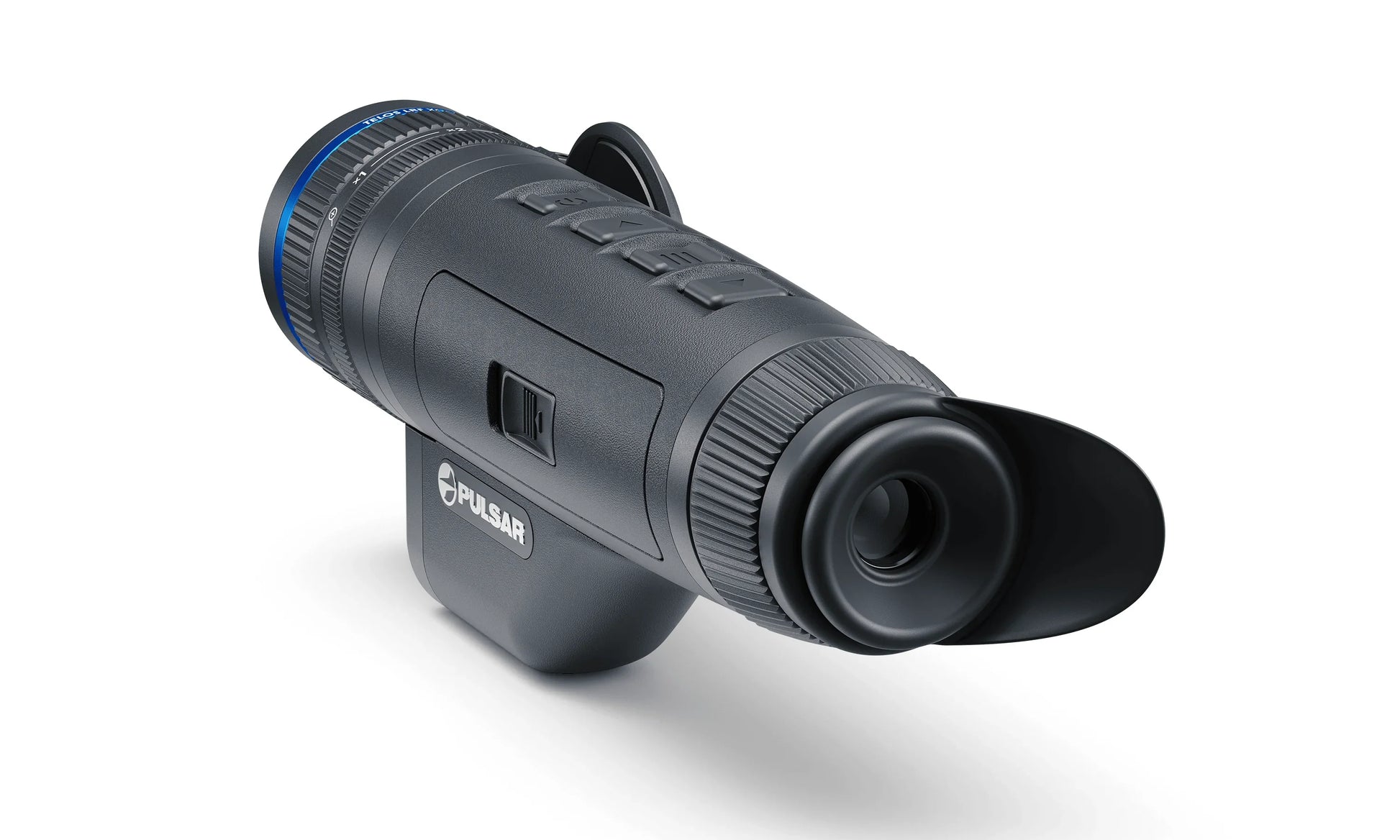

Pulsar TELOS XQ35 LRF Thermal Monocular

Pulsar TELOS XQ35 LRF Thermal Imaging Monocular 384x256 50Hz WiFi (PL77512)





AUTHORIZED DEALER



Telos thermal imaging monoculars are designed for use both at night-time and during the day and provide exceptional image quality even in adverse weather conditions (fog, smog, rain) and beyond obstacles like branches, tall grass, dense foliage, etc. known to hinder target detection.

Unlike night-vision devices based on electron-optical converters, thermal imaging devices do not need an external light source and are resistant to bright light.

Telos thermal imagers are designed for various applications including hunting, observation, security, terrain orientation, search and rescue operations, etc.

Pulsar TELOS XQ35 LRF Features:

• Microbolometer resolution: 384x256
• Frame Rate: 50Hz
• Pixel pitch: 17μm
• NETD: <25mK
• Display resolution: 1024x768
• Display type: AMOLED
• Objective lens: F35/1.0
• Magnification: 3-12x (x4 digital zoom)
• Detector type: Uncooled ASi
• Detection range: 1300 m
• Laser Rangefinder maximum range: 1,000 yards
• Battery type: LPS 7i Li-Ion 6400 mAh, external power supply: 5V, 9V (USB-C)
• Battery life: 8.5 hours
• Dimensions (mm): 224х66х87
• Body material: Rubber armored reinforced plastic
• Weight (kg): 0.48 (w/o battery) / 0.63 (with the LPS7i battery)
• Factory 3-Year Warranty with 2-Year Extension upon registration for USA Market



Pulsar TELOS XQ35 LRF Specifications:

Main

Sensor

384x288 pix. @ 17 µm (NETD <25 mK)

Objective lens

F35 / 1.0

Magnification, x

3 - 12 (x4 zoom)

Magnification in monocular mode / attachment mode, x

-

Field of view (HxV), degrees / m@100m

10.7x8 / 18.7x14

Detection range, m

1300

Sensor

Type

uncooled

Resolution, pixels

384x288

Pixel pitch, µm

17

NETD, mK

<25

Frame rate, Hz

50

Optics

Objective lens

F35 / 1.0

Magnification, x

3 - 12 (x4 zoom)

Magnification in monocular mode / attachment mode, x

-

Field of view (HxV), degrees / m @ 100 m

10.7x8 / 18.7x14

Eye relief, mm

14

Recommended magnification of the day scope, x

-

Display

Type

AMOLED

Resolution, pixels

1024x768

Range Performance

Detection range, m

1024x768

Laser Rangefinder

Safety class for laser equipment according to IEC 60825-1:2014

1

Wavelength, nm

905

Max. measuring range, m

1000

Measurement accuracy, m

± 1

Video Recorder

Video / photo resolution, pixel

1024x768

Video / photo format

.mp4 / .jpg

Built-in memory, GB

64

Built-in memory capacity

-

Wi-Fi

Wireless Protocol

Wi-Fi

Wireless Standard

IEEE 802.11 b/g/n/ac (WPA)

Frequency, GHz

2.4 / 5

Bluetooth

Wireless Protocol

-

Wireless Standard

-

Frequency, GHz

-

Environmental Characteristics

Degree of protection, IP code (IEC60529)

IPХ7 (waterproof)

Operating temperature range, °С

-25 – +40

Connections and Compatibilities

Mount, type

1/4"

Remote control

-

Supported Application

Stream Vision 2

Power Supply

Output voltage, V

3.0 – 4.2

Battery type

LPS 7i Li-Ion Battery Pack

Capacity, mAh

6400

Operating time on battery pack (at t=22°C), h *

8.5

External power supply, V

5V, 9V (USB Type-C Power Delivery)

Weight & Size

Body material

rubber armored reinforced plastic

Dimensions, mm

224х66х87

Weight, kg

0.48 (w/o battery) / 0.63 (with the LPS7i battery)

Warranty

3 Years with an additional 2 years if registered with Pulsar via Pulsar website.



Package Contents:

Telos LRF thermal imager

LPS7i battery pack with protective cover

Spare battery compartment cover

Power adapter

USB Type-C cable with USB Type-A adapter

Case

Hand strap

Quick start guide

Lens cloth

Warranty card
