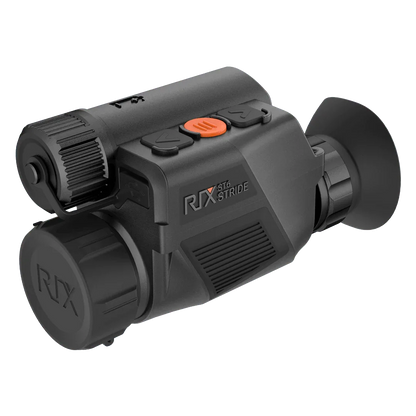

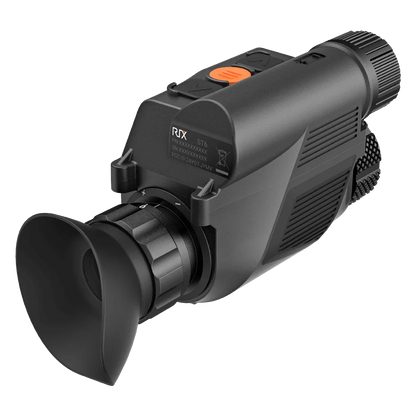

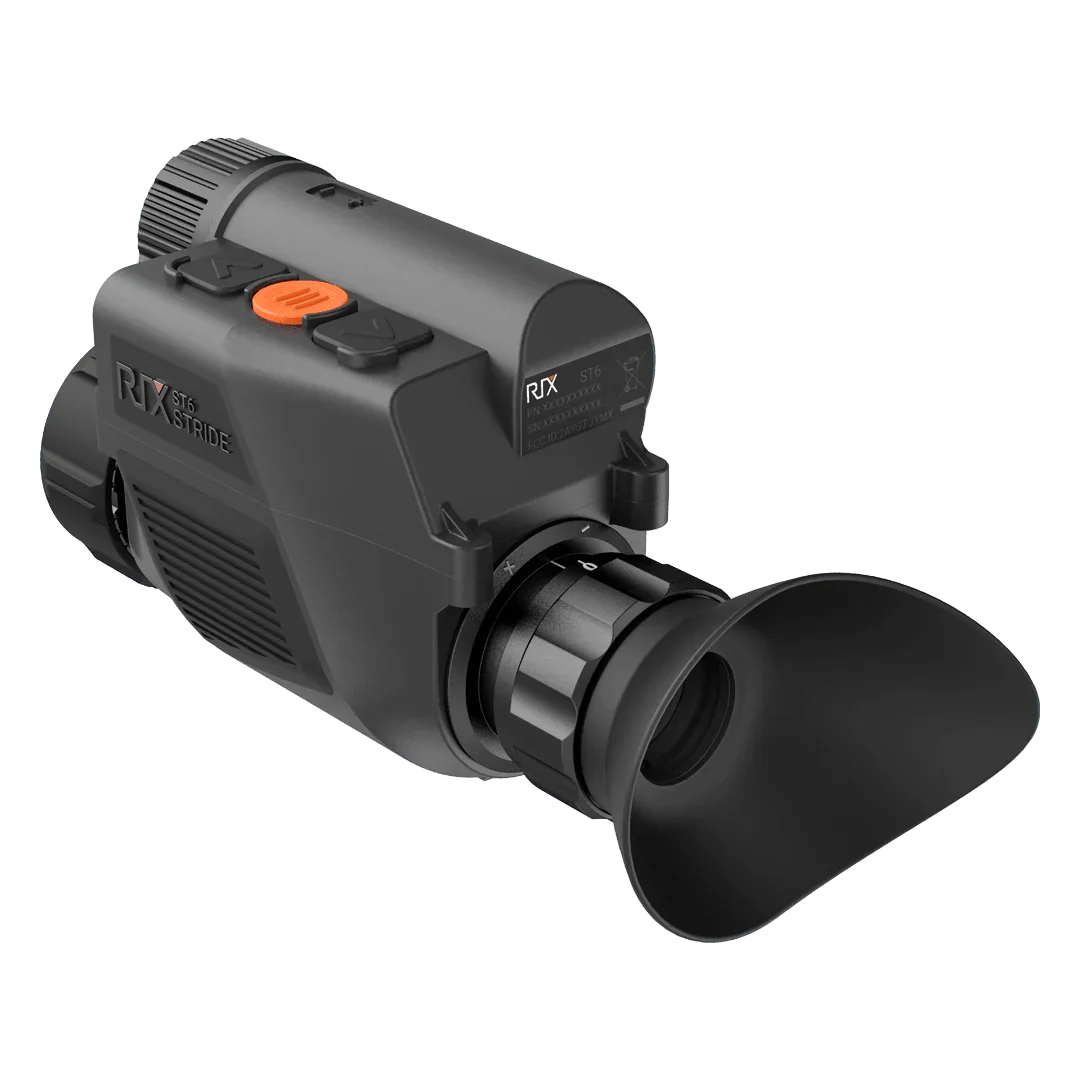

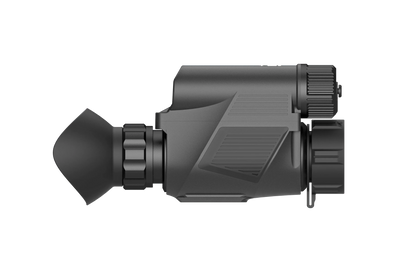

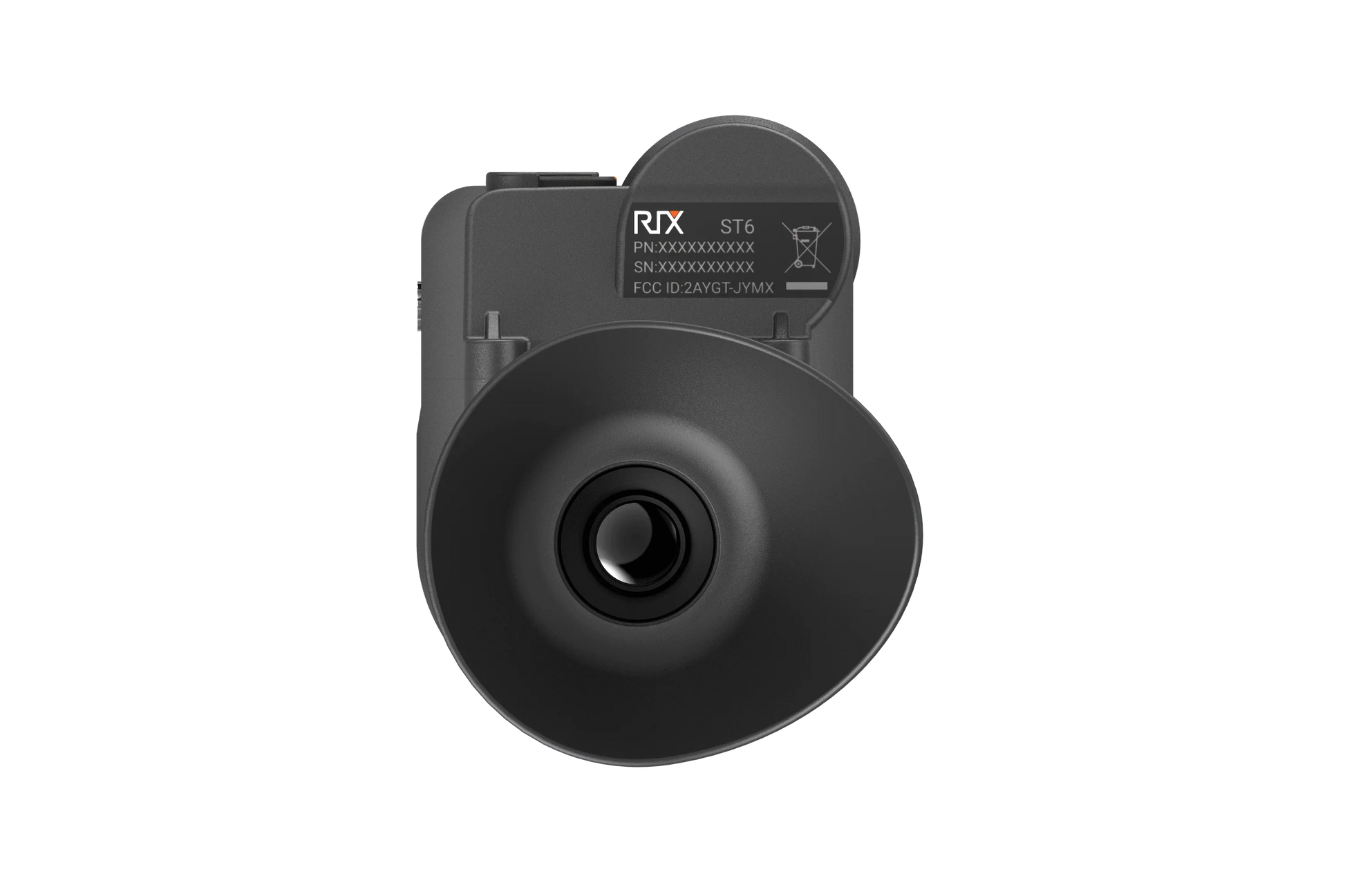

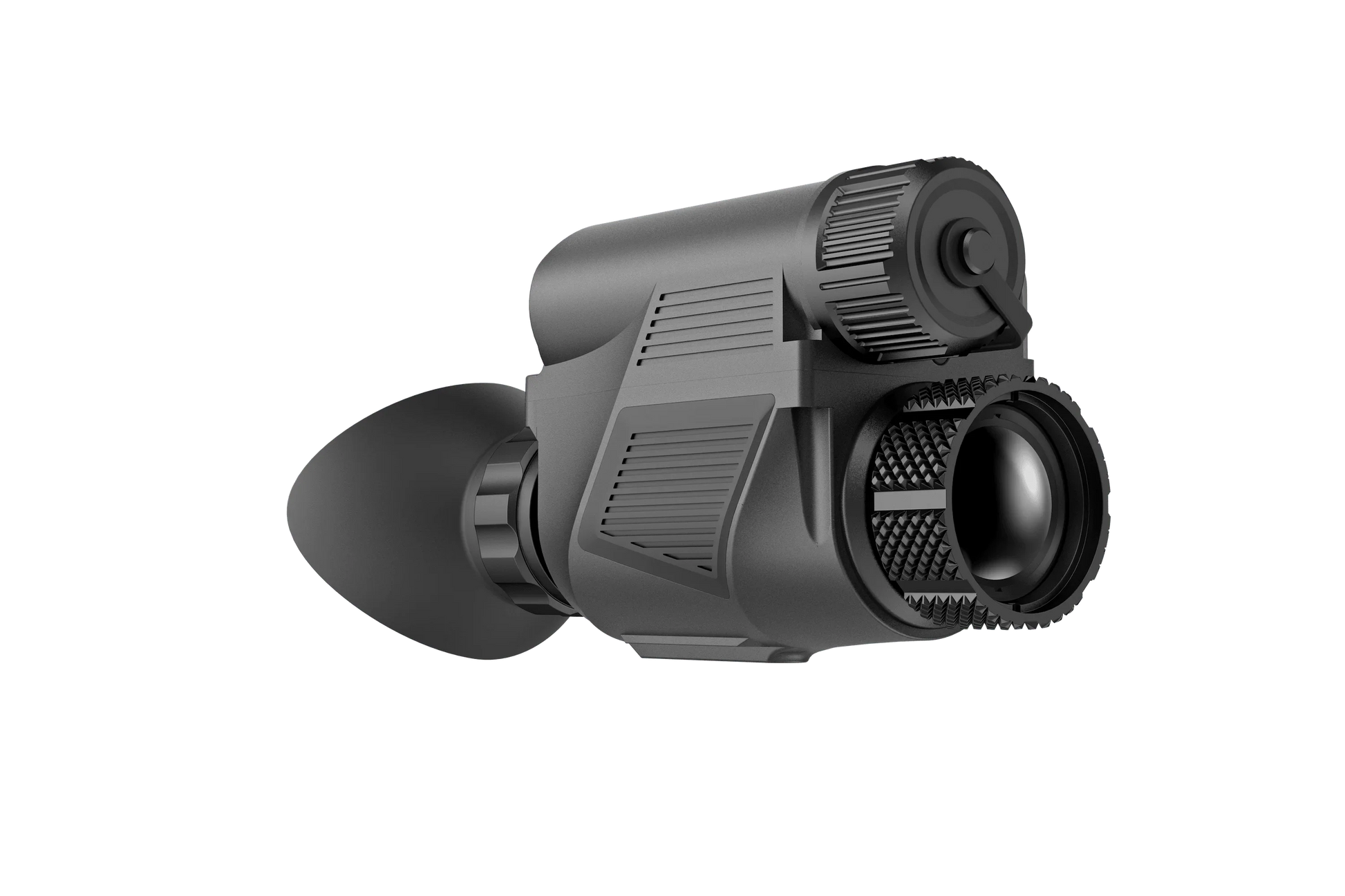

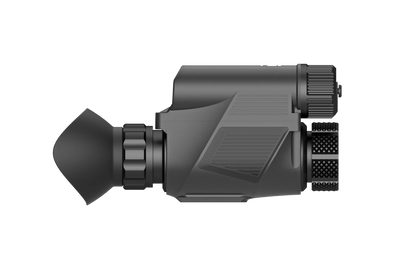

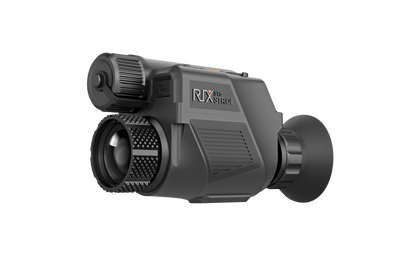

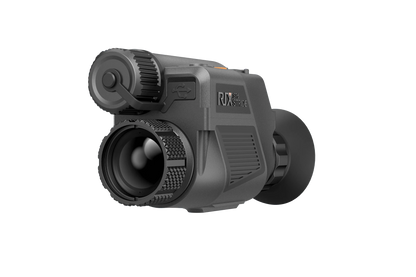

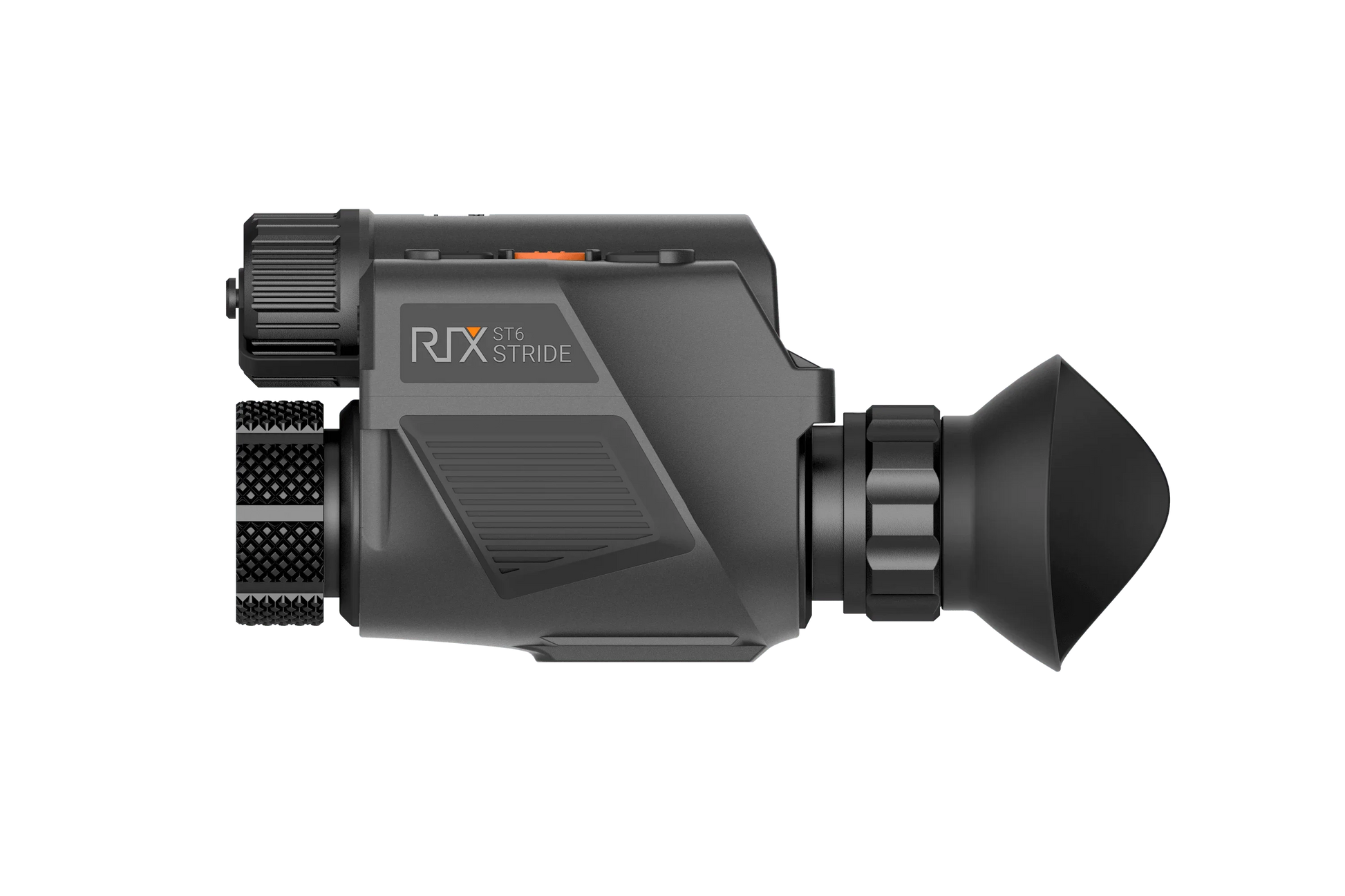

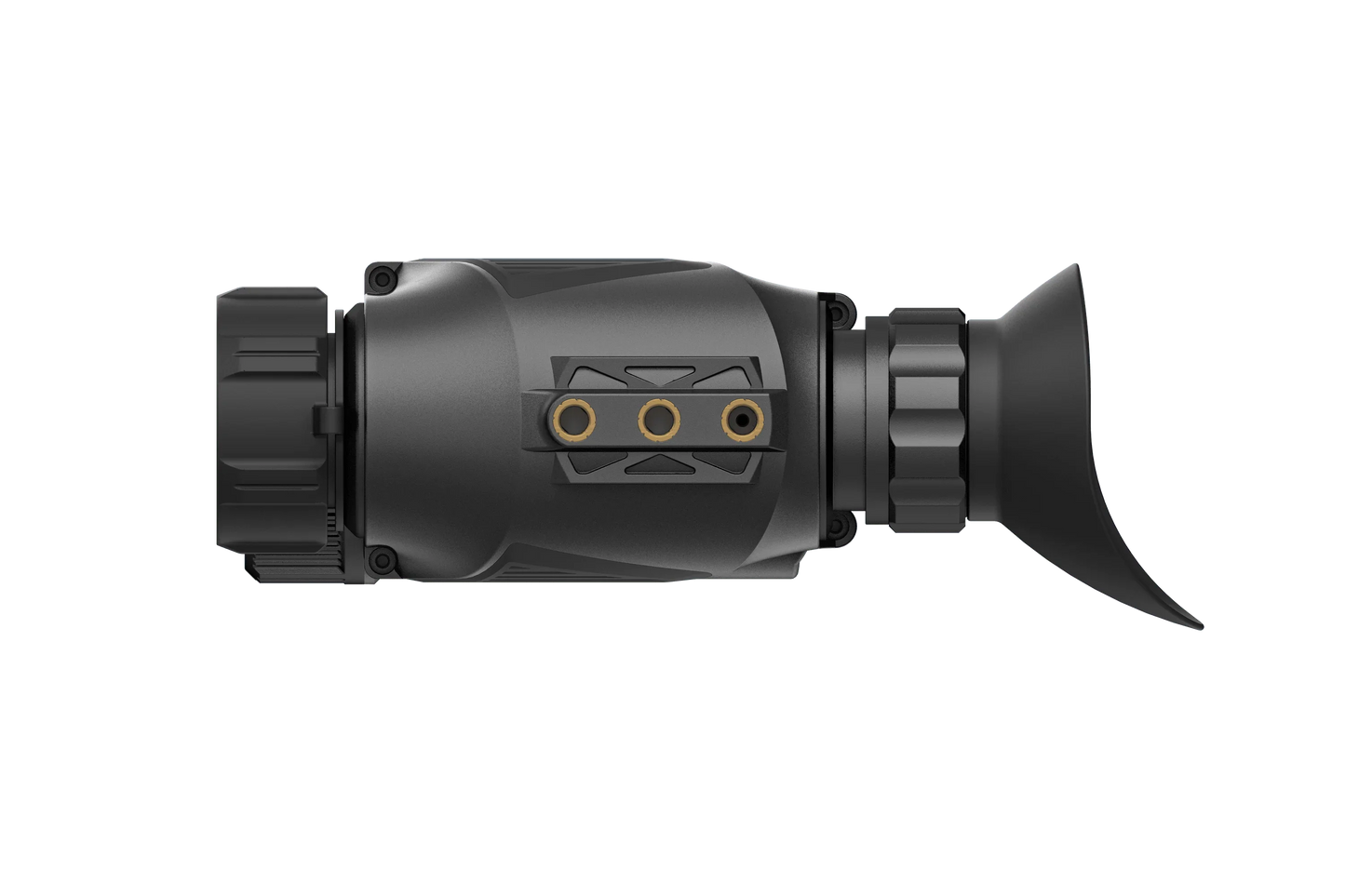

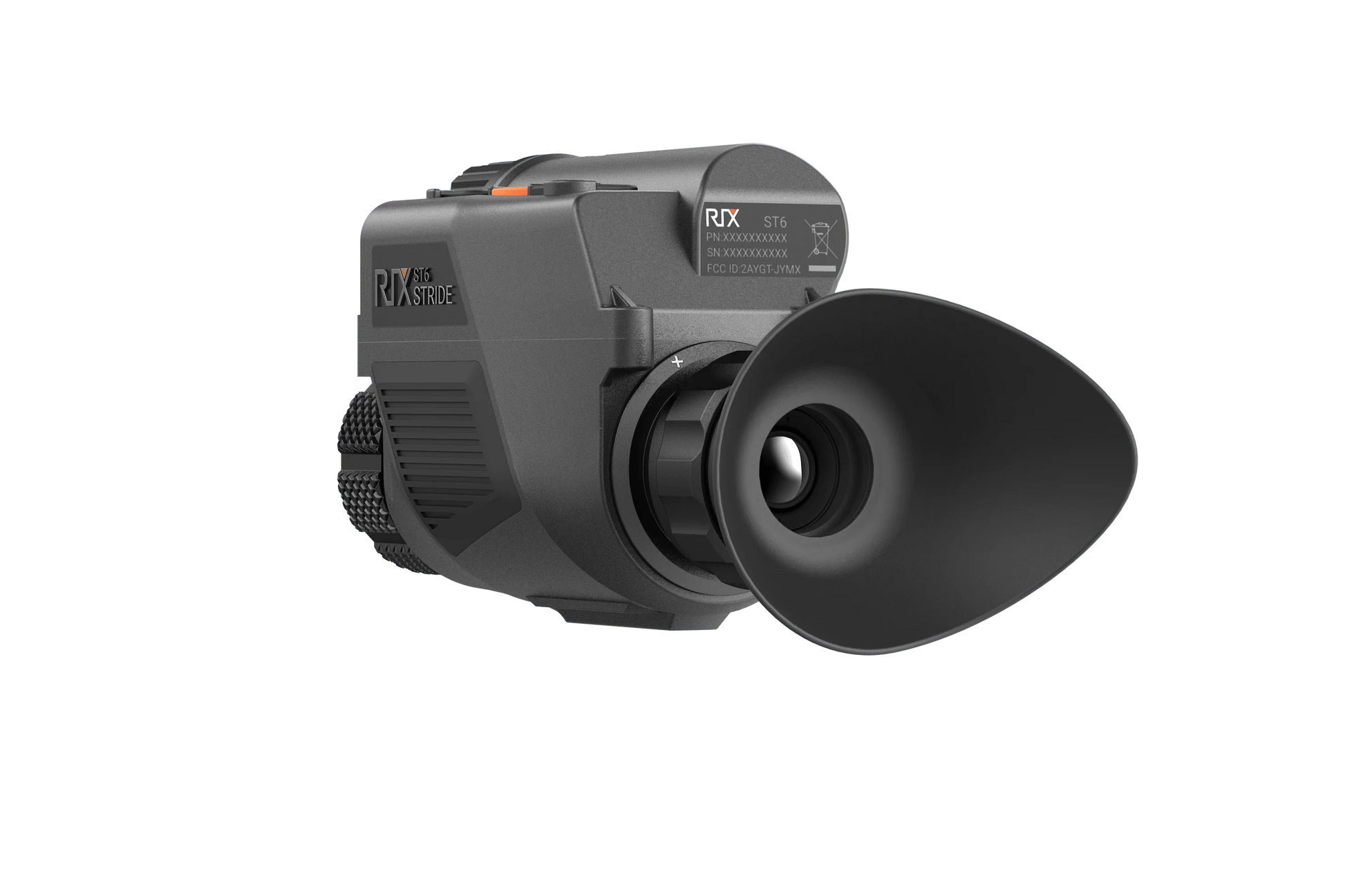

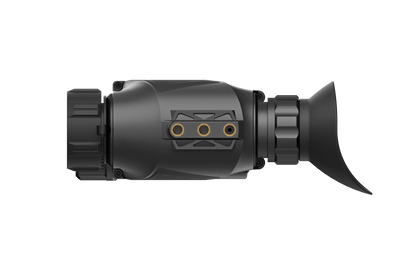

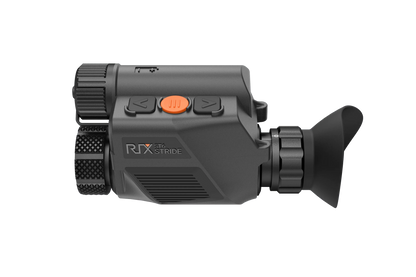

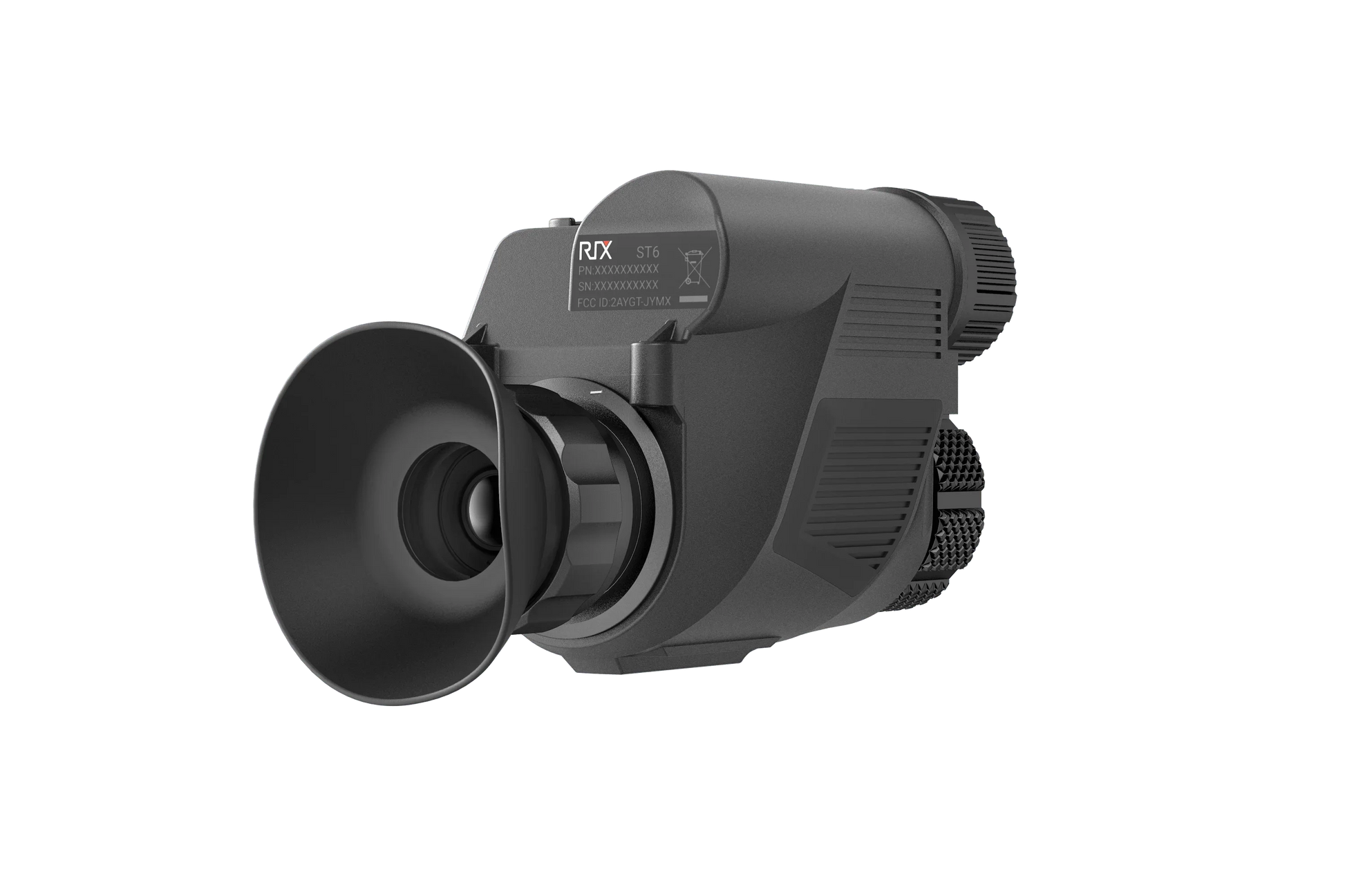

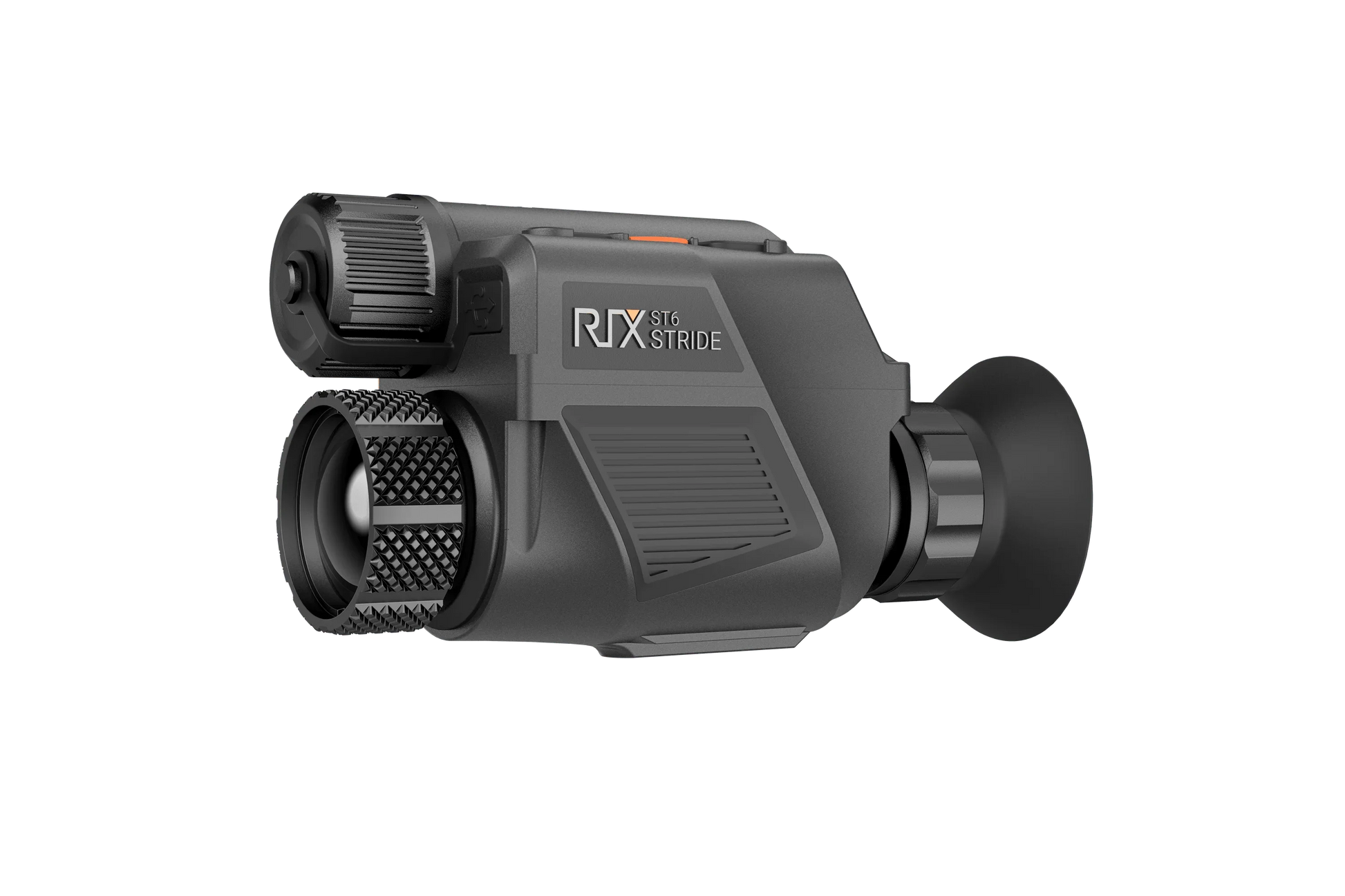

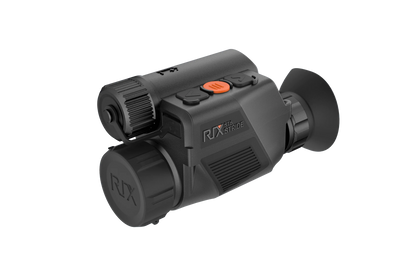

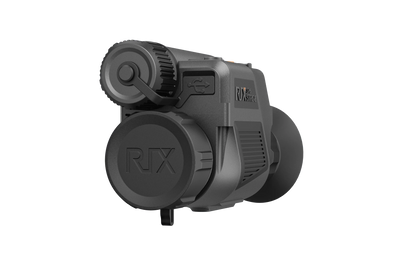

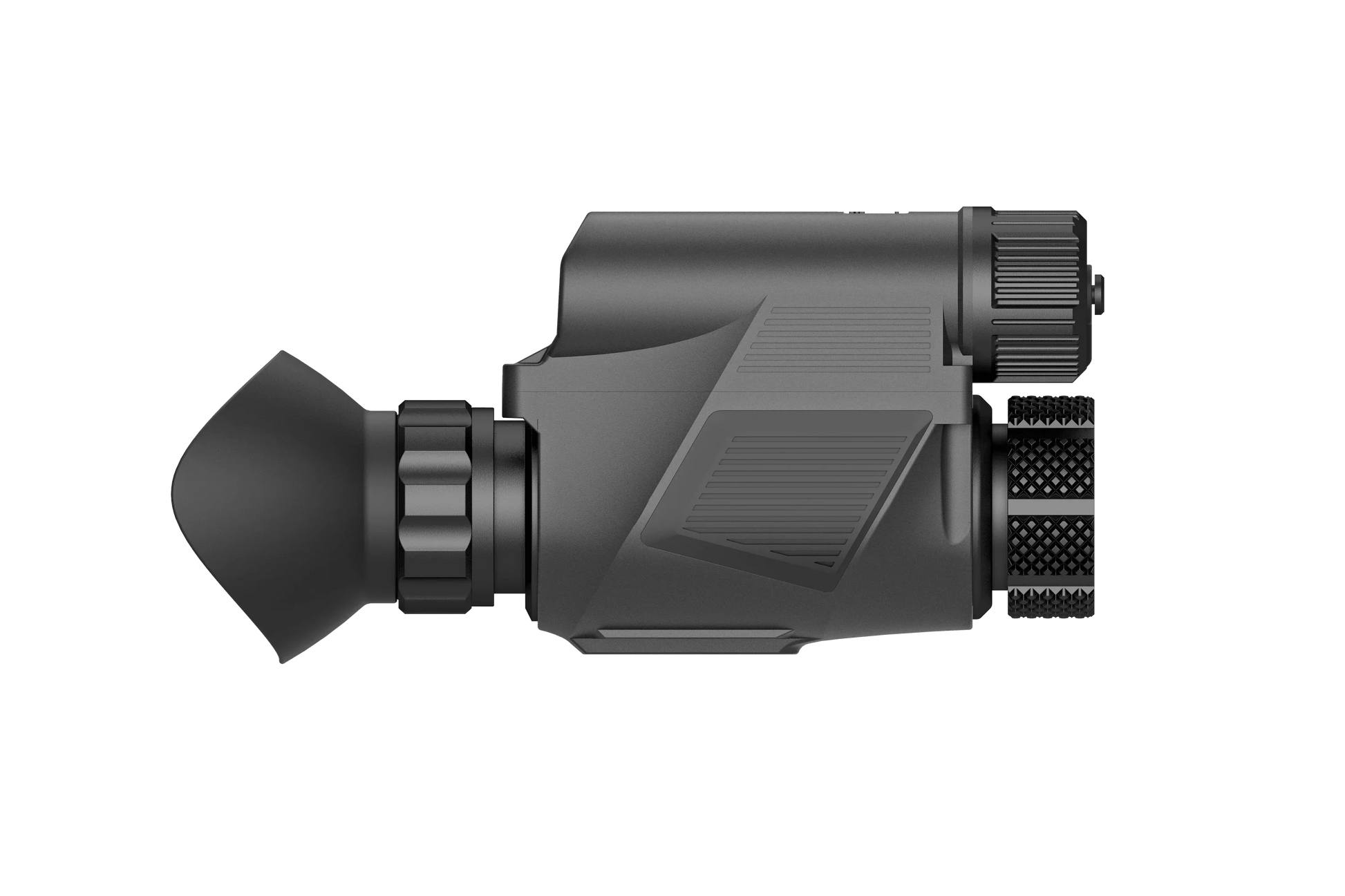

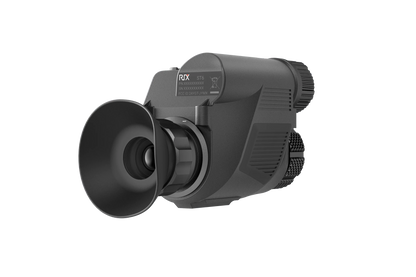

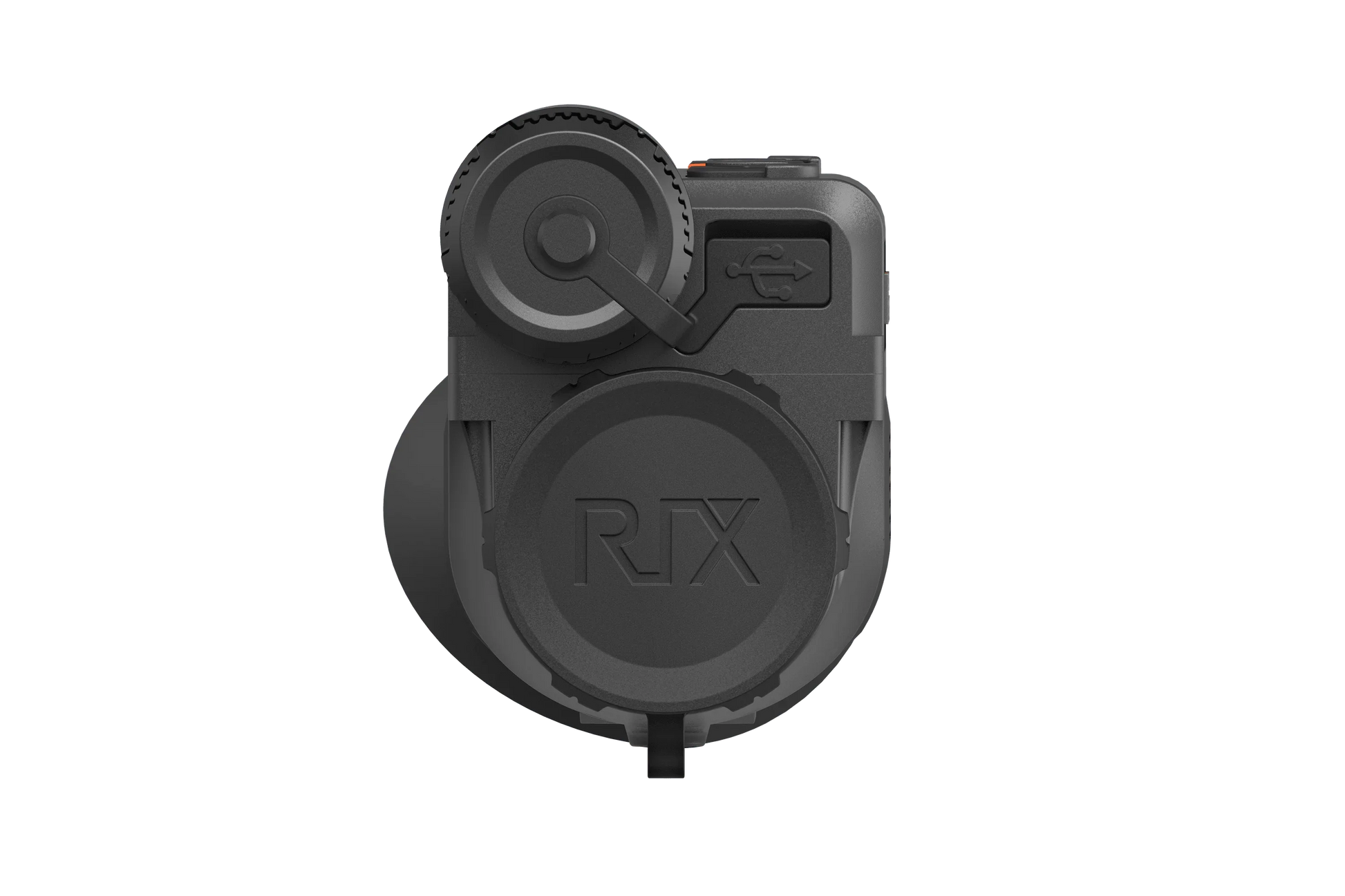

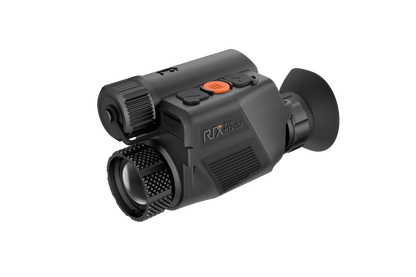

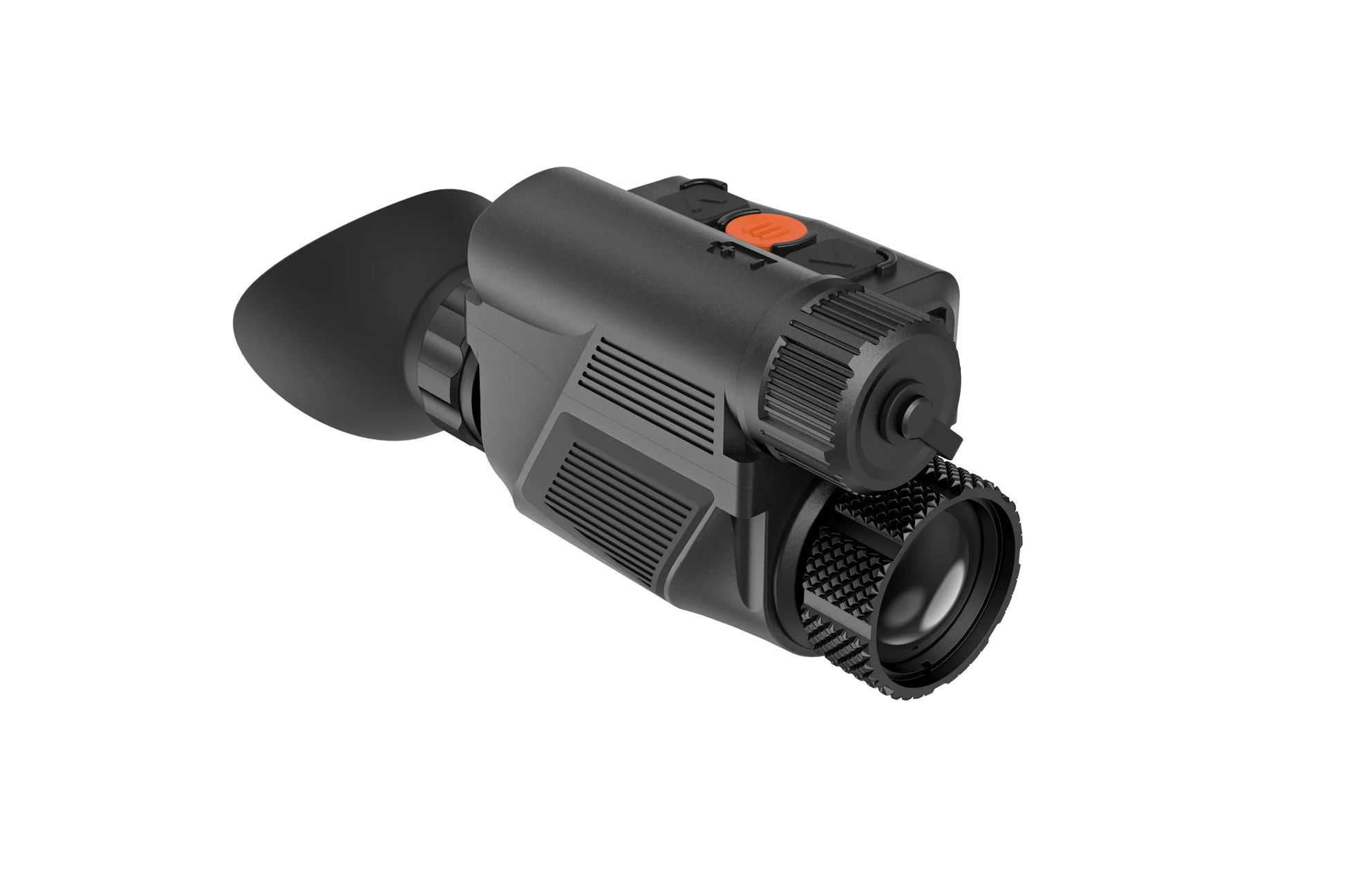

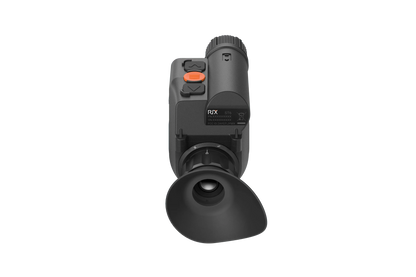

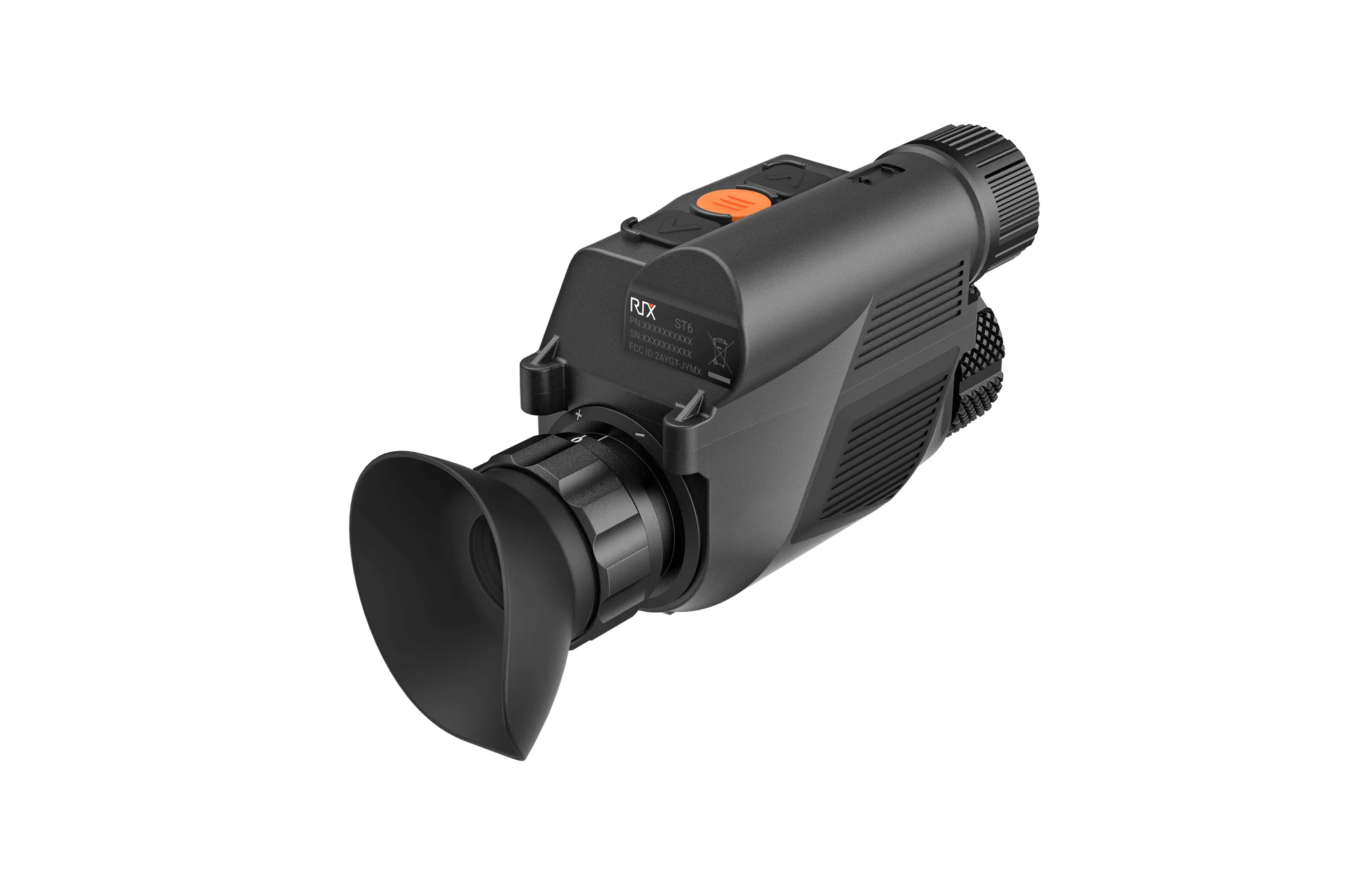

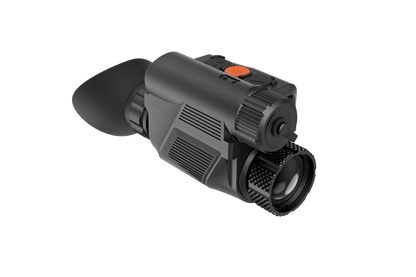

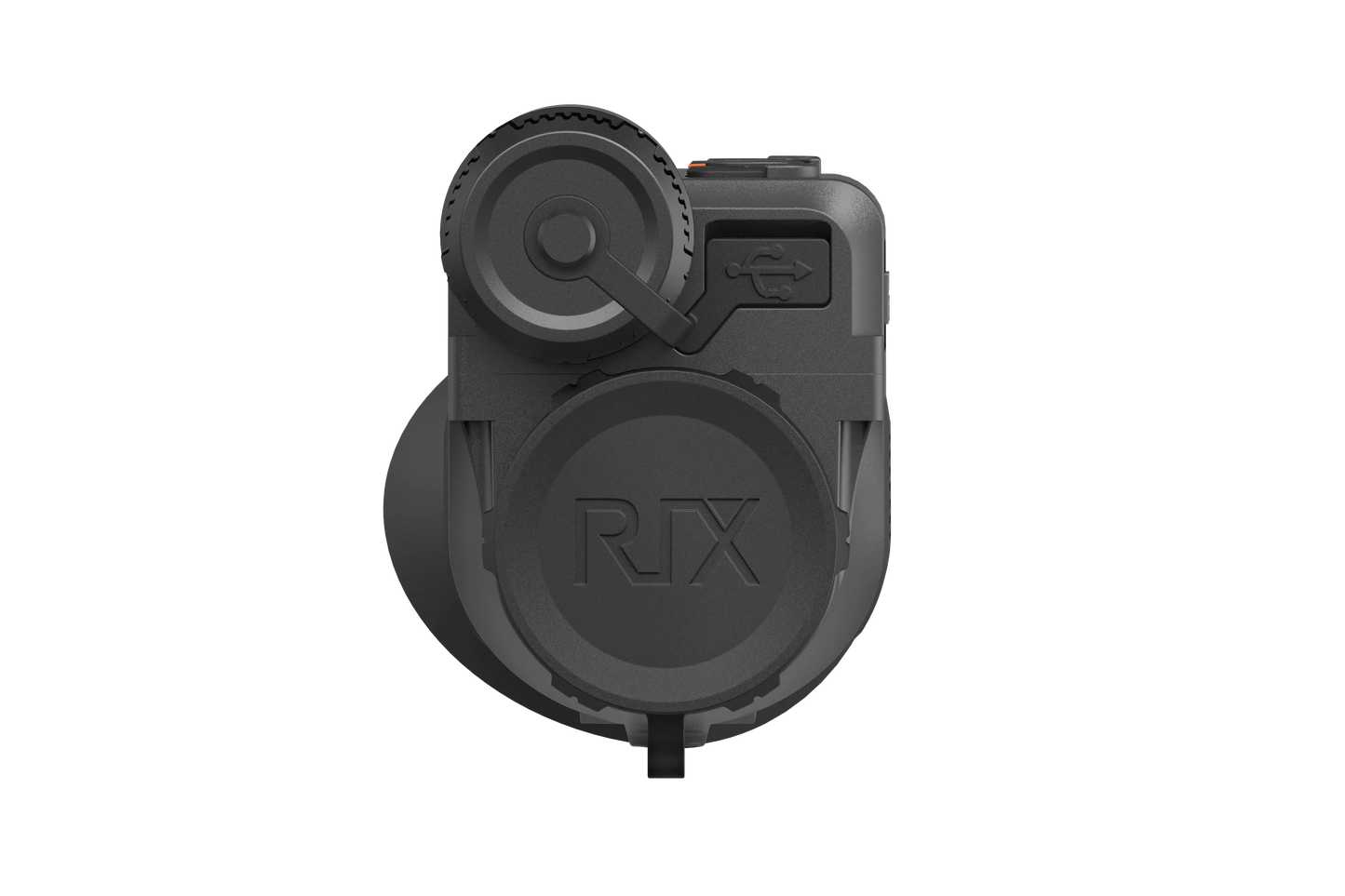

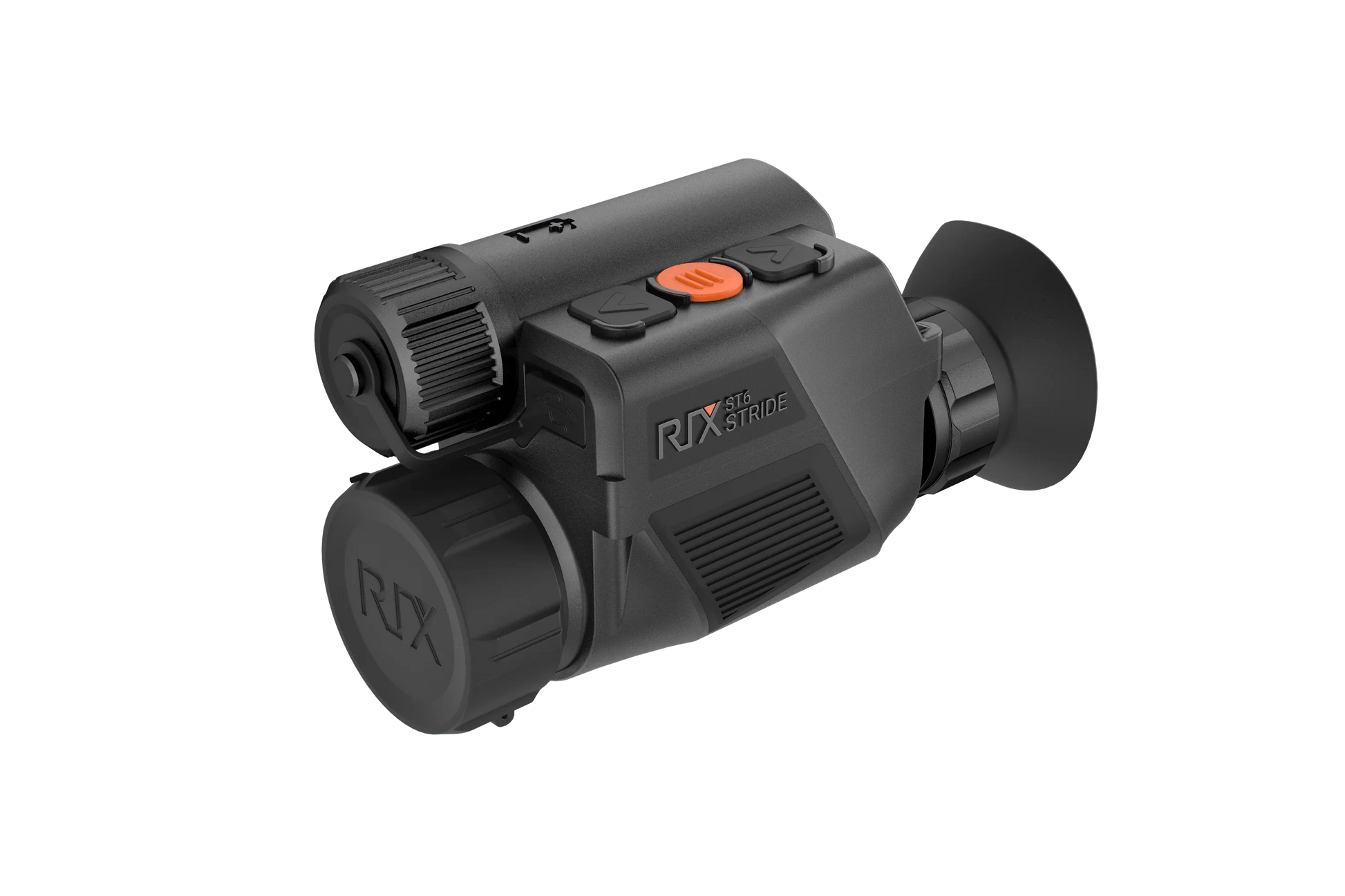

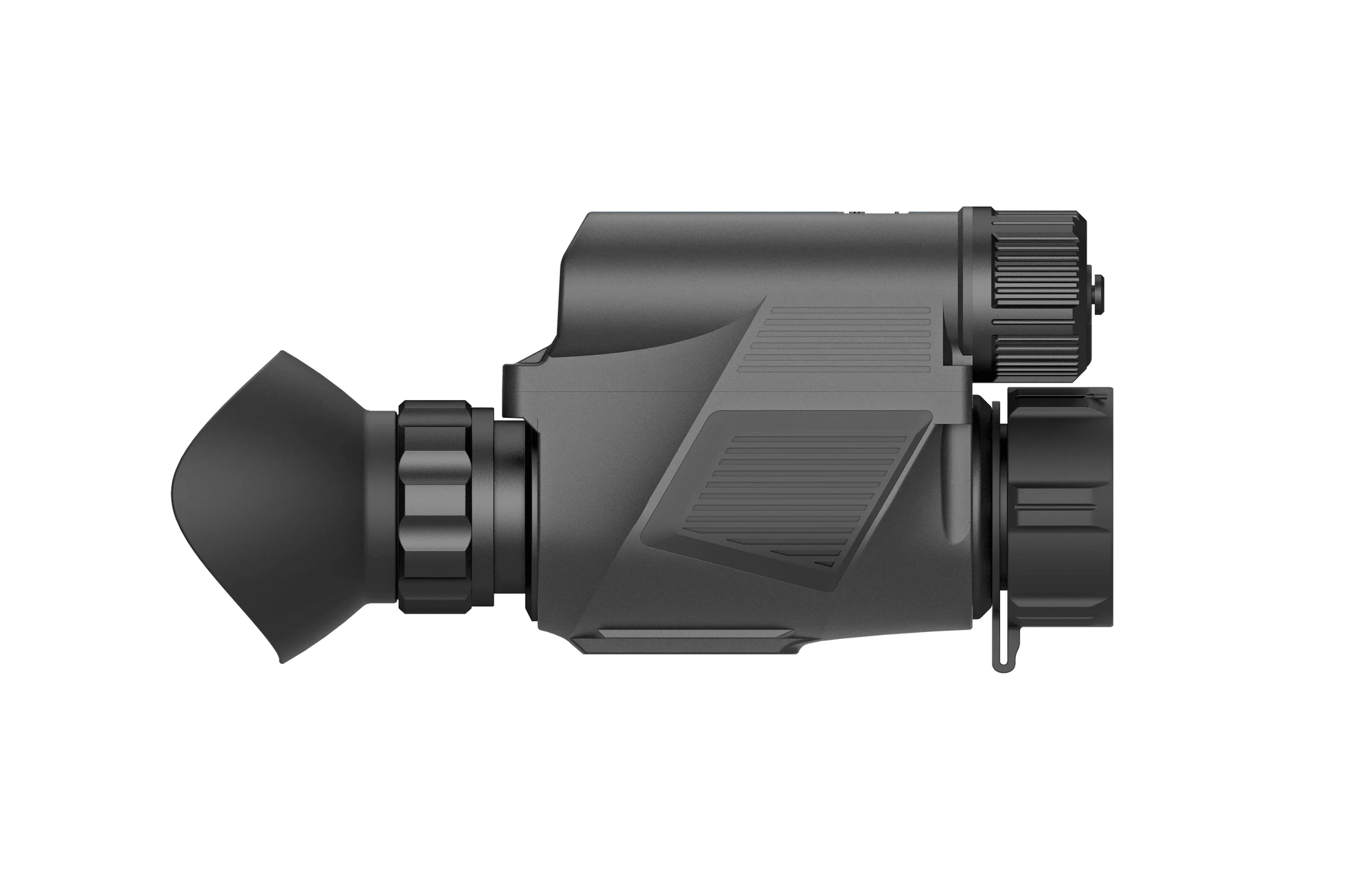

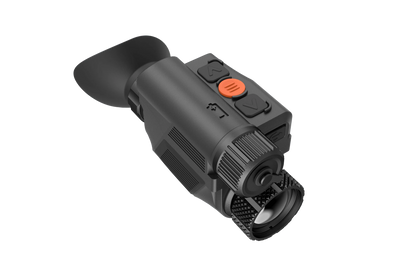

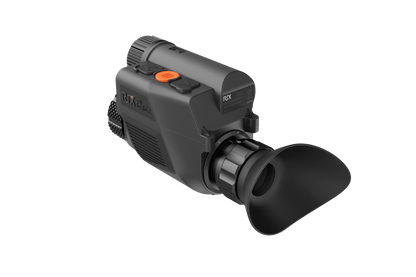

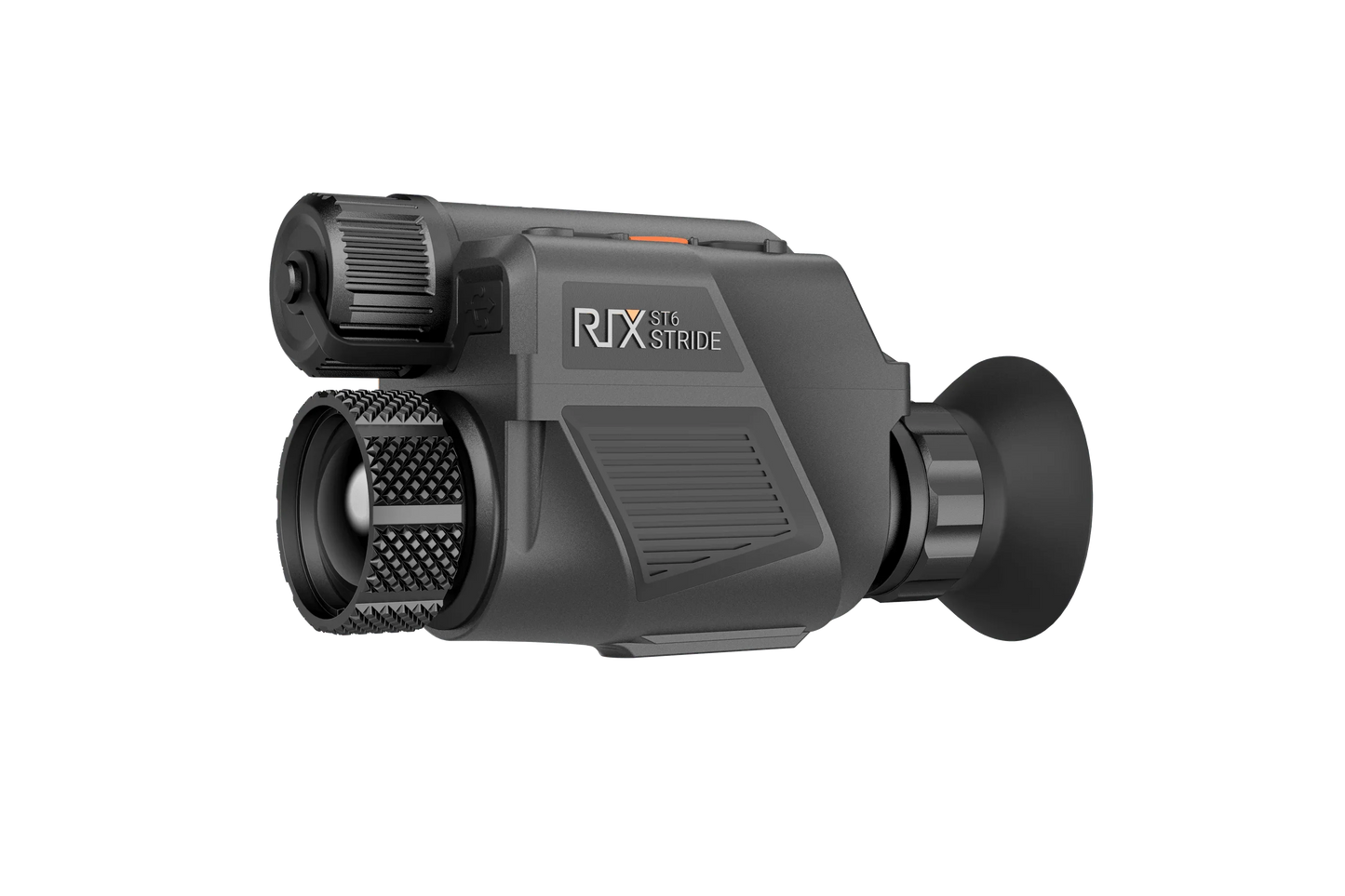

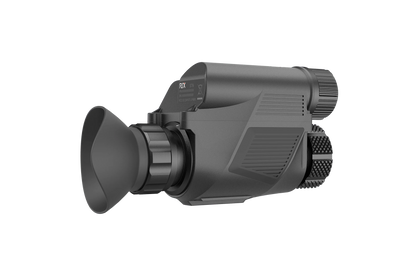

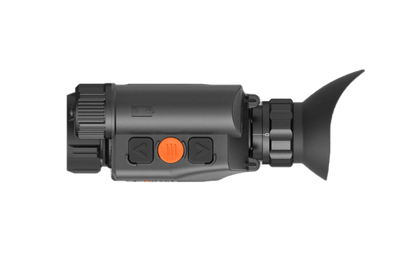

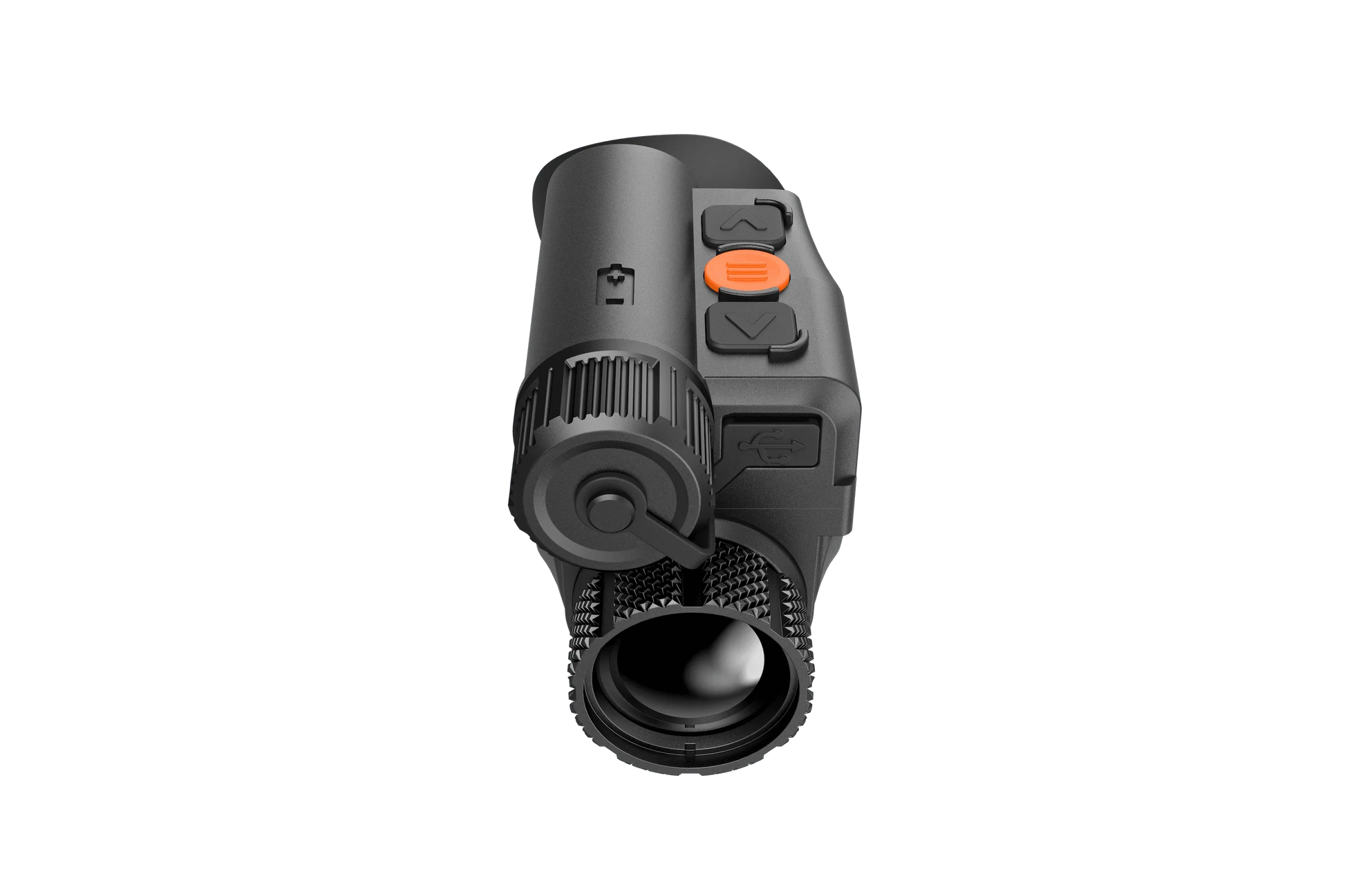

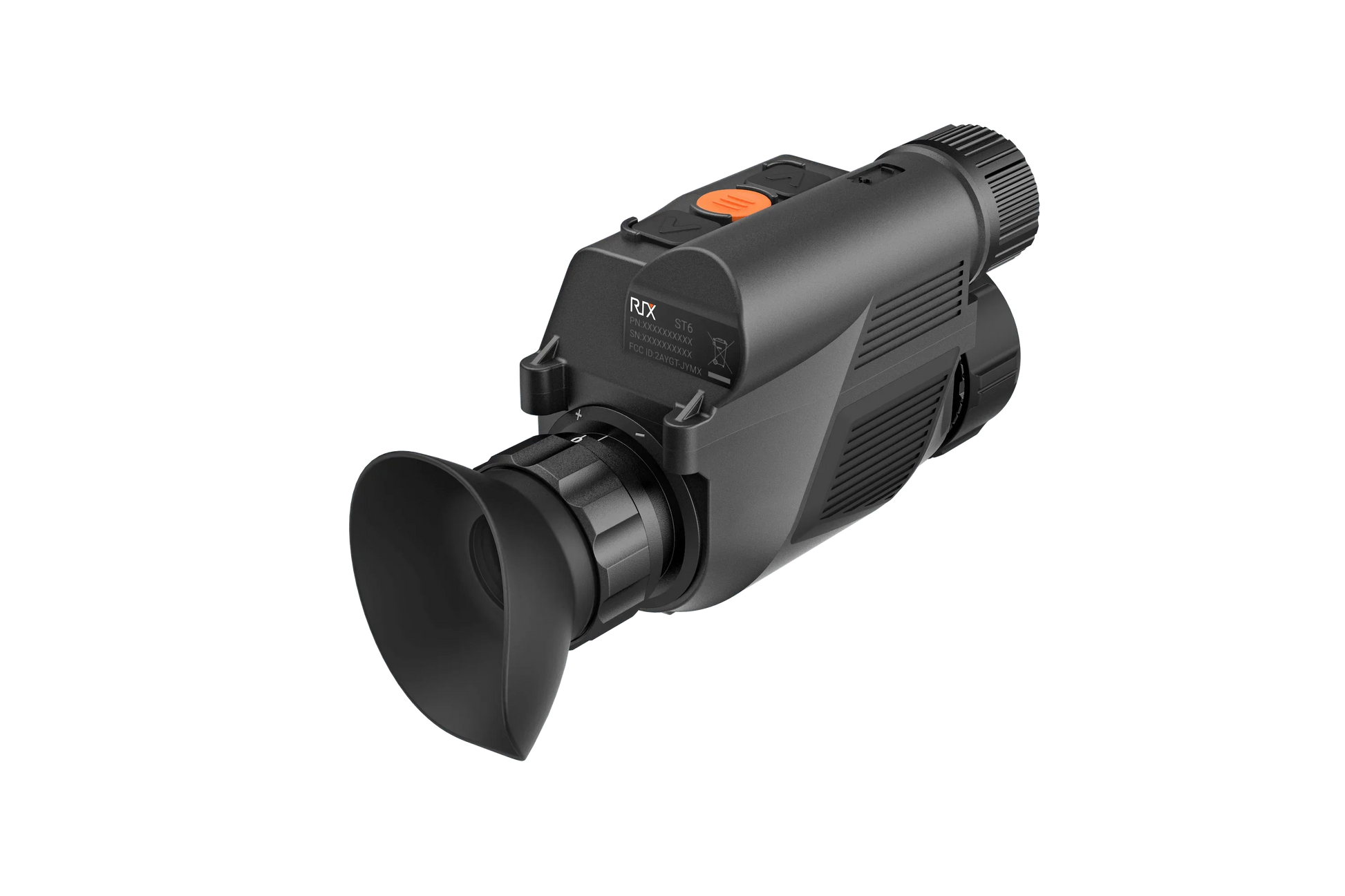

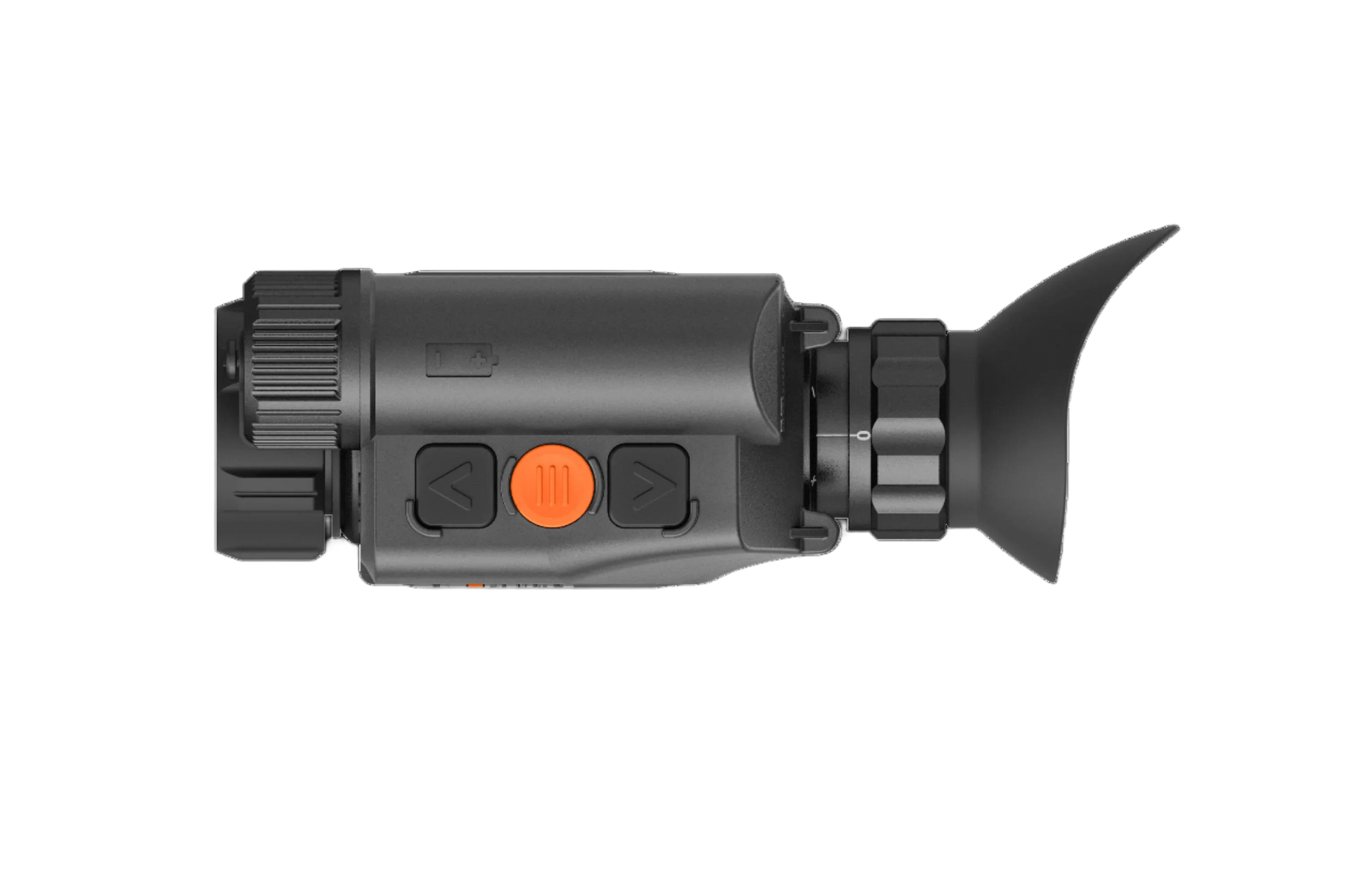

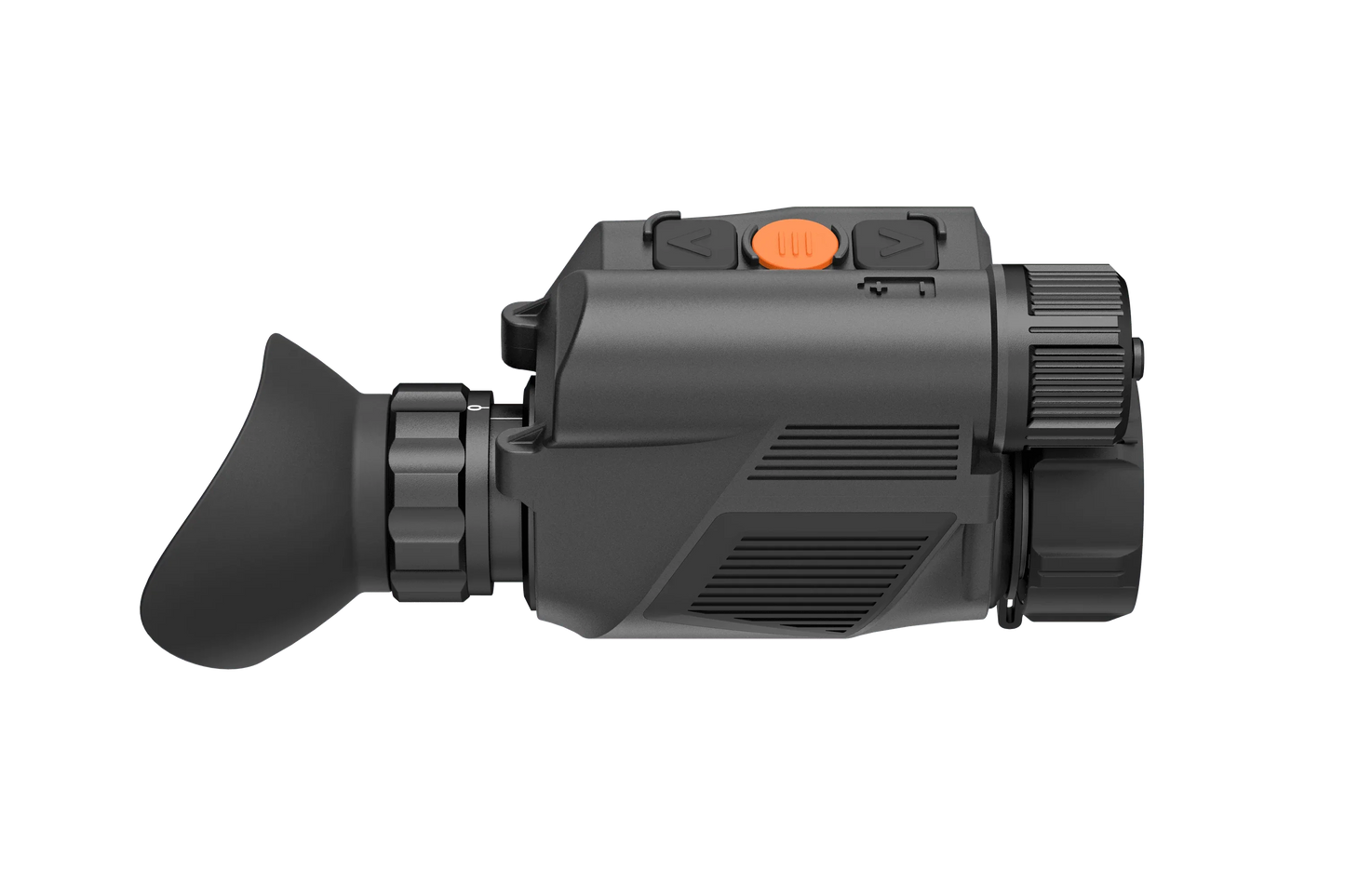

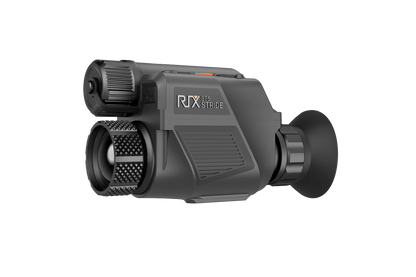

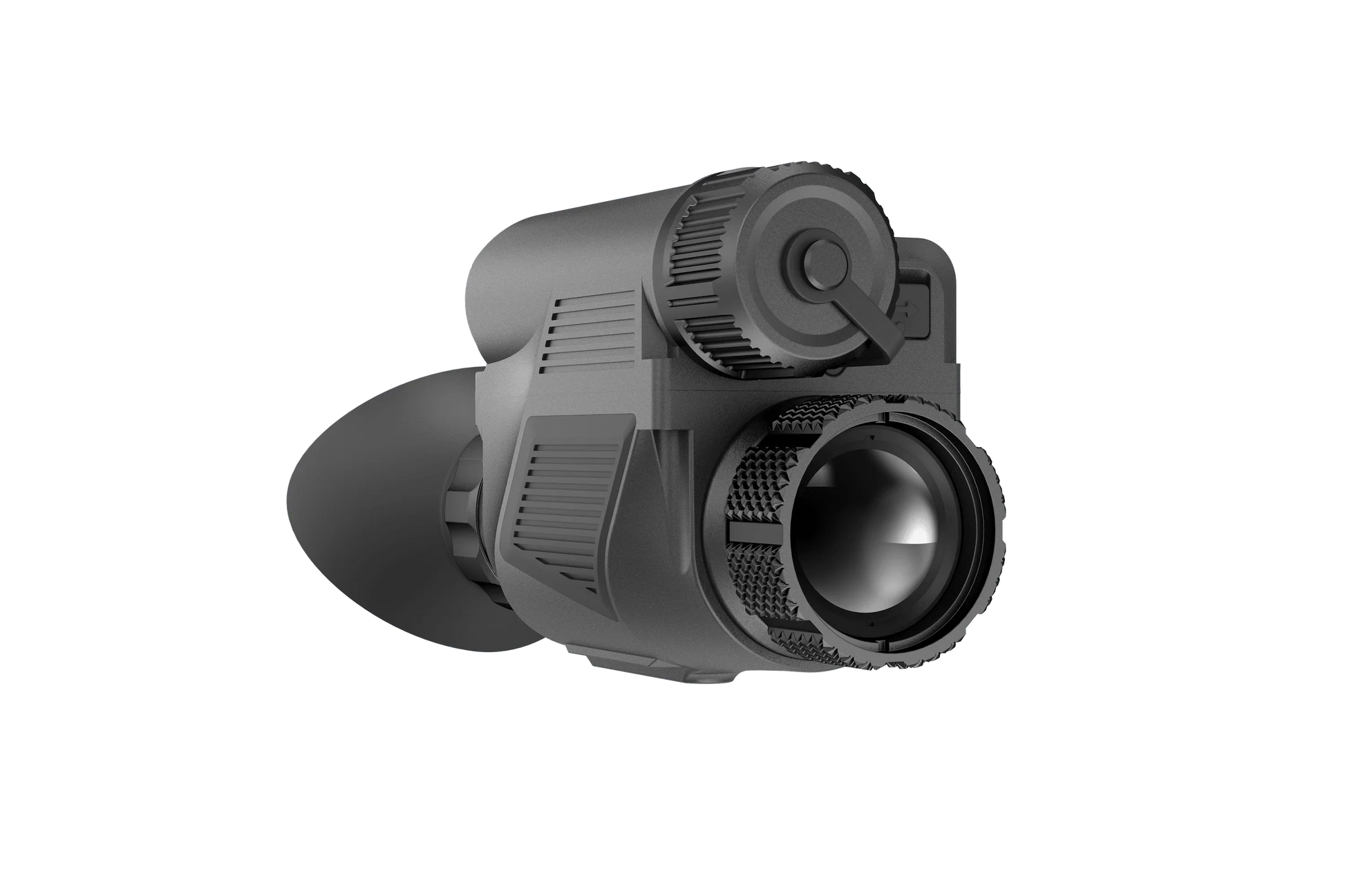

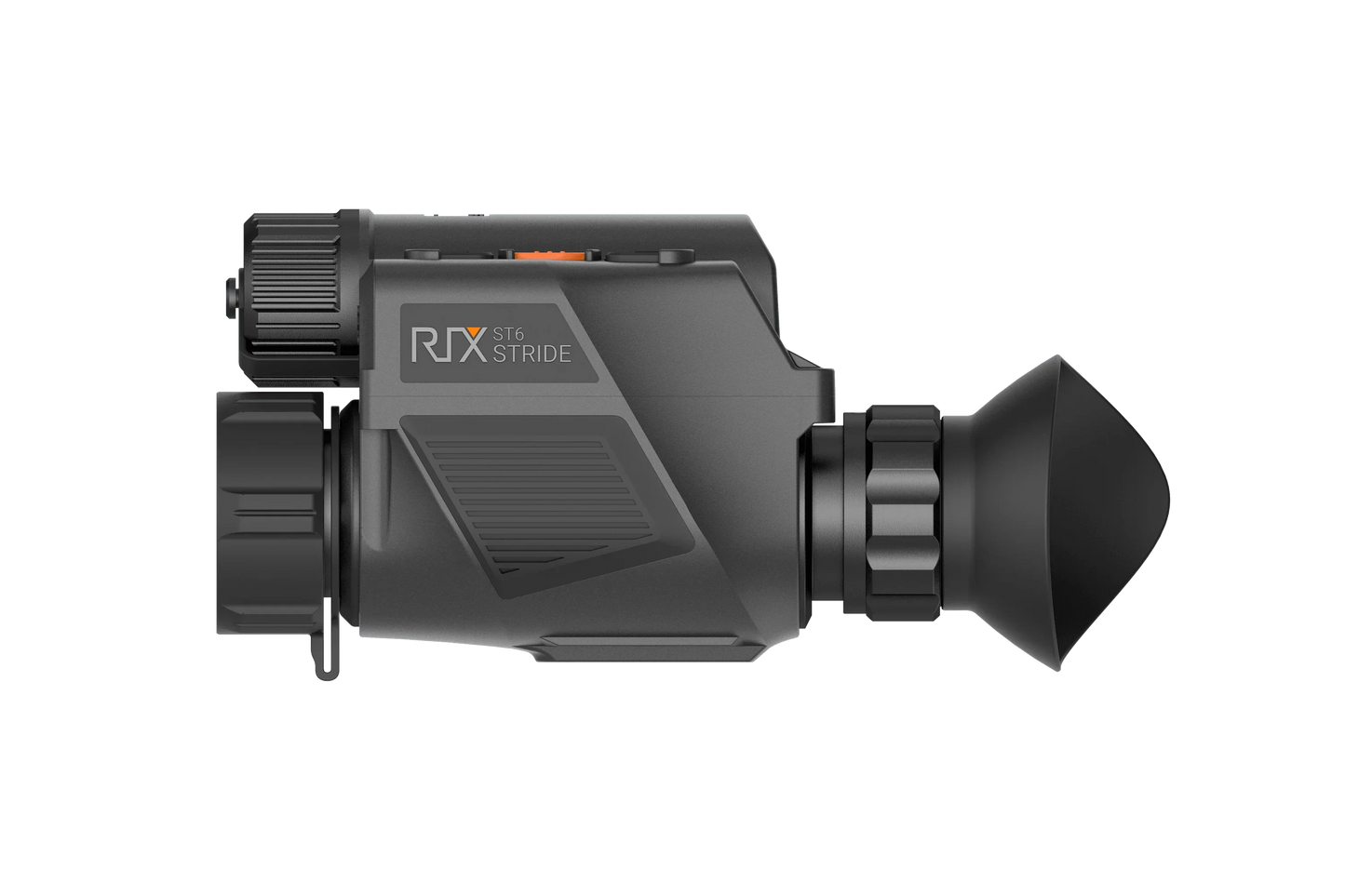

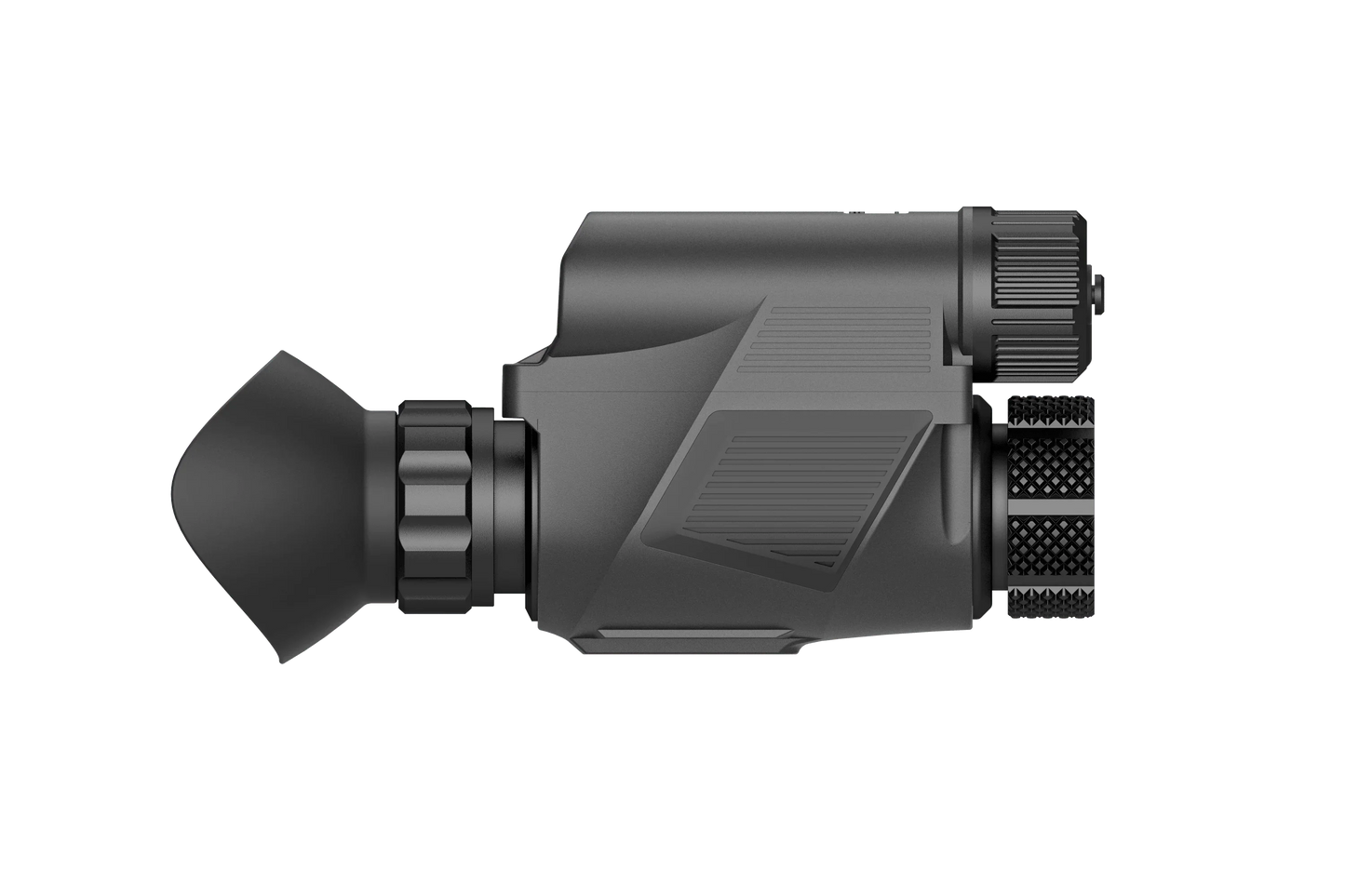

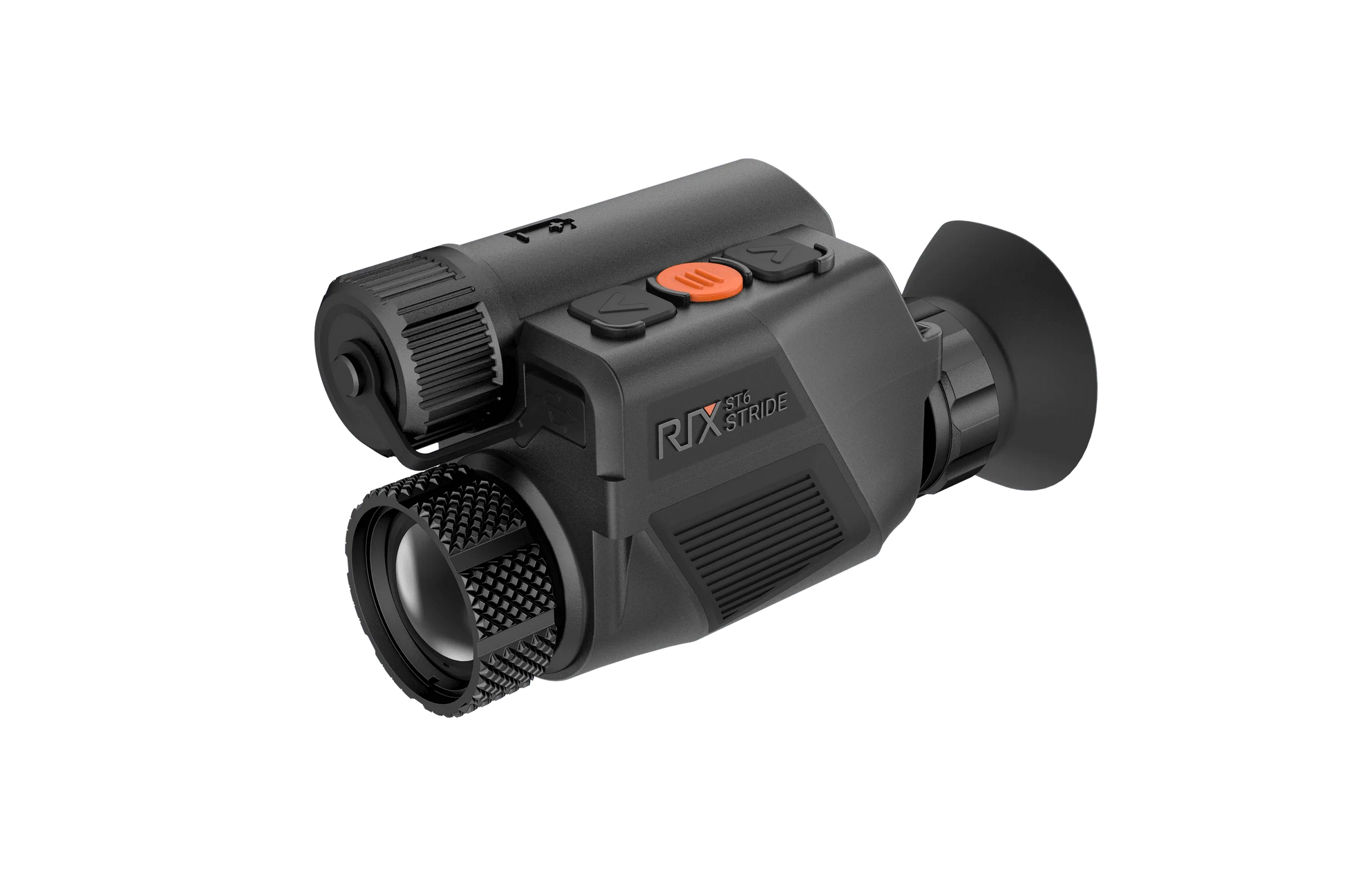

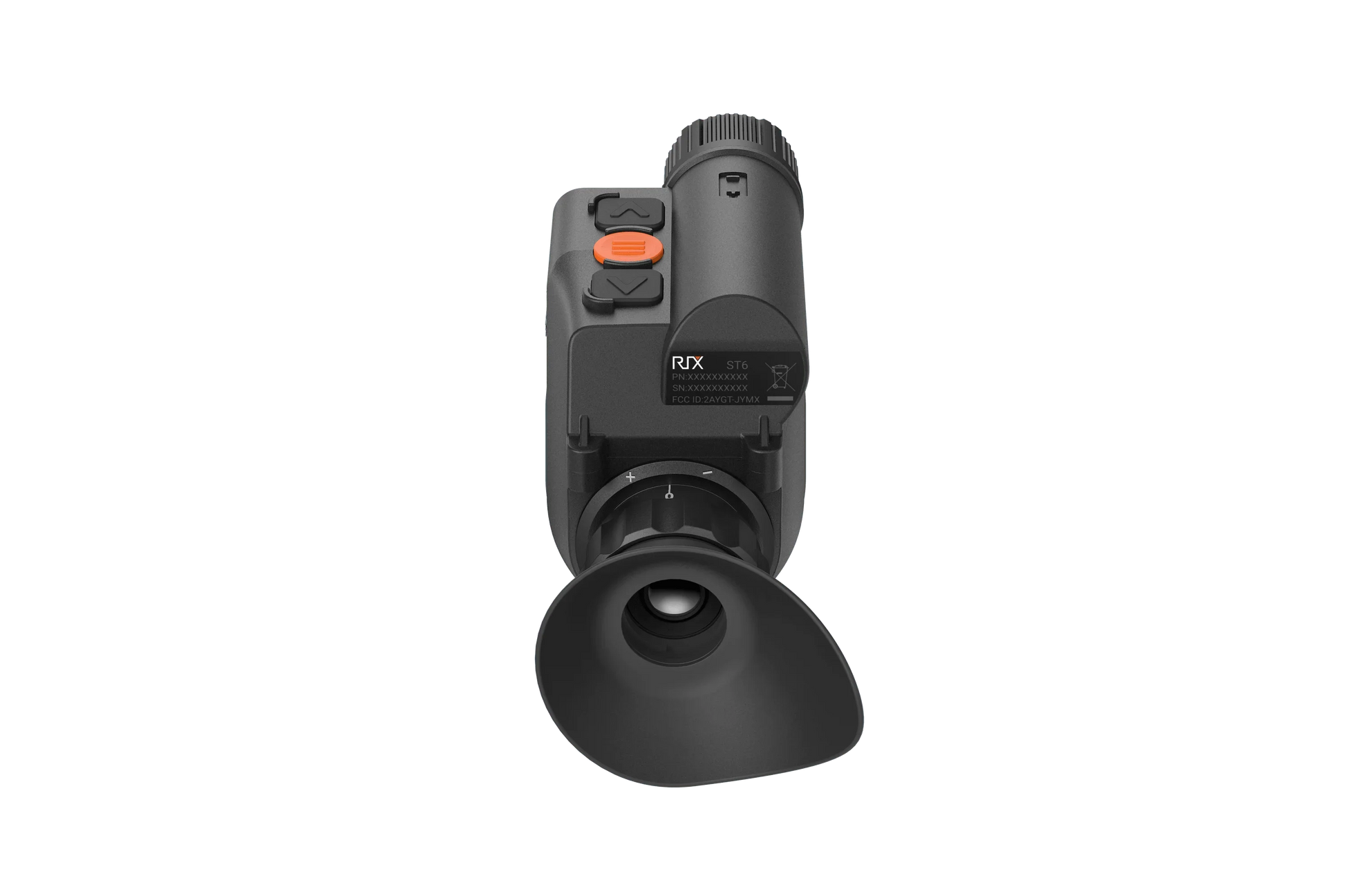

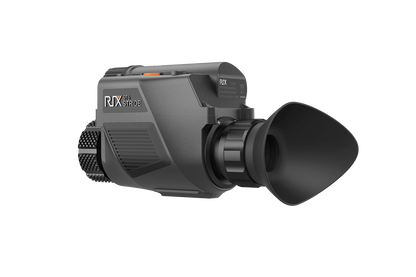

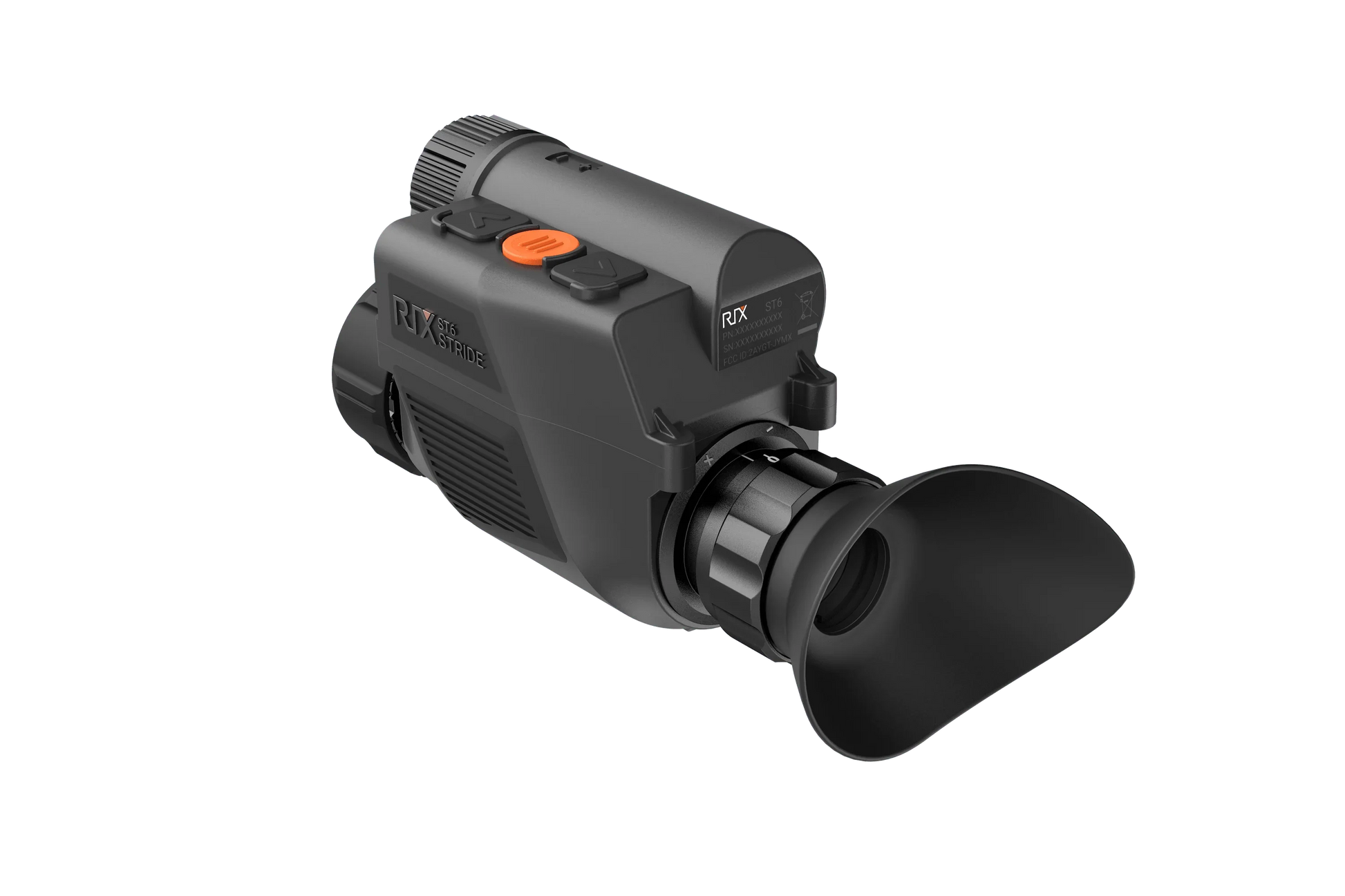

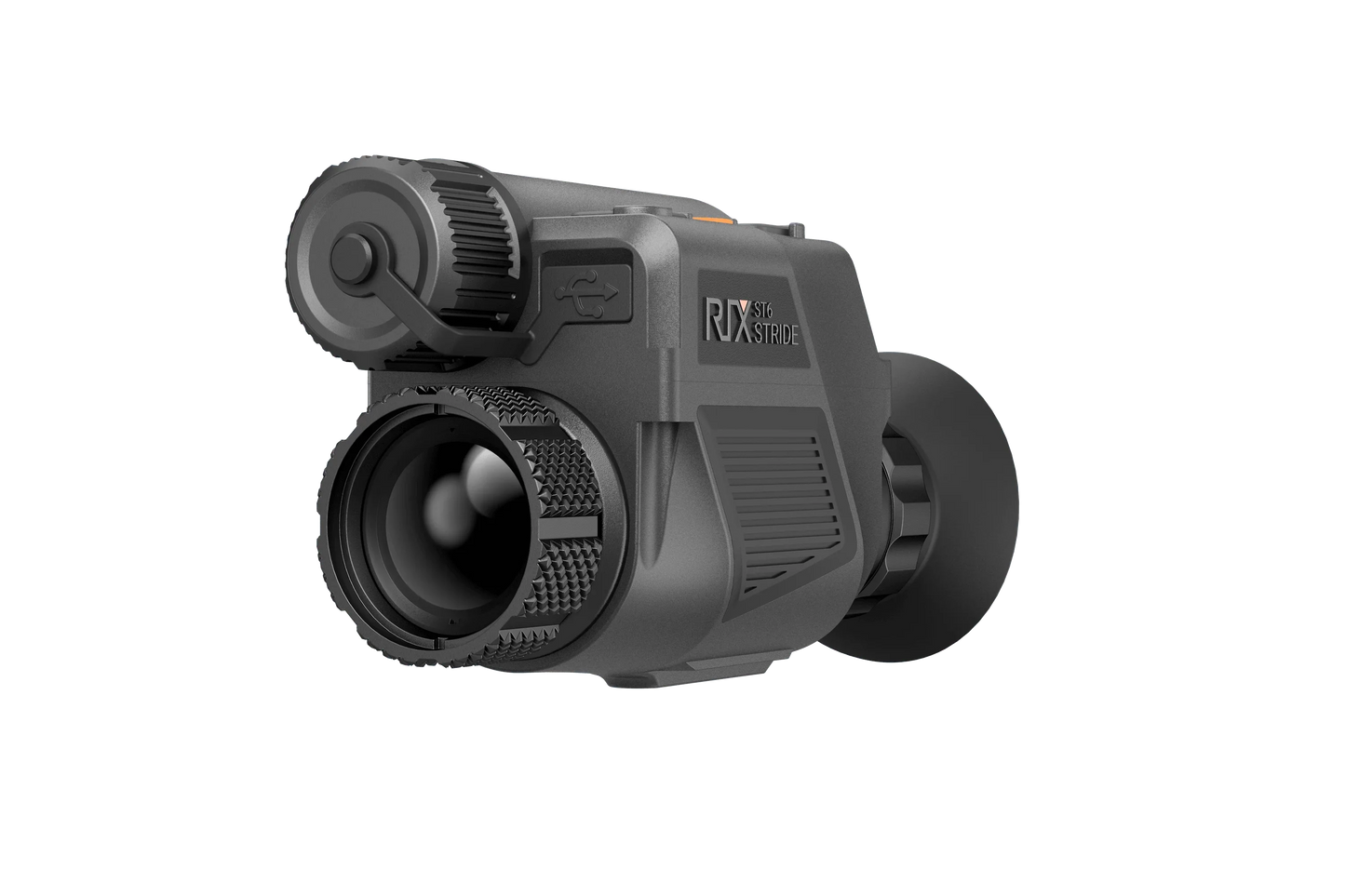

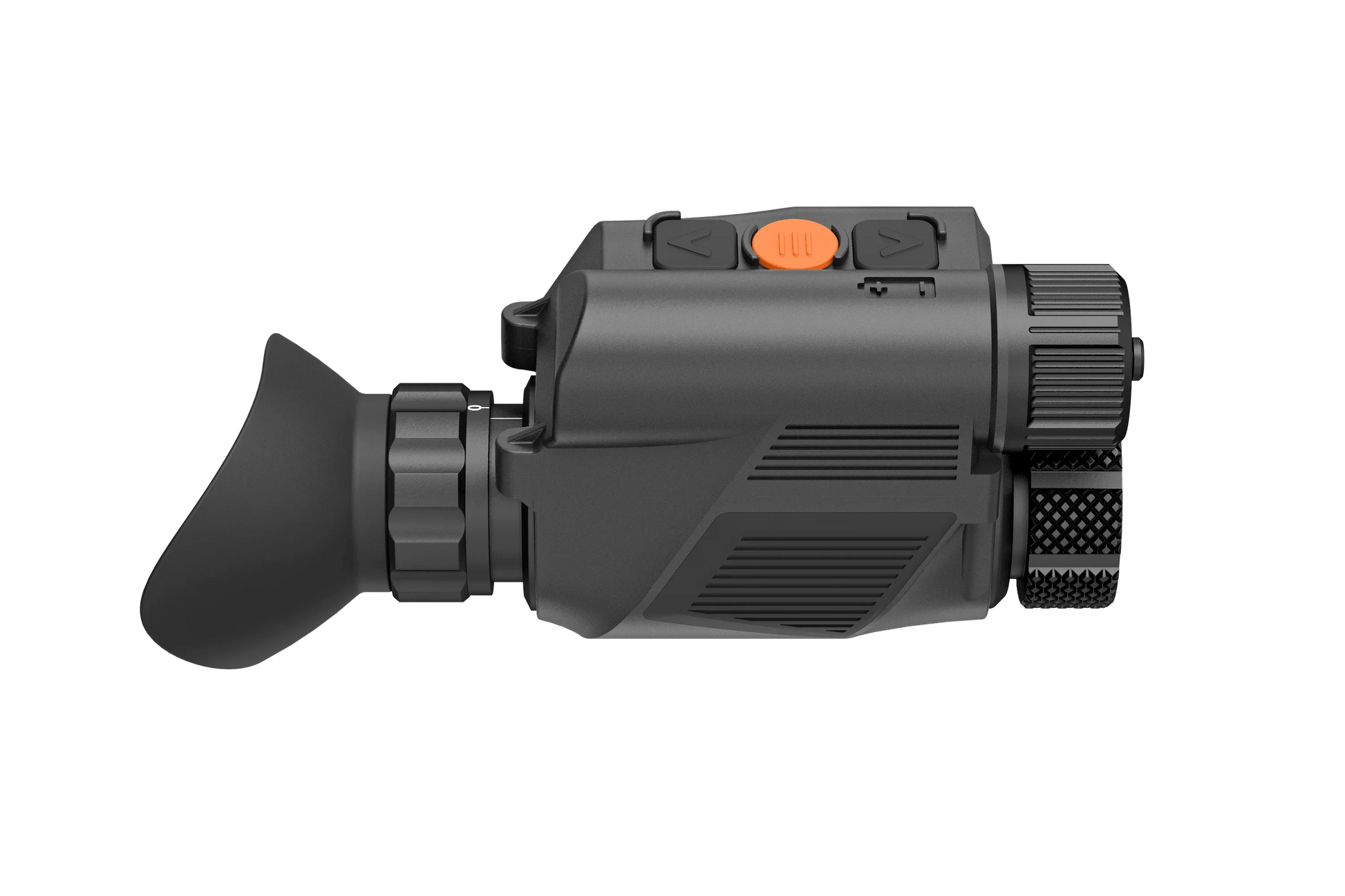

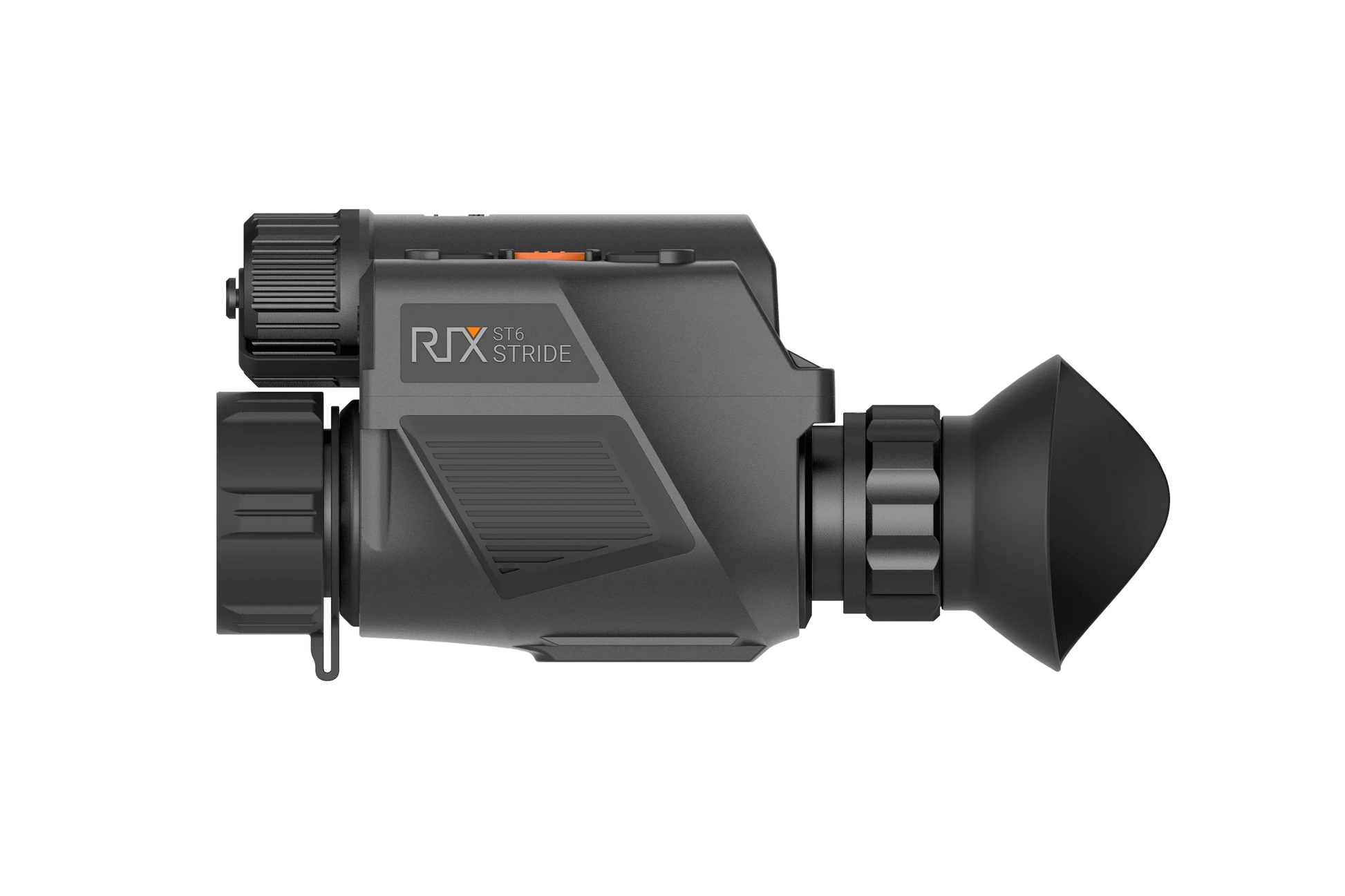

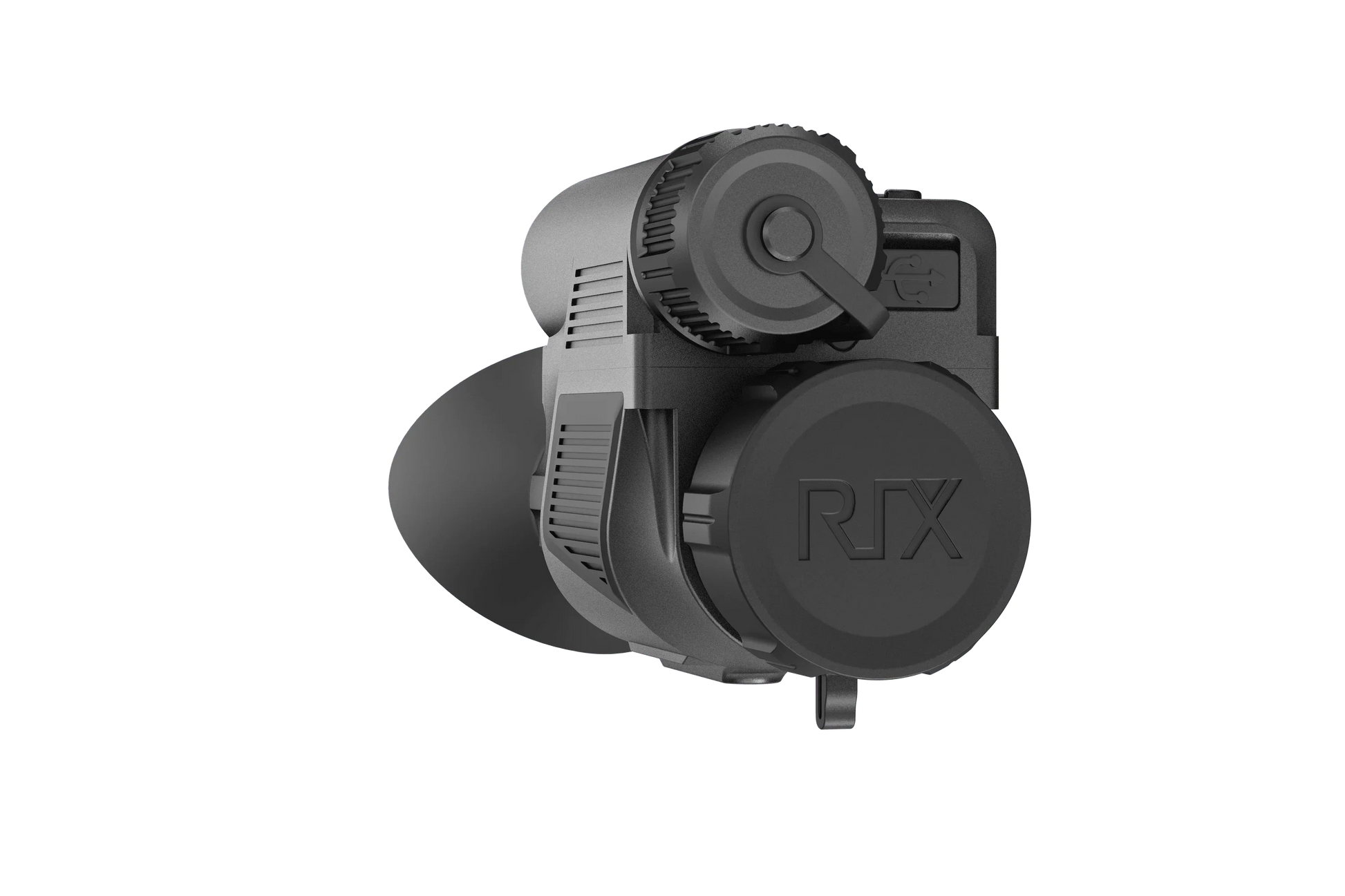

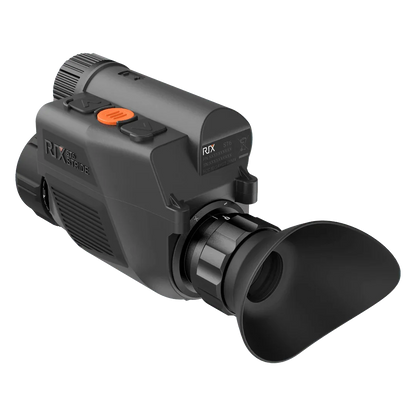

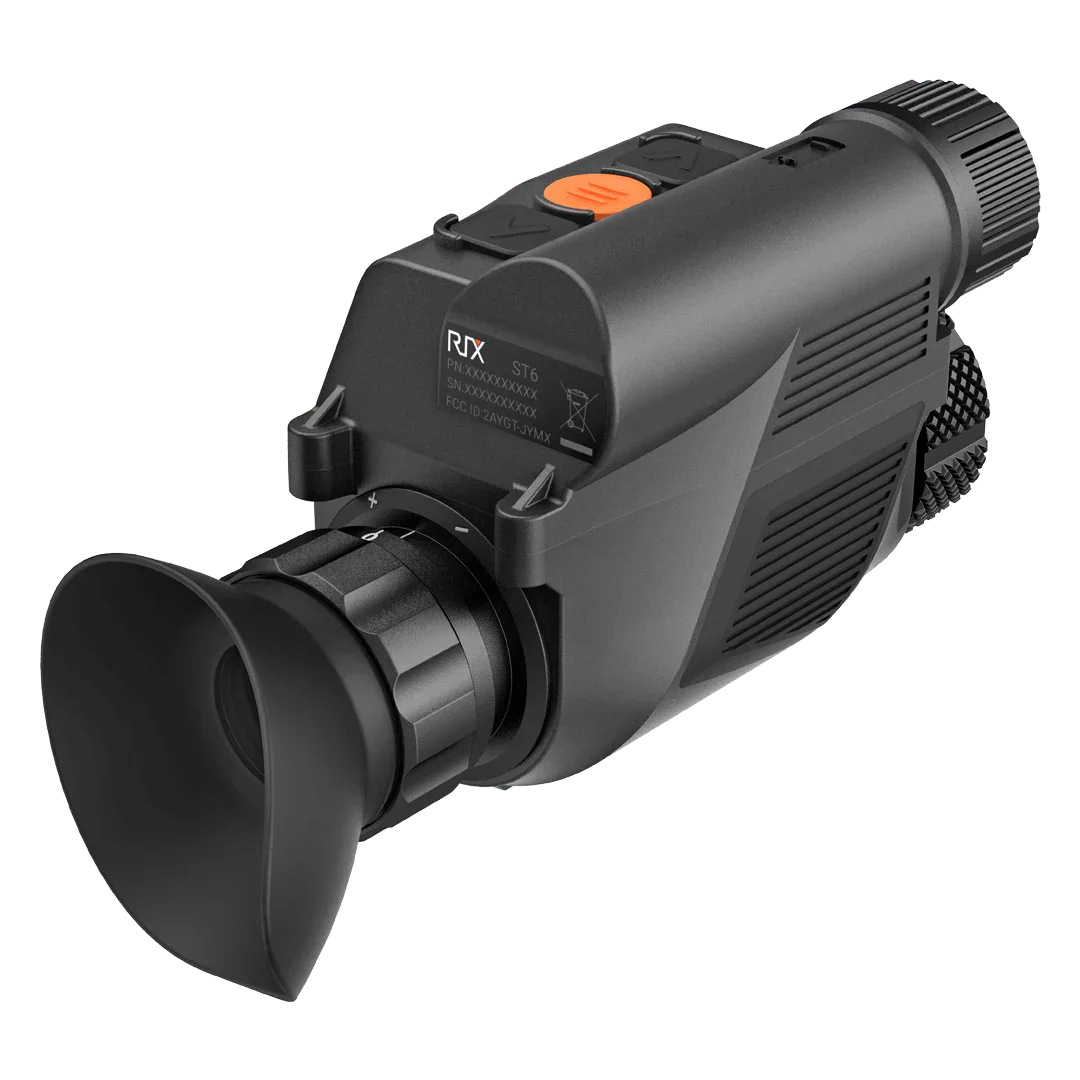

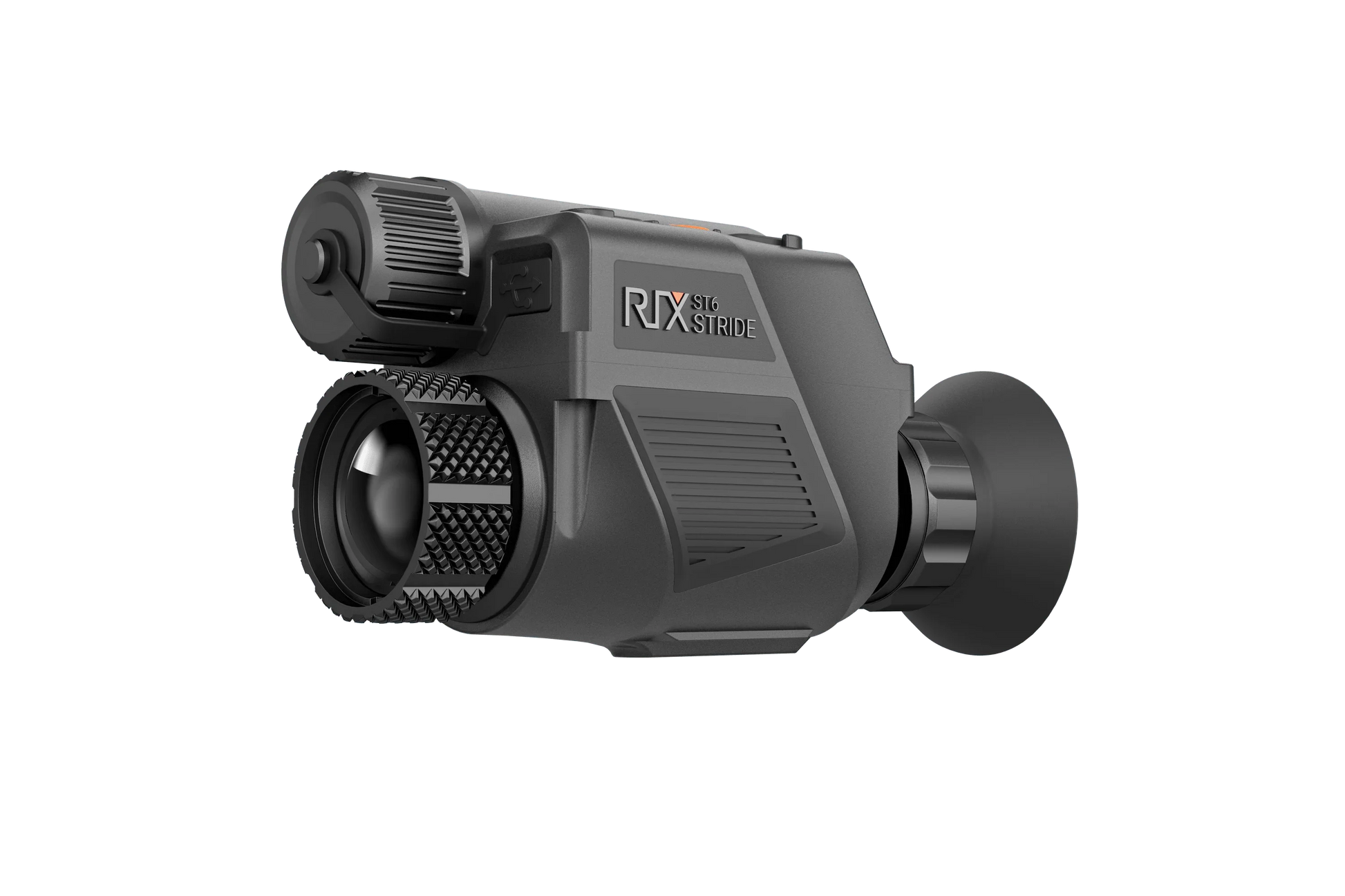

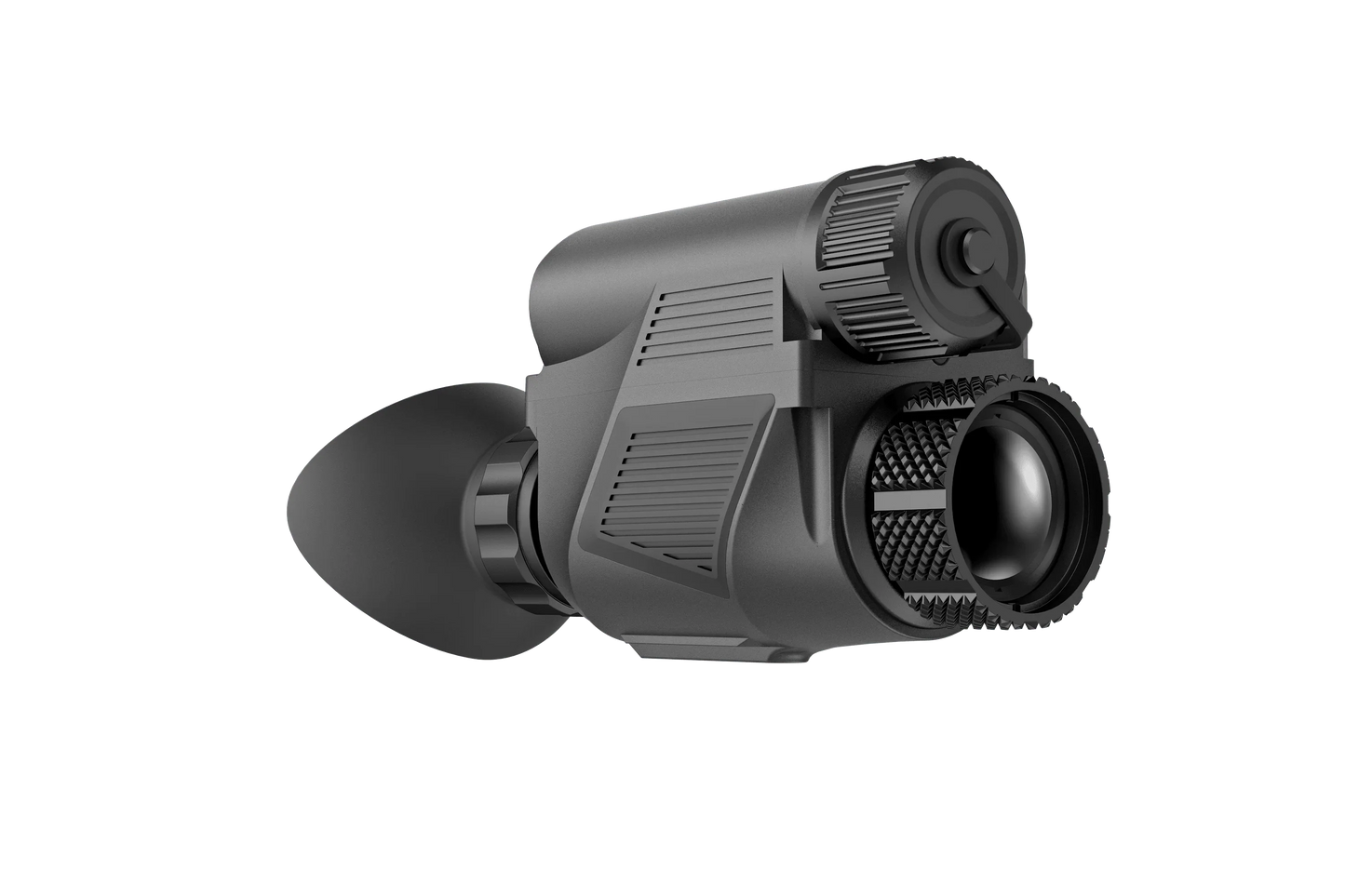

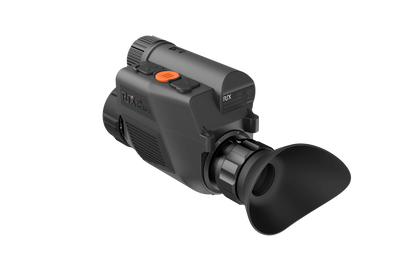

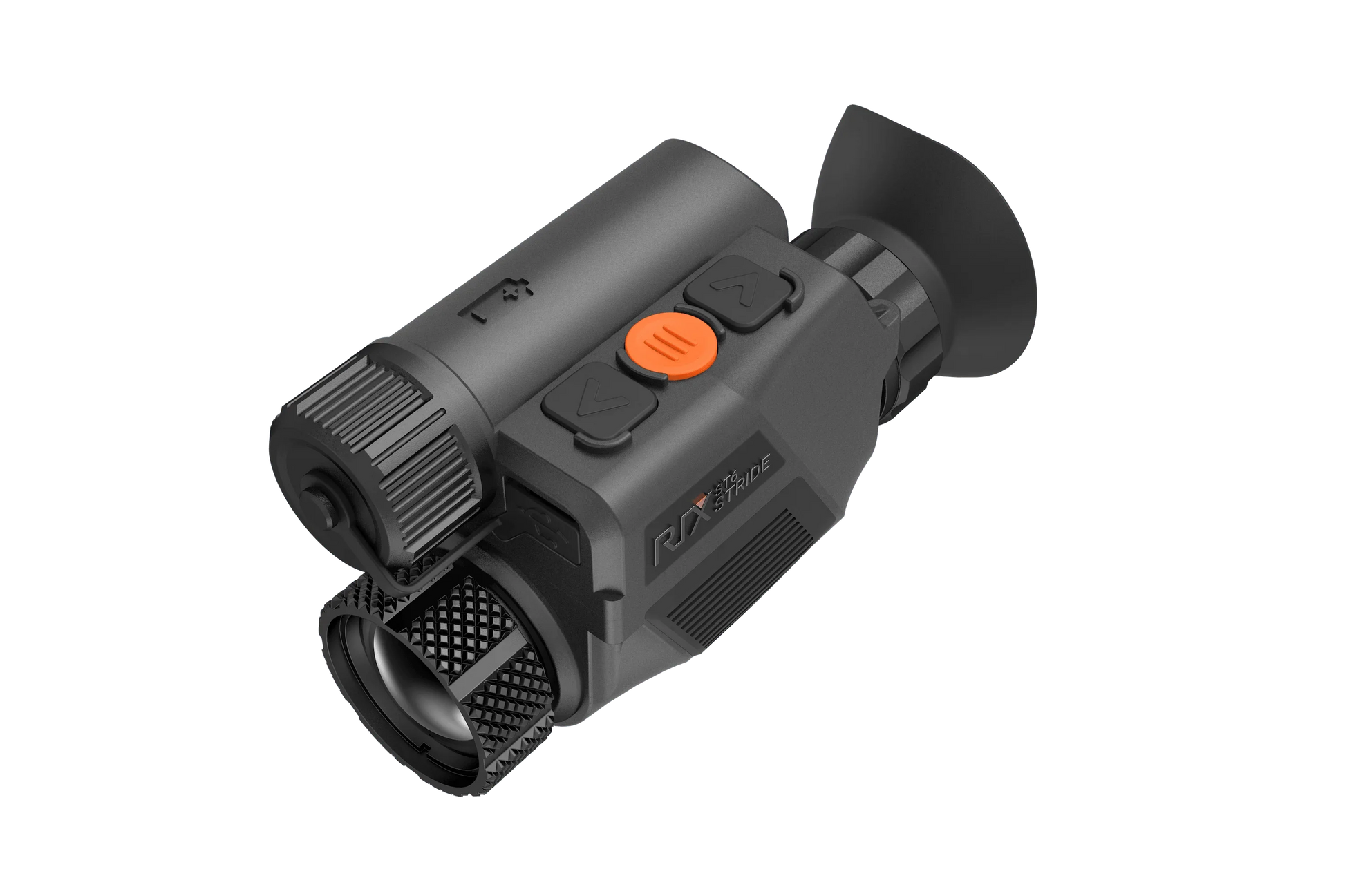

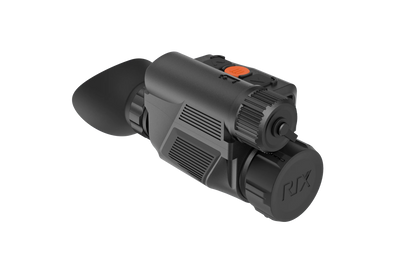

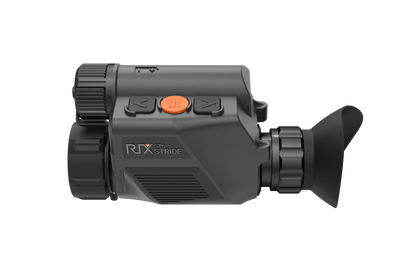

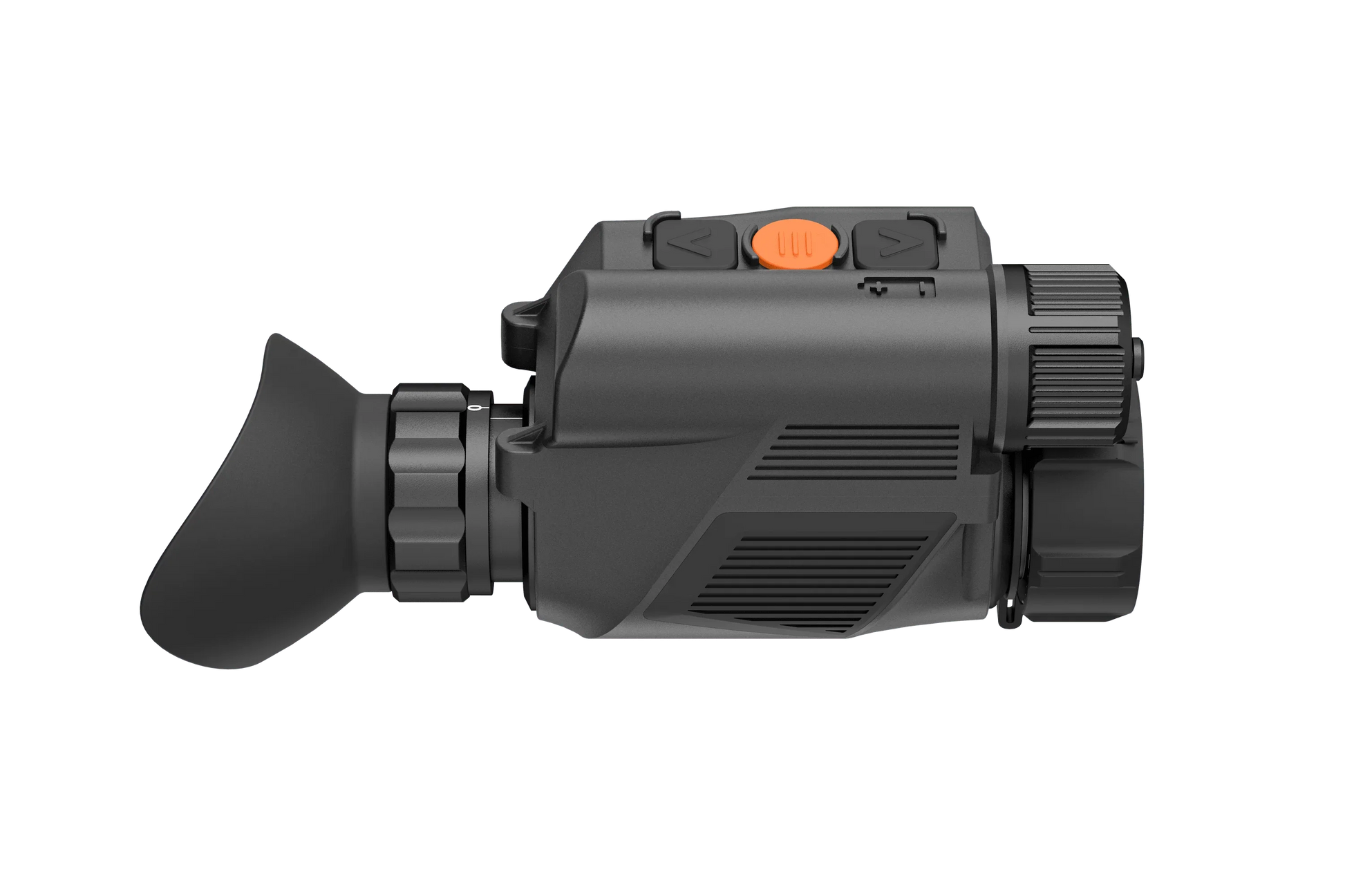

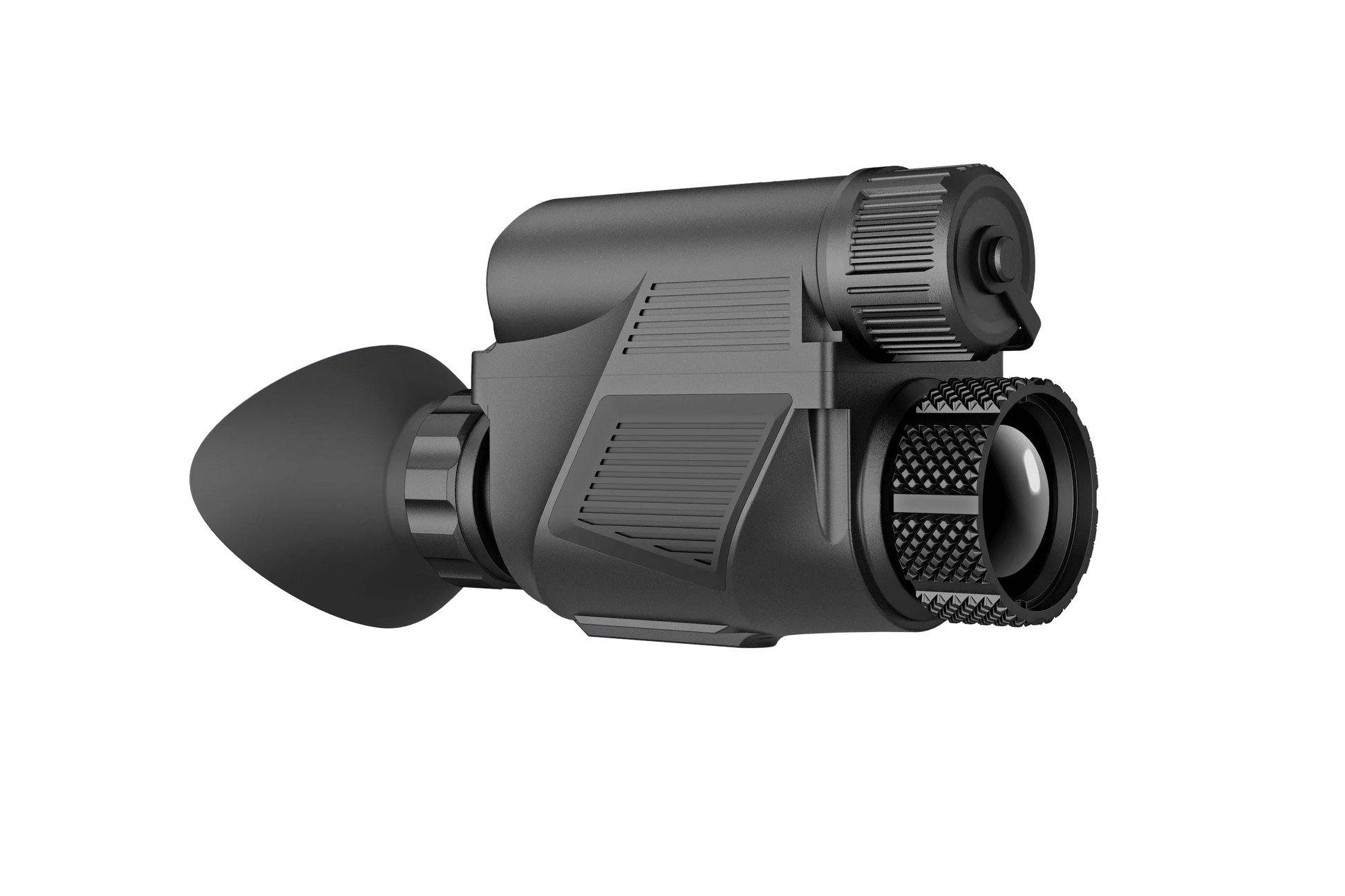

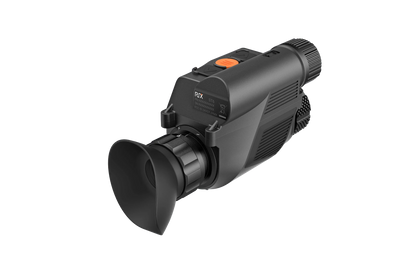

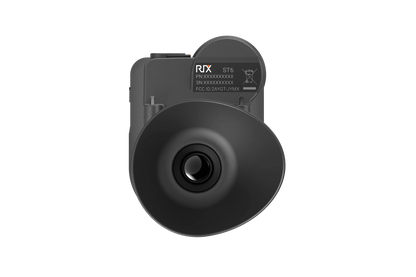

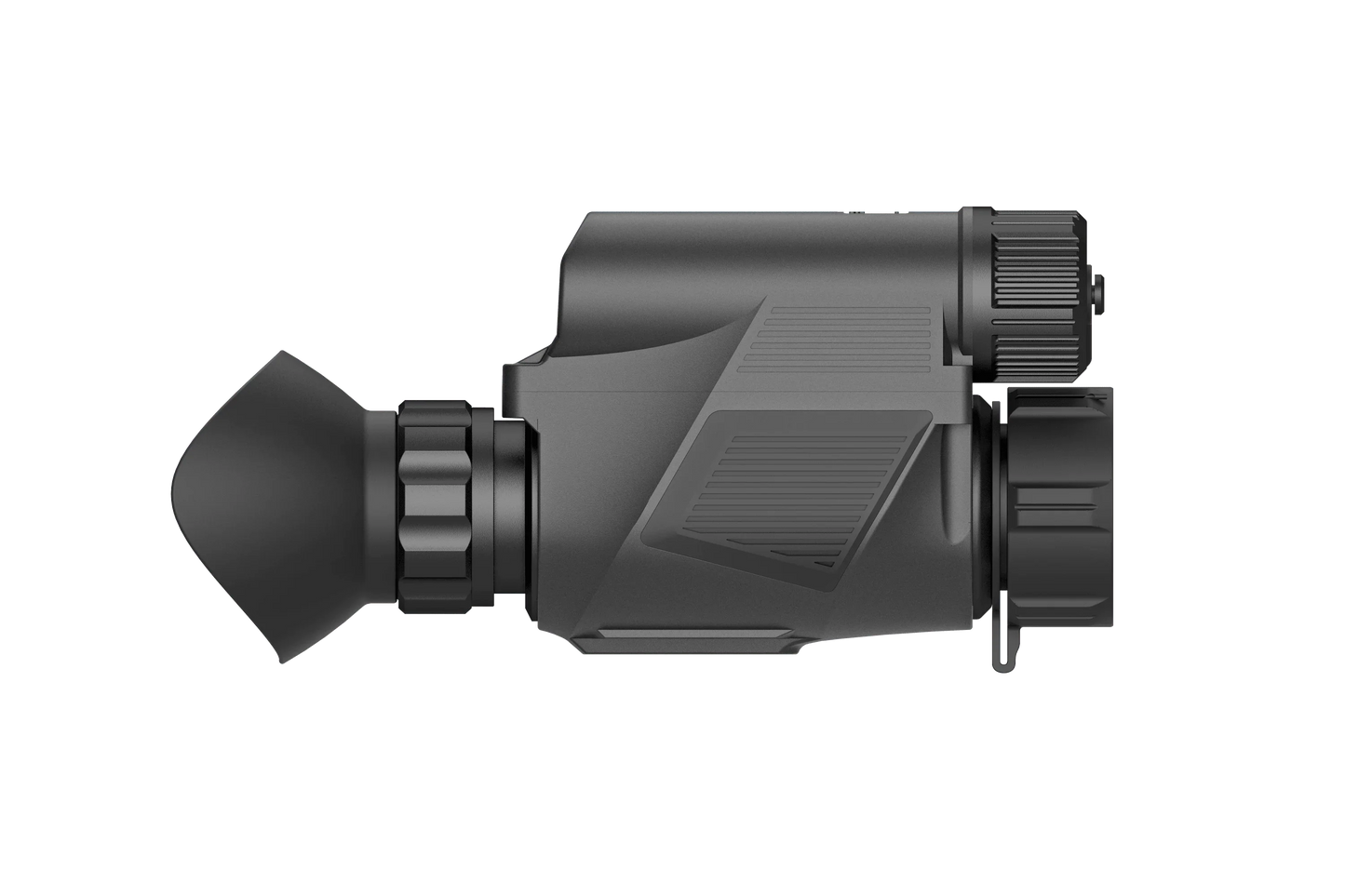

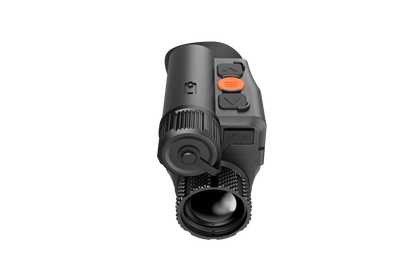

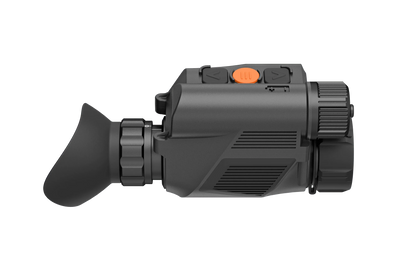

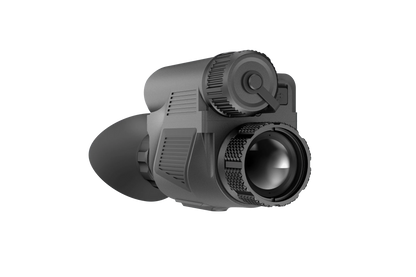

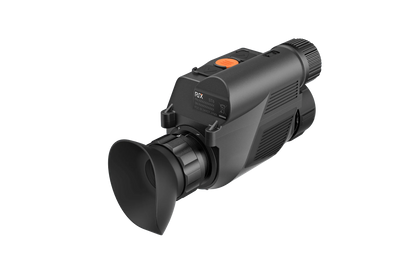

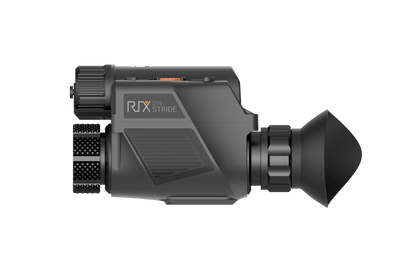

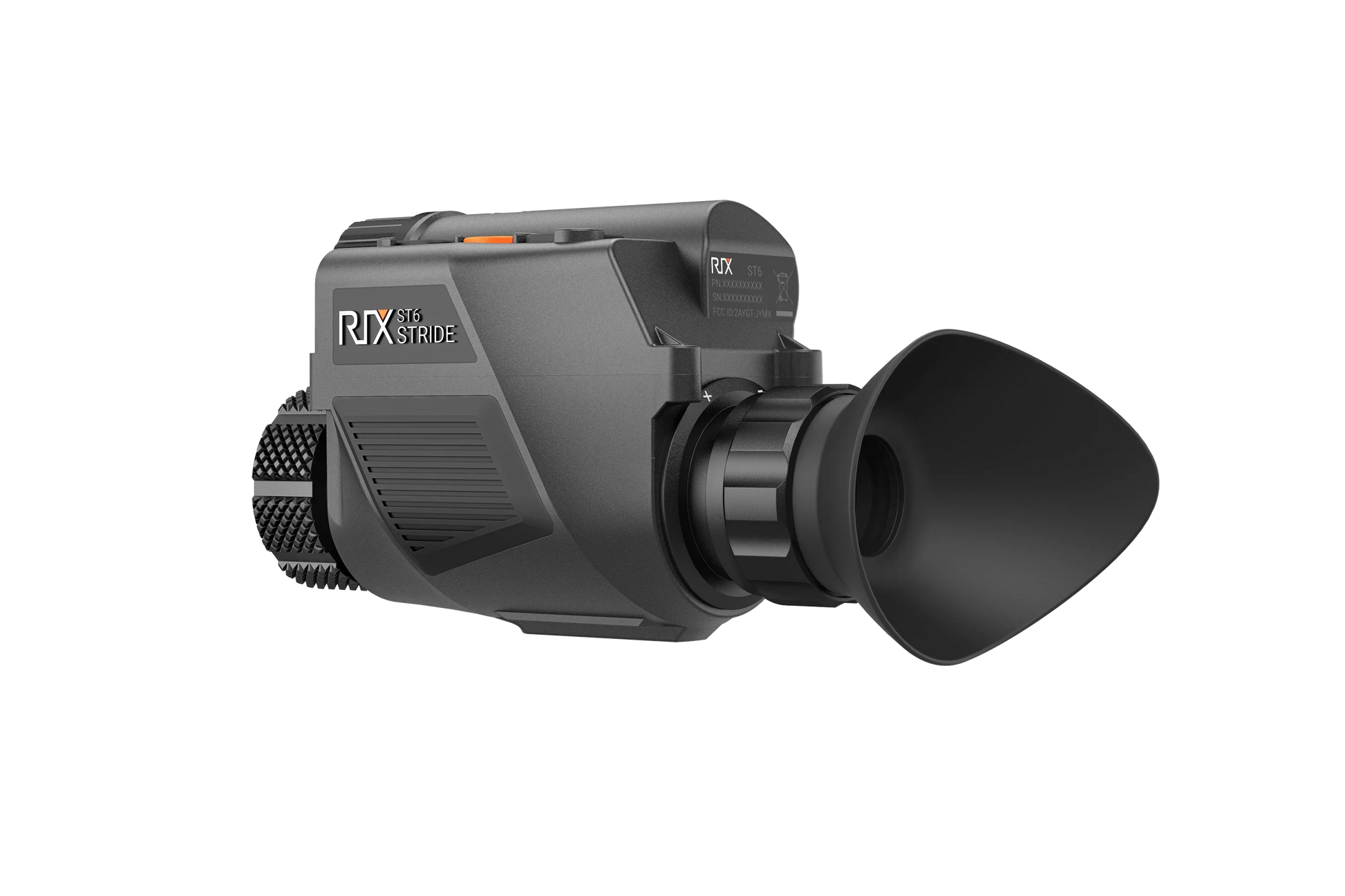

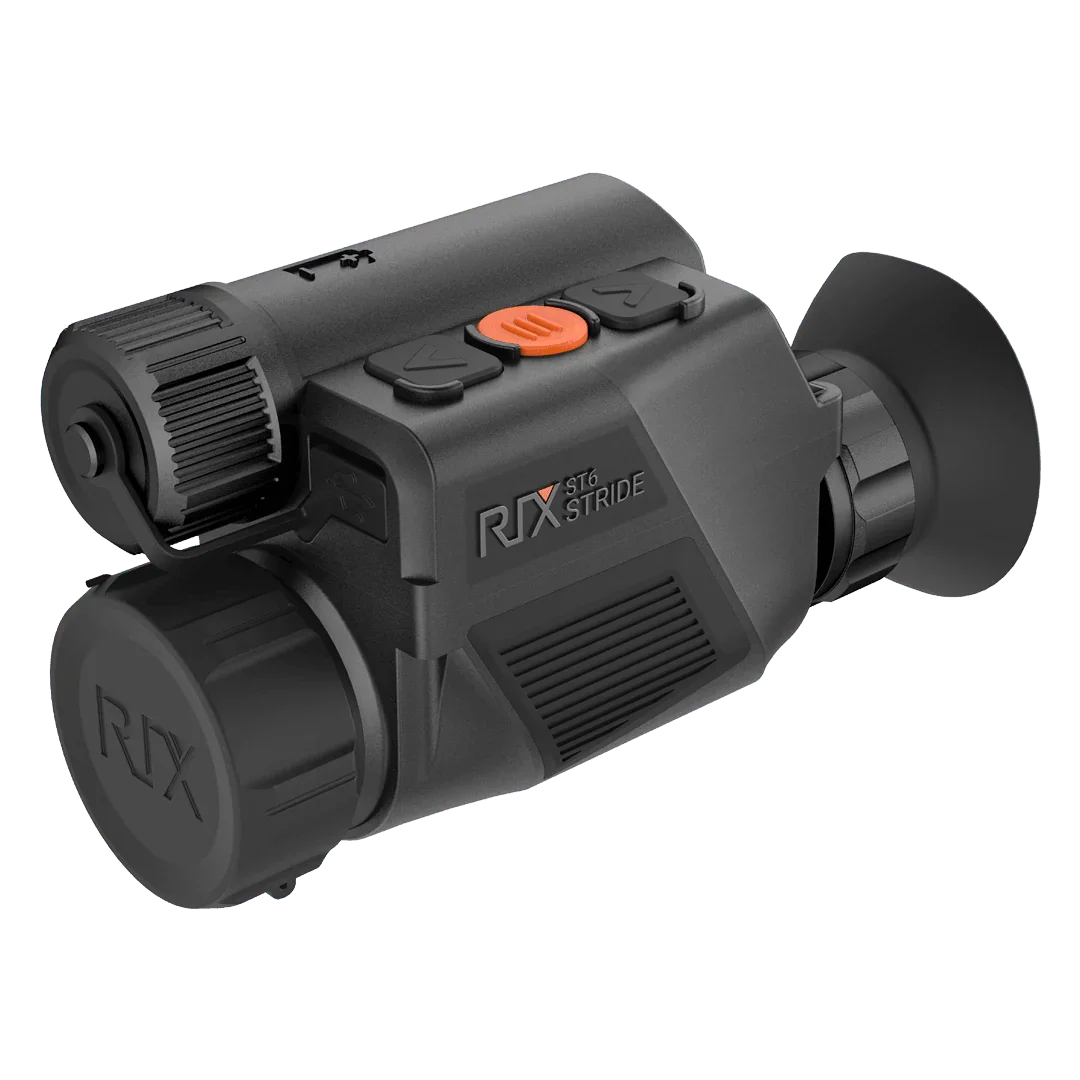

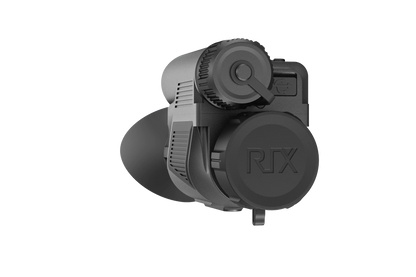

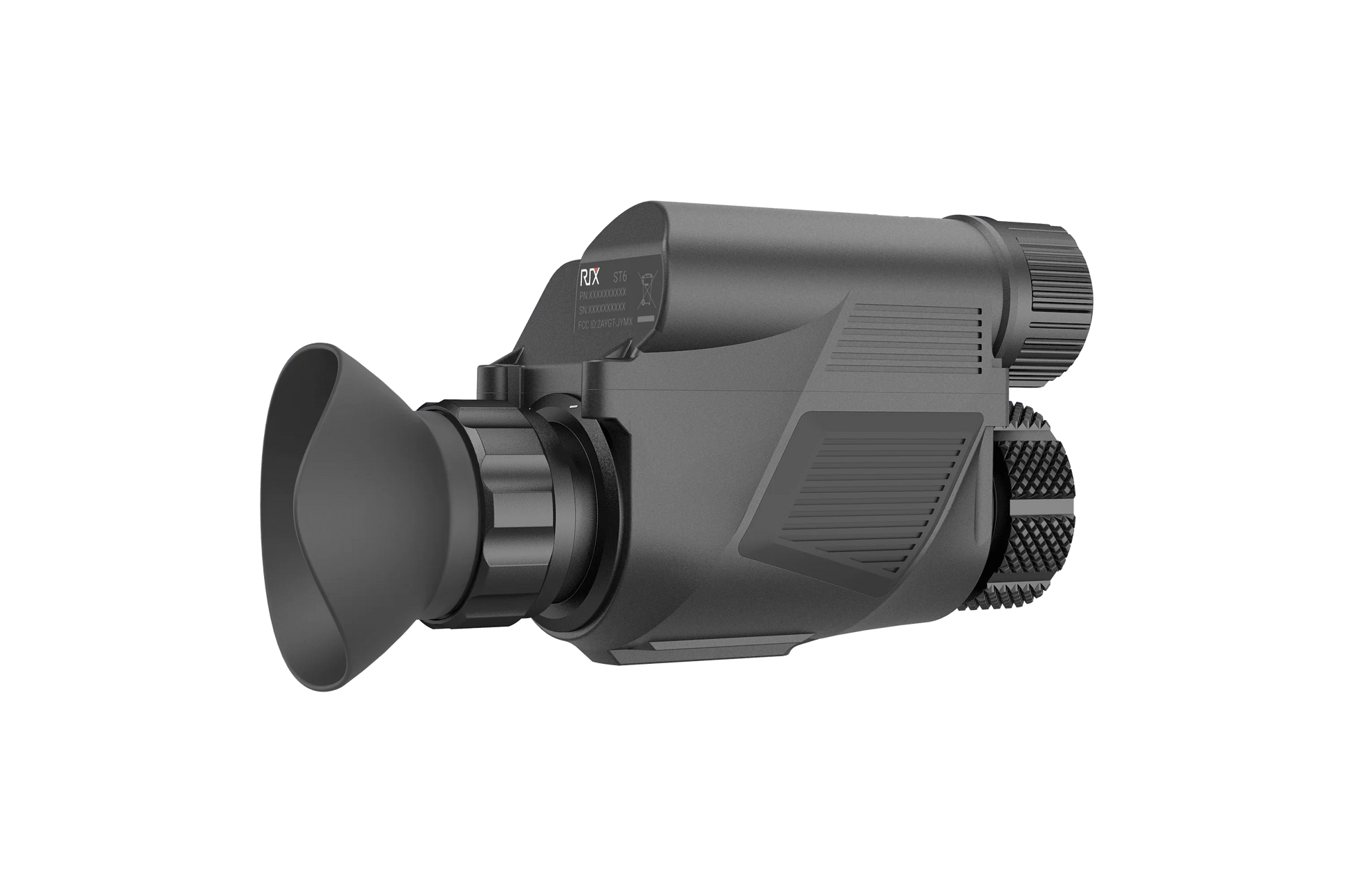

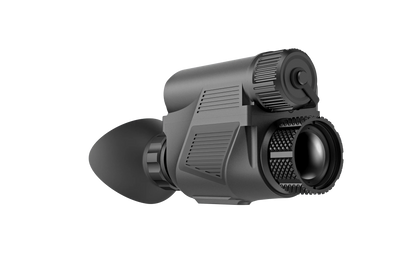

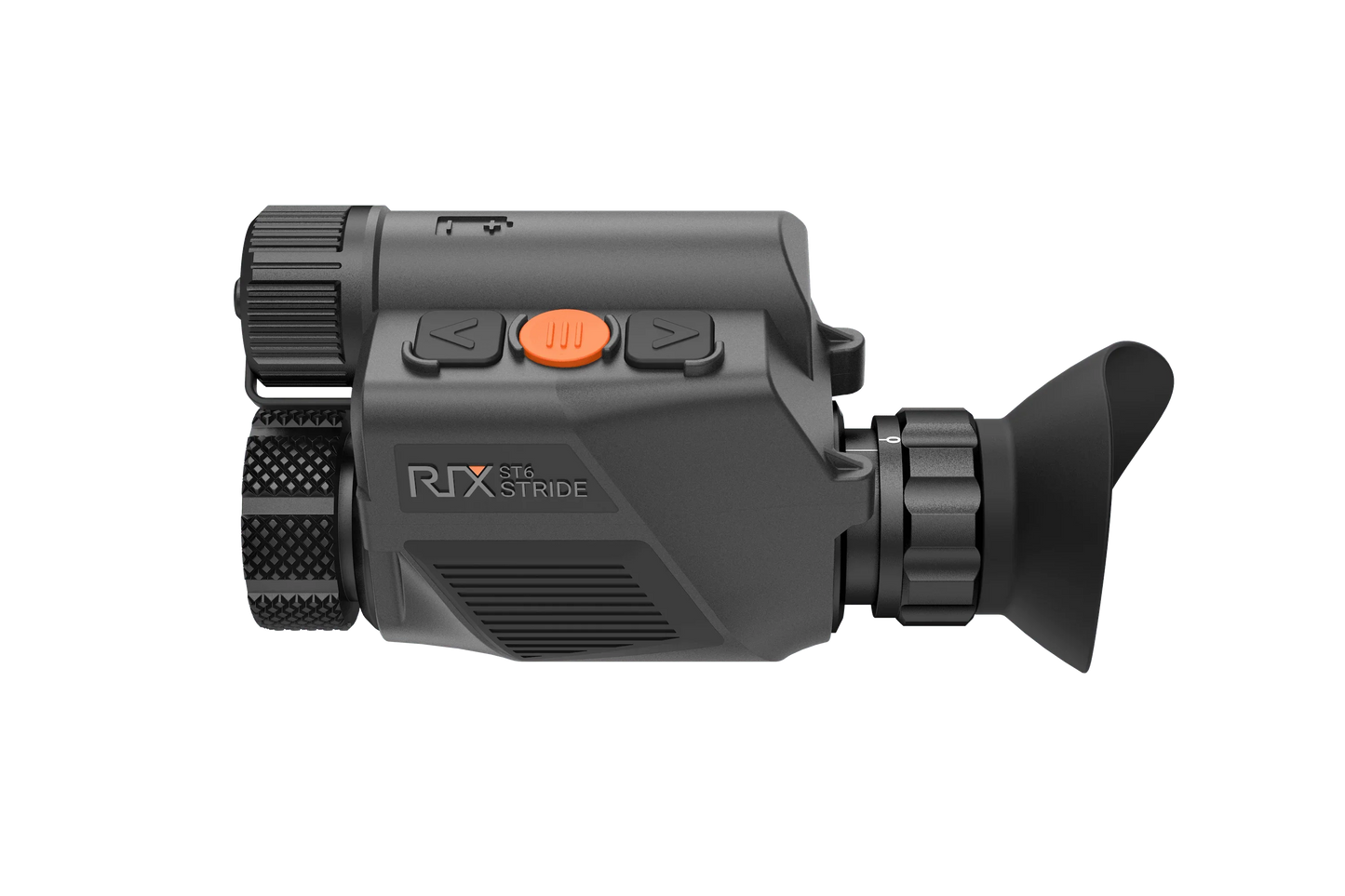

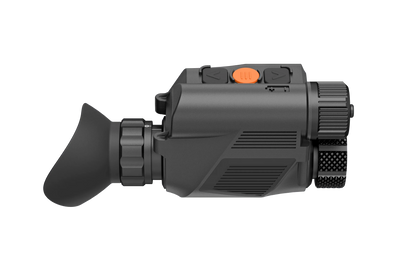

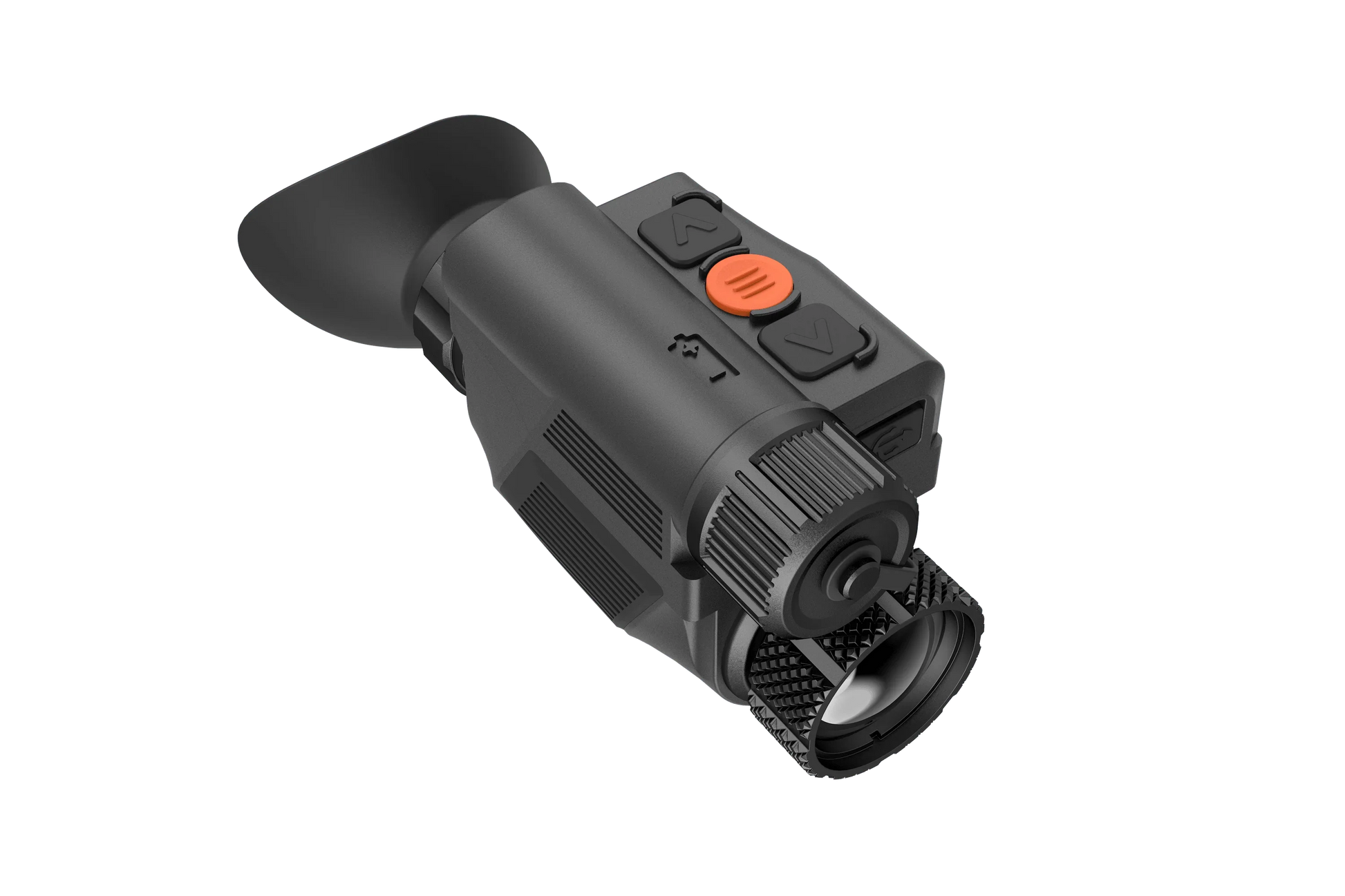

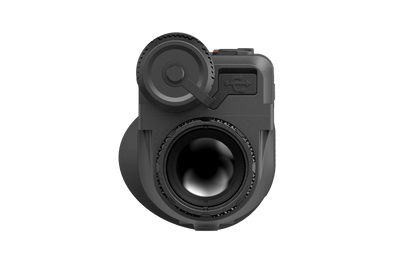

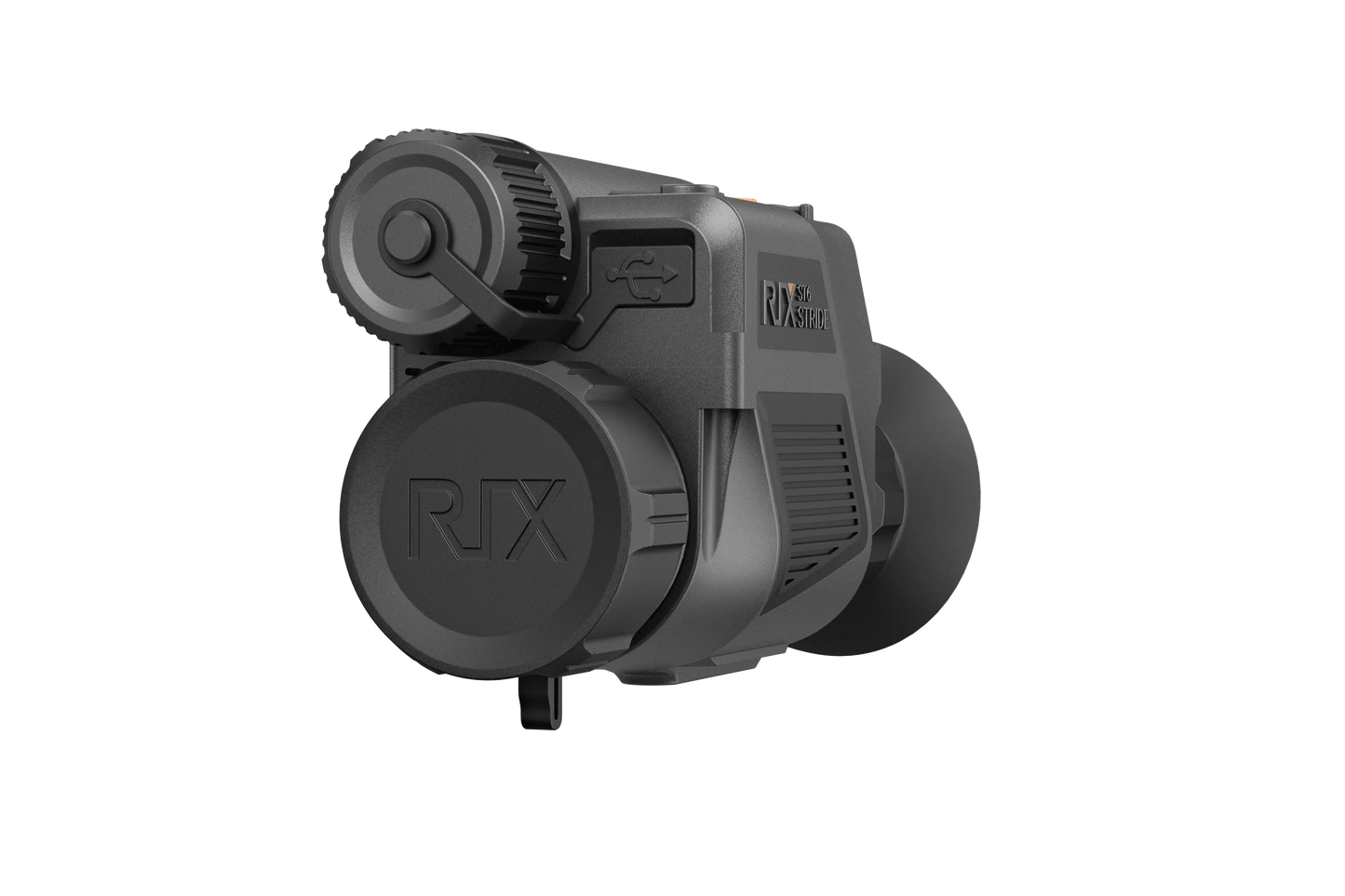

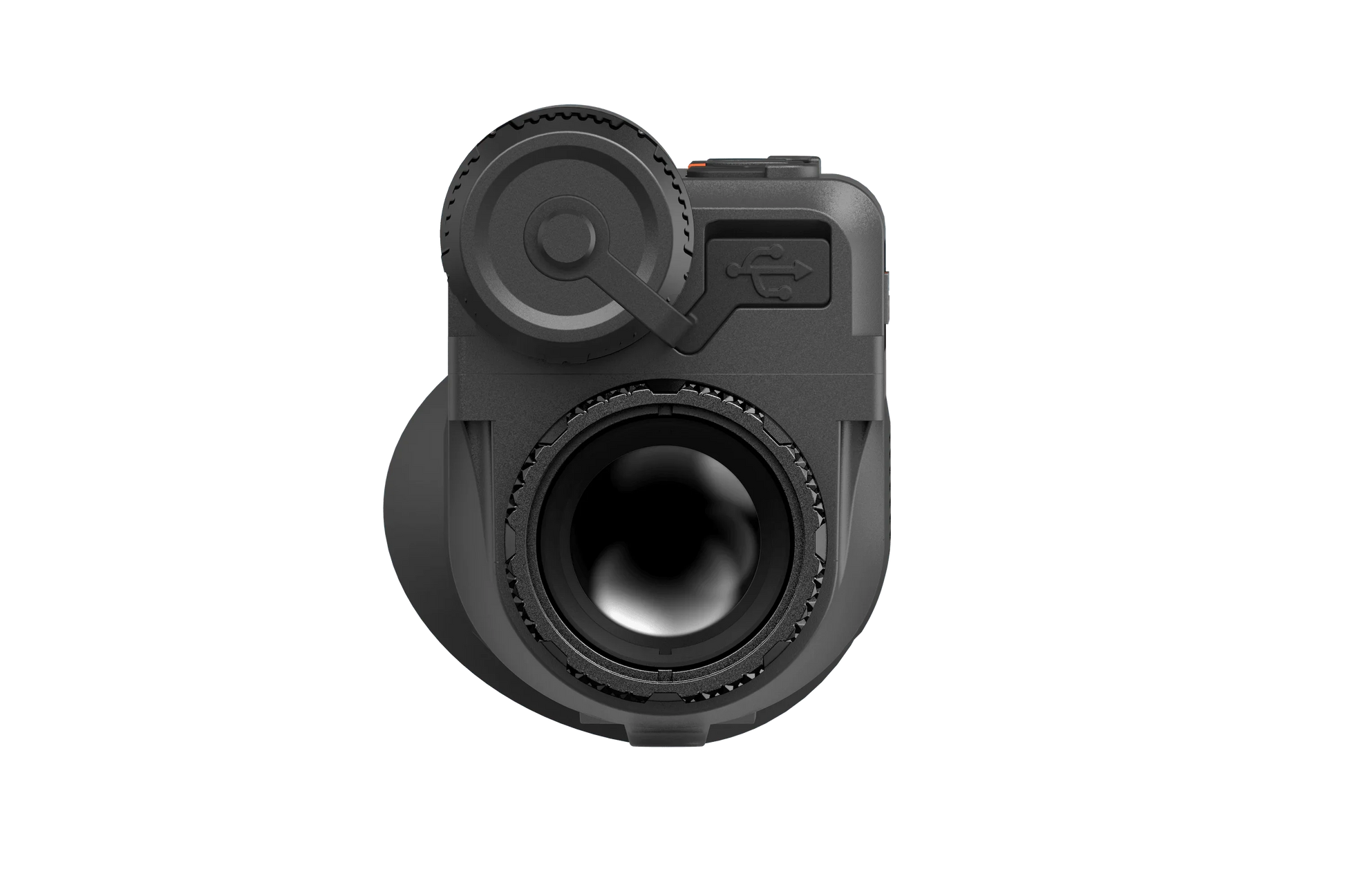

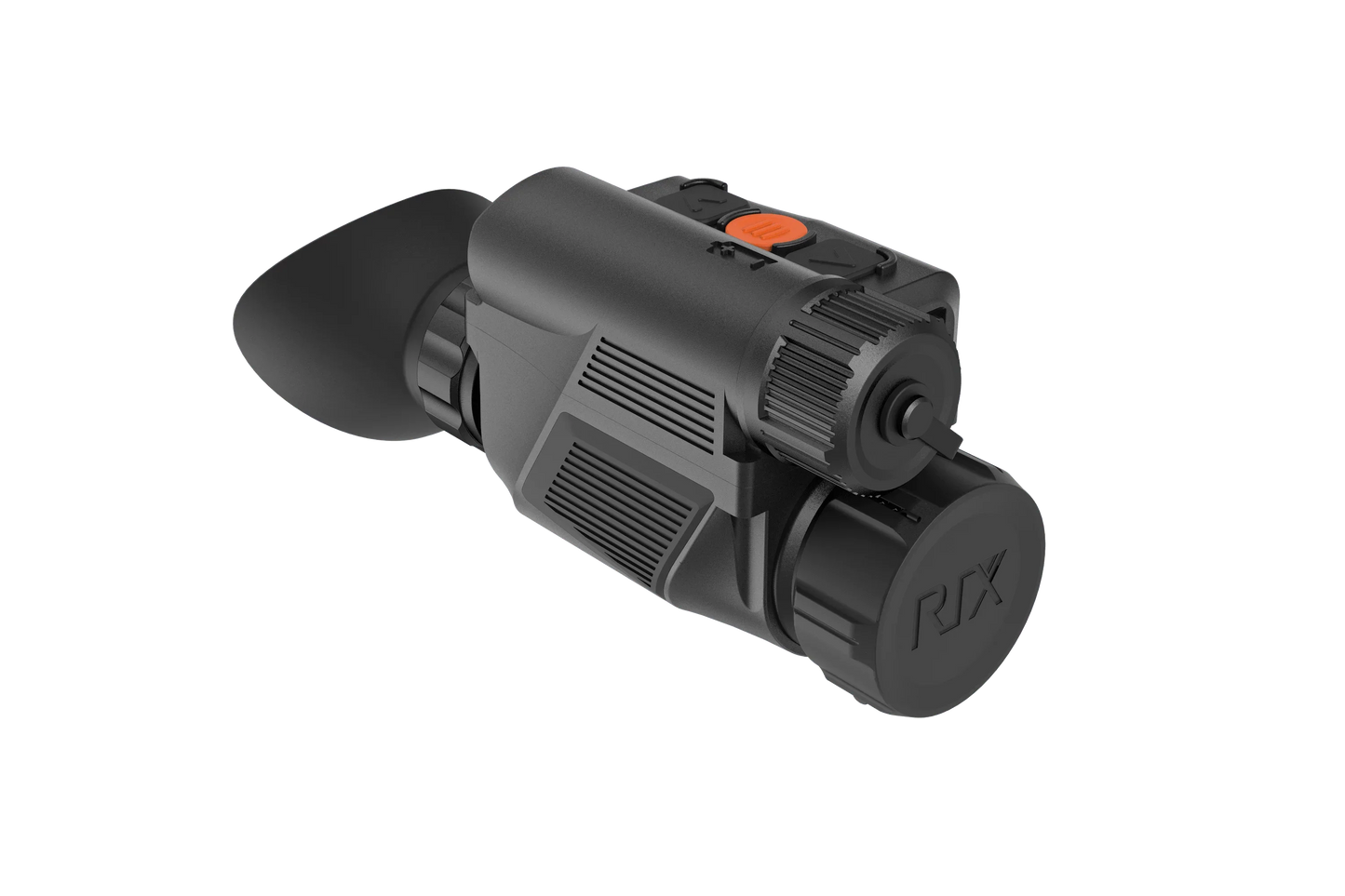

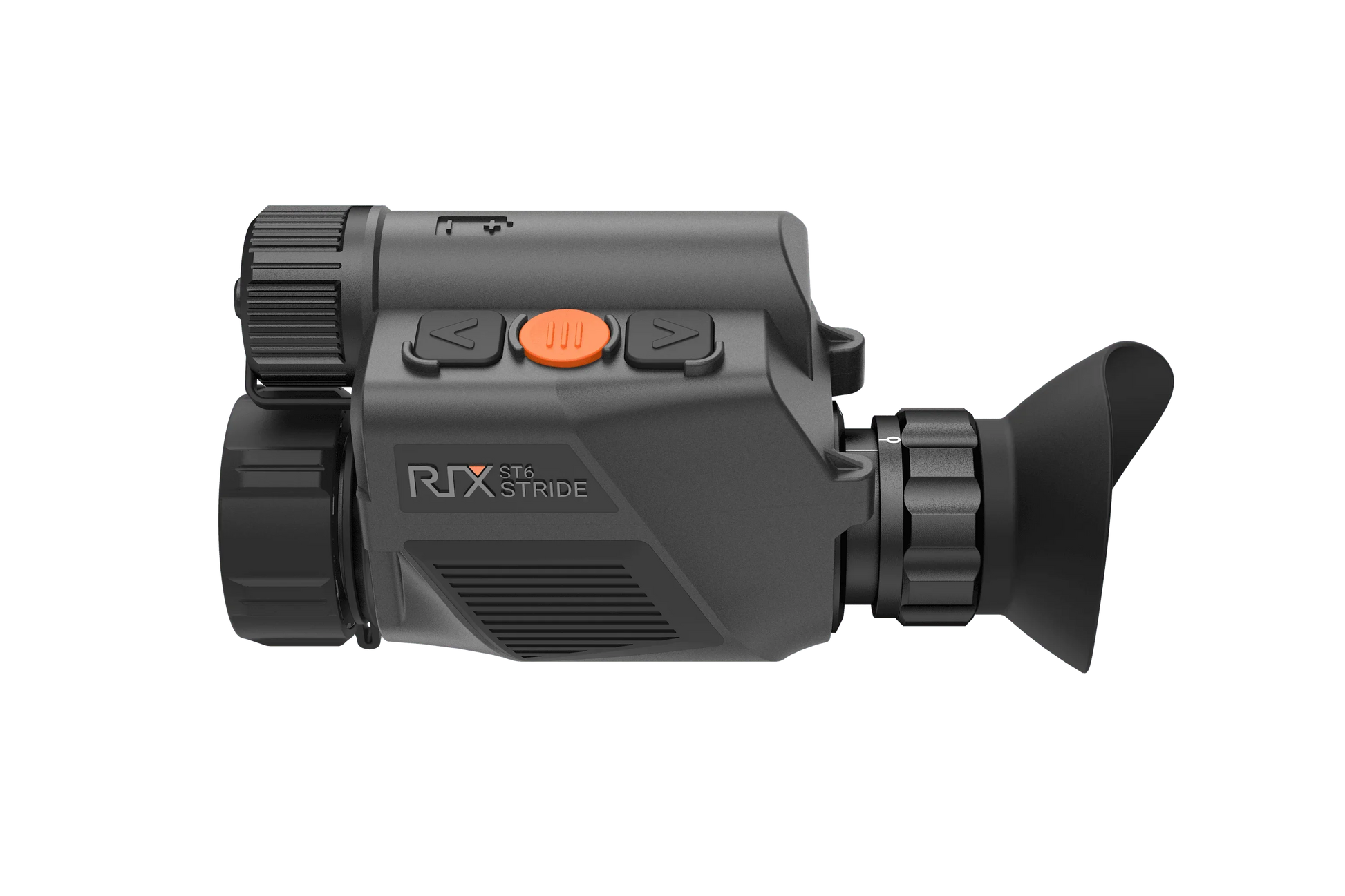

RIX Stride ST6 640 Thermal Monocular 26mm

RIX Stride ST6 640 Thermal Monocular 26mm

SKU:STRIDE-ST6

Regular price $ 2,999.00
Regular price Sale price $ 2,999.00
Sale Sold out
Shipping calculated at checkout.

RIX Stride ST6 Thermal Monocular 640x512/12um 26mm 50Hz WiFi





AUTHORIZED DEALER



RIX thermal imaging monocular, the STRIDE ST6, is equipped with a high-performance 640x512 resolution detector, a 50Hz refresh rate, and a thermal resolution o f NETD<25Mk, ensuring you always receive clearer, smoother, and more detailed images. Also features a 0.39-inch full-color OLED display with 1024x768 resolution, providing a stunning visual experience while observing with the device. Thanks to this excellent lens structure and powerful detector, the ST6 achieves a detection range of up to 1969YDS.

The ST6 comes with six different image modes, each designed for a specific purpose.

  • White Hot, Black Hot, and Red Hot help you easily find targets
  • Edge enhances target recognition
  • Iron helps increase chances of recognition and identification
  • Green Hot reduces discomfort during prolonged use and movement

The ST6 weighs approximately 0.6lb, is palm-sized, and designed for ease-of-use and portability so it can be comfortably used as a handheld or helmet-mounted device. A new energy saving function extends the ST6's battery life up to 10 hours. Now, when you flip the device, it automatically goes into sleep mode.

The STRIDE has built-in photo and video recording capabilities and a large 64GB internal storage. You can connect to external devices via Wi-Fi or a data capable for easy content transfer.

HIGH-PERFORMANCE SENSOR & DISPLAY

The ST6 is equipped with a high-performance 640x512 resolution detector, a 50Hz refresh rate, and a thermal resolution o f NETD<25Mk, ensuring you always receive clearer, smoother, and more detailed images.

The ST6 features a 0.39-inch full-color OLED display with 1024x768 resolution, providing a stunning visual experience while observing with the device.



SIX IMAGE MODES & 1X OPTICAL MAGNIFICATION

The ST6 comes with six different image modes, each designed for a specific purpose. White Hot, Black Hot, and Red Hot help you easily find targets. Edge enhances target recognition. Iron helps increase chances of recognition and identification. Green Hot reduces discomfort during prolonged use and movement. It also offers 1x optical magnification, providing a clear and natural viewing experience like that of your own eyes, which lets you walk or drive confidently in the dark.



10H OPERATION TIME

We have greatly improved the energy efficiency of the STRIDE. Now, when you flip the device, it automatically goes into sleep mode to conserve energy. With a single 18650 battery, you can enjoy up to 10 hours of extended battery life.



INCREDIBLY LIGHTWEIGHT & COMPACT DESIGN

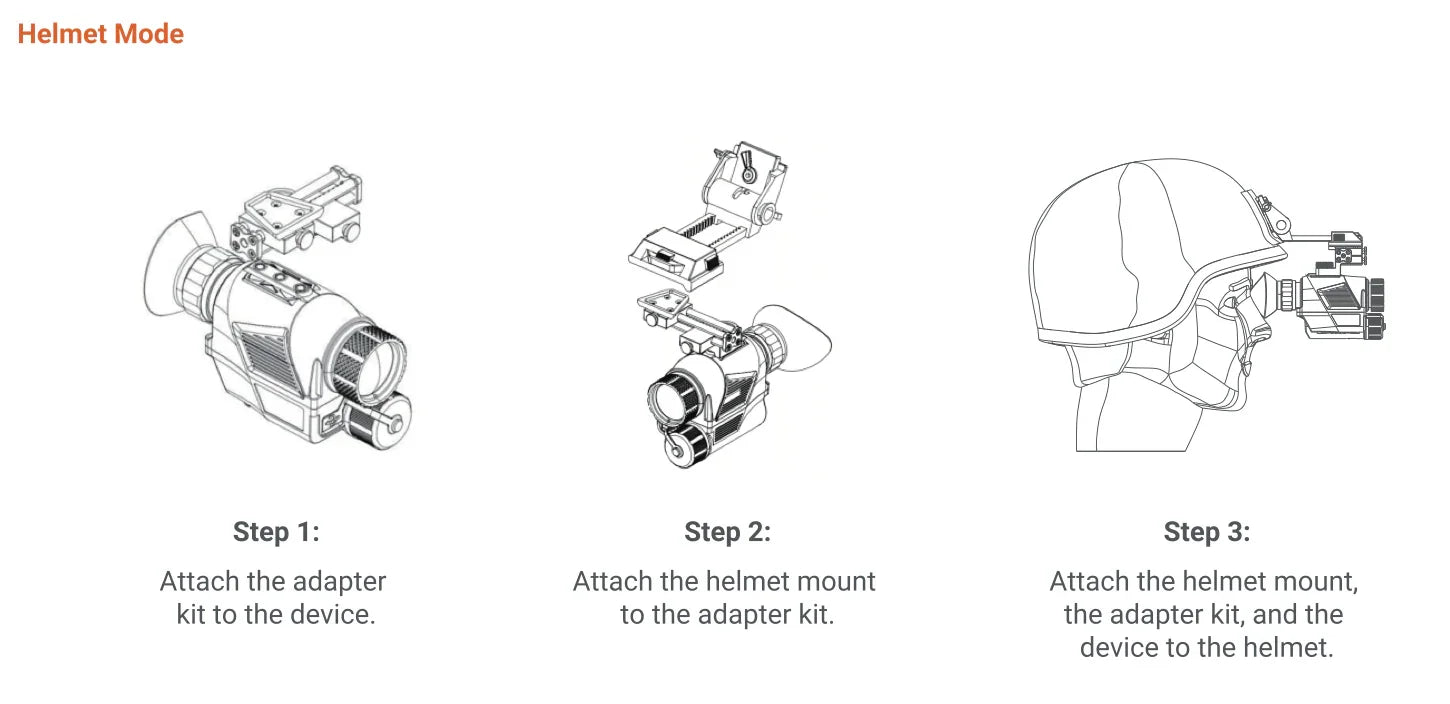

The ST6 weighs approximately 0.6lb, is palm-sized, and designed for ease-of-use and portability so it can be comfortably used as a handheld or helmet-mounted device.



1969 YDS DETECTION DISTANCE

Thanks to its excellent lens structure and powerful detector, the ST6 achieves a detection range of up to 1969YDS.



RECORDING AND WI-FI

The ST6 has built-in photo and video recording capabilities and a large 64GB internal storage. You can connect to external devices via Wi-Fi or a data capable for easy content transfer.



RIX Optics Stride ST6 640 SPECIFICATIONS:

Sensor Specifications

Type

VOx Uncooled



Resolution, pixels

640×512



Pixel Pitch, μm

12



NETD, mk

<25



Frame Rate, Hz

50



Optical Specifications

Objective Lens, mm

26.7



Optic Zoom, x

1



Field of View (H), degrees / yd @ 100 yd

/



Field of View

16.3° × 12.3°



Digital Zoom, x

1 to 6



Eye Relief, mm

20



Diopter Adjustment, D

-5 to +2



Detection Range,m/yd

1800 / 1969



Display Specifications

Type

OLED



Resolution, pixels

1024x768



Wi-Fi

Wireless Protocol

Wi-Fi



Frequency, GHz

2.4



Video Recorder

Video / Photo Resolution, pixels

640×512



Video / Photo Format

.mp4 / .jpg



Memory Capacity, GB

64



Physical Specifications

Degree of Protection, IP code

IP67



Operating Temperature Range, °F

-4 to +122



Dimension, inch

4.5x2.8x1.9



Weight, lb

<0.6 (without battery)



Connections and Compatibilities

Battery Type

18650



Capacity, mAh

/



Operating Time on Battery Pack (at t=72°F), h

Up to 10



External Power Supply, V

5V (Type-C USB)





Warranty

5 Years



EXPORT RESTRICTION

Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
