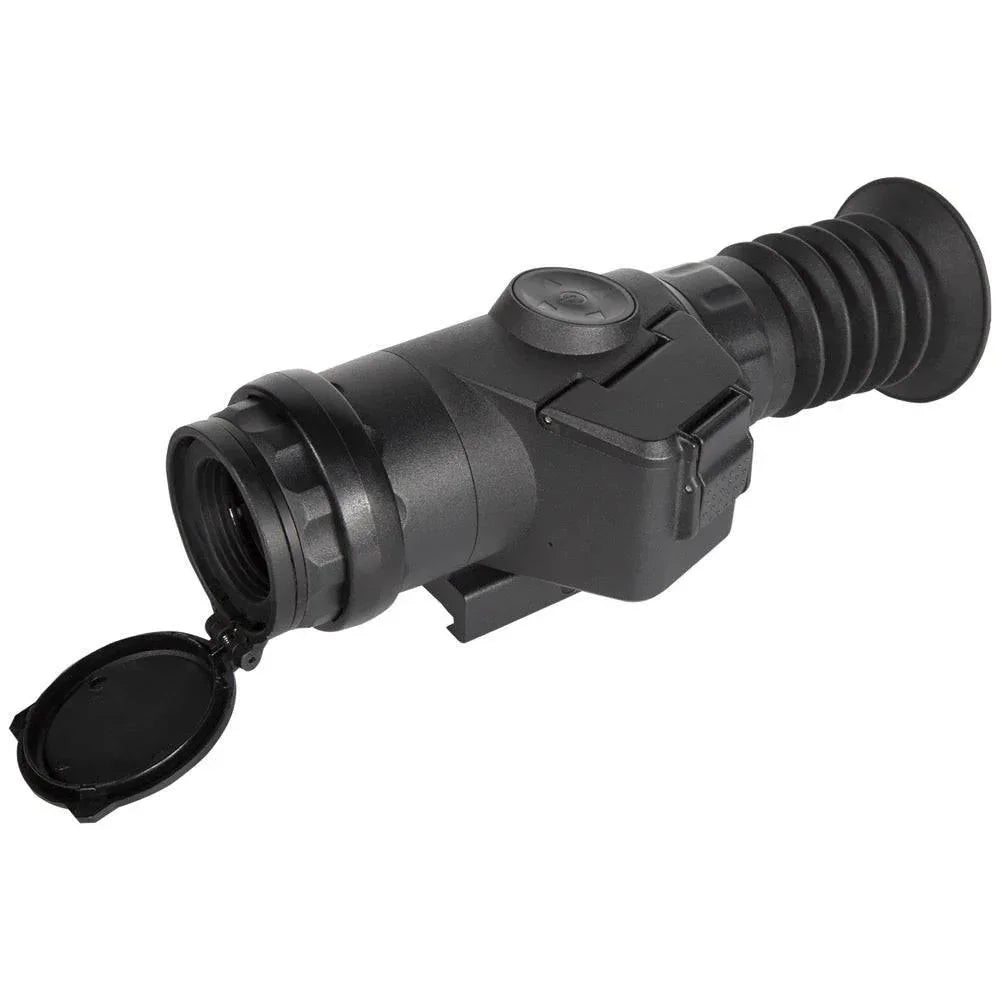

Sightmark Wraith 4K Mini 4X Digital Scope
Sightmark Wraith 4K Mini 4X Digital Scope
SKU:SM18042
Sightmark Wraith 4K Mini 4X 4-32x32 Digital Riflescope Weapon Sight (SM18042)
The Sightmark Wraith 4K Mini is precision-engineered to provide professionals and hobbyists exceptional performance. This digital riflescope features a 4K CMOS sensor, providing up to 300 yards of visibility in the darkest of nights, and a 1280x720 FLCOS screen with a 4X magnification. It represents the pinnacle of digital rifle scope technology.
The Wraith 4K Mini offers an exceptional combination of size and performance. It's equipped with a recorder to capture videos at 1080p and/or 4K resolution, ensuring that every shooting experience is safeguarded with unmatched clarity. Plus, there's 8x digital zoom, full-color imaging for daytime and two night vision color palettes, an 850nm IR illuminator, several reticle options, and a USB-C external power connector, allowing shooters to detect and hit targets at any distance efficiently.
The Wraith 4K Mini is superior in terms of durability; this aluminum scope can withstand temperatures from 0 to 60°C (32F to 140F) and is both shockproof (3 ft drop resistance) and IPX6 water-resistant. Additionally, it's designed to handle recoil up to .308 Winchester.
Features
- 4K Digital Imaging
- 300-yard night detection range
- Night vision mode
- Daytime color mode
- Built-in 4K video recording with audio capabilities
- 14 reticle options with 9 colors
Specifications:
Electronic components | |
Type of sensor | CMOS sensor |
Sensor resolution, pixels | 4K (3840x2160) |
Display type | FLCOS |
Display Resolution, pix. | 1280x720 |
Built-In Video Recorder Availability | Yes |
Maximum memory card supported, Gb | 256 |
Format of video clip | AVI |
Resolution of video clip | 1080/4K |
Format of photo files | JPEG |
Resolution of photo files | 4k |
Memory capacity | Approximately 1.75 hours video with 64gb SD card on 4k@30 quality level. |
Optical characteristics | |
Lens diameter, mm | 32 |
Magnification: | |
Mini 4K 2-16x32 (SM18041) |
2-16x |
Mini 4K 4-32x32 (SM18042) |
4-32x |
Field of View, Ft @ 100 Yds: | |
Mini 4K 2-16x32 (SM18041) |
40 |
Mini 4K 4-32x32 (SM18042) |
21 |
IR-illuminator | |
Emitter | LED |
IR Wavelength, nm | 850nm |
Equivalent IR Power, mW | ~1060 on high, ~540 on medium, ~400 on low |
Battery Life | 2 hours on high |
Battery type | 2x CR123A |
Range of Detection | |
Night Vision detection range, yd/m | 300/274 |
Power Supply | |
Power Supply, v | 6 |
Battery type | 2x CR123A |
Battery life | 3.6Hrs Video Mode/ 4.4Hrs Preview Mode |
External Power Supply | 5V via USB-C |
Reticle | |
Windage & Elevation click value | 1 pixel/ ~X0.4MOA |
Adjustment range, elevation | ~ 150 MOA |
Adjustment range, windage | ~ 350 MOA |
Number of reticle options | 10 SFP 4FFP |
Colors | Black, white, red, blue, green, cyan, orange, yellow, magenta |
Physical & operational characteristics | |
Body Material | Aluminum |
Accessory rail mount | Picatinny |
Operating Temp,°F / C° | 32 to 140 / 0 to 60 |
Waterproof rating | IPX6 - water resistant |
Nitrogen Purged, yes/no | no |
Shockproof, yes/no | yes, 3ft |
Maximum recoil, caliber | .308 |
Tube diameter | n/a |
Length, in/mm | 6.299/160 |
Width, in/mm | 3.031/77 |
Height, in/mm | 2.913/74 |
Weight (with batteries), oz | 21.6 oz |
Included:
- 850nm IR Illuminator
- Flip-up lens cover
- Focus throw lever
- Eye cup
- Fixed picatinny mount
- User manual
