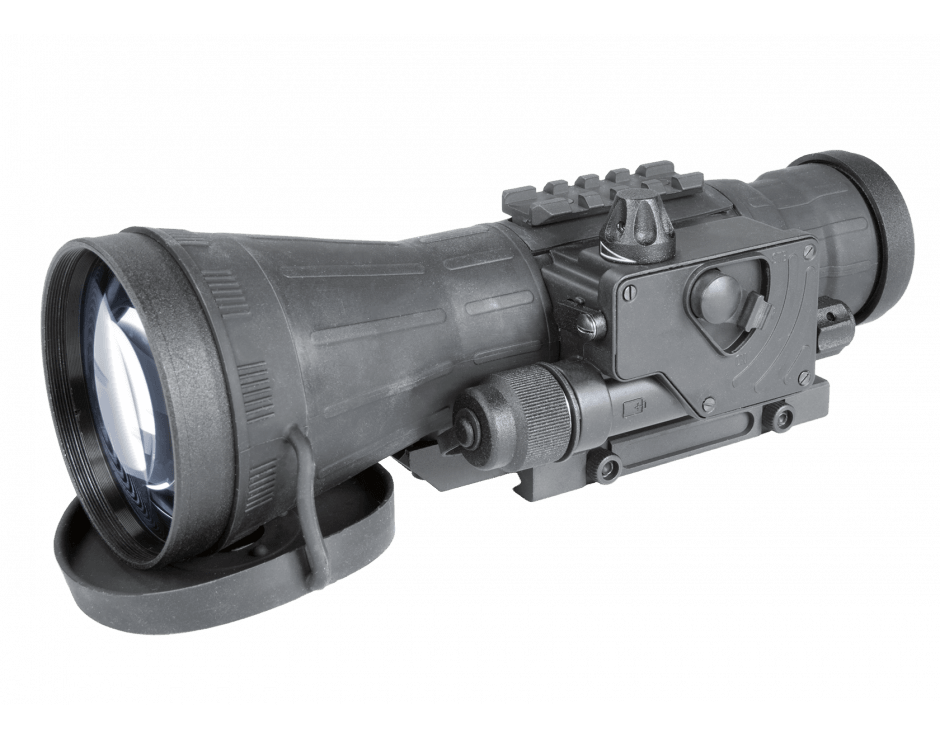

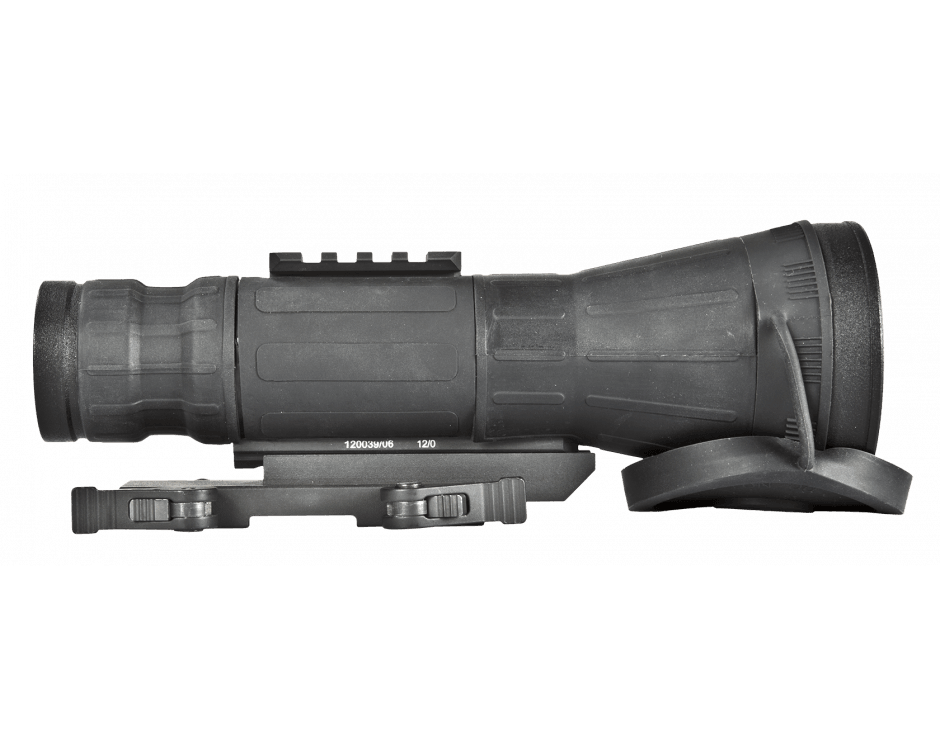

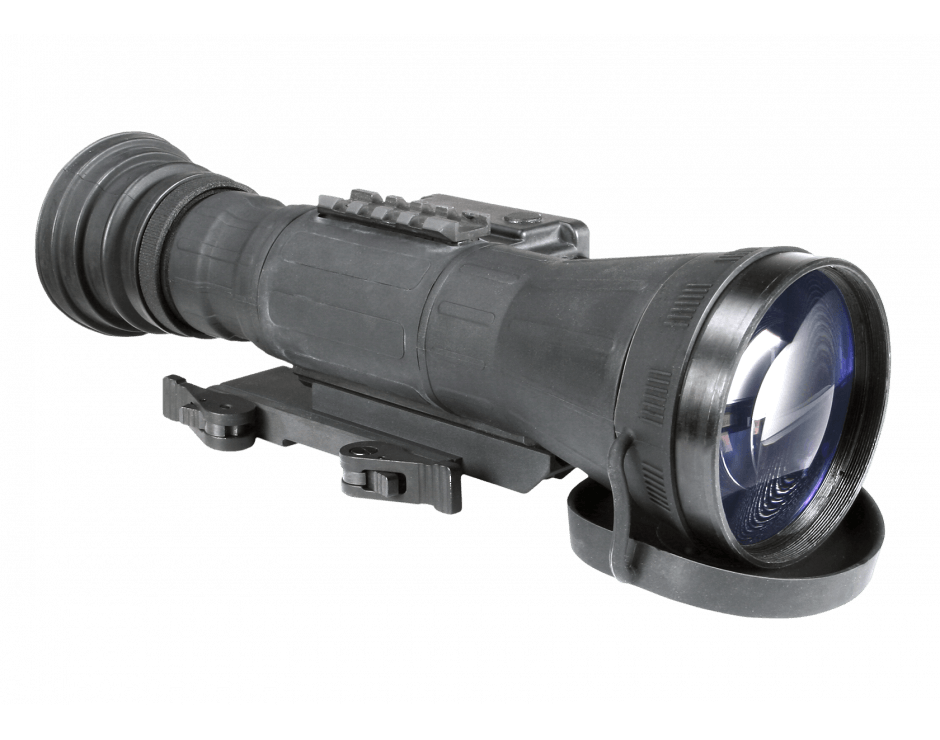

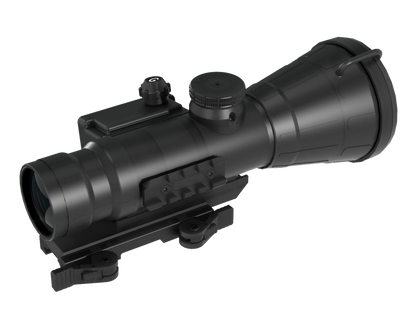

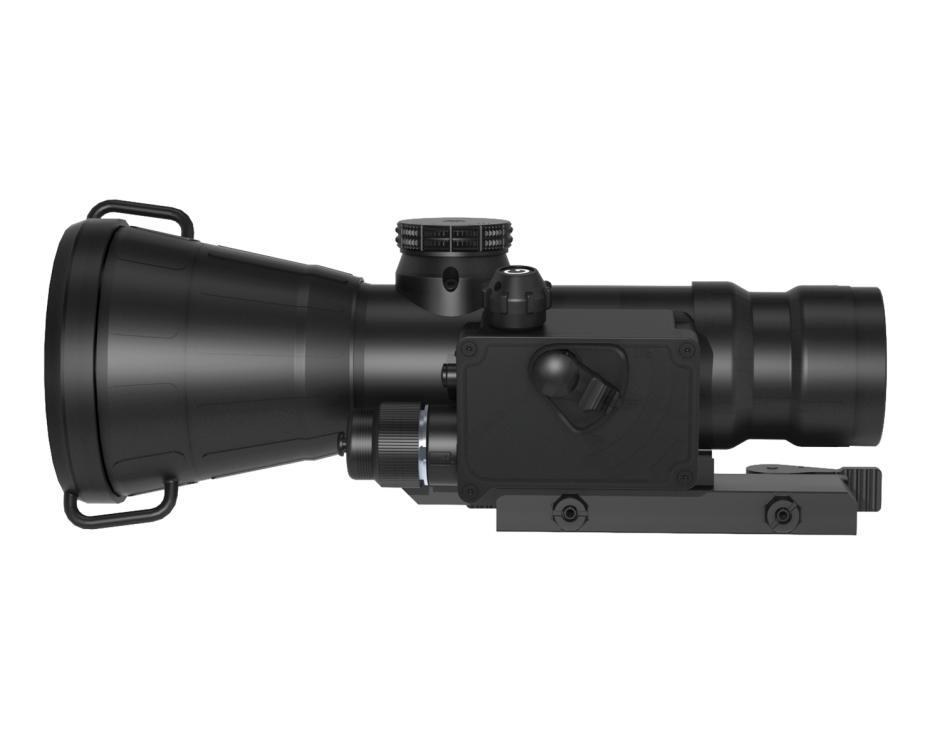

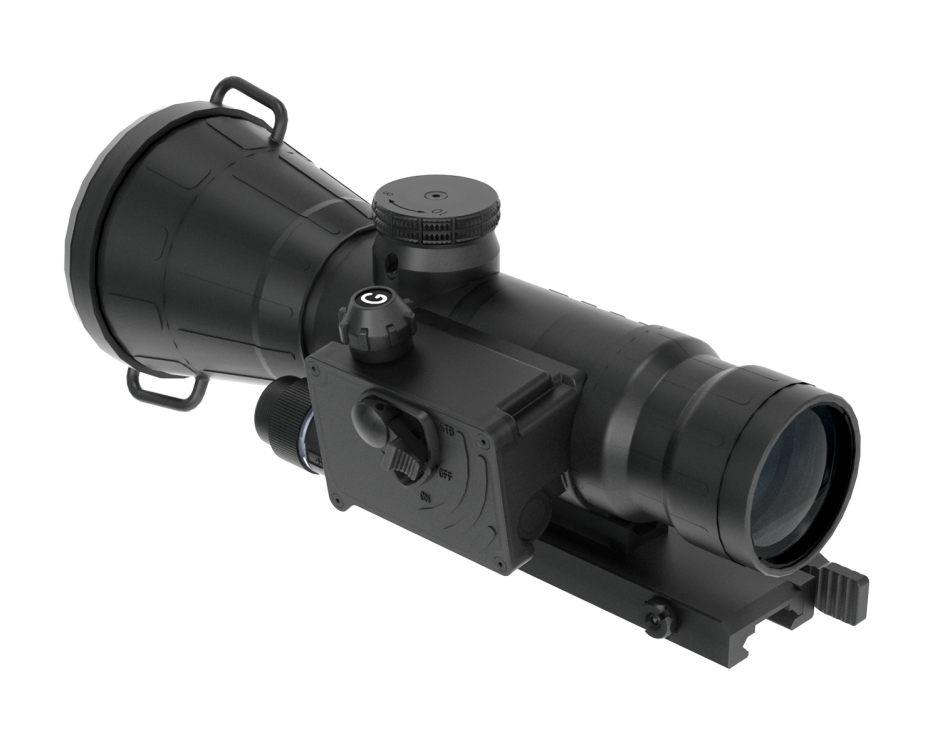

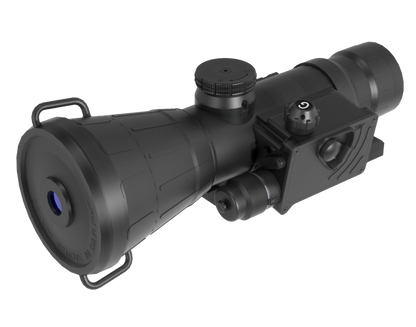

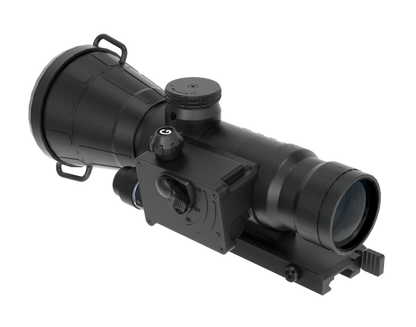

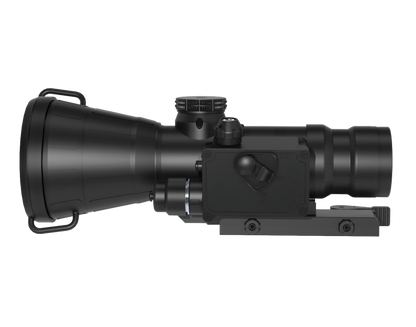

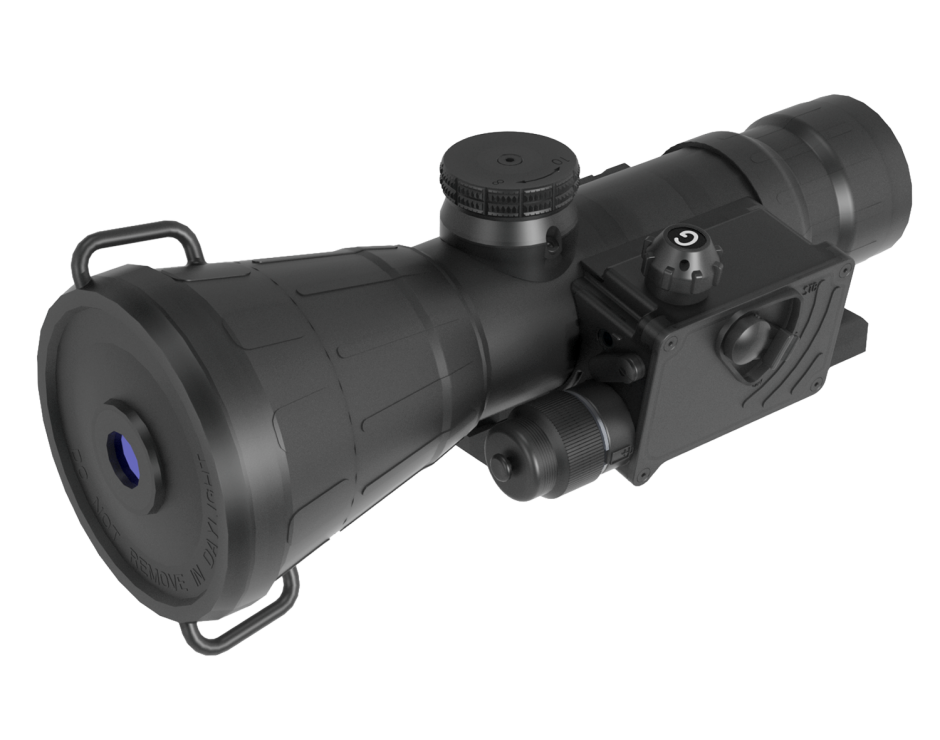

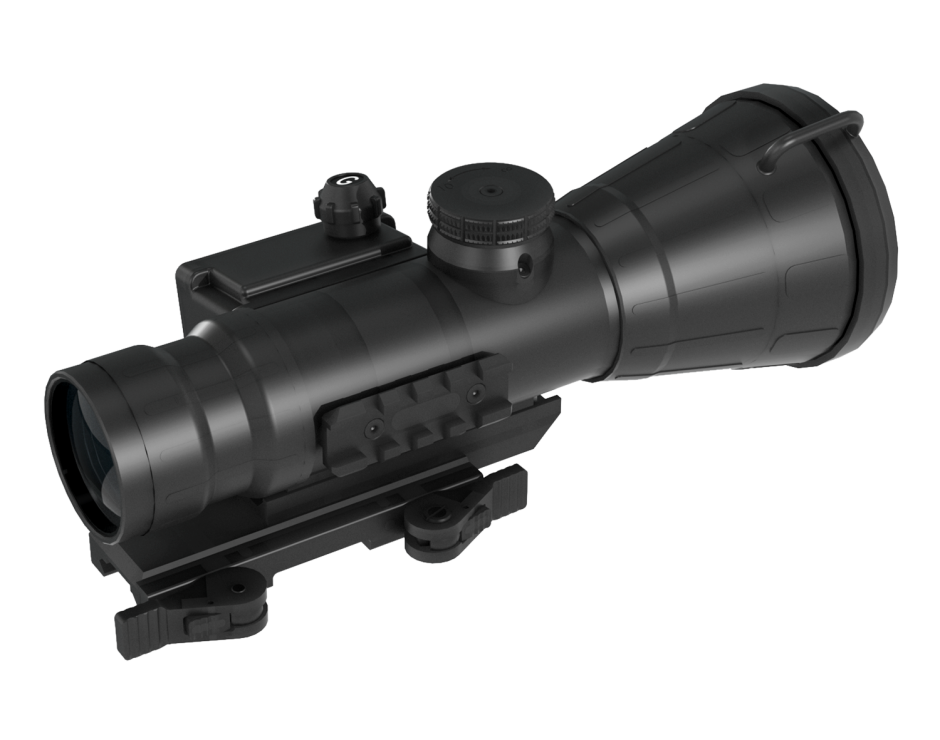

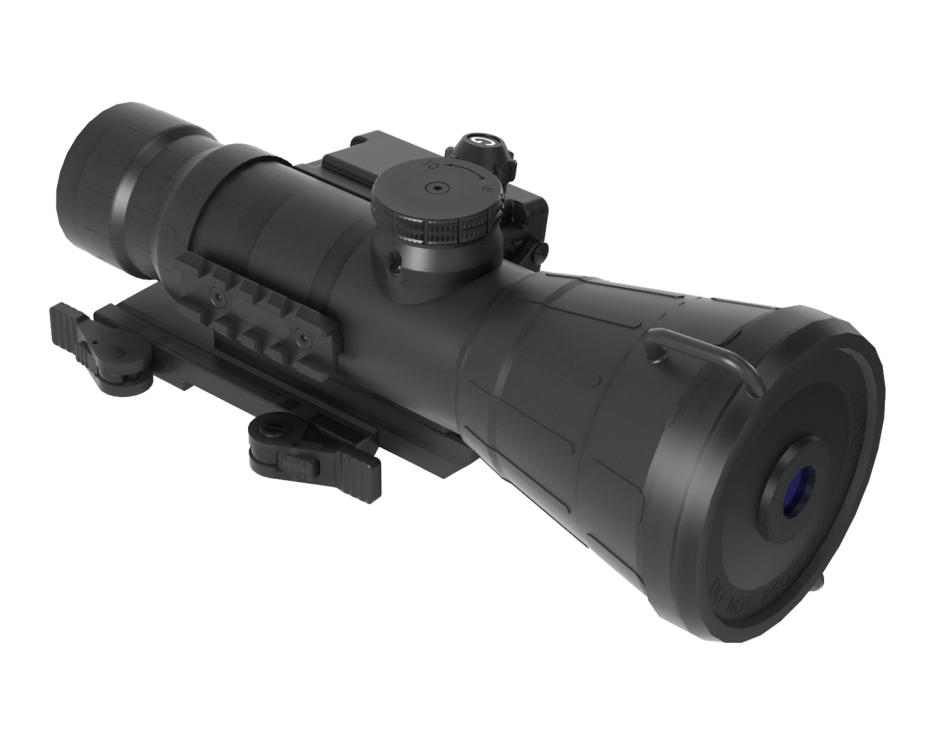

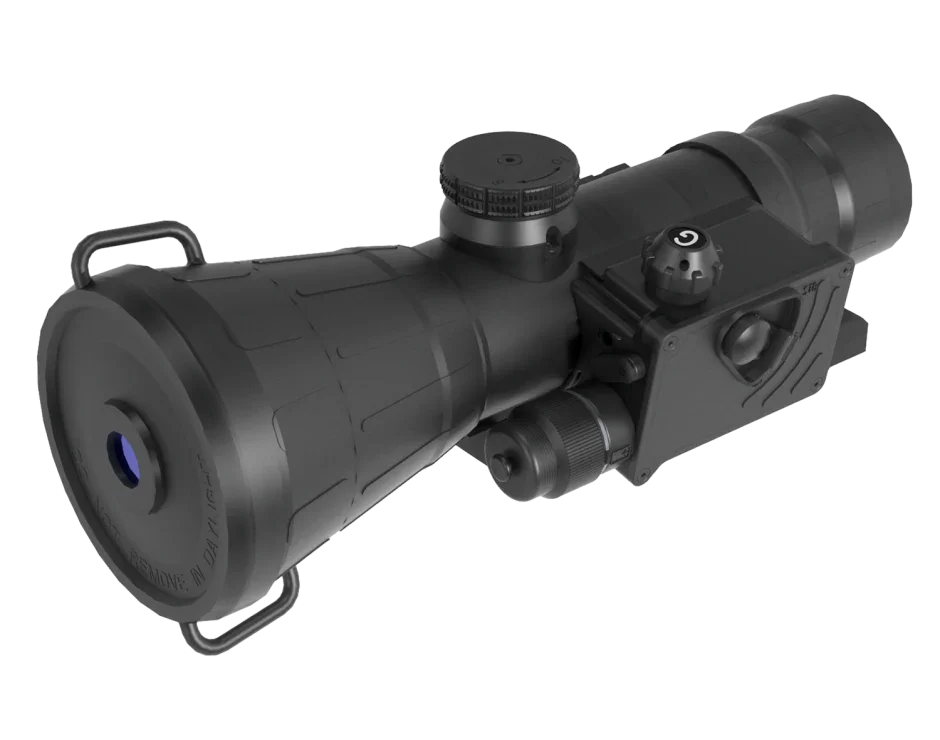

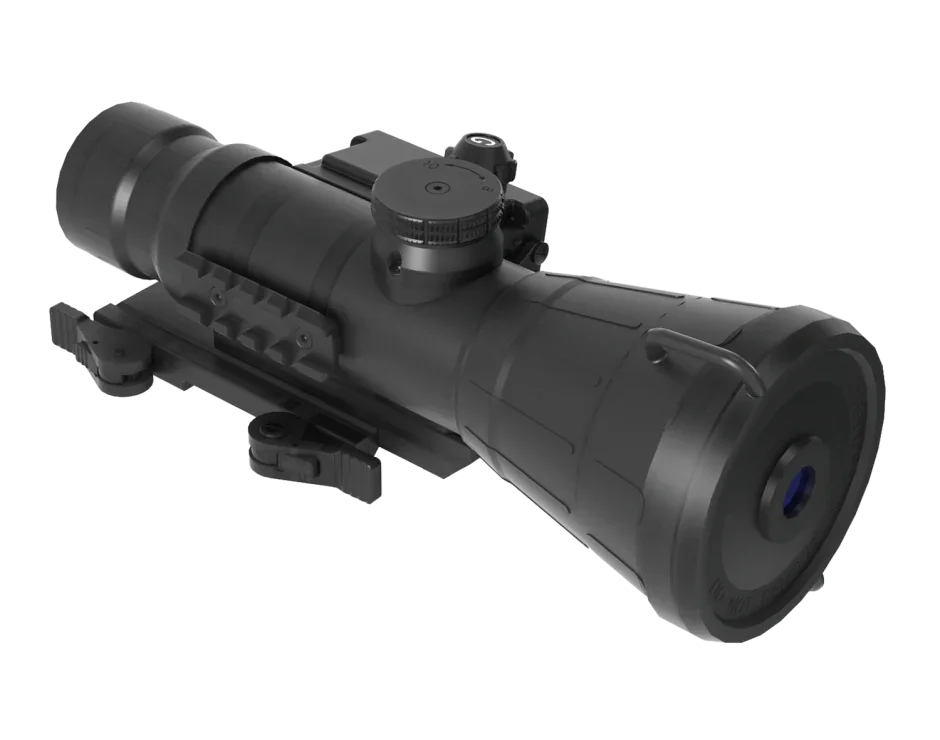

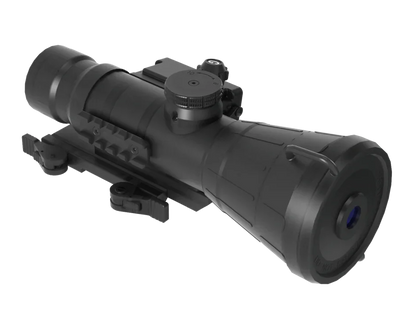

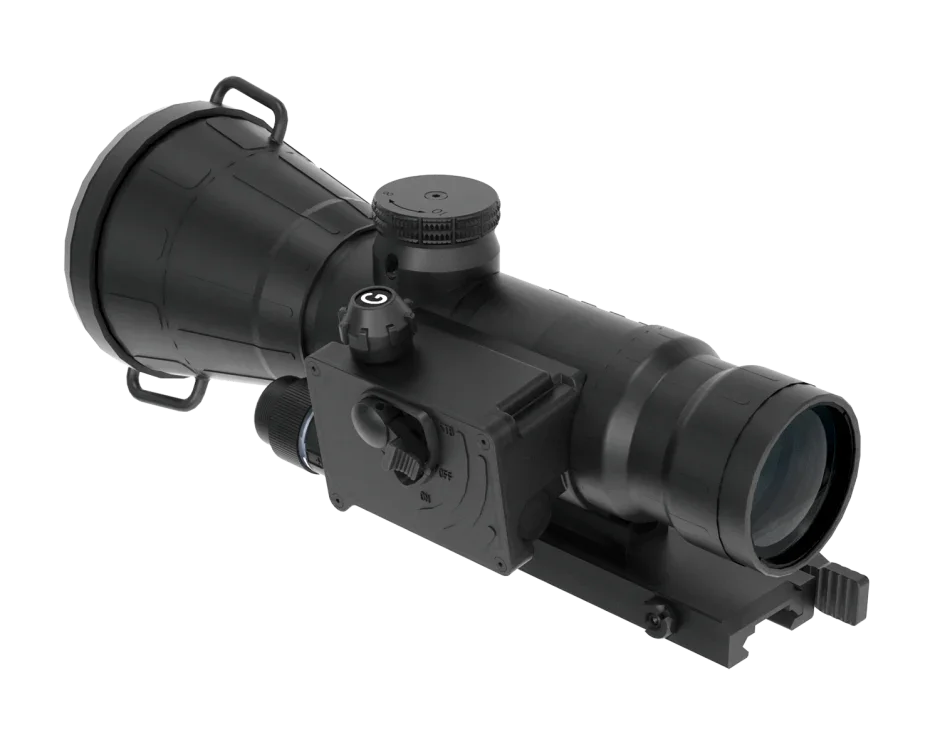

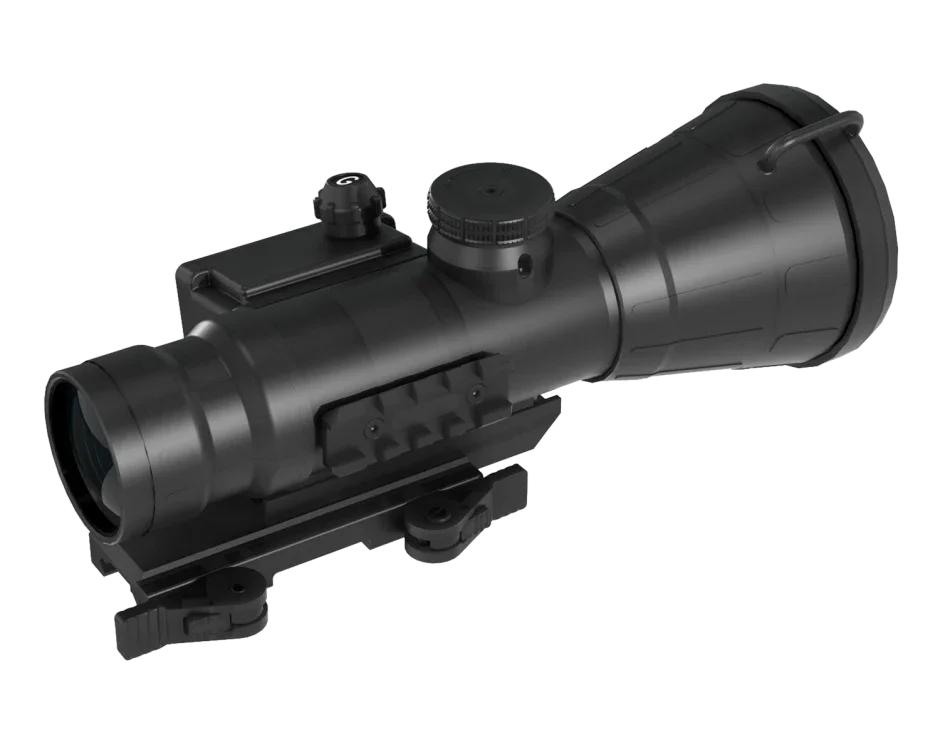

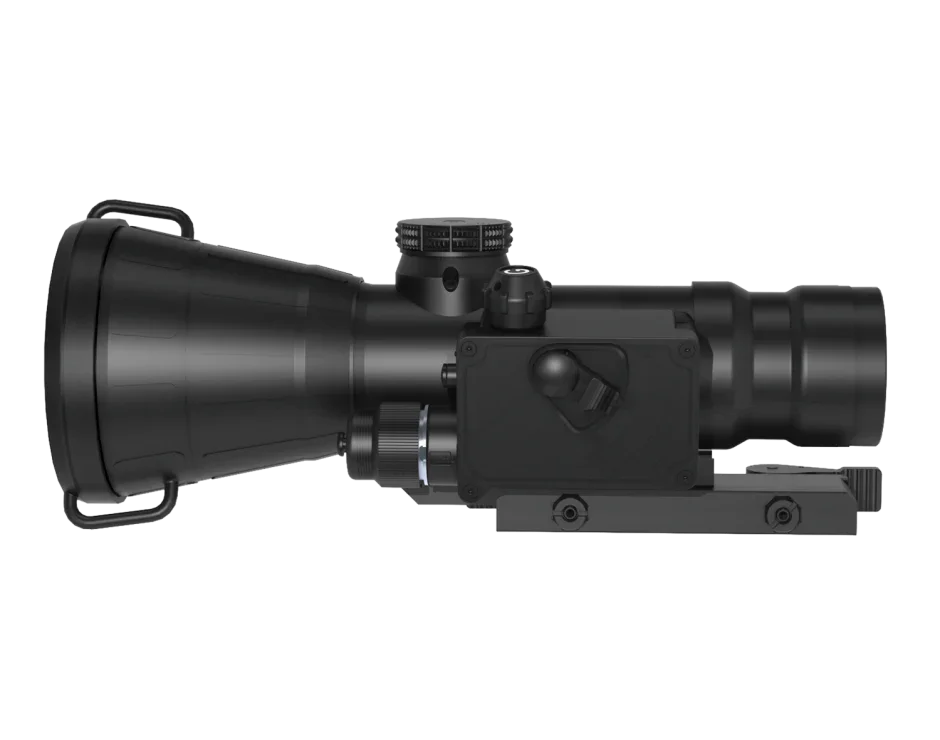

AGM Comanche 40ER NL1 Extended Range Night Vision Clip-On System Gen 2+ "Level 1" 16C4O122453011

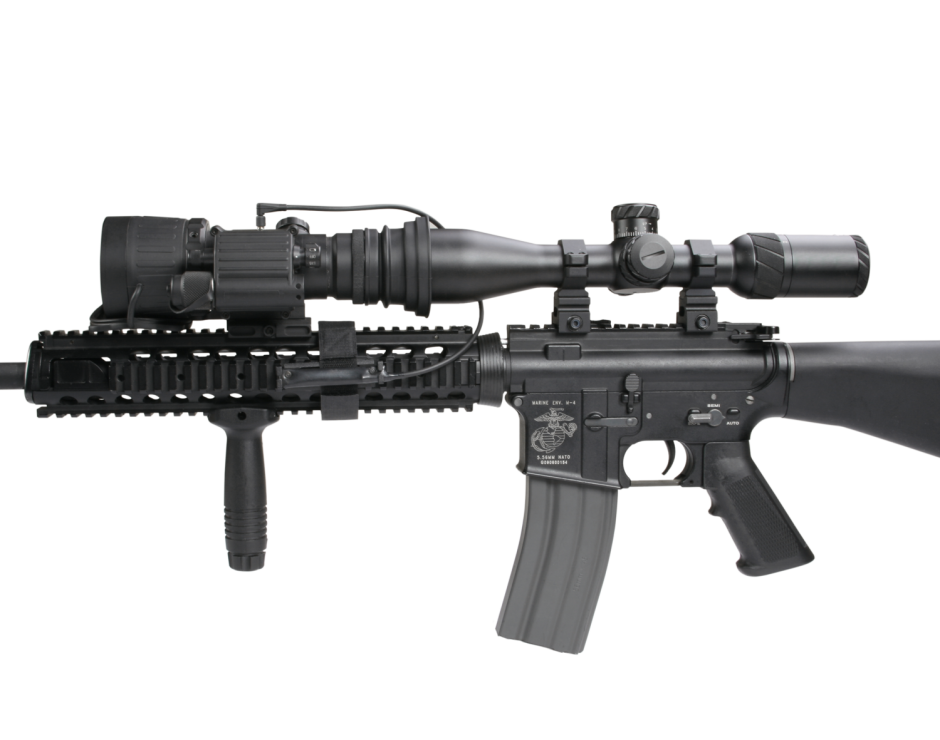

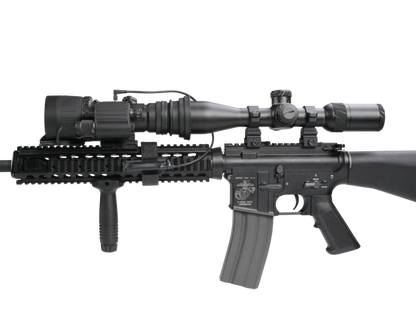

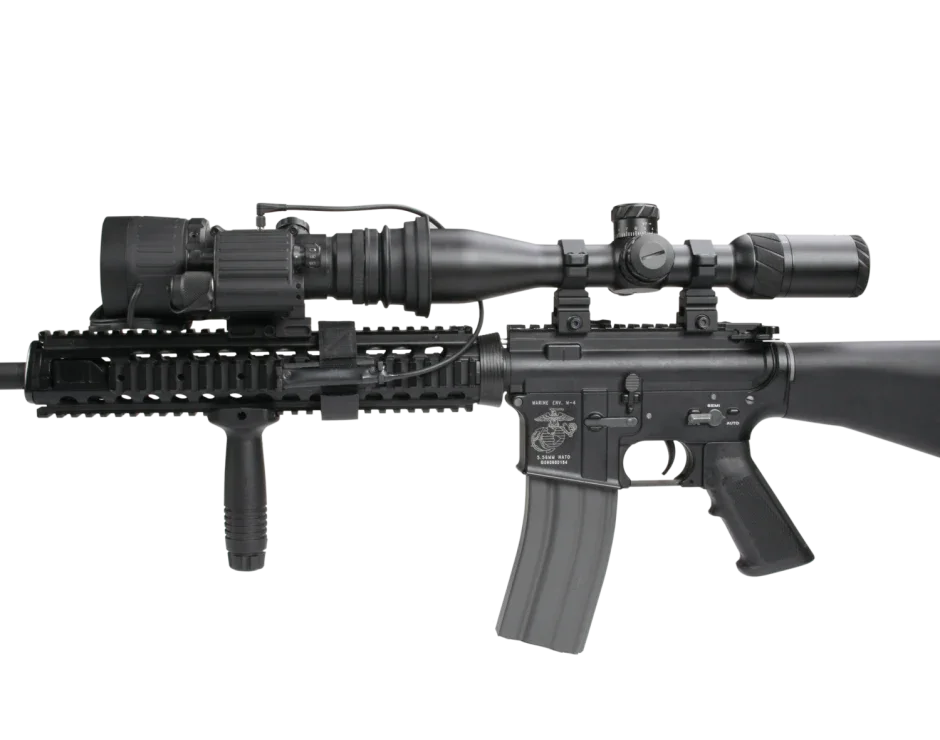

The Comanche-40ER Night Vision Clip-On (NVCO) system incorporates the latest in night vision clip-on technology, specifically designed for long-range nighttime shooting. Offering remarkable clarity, reliability, and versatility, it provides top-notch functionality at an affordable price. The Comanche-40ER easily mounts to a standard Weaver or Picatinny rail in front of an existing day scope, converting it into a night vision device capable of reaching distances up to 1,000 yards, without the need for re-zeroing. This NVCO is compatible with day scopes offering up to 10x magnification, and features a quick-release mount along with a remote control for added ease of use. With superior target acquisition and enhanced aiming capabilities, the Comanche-40ER is a practical and highly effective solution for even the most demanding night missions.
AGM Comanche 40ER NL1 Features:
- Simple, quick conversion of daytime scopes to NVDs
- Manual gain control
- Mounts in front of any daytime scope, no re-zeroing required
- Equipped with a wireless remote control

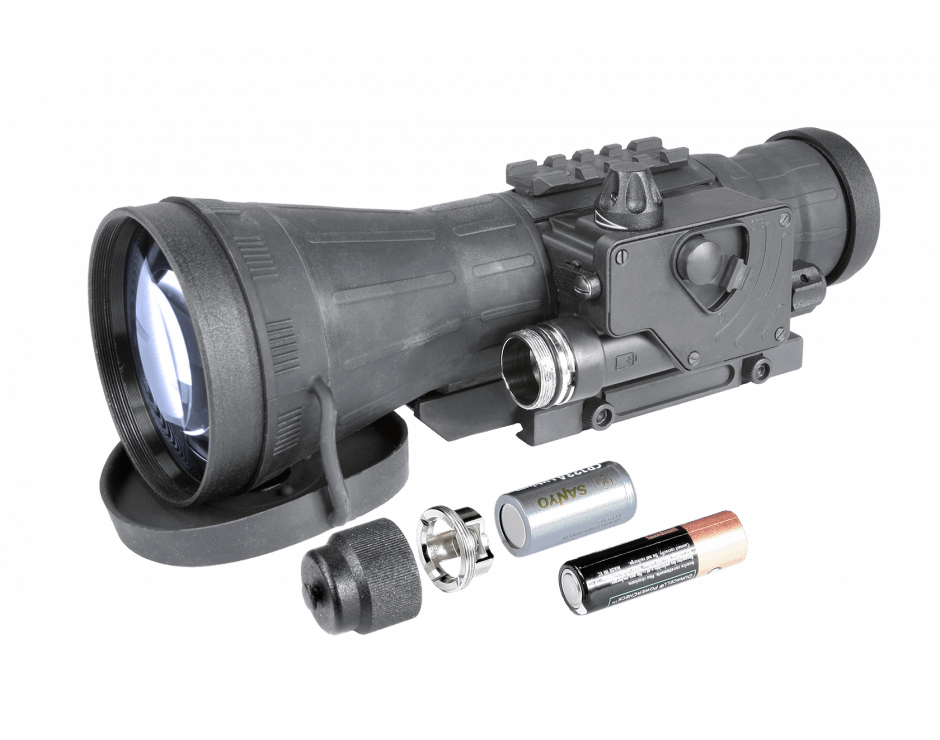

- Powered by a single Alkaline 1.5V AA or 3V CR123A Lithium battery
- Bright-light cut-off system
- Quick-release mount
- 3-Year Warranty
Tube Level Info:
|
Gen2+ Lvls
|
NL1/NW1 - Gen2+ Lvl1
|
NL2/NW2 - Gen2+ Lvl2
|
NL3 - Gen2+ Lvl3
|
|
Zone
|
1
|
2
|
3
|
1
|
2
|
3
|
1
|
2
|
3
|
|
>.015 or larger
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
1
|
|
>.012 - .015
|
0
|
0
|
0
|
0
|
0
|
1
|
0
|
1
|
1
|
|
>.009 - .012
|
0
|
1
|
1
|
0
|
2
|
2
|
1
|
2
|
2
|
|
>.006 - .009
|
0
|
1
|
2
|
1
|
2
|
2
|
1
|
2
|
2
|
|
.003 - .006
|
1
|
2
|
3
|
2
|
3
|
3
|
2
|
3
|
3
|
|
*Qty indicates Max Spots Allowed in Each Zone
|
|
|
|
|
|
|
|
**Spot Size (in.)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Gen3 Lvls
|
3NL1/3AW1 - Gen3 Lvl1
|
3NL2/3AW2 - Gen3 Lvl2
|
3NL3/3AW3 - Gen3 Lvl3
|
|
Zone
|
1
|
2
|
3
|
1
|
2
|
3
|
1
|
2
|
3
|
|
>.015 or larger
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
1
|
|
>.012 - .015
|
0
|
0
|
0
|
0
|
0
|
1
|
0
|
1
|
1
|
|
>.009 - .012
|
0
|
1
|
1
|
0
|
2
|
2
|
1
|
2
|
2
|
|
>.006 - .009
|
0
|
1
|
2
|
1
|
2
|
2
|
1
|
2
|
2
|
|
.003 - .006
|
1
|
2
|
3
|
2
|
3
|
3
|
2
|
3
|
3
|
|
*Qty indicates Max Spots Allowed in Each Zone
|
|
|
|
|
|
|
|
**Spot Size (in.)
|
AGM Comanche 40ER NL1 Specifications:
Image Intensifier Tube
Gen 2+ "Level 1"
Resolution
51-64 lp/mm
Magnification
1x
Lens System
108 mm; F/1.54
FOV
9°
Led Indicators
- Low battery - Excessive light conditions
Manual Gain Control
Yes
Bright Light Cut-Off
Yes
Automatic Shut-Off System
Yes
Battery Type
One CR123A (3V) or AA (1. V)
Battery Life (Operating)
Up to 60 hours (3V) at 20°C
Exit Pupil Diameter
40 mm
Operating Temperature Range
-40°C to +50°C (-40°F to +122°F)
Storage Temperature Range
-50°C to +50°C (-58°F to +122°F)
Weight
0.91 kg (2.0 lb)
Overall Dimensions
230 × 87 × 97 mm (9.1 × 3.4 × 3.8 in)
PACKAGE INCLUDES:
- Night Vision Clip-On
- Lens Cap
- Quick-Release Mount
- Output Lens cap
- Battery Adapter
- CR123A Battery
- Light Suppressor
- Remote Control
- User
- Manual
- Carrying Case
EXPORT RESTRICTION
Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
