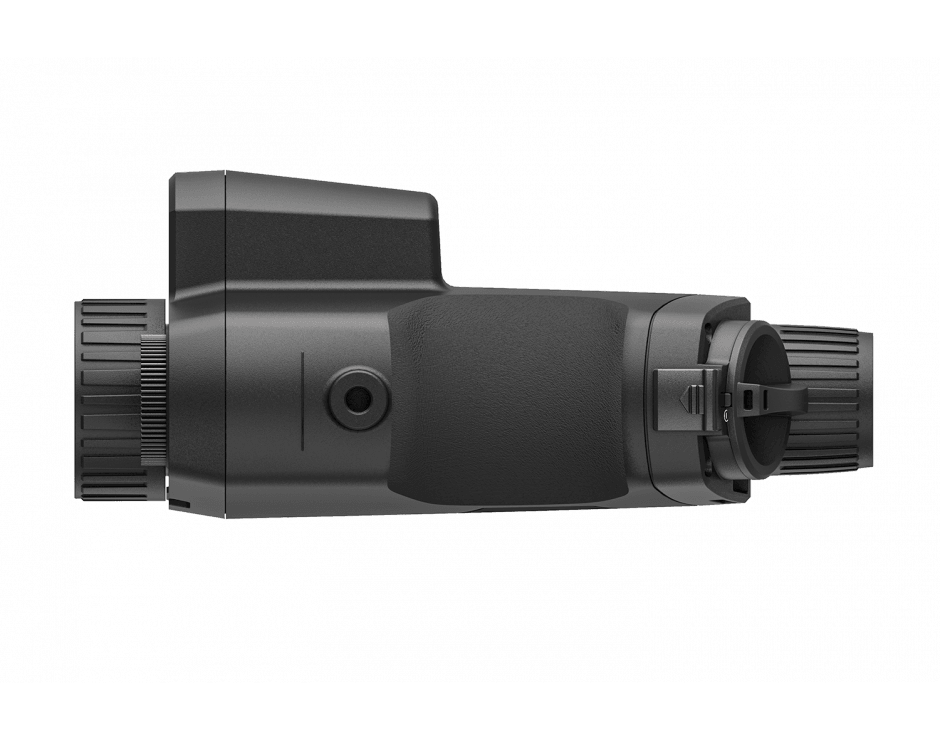

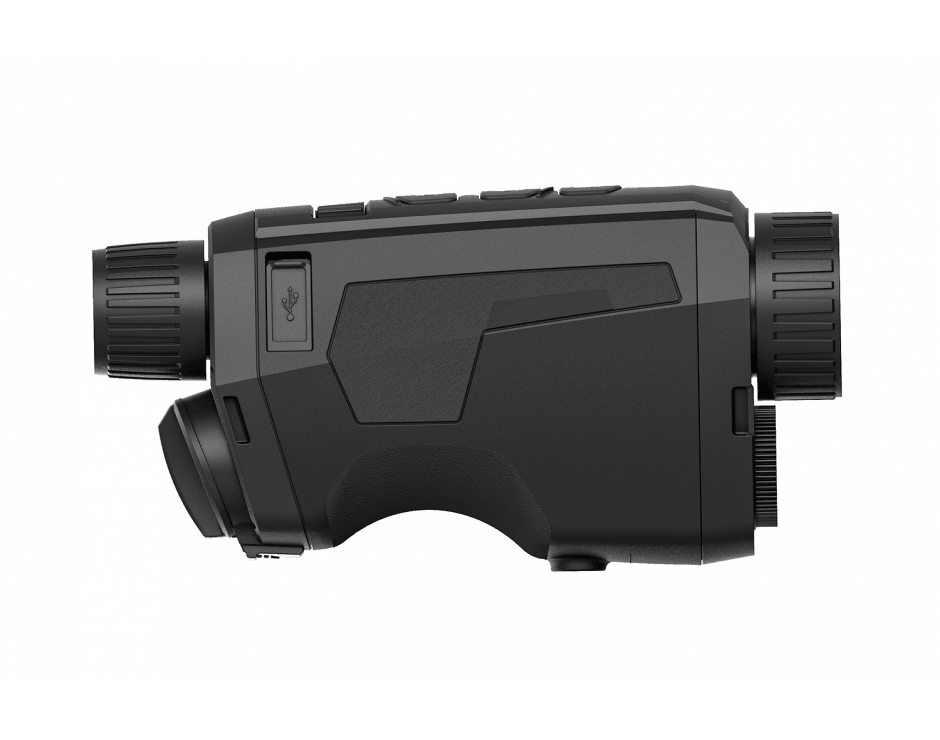

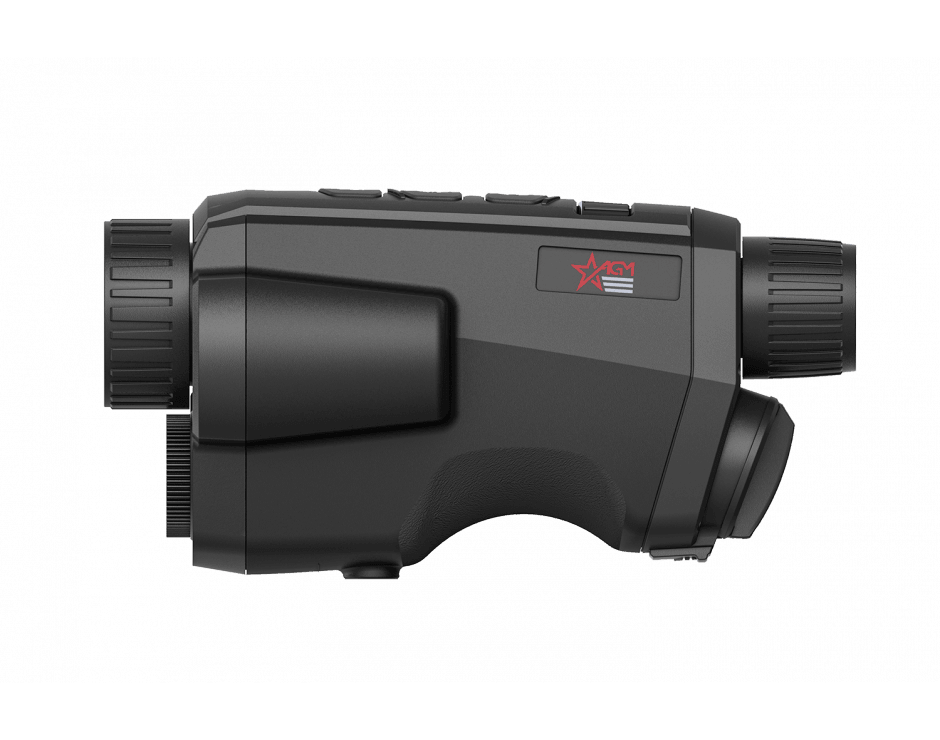

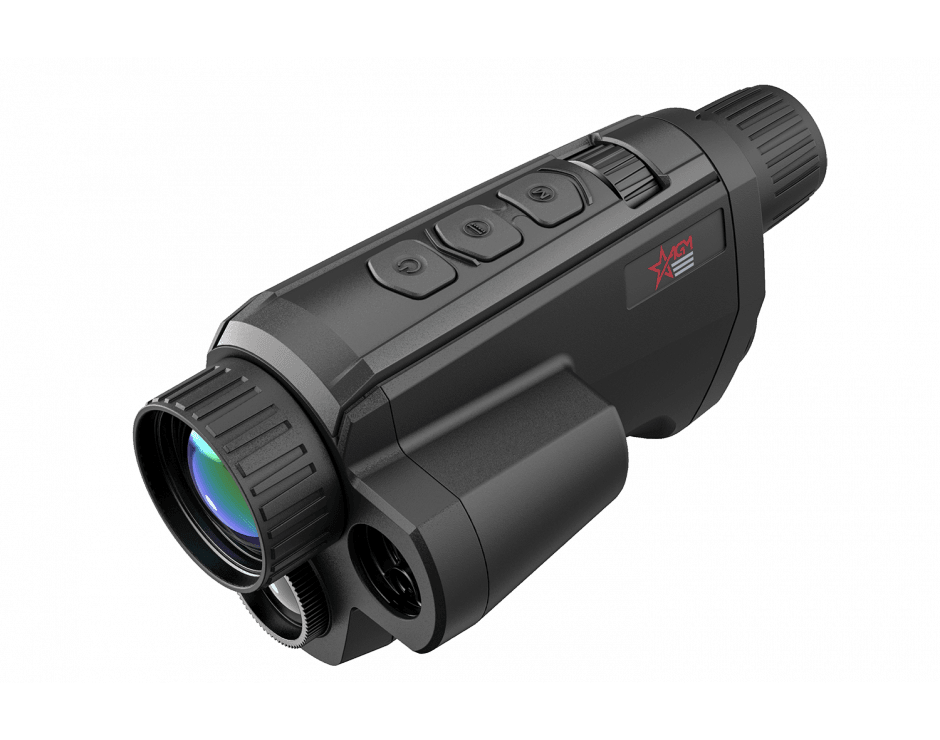

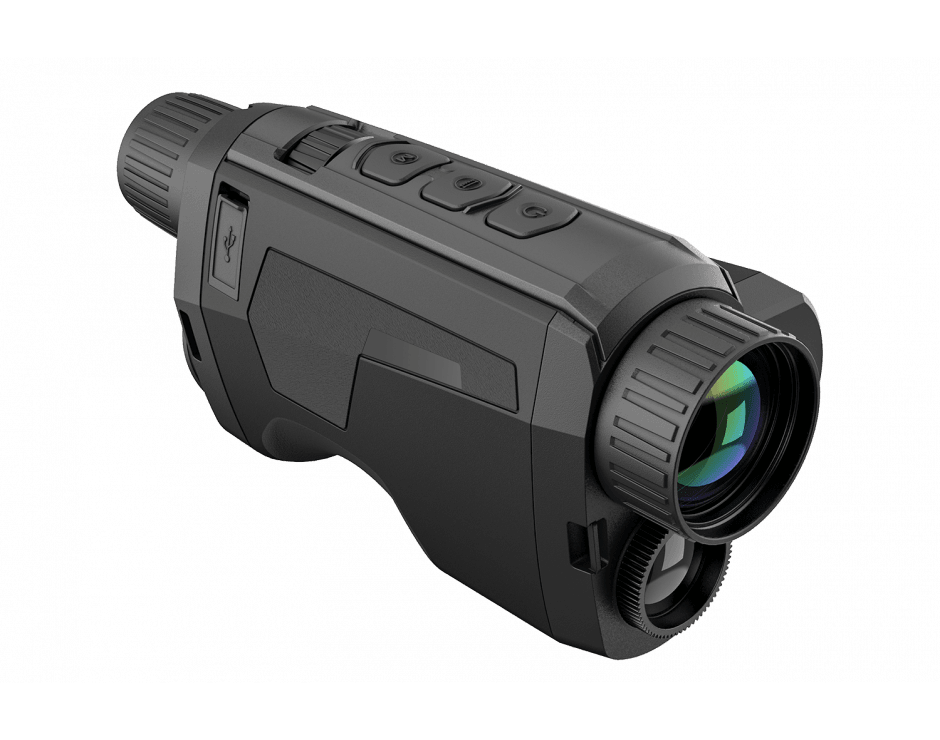

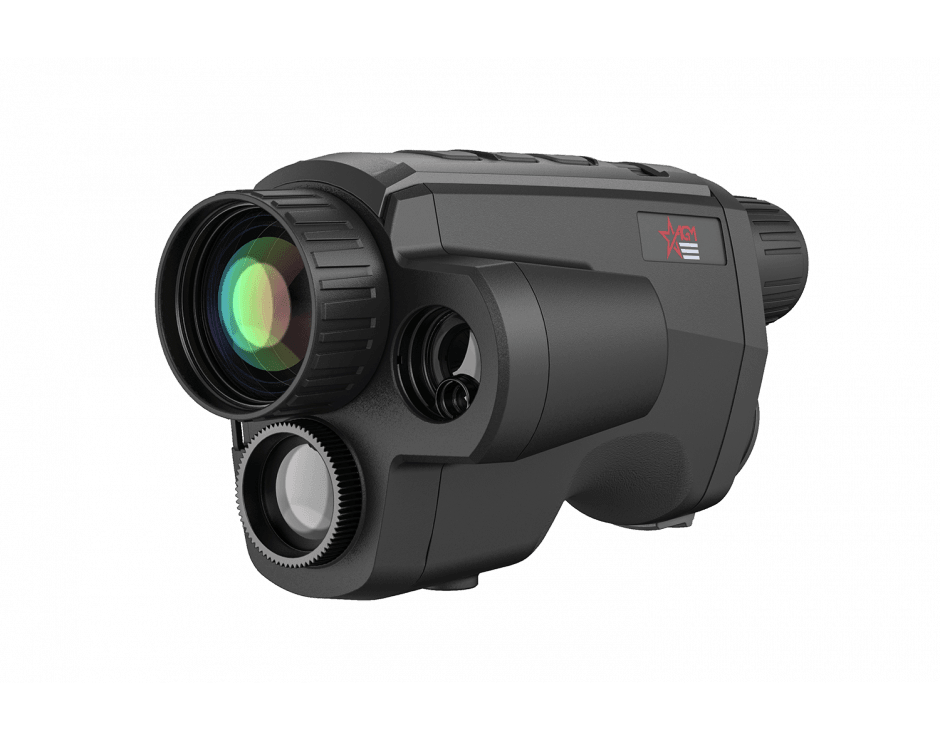

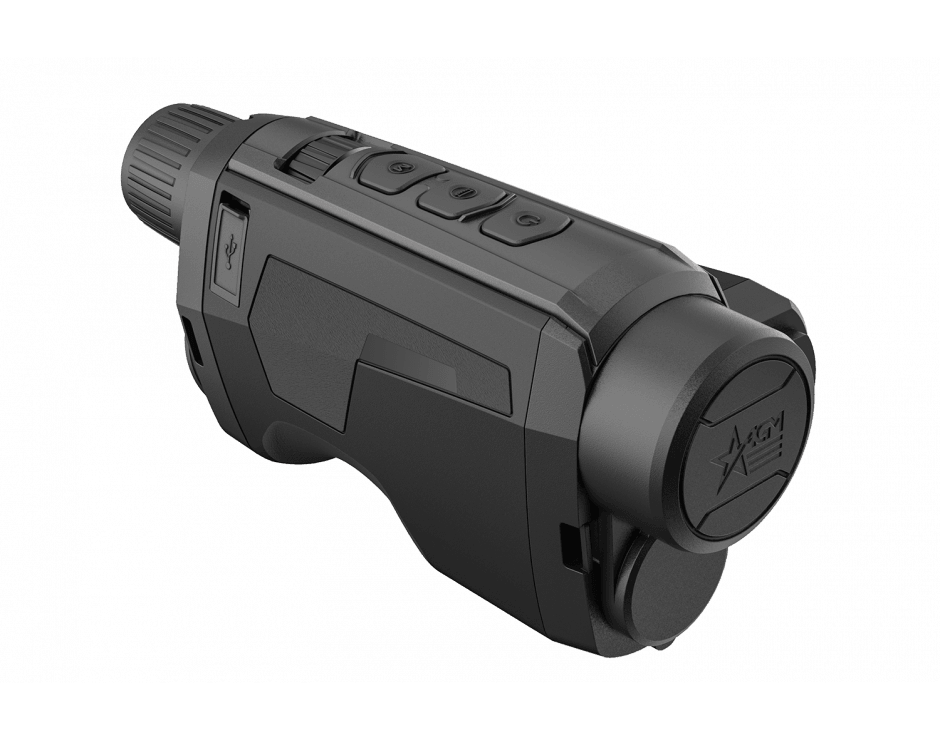

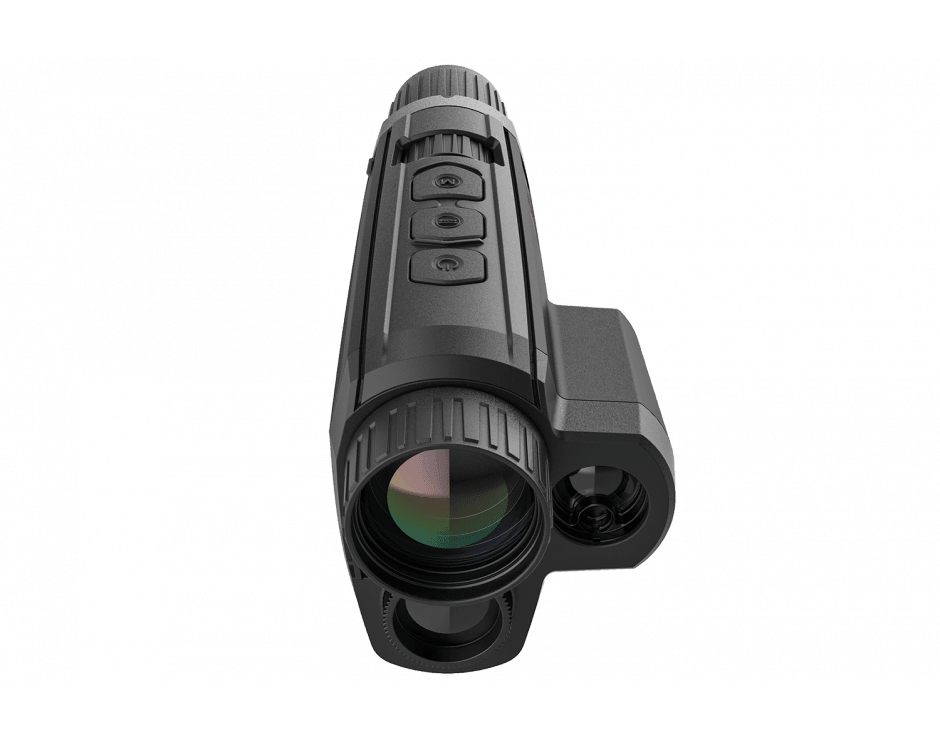

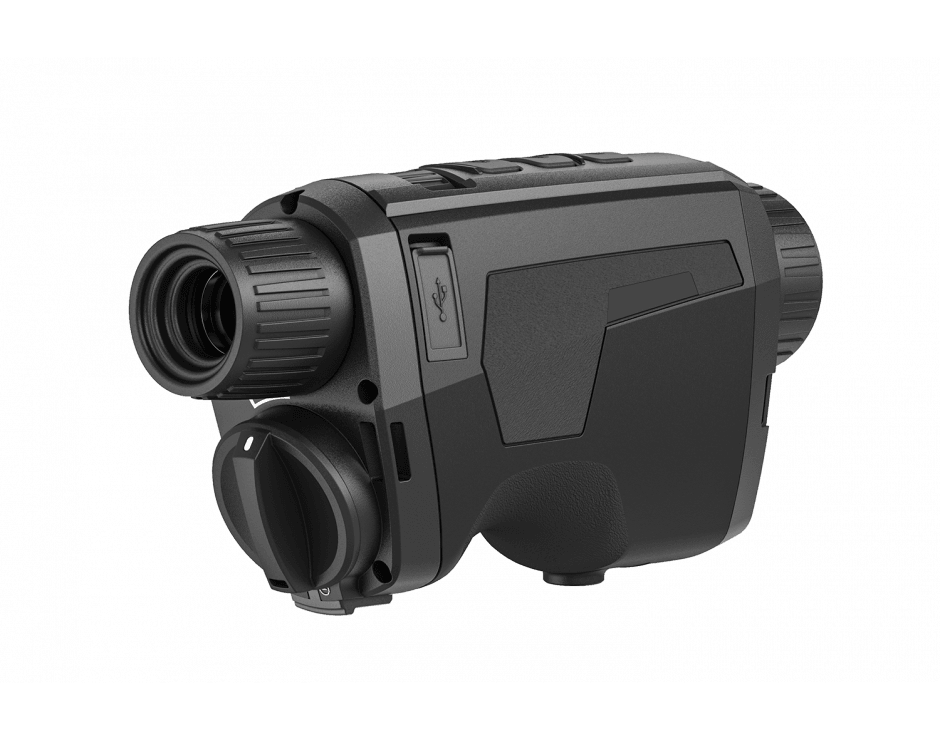

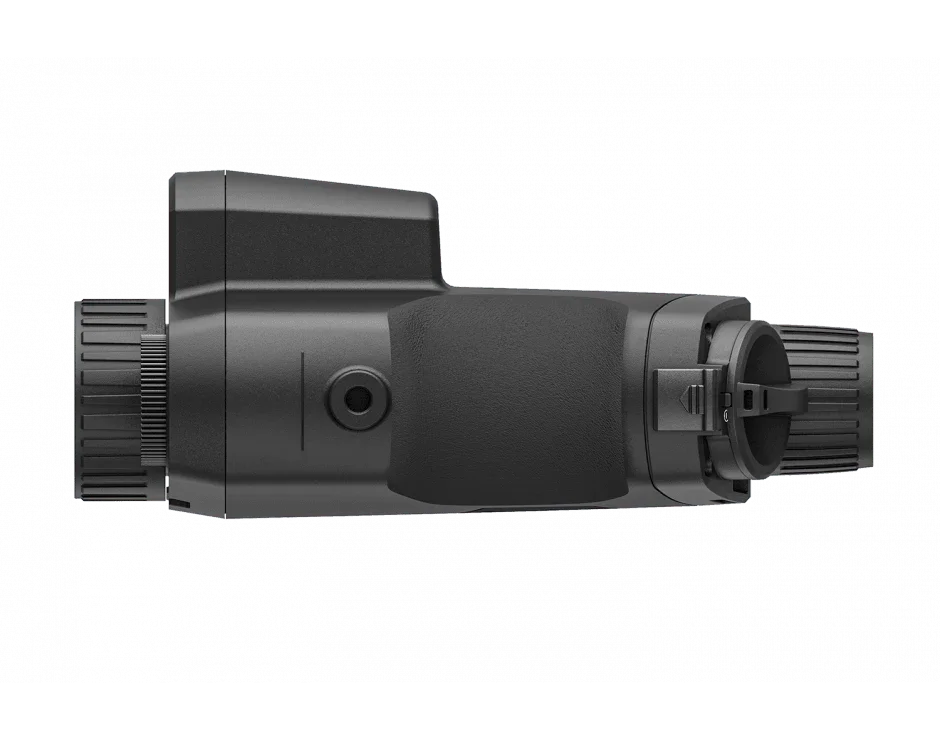

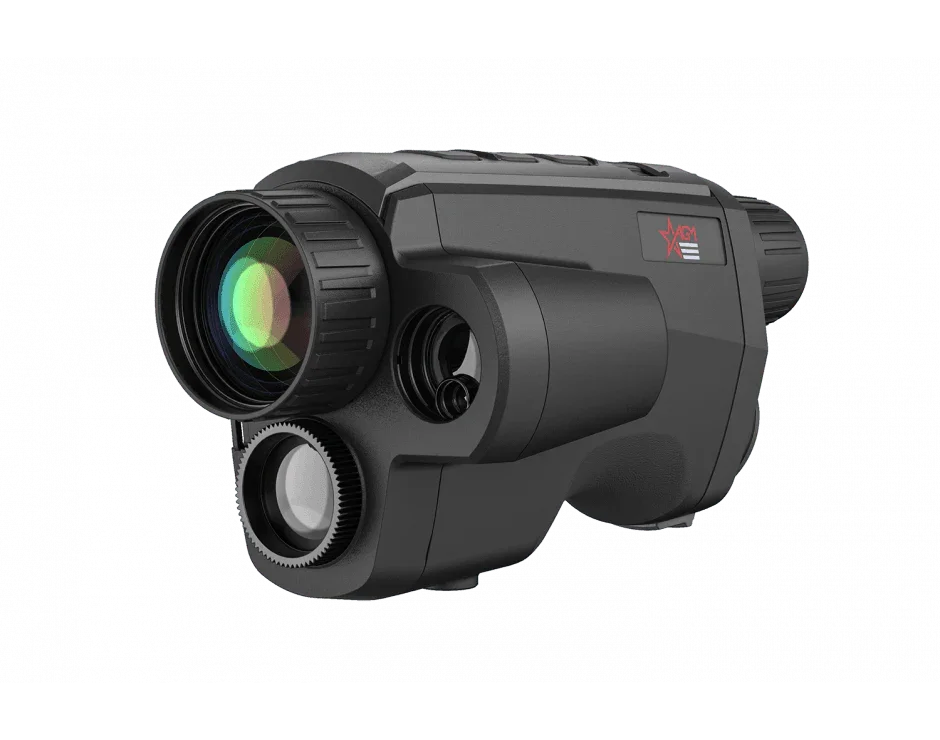

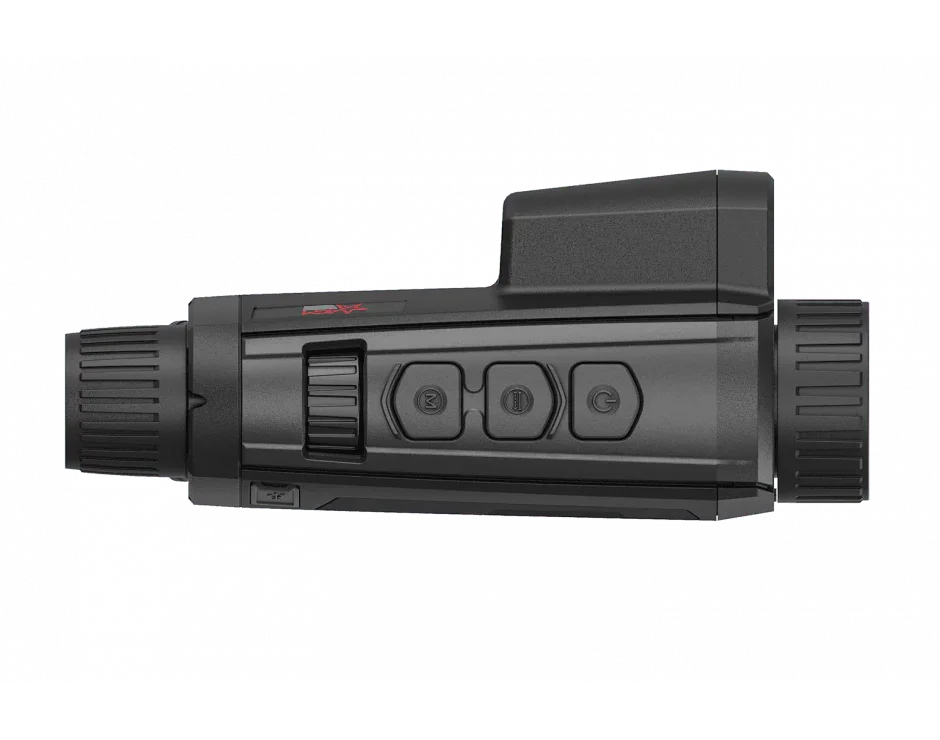

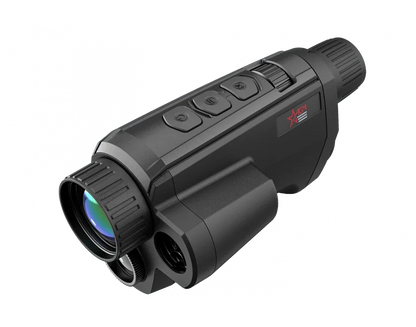

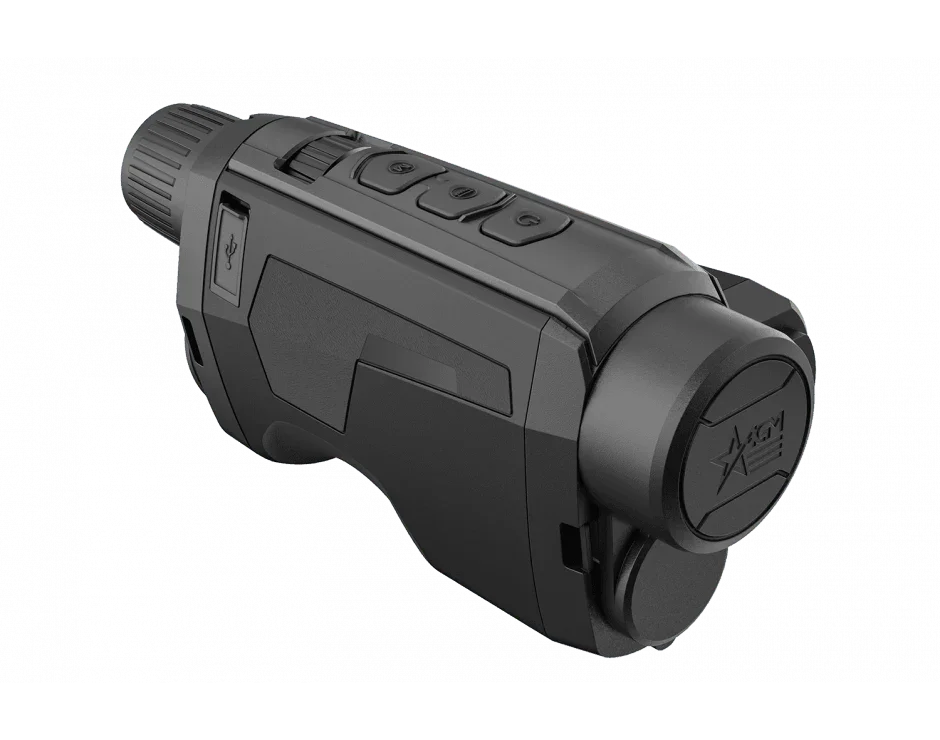

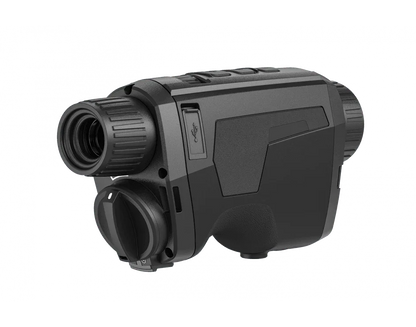

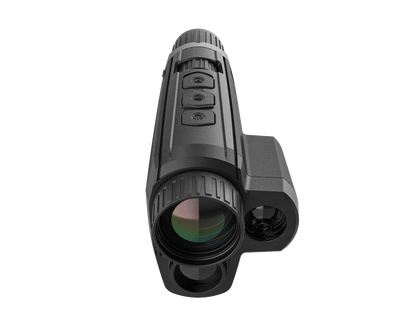

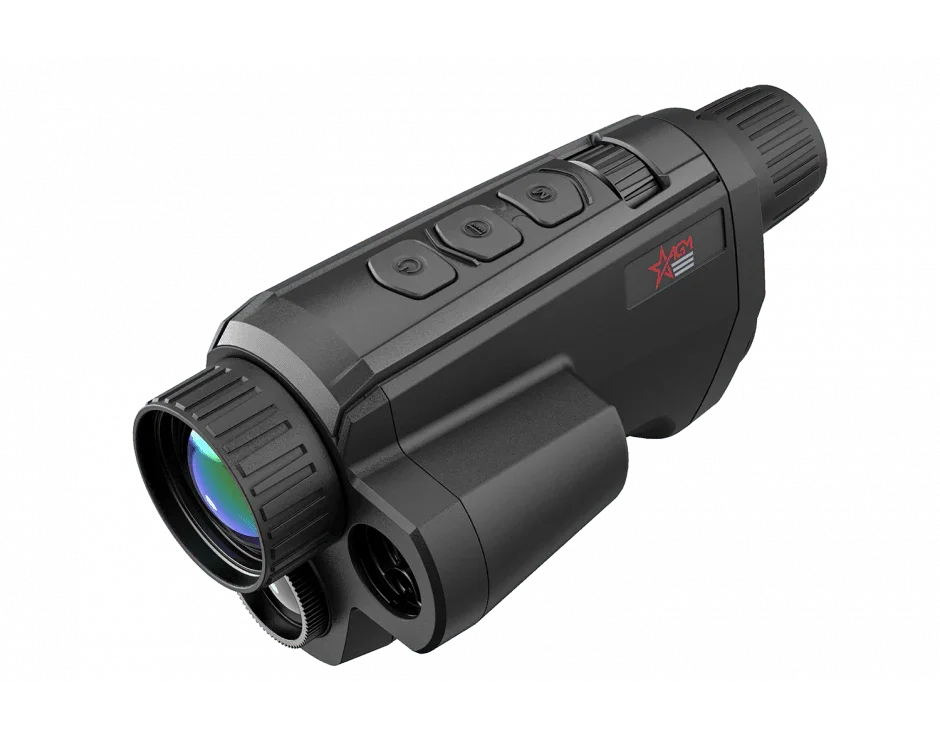

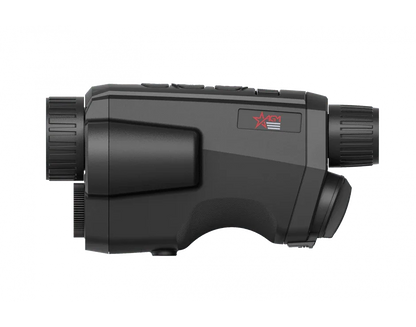

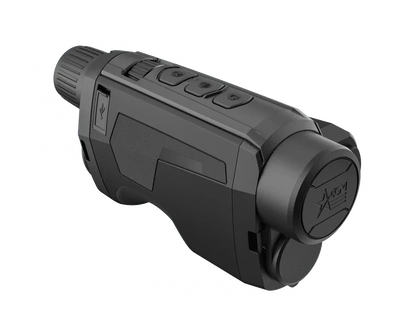

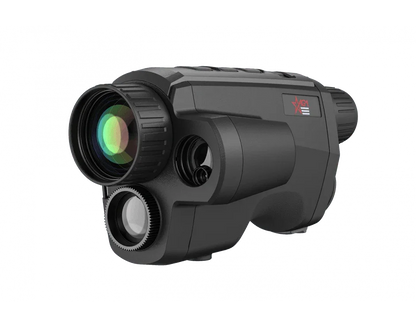

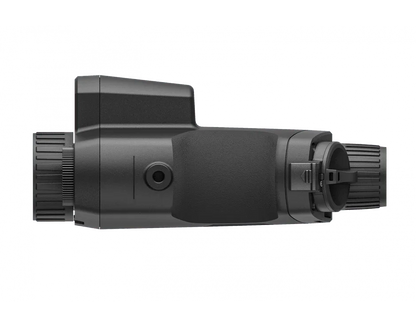

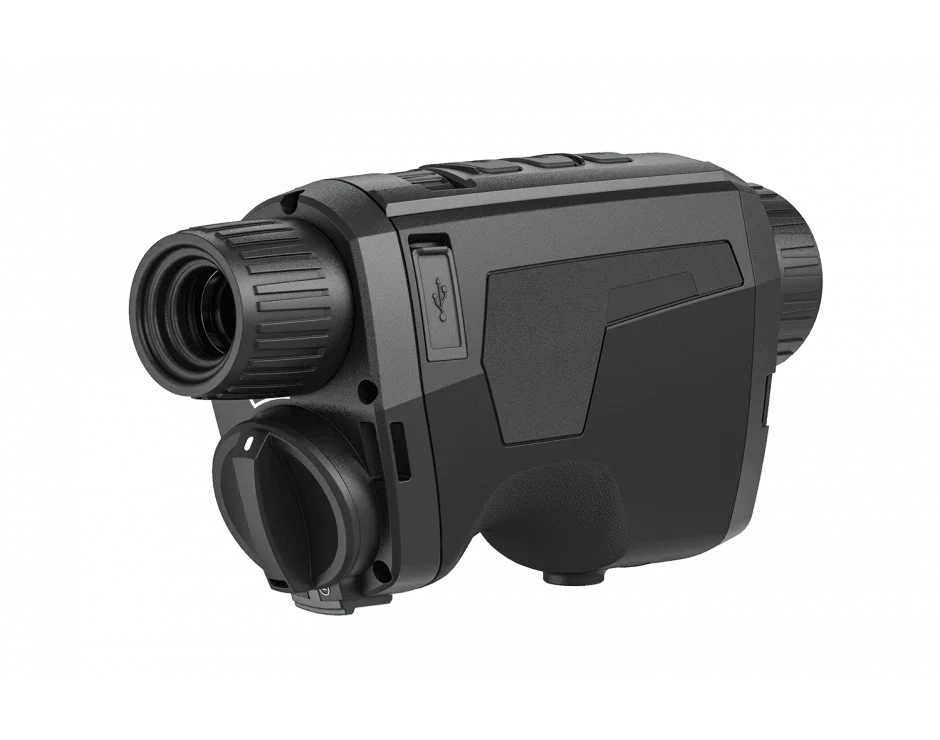

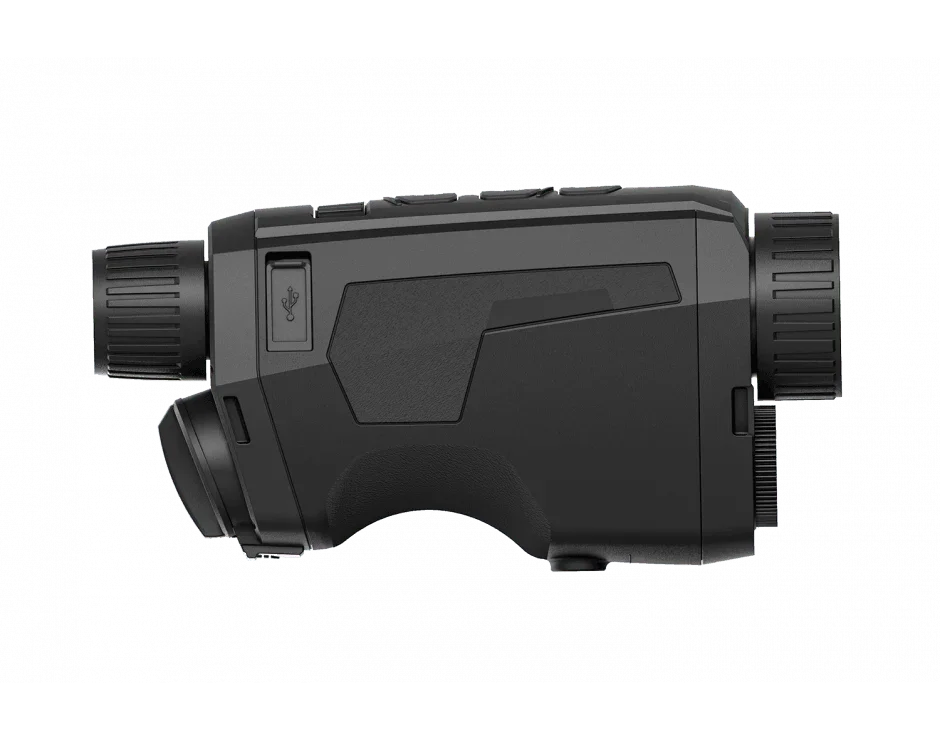

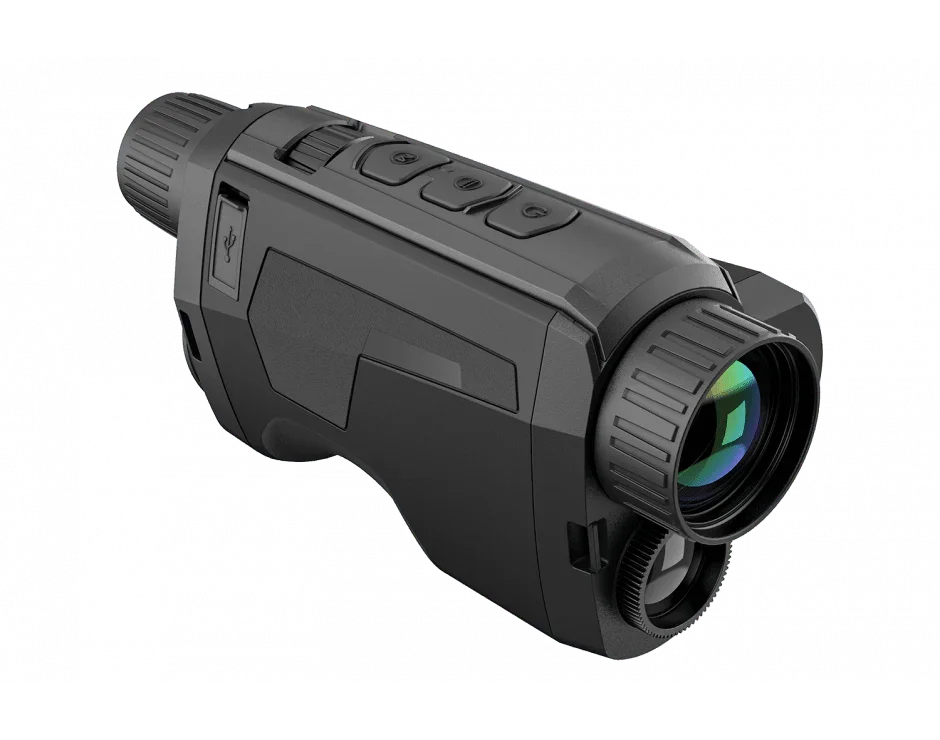

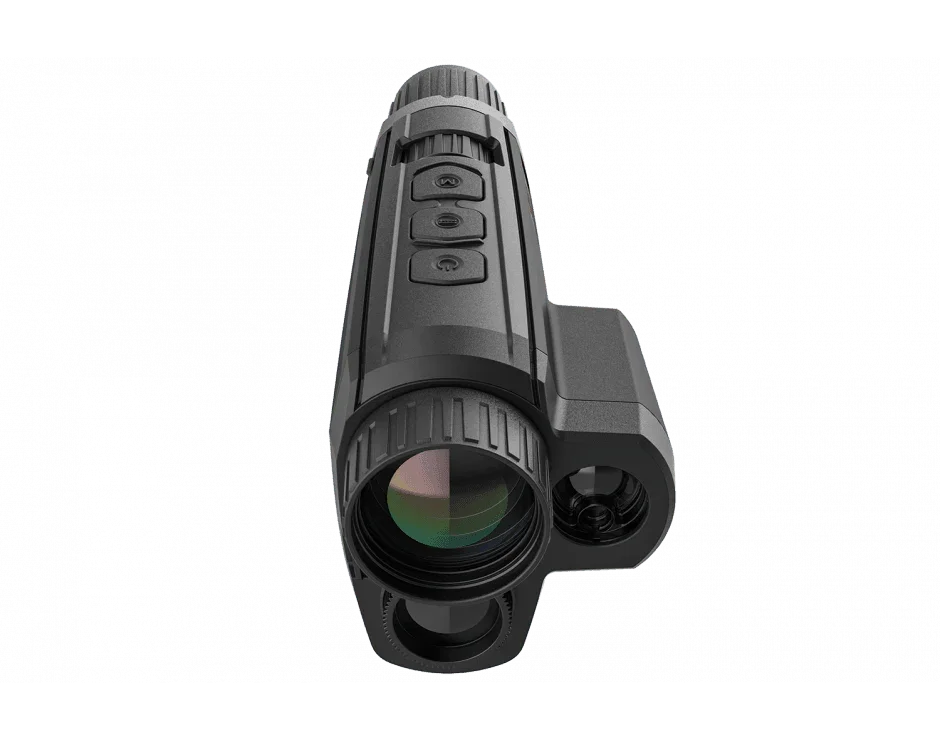

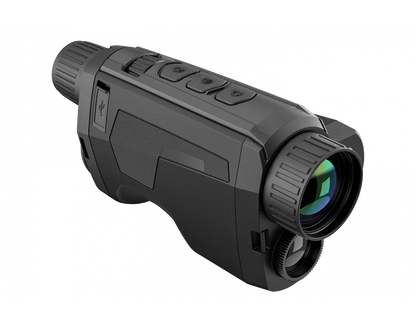

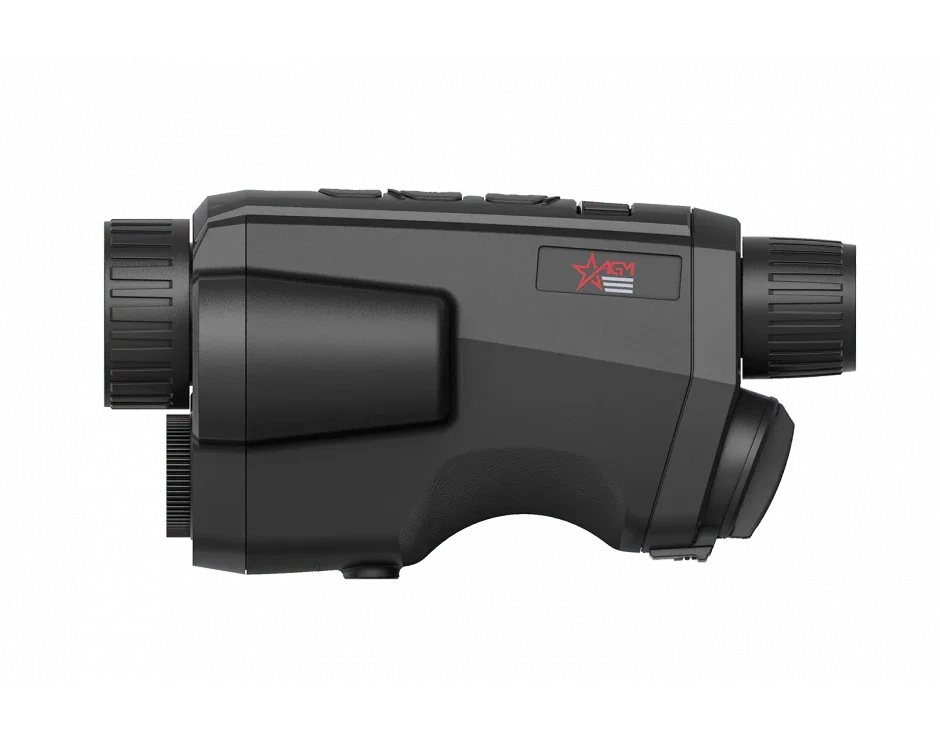

AGM Fuzion LRF TM35-640 Fusion Thermal Monocular 35mm

AGM Fuzion LRF TM35-640 Fusion Thermal Monocular 640x512 12um (50Hz) 35mm (3142551305FM31)



The AGM Fuzion LRF TM35-640 Thermal & Digital Day/Night Vision monocular is among the most advanced and feature-rich optics available today. Its standout feature is the high-sensitivity 12-micron 640x512 thermal detector, which not only detects human-sized heat signatures from up to 1 mile (1750m) but also delivers crisp and detailed imagery of foliage and backgrounds at closer ranges. Unlike many other thermal monoculars on the market, the Fuzion LRF also includes a digital night vision channel, which greatly assists in recognizing targets identified through the thermal channel. The built-in 600m laser rangefinder further enhances its capabilities, along with its 16GB of internal memory and Wi-Fi compatibility.

In addition, the Fuzion LRF comes with several software upgrades and features that have become standard in AGM's thermal lineup. These include a high-sensitivity thermal detector, a 35mm Germanium lens with a 1.0 aperture, a 1920x1080 ultra-low light CMOS sensor, multiple viewing modes such as fusion imaging, a range of color palettes, 2X base magnification with 8X digital zoom, and picture-in-picture mode. It also features the built-in laser rangefinder, up to 5 hours of battery life on a single removable, rechargeable 18650 battery, a USB Type-C port for external power options, and an IP67 waterproof rating. The package includes a long-range IR illuminator, wrist strap, charger, and AGM's 5-Year Transferable Warranty.

AGM Fuzion LRF TM35-640 Features:

• Bi-spectrum image fusion and object highlight
• Detail enhancement and target recognition
• Selection of thermal view channel, visible light channel, or both them combined
• 12 μm, 35 mK NETD high sensitivity thermal detector
• Fast 50Hz imaging
• 1x, 2x, 4x, 8x digital zoom
• Digital image processing technology
• Ultra-low illumination optical channel
• 1920×1080 Optical resolution
• Eye-safe laser rangefinder
• 1024×768 resolution, 0.39-inch OLED display
• Video recording and snapshot, built-in EMMC (16 GB)
• Wi-Fi hotspot
• Standby mode
• Up to 5 hours continuous running
• Waterproof
• 5-year warranty



AGM Fuzion LRF TM35-640 Specifications:

Palettes

Black Hot, White Hot, Red Hot, Fusion, Visible, Image Fusion

Working Temperature

-20°C to 55°C (-4°F to 131°F)

Dimension (LxWxH)

168 × 87 × 74 mm (6.6 × 3.4 × 2.9 in)

Distance Measurement

Yes (Laser Rangefinder: up to 600 m, ±1 m accuracy)

Scene Mode

Jungle, Recognition

Hotspot

Yes

Observation Distance

1,653 m

Detector type

12 μm VOx Uncooled Focal Plane Arrays

Response Waveband

8 μm to 14 μm

Optical Image Sensor

1/2 Wavelength 400-1000 nm

FFC (Flat Field Correction)

Auto, Manual, External Correction

Highest Temperature Spot Tracking

Yes

Standby Mode

Yes

Refresh rate

50 Hz

Aperture

F1.0

Resolution

640 × 512

Laser Wavelength

905 nm

Optical magnification

2x – 16x

Lens (focal length)

Thermal Lens Focal Length - 25mm Optical Module Lens Focal Length - 22mm

Power

5 VDC/2 A, USB Type-C interface Supports external power supply

Field of view (H × X)

12.5° × 10°

Digital zoom

1x, 2x, 4x, 8x

Monitor

1024x768, 0.39 inch, OLED, 50Hz

Storage

Built-in 16 GB EMMC

Record Video

On-board video recording

Capture Snapshot

Yes

Battery Type

One 18650 rechargeable battery (removable)

CVBS Output

Yes (via USB)

Battery Operating Time

Up to 5 hours continuous running (@25°C, WiFi and CVBS off) Up to 3 hours continuous running (@25°C, WiFi and CVBS on)

Battery Capacity Display

Yes

Weight

520g (1.15 Ib)

Protection Level

IP67 (Waterproof)

Included:

Monocular

18650 Rechargeable Battery (2)

USB Cable

Battery Charger

Power Adapter

Lens Cloth

User Manual
