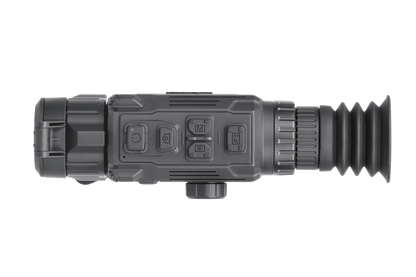

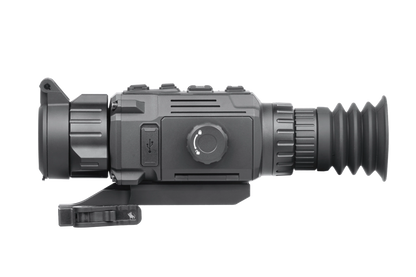

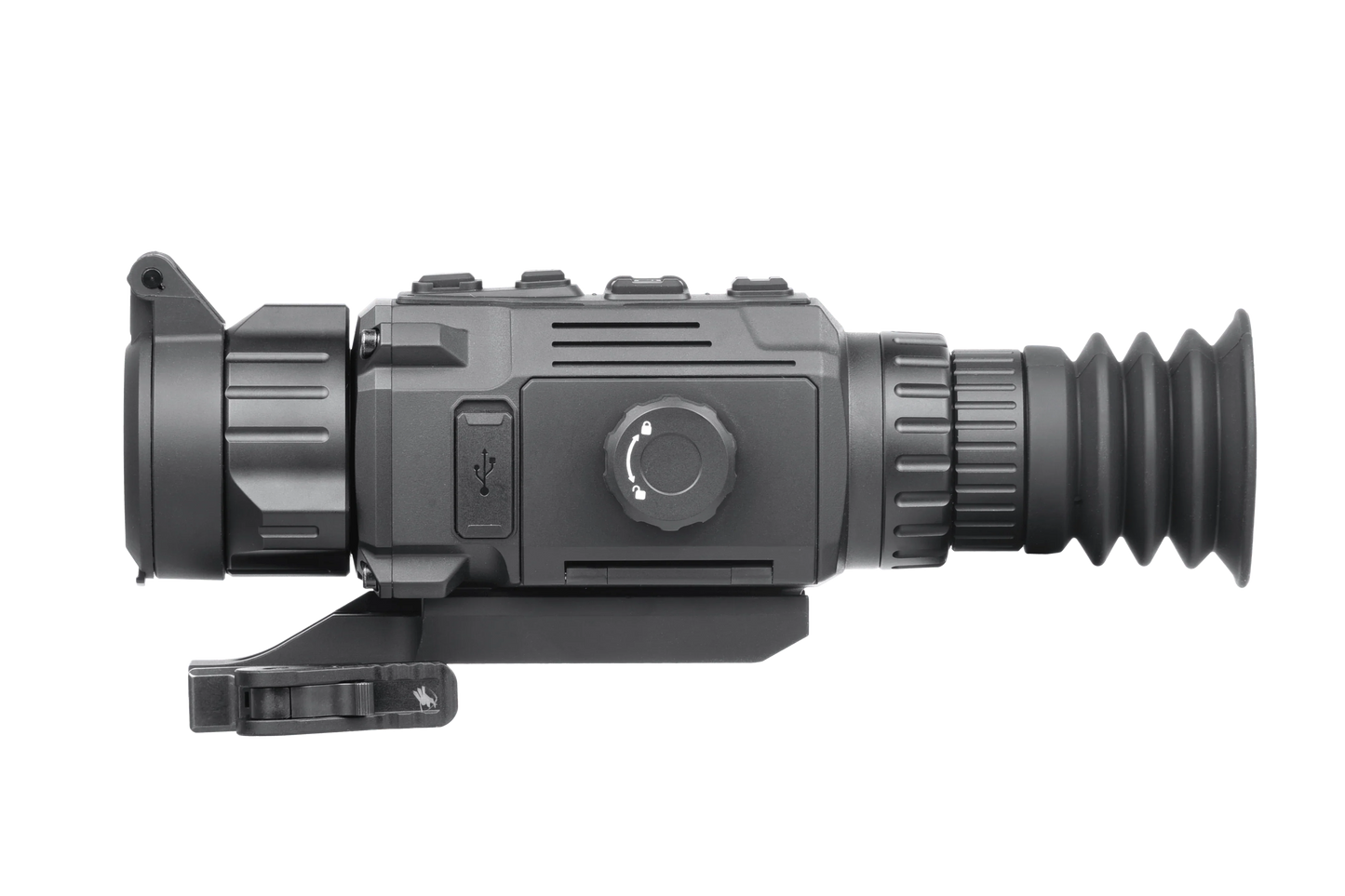

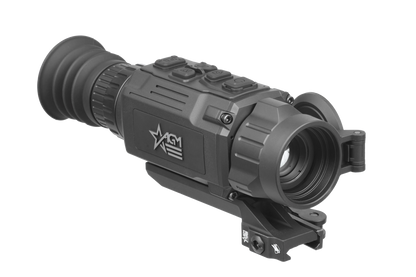

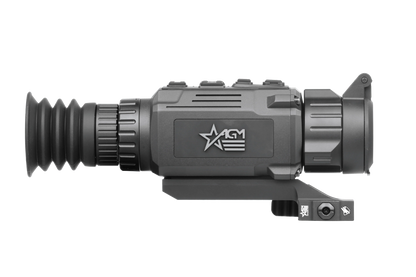

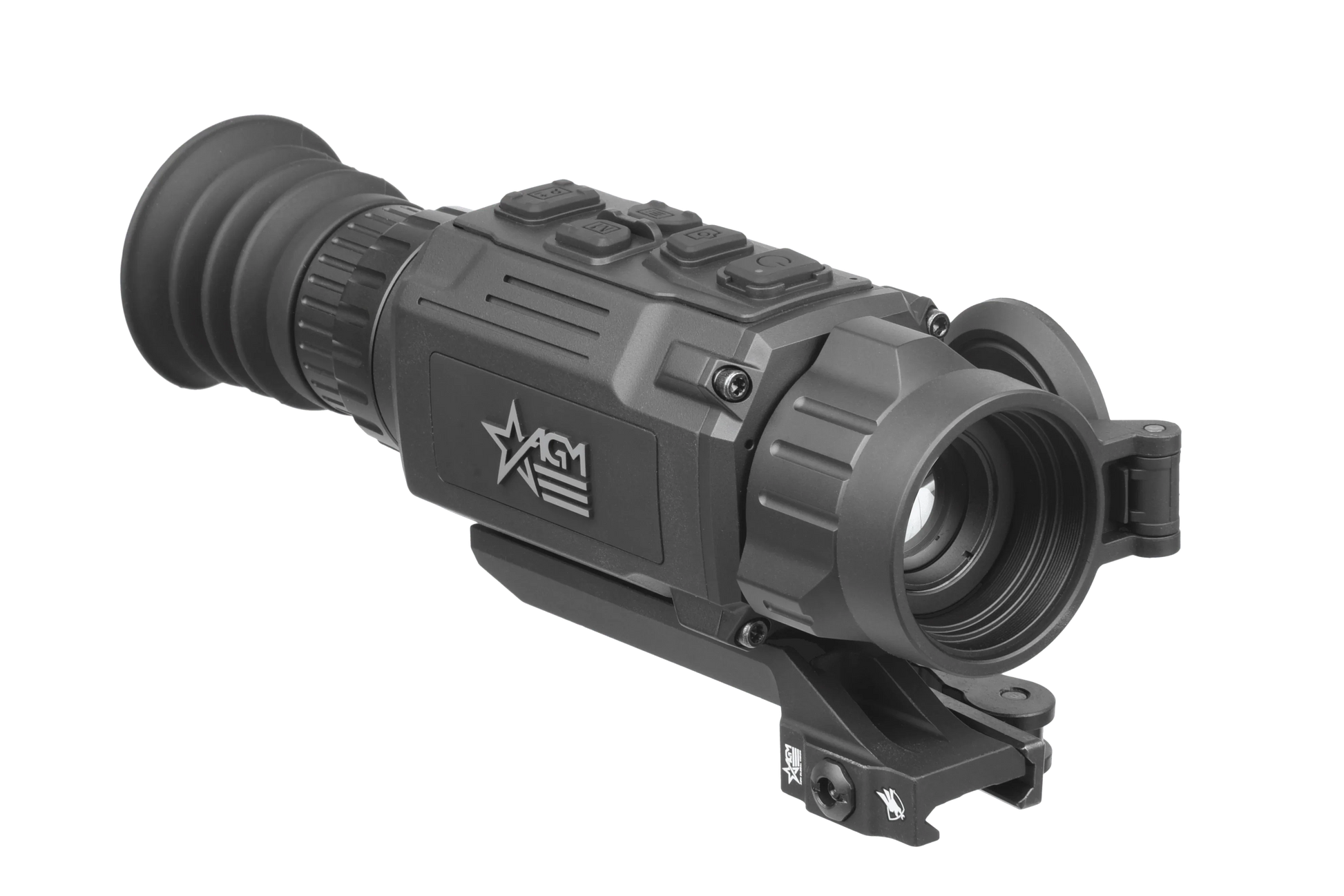

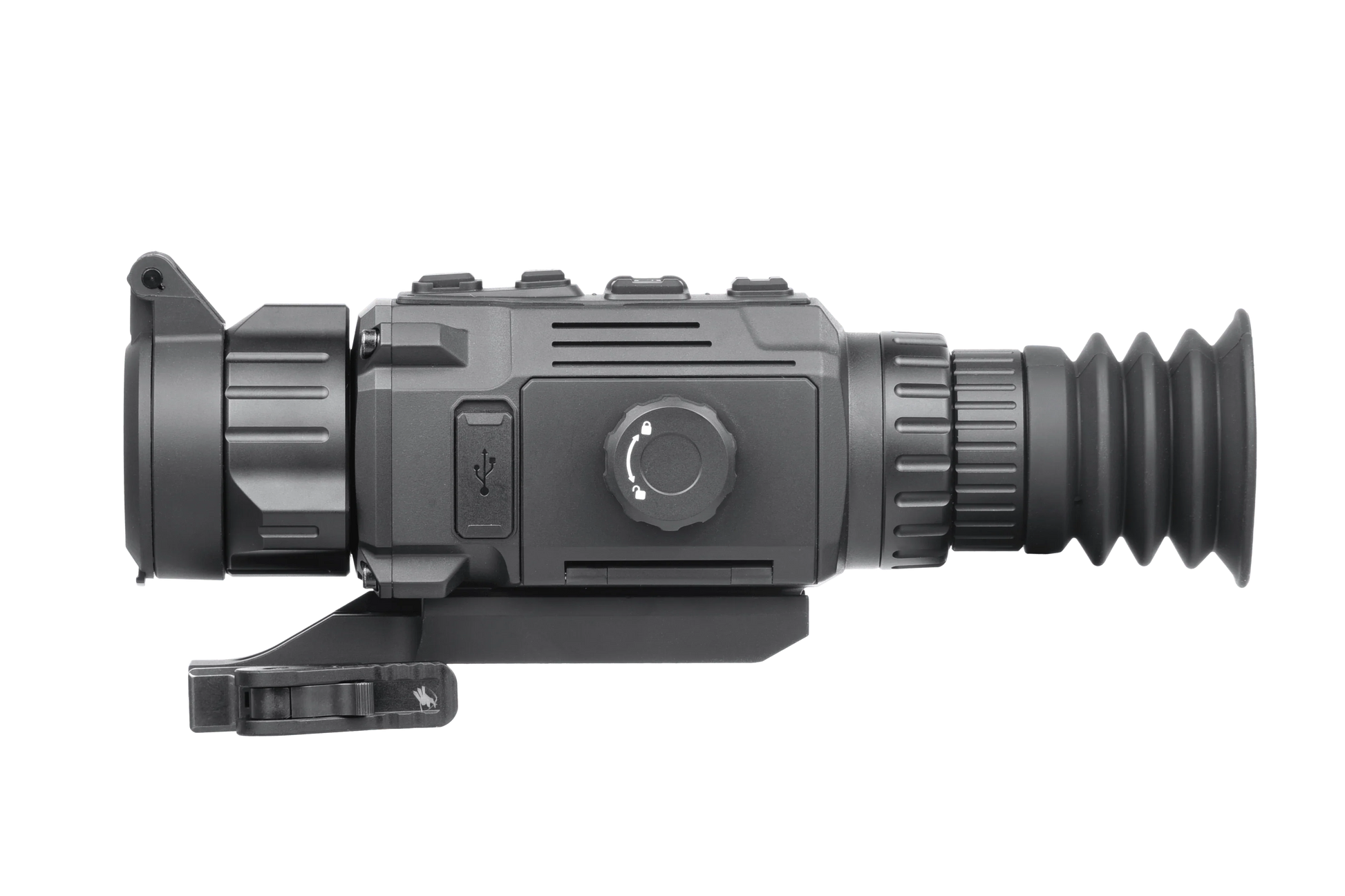

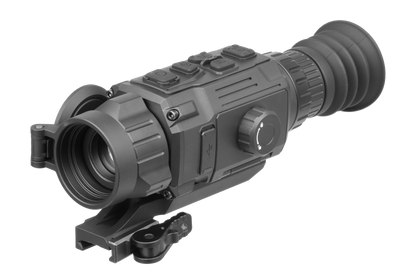

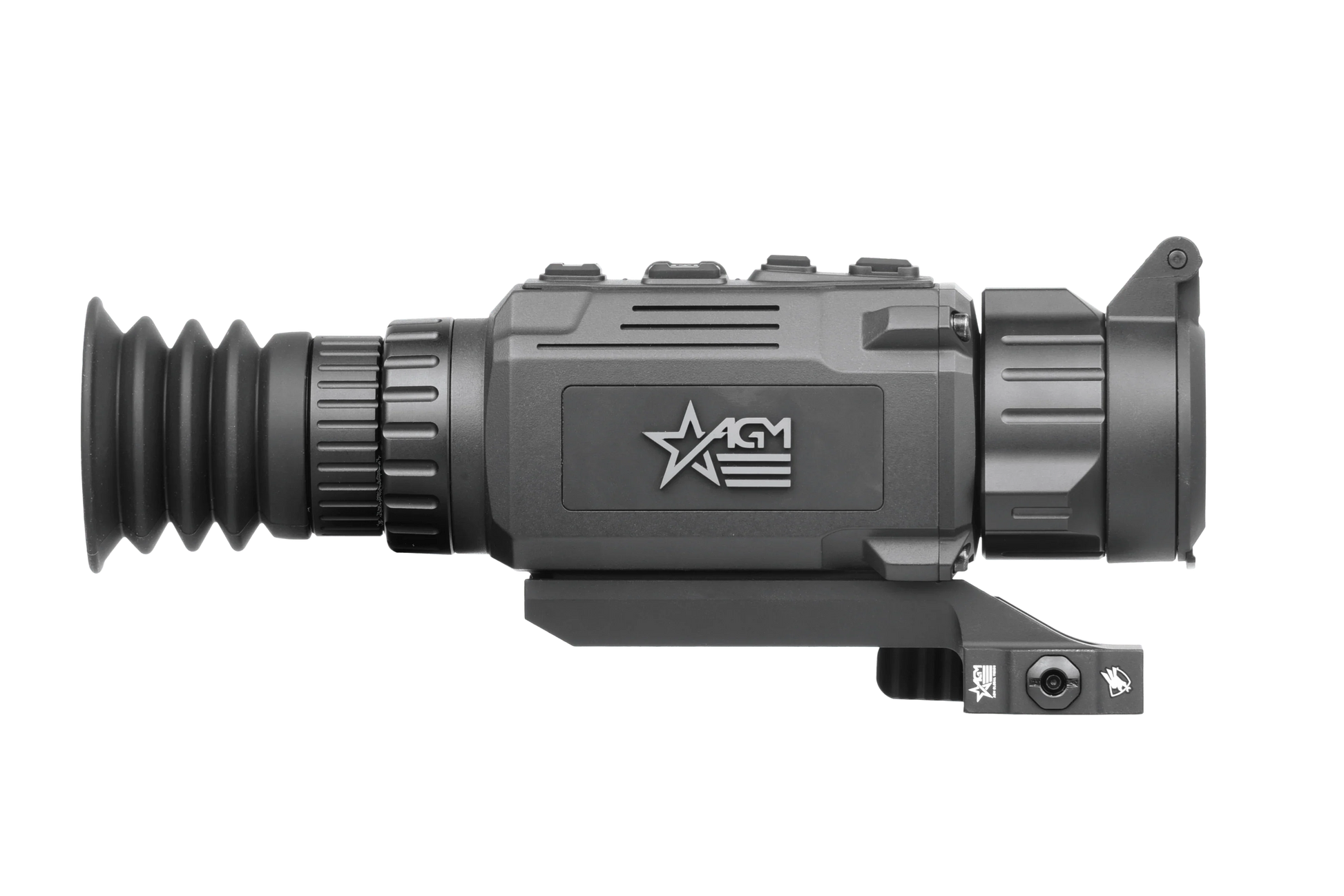

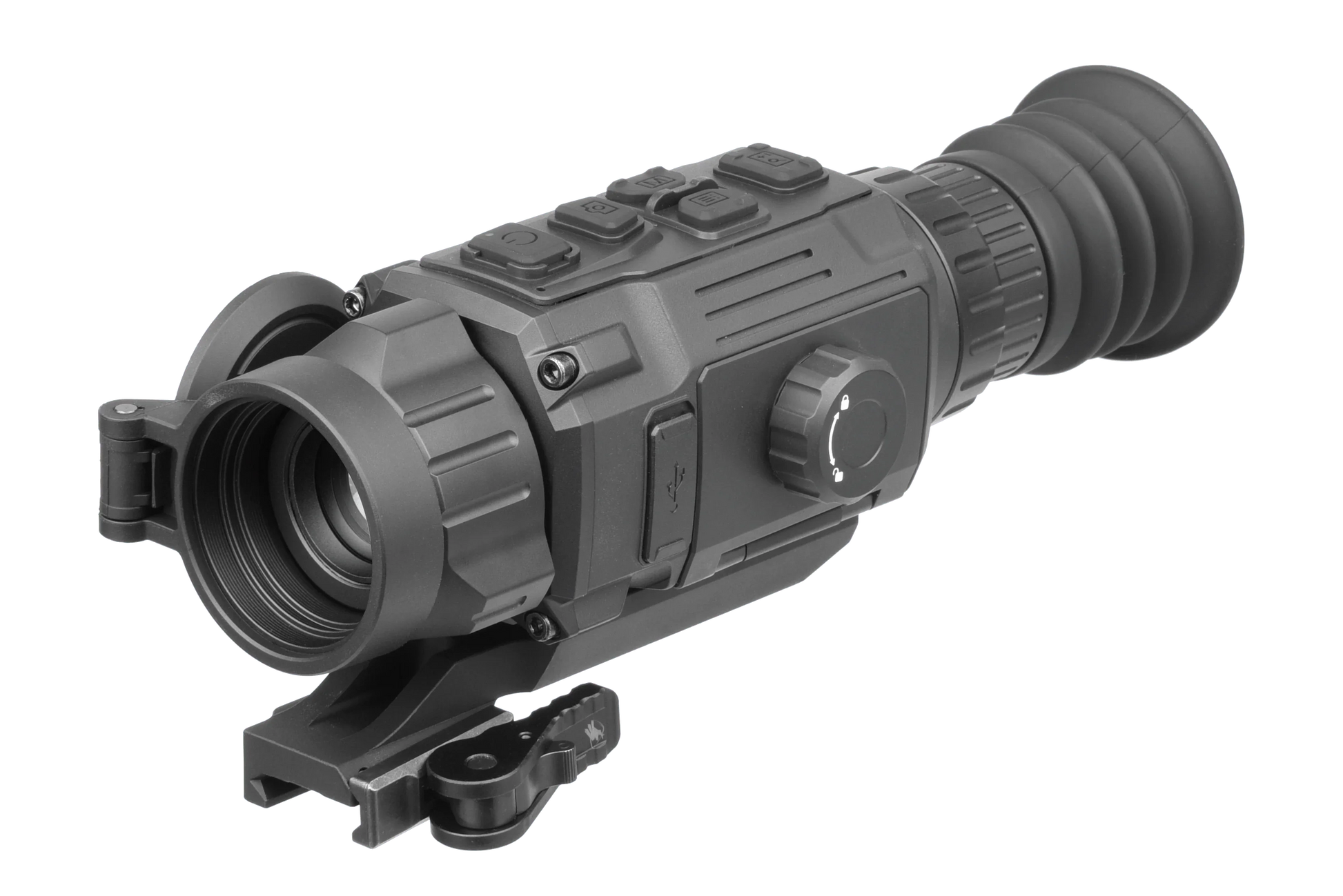

AGM Rattler V2 25-256 Thermal Rifle Scope Weapon Sight 256x192 (50Hz) 25mm (314218550204R221)
The RattlerV2 25-256, an upgraded version of the Rattler TS25-256, is an excellent budget-friendly choice for close-range night hunts, thermal hunting beginners, or as a secondary scope. It is equipped with a 25mm Germanium lens, a 256x192 resolution thermal sensor, and a 3.5x base magnification, providing a detection range of up to 1250 yards. While it offers a slightly narrower Field of View (7.0° × 5.3°, or 37 feet at 100 yards) compared to some other models, it balances this with better long-distance identification. The increase in refresh rate from 25 Hz to 50 Hz ensures smoother, more responsive scanning with minimal lag.

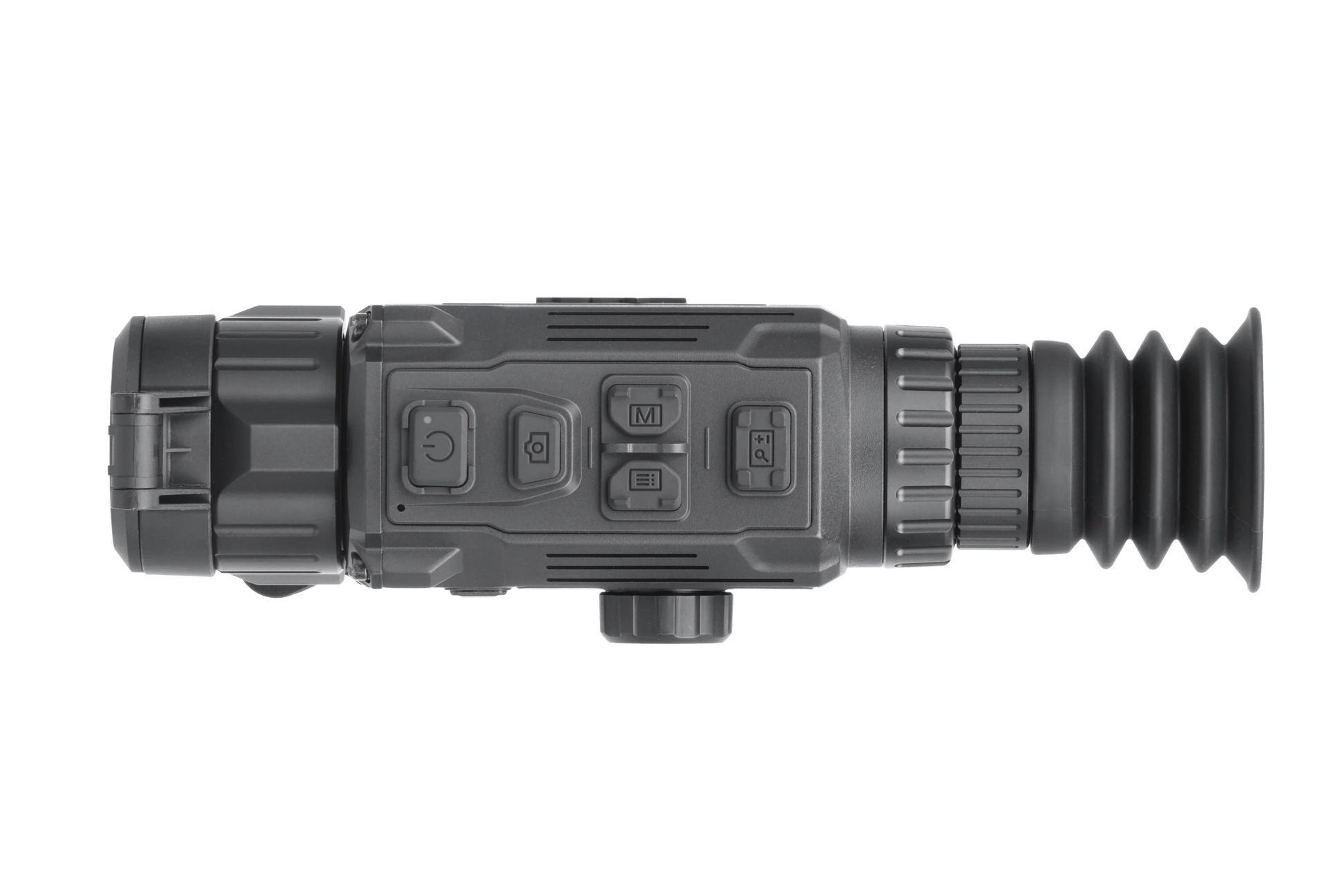

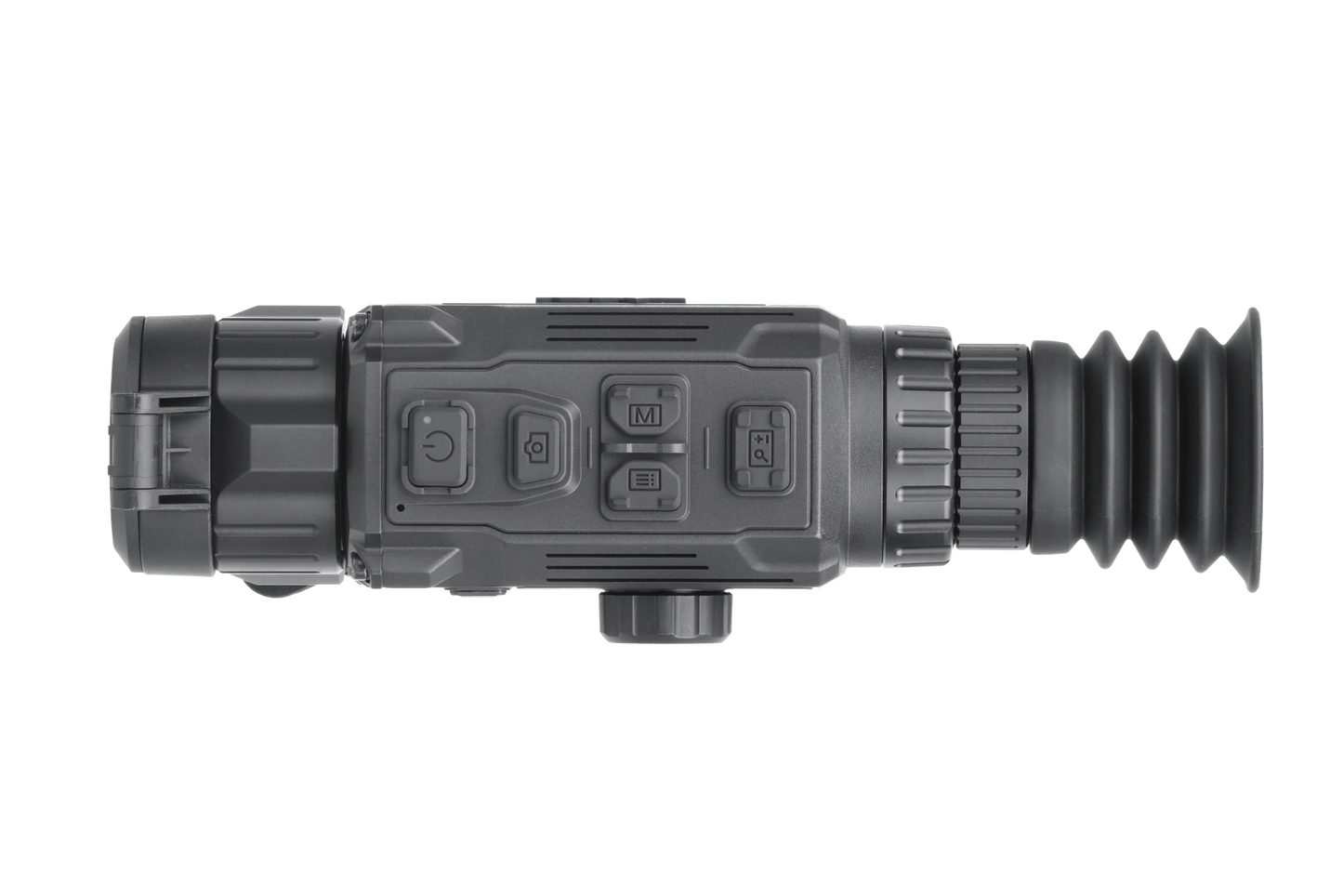

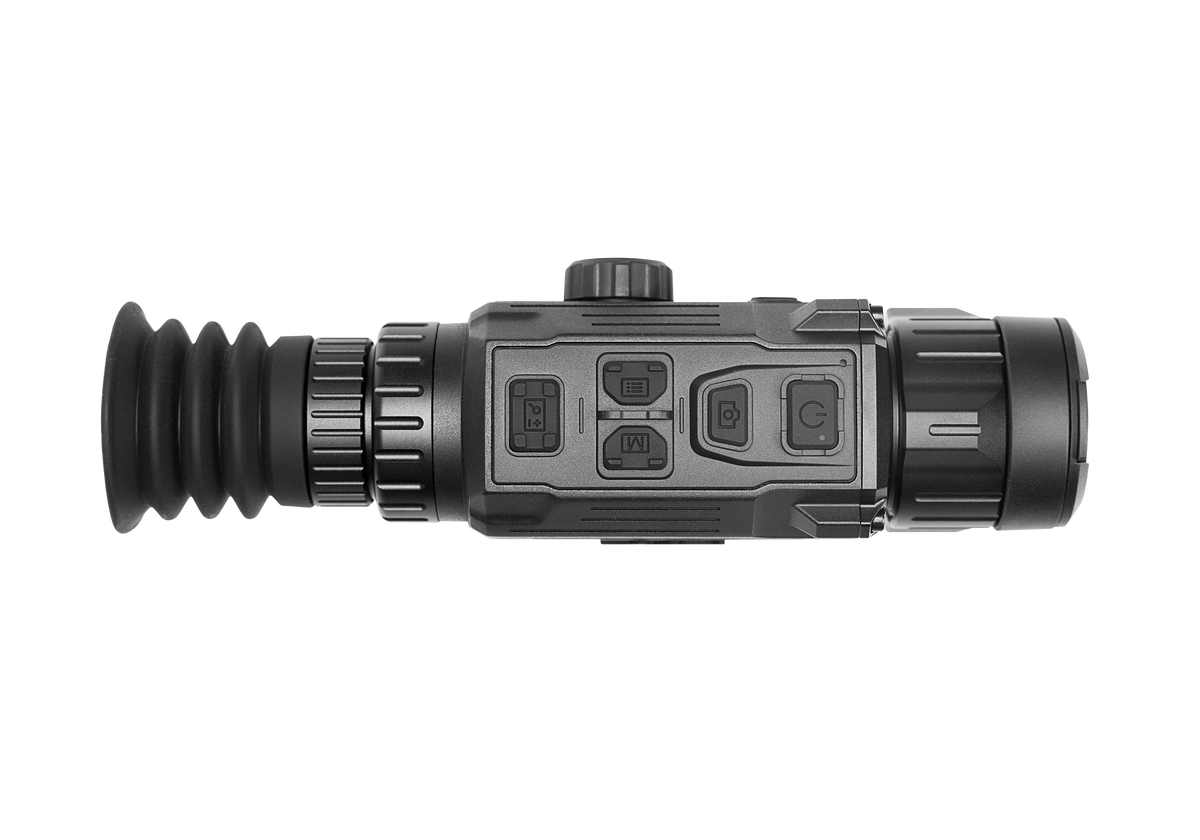

In addition to familiar AGM Rattler features, the RattlerV2 25-256 brings new improvements, including an upgraded battery compartment that supports a rechargeable battery, boosting run time to 11.5 hours. Key features include Shot Activated Recording, a simplified menu interface, and 10 reticle options with multiple zeroing profiles for different calibers and rifles. The scope also comes with a custom ADM QD mount for quick attachment and detachment, Wi-Fi hotspot capability via the AGM app, and a raised 5-button layout designed for easy navigation, even when wearing gloves.
AGM Rattler V2 25-256 Features:
256×192 resolution with 12-micron sensor
High-sensitivity thermal detector
Fast 50Hz imaging
High resolution OLED display
Adjustable color palettes
Various reticle types and colors
1x, 2x, 4x, 8x digital zoom
On-board video/audio recording and image capture
Built-in EMMC storage (16 GB)
Shot Activated Recording (SAR)
Wi-Fi data transmission
Stadiametric rangefinder
Standby mode
Up to 11.5 hours battery life
External power supply compatibility
Waterproof & shockproof
5-year warranty
AGM Rattler V2 25-256 Specifications:
|
|
|
|
Detector
|
12μm VOx Uncooled Focal Plane Array
|
|
|
Resolution
|
256 × 192
|
|
|
NETD
|
Less than 35 mK (25°C, F# = 1.0)
|
|
|
Refresh Rate
|
50 Hz
|
|
|
Lens System
|
25 mm; F/1.0
|
|
|
Magnification
|
3.5× - 28×
|
|
|
Field of View
|
7.0° × 5.3°
|
|
|
Diopter Adjustment
|
-5 to +5 diopters
|
|
|
Focus Range
|
0.5 m to infinity
|
|
|
Exit Pupil
|
6 mm
|
|
|
Eye Relief
|
45 mm
|
|
|
Digital Zoom
|
1×, 2×, 4×, 8×
|
|
|
Detection Range (6’ object)
|
1250 m/yd
|
|
|
Display
|
0.39-inch, OLED, 1024×768
|
|
|
Palettes
|
Black hot, White hot, Red hot, Fusion
|
|
|
Flat Field Correction
|
Auto, Manual, External Correction
|
|
|
Scene Mode
|
Cold, Warm
|
|
|
Boresight Adjustment
|
Digital Controlled
|
|
|
Video/Audio Recording
|
Yes
|
|
|
Image Capture
|
Yes
|
|
|
Standby Mode
|
Yes
|
|
|
Storage
|
Built-in EMMC (16 GB)
|
|
|
PIP
|
Yes
|
|
|
Defective Pixel Correction
|
Yes
|
|
|
WiFi Hotspot
|
Yes
|
|
|
Hot Track
|
Yes
|
|
|
Reticle
|
10 types, 4 colors, on/off
|
|
|
Distance Measurement
|
Yes (Stadiametric)
|
|
|
Shot Activated Recording (SAR)
|
Yes
|
|
|
Battery Type
|
Replaceable and Rechargeable Li-ion Battery
|
|
|
Battery Life (Operating, 20°C)
|
Up to 11.5 hours (25°C, with hotspot off)
|
|
|
External Power Supply
|
5 VDC, 2 A, USB Type-C
|
|
|
Operating Temperature Range
|
-30°C to +55°C (-22°F to 131°F)
|
|
|
Protection Level
|
IP67
|
|
|
Max. Recoil
|
1000 g/0.4 ms
|
|
|
Weight (w/o mount and battery)
|
0.48 kg (1.06 lb)
|
|
|
Dimensions (w/o mount)
|
219 × 68 × 67 mm (8.5 × 2.7 × 2.6 in)
|
|
|
|
|
|
Data Sheet
PACKAGE INCLUDES
Thermal Imaging Rifle Scope
Mount
Two Rechargeable Battery
Charger
USB Cable
Lens Cloth
Manual
Carrying Case
