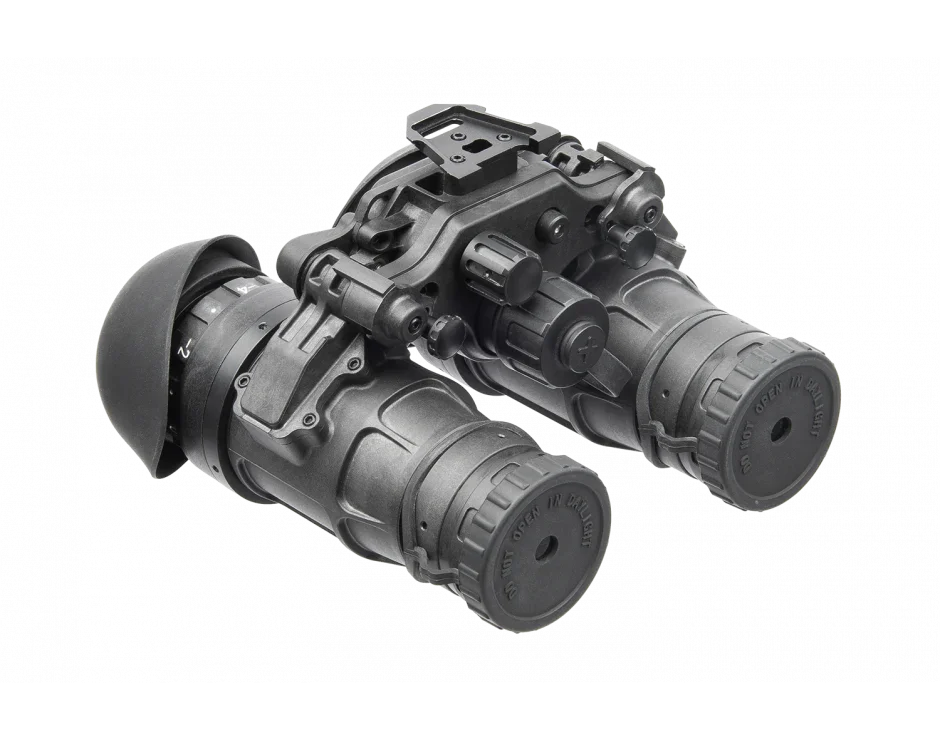

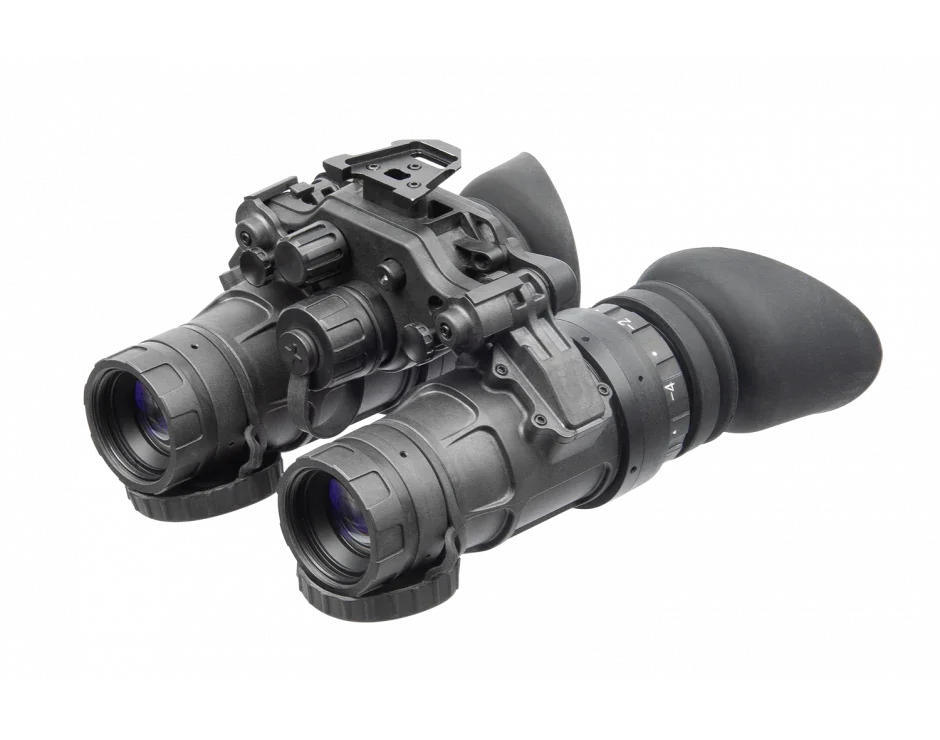

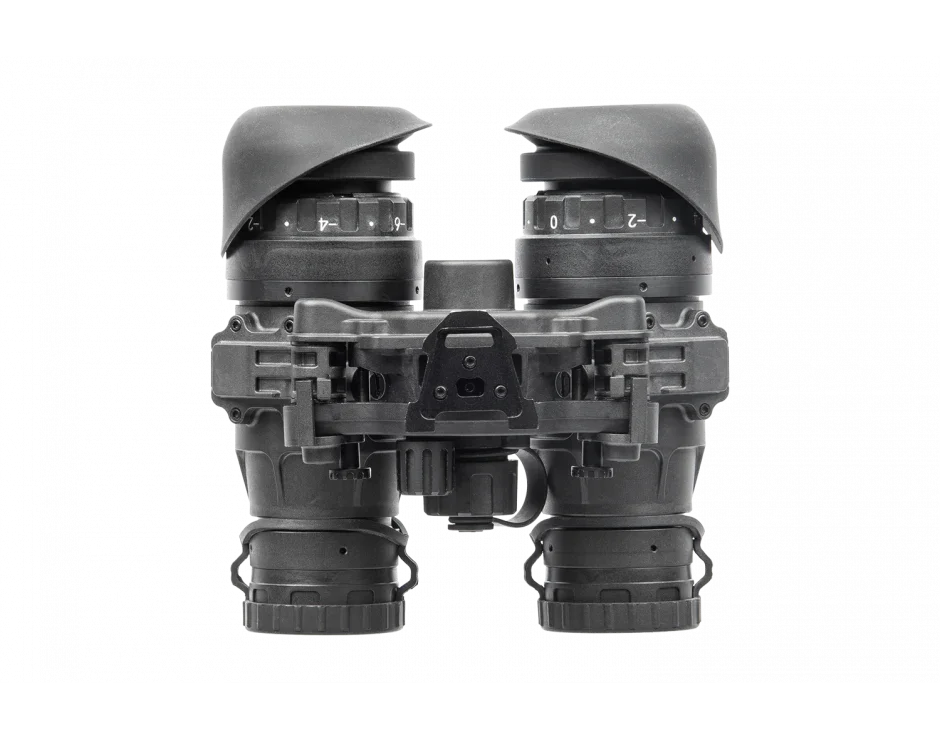

AGM UNVG 3APW Gen 3 Ultralight Night Vision Binocular 40 FOV White Phosphor Auto-Gated 2200+ FOM

AGM UNVG 3APW Gen 3 Ultralight Night Vision Binocular 40 FOV White Phosphor Auto-Gated 2200+ FOM

12UN41294194111

$ 9,795.00
$ 9,795.00
Sale Sold out
Shipping calculated at checkout.

AGM UNVG 3APW Gen 3 Ultralight Night Vision Goggle/Binocular 40 FOV White Phosphor Auto-Gated 2200+ FOM 12UN41294194111

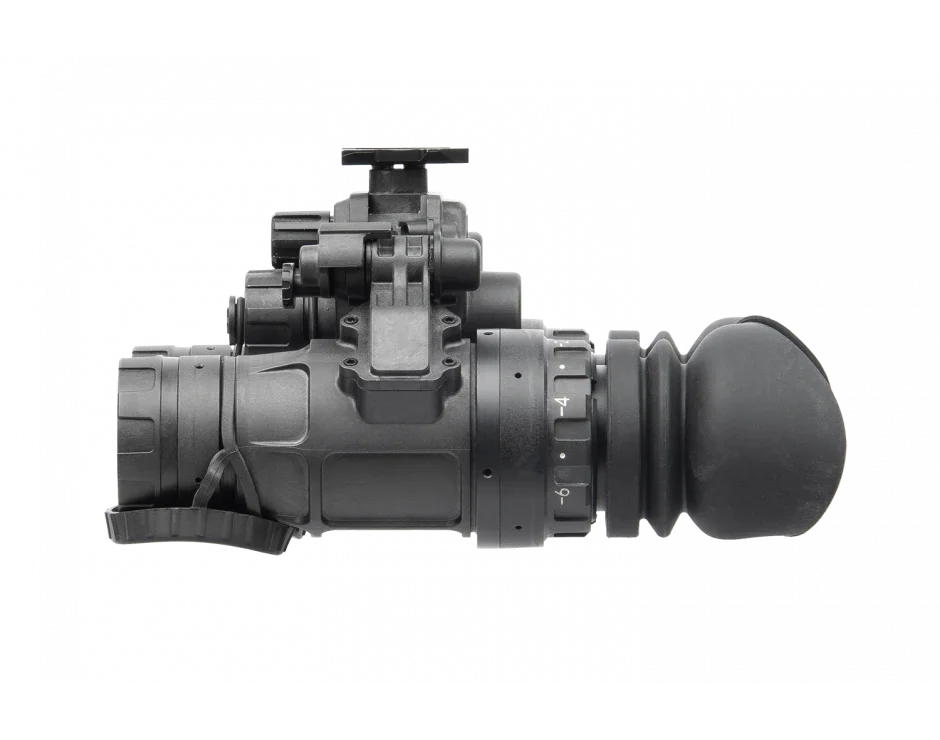

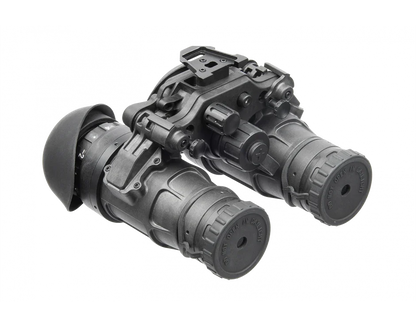

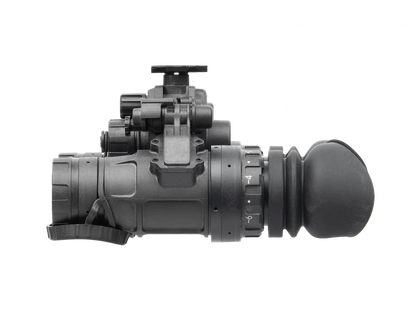

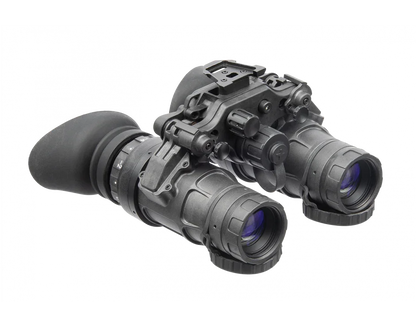

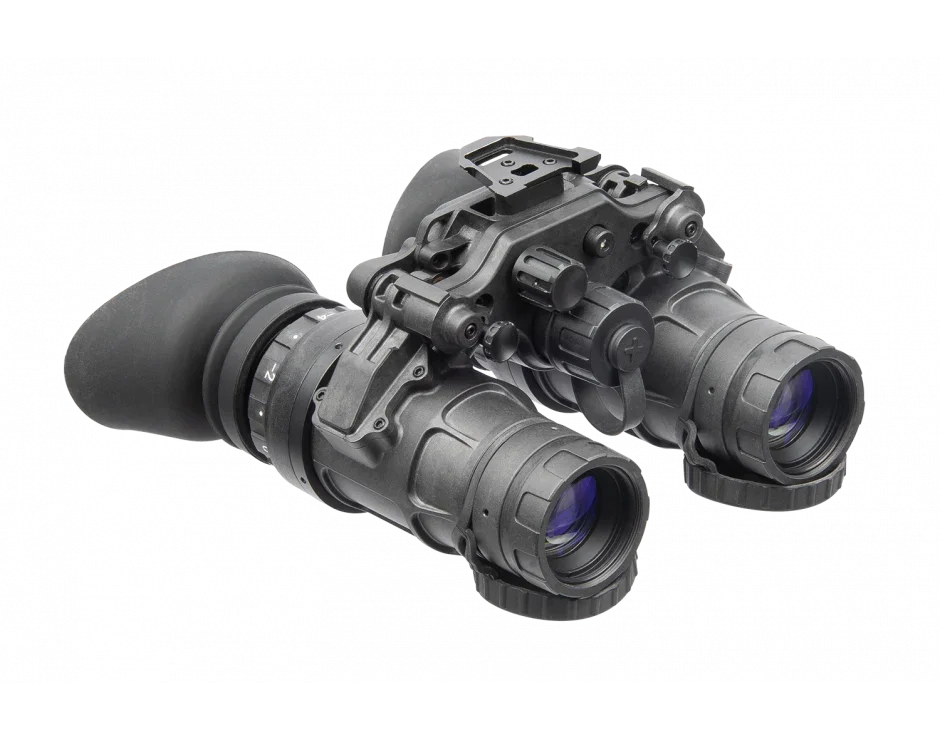

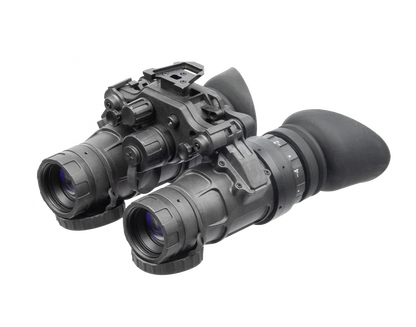

The AGM UNVG is a dual-channel night vision system. The UNVG uses advanced multi-coated optics and is built to last with a compact composite housing. The device can be outfitted with a Gen 3 high-performance image intensifier tube (IIT). The bright light cut-off feature ensures that the high-quality photocathode tube is protected. The UNVG is also equipped with manual gain control, which adjusts the image brightness, providing the highest possible image quality even in changing light conditions. A programmable setting system allows to activate the flip-up shutdown function and automatic sleep mode depending on the tactical situation. Operating from a single AA alkaline battery, the UNVG can run up to 25 hours. Also equipped with an integral infrared illuminator for reading in the dark. The device can be installing to a either standard dovetail type headset and helmet mount.

AGM UNVG 3APW Features:


Low Power Consumption Design: Automatic dormancy when not in use, quick wake-up on movement, low-power indicator. Utilizes single AA battery or external battery pack.

Built-in Gyroscope Chip System: Prevents eyepiece astigmatism exposure during helmet flip-up.

Programmable Tactical Strategy Setting: Customizable settings for flip-up shutdown and automatic dormancy.

Flip-Up Auto Off Feature: Each tube will automatically turn off when flipped up out of the way.

Corrosion and Impact-Resistant Housing: Matte black finish with PEEK+Glass fiber material for longevity.

Quick Attachment Design: Dovetail base support for strong compatibility and durability.

PVS-14-style Compatible: Objective lens and eyepiece lens are compatible with PVS-14 style components and attachments.

Independent Pod Movement: Pods can roll up and down for quick configuration changes.

Ultralight Housing: 16oz/460g weight means improved mobility, responsiveness, and reduced fatigue.

Single/Double Eye Configuration: Pods independently adjustable for improved operational flexibility.

IR Complement Function: Infrared illuminator for enhanced visibility in total darknessand close quarters environments.

Manual Gain Control: Adjust image intensifier gain for optimal vision preferences.

New Simplified IP Stop Design: Improve IP Stop design allows you to set your tube positions to what is most comfortable for the user.

AGM UNVG 3APW Specifications:

Interpupillary Distance
56 to 72 mm
Submersion
20m (66 feet) for 2 hours
Image Intensifier Tube
Gen 3 Auto-Gated "White Phosphor 3APW"
Resolution
64-72 lp/mm
Field of view cleanness by zone
Gen 3 IIT 3APW is offered with high quality and practically no visible spots in Zone 1.
Magnification
1x
Lens System
25mm, F/1.23
FOV
40°
Focus Range
0.25 m to Infinity
Eye Relief
25 mm
Diopter Adjustment
-6 to +2 diopters
Infrared Illuminator
Yes
Manual Gain Control
Yes
Battery Type
One AA (1.5 V) or External Battery Pack (four AA or two CR123A)
Battery Life (Operating)
One AA - up to 15 hours External Battery Pack (four AA) - up to 50 hours External Battery Pack (two CR123A) - up to 30 hours
Exit Pupil Diameter
14 mm
Operating Temperature Range
-40°C to +50°C (-40°F to +122°F)
Storage Temperature Range
-50°C to +70°C (-58°F to +158°F)
Weight
500 g (1.1 lb)
Overall Dimensions
101 × 116 × 85 mm (4.0 × 4.6 × 3.3 in)
Protection Level
IP67
Warranty
3 Years

Package Includes

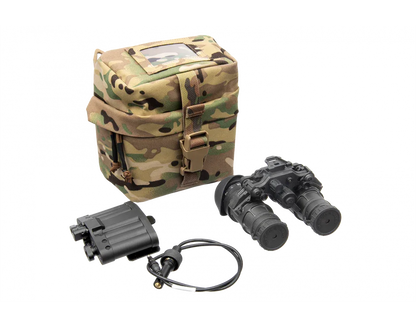

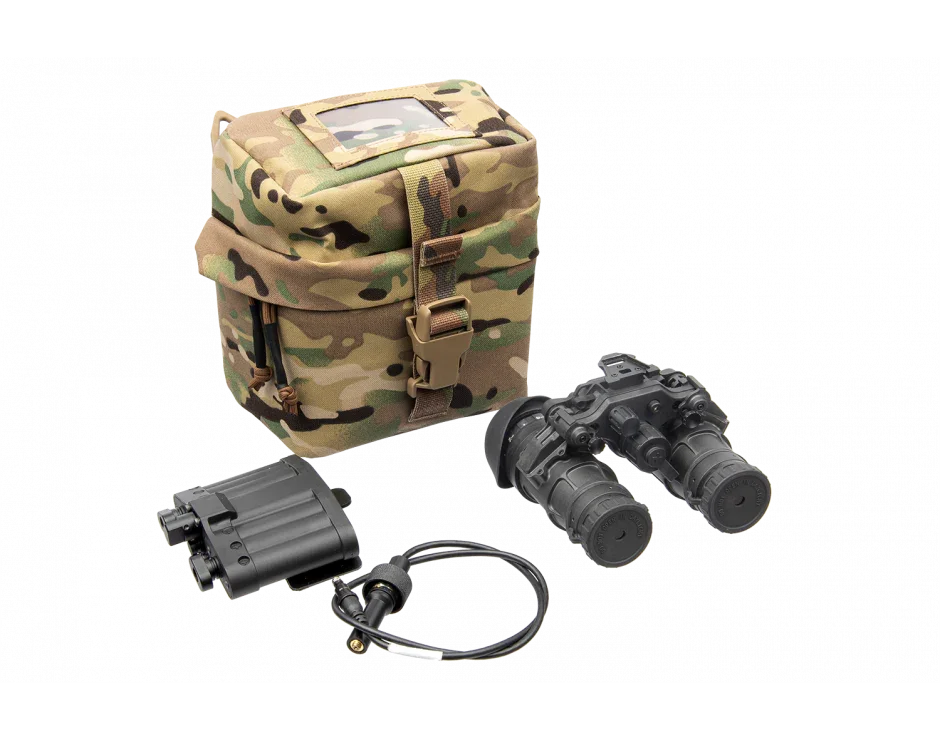

Night Vision Goggles, External Battery Pack, Connecting Cable with Battery Adapter, Demist Shield (2), Sacrificial Window (2), Neck Strap, Carrying Case, Lens Cloth, User Manual, AA Battery



EXPORT RESTRICTION

Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
