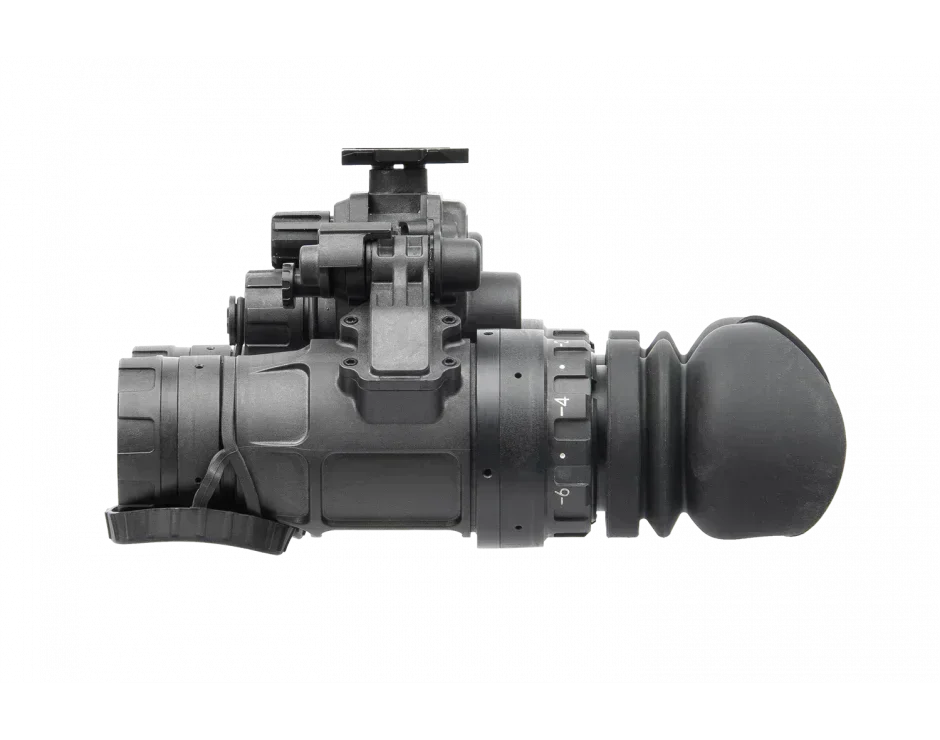

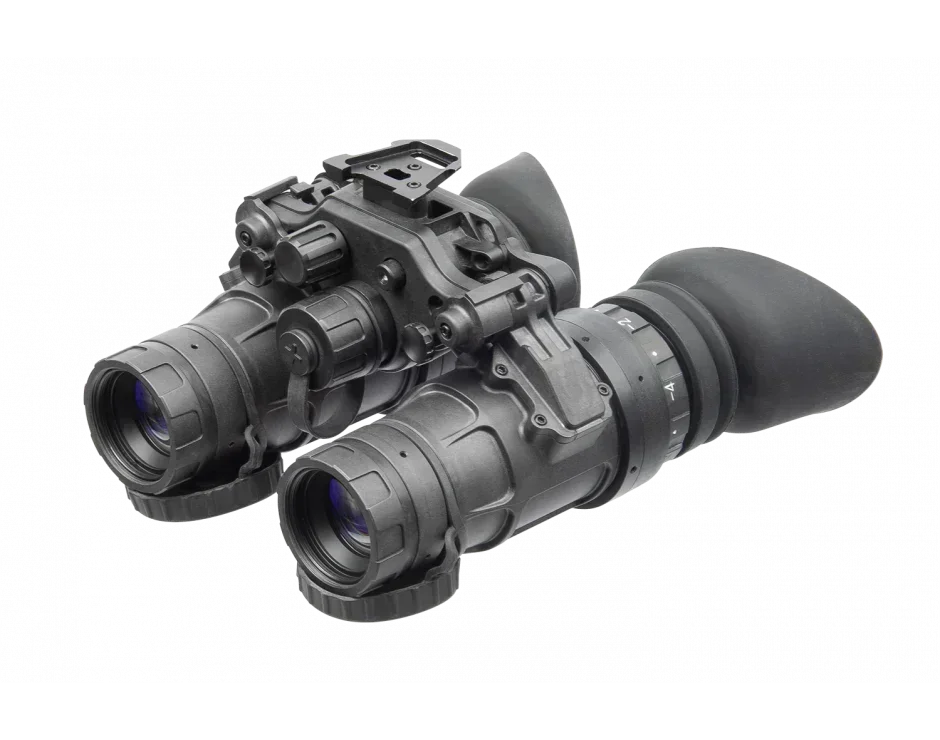

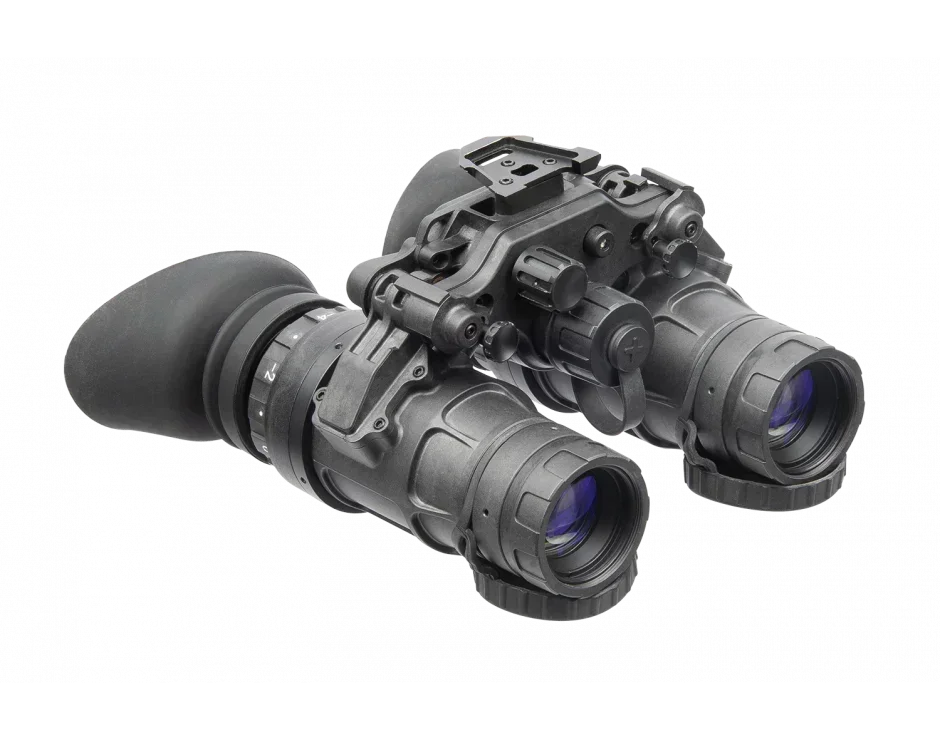

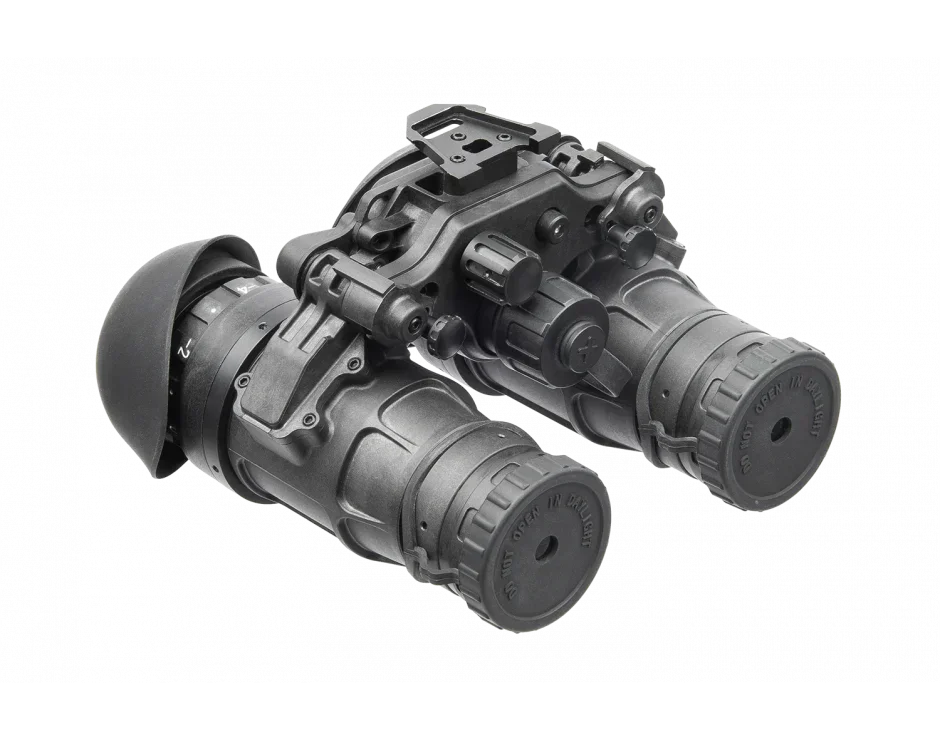

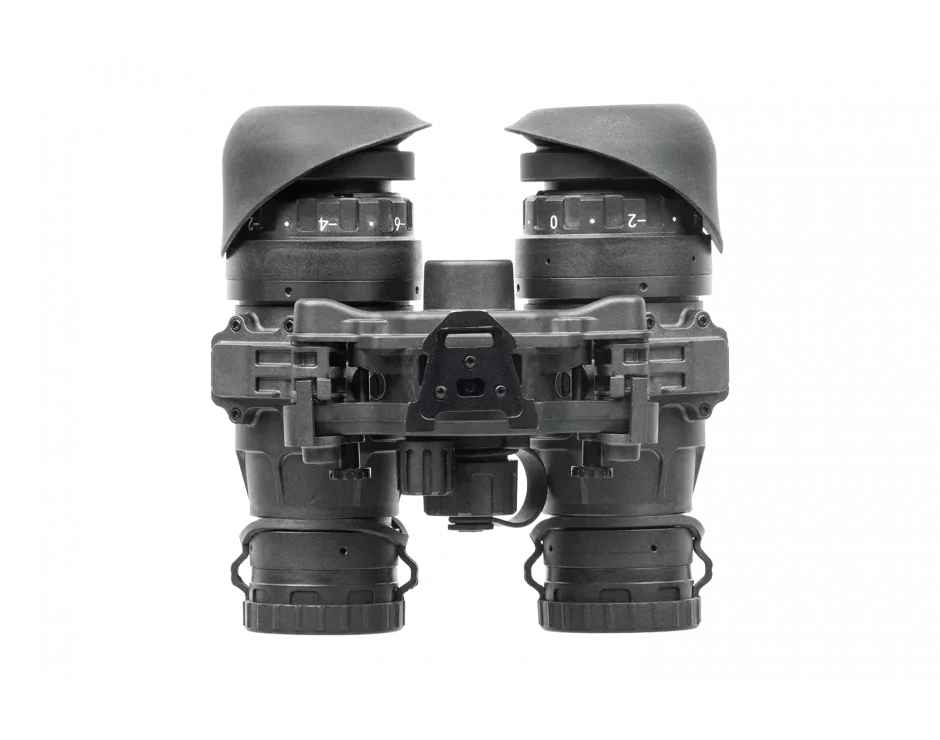

AGM UNVG NW1 Gen 2+ Ultralight Night Vision Binocular 51 FOV White Phosphor

AGM UNVG NW1 Gen 2+ Ultralight Night Vision Binocular 51 FOV White Phosphor

SKU:12UN51284154011

Regular price $ 5,995.00
Regular price Sale price $ 5,995.00
Sale Sold out
Shipping calculated at checkout.

AGM UNVG NW1 Gen 2+ Ultralight Night Vision Goggle/Binocular 51 FOV White Phosphor 12UN51284154011


The AGM UNVG is a dual-channel night vision system. The UNVG uses advanced multi-coated optics and is built to last with a compact composite housing. The device can be outfitted with a Gen 3 high-performance image intensifier tube (IIT). The bright light cut-off feature ensures that the high-quality photocathode tube is protected. The UNVG is also equipped with manual gain control, which adjusts the image brightness, providing the highest possible image quality even in changing light conditions. A programmable setting system allows to activate the flip-up shutdown function and automatic sleep mode depending on the tactical situation. Operating from a single AA alkaline battery, the UNVG can run up to 25 hours. Also equipped with an integral infrared illuminator for reading in the dark. The device can be installing to a either standard dovetail type headset and helmet mount.

AGM UNVG NW1 Features:


Low Power Consumption Design: Automatic dormancy when not in use, quick wake-up on movement, low-power indicator. Utilizes single AA battery or external battery pack.

Built-in Gyroscope Chip System: Prevents eyepiece astigmatism exposure during helmet flip-up.

Programmable Tactical Strategy Setting: Customizable settings for flip-up shutdown and automatic dormancy.

Flip-Up Auto Off Feature: Each tube will automatically turn off when flipped up out of the way.

Corrosion and Impact-Resistant Housing: Matte black finish with PEEK+Glass fiber material for longevity.

Quick Attachment Design: Dovetail base support for strong compatibility and durability.

PVS-14-style Compatible: Objective lens and eyepiece lens are compatible with PVS-14 style components and attachments.

Independent Pod Movement: Pods can roll up and down for quick configuration changes.

Ultralight Housing: 16oz/460g weight means improved mobility, responsiveness, and reduced fatigue.

Single/Double Eye Configuration: Pods independently adjustable for improved operational flexibility.

IR Complement Function: Infrared illuminator for enhanced visibility in total darknessand close quarters environments.

Manual Gain Control: Adjust image intensifier gain for optimal vision preferences.

New Simplified IP Stop Design: Improve IP Stop design allows you to set your tube positions to what is most comfortable for the user.

AGM UNVG NW1 Specifications:

Interpupillary Distance
56 to 72 mm
Submersion
20m (66 feet) for 2 hours
Image Intensifier Tube
Gen 2+ "White Phosphor Level 1"
Resolution
51-64 lp/mm
Field of view cleanness by zone
Gen 2 IIT NW1 is the highest resolution and the cleanest offered by AGM. There are practically no visible spots in Zone 1.
Magnification
1x
Lens System
25mm, F/1.23
FOV
51°
Focus Range
0.25 m to Infinity
Eye Relief
25 mm
Diopter Adjustment
-6 to +2 diopters
Infrared Illuminator
Yes
Manual Gain Control
Yes
Battery Type
One AA (1.5 V) or External Battery Pack (four AA or two CR123A)
Battery Life (Operating)
One AA - up to 15 hours External Battery Pack (four AA) - up to 50 hours External Battery Pack (two CR123A) - up to 30 hours
Exit Pupil Diameter
14 mm
Operating Temperature Range
-40°C to +50°C (-40°F to +122°F)
Storage Temperature Range
-50°C to +70°C (-58°F to +158°F)
Weight
500 g (1.1 lb)
Overall Dimensions
101 × 116 × 85 mm (4.0 × 4.6 × 3.3 in)
Protection Level
IP67
Warranty
3 Years

Package Includes

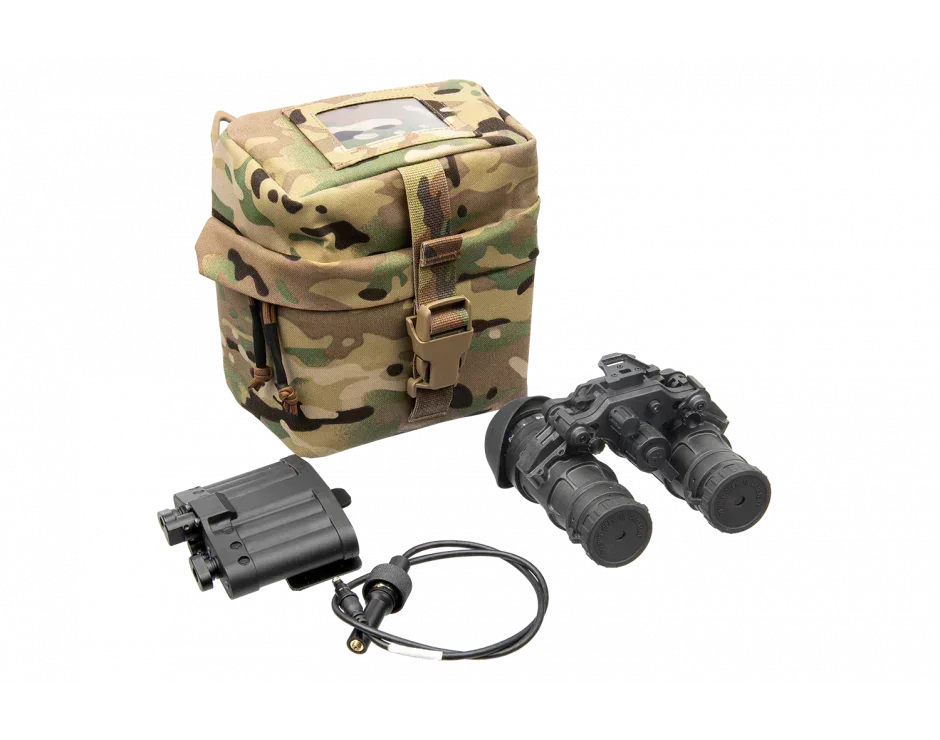

Night Vision Goggles, External Battery Pack, Connecting Cable with Battery Adapter, Demist Shield (2), Sacrificial Window (2), Neck Strap, Carrying Case, Lens Cloth, User Manual, AA Battery
